BOSS GT-PRO User Manual

BOSS PRODUCTS CATALOG 2005 VOL.1

FORGING THE FUTURE

BOSS Product Parade 2005

The World’s Best-Selling
Compact Effects

With over eight million sold, BOSS
compact pedals are the premier
portable effect devices. They’re
famous for their great sound,
user-friendliness, and road-tough
reliability.

TWIN PEDAL

SERIES

The Luxury Twin-Effects
Line

With the Twin Pedal Series, BOSS
takes its compact pedal design to
new heights. Extra functionality
and a small footprint place these
two-punch pedals beyond the
standard stompbox.

TU SERIES

The Gold Standard
in Tuning

BOSS Tuners are world famous for
their reliability and accuracy.
Whether you play guitar, bass, or
French horn, there’s a BOSS tuner
for you.

AD SERIES

Unlock the Potential of
Acoustic Guitars

Effects aren’t just for electric
guitars. Plug a piezo-equipped
acoustic into an AD-series
processor and take control over
body sound. Shape your overall
tone and add rich, crystal-clear
ambience.

GT-PRO

Twin COSM®Engines in a
Single Rack

With dual-processing power and
an expansive I/O section, the new
GT-PRO is a lethal front-end for
driving a wall of powered
cabinets or for direct, pro-grade
recording applications.

COMPACT
SERIES

9-103-8 11 12 13 - 16

FORGING

THE

FUTURE

Innovation For Creative Inspiration

BOSS forges into 2005 with an awe-inspiring lineup of effects,

digital studios, and accessories. Award-winning technology and

road-tough construction make BOSS products the most respected

and sought-after tone tools, recorders, and musical accessories in

the world. When you want the best of best, choose BOSS — the

brand that symbolizes quality, reliability, and innovation.

GT SERIES

Advanced Multi-Effects
Processors

When it comes to multi-effects,
BOSS offers the best floor-based
solutions for bass and guitar
players, powered by COSM amp
models and pro-grade, ultra­flexible effects.

ME SERIES

Multi-Effects with Intuitive
Operation

Floor-based multi-effects
processors built with the simplicity
of a stompbox. Dialing in your
tone is easy, thanks to dedicated
knobs for each effect section,
three footswitches, and a built-in
expression pedal.

GS-10

Next-Generation Hybrid
Effects System

Powered by BOSS’s most advanced
COSM modeling technology, the
GS-10 is your gateway to an
extraordinary range of vintage
and modern effects. There is also
a convenient feature for direct­recording to computer.

BR SERIES

Pro-Quality Studios with
Built-in Burners

From concept to completion,
these award-winning portable
studios have all the features you
need to produce great music —
including built-in effects, an ultra­realistic rhythm machine, and CD
burning.

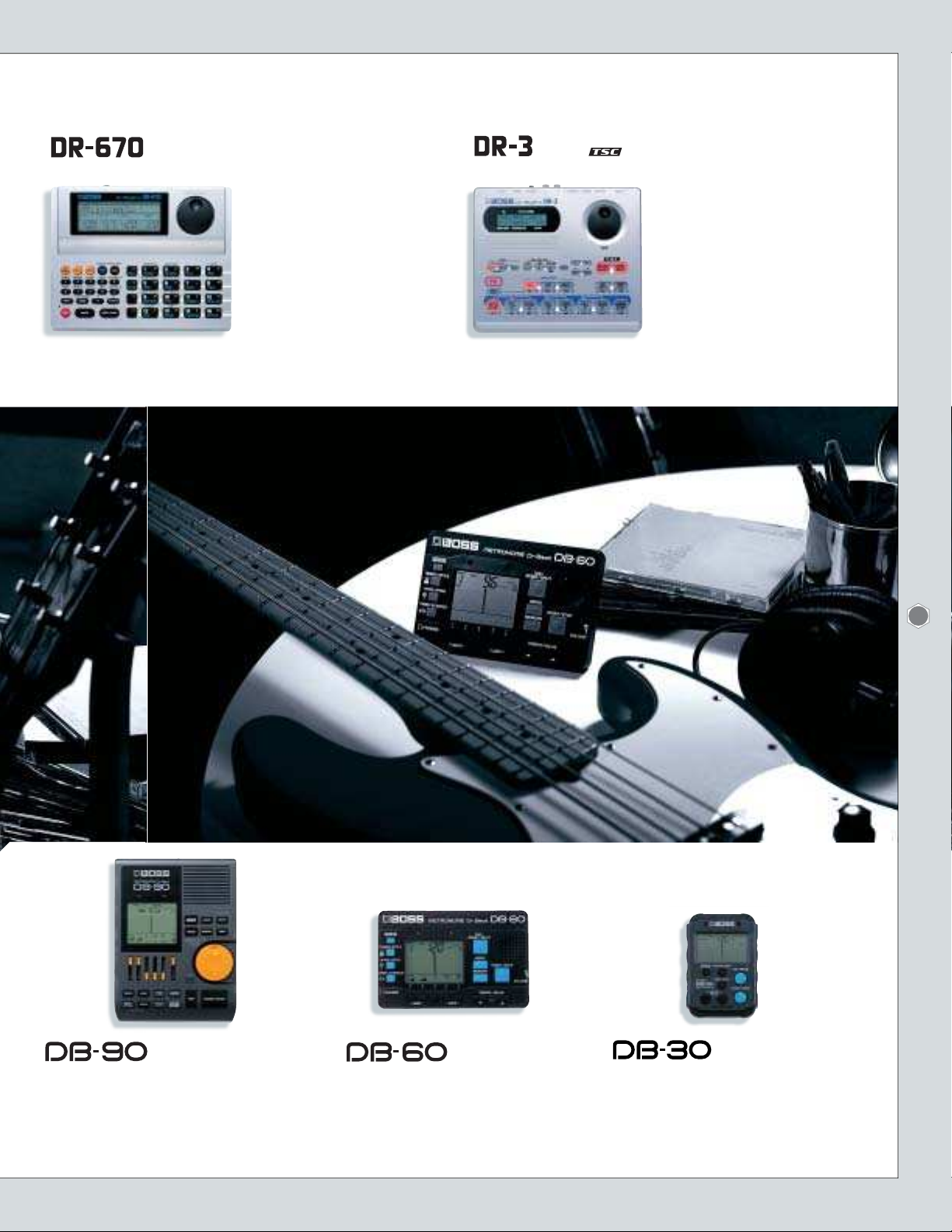

DR & DB
SERIES

Small But Powerful
Timekeeping Tools

Inject serious style into your
musicmaking with the world’s
most powerful rhythm
programmer. Make practice fun
and effective with the
feature-packed DB-series
metronomes.

17-20 21 22 23- 26 27- 28

THE BOSS
COMPACT
EFFECTS
STORY

From the beginning, BOSS has built the
best pedals by adhering to these key
principles: ➀ Reliable aluminum die cast
bodies. ➁ Pedal switches that withstand
the 100,000-repetition durability test.
➂ FET switches to eliminate the clicking
noise of conventional mechanical switches.
➃ Non-slip rubber bases. ➄ Easy-to-install
battery compartments. ➅ LED indicators.
➆ Battery and AC power.

Philosophy

Beyond standard effects, BOSS is famous
for its unique and unusual stompboxes,
such as the SG-1 Slow Gear, VB-2 Vibrato,
and, most recently, the SYB-5 analog­modeling bass synthesizer pedal.

Originality

Not just for guitarists, BOSS has a range of
effects built specifically for bass players. So
plug in, and anchor your music with solid,
high-impact effects that are custom­tailored for low frequencies.

Bassists Welcome

The history of BOSS reads like the history
of guitar effects. The famous compact
pedal line-up began in 1977 with the
classic OD-1 Overdrive,
which established the
masterful design
principle for all other
BOSS effects pedals
that followed.

Legend

Only the very best components and
circuitry are used in BOSS pedals. No
corners are cut, no
compromises are
made — these
pedals are built to
sound great and
take a pounding.

Pro Quality

Where will you take your tone? From
subtle sweetening to complete audio
transformation, BOSS provides more tone­shaping options than any other compact­effects manufacturer in industry.

Imagination

BOSS has laid claim to many “world firsts

”
during its illustrious history. Among the
many BOSS highlights have been bringing
to market the first-ever chorus, overdrive,
digital delay,
reverb, and
pitch-shifter
pedals.

Breakthrough

BOSS offers an incredibly wide variety of
effects that can take your sound to places
it has never been before. Whether you
need subtle polish or full, sonic immersion,
BOSS effects will do the job reliably and
professionally.

Colorful Lineup

It’s no accident that BOSS has become the
world’s leading effects manufacturer. With
over eight million pedals sold, BOSS has
built its reputation by connecting with the
community. We listen and react to what
players demand,
while also pushing
the envelope into
new, unexplored
realms.

8 Million & Growing

3

COMPACT SERIES

DD-6 RV-5 PS-5

ODB-3 GEB-7 CEB-3

Eight Million Pedals Strong

At BOSS, we’ve been making the world’s most popular compact guitar
pedals and accessories for over 25 years. From classic effects, such as our
legendary chorus and delays, to the latest cutting-edge tools for modern

music making....When you’re serious about sound, choose BOSS.

4

COMPACT SERIES

FORGING

THE

FUTURE

AGGRESSION OBSESSION

Explore Your Inner Rock Star

Warm, fatten, bake, or burn — BOSS overdrive and distortion
pedals are world famous for their rich, aggressive, and expressive
sound. With nine compact pedals in this category, guitarists have
an expansive range of power-tone tools to choose from.

COMPACT SERIES

5

COMPACT SERIES

6

COMPACT SERIES

Info Bytes

Benchmark Overdrive & Distortion

BOSS’s original overdrive, the OD-1, was
famous for its rich, warm, and detailed sound.
That legacy carried forward to the popular
SD-1 and OD-3, and now to the BD-series —
the new standard in Overdrive processing.
Likewise, BOSS’s acclaimed DS-1 distortion
pedal evolved to the DS-2, which paved the
way for today’s benchmark distortion effect,
the MD-2.

New-Breed Overdrive

Adding to the legacy of great BOSS overdrives
(such as the OD and DS series), the BD-2 and
MD-2 represent the new standard in
overdrive/distortion effects. Try them soon!

BD-2: The BD-2 responds expressively to
performance dynamics, including factors such
as the guitarist’s picking attack, touch, and
volume/tone settings.
MD-2: The MD-2 can be extremely distorted
with fat and deep characteristics, while not
obliterating the original guitar tone.

Warm, Tube Drive
Sounds

Uses BOSS’s asymmetric
overdrive circuitry for warm,
smooth overdrive sounds
that respond to your picking
style just like a tube amp.
Includes a Tone control to
dial in just the right sound.

Used by Pros
Everywhere

A classic! Add some
hard-edged distortion while
preserving the subtle
nuances of your playing
dynamics. A Tone control is
provided for easy sound
shaping.

Nu-School Distortion
with Massive Low End

This pedal’s dual Distortion
and Gain Boost circuits take
thick, heavy distortion
sounds to a whole new
level. Special Gain Boost
and Bottom controls let you
shape your tone for
maximum volume and
low-end punch.

Crunchy Overdrive
Effects for Bass

An overdrive effect designed
to cover the entire
frequency range of bass
guitars, including 5-string
basses. Overdriven sounds
can be blended with dry
bass signal for maximum
clarity and punch.

Natural Overdrive
with Endless Sustain!

Classic BOSS overdrive,
based on a dual-stage
design for bigger, fuller
sounds. Variable Drive and
Tone controls create
overdriven sounds from
mild to extreme with almost
endless sustain.

A flexible pedal capable of
producing overdrive,
distortion, or a combination
of both. Get “in your face”
distortion while maintaining
the subtle nuances of
single-coil guitar pickups.

Two Distortions
for the Price of One

Features twin modes for an
expanded range of
distortion — taking you
from blues-rock rhythms to
searing leads at the press of
a pedal or twist of a knob.

BOSS’s Most
Popular Pedal!

Features dual-gain
circuitry for thick, tube
stack distortion with heavy
mids and lows and
long-lasting sustain.
A 3-band EQ with semi­parametric mids takes your
sound to the extreme.

The Perfect Distortion
for Blues

Get the tone of a bluesy,
vintage tube amp in a
compact pedal capable of
anything from warm
overdriven sounds to full-on
distortion. Leaves the subtle
nuances of your playing
intact.

Distortion

Mega Distortion

TURBO Distortion

Metal Zone

®

SUPER
OverDrive

Distortion and Overdrive
Together At Last!

OverDrive

OverDrive/
Distortion

Blues Driver

®

Bass OverDrive

7

COMPACT SERIES

COMPACT SERIES

FOOT PEDALS

SUPER Chorus

The Original Chorus

Chorus Ensemble

Delivers a clean chorus sound
with crystal-clear highs and a
unique stereo effect, variable
between the left and right
speakers. An EQ function adjusts
the tonality of the chorus sound.

The Ultimate
Octave Pedal

SUPER Octave

The OC-3 SUPER Octave puts
new polyphonic octave effects, a
Drive mode with distortion, and
the original OC-2 effect in one
convenient pedal that’s ideal for
bass, too.

Produces everything from mild,
natural chorusing to the
penetrating stereo chorus
popular in contemporary music.
Covers a wide frequency range
and includes both high- and
low-cut filters.

Unbelievable “Talking”
Wah Effects!

Dynamic Wah

The world’s first compact pedal
to produce human-voice type
wah sounds using a
“Humanizer” effect. EXP Pedal
mode allows foot control, plus
dedicated Bass input for
processing bass guitar.

Info Bytes

Popular Pedals for Bassists

While not specific to bass, these pedals can be very
useful for great bass sounds.
CS-3: Unique, biting compression gives your bass
maximum punch.
PH-3: Add phasing effects and aggressive animation.
Jet phasing sounds are also great for bass.
MT-2: Freely transform your bass sound from mild to
aggressive by using 3-band EQ.

Digital Delay Classics

Add depth and motion with these famous delay
effects.
DD-3: This top-selling classic imparts a musically
pleasing delay characteristic with outstanding sound
quality and simple operation.
DD-6: This popular pedal offers delay/hold times of up
to 5.2 seconds, and adds sound-on-sound recording,
tap tempo, and expressive reverse and warp effects.

Impressive Acoustic
Sounds!

A Chorus Pedal with
Built-in Crossover

Tremolo

The Flanger Gets
a Face-Lift

Flanger

Turn your electric guitar into
an acoustic using four distinct
modes: Standard, Jumbo,
Enhance, and Piezo. Two
individual outputs permit instant
switching between different
amps (one for electric sounds;
one for acoustic).

A split-frequency chorus
capable of applying warm,
rich chorus to higher
frequencies without muddying
the lows. A space synthesis
effect guarantees a natural and
spacious chorus effect.

Reproduces the classic
tremolo effects of vintage
’60s amps using a Low
Frequency Oscillator (LFO). LFO
waveform is variable from
triangle to square for producing
a variety of classic tones.

The thickest stereo flanging
sounds ever in a BOSS pedal.
Ultra mode produces BOSS’s
deepest flanging sounds ever,
while Gate/Pan creates
spacious flanging with a cool
Slicer effect that seems to
“swirl” around the listener.

Acoustic Simulator

Bass Chorus

Classic Tremolo Sounds!

Improves Your
Overall Tone

Compresses louder signals
while boosting lower signals
for smooth sustain without
degrading the original sound
quality. Onboard EQ provides
precise tonal control; low-noise
design for super-quiet operation.

Powerful 7-Band EQ!

Shape your sound and
eliminate feedback with seven
bands of equalization. Includes
frequencies ranging from 100Hz
to 6.4kHz with a powerful 15dB
boost/cut per band.

Precise Tonal Control

With a frequency range from
50Hz to 10kHz, the GEB-7 is
ideal for any bass guitar,
including 5-string basses.
Seven bands of EQ are available,
affording greater control over
the crucial midrange.

Equalizer

Bass Equalizer

Compression
Sustainer

A Unique Stereo Chorus

The World’s First Modeling Wah Pedal!

Wah Pedal

The amazing BOSS PW-10 V-Wah®is
likely to be the last wah pedal you’ll ever
need or want. This first-of-its-kind
programmable modeling wah uses COSM
technology to recreate some of the most
popular wah pedals in history. These
include “CBY-Wah” (the classic wah
sound), “VO-Wah” (the British wah
sound), “MO-Wah” (a popular new-school
wah sound), and “Uni-V” (a vintage
swirling rotary effect).

But the PW-10 doesn’t just do wah; it
also creates analog synth-like sounds via
its “Double Resonance” mode and cool
“talking” sounds in “Voice” mode. Eight
types of overdrive sounds are also
included, which can be dialed in with the
Drive knob. Special infrared sensors give
this wah smooth and noise-free sound,
while three digital memories make it easy
to recall your favorite settings. To try it is
to love it!

8

FOOT PEDALS

COMPACT SERIES

■ OD/DS TYPE

The PW-10’s infrared sensors deliver smooth wah sounds every time —
unlike analog pedals, which become noisy once dust settles inside.

Switches the effect selected
with the Type knob on or off.

Switches between Manual mode and
the PW-10’s three User memories.

■ COSM WAH TYPE

CUSTOM ADVANCED VOICE CBY-WAH
VO-WAH MO-WAH

BLUES OD

UNI-V

METAL ZONE MUFF FUZZ VINTAGE OD GUV DIST
DISTORTION TURBO OD BLUES OD BOOSTER

High-Quality Pedals for Guitar and Keyboards

Volume/Expression Pedal

The FV-300L is a sturdy, stage-ready
volume pedal with a low-impedance
design perfect for keyboards or for
connecting after effects units.

The low-impedance FV-50L
is designed for connection
after effects units or for use
with keyboards.

Volume Pedal

The high-impedance FV-50H
is designed to be connected
before guitar effect units in
the signal chain.

Volume Pedal

Pro-Quality Delay in
a Compact Pedal

Pro-Quality Reverb —
In Stereo

Simplifies Your Setup

Smooth Tone,
Every Time

Modern Phasing with
Tap Tempo Sync

Phase Shifter

Vintage BOSS phasing effects
including 4-, 8-, 10-, and 12­stage phasers, plus new “Rise”
and “Fall” effects for
unidirectional phasing. Tap tempo
sync or realtime control of rate
via an Expression/Pedal input.

Pitch Shifting and Beyond

Combines intelligent pitch shifting
(+/-2 octaves) and harmonist
functions with new Tremolo Arm/
Flutter effects. Tremolo Arm bends
notes to a pre-selected value while
Flutter simulates the slapping of a
tremolo bar.

SUPER Shifter

A powerful delay pedal with
three distinct modes. A variable
Delay Time control creates
delays from 12.5ms to 800ms,
while a Hold function is capable
of producing repeats from here
to infinity.

The RV-5 Digital Reverb gives
you six of BOSS’s best
reverbs — including spring
reverb emulation, gate reverb,
and an all-new “Modulate”
mode — in a true stereo pedal.

Smoothes out your playing by
eliminating harsh volume peaks,
even when using dynamic slap
and pop techniques. Ratio and
Threshold knobs allow precise
control of limiting parameters.

Up to 5,200ms of
Delay!

A “Must-Have” Pedal!

Synth Power Under
Your Foot

The DD-6 Digital Delay is
BOSS’s flagship compact delay
pedal — with up to 5,200ms of
delay, sound-on-sound
recording, tap tempo, plus
unique Reverse and Warp
effects.

Eliminate unwanted noise and
hum without altering your tone.
A unique noise detection circuit
preserves the natural attack and
envelope, leaving your playing
and dynamics intact.

Utilizing the latest in DSP
technology, the SYB-5 faithfully
reproduces the classic sound
characteristics of analog
synthesizers. The 11 internal
sounds are supercharged for
thick, aggressive tone.

Bass
Synthesizer

Digital Delay

Noise
Suppressor

Bass Limiter
Enhancer

Line Selector

Digital Delay

Digital Reverb

The easy way to switch
settings among several effects
or amplifiers, or route input and
output signals. When used with
an AC adaptor, the LS-2 can
supply power to several BOSS
compact pedals.

TWIN PEDAL SERIES

DOUBLE- WIDE
PERFORMANCE

Extra Surface Area, Extra Control,
Extra Expression

Power and precision unite in the Twin Pedal series. More feature­packed than your standard stompbox, each Twin represents the
pinnacle of power in a compact case. Double your foot power
and expression with these unique 2-pedal effects.

9

TWIN PEDAL SERIES

Info Bytes

Advanced Design

The body of Twin Pedal is built on the same
solid design foundation as BOSS’s reliable
Compact series. This popular design works
well in combination with other compact
pedals and floor multieffects. Sound quality
and physical build are uncompromised in
this exceptional series.

Pro Connections

The CE-20, DD-20, and EQ-20 are
equipped with +4 dBu compatible
input and output jacks. These
professional, industry-standard
connectors allow the effects to
perform at full capacity without
reducing levels from the guitar amp.

22 Overdrive/Distortion Pedals Right Beneath Your Feet!

The OD-20 Drive Zone uses advanced COSM®technology to model the sound of classic
overdrive/distortion pedals, as well as creating new sounds of its own. There are 22
models to choose from, plus new “Attack Shape” and “Heavy Octave” parameters for
dialing in subtle nuances or extreme tones. Four
User memories store your settings, while an Amp
Control jack lets you switch amp channels remotely.

The World’s Most Powerful EQ Pedal

The EQ-20 Advanced EQ gives guitarists, bassists and other live performers 10 bands
of programmable digital EQ with stellar sound quality. Physical sliders make instant
EQ tweaks easy, and a straightforward Write function
permits instant storage of EQ settings into nine
memory locations.

BOSS’s Ultimate Chorus Pedal

The CE-20 Chorus Ensemble is the culmination of over 25 years of BOSS chorus experience.
This programmable chorus pedal not only models classics such as the CE-1 and SDD-320,
but creates entirely new effects, including chorus for bass and acoustic guitar. New “Brilliance”
and “Ambience” knobs offer unprecedented realtime
control over the chorus tone — making the CE-20 a
pedal no guitarist should be without.

BOSS’s Next-Generation Delay

The DD-20 Giga Delay provides up to 23 seconds of delay with easy adjustment via
push-button knob or tap tempo. With a choice of
11 modes — including new “Smooth” and “Twist”
delays and sound-on-sound recording — this is
BOSS’s finest delay pedal to date.

OVERDRIVE/DISTORTION

DIMENSIONAL PROCESSOR

DIGITAL DELAY

PHRASE RECORDER

GRAPHIC EQUALIZER

Start recording
by pressing
the pedal.

Stop recording and
play the recorded
phrase by pressing
the pedal.

Start overdubbing
by pressing
the pedal.

Finish overdubbing
and play the loop
phrases by pressing
the pedal.

Solo over your
recorded phrases.

Play

a bass line.

Overdub

another bass part or

a vocal phrase as

your bass line is

plaing back.

■ OPERATION EXAMPLE “SOUND ON SOUND”

10

TWIN PEDAL SERIES

Build the Ultimate Solo Live in Real Time

Explore the expressive options of sound-on-sound performance by layering your own phrases to
create a massive “one-person band” experience. Stack as many layers as you like until you fill up the
16 minutes of ample recording space. Build the ultimate solo, and do it all live in real time with
hands-free, footpedal-based operation! After you’ve dazzled the
crowd with your layered masterpiece, bring it to a proper end
with one of the three Stop options — immediate stop, end-of­phrase stop, or fade it out.

TU SERIES

AD SERIES

11

TU SERIES

Info Bytes

Visual & Audio Accuracy

BOSS TU-series tuners boast backlit needles, LED
indicators, pin-point accuracy, and the Accu-Pitch
function(TU-15/-80 models), which provides an audible
completion signal. These precise, easy-to-use tuning
features put the TU-series at the head of the class.

TIME-TESTED TUNING

TU

Stay In Tune — and In Time

This affordable tuner boasts super-accurate
LCD tuning, reference tone, Accu-Pitch, and
metronome function.

Convenient Pedal-Based Tuning

TUNER & METRONOME

The famous TU-series incorporates BOSS´s world
renowned tuner technology into an ultra-convenient,
portable package. Accurate and easy to use, BOSS tuners
let guitarists and bassists prepare for performance with
versatility and reliability.

BOSS — the Most Trusted
Name in Tuning

The flagship Tuner with Accu-Pitch

™

CHROMATIC TUNER

The TU-15 is BOSS’s ultimate tuner, offering renowned
needle-point accuracy, backlit design, flat tuning and a host of
“world’s first” features not found in any other tuner —
including new Accu-Pitch and Octave Adjust functions.

CHROMATIC TUNER

The worldwide standard used by top musicians everywhere,
thanks to extremely accurate, easy-to-use tuning.

Great for Woodwinds and Brass!

Offers an extended tuning range of C1 to B6 for tuning a variety
of instruments including guitar, bass, woodwind, brass, and
ethnic instruments.

CHROMATIC TUNER

The Industry Standard

Chromatic Tuner

Legendary BOSS tuning in a convenient,
easy-to-use compact pedal design. A
7-segment LED and 11-point Stream Meter
ensure accurate tuning, even in low-light
settings or under bright stage lights.

12

AD SERIES

Info Bytes

Gig Ready

Equipped with the XLR balanced outs, the AD-8 can be directly
connected to a PA without the need for a DI box. Also, the individual
unbalanced outs enable use with guitar amps for stage monitoring.
If you would like to switch guitars on stage, the Tuner mode allows
quick and silent changes with its mute function.

Who says stompboxes are just for electric guitarists? BOSS
proudly offers a trio of specialized processors for piezo­equipped acoustic guitars. Prepare to be amazed as your
instrument transforms under the control of COSM

®

-powered
modeling. Acoustic pickups often diminish the full-bodied
sound of an acoustic guitar, and can significantly alter the
beautiful tone of the instrument. The AD-series can give
piezo-equipped acoustic guitars the warm tone of a properly
miked acoustic sound in the studio.

Enhance the Clarity,
Warmth, & Richness of
Your Acoustic Instrument

TONE-TESTED
T ECHNOLOGY

AD

Incorporates many of the AD-5’s outstanding
features — such as anti-feedback processing,
reverb and chorus effects — into a rugged,
floor-based unit with stompbox simplicity.

Floor-Based Acoustic
Processing

ACOUSTIC INSTRUMENT
PROCESSOR

ACOUSTIC GUITAR PROCESSOR

Unlock Your Instrument’s True Potential

A dream machine for acoustic guitarists who want to improve their sound, the AD-8 can enhance any
piezo-equipped steel-string with the warmth and tonality of the world's finest acoustic guitars via
advanced COSM modeling. Six guitar models are provided, with dedicated controls for body
resonance and string enhancement. The AD-8 also offers automatic feedback elimination, high-quality
reverb, 4-band active EQ, an onboard chromatic
tuner with Mute, four preset memory locations
for switching sounds instantly, and balanced
XLR outputs.

ACOUSTIC INSTRUMENT
PROCESSOR

An Acoustic Musician’s
Best Friend

Studio-quality acoustic-electric guitar
preamp/DI box specially voiced for acoustic
instruments. Includes anti-feedback controls,
mic distance and body resonance simulation,
plus onboard reverb and chorus.

PLUG INTO

T HE BES T OF BOSS

Two Tons of Tone in a Rack

Double your power, double your tone — the new GT-PRO is driven by a dual COSM®effects
engine and an expansive I/O section. It’s the perfect front-end for driving a wall of powered
cabinets or for direct, pro-grade recording applications. Whether on stage or in the studio,
you’ll be amazed at how much power and performance this top-quality rack has to offer.

GT-PRO

13

GT-PRO

GUITAR EFFECTS PROCESSOR

Drive your tone in luxury through the GT-PRO’s top-grade circuitry and balanced outputs.
Thanks to its improved signal-to-noise ratio, the GT-PRO offers an incredibly pure signal path.
Use the GT’s advanced tools to design your own original guitar sounds for stage and studio.

Pro Specs

14

GT-PRO

FORGING

THE

FUTURE

With its dual COSM amp-modeling engine, the GT-PRO
allows you to construct towering tones by combining
any two of the 46 amp models — then layer, switch,
or pan between them as your play. Amp channels and
effects can even be controlled according to how hard
you play (picking dynamics).

Dual COSM Preamps

No matter how simple or complex your programming and patching needs are, the GT-PRO has
the I/O options and routing flexibility
pro’s demand, including XLR outputs,
three sets of send/returns, and a 24-bit
coaxial output for pristine, high­resolution recording.

Flexible Connectivity

For quick and easy computer interfacing, the GT-PRO provides a USB port
for one-cable data transfer and audio flow. Complicated settings are made
easy by using the bundled PC/Mac-based editor/librarian software. You can
instantly recall all of your settings for live gigs and recording sessions from
your PC with a single USB connection.

USB Connection

GT-PRO

For Stage or Studio, the GT-PRO

■ Computer-Friendly Design

For one-cable patch management and advanced sound design,
a USB port is provided for connecting the GT-PRO to a
computer of your choice; the GT-PRO comes with Mac/PC
editor/librarian software at no additional cost. In addition, it
provides USB-Audio functionality.

■ Powerful Dual COSM Amps

The GT-PRO’s dual COSM amp modeling engine allows
unprecedented tone exploration by combining two amp models,
or by switching between them during performance. Tap into the
expressive Dynamic mode, where two channels can be
controlled based on picking strength. Transition smoothly from
clean to mean by simply picking harder or softer.

■ Meticulous COSM Editing

The GT-PRO crushes the competition with its unique and
powerful COSM editing. Thanks to BOSS’s advanced physical
modeling, you take complete control over your tone by
constructing your virtual rig from scratch, including the choice
of speaker types, microphone amp position, and more.

■ Solo Switch

The 46 COSM amp models built into the GT-PRO contain a
specially programmed variation that’s optimized for soloing.
Simply click the Solo switch to activate the lead tone, and off
you go — it’s like having a separate solo channel on every
COSM amp!

The Dual-COSM®Power Rack

For the guitarist who’s looking to upgrade his or her tone pallet, who
demands rock-solid reliability, who needs extremely flexible signal routing
and I/O options, the new BOSS GT-PRO is a grand-slam. Plug in, turn on,
and experience the very best of BOSS with the GT-PRO.

FC-200

GFC-50

15

GT-PRO

GT-PRO

Info Bytes

Flexible Setups with Output Select

The GT-PRO is equipped with an Output Select function, which
enables you to select between eight types of output presets,
such as JC-120, COMBO AMP, STACK AMP, LINE, and etc.

MIDI FOOT CONTROLLER

FOOT CONTROLLER

MSC-50

MIDI Cable (5.0 m)

MSC-25

MIDI Cable (2.5 m)

MSC-15

MIDI Cable (1.5 m)

Control the GT-PRO
from the floor with
BOSS’s FC-200 or GFC-50
foot controller

is Built to Satisfy the Most Demanding Professional

■ Extreme Effects

Looking for BOSS’s best effects? You’ll find them here. As the
top of GT line, the GT-PRO provides 44 effects categories, with
200 preset- and 200 user-patch locations. Choose from
compressors, overdrives, delays, reverbs, choruses, EQs,
wahs, and dozens of other BOSS-quality effects — including a
sitar and acoustic guitar emulator onboard.

■ Flexible Effects Chain

Prepare to be impressed with the GT-PRO’s flexible effects
chain. Internally, the 15 effects blocks can be
configured in any order you desire; externally,
a trio of stereo effects loops plus an array of
assignable outputs enables the most flexible
signal-routing configurations.

■ 2-Channel External Amp Control

The GT-PRO provides two Amp Control jacks,
which can be programmed independently to
switch amp channels, operate external
effects, and more.

■ 2-Channel individual Stereo Outs

I/O flexibility is the name of the game with the GT-PRO, as it
also provides four 1/4-inch analog audio outputs, a pair of
balanced XLR outputs, and three pairs of effects send/returns.
If you wish to add some serious settings for the stage
environments, you can split the signals independently to a
couple of guitar amps and go to the PA with the stereo Sub
Outs at the same time.

■ Connecting With Power Amps, Plus Cabinets ■ Using the GT-PRO’s Effects Loops

Connect to the JC-120. Using
JC’s stereo return jacks, you
can take advantage of the GT’s
stereo effects.

■ Connecting With Guitar Amps

Using two individual outputs,
you can select guitar amps
with the patches you’ve
programmed.

In the same way, you can
freely control stereo sounds
with four guitar amps.

Record to DAW software
through the GT’s USB port. The
same sounds can be monitored
through your guitar amp.

■ For Recording

Connect the stereo outputs to
a single power amp for Dual
mode or stereo effects.

Connect each output channel to
individual power amps and
cabinets. You can designate the
output channel per Patch.

Connect the Sub outs to a
stage PA. Another channel is
used for monitoring.

Pre loop is used for a branch
out. Removing the direct sound
from the Master outputs, you
can divide dry and wet sound.

The GT-PRO is useful for post­production. After recording,
you can reamp your dry guitar
sound with a single USB
connection.

Up to three external effects can
be used. You can assign effects
loops ON/OFF per Patch.

Connect a guitar amp’s
send/return to the GT’s Pre
loop. You can select each
preamp case by case.

Using GT’s digital output, you
can immediately record your
live performance with pristine
quality.

POWER
AMP

CABINETCABINET

POWER
AMP

LR

LR

CABINET

PA

POWER AMP

POWER
AMP

POWER
AMP

CABINET

CABINET

CABINET

CABINET

L

(

MONO

)L(

MONO

)

LRLR

GUITAR

FRONT IN

BRANCH
OUT

LR

USB

PC

POWER
AMP

DIGITAL
OUT

DIGITAL
RECORDER

LR

CABINET

USB

L R

PC

EFFECT B

SND RTN

SND

PRE LOOP

LOOP
1/2

RTN

EFFECT C

SND RTN

EFFECT A

LR

LR LRLR

SND RTN

MONITOR SPEAKER

SNDSND MASTER RTN MASTER

16

GT-PRO

JC CLEAN

JC-120
Warm Clean
Jazz Combo
Full Range
BrightClean

TW CLEAN

Clean TWIN
Pro Crunch
Tweed
Warm Crunch

CRUNCH

Crunch
Blues
Wild Crunch
StackCrunch

COMBO

VO Drive
VO Lead
VO Clean
MATCH Drive
Fat MATCH
MATCH Lead

BG LEAD

BG Lead
BG Drive
BG Rhythm
Smooth Drive
Mild Drive

MS STACK

MS1959

(

I

)

MS1959

(

II

)

MS1959

(

I+II

)
MS HiGain
Power Stack

R-FIER

R-FIER Cln
R-FIER Raw
R-FIER Vnt1
R-FIER Mdn1
R-FIER Vnt2
R-FIER Mdn2

T-AMP

T-AMP Clean
T-AMP Crunch
T-AMP Lead
Edge Lead

HiGAIN

SLDN
Drive Stack
Lead Stack
Heavy Lead

METAL

5150 Drive
Metal Stack
Metal Lead

■

COSM GUITAR PREAMP TYPE

BOOSTER

Booster
Blues OD
Crunch

NATURAL

Natural OD
Turbo OD
Fat OD

OD

OD-1
T-Scream
Warm OD

DIST

Distortion
Mild DS
Drive DS

CLASSIC

RAT
GUV DS
DST

+

SOLID

Solid DS
Mid DS
Stack

MODERN

Modern DS
Power DS
R-MAN

METAL

Metal Zone
Heavy Metal
Lead

LOUD

Loud
Sharp
Mechanical

FUZZ

'60s FUZZ
Oct FUZZ
MUFF FUZZ

■

COSM OD/DS TYPE

CRY WAH
VO WAH
Fat WAH

Light WAH
7String WAH
Reso WAH

■

COSM WAH TYPE

BOSS Comp
Hi-BAND
Light
D-Comp

Orange
Fat
Mild
Stereo Comp

■

COSM COMPRESSOR TYPE

■

COSM LIMITER TYPE

BOSS Limitr
Rack 160D

Vtg Rack U

FX-1/2

ADV COMP
LIMITER
T. WAH
AUTO WAH
TONE MODIFY
GUITAR SIM
TREMOLO
PHASER
FLANGER
PAN
VIBRATO
UNI-V
RING MOD
SLOW GEAR
DEFRETTER
SITAR

FEEDBACKER
ANTI-FEEDBACK
HUMANIZER
SLICER
WAVE SYNTH
SUB EQ

COMP

EQ

WAH

LOOP

OD/DS

PREAMP/SPEAKER

DELAY

CHORUS

REVERB

FX-2

HARMONIST
PITCH SHIFTER
PEDAL BEND
OCTAVE
ROTARY
2x2 CHORUS
AUTO RIFF
GUITAR SYNTH
AC PROCESSOR
SOUND HOLD
SUB DELAY

NOISE SUPPRESSOR

FOOT VOLUME

■

EFFECT LIST

Dual COSM Amp Configuration

Ch-A

Ch-B

■

Single

Ch-A

Ch-B

■

Dual Mono

Ch-A

L

Ch-B

R

■

Dual L/ R

Ch-A

Ch-B

Picking

Dynamics

■

Dynamic

GUITAR EFFECTS PROCESSOR

MULTI-EFFECTS
PROCESSING POWER

GT

COSM®Powered

High-powered COSM amp engines are built into the GT-series
processors, providing realistic, high-quality modeling of vintage
amps as well as innovative new amp sounds. Each amp has been
faithfully modeled, but the GT-series also allows you to create
original, never-before-heard tones as well.

Pro Effects

The GT-series provides a virtual mountain of expressive, pro-grade
effects. Effect blocks can be used simultaneously to create complex
textures and routings. Place the effects in any order, quickly and
easily. Drive it all from the built-in Control switches and pedal. From
subtle to sizzling, where will you take your tone?

Ultra-Flexible Editing

Freely customize your sounds and setups with ease. The GT-series
provides the freedom to create a universe of layered sound, with its
flexible setup configurations and wide-ranging parameters.

Fast & Friendly

No menus to navigate. Just plug in, and get down to business. This
floor-based multi-effects processor
is built with the simplicity of a
stompbox, focusing on killer
multi-effects (such as COSM
overdrive and distortion), rather
than amp modeling.

Hands-On Control

Dialing in your tone is easy, thanks to ME’s dedicated knobs for
each effect section, three footswitches, and a built-in expression
pedal. Great-sounding effects without all the menu surfing!

Road Tough

Like all other BOSS effects, the ME-series processors are easy to
transport yet built to withstand the punishment of constant
gigging. BOSS effects are tortured tested, and road ready.

Studio Smarts

This advanced multi-purpose processor
provides a virtual truckload of COSM modeled
amps and multi-effects for guitar, bass, and
even vocals. Inputs are provided for
Guitar/Bass, microphone (XLR), and stereo
Auxiliary, making it especially well suited for
the studio.

Computer Friendly

The GS-10 provides a USB port for easy connection to PCs and Macs.
It comes with Cakewalk Music Creator recording software for PC,
plus a dedicated GS-10 computer editor.

Speakers Built-In

Take the GS-10 anywhere. Plug in and play — no external monitoring
required, thanks to the super-handy built-in stereo speaker system.

Advanced Processors for Floor & Desktop

Trusted by the world’s greatest players, BOSS’s flagship multi-effects processors deliver
unsurpassed sound quality and programming flexibility for both stage and studio.

Professional Multi-Effects for Guitar and Bass

GT-8/GT-6B

ME

ME-50/ME-50B

GS

GS-10

17

MULTI-EFFECTS SERIES

Powerful Multi-Effects with Stompbox Simplicity

Powerful, Friendly Recording for All Musicians

18

MULTI-EFFECTS SERIES

FORGING

THE

FUTURE

GT

GT SERIES

Flagship Multi-Effects Floor Pr

■ Pro Features

The GT-6B is a pro-caliber floor-based processor for bass, with
COSM Bass Amp Modeling, modeled compression, plus other
“must-have” effects such as COSM overdrive/distortion, COSM
wah, and reverb/delay. There’s also a true analog bypass, and
XLR and digital outputs with 24-bit converters for recording
applications, providing uncompromised sound quality.

■ COSM Bass Amp Models

The GT-6B provides six authentic COSM bass amp models,
recreating the tone and characteristics of some of the greatest
bass amps and speaker cabinets in history. Why settle for just
one bass amp sound when you can have the power of six
classics in one convenient box?

Professional Bass Multi-Effects

■ Dual COSM Amps

Feel the power of the GT-8’s dual COSM amp modeling engines.
Explore new sonic dimensions by combining two amp models,
or by switching between them during performance. Tap into the
expressive Dynamic mode, where two channels can be
controlled based on picking strength. Transition smoothly from
clean to mean by simply picking harder or softer.

■ Solo Switch

Each of the GT-8’s 46 COSM amp models contains a specially
programmed variation that’s optimized for soloing. Simply click
the Solo switch to activate the lead tone, and off you go — it’s
like having a separate solo channel on every COSM amp!

■ Extreme Effects

Forty-four effects categories are built into the GT-8. Up to 13

Command the Stage with GT

For the ultimate in power and convenience onstage, plug into a BOSS GT-series
floor effects processor. These COSM®-equipped, all-in-one effects units are
attractive yet tough, and provide towering tone.

PRIMETIME
PERFORMANCE

19

GT SERIES

Info Bytes

Ultra-Flexible Effects Chain

Having the freedom to configure the effects chain in any order you wish is one of
the keys to success when using multi-effects. A sound can be wildly different if
an equalizer is used before a distortion, or after, for example. The GT-series
proudly provides complete freedom over the preamp and effects chain routing.

FLIP TOP
B MAN
BASS 360

T.E.
SESSION
CONCERT 810

■

COSM BASS PREAMP TYPE

Blues OD
Turbo OD
Bass OD

Distortion
GUV DS
Metal Zone

'60s FUZZ
Oct FUZZ
MUFF

■ COSM OD/DS TYPE

CRY WAH
VO WAH
Bass WAH

■ COSM WAH TYPE

BOSS Comp
D-Comp

Rack 160D
Vtg Rack U

■ COSM COMP/LIMITER TYPE

1x15"
1x18"
2x15"

4x10"
8x10"
Original

■ COSM SPEAKER TYPE

REV/DLY/SOS

REVERB
DELAY
REVERB&DELAY
SOUND ON SOUND

WAH

PEDAL WAH
TOUCH WAH
AUTO WAH

HARMONIST
PITCH SHIFTER
PEDAL BEND
2x2 CHORUS
AUTO SLAP
SHORT DELAY
VIBRATO
HUMANIZER
TREMOLO/PAN

BASS SYNTH

■ EFFECT LIST

COMP/LIMITER

CHORUS

PREAMP/SPEAKER
3 BAND PARAMETRIC EQ

FX-1

OCTAVE
ENHANCER
SLOW GEAR
DEFRETTER
RING MODULATOR

FX-2

PHASER
FLANGER

OD/DIST

OVERDRIVE
DISTORTION
FUZZ

NOISE SUPPRESSOR
FOOT VOLUME

■ Bass Effects with COSM modeling

In addition to its amazing amp models, the GT-6B provides a
world-class lineup of effects, including COSM-powered
compression effects modeled after four famous compressors.
Other effects include Auto Slap, sound-on-sound looping, and
BOSS's best synth-bass sounds with incredible tracking.

■ Versatile Performance Controls

Pilot the GT-6B with ease and enjoyment, thanks to its friendly,
ultra-intuitive interface with analog-style knobs. Inject extra
color and tonal animation into your performances with the
GT-6B’s built-in expression and control pedals.

effect blocks can be used simultaneously to create complex
textures and routings. All of your FX bases are covered —
compressors, reverbs, choruses, EQs, COSM-modeled wahs,
and much more. There are 200 preset patches included, plus
140 user patches for storing your custom amp/effects creations.

■ Connectivity

The GT-8 is stocked with enough I/O options
to satisfy even the most demanding pro. In
addition to its stereo analog outs, the GT-8
offers a 24-bit coaxial output for ultra-clean
digital transfer, an Amp Control jack for
switching between two amp channels on an
external amp, an external expression/control
pedal input, effects send and returns, MIDI in
and out, and a headphone output.

■ Flexible FX Routing

Another area where the GT-8 stomps the competition is in its
powerful effects routing. Internally, the 13 FX blocks can be
configured in any order you desire (for example, you can freely
assign an equalizer after a distortion effect or before it). And if

you’d care to take your tone “outside the box” and incorporate
some external effects into the GT-8’s signal path, you can do so
with the Ext Loop send and return. Flexibility in routing is the
name of the game.

JC CLEAN

JC-120
Warm Clean
Jazz Combo
Full Range
BrightClean

TW CLEAN

Clean TWIN
Pro Crunch
Tweed
Warm Crunch

CRUNCH

Crunch
Blues
Wild Crunch
StackCrunch

COMBO

VO Drive
VO Lead
VO Clean
MATCH Drive
Fat MATCH
MATCH Lead

BG LEAD

BG Lead
BG Drive
BG Rhythm
Smooth Drive
Mild Drive

MS STACK

MS1959

(

I

)

MS1959

(

II

)

MS1959

(

I+II

)

MS HiGain
Power Stack

R-FIER

R-FIER Cln
R-FIER Raw
R-FIER Vnt1
R-FIER Mdn1
R-FIER Vnt2
R-FIER Mdn2

T-AMP

T-AMP Clean
T-AMP Crunch
T-AMP Lead
Edge Lead

HiGAIN

SLDN
Drive Stack
Lead Stack
Heavy Lead

METAL

5150 Drive
Metal Stack
Metal Lead

■

COSM GUITAR PREAMP TYPE

BOOSTER

Booster
Blues OD
Crunch

NATURAL

Natural OD
Turbo OD
Fat OD

OD

OD-1
T-Scream
Warm OD

DIST

Distortion
Mild DS
Drive DS

CLASSIC

RAT
GUV DS
DST

+

SOLID

Solid DS
Mid DS
Stack

MODERN

Modern DS
Power DS
R-MAN

METAL

Metal Zone
Heavy Metal
Lead

LOUD

Loud
Sharp
Mechanical

FUZZ

'60s FUZZ
Oct FUZZ
MUFF FUZZ

■

COSM OD/DS TYPE

CRY WAH
VO WAH
Fat WAH

Light WAH
7String WAH
Reso WAH

■

COSM WAH TYPE

BOSS Comp
Hi-BAND
Light
D-Comp

Orange
Fat
Mild
Stereo Comp

■

COSM COMPRESSOR TYPE

■

COSM LIMITER TYPE

BOSS Limitr
Rack 160D

Vtg Rack U

FX-1/2

ADV COMP
LIMITER
T. WAH
AUTO WAH
TONE MODIFY
GUITAR SIM
TREMOLO
PHASER
FLANGER
PAN
VIBRATO
UNI-V
RING MOD
SLOW GEAR
DEFRETTER
SITAR

FEEDBACKER
ANTI-FEEDBACK
HUMANIZER
SLICER
WAVE SYNTH
SUB EQ

COMP

EQ

WAH

LOOP

OD/DS

PREAMP/SPEAKER

DELAY

CHORUS

REVERB

FX-2

HARMONIST
PITCH SHIFTER
PEDAL BEND
OCTAVE
ROTARY
2x2 CHORUS
AUTO RIFF
GUITAR SYNTH
AC PROCESSOR
SOUND HOLD
SUB DELAY

NOISE SUPPRESSOR

FOOT VOLUME

■

EFFECT LIST

GUITAR EFFECTS PROCESSOR

BASS EFFECTS PROCESSOR

20

GT SERIES

ME SERIES
GS-10

Killer Tone Meets Ease of Use

GUITAR MULTIPLE EFFECTS

BASS MULTIPLE EFFECTS

Maximum Processing
with a Minimal Footprint

Meet BOSS’s famous floor-based multi-effects
processors with ridiculously easy-to-use, intuitive
interfaces. Best of all, there’s a model for guitar
and one for bass!

EFFECTS

TREASURE CHEST

21

ME SERIES

■

OVERDRIVE/DISTORTION TYPE: •OD-1 • NATURAL •OD-2 • CRUNCH •BD-2 • LEAD •DS-1 • LOUD • MT-2 • METAL •SCREAM

•MODERN OD • DST+ • STACK • GUV •HI GAIN • RAT •MODERN DS • MUFF •SQUARE • FACE •OCT FUZZ

■ EFFECTS: • TONE MODIFY •COMPRESSOR • CHORUS • PHASER •FLANGER • HARMONIST •TREMOLO • PAN •VIBRATO •UNI-V

•ROTARY • DELAY •REVERB • NOISE SUPPRESSOR

■ EFFECTS FOR EXPRESSION PEDAL: • FOOT VOLUME •WAH • RESONANCE •VOICE • RING MODULATOR

• BEND (+1 OCTAVE, -1 OCTAVE)

Meet the amazing multi-effects processor with the ruggedness and simplicity of a stompbox.
The ME-50 features legendary BOSS effects — such as delay, flanger, and EQ — plus
powerful COSM®Overdrive and Distortion Modeling. Dedicated knobs for each effect section
make programming ultra-intuitive. No more menu-surfing.

■

COMPRESSOR/LIMITER: • NATURAL •LIMITER • 160D SOFT •160D HARD • D-COMP ■MASTER EQ: • LOW •MID • MID FREQ

•HIGH ■ FILTER/TONE: • T.WAH UP • T.WAH DOWN • T.WAH EDGE • OCTAVE UP • OCTAVE DOWN •SLOW GEAR

•DEFRETTER • ENHANCER • BOTTOM BOOST •MID SHAPE • HOLLOW ■DRIVE: • NATURAL •BASS DRIVER • OVER DRIVE

•DISTORTION • MUFF FUZZ • METAL • HI-BAND DRIVE ■ SYNTH: • SAW LEAD •MILD FILTER • DEEP FILTER • SQUARE

■ DELAY/MODULATION: • 

•

TAP DLY • HOLD DLY •ANALOG DLY • 0-400 ms DLY • 300-1400 ms DLY •PHASER • FLANGER

•CHORUS • CHO+DELAY •CHO+REVERB • REVERB ■ PEDAL: • FOOT VOLUME •WAH • RESONANCE •+1 OCTAVE • –1 OCTAVE

•SOUND HOLD • KICK DRUM

Big-Time Multi-Effects for Bass

Get world-class bass effects in a rugged floor unit. Forget about menus and cursor buttons.
Just reach down and twist a knob! The compressor/limiter employs COSM modeling, and the
3-band EQ offers sweepable mids. Tap into the ME-50B’s Sound Hold, Octave Up, Slow Gear,
T-Wah, and Defretter. The ME-50B even offers sound-on-sound recording — complete with a
cool Kick Drum effect for tapping in the beat.

Info Bytes

Perfect for Practice

You can connect a CD/MP3 player to the ME-50 and -50B through its AUX
input. With headphones you can practice or jam along with your favorite
song. Since the ME-50 is also equipped with a guitar amp simulator, you can
practice with realistic guitar sound.

■

ME-50 REAR PANEL

■

ME-50B REAR PANEL

ME

■Amp & Effect Models

The GS-10 is powered by BOSS’s most advanced COSM
amp-modeling technology, giving guitar and bass players access to
a wide range of vintage and modern effects.

■Direct to Computer via USB

Record directly to your favorite computer software with pristine
digital quality using the GS-10’s onboard USB port. Audio tracks can
also be processed through the GS-10 and re-recorded into your
software.

■Built-in Speaker

The GS-10’s built-in stereo speaker system provides easy
monitoring whether you’re recording to a computer or just
jamming. Make pro-quality recordings with nothing more than your
guitar, the GS-10, and a laptop.

■Bundled Software

The included GS-10 Editor software
provides a friendly graphic environment for
controlling the onboard effects. Arranged
as a series of virtual compact pedals, the
GS-10 Editor takes the mystery out of
programming.

GUITAR EFFECTS SYSTEM with
USB AUDIO INTERFACE

BOSS’s Most Powerful
Multi Effects System

Innovative multi-effects processing and an easy-to-use USB audio
interface in one friendly package. The GS-10 lets guitar and bass
players tap into 45 COSM amp models and unique BOSS effects,
and record their performance directly to a computer.

Blues OD
Turbo OD
Booster
OD-1
T-Scream
Natural OD

Bass OD
Distortion
RAT
GUV DS
Mild DS
Solid DS

DST+
Metal Zone
R-MAN
Heavy Metal
Loud
Sharp

Mechanical
'60s FUZZ
Oct FUZZ
MUFF FUZZ

■ COSM OD/DS TYPE

CRY WAH
VO WAH
Fat WAH
Light WAH

7String WAH
Reso WAH
Bass WAH

■ COSM WAH TYPE

Original
1x8"
1x10"

1x12"
1x15"
1x18"

2x12"
2x15"
4x10"

4x12"
8x10"
8x12"

■ COSM SPEAKER TYPE

CND451 CND87

FLAT

DYN57 DYN421

■ COSM MIC TYPE

JC-120
Jazz Combo
Full Range
Warm Clean
Clean TWIN
Pro Crunch
Tweed

Crunch
Blues
Wild Crunch
VO Drive
VO Lead
MATCH Drive
Fat MATCH

BG Lead
BG Drive
BG Rhythm
Smooth Drive
MS1959 (I)
MS1959 (II)
MS1959 (I+II)

MS HiGain
Power Stack
R-FIER Red
R-FIER Orng
R-FIER Vint
T-AMP Clean
T-AMP Crunch

T-AMP Lead
SLDN
Drive Stack
Lead Stack
5150 Drive
Metal Stack
Metal Lead

Mic Preamp

CONCERT 810
SESSION

BASS 360
T.E.

B-MAN
FLIP TOP

Bass Clean
Bass Crunch

Bass HiGain

■ COSM GUITAR PREAMP TYPE

■

COSM BASS PREAMP TYPE

■

COSM MIC PREAMP TYPE

■ EFFECT LIST

FX-1

PEDAL WAH

AUTO WAH

TONE MODIFY

ADV. COMPRESSOR

LIMITER

ENHANCER

SLOW GEAR

TREMOLO

DEFRETTER

RING MOD

FEEDBACKER

COMP

OD/DS

PREAMP/SPEAKER

EQ

NS

FV

FX-2

PHASER

FLANGER

HARMONIST

PITCH SHIFTER

OCTAVE

PEDAL BEND

2x 2 CHORUS

PAN

VIBRATO

UNI-V

ROTARY

SHORT DELAY

HUMANIZER

SLICER

AUTO RIFF

GUITAR SYNTH

BASS SIMULATOR

STEREO EQUALIZER

DELAY

CHORUS

REVERB

MIC Jack(XLR Type)
MIC Jack(TRS)
AUX INPUT Jacks(L,R)
AUX OUTPUT Jacks(L,R)
GUITAR AMP OUT Jack
EXP PEDAL/CTL1,2 Jack
DIGITAL OUT
USB
MIDI OUT
MIDI IN

■ GS-10 REAR PANEL

SOF T WARE/HARDWARE
HYBRID

22

GS-10

Info Bytes

Also Great For Bass, Vocals, & More

In addition to the full of guitar effects, the GS-10 boasts powerful bass
effects, including GT-6’s preamp models. A mic preamp and compressor are
also built in for recording vocals, acoustic instruments, and many other
useful purposes. A mic-dedicated XLR input is included as well.

Celebrity GS-10 Patches
Available Via Download!

Ready to inject some star power into your
GS-10? BOSS has good news. Log onto
www.bosscorp.co.jp, and grab custom patches
from the likes of George Lynch, Yngwie
Malmsteen, and Marty Friedman. And for some
rippin’ audio examples, log on to hear the GS-10
patches being played by Yngwie and Marty.
Hendrix fans, there’s a special bank of GS-10
patches waiting for you as well!

George Lynch

Marty Friedman

Yngwie Malmsteen

www.bosscorp.co.jp

GS

Advanced Modeling For The Tabletop

23

BR SERIES

MUSICIAN-FRIENDLY
RECORDING FOR

T HE MASSES

Give your music a professional, polished sound with
built-in, easy-to-use mastering effects. The quality of
the BR’s mastering tools will raise the quality of your
music to a new level.

Mastering Tools

Simple four-step recording process! Realize your music,
from concept to compact disc, with unprecedented
speed and ease.

Hassle-Free Recording

Grab a guitar.

12 3

4

Select an effect. Arm the track. Start recording.

COSM powered modeling provides realistic emulations
of vintage guitar amps, coveted compressors, and
more. The BR-1600CD and -1200CD also offers COSM
OD/DS models derived from
BOSS’s famous GT-Line multi­effects. Various modulation
and ambience effects are also
built in.

COSM®Amp & Effect Models

Record, layer, and keep layering with no worries,
thanks to the BR’s abundance of virtual V-Tracks. The
flagship BR-1600CD boasts huge 256 V-Tracks, and
there are 64 V-Tracks even
on the compact BR-900CD.
You can stack your tracks
without space concerns or
time constraints.

Stackable V-Tracks

■ BR-900CD Track Configuration

BR

DIGITAL STUDIO

FORGING

THE

FUTURE

24

BR SERIES

All-In-One Studios with
CD-Burners Built In

There’s a reason BOSS BR-series recorders are in such
high demand. Bang for the buck, reliability, and
versatility have made BOSS the most trusted and
sought-after portable digital recorders worldwide.
No matter which BR recorder you choose — the
BR-1600CD, -1200CD or -900CD — you’ll enjoy the
following features common to all models:

Press RECORD and jam worry-free. BR recorders
feature high-volume storage media, so you’ll never
miss that magic moment when it happens. The
BR-1600CD/1200CD’s 40GB hard drive allows over 120
hours* of high-quality linear recording time (maximum).

*conversion in one track

Large Storage Capacity

Need to exchange data with a computer? No problem.
Each BR recorder comes equipped
with a USB port for shuttling audio
back and forth. It also supports
WAV/AIFF import and export.

Computer Connectivity via USB

Record, edit, process, mix, master, and burn — the BR
series can do it all. No additional recording gear
required. The BR-1200CD/-900CD’s
new Direct CD Bounce feature
enables you to record your track
and input mixes directly to CD-R/RW.

All-In-One Solution

Pitch-correction and intelligent
harmony* tools onboard! Fix intonation
problems and add backing vocals with
ease.

*BR-1600CD and –1200CD only

Perfect Vocals

Generate convincing backing tracks with the BR’s
easy-to-use, onboard rhythm generator. The
BR-1600CD and -1200CD provide
a dedicated bass track and even
audio loops. The BR-1200CD is
newly equipped with the ultra­easy rythm programming
feature “EZ Compose.”

Powerful Rhythm Section

Head Of The Family

Pro Features Meet Ease Of Use

■

BR-1600CD REAR PANEL

MIDI OUT
MIDI IN
USB
DIGITAL IN/OUT (coaxial type)
FOOT SW Jack
EXP PEDAL Jack
LINE OUT Jacks
INPUT 1–8 Jacks (unbalanced, 1/4” phone type)
MIC 1–8 Jacks (XLR balanced)

25

BR SERIES

BR SERIES

Ultra-Convenient Level Calibration

The BR-1600CD is equipped with an innovative feature
called “Level Calibration,” which allows you to instantly
set each input to a uniform level. If you handle various
types of mics or instruments, you can use this feature to
set proper levels for all eight inputs quickly and easily.

Info Bytes

Version 2

DIGITAL RECORDING STUDIO

■ Multi-Mic Recording

The BR-1600CD includes eight sweet-sounding XLR microphone
inputs with phantom power. The BR-1600CD’s
Multi-Track recording mode eliminates
confusing routing concepts, and includes
essential channel effects such as a
compressor, 3-band EQ, and low-cut filter.

■ Hassle-Free Recording

When recording, you can choose from 256 V-Tracks, allowing you to
lay down as many guitar solos or vocal takes as needed. Once
finished, you can select any 16 tracks for playback; there’s 40GB of
room for all your tracks and overdubs. And since it’s digital, you get
pristine sound quality and the benefit of non-destructive editing.

■ Mind-Blowing Modeling

Plug into the BR-1600CD and you have an arsenal of world-class BOSS
effects at your disposal: compression on eight channels, 3-band EQ on all
16 channels, separate insert processing with powerful COSM®overdrive/
distortion, amp, and microphone modeling, plus modeling effects
optimized for bass and acoustic guitar, and a separate reverb and
chorus/delay processor. Forget about external effects — it’s all here!

■ Vocal Tool Box

Vocals tracks will never be out of tune again, thanks to the
BR-1600CD’s powerful Vocal Tool Box features. You can also add a
variety of realistic harmony parts with the easy-to­use note/chord sequencer feature, which creates
harmonies via chord input!

■ Powerful Backing Tracks

BOSS’s Rhythm Track goes to the extreme. Now you get a separate
Drum, Bass, and Loop Phrase track for
creating complete backing arrangements.
High-quality sounds and phrases are included,
and you can even load in your own loops.

■ Audio/Video V-LINK

With V-LINK and an optional Edirol video editor, it’s
easy to control and manipulate video using the
BR-1600CD’s buttons and knobs.

Send signal and push the
“Calculate” button on the
LCD to have your levels
uniformly matched.

The “Multi-CH” effect
preset will be automatically
selected. Use the knobs for
easy editing.

1

■ RECORD UP TO EIGHT MICROPHONES IN FOUR EASY STEPS!

Connect your microphones.

Push the Level Calibration button.

Begin recording to
tracks 1-8. You can also
select tracks 9-16 as the
destination.

Push REC and PLAY.

Adjust the effects.

2

3 4

Adjust the Input Sens
knobs and push the “Multi­Track” button to enter the
Multi-Track mode.

COSM OVERDRIVE/DISTORTION

COSM GUITAR AMP MODELING

COSM BASS AMP MODELING

■

COSM MODELING LIST

AC AMG FLIP TOP BASSMAN BASS 360 T. E. SESSION CONCERT 810

BLUES OD
TURBO OD

BOOSTER
DISTORTION

AMERCAN DS
GUV DS

OD-1
T-SCREAM

DST+
'60S FUZZ

OCT FUZZ
MUF FUZZ

MT-2
R-MAN

HEAVY METAL
BASS OD

JC-120
JAZZ COMBO
FULL RANGE
CLEAN TWIN

PRO CRUNCH
TWEED
CRUNCH
BLUES

SATCK CRUNCH
VO DRIVE
VO LEAD
VO CLEAN

MATCH DRIVE
MATCH LEAD
FAT MATCH
BG LEAD

BG DRIVE
BG RHYTHM
MS(1)
MS(1+2

)

MS HI GAIN
R-FIRE RED
R-FIRE ORANGE
R-FIRE VINTAGE

SLDN
DRIVE STACK
LEAD STACK
5150 DRIVE

METAL STACK
METAL LEAD

•COSM Models added (derived from BOSS’s GT-6B)

•Enhanced Vocal Tool Box for better vocals and backings

•MIDI Slave capable for control from external MIDI devices

•BR-1180CD/1200CD data compatible

Version 1 BR-1600CD can be upgraded to Version 2 via download.

Version 2 software includes the following updated features

DIGITAL RECORDING STUDIO

The Versatile, Power-Packed 12-Track

Complete Recording, from Guitar Pick to Compact Disc

a 3-band equalizer for each of the 12 channels, plus an
independent reverb and chorus/delay.

■ Vocal Magic

Your vocal track(s) can be perfected with the
BR-1200CD’s Vocal Tool Box. This powerful set of
editing tools can be used to fix incorrect pitch, and
ensur e that your vocal tracks always sound great. And if
you’re having trouble singing
harmonies, the Vocal Tool Box can be
used create realistic harmony parts.

■ Backing Band Built In

Another distinguishing feature of the BR-1200CD is its
world-class bass and drum programmer, packed with
instruments and patterns to suit
a variety of styles. Jam along
with the supplied patterns or
create your own from scratch.
The EZ Compose feature makes ultra­realistic custom programming a snap.
There’s also a selection of great loop
phrases pre-installed on the internal
hard drive.

■ Eight Tracks & Beyond

No matter what you’re recording, or where you are, the
BR-900CD makes the job fast and fun. When recording,
you can capture two tracks simultaneously, and layer
up to 64 V-Tracks (eight V-Tracks per each of the main
eight tracks). Once finished, you can select any eight
tracks for playback. The BR-900CD can run on AC or
battery power, which means you can
now make professional-quality
recordings any time, any place. BOSS
even includes the AC adaptor.

■ Abundant Recording Time

There’s no need to worry about running out of
recording time with the BR-900CD. It can record
directly to popular CompactFlash cards of up to 1GB
capacity, which provides hours of recording time. The
BR-900CD also has the ability to record directly to CD
via its internal CD-R/RW.

■ Studio-Quality Effects with COSM Modeling

Proudly displaying the BOSS logo, the BR-900CD
offers a lineup of quality effects that are worthy of the
legendary name. In addition to the time-tested

standards (reverb, EQ, chorus,
delay), the BR provides
additional pro-quality effects,
such as vocal pitch-correction,
bass simulation, pedal wah,
COSM-powered guitar amp
and compressor models, and
mastering tools.

■ Perfect Vocals

The vocal performance(s) can be perfected with the
BR-900CD’s pitch correction. This powerful set of editing
tools can be used to fix incorrect
pitch, and ensure that your vocal
tracks always sound great!

■ Rhythm Programmer Onboard

Songwriters will love the BR-900CD’s built-in rhythm
programmer, packed with 294 expressive patterns. Use
these realistic backing tracks as inspiration
for both writing and recording. You can
even customize your own beats using the
handy Tone Load function.

■ Convenient Built-in Mic

BOSS thought of everything! The BR-900CD’s built-in
microphone is perfect for times when bringing a mic and
cable along isn’t practical.

DIGITAL RECORDING STUDIO

■

BR-1200CD REAR PANEL

USB
MIDI OUT
MIDI IN
DIGITAL OUT

(optical type)

FOOT SW Jack
EXP PEDAL Jack

LINE OUT Jacks (RCA pin type)
LINE IN Jacks (RCA pin type)
MIC 2 Jack (TRS 1/4” phone type)
MIC 2 Jack (XLR balanced)
MIC 1 Jack (TRS 1/4” phone type)
MIC 1 Jack (XLR balanced)

Mini-Mighty Studio with CD-Burner

Record, Mix, & Burn — Anywhere, Anytime

26

BR SERIES

■ Digital Recording, Non-Destructive Editing

For recording flexibility, the BR provides 192 V-Tracks
(16 V-Tracks per primary track), allowing you to lay
down as many guitar solos or vocal takes as needed.
Once finished, you can select any 12 tracks for
playback — plenty of room for all your instruments
and overdubs. You can also get pristine sound quality
and the benefit of non-destructive editing.

■ Multi-Effects & COSM Models

From full dunk to subtle sweetening, the BR-1200CD
is equipped with a powerful multi-effects pr ocessor.
A variety of COSM amp models are in the lineup,
including Roland’s JC-120, R-Fier, Metal Stack, BOSS
Compact Pedal models such as OD-1 and MT-2, and
more. Also onboard: a dedicated compressor and

BLUES OD
TURBO OD
BOOSTER

DISTORTION
AMERCAN DS
GUV DS

OD-1
T-SCREAM
DST+

'60S FUZZ
OCT FUZZ
MUF FUZZ

MT-2
R-MAN
HEAVY METAL

BASS OD

JC-120
JAZZ COMBO
FULL RANGE
CLEAN TWIN
PRO CRUNCH

TWEED
CRUNCH
BLUES
SATCK CRUNCH
VO DRIVE

VO LEAD
VO CLEAN
MATCH DRIVE
MATCH LEAD
FAT MATCH

BG LEAD
BG DRIVE
BG RHYTHM
MS(1)
MS(1+2

)

MS HI GAIN
R-FIRE RED
R-FIRE ORANGE
R-FIRE VINTAGE
SLDN

DRIVE STACK
LEAD STACK
5150 DRIVE
METAL STACK
METAL LEAD

COSM OVERDRIVE/DISTORTION

COSM GUITAR AMP MODELING

COSM BASS AMP MODELING

■

COSM MODELING LIST

AC
AMG

FLIP TOP
BASSMAN

BASS 360
T. E.

SESSION
CONCERT 810

■

COSM AMP MODELING LIST

JC-120

CLEAN

CRUNCH

MATCH

VO DRIVE

BLUES

BG LEAD

MS(1

)

MS(2

)

MS(1+2

)

SLDN

METAL

METAL D

AC

COSM GUITAR AMP MODELING

COSM BASS AMP MODELING

AMG

■ BR-900CD REAR PANEL

MIDI OUT
FOOT SW/EXP PEDAL Jack (1/4” phone type)
USB
DIGITAL OUT (optical type)
LINE OUT Jacks (RCA pin type)

LINE IN Jacks (RCA pin type)
MIC 1 Jack (XLR balanced)
MIC 1 Jack (TRS 1/4” phone type)
MIC 2 Jack (XLR balanced)
GUITAR/BASS Jack

(unbalanced, 1/4” phone type)

32 min.

39 min.

49 min.

130 min.

156 min.

196 min.

520 min.

624 min.

784 min.

64 MB 256 MB

65 min.

78 min.

98 min.

128 MB 1 GB

■

RECORDING TIME

(conversion in one track)

16 min.

19 min.

24 min.

HiFi (MT2

)

Standard (LV1

)

Long (LV2

)

32 MB

*The recording times shown above are approximate. Times may vary depending
on the number of songs created.

GROOVE TOOLS

DR & DB SERIES

Essential Session &
Practice Partners

World’s Best Rhythm Machine

BOSS’s famous Dr. Beat and Dr. Rhythm series live on with a new line that’s more
compact and powerful than ever before. Whether your needs are for simple, play­along timekeeping or full-blown rhythm programming, the world’s best tools are
right here.

The DR-880 is a rhythm-programming powerhouse that’s loaded with world-class drum, percussion,
and bass sounds. You can get microscopic with the DR-880 or use the EZ Compose and Groove
Modify features, which allow complex patterns to be constructed without note-by-note programming
hassles. Guitar and bass players can join the action by plugging directly to the DR-880’s Guitar/Bass
Input jack, and playing through the built-in COSM

®

Drive/Amp models and multi-effects.

Dr. Rhythm

EZ compose (Pattern)

You can create your own backing
rhythms by simply selecting preset
patterns for each instrument.

EZ compose (Chord Progression)

Realistic bass phrases can be easily
created with chord progression
templates.

Guitar Effects

Various types of guitar effects are
included, such as powerful COSM
amps, and acoustic and bass guitar
effects.

27

DR & DB SERIES

Info Bytes

Ultra-Realistic Rhythm Creation

The DR-880 includes a variety of sequence phrases,
which were input live by expert session drummers. You
can precisely edit the grooves to your liking, even the
ghost notes. Create patterns in real time by tapping the
velocity pads. The DR-880 responds to any type of
rhythm creation you can throw at it.

Realistic Ambience with TSC

The DR-880 and DR-3 are equipped with the TSC
(Total Sound Control) function. This powerful tool lets
you create pro-quality, spatially enhanced drum
sounds with the touch of a button. TSC contains
carefully edited templates, and provides a set of
parameters that can be fully edited.

The Do-Everything Dr. Beat

Practice in style with the flagship of the Dr. Beat Metronome
line. The new DB-90 is loaded with quality sounds and drum
patterns, a Rhythm Coach function with onboard microphone,
a reference-tone for tuning, an Instrument input, MIDI input, and
a Note Mixing function for customizing the play-along rhythms.

More Than a Metronome

The DB-60 is a deluxe metronome that can lay down
the click in style. Program your own beats or choose
from a variety of patterns. Tap in your tempo, and clock
your practice with the Stop Watch and Timer features.

The Take-Along Timekeeper

More than just a simple timekeeper, this pocket-sized
metronome can lay down a variety of rhythm patterns and
time feels. It offers tap tempo, internal reference tones
(12 semitones), and other timekeeping features to make
practicing fun.

Dr. Rhythm

Killer Drums at an Amazing Price

A compact rhythm programmer with the
acclaimed sounds from BOSS’s higher­end models, the DR-670 raises the bar
in its price class with a host of powerful
features, including velocity-sensitive
pads, 255 top-quality drum and
percussion sounds, a bass part for
programming bass lines, and more. A
foot-control jack allows the DR-670 to
be controlled by optional footswitch for
hands-free operation.

Dr. Rhythm

Your Own Personal Drummer

BOSS’s most affordable drum machine for
jamming or practice offers realistic drum,
percussion, and bass sounds. New Rhythm
Progressions with variations also provide
intuitive track arranging. There are 100
preset styles and 100 user styles onboard;
user patterns can be programmed via
realtime record or step entry. A footswitch
input provides easy live control. The DR-3
runs on AC or battery power.

Dr. Beat

Dr. Beat

Dr. Beat

28

DR & DB SERIES

ACCESSORIES

Essential Tools for
The Working
Musician

Two For One

FS-6

DUAL FOOTSWITCH

RH-200

Headphone

2-WAY SELECTOR

CM-30

CUBE MONITOR

29

ACCESSORIES

Two switches in one, BOSS’s new FS-6 combines
latch- and momentary-type switching into one unit.
With two switches conveniently housed side-by­side, the FS-6 allows each switch to be set for latch
or momentary operation. Pick the configuration
that best suits your playing style and setup.

Switch Guitars or Amps
with a Stomp!

The AB-2 2-Way Selector can be configured as a two
inputs/one output selector or a two outputs/one input
selector—letting you freely switch between two
instruments or two amplifiers, for example.

Pro Headphones

These state-of-the-art closed-ear headphones are
comfortable and superb-sounding. They feature a
40 mm-diameter driver with neodymium magnet, and a
versatile 1/8” stereo mini-plug with screw-on 1/4” adapter.

The New Multi-Purpose CUBE

Versatile and portable, the new CM-30 CUBE Monitor
delivers 30 watts of audio punch through a high-quality

6.5” coaxial 2-way speaker with stereo preamp. The CM-30
is ideal for home-studio and wide-ranging monitoring
applications thanks to its compact and rugged design.

*Compact pedals and tuner not included and shown only for

photography purposes.

EV-5

Expression Pedal

Express Yourself

The EV-5 Expression Pedal can be used to control a
range of functions and effects parameters in real time.
It’s ultra compact travel-friendly, and can fit perfectly
onto guitar pedalboards or under synthesizer setups.

Pedal Board

VOICE TRANSFORMER

Direct Box

PSA-series

AC Adaptor

(117/230/240 V)

ACA-series

AC Adaptor

(117/230 V)

PCS-20A

8PIN Parallel DC Cable

(8 x DC Plug; 1 m)

MSC-50/25/15

MIDI Cables

(5.0/2.5/1.5 m)

FS-5U

Footswitch (Unlatch)

FS-5L

Footswitch (Latch)

30

ACCESSORIES

Works with All BOSS Pedals!

The BOSS BCB-60 Pedal Board is a convenient way
to set up and transport all your compact effects. The
unique padded interior can be
customized to fit a range of gear,
while a built-in AC adaptor
cranks out 1,000 mA of
power — enough to run up to
seven devices!

High-Quality DI

The DI-1 is a high-quality direct box with crystal-clear
sound for transforming high-impedance, unbalanced
instrument outputs to the low-impedance, balanced
inputs of a mixing console.

Unlatched

The FS-5U is a metal-cased momentary “unlatch”-type
footswitch that can be connected using an ordinary
guitar cable.

Latched

The FS-5L is a metal-cased latch-type footswitch with a
LED to indicate status. It can be connected with a
standard guitar cable.

Gender-Bending Vocal Effects!

The VT-1 is a unique device designed for altering and
effecting the human voice. It provides everything from voice
“thickening” to a full ±1 octave pitch shift, allowing users to
convincingly change their vocal gender. Unlike conventional
pitch shifters, the VT-1 affords separate control of pitch and
formant, so the user’s voice can be altered without the
“chipmunk” effect.

DR-50

PCS-31

Audio Cable

(Stereo 1/4” ↔ 2 x 1/4”; 2.2 m)

DR-80C

Condenser Microphone

Large-Diaphragm Studio
Microphone

The DR-80C is designed for professional singers and
recording applications. It boasts low-noise performance,
high-input handling, and wide dynamic-range compatibility.
Dedicated shock-mount holder included.

Two New Handheld Mics

The affordable DR-30 cardioid microphone is ideal for
amateurs and karaoke enthusiasts, while the more
advanced DR-50 is geared for professional live
performance applications.

DR-50/30

Dynamic Microphones

DR-30

[Compact Pedal Effects Specifications]

●

Dimensions

73 (W) x 129 (D) x 59 (H) mm (2-7/8” x 5-1/8” x 2-3/8”)

● Weight (depending on the model) 400 to 450 g/15 oz. to 1 lb.

● Accessory Dry Battery ● Option AC Adaptor

● Controls LEVEL, TONE, DRIVE ● Current Draw 4 mA (DC 9 V)

● Controls LEVEL, TONE, GAIN ● Current Draw 13 mA (DC 9 V)

● Controls TONE, LEVEL, DIST ● Current Draw 4 mA (DC 9 V)

● Controls LEVEL, TONE, DIST, TURBO [1, 2 (REMOTE)] ●Current

Draw 12 mA (DC 9 V)

● Controls LEVEL, TONE, BOTTOM, DIST, GAIN BOOST ●Current

Draw 18 mA (DC 9 V)

● Controls LEVEL, HIGH EQ, LOW EQ, BALANCE, GAIN

● Current Draw 15 mA (DC 9 V)

● Controls LEVEL, TONE, ATTACK, SUSTAIN ● Current Draw 11 mA

(DC 9 V)

● Controls BALANCE, D. TIME/SPEED, H.R. KEY, PITCH, MODE

(PITCH SHIFTER/ HARMONIST/DETUNE/T.ARM/FLUTTER) ●Current
Draw 50 mA (max.) (DC 9 V)

● Controls E. LEVEL, TONE, TIME, MODE (SPRING/PLATE/HALL/

ROOM/GATE MODULATE) ●Current Draw 50 mA (DC 9 V)

● Controls THRESHOLD, DECAY, MODE (MUTE/REDUCTION)

● Current Draw 20 mA (DC 9 V)

● Controls E.LEVEL, LOW FILTER, RATE, DEPTH

● Current Draw 22 mA (DC 9 V)

● Controls DECAY, MANUAL/VOWEL 2, SENS/VOWEL 1, MODE

● Current Draw 50 mA (DC 9 V)

● Controls RATE, WAVE, DEPTH ●Current Draw 20 mA (DC 9 V)

● Controls RES, MANUAL, DEPTH, RATE, MODE (ULTRA, STANDARD,

GATE/PAN, MOMENTARY) ● Current Draw 40 mA (DC 9 V)

● Controls RATE, DEPTH, RES (resonance), STAGE (STEP/RISE/FALL/

12/10/8/4) ● Current Draw 50 mA (DC 9 V)

● Controls E.LEVEL, F.BACK, D.TIME, MODE (HOLD/L.800ms/

M.200ms/S.50ms) ● Current Draw 45 to 65 mA (DC 9 V)

● Controls E. LEVEL, F.BACK, D.TIME, MODE (2600ms/800ms/

300ms/80ms/REVERSE/ HOLD (5.2s)/WARP) ● Current Draw 55 mA
(DC 9 V)

[Twin Pedal Specifications]

● Power Supply DC 9 V: Dry battery <AA type> x 6, AC Adaptor

● Dimensions 173 (W) x 158 (D) x 57 (H) mm (6-13/16” x 6-1/4” x

2-1/4”)

● Controls EFFECT, DIRECT, FREQ, RES, DECAY/RATE, MODE

● Current Draw 50 mA (DC 9 V)

● Nominal Input Level –20 dBu ● Input Impedance 1 MΩ

● Nominal Output Level –20 dBu ● Output Impedance 1 kΩ

● Recommended Load Impedance 10 k

Ω or greater

● Power Supply

DC 9 V: Dry Battery<AA type> x 6, AC Adaptor ● Current Draw
55 mA (Expected battery life under continuous use; [Carbon: 14
hours], [Alkaline: 38 hours]; These figures will vary depending on the
actual conditions of use.) ● Dimensions 100 (W) x 270 (D) x 100 (H;
max.) mm (3-15/16” x 10-11/16” x 3-15/16”) ● Weight 1.3 kg/
2 lbs. 14 oz.(incl. batteries) ●Accessory Dry Battery <LR6 (AA) type>
x 6 ● Option AC Adaptor (PSA series)

TWIN PEDAL SERIES

FOOT PEDALS

PS-5

8

RV-5

8

NS-2

8

CEB-3

7

AW-3

7

● Controls DIRECT, OCT 1, CONTROL, MODE (POLY/RANGE/OCT 2/

DRIVE) ● Current Draw 50 mA (DC 9 V)

OC-3

7

TR-2

7

● Controls E.LEVEL, RATE, DEPTH, FILTER Knobs (HIGH, LOW)

● Current Draw 22 mA (DC 9 V)

CE-5

7

● Controls E.LEVEL, EQ, RATE, DEPTH

● Current Draw 15 mA (DC 9 V)

CH-1

7

BF-3

7

PH-3

8

DD-3

8

DD-6

8

SD-1

6

● Controls LEVEL, TONE, DRIVE ● Current Draw 9 mA (DC 9 V)

OD-3

6

BD-2

6

DS-1

6

● Controls Equalizer Control Sliders (100 Hz, 200 Hz, 400 Hz, 800 Hz,

1.6 kHz, 3.2 kHz, 6.4 kHz), LEVEL ● Current Draw 10 mA (DC 9 V)

GE-7

7

● Controls Equalizer Control Sliders (50 Hz, 120 Hz, 400 Hz, 500 Hz,

800 Hz, 4.5 kHz, 10 kHz), LEVEL ● Current Draw 16 mA (DC 9 V)

GEB-7

7

● Controls LEVEL, BODY, TOP, MODE (PIEZO/ENHANCE/JUMBO/

STANDARD) ●Current Draw 18 mA (DC 9 V)

AC-2

7

DS-2

6

MD-2

6

● Controls LEVEL, EQ (HIGH, LOW, MIDDLE, MID FREQ), DIST

● Current Draw 20 mA (DC 9 V)

MT-2

6

ODB-3

6

CS-3

7

● Controls LEVEL, TONE, DRIVE, COLOR Knob (OD, DS) ● Current

Draw 12 mA (DC 9 V)

OS-2

6

COMPACT SERIES

● Memories 4 ● Nominal Input Level –20 dBu ●Nominal Output

Level –20 dBu ● Dynamic Range 102 dB (IHF-A, typ.) ● Current
Draw 85 mA (9 V max.) (Expected battery life under continuous use;

[Carbon: 8 hours], [Alkaline: 20 hours]; These figures will vary
depending on the actual conditions of use.) ● Weight 1.1 kg/2 lbs.
7 oz. (incl. batteries) ● Accessory Dry Battery <LR6 (AA) type> x 6
(We recommend that alkaline batteries be used when replacing the
batteries.) ● Option AC Adaptor (PSA series)

10

OD-20

● Memories 9 ● Nominal Input Level GUITAR/BASS: –20 dBu,

GUITAR AMP SEND/RETURN: +4 dBu ● Nominal Output Level
GUITAR/BASS: –20 dBu, GUITAR AMP SEND/RETURN: +4 dBu

● Residual Noise Level -100 dBu or less (IHF-A, typ./All Sliders

max.) ● Variable Range Equalizer Control: ±15 dB, Level Control:
±15 dB

● Display Custom LCD (backlit LCD) ● Current Draw 120

mA (9 V) (Expected battery life under continuous use; [Carbon: 3.5
hours], [Alkaline: 12 hours]; These figures will vary depending on the
actual conditions of use.) ● Weight 1.1 kg/2 lbs. 7 oz. (incl. batteries)

● Accessory Dry Battery <LR6 (AA) type> x 6 (We recommend that

alkaline batteries be used when replacing the batteries.) ● Option AC
Adaptor (PSA series)

10

EQ-20

● Memories 4 ● Nominal Input Level GUITAR/BASS: –20 dBu,

GUITAR AMP SEND/RETURN: +4 dBu ● Nominal Output Level
GUITAR/BASS: –20 dBu, GUITAR AMP SEND/RETURN: +4 dBu

● Residual Noise Level –93 dBu or less (IHF-A, typ.) ● Current

Draw 160 mA (9 V max.) (Expected battery life under continuous
use; [Carbon: 4 hours], [Alkaline: 10 hours]; These figures will vary
depending on the actual conditions of use.) ● Weight 1.1 kg/
2 lbs. 7 oz. (incl. batteries) ● Accessory Dry Battery <LR6 (AA) type>
x 6 (We recommend that alkaline batteries be used when replacing
the batteries.) ● Option AC Adaptor (PSA series)

10

CE-20

● Controls MODE, LEVEL (A, B) ● Current Draw 25 mA (DC 9 V)

8

LS-2

● Controls LEVEL, ENHANCE, RATIO, THRESHOLD ● Current Draw

17 mA (DC 9 V)

8

LMB-3

8

SYB-5

8

PW-10

● Controls Main Volume Pedal, MINIMUM VOLUME Knob

● Connectors INPUT Jacks (1, 2), OUTPUT Jacks (1, 2), TUNER OUT

Jack ● Dimensions 86 (W) x 200 (D) x 54 (H) mm (3-3/8” x 7-7/8” x
2-1/8”) ● Weight 400 g/14 oz.

8

FV-50L

● Controls Main Volume Pedal, MINIMUM VOLUME Knob

● Connectors INPUT Jacks (1, 2), OUTPUT Jacks (1, 2), TUNER OUT

Jack ● Dimensions 86 (W) x 200 (D) x 54 (H) mm (3-3/8” x 7-7/8” x
2-1/8”) ● Weight 400 g/14 oz.

8

FV-50H

● Controls Main Volume Pedal, MINIMUM VOLUME Knob

● Connectors INPUT Jacks (1, 2), OUTPUT Jacks (1, 2), TUNER OUT

Jack ● Dimensions 111 (W) x 291 (D) x 69 (H) mm (4-3/8” x 11-1/2”
x 2-3/4”) ● Weight 1.0 kg/2.2 lbs.

8

FV-300L

SPECIF ICATIONS

31

SPECIFICATIONS

• 0 dBu = 0.775 Vrms

*AF method (Adaptive Focus method): This is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.

● Nominal Input Level GUITAR/BASS: –20 dBu, GUITAR AMP SEND/

RETURN: +4 dBu ● Nominal Output Level GUITAR/BASS: –20 dBu,
GUITAR AMP SEND/RETURN: +4 dBu ● Residual Noise Level
–93 dBu or less (IHF-A, typ.) ● Display Custom LCD (backlit LCD)

● Current Draw 200 mA (9 V max.) (Expected battery life under

continuous use: [Carbon: 2 hours], [Alkaline: 7 hours]; These figures
will vary depending on the actual conditions of use.) ● Weight 1.2
kg/2 lbs. 11 oz. (incl. batteries) ● Accessory Dry Battery <LR6 (AA)
type> x 6 (We recommend that alkaline batteries be used when
replacing the batteries.) ● Option AC Apaptor (PSA series)

● Reference Pitch A4 = 430 to 449 Hz (1 Hz steps) ● Tuning Range

E0 to C8 ● Power Supply Dry Battery (9 V type), AC Adaptor (PSA
series: Optional)

● Reference Pitch 440 to 445 Hz (1 Hz steps) ● Tuning Range C1 to

B5 ● Power Supply Dry Battery (9 V type), AC Adaptor (PSA series:
Optional)

● Reference Pitch 440 to 445 Hz (1 Hz steps) ● Tuning Range C1 to

B6 ● Power Supply Dry Battery (9 V type), AC Adaptor (PSA series:
Optional)

● Nominal Input Level INST: –20 dBu (variable), MIC: –40 dBu

(variable), AUX IN: –10 dBu ● Nominal Output Level OUTPUT:
–20 dBu ● Internal Memory Recording time: 16 min. (max.),
Maximum number of saved phrases:11 phrases (max.) ● Current
Draw 120 mA (9 V max.) ● Weight 1.2 kg/2 lbs. 11 oz. (incl.
batteries) ● Accessories Dry Battery <LR6 (AA) type> x 6, Sound
Library for RC-20XL (Sample Phrase CD) ● Options AC Adaptor
(PSA series), Footswitch (FS-5U, FS-6)

10

RC-20XL

10

DD-20

11

TU-15

11

TU-12

11

TU-12H

● Reference Pitch A4 = 438 to 445 Hz (1 Hz steps) ● Tuning Range

C0 to C8 ● Power Supply Dry Battery (9 V type), AC Adaptor (PSA
series: Optional)

11

TU-2

● Reference Pitch A4 = 435 Hz to 446 Hz (1 Hz steps) ● Tuning

Range E0 to C8 ● Power Supply Dry Battery <LR6 (AA) type> x 2

11

TU-80

12

AD-8

AD SERIES

TU SERIES

● Nominal Input Level –20 dBu ● Input Impedance 20 MΩ

● Nominal Output Level –20 dBu ● Output Impedance Unbalanced

Output/Electric Guitar Amp Output: 1 kΩ, Balanced Output: 600 Ω,
Phones: 33 Ω ● Recommended Load Impedance 10 kΩ or greater

● Reference Pitch A4 = 438 to 445 Hz (1 Hz steps) ● Tuning

Accuracy ±3 cents ● Display 7 segments LED ● Connectors INPUT
Jack (1/4” phone type), PHONES Jack (1/4” TRS phone type),
ELECTRIC GUITAR AMP OUTPUT Jack (1/4” phone type),
UNBALANCED OUTPUT Jacks A (Mono), B (1/4” phone type),
BALANCED OUTPUT Jacks A, B (XLR type), AC Adaptor Jack

● Power Supply DC 9 V: Dry Battery <R6/LR6 (AA) type> x 6, AC

Adaptor (PSA series) ● Current Draw 120 mA ● Dimensions 250
(W) x 180 (D) x 60 (H) mm (9-7/8” x 7-1/8” x 2-3/8”) ●Weight 1.9
kg/4 lbs. 4 oz. (excl. AC Adaptor) ● Accessory Dry Battery
<LR6 (AA) type> x 6 ● Option AC Adaptor (PSA series)

● AD Conversion 21 bit + AF method* ● DA Conversion 20 bit,

4 Times Oversampling Digital Filter ● Sampling Frequency 44.1 kHz

● Connectors INPUTS Jacks (PIEZO, MAGNETIC), INSERT Jack

(1/4” TRS phone type), OUTPUT Jacks (L/Mono, R), OUTPUT Jacks
[L, R (XLR-3-32 Type)], REMOTE Jack, AC Adaptor Jack ●Power
Supply DC 9 V ● Dimensions 150 (W) x 155 (D) x 65 (H) mm
(5-15/16” x 6-1/8” x 2-9/16”) ● Weight 1.0 kg/2 lbs. 4 oz. (excl. AC
Adaptor) ● Accessory AC Adaptor (Roland ACI or ACB series)

12

AD-5

● AD Conversion 20 bit ● DA Conversion 20 bit ●Sampling

Frequency 44.1 kHz ● Connectors INPUT Jack (1/4”), OUTPUT Jacks
(L, R: 1/4” TRS phone type), AC Adaptor Jack ● Power Supply DC 9 V:
Dry battery x 6, AC Adaptor (PSA series) ● Current Draw 90 mA

● Dimensions 170 (W) x 156 (D) x 70 (H) mm (6-3/4” x 6-3/16” x

2-13/16”) ● Weight 1.0 kg/2 lbs. 4 oz. (incl. batteries) ● Accessory
Dry Battery <LR6 (AA) type> x 6 ● Option AC Adaptor (PSA series)

12

AD-3

15 -16

GT-PRO

GT-PRO

● AD Conversion 24 bit + AF method* ● DA Conversion 24 bit

● Sampling Frequency 44.1 kHz ● Program Memories 120: 80

(User) + 40 (Preset) ● Nominal Input Level INPUT: –10 dBu ● Input
Impedance INPUT: 1 MΩ ●Nominal Output Level OUTPUT: –10 dBu

(1/4” Jack, At OUTPUT LEVEL marking position), OUTPUT: –10 dBu
(XLR Jack, 600 Ω load) ● Output Impedance OUTPUT: 2 kΩ (phone
Jack), OUTPUT: 600 kΩ (XLR Jack, HOT-COLD), 300 kΩ (HOT-GND,
COLD-GND) ● Display 16 characters, 2 lines (backlit LCD)/
2 characters, 7 segments LED ● Connectors INPUT Jack, OUTPUT
Jacks L (MONO)/R, PHONES Jack, XLR OUTPUT Jacks L/R(MONO/
DIRECT), DIGITAL OUT (coaxial), SUB EXP PEDAL/SUB CTL PEDAL
1, 2 Jack, MIDI IN/OUT, AC Adaptor Jack ●Power Supply AC 14 V:
Supplied AC adaptor (BRC series) ● Current Draw 800 mA

● Dimensions 515 (W) x 261 (D) x 75 (H) mm (20-5/16” x 10-5/16”

x 3”) ● Weight 4.7 kg/10 lbs. 6 oz. (excl. AC Adaptor) ● Accessory
AC Adaptor (BRC series)

●

AD Conversion 24 bit + AF method* ●DA Conversion 24 bit

●

Sampling Frequency 44.1 kHz ●Program Memories 340: 140

(User) + 200 (Preset) ●Nominal Input Level INPUT: –10 dBu,
RETURN: –10 dBu ●Input Impedance INPUT: 1 MΩ, RETURN:
220 kΩ ●Nominal Output Level OUTPUT: 0 dBu, SEND: –10 dBu

●

Output Impedance OUTPUT: 2 kΩ, SEND: 2 kΩ ●Digital

Output EIAJ CP1201, S/PDIF ●Dynamic Range 100 dB or greater

(IHF-A) ●Display 16 characters, 2 lines (backlit LCD)/2 characters,
7 segments LED ●Connectors INPUT Jack, OUTPUT Jacks
L (MONO)/R, PHONES Jack, SEND Jack, RETURN Jack, AMP
CONTROL Jack, SUB EXP PEDAL/SUB CTL PEDAL1,2 Jack, DIGITAL
OUT (coaxial) , MIDI IN/OUT, AC Adaptor Jack ●Power Supply AC
14 V: Supply AC Adaptor (BRC series) ●Current Draw 650 mA

●

Dimensions 515 (W) x 261 (D) x 75 (H) mm (20-5/16” x 10-5/16”

x 3”) ●Weight 4.8 kg/10 lbs. 10 oz. (excl. AC Adaptor)

● Accessory

AC Adaptor (BRC series)

19-20

GT-8

19-20

GT-6B

GT SERIES

● AD Conversion 24 bit + AF method* ● DA Conversion 24 bit

● Sampling Frequency 44.1 kHz ● Program Memories 400: 200

(User) + 200 (Preset) ● Nominal Input Level INPUT: –10 dBu,PRE
LOOP RETURN: –10 dBu, LOOP 1/2 RETURN: –10 dBu/+4 dBu

● Input Impedance INPUT: 1 MΩ, PRE LOOP RETURN: 220 kΩ,

LOOP 1/2 RETURN: 220 kΩ ● Nominal Output Level DIRECT
OUT/TUNER OUT: –10 dBu, MAIN OUT/SUB OUT: –10 dBu/+ 4 dBu,
SUB OUT XLR: +4 dBu, PRE LOOP SEND: –10 dBu, LOOP 1/2 SEND:
–10 dBu/+4 dBu ● Output Impedance DIRECT OUT/TUNER OUT:
2 kΩ, MAIN OUT/SUB OUT: 2 kΩ, SUB OUT XLR: 600Ω, PRE LOOP
SEND: 2 kΩ, LOOP 1/2 SEND: 2 kΩ ● Digital Output EIAJ CP1201,
S/PDIF ● Display 16 characters, 2 lines (backlit LCD)/2 characters,
7 segments LED ● Connectors <Front> INPUT Jack, PHONES
Jack <Rear> INPUT Jack, DIRECT OUT/TUNER OUT Jack, MAIN
OUTPUT Jacks L (MONO)/R, SUB OUTPUT Jacks L (MONO)/R, SUB
OUTPUT XLR L/R, PRE LOOP SEND Jack, PRE LOOP RETURN Jack,
LOOP 1 SEND Jack, LOOP 2 SEND Jack, LOOP 1 RETURN Jack,
LOOP 2 RETURN Jack, AMP CONTROL 1 Jack, AMP CONTROL 2
Jack, EXP PEDAL 1 Jack, CTL PEDAL1, 2 Jack, EXP PEDAL 2/CTL
PEDAL3, 4 Jack, DIGITAL OUT (coaxial), USB, MIDI IN/OUT/THRU

● Power Supply AC 117, 230V, or 240V ●Power Consumption 16 W

● Dimensions 482 (W) x 305 (D) x 89 (H) mm (19” x 12-1/16” x

3-9/16”) ● Weight 4.8 kg/10 lbs. 10 oz. ● Accessories USB cable,
GT-PRO software CD-ROM

Editor Software System Requirements

[ Windows] ● Operating System Microsoft® Windows® XP Home

Edition/XP Professional/2000 Professional/Me/98SE/98 ● Computer
A Windows® compatible computer with a USB connector

● CPU/Clock Pentium®, Celeron®, Intel-compatible Processor/600

MHz or higher ● Memory 128 MB or more ● Hard disk
200 MB or more of free space ●Display resolution 800 x 600 pixels
or higher/65,535 colors (High Color 16 bit) or more

[ Macintosh] ● Operating System Mac OS X v10.2.3 or later, Mac OS

9.x, Mac OS 8.6; This will not operate in the Classic environment of
Mac OS X. When using this, the Classic environment must not be
running simultaneously. ● Computer Apple Macintosh series
computer with on-board USB port ● CPU/Clock PowerPC G3/600
MHz or faster ● Memory 256 MB or more ● Hard disk 200 MB or
more of free space ● Display resolution 800 x 600 pixels or
higher/32,000 colors or more; Requires OMS 2.3.5 or later, Or requires
FreeMIDI 1.35 or later on Mac OS 9/8.

32

SPECIFICATIONS

22

GS

25

BR SERIES

21

21

ME SERIES

26

26

● AD Conversion 24 bit + AF method* ● DA Conversion 24 bit

● Sampling Frequency 44.1 kHz ● Patches 30 (User) ●Nominal

Input Level INPUT: –10 dBu, AUX IN: –10 dBu ●Input Impedance
INPUT: 1 MΩ, AUX IN: 100 kΩ ●Nominal Output Level –10 dBu

● Output Impedance 2 kΩ ● Display 1 character, 7 segments LED

● Connectors INPUT Jack, GUITAR AMP Jacks L (MONO)/R, AUX IN

Jack (Stereo Mini type), PHONES/LINE OUT Jack, AC Adaptor Jack

● Power Supply DC 9 V: Dry batteries <R6/LR6 (AA) type> x 6,

AC Adaptor (PSA series: Optional) ● Current Draw 120 mA; Expected
battery life under continuous use: [Carbon: 3.5 hours], [Alkaline: 12
hours]; These figures will vary depending on the actual conditions of
use. ● Dimensions 384 (W) x 225 (D) x 78(H) mm (15-1/8” x 8-7/8”
x

3-1/8”

) ● Weight 3.15 kg /7 lbs. (incl. batteries) ● Accessory Dry

Batteries <Alkaline: LR6 (AA) type> x 6 ● Options AC Adaptor (PSA
series), Footswitch(FS-5U)

● AD Conversion 24 bit + AF method* ● DA Conversion 24 bit

● Sampling Frequency 44.1 kHz ● Patches 24 (User) ●Nominal

Input Level INPUT: –10 dBu, AUX IN: –10 dBu ● Input Impedance
INPUT: 1 MΩ, AUX IN: 100 kΩ ●Nominal Output Level –10 dBu

● Output Impedance 2 kΩ ● Display 1 character, 7 segments LED

● Connectors INPUT Jack, OUTPUT Jacks L (MONO)/ R, AUX IN

Jack (Stereo Mini type), PHONES Jack, FOOT SW

Jacks

(COMP

ON/OFF, TEMPO), AC Adaptor Jack ●Power Supply DC 9 V: Dry
Batteries <R6/LR6 (AA) type> x 6, AC Adaptor (PSA series: Optional)

● Current Draw 140 mA ● Dimensions 384 (W) x 225 (D) x 78 (H) mm

(15-1/8” x 8-7/8” x 3-1/8”) ● Weight 3.15 kg/7 lbs. (incl. batteries)

● Accessory Dry Batteries <Alkaline: LR6 (AA) type> x 6 ● Options

AC Adaptor (PSA series), Footswitch (FS-5U)

● Rated Power Output 1.5 W + 1.5 W ● AD Conversion 24 bit + AF

method* ●DA Conversion 24 bit ● Digital Out/ USB Audio 24 bit

● Sampling Rate 44.1 kHz ● Program Memories 200: 100 (User)

+100 (Preset) ● Nominal Input Level GUITAR/BASS INPUT: –10
dBu, MIC INPUT: –40 dBu (Balanced), AUX INPUT (L/R): –10 dBu

● Input Impedance GUITAR/BASS INPUT: 1 MΩ, MIC INPUT: 2.2

kΩ, AUX INPUT (L/R): 33 kΩ ● Nominal Output Level OUTPUT
(L/R): –10 dBu, GUITAR AMP OUT: –10 dBu ● Output Impedance
OUTPUT (L/R): 1 kΩ, GUITAR AMP OUT: 1.5 kΩ ● Digital Output
EIAJ CP1201, S/PDIF ● Display 16 characters, 2 lines (backlit LCD)

● USB AUDIO IN/OUT (Stereo, 44.1 kHz, 24 bit), MIDI IN/OUT, MIDI

Control IN/OUT ● Connectors GUITAR/BASS INPUT Jack (1/4”
phone), MIC INPUT Jack (XLR, 1/4” TRS), AUX INPUT Jack L/R (RCA
pin), OUTPUT Jack L/R (RCA pin), GUITAR AMP OUT Jack (1/4”
phone), PHONES Jack, EXP PEDAL/CTL (1, 2) Jack, DIGITAL OUT
(coaxial), USB, MIDI IN/ OUT, AC Adaptor Jack ●Power Supply AC
14 V: AC Adaptor (BRC series) ● Current Draw 800 mA

● Dimensions 329 (W) x 231 (D) x 85 (H) mm (13” x 9-1/8” x 3-

3/8”) ● Weight 2.25 kg/5 lbs. ● Accessories AC Adaptor (BRC
Series), USB cable, GS-10 Software CD-ROM, Cakewalk Music
Creator set

Editor Software System Requirements

[Windows] ● Operating System Microsoft® Windows® XP

Professional/XP Home Edition/2000 Professional/Me/98SE/98

● Computer Windows® -compatible personal computer equipped

with a USB port

● CPU/Clock Pentium®, Celeron®, Intel-compatible

Processor/600 MHz or Higher; Not compatible with the Crusoe CPU
from Transmeta. ●USB Chipset Intel's USB chipset is recommended;
VIA USB chipsets - The CPU must be 1 GHz or higher. ●Memory
(RAM) 128 MB or more ● Hard disk 400 MB or more of free space

● Display resolution/Colors 800 x 600 pixels or higher/65,535

colors (High Color 16 bit) or more

[Macintosh] ● Operating System Mac OS X v10.2.3 or later, Mac OS

9.x, Mac OS 8.6; Mac OS 9.0.4 or later is required when using
SoundManager compatible applications. ● Computer Apple USB
Ready Macintosh ● CPU/Clock PowerPC G3/400 MHz or higher

● Memory 256 MB or more ● Hard disk 200 MB or more of free

space ● Display resolution 800 x 600 pixels or higher/65,535 colors
(High Color 16 bit) or more; Requires OMS 2.3.5 or later, Or requires
FreeMIDI 1.35 or later on Mac OS 9/8.

ME-50

ME-50B

GS-10

BR-1600CD Version 2

BR-1200CD

BR-900CD

● Tracks Track: 12, V-Track: 192 (16 V-Tracks per each Track); Up to

2 tracks can be recorded simultaneously, and up to 12 tracks can be
played back simultaneously. ● Maximum Useful Capacity/
Recording Time Internal Hard Disk: 40 GB / Recording time; 120
hours (conversion in one track); The listed recording time is
approximate. Time may be slightly shorter depending on the number
of songs and size of imported loop phrase that were created. ; The
listed recording time is the total for all the tracks that are used.
If each of the twelve tracks contain an equal amount of data, the
length of the resulting song will be approximately 1/12 of the above.

● Signal Processing <AD Conversion>: [24 bit, AF method*

(Guitar/Bass)], [24 bit, ∆∑ Modulation (VOCAL)], [24 bit, ∆∑
Modulation (LINE)], [24 bit, ∆∑ Modulation (SIMUL)], <DA
Conversion>: 24 bit, ∆∑ Modulation, <Internal Processing>: 24 bit
(digital mixer section), <Recording Data>: 16 bit linear ● Sample
Rate 44.1 kHz ● Frequency Response 20 Hz – 20 kHz (+1/–3 dB)

● Total Distortion 0.05 % or less (INPUT SENS : CENTER, 1 kHz at

nominal output level) ● Nominal Input Level (Variable)
GUITAR/BASS Jack: –20 dBu, MIC 1/2 Jacks (TRS balanced/XLR):
–40 dBu, LINE IN Jacks: –10 dBu ● Input Impedance [GUITAR/BASS
Jack: 1 MΩ], [MIC 1/2 Jacks (TRS balanced/ XLR): 12.5 kΩ (HOT­COLD) 6.5 kΩ (HOT-GND, COLD-GND)], [LINE IN Jacks: 22 kΩ]

● Nominal Output Level LINE OUT Jack: –10 dBu ● Output

Impedance LINE OUT Jack: 2 kΩ, PHONES Jack: 100 Ω

● Recommended Load Impedance LINE OUT Jack: 20 kΩ or greater,

PHONES Jack: 8–50 Ω ● Residual Noise Level LINE OUT Jack: – 87
dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with 1
kΩ, INPUT SENS: CENTER, IHF-A, typ.) ● Interface DIGITAL OUT:
S/PDIF 16 to 24 bit (optical type), USB connector (B type) ● Display
64 x 40 mm (backlit LCD) ● Connectors MIDI IN/ OUT, USB, DIGITAL
OUT (optical type), FOOT SW Jack (1/4” phone type), EXP PEDAL
Jack (Stereo 1/4” phone type), LINE OUT Jacks (RCA pin type), LINE
IN Jacks (RCA pin type), MIC 1/2 Jacks (XLR/TRS balanced),
PHONES Jack (Stereo 1/4” phone type), GUITAR/BASS Jack (1/4”
phone type) ● Power Supply DC 12 V: Supply AC Adaptor (Roland
PSB-3U) ● Power Consumption 3 A ● Dimensions 478 (W) x 297
(D) x 95 (H) mm (18-7/8” x 11-3/4” x 3-3/4”) ● Weight 4.1 kg/9 lbs.
1 oz. (excl. AC Adaptor) ● Accessories AC Adaptor: PSB-3U,
DISCRETE DRUMS (CD-ROM)

System Requirements (USB Connection)

● Compatible OS Windows: Windows® Me/2000 or later, Macintosh:

Mac OS 9.1 or later ● Computer Windows: Windows-compatible
personal computer equipped with a USB port, Macintosh: Apple
Macintosh computer equipped with a USB port ● Driver The BR­1200CD uses a standard DRIVER that is found on the OS. The DRIVER
will be installed automatically once connected with Computer via USB.

● Tracks Track: 16, V-Track: 256 (16 V-Tracks per primary Track);

Up to 8 tracks can be recorded simultaneously, and up to 16 tracks
can be played back simultaneously. ● Maximum Useful Capacity/
Recording Time Internal Hard Disk: 40 GB / Recording Time: 120
hours (conversion in one track); The listed recording time is
approximate. Time may be slightly shorter depending on the number
of songs and size of imported loop phrase that were created. ; The
listed recording time is the total for all the tracks that are used. If
each of the sixteen tracks contain an equal amount of data, the length
of the resulting song will be approximately 1/16 of the time shown.

● Signal Processing <AD Conversion>: [24 bit, AF method*

(Guitar/Bass)], [24 bit, ∆∑ Modulation (VOCAL)], [24 bit, ∆∑
Modulation (MULTI-TRACK)], [24 bit, ∆∑ Modulation (STEREO
TRACKS)], <DA Conversion>: 24 bit, ∆∑ Modulation, <Internal
Processing>: 24 bit (digital mixer section), <Recording Data>: 16 bit
linear ● Sample Rate 44.1 kHz ● Frequency Response 20 Hz–20
kHz (+1/-3 dB) ● Total Distortion 0.02 % or less (INPUT SENS:
CENTER, 1 kHz at nominal output level) ● Nominal Input Level
(Variable) GUITAR/BASS Jack: –10 dBu, MIC 1–8 Jacks (XLR):
–40 dBu, INPUT 1–8 Jacks: –10 dBu ● Input Impedance
[GUITAR/BASS Jack: 1 MΩ], [MIC 1–8 Jacks (XLR): 12.5 kΩ (HOT­COLD), 6.5 kΩ (HOT-GND, COLD-GND)], [INPUT 1–8 Jacks: 22 kΩ]

● Nominal Output Level LINE OUT Jack: –10 dBu ● Output

Impedance LINE OUT Jack: 2 kΩ, PHONES 1, 2 Jack: 100 Ω

● Recommended Load Impedance LINE OUT Jack: 20 kΩ or

greater, PHONES 1, 2 Jack: 8–50 Ω ●Residual Noise Level LINE
OUT Jack: –90 dBu or less (INPUT SELECT: GUITAR/BASS, input
terminated with 1 kΩ, INPUT SENS: CENTER, IHF-A, typ.)

● Interface DIGITAL IN: S/PDIF 16–24 bit (coaxial type), DIGITAL

OUT: S/PDIF 16–24 bit (coaxial type), USB (B type) ● Display 130 x
36 mm (backlit LCD) ● Connectors MIDI IN/ OUT, USB, DIGITAL IN
(coaxial type), DIGITAL OUT (coaxial type), FOOT SW Jack (1/4”
phone type), EXP PEDAL Jack (Stereo 1/4” phone type), LINE OUT
Jacks (RCA pin type), INPUT 1–8 Jacks (unbalanced, 1/4” phone
type), MIC 1–8 Jacks (XLR balanced), PHONES 1 Jack (Stereo 1/4”
phone type), PHONES 2 Jack (Stereo 1/4” phone type),
GUITAR/BASS Jack (1/4” phone type) ●Power Supply DC 12 V: AC
Adaptor (Roland PSB-3U) ● Power Consumption 3 A ● Dimensions
494 (W) x 339 (D) x 99 (H) mm (19-1/2” x 13-3/8” x 3-15/16”)

● Weight 4.9 kg/10 lbs. 13 oz. (excl. AC Adaptor) ● Accessories AC

Adaptor: PSB-3U, Effect Patch List, DISCRETE DRUMS (CD-ROM)

System Requirements (USB Connection)

● Compatible OS Windows: Windows® Me/2000 or later, Macintosh:

Mac OS 9.1 or later ● Computer Windows: Windows-compatible
personal computer equipped with a USB port, Macintosh: Apple
Macintosh computer equipped with a USB port

● Driver The BR-

1600CD uses a standard DRIVER that is found on the OS. The DRIVER
will be installed automatically once connected with Computer via USB.

● Tracks Track: 8, V-Track: 64 (8 V-Tracks per each Track); Up to 2

tracks can be recorded simultaneously, and up to 8 tracks can be
played back simultaneously. ● Maximum Useful Capacity
CompactFlash card: 32 MB to 1 GB ●Data Type HiFi (MT2), Standard
(LV1), Long (LV2) ● Signal Processing <AD Conversion>: [24 bit, ∆∑
Modulation + AF-AD (Guitar/Bass)], [24 bit, ∆∑ Modulation + AF-AD
(Mic)], [24 bit, ∆∑ Modulation (LINE)], [24 bit, ∆∑ Modulation
(SIMUL)], <DA Conversion>: 24 bit, ∆∑ Modulation, <Internal
Processing>: 24 bit (digital mixer section) ● Sample Rate 44.1 kHz

● Frequency Response 20 Hz–20 kHz (+1/-3 dB) ● Nominal Input

Level (Variable) GUITAR/BASS Jack: –20 dBu, MIC 1/2 Jacks (TRS
Balanced/ XLR): –40 dBu, LINE IN Jacks: –10 dBu ● Input Impedance
[GUITAR/BASS Jack: 1 MΩ], [MIC 1/2 Jacks (TRS Balanced/ XLR):

1.5 kΩ (HOT-COLD), 1.0 kΩ (HOT-GND, COLD-GND)], [LINE IN
Jacks: 10 kΩ] ● Nominal Output Level LINE OUT Jack: –10 dBu

● Output Impedance LINE OUT Jack: 2 kΩ, PHONES Jack: 140 Ω

● Recommended Load Impedance LINE OUT Jack: 20 kΩ or greater,

PHONES Jack: 32–100 Ω ● Residual Noise Level LINE OUT Jack:
–85 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated
with 1 kΩ, INPUT SENS: CENTER, IHF-A, typ., Effect: Off) ● Interface
DIGITAL OUT (optical type), USB ●Display 16 characters x 2 lines +

SPECIF IC ATIONS

33

SPECIFICATIONS

27

DR & DB SERIES

ACCESSORIES

28

30

30

28

28

DR-880

DR-670

DR-3

29-30

BCB-60

28

DB-30

28

DB-60

DB-90

FS-5L

FS-5U

• 0 dBu = 0.775 Vrms

*AF method (Adaptive Focus method): This is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.

● Max. Polyphony 32 voices; Depending on the bass sound selected,

maximum polyphony may be lower ● Instruments Drums: 440, Bass:
40 ● Kits User: 100, Preset: 100 ● Rhythm Patterns User: 500,
Preset: 500 ● Songs User: 100 ● Connectors [Rear] OUTPUT

Jacks
L(Mono), R (1/4” phone type), L, R (phone type), DIGITAL OUT
(coaxial), USB, [CTL] 1/2, 3/4/EXP PEDAL

Jack

, MIDI IN/OUT, AC

Adaptor

Jack

, [Front] PHONES

Jack

(Stereo 1/4” phone type),

GUITAR/BASS INPUT

Jack

(1/4” phone type) ● Power Supply AC

Adaptor (BRC series) ● Dimensions 273 (W) x 242 (D) x 72 (H) mm
(10-3/4” x 9-9/16” x 2-7/8”)

● Weight 1.4 kg/3 lbs. 2 oz. (excl. AC

Adaptor)

● Accessories AC Adaptor (BRC series), DR-880 Driver CD-

ROM ● Options Footswitch (FS-5U, FS-6), Expression Pedal (EV-5)

● Max. Polyphony 20 voices; Depending on the instruments and drum

kits used, max. polyphony may be lower ● Instruments Drum: 256,
Bass: 16 ● Rhythm Patterns User: 200, Preset: 200 ● Songs Songs:
100, Song Length: Max. 250 patterns for a song., Total Patterns for all
songs: approx. 3,000 ● Connectors OUTPUT Jacks (L, R), PHONES
Jack, FOOT SW Jack , MIDI IN/ OUT, AC Adaptor Jack (DC 9 V)

● Power Supply DC 9 V: Dry Battery x 6, AC Adaptor (PSA series:

Optional)

● Dimensions 213 (W) x 169 (D) x 53 (H) mm (8-7/16” x 6-

11/16” x 2-1/8”)

● Weight 800 g/1 lbs. 11 oz. ● Accessory Dry

Batteries <Alkaline: LR6 (AA) type> x 6 ● Option AC Adaptor (PSA series)

● Max. Polyphony 12 voices ● Instruments Drum and Perc: 120,

Bass: 12 ● Rhythm Patterns User: 100, Preset: 100; 11 patterns for
a rhythm pattern ● Songs Songs: 100, Song Length: Max. 250
patterns for a song ● Connectors OUTPUT

Jacks

(L, R/RCA phono

type), L (PHONES), R (Mono) (1/4” phone type),

PHONES Jack

(Stereo 1/4” phone type), MIDI IN, AC Adaptor

Jack

● Power Supply

DC 9 V: Dry Battery x 6, AC Adaptor (PSA series)

● Dimensions 213

(W) x 185 (D) x 53 (H) mm (8-7/16” x 7-5/16” x 2-1/8”)

● Weight 700

g/1 lbs. 10 oz. ● Power Consumption 200 mA ● Accessory Dry Batteries
<Alkaline: LR6 (AA) type> x 6 ● Option AC Adaptor (PSA series)

29

AB-2

● Nominal Input Level –20 dBu ● Nominal output Level –20 dBu

● Control Pedal ● Indicators A (red), B (yellow) ● Connectors A Jack, B

Jack, IN/OUT Jack ● Current Draw 5 mA or less; Expected batter y life
under continuous use: Carbon: 100 hou; This figure will vary depending
on the actual conditions of use.

● Power Supply Dry Battery <R03/LR03

(AAA) type> x 2 ● Dimensions 96 (W) x 90 (D) x 43 (H) mm (3-13/16” x
3-9/16” x 1-3/4”) ● Weight 240 g/0 lbs. 9 oz. ● Accessories Dry Battery
<R03/LR03 (AAA) type> x 2, Number Sticker

● Connectors 1/4” phone type ● Dimensions 96 (W) x 90 (D) x 43

(H) mm (3-13/16” x 3-9/16” x 1-3/4”) ● Weight 230 g/9 oz.

● Connectors 1/4” phone type ● Power Supply Dry Battery

<R03/LR03 (AAA) type> x 2 ●Dimensions 96 (W) x 90 (D) x 43 (H) m m
(3-13/16” x 3-9/16” x 1-3/4”) ● Weight 240 g/9 oz.

29

RH-200

● Metronome Tempo: 30 to 250 (Accuracy: ± 0.1%), Beat: 1-9, 2+3,

3+2, 3+4, 4+3, 4+5, 5+4, 5+6,6+5, 6+7, 7+6, 7+8, 8+7, 8+9, 9+8 (23
kinds), Pattern: 8 Beat x 3, 16 Beat x 2, Shuffle x 2, Funk, Dance x 2,
Country, Reggae, Clave x 2, Rumba, Bossa nova, Waltz, Tango, Mambo,
March (20 kinds) ● Reference Tone Reference Pitch: A4=438Hz-445Hz
(1Hz steps), Reference Tone Range: C4-B4 (Accuracy: ±1 cent)

● Timer Setting Range: 1 to 60 minutes ● Indicators LCD Display,

Tempo Indicator LED x 2 ●Connector PHONES Jack (Stereo miniature
phone type) ● Power Supply Dry Battery <R6/LR6 (AA) Type> x 2

● Dimensions 129 (W) x 84 (D) x 22 (H) mm (5-1/8” x 3-5/16” x 0-

7/8”) ● Weight 200 g/0 lbs. 6 oz. (incl. batteries) ● Accessories Dry
Battery <R6 (AA) Type> x 2, Soft case

● Metronome Tempo: 30 to 250 (Accuracy: ± 0.1%), Beat: 0-9, 2+3,

3+2, 3+4, 4+3, 4+5, 5+4, 5+6, 6+5, 6+7, 7+6, 7+8, 8+7, 8+9, 9+8 (24
kinds), Rhythm: Quarter note, Eighth note, Eighth rest and eighth
note, Triple, Triple with center rest, Sixteenth note, Sixteenth note with
sixteenth rest, CLAVE 1, CLAVE 2 (9 kinds) ●Reference Tone
Reference Pitch: A4 = 438 Hz-445 Hz (1 Hz steps), Reference Tone
Range: C4-B4 (Accuracy: ±1 cent) ● Auto Power Off function Turns
unit off after 60 min.● Memory function Stores the settings when the
power is turned off. (The Mute status is not stored in memory.)

● Indicators LCD Display, Tempo Indicator LED x 2

● Connector PHONES Jack (Stereo miniature phone type) ● Power

Supply CR2032 lithium battery x 1 ● Power Consumption 10 mA or
less (with reference tone sounding) ● Dimensions 61 (W) x 90 (D) x
20 (H) mm (2-7/16” x 3-9/16” x 13/16”) ● Weight 70 g/3 oz. (incl.
batteries) ●

Accessory

CR2032 lithium battery

● Connectors INPUT Jack, SEND Jack, RETURN A Jack, RETURN B

Jack, OUTPUT A Jack, OUTPUT B Jack, PSC IN Jack, DC OUT Jack

● Power Supply DC 9V: AC Adaptor (PSC series) ● Dimensions

670 (W) x 370(D) x 100(H) mm (26-7/16” x 14-5/8” x 3-15/16”)

● Weight 3.8 kg/8 lbs. 7 oz. ●

Accessory

AC Adaptor (PSC series),
Pre-cut insert x 3, Spare insert x 1, 8-pin parallel DC cord, L-L cable
(short) x 5, L-L cable (long) x 3

approx. 100 icons (backlit LCD) ● Connectors GUITAR/BASS Jack
(1/4” phone type), MIC 1 Jack (XLR balanced, TRS balanced), MIC 2
Jack (XLR balanced), LINE IN Jacks (RCA pin type), LINE OUT Jacks
(RCA pin type), DIGITAL OUT (optical type), FOOT SW/ EXP PEDAL
Jack (1/4” phone type), PHONES Jack (Stereo 1/4” phone type), MIDI
OUT, USB ● Power Supply DC 9 V: Supplied AC Adaptor, Dry
Batteries x 6 ● Current Draw 300 to 900 mA; Expected battery life
under continuous use: Alkaline: 4 hours These figures will vary
depending on the actual conditions of use. ● Dimensions 351 (W) x
225 (D) x 69 (H) mm (13-7/8” x 8-7/8” x 2-3/4”) ● Weight 2.2 kg/4
lbs. 14 oz. (excl. AC Adaptor) ● Accessories AC Adaptor (PSC series),
Demo Card

System Requirements (USB Connection)

● Compatible OS Windows: Windows® Me/2000 or later, Macintosh:

Mac OS 9.1 or later ● Computer Windows: Windows-compatible
personal computer equipped with a USB port, Macintosh: Apple
Macintosh computer equipped with a USB port ● Driver The BR­900CD uses a standard DRIVER that is found on the OS. The DRIVER
will be installed automatically once connected with Computer via USB.

● Metronome Tempo: 30 to 250 (Accuracy: ± 0.1%), Beat 1: 1-9, Beat 2:

OFF, 1-9, Pattern: 8-Beat x 4, 16-Beat x 3, Shuffle x 3, Funk x 2, Jazz x
2, Blues, Techno, House, Country, Reggae, Clave 3-2, Clave 2-3,
Salsa, Rumba, Bossa Nova, Samba, Waltz, Tango, Mambo,
Chachacha, March (30 kinds) ● Rhythm Coach Time Check, Quiet
Count, Gradual Up/Down, Step Up/Down

● Reference Tone

Reference Pitch: A4=438 Hz-445 Hz (1 Hz steps), Reference Tone
Range: C2-B6 (5 octave, 12 semitone) ● Memory Metronome: 50,
Reference Tone: 10 ●Auto Power Off function Turns unit off after 60
min. ● Indicators LCD Display, Tempo Indicator LED x 2 ●Connectors
TRIG IN, START/STOP, MEMORY UP/DOWN, MIDI IN, PHONES x 2

(Stereo 1/4” phone type, Stereo miniature phone type), INPUT Jack,
AC Adaptor Jack

● Power Supply DC 9V: Dry Battery <6LR61/9V,

6F22/9V> or AC Adaptor (PSA series) ● Current Draw 85 mA or less
(with reference tone sounding), 190 mA or less (with signals inputting
to the INPUT jack) ● Dimensions 122 (W) x 164 (D) x 37.5 (H) mm
(4-3/4” x 6-1/2” x 1-1/2”) ● Weight 450 g/ 14 oz (incl. batteries)

● Accessories Dry Battery, Soft case

30

● Type Condenser ● Frequency Response 20–20,000 Hz ● Output

Impedance 200 Ω ● Polar PatternsCardioid ● Sensitivity – 32 dB
(0 dB=1 V/Pa, 1 kHz) ● Dimensions (dia head x length x dia grip) 52 x
158 x 21 mm (2-1/6” x 6-1/4” x 7/8”) ● Weight 345 g/13 oz.

● Accessories Shock-mount holder, Screw Adaptor (5/8”-27, 3/8”-16),

Carrying case

DR-80C

30

● Type Dynamic ● Frequency Response 90 –16,000 Hz ●Output

Impedance 300 Ω ● Polar Patterns Hyper Cardioid ● Sensitivity
–54 dB (0 dB=1 V/Pa, 1 kHz) ● Weight 355 g/13 oz.

DR-50

30

● Type Dynamic ● Frequency Response 100–13,000 Hz ● Output

Impedance 600 Ω ● Polar Patterns Cardioid ● Sensitivity –52 dB
(0 dB=1 V/Pa, 1 kHz) ● Weight 305 g/11 oz. ● Accessories Stand
clamp, Screw Adaptor (5/8”-27, 3/8”-16), 4.5m (15’) cable, Carrying case

DR-30

30

30

VT-1

DI -1

● Nominal Input Level MIC: –50 dBu, LINE: – 20 dBu ●Input Range

62.5 Hz to 1 kHz (C2 to B5) ● Nominal Output Level MIC OUT: –40
dBu, LINE OUT: –20 dBu ●Residual Noise –100 dBu or less (INPUT:
MIC) ● Connectors INPUT Jack, MIC OUT Jack, LINE OUT Jacks
(L, R), REMOTE Jack, AC Adaptor Jack ● Power Supply DC 9 V: AC
Adaptor ● Current Draw 300 mA ● Dimensions 178 (W) x 161.5 (D)
x 52 (H) mm (7” x 6-3/8” x 2-1/16”) ● Weight 480 g/1 lbs. 1oz. (excl.
AC Adaptor) ● Accessory AC Adaptor (ACI/ACB series)

● Frequency Response 20 Hz to 40 kHz (+0.5/–1 dB) ● Nominal

Input Level –20/0/+20 dBu (selectable) ● Max. Input Level +45 dBu
(1 kHz), 390 Vp-p ● Max. Output Level +8 dBu (Balanced: 600 Ω
load, Unbalanced: 50 kΩ) ● Residual Noise –11 dBu or less (IHF-A)

● Total Harmonic Distortion 0.05 % or less ● Current Draw 6 mA

● Dimensions 97 (W) x 125 (D) x 46 (H) mm(3-13/16” x 4-15/16” x

1-13/16”) ● Weight 500 g/1 lbs. 1 oz.

29

FS-6

● Controls Pedal Switch A, B/POLARITY Switch A, B/Mode Switch A, B

● Connectors Jack A, Jack B (1/4” phone type) Jack A & B (TRS 1/4”

phone type) ● Power Supply DC 9 V: Dry battery/9 V 6F22 (Carbon),
6LR61 (Alkaline) ● Current Draw 8 mA (max.) ● Dimensions 188 (W)
x 91(D) x 43 (H) mm (7-7/161” x 3-5/8” x 1-3/4”) ● Weight
500 g/1 lbs. 1 oz. (incl. battery) ●

Accessory

Dry battery/9 V (6F22)

29

EV-5

● Controls Main Volume Pedal, Minimum Volume Knob

● Dimensions 86 (W) x 200 (D) x 54 (H) mm (3-3/8” x 7-7/8” x 2-

1/8”) ● Weight 400 g/14 oz. ●

Accessory

Stereo Plug Cord (2 m)

● Type of Construction Closed Type: Dynamics ●Driver 40 mm in

diameter: Neodymium Magnet ● Sensitivity 100 dB/mW

● Maximum Input Power 1,600 mW at 1 kHz ● Frequency

Response 20–20,000 Hz ● Impedance 65 Ω ●Cable 3.4 m: coiled
cable ● Connector 1/8” Stereo mini-plug (w/ screw-on 1/4” Adaptor)

● Weight 200 g/0 lbs. 8 oz.

29

CM-30

● Rated Power Output 30 W ● Nominal Input Level (1kHz) Channel

1 (MIC/LINE): –50 to –20 dBu, Channel 2, 3 (LINE): –20 dBu, AUX IN
1, 2: –10 dBu, Stereo Link Input: –10 dBu ● Nominal Output Level
Stereo Link Out L, R: –10 dBu ● Speaker 16 cm (6.5”) + Tweeter
(Coaxial 2-Way) ● Controls Channel 1 (MIC/LINE) Volume Knob,
Channel 2, 3 Volume Knob, Stereo Phones Level Knob, Equalizer: Low
Knob, High Knob, Master Knob, Power Switch ● Connectors
CHANNEL 1 INPUT Jack (XLR type, 1/4” phone type), CHANNEL 2, 3
INPUT Jack L (mono) (1/4” phone type), CHANNEL 2, 3 INPUT Jack
R (1/4” phone type), AUX IN 1 Jack (RCA pin type), AUX IN 2 Jack
(Stereo miniature phone type), STEREO LINK OUT L, R (1/4” phone
type), STEREO LINK IN (1/4” phone type), STEREO PHONES Jack
(1/4” phone type) ● Power Supply AC 117 V, AC 230 V, AC 240 V

● Power Consumption 32 W ● Dimensions 214 (W) x 238 (D) x 275

(H) mm (8-7/16” x 9-3/8” x 10-7/8”) ● Weight 5.6 kg/12 lbs. 6 oz.

34

SPECIFICATIONS

All specifications and appearances are subject to change.

All trademarks used in this catalog are the property of their respective companies.

Printed in Japan Mar. 2005 RAM-3893 GR-GEN-SE CF-3

Once a musical instrument generates sound vibrations, it reaches the human ear through various mediating objects, each of which significantly affects the sound.
The material and configuration of the instrument, the electric/electronic/magnetic amplifying system, the air and the reverberation of the room all affect the final sound.
Sound modeling, the latest DSP technology, “virtually ” reconstructs these objects. Roland’s breakthrough Composite Object Sound Modeling (COSM)uses the advantages of
multiple modeling methods and succeeds in accurately emulating existing sounds, as well as producing sounds that have never before been created.

www.BOSScorp.co.jp

www.BOSScorp.co.jp

ARE YOU PLUGGED IN?
