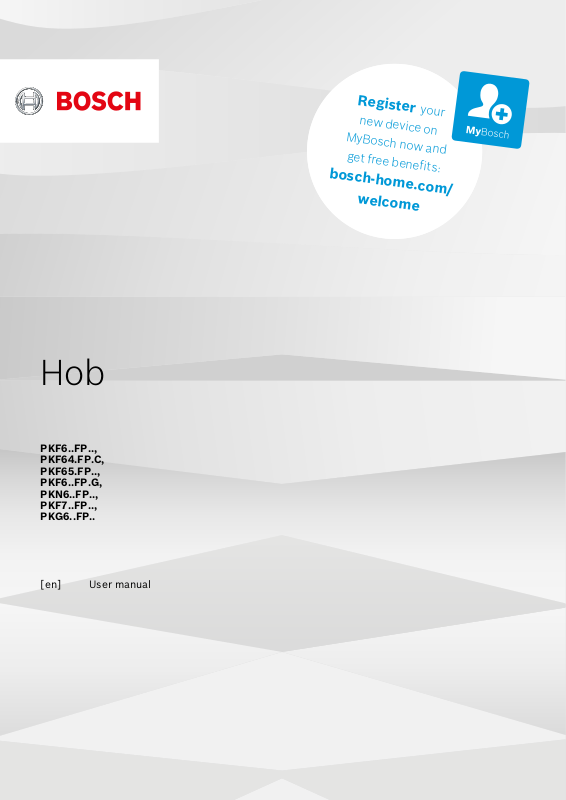

Bosch PKG775FP1E, PKF651FP1E, PKN645FP1E, PKF645FP1E, PKN651FP1E Instructions for Use
...
Register your
new device on
MyBosch now and
get free benefits:
bosch-home.com/
welcome
Hob
PKF6..FP..,
PKF64.FP.C,
PKF65.FP..,
PKF6..FP.G,
PKN6..FP..,
PKF7..FP..,
PKG6..FP..
[en]
User manual
PKF6..FP.., PKF7..FP..
Ø 14,5
Ø 14,5
Ø 21/12
Ø 18
Ø 14,5
Ø 14,5
Ø 18
Ø 21/12
Ø 14,5
Ø 14,5
Ø 18/8
Ø 21/12
Ø 14,5
Ø 14,5
Ø 18/8
Ø 21
Ø 18
Ø 14,5
Ø 21/14,5
Ø 17/26,5
Ø 14,5
Ø 14,5
Ø 21/12
Ø 18/12
PKF6..FP.G
PKF64.FP.C, PKF65.FP..
PKG6..FP..
PKN6..FP..
PKG7..FP..
Ø = cm2
Safety en
Table of contents
1 Safety....................................................................3
2 Preventing material damage ...............................4
3 Environmental protection and saving en-
ergy .......................................................................5
4 Familiarising yourself with your appliance ........6
5 Basic operation ....................................................7
6 PowerBoost function ...........................................8
7 Childproof lock.....................................................8
8 Time-setting options............................................9
9 Automatic switch-off..........................................10
10 Wipe protection..................................................10
11 Energy consumption display ............................10
12 Basic settings.....................................................10
13 Cleaning and servicing......................................11
14 Troubleshooting.................................................12
15 Disposal..............................................................13
16 Customer Service...............................................13
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instructions, the appliance pass
and the product information safe for future
reference or for the next owner.
¡ Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under the
warranty.
Only use this appliance:
¡ To prepare meals and drinks.
¡ Under supervision. Never leave the appli-
ance unattended when cooking for short
periods.
¡ In private households and in enclosed
spaces in a domestic environment.
¡ Up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡ With an external timer or a separate remote
control. This does not apply if operation
with appliances included in EN 50615 is
switched off.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inadequate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Children must not play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of fire!
Leaving fat or oil cooking on an unattended
hob can be dangerous and may lead to fires.
▶
Never leave hot oil or fat unattended.
▶
Never attempt to extinguish a fire using water; instead, switch off the appliance and
then cover with a lid or a fire blanket.
The cooking surface becomes very hot.
▶
Never place flammable objects on the
cooking surface or in its immediate vicinity.
▶
Never place objects on the cooking surface.
The appliance will become hot.
▶
Do not keep combustible objects or aerosol cans in drawers directly underneath the
hob.
The hob switches off automatically and can
no longer be operated. It may switch on unintentionally at a later point.
▶
Switch off the fuse in the fuse box.
▶
Call the customer service.
Hob covers can cause accidents, for example
due to overheating, catching fire or materials
shattering.
▶
Do not use hob covers.
Food may catch fire.
▶
The cooking process must be monitored. A
short process must be monitored continu-
ously.
3
en Preventing material damage
WARNING‒Risk of burns!
The appliance and its parts that can be
touched become hot during use, particularly
the hob surround, if fitted.
▶
Caution should be exercised here in order
to avoid touching heating elements.
▶
Young children under 8 years of age must
be kept away from the appliance.
The hotplate heats up but the display does
not work.
▶
Switch off the fuse in the fuse box.
▶
Call the customer service.
Hob protective grilles may cause accidents.
▶
Never use hob protective grilles.
The appliance becomes hot during operation.
▶
Allow the appliance to cool down before
cleaning.
▶
Never operate an appliance with a cracked
or fractured surface.
▶
Call customer services. →Page13
An ingress of moisture can cause an electric
shock.
▶
Do not use steam- or high-pressure clean-
ers to clean the appliance.
The insulation on cables of electrical appliances may melt if it touches hot parts of the
appliance.
▶
Never bring electrical appliance cables into
contact with hot parts of the appliance.
WARNING‒Risk of injury!
Saucepans may suddenly jump due to liquid
between the saucepan base and the hotplate.
▶
Always keep hotplates and saucepan
bases dry.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶
Repairs to the appliance should only be
carried out by trained specialist staff.
▶
Only use genuine spare parts when repairing the appliance.
▶
If the power cord of this appliance is damaged, it must be replaced with a special
connection cable, which is available from
the manufacturer or his Customer Service.
If the appliance or the power cord is damaged, this is dangerous.
▶
Never operate a damaged appliance.
2 Preventing material damage
ATTENTION!
Rough pot and pan bases will scratch the ceramic.
▶
Check your cookware.
Boiling pans dry may damage cookware or the appli-
ance.
▶
Never place empty pans on a heated hotplate or al-
low to boil dry.
Incorrectly positioned cookware can cause the appli-
ance to overheat.
▶
Never place hot pots or pans on the controls or the
hob surround.
Damage can occur if hard or pointed objects fall onto
the hob.
▶
Do not let hard or pointed objects fall onto the hob.
Non heat-resistant materials will melt on heated hot-
plates.
▶
Do not use oven protective foil.
▶
Do not use aluminium foil or plastic containers.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶
Keep packaging material away from children.
▶
Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶
Keep small parts away from children.
▶
Do not let children play with small parts.
2.1 Overview of the most common damage
Here you can find the most common types of damage
and tips on how to avoid them.
Damage Cause Measure
Stains Food boiling
over
Stains Unsuitable
cleaning
products
ScratchesSalt, sugar or
sand
ScratchesRough pot or
pan bases
Discolouration
Unsuitable
cleaning
products
Remove boiled-over food
immediately with a glass
scraper.
Only use cleaning
products that are suitable
for glass ceramic.
Do not use the hob as a
work surface or storage
space.
Check your cookware.
Only use cleaning
products that are suitable
for glass ceramic.
4
Environmental protection and saving energy en
Damage Cause Measure
Discolouration
Pan abrasion,
e.g. aluminium
Lift pots and pans to
move on the hob.
Damage Cause Measure
Blisters Sugar or food
with a high
sugar content
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compatible and can be recycled.
▶
Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less energy.
Select the cooking zone to match the size of your
pan. Centre the cookware on the hob.
Use cookware whose base diameter is the same diameter as the hotplate.
Tip:Cookware manufacturers often give the upper
diameter of the saucepan. It is often larger than the
base diameter.
Unsuitable cookware or incompletely covered cook-
¡
ing zones consume a lot of energy.
Cover saucepans with suitable lids.
Cooking without a lid consumes far more energy.
¡
Lift lids as infrequently as possible.
When you lift a lid, a lot of energy escapes.
¡
Using a glass lid
You can see into the pan through a glass lid
¡
without having to lift it.
Use pots and pans with flat bases.
Uneven bases increase energy consumption.
¡
Use cookware suited to the quantity of food.
Large items of cookware containing little food need
¡
more energy to heat up.
Cook with little water.
The more water contained in cookware, the more
¡
energy is required to heat it up.
Turn down to a lower heat setting early on. Use a suitable ongoing cooking setting to continue cooking.
If you continue cooking with an ongoing cooking
¡
setting that is too high, you'll waste energy
Take advantage of the hob's residual heat. With
longer cooking times switch off the hotplate
5-10minutes before the end of cooking.
Unused residual heat increases energy consump-
¡
tion.
Remove boiled-over food
immediately with a glass
scraper.
5
