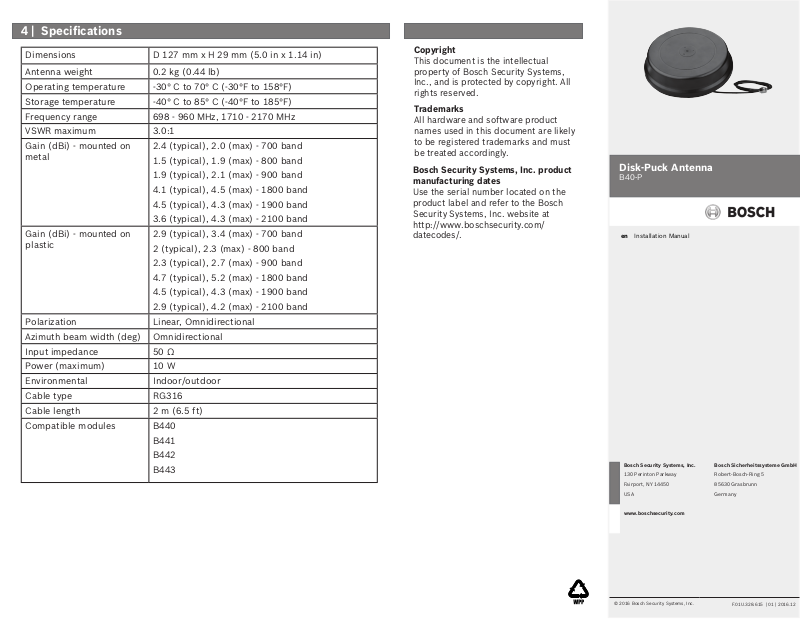

4 | Specifications
Dimensions |
D 127 mm x H 29 mm (5.0 in x 1.14 in) |
|
|
|
|
Antenna weight |
0.2 kg (0.44 lb) |
|
Operating temperature |
-30° C to 70° C (-30°F to 158°F) |
|
|
|
|
Storage temperature |
-40° C to 85° C (-40°F to 185°F) |
|
|
|
|
Frequency range |
698 - 960 MHz, 1710 - 2170 MHz |
|
VSWR maximum |
3.0:1 |
|
|
|
|
Gain (dBi) - mounted on |
2.4 |
(typical), 2.0 (max) - 700 band |
metal |
1.5 |
(typical), 1.9 (max) - 800 band |
|
||
|
1.9 |
(typical), 2.1 (max) - 900 band |
|
4.1 |
(typical), 4.5 (max) - 1800 band |
|
4.5 |
(typical), 4.3 (max) - 1900 band |
|
3.6 |
(typical), 4.3 (max) - 2100 band |
|
|
|
Gain (dBi) - mounted on |
2.9 |
(typical), 3.4 (max) - 700 band |
plastic |
2 (typical), 2.3 (max) - 800 band |
|
|
||
|
2.3 |
(typical), 2.7 (max) - 900 band |
|
4.7 |
(typical), 5.2 (max) - 1800 band |
|
4.5 |
(typical), 4.3 (max) - 1900 band |
|
2.9 |
(typical), 4.2 (max) - 2100 band |
|
|
|
Polarization |
Linear, Omnidirectional |
|
|
|
|
Azimuth beam width (deg) |
Omnidirectional |
|
|
|
|
Input impedance |
50 Ω |
|
|
|
|
Power (maximum) |
10 W |
|
Environmental |
Indoor/outdoor |
|
|
|
|
Cable type |
RG316 |
|
|
|
|
Cable length |
2 m (6.5 ft) |
|
|
|
|
Compatible modules |
B440 |
|
|
B441 |
|
|
B442 |
|
|
B443 |
|
|
|
|
Copyright
This document is the intellectual property of Bosch Security Systems, Inc., and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security Systems, Inc. website at http://www.boschsecurity.com/ datecodes/.
Disk-Puck Antenna
B40-P
en Installation Manual
|
Bosch Security Systems, Inc. |
Bosch Sicherheitssysteme GmbH |
|
130 Perinton Parkway |
Robert-Bosch-Ring 5 |
|
Fairport, NY 14450 |
85630 Grasbrunn |
|
USA |
Germany |
|
www.boschsecurity.com |
|
|
|
© 2016 Bosch Security Systems, Inc. |
F.01U.328.615 | 01 | 2016.12 |
1 | |
2 | |
20 mm (0.8”)
ATM |
3 | |
4 | |
5 | |
6 |
ATM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
