people, animals, the machine
or electric components.
Warning: High pressure jets can be
dangerous if subject to misuse.
According to the applicable
regulations, the appliance
must never be used on the
drinking water network without a
system separator. Use a separator
as per IEC61770 Type BA.
Water flowing though a system separator is considered not drinkable.
The AdvancedAquatak 150/
AdvancedAquatak 160 is in-
tended for use only in
premises having a service current capacity ≥100A per phase, supplied
from a distribution network having a
nominal voltage of 230V. If in doubt
please contact your Supply Authority.
Safety Notes for pressure washer
Read all safety warnings
and all instructions. Failure
to follow the safety warnings
and instructions may result in electric
shock, fire and/or serious injury.
The warning and information signs
attached to the unit provide important information for safe operation.
Apart from the information in the
operating instructions comply with
the general safety regulations and
regulations for the prevention of accidents.
Connecting to the mains
u The voltage of the power source
must correspond with the data on
the type plate of the product.
u We recommend that this product is
only connected into a socket which
is protected by a circuit-breaker that
would be actuated by a 30mA residual current.
u The circuit breaker supplying mains
power to the high-pressure washer
should have no less than a C16 rating. If in doubt consult a qualified
electrician for further advice. Do not
attempt to modify your electrical
system yourself.
u Remove the plug from socket
whenever the machine is left unattended for any period.
u The electric supply installation
should comply with IEC60364-1.
u If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a
hazard.
u If the plug is damaged, pay attention
to the following:
Bosch Power ToolsF 016 L81 292 | (04.03.2019)
4 | English
u Plugs and sockets situated near the
work site or outdoors should be to
class IP 55 of BS 5490 to provide
adequate protection against ingress
of water, etc. and cable entries require effective sealing. Rubber
shrouds should be provided over
cable glands. Drip-proof (class IP X2
of BS 5490) plugs and sockets to BS
4343 are suitable for use indoors
where the plug is away from the water spray area where the appliance is
in use.
u Never touch the mains plug with wet
hands.
u Do not pull plug while operating the
device.
u Do not run over, crush or pull the
power supply cord or extension
cord, otherwise it may be damaged.
Protect the cable from heat, oil and
sharp edges.
u Do not use the unit, if the power sup-
ply cord or important parts, e.g.
high-pressure hose, power gun or
safety devices are damaged.
u Warning: Inadequate extension
cables can be dangerous.
u If an extension cord is used, the plug
and socket must be of watertight
construction. The extension cord
must have a cross section in accordance with the operating instructions
and be protected against splashed
water. The connection must not be in
water.
u When replacing plugs on the power
supply cable or extension lead the
spray water guard and mechanical
stability must remain intact.
Water connection
u Comply with the regulations of your
water supply company.
u All connecting hoses must have
properly sealed joints.
u Make sure that the supply hose is at
least 12.7mm (1/2") in diameter
and is reinforced.
u The appliance should never be used
on the drinking water supply without
a back flow valve. Water which has
passed the back flow valve is regarded as undrinkable.
u The high-pressure hose must not be
damaged (danger of bursting). A
damaged high-pressure hose must
be replaced immediately. Only use
hoses and connections recommended by the manufacturer.
u High-pressure hoses, fittings and
couplings are important for the
safety of the appliance. Use only
hoses, fittings and couplings recommended by the manufacturer.
u Only clean or filtered water should
be used for intake.
Application
u Before use, check that the machine
and operating equipment are in perfect condition and are safe to operate. Do not use if it is not in perfect
condition.
F 016 L81 292 | (04.03.2019)Bosch Power Tools
English | 5
u Do not direct the jet against yourself
or others in order to clean clothes or
footwear.
u Do not use solvent-containing li-
quids, undiluted acids, acetone or
solvents, including petrol, paint thinners, heating oil. The sprayed vapours are highly flammable, explosive and toxic.
u The appropriate safety regulations
must be observed when using the
unit in dangerous areas (e.g. petrol
stations). It is forbidden to operate
the unit in potentially explosive locations.
u The unit must be placed on a solid
base.
u Take care if using the machine in a
confined space ensuring that there is
adequate ventilation. Ensure that all
vehicles are switched off at all times
whilst cleaning.
u Operation of this machine requires
both hands to be used at all times.
Do not operate from a ladder. Take
care when using the machine on balconies or other raised areas ensuring
that you can see any edges at all
times.
u Only use detergents recommended
by the manufacturer. Comply with
the application, disposal and warning instructions of the detergent
manufacturers.
u The use of other cleaning agents or
chemicals may adversely affect the
safety of the machine.
u All current-conducting components
in the work area must be protected
against splashed water.
u The gun trigger must not be jammed
in position “ON” during operation.
u During use of high pressure clean-
ers, aerosols may be formed. Inhalation of aerosols can be hazardous to
health.
u Shielded nozzles can reduce the aer-
osol effect. If necessary wear personal protective equipment (PPE)
e.g. safety goggles, breathing protection etc to protect against water,
particles and/or aerosols sprayed
back from parts.
u High pressure may cause objects to
rebound. If necessary wear suitable
personnel protective equipment
such as safety goggles.
u Vehicle tyres/tyre valves may only be
cleaned from a minimum distance of
30cm in order to avoid damages by
the high-pressure jet. The first indication of damage is the discolouration
of the tyre. Damaged vehicle tyres/
tyre valves are dangerous to life.
u Materials containing asbestos and
other materials which contain substances which are hazardous to your
health must not be sprayed.
u Detergents must not be used undi-
luted. The products are safe to use
as they contain no acids, alkalis or
substances which are detrimental to
the environment. We recommend
that the detergents are kept out of
Bosch Power ToolsF 016 L81 292 | (04.03.2019)
6 | English
the reach of children. If detergent
comes into contact with the eyes,
wash immediately with plenty of water and if swallowed contact a doctor
immediately.
u Never use the pressure washer
without the filter or with a dirty or
damaged filter. Using the pressure
washer without a filter or with a dirty
or damaged filter may invalidate the
warranty.
u Metal parts may become hot after
prolonged usage. If necessary wear
protective gloves.
u Avoid high pressure washing in bad
weather conditions especially when
there is a risk of lightning.
u Wear suitable protective clothing to
protect against splash water. Do not
use the appliance within the range of
persons, unless they wear protective
clothing.
Operation
u The operator must use the product in
accordance with the regulations. The
local conditions must be taken into
account. When working, pay attention to other people, especially to
children.
u The unit may only be used by author-
ised persons who have received
training or have demonstrated their
ability to operate the unit. The unit
must not be operated by children or
juveniles (danger of accidents due to
incorrect use of the unit).
u Never allow children, persons with
physical, sensory or mental limitations or a lack of experience and/or
knowledge and/or people unfamiliar
with these instructions to use the
product. Local regulations may restrict the age of the operator.
u Children should be supervised to en-
sure that they do not play with the
product.
u The unit must never be left unsuper-
vised while the unit is switched on.
u The water jet from the high-pressure
nozzle produces a recoil on the gun.
You should therefore hold the gun
and spray lance firmly with both
hands.
u Never use a roto nozzle or pencil jet
to clean motor vehicles.
Transport
u Switch off the motor and secure the
unit before transporting.
Maintenance
u Switch off the unit prior to all clean-
ing and maintenance work and before replacing components. Pull out
the mains plug if the unit is mainsoperated.
u Repairs may only be carried out by
authorised Bosch Service Centres.
Accessories and spare parts
u Accessories and spare parts which
have been approved by Bosch must
be used. Original accessories and
spare parts guarantee that the ma-
F 016 L81 292 | (04.03.2019)Bosch Power Tools
English | 7
chine can be operated safely and
without any breakdowns.
SymbolMeaning
On
Off

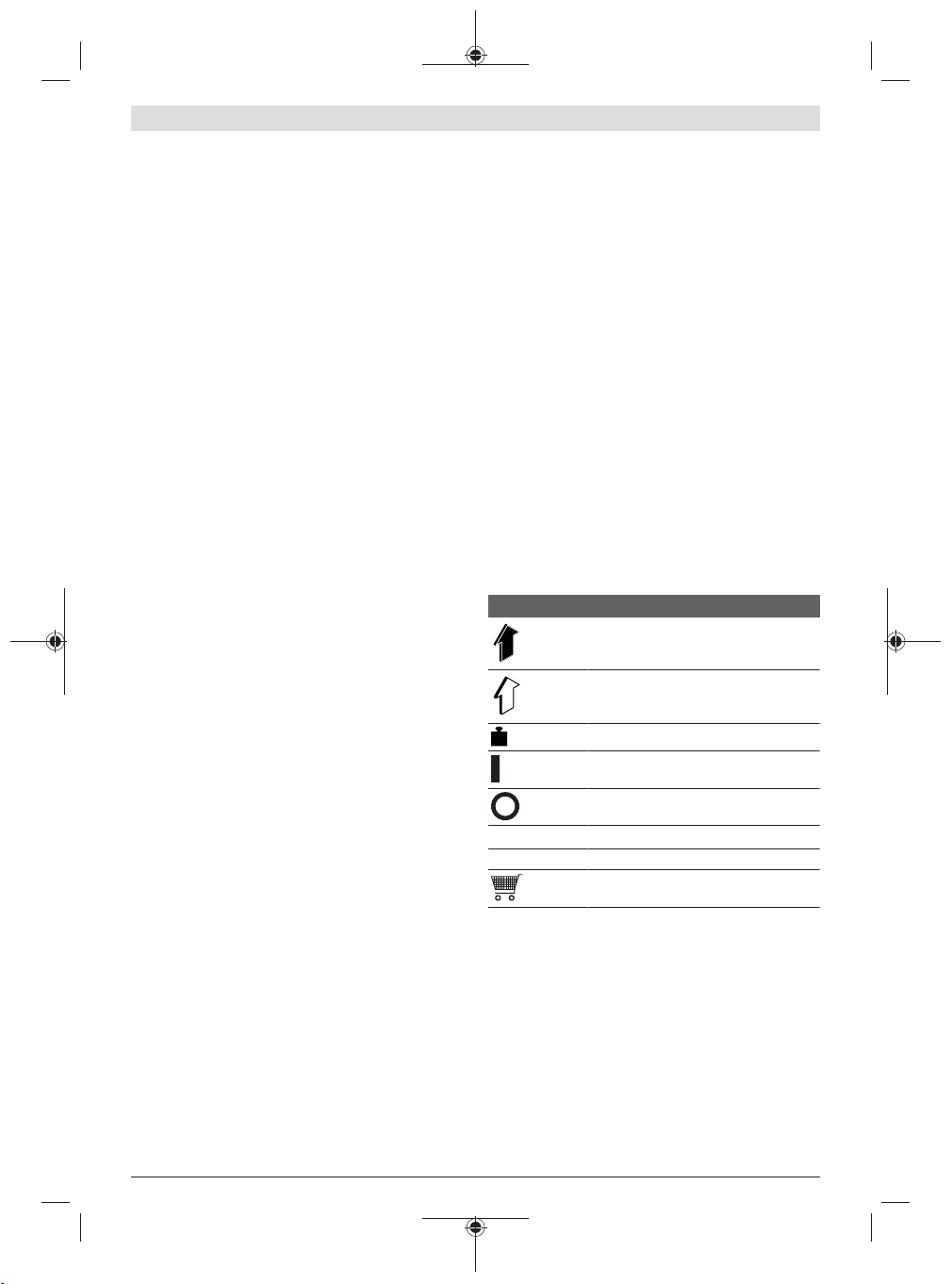

Symbols
The following symbols are important for reading and understanding the original instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the product in a better and safer
manner.
SymbolMeaning
Movement direction
Reaction direction
Weight
LoLow pressure
HiHigh pressure
Accessories
Intended Use
The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats, if the appropriate
accessories and cleaning agents approved by Bosch are
used.
The intended use is related to operation within 0°C and
40°C ambient temperature.
This product should not be used for professional use.
Rated powerkW2.22.6
Supply temperature max.°C4040
Supply rate min.l/min89.5
Allowable pressureMPa1516
Rated pressureMPa1112
Rated Flowl/min7.58.5
Maximum inlet pressureMPa11
Autostop Function●●
Weight according to EPTA‑Procedure 01:2014kg21.123.4
Protection class / I / I
Serial numberSee serial number (rating plate) on pressure washer.
3 600 HA7 7..3 600 HA7 8..
The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in countryspecific models.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable
mains system conditions. Malfunctions are not to be expected for system impedances below 0.276ohm. If in doubt please
contact your Supply Authority.

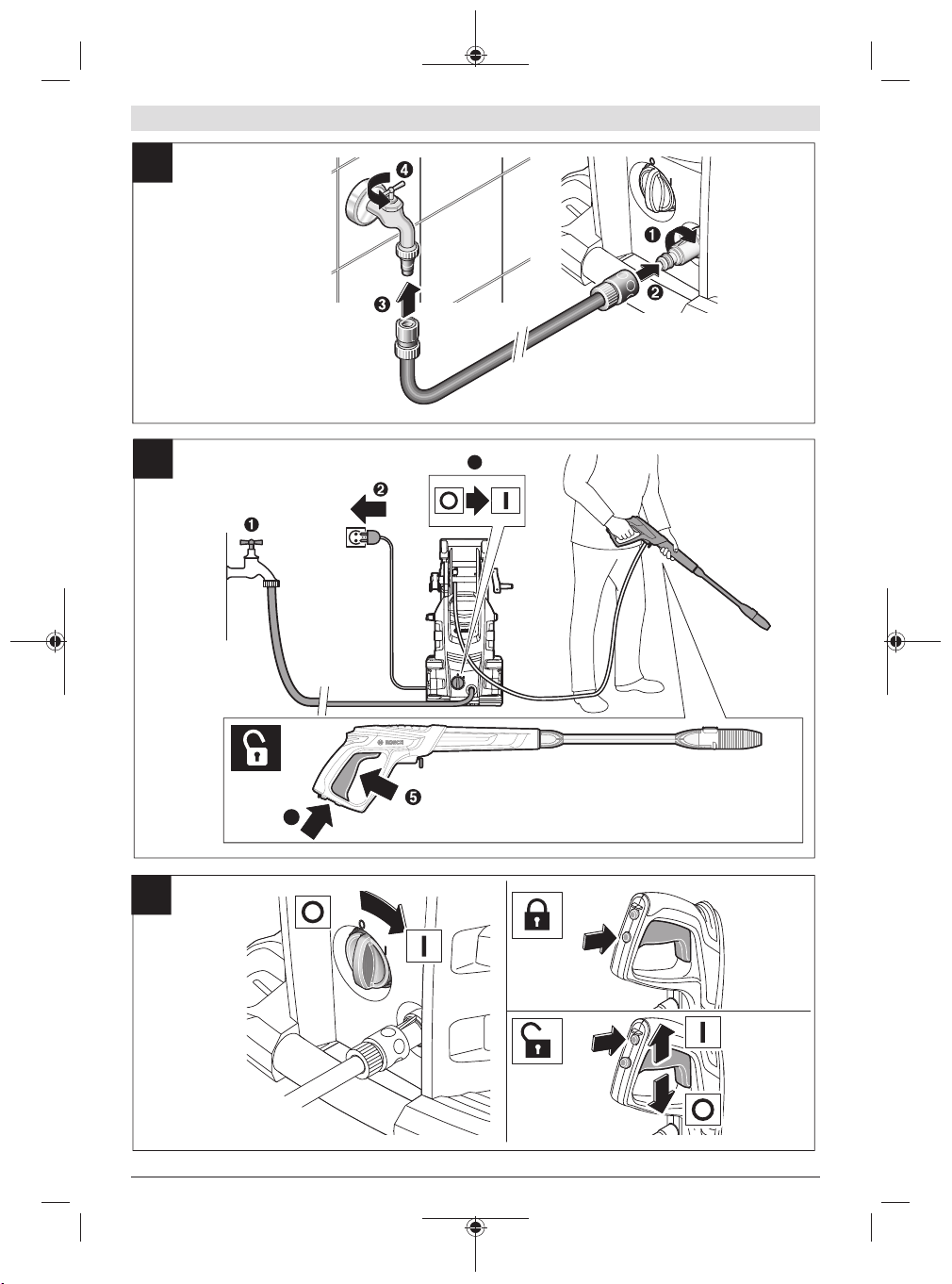

Mounting and Operation
ActionFigurePage
Delivery scope
Adjusting the Handle
Connecting high pressure water supply hose/nozzle
Connecting to the water supply
Switching On and Off
Bosch Power ToolsF 016 L81 292 | (04.03.2019)
A63
B64
C64
D65
E – F65
ActionFigurePage
Clean the water filter
Clean nozzle
Connecting high pressure gun
to lance
Tube Assembly
Connect detergent bottle
Variable Fan lance
Connecting high pressure gun
G66
H66
I66
J67
K67
L68
8 | English
ActionFigurePage
to lance
Adjust water jet
Roto lance
Connecting high pressure gun
to lance
Adjust water jet
Gun storage
Storage
Transport
Selecting Accessories
M69
N70
O70
P71
Q72
Switching on
For Your Safety
Warning: Switch off, remove plug from
mains before adjusting, cleaning or if cable
is cut, damaged or entangled.
The operating voltage is 230VAC, 50Hz (for non-EU countries 220V, 240V as applicable). Contact your Bosch Service Centre for details. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.
If you want to use an extension cable when operating your
high pressure washer, only the following cable dimensions
should be used:
– 2.5mm2 – max length 25m
Note: If an extension cable is used it must be earthed and
connected through the plug to the earth cable of your supply
network in accordance with prescribed safety regulations.
If in doubt contact a qualified electrician or the nearest
Bosch Service Centre.
WARNING! Inadequate extension cables can
be dangerous. Extension cable, plug and
and intended for outdoor use.
The connections (plugs and sockets) should be kept dry and
off the ground.
For increased electrical safety use a Residual Current Device
(RCD) with a tripping current of not more than 30mA. Always check your RCD every time you use it.
If the supply cord is damaged, it must be replaced by a
Bosch Service Centre.
For products not sold in GB:
Warning: For your safety, it is required that the plug attached to the product is connected with the extension cord.
The coupling of the extension cord must be protected
against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.
Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric
plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an au-
socket must be of watertight construction
thorised customer service agent. The replacement plug
should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains
socket elsewhere.
u Products that are only sold in AUS and NZ: Use a resid-
ual current device (RCD) with a nominal residual current
of 30 mA or less.
Operation
u To prevent damage to the appliance, do not allow it to
operate dry.
Starting
Attach water supply hose (not supplied) to the mains water
supply and machine.
Connect the product to the mains supply ensuring that the
mains switch is in the off position.
Open water tap.
Press the safety lock (back button on the gun handle) to re-
lease the trigger. Fully press the trigger until there is a constant flow of water to clear the air from the machine and water supply hose. Release trigger. Press the safety lock (front
button on the gun handle).
Turn button on main switch. Point the power gun downwards. Press the trigger safety lock to release the trigger.
Fully press the trigger.
Autostop Function
The machine is designed to switch off the motor when the
trigger is released on the gun.
Working Advice
General
u Never use a roto nozzle or pencil jet to clean motor
vehicles.
Ensure that the pressure washer is on level ground.
Do not overreach with the high pressure hose or move the
pressure washer by pulling the hose, this could cause the
ma-chine to become unstable and fall over.
Do not kink or drive a motor vehicle over the high pressure
hose. Do not expose the high pressure hose to sharp edges
or corners.
Working advice for cleaning with detergents
u Only use cleaning agents suitable specifically for high
pressure washers.
We recommend that you use detergent sparingly for the sake
of the environment. Observe the recommended dilution on
the detergent label.
Recommended cleaning method
Step 1: Attach the fan nozzle and remove the heavy dirt.
F 016 L81 292 | (04.03.2019)Bosch Power Tools
English | 9
Step 2: Attach the foam bottle and spray on the detergent
sparingly.
Step 3: Rinse off the loosened dirt and detergent with the
fan nozzle.
Note: When cleaning a vertical surface spray off dirt/detergent from the bottom and work in an upwards direction.
Rinse from the top and work downwards.
Use with alternative water sources
This high-pressure washer will self prime and can draw water
from water tanks and natural water sources. It is IMPORT-ANT that the water is clean and the BOSCH inlet filter is clear
and fitted to the machine.
Open tanks/containers and natural water
sources
Use the Self Priming accessory kit comprising:
– Inlet strainer with non return valve
– 3m reinforced supply hose
– Universal coupling to the pressure washer
This enables the pressure washer to draw water up to 0.5m
above the water level in the source. This may take up to 15
seconds.
Submerge the 3m hose in water to displace the air. Connect
the 3m supply hose to the pressure washer ensuring that
the inlet strainer remains submerged in the water source.
Run the pressure washer with the lance disconnected until a
steady flow of water appears from the high pressure hose.
Stop if this has not been achieved within 25 seconds and
check all the connections. Switch off and connect the lance
and nozzle to operate.
It is important to ensure that all hose and coupling connections are of good quality, air tight and that all washers are in
good condition and correctly seated in place. Failure to do
so may affect the self priming performance.
Water Tanks with outlet connections
When connecting the pressure washer to a water tank with a
suitable tap outlet, first connect the supply hose (not
provided) to the tank outlet, open the tap to allow the water
to displace all the air in the hose and then connect to the
pressure washer.
Troubleshooting
ProblemPossible CauseCorrective Action
Motor refuses to start Plug not connectedConnect plug
Mains socket faultyUse another socket
Fuse faulty / blownReplace fuse
Extension cable damagedTry without extension cable
Motor protector has activatedAllow to cool for 15 minutes
FrozenWait for pump/water supply hose/accessory to
Motor stopsFuse faulty / blownReplace fuse
Wrong mains voltageCheck that mains voltage corresponds to specific-
Motor protector has activatedAllow to cool for 15 minutes
Fuses blowFuses incorrectly ratedChange to a mains supply higher than the pres-
Motor starts but no
pressure
Motor “sounds” but
fails to start
Pressure pulsatingAir in the inlet water supply hose/pumpAllow pressure washer to run with open spray
Nozzle partly blockedClean nozzle
Insufficient power supplyCheck that the voltage of the mains power supply
Voltage loss due to use of extension cableCheck characteristics of extension cable
Appliance not used for a long period of timeContact your Bosch Service Centre
Problems with TSS (Total Stop System) deviceContact your Bosch Service Centre
Inadequate water supplyCheck that the water supply corresponds to spe-
thaw
ations on the model tag
sure washer amp consumption
line is the same as that on the plate.
handle and nozzle at low pressure until regular
working pressure is obtained
cifications. The minimum specification for the water supply hose is 1/2" or 13mm diameter
Bosch Power ToolsF 016 L81 292 | (04.03.2019)
10 | English
ProblemPossible CauseCorrective Action
Water filter blockedClean water filter
Water supply hoses squeezedStraighten out kinked water supply hoses
Pressure too low, but
steady
Note: Several types of
accessory will normally
deliver a lower pressure
Motor starts up but
with restricted or no
working pressure
The pressure washer
starts irregularly by itself
Water leaks from machine
High pressure hose too longRemove high pressure extension hose. Retry (ex-
Nozzle wornChange the nozzle
Start/stop valve wornActivate trigger five times in quick succession
No water supplyConnect water supply
Water filter clogged upClean the water filter
Nozzle clogged upClean nozzle
Pump/ power gun leakyContact your Bosch Service Centre
Leaking pumpA slight water leak is permissible; in case of ex-
tension hose max. 7m)
cessive leak, contact Bosch Service Centre.
Maintenance and Service
Maintenance
u Stop, remove plug from the power supply and discon-
nect from water supply.
Note: To ensure long and reliable service, carry out the fol-
lowing maintenance regularly.
Regularly check for obvious defects such as loose fixings,
and worn or damaged components.
Check that covers and guards are undamaged and correctly
fitted. Carry out necessary maintenance or repairs before
using.
In order to avoid safety hazards, if the power supply cord
needs to be replaced, this must be done by Bosch or by an
after-sales service centre that is authorised to repair Bosch
power tools.
After use/Storage
Turn the main switch off and operate the trigger to drain the
water from the high pressure hose.
Clean the exterior of the machine thoroughly using a soft
brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.
End of season storage: Drain water out of pump running motor for a few seconds. Pull trigger to release all water.
Do not place other objects on top of the machine.
Store in a frost-free area.
Ensure cables are not trapped when storing. Do not kink high
pressure hose.
After-sales Service and Application
service
www.bosch-do-it.com
In all correspondence and spare parts orders, please always
include the 10‑digit article number given on the nameplate
of the product.
Bosch Power Tool (China) Co. Ltd.
Bosch Service Center
567, Bin Kang Road
Bin Kang District
Hangzhou, Zhejiang Province
China 310052
Tel.: (0571) 8887 5566 / 5588
Fax: (0571) 8887 6688 x 5566# / 5588#
E-mail: bsc.hz@cn.bosch.com
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Co. Ltd.
21st Floor, 625 King’s Road
North Point, Hong Kong
Customer Service Hotline: +852 2101 0235
Fax: +852 2590 9762
F 016 L81 292 | (04.03.2019)Bosch Power Tools
English | 11
E-mail: info@hk.bosch.com
www.bosch-pt.com.hk
India
Bosch Service Center
69, Habibullah Road, (next to PSBB School), T. Nagar
Chennai–600077
Phone: (044) 64561816
Bosch Service Center Rishyamook
85A, Panchkuin Road
New Delhi–110001
Phone: (011) 43166190
Bosch Service Center 79,
Crystal Bldg., Dr. Annie Besant Road, Worli
Mumbai–400018
Phone: (022) 39569936 / (022 )39569959 /
(022) 39569967 / (022) 24952071
Indonesia
PT Robert Bosch
Palma Tower 10th Floor
Jalan RA Kartini II-S Kaveling 6
Pondok Pinang, Kebayoran Lama
Jakarta Selatan 12310
Tel.: (21) 3005-5800
www.bosch-pt.co.id
Malaysia
Robert Bosch Sdn. Bhd.(220975-V) PT/SMY
No. 8A, Jalan 13/6
46200 Petaling Jaya
Selangor
Tel.: (03) 79663194
Toll-Free: 1800 880188
Fax: (03) 79583838
E-mail: kiathoe.chong@my.bosch.com
www.bosch-pt.com.my
Pakistan
Robert Bosch Middle East FZE – Pakistan Liaison Office
2nd Floor Plaza # 10, CCA Block, DHA Phase 5
Lahore, 54810
Phone: +92(303)4444311
E-mail: Faisal.Khan@bosch.com
Philippines
Robert Bosch, Inc.
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio, Global City,
1634 Taguig City
Tel.: (632) 8703871
Fax: (632) 8703870
www.bosch-pt.com.ph
Singapore
Powerwell Service Centre Ptd Ltd
Bosch Authorised Service Centre (Power Tools)
4012 Ang Mo Kio Ave 10, #01-02 TECHplace
Singapore 569628
Tel.: 6452 1770
Fax: 6452 1760
E-mail: ask@powerwellsc.com
www.powerwellsc.com
www.bosch-pt.com.sg
Thailand
Robert Bosch Ltd.
Liberty Square Building
No. 287, 11 Floor
Silom Road, Bangrak
Bangkok 10500
Tel.: 02 6393111
Fax: 02 2384783
Robert Bosch Ltd., P. O. Box 2054
Bangkok 10501
www.bosch.co.th
Bosch Service – Training Centre
La Salle Tower Ground Floor Unit No.2
10/11 La Salle Moo 16
Srinakharin Road
Bangkaew, Bang Plee
Samutprakarn 10540
Tel.: 02 7587555
Fax: 02 7587525
Vietnam
Branch of Bosch Vietnam Co., Ltd in HCMC
14th floor, Deutsches Haus, 33 Le Duan
Ben Nghe Ward, District 1, Ho Chi Minh City
Tel.: (028) 6258 3690
Fax: (028) 6258 3692 - 6258 3694
Hotline: (028) 6250 8555
E-mail: tuvankhachhang-pt@vn.bosch.com
www.bosch-pt.com.vn
TOO "Robert Bosch" Power Tools, After Sales Service
Rayimbek Ave., 169/1
050050, Almaty, Kazakhstan
Service e-mail: service.pt.ka@bosch.com
Official website: www.bosch.com, www.bosch-pt.com
Bahrain
Hatem Al Juffali Technical Equipment Establishment.
Kingdom of Bahrain, Setra Highway, Al Aker Area
Phone: +966126971777-311
Fax: +97317704257
E-mail: h.berjas@eajb.com.sa
Swanee Road, Alfalah Area
Tripoli
Phone: +218 21 4811184
Oman
Malatan Trading & Contracting LLC
P.O. Box 131
Ruwi, 112 Sultanate of Oman
Phone: +968 99886794
E-mail: malatanpowertools@malatan.net
Qatar
International Construction Solutions W L L
P. O. Box 51,
Doha Phone: +974 40065458
Fax: +974 4453 8585
E-mail: csd@icsdoha.com
Saudi Arabia
Juffali Technical Equipment Co. (JTECO)
Kilo 14, Madinah Road, Al Bawadi District
Jeddah 21431
Phone: +966 2 6672222 Ext. 1528
Fax: +966 2 6676308
E-mail: roland@eajb.com.sa
Syria
Dallal Establishment for Power Tools
P.O. Box 1030
Aleppo
Phone: +963212116083
E-mail: rita.dallal@hotmail.com
United Arab Emirates
Central Motors & Equipment LLC, P.O. Box 1984
Al-Wahda Street – Old Sana Building
Sharjah
Phone: +971 6 593 2777
Fax: +971 6 533 2269
E-mail: powertools@centralmotors.ae
Yemen
Abualrejal Trading Corporation
Sana’a Zubiery St. Front to new Parliament Building
Phone: +967-1-202010
Fax: +967-1-279029
E-mail: tech-tools@abualrejal.com
Diesel & Autoelectric Service Ltd.
117 Nyerere Rd., P.O. Box 70839
Vingunguti 12109, Dar Es Salaam
Phone: +255 222 861 793/794
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch-pt.com.au
www.bosch-pt.co.nz
中文 | 13
中文
安全规章
图标说明
一般性警告。
不可以把喷射出的水流朝
向人、动物、机器或电动
零件。
注意:如果使用不当,高压水柱
可能造成危险。
根据适用的法规,如果机
器不具备系统分离功能,
便不可以连接到饮用水的
供应系统上。根据IEC61770 ,
得使用 BA 型的系统分离器。
Environmental Protection
Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams,
etc.
For the use of cleaning agents, observe the instructions on
the package and the prescribed concentration exactly.
For the cleaning of motor vehicles the local regulations
should be observed: Do not allow oil sprayed off to enter into
the ground water. Recycle raw materials instead of waste
disposal.
Disposal
The product, accessories and packaging should be sorted
for environmental-friendly recycling.
