Performances

Rack oven for 400 x 800 or 460 x 800 mm tray size

108 baguettes of 250 g or 200 rolls of 60 g on 18 levels

60 loaves of 400 g on 15 levels

Accessories

Rack features: see rack data sheetBaking tray features: see baking tray

data sheet

The advantages

Ideal for baking bread and pastry products

150 mm thick door and oversized hinges for extreme toughness

Safety clutch on the rack drive

According to standards

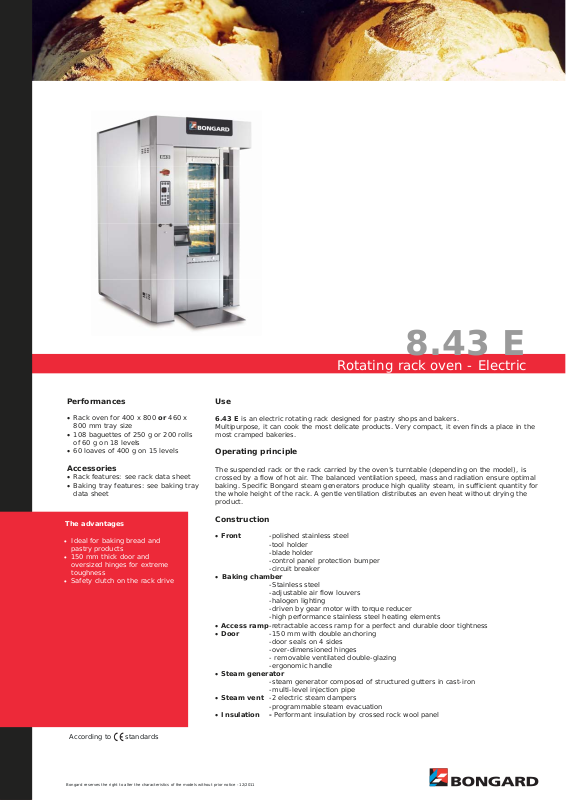

8.43 E

Rotating rack oven - Electric

Use

6.43 E is an electric rotating rack designed for pastry shops and bakers.

Multipurpose, it can cook the most delicate products. Very compact, it even finds a place in the most cramped bakeries.

Operating principle

The suspended rack or the rack carried by the oven’s turntable (depending on the model), is crossed by a flow of hot air. The balanced ventilation speed, mass and radiation ensure optimal baking. Specific Bongard steam generators produce high quality steam, in sufficient quantity for the whole height of the rack. A gentle ventilation distributes an even heat without drying the product.

Construction

Front -polished stainless steel -tool holder

-blade holder

-control panel protection bumper -circuit breaker

Baking chamber

-Stainless steel -adjustable air flow louvers -halogen lighting

-driven by gear motor with torque reducer

-high performance stainless steel heating elements

Access ramp-retractable access ramp for a perfect and durable door tightness

Door

-150 mm with double anchoring



-door seals on 4 sides



-over-dimensioned hinges



- removable ventilated double-glazing

-ergonomic handle

Steam generator

-steam generator composed of structured gutters in cast-iron -multi-level injection pipe

Steam vent -2 electric steam dampers -programmable steam evacuation

Insulation - Performant insulation by crossed rock wool panel









139

Bongard reserves the right to alter the characteristics of the models without prior notice - 12/2011
