Controls
1 button
to remove the control panel (release
panel)
2 Button to switch the device on/off and
operate the volume mute feature.
3 Volume control
4 BND/TS button
Short press: Selects the FM memory
banks and the MW and LW wavebands.
Long press: Starts the Travelstore
function.
5 Arrow buttons
6 ESC button
7 TRAF button
Short press: Switches traffi c informa-
tion standby on/off.
Long press: Switches convenient RDS
function on/off.
8 LCD display
9 DIS
button
: Slot for SD/MMC cards
; Front AUX-IN IN socket for connecting
external audio sources, e.g. portable
CD players.
< AUDIO button
Sets bass, treble, balance and fader.
Selects an equalizer presetting.
Switching X-BASS on/off and adjusting
it.
= Keys 1 -
5
> M/OK button
Short press: Calls up the menus for
the settings. Confi rming menu settings
with OK.
Long press: Starts the scan function.
? SRC button
Switches sources between radio,
SD/MP3, CD changer (if connected)
or AUX-IN, AUX-IN IN (if connected).
32
Contents
About these instructions ..................35
Symbols used................................ 35
Use as directed .............................. 35
Declaration of conformity ................ 35
For your safety ................................36
If you are installing device yourself .... 36
Observe the following! .................... 36
Cleaning instruction .......................36
Disposal note ................................36
Scope of delivery ............................. 37
Optional equipment
(not part of the scope of delivery) .... 37
Warranty .........................................37
Service ........................................... 37
Detachable control panel ................. 38
Theft protection ............................. 38
Detaching the control panel .............38
Attaching the control panel .............. 38
Switching on/off .............................. 38
Switching on/off using button 2 .....38
Switching on/off using the vehicle
ignition .........................................39
Switching off with detachable
control panel ................................. 39
Timeout function ............................. 39
Adjusting the volume .......................39
Setting the power-on volume ........... 39
Quickly reducing the volume (Mute) .. 40
Switching the confi rmation beep
on/off ..........................................40
Muting during telephone mode ........ 41
Telephone Audio/Navigation Audio ... 41
Radio mode .....................................42
Adjusting the tuner......................... 42
Switching to radio mode ................. 42
Convenient RDS functions ............... 42
Selecting the waveband/
memory bank ................................43
Tuning into a station ....................... 43
Setting the sensitivity of station
seek tuning ...................................44
Storing stations .............................44
Storing stations automatically
(Travelstore) ................................. 44
Listening to stored stations ............. 44
Scanning receivable stations (SCAN) . 44
Setting the scanning time ................ 45
Programme type (PTY) .................. 45
Confi guring the display ................... 46
Traffi c information ...........................47
Switching traffi c information priority
on/off ..........................................47
Skipping a traffi c announcement ......47
Setting the volume for traffi c
announcements .............................47
SD/MMC mode ................................ 48
Preparing MP3/WMA titles ..............48
Inserting/removing SD/MMC card .... 49
Switching to SD/MMC mode ............ 49
Confi guring the display ................... 49
Selecting a directory ...................... 49
Selecting tracks ............................. 50
Fast seek tuning (audible) ............... 50
Repeating individual tracks or whole
directories (REPEAT) ...................... 50
Random track play (MIX) ................. 50
Scanning tracks (SCAN).................. 50
Interrupting playback (PAUSE) .........51
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
33
DANSK
Contents
CD-changer mode ............................51
Switching to CD-changer mode ........ 51
Selecting CDs ................................51
Selecting tracks ............................. 51
Fast seek tuning (audible) ............... 51
Confi guring the display ................... 51
Repeating individual tracks or whole
CDs (REPEAT) ............................... 51
Random track play (MIX) ................. 52
Scanning all tracks on all CDs (SCAN) ...52
Interrupting playback (PAUSE) .........52
Clock – Time.................................... 52
Displaying the time ........................ 52
Setting the time ............................. 52
Selecting 12/24-hour clock mode ....53
Displaying the time with device
and ignition switched off ................. 53
Sound ............................................. 53
Equalizer ...................................... 53
Setting the left/right volume
distribution (balance) ..................... 56
Adjusting the front/rear volume
distribution (fader) ........................ 56
Equalizer presettings (presets) ........ 56
X-BASS ........................................... 57
Adjusting the X-BASS boost ............. 57
Adjusting E-XBASS ......................... 57
Display ............................................58
Adjusting the display brightness ....... 58
External audio sources ..................... 58
Factory settings (Normset)...............59
Specifi cations .................................60
Installation instructions ................. 351
34
About these instructions
About these instructions
These instructions contain important information to easily and safely install and operate the device.
•
Read these instructions carefully and
completely before using the device.
•
Keep the instructions at a location so
that they are always accessible to all
users.
•
Always pass on the device to third par-
ties together with these instructions.
In addition, observe the instructions of the
devices used in conjunction with this device.
Symbols used
These instructions employ the following
symbols:
DANGER!
Warns about injuries
DANGER!
Warns about accidents
DANGER!
Warns about hearing loss
Use as directed
This device is intended for installation and
operation in a vehicle with 12 V vehicle
system voltage and must be installed in a
DIN slot. Observe the 'performance limits
in the technical data. Repairs and installation, if necessary, should be performed by
a specialist.
Declaration of conformity
The Blaupunkt GmbH declares that the
devices Melbourne SD27, Sydney SD27
and Canberra SD27 comply with the basic
requirements and the other relevant regulations of the directive 89/336/EWG.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
The CE mark confi rms the compliance
with EU directives.
Identifi es a sequencing step
쏅
•
Identifi es a listing
PORTUGUÊS
DANSK
35
For your safety
For your safety
The device was manufactured according to
the state of the art and established safety
guidelines. Even so, dangers may occur if
you do not observe the safety notes in these
instructions.
If you are installing device
yourself
You may only install the device yourself if
you are experienced in installing car sound
systems and are very familiar with the electrical system of the vehicle. For this purpose,
observe the installation instructions at the
end of these instructions.
Observe the following!
DANGER!
Increased risk of injury
from connector
In case of an accident, the protruding connector in the AUX-IN socket can cause injuries. The use of straight connectors or adapters may pose an increased risk of injury.
It is, therefore, recommended to use an-
ü
gled jack plugs, e.g. the Blaupunkt accessories cable (7 607 001 535).
In operation
•
Operate the device only if traffi c situation permits it! Stop at a suitable location to perform extensive settings.
•
Remove or attach the control panel only
while the vehicle is standing an.
•
To protect your hearing, always listen at
a moderate volume.
During mute phases (e.g. during Travelstore, or while the CD changer is changing the CD), changing the volume is not
detectable until after this mute phase.
Do not increase the volume during this
mute phase.
•
Always listen at a moderate volume so
that you can hear acoustic warning signals (e.g. police).
After operation
•
The device is worthless to a thief without the control panel. Always remove
the control panel whenever you leave
the vehicle.
•
Transport the control panel so that it
is protected against impacts and the
contacts cannot become dirty.
Cleaning instruction
Solvents, cleaning and scouring agents as
well as dashboard spray and plastics care
product may contain ingredients that will
damage the surface of the device. Use only
a dry or slightly moistened cloth for cleaning
the device.
Disposal note
(EU countries only)
Do not dispose of your old unit in the
household trash!
Use the return and collection systems available to dispose of the old
device.
36
Scope of delivery | Warranty | Service
Scope of delivery
The scope of delivery includes:
1 Car sound system
1 Support frame
2 Disassembly bar
1 Guide pin
1 Operating instructions
Optional equipment
(not part of the scope of delivery)
Use only accessories approved by Blaupunkt.
Remote control
The steering wheel and/or handheld remote
control allows you to access the most important functions of your car sound system
safely and conveniently.
You cannot switch the device on/off using
the remote control!
You can fi nd out from your Blaupunkt dealer
or on the Internet at www.blaupunkt.com
which remote controls can be used with your
car sound system.
Bluetooth interface
For Bluetooth applications, such as wireless
hands-free calling, you can connect a Bluetooth interface.
CD changers
You can connect the following Blaupunkt CD
changers:
CDC A 03, CDC A 08 and IDC A 09.
Warranty
We provide a manufacturer's warranty for
products bought within the European Union.
Devices purchased outside the European Union are subject to the warranty terms published by our respective regional agency.
The warranty terms can be called up under
www.blaupunkt.com or requested directly
from:
Blaupunkt GmbH
Hotline
Robert-Bosch-Str. 200
D-31139 Hildesheim
Service
In some countries, Blaupunkt offers a repair
and pick-up service.
Information about the availability of this
service in your country can be found at www.
blaupunkt.com.
If you want to take advantage of this ser vice,
you may request a pick-up service for your
device via the Internet.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
Amplifi er
You can use all Blaupunkt and Velocity amplifi ers.
PORTUGUÊS
DANSK
37
Detachable control panel
Detachable control panel
Theft protection
The device is equipped with a detachable
control panel (fl ip-release panel) as a way
of protecting your equipment against theft.
The device is worthless to a thief without this
control panel.
Protect your device against theft by taking
the control panel with you whenever you
leave your vehicle. Do not leave the control
panel inside your vehicle - not even in a hiding place.
The control panel has been designed to be
easy to use.
Notes:
•
Never drop the control panel.
•
Never expose the control panel to
direct sunlight or other heat sources.
•
Avoid direct skin contact with the
control panel’s electrical contacts. If
necessary, clean the contacts with a
lint-free cloth moistened with cleaning alcohol.
Detaching the control panel
1
Press the button 1.
쏅
The locking mechanism of the control panel
is unlocked. The device switches off.
Pull the control panel straight out of the
쏅
device and to the left.
All the current settings are saved.
Attaching the control panel
Push the control panel into the guides of
쏅
the device from the left to the right.
Note:
When attaching the control panel, make
sure you do not push on the display.
Carefully push on the left side of the con-
쏅
trol panel until it clicks into place.
Switching on/off
There are various ways of switching the device on/off:
Switching on/off using button 2
To switch on the device, press button
쏅
2.
To switch off the device, press and hold
쏅
down button 2 for longer than two
seconds.
The device switches off.
38
Switching on/off | Timeout function | Adjusting the volume
Note:
To protect the vehicle battery, the de-
vice will switch off automatically after
one hour if the ignition is off.
Switching on/off using the
vehicle ignition
The device will switch on/off simultaneously
with the ignition if the device is correctly
connected to the vehicle’s ignition and
you did not switch the device off by
pressing button 2.
Switching off with detachable
control panel
Detach the control panel.
쏅
The device switches off.
Timeout function
The device features a time-out function (time
window). If you press the M/OK > button
and select a menu item, the device switches
back after approx. 8 seconds after the last
button activation. The settings performed
are saved.
Adjusting the volume
You can adjust the volume in increments
from 0 (off) to 66 (maximum).
To increase the volume,
press the + button 3.
쏅
To decrease the volume,
press the - button 3.
쏅
Setting the power-on volume
You can set the power-on volume.
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "ON VOLUME" appears on the display.
쏅
Press the
Adjust the power-on volume using the
쏅
or buttons 5.
If you enable "LAST VOL", the volume which
was set the last time you switched off the
device is re-enabled.
쏅
Press the M/OK button >.
The display shows "MENU".
쏅
Press the
until "ON VOLUME" appears on the display.
쏅
Press the
or button 5 repeatedly
button 5.
or button 5 repeatedly
button 5.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
Note:
To protect your hearing, the power-on
volume is limited to the value "38". If
the volume before switching off was
higher and the "LAST VOL" setting was
selected, the device switches on again
with the value "38".
39
PORTUGUÊS
DANSK
Adjusting the volume
When you have fi nished making your changes,
press the M/OK button >.
쏅
The display shows "MENU".
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Quickly reducing the volume
(Mute)
You can quickly reduce the volume to a preset level (Mute).
Briefl y press button 2.
쏅
"MUTE" appears on the display.
Cancelling mute
To return to your previously set volume
level,
briefl y press button 2 again.
쏅
Adjusting the mute level
You can adjust the mute level.
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
edly until "MUTE LVL" appears on the
display.
Press the M/OK button > to display the
쏅
submenu.
"MUTE" and the currently set value are displayed.
or > button repeat-
Adjust the mute level using the button
쏅
5.
or
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Switching the confi rmation beep
on/off
The system will output a confi rmation beep
for some functions if you keep a button
pressed down for longer than two seconds,
for instance, when assigning a radio station
to a station preset button. You can switch
the beep on or off.
쏅
Press the M/OK button >.
The display shows "MENU".
쏅
Press the
until "BEEP ON" or "BEEP OFF" appears
on the display.
쏅
Switch the beep on or off using the button
or 5. "OFF" means beep off, "ON"
means beep on.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
or button 5 repeatedly
40
Adjusting the volume
Muting during telephone mode
If your car sound system is connected with a
cell phone or navigation system, answering
the phone or a voice output of the navigation
automatically mutes the car sound system.
The call or the voice output is played back via
the loudspeakers of the card sound system.
In order for this feature to work, the mobile
telephone or navigation system must be connected to the car sound system as described
in the installation instructions.
You can fi nd out from your Blaupunkt dealer
which navigation systems can be used with
your car sound system.
If a call is answered or a navigation announcement occurs, the display shows
"TELEPHONE".
Telephone Audio/Navigation
Audio
During a telephone call or a voice output of
the navigation, no traffi c announcements
are switched. The traffi c announcement is
not recorded!
You can set the volume level at which the telephone calls or navigation announcements
are mixed in.
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "TEL VOL" appears on the display.
Press the M/OK button > to display the
쏅
submenu.
"TEL VOL" and the currently set value are
displayed.
or button 5 repeatedly
Set the desired volume with the
쏅
or
button 5.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Notes:
If the volume listened to is higher
•
than the set "TEL VOL" value, telephone calls or navigation announcements are played back at the volume
listened to.
•
Using the volume control 3, you
can adjust the volume for telephone
calls and navigation announcements
directly during the playback.
•
You can adjust the volume distribution for telephone calls and navigation announcements during the playback. For further information, please
read the "Sound" chapter.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
41
DANSK
Radio mode
Radio mode
Adjusting the tuner
To ensure proper functioning of the tuner,
the device must be set for the region in
which it is being operated. You can select
among Europe (EUROPE), America (USA),
South America (S-AMERICA), and Thailand
(THAI). The tuner is factory-set to the region
in which it was sold. If you experience problems with your radio reception, please check
this setting.
The radio functions described in these operating instructions refer to the tuner setting
EUROPE.
쏅
Switch off the device by pressing button
2.
쏅
Hold the buttons 3 = and AUDIO <
pressed at the same time and switch on
the device again with button 2.
쏅
The current setting is displayed.
쏅
Select your tuner region with the
button 5.
To save the setting and to exit the menu,
press the M/OK button >.
쏅
Switching to radio mode
If you are in SD, CD changer or AUX-IN
mode,
press the BND/TS button 4
쏅
or
press the SRC button ? repeatedly
쏅
until the display shows "TUNER".
or
Convenient RDS functions
This device is equipped with an RDS (Radio Data System) radio receiver. Many FM
stations broadcast a signal that not only
carries the programme but also additional
information such as the station name and
programme type (PTY).
The station name appears on the display as
soon as the tuner receives it.
The convenient RDS functions AF (Alternative Frequency) and REGIONAL extend your
radio’s range of functions.
AF: If the RDS function is activated, the
•
radio automatically tunes into the best
receivable frequency for the station
that is currently set.
•
REGIONAL: At certain times, some
radio stations divide their programme
into regional programmes providing
different content. You can use the REG
function to prevent the car radio from
switching to alternative frequencies
that are transmitting different programme content.
Note:
REGIONAL must be activated/deactivated (REG ON/OFF) separately in the
menu.
Switching the RDS function on/off
If you want to use the RDS functions AF and
REGIONAL,
쏅
press and hold the TRAF button 7 for
longer than two seconds.
The RDS function is active if RDS appears
on the display.
42
Radio mode
To deactivate,
press and hold the TRAF button 7 for
쏅
longer than two seconds.
The RDS symbol disappears from the
쏅
display.
Switching REGIONAL on/off
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
or button 5 repeatedly
until "REG ON" or "REG OFF" appears on
the display.
To switch REGIONAL on/off,
press the
쏅
Press the M/OK button >.
쏅
or button 5.
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Selecting the waveband/memory
bank
This device can receive programmes broadcast over the FM frequency range as well as
the MW and LW (AM) wavebands. There are
three memory banks available for the FM
waveband (FM1, FM2 and FMT) and one
for each of the MW and LW wavebands.
Five stations can be stored in each memory
bank.
To switch between the FM memory banks
(FM1, FM2 and FMT) and the MW and LW
wavebands,
briefl y press the BND/TS button 4.
쏅
Tuning into a station
There are various ways of tuning into a station.
Automatic station seek tuning
Press the or button 5.
쏅
The radio tunes into the next receivable station.
Tuning into stations manually
You can also tune into stations manually.
Note:
You can only tune into stations manually if the RDS function is deactivated.
쏅
Press the
Browsing through broadcasting
networks (FM only)
If radio stations provide several programmes,
you have the option of browsing through
these so-called "broadcasting networks".
Note:
The convenient RDS function must
be activated before you can use this
feature.
쏅
Press the
to the next station of the broadcasting
network.
Note:
When using this feature, you will only
be able to switch to stations that you
have received once before already. To
receive the stations, use the Scan or
Travelstore function.
or button 5.
or button 5 to change
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
43
DANSK
Radio mode
Radio mode
Setting the sensitivity of station
seek tuning
You can choose whether the radio should
only tune into stations providing good reception or whether it can also tune into those
with a weak reception.
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "SENS" and the currently set value
appears on the display.
"SENS HI6" means that the tuner is set to the
highest sensitivity setting. "SENS LO1" means
it is set to the lowest sensitivity setting.
Press the M/OK button > to change the
쏅
set value.
쏅
Set the desired sensitivity level using the
or button 5.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Note:
You can set different sensitivity levels
for FM and AM (MW/LW).
or button 5 repeatedly
Storing stations
Storing stations manually
Select the desired memory bank (FM1,
쏅
FM2, FMT) or one of the wavebands (MW
or LW).
Tune into the desired station.
쏅
Press and hold down one of the station
쏅
buttons 1 - 5 = for longer than two seconds to assign the station to that button.
44
Storing stations automatically
(Travelstore)
You can automatically store the fi ve stations
offering the strongest reception in the region
(only FM). The stations are stored in the FMT
memory bank.
Note:
Any stations that were previously
stored in this memory bank are deleted
in the process.
Press and hold down the BND/TS button
쏅
4 for longer than two seconds.
The storing procedure begins. "FM TSTORE"
appears on the display. After the process
has completed, the radio will play the station
that is stored in memory location 1 of the
FMT memory bank.
Listening to stored stations
Select the memory bank or waveband.
쏅
Press the station button 1 - 5 = of the
쏅
desired station.
Scanning receivable stations
(SCAN)
You can use the scan function to play all the
receivable stations briefl y. You can set the
scanning time from 5 to 30 seconds in the
menu (in increments of 5 seconds).
Starting SCAN
Press and hold down the M/OK button
쏅
> for longer than two seconds.
Scanning begins. "SCAN", the station name
or the frequency are intermittently shown on
the display.
Radio mode
Cancelling the SCAN and continuing to
listen to a station
Press the M/OK button >.
쏅
Scanning stops and the radio continues playing the station that it tuned into last.
Setting the scanning time
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
edly until "SCAN TIME" appears on the
display.
Press the M/OK button > to display the
쏅
submenu.
"SCAN" and the currently set value are displayed.
쏅
Set the desired scan time using the
or
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Note:
The defi ned scanning time is also applied by the system to scanning carried
out in SD and CD changer mode.
or button 5 repeat-
button 5.
Programme type (PTY)
Besides transmitting the station name, some
FM stations also provide information on the
type of programme that they are broadcasting. Your car radio can receive and display
this information.
For example, the programme types can be:
CULTURE TRAVEL JAZZ
SPORT NEWS POP
ROCK MUSIC
You can use the PTY function to select stations of a particular programme type.
PTY-EON
If you specify the programme type and start
seek tuning, the radio will switch from the
current station to a station of the selected
programme type.
Notes:
•
If the tuner does not fi nd a station
that corresponds to the selected programme type, you will hear a beep
and "NO PTY" appears briefl y in the
display. The radio will then retune to
the station that it received last.
•
If the tuned radio station or another
station on the broadcasting network
broadcasts your selected programme type at a later point in time,
the radio will automatically switch
from the currently tuned station or
from SD mode or CD-changer mode
to the station whose programme
type matches the one you selected.
•
If you do not want this PTY EON
switching, disable PTY. First, switch
to radio mode with the SRC ? or
BND/TS button 4.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
45
Radio mode
Switching PTY on/off
The radio mode must be activated.
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "PTY ON" or "PTY OFF" appears on
the display.
Press the
쏅
PTY ON or OFF.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Selecting the PTY language
You can select the language for the display
of the programme types. Options include
"DEUTSCH", "ENGLISH" and "FRANÇAIS".
쏅
Press the M/OK button >.
The display shows "MENU".
쏅
Press the
edly until "PTY LANG" appears on the
display.
Press the M/OK button > to display the
쏅
submenu.
The currently set language is displayed.
Set the desired language using the
쏅
button 5.
When you have fi nished making your changes,
press the M/OK button >.
쏅
or button 5 repeatedly
or button 5 to switch
or button 5 repeat-
or
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
Selecting a programme type and
starting seek tuning
PTY must be activated (ON).
Press the
쏅
The current programme type appears briefl y
on the display.
During the display time, press the
쏅
button 5 to change to a different
program type.
쏅
Press the
seek tuning.
The radio will then tune into the next station that it fi nds that corresponds to your
selected programme type.
or button 5.
or
or button 5 to start
Confi guring the display
In radio mode, you have the option of displaying the waveband with memory bank and
the time or station name or frequency of the
current station.
To switch between the display options,
press the DIS
쏅
button 9.
46
Traffi c information
Traffi c information
Your device is equipped with an RDS-EON
receiver. EON stands for Enhanced Other
Network. Whenever a traffi c announcement
(TA) is broadcast, the system switches automatically from a station that does not provide traffi c reports to the appropriate traffi c
information station within the broadcasting
network that does.
Once the traffi c report has been played, the
system will switch back to the programme
that you were listening to before.
In addition, the device offers the option of
receiving traffi c announcements even during
the operation of SD/MMC, CD changer and
external sources (AUX-IN). For this purpose,
activate the priority for the traffi c information.
Switching traffi c information
priority on/off
Briefl y press the TRAF button 7.
쏅
The priority for traffi c announcements is activated if the display shows the traffi c jam
symbol.
Notes:
You will hear a warning beep:
•
If you leave the reception area of a
traffi c information station that the
system is tuned into while listening
to an SD, a CD in the changer or AUXIN, and the subsequent automatic
search cannot fi nd a new traffi c
information station.
•
If you retune the radio from a traffi c
information station to a station that
does not broadcast traffi c information.
If you hear the warning beep, you can
either switch off traffi c information
priority or tune into a station that
broadcasts traffi c information.
Skipping a traffi c announcement
"TRAFFIC" is displayed during a traffi c announcement. To cancel a traffi c announcement without switching off the priority of
traffi c information:
쏅
During the traffi c announcement, press
the TRAF button 7 once.
The previously active audio source is played
again. If a traffi c announcement is broadcast
again, the device automatically switches it
through again.
Setting the volume for traffi c
announcements
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "TA VOLUME" appears on the display.
Press the M/OK button > to display
쏅
the submenu.
"TA VOL" and the currently set value are
displayed.
쏅
Set the desired volume using the
button 5.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
or button 5 repeatedly
or
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
47
Traffi c information | SD/MMC mode
Notes:
If the volume listened to is higher
•
than the set TA Volume, traffi c announcements are played back at the
volume listened to.
•
Using the volume control 3, you
can also adjust the volume during a
traffi c announcement for the duration of that announcement.
You can adjust the volume distri-
•
bution for traffi c announcements
during traffi c reports. For further
information, please read the "Sound"
chapter.
SD / MMC mode
You can play fi les with music data stored on
SD/MMC cards (Secure Digital or Multi-Media Card) in MP3 or WMA format using this
car sound system. The operation for playing
MP3 and WMA fi les is identical.
Note:
Blaupunkt cannot guarantee the correct
functioning of all SD/MMC cards available on the market and, for this reason,
recommends the use of SD/MMC cards
manufactured by "SanDisk" or "Panasonic".
WMA fi les can only be played back
•
safely if they were created with Windows Media Player version 8 or later.
For a perfect access to SD/MMC cards,
observe the information in the following
table when saving MP3/WMA titles on the
SD/MMC card:
File system FAT16 or FAT32,
no NTFS!
ID3 tags Version 1 or 2
Files
Number 1,500 fi les (directories
Naming of
fi les
Bit rate MP3: 32 to 320 kbps
Only MP3 or WMA fi les,
directories, playlists
and tracks) per directory
File extension ".wma"/
".mp3"
Max. 24 characters
(more characters are
possible, but it reduces
the max. number of fi les)
No special characters or
umlauts
WMA: 32 to 192 kbps
Preparing MP3/WMA titles
You can write data onto the SD/MMC cards
with the help of a standard SD/MMC card
reader and your PC.
Notes:
•
WMA fi les with Digital Rights Management (DRM) from online music
shops cannot be played with this
device.
48
You can name each directory using a PC. The
name of the directory is then shown on the
display of the device.
If you like your fi les to be in the specifi c order, save the fi les on the card in the desired
sequence in which you want to play them
later.
SD/MMC mode
D01
T001
T002
T003
T004
T005
T006
T007
T008
T009
T010
T011
A
B
D02
D03
T001
T002
T003
T004
T005
T006
D04
T001
T002
T003
T004
T005
A Directories
B Tracks · Files
Inserting/removing SD/MMC
card
Insert the SD/MMC card with its la-
쏅
belled side to the left and its contacts
fi rst into the card slot : until it clicks
into place.
You can now select the SD/MMC card as audio source with the SRC button ?.
To remove the SD/MMC card,
push on the SD/MMC card until it disen-
쏅
gages.
Pull the SD/MMC card out of the card
쏅
slot :.
Switching to SD/MMC mode
Press the SRC button ? repeatedly
쏅
until the display shows "SD Card".
The playback starts.
Confi guring the display
The following settings require that an SD card
with MP3 or WMA fi les is in the device.
Confi guring the default display
You can display various types of information
on the current track:
File name or track name
•
Artist
•
Album name
•
Play time (PLAY)
•
•
Time (CLK)
Note:
The ID3 text changes to scrolling text
with more than 9 characters. After one
pass, the fi rst 9 characters are permanently shown on the display.
To switch between the different display options,
쏅
press the DIS
button 9.
Selecting a directory
To move up or down to another directory,
press the
쏅
several times.
or 5 button once or
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
49
DANSK
SD/MMC mode
Selecting tracks
To move up or down to another track in the
current directory,
press the or 5 button once or
쏅
several times.
If you press the
current track will be played again from the
beginning.
button 5 once, the
Fast seek tuning (audible)
To fast search backwards or forwards,
press and hold down the
쏅
5 for longer than two seconds.
Seek tuning continues as long as you hold
the button pressed.
or button
Repeating individual tracks or
whole directories (REPEAT)
You can repeatedly play the current track or
all tracks in the current directory.
Press the 4 RPT = button repeatedly
쏅
until the desired function appears on the
display:
•
"RPT TRACK" (current track)
•
"RPT DIR"
(all tracks in the current directory)
•
"RPT OFF" (end repeat)
If the repeat function is active, the display
shows RPT.
Random track play (MIX)
You can play either all tracks in the current
directory or all tracks on the SD/MMC card
in random order.
Press the 5 MIX = button repeatedly
쏅
until the desired function appears on the
display:
•
"MIX ALL"
(all tracks on the SD/MMC card)
•
"MIX DIR"
(all tracks in the current directory)
•
"MIX OFF" (end playback in random
order)
If the random track play (MIX) is active, the
display shows MIX.
Scanning tracks (SCAN)
You can scan all the tracks on the SD/MMC
card.
쏅
Press the M/OK button > for longer
than two seconds.
The display changes between "SCAN" and
the fi le name. The tracks of the SD/MMC are
scanned in ascending order.
Note:
You can set the scanning time. For
further information on setting the
scanning time, please read the section
entitled "Setting the scanning time" in
the "Radio mode" chapter.
50
Cancelling Scan and continuing
listening to a track
쏅
Briefl y press the M/OK button >.
The currently scanned track will then continue to be played normally.
SD/MMC mode | CD changer mode
Interrupting playback (PAUSE)
Press the 3 button =.
쏅
"PAUSE" appears on the display.
Cancelling pause
Press the 3
쏅
Playback is continued.
button =.
CD-changer mode
Note:
Information about handling CDs, inserting CDs and operating the CD changer
can be found in the operating instructions supplied with your CD changer.
Switching to CD-changer mode
Press the SRC button ? repeatedly
쏅
until the display shows "CDC/AUX-IN".
The device starts playing the fi rst CD that the
CD changer detects.
Selecting CDs
To move up or down to another CD,
press the
쏅
several times.
Note:
The device will ignore empty CD slots in
the changer and slots containing invalid
CDs.
or 5 button once or
Selecting tracks
To move up or down to another track on the
current CD,
press the or 5 button once or sev-
쏅
eral times.
Fast seek tuning (audible)
To fast search backwards or forwards,
press and hold down the
쏅
5 for longer than two seconds.
Seek tuning continues as long as you hold
the button pressed.
or button
Confi guring the display
Three options are available for the display in
CD changer mode:
Track number and playing time
•
Track number and time
•
CD number and track number
•
To switch between the different display
options,
press the DIS
쏅
button 9.
Repeating individual tracks or
whole CDs (REPEAT)
You can repeatedly play the current track or
all tracks on the current CD.
Press the 4 RPT = button repeatedly
쏅
until the desired function appears on the
display:
•
"RPT TRACK" (current track)
•
"RPT DISC"
(all tracks on the current CD)
•
"RPT OFF" (end repeat)
If the repeat function is active, the display
shows RPT.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
51
CD changer mode | Clock time
Random track play (MIX)
You can play either all tracks on the current
CD or all CDs in the magazine in random
order.
Press the 5 MIX = button repeatedly
쏅
until the desired function appears on the
display:
•
"MIX CD" (all tracks on the current CD)
•
"MIX ALL" (all CDs in the magazine)
•
"MIX OFF" (end random order)
If the random track play (MIX) is active, the
display shows MIX.
Scanning all tracks on all CDs
(SCAN)
To scan (briefl y play) all the tracks on all the
inserted CDs in ascending order,
press the M/OK button > for longer
쏅
than two seconds.
The display changes between "SCAN" and
the track number. All CDs in the magazine
are scanned in ascending order.
Note:
You can set the scanning time. For
further information, please read the
section entitled "Setting the scanning
time" in the "Radio mode" chapter.
Cancelling Scan and continuing
listening to a track
Briefl y press the M/OK button >.
쏅
The currently scanned track will then continue to be played normally.
Interrupting playback (PAUSE)
쏅
Press the 3 button =.
"PAUSE" appears on the display.
Cancelling pause
Press the 3 button =.
쏅
Playback is continued.
Clock – Time
Displaying the time
You can display the time in the tuner, SD and
CD changer mode.
쏅
Press the DIS button 9 until the
time appears on the display.
Setting the time
To set the time,
press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
edly until "CLOCK SET" appears on the
display.
쏅
Press the M/OK button > to display the
submenu.
The currently set time appears on the display. The hours fl ash and can be adjusted.
쏅
Adjust the hours with the
5.
or button 5 repeat-
or button
52
Clock time | Sound
Once the hours are set,
press the
쏅
The minutes fl ash.
Adjust the minutes with the
쏅
button 5.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
button 5.
or
Selecting 12/24-hour clock
mode
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "24 H MODE" or "12 H MODE" appears on the display.
Press the
쏅
the mode.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
or button 5 repeatedly
or button 5 to change
Displaying the time with device
and ignition switched off
To display the time when the device is off and
the vehicle ignition is on,
press the M/OK button >.
쏅
The display shows "MENU".
쏅
Press the
until "CLOCK OFF" or "CLOCK ON" appears on the display.
Press the
쏅
display between ON and OFF.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
or button 5 repeatedly
or button 5 to switch the
Sound
For every source (radio, SD/MMC, CD
changer or AUX-IN), you can perform individual and separate settings for the sound
(bass and treble) and the equalizer.
The settings for X-Bass and the volume distribution (balance and fader) are performed
jointly for all audio sources (except for traffi c
announcements and telephone/navigation
announcements).
Fader and balance can be adjusted for traffi c reports and telephone calls/navigation
announcements only during the announcement.
Equalizer
This device features a digital 3-band equalizer. This equalizer allows for selecting one
frequency each for bass, treble and middle
and to adjust the level for the selected frequency. In addition, you can adjust the quality factor for bass and middle.
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
53
Sound
Equalizer settings
The following table shows the bass, treble and equalizer setting options in the "AUDIO"
menu. Some settings feature an "E" (for "ENHANCED"), e.g. "E-BASS". These settings are
performed in the "ENHANCED" submenu.
Note:
The table does not contain all the settings that are possible in the menus "AUDIO" and
"ENHANCED".
Audio
Audio
BASS TREBLE ENHANCED
BASS TREBLE ENHANCED
E-BASS E-TREBLE E-MIDDLE
E-BASS E-TREBLE E-MIDDLE
Level
Level
(GAIN)
(GAIN)
Frequency
Frequency
(FREQ)
(FREQ)
Quality fac-
Quality fac-
tor (QFAC)
tor (QFAC)
-7 to +7 -7 to +7 – – -7 to +7
-7 to +7 -7 to +7 – – -7 to +7
– – 60 Hz, 80 Hz,
– – 60 Hz, 80 Hz,
– – 1.0, 1.25, 1.5
– – 1.0, 1.25, 1.5
100 Hz or
100 Hz or
200 Hz
200 Hz
or 2.0
or 2.0
10 kHz,
10 kHz,
12.5 kHz,
12.5 kHz,
15 kHz or
15 kHz or
17.5 kHz
17.5 kHz
– 0.5, 0.75, 1.0
– 0.5, 0.75, 1.0
0.5 kHz,
0.5 kHz,
1.0 kHz,
1.0 kHz,
1.5 kHz or
1.5 kHz or
2.5 kHz
2.5 kHz
or 1.25
or 1.25
Adjusting bass
To adjust the level of the bass,
press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
button 5 to call up the
submenu.
"BASS" and the currently set value for the
level are displayed.
쏅
Press the
or button 5 to change
the value.
When you have fi nished making your changes,
쏅
press the AUDIO button <.
54
Adjusting TREBLE
To adjust the level of the treble,
press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
or button 5 repeatedly
until "TREBLE" appears on the display.
쏅
Press the
button 5 to call up the
submenu.
"TREBLE" and the currently set value for the
level are displayed.
쏅
Press the
or button 5 to change
the value.
When you have fi nished making your changes,
쏅
press the AUDIO button <.
Sound
Adjusting E-BASS
To set the frequency and the quality factor
of the bass,
press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the or button 5 repeatedly
쏅
until "ENHANCED" appears on the display.
쏅
Press the M/OK button > to display the
submenu.
"E-BASS" appears on the display.
쏅
Press the
button 5 to call up the
submenu.
"FREQ" and the currently set value are displayed.
Press the
쏅
or button 5 to select
between "FREQ" (frequency) and "QFAC"
(quality factor).
쏅
Press the
or button 5 to change
the selected setting.
When you have fi nished making your changes,
press the AUDIO button <.
쏅
Adjusting E-TREBLE
To adjust the frequency of the treble,
press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
or button 5 repeatedly
until "ENHANCED" appears on the display.
쏅
Press the M/OK button > to display
the submenu.
"E-BASS" appears on the display.
쏅
Press the
or button 5 repeatedly
until "E-TREBLE" appears on the display.
쏅
Press the
button 5 to call up the
submenu.
"FREQ" (frequency) and the currently set
value are displayed.
Press the
쏅
or button 5 to change
the selected setting.
When you have fi nished making your changes,
press the AUDIO button <.
쏅
Adjusting E-MIDDLE
To set the gain, the frequency and the quality
factor of the middle,
press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
or button 5 repeatedly
until "ENHANCED" appears on the display.
쏅
Press the M/OK button > to display the
submenu.
"E-BASS" appears on the display.
쏅
Press the
or button 5 repeatedly
until "E-MIDDLE" appears on the display.
Press the
쏅
button 5 to call up the sub-
menu.
"GAIN" and the currently set value are displayed.
Press the
쏅
or button 5 to select
between "GAIN", "FREQ" (frequency)
and "QFAC" (quality factor).
Press the
쏅
or button 5 to change the
selected setting.
When you have fi nished making your changes,
press the AUDIO button <.
쏅
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
55
Sound
Setting the left/right volume
distribution (balance)
Press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
edly until "BALANCE" appears on the
display.
Press the
쏅
submenu.
"BAL" and the currently set value are displayed.
쏅
Press the
the volume distribution right (R)/left
(L).
When you have fi nished making your changes,
쏅
press the AUDIO button <.
or button 5 repeat-
button 5 to call up the
or button 5 to adjust
Adjusting the front/rear volume
distribution (fader)
Press the AUDIO button <.
쏅
"BASS" appears on the display.
쏅
Press the
쏅
until "Fader" appears on the display.
Press the
쏅
submenu.
"FADER" and the currently set value are displayed.
Press the
쏅
volume distribution front (F)/rear (R).
When you have fi nished making your changes,
press the AUDIO button <.
쏅
or button 5 repeatedly
button 5 to call up the
or button 5 to adjust the
Equalizer presettings (presets)
This device features an equalizer in which the
settings for the music genres "ROCK", "POP"
and "CLASSIC" are already programmed.
To select an equalizer preset,
press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
until "ENHANCED" appears on the display.
Press the M/OK button > to display the
쏅
submenu.
"E-BASS" appears on the display.
Press the
쏅
until "PRESETS" appears on the display.
Press the
쏅
up the submenu.
The current presetting is displayed.
Press the
쏅
the selected setting. Select "P-EQ OFF"
to switch off the equalizer.
When you have fi nished making your changes,
press the AUDIO button <.
쏅
or button 5 repeatedly
or button 5 repeatedly
button 8 repeatedly to call
or button 8 to change
56
X-BAS S
X-BASS
X-BASS allows you to increase the bass at low
volume. The selected X-Bass settings are effective for all audio sources (radio, SD/MMC,
CD changer or AUX-IN).
You have two options of adjusting X-BASS:
You can adjust the X-BASS boost and the
cut-off frequency to be boosted. The X-BASS
boost can be changed in both submenus,
"X-BASS" and "E-XBASS". The following table shows the setting options in the "AUDIO"
menu.
Audio
X-BASS ENHANCED
E-XBASS
Boost
(GAIN)
Frequency
(FREQ) –
Adjusting the X-BASS boost
The X-BASS boost can be set to levels 0
(X-Bass function off) to 3.
Press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the or button 5 repeatedly
쏅
until "X-BASS" appears on the display.
Press the
쏅
submenu.
"X-BASS" and the currently set value are
displayed.
button 5 to call up the
0 to 3
400 Hz,
800 Hz,
2400 Hz, FLAT
쏅
Press the
or button 5 repeatedly
until the desired setting appears on the
display.
When you have fi nished making your changes,
press the AUDIO button <.
쏅
Adjusting E-XBASS
In the "E-XBASS" submenu, you can also adjust the cut-off frequency in addition to the
X-BASS boost. You can select from 50 Hz,
100 Hz and 200 Hz.
Press the AUDIO button <.
쏅
"BASS" appears on the display.
Press the
쏅
until "ENHANCED" appears on the display.
Press the M/OK button > to display
쏅
the submenu.
"E-BASS" appears on the display.
Press the
쏅
until "E-XBASS" appears on the display.
Press the
쏅
submenu.
"GAIN" and the currently set value are displayed.
Press the
쏅
between "GAIN" (X-BASS boost) and
"FREQ" (frequency).
쏅
Press the
the selected setting.
When you have fi nished making your changes,
press the AUDIO button <.
쏅
or button 5 repeatedly
or button 5 repeatedly
button 5 to call up the
or button 5 to select
or button 5 to change
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
57
DANSK
Display | External audio sources
Display
If you switch on the vehicle illumination,
the display brightness switches day mode
to night mode. This requires that your car
sound system is connected as described in
the installation instructions. Your vehicle
must feature the corresponding connection
option.
Adjusting the display brightness
You can adjust the display brightness separately for night (DIM NIGHT) and day (DIM
DAY) in steps ranging from 1 to 16.
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
until "DIM DAY" or "DIM NIGHT" appears
on the display.
Press the M/OK button > to display the
쏅
submenu.
"DIM DAY" or "DIM NIGHT" and the currently
set value are displayed.
쏅
Press the
brightness.
When you have fi nished making your changes,
press the M/OK button >.
쏅
To exit the menu,
press the ESC button 6 or wait approx.
쏅
8 seconds.
or button 5 repeatedly
or button 5 to adjust the
External audio sources
External audio sources, such as portable CD
players, MiniDisc players or MP3 players,
can be connected to the device in two
ways.
1. To the rear AUX-IN input (if no CD
changer is connected to the device).
The SRC button ? allows for select-
ing the rear AUX-IN input. The display
then shows "CD / AUX-IN".
Note:
An adapter cable is needed to connect
an external audio source to the rear
AUX-IN input. You can obtain this cable
(Blaupunkt no.: 7 607 897 093) from
your Blaupunkt dealer.
2. To the front AUX-IN socket.
As soon as an audio source is connect-
ed to the front AUX-IN socket, it can be
selected with the SRC button ?.The
display then shows "FRONT AUX-IN".
58
Factory settings (Normset)
Factory settings (Normset)
You can reset the device to the factory settings.
Note:
Your personal settings are deleted during reset (Normset).
Press the M/OK button >.
쏅
The display shows "MENU".
Press the
쏅
edly until "NORMSET" appears on the
display.
Press the M/OK button > to display
쏅
the submenu.
"NORM OFF" appears on the display.
To reset the device to the factory settings,
press the M/OK button > for longer
쏅
than 4 seconds.
"NORM ON" appears on the display and the
device is reset.
or button 5 repeat-
Factory settings:
Volume of traffi c an-
30
nouncements (TA VOL)
Power-on volume
(ON VOL)
Volume of muting
Last
Volume
0
(MUTE LEVEL)
Volume of telephone/
navigation announce-
25 (RDS) or
10 (NRDS)
ment (TEL VOL)
Seek tuning sensitivity
H16
(SENS)
Scan time (SCAN TIME) 10 seconds
Programme type (PTY) OFF
PTY language
ENGLISH
(PTY LANG)
Time display (CLOCK) OFF
Time (CLOCK SET) 0:00 (RDS)
or 12:00
(NRDS)
Time display mode
(CLOCK MODE)
24 HR
(RDS) or
12 HR
(NRDS)
Confi rmation beep
ON
(BEEP)
Regional function (REG) OFF
Display brightness DIM DAY
15,
DIM NIGHT
12
RDS ON
ENGLISH DEUTSCHFRANÇAISITALIANO
NEDERLANDS
SVENSKAESPAÑOL
PORTUGUÊS
DANSK
59
Specifi cations
Specifi cations
Amplifi er
Output power: 4 x 18 watt sine
acc. to DIN 45 324
at 14.4 V
4 x 45 watt
max. power
Tuner
Wavebands in Europe:
FM : 87.5 - 108 MHz
MW : 531 - 1 602 kHz
LW : 153 – 279 kHz
FM frequency response:
35 - 16,000 Hz
SD card/MMC
Frequency range: 20 - 20,000 Hz
Pre-amp out
4 channels: 2 V
Input sensitivity
AUX-IN input
(rear): 2 V / 6 kΩ
AUX-IN input (front): 2 V / 6 kΩ
Tel./Navi input: 10 V / 1 kΩ
Weight
0.8 kg
Subject to changes!
60
Einbauanleitung • Installation instructions • Notice de montage • Istruzioni di installazione •
Inbowhandleiding • Monteringsanvisning • Instrucciones de instalación • Instruções de
montagem • Monteringsvejledning • Instrukcja montażowa • Návod k montáži • Montážny
návod
Einbauanleitung
Sicherheitshinweise
Für die Dauer der Montage und
des Anschlusses beachten Sie bitte folgende Sicherheitshinweise.
• Minuspol der Batterie abklemmen!
Dabei die Sicherheitshinweise des
Kfz- Herstellers beachten.
• Beim Bohren von Löchern darauf
achten, dass keine Fahrzeugteile beschädigt werden.
• Der Querschnitt des Plus- und Mi-
nuskabels darf 1,5 mm
schreiten.
• Fahrzeugseitige Stecker nicht an
das Radio anschließen!
• Die für Ihren Fahrzeugtyp erforder-
lichen Adapterkabel erhalten Sie im
BLAUPUNKT – Fachhandel.
• Je nach Bauart kann Ihr Fahrzeug von
dieser Beschreibung abweichen. Für
Schäden durch Einbau- oder Anschlussfehler und für Folgeschäden
übernehmen wir keine Haftung.
Sollten die hier aufgeführten Hinweise
für Ihren Einbau nicht passen, so wenden Sie sich bitte an Ihren BlaupunktFachhändler, Ihren Fahrzeughersteller
oder unsere Telefon-Hotline.
Bei Einbau eines Amplifi er oder Changers
müssen unbedingt erst die Gerätemassen angeschlossen werden, bevor die
Stecker für die Line-In- oder Line-OutBuchse kontaktiert werden.
2
nicht unter-
Fremdgerätemassen dürfen nicht an
der Autoradiomasse (Gehäuse) angeschlossen werden.
Installation
instructions
Safety instructions
When carrying out installation
work and making connections please observe the following safety instructions:
• Disconnect the negative terminal of
the battery! When doing so, please
observe the vehicle manufacturer’s
safety instructions.
• Make sure you do not damage vehi-
cle components when drilling any
holes.
• The cross sections of the positive
and negative cables must not be less
than 1.5 mm
• Do not connect the vehicle’s plug
connectors to the radio!
• You can obtain the adapter cable
required for your vehicle type from
any BLAUPUNKT dealer.
• Depending on the model, your vehicle
may differ from the description provided here. We accept no responsibility for any damages due to incorrect
installation or connection or for any
consequential damages.
If the information provided here is
not suitable for your specifi c instal-
2
.
351
lation requirements, please contact
your Blaupunkt dealer, your vehicle
manufacturer or our telephone hotline.
When installing an amplifi er or changer,
you must fi rst connect the device earth
connections before connecting the plugs
for the line-in or line-out jacks.
Earth connection of external devices
may not be connected to earth of car
sound system (housing).
Notice de montage
Si les indications décrites ici ne
s’appliquent au montage que vous
voulez effectuer, adressez-vous à
votre revendeur Blaupunkt, votre
constructeur automobile ou notre
service d’assistance téléphonique.
Pour le montage d’un amplifi cateur ou
changeur, les masses d’appareil doivent être d’abord connectées avant de
connecter les fi ches pour les connecteurs
Line In ou Line Out.
Les masses des appareils externes
ne doivent pas être raccordées à la
masse de l'autoradio (boîtier).
Consignes de sécurité
Respecter les consignes de sécurité suivantes pendant la durée du montage et du branchement.
• Débrancher le pôle (-) de la batterie !
Respecter les consignes de sécurité
du constructeur automobile !
• Veiller à n’endommager aucune pièce
du véhicule en perçant des trous.
• La section du câble (+) et (-) ne doit
pas dépasser 1,5 mm
• Ne pas brancher les connecteurs
du véhicule sur la radio !
• Les câbles d’adaptation nécessai-
res pour le type de véhicule sont
disponibles auprès des revendeurs
BLAUPUNKT.
• En fonction du modèle, votre véhicule
peut différer de cette description.
Nous déclinerons toute responsabilité
en cas de dommages causés par des
erreurs de montage ou de connexion
et en cas de dommages consécutifs.
352
2
.
Istruzioni di
installazione
Note di sicurezza
Durante il montaggio e l’allacciamento osservate per favore le seguenti
istruzioni sulla sicurezza.
• Staccate il polo negativo della batte-
ria! Nel fare ciò osservate le istruzioni
di sicurezza del fabbricante d’auto.
• Quando praticate dei fori, fate at-
tenzione a non danneggiare nessuna
parte dell’autovettura.
• La sezione dei cavi positivi e nega-
tivi non deve essere mai inferiore
a 1,5 mm
• Non collegate alla radio le spine
in dotazione di autovettura!
• Richiedete ad un negoziante specia-
lizzato in articoli BLAUPUNKT il cavo
di adattamento richiesto per il vostro
modello di autovettura.
2
.
• A seconda del modello il Suo veicolo
può differire da questa descrizione.
Non forniamo garanzia per danni derivanti da errori di montaggio o di collegamento e per danni conseguenti.
Se le indicazioni qui elencate non
sono adatte al Suo montaggio, La preghiamo di rivolgersi al Suo rivenditore
Blaupunkt, al fabbricante dell’auto
o alla nostra hotline telefonica.
Quando vengono montati un amplifi catore o un multilettore CD, bisogna innanzi
tutto allacciare le masse degli apparecchi
prima di eseguire la connessione delle
spine con le prese line-in e line-out.
Le masse di altri apparecchi non devono essere collegate alla massa dell'autoradio (involucro).
Inbowhandleiding
Adviezen voor de
veiligheid
Wilt u dedurende het monteren
en aansluiten de volgende veiligheidsadviezen in acht nemen.
• De minpool van de batterij afklemmen! De veiligheidsadviezen van de
fabrikant in acht nemen.
• Bij het gaten boren erop letten dat
geen voertuigonderdelen worden
beschadigd.
• De dwarsdoorsnede van de plusen minkabel mag niet minder dan
2
1,5 mm
• Stekker aan de voertuigkant niet
aan de radio aansluiten!
zijn.
• de voor uw voertuig vereiste adapterkabel is bij de BLAUPUNKT-vakhandel
verkrijgbaar!
• Afhankelijk van de uitvoering kan
uw auto afwijken van deze beschrijving. Voor schade door fouten in
montage of aansluiting en schade
als gevolg daarvan aanvaarden wij
geen aansprakelijkheid.
Mochten de hier vermelde aanwijzin-
gen voor de montage voor u niet van
toepassing zijn, dan kunt u contact
opnemen met uw Blaupunkt-vakhandel, uw autofabrikant of onze
telefoon-hotline.
Bij inbouw van een versterker of cd-wisselaar moeten eerst de massacontacten
van de apparaten worden verbonden
voordat de stekkers voor de line-in- of
line-out-bussen worden aangesloten.
De massa van andere apparaten mag
niet aan de massa van de autoradio
(huis) worden aangesloten.
Monteringsanvisning
Skyddsanvisningar
Vänligen beakta följande skyddsanvisningar under pågående montage
och anslutning.
• Lossa polskon från batteriets minus-
pol! Följ därvid fordonstillverkarens
skyddsanvisningar.
• Se till att inga av fordonets komponen-
ter skadas i samband med borrning
av hål.
• Plus- och minuskabelns ledningsarea
måste vara minst 1,5 mm
2
.
353
• Fordonets stickkontakt får inte
anslutas till radion!
• Din BLAUPUNKT fackhandel tillhandahåller för resp fordonstyp erforderlig adapterkabel.
• Beroende på konstruktionstyp kan
fordonet avvika från denna beskrivning. Vi frånsäger oss allt ansvar för
skada eller följdskada pga. felaktig
montering eller anslutning.
Om här givna monteringsanvisningar
ej stämmer överens med faktiska förhållanden, vänligen kontakta Blaupunkt fackhandel, representant för
fordonets tillverkare eller vår telefonkundtjänst.
Vid montering av förstärkare eller cdväxlare måste först apparatstommen
jordas, innan stickpropparna ansluts till
in- eller utgångarna (hylstag line-in resp
line-out).
Jord från andra apparater får inte
anslutas till bilradions jord (höljet).
Instrucciones de
instalación
Normas de seguridad
Durante el montaje y la conexión
es imprescindible observar las siguientes
normas de seguridad.
• Desemborne el polo negativo de la
batería. Observe las normas de seguridad dadas por el fabricante del
vehículo.
• Al perforar agujeros, asegúrese de
no dañar ninguna pieza del vehículo.
• La sección transversal del cable positivo y del cable negativo no debe
ser menor de 1,5 mm
• ¡No conecte a la radio los conecto-
res ubicados en el vehículo!
• Los cables adaptadores necesarios
para su vehículo los encontrará en
el comercio especializado en artículos de la marca BLAUPUNKT.
• Dependiendo del modelo, es posible
que su vehículo varíe un poco con
respecto a la descripción aquí dada.
Tenga en cuenta que no asumimos
ninguna responsabilidad por los daños debidos a un montaje o conexión
incorrectos ni por los daños resultantes.
Si las instrucciones aquí dadas no
son aptas para el montaje en su vehículo, póngase en contacto con su
proveedor de artículos Blaupunkt o
con el fabricante del vehículo, o llame a nuestro teléfono de atención al
cliente.
En caso de montar un amplifi cador o un
cambiadiscos, es necesario conectar la
puesta a tierra de las unidades antes de
establecer el contacto de los conectores
para las hembrillas Line-In y Line-Out.
No deben conectarse masas de otros
equipos a la masa de la radio (carcasa).
2
.
354
Instruções de
montagem
Instruções de segurança
Durante a montagem e a ligação
do aparelho, queira respeitar as seguintes instruções de segurança.
• Separar o pólo negativo da bateria!
Respeitar ao mesmo tempo as instruções de segurança do fabricante
do automóvel.
• Quando se procede à furagem de
buracos, prestar atenção para não
serem danifi cadas quaisquer partes
do veículo.
• As secções transversais dos cabos
positivo e negativo não devem ser
inferiores a 1,5 mm
• Não ligar as fi chas existentes do
lado do automóvel ao auto-rádio!
• Os cabos adaptadores necessários
para o seu automóvel podem ser
adquiridos nos revendedores da
BLAUPUNKT.
• O seu veículo pode divergir desta
descrição em função do modelo. Não
assumimos qualquer responsabilidade por erros de montagem ou de ligação nem por danos daí decorrentes.
Caso as presentes instruções não se-
jam adequadas para a montagem no
seu veículo, dirija-se ao revendedor
da Blaupunkt, ao fabricante do seu
veículo ou à nossa linha verde.
No caso de montagem de um amplifi cador ou leitor multi-CD, é imprescindível
ligar primeiro os aparelhos à terra antes
2
.
de se conectar as fi chas às tomadas Line
In ou Line Out.
A massa de aparelhos externos não
deve ser ligada à massa do auto-rádio
(caixa).
Monteringsvejledning
Sikkerhedshenvisninger
Under monteringen og tilslutningen skal følgende sikkerhedshenvisninger iagttages.
• Batteriets negative pol skal afbrydes!
Herved skal bilfabrikantens sikkerhedshenvisninger iagttages.
• Vær opmærksom på, at ingen bildele
ødelægges under boringen af huller.
• Tværsnittet af plus- og minuskablet
må ikke underskride 1,5 mm
• Bilens stik må ikke tilsluttes ra-
dioen!
• De nødvendige adapterkabler til din
biltype kan købes hos BLAUPUNKTspecialforretningen.
• Alt efter konstruktion kan bilen afvige
fra denne beskrivelse. For skader på
grund af monterings- eller tilslutningsfejl og for følgeskader overtager vi intet ansvar.
Hvis de her anførte henvisninger til
monteringen ikke skulle passe, kontakt din Blaupunkt-specialforretning,
bilfabrikanten eller vor telefon-hotline.
Ved montering af en forstærker eller
et Multi CD-apparat skal apparaternes
2
.
355
stel først tilsluttes, før stikkene for tilslutningerne Line-In eller Line-Out sættes i.
Eksterne enheders stelforbindelse
må ikke sluttes til bilradioens stelforbindelse (kabinet).
Instrukcja montażowa
Wskazówki bezpieczeń-
stwa
Podczas montażu i podłączania należy
przestrzegać poniższych wskazówek
bezpieczeństwa.
• Odłączyć biegun ujemny akumulatora! Przestrzegać wskazówek bezpieczeństwa producenta pojazdu.
• Przy wierceniu otworów uważać,
aby nie uszkodzić któregoś z urządzeń pokładowych pojazdu.
• Przekrój kabla plusowego i minusowego nie może być mniejszy niż
2
1,5 mm
.
• Nie podłączać wtyczek samochodu
do radia!
• Odpowiedni dla danego typu pojazdu przewód-adapter można nabyć
u autoryzowanego sprzedawcy produktów BLAUPUNKT.
• Zależnie od marki i modelu, konstrukcja Państwa pojazdu może niekiedy
odbiegać od podanego tu opisu.
Firma Blaupunkt wyklucza wszelką
odpowiedzialność za szkody spowodowane błędnym montażem i instalacją urządzenia.
W pr zypadku, gdy podane tu wskazów-
ki nie znajdują zastosowania w Państwa
pojeździe, prosimy skontaktować się z
autoryzowanym sprzedawcą produktów Blaupunkt, producentem pojazdu
lub zadzwonić do naszej infolinii.
Przy montażu wzmacniacza lub zmieniarki należy koniecznie najpierw podłączyć masy urządzeń, zanim połączona
zostanie wtyczka do gniazda Line-In lub
Line-Out.
Do masy radioodtwarzacza (obudowa) nie wolno podłączać masy obcych
urządzeń.
Návod k montáži
Bezpečnostní pokyny
Během montáže a připojení
dodržujte prosím následující bezpečnostní pokyny.
• Odpojte záporný pól akumuláto-
ru! Přitom dodržujte bezpečnostní
pokyny výrobce vozidla.
• Při vrtání otvorů dbejte na to, abyste
nepoškodili žádné díly vozidla.
• Průřez kabelu plus a minus pólu
musí být minimálně 1,5 mm
• Konektory od vozidla nepřipojujte
k rádiu!
• Adaptérový kabel potřebný pro vaše
vozidlo obdržíte ve specializované
prodejně BLAUPUNKT.
• V závislosti na konstrukci se může
postup u vašeho vozidla od zde
popsaného postupu lišit. Za škody
způsobené montáží nebo připojením
nepřebíráme žádné ručení.
2
.
356
Pokud zde uvedené pokyny pro
montáž neodpovídají vašemu vozidla, obraťte se na specializovaného
prodejce Blaupunkt, výrobce vozidla
nebo naši horkou linku.
Při montáži zesilovače nebo měničů,
předtím než budou konektory zapojeny
do zdířek Line-in nebo Line-out, musí být
nejprve bezpodmínečně připojeny kostry
přístrojů.
Kostry jiných přístrojů nesmí být připojeny na kostru autorádia (kryt přístroje).
Montážny návod
Bezpečnostné pokyny
Počas montáže a zapojenia rešpektujte následné bezpečnostné pokyny.
• Odpojte záporný pól akumulátora!
Rešpektujte pri tom bezpečnostné
pokyny výrobcu vozidla.
• Pri vŕtaní otvorov dávajte pozor na
to, aby sa nepoškodili žiadne diely
vozidla.
• Prierez kábla kladného a záporného
pólu nesmie byť menší ako 1,5 mm
• Koncovky elektroinštalácie vozidla
sa do rádia nesmú zapojiť!
• Potrebný kábel s adaptérom pre vaše
vozidlo obdržíte v špecializovaných
predajniach BLAUPUNKT.
• V závislosti od konštrukcie sa môže
postup pri vašom vozidle od tu popísaného postupu líšiť. Za škody spôsobené montážou alebo neodborným
2
.
pripojením nepreberáme záruku.
Ak by tu uvedené pokyny na montáž
nezodpovedali vášmu vozidlu, obráťte sa prosím na špecializovaného
predajcu fy Blaupunkt, výrobcu vášho
vozidla alebo na našu zákaznícku linku.
Pri montáži zosilňovača alebo meniča je
bezpodmienečne nutné najprv zapojiť
kostru prístroja, než sa nakontaktujú
zástrčky do zásuvky Line-In alebo LineOut.
Kostry cudzích prístrojov sa nesmú napojiť na kostru (schránku) autorádia.
357
Mitgelieferte Montage- und
Anschlussteile
Supplied Mounting Hardware
Materiel de montage fourni
Componenti di fi ssaggio comprese
nella fornitura
Meegeleverde montagematerialen
Medföljande monteringsdetaljer
Ferretería de montaje suministrada
Elementos de fi xação fornecidos
Medleverede monterings- og
tilslutningsdele
Dołączone części montażowe i
połączeniowe
Přiložené montážní díly a přípojné
svorky
Dodávané montážne a pripojovacie
dielce
A
Als Sonderzubehör erhältlich
Available as an optional accessory
Disponible en option
Reperibili come accessori extra
Als speciale accessoire verkrijgbaar
Tillval
De venta como accesorios especiales
Disponíveis como acessórios
opcionais
Fås som specialtilbehør
Dostępne jako wyposażenie dodatkowe
Jako zvláštní příslušenství můžete
obdržet
Ako osobitné príslušenstvo dostanete
Preamp,/Sub,/Center - out
cable
7 607 001 512
358
B
A
7 607 621 . . .
Einbausätze
Installation kits
Kits de montage
Set di montaggio
Inbouwsets
Monteringssatser
Juegos de montaje
Kits de montagem
Indbygningssæt
Zestawy montażowe
Montážní soupravy
Montážne súpravy
1.
12V
2.
ca. 10 mm
7 608 . . . . . .
3.
0°- 30°
+/– 10°
+/– 10°
359
4.
182
53
165
1-20
3.
A
6.
Ausbau / Removal / Démontage /
5.
Smontaggio / Demontage /
Urmontering / Desmontaje /
Desmontagem / Udbygning /
Demontaż / Demontáž / Demontáž
1.
2.
2.
B
8 613 150 002
360

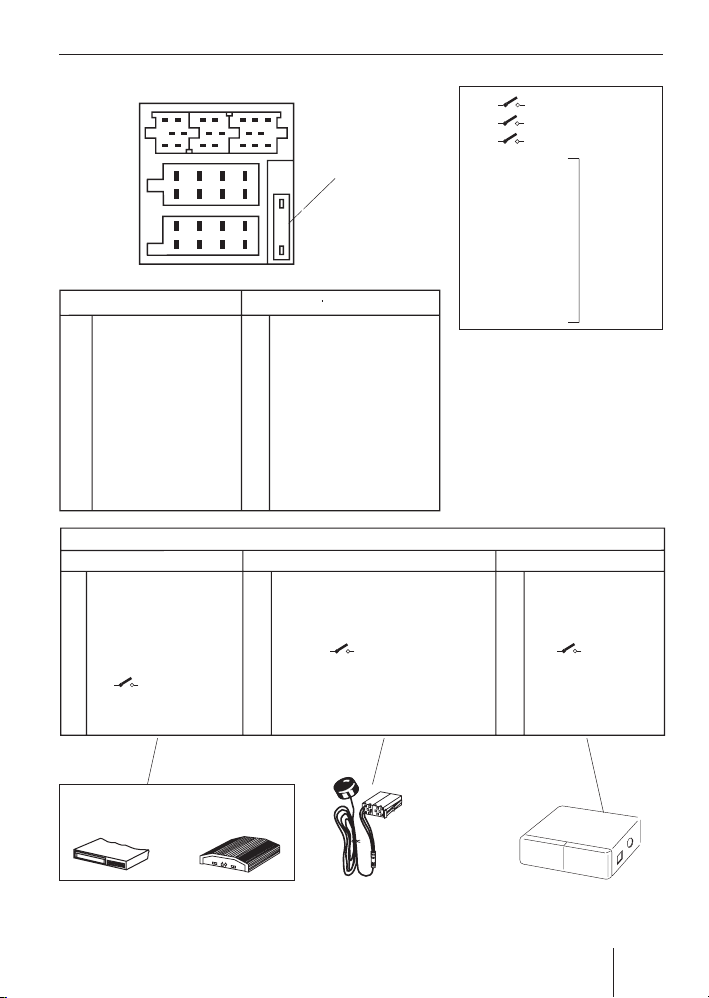

12V
7.
C-1 C-2 C-3
14
C
2
B
A
7
10 131619
91215
6
3
581114 17
1
5
6
234
3
5
1
6
4
2
Aut. antenna
18
20
7
8
7
8
10 Ampere
FB +12V / RC +12V
+12V Amplifier
*
Summe
Sum
Somme
Somma
Som
Summa
300 mA
Suma
Soma
AB
Celkem
Súčet
1 No connection 1 Speaker out RR+
2 Radio Mute 2 Speaker out RR3 No connection 3 Speaker out RF+
4 Permanent +12V 4 Speaker out RF5 Aut. antenna 5 Speaker out LF+
6 Illumination 6 Speaker out LF7 Kl.15/Ignition 7 Speaker out LR+
8 Masse/GND 8 Speaker out LR-
*
C
C1 C2 C3
1 Line Out LR 7 Telefon NF in + 13 CDC-Data - In
2 Line Out RR 8 Telefon NF in - 14 CDC-Data - Out
3 Line Out / Ground 9 Radio Mute 15 Permanent +12V
4 Line Out LF 10 RC +12V 16 +12V
5 Line Out RF 11 Remote Control 17 Bus / GND
6 +12V Amplifier 12 RC - GND 18 AF / GND
*
*
*
19 CDC Line In - L
20 CDC Line In - R
*
*
Equalizer Amplifi er
Optional
(Remote Control Eye)
CD-Changer
361
8.
Preamp./Sub./Center - out
7 607 001 512
RR
Änderungen vorbehalten!
Subject to changes!
Sous réserve de modifi cations!
Modifi che riservate!
Wijzigingen voorbehouden!
Ändringar förbehålles!
Modifi caciones reservadas!
Sob reserva de alterações!
Ret til ændringer forbeholdes!
Zmiany techniczne zastrzeżone!
Změny vyhrazeny!
Zmeny vyhradené!
cable
BN
12V
Amplifi er
Relais
12V
A
7
5
3
1
8
6
4
2
Kl. 15 +12V
Radio Mute
+
4 Ohm
-
LR
LF
RF
+
4 Ohm
+
4 Ohm
-
+
4 Ohm
-
12V
12V
362
Bitte den ausgefüllten Gerätepass sicher aufbewahren!
Please keep the fi lled-in radio pass in a safe place!
Prière de conserver soigneusement la carte d’autoradio remplie !
Tenete per favore il libretto di apparecchio, debitamente riempito, in un
posto sicuro!
Bewaar de ingevulde apparaatpas op een veilige plaats!
Vänligen förvara ifyllt apparatpass på säker plats!
¡Favor guardar el documento del aparato debidamente llenado en un lugar
seguro!
Por favor, guardar o cartão preenchido do aparelho num lugar seguro!
Det udfyldte apparatpas opbevares et sikkert sted!
Prosimy przechowywać metrykę radia w bezpiecznym miejscu!
Vyplněný dokument o přístroji prosím bezpečně uschovejte!
Vyplnený dokument o prístroji prosím bezpečne uschovajte!
363
Country: Phone: Fax: WWW:
Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 39 0 01-610 39 391
Belgium (B) 02-525 5444 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 210 94 27 337 210 94 12 711
Ireland (IRL) 01-46 66 700 01-46 66 706
Italy (I) 02-369 62331 02-369 62464
Luxembourg (L) 40 4078 40 2085
Netherlands (NL) 00 31 24 35 91 338 00 31 24 35 91 336
Norway (N) +47 64 87 89 60 +47 64 87 89 02
Portugal (P) 2185 00144 2185 00165
Spain (E) 902 52 77 70 91 410 4078
Sweden (S) 08-7501850 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0446 02-6130 0514
Hungary (H) 76 511 803 76 511 809
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-335 06 71 0212-346 00 40
USA (USA) 800-950-2528 708-6817188
Brasil
(Mercosur) (BR) 0800 7045446 +55-19 3745 2773
Malaysia
(Asia Pacifi c) (MAL) +604-6382 474 +604-6413 640
Gerätepass
(dt, gb, fr, it, nl, sw, es, pt, dk, pl, cz, sk)
03/08 - CM-AS/SCS1
Name: .....................................................................
Typ: ....................................................................
7 647
Serien-Nr: BP ................................................................
Blaupunkt GmbH, Robert-Bosch-Straße 200, D-31139 Hildesheim
8622406068
Loading...
