Bio-Rad’s gel filtration standard is a lyophilized mixture of molecular
weight markers ranging from 1,350 to 670,000 daltons. It is a
calibration standard for gel filtration/size exclusion chromatography
(SEC) columns used in protein purification and analysis under
nondenaturing conditions, and is appropriate for gels with exclusion
limits approximately 60,000 to 5,000,000 daltons. The mixture
contains thyroglobulin, γ-globulin, ovalbumin, myoglobin, and vitamin
B12. Both vitamin B12and myoglobin are visible when applied to a
column and provide a means of ensuring that the column is properly
packed and that the sample is eluting evenly. The standard is supplied
as a set of 6 vials. Each vial of the lyophilized mixture is reconstituted
with 0.5 ml deionized water prior to use. The total protein content is
approximately 18 mg per vial.
1.1 Instructions
Rehydrate the vial by adding 0.5 ml of deionized H2O. Swirl gently to
mix and allow the vial to stand in ice for 2–3 min. Swirl the vial again
and apply the appropriate volume of standard to the column (see
following recommendation). The hydrated mixture should be kept at
2–8°C, for up to two weeks. For HPLC applications, the standard
should be centrifuged before application to remove any fine particulates.
Table 1. Gel Filtration Standard Components
Component Molecular Weight* per Vial (mg)
Thyroglobulin (bovine) 670,000 5.0
γ-globulin (bovine) 158,000 5.0
Ovalbumin (chicken) 44,000 5.0
Myoglobin (horse) 17,000 2.5
Vitamin B
12
*Estimates of molecular weights from:
1. CRC Handbook of Biochemistry, (Sober HA., ed.) Chemical Rubber
Company, Cleveland, Ohio (1968).
2. Merck Index, 9th edition, (Windholz M, ed.) Merck and Company, Inc.,
New Jersey (1976).
1,350 0.5
1
Amount
18
1.2 Recommended Volume of Standard
The general recommendation is to load no more than 1% of the
column volume to avoid peak broadening effects. To achieve an
absorbance of about 0.1 to 0.2 OD at 280 nm with various column
sizes, use a volume of sample proportional to the total column
volume. For example, a column of 170 ml total volume would require
about 0.5 ml of standard, while a column of 40 ml would require about
0.125 ml. Actual chromatographic separations will depend upon
chromatographic techniques and column efficiency.
Table 2. Recommended Volume of Standard
Column Volume Volume of Standard
100–200 ml 0.5 ml
50–100 ml 0.25 ml
25–50 ml 0.125 ml
Figure 1 shows the results achieved with Bio-Sil®SEC HPLC
columns. For HPLC size exclusion columns (7.8 x 300 mm), a 20 µl
injection loop will give peaks with absorbance at 280 nm of about 0.75.
2
A&B
C
280
A
Eluent volume
a. Bio-Sil SEC 125 column
A&B
280
A
Eluent volume
b. Bio-Sil SEC 250 column
F
E
D
F
E
C
D
F
E
D
C
B
280
A
A
Eluent volume
c. Bio-Sil SEC 400 column

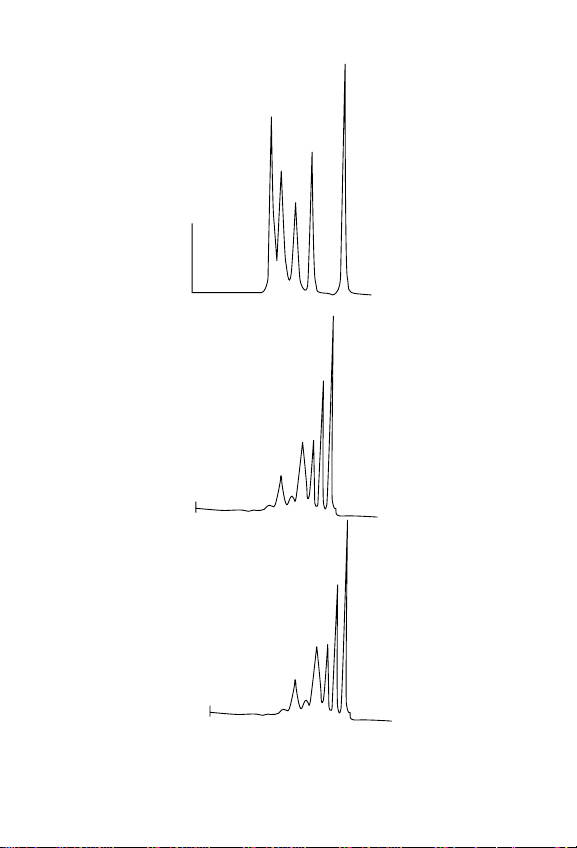

Fig. 1. Separation of standard on HPLC size exclusion columns.
3
Fig. 1.
a. Bio-Sil SEC 125 column (exclusion limit* ≈ 80,000).
b. Bio-Sil SEC 250 column (exclusion limit ≈ 300,000).
c. Bio-Sil SEC 400 column (exclusion limit ≈ 800,000).
Peaks:
A. Protein aggregates (void peak)
B.Thyroglobulin
C.γ-globulin
D.Ovalbumin
E. Myoglobin
F. Vitamin B
12
Conditions
Buffer 0.05 M Na2HPO4, 0.05 M NaH2PO4,
0.15 M NaCl, pH 6.8
Column 300 x 7.8 mm
Flow rate 1.0 ml/min
Sample 20 µl
Chart speed 1 cm/min
Detection UV @ 280 nm; 1.0 AUFS
*Nominal exclusion limits given for globular proteins.
4
1.3 Shelf Life
The lyophilized standard is stable for at least 1 year when stored at
2 to 8°C. The shelf life may be extended if stored at a lower temperature.
1.4 Storage
The lyophilized standard may be stored at 2 to 8°C or lower. The
reconstituted standard should be aliquoted and frozen at 0°C or lower
and is stable for 5 years.
Section 2
Ordering Information
Catalog # Description
151-1901 Gel Filtration Standard, 6 vials lyophilized mixture
125-0060 Bio-Sil SEC 125-5 Column, 7.8 x 300 mm
125-0065 Bio-Sil SEC 125-10 Column, 7.5 x 600 mm
155-0200 Bio-Sil SEC 125-10 Column, 21.5 x 600 mm
125-0062 Bio-Sil SEC 250-5 Column, 7.8 x 300 mm
125-0066 Bio-Sil SEC 250-10 Column, 7.5 x 600 mm
155-0201 Bio-Sil SEC 250-10 Column, 21.5 x 600 mm
125-0064 Bio-Sil SEC 400-5 Column, 7.8 x 300 mm
125-0067 Bio-Sil SEC 400-10 Column, 7.5 x 600 mm
155-0202 Bio-Sil SEC 400-10 Column, 21.5 x 600 mm
