Instructions for Use and Installation
Coffee Machine
M45CAFX
6
GB
CONTENTS
INTRODUCTION .........................7
Symbols used in these instructions ..........7
Letters in brackets .....................................7
Troubleshooting and repairs ......................7
SAFETY ...................................7
Fundamental safety warnings.....................7
Designated use...........................................8
Instructions ...............................................8
DESCRIPTION............................8
Description of the appliance .....................8
Description of the control panel .................8
PRELIMINARY CHECKS ................9
Controls after transport .............................9
Installing the appliance...............................9
Connecting the appliance ...........................9
DISPOSAL ................................9
BUILT-IN INSTALLATION .............10
USING THE APPLIANCE FOR THE
FIRST TIME ............................12
Installing the filter ...................................12
Replacing the filter ..................................13
Removing the filter ..................................13
TURNING ON AND HEATING UP ...13
MAKING COFFEE USING COFFEE
BEANS ..................................14
CHANGING THE QUANTITY OF
COFFEE IN THE CUP .................15
ADJUSTING THE COFFEE MILL ....15
MAKING ESPRESSO COFFEE WITH
PRE-GROUND COFFEE (INSTEAD OF
BEANS) ................................15
DELIVERING HOT WATER ............16
CHANGING THE QUANTITY OF HOT
WATER .................................16
MAKING CAPPUCCINO (USING THE
STEAM FUNCTION) ...................16
CLEANING ..............................17
Cleaning the coffee maker .......................17
Cleaning the waste coffee container .........17
Cleaning the drip tray ...............................17
Cleaning the water tank ...........................17
Cleaning the spouts .................................17
Cleaning the pre-ground coffee funnel .....17
Cleaning the inside of the coffee maker....18
Cleaning the brewing unit ........................18
CHANGING AND SETTING MENU PA-
RAMETERS .............................18
Setting the language ................................19
Rinsing ....................................................19
Changing the length of time the appliance
remains on ..............................................19
Setting the clock ......................................19
Setting auto-start time .............................19
Changing coffee temperature ...................20
Setting water hardness ............................20
Programming coffee ...............................20
Programming water .................................20
Descaling .................................................20
Resetting default values (reset) ...............21
Statistics ..................................................21
Buzzer .....................................................21
Adjusting contrast ....................................21
Water filter ..............................................22
TURNING THE APPLIANCE OFF ....22
TECHNICAL SPECIFICATION .........22
DISPLAYED MESSAGES .............23
TROUBLESHOOTING ..................25
INTRODUCTION
Symbols used in these
instructions
Important warnings are identified by these symbols. Failure to observe the instructions could result in electric shock, serious injury, burns, fire
or damage to the appliance.
Danger!
Failure to observe the warning could result in
possibly life threatening injury from electric
shock.
Important!
Failure to observe the warning could result in injury or damage to the appliance.
Danger of burns!
Failure to observe the warning could result in
scalds or burns.
N.B.!
Important information for the user
Letters in brackets
The letters in brackets refer to the legend in the
Description of the Appliance on page 3.
Troubleshooting and repairs
In the event of problems, follow the information
given in the sections "Displayed messages" and
"Troubleshooting".
If this does not resolve the problem, you should
consult Customer Services.
For repairs, contact Customer Services only.
SAFETY
Fundamental safety warnings
Important!
This is an household appliance only.
It is not intended to be used in:
• staff kitchen areas in shops, offices and other
working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
Danger!
This is an electrical appliance,
it is therefore important to respect the following
safety warnings:
• Never touch the appliance with damp hands.
• Never touch the plug with damp hands.
• Make sure the socket used is freely accessi-
ble at all times, enabling the appliance to be
unplugged when necessary.
• Unplug directly from the plug only. Never pull
the power cable as you could damage it.
• To disconnect the appliance completely,
place the main switch (A23) on the side of
the appliance in the 0 position.
• If the appliance is faulty, do not attempt to re-
pair.
Turn it off using the main switch (A23), unplug from the mains socket and contact Customer Services.
Important!
Keep all packaging (plastic
bags, polystyrene foam) away from children.
Important!
The appliance is not intended
for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Children must be supervised to ensure they do not
play with the appliance.
Danger of burns!
This appliance produces hot water and steam may form while it is in
operation.
Avoid contact with splashes of water or hot
steam. Use knobs and handles.
Important!
Do not grasp the coffee maker
when it is out of the cabinet. Do not rest recipients containing liquids or inflammable or corrosive materials on top of the appliance. Place the
7
GB
8
accessories required to make the coffee (the
measure for example) in the special holder. Do
not rest large objects which could obstruct movement or unstable objects on the appliance.
Amportant!
Do not use the appliance
when extracted. Make sure the appliance is inactive before extracting it. The only exception is adjusting the coffee mill which must be done with
the machine out (see the section "Adjusting the
coffee mill").
N.B.!
Use original or manufacturer re-
commended accessories and spare parts only.
Designated use
This appliance is designed and made to prepare
coffee and heat drinks.
All other use is considered improper.
This appliance is not suitable for commercial use.
The manufacturer is not liable for damage deriving from improper use of the appliance.
This appliance can be installed over a built-in
oven if the latter is fitted with a cooling fan at the
rear (maximum microwave power: 3 kW).
Instructions
Read these instructions carefully before using the
appliance.
• Keep these instructions
• Failure to respect these instructions may re-
sult in burns or damage to the appliance.
The manufacturer is not liable for damage
deriving from failure to respect these instructions.
N.B.!
The appliance has a cooling fan.
This comes on whenever coffee, steam or hot
water is delivered. After several minutes, the fan
goes off automatically.
DESCRIPTION
Description of the appliance
(page 3 - A)
A1. Cup tray
A2. Service door
A3. Coffee guide
A4. Waste coffee container
A5. Brewing unit
A6. Cup tray lights
A7. On/OFF/stand-by button
A8. Control panel
A9. IEC connector
A10. Cappuccino maker (removable)
A11. Cappuccino maker nozzle
A12. Water tank
A13. Coffee spout (adjustable height)
A14. Drip tray
A15. Bean container lid
A16. Bean container
A17. Grinding adjustment knob
A18. Pre-ground coffee funnel door
A19. Measure
A20. Compartment for measure
A21. Pre-ground coffee funnel
A22. Power cable
A23. Main switch
A24. Tray
A25. Water softener filter (optional)
Description of the control panel
(page 3 - B)
N.B.!
Only the icons relating to the controls enabled for the particular function currently
being used will be lit on the touch screen.
N.B.!
A light touch is enough to activate
the icon.
B1. Display: guides the user in using the ap-
pliance.
B2. icon to activate or deactivate menu
parameter setting mode
B3. icon to turn light A6 on and off
B4. icon to select the coffee taste
B5. icon to select the type of coffee
(espresso, small cup, medium cup, large
cup, mug)
GB
9
B6. icon to exit the selected mode
B7-B8. icons to scroll forwards or
backwards through the menu and display
the various modes
B9. icon to confirm the selected function
B10. icon to deliver a cup of coffee
B11. icon to deliver two cups of coffee
B12. icon to deliver steam
B13. icon to deliver hot water
PRELIMINARY CHECKS
Controls after transport
After removing the packaging, make sure the product is complete and undamaged and that all accessories are present.
Do not use the appliance if it is visibly damaged.
Contact Customer Services.
Installing the appliance
Important!
• The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach
of children.
• Do not install the appliance in rooms where
the temperature may drop to 0°C or lower.
• Customise the water hardness as soon as
possible following the instructions in the
"Setting water hardness" section.
Connecting the appliance
Danger!
Check that the mains power
supply voltage corresponds to the value indicated
on the rating plate on the bottom of the appliance. Connect the appliance to an efficiently
earthed and correctly installed socket with a minimum current rating of 10A only. If the power
socket does not match the plug on the appliance,
have the socket replaced with a suitable type by
a qualified professional.To comply with safety di-
rectives, an omnipolar switch with a minimum
contact distance of 3 mm must be installed.
Do not use multiple sockets or extensions.
Important!
Safety cutout devices must be
included in the mains power supply in compliance
with the installation regulations in the country concerned.
Important!
Once the appliance is installed,
the electrical cable, plug and power socket must be
accessible.
Danger!
If the supply cord is damaged,
it must be replaced by the manufacturer or its
service agent or a similarly qualified person in
order to avoid a hazard.
DISPOSAL
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste.
Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. Disposal must be carried out
in accordance with local environmental regulations
for waste disposal. For more detailed information
about treatment, recovery and recycling of this product, please contact your local city council office.
GB
10
GB
BUILT-IN INSTALLATION
Verify the minimum measurements required for
correct installation of the appliance.
The coffee maker must be installed in a column
and the column must be firmly fixed to the wall
with commercially available brackets.
Important:
• Important: all installation or maintenance
operations must be performed with the appliance disconnected from the mains electricity supply.
• Kitchen furniture in direct contact with the
appliance must be heat resistant (65°C min).
• To guarantee correct ventilation, leave a gap
at the bottom of the cabinet (see measurements in figure).
455 mm
594 mm
20 mm
398 mm
45 mm
45 mm
45
mm
4
5 mm
450 + 2 mm
850 mm Min
500 mm
545 mm Min.
200 cm
2
560 + 8
mm
361 mm
528 mm
372 mm
30 mm
11
GB
Fix the power cable with the clip.
The power cable must be long enough to allow
the appliance to be extracted from the cabinet
to fill the coffee bean container.
The appliance must be earthed in compliance
with legislation.
Electrical connections must be performed by a
qualified electrician following the
instructions.
Position the appliance on the rails, making sure
the pins are correctly inserted in the housings,
then fix it with the screws supplied.
If the height of the appliance requires adjusting,
use the spacer disks provided.
If necessary, correct alignment of the appliance
by positioning the spacers supplied under or at
the sides of the support.
x 16
x 2
Position the rails on the sides of the cabinet as
shown in the figure. Fix with the screws, then
extract them completely. If the coffee maker is
installed over a warmer drawer, use the top surface of this as a reference to position the rails.
In this case, there will be no surface to rest the
rails on.
app
r
ox. 350 mm
x 1
x 4 x 8
x 4
560 + 1 mm
12
USING THE APPLIANCE
FOR THE FIRST TIME
• Coffee has been used to factory test the appliance and it is therefore completely normal
for there to be traces of coffee in the mill.
• Customise water hardness as soon as possible following the instructions in the "Setting
water hardness" section.
1. Connect the appliance to the mains supply.
Set the required language.
2. To set the language, use the icons
(B7 and B8) to choose the required language
(fig. 2). When the message "PRESS OK TO
CHOOSE ENGLISH" is displayed, press the
icon (B9) (fig. 3) for 3 seconds until
"ENGLISH INSTALLED" is displayed. If you
set the wrong language, follow the instructions in the "Setting the language" section. If
your language is not available, select one
from those displayed. The instructions refer
to the English version. Then follow the instructions displayed:
3. After 5 seconds, the appliance displays "FILL
TANK". Extract the water tank (fig. 4), rinse
and fill with fresh water without exceeding
the MAX line. Replace and push as far as it
will go. A water softener filter can be installed in the tank (fig. 29).
4. Place a cup under the cappuccino maker (fig.
5). The appliance displays: "HOT WATER
PRESS OK". Press the icon (B9) (fig. 3)
and after a few seconds a little water comes
out of the cappuccino maker.
5. The machine now displays "TURNING OFF...
PLEASE WAIT" and goes off.
6. Extract the appliance by pulling it out using
the handles (fig. 6). Open the lid and fill the
container with coffee beans, then close the
lid and push the appliance in.
The coffee maker is now ready for normal use.
Important!
Never introduce pre-ground
coffee, freeze dried coffee, caramelised beans or
anything else which could damage the appliance.
N.B.!
When using the appliance for the
first time, you need to make 4-5 cups of coffee
and 4-5 cappuccinos before the appliance gives
satisfactory results.
N.B.!
Each time you turn the coffee maker
on by the ON/OFF switch (A23), it performs a
SELF-DIAGNOSIS cycle and then goes off. To
turn it on again, press the ON/OFF button (A7)
(fig. 1)
Installing the filter
Some models are fitted with a water softener filter to improve the quality of the water used and
extend the working life of the appliance.
To install, proceed as follows:
1. Remove the filter from the packaging;
2. Slide the date indicator pointer (see fig. 29)
until the months of use are displayed.
N.B.!
The filter lasts about two months if
the appliance is used normally. If the coffee
maker is left unused with the filter installed,
it will last a maximum of three weeks.

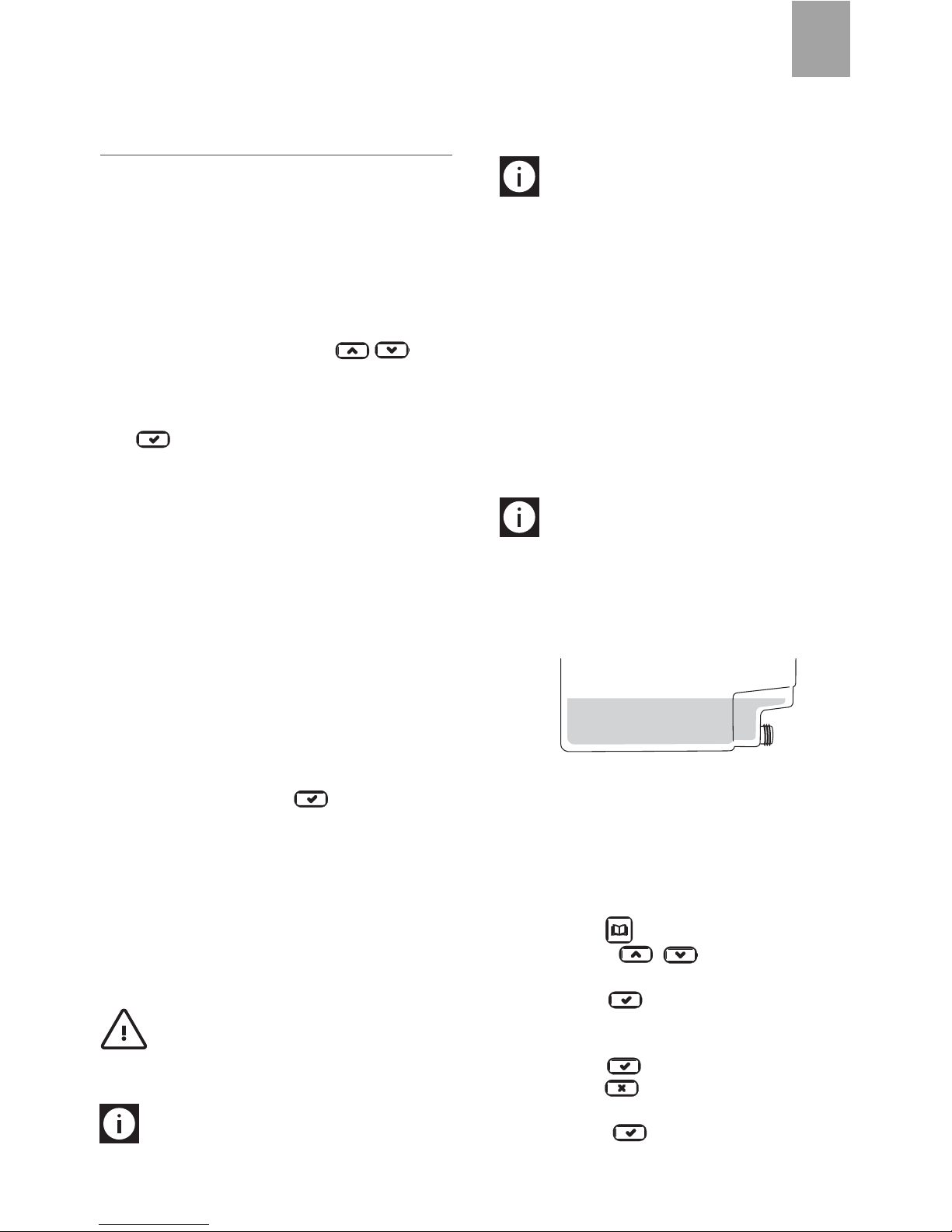

3. Fill the tank with a little water up to the level
shown in the figure:
4. Insert the filter in the water tank and press it
until it touches the bottom of the tank (see
fig. 29);
5. Fill the water tank and insert in the coffee
maker;
6. Place a container underneath the cappuccino
maker (min. capacity: 100 ml).
7. Press the icon (B2) to enter the menu;
8. Press the icons (B7) and (B8)
until "INSTALL FILTER" is displayed;
9. Press the icon (B9);
10. The message "INSTALL FILTER PLEASE
CONFIRM" is displayed.
11. Press the icon (B9) to confirm the se-
lection (or (B6) to cancel). "HOT WATER
PRESS OK" is displayed.
12. Press the icon (B9) again. The ap-
GB
13
pliance begins delivering hot water and the
message "PLEASE WAIT... " is displayed.
When delivery stops, the appliance automatically displays the basic modes set again.
N.B.!
The appliance may request the operation to be repeated a number of times until the
air is completely elminated from the hydraulic circuit.
Replacing the filter ("FILTER
RESET")
When "REPLACE FILTER" is displayed or after 2
months of use (see date indicator), the filter must
be replaced:
1. Remove the exhausted filter;
2. Remove the new filter from the packaging.
3. Slide the pointer of the date indicator (see fig.
29) until the months of use are displayed (the
filter lasts about 2 months);
4. Insert the filter in the water tank and press it
until it touches the bottom of the tank (see
fig. 29);
5. Fill the water tank and insert in the coffee
maker;
6. Turn the cappuccino maker outwards and
place a container underneath (min. capacity
100 ml).
7. Press the icon (B2) to enter the menu;
8. Press the icons (B7) and (B8)
until "FILTER RESET" is displayed;
9. Press the icon (B9);
10. The message "FILTER RESET CONFIRM" is
displayed.
11. Press the icon (B9) to confirm the se-
lection (or (B6) to cancel). "HOT
WATER PRESS OK" is displayed.
12. Press the icon (B9) again. The ap-
pliance begins delivering hot water and the
message "PLEASE WAIT..." is displayed.
When delivery stops, the appliance automatically displays the basic modes set again.
Removing the filter
To use the appliance without a filter, you must remove it and notify the appliance of its removal as
follows:
1. Press the icon (B2) to enter the menu;
2. Press the icons (B7) and (B8) until
"INSTALL FILTER" is displayed;
3. Press the icon (B9);
4. The message "INSTALL FILTER* CONFIRM" is
displayed.
5. Press the icon (B6).
6. When the asterisk has disappeared from the top
right of the display, press (B6) to exit the
menu.
N.B.!
Use the filters recommended by the
manufacturer only. Use of unsuitable filters could
damage the appliance.
TURNING ON AND HEATING
UP
Each time the appliance is turned on, it performs
an automatic preheat and rinse cycle which cannot be interrupted. The appliance is ready for use
only after completion of this cycle.
Danger of burns!
During rinsing, a little
hot water flows from the coffee spouts.
To turn the appliance on, press the
ON/OFF/stand-by button (A7) (fig. 1). The message "HEATING UP... PLEASE WAIT" is displayed.
When heating is complete, the message changes
to "RINSING"; The appliance is at temperature
when the message "MEDIUM CUP NORMAL
TASTE" is displayed. If no icon is pressed within
about 2 minutes, the time (if set, see the "Setting
the clock" section) is displayed. If the time has
not been set, the appliance displays the last functions set. When any icon is pressed, "MEDIUM
CUP NORMAL TASTE" is displayed again. The appliance is ready to make coffee again.
MAKING COFFEE USING
COFFEE BEANS
1. The appliance is preset to make coffee with a
GB
14
normal taste. You can also choose coffee
with an extra-mild, mild, strong or extrastrong taste. There is also a pre-ground coffee option. To choose the required taste,
press the icon (B4) (fig. 7). The required coffee taste is displayed.
2. Place 1 cup under the spouts to make 1 coffee (fig. 8) or 2 cups for 2 coffees (fig. 9).
Lower the spouts as near as possible to the
cup for a creamier coffee (fig. 10).
3. Press the icon (B5) (fig. 11) to select
the type of coffee: espresso, small cup, medium cup, large cup, mug. Now press the
icon (B10) (fig. 12) if you want to
make a coffee and the icon (B11) (fig.
13) if you want to make 2 coffees. The appliance now grinds the beans and starts delivering the coffee into the cup. Once the set
amount of coffee has been delivered, the machine stops delivery automatically and expels
the exhausted waste coffee into the waste
coffee container.
4. After a few seconds, the appliance is ready
for use again.
5. To turn the appliance off, press the
ON/OFF/stand-by button (A7) (fig. 1). (Before
going off, the appliance performs an automatic rinse cycle. Take care to avoid scalds).
NOTE 1: If the coffee is delivered a drop at a time
or not at all, see the "Adjusting the coffee mill"
section.
NOTE 2: If the coffee is delivered too fast and the
cream is not satisfactory, see the "Adjusting the
coffee mill" section.
NOTE 3: Tips for a hotter coffee:
• Proceed as described in the section "Changing and setting menu parameters", "Rinse"
function.
• Unless preheated, do not use excessively
thick cups as they will absorb too much heat.
• Preheat the cups by rinsing them with hot
water.
NOTE 4: Coffee delivery can be interrupted at any
moment by re-pressing the previously selected
icon which remains lit during the operation.
NOTE 5: As soon as delivery is finished, to increase the quantity of coffee in the cup, just keep
pressing the previously selected icon within 3 seconds after delivery has finished.
NOTE 6: When the appliance displays "FILL
TANK", fill the tank with water or the appliance
will not deliver coffee. (It is normal for there to
be a little water left in the tank).
NOTE 7: After about 14 single (or 7 double) coffees, the appliance displays "EMPTY WASTE
COFFEE CONTAINER". Even if not full, the empty
waste coffee container message is displayed 72
hours after the first coffee has been delivered. For
the 72 hours to be calculated correctly, the machine must never be turned off with the main
switch in the 0 position. To clean, open the service door on the front of the appliance by pulling
the spout (fig. 16), extract the drip tray (fig. 17)
and clean.
When cleaning, always extract the drip tray
completely.
Important!
When extracting the drip tray,
the waste coffee container MUST always be emptied. If this is not done, the machine may be
clogged.
NOTE 8: Never extract the water tank while the
machine is delivering coffee. If it is removed, it
will not be possible to make the coffee and the
appliance will display "GROUND TOO FINE ADJUST MILL AND PRESS OK" and then "FILL
TANK". Check the level of water in the tank and
replace in the appliance. To turn the machine on
again, press the icon (B9). "HOT WATER
PRESS OK" is displayed. Press the icon
(B9) within a few seconds and deliver water from
GB
15
the cappuccino maker for about 30 seconds.
When delivery stops, the basic modes are displayed again.
N.B.:
The coffee maker may request the
operation to be repeated a number of times until
the air is completely elminated from the hydraulic circuit.
N.B.:
if this operation is not performed
correctly or if the machine is turned off, the basic
modes may be displayed, although the problem
is in fact still present.
CHANGING THE QUANTITY
OF COFFEE IN THE CUP
The appliance is set by default to automatically
make the following types of coffee:
• espresso
• small cup
• medium cup
• large cup
•mug
To change the quantity, proceed as follows:
• Press the icon (B2) to enter the menu
(fig. 15). Press the icons (B7) and
(B8) (fig. 2) until "PROGRAM COFFEE" is displayed.
• Press the icon (B9).
• Select the type of coffee you want to change
by pressing the icons (B7) and
(B8).
• Press the icon (B9) to confirm the type
of coffee you want to make.
• Use the icons (B7) and (B8) to
change the quantity of coffee. The progress
bar shows the quantity of coffee selected.
• Press the icon (B9) again to confirm
(or the icon (B6) to cancel the operation).
• Press the icon (B6) (fig. 18) twice to
exit the menu.
The appliance is now reprogrammed with the
new settings and is ready.
ADJUSTING THE COFFEE
MILL
The coffee mill is preset in the factory and should
not require adjusting. However, if after making
the first few coffees you find that delivery is either
too fast or too slow (a drop at a time), this can be
corrected by adjusting the grinding adjustment
knob (fig. 14).
Important!
The grinding adjustment knob
must only be turned when the coffee mill is in
operation.
For slower delivery and
creamier coffee, turn one
click anticlockwise (finer
pre-ground coffee).
For faster delivery (not a
drop at a time), turn one
click clockwise (coarser
pre-ground coffee).
MAKING COFFEE USING
PRE-GROUND COFFEE
• Press the icon (B4) (fig. 7) and select the
pre-ground coffee function.
• Extract the machine by pulling it outwards
using the handles.
• Lift the central lid, place one measure of pre-
ground coffee in the funnel (fig. 19), push the
appliance in then proceed as described in the
section "Making coffee using coffee beans".
N.B.: You can make just one coffee at a time
by pressing the icon (B10) (fig. 12).
• After using the machine with pre-ground cof-
fee, to go back to making coffee using beans,
deactivate the pre-ground coffee function by
pressing the icon (B4) (fig. 7).
NOTE 1: Never introduce pre-ground coffee when
the machine is off or it could spread through the
inside of the appliance.
NOTE 2: Never add more than 1 measure, otherwise the appliance will not make the coffee.
NOTE 3: Use the measure provided only.
NOTE 4: Introduce only pre-ground coffee for
GB
espresso coffee machines into the funnel.
NOTE 5: If more than one measure of pre-ground
coffee is used and the funnel clogs, push the coffee down with a knife (fig. 21) then remove and
clean the brewing unit and machine as described
in the "Cleaning the brewing unit" section.
DELIVERING HOT WATER
• Always make sure the appliance is ready.
• Turn the cappuccino maker outwards and
place a container underneath (fig. 5).
• Press the icon (B13) (fig. 20). The appliance displays: "HOT WATER PRESS OK".
Press the icon (B9) again and hot water
is delivered from the cappuccino maker into
the container underneath. You should not
deliver hot water for more than 2 minutes at
a time. To interrupt, press the icon (B13)
or the icon (B6). The appliance stops
delivery once the set quantity is reached.
CHANGING THE QUANTITY
OF HOT WATER
The machine is set by default to automatically delivery 200 ml of hot water.
To change these quantities, proceed as follows:
• Place a container underneath the cappuccino
maker (fig. 5).
• Press the icon (B2) to enter the menu
(fig. 15) or press the icons (B7)
and (B8) (fig. 2) until "PROGRAM HOT
WATER" is displayed.
• Press the icon (B9) to confirm.
• Select the required quantity of water by pressing the icons (B7) and (B8).
The progress bar shows the quantity of water
selected.
• Press the icon (B9) to confirm (or the
icon (B6) to cancel the operation.
• Press the icon (B6) (fig. 18) twice to
exit the menu.
• The appliance is now reprogrammed with the
new settings and is ready.
MAKING CAPPUCCINO
(USING THE STEAM
FUNCTION)
• Turn the cappuccino maker towards the centre
(fig. 5).
• Take a container, fill it with about 100 g of milk
for each cappuccino to be made and place it
under the cappuccino maker. In choosing the
size of the recipient, bear in mind that the milk
doubles or triples in volume. You are recommended to use partially skimmed milk at refrigerator temperature.
• Press the icon (B12) (fig. 22). "STEAM
PRESS OK" is displayed.
• Press the icon (B9).
• To interrupt steam delivery, press the icon
(B12) again or the icon (B6).
• Immerse the cappuccino maker in the milk container (fig. 23), taking care not to immerse it for
more than half its length.
Press the icon (B12) (take care to avoid
scalds) and press the icon (B9). Steam
comes out of the cappuccino maker. For a
creamier froth, immerse the cappuccino maker
in the milk and move the container with slow
upward movements. You should not deliver
steam for more than 2 minutes at a time.
• When the required temperature is reached, interrupt steam delivery by pressing the icon
(B12) again or the icon (B6).
• Make the coffee as described above using sufficiently large cups, then fill them with the frothed milk prepared previously.
IMPORTANT: always clean the cappuccino system immediately after use.
Proceed as follows:
• Press the icon (B12) and then press the
button (B9) to discharge a small amount
of steam for a few seconds. This empties the
steam spout of all traces of milk.
IMPORTANT: to ensure the hygiene of the appliance, you are recommended to carry out this
procedure each time you make cappuccino to
avoid stale milk remaining in the circuit.
• Wait for the cappuccino maker to cool down,
16
GB
17
then holding the cappuccino maker lever firmly
in one hand, unscrew the cappuccino maker itself with the other, turning it anticlockwise and
removing it downwards (fig. 24).
• Remove the cappuccino maker nozzle by pulling it downwards.
• Wash the cappuccino maker and nozzle thoroughly in hot water.
• Make sure the two holes shown in figure 25 are
not blocked. If necessary, clean with a pin.
• Replace the nozzle by inserting it upwards into
the cappuccino maker.
• Replace the cappuccino maker by pushing it
upwards and rotating it clockwise.
CLEANING
Cleaning the coffee maker
Do not use solvents or abrasive detergents to
clean the coffee maker. A soft damp cloth will suffice. Never wash any of the components of the
coffee maker in the dishwasher.
The following parts of the machine must be cleaned regularly:
• Waste coffee container (A4).
• Drip tray (A14).
• Water tank (A12).
• Coffee (A13), hot water (A11) and cappuccino maker spouts (A10).
• Pre-ground coffee funnel (A21).
• Inside of the machine, accessible after opening the service door (A2).
• Brewing unit (A5).
• Coffee jug.
Cleaning the waste coffee
container
When "EMPTY WASTE COFFEE CONTAINER" is
displayed, the waste coffee container must be
emptied and cleaned. To clean:
• open the service door on the front of the appliance (fig. 16), extract the drip tray (fig. 17)
and clean.
• Clean the waste coffee container thoroughly.
Important!
When extracting the drip tray,
the waste coffee container must always be emptied.
Cleaning the drip tray
Important!
If the drip tray is not emptied
the water might overflow. This could damage the
machine. The drip tray is fitted with a level indicator (red) showing the level of water it contains
(fig. 27). Before the indicator protrudes from the
cup tray, the drip tray must be emptied and cleaned. To remove the tray:
1. Open the service door (fig. 16).
2. Remove the drip tray and the waste coffee
container (fig. 17).
3. Clean the drip tray and waste coffee container
(A4).
4. Replace the drip tray and waste coffee con-
tainer (A4).
5. Close the service door.
Cleaning the water tank
1. Clean the water tank (A12) regularly (about
once a month) with a damp cloth and a little
mild washing up liquid.
2. Remove all traces of washing up liquid.
Cleaning the spouts
1. Clean the nozzles periodically using a sponge
(fig. 28).
2. Check regularly that the holes in the coffee
spout are not blocked. If necessary, remove
coffee deposits with a toothpick (fig. 26).
Cleaning the pre-ground coffee
funnel
• Check regularly (about once a month) that
the pre-ground coffee funnel is not blocked
(fig. 21).
Danger!
Before performing any cleaning
operations, the machine must be turned off by
pressing the main switch (A23) and unplugged
from the mains power supply. Never immerse the
coffee maker in water.
GB
Cleaning the inside of the coffee
maker
1. Check regularly (about once a week) that the
inside of the appliance is not dirty. If necessary, remove coffee deposits with a sponge.
2. Remove the residues with a vacuum cleaner
(fig. 30).
Cleaning the brewing unit
The brewing unit must be cleaned at least once a
month.
Important!
The brewing unit (A5) must
not be removed when the appliance is on. Do not
use force to remove the brewing unit.
1. Make sure the machine is correctly turned off
(see "Turning the appliance off").
2. Open the service door (fig. 16).
3. Remove the drip tray and waste coffee con-
tainer (fig. 17);
4. Press the two red release buttons inwards
and at the same time pull the brewing unit
outwards (fig. 31).
Important!
Do not use washing up liquid
to clean the brewing unit. It would remove the lubricant applied to the inside of the piston.
5. Soak the brewing unit in water for about 5
minutes, then rinse.
6. After cleaning, replace the brewing unit (A5)
by sliding it onto the internal support and pin
at the bottom, then push the PUSH symbol
fully in until it clicks into place.
N.B.!
If the brewing unit is difficult to insert, you must first adapt it to the right dimensions by pressing it forcefully from the bottom
and top as shown in the figure.
7. Once inserted, make sure the two red buttons
have snapped out.
8. Replace the drip tray and waste coffee con-
tainer.
9. Close the service door.
CHANGING AND SETTING
MENU PARAMETERS
When the appliance is ready, you can use the internal menu to modify the following parameters
and functions:
• Choose language
• Rinsing
• Shut-off time
• Set clock
• Start time
• Auto-start
• Temperature
• Water hardness
• Program coffee
• Program jug
• Program water
• Descale
• Reset to default
• Statistics
• Install filter
• Reset filter
18
GB
Pin
Support
19
• Buzzer
• Contrast
Setting the language
To change the language on the display, proceed
as follows:
• Press the icon (B2) to enter the menu.
"CHOOSE LANGUAGE" is displayed.
• Press the icon (B9).
• Press the icons (B7) and (B8)
until the required language is displayed.
• Press the icon (B9) to confirm.
• Press the icon (B6) to exit the menu.
N.B.!
If you choose the wrong language,
you can access the menu directly to modify the parameter.
• Press the icon button (B2) for at least 7
seconds until the appliance displays the various languages.
• Choose the required language as described
in the section "Using the appliance for the
first time".
Rinsing
This function enables you to obtain hotter coffee.
Proceed as follows:
• When you turn the appliance on, if you want
to make a small cup of coffee (less than 60
cc), preheat the cup by rinsing it with hot
water.
• If on the other hand more than 2/3 minutes
have passed since the last coffee was made,
before requesting another coffee, you must
preheat the brewing unit by first pressing the
icon (B2) to enter the menu then the
icons (B7) and (B8) to select the
"RINSING" function.
Press the icon (B9). "RINSING...
PLEASE CONFIRM" is displayed.
Press the icon (B9) again.
Deliver the water into the underlying drip tray
or alternatively use this water to fill (and then
empty) the cup to be used for the coffee to
preheat it.
Changing the length of time the
appliance remains on
The appliance is set by default to go off automatically 30 minutes after the last coffee has been
made.
To change this interval (max. 120 min), proceed
as follows:
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "SHUT-OFF TIME" is displayed.
• Press the icon (B9) to confirm.
• Press the icons (B7) and (B8) to
set the time after which the appliance will go
off (after 1/2 hour, 1 hour, 2 hours).
• Press the icon (B9) to confirm.
• Press the icon (B6) to exit.
Setting the clock
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "SET CLOCK" is displayed.
• Press the icon (B9).
• Use the icons (B7) and (B8) to
set the hour, then press the icon (B9) to
confirm.
• Use the icons (B7) and (B8) to set
the minutes, then press the icon (B9)
to confirm.
• Press the icon (B6) to exit the menu.
Setting auto-start time
This function programmes the time the machine
will come on automatically.
• Make sure the clock on the appliance has
been set.
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "START TIME" is displayed.
• Press the icon (B9).
• Use the icons (B7) and (B8) to
set the auto-start time, then press the
icon (B9) to confirm.
• Use the icons (B7) and (B8) to set
the minutes, then press the icon (B9) to
confirm.
• Press the icons (B7) and (B8) to
GB
20
activate the auto-start function until "AUTO
START" is displayed.
• Press the icon (B9) to confirm.
The symbol appears on the display.
• Press the icon (B6) to exit the menu.
• To deactivate the automatic start-up function,
press the (B2) icon, then press the
(B7) and (B8) icons until the appliance
displays the message “AUTO ACCENSIONE”
(AUTO START-UP). Press the (B9)
icon. "CONFERMARE" (CONFIRM) will appear
on the display. Press to deactivate and
the symbol will disappear.
Changing coffee temperature
To change coffee temperature, proceed as follows:
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "TEMPERATURE" is displayed.
• Press the icon (B9).
• Press the icons (B7) and (B8) to
select the required coffee temperature from
low, medium and high.
• Press the button (B9) to confirm the
temperature selected.
• Press the icon (B6) to exit the menu.
Setting water hardness
The operating period can be extended if required,
making descaling less frequent by programming
the machine on the basis of the real lime content
in the water used.
Proceed as follows:
• remove the "Total Hardness Test" strip (attached to page 2) from its packaging then dip
it fully in the water for a few seconds, then
remove and wait about 30 seconds (until it
changes colour and forms red squares).
• turn the appliance on by pressing the
ON/OFF/stand-by button (A7).
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "WATER HARDNESS" is displayed.
• Press the icon (B9).
• Press the icons (B7) and (B8)
until the number coincides with the number
of red squares on the test strip (for example,
if there are 3 red squares on the test strip,
select the message "WATER HARDNESS 3" .
• Press the icon (B9) to confirm.
The coffee maker is now programmed to provide the descale warning when actually necessary.
Programming coffee
For instructions on programming coffee, see the
"CHANGING THE QUANTITY OF COFFEE IN THE
CUP" section.
Programming water
For instructions, see the "CHANGING THE QUANTITY OF HOT WATER" section.
Descaling
Important!
Descaler contains acids. Respect the safety warnings provided by the manufacturer and given on the descaler pack.
N.B.!
Use the descaler recommended by
the manufacturer only. Use of other descalers invalidates the guarantee. Failure to descale the appliance as described also invalidates the
guarantee.
Important!
Before descaling, make sure
the water softener filter has been removed.
When "PLEASE DESCALE !" is displayed, the machine requires descaling.
Proceed as follows:
• Make sure the machine is ready;
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "DESCALE" is displayed.
• Press the icon (B9) and the appliance
displays "DESCALE PLEASE CONFIRM".
• Press the icon (B9). The message "ADD
DESCALER PLEASE CONFIRM" is displayed.
• Empty the tank of water, pour the contents of
the descaler bottle into the tank respecting
the instructions given on the descaler pack,
GB
21
then add water up to the MAX level marked
on the water tank. Position a container with a
capacity of about 2 litres under the hot water
spout.
• Press the icon (B9). Descaler flows out
of the hot water spout into the container
below. The appliance displays: "DESCALING".
• The descale programme automatically performs a series of deliveries and pauses.
• After about 30 minutes "DESCALE COMPLETE PLEASE CONFIRM" is displayed.
• Press the icon (B9). "RINSING PLEASE
CONFIRM" is displayed.
• Empty the water tank, rinse to eliminate descaler residues, then fill with clean water.
• Replace the tank full of clean water. "RINSING
PLEASE CONFIRM" is displayed again.
• Press the icon (B9) again. Hot water
flows out of the spout into the container
below and "RINSING" is displayed.
• Wait until "RINSING COMPLETE PLEASE
CONFIRM" is displayed.
• Press the icon (B9). "DESCALE COMPLETE" is displayed, then "FILL TANK". Fill the
tank again with clean water.
• The descale programme is now terminated
and the appliance is ready to make coffee
again.
NOTE: If descaling is interrupted before completion, the process must be begun again
from the beginning.
Important!
FAILURE TO DESCALE THE
APPLIANCE REGULARLY INVALIDATES THE
GUARANTEE.
Resetting default values (reset)
E’ possibile ritornare alle impostazioni originali
della macchina (anche dopo che l’utente le ha
modificate) procedendo nel seguente modo:
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "RESET TO DEFAULT" is displayed.
• Press the icon (B9) and the appliance
displays "RESET TO DEFAULT PLEASE CONFIRM".
• press the button (B9) to reset the de-
fault values;
Statistics
This displays statistics relating to the machine.
To display, proceed as follows:
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "STATISTICS" is displayed.
• Press the icon (B9).
• Press the icons (B7) and (B8) to
verify:
- How many coffees have been made.
- How many times the machine has been descaled.
- The total number of litres of water delivered.
• Press the icon (B6) once to exit the function or twice to exit the menu.
Buzzer
This activates or deactivates the buzzer emitted
by the machine each time an icon is pressed or
an accessory is inserted/removed.
N.B.!
The buzzer is active by default.
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "BUZZER" is displayed.
• Press the icon (B9). "BUZZER PLEASE
CONFIRM" is displayed.
• Press the icon (B6) to disable or the
icon (B9) to enable the buzzer.
• Press the icon (B6) to exit the menu.
Adjusting contrast
To increase or reduce the contrast of the display,
proceed as follows:
• Press the icon (B2) to enter the menu
and then the icons (B7) and (B8)
until "CONTRAST" is displayed.
• Press the icon (B9).
• Press the icons (B7) and (B8)
until the required display contrast is reached.
The progressive bar indicates the level of
contrast selected.
• Press the icon (B9) to confirm.
GB
22
• Press the icon (B6) once to exit the function or twice to exit the menu.
Water filter
For instructions on the water softener filter, see the
section "INSTALLING THE FILTER".
TURNING THE APPLIANCE
OFF
Each time the appliance is turned off, it performs
an automatic rinse cycle which cannot be interrupted.
Danger of burns!
During rinsing, a little
hot water flows from the coffee spouts. Avoid
contact with splashes of water. To turn the appliance off, press the ON/OFF button (A7). The
appliance performs the rinse cycle then goes off.
N.B.!
If the appliance is not used for an
extended period, place the main switch on the
back of the appliance in the 0 position (A23).
TECHNICAL SPECIFICATION
Voltage: 220-240 V~ 50/60 Hz max. 10A
Absorbed power: 1350 W
Pressure: 15 bars
Water tank capacity: 1.8 litres
Size LxHxD: 594 x 455 x 398 mm
Weight: 23/24 kg
The appliance complies with the following EC directives:
• Low Voltage Directive 2006/95/EC and subsequent amendments;
• EMC Directive 2004/108/EC and subsequent
amendments
• EC Regulation 1275/2008 for standby
Materials and accessories coming into contact
with food conform to European regulation (EC)
no. 1935/2004.
ELECTRICAL CONNECTION
(UK ONLY)
A) If your appliance comes fitted with a plug, it will
incorporate a 13 Amp fuse. If it does not fit your
socket, the plug should be cut off from the mains
lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut
off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the
house as this could cause a shock hazard.
With alternative plugs not incorporating a
fuse, the circuit must be protected by a 15
Amp fuse. If the plug is a moulded-on type,
the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved
fuse to BS 1362. In the event of losing the
fuse cover, the plug must NOT be used until a
replacement fuse cover can be obtained from
your nearest electrical dealer. The colour of
the correct replacement fuse cover is that as
marked on the base of the plug.
B) If your appliance is not fitted with a plug,
please follow the instructins provided below:
WARNING - THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
Green and yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead may
not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The green and yellow wire must be connected to
the terminal in the plug marked with the letter E
or the earth symbol or coloured green or
green and yellow.
The blue wire must be connected to the terminal
marked with the letter N or coloured black.
The brown wire must be connected to the termi
nal marked with the letter L or coloured red.
GB
N
E
L
23
ELECTRICAL CONNECTION
(AUSTRALIA ONLY)
This appliance is designed to operate on a power
supply voltage of 220-240V, single phase and is
fitted with a 10A, 3 pin plug. Before making the
connection, make sure that:
1) The electrical system is able to withstand the
load of the appliance (see data label).
2) The power supply system has an earth connection in good working order in accordance
with the regulations in force.
3) The general purpose outlet is easily accessible with the appliance installed.
GB
DISPLAYED MESSAGES
DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
FILL TANK • The water tank is empty or
positioned incorrectly.
• Fill the tank with water
and/or insert it correctly,
pushing it as far as it will
go.
GROUND TOO FINE ADJUST
MILL AND
(alternating with)
PRESS OK
• The grinding is too fine
and the coffee is delivered
too slowly.
• The machine cannot make
coffee as there is air in the
hydraulic circuit
Possible cause: the filter
has not been installed correctly.
• Turn the grinding adjustment knob one click
clockwise towards "7".
• Make sure the filter (A25)
is propertly installed and
that the installation has
been carried out correctly.
EMPTY WASTE COFFEE
CONTAINER
• The waste coffee container (A4) is too full or
more than 3 days have
passed since you last
made coffee (this guarantees correct hygiene of the
machine).
• Empty the waste coffee
container and clean, then
replace.
Important: when removing the drip tray, the
waste coffee container
MUST be emptied, even if
it is not completely full.
If this is not done, when
you make the next coffees, the waste coffee
container may fill up more
than expected and clog
the machine.
GROUND TOO FINE ADJUST
MILL AND
(alternating with)
PRESS OK
(then)
FILL TANK
• The tank has been removed during delivery.
• Insert the tank and press
the icon (B9). "HOT
WATER PRESS OK" is displayed. Press the
icon (B9) again.
The appliance is once
again ready for use.
INSERT WASTE COFFEE
CONTAINER
• After cleaning, the waste
coffee container has not
been replaced.
• Open the service door and
insert the waste coffee
container.
24
GB
INSERT BREWING UNIT • The brewing unit has not
been replaced after cleaning.
• Insert the brewing unit as
described in the section
"Cleaning the brewing
unit".
DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
CLOSE DOOR
• The service door is open • Close the service door.
FILL BEAN CONTAINER • The coffee beans have run
out.
• Fill bean container
GENERAL ALARM!
• The inside of the appliance is very dirty.
• Clean the inside of the appliance thoroughly, as described in the section
"Cleaning and maintenance". If the message is
still displayed after cleaning, contact a customer
services.
PLEASE DESCALE!
• The machine must be descaled.
• The descaling procedure
described in the "Descaling" section needs to be
performed as soon as
possible.
LESS COFFEE
• Too much coffee has been
used.
• Select a milder taste or reduce the quantity of preground coffee, then make
the coffee again.
REPLACE FILTER!
• The water softener filter
(A25) must be replaced.
• You must immediately replace the filter following
the instructions in the
section "Replacing the filter".
ADD PRE-GROUND COFFEE
• The "pre-ground coffee"
function has been selected without placing any
pre-ground coffee in the
funnel.
• The funnel (A21) is blocked.
• Extract the appliance and
place pre-ground coffee in
the funnel.
• Empty the funnel with the
help of a knife as described in the section "Cleaning the pre-ground
coffee funnel".
25
GB
PROBLEM POSSIBLE CAUSE REMEDY
TROUBLESHOOTING
Below is a list of some of the possible malfunctions.
If the problem cannot be resolved as described, contact Customer Services.
The coffee is not hot • The cups were not pre-
heated.
• The brewing unit has cooled down because 2/3 minutes have elapsed since
the last coffee was made.
• The temperature set is too
low.
• Warm the cups by rinsing
them with hot water.
• Before making coffee,
preheat the brewing unit
by selecting the RINSING
function in the menu.
• Change the set temperature (see paragraph
"Changing coffee temperature").
The coffee is not creamy
enough
• The coffee is ground too
coarsely.
• Wrong type of coffee
• Turn the grinding adjustment knob one click anticlockwise towards "1"
while the coffee mill is in
operation (fig. 11).
• Use a type of coffee for
espresso coffee makers.
The coffee is delivered too
slowly or a drop at a time.
• The coffee is ground too
finely.
• Turn the grinding adjustment knob one click
clockwise towards "7"
while the coffee mill is in
operation (fig. 11).
Continue one click at a
time until coffee delivery
is satisfactory.
The effect is only visible
after delivering two coffees.
26
GB
27
PROBLEM POSSIBLE CAUSE REMEDY
The coffee is delivered too
quickly.
• The coffee is ground too
coarsely.
• Turn the grinding adjustment knob one click anticlockwise towards "1"
while the coffee mill is in
operation (fig. 11). Avoid
turning the grinding adjustment knob excessively
otherwise when you select 2 cups, the coffee
may be delivered a drop at
a time.The effect is only
visible after delivering two
coffees.
Coffee does not come out of
one of the spouts.
• The spouts are blocked • Clean the spouts with a
toothpick (fig. 23).
The coffee does not come
out of the spouts, but from
around the service door (A2).
• The holes in the spouts
are clogged with dry coffee dust.
• The coffee guide (A3) in-
side the service door is
blocked and cannot
swing.
• If necessary, remove coffee deposits with a toothpick, sponge or stiff
bristled kitchen brush (fig.
23).
• Thoroughly clean the coffee guide (A3), particularly near the hinges.
Water comes out of the
spouts instead of coffee
• The pre-ground coffee
may be blocked in the funnel (A21).
• Clean the funnel (A21)
with a wooden or plastic
fork, clean the inside of
the machine.
GB
FOR AUSTRALIAN MARKET ONLY
Bertazzoni Service Department must be contacted...
• If in doubt about the operation of the appliance.
• If in doubt about the soundness of the appliance after removing it from its packaging.
• If the power supply cable has been damaged or needs to be replaced.
• If the appliance requires a service.
• If you need spare parts.
BERTAZZONI GROUP ACN 069 686 326
650 Bridge Road, Richmond, Victoria 3121
Service & Spare Parts: 1300 748 308
Bertazzoni After Sales Service - P.O. Box 543 SOMERTON VIC 3061
Email: service@bertazzoni.com.au"service@bertazzoni.com.au
Loading...
