SA02MA Control unit with microcontroller
The SA02MA control unit with microcontroller can be used with motors having a power not exceeding
750W.

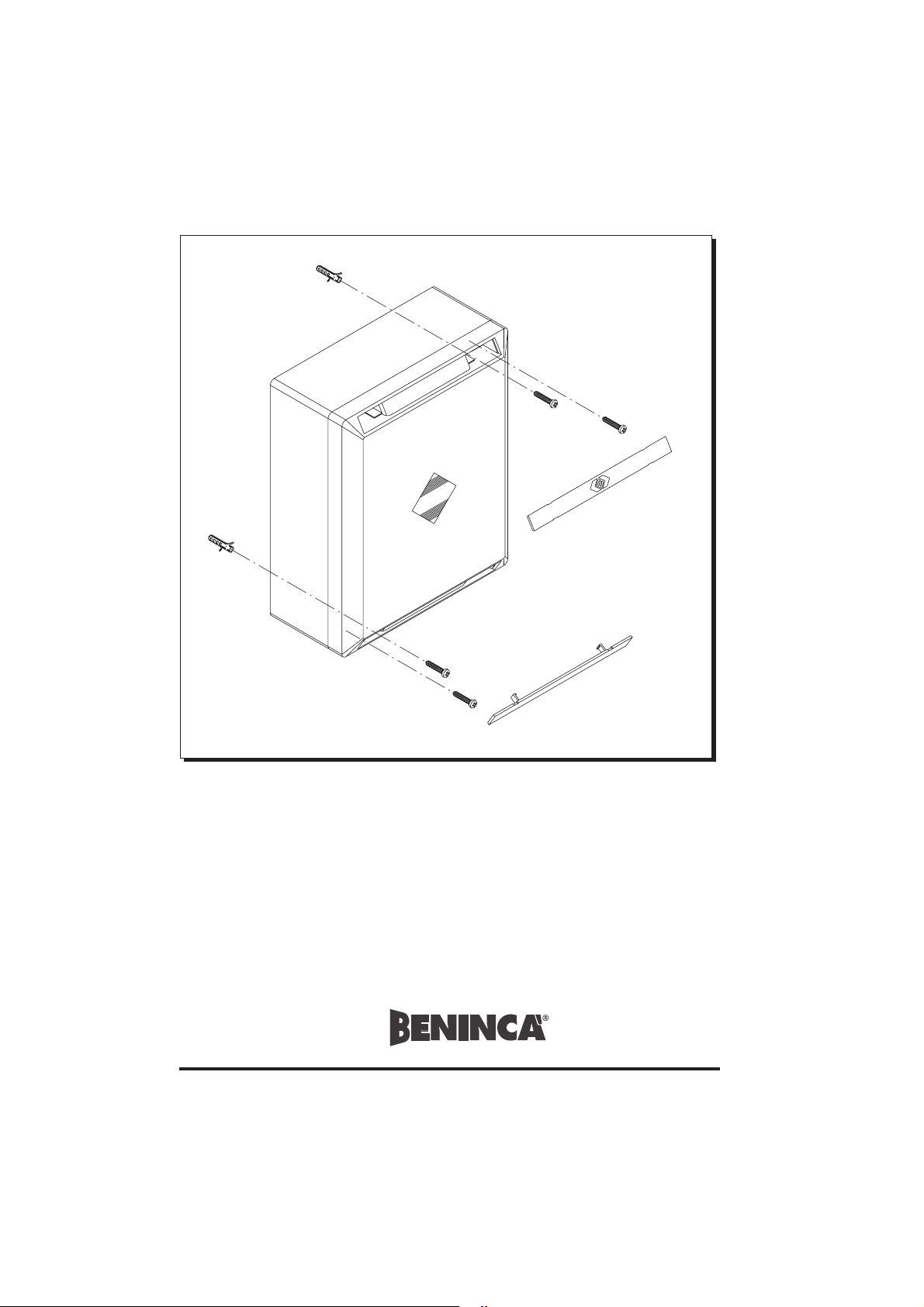

Installation instructions.
a) The electrical installation and functioning logic must comply with current standards.
b) Keep the power cables (for the motor and power supply) away from the control cables (buttons,
photocells, radio). To avoid interference use two separate sheaths (see EN 60204-1 15.1.3).
c) Check all the connections again before supplying voltage.
d) Check that the Dip-Switch settings are as required.
e) The Normally Closed contacts which are not in use should be short circuited.
f) If the direction of the motor rotation is not correct, invert the ”OPEN” - ”CLOSE” wires of the motor.

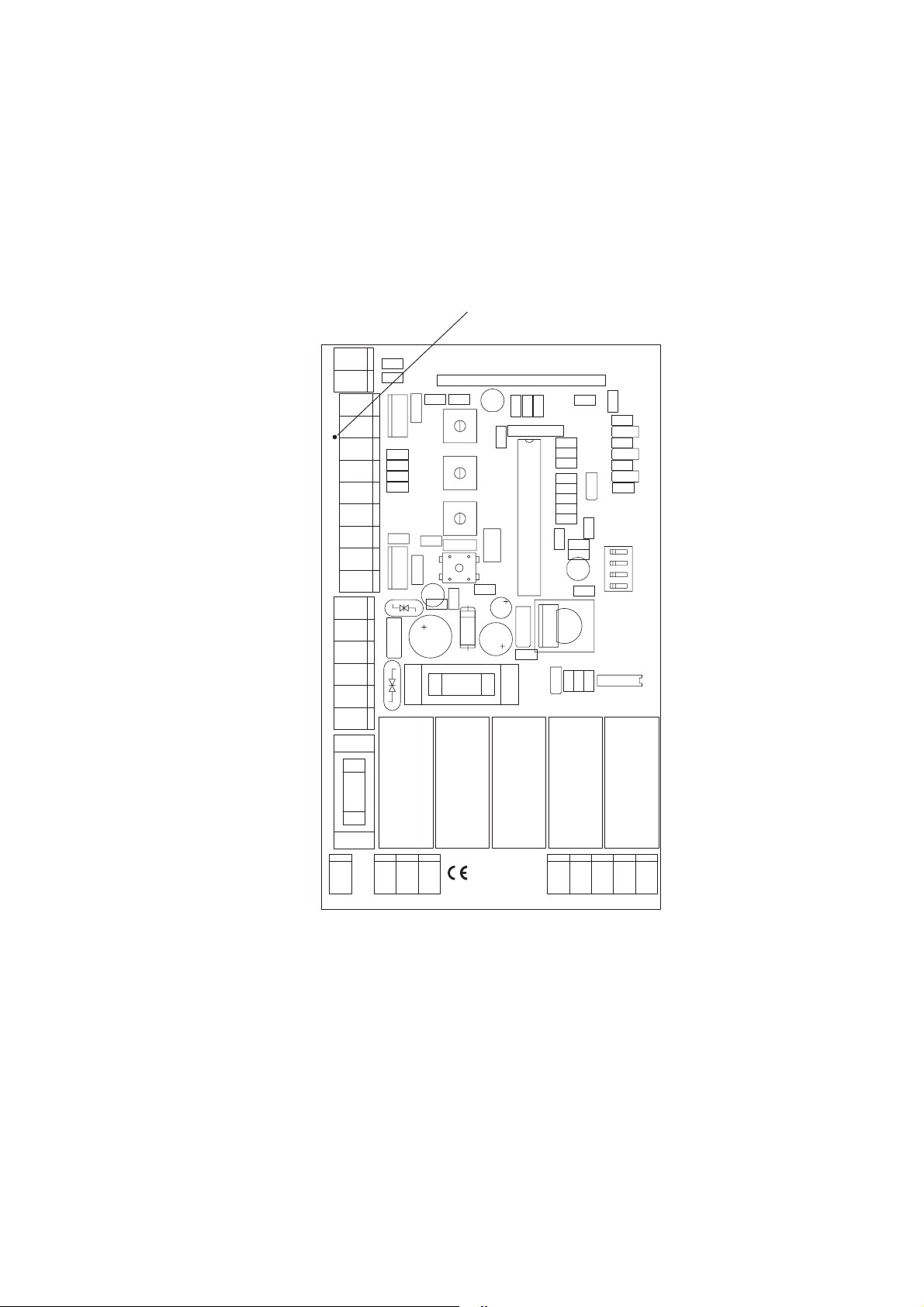

Input/Output functions
(1) Antenna Signal
(2) Antenna Shield
(3,8) SCA= Indicator lamp, Open gate
(4) P.P.= Input, Step-by-Step push-button (N.O. contact).
(5) Stop= Input, Stop push-button (N.C. contact).
(6) FTC= Input, photocell receiver (N.C. contact).
(7) +V= Common, all control inputs.
(8,9) OUT24VAC= Output, 24Vac auxiliary power supply (100mA max.).
(10,11) ELS.= Connection to 12V Electric lock
(12,13,14) To secondary of the Capacitor
(15,16,17) To primary of the Capacitor
(18,19) INPUT 115VAC= Control unit power supply, 115Vac, 60Hz (keep to phase/neutral).
(20,21) Lamp= Flashing light
(22,23,24) APRE/CHIUDE/COM= To relevant terminals of Motor 2, at 115Vac, 60Hz.
It is mandatory to connect the Ground wire (yellow/green) on the motor frame.
(24,25,26) COM/CHIUDE/APRE= To relevant terminals of Motor 1 at 115Vac, 60Hz.
It is mandatory to connect the Ground wire (yellow/green) on the motor frame.
If the control for the pedestrian entrance is to be used, connect the normally open (N.O.) button between
the +V input (common of controls) and the pin between P.P. and STOP.
The control unit is equipped with a built-in radio module for the reception of both fixed code and variable code remote controls at a frequency of 433.92MHz.
To use a remote control its data should be stored in the unit memory. This procedure is shown hereunder. The unit is able to memorize up to 14 different codes.
Dip-switch functions
DSW1= The operation of the “Step-by-Step button” and the remote control can be selected with this
Dip-Switch.
Off= ”OPEN” - ”STOP” - ”CLOSE” functioning
On= ”OPEN” - ”CLOSE” - ”OPEN” functioning.
DSW2= This enables or disables the automatic closure.
Off= Automatic closure disabled
On= Automatic closure enabled
DSW3= It enables or disables the multi-flat function.
Off= Multi-flat function disabled
On= Multi-flat function enabled
DSW4= It enables or disables the forewarning flashing light.
Off= Forewarning flashing disabled
On= Forewarning flashing enabled
Trimmer functions
TCA This allows the automatic closure time to be adjusted when this is enabled by positioning the
DSW2 Dip-switch on ON.
Adjustment can be from a minimum of 1 to a maximum of 250 seconds.
The minimum time is obtained by rotating the trimmer completely anticlockwise.
TL This allows the working time of the automation to be adjusted. If the limit switches fail, the soft-
ware protection will intervene after this time has elapsed. (Add about 4 sec. to the actual stroke
time of the automation).
Page 5
7
Adjustment can be from a minimum of 1 to a maximum of 125 seconds.
The minimum time is obtained by rotating the trimmer completely anticlockwise.
Note: TL is read by the control unit only at end of operation. Hence, if the Trimmer position is
changed to modify the following operation it is necessary to wait for the TL of the previuous
movement to elapse, otherwise cut power off the unit to reset.
TRAC This allows to regulate the delay time after which the second gate leaf starts its closing move-
ment. The adjustment ranges from 1 sec. min. to 40 sec. max
The minimum time is obtained by turning the trimmer completely anticlockwise.
Programming of the control unit
To erase the remote control codes from memory
To erase the codes from the memory, power the control unit by keeping the PGM programming pushbutton pressed. The flashing light switches on. When the flashing light switches off, the memory is
erased.
To store a new remote control code in memory
Press the PGM programming button, SCA will start to flash fast until a new remote control is received
and stored in memory. If, after pressing the button, SCA is not flashing but the flashing light for 5S
switches on, this means that memory is full and no more codes can be stored in.
Adjustment of the motor power
A faston connector is provided on the power transformer which allows to adjust the power of motors on
4 different levels. The minimum power is obtained by moving the Faston to 75, by moving the Faston to
115 the power will be maximum.
Page 6
