Beckhoff EPP9022-9060 User Manual

Documentation | EN
EPP9022-9060
EtherCAT P Box with diagnostics, TwinSAFE SC
2020-09-22 | Version: 1.1

Table of contents

Table of contents
1 Foreword ....................................................................................................................................................5
2 Product group: EtherCATP Box modules ..............................................................................................8
3 Product overview.......................................................................................................................................9
3.2 Technical data .................................................................................................................................10
3.3 Scope of supply ...............................................................................................................................11
3.4 Process image.................................................................................................................................12
4 Mounting and connections.....................................................................................................................17
4.1 Mounting..........................................................................................................................................17
4.1.1 Dimensions ...................................................................................................................... 17
4.1.2 Fixing ............................................................................................................................... 18
4.1.3 Functional earth (FE) ....................................................................................................... 18
4.2 Connections.....................................................................................................................................19
4.2.1 Connector overview ......................................................................................................... 19
4.2.2 EtherCATP...................................................................................................................... 20
4.2.3 Voltage measurement output........................................................................................... 23
4.3 UL Requirements.............................................................................................................................24
5 Commissioning and configuration ........................................................................................................25
5.1 Integration in TwinCAT ....................................................................................................................25
5.2 Measured values .............................................................................................................................26
5.2.1 Representation ................................................................................................................ 26
5.2.2 Filter................................................................................................................................. 27
5.3 Warning and error messages ..........................................................................................................28
5.3.1 Set the threshold values .................................................................................................. 29
5.3.2 Disabling messages......................................................................................................... 30

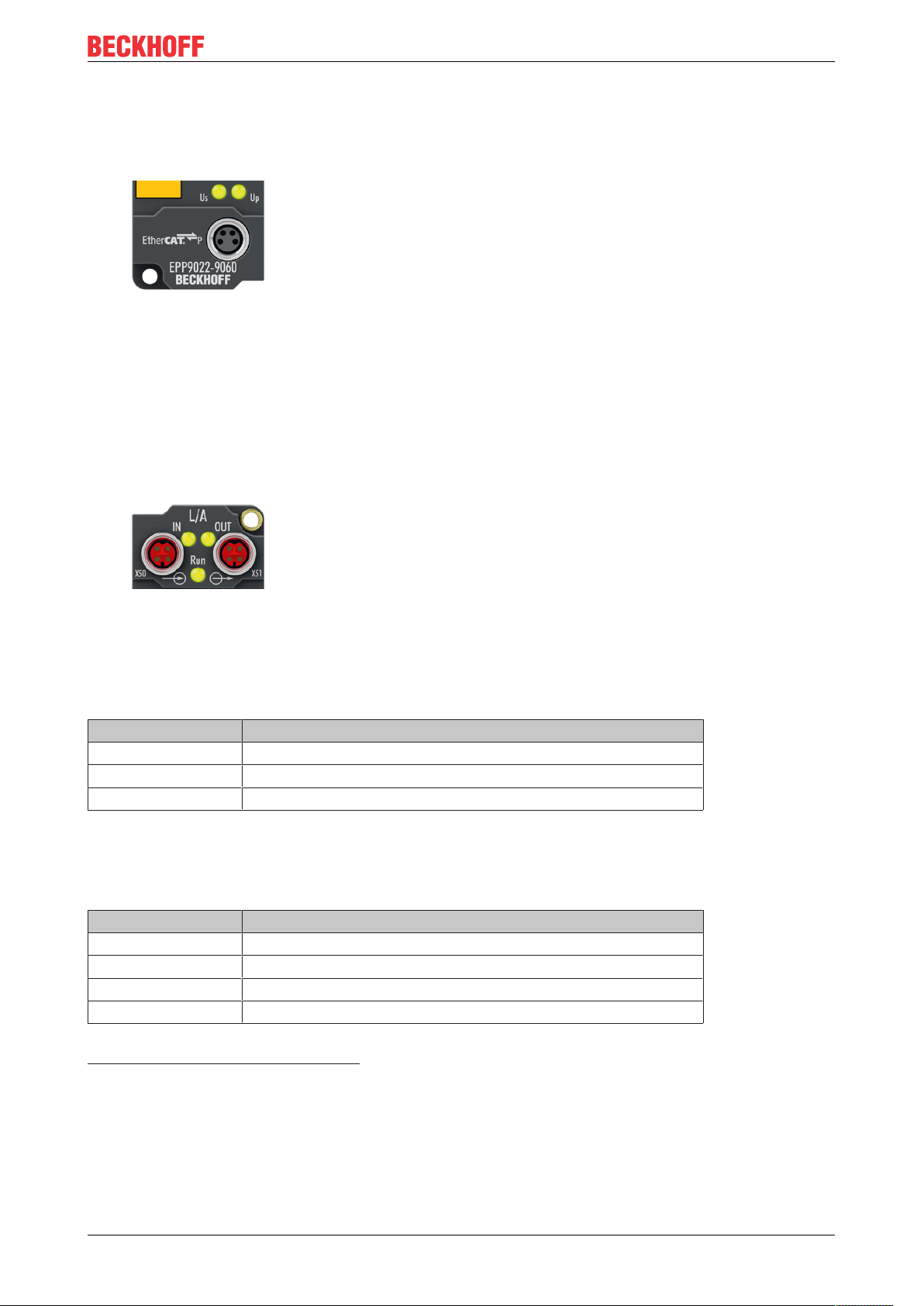

5.4 LEDs................................................................................................................................................31
5.4.1 LED filter .......................................................................................................................... 32
5.5 Restoring the delivery state .............................................................................................................33
5.6 Decommissioning ............................................................................................................................34
6 CoE parameters .......................................................................................................................................35
6.1 Introduction......................................................................................................................................35

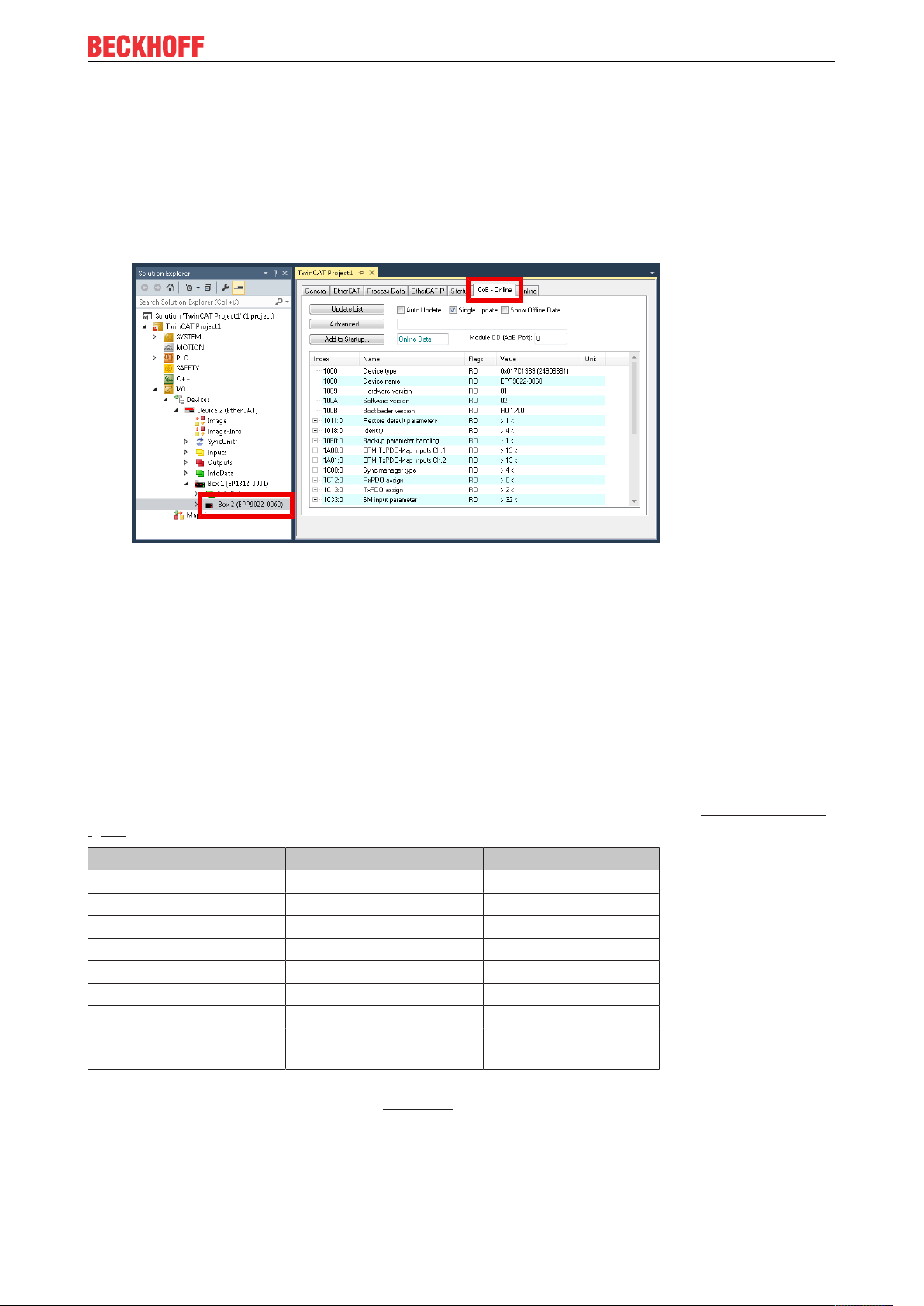

6.1.1 Accessing CoE parameters with TwinCAT ...................................................................... 35
6.1.2 Data format of CoE parameters....................................................................................... 35
6.2 Object overview ...............................................................................................................................36
6.3 Object description............................................................................................................................37
6.3.1 Objects to be parameterized during commissioning........................................................ 37
6.3.2 Profile-specific objects ..................................................................................................... 39
6.3.3 Standard objects.............................................................................................................. 41
7 Appendix ..................................................................................................................................................43
7.1 General operating conditions...........................................................................................................43
EPP9022-9060 3Version: 1.1
Table of contents
7.2 Accessories .....................................................................................................................................44

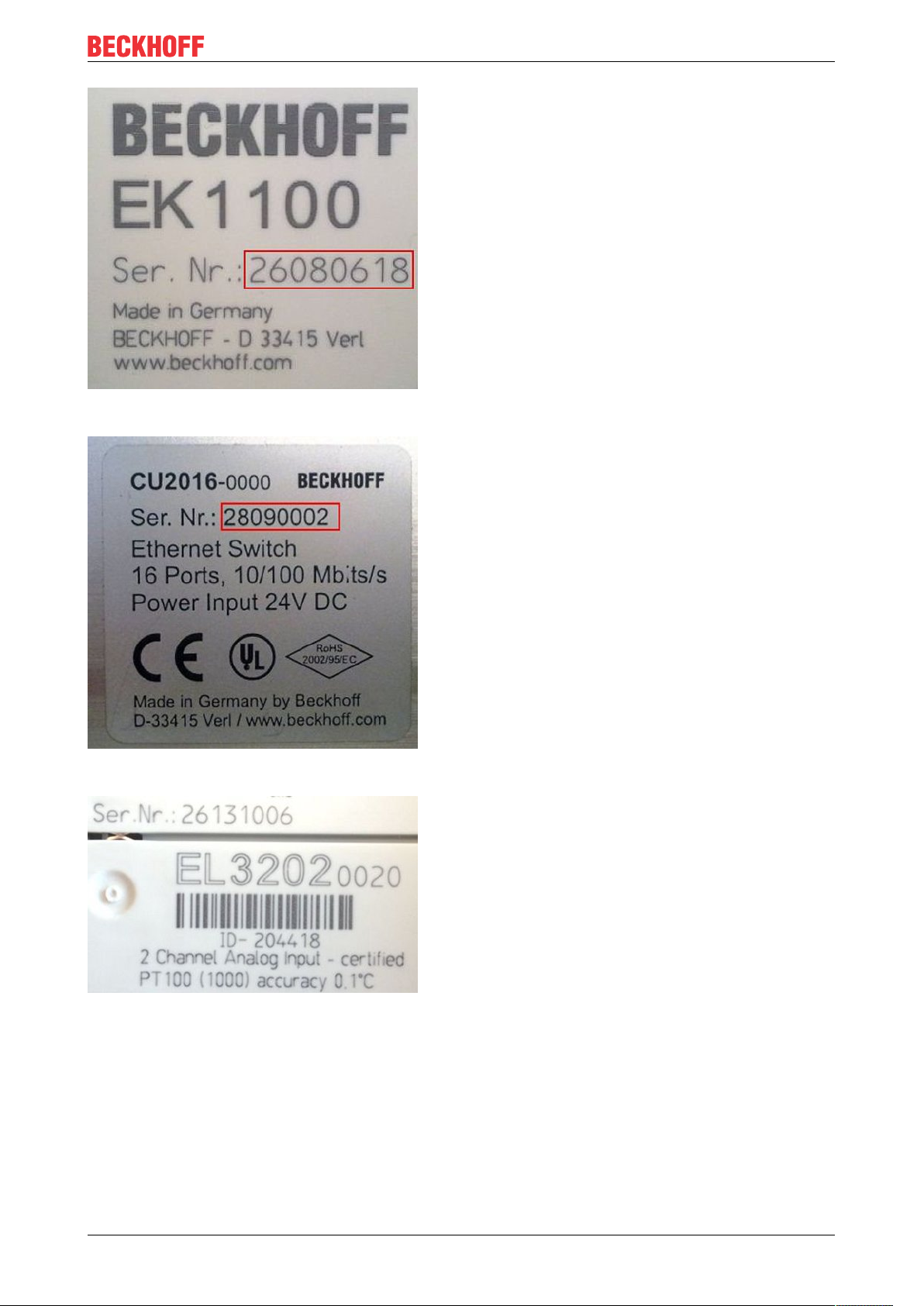

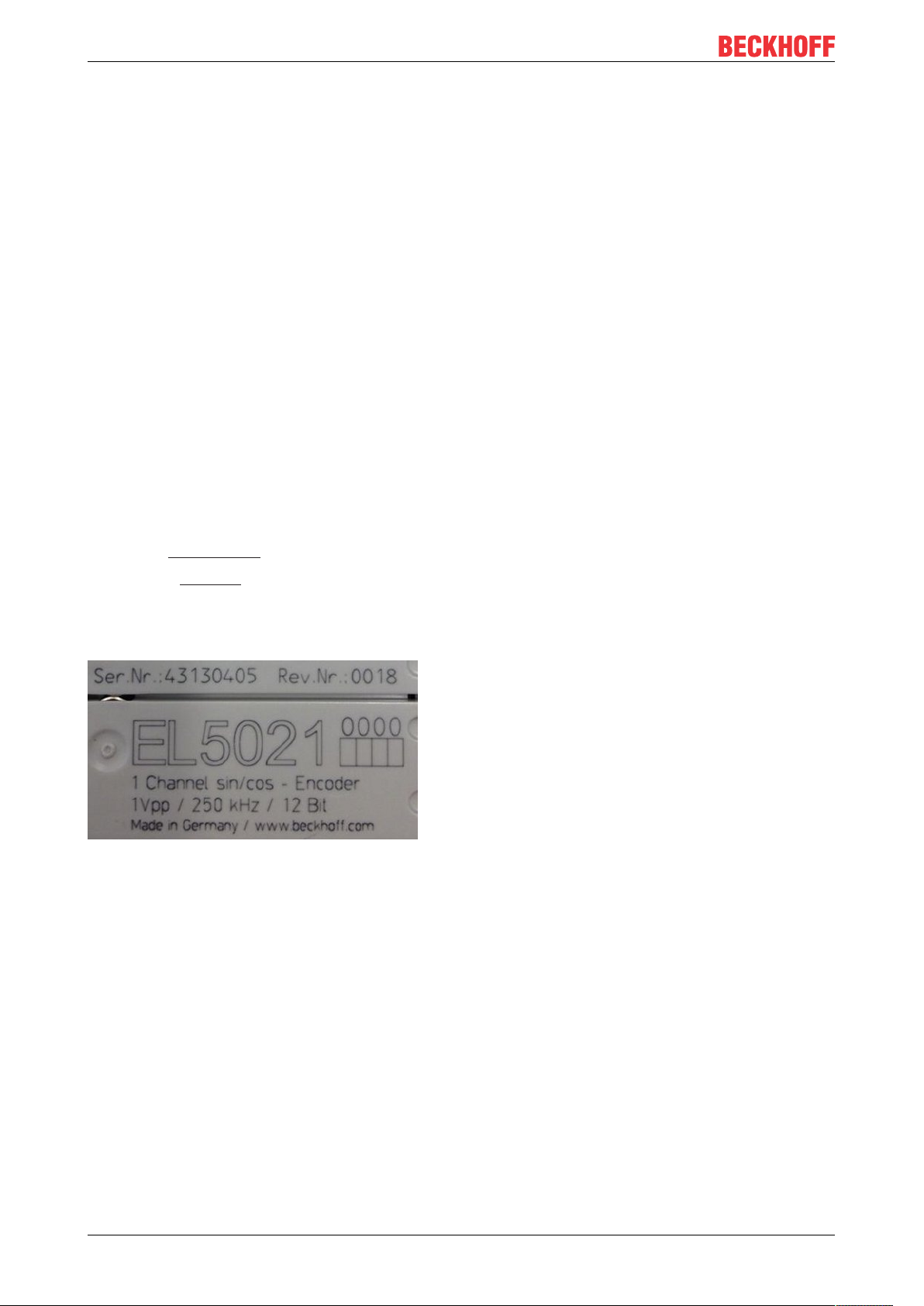

7.3 Version identification of EtherCAT devices .....................................................................................45
7.3.1 Beckhoff Identification Code (BIC)................................................................................... 49
7.4 Support and Service ........................................................................................................................51
EPP9022-90604 Version: 1.1
Foreword

1 Foreword

1.1 Notes on the documentation

Intended audience
This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the documentation and the following notes and explanations are followed when installing and commissioning these components. It is the duty of the technical personnel to use the documentation published at the respective time of each installation and commissioning.
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under development.
We reserve the right to revise and change the documentation at any time and without prior announcement.
No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, EtherCATG®, EtherCATG10®, EtherCATP®, SafetyoverEtherCAT®, TwinSAFE®, XFC®, XTS® and XPlanar® are registered trademarks of and licensed by Beckhoff Automation GmbH. Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and patents: EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding applications or registrations in various other countries.
EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.
EPP9022-9060 5Version: 1.1
Foreword

1.2 Safety instructions

Safety regulations
Please note the following safety instructions and explanations! Product-specific safety instructions can be found on following pages or in the areas mounting, wiring, commissioning etc.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards.
Description of instructions
In this documentation the following instructions are used. These instructions must be read carefully and followed without fail!
DANGER
Serious risk of injury!
Failure to follow this safety instruction directly endangers the life and health of persons.
WARNING
Risk of injury!
Failure to follow this safety instruction endangers the life and health of persons.
CAUTION
Personal injuries!
Failure to follow this safety instruction can lead to injuries to persons.
NOTE
Damage to environment/equipment or data loss
Failure to follow this instruction can lead to environmental damage, equipment damage or data loss.
Tip or pointer
This symbol indicates information that contributes to better understanding.
EPP9022-90606 Version: 1.1
Foreword

1.3 Documentation issue status

Version Comment
1.1 • Front page updated
1.0 • First release
Firmware and hardware versions
This documentation refers to the firmware and hardware version that was applicable at the time the documentation was written.
The module features are continuously improved and developed further. Modules having earlier production statuses cannot have the same properties as modules with the latest status. However, existing properties are retained and are not changed, so that older modules can always be replaced with new ones.
The firmware and hardware version (delivery state) can be found in the batch number (D-number) printed on the side of the EtherCAT Box.
Syntax of the batch number (D-number)
D: WW YY FF HH
WW - week of production (calendar week) YY - year of production FF - firmware version HH - hardware version
Further information on this topic: Version identification of EtherCAT devices [}45].
Example with D no. 29 10 02 01:
29 - week of production 29 10 - year of production 2010 02 - firmware version 02 01 - hardware version 01
EPP9022-9060 7Version: 1.1
Product group: EtherCATP Box modules
2 Product group: EtherCATP Box modules
EtherCATP
EtherCATP supplements the EtherCAT technology with a process in which communication and supply voltages are transmitted on a common line. All EtherCAT properties are retained with this process.
Two supply voltages are transmitted per EtherCATP line. The supply voltages are electrically isolated from each other and can therefore be switched individually. The nominal supply voltage for both is 24 VDC.
EtherCAT P uses the same cable structure as EtherCAT: a 4-core Ethernet cable with M8 connectors. The connectors are mechanically coded so that EtherCAT connectors and EtherCATP connectors cannot be interchanged.
EtherCATP Box modules
EtherCATP Box modules are EtherCATP slaves with IP67 protection. They are designed for operation in wet, dirty or dusty industrial environments.
Fig.1: EtherCATP
EtherCAT basics
A detailed description of the EtherCAT system can be found in the EtherCAT system documentation.
EPP9022-90608 Version: 1.1

3 Product overview

3.1 Introduction

Product overview
Fig.2: EPP9022-9060
EPP9022-9060 | EtherCAT P Box with diagnostics, TwinSAFE SC
The EPP9022-9060 EtherCAT P Box in space-saving form factor can be used for diagnosing and measuring the voltages US and UP and currents IS und IP, both temporarily during commissioning and permanently during operation. Even without an EtherCAT master, the voltage range is displayed on the box by LEDs (green, yellow and red). In a running EtherCAT network, the values of US, UP, IS and IP can also be read out as process data in the master. The voltage levels for the LED displays can be adjusted by CoE. In addition the EPP9022-9060 is equipped with an M8 power socket to which an external multimeter can be connected for measuring the voltages.
With the help of the TwinSAFE SC technology it is possible to make the measured values from the EPP9022-9060 usable for safety tasks. A corresponding application example can be found in chapter 2.39 in
the TwinSAFE Application Guide. The user bears the responsibility for the safety evaluation in case of deviation from the application example.
Quick links
Technical data [}10] Process image [}12] Dimensions [}17] Commissioning and configuration [}25]
EPP9022-9060 9Version: 1.1
Product overview

3.2 Technical data

All values are typical values over the entire temperature range, unless stated otherwise.
Technical data EPP9022-9060
Fieldbus
Fieldbus EtherCAT Connection EtherCAT P: Combined connection for EtherCAT and
supply voltages
Input: 1 x M8 socket, 4-pin, P-coded Downstream connection: 1 x M8 socket, 4-pin, P-coded
Supply voltages
Connection See Fieldbus connection Control voltage U Nominal voltage 24VDC (-15%/ +20%) Sum current max. 3A Current consumption from U Peripheral voltage U Nominal voltage 24VDC (-15%/ +20%) Sum current max. 3A
Measured voltage values
Measuring range 0 .. 32V Resolution 10mV Representation
Measured current values
Measuring range 0..8A Resolution 10mA Representation
Voltage measurement output
Input resistance of the measuring device min. 1MΩ Short-circuit proof yes
Environmental conditions
Ambient temperature during operation -25…+60°C
Ambient temperature during storage -40…+85°C Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2 / EN 61000-6-4 Protection class IP65, IP66, IP67 (conforms to EN 60529)
Mechanics
Installation position variable Weight approx. 90g
Approvals and conformity
Approvals
S
1)
S
P
100mA at 24V
1)
1)
DC
Adjustable [}26]
• 1mV perLSB (factory setting)
• 1µVperLSB
1)
Adjustable [}26]
• 1mA perLSB (factory setting)
• 1µAperLSB
-25…+55°C according to cULus
Additional checks
CE, cULus [}24]
1)
The measuring ranges are larger than the permissible voltage and current ranges for continuous operation.
However, continuous operation is permitted only within the limits of nominal voltage and sum current.
EPP9022-906010 Version: 1.1

3.3 Scope of supply

Make sure that the following components are included in the scope of delivery:
• 1 EPP9022-9060 EtherCAT P Box
• 1x protective cap for EtherCATP socket, M8, red (pre-assembled)
• 1x protective cap for supply voltage output, M8, black (pre-assembled)
• 10x labels, blank (1 strip of 10)
Pre-assembled protective caps do not ensure IP67 protection
Protective caps are pre-assembled at the factory to protect connectors during transport. They may not be tight enough to ensure IP67 protection.
Ensure that the protective caps are correctly seated to ensure IP67 protection.
Product overview
EPP9022-9060 11Version: 1.1
Product overview

3.4 Process image

Fig.3: Process image
The process image contains two process data objects:
Process data object Contents
EPM Inputs Channel 1 [}13]
EPM Inputs Channel 2 [}15]
The content of the process data objects is described on the following pages.
Measured values and status information for the control voltage U
Measured values and status information for the peripheral voltage U
S
P
EPP9022-906012 Version: 1.1
EPM Inputs Channel 1
Product overview
Status
The status bits indicate warnings and errors [}28]:
Voltage min error Error message in case of undervoltage. This bit is TRUE if the supply voltage US is lower than CoE index 8000:11 "Voltage min error limit" (unit: mV). Requirement: CoE parameter 8000:02 "Enable voltage min error" is TRUE.
Voltage max error Error message in case of overvoltage. This bit is TRUE if the supply voltage US is higher than CoE parameter 8000:12 "Voltage max error limit" (unit: mV). Requirement: CoE parameter 8000:03 "Enable voltage max error" is TRUE.
Current max error Error message in case of overcurrent. This bit is TRUE if the output current IS is higher than CoE parameter 8000:13 "Current max error limit" (unit: mA). Requirement: CoE parameter 8000:04 "Enable current max Error" is TRUE (default).
Voltage min warning Warning message in case of undervoltage. This bit is TRUE if the supply voltage US is lower than CoE parameter 8000:14 "Voltage min warning limit" (unit: mV). Requirement: CoE parameter 8000:05 "Enable voltage min warning" is TRUE (default).
Voltage max warning Warning message in case of overvoltage. This bit is TRUE if the supply voltage US is higher than CoE parameter 8000:15 "Voltage max warning limit" (unit: mV). Requirement: CoE parameter 8000:06 "Enable voltage max warning" is TRUE (default).
Current max warning Warning message in case of overcurrent. This bit is TRUE if the output current IS is higher than CoE parameter 8000:16 "Current max warning limit" (unit: mV). Requirement: CoE parameter 8000:07 "Enable current max warning" is TRUE (default).
Channel error This bit is TRUE if at least one status bit of "EPM Inputs Channel 1" that signals an error message is TRUE: Voltage min error Voltage max error Current max error
Channel warning This bit is TRUE if at least one Status bit of "EPM Inputs Channel 1" that signals a warning message is TRUE: Voltage min warning Voltage max warning Current max warning
TxPDO State This bit is TRUE if an internal error occurs. The current
measured values [}14] of "EPM Inputs Channel 1" are invalid if this bit is TRUE.
TxPDO Toggle This bit is inverted on each update of the measured values [}14].
EPP9022-9060 13Version: 1.1
Product overview
Voltage
Contents: The measured value of the supply voltage US.
Data type: DINT
Presentation: Default: 1mV perLSB (factory setting) Adjustable in the CoE parameter 8000:17 "Voltage scaling".
Current
Contents: The measured value of the output current IS.
Data type: DINT
Presentation: 1mA perLSB (factory setting) Adjustable in the CoE parameter 8000:18 "Current scaling".
EPP9022-906014 Version: 1.1
EPM Inputs Channel 2
Product overview
Status
The status bits indicate warnings and errors [}28]:
Voltage min error Error message in case of undervoltage. This bit is TRUE if the supply voltage UP is lower than CoE index 8010:11 "Voltage min error limit" (unit: mV). Requirement: CoE index 8010:02 "Enable voltage min error" is TRUE.
Voltage max error Error message in case of overvoltage. This bit is TRUE if the supply voltage UP is higher than CoE index 8010:12 "Voltage max error limit" (unit: mV). Requirement: CoE index 8010:03 "Enable voltage max error" is TRUE.
Current max error Error message in case of overcurrent. This bit is TRUE if the output current IP is higher than CoE index 8010:13 "Current max error limit" (unit: mA). Requirement: CoE index 8010:04 "Enable current max Error" is TRUE (default).
Voltage min warning Warning message in case of undervoltage. This bit is TRUE if the supply voltage UP is lower than CoE index 8010:14 "Voltage min warning limit" (unit: mV). Requirement: CoE index 8010:05 "Enable voltage min warning" is TRUE (default).
Voltage max warning Warning message in case of overvoltage. This bit is TRUE if the supply voltage UP is higher than CoE index 8010:15 "Voltage max warning limit" (unit: mV). Requirement: CoE index 8010:06 "Enable voltage max warning" is TRUE (default).
Current max warning Warning message in case of overcurrent. This bit is TRUE if the output current IP is higher than CoE index 8010:16 "Current max warning limit" (unit: mV). Requirement: CoE index 8010:07 "Enable current max warning" is TRUE (default).
Channel error This bit is TRUE if at least one status bit of "EPM Inputs Channel 2" that signals an error message is TRUE: Voltage min error Voltage max error Current max error
Channel warning This bit is TRUE if at least one Status bit of "EPM Inputs Channel 2" that signals a warning message is TRUE: Voltage min warning Voltage max warning Current max warning
TxPDO State This bit is TRUE if an internal error occurs. The current
measured values [}16] of "EPM Inputs Channel 2" are invalid if this bit is TRUE.
TxPDO Toggle This bit is inverted on each update of the measured values [}16].
EPP9022-9060 15Version: 1.1
Product overview
Voltage
Contents: The measured value of the supply voltage UP.
Data type: DINT
Presentation: Default: 1mV perLSB (factory setting) Adjustable in the CoE index 8010:17 "Voltage scaling".
Current
Contents: The measured value of the output current IP.
Data type: DINT
Presentation: 1mA perLSB (factory setting) Adjustable in the CoE index 8010:18 "Current scaling".
EPP9022-906016 Version: 1.1

4 Mounting and connections

79
86
23
3022
7
Ø 3,5
6,5

4.1 Mounting

4.1.1 Dimensions

Mounting and connections
Fig.4: Dimensions
All dimensions are given in millimeters.
Housing features
Housing material PA6 (polyamide) Sealing compound polyurethane Mounting two fastening holes Ø 3.5 mm for M3 Metal parts brass, nickel-plated Contacts CuZn, gold-plated Installation position variable Protection class IP65, IP66, IP67 (conforms to EN 60529) when screwed together Dimensions (H x W x D) approx. 86 x 30 x 22mm Weight approx. 90g
EPP9022-9060 17Version: 1.1
Mounting and connections
FE

4.1.2 Fixing

NOTE
Dirt during assembly
Dirty connectors can lead to malfunctions. Protection class IP67 can only be guaranteed if all cables and connectors are connected.
• Protect the plug connectors against dirt during the assembly.
Mount the module with two M3 screws on the fastening holes in the corners of the module. The fastening holes have no thread.

4.1.3 Functional earth (FE)

The upper fastening hole also serves as a connection for functional earth (FE).
Make sure that the box is grounded to low impedance via the functional earth (FE) connection. You can achieve this, for example, by mounting the box on a grounded machine bed.
Fig.5: Connection for functional earth (FE)
EPP9022-906018 Version: 1.1

4.2 Connections

X61
X40 X51

4.2.1 Connector overview

Mounting and connections
Fig.6: Connector overview
Name Connector
type
X50 M8 socket, p-
coded
X51 M8 socket, p-
coded
X61 M8 socket 0.4Nm
1)
Mount connectors on these plug connectors using a torque wrench, e.g. ZB8801 from Beckhoff.
Protective caps
• Seal unused connectors with protective caps.
• Ensure the correct seating of pre-assembled protective caps. Protective caps are pre-assembled at the factory to protect connectors during transport. They may not be tight enough to ensure IP67 protection.
Tightening torque
0.4Nm
0.4Nm
1)
Function
EtherCATP [}20] input
EtherCAT P [}20] downstream connection
Voltage measurement output [}23]
EPP9022-9060 19Version: 1.1
Mounting and connections
1 2
1
2
3
4
4.2.2 EtherCATP
NOTE
Risk of damage to the device!
Bring the EtherCAT/EtherCATP system into a safe, powered down state before starting installation, disas­sembly or wiring of the modules!
NOTE
Pay attention to the maximum permissible current!
Pay attention also for the redirection of EtherCATP, the maximum permissible current for M8 connectors of 3A must not be exceeded!

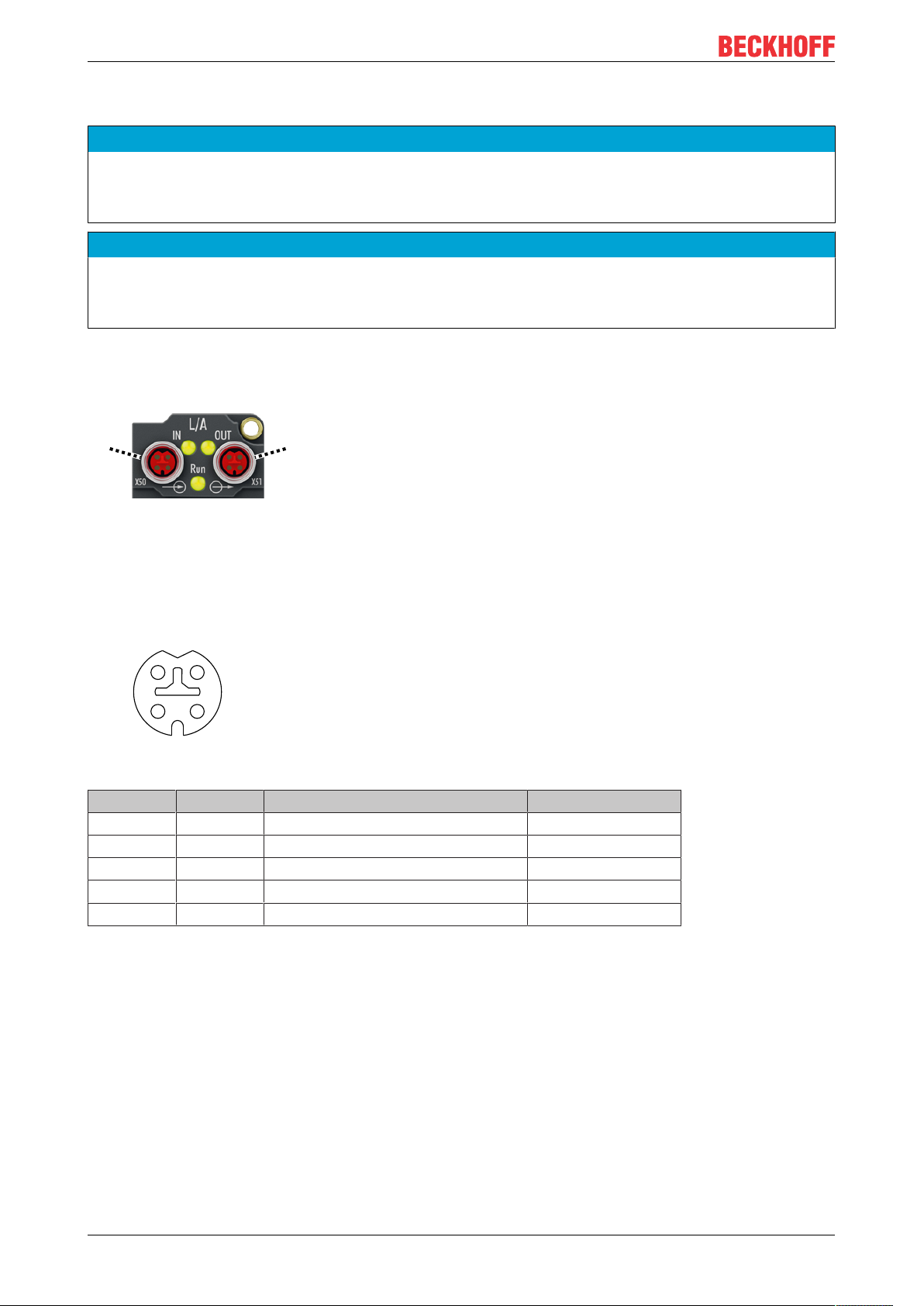

4.2.2.1 Connectors
Fig.7: Plug connectors for EtherCAT P
1 - input
2 - downstream connection
Connection
Fig.8: M8 socket, P-coded
Contact Signal Voltage Core color
1 Tx + GND 2 Rx + GND
S
P
3 Rx - UP: Peripheral voltage, +24V 4 Tx - US: Control voltage, +24V
DC
DC
yellow white blue orange
Housing Shield Shield Shield
1)
The core colors apply to EtherCAT P cables and ECP cables from Beckhoff.
1)
EPP9022-906020 Version: 1.1
Mounting and connections
4.2.2.2 Status LEDs
4.2.2.2.1 Supply voltages
Fig.9: Status LEDs for the supply voltages
EtherCAT P Box Modules have two LEDs that display the status of the supply voltages. The status LEDs are labelled with the designations of the supply voltages: Us and Up.
A status LED lights up green when the respective supply voltage is present.
A Status LED lights up red if the respective supply voltage is short-circuited.
4.2.2.2.2 EtherCAT
Fig.10: Status LEDs for EtherCAT
L/A (Link/Act)
A green LED labelled "L/A" or “Link/Act” is located next to each EtherCAT/EtherCATP socket. The LED indicates the communication state of the respective socket:
LED Meaning
off no connection to the connected EtherCAT device lit LINK: connection to the connected EtherCAT device flashes ACT: communication with the connected EtherCAT device
Run
Each EtherCAT slave has a green LED labelled "Run". The LED signals the status of the slave in the EtherCAT network:
LED Meaning
off Slave is in "Init" state flashes uniformly Slave is in "Pre-Operational“ state flashes sporadically Slave is in "Safe-Operational" state lit Slave is in "Operational" state
Description of the EtherCAT slave states
EPP9022-9060 21Version: 1.1
Mounting and connections
I = 3 A
10 20
5
10
15
20
300
0
25
40
Vert. Faktor: 0,22 cm / V
Voltage drop (V)
Cable length (m)
0.14 mm²
0.22 mm²
0.34 mm²
4.2.2.3 Conductor losses
Take into account the voltage drop on the supply line when planning a system. Avoid the voltage drop being so high that the supply voltage at the box lies below the minimum nominal voltage.
Variations in the voltage of the power supply unit must also be taken into account.
Use the planning tool for EtherCAT P in TwinCAT.
Voltage drop on the supply line
Fig.11: Voltage drop on the supply line
EPP9022-906022 Version: 1.1
Mounting and connections
3 1
24

4.2.3 Voltage measurement output

You can check the supply voltages manually at the voltage measurement output, for example using a multimeter.
An unsuitable measuring device can falsify the measurement.
The measurement will be falsified if the input resistance of the connected measuring device is too small.
• Use a measuring device that meets the requirements in the technical data [}10].
The measurement output cannot be used as a supply voltage output
The output voltages will collapse if they are loaded.
• Do not use the measurement output as a supply voltage output.
If you wish to decouple the supply voltages from an EtherCATP signal, use an EPP9001-0060, for example.
Fig.12: Voltage measurement output, M8 socket
Contact Potential Description Core color
1 U 2 U 3 GND 4 GND
1)
The core colors apply to cables of the type: Beckhoff ZK2020-xxxx-xxxx
S1
P1
S
P
Control voltage Brown Peripheral voltage White Reference ground to U Reference ground to U
S1
P1
Blue Black
1)
EPP9022-9060 23Version: 1.1
Mounting and connections

4.3 UL Requirements

The installation of the EtherCAT Box Modules certified by UL has to meet the following requirements.
Supply voltage
CAUTION
CAUTION!
This UL requirements are valid for all supply voltages of all marked EtherCAT Box Modules! For the compliance of the UL requirements the EtherCAT Box Modules should only be supplied
• by a 24 VDC supply voltage, supplied by an isolating source and protected by means of a fuse (in accor­dance with UL248), rated maximum 4 Amp, or
• by a 24 VDC power source, that has to satisfy NEC class 2. A NEC class 2 power supply shall not be connected in series or parallel with another (class 2) power source!
CAUTION
CAUTION!
To meet the UL requirements, the EtherCAT Box Modules must not be connected to unlimited power sources!
Networks
CAUTION
CAUTION!
To meet the UL requirements, EtherCAT Box Modules must not be connected to telecommunication net­works!
Ambient temperature range
CAUTION
CAUTION!
To meet the UL requirements, EtherCAT Box Modules has to be operated only at an ambient temperature range of 0 to 55°C!
Marking for UL
All EtherCAT Box Modules certified by UL (Underwriters Laboratories) are marked with the following label.
Fig.13: UL label
EPP9022-906024 Version: 1.1
Commissioning and configuration

5 Commissioning and configuration

5.1 Integration in TwinCAT

The procedure for integration in TwinCAT is described in this Quick start guide.
EPP9022-9060 25Version: 1.1
Commissioning and configuration

5.2 Measured values

5.2.1 Representation

• All measured voltage values are represented in mV/LSB in the factory setting.
They can optionally also be represented in µV/LSB.
• All measured current values are represented in mA/LSB in the factory setting.
They can optionally also be represented in µA/LSB.
The type of representation has no effect on the resolution of the measured values.
You can set the representation of the measured values individually for each measured value:
Input channel CoE parameters for setting the representation
for the measured voltage value for the measured current value
1 Control voltage U
2 Peripheral voltage U
S
P
8000:17 "Voltage scaling [}37]" 8000:18 "Current scaling [}37]"
8010:17 "Voltage scaling" [}38] 8010:18 "Current scaling" [}38]
EPP9022-906026 Version: 1.1
Commissioning and configuration

5.2.2 Filter

The measured value of each input channel can be filtered with a digital filter.
Enable filter
NOTE
Measured value jumps when enabling or disabling filters
When filters are enabled or disabled, short-term measured value jumps can occur in the process data that do not correspond to the physical values.
You can enable the filter individually for each input channel. All filters are disabled in the factory setting. Enable the filters by setting the following CoE parameters to TRUE:
Input channel CoE parameters for enabling the filter
1 Control voltage U
2 Peripheral voltage U
S
P
Select filter characteristic
You can select the filter characteristic individually for each input. Factory setting: "50HzFIR".
8000:01 "Enable filter" [}37]
8010:01 "Enable filter" [}38]
Input channel CoE parameter for selecting the filter characteristic
1 Control voltage U
S
2 Peripheral voltage U
P
8000:19 "Filter characteristic" [}37]
8010:19 "Filter characteristic" [}38]
There is a choice of two filter types:
FIR filter
The filter works as a notch filter and determines the conversion time of the module. The higher the filter frequency, the faster the conversion time. A 50Hz and a 60Hz filter are available. Notch filter means that the filter has zeros (notches) in the frequency response at the filter frequency and multiples thereof, i.e. it attenuates the amplitude at these frequencies.
The FIR filter operates as a non-recursive filter.
IIR filter
The filter with IIR characteristics is a discrete time, linear, time invariant filter that can be set to eight levels (level 1 = weak recursive filter, up to level 8 = strong recursive filter) The IIR can be understood to be a moving average value calculation after a low-pass filter.
EPP9022-9060 27Version: 1.1
Commissioning and configuration
Nominal voltage range
Warning
Error
Undervoltage Overvoltage
8000:11 8010:11
"Voltage min
error limit"
"Voltage min
warning limit"
8000:15 8010:15
"Voltage max warning limit"
"Voltage max
error limit"
8000:14 8010:14 8000:12 8010:12
Warning message Warning message
Error message Error message
Nominal current range
8000:16 8010:16
8000:13 8010:13
0 mA
"Current max warning limit"
"Current max
error limit"
Overcurrent
Warning message
Error message

5.3 Warning and error messages

Warning messages and error messages inform you of potentially critical operating states. EPP9022 signals warning messages and error messages in two ways:
Status bits [}13]
LEDs [}31]
There are two categories of messages:
• A warning message is output if a measured value (current, voltage) is borderline. However, continuous
operation is still possible under unchanged conditions.
• An error message is output if continuous operation under unchanged conditions could lead to a defect
or to the tripping of a safety device.

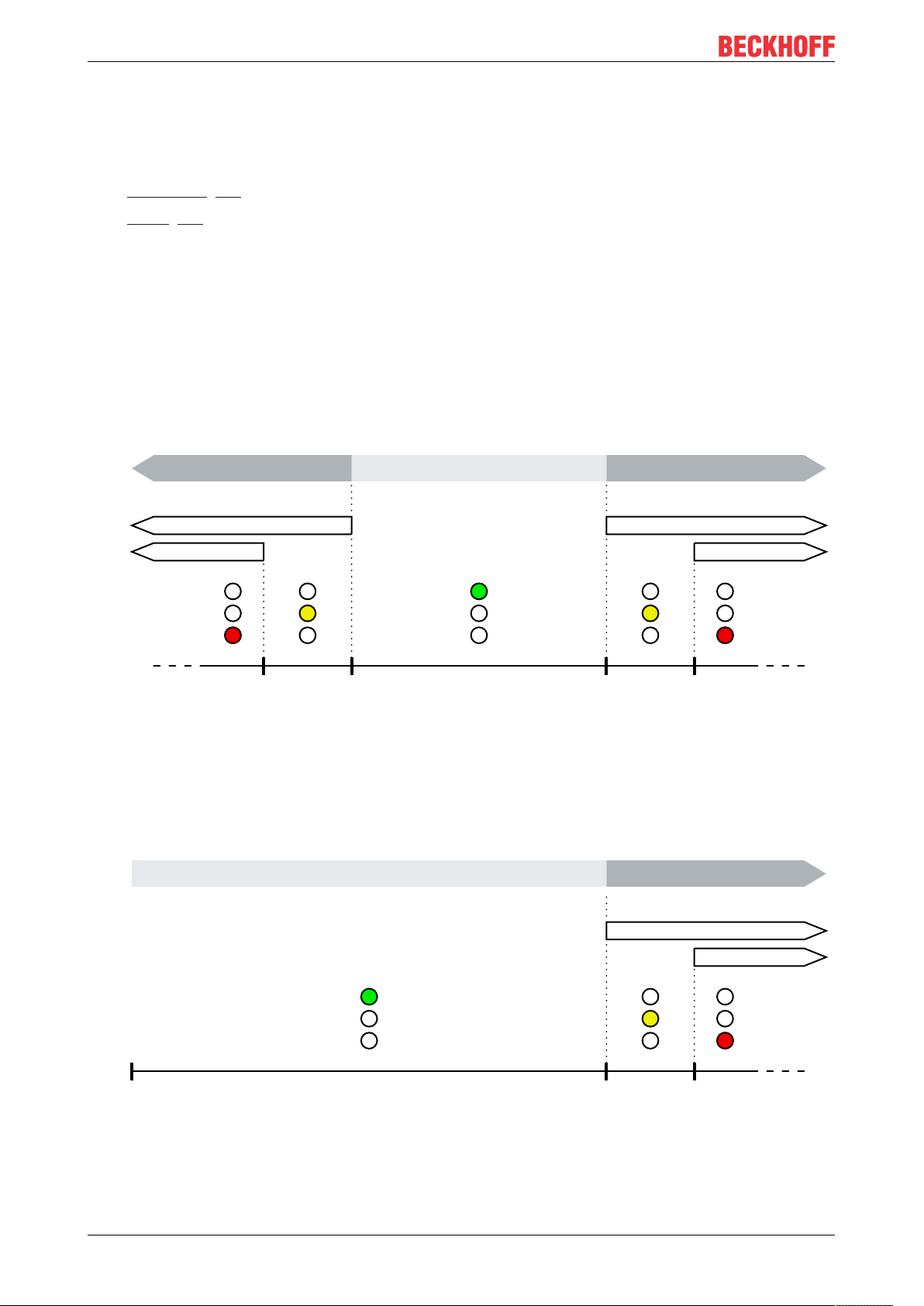

The following diagrams show the threshold values for warning messages and error messages in the factory setting.
Threshold values for supply voltages (factory setting)
Fig.14: Threshold values for supply voltages (factory setting)
Threshold values for output currents (factory setting)
Fig.15: Threshold values for output currents (factory setting)
EPP9022-906028 Version: 1.1
Commissioning and configuration

5.3.1 Set the threshold values

NOTE
Critical operating states may not be reported under certain circumstances.
If you set the threshold values for warning messages and error messages incorrectly, EPP9022 may not in­form you of critical operating states: overcurrent, overvoltage, undervoltage.
• Be very careful when changing the threshold values.
• Enlarge the permissible range only if you have good reasons to do so.
You can set the threshold values for warning messages and error messages via the CoE parameters shown in the following tables. Observe the recommended value range.
Input channel 1: Control voltage U
Reason for
Type of message CoE parameters for setting
message
S
the threshold value
Undervoltage Warning message 8000:14
"Voltage min warning limit"
Error message 8000:11
"Voltage min error limit"
Overvoltage Warning message 8000:15
"Voltage max warning limit"
Error message 8000:12
"Voltage max error limit"
Overcurrent Warning 8000:16
"Current max warning limit"
Error message 8000:13
"Current max error limit"
Input channel 2: Peripheral voltage U
Reason for
Type of message CoE parameters for setting
message
P
the threshold value
Undervoltage Warning message 8010:14
"Voltage min warning limit"
Error message 8010:11
"Voltage min error limit"
Overvoltage Warning message 8010:15
"Voltage max warning limit"
Error message 8010:12
"Voltage max error limit"
Overcurrent Warning 8010:16
"Current max warning limit"
Error message 8010:13
"Current max error limit"
Unit Recom-
mended value range
mV min. 20400
mV min. 18000
mV max.28800
mV max. 30000
mA 0..2500
mA 0..3000
dec
dec
Unit Recom-
mended value range
mV min. 20400
mV min. 18000
mV max.28800
mV max. 30000
mA 0..2500
mA 0..3000
dec
dec
dec
dec
dec
dec
dec
dec
dec
dec
Factory setting
20400
dec
18000
dec
28800
dec
30000
dec
2500
dec
3000
dec
Factory setting
20400
dec
18000
dec
28800
dec
30000
dec
2500
dec
3000
dec
EPP9022-9060 29Version: 1.1
Commissioning and configuration

5.3.2 Disabling messages

NOTE
Critical operating states may not be reported under certain circumstances.
If you disable warning messages or error messages, EPP9022 will no longer inform you of critical operating states: overcurrent, overvoltage, undervoltage.
• Disable warning messages or error messages only if you have good reasons to do so.
You can disable the corresponding warning message/error message for each threshold value. All warning messages and error messages are enabled in the factory setting.
To disable a warning message or error message, search for the CoE parameter for the desired message in the tables below and set it to FALSE:
Input channel 1: Control voltage U
Reason for
Type of message CoE parameter for enabling/
message
S
disabling the message
Undervoltage Warning message 8000:05 "Enable voltage min warning"
Error message 8000:02 "Enable voltage min error"
Overvoltage Warning message 8000:06 "Enable voltage max warning"
Error message 8000:03 "Enable voltage max error"
Overcurrent Warning message 8000:07 "Enable current max warning"
Error message 8000:04 "Enable current max error"
Input channel 2: Peripheral voltage U
Reason for
Type of message CoE parameter for enabling/
message
P
disabling the message
Undervoltage Warning message 8010:05 "Enable voltage min warning"
Error message 8010:02 "Enable voltage min error"
Overvoltage Warning message 8010:06 "Enable voltage max warning"
Error message 8010:03 "Enable voltage max error"
Overcurrent Warning message 8010:07 "Enable current max warning"
Error message 8010:04 "Enable current max error"
EPP9022-906030 Version: 1.1
Commissioning and configuration
LEDs für die Steuerspannung Us (Eingangskanal 1)
LEDs für die Peripheriepannung Up (Eingangskanal 2)
grün
gelb
rot
grün
gelb
rot

5.4 LEDs

LEDs signal warning messages and error messages [}28]. There are three LEDs for each input channel (US/UP):
• Green = no message
• Yellow = warning message. At least one warning threshold value has been exceeded.
• Red = error message. At least one error threshold value has been exceeded.
Fig.16: Assignment of the LEDs
Precisely one LED lights up per input channel at any one time. If warning messages and error messages are present simultaneously, only the red LED lights up.
Check the Status bits [}13] in order to further localize the cause of the warning message or error message.
You can also use the LEDs for offline diagnostics: The LEDs are also active if no EtherCAT Master is present.
You can influence the behavior of the LEDs:
Change threshold values [}29].
Disable [}30] individual warning messages and error messages.
• Limit LED display to currents or voltages: LED filter [}32].
EPP9022-9060 31Version: 1.1
Commissioning and configuration

5.4.1 LED filter

NOTE
Critical operating states may not be displayed under certain circumstances.
If you filter out messages with the LED filter, critical operating states may no longer be displayed by the LEDs under certain circumstances.
• Only use the LED filter if you have good reasons to do so.
Use the LED filter if you do not wish certain messages to be displayed by the LEDs. The LED filter can filter out two types of message:
• Messages that concern currents.
• Messages that concern voltages.
The LED filter can be set individually for each input channel:
Input channel CoE parameters for setting the LED filter
1 Control voltage U
S
2 Peripheral voltage U
The following options are available:
8000:1A "LED filter" [}37]
8010:1A "LED filter" [}37]
P
Value Enum Description
0 "Voltage and current" The LEDs signal all messages. 1 "Voltage only" The LEDs signal only messages that concern currents. 2 "Current only" The LEDs signal only messages that concern voltages. 255
"LEDs off" All LEDs are off.
dec
EPP9022-906032 Version: 1.1
Commissioning and configuration

5.5 Restoring the delivery state

To restore the delivery state for backup objects in ELxxxx terminals / EPxxxx- and EPPxxxx boxes, the CoE object Restore default parameters, SubIndex 001 can be selected in the TwinCAT System Manager (Config mode).

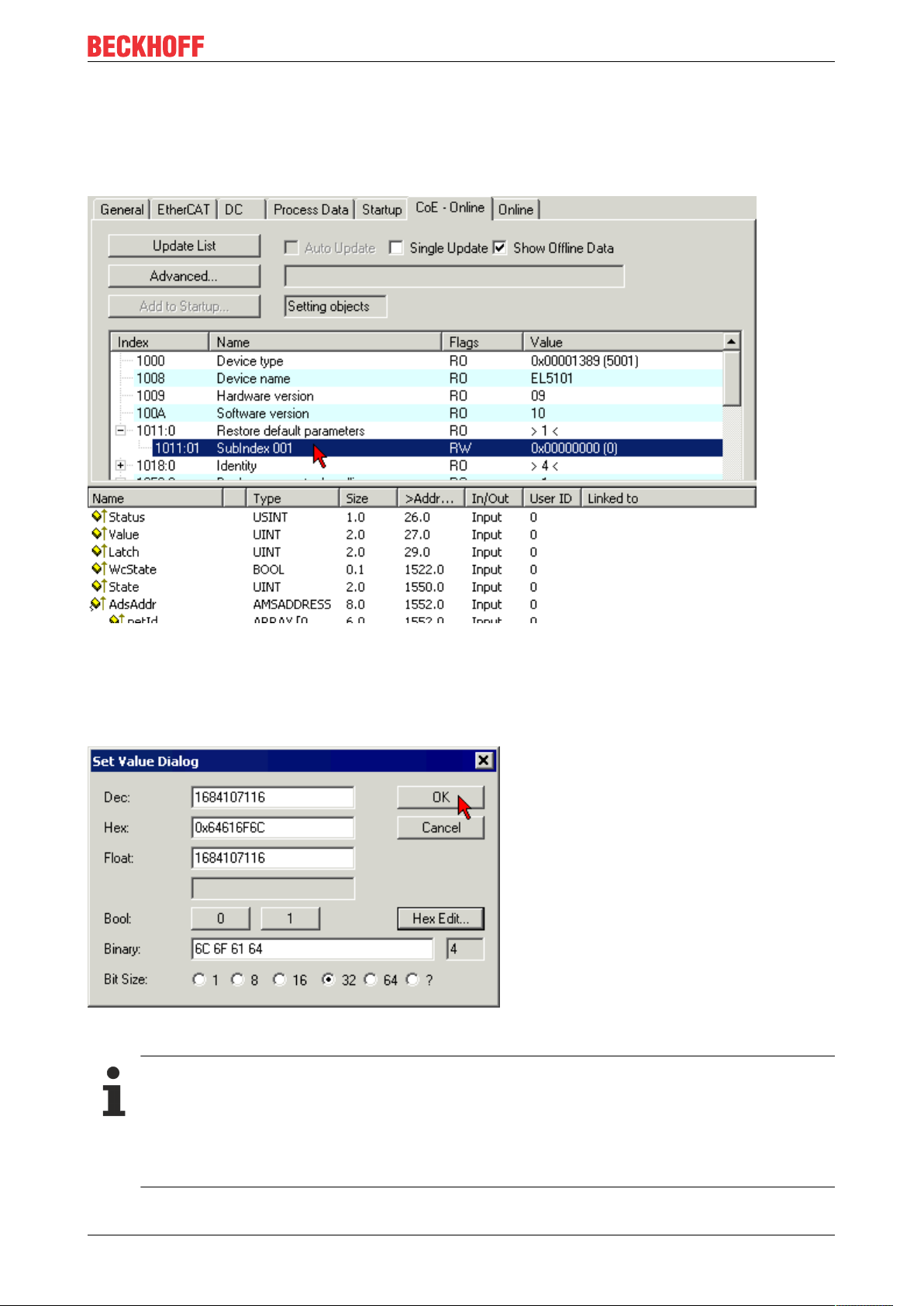

Fig.17: Selecting the Restore default parameters PDO
Double-click on SubIndex 001 to enter the Set Value dialog. Enter the value 1684107116 in field Dec or the value 0x64616F6C in field Hex and confirm with OK.
All backup objects are reset to the delivery state.
Fig.18: Entering a restore value in the Set Value dialog
Alternative restore value
In some older terminals / boxes the backup objects can be switched with an alternative restore value: Decimal value: 1819238756 Hexadecimal value: 0x6C6F6164
An incorrect entry for the restore value has no effect.
EPP9022-9060 33Version: 1.1
Commissioning and configuration

5.6 Decommissioning

WARNING
Risk of electric shock!
Bring the bus system into a safe, de-energized state before starting disassembly of the devices!
Disposal
In order to dispose of the device, it must be removed.
In accordance with the WEEE Directive 2012/19/EU, Beckhoff takes back old devices and accessories in Germany for proper disposal. Transport costs will be borne by the sender.
Return the old devices with the note "for disposal" to:
Beckhoff Automation GmbH & Co. KG Service Department Stahlstraße 31 D-33415 Verl
EPP9022-906034 Version: 1.1

6 CoE parameters

1
2

6.1 Introduction

6.1.1 Accessing CoE parameters with TwinCAT

CoE parameters
Fig.19: Accessing CoE parameters with TwinCAT
ü Requirement: EPP9022-9060 exists as an IO module in the Solution Explorer under the menu item "IO".
1. Click the IO module of the EPP9022-9060 in the "Solution Explorer".
2. Click on the "CoE - Online" tab.
ð You will see the parameter directory of the EPP9022-9060, where you can check and adjust parameters.

6.1.2 Data format of CoE parameters

CoE parameters have different data formats.
The data format of the CoE parameters is specified by data type identifiers in the chapter Object description [}37]:
Data type identifier Format Size
BOOL True / false 8-bit SINT Short integer 8-bit USINT Unsigned short integer 8-bit INT Integer 16-bit UINT Unsigned integer 16-bit DINT Double integer 32-bit UDINT Unsigned double integer 32-bit STRING String max. 255characters,
1byte per character
The data type identifiers correspond to the data types that can also be used in TwinCAT in a PLC program.
EPP9022-9060 35Version: 1.1
CoE parameters

6.2 Object overview

Index (hex) Name
1000
1008
1009
100A
100B Bootloader version 1011
1018
10F0
1600 TSC RxPDO-Map Master Message 1A00 EPM TxPDO-Map Inputs Ch.1 1A01 EPM TxPDO-Map Inputs Ch.2 1A02 TSC TxPDO-Map Slave Message 1C00 Sync manager type 1C12 RxPDO assign 1C13 TxPDO assign 1C32 SM output parameter 1C33 SM input parameter 6000
6010
6020 TSC Slave Frame Elements 7020 TSC Master Frame Elements 8000
800F
8010
801F
8020 TSC Settings A000
A010
F000
F008
F010
FB00 Command
Device type [}41]
Device name [}41]
Hardware version [}41]
Software version [}41]
Restore default parameters [}41]
Identity [}41]
Backup parameter handling [}42]
EPM Inputs Ch.1 [}39]
EPM Inputs Ch.2 [}39]
EPM Settings Ch.1 [}37]
EPM Vendor data Ch.1 [}39]
EPM Settings Ch.2 [}38]
EPM Vendor data Ch.2 [}39]
EPM Diag data Ch.1 [}40]
EPM Diag data Ch.2 [}40]
Modular device profile [}40]
Code word [}41]
Module list [}40]
EPP9022-906036 Version: 1.1
CoE parameters

6.3 Object description

6.3.1 Objects to be parameterized during commissioning

Index 8000 EPM Settings Ch.1
Access rights: read/write
Subindex (hex)
01 Enable Filter
02 Enable voltage min error Enables the error message in case of undervoltage - BOOL TRUE
03 Enable voltage max error Enables the error message in case of overvoltage - BOOL TRUE
04 Enable current max error Enables the error message in case of overcurrent - BOOL TRUE
05 Enable voltage min warning Enables the warning message in case of undervoltage - BOOL TRUE
06 Enable voltage max warning Enables the warning message in case of overvoltage - BOOL TRUE
07 Enable current max warning Enables the warning message in case of overcurrent - BOOL TRUE
11 Voltage min error limit Threshold value for the undervoltage error message mV UDINT 18000
12 Voltage max error limit Threshold value for the overvoltage error message mV UDINT 30000
13 Current max error limit Threshold value for the overcurrent error message mA UDINT 3000
14 Voltage min warning limit Threshold value for the undervoltage warning message mV UDINT 20400
15 Voltage max warning limit Threshold value for the overvoltage warning message mV UDINT 28800
16 Current max warning limit Threshold value for the overcurrent warning message mA UDINT 2500
17 Voltage scaling
18 Current scaling
19 Filter characteristic
1A LED filter
Name Description Unit Data type Default
Enables the measured value filter [}27]
Representation [}26] of the measured voltage value.
- BOOL FALSE
- UINT 0
0: 1mV perLSB (factory setting) 1: 1µVperLSB
Representation [}26] of the measured current value.
- UINT 0
0: 1mA perLSB (factory setting) 1: 1µAperLSB
Filter characteristic of the measured value filter [}27].
- UINT 0
0: 50Hz FIR (factory setting) 1: 60Hz FIR 2: IIR1 3: IIR2 4: IIR3 5: IIR4 6: IIR5 7: IIR6 8: IIR7 9: IIR8
LED filter [}32]
- UINT 0
0: "Voltage and current" (factory setting) 1: “Voltage only” 2: “Current only” 255
: “LEDs off”
dec
dec
dec
dec
dec
dec
dec
EPP9022-9060 37Version: 1.1
CoE parameters
Index 8010 EPM Settings Ch.2
Access rights: read/write
Subindex (hex)
01 Enable Filter
02 Enable voltage min error Enables the error message in case of undervoltage - BOOL TRUE
03 Enable voltage max error Enables the error message in case of overvoltage - BOOL TRUE
04 Enable current max error Enables the error message in case of overcurrent - BOOL TRUE
05 Enable voltage min warning Enables the warning message in case of undervoltage - BOOL TRUE
06 Enable voltage max warning Enables the warning message in case of overvoltage - BOOL TRUE
07 Enable current max warning Enables the warning message in case of overcurrent - BOOL TRUE
11 Voltage min error limit Threshold value for the undervoltage error message mV UDINT 18000
12 Voltage max error limit Threshold value for the overvoltage error message mV UDINT 30000
13 Current max error limit Threshold value for the overcurrent error message mA UDINT 3000
14 Voltage min warning limit Threshold value for the undervoltage warning message mV UDINT 20400
15 Voltage max warning limit Threshold value for the overvoltage warning message mV UDINT 28800
16 Current max warning limit Threshold value for the overcurrent warning message mA UDINT 2500
17 Voltage scaling
18 Current scaling
19 Filter characteristic
1A LED filter
Name Description Unit Data type Default
Enables the measured value filter [}27]
Representation [}26] of the measured voltage value.
- BOOL FALSE
- UINT 0
0: 1mV perLSB (factory setting) 1: 1µVperLSB
Representation [}26] of the measured current value.
- UINT 0
0: 1mA perLSB (factory setting) 1: 1µAperLSB
Filter characteristic of the measured value filter [}27].
- UINT 0
0: 50Hz FIR (factory setting) 1: 60Hz FIR 2: IIR1 3: IIR2 4: IIR3 5: IIR4 6: IIR5 7: IIR6 8: IIR7 9: IIR8
LED filter [}32]
- UINT 0
0: "Voltage and current" (factory setting) 1: “Voltage only” 2: “Current only” 255
: “LEDs off”
dec
dec
dec
dec
dec
dec
dec
EPP9022-906038 Version: 1.1
CoE parameters

6.3.2 Profile-specific objects

Index 6000 EPM Inputs Ch.1
Access rights: read only
Subindex (hex)
01 Voltage min error Input process data. See Process image. BOOL
02 Voltage max error BOOL
03 Current max error BOOL
04 Voltage min warning BOOL
05 Voltage max warning BOOL
06 Current max warning BOOL
07 Channel error BOOL
11 Channel warning BOOL
12 TxPDO State BOOL
13 TxPDO Toggle BOOL
14 Voltage DINT
15 Current DINT
Index 6010 EPM Inputs Ch.2
Name Description Data type
Access rights: read only
Subindex (hex)
01 Voltage min error Input process data. See Process image. BOOL
02 Voltage max error BOOL
03 Current max error BOOL
04 Voltage min warning BOOL
05 Voltage max warning BOOL
06 Current max warning BOOL
07 Channel error BOOL
11 Channel warning BOOL
12 TxPDO State BOOL
13 TxPDO Toggle BOOL
14 Voltage DINT
15 Current DINT
Name Description Data type
Index 800F EPM Vendor data Ch.1
Access rights: read only
Subindex (hex)
01 Voltage calibration offset Calibration coefficients of the vendor calibration. INT
02 Voltage calibration gain INT
03 Current calibration offset INT
04 Current calibration gain INT
Name Description Data type
Index 801F EPM Vendor data Ch.2
Access rights: read only
Subindex (hex)
01 Voltage calibration offset Calibration coefficients of the vendor calibration. INT
02 Voltage calibration gain INT
03 Current calibration offset INT
04 Current calibration gain INT
Name Description Data type
EPP9022-9060 39Version: 1.1
CoE parameters
Index A000 EPM Diag data Ch.1
Access rights: read only
Subindex (hex)
01 Voltage ADC raw value Raw value of the voltage measurement - UINT
02 Current ADC raw value Raw value of the current measurement - UINT
Name Description Unit Data type
Index A010 EPM Diag data Ch.2
Access rights: read only
Subindex (hex)
01 Voltage ADC raw value Raw value of the voltage measurement - UINT
02 Current ADC raw value Raw value of the current measurement - UINT
Name Description Unit Data type
Index F000 Modular device profile
Access rights: read only
Subindex (hex)
01 Module index distance Offset between the indices of the parameter objects of two channels UINT 0x0010
02 Maximum number of
Name Description Data type Value
Number of channels UINT 2
modules
Index F010 Module list
Access rights: read/write
Subindex (hex)
01 SubIndex 001 Module profile of input channel 1 UDINT 380
02 SubIndex 002 Module profile of input channel 1 UDINT 380
Name Description Data type Default
dec
dec
EPP9022-906040 Version: 1.1
CoE parameters

6.3.3 Standard objects

Index 1000 Device type
Access rights: read only
Subindex (hex)
- Device type Bit 0..15: Device profile number
Index 1008 Device name
Access rights: read only
Subindex (hex)
- Device name STRING EPP9022-9060
Index 1009 Hardware version
Access rights: read only
Subindex (hex)
- Hardware version Hardware version of the EtherCAT device - STRING
Name Description Unit Data type Value
- UDINT 5001
Bit 16..31: Module profile number
(Device profile number 5001: Modular Device Profile MDP)
Name Description Data type Value
Name Description Unit Data type Value
1)
dec
1)
Refer to Firmware and hardware versions [}7].
Index 100A Software version
Access rights: read only
Subindex (hex)
- Software version Firmware version of the EtherCAT device - STRING
1)
Refer to Firmware and hardware versions [}7].
Name Description Unit Data type Value
Index 1011 Restore default parameters
Access rights: read/write
Subindex (hex)
1 Subindex 001 Resets the CoE parameters to the factory settings.
Name Description Data type Default
UDINT 0
To do this, write the value 0x64616F6C in this parameter.
Index 1018 Identity
Access rights: read only
Subindex (hex)
01 Vendor ID Vendor identifier (2 = Beckhoff Automation) UDINT 2
02 Product code Product code UDINT 1685584361
03 Revision Bit 0..15: Index number of the product variant
04 Serial number (not used) UDINT 0
Name Description Data type Value
UDINT Bit0..15: 0060
Bit 16..31: Revision of the device description (ESI)
1)
dec
dec
Index F008 Code word
Access rights: read/write
EPP9022-9060 41Version: 1.1
CoE parameters
Subindex (hex)
00 Code word Reserved UDINT 0
Name Description Data type Default
Index 10F0 Backup parameter handling
Access rights: read only
Subindex (hex)
01 Checksum Checksum of the backup parameters.
Name Description Data type Value
UDINT 11102
Backup parameters are the CoE objects whose content is reset to the fac­tory setting by the CoE index 1011 [}41].
dec
EPP9022-906042 Version: 1.1
Appendix

7 Appendix

7.1 General operating conditions

Protection degrees (IP-Code)
The standard IEC 60529 (DIN EN 60529) defines the degrees of protection in different classes.
1. Number: dust protection and touch guard
0 Non-protected
1 Protected against access to hazardous parts with the back of a hand. Protected against solid
2 Protected against access to hazardous parts with a finger. Protected against solid foreign ob-
3 Protected against access to hazardous parts with a tool. Protected against solid foreign objects
4 Protected against access to hazardous parts with a wire. Protected against solid foreign objects
5 Protected against access to hazardous parts with a wire. Dust-protected. Intrusion of dust is not
6 Protected against access to hazardous parts with a wire. Dust-tight. No intrusion of dust.
Definition
foreign objects of Ø50mm
jects of Ø12.5mm.
Ø2.5mm.
Ø1mm.
totally prevented, but dust shall not penetrate in a quantity to interfere with satisfactory operation of the device or to impair safety.
2. Number: water* protection Definition
0 Non-protected
1 Protected against water drops
2 Protected against water drops when enclosure tilted up to 15°.
3 Protected against spraying water. Water sprayed at an angle up to 60° on either side of the ver-
4 Protected against splashing water. Water splashed against the disclosure from any direction
5 Protected against water jets
6 Protected against powerful water jets
7 Protected against the effects of temporary immersion in water. Intrusion of water in quantities
tical shall have no harmful effects.
shall have no harmful effects
causing harmful effects shall not be possible when the enclosure is temporarily immersed in wa­ter for 30min. in 1m depth.
*) These protection classes define only protection against water!
Chemical Resistance
The Resistance relates to the Housing of the IP 67 modules and the used metal parts. In the table below you will find some typical resistance.
Character Resistance
Steam at temperatures >100°C: not resistant
Sodium base liquor (ph-Value > 12)
Acetic acid not resistant
Argon (technical clean) resistant
at room temperature: resistant > 40°C: not resistant
Key
• resistant: Lifetime several months
• non inherently resistant: Lifetime several weeks
• not resistant: Lifetime several hours resp. early decomposition
EPP9022-9060 43Version: 1.1
Appendix

7.2 Accessories

Mounting
Ordering information Description
ZS5300-0001 Mounting rail (500mmx129mm)
Cables
A complete overview of pre-assembled cables for EtherCAT Box modules can be found here.
Ordering information Description
ZK2020-3xxx-xxxx
ZK700x-xxxx-xxxx
Labeling material, protective caps
Ordering information Description
ZS5000-0010 Protective cap for M8 sockets, IP67 (50 pieces) ZS5100-0000 Inscription labels, unprinted, 4 strips of 10 ZS5000-xxxx Printed inscription labels on enquiry
Power cable M8, 4-pin link to the website
EtherCAT P cable M8 Link to website
Tools
Ordering information Description
ZB8801-0000 Torque wrench for plugs, 0.4…1.0Nm ZB8801-0001 Torque cable key for M8/ wrench size 9 for ZB8801-0000
Further accessories
Further accessories can be found in the price list for fieldbus components from Beckhoff and online at https://www.beckhoff.com.
EPP9022-906044 Version: 1.1
Appendix

7.3 Version identification of EtherCAT devices

Designation
A Beckhoff EtherCAT device has a 14-digit designation, made up of
• family key
• type
• version
• revision
Example Family Type Version Revision
EL3314-0000-0016 EL terminal
(12 mm, non­pluggable connection level)
ES3602-0010-0017 ES terminal
(12 mm, pluggable connection level)
CU2008-0000-0000 CU device 2008 (8-port fast ethernet switch) 0000 (basic type) 0000
3314 (4-channel thermocouple terminal)
3602 (2-channel voltage measurement)
0000 (basic type) 0016
0010 (high­precision version)
0017
Notes
• The elements mentioned above result in the technical designation. EL3314-0000-0016 is used in the
example below.
• EL3314-0000 is the order identifier, in the case of “-0000” usually abbreviated to EL3314. “-0016” is the
EtherCAT revision.
• The order identifier is made up of
- family key (EL, EP, CU, ES, KL, CX, etc.)
- type (3314)
- version (-0000)
• The revision -0016 shows the technical progress, such as the extension of features with regard to the
EtherCAT communication, and is managed by Beckhoff. In principle, a device with a higher revision can replace a device with a lower revision, unless specified otherwise, e.g. in the documentation. Associated and synonymous with each revision there is usually a description (ESI, EtherCAT Slave Information) in the form of an XML file, which is available for download from the Beckhoff web site. From 2014/01 the revision is shown on the outside of the IP20 terminals, see Fig. “EL5021 EL terminal, standard IP20 IO device with batch number and revision ID (since 2014/01)”.
• The type, version and revision are read as decimal numbers, even if they are technically saved in
hexadecimal.
Identification number
Beckhoff EtherCAT devices from the different lines have different kinds of identification numbers:
Production lot/batch number/serial number/date code/D number
The serial number for Beckhoff IO devices is usually the 8-digit number printed on the device or on a sticker. The serial number indicates the configuration in delivery state and therefore refers to a whole production batch, without distinguishing the individual modules of a batch.
Structure of the serial number: KKYYFFHH
KK - week of production (CW, calendar week) YY - year of production FF - firmware version HH - hardware version
EPP9022-9060 45Version: 1.1
Appendix
Example with Ser. no.: 12063A02: 12 - production week 12 06 - production year 2006 3A - firmware version 3A 02 ­hardware version 02
Exceptions can occur in the IP67 area, where the following syntax can be used (see respective device documentation):
Syntax: D ww yy x y z u
D - prefix designation ww - calendar week yy - year x - firmware version of the bus PCB y - hardware version of the bus PCB z - firmware version of the I/O PCB u - hardware version of the I/O PCB
Example: D.22081501 calendar week 22 of the year 2008 firmware version of bus PCB: 1 hardware version of bus PCB: 5 firmware version of I/O PCB: 0 (no firmware necessary for this PCB) hardware version of I/O PCB: 1
Unique serial number/ID, ID number
In addition, in some series each individual module has its own unique serial number.
See also the further documentation in the area
• IP67: EtherCAT Box
• Safety: TwinSafe
• Terminals with factory calibration certificate and other measuring terminals
Examples of markings
Fig.20: EL5021 EL terminal, standard IP20 IO device with serial/ batch number and revision ID (since 2014/01)
EPP9022-906046 Version: 1.1
Fig.21: EK1100 EtherCAT coupler, standard IP20 IO device with serial/ batch number
Appendix
Fig.22: CU2016 switch with serial/ batch number
Fig.23: EL3202-0020 with serial/ batch number 26131006 and unique ID-number 204418
EPP9022-9060 47Version: 1.1
Appendix
Fig.24: EP1258-00001 IP67 EtherCAT Box with batch number/ date code 22090101 and unique serial number 158102
Fig.25: EP1908-0002 IP67 EtherCAT Safety Box with batch number/ date code 071201FF and unique serial number 00346070
Fig.26: EL2904 IP20 safety terminal with batch number/ date code 50110302 and unique serial number 00331701
Fig.27: ELM3604-0002 terminal with unique ID number (QR code) 100001051 and serial/ batch number 44160201
EPP9022-906048 Version: 1.1
Appendix

7.3.1 Beckhoff Identification Code (BIC)

The Beckhoff Identification Code (BIC) is increasingly being applied to Beckhoff products to uniquely identify the product. The BIC is represented as a Data Matrix Code (DMC, code scheme ECC200), the content is based on the ANSI standard MH10.8.2-2016.
Fig.28: BIC as data matrix code (DMC, code scheme ECC200)
The BIC will be introduced step by step across all product groups.
Depending on the product, it can be found in the following places:
• on the packaging unit
• directly on the product (if space suffices)
• on the packaging unit and the product
The BIC is machine-readable and contains information that can also be used by the customer for handling and product management.
Each piece of information can be uniquely identified using the so-called data identifier (ANSIMH10.8.2-2016). The data identifier is followed by a character string. Both together have a maximum length according to the table below. If the information is shorter, spaces are added to it. The data under positions 1 to 4 are always available.
The following information is contained:
EPP9022-9060 49Version: 1.1
Appendix
Item
Type of
no.
information
1 Beckhoff order
number
2 Beckhoff Traceability
Number (BTN)
3 Article description Beckhoff article
4 Quantity Quantity in packaging
5 Batch number Optional: Year and week
6 ID/serial number Optional: Present-day
7 Variant number Optional: Product variant
...
Explanation Data
Beckhoff order number 1P 8 1P072222
Unique serial number, see note below
description, e.g. EL1008
unit, e.g. 1, 10, etc.
of production
serial number system, e.g. with safety products
number on the basis of standard products
Number of digits
identifier
S 12 SBTNk4p562d7
1K 32 1KEL1809
Q 6 Q1
2P 14 2P401503180016
51S 12 51S678294104
30P 32 30PF971, 2*K183
incl. data identifier
Example
Further types of information and data identifiers are used by Beckhoff and serve internal processes.
Structure of the BIC
Example of composite information from item 1 to 4 and 6. The data identifiers are marked in red for better display:
BTN
An important component of the BIC is the Beckhoff Traceability Number (BTN, item no.2). The BTN is a unique serial number consisting of eight characters that will replace all other serial number systems at Beckhoff in the long term (e.g. batch designations on IO components, previous serial number range for safety products, etc.). The BTN will also be introduced step by step, so it may happen that the BTN is not yet coded in the BIC.
NOTE
This information has been carefully prepared. However, the procedure described is constantly being further developed. We reserve the right to revise and change procedures and documentation at any time and with­out prior notice. No claims for changes can be made from the information, illustrations and descriptions in this information.
EPP9022-906050 Version: 1.1
Appendix

7.4 Support and Service

Beckhoff and their partners around the world offer comprehensive support and service, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.
Beckhoff's branch offices and representatives
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products!
The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages:
http://www.beckhoff.com
You will also find further documentation for Beckhoff components there.
Beckhoff Headquarters
Beckhoff Automation GmbH & Co. KG
Huelshorstweg 20 33415 Verl Germany
Phone: +49 5246 963 0 Fax: +49 5246 963 198 e-mail: info@beckhoff.com
Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with other, wide-ranging services:
• support
• design, programming and commissioning of complex automation systems
• and extensive training program for Beckhoff system components
Hotline: +49 5246 963 157 Fax: +49 5246 963 9157 e-mail: support@beckhoff.com
Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
• on-site service
• repair service
• spare parts service
• hotline service
Hotline: +49 5246 963 460 Fax: +49 5246 963 479 e-mail: service@beckhoff.com
EPP9022-9060 51Version: 1.1
More Information:
www.beckhoff.com/epp9022-9060/
Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com
Loading...
