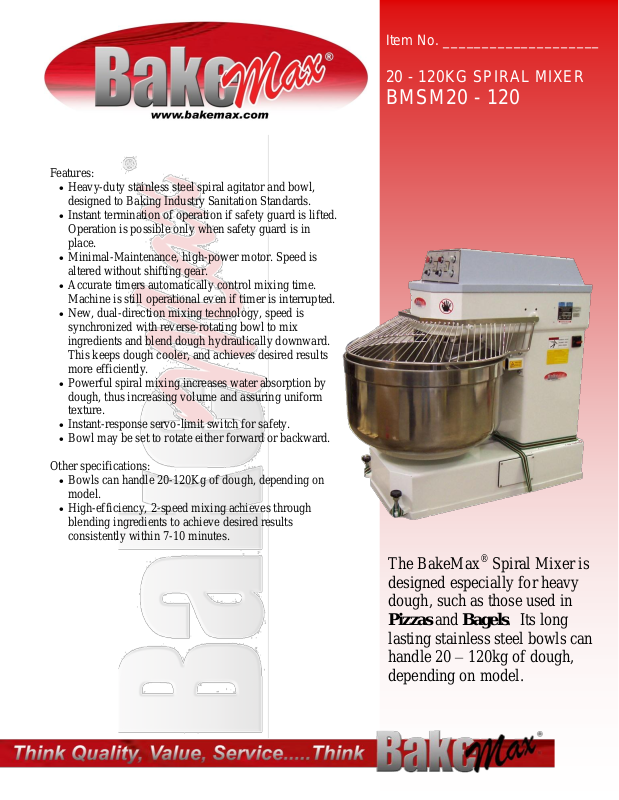

Bakemax BMSM20, BMSM30, BMSM40, BMSM50, BMSM70 Specifications
...
Item No. ____________________
20 - 120KG SPIRAL MIXER
BMSM20 - 120
The BakeMax® Spiral Mixer is
designed especially for heavy
dough, such as those used in
Pizzas and Bagels. Its long
lasting stainless steel bowls can
handle 20 – 120kg of dough,
depending on model.
Features:
Heavy-duty stainless steel spiral agitator and bowl,
designed to Baking Industry Sanitation Standards.
Instant termination of operation if safety guard is lifted.
Operation is possible only when safety guard is in
place.
Minimal-Maintenance, high-power motor. Speed is
altered without shifting gear.
Accurate timers automatically control mixing time.
Machine is still operational even if timer is interrupted.
New, dual-direction mixing technology, speed is
synchronized with reverse-rotating bowl to mix
ingredients and blend dough hydraulically downward.
This keeps dough cooler, and achieves desired results
more efficiently.
Powerful spiral mixing increases water absorption by
dough, thus increasing volume and assuring uniform
texture.
Instant-response servo-limit switch for safety.
Bowl may be set to rotate either forward or backward.
Other specifications:
Bowls can handle 20-120Kg of dough, depending on
model.
High-efficiency, 2-speed mixing achieves through
blending ingredients to achieve desired results
consistently within 7-10 minutes.
30 -120kg Spiral Mixers
BMSM20 - 120
Dimensions (CM) please see chart to side.
Model
A
B
C
D
E
BMSM30
99
54
88
57
134
BMSM40
105
54
88
67
140
BMSM50
114
55
104
78
147
BMSM70
114
66
104
81
152
BMSM80
120
71
114
81
170
BMSM120
130
81
122
86
180
Capacity Information
Model No.
Flour
(kg)
Dough
(Kg)
Bowl
(Liter)
Packing Size
(cm)
BMSM30
15
30
50
95*60*120
BMSM40
25
40
70
100*65*130
BMSM50
30
50
80
121*70*138
BMSM70
40
60
100
125*85*141
BMSM80
50
80
120
133*88*152
BMSM120
80
120
180
140*97*159
Model No.
Net
Weight
(Kg)
Gross
Weight
(kg)
Motor (HP)
Agitator
Bowl
BMSM30
150
200
2
0.5
BMSM40
180
230
2.5
0.5
BMSM50
400
500
3
1
BMSM70
450
550
4 1 BMSM80
520
620
5 2 BMSM120
550
650
8.5
3
Electrical Information
Model
Voltage
Phase
Amps
Watts
Hertz
BMSM20
220 3 7.5
1650
60
BMSM30
220 3 10
2200
60
BMSM40
220 3 12
2640
60
BMSM50
220 3 15
3300
60
BMSM70
220 3 17
3740
60
BMSM80
220 3 23
5060
60
BMSM120
220 3 35
7700
60
Shipping Information
Model
Net Weight (kg)
Crated Weight(kg)
Crate Dimensions
(D x W x H) (CM)
BMSM20
149
95*60*120
BMSM30
184
100*65*130
BMSM40
204
121*70*138
BMSM50
409
125*85*141
BMSM60
449
133*88*152
BMSM80
520
140*97*159
BMSM120
848
95*60*120
