BOWED FACE DISPLAY WARMER
BMCDF01
OPERATIONS MANUAL
Model
Voltage
Frequency
Power
Dimension (mm)
Heating feature
BMCDF01
110V
60Hz
850W
350x425x500
Dry heating
A. Basic Technical Parameter
B. Safety Precautions
1. The using voltage for this machine must be coordinated with the voltage stated in technical
parameter.
2. User should install a suitable power switch and fuse near this machine.
3. Before using, user must check whether the wire connection is lax, the voltage is safe and the ground
connection is reliable.
4. This machine must be installed away from flammable objects by more than 20cm.
5. Cleaning: Do not wash it with a water jet. Use soft towel to clean its surface. While cleaning please
cut off power supply of this machine. Failure to do so may result in harm or injury.
6. After using please unplug the plug of power supply.
7. While using this machine, use caution around glass.
C. Instructions
1. To turn on power supply, rotate the knob of the temperature controller clockwise to the suitable
degree. Electric heating tubes begin to heat, when they reach the desired temperature, they will stop
heating. It works repeat to constant temperature.
2. Adjust temperature in chamber by temperature controller.
D. Transportation and Storage
During transportation, the machine should be carefully handled and prevent from shaking. It should
not be put up side down or press down upon (items stacked on top of crate or box) . Please store in a
ventilated warehouse without causticity gas.
SIGN
NAME
SPECIFICATION
QTY
FU
FUSE
250V 5A
1
SI
POWER SWITCH
250V 16A
1
S2
KICK THERMOSTAT
250V 16A 105°C
1
S3
THERMOSTAT
250V 16A 85 °C
1
HL1
LIGHT
110V40 W
1
HL2
LIGHT
110V40 W
1
HL3
LIGHT
110V 50W
1
HL4
HEATING INDICATOR
110V
1
EH
ELECTRIC HEATING ELEMENT
MOV 750W
1

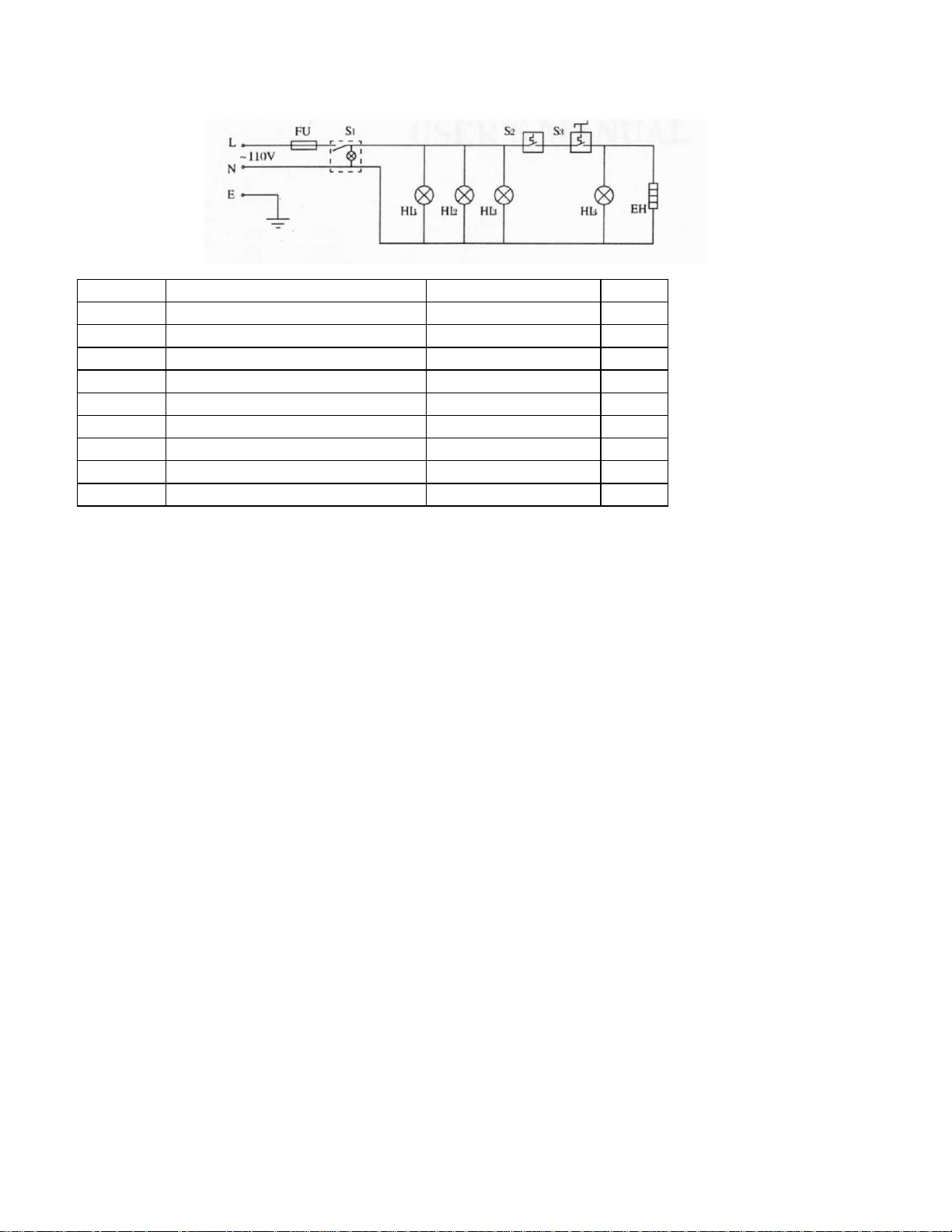

E. Circuit Diagram
