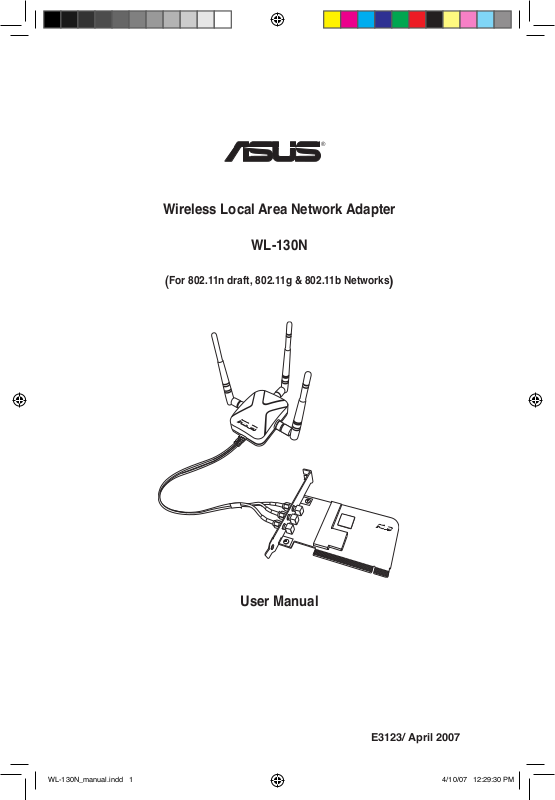

ASUS WL-130N User Manual

User Manual

Wireless Local Area Network Adapter

WL-130N

(

For 802.11n draft, 802.11g & 802.11b Networks

)

®

E3123/ April 2007

R

WL-130N_manual.indd 1 4/10/07 12:29:30 PM

2 ASUS WLAN Adapter

No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “A S I S ” WI T H O UT WA R RA N T Y
OF ANY KIND, EITHER EXPRESS O R IMPL IED, INCLUDING B UT
NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CON S EQ UE NT IA L D A MA GE S (INCL U D ING DAM A GE S FO R
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING
FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or
missing.

Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are

used only for identication or explanation and to the owners’ benet, without

intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL
ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT
TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT
BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.

Copyright © 2007 ASUSTeK COMPUTER INC. All Rights Reserved.

Copyright Information

WL-130N_manual.indd 2 4/10/07 12:29:32 PM

ASUS WLAN Adapter 3

ASUSTeK COMPUTER INC.

Company address: 15 Li-Te Road, Beitou, Taipei 11259
General (tel): [phone]
Web site address: www.asus.com.tw
General (fax): [phone]
General email: [e-mail]

Technical support

General support (tel): [phone]
Online support: http://support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Company address: 44370 Nobel Drive, Fremont, CA 94538, USA
General (fax): [phone]
Web site address: usa.asus.com

Technical support

General support (tel): [phone]
Online support: http://support.asus.com
Notebook (tel): [phone] x5110
Support (fax): [phone]

ASUS COMPUTER GmbH (Germany & Austria)

Company address: Harkort Str. 25, D-40880 Ratingen, Germany
General (tel): [phone]
Web site address: www.asus.com.de
General (fax): [phone]
Online contact: www.asus.com.de/sales

Technical support

Component support: [phone]
Online support: http://support.asus.com
Notebook support: [phone]
Support (fax): [phone]

Contact Information

WL-130N_manual.indd 3 4/10/07 12:29:32 PM

4 ASUS WLAN Adapter

1. Introduction ..............................................................................5

Package contents ..................................................................................5

Features .................................................................................................5

2. Installation ................................................................................6

System Requirements ...........................................................................6

Installation Procedures ..........................................................................6

Installing ASUS WLAN utilities and driver ................................................6

Reading the WLAN Status Indicators .......................................................7

ASUS One Touch Wizard .........................................................................8

Conguring with ASUS WLAN Settings utility (Infrastructure) ..................9

Conguring with ASUS WLAN Settings utility (Ad Hoc) .........................10

3. Software Reference ................................................................11

ASUS WLAN Control Center ...............................................................11

ASUS Wireless Settings Utility ............................................................13

Status - Status ........................................................................................13

Status - Connection ................................................................................15

Status - IP Cong ...................................................................................16

Status - Ping ...........................................................................................16

Cong - Basic .........................................................................................17

Cong - Advanced ..................................................................................18

Cong - Encryption .................................................................................19

Cong - Authentication ...........................................................................22

Survey - Site Survey ...............................................................................22

About - Version Info ................................................................................23

Link State ...............................................................................................24

Exit Wireless Settings .............................................................................24

Windows® XP/2003 Wireless Options ..................................................25

4. Troubleshooting .....................................................................27

5. Glossary ..................................................................................29

6. Appendix .................................................................................37

Table of Contents

WL-130N_manual.indd 4 4/10/07 12:29:33 PM

ASUS WLAN Adapter 5

Chapter 1

Introduction

Chapter 1 - Introduction

Package contents

Check the following items in your ASUS Wireless LAN Adapter package.
Contact your retailer if any item is damaged or missing.

1 x ASUS Wireless LAN Adapter (WL-130N)

1 x Extension Cable Antenna

1 x Support CD

1 x Quick Start Guide

Features

Draft 802.11n compliant, full compatible with 802.11b/g

Suitable for seamless multimedia stream

Supports WEP, WPA and WPA2 for enhanced security

Windows® Vista OS support

WL-130N_manual.indd 5 4/10/07 12:29:33 PM

Chapter 2

6 ASUS WLAN Adapter

Chapter 2 - Installation

Installation

2. Installation

System Requirements

To begin using the WLAN Adapter, you must meet the following minimum
requirements:

• Windows® XP/2000/2003/Vista (only driver support)

• PCI slot for personal computer

• 128MB system memory or larger

• 750MHz processor or higher

Important: Install the WLAN Adapter utilities before inserting the WLAN
Adapter into your computer.

Installing ASUS WLAN utilities and driver

Follow these instructions to install the WLAN Adapter utilities and driver. Insert
the support CD into your optical drive. If autorun is enabled in your computer,
the CD automatically displays the utility menu. Clickmatically displays the utility menu. Click

Install ASUS WLAN Card

Utilities/Driver

. If autorun is disabled, double-click SETUP.EXE in the root

directory of the CD.

2. Click

Next

on the Welcome screen.1. Select your language and click

Install

ASUS WLAN Card Utilities/Driver.

4. Click

Next

to create short cut.

3. Click

Next

to use the default Destination

Folder or click Browse to select another folder.

NOTE: The ASUS WLAN utilities is only for Windows® 2000/2003/XP.

WL-130N_manual.indd 6 4/10/07 12:29:37 PM

ASUS WLAN Adapter 7

Chapter 2 - Installation

Chapter 2

Installation

7. Carefully insert the WLAN Adapter into

your computer’s PCI slot. Windows will

automatically detect and configure the
WLAN Adapter usi ng t he u til iti es a nd
drivers installed in the previous steps.

8. W i n d o w s XP/200 3 u s e r s : When t h e
program is launched for the fir st tim e
(during Windows restart), you are asked
to choos e one u tili ty t o conf igure the
WL AN Ad a pte r. Select "Only u se o ur
WL A N ut i liti e s and dis a b le Window s
wireless function".

Reading the WLAN status indicator

The device comes with one LED that indicates the status of the WLAN
Adapter.

5. The installation process takes several
seconds.

6. When Setup is complete, click

Finish

to

exit the installation wizard and restart the

computer.

ACT LED

Blinking:

Transmitting data; the blinking

speed indicates the link speed.

OFF:

Radio off or Adapter is disabled.

ACT LED

WL-130N_manual.indd 7 4/10/07 12:29:40 PM

Chapter 2

8 ASUS WLAN Adapter

Chapter 2 - Installation

Installation

ASUS One Touch Wizard

Use ASUS One Touch Wizard to setup your wireless connection with an

existing wireless LAN.

1. Launch A SUS One Touch Wizard from

Start menu and click

Next

to set up your

wireless network.

2. Select an AP from the Available Networks

eld, then click Next.

3. C o n n ec t i o n is co m p l e t e . Cl i c k

Next

to set up the IP addres s for the W LAN
Adapter.

4. C hoo se t o obtai n an IP addr ess or to
assign static address manually for your
WL A N A da pte r. Wh en IP se tti n g is
complete, click

Finish

to exit ASUS One

Touch Wizard.

Note: If the access point you want to connect has set up encryption

policies, you must congure the same encryption on your WLAN Adapter.

Select "Configure your wireless LAN settings" radio button in step 2
and make the settings accordingly. When the encryption settings are
complete, you can launch ASUS One Touch Wizard once again from the
Start menu to set up the connection with your AP.

We suggest WL-130N work with WL-500W Super Speed N wireless router

for maximum performance. Make sure the router rmware is the updated.
Check ASUS website for router latest updated rmware.

WL-130N_manual.indd 8 4/10/07 12:29:43 PM

ASUS WLAN Adapter 9

Chapter 2 - Installation

Chapter 2

Installation

Configuring with ASUS WLAN Settings utility
(Infrastructure)

Use ASUS WLAN Settings utility to get connected with an existing wireless
network.

6. C heck the

Conn ection

tab to s ee the

signal strength. Click

OK

to exit the utility.

5. C hec k the

St a t us

pag e to se e th e
as s o ci ati o n st a t e. If con n e cti o n is
established, the box shows “Connected ­xx:xx:xx:xx:xx:xx”.

3. Use

Site Survey

if you don’t know the

SSID of your access point(s).

4. Enc rypti on setti ngs must matc h tho se
at the acces s poi nt. Ask your netw ork
administrator about settings if necessary.
Click

Apply

to activate the settings.

1. Right-click the wireless connection icon
and select

Wireless Settings.

2. Check the

Config

page to set the

SSID

(network name) to that of your wireless AP.

WL-130N_manual.indd 9 4/10/07 12:29:47 PM

Chapter 2

10 ASUS WLAN Adapter

Chapter 2 - Installation

Installation

Configuring with ASUS WLAN Settings utility
(Ad Hoc)

The WLAN Adapter supports Ad Hoc mode which allows communication

2. Click the

Cong

button and set the WLAN

Adapter to

Ad Hoc

connection mode.

3. Click the

Survey

button to scan for Ad
Hoc nodes. Select the node you want to
communicate with and press

Connect

.

4. If the encryption settings of your WLAN
Adapter are different from those of the
other Ad Hoc nodes, you are prompted
to make the encryption of the two nodes
iden tic al. Clic k

Appl y

to a cti vat e t he

settings.

1. Right-click the wireless connection icon
and select

Wireless Settings.

5. Check the

Status

page to see the association
state. If connection is established, the box
shows “Connected - xx:xx:xx:xx:xx:xx”.

6. Check the

Connection

tab to see the

signal strength. Click

OK

to exit the utility.

WL-130N_manual.indd 10 4/10/07 12:29:49 PM

ASUS WLAN Adapter 11

Chapter 3 - Software Reference

Chapter 3

Software Reference

Using the Control Center

The Control Center taskbar icon displays the following information:

• Link quality of the WLAN Adapter (Excellent, Good, Fair, Poor, Not
Linked)

• Whether the WLAN Adapter is connected to a network (Blue :
Connected, Gray: Not Connected)

Taskbar Icon and Status

Wireless Status Icons (on the taskbar)

Excellent

link quality and

connected to Internet

(Infrastructure)

Good

link quality and

connected to Internet

(Infrastructure)

Fair

link quality and

connected to Internet

(Infrastructure)

Poor

link quality and

connected to Internet

(Infrastructure)

Excellent

link quality but

not connected to Internet

(Infrastructure)

Good

link quality but

not connected to Internet

(Infrastructure)

Fair

link quality but

not connected to Internet

(Infrastructure)

Poor

link quality but

not connected to Internet

(Infrastructure)

Not linked

and

not connected to Internet

(Infrastructure)

ASUS WLAN Control Center

ASUS WLAN Control Center is an application which makes it easier to launch
WLAN applications and activate network location settings. The WLAN Control
Center starts automatically when system boots. When WLAN Control Center is
running, you can see a Control Center icon on the Windows taskbar.

Starting the Control Center

• Select

ASUS WLAN Control Center

in Windows Start

menu, or

• Double-click the

ASUS WLAN Control Center

icon on the desktop.

3. Software Reference

WL-130N_manual.indd 11 4/10/07 12:29:51 PM

12 ASUS WLAN Adapter

Chapter 3 - Software Reference

Chapter 3

Software Reference

Taskbar icon - Left-click menu

Left-click the taskbar icon to show the following
menu items:

• Wireless Radio On

– Click to turn

the wireless radio ON.

•

Wireless Radio Off

– Click to turn

the wireless radio OFF.

•

Search & Connect

– Click to view

the properties of available access points.

•

Wir e les s Op tion

(Wi ndo w s® XP/ 200 3 ) – C li ck to ch o ose

Windows® Wireless Zero Conguration (WZC) service or ASUS utilities

to congure your WLAN Adapter.

Taskbar Icon - Launch Wireless Settings

Double-click the taskbar icon to launch the ASUS Wireless Settings utility. to launch the ASUS Wireless Settings utility.

Taskbar icon - Right-click menu

Right-click the taskbar icon to show the following menu items:

•

Wireless Settings

– Click to launch Wireless Settings application.

•

Activate Conguration

– Click to choose a preset prole.

•

Mobile Manager

– Click to launch Mobile Manager application.

•

Site Monitor

– Click to launch the Site Monitor application.

•

Preferences

– Click to customize the Control Center program. You can
create a Control Center shortcut on the desktop and decide whether to
start Control Center when system boots.

•

About Control Center

-Shows the version of Control Center.

•

Exit

– Click to close the Control Center program.

Taskbar Left-Click Menu

WL-130N_manual.indd 12 4/10/07 12:29:52 PM
