Asus P5G41-M LE User Manual

Motherboard

P5G41-M LE

E4833

First Edition V1 June 2009

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

iii

Contents

Notices ......................................................................................................... vi

Safety information ..................................................................................... vii

About this guide ....................................................................................... viii

P5G41-M LE specications summary ....................................................... ix

Chapter 1: Product introduction

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents ......................................................................... 1-1

1.3 Special features ............................................................................ 1-1

1.3.1 Product highlights ........................................................... 1-1

1.3.2 Innovative ASUS features ............................................... 1-2

1.4 Before you proceed ..................................................................... 1-4

1.5 Motherboard overview ................................................................. 1-5

1.5.1 Placement direction ........................................................ 1-5

1.5.2 Screw holes .................................................................... 1-5

1.5.3 Motherboard layout ......................................................... 1-6

1.5.4 Layout contents ............................................................... 1-6

1.6 Central Processing Unit (CPU) ................................................... 1-7

1.6.1 Installing the CPU ........................................................... 1-7

1.6.2 Installing the CPU heatsink and fan .............................. 1-10

1.6.3 Uninstalling the CPU heatsink and fan ..........................1-11

1.7 System memory ......................................................................... 1-12

1.7.1 Overview ....................................................................... 1-12

1.7.2 Memory congurations .................................................. 1-13

1.7.3 Installing a DIMM .......................................................... 1-20

1.7.4 Removing a DIMM ........................................................ 1-20

1.8 Expansion slots .......................................................................... 1-21

1.8.1 Installing an expansion card ......................................... 1-21

1.8.2 Conguring an expansion card ..................................... 1-21

1.8.3 PCI slots ........................................................................ 1-21

1.8.4 PCI Express x1 slot ....................................................... 1-21

1.8.5 PCI Express x16 slot ..................................................... 1-21

1.9 Jumpers ...................................................................................... 1-22

1.10 Connectors ................................................................................. 1-24

1.10.1 Rear panel connectors .................................................. 1-24

1.10.2 Internal connectors ....................................................... 1-25

Contents

1.11 Software support ........................................................................ 1-32

1.11.1 Installing an operating system ...................................... 1-32

1.11.2 Support DVD information .............................................. 1-32

Chapter 2: BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.1.1 ASUS Update utility ........................................................ 2-1

2.1.2 ASUS EZ Flash 2 utility ................................................... 2-2

2.1.3 ASUS CrashFree BIOS 3 utility ...................................... 2-3

2.2 BIOS setup program .................................................................... 2-4

2.2.1 BIOS menu screen .......................................................... 2-5

2.2.2 Menu bar ......................................................................... 2-5

2.2.3 Navigation keys ............................................................... 2-6

2.2.4 Menu items ..................................................................... 2-6

2.2.5 Submenu items ............................................................... 2-6

2.2.6 Conguration elds ......................................................... 2-6

2.2.7 Pop-up window ............................................................... 2-6

2.2.8 Scroll bar ......................................................................... 2-6

2.2.9 General help ................................................................... 2-6

2.3 Main menu .................................................................................... 2-7

2.3.1 System Time [xx:xx:xx] ................................................... 2-7

2.3.2 System Date [Day xx/xx/xxxx] ......................................... 2-7

2.3.3 Primary IDE Master/Slave, SATA1~4 .............................. 2-7

2.3.4 Storage Conguration ..................................................... 2-8

2.3.5 System Information ......................................................... 2-9

2.4 Advanced menu ........................................................................... 2-9

2.4.1 JumperFree Conguration .............................................. 2-9

2.4.2 CPU Conguration .........................................................2-11

2.4.3 Chipset .......................................................................... 2-12

2.4.4 Onboard Devices Conguration .................................... 2-13

2.4.5 USB Conguration ........................................................ 2-13

2.4.6 PCI PnP ........................................................................ 2-14

2.5 Power menu ................................................................................ 2-15

2.5.1 Suspend Mode [Auto] ................................................... 2-15

2.5.2 ACPI 2.0 Support [Enabled] .......................................... 2-15

2.5.3 ACPI APIC Support [Enabled] ....................................... 2-15

Contents

2.5.4 Anti Surgy Support [Enabled] ........................................ 2-15

2.5.5 APM Conguration ........................................................ 2-15

2.5.6 Hardware Monitor ......................................................... 2-16

2.6 Boot menu .................................................................................. 2-17

2.6.1 Boot Device Priority ...................................................... 2-17

2.6.2 Boot Settings Conguration .......................................... 2-17

2.6.3 Security ......................................................................... 2-18

2.7 Tools menu ................................................................................. 2-19

2.7.1 ASUS EZ Flash 2 .......................................................... 2-19

2.7.2 AI NET 2........................................................................ 2-19

2.8 Exit menu .................................................................................... 2-20

ASUS REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://green.asus.com/english/REACH.htm.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with manufacturer’s instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority

to operate this equipment.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Notices

vii

Electrical safety

•

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

•

When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

•

Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.

•

Seek professional assistance before using an adpater or extension cord. These devices could interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.

•

If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

•

The optical S/PDIF is an optional component (may or may not be included in your

motherboard) and is dened as a CLASS 1 LASER PRODUCT.

INVISIBLE LASER RADIATION, AVOID EXPOSURE TO BEAM.

• RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

• DISPOSE OF USED BATTERIES ACCORDING TO THE ABOVE BATTERY-RELATED INSTRUCTIONS.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.

•

Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.

• Never dispose of the battery in re. It could explode and release harmful substances into

the environment.

• Never dispose of the battery with your regular household waste. Take it to a hazardous

material collection point.

• Never replace the battery with an incorrect battery type.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

This motherboard should only be used in environments with ambient temperatures between 5oC (41oF) and 40oC (104oF).

Safety information

viii

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports.

• Chapter 2: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task.

NOTE: Tips and additional information to help you complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: <Enter> means that you must press the Enter or Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key names are linked with a plus sign (+). Example: <Ctrl>+<Alt>+<D>

P5G41-M LE specications summary

(continued on the next page)

CPU LGA775 socket for Intel® Core™2 Quad / Core™2

Extreme / Core™2 Duo / Pentium® dual-core / Celeron® dual-core / Celeron® processors Supports Intel® 45nm multi-core CPU

Refer to www.asus.com for Intel® CPU support list.

Chipset Northbridge: Intel® G41

Southbridge: Intel® ICH7

Front Side Bus 1333/1066/800 MHz

Memory Dual channel memory architecture

- 2 x 240-pin DIMM sockets support unbuffered non-ECC 1066(overclocking) /800/667 MHz DDR2 memory modules

- Supports up to 8GB system memory * Refer to www.asus.com or this user manual for the Memory QVL (Qualied Vendors Lists). ** When you install a total memory of 4GB capacity or more, Windows® 32-bit operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit operating system.

Graphics Intel® Graphics Media Accelerator (Intel® GMA X4500)

integrated Supports RGB with max. resolution of 2048 x 1536@75Hz Supports Microsoft® DirectX 10

Expansion Slots 1 x PCI Express x16 slot

1 x PCI Express x1 slot 2 x PCI slots

Storage Southbridge Intel® ICH7 supports:

- 1 x UltraDMA 100 hard disk drive

- 4 x Serial ATA 3Gb/s ports

LAN PCIe Gigabit LAN

Audio High Denition Audio 6-channel CODEC

- Supports Jack-detect and Multi-streaming technologies

- Supports S/PDIF out interface

USB Max. 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4 ports

at back panel)

ASUS Overclocking Features

SFS (Stepless Frequency Selection):

- FSB tuning from 200 MHz up to 800 MHz at 1MHz increment

Overclocking Protection:

- ASUS C.P.R. (CPU Parameter Recall)

P5G41-M LE specications summary

*Specications are subject to change without notice.

ASUS Special Features ASUS CrashFree BIOS 3

ASUS Q-Fan ASUS EZ Flash 2 ASUS MyLogo 2

ASUS AI NET2 ASUS EPU-L ASUS Turbo Key

ASUS Anti-Surge Protection

Back Panel I/O Ports 1 x PS/2 keyboard port

1 x PS/2 mouse port 1 x DVI port 1 x VGA port 1 x LAN (RJ-45) port 4 x USB 2.0/1.1 ports 6-channel audio I/O ports

Internal I/O Connectors 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports

1 x IDE connector 4 x Serial ATA connectors 1 x High denition front panel audio connector 1 x System panel connector 1 x Internal speaker connector 1 x COM connector

1 x LPT connector 1 x S/PDIF output connector 1 x CPU fan connector 1 x chassis fan connector 1 x 24-pin EATX power connector 1 x 4-pin ATX 12V power connector

BIOS features 8Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM 2.0,

ACPI v2.0a, SM BIOS v2.5

Support DVD Contents Drivers

ASUS PC Probe II ASUS LiveUpdate Utility Anti-virus software (OEM version)

Accessories 2 x Serial ATA cables

1 x Ultra DMA 100/66 cable 1 x I/O shield User Manual

Form factor MicroATX form factor: 9.6 in x 7.8 in (24.4 cm x 19.8 cm)

ASUS P5G41-M LE 1-1

Chapter 1

Product introduction

Motherboard ASUS P5G41-M LE motherboard

Cables 2 x Serial ATA cables

1 x Ultra DMA 100/66 cable

Accessories 1 x I/O shield

Application DVD ASUS motherboard support DVD

Documentation User Manual

If any of the above items is damaged or missing, contact your retailer.

1.3 Special features

1.3.1 Product highlights

Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo CPU support

This motherboard supports Intel® LGA775 Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo processors, which are excellent for multitasking,

multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB.

This motherboard also supports Intel® CPUs in the 45nm manufacturing process.

1.1 Welcome!

Thank you for buying an ASUS® P5G41-M LE motherboard! The motherboard delivers a host of new features and latest technologies, making it another

standout in the long line of ASUS quality motherboards! Before you start installing the motherboard, and hardware devices on it, check the items in

your package with the list below.

1.2 Package contents

Check your motherboard package for the following items.

1-2 Chapter 1: Product introduction

Intel® G41 Chipset

The Intel® G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(overclocking)/800/667 architecture, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and multi-core CPUs.

It provides digital home entertainment of full 1080p high-denition video

playback, including Blu-ray disc movies, with the next-generation Intel

Graphics Media Acceleratior X4500. The Intel® G41 Express Chipset

delivers optimized 3D graphics performance and support for Microsoft

DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel® Fast Memory Access technology the signicantly optimized the use of available memory bandwith and reduces the latency of the memory accesses.

6-channel High Denition Audio

The onboard 6-channel RTL High Denition Audio CODEC enables high-

quality audio that automatically detects peripherals plugged into the audio I/O jacks. It also supports the Windows® Vista Premium OS.

Gigabit LAN solution

The onboard LAN controller is a highly integrated Gb LAN controller. It is

enhanced with an ACPI management function to provide efcient power

management for advanced operating systems.

Serial ATA 3Gb/s technology

This motherboard supports hard drives based on the Serial ATA (SATA)

3Gb/s storage specications, delivering enhanced scalability and

doubling the bus bandwidth for high-speed data saving and retrieval.

DVI Interface

DVI (Digital Visual Interface) provides high quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output of both DVI-D/HDMI and RGB.

1.3.2 Innovative ASUS features

ASUS MyLogo2™

This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

ASUS CrashFree BIOS 3

ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to

restore a corrupted BIOS le using the bundled support DVD or USB disk that contains the latest BIOS le.

ASUS P5G41-M LE 1-3

ASUS EZ Flash 2

ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.

ASUS Q-Fan

ASUS Q-Fan technology intelligently adjusts CPU fan speeds according

to system loading to ensure quiet, cool, and efcient operation.

ASUS AI NET2

ASUS AI NET2 remotely detects the cable connection immediately after you turn on the system and any faulty cable connections are reported back up to 100 meters at 1 meter accuracy.

ASUS Anti-Surge Protection

This special design protects expensive devices and the motherboard from damage caused by power surges from switching power supply (PSU).

ASUS EPU-L

ASUS EPU (Engine Processing Unit) provides a total system power management. It detects the current computer loading and intelligently adjusts the power in real-time.

Turbo Key

ASUS Turbo Key allows you to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games—with just one touch!

C.P.R. (CPU Parameter Recall)

The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings.

Green ASUS

This motherboard and its packaging comply with the European Union’s Restriction on the use of Hazardous Substances (RoHS). This is in line

with the ASUS vision of creating environment-friendly and recyclable

products/packaging to safeguard consumers’ health while minimizing the

impact on the environment.

1-4 Chapter 1: Product introduction

1.4 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

Onboard LED

The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you must shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

SB_PWR

Standy Power Powered Off

OFF

P5G41-M LE Onboard LED

P5G41-M LE

ASUS P5G41-M LE 1-5

1.5 Motherboard overview

Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Ensure that you unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

1.5.1 Placement direction

When installing the motherboard, ensure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.

1.5.2 Screw holes

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis

P5G41-M LE

1-6 Chapter 1: Product introduction

1.5.3 Motherboard layout

1.5.4 Layout contents

Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page

1. Keyboard power (3-pin KBPWR) 1-21 10. Clear RTC RAM (3-pin CLTRC) 1-20

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

1-25 11. Serial ATA connectors (7-pin SATA 1-4) 1-23

3. USB device wake-up (3-pin USBPW1-4, 3-pin USBPW5-8)

1-21 12. USB connectors (10-pin USB56 and

USB78)

1-27

4. CPU socket 1-7 13. Parallel port connector (26-1 pin LPT) 1-29

5. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)

1-26 14. Serial port connector (10-1 pin COM) 1-29

6. DDR2 DIMM slots 1-12 15. Digital audio connector (4-1 pin

SPDIF_OUT)

1-27

7. IDE connector (40-1 pin PRI_IDE) 1-24 16. Front panel audio connector (10-pin AAFP) 1-26

8. Standby power LED (SB_PWR) 1-4 17. Speaker connector (4-pin SPEAKER) 1-23

9. System panel connector (10-1 pin F_PANEL) 1-28

P5G41-M LE

PCIEX16

PCIEX1_1

PCI2

PCI1

PRI_IDE

LPT

USB56 USB78

F_PANEL

SPDIF_OUT

AAFP

ICS

9LRS954

ATX12V

EATXPWR

CPU_FAN

COM1

Intel

G41

Lithium Cell

CMOS Power

Super

I/O

AUDIO

RTL Audio codec

Atheros

L1E

KBMS

8Mb BIOS

SB_PWR

CLRTC

USBPW1-4

USBPW5-8

KBPWR

SPEAKER

19.8cm(7.8in)

24.4cm(9.6in)

LGA775

Intel

ICH7

DDR2 DIMM_A1 (64bit, 240-pin module)

DDR2 DIMM_B1 (64bit, 240-pin module)

VGA

LAN1_USB12

USB34

SATA1

SATA2

SATA3

SATA4

DVI

221 653 4

12 11314151617 13

ASUS P5G41-M LE 1-7

1.6 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA775 socket designed for the Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® dual-core / Celeron® dual-core / Celeron® processors.

Unplug all power cables before installing the CPU.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the

LGA775 socket.

• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

1.6.1 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

Before installing the CPU, ensure that the cam box is facing towards you and the load lever is on your left.

The motherboard supports Intel® LGA775 processors with the Intel® Enhanced Intel SpeedStep® Technology (EIST) and Hyper-Threading Technology.

P5G41-M LE CPU socket 775

P5G41-M LE

1-8 Chapter 1: Product introduction

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

2. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab.

Load lever

Retention tab

4. Lift the load plate with your thumb and

forenger to a 100º angle (4A), then

push the PnP cap from the load plate window to remove (4B).

3. Lift the load lever in the direction of the

arrow to a 135º angle.

PnP cap

Load plate

5. Position the CPU over the socket, ensuring that the gold triangle is on the

bottom-left corner of the socket then t

the socket alignment key into the CPU notch.

Gold triangle mark

Alignment key

CPU notch

ASUS P5G41-M LE 1-9

6. Apply some Thermal Interface Material to the exposed area of the CPU that the heatsink will be in contact with, ensuring that it is spread in an even thin layer.

DO NOT eat the Thermal Interface Material. If it gets into your eyes or touches your skin, ensure that you wash it off immediately, and seek professional medical help.

Some heatsinks come with pre-applied thermal paste. If so, skip this step.

To prevent contaminating the paste, DO NOT spread the paste with your nger directly.

7. Close the load plate (A), then push the load lever (B) until it snaps into the retention tab.

1-10 Chapter 1: Product introduction

1.6.2 Installing the CPU heatsink and fan

The Intel® LGA775 processor requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.

•

When you buy a boxed Intel® processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, ensure that you use only Intel®-certied multi-directional heatsink and fan.

• Your Intel® LGA775 heatsink and fan assembly comes in a push-pin design and requires no tool to install.

• If you purchased a separate CPU heatsink and fan assembly, ensure that you have properly applied Thermal Interface Material to the CPU heatsink or CPU before you install the heatsink and fan assembly.

Ensure that you have installed the motherboard to the chassis before you install the CPU fan and heatsink assembly.

The type of CPU heatsink and fan assembly may differ, but the installation steps and functions should remain the same. The illustration above is for reference only.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed CPU, ensuring that the four fasteners match the holes on the motherboard.

2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.

Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan connector.

ASUS P5G41-M LE 1-11

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.

Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector.

1.6.3 Uninstalling the CPU heatsink and fan

To uninstall the CPU heatsink and fan:

1. Disconnect the CPU fan cable from the connector on the motherboard.

2. Rotate each fastener counterclockwise.

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard.

CPU_FAN

GND

CPU FAN PWR

CPU FAN IN

CPU FAN PWM

P5G41-M LE CPU fan connector

P5G41-M LE

1-12 Chapter 1: Product introduction

1.7 System memory

1.7.1 Overview

The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory Modules

(DIMM) sockets. The gure illustrates the location of the DDR2 DIMM sockets:

Channel Sockets

Channel A DIMM_A1

Channel B DIMM_B1

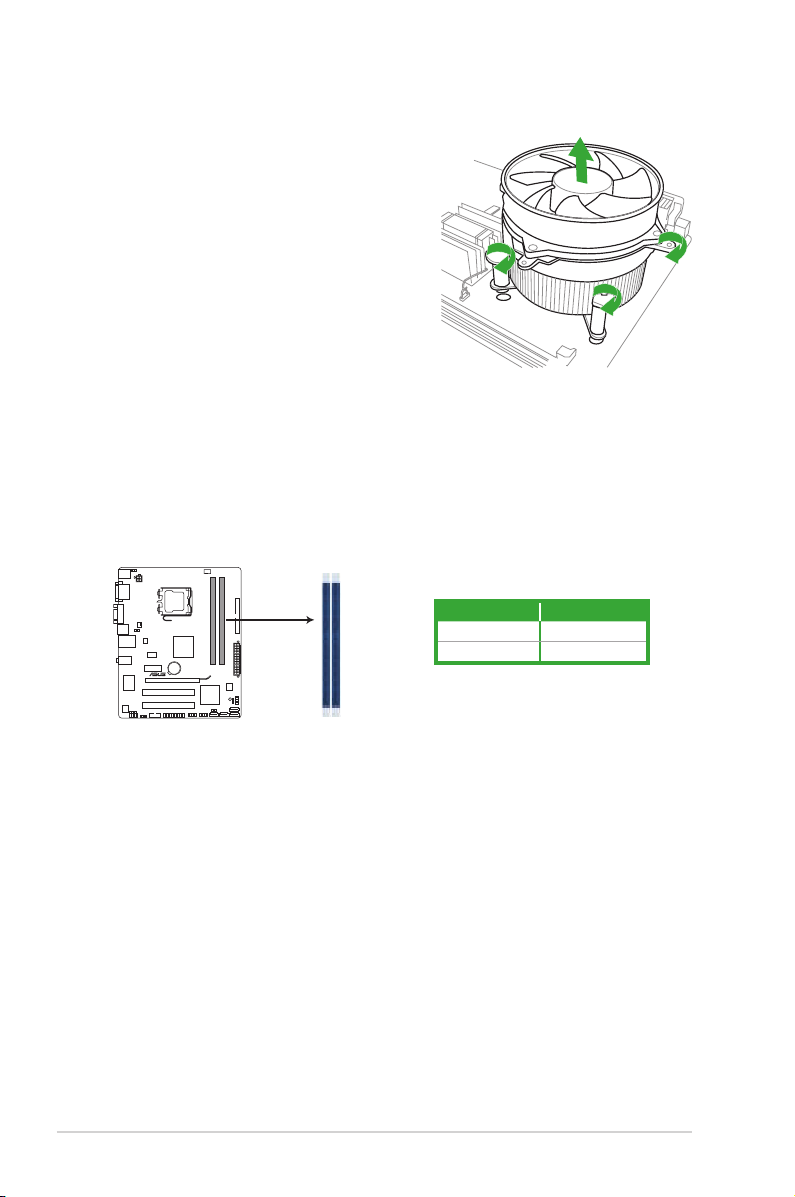

4. Carefully remove the heatsink and fan assembly from the motherboard.

5. Rotate each fastener clockwise to ensure correct orientation when reinstalling.

P5G41-M LE 240-pin DDR2 DIMM sockets

DIMM_A1

DIMM_B1

P5G41-M LE

ASUS P5G41-M LE 1-13

1.7.2 Memory congurations

You may install 512MB, 1GB, 2GB, and 4GB unbuffered non-ECC DDR2 DIMMs into the DIMM sockets.

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel conguration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor.

• Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows

OS.

- Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

• This motherboard does not support DIMMs made up of 256 megabits (Mb) chips or less.

• This motherboard supports up to 8GB on Windows® XP Professional x64 and Windows® Vista x64 editions. You may install a maximum of 4GB DIMMs on each slot.

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, see section 2.4 Advanced menu for manual memory frequency adjustment.

• Some old-version DDR2-800 DIMMs may not match Intel®’s On-Die-Termination (ODT) requirement and will automatically downgrade to run at DDR2-667. If this happens, contact your memory vendor to check the ODT value.

• Due to chipset limitation, DDR2-800 with CL=4 will be downgraded to run at DDR2-667 by default setting. If you want to operate with lower latency, adjust the memory timing manually.

1-14 Chapter 1: Product introduction

P5G41-M LE Motherboard Qualied Vendors Lists (QVL)

DDR2-667 MHz capability

Size Vendor Part No. CL Chip Brand SS/DS Chip No.

DIMM support

A* B*

512MB ADATA M2OAD5G3H3160Q1C52 N/A ADATA SS AD29608A8A-3EG20813 •

1GB ADATA M2OAD5G314170Q1C58 N/A ADATA DS AD29608A8A-3EG80814 • •

2GB ADATA M2OAD5H3J4170I1C53 N/A ADATA DS AD20908A8A-3EG 30724 • •

1GB Apacer 78.01G9O.9K5 5 Apacer SS AM4B5808CQJS7E0751C • •

512MB Apacer 78.91G92.9K5 5 Apacer SS AM4B5708JQJS7E0751C • •

512MB Apacer AU 512E667C5KBGC 5 Apacer SS AM4B5708GQJS7E06332F • •

512MB Apacer AU 512E667C5KBGC 5 Apacer SS AM4B5708MIJS7E0627B • •

2GB Apacer 78.A1G9O.9K4 5 Apacer DS AM4B5808CQJS7E0749B • •

1GB Apacer AU01GE667C5KBGC N/A Apacer DS AM4B5708GQJS7E0636B • •

1GB Apacer AU01GE667C5KBGC 5 Apacer DS AM4B5708MIJS7E0627B • •

1GB Corsair VS1GB667D2 N/A Corsair DS MID095D62864M8CEC • •

1GB Corsair XMS2-5400 4 Corsair DS Heat-Sink Package • •

4GB (2 x 2GB)

G.SKILL F2-5300CL5D-4GBMQ 5-5-5-15 G.SKILL DS Heat-Sink Package • •

2GB (2 x 1GB)

G.SKILL F2-5400PHU2-2GBNT 5-5-5-15 G.SKILL DS D2 64M8CCF 0815 C7173S • •

1GB GEIL GX21GB5300SX 3 GEIL DS Heat-Sink Package • •

2GB GEIL GX22GB5300LX 5 GEIL DS Heat-Sink Package • •

2GB GEIL GX24GB5300LDC 5 GEIL DS Heat-Sink Package • •

1GB HY HYMP 512U64CP8-Y5 AB 5 Hynix DS HY5PS12521CFP-Y5 • •

512MB Kingmax KLCC28F-A8KB5 N/A Kingmax SS KKEA88B4LAUG-29DX • •

1GB Kingmax KLCD48F-A8KB5 N/A Kingmax DS KKEA88B4LAUG-29DX • •

512MB Kingston KVR667D2N5/ 512 N/A Kingston SS SO1237650821 SBP D6408TR4

CGL25USL074905PECNB

• •

1GB Kingston KVR667D2N5/1G N/A Kingston DS SO1280420822 SOP D6408TR4

CGL25USL156304PECXA

• •

2GB Kingston KVR667D2N5/2G N/A Micron DS 7RE22 D9HNL • •

2GB Kingston KVR667D2N5/2G N/A Elpida DS E1108ACBG-8E-E 0813A90CC • •

512MB Nanya NT 512T64U88A1BY-3C N/A Nanya SS NT5TU64M8AE-3C • •

1GB Nanya NT1GT64U8HB0BY-3C 5 Nanya DS NT5TU64M8BE-3C72155700CP • •

512MB PSC AL6E8E63J-6E1 5 PSC SS A3R12E3JFF717B9A00 • •

1GB PSC AL7E8F73C-6E1 5 PSC SS A3R1GE3CFF734MAA0J • •

1GB PSC AL7E8E63J-6E1 5 PSC DS A3R12E3JFF717B9A01 • •

512MB Qimonda HYS64T64000EU-3S-B2 5 Qimonda SS HYB18T

512B00B2F3SFSS28171

• •

1GB Qimonda HYS64T128020EU-3S-B2 5 Qimonda DS HYB18T

512B00B2F3SFSS28171

• •

4GB Samsung M378T5263AZ3-CE6 N/A Samsung DS K4T2G084QA-HCE6 • •

1GB Super Talent T667UB1GV 5 Super Talent DS PG 64M8-800 0750 • •

1GB Transcend JM667QLJ-1G 5 Elpida DS E5108AJBG-6E-E • •

512MB Twinmos 8D-A3JK5MPETP 5 PSC SS A3R12E3GEF633ACAOY • •

512MB AENEON AET660UD00-30DB97X 5 AENEON SS AET93R300B 0634 • •

1GB AENEON AET760UD00-

30DB97X

5 AENEON DS AET93R300B 0639 • •

2GB AENEON AET860UD00-

30DB08X

5 AENEON DS AET03F30DB 0730 • •

(continued on the next page)

ASUS P5G41-M LE 1-15

DDR2 667 Qualied Vendors List

Size Vendor Part No. CL Chip Brand SS/DS Chip No.

DIMM support

A* B*

512MB ASINT SLX264M8-J6E N/A ASINT SS DDRII6408-6E •

1GB ASINT SLY2128M8-J6E N/A ASINT SS DDRII1208-6E 8115 • •

512MB Century CENTURY 512MB N/A Nanya SS NT5TU64M8AE-3C • •

1GB ELIXIR M2Y1G64TU8HA2B-3C 5 ELIXIR DS M2TU 51280AE-3C717095R28F • •

1GB ELIXIR M2Y1G64TU8HBOB-3C 5 ELIXIR DS N2TU 51280BE-3C639009W1CF • •

512MB KINGBOX 512MB 667MHz N/A KINGBOX SS EPD264082200-4 • •

1GB Leadmax LRMP 512U64A8-Y5 N/A Hynix DS HY5PS12821CFP-Y5 C 702AA • •

512MB MDT DDRII 512 PC667 4 MDT DS 18D 51201D-30726E • •

512MB TAKEMS TMS51B264C081-665AP 5 takeMS SS MS18T 51280-3S0627D • •

512MB TAKEMS TMS51B264C081-665QI 5 takeMS SS MS18T 51280-3 • •

1GB TAKEMS TMS1GB264C081-665AE 5 takeMS DS MS18T 51280-3SEA07100 •

1GB TAKEMS TMS1GB264C081-665QI 5 takeMS DS MS18T 51280-3 •

1GB UMAX D46701GP3-63BJU N/A UMAX DS U2S12D30YP-6E • •

2GB UMAX D46702GP0-73BCU 5 UMAX DS U2S24D30TP-6E • •

DDR2 800 Qualied Vendors List

Size Vendor Part No. CL Chip Brand SS/DS Chip No.

DIMM support

A* B*

2GB (2 x 1GB)

A-Data AD2800E001GOU 4-4-4-13 N/A SS Heat-Sink Package • •

512MB A-Data M2OAD6G3H3160Q1E58 N/A ADATA SS AD29608A8A-25EG80812 • •

DDR2 800 A-Data AD2800E002GOU 4-4-4-12 N/A DS Heat-Sink Package • •

4GB (2 x 2GB)

A-Data M2OAD6G314170Q1E58 N/A ADATA DS AD29608A8A-25EG80810 • •

1GB Apacer 78.01GA0.9K5 5 Apacer SS AM4B5808CQJS8E0749D • •

512MB Apacer 78.91G91.9K5 5 Apacer SS AM4B5708JQJS8E0751C • •

2GB Apacer 78.A1GA0.9K4 5 Apacer DS AM4B5808CQJS8E0740E • •

2GB Apacer 78.A1GA0.9K4 5 Apacer DS AM4B5808CQJS8E0747D • •

4GB (2 x 2GB)

Corsair CM2X2048-6400C5DHX 5 Corsair DS Heat-Sink Package • •

4GB (2 x 2GB)

Corsair CM2X2048-6400C5 5 Corsair DS Heat-Sink Package • •

1GB Corsair XMS2-6400 4 Corsair DS Heat-Sink Package • •

1GB Corsair XMS2-6400 5 Corsair DS Heat-Sink Package • •

2GB (2 x 1GB) (EPP)

Crucial BL12864AA804.8FE5 N/A N/A SS Heat-Sink Package • •

2GB (2 x 1GB) (EPP

Crucial BL12864AL804.8FE5 4 N/A SS Heat-Sink Package • •

1GB Elixir M2Y1G64TU88D5B-AC 0828.GS N/A Elixir SS N2TU16800E-AC • •

1GB Elixir M2Y1G64TU8HB0B-25C 5 Elixir DS N2TU 51280BE-

25C802006Z1DV

• •

2GB Elixir M2Y2G64TU8HD5B-AC

0826.SG

N/A Elixir DS N2TUG80DE-AC • •

1GB (2 x 512MB)

G.SKILL F2-6400CL5D-1GBNQ 5-5-5-15 G.SKILL SS Heat-Sink Package • •

1GB G.SKILL F2-6400CL4D-2GBHK 4 G.SKILL DS Heat-Sink Package • •

(continued on the next page)

1-16 Chapter 1: Product introduction

DDR2 800 Qualied Vendors List

(continued on the next page)

Size Vendor Part No. CL Chip Brand SS/DS Chip No.

DIMM support

A* B*

1GB G.SKILL F2-6400CL4D-2GBPK 4 G.SKILL DS Heat-Sink Package • •

1GB G.SKILL F2-6400CL4D-4GBPK 4 G.SKILL DS Heat-Sink Package • •

1GB G.SKILL F2-6400CL5D-2GBNQ 5 G.SKILL DS Heat-Sink Package • •

2GB G.SKILL F2-6400CL5D-4GBPQ 5 G.SKILL DS Heat-Sink Package • •

4GB G.SKILL F2-6400CL5Q-16GNQ 5 G.SKILL DS Heat-Sink Package • •

1GB GEIL GB22GB6400C4DC 4 GEIL DS GL2L64M088BA30EB • •

1GB GEIL GB22GB6400C5DC 5 GEIL DS GL2L64M088BA30EB • •

2GB GEIL GB24GB6400C4DC 4 GEIL DS GL2L128M88BA25AB • •

1GB GEIL GB24GB6400C4QC 4 GEIL DS GL2L64M088BA30EB • •

2GB GEIL GB24GB6400C5DC 5 GEIL DS GL2L128M88BA25AB • •

1GB GEIL GB24GB6400C5QC 5 GEIL DS GL2L64M088BA30EB • •

2GB GEIL GB28GB6400C4QC 4 GEIL DS GL2L128M88BA25AB • •

2GB GEIL GB28GB6400C5QC 5 GEIL DS GL2L128M88BA25AB • •

1GB GEIL GE22GB800C4DC 4 GEIL DS Heat-Sink Package • •

1GB GEIL GE22GB800C5DC 5 GEIL DS Heat-Sink Package • •

2GB GEIL GE24GB800C4DC 4 GEIL DS Heat-Sink Package • •

1GB GEIL GE24GB800C4QC 4 GEIL DS Heat-Sink Package • •

2GB GEIL GE24GB800C5DC 5 GEIL DS Heat-Sink Package • •

1GB GEIL GE24GB800C5QC 5 GEIL DS Heat-Sink Package • •

2GB GEIL GE28GB800C4QC 4 GEIL DS Heat-Sink Package • •

2GB GEIL GE28GB800C5QC 5 GEIL DS Heat-Sink Package • •

2GB GEIL GX22GB6400CUSC 4 GEIL DS Heat-Sink Package • •

1GB GEIL GX22GB6400DC 5 GEIL DS Heat-Sink Package • •

2GB GEIL GX22GB6400LX 5 GEIL DS Heat-Sink Package • •

1GB GEIL GX22GB6400UDC 4 GEIL DS Heat-Sink Package • •

2GB GEIL GX24GB6400DC 5 GEIL DS Heat-Sink Package • •

512MB HY HYMP564U64CP8-S5 AB 5 Hynix SS HY5PS12821CFP-S5 • •

1GB HY HYMP 512U64CP8-S5 AB 5 Hynix DS HY5PS12821CFPS5 • •

512MB Kingmax KLDC28F-A8KI5 N/A Kingmax SS KKA8FF1XF-JFS-25A • •

1GB Kingmax KLDD48F-B8KB5 N/A Kingmax SS KKB8FFBGXF-CFA-25U • •

2GB Kingmax KLDE88F-B8KB5 N/A Kingmax DS KKB8FFBGXF-CFA-25U • •

512MB Kingston KHX6400D2LLK2/1GN N/A Kingston SS Heat-Sink Package • •

512MB Kingston KVR800D2N5/ 512 N/A Kingston SS E5108AJBG-8E-E

0803A9082

• •

512MB Kingston KVR800D2N6/ 512 N/A Elpida SS E5108AJBG-8E-E • •

2GB Kingston KHX6400D2/2G N/A Kingston DS Heat-Sink Package • •

2GB (2 x 1GB)

Kingston KHX6400D2K2/2G N/A Kingston DS Heat-Sink Package • •

1GB Kingston KHX6400D2LL/1G N/A Kingston DS Heat-Sink Package • •

1GB kingston KVR800D2N5/1G N/A kingston DS D6408TR4CGL25USL3624

06PECXA

• •

2GB Kingston KVR800D2N5/2G N/A Elpida DS E1108ACBG-8E-E • •

1GB Kingston KVR800D2N6/1G N/A Elpida DS E5108AJBG-8E-E • •

2GB Kingston KVR800D2N6/2G N/A Kingston DS 461625.010819 PTGC • •

4GB Kingston KVR800D2N6/4G N/A Elpida DS E2108ABSE-8G-E • •

1GB OCZ OCZ2G800R22GK 5 OCZ DS Heat-Sink Package • •

ASUS P5G41-M LE 1-17

Size Vendor Part No. CL Chip Brand SS/DS Chip No.

DIMM support

A* B*

2GB OCZ OCZ2P8004GK 5 OCZ DS Heat-Sink Package • •

1GB OCZ OCZ2P800R22GK 4 OCZ DS Heat-Sink Package • •

1GB OCZ OCZ2RPR8002GK 4 OCZ DS Heat-Sink Package • •

1GB OCZ OCZ2VU8004GK 6 OCZ DS Heat-Sink Package • •

1GB PSC AL7E8F73C-8E1 5 PSC SS A3R1GE3CFF734MAA0E • •

2GB PSC AL8E8F73C-8E1 5 PSC DS A3R1GE3CFF734MAA0E • •

2GB PSC PL8E8F73C-8E1 N/A psc DS SHG772-AA3G • •

2GB PSC PL8E8G73E-8E1 N/A psc DS XCP271A3G-A • •

512MB Qimonda HYS64T64000EU-2.5-B2 6 Qimonda SS HYB18T

512800B2F25FSS28380

• •

1GB Qimonda HYS64T128020EU-2.5-B2 6 Qimonda DS HYB18T

512800B2F25FSS28380

• •

1GB Samsung M378T2863QZS-CF7 6 Samsung SS K4T1G084QQ-HCF7 • •

512MB Samsung M378T6553GZS-CF7 6 Samsung SS K4T51083QG-HCF7 • •

2GB Samsung M37875663QZ3-CF7 6 Samsung DS K4T1G084QQ-HCF7 • •

1GB Samsung M378T2953GZ3-CF7 6 Samsung DS K4T51083QG-HCF7 • •

4GB Samsung M378T5263AZ3-CF7 N/A Samsung DS K4T2G084QA-HCF7 • •

1GB Super

Talent

T800UB1GC4 4 Super Talent DS Heat-Sink Package • •

1GB Transcend JM800QLU-1G 5 Transcend SS TQ1243PCF8 • •

1GB Transcend TS128MLQ64V8U 5 Elpaid SS E1108ACBG-8E-E • •

512MB Transcend TS64MLQ64V8J 5 Micron SS 7HD22 D9GMH • •

1GB Transcend JM800QLJ-1G 5 Transcend DS TQ123PJF8F0801 • •

2GB Transcend JM800QLU-2G 5 Transcend DS TQ243PCF8 • •

1GB Transcend TS128MLQ64V8J 5 Mircon DS 7HD22D9GMH • •

2GB Transcend TS256MLQ64V8U 5 Elpida DS E1108ACBG-8E-E • •

512MB VDATA M2GVD6G3H3160Q1E52 N/A VDATA SS VD29608A8A-25EG20813 • •

1GB VDATA M2GVD6G314170Q1E58 N/A VDATA DS VD29608A8A-25EG80813 • •

512MB AENEON AET660UD00-25DB98X N/A AENEON SS AET93F25DB 0621 • •

1GB AENEON AET760UD00-25DC08X 5 AENEON SS AET03R250C 0732 • •

1GB AENEON AET760UD00-25DB97X 5 AENEON DS AET93R25DB 0640 • •

2GB AENEON AET860UD00-25DC08X 5 AENEON DS AET03R250C 0732 •

1GB ASINT SLY2128M8-JGE N/A ASINT SS DDRII1208-GE 8115 • •

2GB ASINT SLZ2128M8-JGE N/A ASINT DS DDRII1208-GE 8115 • •

1GB Century 28V0H8 5 Hynix DS HY5PS12821CFP-S5 • •

512MB MDT MDT 512MB 5 MDT SS 18D 51280D-2.50726F • •

1GB MDT MDT 1024MB 5 MDT DS 18D 51280D-2.50726E • •

512MB TAKEMS TMS51B264C081-805EP 5 takeMS SS MS18T 51280-2.5P0710 • •

1GB TAKEMS TMS1GB264C081-805EP 5 takeMS DS MS18T 51280-2.5P0716 • •

1GB UMAX D48001GP3-63BJU N/A UMAX DS U2S12D30TP-8E • •

2GB UMAX D48002GP0-73BCU 5 UMAX DS U2S24D30TP-8E •

2048MB (2 x 1024MB)

Crucial BL12864AL80A.8FE5(EPP) 4-4-4-12 N/A SS Heat-Sink Package • •

4096MB (2 x 2048MB)

Crucial BL25664AL80A.16FE5(EPP) 4-4-4-12 N/A DS Heat-Sink Package • •

4096MB (2 x 2048MB)

Crucial BL25664AR80A.16FE5(EPP) 4-4-4-12 N/A DS Heat-Sink Package • •

(continued on the next page)

DDR2 800 Qualied Vendors List

1-18 Chapter 1: Product introduction

Size Vendor Part No. CL Chip Brand SS/DS Chip No.

DIMM support

A* B*

2048MB (2 x 1024MB)

OCZ OCZ2SE8002GK 5-5-5-15 N/A DS Heat-Sink Package • •

2048MB OCZ OCZ2F8004GK 5 N/A DS Heat-Sink Package • •

2048MB Qimonda HYS64T256020EU-2.5-C2 5 Qimonda DS 800HY818T1G800C2F-2.5 • •

1024MB Transcend JM800QLJ-1G 5 Transcend DS TQ123YBF8 T0747 • •

DDR2 800 Qualied Vendors List

DDR2 1066 Qualied Vendors List

Size Vendor Part No. CL Chip Brand SS/DS Chip No

DIMM support

A* B*

2GB (2 x 1GB)

A-data AD21066E001GOU N/A N/A SS Heat-Sink Package • •

2048MB (2 x 1024MB)

A-DATA Heat-Sink Package 5-5-5-15 N/A SS AD21066E001GU • •

2GB (2 x 1GB)

Apacer 78.0AG9S.9K4 5-5-5-15 NA DS Heat-Sink Package • •

4GB (2 x 2GB)

Apacer 78.AAGAL.9KZ 5-5-5-15 NA DS Heat-Sink Package • •

1GB Corsair CM2X1024-8500C5 N/A Corsair DS Heat-Sink Package • •

2GB (2 x 1GB)

Crucial BL12864AA1065.8FE5 N/A N/A SS Heat-Sink Package • •

2GB (2 x 1GB)

G.SKILL F2-8500CL5D-2GBPK 5-5-5-15 N/A DS Heat-Sink Package • •

4GB (2 x 2GB)

G.SKILL F2-8500CL5D-4GBPK 5-5-5-15 N/A DS Heat-Sink Package • •

1GB G.SKILL F2-8500CL5S-1GBPK 5-5-5-15 G.SKILL DS Heat-Sink Package • •

1GB GEIL GB22GB8500C5DC 5 GEIL SS GL2L128M88BA25AB • •

1GB GEIL GB24GB8500C5QC 5 GEIL SS GL2L128M88BA25AB • •

1GB GEIL GE22GB1066C5DC 5 GEIL SS Heat-Sink Package • •

2GB GEIL GB24GB8500C5DC 5 GEIL DS GL2L128M88BA25AB • •

2GB GEIL GE24GB1066C5DC 5 GEIL DS Heat-Sink Package • •

1GB GEIL GE24GB1066C5QC 5 GEIL DS Heat-Sink Package • •

4GB (2 x 2GB)

GEIL GX24GB8500C5UDC 5 N/A DS Heat-Sink Package • •

1GB Kingmax KLED48F-A8K15 N/A Kingmax DS KKA8FFIXF-JFS-18A • •

2GB Kingmax KLEE88F-B8KO6 N/A Kingmax DS KKB8FMOXF-EXX-18A • •

512MB Kingston KHX8500D2/ 512 N/A Kingston SS Heat-Sink Package • •

512MB Kingston KHX8500D2K2/1GN N/A Kingston SS Heat-Sink Package • •

512MB Kingston KVR1066D2N7/ 512 N/A Elpida SS E5108AJBG-1J-E • •

2048MB Kingston Heat-Sink Package 7-7-7-20 N/A DS KHX8500AD2/2G • •

1GB Kingston KHX8500D2/1G N/A Kingston DS Heat-Sink Package • •

1GB Kingston KHX8500D2K2/2GN N/A Kingston DS Heat-Sink Package • •

1GB Kingston KVR1066D2N7/1G N/A Elpida DS E5108AJBG-1J-E • •

2GB (2 x 1GB)

OCZ OCZ2N10662GK 5-5-5 N/A DS Heat-Sink Package • •

2GB (2 x 1GB)

OCZ OCZ2N1066SR2DK 5-5-5-15 OCZ DS Heat-Sink Package(EPP) • •

(continued on the next page)

ASUS P5G41-M LE 1-19

SS - Single-sided / DS - Double - sided DIMM support:

• A*: Supports one module inserted into either slot as the single-channel memory

conguration.

• B*: Supports one pair of modules inserted into both the blue slots as one pair of

dual-channel memory conguration.

Visit the ASUS website at www.asus.com for the latest QVL.

Size Vendor Part No. CL Chip Brand SS/DS Chip No

DIMM support

A* B*

4GB (2 x 2GB)

OCZ OCZ2RPR10664GK 5-5-5 N/A DS Heat-Sink Package • •

1GB Qimonda HYS64T128000EU-1.9-C2 N/A Qimonda DS HYB18T1G800C2F-

1.9FSS25253

• •

1GB Qimonda HYS64T128020EU-19F-C 6 Qimonda DS HYB18T

512800CF19FFSS24313

• •

2GB (2 x 1GB)

Transcend TX1066QLU-2GK 5 Transced SS Heat-Sink Package • •

1GB Transcend TX1066QLJ-2GK 5 Transced DS Heat-Sink Package • •

1GB AENEON AXT760UD00-19DC97X 5 AENEON DS Heat-Sink Package • •

512MB Kingbox EP 512D21066PS N/A Micron SS 6QD22D9GCT • •

2048MB (2 x 1024MB)

Mushkin Heat-Sink Package 5-5-5-15 N/A DS 996612 • •

4096MB (2 x 2048MB)

Mushkin Heat-Sink Package 5-5-5-15 N/A DS 996616 •

4096MB (2 x 2048MB)

Team Heat-Sink Package 5-5-5-15 N/A DS TXDD2048M1066HC5-D • •

1024MB Elixir M2Y1G64TU88D5B-BD 5 Elixir SS M2TU1G800E-BD • •

DDR2 1066 Qualied Vendors List

1-20 Chapter 1: Product introduction

1.7.3 Installing a DIMM

Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components.

To install a DIMM:

1. Press the retaining clips outward to unlock a DDR2 DIMM socket.

2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

Unlocked retaining clip

DDR2 DIMM notch

A DDR2 DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a

DIMM into a socket to avoid damaging the DIMM.

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place and the DIMM is properly seated.

Locked Retaining Clip

1.7.4 Removing a DIMM

To remove a DIMM:

1. Simultaneously press the retaining clips outward to unlock the DIMM.

2. Remove the DIMM from the socket.

Support the DIMM lightly with

your ngers when pressing the

retaining clips. The DIMM might

get damaged when it ips out with

extra force.

DDR2 DIMM notch

ASUS P5G41-M LE 1-21

1.8 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.8.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press rmly until the card is completely

seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.8.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.

2. Assign an IRQ to the card.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that

the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI

groups, making the system unstable and the card inoperable.

1.8.3 PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that

comply with PCI specications.

1.8.4 PCI Express x1 slot

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that

comply with the PCI Express specications.

1.8.5 PCI Express x16 slot

This motherboard supports a PCI Express x16 graphics card that complies with the PCI

Express specications.

1-22 Chapter 1: Product introduction

1.9 Jumpers

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

• If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values.

• Due to the chipset limitation, AC power off is required before you use the C.P.R. function. You must turn off and on the power supply or unplug and plug the power cord before rebooting the system.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

P5G41-M LE Clear RTC RAM

1 2

2 3

Normal

(Default)

Clear RTC

CLRTC

P5G41-M LE

ASUS P5G41-M LE 1-23

2. Keyboard power (3-pin KBPWR)

This jumper allows you to enable or disable the keyboard wake-up feature. When you set this jumper to pins 2–3 (+5VSB), you can wake up the computer by pressing a key on the keyboard (the default is the Space Bar). This feature requires an ATX power supply that can supply at least 1A on the +5VSB lead, and a corresponding setting in the BIOS.

3. USB device wake-up (3-pin USBPW1-4, 3-pin USBPW5-8)

Set these jumpers to +5V to wake up the computer from S1 sleep mode (CPU stopped, DRAM refreshed, system running in low power mode) using the connected USB devices. Set to +5VSB to wake up from S3 and S4 sleep modes (no power to CPU, DRAM in slow refresh, power supply in reduced power mode).

P5G41-M LE Keyboard Power Setting

2 3

+5V

(Default)

+5VSB

KBPWR

P5G41-M LE

P5G41-M LE USB Device Wake Up

2 3

+5V

(Default)

+5VSB

USBPW5-8

2 3

+5V

+5VSB

(Default)

USBPW1-4

P5G41-M LE

1-24 Chapter 1: Product introduction

1.10 Connectors

1.10.1 Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.

2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other

VGA-compatible devices.

3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)

through a network hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

ACT/LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

ORANGE Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

4. Line In port (light blue).

This port connects the tape, CD, DVD player, or other audio

sources.

5. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel and

6-channel congurations, the function of this port becomes Front Speaker Out.

6. Microphone port (pink). This port connects a microphone.

Refer to the audio conguration table below for the function of the audio ports in 2, 4, or 6-channel conguration.

Audio 2, 4, or 6-channel conguration

Port Headset 2-channel 4-channel 6-channel

Light Blue Line In Rear Speaker Out Rear Speaker Out

Lime Line Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Bass/Center

LAN port

SPEED

LED

ACT/LINK

LED

4 5

ASUS P5G41-M LE 1-25

7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

8. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

9. DVI port. This port is for any DVI-D compatible device. DVI-D cannot be converted

from output RGB Signal to CRT and is not compatible with DVI-I.

10. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

1.10.2 Internal connectors

1. Serial ATA connectors (7-pin SATA1-4)

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

2. Speaker connector (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

SATA2

GND

RSATA_RXN2

RSATA_RXP2

GND

RSATA_TXN2

RSATA_TXP2

GND

SATA4

GND

RSATA_RXN4

RSATA_RXP4

GND

RSATA_TXN4

RSATA_TXP4

GND

SATA1

GND

RSATA_RXN1

RSATA_RXP1

GND

RSATA_TXN1

RSATA_TXP1

GND

SATA3

GND

RSATA_RXN3

RSATA_RXP3

GND

RSATA_TXN3

RSATA_TXP3

GND

P5G41-M LE SATA connectors

P5G41-M LE

P5G41-M LE Speaker Out Connector

+5V

GND

Speaker Out

SPEAKER

PIN 1

P5G41-M LE

1-26 Chapter 1: Product introduction

3. IDE connector (40-1 pin PRI_IDE)

The onboard IDE connector is for the Ultra DMA 100/66/33 signal cable. There are three connectors on each Ultra DMA 100/66/33 signal cable: blue, black, and gray.

Connect the blue connector to the motherboard’s IDE connector, then select one of the following modes to congure your device.

Drive jumper setting Mode of device(s) Cable connector

Single device Cable-Select or Master - Black

Two devices

Cable-Select

Master Black

Slave Gray

Master Master

Black or gray

Slave Slave

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 100/66/33 IDE devices.

If any device jumper is set as “Cable-Select,” ensure that all other device jumpers have the same setting.

PRI_IDE

NOTE:Orient the red markings on the IDE ribbon cable to PIN 1.

PIN1

P5G41-M LE IDE connector

P5G41-M LE

ASUS P5G41-M LE 1-27

4. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and push down rmly until the connectors completely t.

•

For a fully congured system, we recommend that you use a power supply unit (PSU)

that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum

power of 400 W.

• Do not forget to connect the 4-pin ATX12V power plug. Otherwise, the system will not boot.

• We recommend that you use a PSU with a higher power output when conguring a

system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.

P5G41-M LE ATX power connectors

EATXPWR

PIN 1

GND +5 Volts +5 Volts +5 Volts

-5 Volts GND GND GND PSON# GND

-12 Volts +3 Volts

+3 Volts +12 Volts +12 Volts

+5V Standby

Power OK

GND

+5 Volts

GND

+5 Volts

GND +3 Volts +3 Volts

ATX12V

PIN 1

+12V DC

GND

P5G41-M LE

1-28 Chapter 1: Product introduction

6. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this connector to avail of the motherboard’s high-denition audio capability.

• If you want to connect a high-denition front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD Audio]. If you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD Audio]. See section 2.4.3 Chipset for details.

P5G41-M LE

P5G41-M LE Analog front panel connector

AAFP

PIN 1

GND

PRESENCE#

SENSE1_RETUR

SENSE2_RETUR

PORT1 L

PORT1 R

PORT2 R

SENSE_SEND

PORT2 L

HD-audio-compliant

pin definition

PIN 1

AGNDNCNC

MIC2

MICPWR

Line out_R

Line out_L

Legacy AC’97

compliant definition

Do not forget to connect the CPU fan cables to the fan connector. Insufcient air ow inside

the system may damage the motherboard components. This is not a jumper! Do not place a jumper cap on the fan connector!

5. CPU and chassis fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN)

The fan connectors support cooling fans of 350 mA~2000 mA (24 W max.) or a total of 1 A~3.48 A (41.76 W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

CPU_FAN

GND

CPU FAN PWR

CPU FAN IN

CPU FAN PWM

P5G41-M LE fan connectors

P5G41-M LE

CHA_FAN

Rotation

+12V

GND

ASUS P5G41-M LE 1-29

8. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.

7. USB connectors (10-1 pin USB56, USB78)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB module cable is purchased separately.

P5G41-M LE USB2.0 connectors

PIN 1

USB+5V

USB_P6-

USB_P6+

GND

USB+5V

USB_P5-

USB_P5+

GND

USB56

PIN 1

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

USB78

P5G41-M LE

SPDIF_OUT

+5V

SPDIFOUT

GND

P5G41-M LE Digital audio connector

P5G41-M LE

1-30 Chapter 1: Product introduction

9. System panel connector (10-1 pin F_PANEL)

This connector supports several chassis-mounted functions.

• System power LED (2-pin PWRLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

•

Hard disk drive activity LED (2-pin HD_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

•

ATX power button/soft-off button (2-pin PWRBTN)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

•

Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

PIN 1

PWR BTN

GND

PWR

PLED-

PLED+

Reset Ground IDE_LEDIDE_LED+

F_PANEL

PWR LED

HD_LED RESET

P5G41-M LE System panel connector

P5G41-M LE

ASUS P5G41-M LE 1-31

10. Parallel port connector (26-1 pin LPT)

This connector is for a parallel port. Connect the parallel port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

11. Serial port connector (10-1 pin COM)

This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

P5G41-M LE Parallel Port Connector

PIN 1

LPT

SLCTPEBUSY

ACK#

PD7

PD6

PD5

PD4

PD3

PD2

PD1

PD0

STB#

GND

SLIN#

INIT#

ERR#

AFD

P5G41-M LE

P5G41-M LE Serial port (COM1) connector

PIN 1

COM1

P5G41-M LE

1-32 Chapter 1: Product introduction

1.11 Software support

1.11.1 Installing an operating system

This motherboard supports Windows® XP/Vista Operating Systems (OS). Always install the

latest OS version and corresponding updates to maximize the features of your hardware.

• Motherboard settings and hardware options vary. Refer to your OS documentation for detailed information.

• Ensure that you install Windows® XP Service Pack 3 or later versions / Windows® Vista Service Pack 1 or later versions before installing the drivers for better compatibility and system stability.

1.11.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

To run the Support DVD

Place the Support DVD to the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

The following screen is for reference only.

Click an item to install

Click an icon to display Support DVD/motherboard information

ASUS P5G41-M LE 2-1

Chapter 2

BIOS information

Save a copy of the original motherboard BIOS le to a USB ash disk in case you need to

restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility.

• ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

• This utility is available in the support DVD that comes with the motherboard package.

Updating the BIOS

To update the BIOS:

1. From the Windows® desktop, click Start > Programs > ASUS > ASUSUpdate >

ASUSUpdate to launch the ASUS Update utility.

2. From the dropdown list, select any of the updating process:

2.1.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment.

Installing ASUS Update

To install ASUS Update:

1. Place the support DVD in the optical drive. The Drivers menu appears.

2. Click the Utilities tab, then click ASUS Update.

3. Follow the onscreen instructions to complete the installation.

Quit all Windows® applications before you update the BIOS using this utility.

2.1 Managing and updating your BIOS

2-2 Chapter 2: BIOS information

2.1.2 ASUS EZ Flash 2 utility

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

Before you start using this utility, download the latest BIOS le from the ASUS website at

www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB ash disk that contains the latest BIOS le to the USB port, then launch

EZ Flash 2 in any of these two ways:

• Press <Alt> + <F2> during POST to display the following:

Updating from the Internet

a. Select Update BIOS from the Internet, then click Next.

b. Select the ASUS FTP site nearest you to avoid network trafc, or click Auto

Select then click Next.

c. From the FTP site, select the BIOS version that you wish to download then click

Next.

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating from a BIOS file

a. Select Update BIOS from a le, then click Next.

b. Locate the BIOS le from the Open window, then click Open.

3. Follow the onscreen instructions to complete the updating process.

ASUSTek EZ Flash 2 BIOS ROM Utility V3.36

Current ROM

Update ROM

Note

FLASH TYPE: WOINBOND W25X80

PATH: A:\

BOARD: P5G41-M LE VER: 0203 (H:00 B:01) DATE: 02/24/2009

BOARD: Unknown VER: Unknown DATE: Unknown

[Enter] Select or Load [Tab] Switch [V] Drive Info

[Up/Down/Home/End] Move [B] Backup [ESC] Exit

ASUS P5G41-M LE 2-3

• Enter the BIOS setup program. Go to the Tools menu to select EZ Flash 2 and press <Enter> to enable it. Press <Tab> to switch between drives until the correct BIOS le is found.

2. When the correct BIOS le is found, EZ Flash 2 performs the BIOS update process

and automatically reboots the system when done.

2.1.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS le

when it fails or gets corrupted during the updating process. You can update a corrupted BIOS

le using the motherboard support DVD or a USB ash disk that contains the updated BIOS le.

• Prepare the motherboard support DVD or the USB ash disk containing the updated

motherboard BIOS before using this utility.

• Always connect the SATA cable to the SATA1 / SATA 2 connector. Otherwise, the utility will not function.

Bad BIOS checksum. Starting BIOS recovery... Checking for CD-ROM... CD-ROM not found! Checking for USB Device...

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.

2. Insert the support DVD or USB ash disk containing the BIOS le to the optical drive or

USB port.

3. The utility displays the following message and automatically checks the support DVD

or USB ash disk for the BIOS le.

When found, the utility reads the BIOS le and starts erasing the corrupted BIOS le.

Bad BIOS checksum. Starting BIOS recovery... Checking for USB Device... USB Device found.

Reading le “P5G41MLE”. Completed.

Start Erasing...\

• Only a USB ash disk with FAT 32/16 format and single partition can support the ASUS EZ Flash 2 utility.

• Do not shut down or reset the system while updating the BIOS to prevent system boot failure!

2-4 Chapter 2: BIOS information

• Only a USB ash disk with FAT 32/16 format and single partition can support ASUS CrashFree BIOS 3. The device size should be smaller than 8GB.

• DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

4. Restart the system after the utility completes the updating process.

The recovered BIOS may not be the latest BIOS version for this motherboard. Download

the latest BIOS le from the ASUS website at www.asus.com.

2.2 BIOS setup program

This motherboard supports a programmable Serial Peripheral Interface (SPI) chip that you can update using the provided utility described in section “2.1 Managing and updating your BIOS.”

Use the BIOS Setup program when you are installing a motherboard, reconguring your system, or prompted to “Run Setup.” This section explains how to congure your system

using this utility.

Even if you are not prompted to use the Setup program, you can change the conguration of

your computer in the future. For example, you can enable the security password feature or

change the power management settings. This requires you to recongure your system using the BIOS Setup program so that the computer can recognize these changes and record them

in the CMOS RAM of the SPI chip. The SPI chip on the motherboard stores the Setup utility. When you start up the computer,

the system provides you with the opportunity to run this program. Press <Del> during the Power-On Self-Test (POST) to enter the Setup utility. Otherwise, POST continues with its test routines.

If you wish to enter Setup after POST, reboot the system by doing any of the following procedures:

• Restart using the OS standard shutdown procedure.

• Press <Ctrl>+<Alt>+<Del> simultaneously.

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on.

Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a running operating system can cause damage to your data or system. We recommend to always shut down the system properly from the operating system.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various submenus and make your selections from the available options using the navigation keys.

ASUS P5G41-M LE 2-5

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Setups Default item under the Exit Menu. See section 2.8 Exit Menu.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the ASUS website at www.asus.com to download the latest BIOS le for this

motherboard.

2.2.2 Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system conguration.

Advanced For changing the advanced system settings.

Power For changing the advanced power management (APM)

conguration.

Boot For changing the system boot conguration.

Tools For conguring options for special functions.

Exit For selecting the exit options and loading default settings.

To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted.

2.2.1 BIOS menu screen

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

System Time [00:31:48]

System Date [Mon 01/14/2002]

Primary IDE Master :[Not Detected] Primary IDE Slave :[Not Detected] SATA 1 :[Not Detected] SATA 2 :[Not Detected] SATA 3 :[Not Detected] SATA 4 :[Not Detected]

Storage Conguration

System Information

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system Time.

Navigation keys

General help

Menu bar

Submenu items

Conguration eldsMenu items

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

2-6 Chapter 2: BIOS information

2.2.3 Navigation keys

At the bottom right corner of a menu screen are the navigation keys for that particular menu. Use the navigation keys to select items in the menu and change the settings.

Some of the navigation keys differ from one screen to another.

2.2.4 Menu items

The highlighted item on the menu bar displays the specic items for that menu. For example,

selecting Main shows the Main menu items. The other items (Advanced, Power, Boot, Tools, and Exit) on the menu bar have their

respective menu items.

2.2.5 Submenu items

A solid triangle before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press <Enter>.

2.2.6 Conguration elds

These elds show the values for the menu items. If an item is user- congurable, you can change the value of the eld opposite the item. You cannot select an item that is not usercongurable.A congurable eld is enclosed in brackets, and is highlighted when selected. To change the value of a eld, select it then press <Enter> to display a list of options. Refer to

2.2.7 Pop-up window.

2.2.7 Pop-up window

Select a menu item then press <Enter> to display a pop-up

window with the conguration

options for that item.

2.2.8 Scroll bar

A scroll bar appears on the right side of a menu screen when there

are items that do not t on the

screen. Press the <Up> / <Down> arrow keys or <Page Up> /<Page Down> keys to display the other items on the screen.

2.2.9 General help

At the top right corner of the menu screen is a brief description of the selected item.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

Suspend Mode [Auto] ACPI Version Features [Disabled] ACPI APIC support [Enabled]

APM Conguration

Hardware Monitor

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system

Time.

Options

Disabled

Enabled

Pop-up window

Scroll bar

ASUS P5G41-M LE 2-7

2.3 Main menu

When you enter the BIOS Setup program, the Main menu screen appears, giving you an overview of the basic system information.

Refer to section 2.2.1 BIOS menu screen for information on the menu screen items and how to navigate through them.

2.3.1 System Time [xx:xx:xx]

Allows you to set the system time.

2.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.3.3 Primary IDE Master/Slave, SATA1~4

While entering Setup, the BIOS automatically detects the presence of IDE/SATA devices. There is a separate submenu for each IDE/SATA device. Select a device item then press <Enter> to display the IDE/SATA device information.

The BIOS automatically detects the values opposite the dimmed items (Device, Vendor, Size,

LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART monitoring). These

values are not user-congurable. These items show N/A if no IDE/SATA device is installed in

the system.

Type [Auto]

Selects the type of IDE drive. Setting to Auto allows automatic selection of the appropriate

IDE device type. Select CDROM if you are specically conguring a CD-ROM drive. Select

ARMD (ATAPI Removable Media Device) if your device is either a ZIP, LS-120, or MO drive.

Conguration options: [Not Installed] [Auto] [CDROM] [ARMD]

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

System Time [12:56:38]

System Date [Mon 01/14/2002]

Primary IDE Master :[Not Detected] Primary IDE Slave :[Not Detected] SATA 1 :[Not Detected] SATA 2 :[Not Detected] SATA 3 :[Not Detected] SATA 4 :[Not Detected]

Storage Conguration

System Information

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system time.

This item does not appear when you select the SATA 1/2/3/4 devices.

2-8 Chapter 2: BIOS information

LBA/Large Mode [Auto]

Enables or disables the LBA mode. Setting to [Auto] enables the LBA mode if the device supports this mode, and if the device was not previously formatted with LBA mode disabled.

Conguration options: [Disabled] [Auto]

Block (Multi-sector Transfer) M [Auto]

Enables or disables data multi-sectors transfers. When set to [Auto], the data transfer from and to the device occurs multiple sectors at a time if the device supports multi-sector transfer feature. When set to [Disabled], the data transfer from and to the device occurs one sector

at a time. Conguration options: [Disabled] [Auto]

PIO Mode [Auto]

Selects the PIO mode. Conguration options: [Auto] [0] [1] [2] [3] [4]

DMA Mode [Auto]

Selects the DMA mode. Conguration option: [Auto]

SMART Monitoring [Auto]

Sets the Smart Monitoring, Analysis, and Reporting Technology.

Conguration options: [Auto] [Disabled] [Enabled]

32Bit Data Transfer [Enabled]

Enables or disables 32-bit data transfer. Conguration options: [Disabled] [Enabled]

2.3.4 Storage Conguration

The items in this menu allow you to set or change the congurations for the SATA devices installed in the system. Select an item then press <Enter> if you want to congure the item.

ATA/IDE Conguration [Enhanced]

Allows you to set the ATA/IDE conguration. Conguration options: [Disabled] [Compatible] [Enhanced]

Enhanced Mode Support On [S-ATA]

Set Serial ATA, Parallel ATA or both as native mode. Conguration options: [S-ATA] [S-ATA+P-ATA] [P-ATA].

IDE Detect Time Out (Sec) [35]

Selects the time out value for detecting ATA/ATAPI devices.

Conguration options: [0] [5] [10] [15] [20] [25] [30] [35]

ASUS P5G41-M LE 2-9

2.3.5 System Information

This menu gives you an overview of the general system specications. The BIOS

automatically detects the items in this menu.

BIOS Information

Displays the auto-detected BIOS information.

Processor

Displays the auto-detected CPU specication.

System Memory

Displays the auto-detected system memory.

2.4 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Take caution when changing the settings of the Advanced menu items. Incorrect eld

values can cause the system to malfunction.

JumperFree Conguration

CPU Conguration

Chipset

Onboard Devices Conguration USB Conguration

PCIPnP

Adjust System frequency/voltage.

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

2.4.1 JumperFree Conguration

The items in this menu allows you to adjust the system frequency/voltage.

Ai Overclocking [Auto]

Allows selection of CPU overclocking options to achieve desired CPU internal frequency.

Select either one of the preset overclocking conguration options:

Manual - allows you to individually set overclocking parameters.

Auto - loads the optimal settings for the system.

Overclock Prole - loads overclocking proles with optimal parameters for stability

when overclocking.

2-10 Chapter 2: BIOS information

FSB / CPU External Frequency Synchronization

CPU Frequency [xxx]

Displays the frequency sent by the clock generator to the system bus and PCI bus. The value of this item is auto-detected by the BIOS. Use the <+> and <-> keys to adjust the CPU frequency. You can also type the desired CPU frequency using the numeric keypad. The values range from 200 to 800. Refer to the table below for the correct Front Side Bus and CPU External Frequency settings.

Overclock Options [Overclock 5%]

Allows you to select the overclock options. Conguration options: [Overclock 5%]

[Overclock 10%] [Overclock 15%] [Overclock 20%] [Test Mode]

DRAM Frequency [Auto]

Allows you to set the DDR2 operating frequency.

Conguration options: [Auto] [667 MHz] [800 MHz] [1067MHz]

The following item appears only when you set the AI Overclocking item to [Overclock Prole].

Front Side Bus CPU External Frequency

FSB 1333 333 MHz

FSB 1066 266 MHz

FSB 800 200 MHz

Selecting a very high DRAM frequency may cause the system to become unstable! If this happens, revert to the default setting.

FSB

DRAM Frequency

Auto 667MHz 800MHz 960MHz 1000MHz 1067MHz 1111MHz

1333 v v v v v

1066 v v v v

800 v v v

The following table shows the DRAM Frequency options that appear when the FSB value is 1333, 1066, and 800.

The following two items appear only when you set the AI Overclocking item to [MANUAL].

PCI Express Frequency [Auto]

Allows you to select the PCI Express frequency. Conguration options: [Auto] [90] [91]

[92]~[150]

ASUS P5G41-M LE 2-11

Memory Voltage [Auto]

Allows you to set the Memory Voltage. Key in the value directly. Use +/- to adjust the voltage.Use +/- to adjust the voltage.

Conguration options: [Auto] [Min = 1.85000V] [Max = 2.24375V]

NB Voltage [Auto]

Allows you to select the North Bridge voltage or set it to [Auto] mode.

Conguration options: [Auto] [1.125V] [1.175V] [1.225V] [1.275V]

SB 1.5V Voltage [1.5V]

Allows you to select the South Bridge voltage. Conguration options: [1.5V] [1.6V]

2.4.2 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically detects.

Ratio CMOS Setting [Auto]

Sets the ratio between CPU core clock and the FSB frequency. Conguration option: [Auto]

C1E Support [Enabled]

Allows you to enable or disable C1E Support. Conguration options: [Disabled] [Enabled]

Max CPUID Value Limit [Disabled]

Setting this item to [Enabled] allows legacy operating systems to boot even without support

for CPUs with extended CPUID functions. Conguration options: [Disabled] [Enabled]

Intel(R) Virtualization Tech [Enabled]

Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel®

Virtualization Technology allows a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. Conguration options: [Enabled] [Disabled]

CPU TM function [Enabled]

Enables or disables Intel® CPU Thermal Monitor (TM) function, a CPU overheating protection function. When enabled, the CPU core frequency and voltage are reduced when

the CPU overheats. Conguration options: [Disabled] [Enabled]

Execute-Disable Bit Capability [Enabled]

Allows you to enable or disable the No-Execution Page Protection Technology. Setting this item to [Disabled] forces the XD feature ag to always return to zero (0).

Conguration options: [Disabled] [Enabled]

• If an invalid ratio is set in CMOS then actual and set values may differ.

• Key in ratio numbers directly.

2-12 Chapter 2: BIOS information

Protect Audio Video Path Mode [Lite]

This item is not user- congurable.

The following item appears only when you installed an Intel® CPU that supports the Enhanced Intel® SpeedStep® Technology (EIST).

Intel(R) SpeedStep(TM) Tech [Enabled]

Allows you to use the Enhanced Intel® SpeedStep® Technology. When set to [Enabled], you can adjust the system power settings in the operating system to use the EIST feature. Set this item to [Disabled] if you do not want to use the EIST.

Conguration options: [Enabled] [Disabled]

2.4.3 Chipset

The Chipset menu allows you to change the advanced chipset settings. Select an item then press <Enter> to display the submenu.

North Bridge Conguration

Memory Remap Feature [Enabled]

Allows you to enabled or disable the remapping of the overlapped PCI memory above the total physical memory. Enable this option only when you install 64-bit operating system.

Conguration options: [Disabled] [Enabled]

Congure DRAM Timing by SPD [Enabled]

Allows you to enable or disable conguring the DRAM Timing by SPD. Conguration options: [Enabled] [Disabled]

Initiate Graphic Adapter [PEG/PCI]

Allows you to decide which graphics controller to use as the primary boot device.

Conguration options: [IGD] [PCI/IGD] [PCI/PEG] [PEG/IGD] [PEG/PCI]

IGD Graphics Mode Select [Enabled, 32MB]

Allows you to select the amount of system memory used by the IGD graphics device.

Conguration options: [Disabled] [Enabled, 32MB] [Enabled, 64MB] [Enabled, 128MB]

GTT Graphics Memory Size [No VT mode, 2MB]

This item is not user- congurable.

DVMT Memory [256MB]

Allows you to select the DVMT memory.

Conguration options: [128MB] [256MB] [Maximum DVMT]

The [Maximum DVMT] option only appears when installing 1GB DDR2 DIMMs into the DIMM sockets.

ASUS P5G41-M LE 2-13

South Bridge Conguration

Audio Controller [Enabled]

Allows you to set the audio controller. Conguration options: [Enabled] [Disabled]

Front Panel Type [HD Audio]

Allows you to select the front panel support type. If High Denition Audio Front Panel used, set this item to [HD Audio] mode. Conguration options: [AC97] [HD Audio]

2.4.4 Onboard Devices Conguration

Onboard LAN [Enabled]

Allows you to enable or disable the onboard LAN controller.

Conguration options: [Enabled] [Disabled]

LAN Option ROM [Disabled]

Allows you to enable or disable the boot ROM in the onboard LAN controller. This item appears only when the Onboard LAN item is set to Enabled.

Conguration options: [Disabled] [Enabled]

Serial Port1 Address [3F8/IRQ4]

Allows you to select the Serial Port1 base address.

Conguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]

Parallel Port Address [378]

Allows you to select the Parallel Port base addresses.

Conguration options: [Disabled] [378] [278] [3BC]

Parallel Port Mode [ECP]

Allows you to select the Parallel Port mode.

Conguration options: [Normal] [Bi-Directional] [EPP] [ECP]

ECP Mode DMA Channel [DMA3]

Appears only when the Parallel Port Mode item is set to [ECP]. This item allows you

to set the Parallel Port ECP DMA. Conguration options: [DMA0] [DMA1] [DMA3]

EPP Version [1.9]

Appears only when the Parallel Port Mode item is set to [EPP]. This item allows you to

select the Parallel Port EPP version. Conguration options: [1.7] [1.9]

Parallel Port IRQ [IRQ7]

Allows you to select parallel port IRQ. Conguration options: [IRQ5] [IRQ7]

2.4.5 USB Conguration

The items in this menu allows you to change the USB-related features. Select an item then press <Enter> to display the conguration options.

The Module Version and USB Devices Enabled items show the auto-detected values. If no USB device is detected, the item shows None.

USB Functions [Enabled]

Allows you to disable or enable the USB functions.

Conguration options: [Disabled] [Enabled]

2-14 Chapter 2: BIOS information

Take caution when changing the settings of the PCI PnP menu items. Incorrect eld values

can cause the system to malfunction.

Plug and Play O/S [No]

When set to [No], BIOS congures all the devices in the system. When set to [Yes] and if you install a Plug and Play operating system, the operating system congures the Plug and Play devices not required for boot. Conguration options: [No] [Yes]

USB 2.0 Controller [Enabled]

Allows you to enable or disable USB 2.0 controller.

Conguration options: [Enabled] [Disabled]

Legacy USB Support [Auto]

Allows you to enable or disable support for Legacy USB storage devices, including USB ash

drives and USB hard drives. Setting to [Auto] allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled.

Conguration options: [Disabled] [Enabled] [Auto]

USB 2.0 Controller Mode [HiSpeed]

Allows you to congure the USB 2.0 controller in HiSpeed (480Mbps) or Full Speed (12Mbps). Conguration options: [FullSpeed] [HiSpeed]

The following items may only appear when a USB storage device is plugged.

USB Mass Storage Device Conguration

USB Mass Storage Reset Delay [20 Sec]

Allows you to set the maximum time that the BIOS waits for the USB storage device to

initialize. Conguration options: [10 Sec] [20 Sec] [30 Sec] [40 Sec]

Emulation Type [Auto]

Allows you to select the emulation type. Conguration options: [Auto] [Floppy] [Forced

FDD] [Hard Disk] [CDROM]

2.4.6 PCI PnP

The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices. The menu includes setting IRQ and DMA channel resources for either PCI/PnP or legacy ISA

devices, and setting the memory size block for legacy ISA devices.

ASUS P5G41-M LE 2-15

2.5 Power menu

The Power menu items allow you to change the settings for the Advanced Power Management (APM). Select an item then press <Enter> to display the conguration options.

Suspend Mode [Auto]

ACPI 2.0 Support [Disabled] ACPI APIC Support [Enabled] Anti Surgy Support [Enabled]

APM Conguration

Hardware Monitor

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

Select the ACPI state used for System Suspend.

2.5.1 Suspend Mode [Auto]

Allows you to select the Advanced Conguration and Power Interface (ACPI) state to be used for system suspend. Conguration options: [S1 (POS) Only] [S3 Only] [Auto]

[S1(POS) Only] - Enables the system to enter the ACPI S1 (Power on Suspend) sleep

state. In S1 sleep state, the system appears suspended and stays in a low power mode. The system can be resumed at any time.

[S3 Only] - Enables the system to enter the ACPI S3 (Suspend to RAM) sleep state

(default). In S3 sleep state, the system appears to be off and consumes less power than in the S1 state. When signaled by a wake-up device or event, the system resumes to its working state exactly where it was left off.

[Auto] - Detected by OS.

2.5.2 ACPI 2.0 Support [Enabled]

Allows you to add more tables for Advanced Conguration and Power Interface (ACPI) 2.0 specications. Conguration options: [Disabled] [Enabled]

2.5.3 ACPI APIC Support [Enabled]

Allows you to enable or disable the Advanced Conguration and Power Interface (ACPI) support in the Application-Specic Integrated Circuit (ASIC). When set to Enabled, the ACPI

APIC table pointer is included in the RSDT pointer list.

Conguration options: [Disabled] [Enabled]

2.5.4 Anti Surgy Support [Enabled]

Allows you to enable or disable the over-voltage protection function.

Conguration options: [Disabled] [Enabled]

2.5.5 APM Conguration

Restore on AC Power Loss [Power Off]

When set to [Power Off], the system goes into off state after an AC power loss. When set to [Power On], the system goes on after an AC power loss. When set to [Last State], the system goes into either off or on state, whatever the system state was before the AC power

loss. Conguration options: [Power Off] [Power On] [Last State]

2-16 Chapter 2: BIOS information

Resume On By PS/2 KB/MS [Disabled]

Allows you to enable or disabe the PS/2 keyboard/mouse to generate a wake event. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead.

Conguration options: [Disabled] [Enabled]

Resume On Ring [Disabled]

Allows you to enable or disable RI to generate a wake event.

Conguration options: [Disabled] [Enabled]

Resume On PCI Devices [Disabled]

When set to [Enabled], this parameter allows you to wake the system through a PCI LAN or modem card. This feature requires an ATX power supply that provides at least 1A on the

+5VSB lead. Conguration options: [Disabled] [Enabled]

Resume On PCIE Devices [Disabled]

When set to [Enabled], this parameter allows you to wake the system through a PCI Express card. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead.

Conguration options: [Disabled] [Enabled]

Resume On RTC Alarm [Disabled]

Allows you to enable or disable RTC to generate a wake event. When this item is set to Enabled, the items RTC Alarm Date, RTC Alarm Hour, RTC Alarm Minute, and RTC Alarm

Second appear with set values. Conguration options: [Disabled] [Enabled]

2.5.6 Hardware Monitor

CPU Temperature [xxxºC/xxxºF] or [Ignored]

MB Temperature [xxxºC/xxxºF] or [Ignored]

The onboard hardware monitor automatically detects and displays the motherboard and CPU temperatures. Select Ignored if you do not wish to display the detected temperatures.

CPU Fan Speed [xxxxRPM] or [Ignored]

The onboard hardware monitor automatically detects and displays the CPU fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

CPU Q-Fan Control [Disabled]

Allows you to enable or disable the Q-Fan control. Conguration options: [Disabled] [Enabled]

Chassis Fan Speed [xxxxRPM] or [Ignored]

The onboard hardware monitor automatically detects and displays the chassis fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage [xxxV] or [Ignored]

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators.

ASUS P5G41-M LE 2-17

2.6.1 Boot Device Priority

1st ~ xxth Boot Device

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Conguration options: [Removable Dev.] [Hard Drive] [ATAPI CD-ROM] [Disabled]

2.6.2 Boot Settings Conguration

Quick Boot [Enabled]

Enabling this item allows the BIOS to skip some power on self tests (POST) while booting to decrease the time needed to boot the system. When set to [Disabled], BIOS performs all the

POST items. Conguration options: [Disabled] [Enabled]

Full Screen Logo [Enabled]

This allows you to enable or disable the full screen logo display feature.

Conguration options: [Disabled] [Enabled]

2.6 Boot menu

The Boot menu items allow you to change the system boot options. Select an item then press <Enter> to display the sub-menu.

Boot Settings

Boot Device Priority

Boot Settings Conguration

Security

Species the Boot

Device Priority sequence.

A virtual oppy disk drive (Floppy Drive B: ) may appear when you set the CD-ROM drive

as the rst boot.

device.

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

Set this item to [Enabled] to use the ASUS MyLogo2™ feature.

AddOn ROM Display Mode [Force BIOS]

Sets the display mode for option ROM. Conguration options: [Force BIOS] [Keep Current]

Bootup Num-Lock [On]

Allows you to select the power-on state for the NumLock. Conguration options: [Off] [On]

Wait For ‘F1’ If Error [Enabled]

When set to Enabled, the system waits for the F1 key to be pressed when error occurs.

Conguration options: [Disabled] [Enabled]

Hit ‘DEL’ Message Display [Enabled]

When set to [Enabled], the system displays the message Press DEL to run Setup during

POST. Conguration options: [Disabled] [Enabled]

2-18 Chapter 2: BIOS information

2.6.3 Security

The Security menu items allow you to change the system security settings. Select an item then press <Enter> to display the conguration options.

Change Supervisor Password

Select this item to set or change the supervisor password. The Supervisor Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a Supervisor Password:

1. Select the Change Supervisor Password item and press <Enter>.

2. On the password box, key in a password containing up to six letters or numbers, or both.

3. Conrm the password when prompted.

The message Password Installed appears after you successfully set your password. To change the supervisor password, follow the same steps in setting a supervisor password. To clear the supervisor password, select the Change Supervisor Password then press

<Enter> twice. The message Password uninstalled appears.

If you forget your BIOS password, you can clear it by erasing the CMOS Real Time Clock (RTC) RAM. See section 1.9 Jumpers for information on how to erase the RTC RAM.

After you have set a supervisor password, the other items appear to allow you to change other security settings.

User Access Level [Full Access]

This item allows you to select the access restriction to the Setup items.

Conguration options: [No Access] [View Only] [Limited] [Full Access]

[No Access] - prevents user access to the Setup utility. [View Only] - allows access but does not allow change to any eld. [Limited] - allows changes only to selected elds, such as Date and Time. [Full Access] - allows viewing and changing all the elds in the Setup utility.

Change User Password

Select this item to set or change the user password. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a User Password:

1. Select the Change User Password item and press <Enter>.

2. On the password box, key in a password containing up to six letters or numbers, or both.

3. Conrm the password when prompted.

The message Password Installed appears after you set your password successfully. To change the user password, follow the same steps in setting a user password.

ASUS P5G41-M LE 2-19

Clear User Password

Select this item to clear the user password.

Password Check [Setup]

When set to [Setup], BIOS checks for user password when accessing the Setup utility. When set to [Always], BIOS checks for user password both when accessing Setup and booting the

system. Conguration options: [Setup] [Always]

2.7 Tools menu

The Tools menu items allow you to congure options for special functions. Select an item

then press <Enter> to display the sub-menu.

2.7.1 ASUS EZ Flash 2

Allows you to run ASUS EZ Flash 2. When you press <Enter>, a conrmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to

conrm your choice. See section 2.1.2 for details.

2.7.2 AI NET 2

Check Atheros LAN cable [Disabled]

Enables or disables checking of the Atheros LAN cable during the Power-On Self-Test

(POST). Conguration options: [Disabled] [Enabled]

ASUS EZ Flash 2

AI NET 2

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

Press ENTER to run the utility to select and update BIOS. This utility supports

1.FAT 12/16/32 (r/w)

2.NTFS (read only)

3.CD-DISC (read only)

2-20 Chapter 2: BIOS information

2.8 Exit menu

The Exit menu items allow you to load the optimal or failsafe default values for the BIOS items, and save or discard your changes to the BIOS items.

Pressing <Esc> does not immediately exit this menu. Select one of the options from this menu or <F10> from the legend bar to exit.

Exit & Save Changes

Once you are nished making your selections, choose this option from the Exit menu to

ensure the values you selected are saved to the CMOS RAM. An onboard backup battery sustains the CMOS RAM so it stays on even when the PC is turned off. When you select this

option, a conrmation window appears. Select OK to save changes and exit.

Exit & Discard Changes

Select this option only if you do not want to save the changes that you made to the Setup

program. If you made changes to elds other than System Date, System Time, and Password, the BIOS asks for a conrmation before exiting.

Discard Changes

This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a conrmation appears. Select OK to discard any changes and load the previously saved values.

Load Setup Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press <F5>, a conrmation window appears. Select OK to load default values. Select Exit & Save Changes or make other changes before saving the values to the non-volatile RAM.

Exit system setup after saving the changes.

F10 key can be used for this operation.

Exit Options

Exit & Save Changes

Exit & Discard Changes Discard Changes

Load Setup Defaults

BIOS SETUP UTILITY

Main Advanced Power Boot Tools Exit

Exit system setup after saving the changes.

F10 key can be used for this operation.

Asus P5G41-M LE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Notices

Safety information

About this guide
