INSTRUCTIONS FOR USE

Tumble Dryer

TD75.13XX

Carefully read the instructions for use before using the dryer.

T208V.W.U

Dear Customer,

We thank you for purchasing this quality ASKO product.

We hope it meets all your expectations. Scandinavian design combines pure lines, everyday functionality, and high quality. These are the key characteristics of all our products, and the reason why they are highly appreciated across the globe.

We kindly recommend you to read these instructions before using the appliance for the ﬁ rst time. The instruction manual also includes information on how you can help protect the environment.

TABLE OF CONTENTS

Important safety instructions 3

Dryer description 7

Before using the appliance for the ﬁ rst time 8

Installation and connection 9

Tips before drying 17

Drying process 20

System settings 28

The following symbols are used throughout the manual and they have the following meanings:

Cleaning and maintenance 31

Troubleshooting 34

Service and guarantee 38

Technical information 41

Program table 42

Disposal 43

Quick guide 44

Information, advice, tip, or recommendation Warning – danger of hot surface

Warning – general danger Warning – danger of fire

Warning – danger of electric shock

Original instructions

See Quick guide on the last page.

Customer Care Center, 1-800-898-1879, www.askousa.com

IMPORTANT SAFETY INSTRUCTIONS

GENERAL

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

WARNING - To reduce the risk of ﬁ re, electric shock, or injury to persons when

using your appliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.

2. WARNING! - Only use the dryer to dry laundry that was washed with

water. Do not dry any laundry that was washed or cleaned with ﬂ ammable cleaners or substances (such as gasoline, trichloroethylene etc.) as this may result in an explosion.

3. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, cooking oils, other ﬂ ammable or explosive substances as they give oﬀ vapors that could ignite or explode.

4. Instructions for use are available on our website at www.askousa.com.

5. Your dryer is intended solely for household use.

6. Do not allow children to play on or in the appliance. Children should be closely supervised when near the appliance.

7. Before the appliance is removed from service or discarded, remove the door to the drying compartment.

8. Do not reach into the appliance if the drum is moving.

9. Do not install or store this appliance where it will be exposed to the weather.

10. Do not tamper with controls.

11. Do not attempt to repair or replace any part of the appliance or perform any servicing unless speciﬁ cally recommended in this guide.

12. Do not use fabric softeners or dryer sheets unless the manufacturer gives written assurance that the product will not damage a tumble dryer.

13. WARNING! - Do not heat dry items containing vinyl, plastic, foam rubber or similarly textured rubberlike materials, ﬁ berglass, or wool unless the label speciﬁ es “washable”.

14. Clean the lint ﬁ lter before or after each load.

15. Keep the area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt.

16. The interior of the machine should be cleaned periodically by an authorized ASKO service agent.

17. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch ﬁ re. To reduce the risk of ﬁ re due to

Customer Care Center, 1-800-898-1879, www.askousa.com

contaminated loads, the ﬁ nal part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

18. Clothes dryer installation must be performed by a qualiﬁ ed installer.

19. Do not install a clothes dryer with ﬂ exible plastic venting materials. If ﬂ exible metal (foil type) duct is installed, it must be of a speciﬁ c type identiﬁ ed by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airﬂ ow and increase the risk of ﬁ re.

20. As this is a vented dryer, it does not have a condensate tank. The handle has solely a decorative purpose and it ﬁ xed; it is not intended for opening. If excessive force is applied, the handle may break.

21. To reduce the risk of severe injury or death, follow all installation instructions.

22. Electrical installation, if required, must be done by a licensed electrician.

23. Do not operate appliance while away from the home.

24. Do not heat dry items that have been dry-cleaned.

25. The dryer is made and marked to facilitate recycling. When it is no longer useful, contact your local refuse collection service for advice on how to properly dispose of the dryer for purposes of recycling.

26. Damaged power cables should only be replaced by a certiﬁ ed professional.

27. Provide suﬃ cient ventilation, otherwise smoke from open ﬁ res or fumes from equipment burning other fuels can be drawn into the room.

28. CAUTION! - During the program, the back of the dryer will get very hot. Let the machine cool completely before touching the back.

29.

WARNING! - This appliance must be properly grounded.

a) For a grounded, cord-connected appliance:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance (Canadian market only) is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Customer Care Center, 1-800-898-1879, www.askousa.com

WARNING! - Improper connection of the equipment-grounding conductor

can result in a risk of electric shock. Check with a qualiﬁ ed electrician or service representative or personnel if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance (Canadian market only). If it will not ﬁ t the outlet, have a proper outlet installed by a qualiﬁ ed electrician. Use copper conductors only, if the terminal is acceptable only for connection to copper. To reduce the risk of electric shock, disconnect this appliance from the power supply before attempting any user maintenance other than cleaning the lint trap. Turning the controls to the OFF position does not disconnect this appliance from the power supply. To reduce the risk of ﬁ re, this appliance must be exhausted outdoors or the equivalent. Do not exhaust into a chimney, wall, ceiling or concealed space in a building.

b) For a grounded, permanently connected appliance:

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

This manual does not cover every possible condition and situation that

may occur. Use common sense and caution when installing, operating, and maintaining any appliance.

Customer Care Center, 1-800-898-1879, www.askousa.com

KIDSAFE™ CHILD SAFETY

• WARNING! - Do not allow the children to play with the dryer.

• Prevent your children and pets to enter the dryer drum.

• Before closing the dryer door and running the program, make sure there

is nothing except laundry in the drum (e.g. if a child climbed into the dryer drum and closed the door from the inside).

• Activate the child lock.

See chapter "SYSTEM SETTINGS", section Child Lock.

• Do not let children younger than three years to come near the dryer,

unless they are under constant supervision.

• The dryer is made in compliance with all relevant safety standards. This

dryer may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they are supervised during the use of the appliance, if they have been provided relevant instructions regarding safe use of the dryer, and if they understand the hazards of inappropriate use. Make sure children do not play with the appliance. Make sure the children do not clean the dryer or perform any maintenance tasks without supervision.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Customer Care Center, 1-800-898-1879, www.askousa.com

DRYER DESCRIPTION

162345 7

1. Main switch (ON/OFF)

2. Program selector knob

3. Display unit

4. Program selector buttons

5. Button (start/pause)

6. Rating plate with information about the dryer (on

the inside of the dryer door)

7. QR and AUID code (on the inside of the dryer door)

8. Dryer door

9. Door net ﬁ lter

10. Air exhaust hose opening

10 8

Customer Care Center, 1-800-898-1879, www.askousa.com

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

PACKAGING

Remove all packaging. Please sort the materials in compliance with local recommendations (see chapter "DISPOSAL").

CLEANING

Disconnect the dryer from the power mains and open the door towards you. Clean the dryer drum with a damp cloth and a mild detergent.

No program can be started while the door is open.

CHOOSING THE LANGUAGE

When the dryer is connected (see chapter "INSTALLATION AND CONNECTION") and switched on for the ﬁ rst time, choose the preferred language:

1. Press the button 2 or the program selector button to scroll the list of languages. Conﬁ rm your selection by

pressing the OK button.

2. Press the "Finalize" button to conﬁ rm your selection.

For further drying process, see chapter "DRYING PROCESS".

When you run the dryer for the ﬁ rst time, or if the dryer has been out of use for a long time, slight hitting

noise may appear. This is normal and it will disappear after a few drying cycles.

Customer Care Center, 1-800-898-1879, www.askousa.com

INSTALLATION AND CONNECTION

DRYER PLACEMENT

The dryer can be either free standing or installed on top of a washing machine. The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may be longer due to limited amount of ambient air.

Do not place the dryer in a room where temperature can drop below 0 °C, as the machine may not operate correctly at such low temperatures, or freeze, which in turn can result in damage to the machine. For optimum dryer operation, install it in a room with adequate ventilation and a temperature between 10 °C and 25 °C.

Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side of the dryer door hinge. Install the dryer in such way that the door can always be freely opened.

As this is a vented dryer, it does not have a condensate tank. The handle has solely a decorative purpose and it ﬁ xed; it is not intended for opening. If excessive force is applied, the handle may break.

Free-standing appliance

The dryer may be placed adjacent to a washing machine. If the friction between the dryer feet and the ﬂ oor is not suﬃ cient, the dryer may move during operation. To prevent the dryer from sliding around, use a nonslip support or pad or attached vacuum feet (see below).

Clearance around the dryer for optimum operation

Never block the air vents.

At least two persons are required to install the tumble dryer on top of a washing machine.

Do not place the dryer on a carpet with long ﬁ bres as this may impede air circulation.

100 mm

50 mm

100 mm

The appliance shall not be in contact with a wall or adjacent furniture. For optimum dryer operation, observe the clearance from the wall as shown in Fig.

Customer Care Center, 1-800-898-1879, www.askousa.com

Opening the dryer door (top view)

176°

480 mm

1074 mm

Stacking on top of a washing machine

To stack the dryer on top of a washing machine, use the extra vacuum feet and the tipping guard (A+B), supplied in the cardboard box in the dryer drum. Tipping guard part B is designed to ﬁ t on ASKO washing machines and it may be hard or impossible to mount on appliances of other brands. If the washing machine and dryer are not of matching dimensions or if you have installed a hidden helper between the two appliances, then binding plates are available as optional accessories at the service unit (… available only for HH (accessory Hidden Helpers) and TD75 stacked on top of WM80 or WM85; not intended for any other combinations).

All ASKO washing machines can bear the weight of the dryer.

Washing machine on which you wish to install the dryer must be able to bear the weight of the dryer (see washing machine’s rating plate or technical information).

Customer Care Center, 1-800-898-1879, www.askousa.com

How to stack a dryer onto the washing machine (ASKO):

There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard.

The tipping guard consists of two metal parts (A +

B).

A B

Use two screws to attach the A part to the back of the dryer.

Undo the screw on the back side of the washing

machine.

Use the screw to attach the tipping guard (B part)

to the back of the washing machine.

Level the washing machine so that it is stable.

1. Level the washing machine by rotating the adjustable feet using a No. 32 spanner. The feet allow levelling by +/- 1 cm.

2. After adjusting the height of the feet, ﬁ rmly

tighten the jam nuts using a spanner No 17, by turning them towards the bottom of the washing machine .

3. Tighten the jam nuts.

5 mm

Customer Care Center, 1-800-898-1879, www.askousa.com

Set the dryer feet:

1. Tighten the front two feet all the way in.

2. Undo the back feet by 3.5 turns or 5 mm; then, fasten the jam nuts towards the bottom of the appliance .

Place the dryer onto the washing machine:

1. Lift the front part of the dryer by 5 to 10 cm.

2. Attach the vacuum feet onto the front feet of the dryer.

3. Push the dryer into the tipping guard (so that the B part is inserted into the A part) and release it (See ﬁ gure on previous page).

Make sure the tipping guard is "locked"!

CHANGING THE DOOR OPENING DIRECTION

To change the direction of door opening, proceed as follows.

Open the door fully.

Undo the screws and remove the door.

Use the screwdriver to remove the door lock cover and undo the screw on the door lock.

Push the door lock upwards and remove it. Move

it to the other side and push it downwards.

Fasten the screw on the door lock. Replace the

door lock cover.

Customer Care Center, 1-800-898-1879, www.askousa.com

Undo the door hinge assembly (left) and the door

latch assembly (right), switch their positions, and replace the screws (door hinge assembly to the righthand side, door latch assembly to the left-hand side).

Use the screwdriver to remove the plastic part

more easily.

Undo the door ring and remove it temporarily.

Rotate the door glass cover by 90°so that the sign

indicating the opening of the door is on the other side.

Rotate the door ring by 180°, install it onto the

door, and fasten it with screws.

Replace the door on the door hinge and fasten

the screws.

Customer Care Center, 1-800-898-1879, www.askousa.com

AIR EXHAUST

The tumble dryer must only be operated when it

is correctly ﬁ tted with exhaust duct.

Connecting the exhaust duct to the dryer

You will need to purchase a UL-CSA-approved 4" ridged metal exhaust duct. The dryer is delivered with the stub pipe attached to the rear exhaust outlet, though the exhaust duct can be attached to either the left or the right exhaust outlet.

To connect the exhaust duct to the left or right side outlet, follow the steps below:

1. Using a ﬂ athead screw-driver, turn the exhaust

outlet cover you plan to use to the right or left to

align the tabs holding the cover in place.

2. Remove the exhaust outlet cover.

3. Remove the stub pipe from the rear exhaust outlet

and place it in the outlet you plan to use.

4. Use the exhaust outlet cover you removed from

the to cover the rear exhaust outlet.

other fasteners that extend into the duct and catch lint.

To connect the exhaust duct to the outlet, follow the steps below:

• Push the duct onto the stub pipe and secure it with a clamp

• After you push the dryer into place, check for kinks in the duct.

Excessive duct length and too many bends can

impede drying performance. We recommend that you cut oﬀ any excess exhaust duct and run the duct with as few bends as possible. Make any necessary bends as gentle as possible.

Maximum duct length of 60 feet. A maximum

of 4 elbows may be used, but 4 feet of duct must subtracted from the total vent length for every 90° elbow used.

To reduce the risk of ﬁ re, this appliance must

be exhausted OUTDOORS or the equivalent. Never cover the end of the dryer stub or exhaust duct with anything to catch lint, except for UL approved vent basket.

Asko dryers have a "T-style" exhaust vent that allows you to connect the duct on the rear, on the left, or on the right side

Rear Exhaust Outlet

Side Exhaust Outlet

Stub

Clamp (not supplied)

The duct must not be assembled with screws or

Customer Care Center, 1-800-898-1879, www.askousa.com

Vent

T-tube

Duct (not supplied)

Connecting to a ventilation duct

You will need a UL-CSA-approved, 4-inch ridged metal exhaust duct. If a ﬂ exible duct is used, it must comply with the Outline for Clothes Dryer Transition Duct. Subject 2158A and maximum length of 2.4 m (8 feet).

The more bends and the longer the duct, the less air will circulate through the machine, which will impede drying performance. We recommend that you cut oﬀ any excess exhaust duct and run the duct with as few bends as possible. And make any necessary bends as gentle as possible.

Maximum duct length of 60 feet. A maximum of 4 elbows may be used, but 4 feet of duct must subtracted from the total vent length for every 90° elbow used.

To connect the exhaust duct to a ventilation outlet, follow the steps below:

1. Connect the exhaust duct to a ventilation exhaust

ﬁ tting or to a discharge through the wall.

2. Secure the duct joint to the outlet stub on the machine.

3. Run the duct with as few bends as possible to the point of discharge.

Ventilation grill (not supplied with machine)

This appliance shall not be exhausted into a

chimney, a wall, a ceiling, an attic, a crawl space or a concealed space of a building. Only a rigid or ﬂ exible metal duct shall be used for exhausting. Only a metal ventilation grill shall be used. If the duct is taken to a wall outlet, a ventilation grill shall be ﬁ tted to prevent reverse ﬂ ow of cold air. Fit the ventilation grill to the outside of the wall.

When installing in warm climates (77° F and above) with high humidity levels, do not route the air exhaust duct upwards.

Examples of installations

subtract 4 feet for every 90° elbow

Avoid:

• very long exhausting systems

• too many corners

• tight corners These reduce eﬃ ciency and increase time and energy consumption.

Risk of Fire. A clothes dryer produces combustible lint. The dryer must be connected to an exhaust to the outdoors. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.

Customer Care Center, 1-800-898-1879, www.askousa.com

See the separate installation instructions

included in the set of documents.

CONNECTING TO THE POWER MAINS

After installation, the dryer should stand still for

two hours before it is connected to the power mains.

Connection upon delivery

TYPE: TDXX.XXXXX

Art.No.: XXXXXX/XX Ser.No.: XXXXXXXX

XXX V ~

IPX4

XXXX W

XX Hz

MODEL: XXXXXX.X

XXA

X kg

Connect the appliance to a grounded power outlet. After installation, the wall outlet should be freely accessible. The outlet should be ﬁ tted with an earth contact (in compliance with the relevant regulations).

The receptacle on the rear of the machine is designed to accommodate ASKO washers ONLY (rated 208–240 V.) To use this receptacle, you must use the readyﬁ tted plug supplied with the washing machine or anequivalent. ASKO washers rated 208–240 V have two internal fuses of 15 A each. The machine should only be connected to a grounded wall socket.

This appliance must be properly grounded. Refer to the “Important Safety Instructions” for grounding instructions. The power supply cord must be grounded. If the machine is to be used in a wet area, the supply must be protected by a residual current device. Connection to a permanently wired supply point must be made only by a qualiﬁ ed electrician.

Information about your dryer is indicated on the rating (type) plate. Use the type A diﬀ erential current protection switch.

The dryer shall not be connected to the power

mains using an extension cord.

Do not connect the tumble dryer to an electrical

outlet intended for an electric shaver or hair dryer.

Any repair and maintenance pertaining to safety

or performance should be done by trained experts.

Customer Care Center, 1-800-898-1879, www.askousa.com

TIPS BEFORE DRYING

This chapter includes several tips on how to prepare the laundry for drying.

LAUNDRY SORTING

Sort the laundry according to:

• type,

• fabric thickness. For the most even drying, make sure the laundry is made of a similar material.

CLOTHING

1. Close the buttons, zips, and hook-and-loop

fasteners, so that they do not damage the fabric.

2. Turn the pockets inside out.

3. Place very sensitive clothes in a special-purpose

laundry washing bag.

(The special purpose laundry bag is available as

an optional accessory in general stores.)

Laundry to be dried in the dryer should be spun at a minimum of 1000 rpm. Higher spinning speeds will save energy and cut drying time.

If you decide to dry only one large item, we recommend drying it separately from smaller items of laundry.

Customer Care Center, 1-800-898-1879, www.askousa.com

LAUNDRY SYMBOLS

Observe the laundry symbols:

Wash cycle

Normal wash cycle

Permanent Press or Wrinkle Resistant setting

Gentle/Delicate setting

Hand wash only

Do not wash

Do not wring. Hang dry, drip dry, or dry flat

Wash water temperature

Maximum water temp 205° F/95° C (EXTRA HOT)

Maximum water temp 160° F/70° C (EXTRA HOT)

Maximum water temp 140° F/60° C (HOT)

Maximum water temp 120° F/50° C (HOT)

Maximum water temp 105° F/40° C (WARM)

Maximum water temp 85° F/30° C (WARM)

Tumble dry cycle

Machine dry

Normal setting

Permanent Press or Wrinkle Resistant setting

Gentle or Delicate setting

Do not tumble dry

Tumble dry heat setting

Any heat

High heat

Medium heat

Low heat

No heat/Air fluff

Special drying instructions

Line dry or hang to dry

Bleach instructions

Dry clean symbol

Any bleach when needed

Only non-chlorine bleach

Do not bleach

Dry clean only

Customer Care Center, 1-800-898-1879, www.askousa.com

Drip dry (do not spin or wring)

Dry flat

Dry in shade

Ironing instructions

Ironing is necessary

High temperature setting

Medium temperature setting

Low temperature setting

Do not iron or press with heat

Iron without steam

MATERIALS (FABRICS) SUITABLE FOR DRYING IN A TUMBLE DRYER

Material is suitable for tumble drying. Clothes dried in a tumble dryer will be softer and lighter than air-dried clothes.

The dryer does not cause any considerable

wear of the fabric. The lint collected in the lint ﬁ lter consists of dust and fabric fragments collected during the use of the laundry.

MATERIALS (FABRICS) THAT MAY NOT BE DRIED IN A TUMBLE DRYER

This symbol means that the material is not suitable for drying in a tumble dryer.

Never tumble dry the following:

• clothing that was chemically cleaned (or dry-

cleaned) at home,

• foam,

• glass ﬁ bres.

Static electricity

To reduce the risk of static electricity in the laundry after tumble drying, you can:

• Use fabric softener when washing.

• Wait ﬁ ve minutes after the drying program ends

before opening the door and removing the laundry from the dryer.

You can stop the tumble dryer by pressing the Stop button for three seconds or by opening the door. In both cases the program is stopped and starts from the beginning if restarted. If you do not want to restart the program, immediately remove all laundry and spread it out to allow the heat to dissipate.

Customer Care Center, 1-800-898-1879, www.askousa.com

DRYING PROCESS

WARNING! - To reduce the risk of electric shock or injury to persons, read the "IMPORTANT SAFETY INSTRUCTIONS" section before operating this appliance.

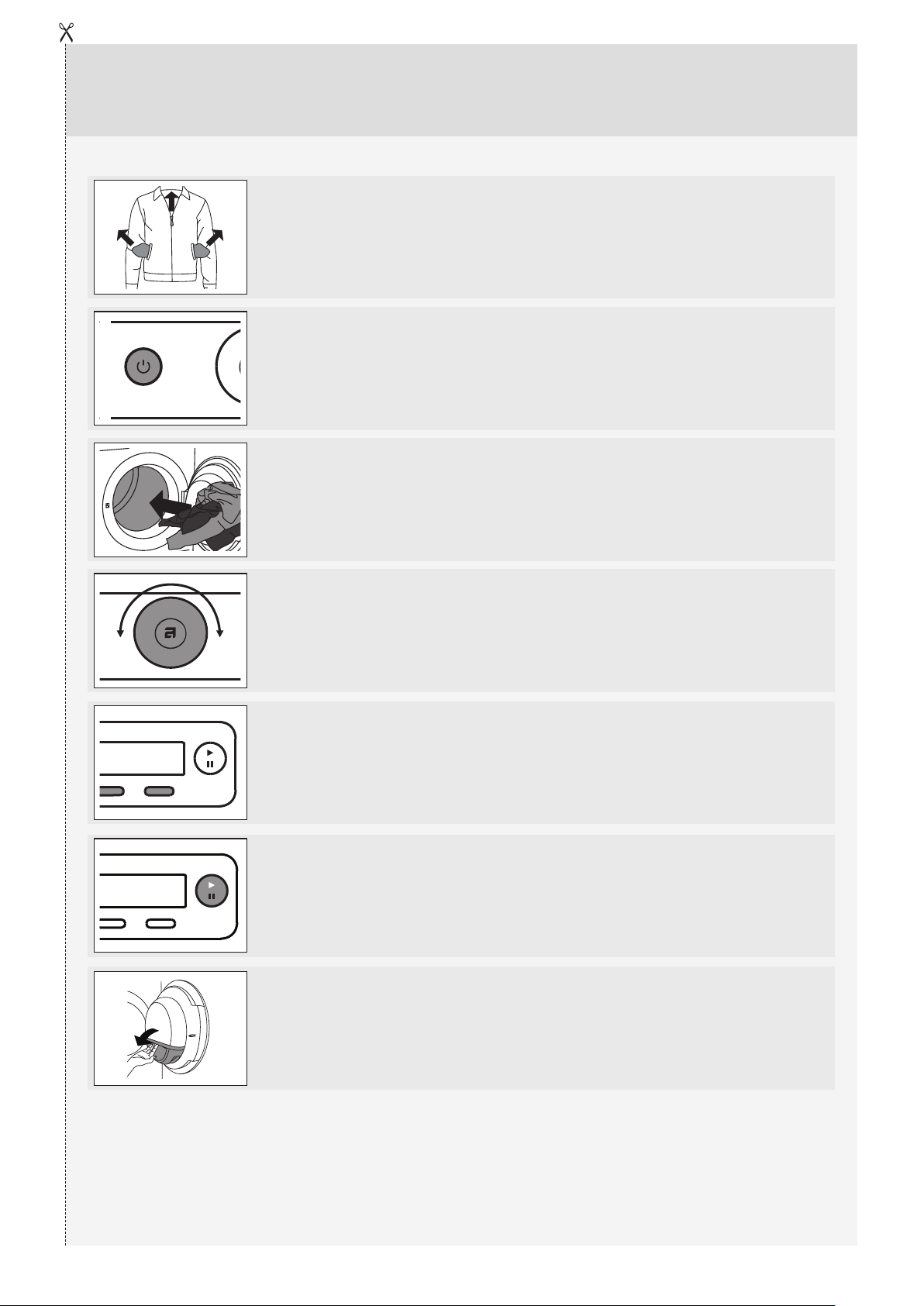

STEP 1: SORT THE FABRICS

See chapter "ADVICES BEFORE DRYING"

STEP 2: TURN ON THE MAIN SWITCH.

Turning on Press the on/off button.

Turning off

Press the on/off button.

STEP 3: OPEN THE DRYER DOOR AND INSERT THE LAUNDRY.

Open the dryer door towards you.

2 3

Place the laundry into the empty dryer drum. Make sure there aren't any other objects among the laundry. Such objects could melt and cause damage to the dryer or your laundry.

Do not overload the drum! (See the program table on the rating plate and adjust the load accordingly.) If the dryer drum is overloaded, the laundry will be more wrinkled and not dried as thoroughly.

Customer Care Center, 1-800-898-1879, www.askousa.com

STEP 4: CHOOSE THE DRYING PROGRAM.

Choose the program by rotating the program selector knob in either direction.

The program selector knob can be used when arrows appear on the display. Select the program based on the type and remaining moisture of the laundry.

Anticipated program duration is indicated on the display.

Extra program settings can also be selected for each program. See STEP 5.

Choose between the following programs:

Program Max. kg* Description

1. AUTO EXTRA DRY (Automatic intensive drying)

2. AUTO DRY 8 Use this program for thicker non-sensitive cotton laundry. After

3. AUTO NORMAL DRY 8 Use this program for thicker non-sensitive cotton laundry of

4. AUTO IRON DRY 8 Use this program for non-sensitive cotton laundry. After drying, it

5. AUTO SYNTHETIC 3,5 Use this program for sensitive laundry made of a mixture of

6. BEDDING 5 Use this program for larger items. When the program is

7. QUICK PRO 2 Use this program for non-sensitive laundry washed with a quick

8. TIME PROGRAM 4 Use this program for non-sensitive laundry that is still slightly

8 Use this program for thicker multi-layered non-sensitive cotton

laundry. After drying, it will be completely dry and ready to be stored in the cupboard.

drying, it will be completely dry and ready to be stored in the cupboard.

approximately the same thickness. After drying, it will be dry or slightly moist.

will be ready for ironing.

synthetic and cotton fibres. After drying, the laundry will be slightly moist.

complete, they will be completely dry. Adjusted drum rotation prevents the laundry from tangling.

program.

moist and has to be thoroughly dried. In the time program, remaining moisture is not detected automatically. If the laundry is still damp after the program is complete, repeat the program; if it is too dry and therefore creased and rough to touch, the drying time you selected was too long. Program duration can be adjusted from 30 minutes to 4 hours (in 15-minute steps).

9. AIRING 2 This program does not use a heater. Use it to refresh your

clothes. Program duration can be adjusted from 15 minutes to 4 hours (in 15-minute steps).

Customer Care Center, 1-800-898-1879, www.askousa.com

Program Max. kg* Description

10. SYSTEM SETTINGS Use the program selector knob to select System Settings.

Confirm the selection by pressing ENTER (button "2"). Then, use the program selector knob to scroll the list of settings. The following options are available:

– Child Lock, – Language (language selection), – Programs (set of programs), – Display (display unit: contrast & logo), – Sounds, – Reset.

See chapter "SYSTEM SETTINGS".

* Max. kg dry load

If your laundry is not dried to the desired dryness level, use extra program settings or use a more suitable

program.

Customer Care Center, 1-800-898-1879, www.askousa.com

STEP 5: CHOOSING THE PROGRAM SETTINGS

Using the program settings, the drying programs can be further adjusted to your preferences.

Some program settings may not be available for your selected program.

Selected program settings will remain stored after the end of the drying cycle and may be changed subsequently (except for delayed start which is not stored after the drying is complete).

123456

1. Dryness level (extra dry)

2. Anti-crease

3. Load

Choose the program settings before pressing the START button. When the drying program is in progress, program settings cannot be changed.

Press and hold the button under a program setting to display the information (INFO) about it.

Following are the program settings that may be selected using the buttons 1 to 6:

4. Lower drying temperature (gentle dry)

5. Time (timed drying)

6. Delay Start

1. Dryness level (extra dry)

By pressing the button 1, you can choose between extra dryness levels (+, ++, +++). Each time the button is pressed, the ﬁ nal level of laundry dryness and drying time will change.

2. Anti-crease

This function pertains to what happens after the drying cycle. By pressing the button 2, you can choose the duration of the anti-crease program from 0 hours to 4 hours

, in 1-hour steps.

3. Load

By pressing the button 3, you can choose between loads of the dryer.

Full load

Small load

Partial load

Selection of actual load aﬀ ects the initially displayed anticipated drying time.

4. Lower drying temperature (gentle dry)

Press the button 4 to switch the gentle dry function on (ON) or oﬀ (OFF).

Customer Care Center, 1-800-898-1879, www.askousa.com

5. Timed drying

First, use the program selector knob to select the Timed Dry program. Press the button 5 to select a drying time from 30 minutes to 4 hours, in 15-minute steps.

Time

2:15

Use the button 6 (OK) to conﬁ rm the selected drying time. Press the Start/ Pause button to start the drying process.

6. Delay Start

Press the button 6 to choose the delayed start when you wish the drying program to start after a certain period of time.

Auto express dry 6:00OK

Press the button 6 for to appear. Use the program selector knob or the button 6 to set the delay from 30 minut to 6 hours in 30-minute steps, and then from 6 hours to 24 hours in 1-hour steps.

Press the button 5 (OK) to conﬁ rm the selected Delay Start time. Press the Start

button to start. When the countdown reaches zero, the selected drying program will start automatically.

To cancel the delay and start the drying process immediately, press the button

Delayed start paused

03:50

5 . To change the Delay Start time, press

the Start/Pause button and hold it for 3 seconds. Select a new Delay Start time. After selecting the new Delay Start time, press the Start/Pause button again.

If you do not take any action for 5 minutes, the display will switch to standby mode. Press the ON/OFF button to reactivate it. The countdown to the start of the drying cycle will be displayed. If the dryer is in the standby mode, the display will switch on 1 minute before the start of the drying cycle. After the countdown, drying time will be indicated on the display unit.

Delayed start cannot be set for the favourite programs.

Customer Care Center, 1-800-898-1879, www.askousa.com

STEP 6: CLOSE THE DOOR AND START THE DRYING PROCESS.

Close the dryer door and press the Start/Pause button.

Start (pressed brieﬂ y – start/resume) Pause (pressed brieﬂ y – drying temporarily suspended) Cancel (press and hold the button for 3 seconds)

Starting

2:20

Remaining time

Depending on the selected program and load, anticipated drying time will be displayed in hours and minutes. Actual drying time will depend on the selected program, load, type of laundry, spinning rate etc. Actual drying time may be longer or shorter than initially displayed.

Drying

2:19

Pausing, stopping or changing the program

To pause a program, brieﬂ y press the

Paused

Door is open

Press start to resume Drying cycle

Preparing for program canceling. Cooling down.

Start/Pause button. To resume the program, press the Start/ Pause button again.

The drying program may also be paused by opening the dryer door.

To resume the programme, simply close the door and press the Start/Pause button.

To stop and cancel the washing program, press the Start/Pause button and hold it for 3 seconds.

Program canceled. Garments can still be hot.

The selected program will be stopped and the cooling stage will begin. Cooling time depends on the selected program.

Only after the cooling is complete, use the program selector knob to select a new program and press the Start/Pause button.

The ﬁ nal drying cycle includes a cooling down stage without heater operation. It makes sure the laundry

is of suitable temperature at the end of the program and that it can be taken from the dryer without risk of touch hot clothes.

A drying program can be paused using the ON/OFF button. The dryer will switch oﬀ . After the dryer is switched on, press the Start button to resume the program.

Customer Care Center, 1-800-898-1879, www.askousa.com

STEP 7: END OF PROGRAM

Start

new

Start new

Add

Anti creasing

Cycle completed succsessfully

Cycle completed succsessfully fav

Open the door towards you and remove the laundry from the dryer.

OKClean door filter

After the end of the drying program, the display will indicate that the program has been successfully completed ("Cycle completed successfully").

If you have selected the "anti-crease" option, the dryer will continue to operate after the end of the drying cycle for the amount of time speciﬁ ed upon selection of this program setting.

After the drying cycle, you have the possibility to save the program as a favorite program (see "Favourite programs").

Clean the net ﬁ lter in the door (see chapter "CLEANING AND MAINTENANCE").

Make sure the dryer drum is empty, then close the door.

5 minutes after the end of the program or last activation, the display will switch oﬀ to standby mode in order to save power. The display will light up again if you press the ON/OFF button or open the dryer door.

After each drying cycle, clean the net ﬁ lter in the door and empty the condensate tank. See chapter

”CLEANING AND MAINTENANCE”.

A clogged net ﬁ lter and heat pump ﬁ lter may result in activation of the automatic overheating switch-oﬀ

device. Clean the ﬁ lter, wait for the machine to cool down, and try running it again. If the dryer still fails to start, call a service technician.

After the drying process, unplug the dryer power cord from the power outlet.

Customer Care Center, 1-800-898-1879, www.askousa.com

Favourite programs

Cycle completed succsessfully fav

Start new

Add

After the end of the drying program, you can use the button 6 to store the program, including all extra settings, as your favourite program.

Make your list of four own favourite programs.

Up to 4 favourite programs can be stored.

1. Favourite Confirm BackFav. list position:

Choose the favourite program position (number) using the button 2; the most recently used program, including all settings, will be oﬀ ered. To store a

program, conﬁ rm with the button 4.

Changing a favourite program

If you wish to store a program after the end of the drying cycle, but there is no more room for another favourite program (only 4 favourite program slots are available), then one of the existing stored favourite programs can be substituted with a new one.

1. Favourite Confirm BackFav. list position:

Use the button 2 to scroll through the list of Favourite programs. Press the button 4 to conﬁ rm the program to be replaced.

1. Fav Bedding will be replaced

Yes No

Conﬁ rm the replacement by pressing the button 5.

If you do not take any action for 5 minutes, the display will switch to standby mode. To activate the display, press the ON/OFF button or open the dryer door.

Customer Care Center, 1-800-898-1879, www.askousa.com

SYSTEM SETTINGS

System settings

Enter

In the main menu, use the program selector knob to select System Settings. Conﬁ rm the selection by pressing the button 2.

Then, use the program selector knob to scroll the list of settings that can be changed.

• Child Lock

• Language

• Programs

• Display (display unit: contrast & logo)

• Sounds

• Reset

Use the button 6 (BACK) to return to System Settings or to the main menu.

Press the INFO button to display brief information about the setting.

CHILD LOCK

Child lock BackInfo

Child lock can be activated by pressing the button 1 . This will prevent children from switching on the machine.

Child lock BackInfo

Child lock

Locks user interface to any interactions. Hold for to deactivate.

3 sec

LANGUAGE

Language OK

Russian

Press the button 1 to deactivate the child lock. When the child lock is activated, no other function can be selected.

To temporarily (for 3 minutes) switch oﬀ the child lock, press the 1 and 4 buttons simultaneously for 3 seconds.

You can choose between 25 languages. Press the button 3 for to appear. Use the program selector knob or the button 3 to scroll the list of languages. Use the button 6 (OK) to conﬁ rm the selected language.

Language Back

Russian

Customer Care Center, 1-800-898-1879, www.askousa.com

Use the button 6 to return to System Settings.

PROGRAMS

The main menu includes the entire set of programs that you can choose using the program selector knob. This setting allows only displaying the selected program in the main menu.

Sports wearPrograms BackInfo

Press the button 1 for to appear. Use the program selector knob or the button 1 to select a program. Use the button 3 to set whether this

13 6

program is to be displayed or not: On / Oﬀ .

Use the button 6 to return to System Settings.

DISPLAY UNIT

Display

Contrast Logotype

Back

1356

Set the contrast and logo display.

1 2

SOUNDS

Choose whether audible signals are switched on or oﬀ .

InfoMidSounds Back

146

BackContrast

Use the buttons 1 to 5 to set the contrast.

BackLogotype

Use the button 1 to toggle logo display on or oﬀ . The symbol means that logo will appear on the display when the machine is turned on.

Use the button 6 to return to System Settings.

Use the button 1 to switch acoustic signal on or oﬀ .

Use the button 4 to choose between the following settings: low, mid, and high. As you scroll through the options, a sample audible signal will be sounded.

Use the button 6 to return to System Settings.

Customer Care Center, 1-800-898-1879, www.askousa.com

RESET

This means that all settings will return to the default settings and your own settings will be deleted.

Reset BackInfoYes

Conﬁ rm the selection by pressing the button 3 (YES).

Press the button 6 to return to System

Settings.

SOUNDS

In the initial stage of drying or during drying, the compressor and the pump may cause noise which,

however, does not aﬀ ect the dryer operation.

Humming sound: this is the sound of the compressor unit. The level of noise depends on the program and the drying stage. Whirring sound: from time to time, the compressor unit is ventilated. Pumping sound: the pump is pumping the condensate into the condensate tank. Clicking sound: clicking noise is caused by automatic cleaning of the heat exchanger (compressor). Rustling water sound: can be heard during automatic cleaning. Rattling sound: can be heard during drying if laundry has any hard parts (buttons, zippers etc.)

Customer Care Center, 1-800-898-1879, www.askousa.com

CLEANING AND MAINTENANCE

Before cleaning, make sure to switch oﬀ the appliance and disconnect it from the power mains (unplug

the power cord from the outlet).

CLEANING THE DOOR NET FILTER IN THE DOOR

Open the ﬁ lter housing.

Pull out the net ﬁ lter.

Gently scrape the ﬁ lter to remove the lint lining

(ﬁ bres and threads).

Reinstall the net ﬁ lter.

Close the ﬁ lter housing.

Make sure the net ﬁ lter is correctly inserted into

the ﬁ lter housing.

Clean the door net filter after each drying cycle.

Never operate without a door net filter or if the door net filter is damaged.

Customer Care Center, 1-800-898-1879, www.askousa.com

ADDITIONAL INFORMATION REGARDING CLEANING

If you have inadvertently removed the entire net ﬁ lter housing in the dryer door, replace it in the same position.

Opening on the lower side of the door should occasionally be cleaned with a vacuum cleaner.

If necessary, clean the ﬁ lter housing and door gasket as well.

Customer Care Center, 1-800-898-1879, www.askousa.com

CLEANING THE APPLIANCE EXTERIOR

Wipe the dryer exterior using a soft damp cotton cloth and mild detergent. Do not use any cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). Wipe all parts of the dryer with a soft cloth until dry.

Keep the area around the dryer clean and cool. Dust, heat, and humidity will extend the drying time.

Always disconnect the dryer from the power mains before cleaning.

Customer Care Center, 1-800-898-1879, www.askousa.com

TROUBLESHOOTING

Disturbances from the environment (e.g. the power grid) may result in various error reports (see Troubleshooting table). In such case:

• Switch oﬀ the appliance, wait for 1 minute, switch the appliance back on, and repeat the drying program.

• If the error persists, call an authorized service center.

• You will be able to solve most of the problems in dryer operation by yourself (see troubleshooting table below).

• Repairs may only be carried out by an adequately trained person.

• Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

The warranty does not cover the errors or failures resulting from disturbances from the environment

(lightning strike, power grid failures, natural disasters etc.).

Problem/error Cause What to do?

The machine will not start.

There is voltage in the outlet, but the drum does not spin ... The dryer does not work.

The machine stops operating completely during a program.

• The main switch is not switched on.

• There is no voltage in the power outlet.

• Program was not started in accordance with the instructions.

• Door might be open. • Check if the door is closed properly.

• The condensate tank is full (only applies to condensation dryer and the dryer with a heat pump).

• Delayed start might be activated.

• The door net filter may be clogged. As a result, the temperature in the dryer rises, which in turn causes overheating, and the dryer switches off.

• Check whether the main switch is on.

• Check the fuse.

• Check if the power cord plug is correctly inserted into the power outlet.

• Re-read the instructions for use again.

• Empty the condensate tank (see section "Cleaning and Maintenance") (only applies to condensation dryer and the dryer with a heat pump).

• To cancel the Delayed Start option, press 5 the Skip button.

• Clean the door net filter (see chapter "CLEANING AND MAINTENANCE").

• Wait for the machine to cool down, and try running it again. If the dryer still fails to start, call service centre.

Customer Care Center, 1-800-898-1879, www.askousa.com

Problem/error Cause What to do?

Laundry not dried or drying takes too long.

Unevenly dried laundry.

• Filters are not clean. • Clean the filters (see chapter "CLEANING AND MAINTENANCE").

• Dryer is placed in a closed

room; room that is too cold; or room that is too small and the air overheats as a result.

• Make sure there is adequate supply of fresh air to the dryer; for example, open the door and/or window.

• Check if the temperature in the room where the dryer is installed is too high or too low.

• Laundry was not sufficiently wrung or spun.

• If the load is still wet after completed drying cycle, an appropriate drying program should be run again (after cleaning filters).

• Amount of laundry dried in

• Use a suitable program or extra functions.

the appliance is too large or insufficient.

• Laundry (such as bedding) gets tangled.

• Close the buttons or zippers on the laundry before drying. Select a suitable program (e.g. the bedding program).

• After the drying process, loosen the laundry and select an additional drying program (e.g. timed drying program).

• Laundry of varying types and thickness, and excessive amount of laundry.

• Make sure you have sorted the laundry by type and thickness, whether you have added a suitable amount of laundry to the drum, and whether you have selected a suitable program.

A slight hitting noise appears.

The door opens during drying.

• If the dryer is out of use for a long period of time, the same points of load-bearing elements or components are under stress for a long time, causing temporary deformation.

• Excessive load on the door (too much laundry in the drum).

• The noise will subside without any intervention.

• Reduce the amount of laundry.

Customer Care Center, 1-800-898-1879, www.askousa.com

FAILURE DISPLAY

In case of a failure while a program is in progress, the relevant Error X is indicated on the display unit.

Info EXITError 3

Errors indicated on the display unit (depending on the model) may include the following:

Press and hold the INFO button to display the error description.

Press the 6 EXIT button to return to Main Menu.

Switch oﬀ the dryer and turn it back on.

Problem/

error

ERROR_0

ERROR_1

ERROR_3

ERROR_4

ERROR_5

Error indication on the display What to do?

E-O - Please contact Service.

Control unit failure. Call service centre.

E0 – Please, call service centre.

E-1 - Thermistor fault. Please contact Service.

Temperature sensor failure. Call service centre.

E1 – Thermistor error. Please, call service centre.

E-3 - Pump failure. Please contact Service.

E3 – Pump error. Please, call service centre.

E-4 - Please clean filters or contact Service.

E4 – Please, clean the filters or call service centre.

Failure on the pump for pumping the condensate into the condensate tank Call service centre.

Control unit failure. Clean the filters. See chapter "CLEANING AND MAINTENANCE" or call service centre.

E-5 - Max program time

Call service centre.

E5 – Max program time

Customer Care Center, 1-800-898-1879, www.askousa.com

INFORMATION before, during, and after the program (depending on the model)

Error indication on the display What to do?

Steam tank is empty. Please fill water. Fill the steam tank with distilled water or

EN:

condensate. Pour the water through the steam tank filter located in the condensate tank housing. See chapter "BEFORE USING THE APPLIANCE FOR THE FIRST TIME".

EN: Steam tank full. Stop adding condensate or distilled

water.

EN: Please close the door before pressing start. Close the dryer door before starting or

resuming the program.

EN:

Option not available at this phase of cycle. This option is not available. Select an

option that is still available.

Cycle was interrupted by power failure. Please resume. Press the Start/Pause button to restart

EN:

or resume the program.

EN: Please empty the tank before resuming a cycle. See chapter "CLEANING AND

MAINTENANCE".

EN:

Clean door filter. See chapter "CLEANING AND

MAINTENANCE".

EN: Clean the condenser unit. See chapter "CLEANING AND

MAINTENANCE".

EN: Please empty the water tank and clean door filter. See chapter "CLEANING AND

MAINTENANCE".

EN: Child lock is on. Press buttons for 3 sec to unlock. See chapter "SYSTEM SETTINGS".

Customer Care Center, 1-800-898-1879, www.askousa.com

SERVICE AND GUARANTEE

LIMITED WARRANTY – RESIDENTIAL APPLIANCES

ASKO Distribution North America, LLC. (“ASKO”) warrants to the original purchaser (the “ASKO Customer”) of the ASKO product (the “ASKO Product”), who purchased the ASKO Product from a distributor, dealer, manufacturer’s representative or other seller who has been authorized by ASKO, that this ASKO Product is free of defects in materials and/or workmanship, subject to the terms and conditions set forth herein. This Limited Warranty covers parts and labor, except as set forth in this Limited Warranty. Service must be provided by an authorized ASKO service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This Limited Warranty is valid only when the ASKO Product is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.

Residential ASKO Products Used Exclusively for Household/Personal Purposes:

Two (2) Years limited Warranty – Any warranty service claims for residential ASKO Products must be ﬁ led with ASKO within two (2) years from date of purchase. Service will be provided during normal business hours. Residential ASKO Products Not Used Exclusively for Household/Personal Purposes or used Commercially or used in Marine, Mobile or Aeronautical Applications: One (1) Year limited Warranty – Any warranty service claims for ASKO Products not used exclusively for household and personal use, or used commercially or used in marine, mobile, or aeronautical applications must be ﬁ led with ASKO within one (1) year from date of purchase. Service will be provided during normal business hours.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Replacement parts or repair labor if the ASKO Product is used in a manner that is inconsistent with published user or operator instructions and/ or installation instructions.

2. Service calls to correct the installation of the ASKO Product, to instruct you on how to use the ASKO Product, to replace or repair house fuses, or to correct house wiring or plumbing.

3. Consumable items and parts, such as ﬁ lters.

4. Damage resulting from accident, alteration, misuse, abuse, negligence, ﬁ re, ﬂ ood, acts of God, improper use, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by ASKO, as well as any attempted repair by other than authorized ASKO service companies.

5. Cosmetic damage, including scratches, dents, chips or other damage to the ﬁ nish of the ASKO Product, unless such damage results from defects in materials or workmanship and is reported to ASKO within 5 days from date of purchase.

6. Pickup and delivery. The ASKO Product is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modiﬁ cations made to the ASKO Product.

8. Expenses for travel and transportation for product service if the ASKO Product is located in a remote area where service by an authorized ASKO service company is not available.

9. The removal and reinstallation of the ASKO Product if it is installed in an inaccessible location or is not installed in accordance with ASKO’s published installation instructions.

10. Replacement parts or repair labor on ASKO Products with original model/serial numbers that have been removed, altered or cannot be easily determined.

Customer Care Center, 1-800-898-1879, www.askousa.com

DISCLAIMER

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. EXPRESSLY DISCLAIMED ARE ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow exclusion or limitations regarding warranty rights. This Limited Warranty gives you speciﬁ c legal rights and you may have other rights that vary from jurisdiction to jurisdiction. Attempted repair by any person other than an authorized ASKO service company will void this Limited Warranty.

LIMITATION OF LIABILITY

IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, EXEMPLARY, PUNITIVE OR SPECIAL DAMAGES. IN NO EVENT SHALL ASKO OR THE MANUFACTURER AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the exclusion or limitation of incidental, consequential or other damages, so these limitations and exclusions may not apply to you. This Limited Warranty gives you speciﬁ c legal rights. You also may have other rights that vary from jurisdiction to jurisdiction.

1, 2, 3

213

TYPE: TDXX.XXXXX

Art.No.: XXXXXX/XX Ser.No.: XXXXXXXX

XXX V ~

IPX4

XXXX W

XX Hz

MODEL: XXXXXX.X

XXA

X kg

Only authorised spare parts shall be used in the

event of failure.

Repair or any warranty claim resulting from

incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

Customer Care Center, 1-800-898-1879, www.askousa.com

SERVICE AFTER EXPIRATION OF LIMITED WARRANTY

For information about obtaining parts and labor after expiration of this Limited Warranty or arising outside the scope of this Limited Warranty, please contact ASKO Customer Care at 1-800-898-1879. After your purchase and prior to ﬁ rst use of the ASKO Product, register your ASKO Product with ASKO by utilizing the address information below. Should you need further assistance as well, contact us at the address information below:

ASKO Distribution North America, LLC Customer Care Center PO Box 44848 MADISON WI 53744 1-800- 898-1879 www.askona.com

Customer Care Center, 1-800-898-1879, www.askousa.com

TECHNICAL INFORMATION

Height 845 mm

Width 595 mm

Depth 640 mm

Weight (net) 40 kg

Drum volume 117 l

Maximum drying load See rating plate

Speed 50–55 rpm

Rated power See rating plate

Drum material Stainless steel

Housing material Hot-dip galvanized and powder coated sheet metal, or

stainless steel sheet

Placement/installation Stacked on top of a washing machine, or freestanding

Customer Care Center, 1-800-898-1879, www.askousa.com

PROGRAM TABLE

The table indicates the power consumption and time values for drying of a test batch of laundry with various loads and after spinning at various rates, consistently with the EN61121.

The following requirements apply to the consumption values speciﬁ ed below.

Inlet air temperature room temperature

Inlet air humidity 50–60%

Drying temperature Normal

Test loa d *

Program

"Washing machine

spin speed (rpm)"

Initial moisture

content approx. (%)

Final moisture

content approx. (%)

Full load (8kg/17lbs)

Energy consumption

approx. (kWh)

Program time

Partial load

(5,5kg/12lbs)

approx. (h:min)

Energy consumption

approx. (kWh)

Small load

(4kg/9lbs)

Program time

approx. (h:min)

Energy consumption

approx. (kWh)

Program time approx.

Auto extra dry 1400 45 -4 4,90 2:05 3,50 1:45 2,60 1:35

Auto dry 1400 45 -2 4,70 1:50 3,30 1:30 2,50 1:20

Auto normal dry*

1400 45 0 4,50 1:35 2,80 1:10 2,40 1:00

Auto iron dry* 1400 45 12 3,30 1:10 2,10 0:50 1,40 0:40

Full load

Partial load

Small load

(h:min)

* Due to deviations in terms of type and amount of laundry, spinning, power supply oscillation, and environment temperature and humidity, the values

measured at the user may diﬀ er from the one stated in the table.

Customer Care Center, 1-800-898-1879, www.askousa.com

DISPOSAL

Disposal / recycling of packaging

Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately.

The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. The product should be taken to an authorized collection centre for waste electric and electronic equipment processing. When disposing of an appliance at the end of its useful life, remove all power cords and destroy the door latch and switch to prevent the door from locking or latching (child safety). Correct disposal of the product will help prevent any negative eﬀ ects on the environment and health of people which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant authority in charge of waste management, your waste disposal service, or the store where you bought the product.

Customer Care Center, 1-800-898-1879, www.askousa.com

QUICK GUIDE

SORT THE FABRICS

Sort the fabric by type and by how heavily soiled the laundry is. Observe the drying symbols on the laundry labels. Close the zippers, hook-and-loop fasteners and buttons.

SWITCH ON THE MAIN ON/OFF SWITCH (ON/OFF)

OPEN THE DRYER DOOR AND INSERT THE LAUNDRY.

Before doing so, make sure the drum is empty.

CHOOSE THE DRYING PROGRAM.

Turn the program selector knob to the desired drying program.

CHOOSE THE PROGRAM SETTINGS.

Choose the settings by pressing the relevant buttons.

CLOSE THE DRYER DOOR AND PRESS THE START BUTTON.

Anticipated drying time, in hours and minutes, will be indicated on the display.

END OF PROGRAM

Open the door and remove the laundry from the dryer. Clean the filters. See chapter "CLEANING AND MAINTENANCE". Close the door. Switch off the main on/off switch. Remove the plug from the power outlet.

We reserve the right to modiﬁ cations.

Customer Care Center, 1-800-898-1879, www.askousa.com
