ARB 3438260 User Manual

Download

Page 1

Part Number: Product

3438270 F/Kit 6172557

Deluxe Combination Winch and Non Winch Bull Bar

Description: Suited to

Nissan XTERRA 05ON USA Only

vehicle/s:

WARNING

REGARDING VEHICLES EQUIPPED WITH SRS AIRBAG;

When installed in accordance with these instructions, the front protection bar does not affect operation of the SRS airbag.

ALSO, NOTE THE FOLLOWING:

♦ This product must be installed exactly as per these instructions using only the hardware supplied.

♦ In the event of damage to any bull bar component, contact your nearest authorised ARB stockist.

Repairs or modifications to the impact absorption system must not be attempted.

♦ Do not use this product for any vehicle make or model, other than those specified by ARB.

♦ Do not remove labels from this bull bar.

♦ This product or its fixing must not be modified in any way.

♦ The installation of this product may require the use of specialized tools and/or techniques

♦ It is recommended that this product is only installed by trained personnel

♦ These instructions are correct as at the publication date. ARB Corporation Ltd. cannot be held

responsible for the impact of any changes subsequently made by the vehicle manufacturer

♦ During installation, it is the duty of the installer to check correct operation/clearances of all

components

♦ Work safely at all times

♦ Unless otherwise instructed, tighten fasteners to specified torque

ARB 4x4 ACCESSORIES

Corporate Head Office

42-44 Garden St Tel: +61 (3) 9761 6622 Kilsyth, Victoria Fax: +61 (3) 9761 6807 AUSTRALIA 3137

Australian enquiries sales@arb.com.au North & South American enquiries sales@arbusa.com Other international enquiries exports@arb.com.au

www.arb.com.au

Last Rev Date: 26/6/2009 Page 1 of 18 Fitting instructions# 3787027

Page 2

GENERAL CARE AND MAINTENANCE

By choosing an ARB Bar, you have bought a product that is one of the most sought after 4WD products

in the world. Your bar is a properly engineered, reliable, quality accessory that represents excellent value. To keep your bar in original condition it is important to care and maintain it following these recommendations:

 Prior to exposure to the weather your bar should be treated to a Canuba based polish on all exposed

surfaces. It is recommended that this is performed on a six monthly basis or following exposure to salt, mud, sand or other contaminants.

 As part of any Pre Trip Preparation, or on an annual basis, it is recommended that a thorough visual

inspection of the bar is carried out, making sure that all bolts and other components are torqued to the correct specification. Also check that all wiring sheaths, connectors, and fittings are free of damage. Replace any components as necessary. This service can be performed by your local authorized ARB Stockist.

FITTING REQUIREMENTS

REQUIRED TOOLS FOR FITMENT OF PRODUCT:

METRIC SOCKET SET METRIC RING AND OPEN ENDED SPANNER SET

ELECTRIC DRILL 3 & 10mm DRILL BITS

SHARP KNIFE PHILLIPS AND FLAT SCREW DRIVER SET

FELT TIP PEN HACKSAW BLADE OR SMALL HAND SAW

FINE FILE OR SAND PAPER ELECTRIC JIG SAW

METRIC TAPE MEASURE ROLLS OF 12 mm & 50 mm WIDE MASKING TAPE

HAVE AVAILABLE THESE SAFETY ITEMS WHEN FITTING PRODUCT:

Protective eyewear

NOTE: ‘WARNING’ notes in the fitting procedure relate to OHS situations, where to avoid a potentially hazardous situation it is suggested that protective safety gear be worn or a safe work procedure be employed. If these notes and warnings are not heeded, injury may result.

Hearing protection

FASTENER TORQUE SETTINGS:

SIZE Torque Nm Torque lbft

M6 9Nm 7lbft

M8 22Nm 16lbft

M10 44Nm 32lbft

M12 77Nm 57lbft

NOTE:

♦ OPTIONAL FOG LAMPS TO SUIT THIS PRODUCT ARE P#6821201.

REQUIRED USE P#MD02 LOOM KIT, P#180209 SWITCH AND P#180215 SWITCH CAP FOR FOGS

♦ UP TO 900 SERIES ROUND OR 800 RECTANGULAR DRIVING OR FOG LAMPS SUIT THIS PRODUCT

Last Rev Date: 26/6/2009 Page 2 of 18 Fitting instructions# 3787027

IF LOOM AND SWITCH

Page 3

APPLICATION. PART NO. QTY DESCRIPTION

MOUNT BRACKET (IMPACT

ABSORBER) TO CHASSIS

BULL BAR TO MOUNT BRACKETS

BUFFERS TO BULL BAR

PARTS LISTING

3757756R&L

6151095 4581049 4581050 6151360

4581007

4581050

6151428

3162470R&L

6151128

1 PR

8 8 8 6

1 PR

BRACKET ASSY IMP ABS RH & LH BOLT M12 X 1.25 X 35 (FINE PITCH) WASHER FLAT M12 WASHER SPRING M12 BOLT M12 X 1.75 X 35 (COARSE PITCH)

WASHER FLAT M12 X 37 X 4

WASHER SPRING M12

NUT FLANGED M12

BUFFER SLOTTED RH & LH

NUT FLANGED M6

LICENCE PLATE TO BULL BAR

LIGHT INSERT AND INDICATORS

WINCH TO BULL BAR

WINCH COVER

(NOT FITTING WINCH)

STONE TRAY BRACE TO

IMPACT ABSORBERS

STONE TRAY TO BULL BAR

PINNING BOLT HARDWARE

MISCELLANEOUS

6151384

6821189

3163015

6821151R&L

6821152

180701

3756499

EG50

6151074

6151073

4581040

4581048

6151022

6151132

4581044

180302

6522720 6151256 6151128 6191006 4681302 6151022 4581044 4581046 6151132 6151300

6522740 6151300 6151213 4581082 4581287 6151357 6151321

180302 6191020 6191024 3787028

1 PR

1 2 2 1 1 2 2 2 2 2

1 4 6 6 6 4 4 6 2 1 1

SCREW PAN HD

GROMMET RND HD

COMBINATION LIGHT SURROUND KIT

INDICATOR/CLEARANCE LAMP RH/ LH

LOOM INDICATORS

SCOTCH LOKS

CONTROL BOX MOUNT

RUBBER GROMMET

BOLT 3/8” x 1 ¾” HEX HEAD

BOLT 3/8” x 1 ½” HEX HEAD

WASHER FLAT M10

WASHER SPRING M10

BOLT M8 x 25mm

NUT FLANGE M8

WASHER FLAT M8

CABLE TIES

PANEL WINCH COVER SCREW M6 X 16MM BUTTON HEAD S/S NUT FLANGE M6 EXTRUSION WINCH COVER BRACE STONE TRAY BOLT M8 x 25 mm LONG WASHER FLAT M8 WASHER SPRING M8 NUT FLANGE M8 CAGE NUT M6 ( LONG LEG )

STONE TRAY CAGE NUT M6 ( LONG LEG ) BOLT M6 x 20 BZ WASHER FLAT M6 x 20 BZ WASHER SPRING M6 BZ BOLT SEMS M10 x 25 mm LONG NUT FLANGE M10 CABLE TIES PINCH WELD NARROW 400mm LONG PINCH WELD NARROW 600mm LONG TEMPLATE BUMPER CUT

Last Rev Date: 26/6/2009 Page 3 of 18 Fitting instructions# 3787027

Page 4

Remove bolts securing bumper to sump guard

PREPARATION TO VEHICLE

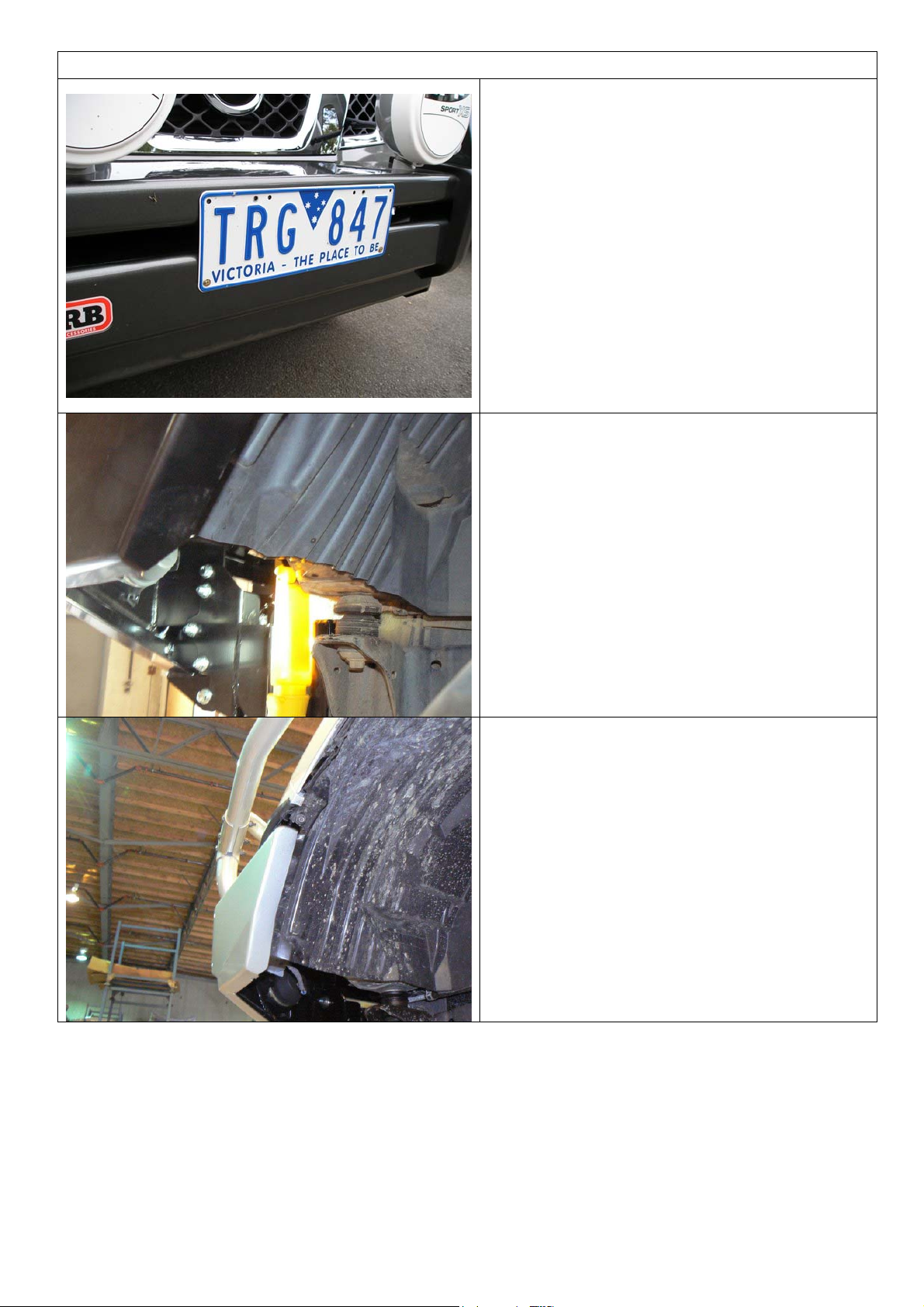

1. Remove licence plate from the vehicle and set aside

2. Remove the three plastic scrivets securing the bumper in the intake area behind the licence plate location

3. Remove the bolts between the lower bumper and sump guard

4. Remove the four lower bolts that attach the lower bumper tabs to the vehicle (refer to attached photo). There are also another two self tapping screws in each side, located in a recess in the lower bumper face – these need to be removed.

5. Remove the two bolts and screw from the fender opening area each side that attaches the bumper bar to the plastic inner guard liner as shown.

6. Remove the screws securing the fender liners to bumper in the forward wheel arch areas

7. Remove the screws from the bumper on each side in the wheel arch area

Last Rev Date: 26/6/2009 Page 4 of 18 Fitting instructions# 3787027

Page 5

PREPARATION TO VEHICLE

8. Remove the grille – prise out scrivets along the top first, then release lower clips in behind grille attaching to top flange of the bumper

9. Remove scrivets securing bumper to cross member.

10. Remove bumper.

11. Disconnect fog lamps if fitted

NOTE: The outer end of the bumper where it clips into the fender, is released by pulling out and forward as shown

Last Rev Date: 26/6/2009 Page 5 of 18 Fitting instructions# 3787027

Page 6

PREPARATION TO VEHICLE

12. Remove bumper support panel

(2005 – 2008 MODEL ONLY)

13. Remove the four bolts that hold the factory steel sump guard, set aside to be fitted once bull bar is fitted.

14. Remove crash beam

Last Rev Date: 26/6/2009 Page 6 of 18 Fitting instructions# 3787027

Page 7

PREPARATION TO VEHICLE

15. Remove tow hook and set aside

16. Remove the bracket holding the power steering pipe

17. Mark out a hole 20mm (3/4”) up from the original upper hole

18. Drill out to same diameter as upper hole as shown

19. Then flatten tab.

20. Touch up bare surfaces with rust preventing paint.

21. Pull up pipe and refit bracket as shown

Last Rev Date: 26/6/2009 Page 7 of 18 Fitting instructions# 3787027

Page 8

Mark along this edge for cutting line

PREPARATION TO VEHICLE

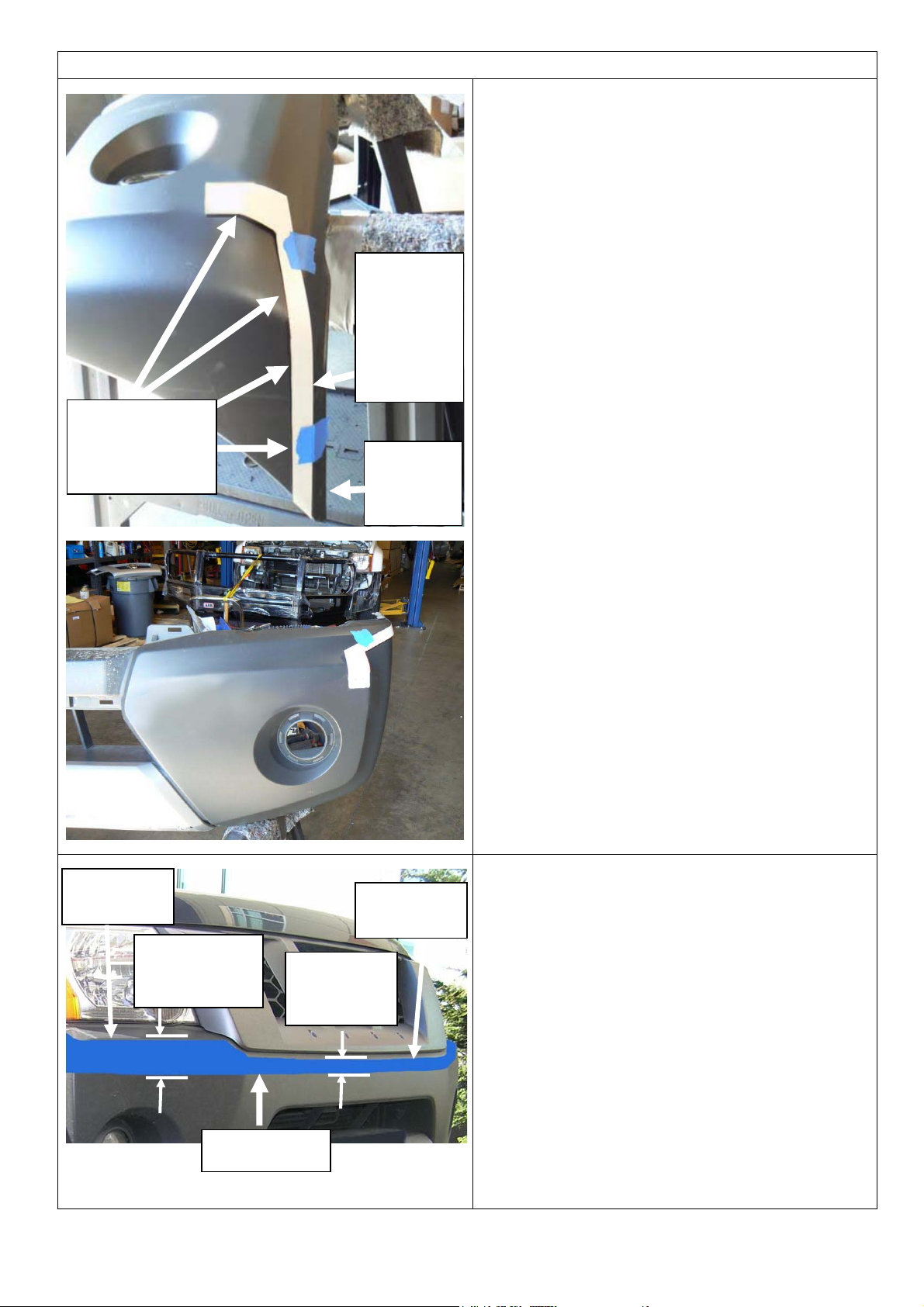

22. For marking out cut line, you may either temporarily refit bumper or mark out resting on saw stools or similar as shown.

23. You can begin marking out for the side cut on the bumper.

24. Starting on the LH side first, tape the

Align template with this feature line on bumper

Top face of bumper

template into position, aligning the edge along the top horizontal outward edge of the bumper and to the rear top corner as shown, then mark the cut line with a felt tip pen.

25. Repeat for the RHS

Top edge of bumper

05-08 Xterra only

26. Apply tape across the front of the bumper as shown

Tape Thickness 40mm (1 5/8”)

Tape Thickness 25mm (1”)

Cut line

Last Rev Date: 26/6/2009 Page 8 of 18 Fitting instructions# 3787027

Page 9

PREPARATION TO VEHICLE

Cut line

Measure down from bumper feature line

Tape Thickness 40mm (1 5/8”)

05 - 08 Model shown

Top edge of bumper

09 ON Xterra only

27. Apply tape across the front of the bumper as shown

28. Remove the template then mask the area above the cut with minimum of 30 mm masking tape to protect the surrounding surfaces.

29. Cut along the cutting line with an electric jig saw, or similar cutting device.

30. Clean up the cut edges of the bumper bar with a file or fine sand paper.

NOTE: Final bumper cut shown

09 ON Model showing cut up to edge of grille

09 ON Model shown

Cut through ribs across centre section along area below

09 ON Model Shown

31. Fit the 400mm/14” long pinch weld trims to each of the areas from the wheel arch forward as shown

Fit 400mm/

Trim off excess

Last Rev Date: 26/6/2009 Page 9 of 18 Fitting instructions# 3787027

14” long pinch weld to this edge

Page 10

PREPARATION TO VEHICLE

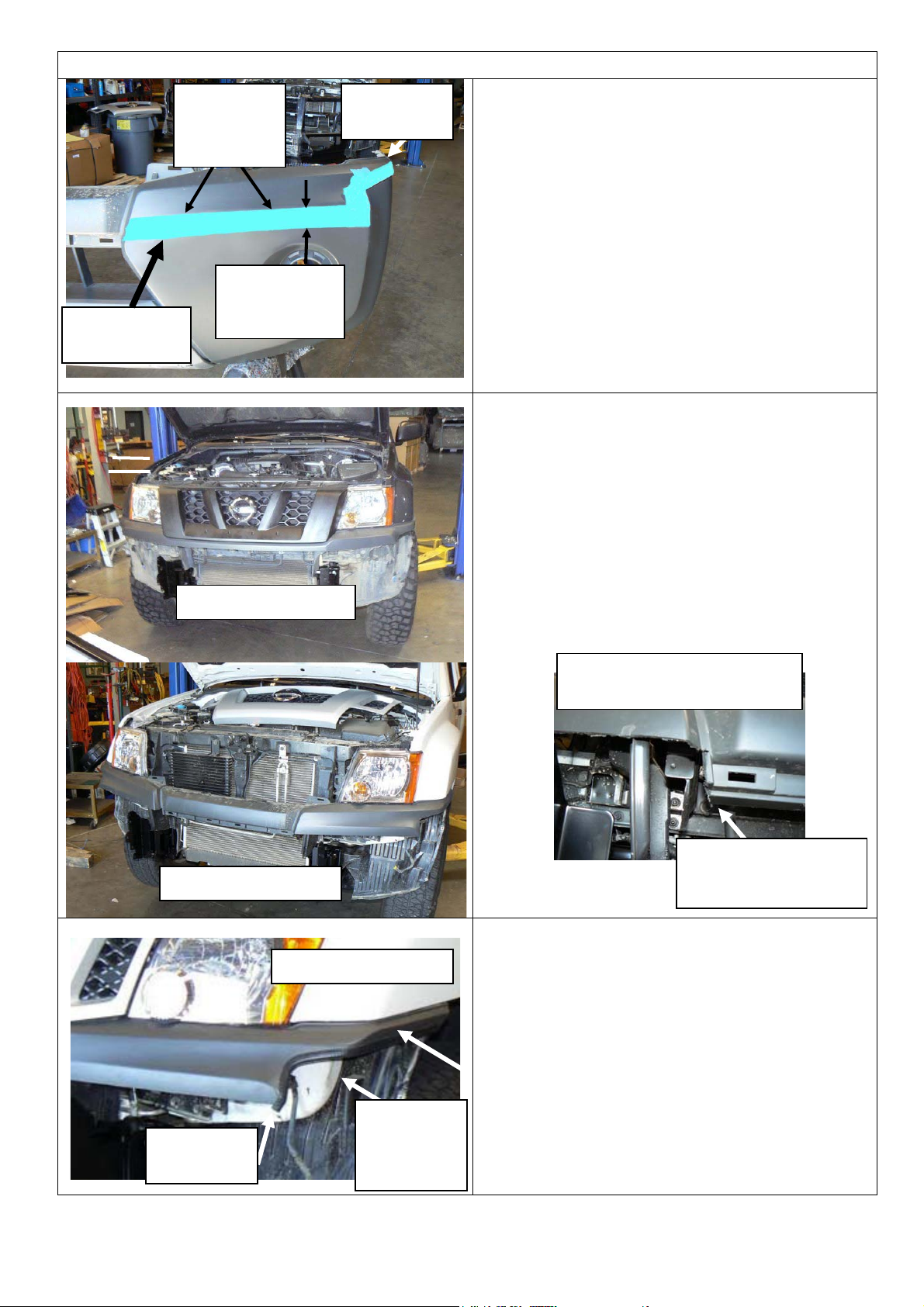

If you are fitting a winch in an 09ON model you must make this cut in the grille lower front area as shown

32. Mark out grille centre as shown

33. Make the cut, applying masking tape up to the cut line providing protection from scratching the good surface

NOTE: If fitting 9.5XP WARN winch check clearance when fitting and trim to clear

34. Apply the 600mm/26” piece of pinch weld to the edge and then trim any excess

120mm

4 3/4”

125mm

5”

120mm

4 3/4”

Pinch weld

fitted

Measure 910mm (35 13/16”) outside overall

35. Install the impact absorber set as shown

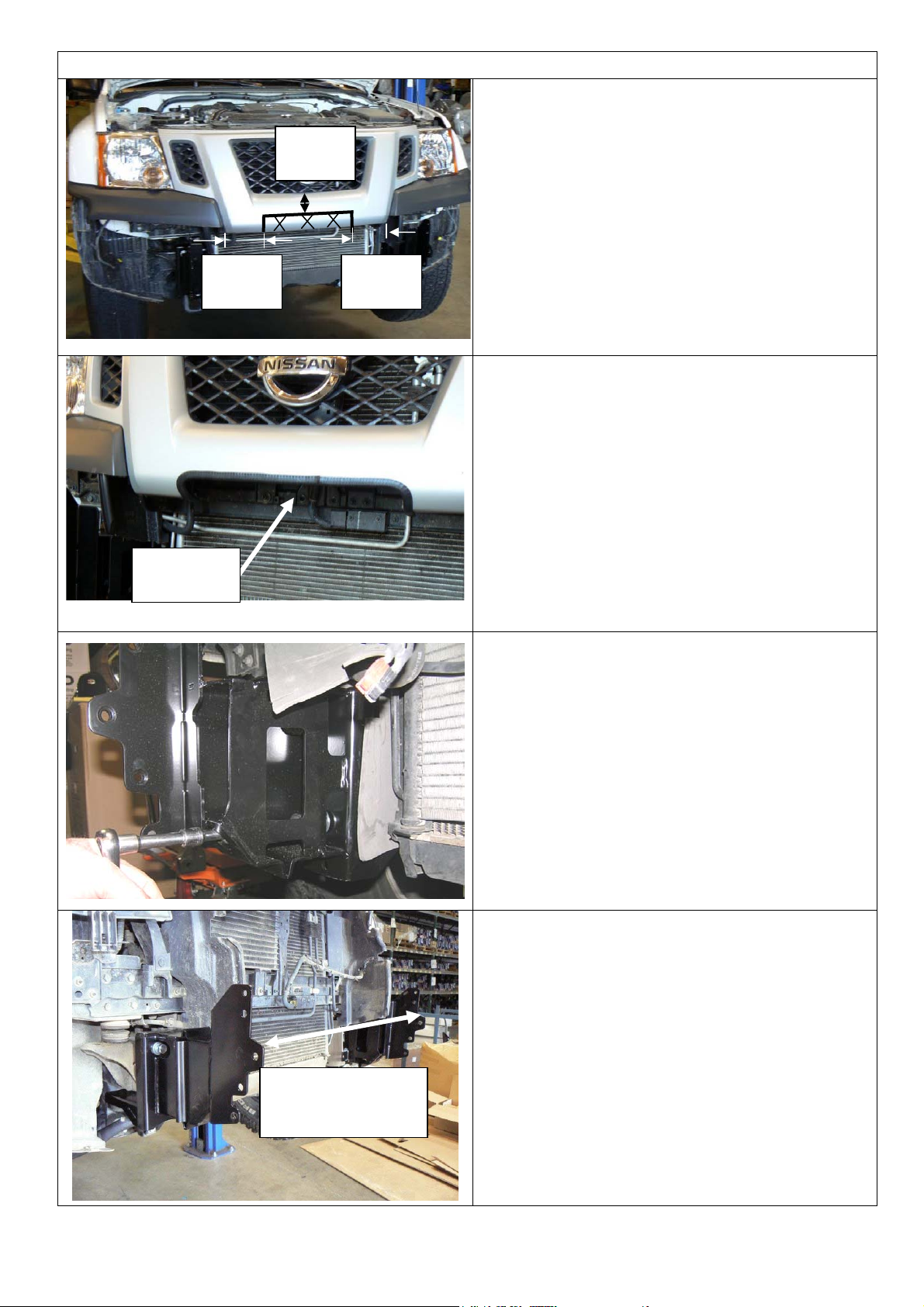

36. Secure hand tight only, using M12 x1.25 X 35 bolt, washer and flange nut sets.

37. Use the original bolts to secure the tow hook if it is to be refitted

38. Check the overall width of the mount brackets by measuring the distance inside the faces. The two inside vertical faces should be parallel to each other.

39. For reference, the ideal width is 910mm. If the width is over this or well under, adjust the brackets to achieve approximately this width then do all the bolts up to specified torque.

Last Rev Date: 26/6/2009 Page 10 of 18 Fitting instructions# 3787027

Page 11

BULL BAR PREPARATION

40. Fit the buffers to either side of the bull bar using 6 x M6 flange nuts. Do not over tighten.

41. Fit M6 cage nuts to four holes in lower pan flange. The nut bodies are inside the bull bar

IF NOT FITTING A WINCH

42. Apply rubber mould to edge of winch

hole cover panel and trim off excess.

43. Fit panel to top face on bull bar using 2 x M6

NOTE: The flat washers are to be sandwiched between panel and top face of bull bar to stop the panel pulling down to form depression around screw heads.

dome head stainless steel screws, flange nuts and flat washers.

Last Rev Date: 26/6/2009 Page 11 of 18 Fitting instructions# 3787027

Page 12

WINCH FITMENT ONLY

IF FITTING A WINCH

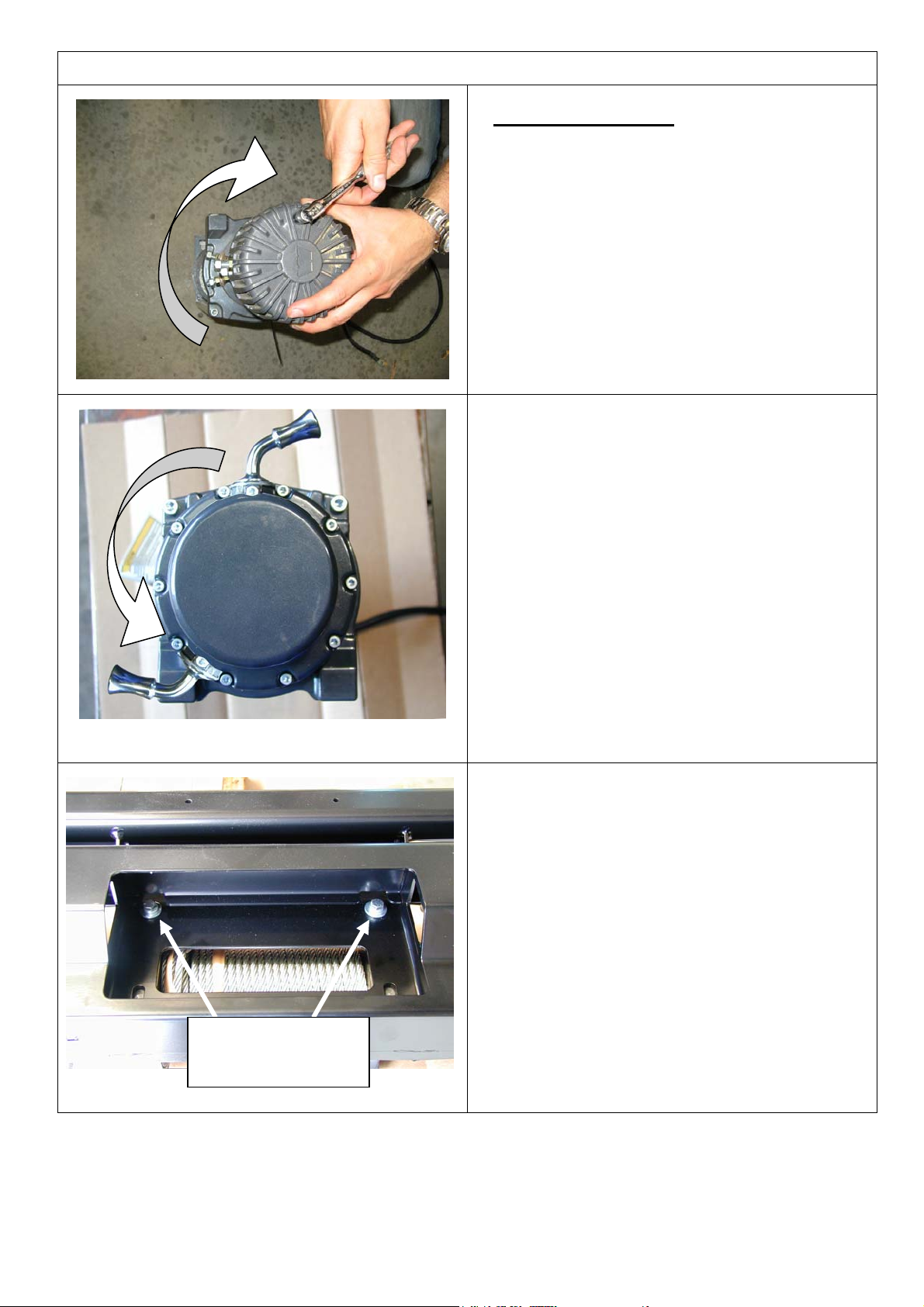

44. Rotate the winch motor 90 degrees as shown

NOTE: Follow the winch manufacturers instructions regards motor rotation and drainage requirements

45. Remove the cap head screws retaining the gearbox to the winch drum. Carefully lift the gearbox a small amount (5 mm ) and rotate144 degrees counter clockwise (four hole spacings) and re-fit the cap screws . This places the winch handle in the correct orientation.

46. Lay the winch on a suitable flat surface and place the bull bar on top so that the wire rope will feed thru from the bottom.

47. Using the two 3/8” x 1 1/2”long bolts, M10 flat and spring washers, attach the bull bar to the winch through the top two bolt holes as shown.

Fit two top 1 ½” long bolts first

Last Rev Date: 26/6/2009 Page 12 of 18 Fitting instructions# 3787027

Page 13

WINCH FITMENT ONLY

48. Using a 12mm drill bit, mark & drill two new holes in the roller fairlead 25mm below the original holes.

Drill the new hole 25mm below

Warning: Drilling operations can result in flying metal debris, safety glasses should be worn.

49. Remove the cir clips from the bottom of the vertical rollers of the fairlead and push the pin upwards. Push the vertical rollers inwards on the lower edges as shown and using two 3/8” x 1 ¾” bolts M10 flat and spring washers, attach the lower section of the roller fairlead to the bull bar and winch.

50. Replace the cir clips on the vertical rollers on both sides.

51. Insert the two rubber grommets into the top face of bull bar.

Last Rev Date: 26/6/2009 Page 13 of 18 Fitting instructions# 3787027

Page 14

WINCH FITMENT ONLY

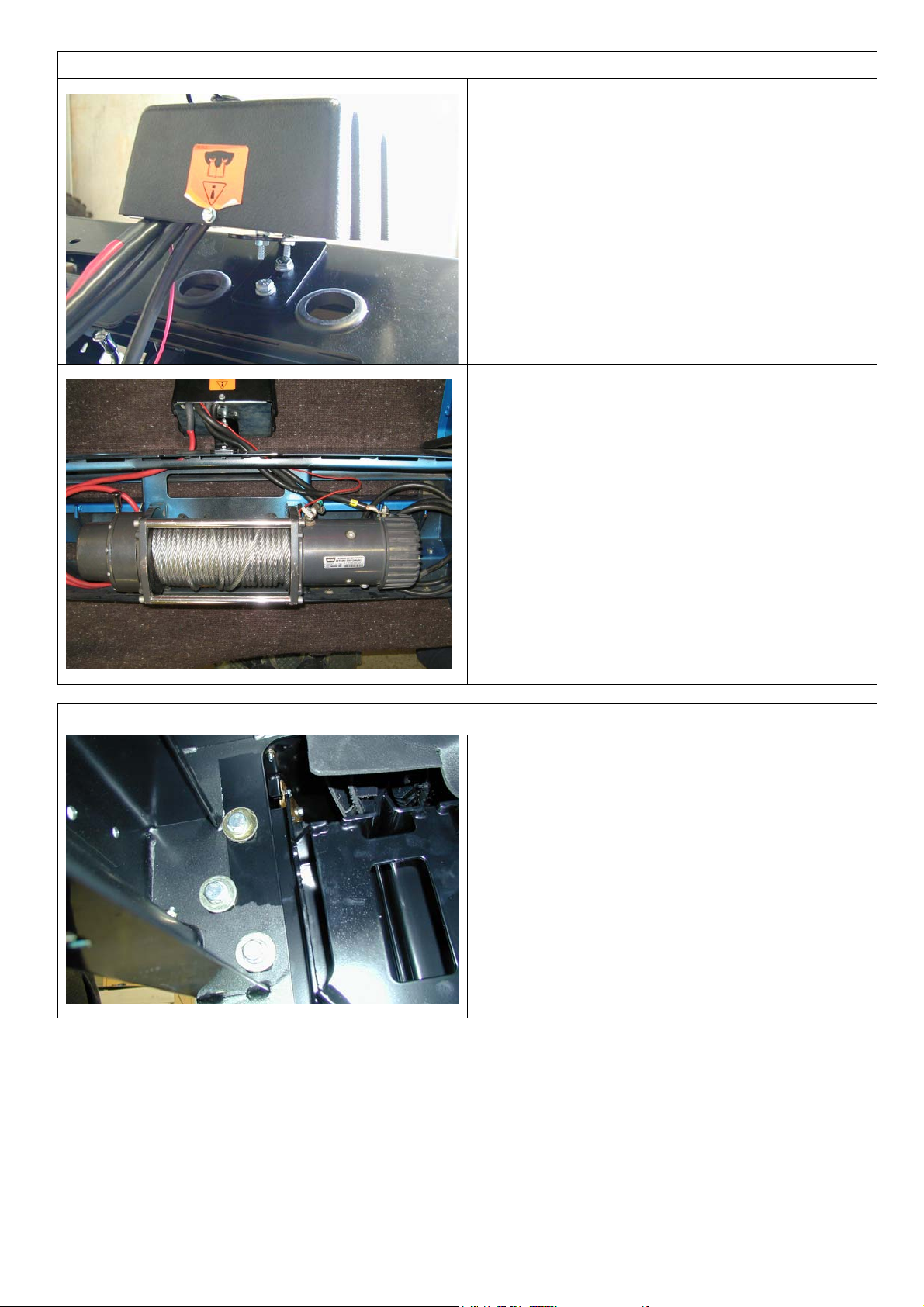

52. Attach the control box to the control box bracket as shown.

53. Fit the control box to the bull bar with two M8 x 25mm bolts, M8 flat washers and M8 flange nuts.

54. Run the cables through the rubber grommets and connect to the winch as per the wiring diagram supplied with the winch.

55. Using cable ties fix the cables securely and ensure they are well away from any moving, sharp or hot surfaces.

BULL BAR FITMENT TO VEHICLE

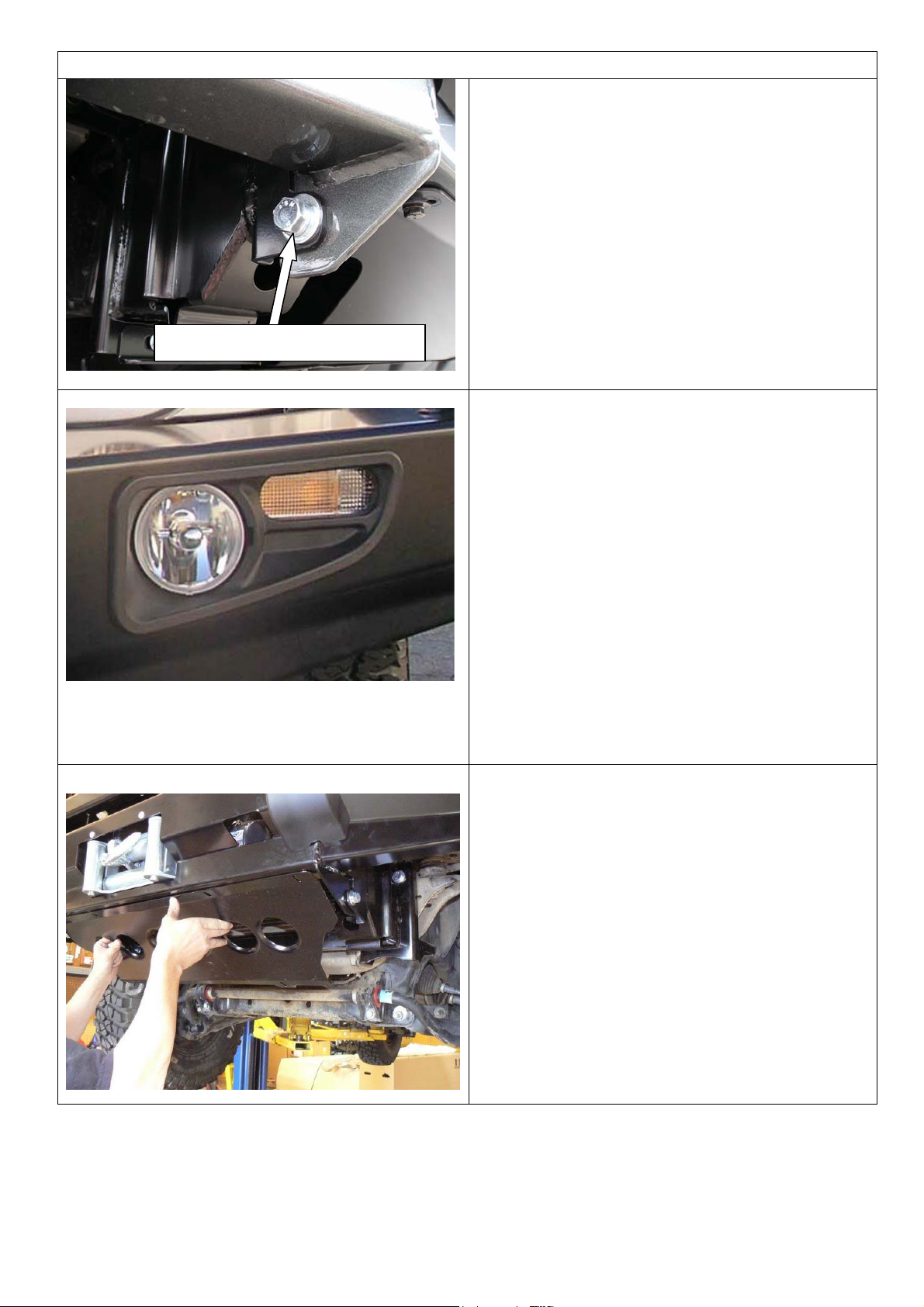

56. With assistance guide the bull bar into position on the vehicle. The uprights on the bull bar sit inside the impact absorber blades.

57. Bolt the bull bar into position using the M12 bolts, spring washer, large body washer and flange nuts 3 places each side as shown. Tighten the bolts firmly – but allow enough movement for the bull bar to be adjusted

Last Rev Date: 26/6/2009 Page 14 of 18 Fitting instructions# 3787027

Page 15

BULL BAR FITMENT TO VEHICLE

Need new photo with 15mm gap

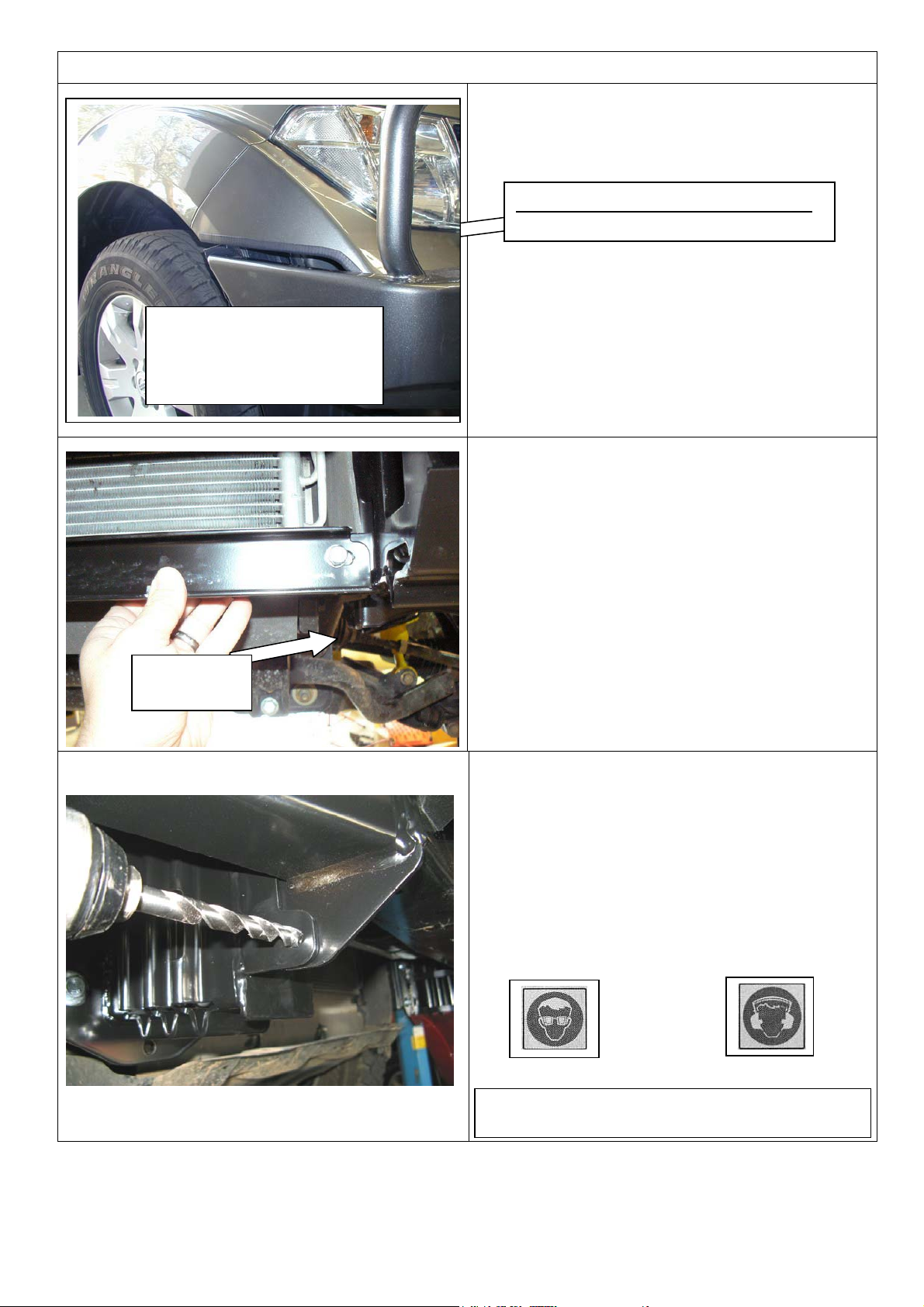

58. Ensure the bull bar is sitting on the vehicle level and the gap between the bumper bar and the bull bar wing is parallel.

15 mm (5/8”) GAP REQUIRED

59. If the bull bar is not centred on the vehicle, tap the mount brackets sideways with a soft hammer until the bar is central

60. Once happy with the position of the bull bar and the clearance gap is 15mm, tighten all the mount bolts to specified torque

61. The stone shield cross brace can now be fitted to the flange attached to the impact absorber using an M8 bolt, spring washer, flat washer and M8 flange nut set per side.

62. Tighten both sides.

63. Install the two M6 cage nuts (long leg) with the body of the nut facing upward.

Flanges face forward

64. Using an electric drill and a 10.0 mm drill bit, drill two pinning bolt holes through the bull bar upright each side using the holes in the mount bracket flanges as a guide. One hole is located in the lower lug of the mount face and one up above the welded nuts. Use access through the light surround opening for the top hole.

Warning: Drilling operations can result in flying metal debris, safety glasses should be worn.

Last Rev Date: 26/6/2009 Page 15 of 18 Fitting instructions# 3787027

Page 16

BULL BAR FITMENT TO VEHICLE

65. Fit the pinning bolts to the bull bar in the drilled positions using 4 x M10 SEMS bolt and washer sets and M10 flange nuts.

M10 PINNING BOLT

66. Assemble and install combination light surrounds (p/n 3163015) as per instructions no. 3786421 supplied with surround kit. Note: Optional fog lamps can be installed at this point as per fitting instruction no. 3783315 supplied with fog lamp kit no. 6821201.

67. Wire the combination lamp to the vehicles indicator and clearance lamp wiring.

Caution: Cable tie all cables together and keep all cables clear of sharp edges and moving parts.

Wiring: Green wire is Turn signal + (pos) Red is running lamp + (pos) Black is – (neg)

68. Refit the vehicle sump guard, leave the

front bolts out at this stage

69. Attach the stone tray to the under side of

the bull bar with the black M6 bolts, flat washers & spring washers. The back edge fits over the lip of the sump guard.

There are four bolts in the front edge and two in the back edge.

Last Rev Date: 26/6/2009 Page 16 of 18 Fitting instructions# 3787027

Page 17

BULL BAR FITMENT TO VEHICLE

70. The licence plate can now be attached to the bull bar. Insert the two plastic square plugs supplied into the two square holes in the face of the bull bar.

71. If winch fitted, position the licence plate as shown fastening using lower holes. If winch not fitted use the top row of holes, licence plate is positioned lower and covers RFL opening in front of bull bar

72. Using the two dome head screws supplied screw into position firmly.

73. Trim the lower edge of the fender liner as shown

74. Push the outer edge of the liner forward past the wing return edge so that it snaps in against the wing brace as shown.

Last Rev Date: 26/6/2009 Page 17 of 18 Fitting instructions# 3787027

Page 18

ONCE BAR IS FITTED:

♦ Ensure all bolts are tensioned correctly ♦ All wiring is clear of sharp edges or moving surfaces and secured

properly

♦ Piping is secured well away from sharp or moving components ♦ Check operation of winch if fitted ♦ Check all wiring and turn signal lamps are functioning correctly

FITTED PRODUCT

Last Rev Date: 26/6/2009 Page 18 of 18 Fitting instructions# 3787027

ARB 3438260 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
