ARB 3434050 User Manual

9/10/01

Page 1 of 9

3782892

If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.

Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]

WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

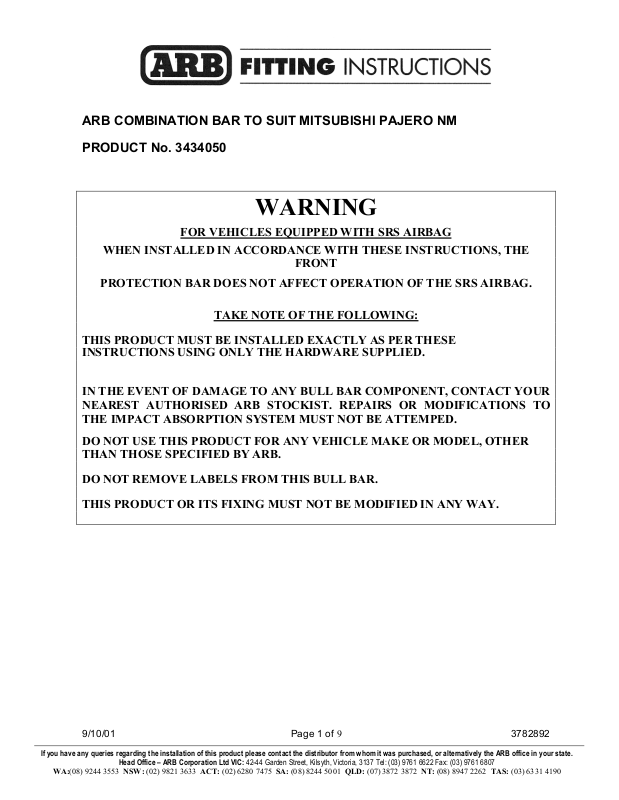

ARB COMBINATION BAR TO SUIT MITSUBISHI PAJERO NM

PRODUCT No. 3434050

WARNING

FOR VEHICLES EQUIPPED WITH SRS AIRBAG

WHEN INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS, THE

FRONT

PROTECTION BAR DOES NOT AFFECT OPERATION OF THE SRS AIRBAG.

TAKE NOTE OF THE FOLLOWING:

THIS PRODUCT MUST BE INSTALLED EXACTLY AS PER THESE
INSTRUCTIONS USING ONLY THE HARDWARE SUPPLIED.

IN THE EVENT OF DAMAGE TO ANY BULL BAR COMPONENT, CONTACT YOUR
NEAREST AUTHORISED ARB STOCKIST. REPAIRS OR MODIFICATIONS TO
THE IMPACT ABSORPTION SYSTEM MUST NOT BE ATTEMPED.

DO NOT USE THIS PRODUCT FOR ANY VEHICLE MAKE OR MODEL, OTHER
THAN THOSE SPECIFIED BY ARB.

DO NOT REMOVE LABELS FROM THIS BULL BAR.

THIS PRODUCT OR ITS FIXING MUST NOT BE MODIFIED IN ANY WAY.

9/10/01

Page 2 of 9

3782892

FITTING KIT No 6171404

USE

PART No

QTY

DESCRIPTION

MOUNT ASSY TO VEHICLE

3756190L

1

BRACKET IMPACT ABSORBER LHS

3756190R

1

BRACKET IMPACT ABSORBER RHS

3756194L

1

BRACKET FRONT MOUNT LHS

3756194R

1

BRACKET FRONT MOUNT RHS

3756189L

1

BRACKET CHASSIS SUPPORT LHS

3756189R

1

BRACKET CHASSIS SUPPORT RHS

6151246 6 BOLT M12 X 25mm
6151232

10

BOLT M10 X 30mm

4581007

4

WASHER Ø14 ID, Ø40 OD

4581040

12

WASHER FLAT 3/8” X 1”
4581048 8 WASHER M10 SPRING
3193659 2 PLATE CAPTIVE NUT
6151255

12

BOLT M12 X 40mm

4581049

14

WASHER FLAT M12

6151026

6

NUT M10

4581050

20

WASHER SPRING M12

6151268 6 NUT CAPTIVE

NUMBER PLATE BRKT

6151017 4 BOLT M6 x 16mm
6151046 4 WASHER FLAT M6
6151128 4 NUT FLANGE M6
3751451

1

NUMBER PLATE BRACKET

CONTROL BOX FITMENT

3756209

1

CONTROL BOX BRACKET
4581044 2 WASHER FLAT M8
6151021 2 BOLT M8 X 20MM
6151128 2 NUT FLANGE M8

8-9000lb WINCH TO PAN

4581040 4 WASHER FLAT 3/8 x 1

180302 6 CABLE TIES

BUFFERS AND INDICATORS

3500170 1 BUFFER KIT
3500080 1 ARB INDICATORS

ROLLER FAIRLEAD FITMENT

4581040 4 WASHER FLAT 3/8’’

WINCH COVER FITMENT

6151128 2 NUT FLANGE M6
6151256

2

SCREW M6 S/STEEL BUTTON HEAD

6191001

1

WINCH COVER EXTRUSION
6521031 1 WINCH COVER
6151046 2 WASHER M6

Tools Required

10mm, 18mm, 19mm, 21mm Spanners and Sockets. Phillips head screwdriver, 12mm and
13mm drill bit and drill.

IMPORTANT

• This winch bumper is suitable only for Warn 8000lb, 9000lb & 9500lb HIGH
SPEED winches only.

ASSEMBLY SEQUENCE FOR WINCH BUMPER.

9/10/01

Page 3 of 9

3782892

1. 1. Remove the bumper bar and grill.

2. Spray paint the vehicles cross member and
radiator lower support panels with matt black
spray paint on both sides.

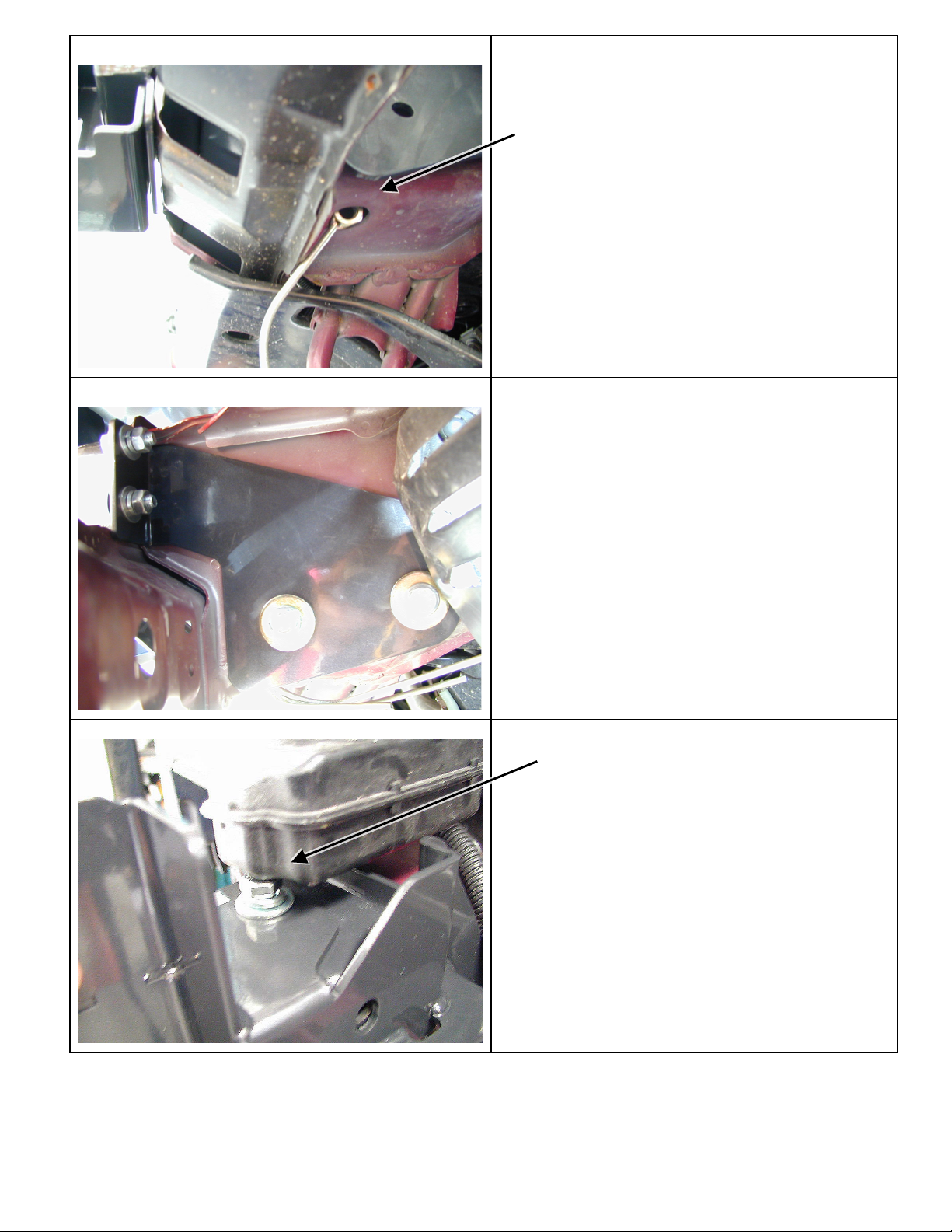

3. Assemble the mounts to the vehicle as shown
in the pictures 7 & 8. Fasten bolts finger tight
only.

M10 x 30mm bolts, flat washers, spring washers
and nuts.

2. M12 x 25mm bolts, flat washers and spring

washers.

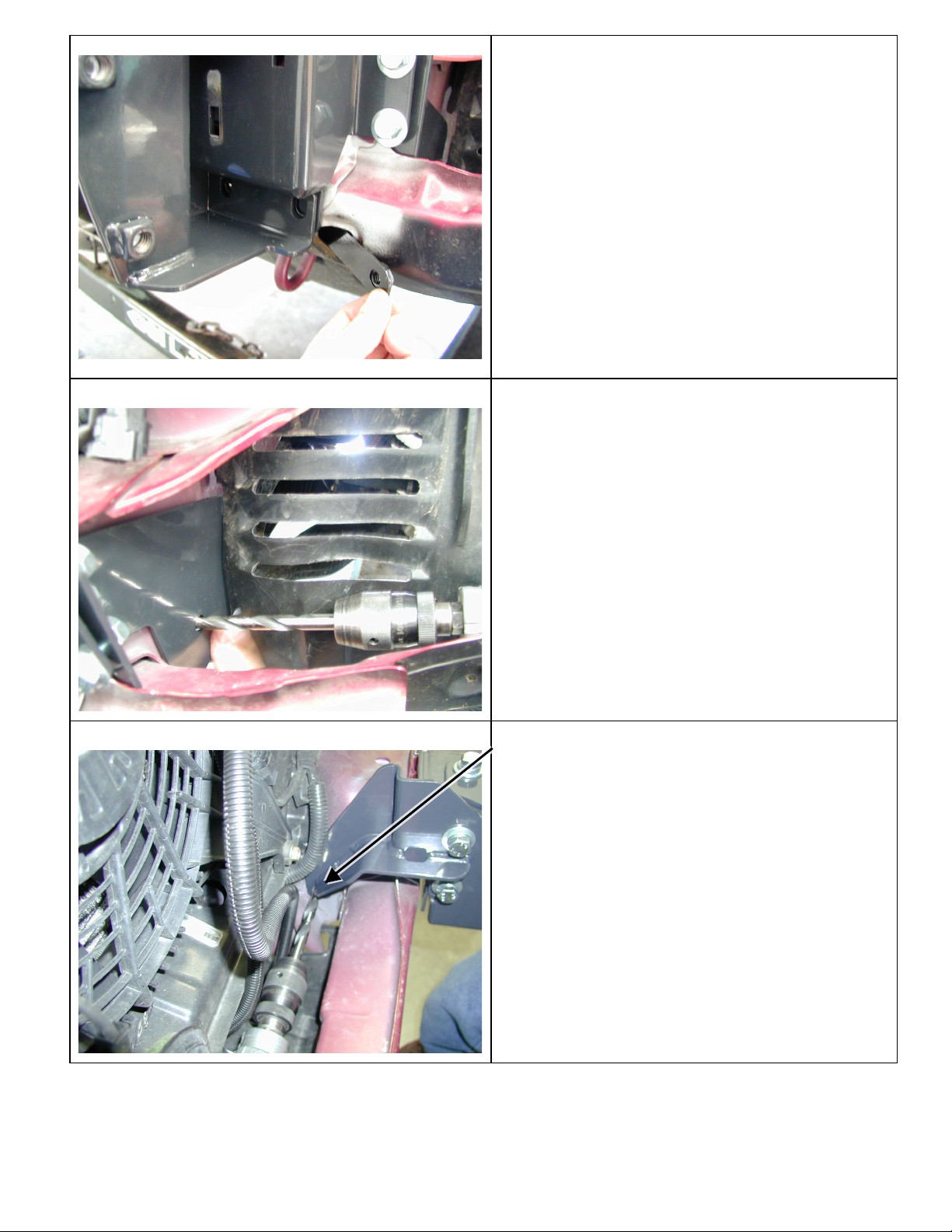

3. 4. Using a 12mm drill bit, drill through the two slot
holes at the front into the chassis cross
member.
