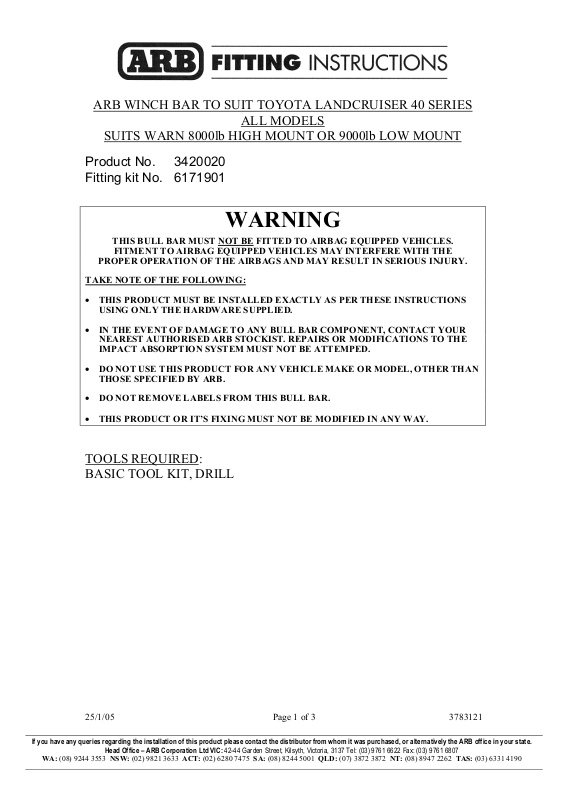

ARB WINCH BAR TO SUIT TOYOTA LANDCRUISER 40 SERIES

ALL MODELS

SUITS WARN 8000lb HIGH MOUNT OR 9000lb LOW MOUNT

Product No. 3420020
Fitting kit No. 6171901

WARNING

THIS BULL BAR MUST NOT BE FITTED TO AIRBAG EQUIPPED VEHICLES.

FITMENT TO AIRBAG EQUIPPED VEHICLES MAY INTERFERE WITH THE

PROPER OPERATION OF THE AIRBAGS AND MAY RESULT IN SERIOUS INJURY.

TAKE NOTE OF THE FOLLOWING:

• THIS PRODUCT MUST BE INSTALLED EXACTLY AS PER THESE INSTRUCTIONS

USING ONLY THE HARDWARE SUPPLIED.

• IN THE EVENT OF DAMAGE TO ANY BULL BAR COMPONENT, CONTACT YOUR

NEAREST AUTHORISED ARB STOCKIST. REPAIRS OR MODIFICATIONS TO THE
IMPACT ABSORPTION SYSTEM MUST NOT BE ATTEMPED.

• DO NOT USE THIS PRODUCT FOR ANY VEHICLE MAKE OR MODEL, OTHER THAN

THOSE SPECIFIED BY ARB.

• DO NOT REMOVE LABELS FROM THIS BULL BAR.

• THIS PRODUCT OR IT’S FIXING MUST NOT BE MODIFIED IN ANY WAY.

TOOLS REQUIRED:
BASIC TOOL KIT, DRILL

25/1/05 Page 2 of 3 3783121

WINCH FITTING

1. If fitting a winch, it is recommended to do so prior to fitting the

bull bar. However, winches can also be fitted with the bar on the
vehicle.

2. For 9000lb winches, it may be necessary to rotate the motor and/or

gearbox for easier access to terminals and the clutch handle.

3. Using the two upper mounting points only, secure the winch to the

bar with hardware supplied with the winch

4. Position the roller fairlead and secure the two lower mounts using

the longer 7/16 bolts and washers supplied in the kit. The vertical
rollers may need to be removed when fitting these lower bolts.

5. Wire up the winch as per winch manual.
