A. O. Smith VWH0500N Installation Manual

Download

Page 1

VFS-I-O Rev A

Installation & Operation Manual

Models: 500 - 2000

Up To 4:1 Turndown

 WARNING:

This manual supplies information for the installation, operation, and servicing of the appliance. It is strongly recommended that this manual and the VF Series Service Manual be reviewed completely before proceeding with an installation. Perform steps in the order given. Failure to comply could result in severe personal injury, death, or substantial property damage.

Save this manual for future reference.

Page 2

Contents

HAZARD DEFINITIONS .................................................... 2

PLEASE READ BEFORE PROCEEDING ..................... 3-4

RATINGS ........................................................................... 5

THE VF SERIES -- HOW IT WORKS ............................. 6-8

1. DETERMINE UNIT LOCATION

Location of Unit .................................................................. 9

Recommended Service Clearances ............................. 9

Combustion and Ventilation Air Requirements .......... 10-12

2. VENTING

Before You Begin ............................................................. 13

Venting Category Definitions .......................................13

Vent Materials ............................................................. 14

Condensing Vent Options: CAT II & IV ................ 15-18

Common Venting CAT II & IV Venting Information 19-20

Vertical Vent Options .................................................. 21

Horizontal Vent Options .............................................. 22

All Categories ........................................................ 23-26

3. GAS CONNECTIONS

Gas Supply ....................................................................... 27

Gas Pressure Test ............................................................27

Checking Manifold Gas Pressure .....................................27

Gas Connection ............................................................... 27

Gas Piping ........................................................................ 28

Checking Gas Supply Pressure ....................................... 29

High and Low Gas Pressure Switches ............................ 30

4. WATER CONNECTIONS

Inlet and Outlet Connections ............................................ 31

Water Heater Installations ........................................... 32-34

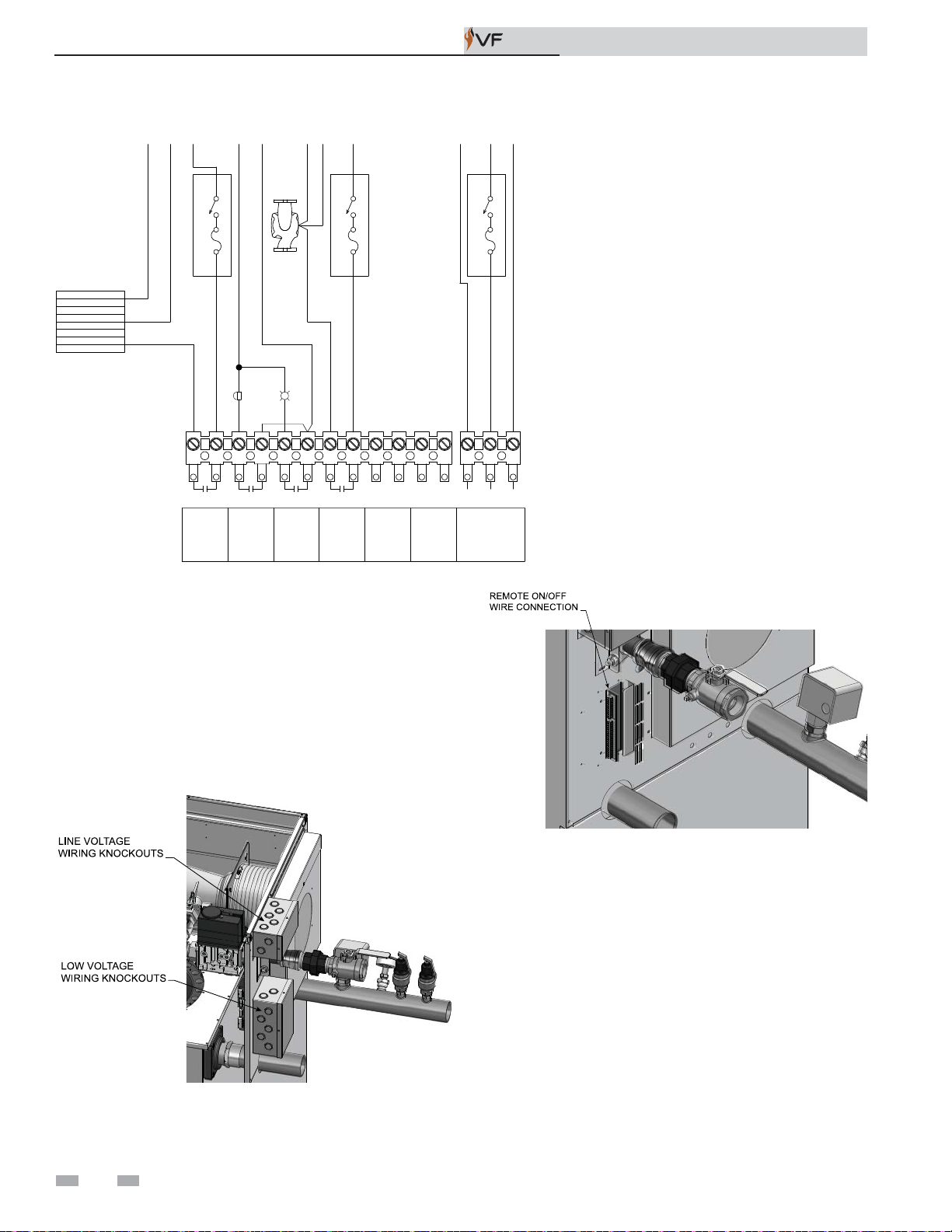

5. ELECTRICAL CONNECTIONS

Water Heater Operating Control Module ......................... 35

Line and Low Voltage Connections ............................ 35-36

EMS or Remote Thermostat Connection ......................... 36

Louver Proving Switch ................................................ 37

Water Heater Management System (BMS) ................ 37

Runtime Contacts ....................................................... 37

Alarm Contacts ............................................................37

Low Voltage Field Wiring Connections ..................38

6. CONDENSATE DISPOSAL.........................................39

7. START-UP

Check / Control Water Chemistry .................................... 40

Filling Hot Water Heater ................................................... 40

Check for Gas Leaks ........................................................40

Inspect / Fill Condensate System ..................................... 40

Check Vent and Air Piping ................................................ 40

Placing the Water Heater in Operation .............................41

Operating Instructions .......................................................42

8. OPERATING INFORMATION

General ............................................................................. 43

How the Appliance Operates ............................................43

How the Control Module Operates ....................................43

Control Inputs and Outputs ...............................................43

Temperature Control .........................................................43

Protection Features ......................................................43-44

Water Heater Temperature Regulation .............................44

Sequence of Operation .....................................................45

VF Series Control Module .................................................46

Status Display Screens ................................................47-48

9. DOMESTIC WATER HEATERS

Initial Setup of Maximum Water Flow ...............................49

Water Chemistry................................................................50

Pump Operation ................................................................55

Heat Exchanger ................................................................55

Thermostat Adjustment Procedure ................................... 56

Minimum Water Temperatures ..........................................56

Adjustable High Water Temperature Limit Control ...........57

Optional Relief Valve .........................................................57

Thermal Expansion ...........................................................57

Cathodic Protection ...........................................................57

10. MAINTENANCE

Maintenance and Annual Startup ................................ 58-63

11. CONNECTION DIAGRAM ..........................................64

12. LADDER DIAGRAM ................................................... 65

13. WARRANTY ...............................................................67

Revision Notes .................................................. Back Cover

Hazard definitions

The following defined terms are used throughout this manual to bring attention to the presence of hazards of various risk levels or to important information concerning the life of the product.

 DANGER

 WARNING

 CAUTION

CAUTION

NOTICE

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

NOTICE indicates special instructions on installation, operation, or maintenance that are important but not related to personal injury or property damage.

Page 3

Please read before proceeding

Installation & Operation Manual

NOTICE

 WARNING

This is a gas appliance and should be installed by a licensed electrician and/or certified gas supplier. Service must be performed by a qualified service installer, service agency or the gas supplier.

If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death.

This appliance MUST NOT be installed in any location where gasoline or flammable vapors are likely to be present, unless the installation is such to eliminate the probable ignition of gasoline or flammable vapors.

What to do if you smell gas –

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbors phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

 WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for assistance or additional information, consult a qualified installer, service agency or the gas supplier.

Checking equipment –

Upon receiving equipment, check for signs of shipping damage. Pay particular attention to parts accompanying the appliances which may show signs of being hit or otherwise being mishandled. Verify total number of pieces shown on packing slip with those actually received. In case there is damage or a shortage, immediately notify the carrier.

Do not use this appliance if any part has been under water. The possible damage to a flooded appliance can be extensive and present numerous safety hazards. Any appliance that has been under water must be replaced.

 Owner warning –

The information contained in this manual is intended for use by qualified professional installers, service technicians, or gas suppliers. Consult your local expert for proper installation

or service procedures.

NOTICE

Consult and follow all local Building and Fire Regulations and other Safety Codes that apply to this installation. Consult local gas utility company to authorize and inspect all gas and flue connections.

Warranty –

Factory warranty (shipped with unit) does not apply to units improperly installed or improperly operated.

Experience has shown that improper installation or system design, rather than faulty equipment, is the cause of most operating problems.

1. Excessive water hardness causing a lime/scale build-up in the copper tube is not the fault of the equipment and is not covered under the manufacturer’s warranty (see Water Treatment and Water Chemistry).

2. Excessive pitting and erosion on the inside of the copper tube may be caused by too much water velocity through the tubes and is not covered by the manufacturer’s warranty (see Flow Rates and Temperature Rise for flow requirements).

A gas appliance that draws combustion air from the equipment room where it is installed must have a supply of fresh air circulating around it during burner operation for proper gas combustion and proper venting.

 WARNING

Should overheating occur or the gas supply fail to shut off, do not turn off or disconnect the electrical supply to the pump. Instead, shut off the gas supply at a location external to the appliance.

Prevention of freezing –

Heat exchangers and headers damaged by freezing are not covered by warranty.

See Section 7, Startup - Freeze Protection for more information.

Page 4

Please read before proceeding

Installation & Operation Manual

 WARNING

To minimize the possibility of serious personal injury, fire, or damage to your appliance, never violate the following safety rules:

1. Water heaters are heat producing appliances. To avoid damage or injury, do not store materials against the appliance or the vent-air intake system. Use proper care to avoid unnecessary contact (especially children) with the appliance and vent-air intake components.

2. Never cover your appliance, lean anything against it, store trash or debris near it, stand on it or in any way block the flow of fresh air to your appliance.

3. UNDER NO CIRCUMSTANCES must flammable materials such as gasoline or paint thinner be used or stored in the vicinity of this appliance, vent-air intake system or any location from which fumes could reach the appliance or vent-air intake system.

Codes –

The equipment shall be installed in accordance with those installation regulations in force in the local area where the installation is to be made. These shall be carefully followed in all cases. Authorities having jurisdiction shall be consulted before installations are made. In the absence of such requirements, the installation shall conform to the latest edition of the National Fuel Gas Code, ANSI Z223.1. All water heaters conform to the latest edition of the ASME Boiler and Pressure Vessel Code, Section IV. Where required by the authority having jurisdiction, the installation must comply with the Canadian Gas Association Code, CAN/CGA-B149.1 and/or B149.2 and/or local codes. This appliance meets the safe lighting performance criteria with the gas manifold and control assembly provided, as specified in the ANSI standards for gas water heaters, ANSI Z21.10.3.

Page 5

Ratings

Installation & Operation Manual

HLW

VF Series

AHRI Rating

Model Number

Note: Change “N” to

“L” for L.P. gas models

VWH0500N 125 500 425 370

VWH0750N 188 750 637 554

VWH1000N 250 1000 850 739

VWH1500N 375 1500 1275 1109

VWH2000N 500 2000 1700 1478

NOTICE

Min Max

Maximum allowed working pressure is located on the rating plate.

Input MBH

(Note 3)

Notes:

1. The ratings are based on standard test procedures prescribed by the United States Department of Energy.

2. The VF Series requires special gas venting. Use only the vent materials and methods specified in the VF Series Installation and Operation Manual.

Gross

Output

MBH

(Note 1)

Other Specifications

Net

AHRI

Ratings

Water,

MBH

Appliance

Water Content Gallons

3.50 2.5” 1” 5” - 4”

4.00 2.5” 1 1/4” 5” - 5”

4.50 2.5” 1 1/4” 6” - 6”

5.50 2.5” 1 1/2” 6” - 6”

6.13 2.5” 1 1/2” 8” - 8”

Water

Connections

Gas

Connections

3. The VF Series is equipped for operation up to 2000 feet, and including up to 4000 feet, with no field adjustments. The appliance output ratings up to 4000 feet shall be reduced by 4% for each 1000 feet above sea level. For operation above 4000 feet, consult the factory.

Air / Vent

Sizes

(Note 2)

Page 6

The VF Series - How it works...

Installation & Operation Manual

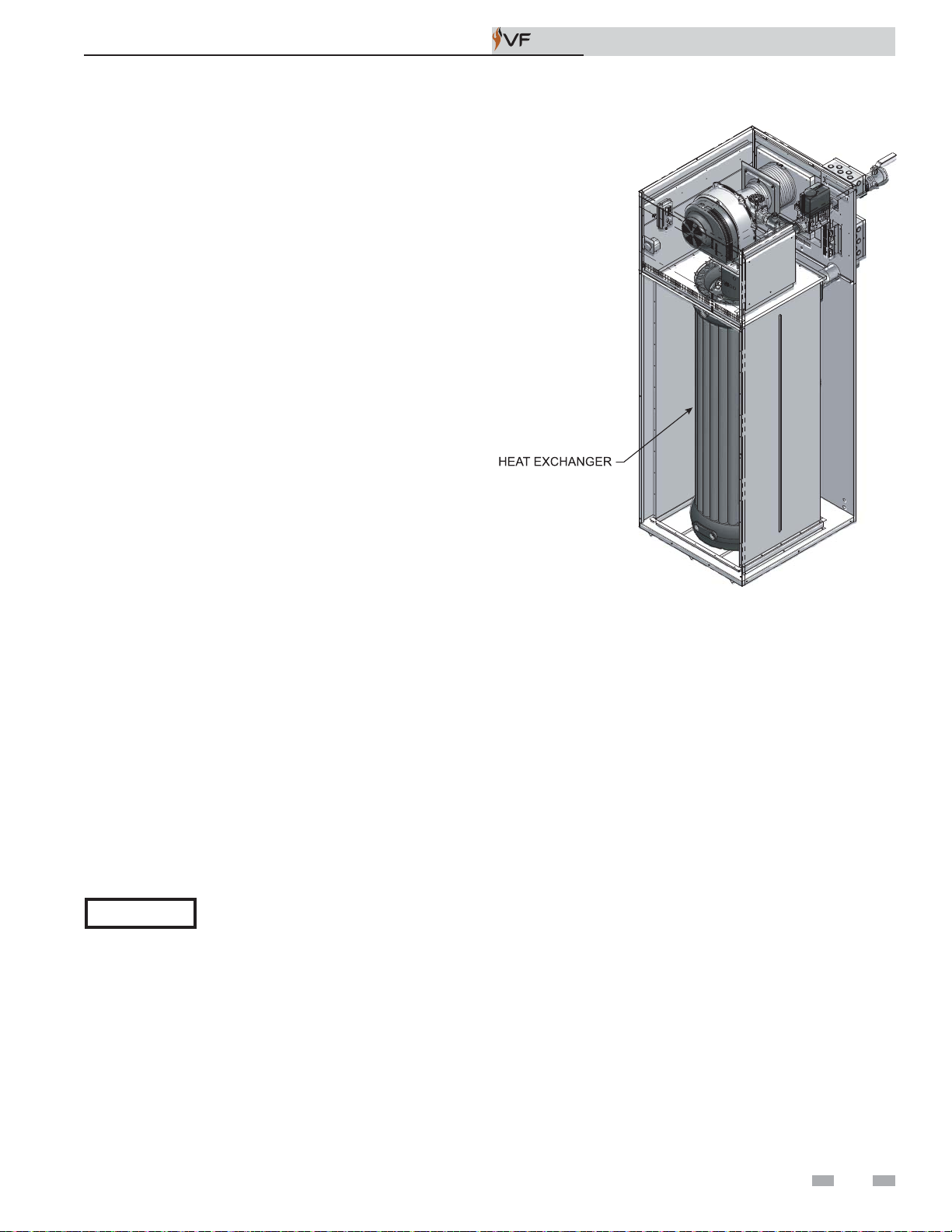

1. Heat exchanger

The heat exchanger allows system water to flow through specially designed tubes for maximum heat transfer. The glass lined headers and copper finned tubing are encased in a jacket that contains the combustion process.

2. Heat exchanger access cover

The heat exchanger access cover is a stainless steel door which allows access for service, maintenance, and removal of the heat exchanger from inside the combustion chamber.

3. Blower

The blower pulls in air and gas through the venturi (see item 5) and injects the fuel/air mixture into the burner, where they burn inside the combustion chamber.

4. Gas valve

The gas valve allows the proper amount of gas to pass into the burner for combustion. The gas valve on the

under a negative pressure so gas should only be pulled through the valve when the blower is in operation.

5. Venturi

The venturi attaches to the inlet (or suction) side of the blower and generates the negative pressure needed by the gas valve.

6. Flue sensor (not shown)

The flue sensor is mounted in the exhaust collar of the unit and monitors the flue gas temperature. If the temperature in the stack exceeds the maximum temperature the unit will shut down to prevent a hazardous condition.

7. Outlet temperature sensor

This sensor monitors the outlet water temperature. If selected as the controlling sensor, the appliance will maintain set point by adjusting the firing rate of the unit according to this sensor.

8. Inlet temperature sensor

This sensor monitors inlet water temperature. If selected as the controlling sensor, the appliance will maintain set point by adjusting the firing rate of the unit according to this sensor.

9. Electronic display

The electronic display consists of 7 buttons and a dual line 32-character liquid crystal display used to monitor the operation of the heater as well as enter and view the programming of the main control board.

10. Burner (not shown)

The burner is made of a woven fabric over steel screen construction. The burner uses pre-mixed air and gas and provides a wide range of firing rates.

11. Water outlet (system supply)

The water outlet is a 2 1/2" pipe connection that supplies water to the system with connections for a flow switch (see #28) and a relief valve (see #25).

12. Water inlet (system return)

The water inlet is a 2 1/2" pipe connection that receives water from the system and delivers it to the heat exchanger.

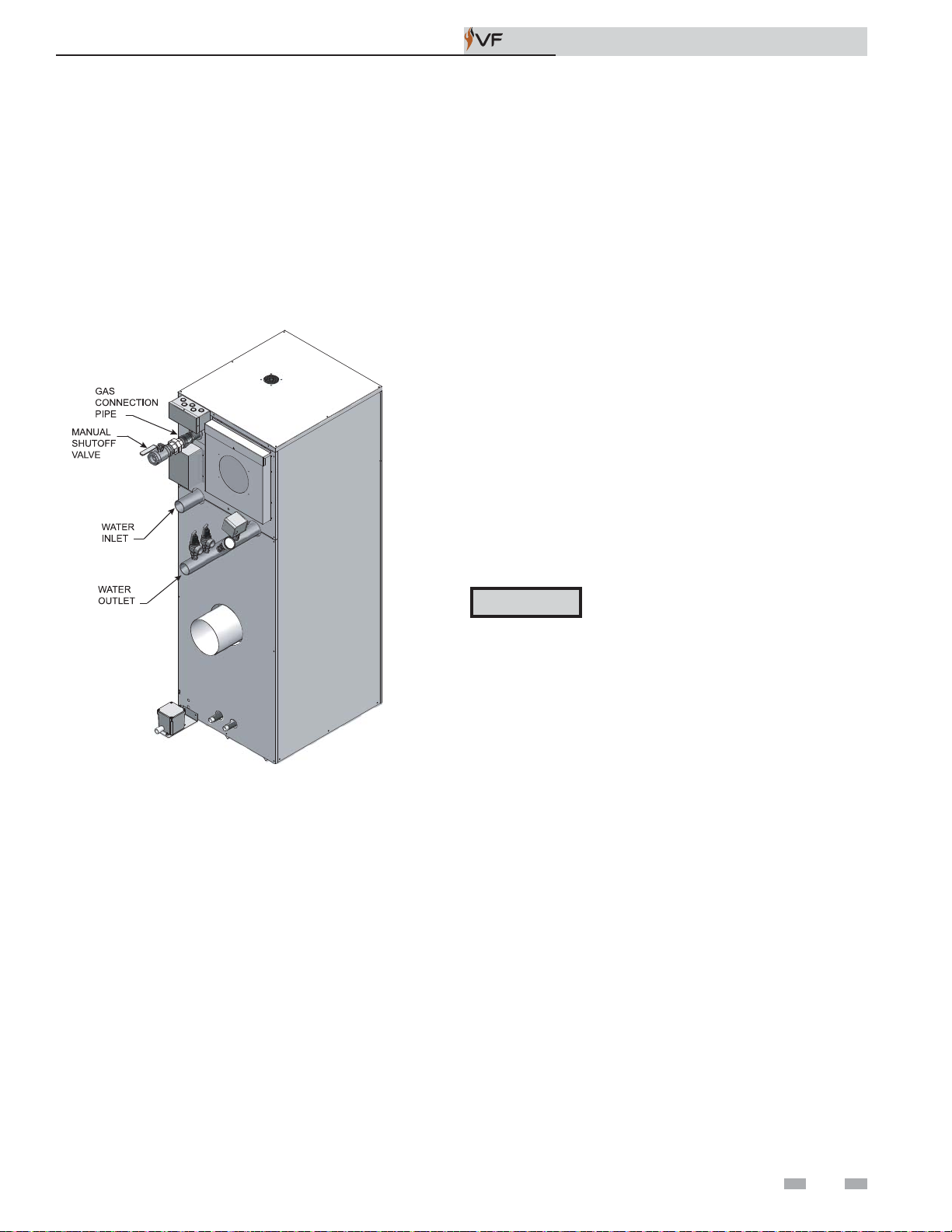

13. Gas connection pipe

The gas pipe connection on this appliance is 1", 1 1/4", or 1 1/2" NPT. To deliver the correct amount of gas volume to the appliance it may be necessary to have a larger gas line reduced to 1 1/4" at the appliance. Please reference the National Fuel Gas Code charts for more details.

VF Series works

14. Control module The control module is the main control for the appliance. This

module contains the programming that operates the blower, gas valve, and pumps in addition to other programmable features.

15. Air intake

The air intake pipe allows fresh air to flow directly to the appliance. The air inlet is part of the filter box assembly where air filtration is accomplished with a standard filter.

16. Line voltage terminal strip

The line voltage terminal strip provides a location to connect all of the line voltage (120 VAC) contact points to the unit.

17. Low voltage connection board

The low voltage connection board provides a location to tie in all of the low voltage contacts to the appliance. This is where most of the external safety devices are connected to the unit such as the louver proving switch.

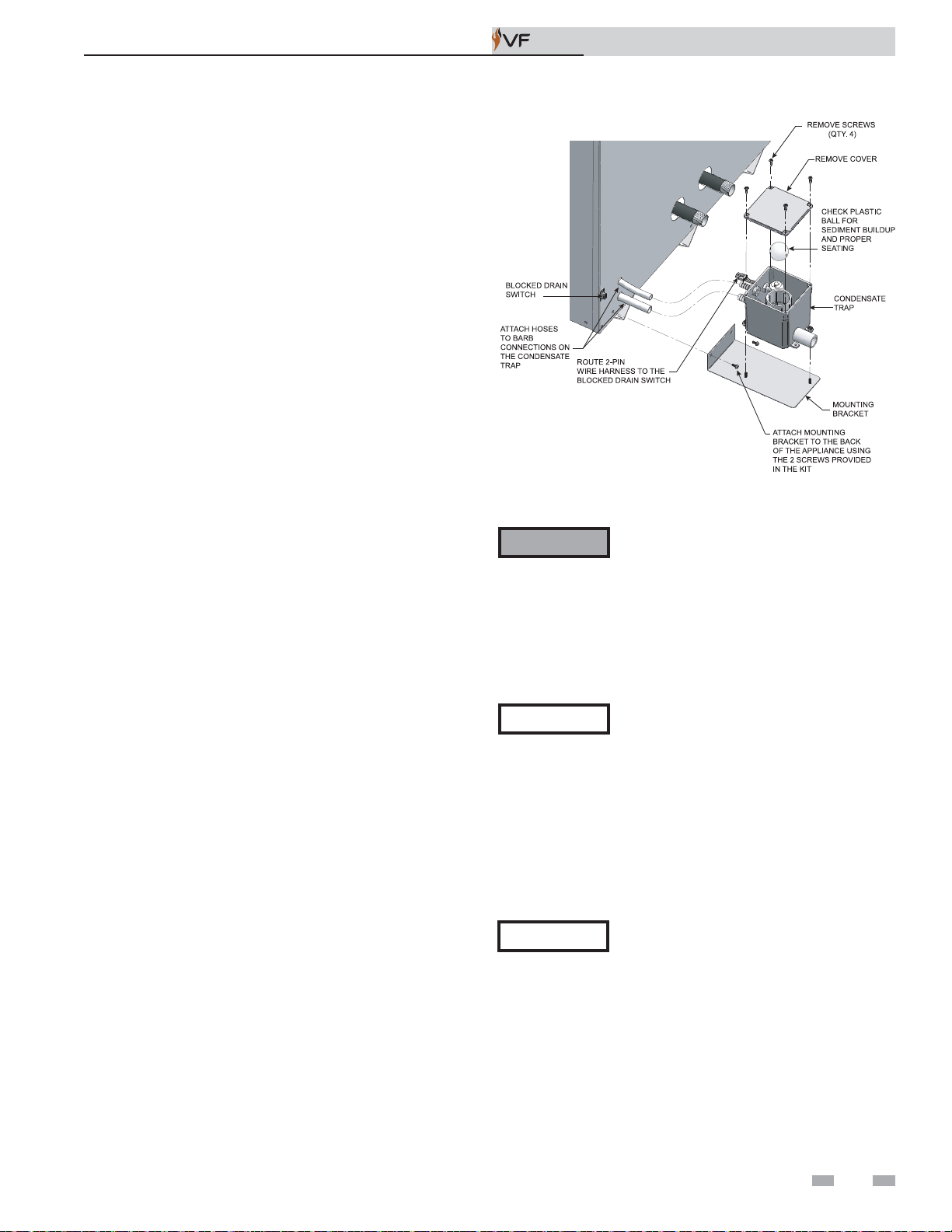

18. Condensate trap The condensate trap is designed to prevent flue gases from

escaping the appliance through the combustion chamber drain.

19. Access cover - front

The front access cover provides access to the gas train as well as the blower and other key components for service and maintenance.

20. Hot surface igniter (HSI)

The hot surface igniter is a device that is used to ignite the air/ gas mixture as well as monitor the performance of the flame during operation. This device acts as a flame sense electrode.

21. Flame inspection window (sight glass) (not shown on Models 500 - 1000)

The flame inspection window is a quartz glass window that allows a visual inspection of the burner and flame during operation.

22. Gas shut off valve (downstream test cock)

The downstream test cock is provided in the gas train to ensure complete shut off of the gas to the burner in case of maintenance, inspection, or testing of the valve.

23. Manual reset high limit sensor

Device that monitors the outlet water temperature to ensure safe operation. If the temperature exceeds its setting (field adjustable), it will break the control circuit, shutting the appliance down.

24. Relief valve

The relief valve is a safety device that ensures the maximum pressure of the appliance is not exceeded. Water heaters operate on temperature and pressure and are shipped standard as 125 PSI and 210°F (98.9°C).

25. Power switch

The power switch is used to engage and disengage power to the appliance on the 120 VAC circuit.

26. Air pressure switch

The air pressure switch is a safety device which ensures proper blower operation. The air pressure switch is wired in series with the low voltage control circuit in such a way that if the fan does not engage or shuts down prematurely the device will break the control circuit and the unit will shut down.

27. Flow switch

The flow switch is a safety device that ensures flow through the heat exchanger during operation. This appliance is low mass and should never be operated without flow. The flow switch makes contact when flow is detected and allows the unit to operate. If flow is discontinued during operation for any reason the flow switch will break the control circuit and the unit will shut down.

Page 7

Installation & Operation Manual

The VF Series - How it works... (continued)

28. Drain port(s)

Location from which the heat exchanger can be drained.

29. Auto reset high limit switch

The auto reset high limit is fixed at 200°F (93°C) preventing the outlet water temperature from exceeding 210°F (98.9°C).

30. Ventilation fan

Provides air circulation around the controls inside the unit.

31. Manual shutoff valve

Manual valve used to isolate the unit from the gas supply.

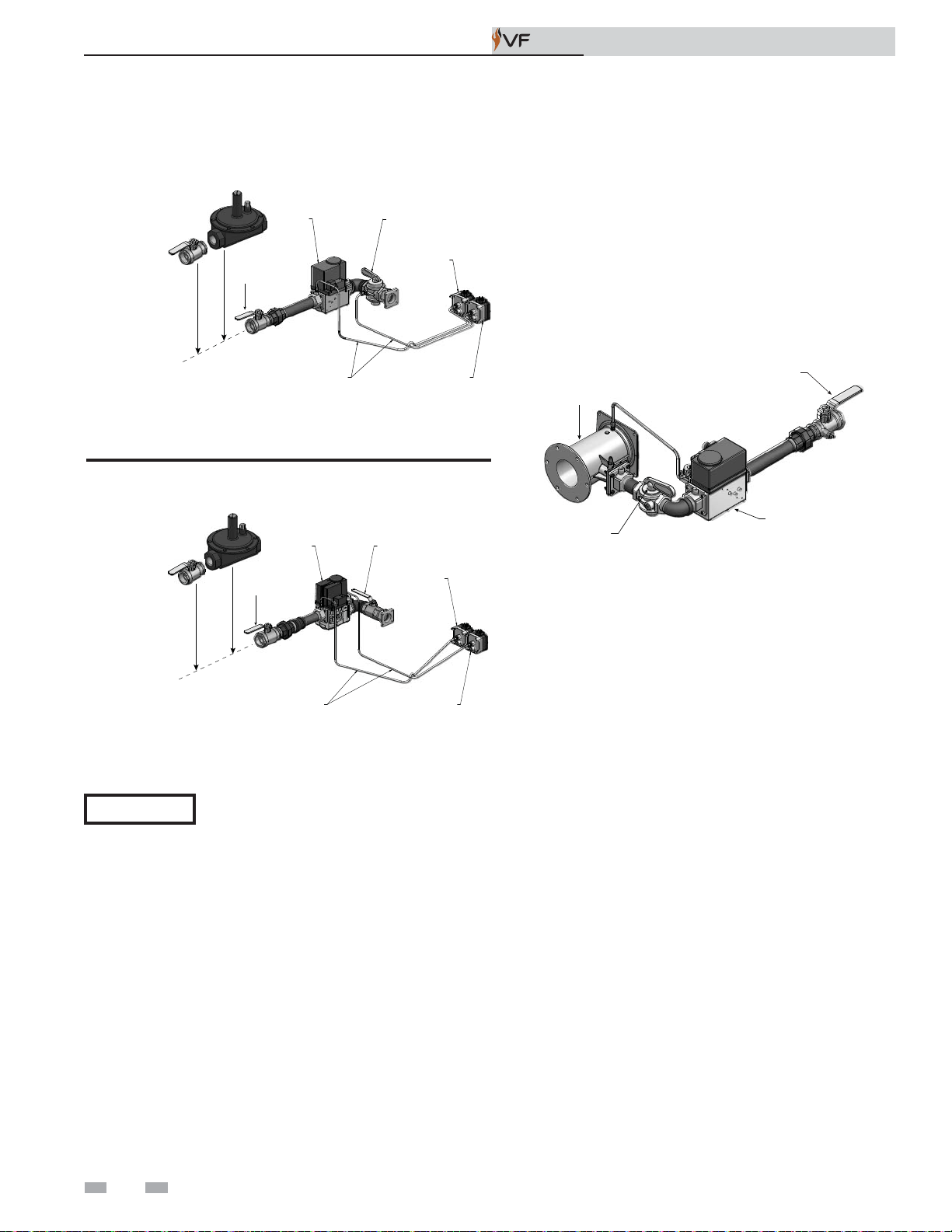

Models 500 - 1000 Front View


Models 500 - 1000 Rear View


Models 500 - 1000 Right Side (inside unit)


Models 500 - 1000 Left Side (inside unit)


Page 8

The VF Series - How it works...

Installation & Operation Manual

Models 1500 - 2000 Front View



Models 1500 - 2000 Rear View

Models 1500 - 2000 Right Side (inside unit)



Models 1500 - 2000 Left Side (inside unit)

Page 9

1 Determine unit location

Installation & Operation Manual

Location of unit

1. Locate the appliance so that if water connections should leak, water damage will not occur. When such locations cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed under the unit. The pan must not restrict combustion airflow. Under no circumstances is the manufacturer to be held responsible for water damage in connection with this unit, or any of its components.

2. The appliance must be installed so that the ignition system components are protected from water (dripping, spraying, rain, etc.,) during appliance operation and service (circulator replacement, control replacement, etc.,).

3. Appliances located in a residential garage and in adjacent spaces that open to the garage and are not part of the living space of a dwelling unit must be installed so that all burners and burner ignition devices have a minimum clearance of not less than 18" (46 cm) above the floor. The appliance must be located or protected so that it is not subject to physical damage by a moving vehicle.

4. DO NOT install this appliance in any location where gasoline or flammable vapors are likely to be present.

5. The appliance must be installed on a level floor. Combustible floor locations may be used. Maintain required clearances from combustible surfaces.

6. The appliance must not be installed on carpet.

Recommended service clearances

24"

MIN

TOP

24"

MIN

FRONT

24"

MIN REAR FROM

PIPING

RIGHT

SIDE

Figure 1-1_Recommended Service Clearances

TABLE - 1A

CLEARANCES FROM COMBUSTIBLE CONSTRUCTION

Location Clearances

Right Side 0"

Rear

6" (15cm) (Minimum 24" (0.61m) suggested for service to pump and components)


0" LEFT SIDE

7. The appliance must be installed indoors where it is protected from exposure to wind, rain, and weather.

8. This appliance may condense the products of combustion when operating at water temperatures below 140°F (60°C). Ensure that the appliance is located near an acceptable drain where condensate that may form in the venting system may be properly collected and disposed.

9. Access to rear of appliance MUST be maintained.

Left Side 0"

Front - Alcove* (Minimum 24" (0.61m) suggested for service)

Top

6" (15cm) (Minimum 24" (0.61m) suggested for service)

Flue 2" (51mm)

Hot Water Pipes 1" (25.4mm)

*An Alcove is a closet without a door.

NOTICE

Clearances from combustible construction are noted on the appliance rating plate.

Page 10

1 Determine unit location

Maintain minimum specified clearances for adequate operation. All installations must allow sufficient space for servicing the vent connections, water pipe connections, piping and other auxiliary equipment, as well as the appliance. The clearance labels on each appliance note the same service and combustible clearance requirements as shown above.

Multiple appliances may be installed in a modular water heater installation. Multiple appliances may be installed side by side with no clearance between adjacent appliances because this appliance is approved for zero clearance from combustible surfaces and no service access is required from the sides.

Consult the Venting section of this manual for specific installation instructions for the appropriate type of venting system that you will be using. Direct Vent and Vent/Air venting systems require installation with Category IV flue pipe, sealed air inlet pipe, and air inlet caps, which must meet the manufacturer’s specifications.

Installation & Operation Manual


Figure 1-2_Combustion Air Direct from Outside

Combustion and ventilation air requirements for appliances drawing air from the equipment room

Provisions for combustion and ventilation air must be in accordance with Air for Combustion and Ventilation, of the latest edition of the National Fuel Gas Code, ANSI Z223.1, in Canada, the latest edition of CGA Standard B149 Installation Code for Gas Burning Appliances and Equipment, or applicable provisions of the local building codes.

The equipment room MUST be provided with properly sized openings to assure adequate combustion air and proper ventilation.

1. If air is taken directly from outside the building with no duct, provide two permanent openings to the equipment room (see FIG. 1-2):

(a) Combustion air opening, with a minimum free area of one square inch per 4000 Btu/hr input (5.5 cm2 per kW). This opening must be located within 12" (30 cm) of the bottom of the enclosure.

(b) Ventilation air opening, with a minimum free area of one square inch per 4000 Btu/hr input (5.5 cm2 per kW). This opening must be located within 12" (30 cm) of the top of the enclosure.


Figure 1-3_Combustion Air Through Ducts

Page 11

1 Determine unit location (continued)

2. If combustion and ventilation air is taken from the outdoors using a duct to deliver the air to the equipment room, each of the two openings should be sized based on a minimum free area of one square inch per 2000 Btu/hr (11 cm2 per kW) of input (see FIG. 1-3).

Figure 1-5_Combustion Air from Outside - Single Opening

Installation & Operation Manual



Figure 1-4_Combustion Air from Interior Space

3. If air is taken from another interior space, each of the two openings specified above should have a net free area of one square inch for each 1000 Btu/hr (22 cm2 per kW) of input, but not less than 100 square inches (645 cm2) (see FIG. 1-4).

TABLE - 1B

MINIMUM RECOMMENDED COMBUSTION

AIR SUPPLY TO EQUIPMENT ROOM

*Outside Air from

Model

Number

500

750

1000

1500

2000

2 Openings Directly from

Outdoors

Top

Opening, in

125

(807 cm2)

188

(1213 cm2)

250

(1613 cm2)

375

(2420 cm2)

500

(3226 cm2)

Bottom

Opening, in

(807 cm2)

(1213 cm2)

(1613 cm2)

(2420 cm2)

(3226 cm2)

125

188

250

375

500

*Outside Air from 1 Opening Directly from Outdoors, in

167

(1077 cm2)

250

(1613 cm2)

333

(2149 cm2)

500

(3226 cm2)

667

(4303 cm2)

4. If a single combustion air opening is provided to bring combustion air in directly from the outdoors, the opening must be sized based on a minimum free area of one square inch per 3000 Btu/hr (7 cm2 per kW). This opening must be located within 12" (30 cm) of the top of the enclosure (see FIG. 1-5).

Inside Air from

2 Ducts Delivered from

Outdoors

Top

Opening, in

Bottom

250

(1613 cm2)

375

(2420 cm2)

500

(3226 cm2)

750

(4839 cm2)

1000

(6452 cm2)

2 Ducts Delivered from Interior

250

375

500

750

1000

Inside Air from

Top

Opening, in

500

(3226 cm2)

750

(4839 cm2)

1000

(6452 cm2)

1500

(9678 cm2)

2000

(12904 cm2)

Space

Opening, in

(12904 cm2)

Bottom

500

(3226 cm2)

750

(4839 cm2)

1000

(6452 cm2)

1500

(9678 cm2)

2000

*Outside air openings shall directly communicate with the outdoors. When combustion air is drawn from the outside through a duct, the net free area of each of the two openings must have twice (2 times) the free area required for Outside Air/2 Openings. The above requirements are for the water heater only; additional gas fired appliances in the equipment room will require an increase in the net free area to supply adequate combustion air for all appliances.

Page 12

1 Determine unit location

Combustion air requirements are based on the latest edition of the National Fuel Gas Code, ANSI Z223.1; in Canada refer to the latest edition of CGA Standard CAN B149.1 or B149.2. Check all local code requirements for combustion air.

Installation & Operation Manual

500 - 1000

All dimensions based on net free area in square inches. Metal louvers or screens reduce the free area of a combustion air opening a minimum of approximately 25%. Check with louver manufacturers for exact net free area of louvers. Where two openings are provided, one must be within 12" (30cm) of the ceiling and one must be within 12" (30cm) of the floor of the equipment room. Each opening must have net free area as specified in the chart on page 11 (Table 1B). Single openings shall commence within 12" (30cm) of the ceiling.

 CAUTION

The result is improper combustion and a non-warrantable, premature appliance failure.

EXHAUST FANS: Any fan or equipment which exhausts air from the equipment room may deplete the combustion air supply and/or cause a downdraft in the venting system. Spillage of flue products from the venting system into an occupied living space can cause a very hazardous condition that must be immediately corrected. If a fan is used to supply combustion air to the equipment room, the installer must make sure that it does not cause drafts which could lead to nuisance operational problems with the appliance.

Under no circumstances should the equipment room ever be under negative pressure. Particular care should be taken where exhaust fans, attic fans, clothes dryers, compressors, air handling units, etc., may take away air from the unit.

The combustion air supply must be completely free of any flammable vapors that may ignite or chemical fumes which may be corrosive to the appliance. Common corrosive chemical fumes which must be avoided are fluorocarbons and other halogenated compounds, most commonly present as refrigerants or solvents, such as Freon, trichlorethylene, perchlorethylene, chlorine, etc. These chemicals, when burned, form acids which quickly attack the heat exchanger finned tubes, headers, flue collectors, and the vent system.

1500 - 2000

Figure 1-6_Filter Access

Combustion air filter

This unit has a standard air filter located at the combustion air inlet as shown above in FIG. 1-6. This air filter is provided to help ensure clean air is used for the combustion process. Check this filter every month and replace when it becomes dirty. The filter size on Models 500 -1000 is 16" x 12" x 1" (40.6cm x 30.5cm x 2.5cm) and for Models 1500 - 2000 it is 16" x 16" x 1" (40.6cm x 40.6cm x 2.5cm). You can find these commercially available filters at any home center or HVAC supply store. Follow the steps below when replacing the combustion air filter:

1. Locate the combustion air filter box mounted on the rear of the appliance.

2. Locate the flat thumb bolt at the top of the air filter box and turn it a 1/4 turn counterclockwise to align it with the slot in the air filter box.

3. Lift and remove the air filter box cover to gain access to the air filter.

4. Slide the air filter out the top of the air filter box.

5. Inspect the air filter for dirt and debris, replace if necessary.

6. Replace the air filter and the air filter box cover. Turn the thumb bolt clockwise a 1/4 turn to secure the air filter box cover to the air filter box.

NOTICE

CAUTION

During construction the air filter should be checked more frequently to ensure it does not become clogged with combustion dirt and debris.

Sustained operation of an appliance with a clogged burner may result in nuisance operational problems, bad combustion, and non-warrantable component failures.

Page 13

Installation & Operation Manual

2 Venting

BEFORE YOU BEGIN

Identify your appliance’s vent system:

This manual covers venting requirements for CAT II/IV models. Be sure to correctly identify the type of vent system your appliance requires before proceeding.

Category II/IV Models: See page 15

VWH0500 VWH0750 VWH1000 VWH1500 VWH2000

 DANGER

Venting Category Definitions: (Reference National Fuel Gas Code ANSI Z223.1)

CAT IV: Positive pressure condensing

An appliance that operates with a positive vent static pressure with a vent gas temperature that may cause excessive condensate

production in the vent.

Failure to use correct venting materials can result in loss of life from flue gas spillage into working or living space.

Venting options:

B C

E F

NOTICE

Category II venting is required when common venting multiple units .

CAT II requires vent increaser kit.

CAT II: Negative pressure condensing

An appliance that operates with a non-positive vent static pressure with a vent gas temperature that may cause excessive

condensate production in the vent.

Page 14

Installation & Operation Manual

2 Venting

Vent Materials:

Category II/IV Vent Material Suppliers:

Category II/IV flue pipe materials and vent adapters (see FIG. 2-1) can be obtained from the following manufacturers:

Heat-Fab Inc., Saf-T CI Vent with AL29-4C stainless steel

Protech Systems Inc., Fas N Seal Vent with AL29-4C stainless steel

Flex-L International Inc., StaR 34 Vent with AL29-4C stainless steel

Metal-Fab Inc., Corr/Guard Vent with AL29-4C stainless steel

Z-Flex, Z-Vent with AL29-4C stainless steel

Or other listed Category IV vent systems suitable for a condensing, positive pressure, gas fired appliance.

A Category IV flue MUST have all vent joints and seams sealed gastight and have provisions for a drain to properly collect and dispose of condensate that may occur in the venting system.

Figure 2-1_Category IV Vent Adapter

TABLE - 2A

FLUE ADAPTER SIZES

MODEL FLUE ADAPTER SIZE

VWH0500 4"

VWH0750 5"

VWH1000 6"

VWH1500 6"

VWH2000 8"

Increaser

Connector

Figure 2-2_Category IV to II Conversion Kit

TABLE - 2B

CATEGORY IV TO CATEGORY II

CONVERSION KITS

MODEL FLUE SIZE KIT NUMBER

VWH0500 4" to 7" 9910116000

VWH0750 5" to 9" 9910116001

VWH1000 6" to 10" 9910116002

VWH1500 6" to 8" 9910116003

VWH2000 8" to 10" 9910116004

*Note: The manufacturer of the selected vent material can also provide a vent adapter to connect the vent material to the VF Series vent connection.

Page 15

Installation & Operation Manual

2 Venting (continued)

Condensing Vent Options: CAT II & IV (CAT II vent options A, B, & C requires an adapter kit - see page 14)

CAT II/

CAT II requires an adapter kit.

See page 14.

CAT II/IV

Vertical vent with combustion air from equipment room - see page 16.

Vertical Direct Vent installation with rooftop combustion air inlet - see page 16.

Sidewall termination with combustion air from equipment room - see page 17.

CAT IV

Horizontal Direct Vent installation with sidewall combustion air inlet - see page 18.

CAT IV

CAT II requires an adapter kit.

See page 14.

CAT II/

CAT II requires an adapter kit.

See page 14.

Vertical Vent/Air installation with sidewall combustion air inlet - see page 17.

Horizontal Vent/Air installation with vertical combustion air inlet - see page 18.

CAT IV

Page 16

Installation & Operation Manual

2 Venting

Condensing vent options: CAT II & IV (CAT II vent options A, B, & C requires an adapter kit - see page 14)

Vertical vent with combustion air from equipment room - see page 15.

CAT II/IV

The flue outlet terminates on the rooftop.

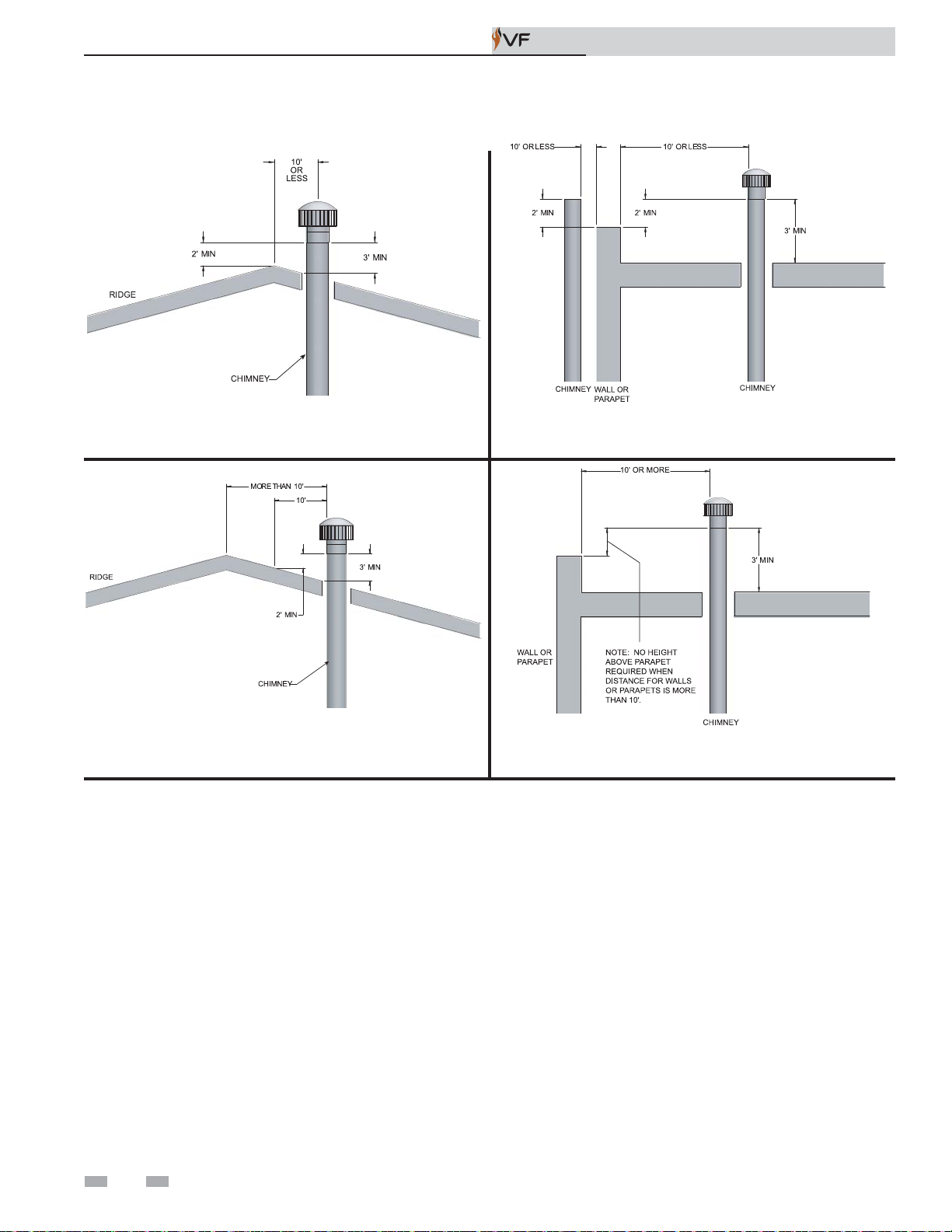

The termination point for the flue products must follow the vertical vent termination clearance requirements on pages 24 and 25. These units can be identified by the Category IV as noted on the unit’s rating plate.

The flue from this Category IV appliance must have all vent joints and seams sealed gastight. A Category IV vent system has specific vent material and installation requirements.

The flue products in the vent system may be cooled below their dew point and form condensate in the flue. The materials used for a Category IV vent must be resistant to any corrosive damage from flue gas condensate.

CAT II requires an adapter kit.

See page 14.

MODEL

VWH0500 7" 4" VWH1500 8" 6"

VWH0750 9" 5" VWH2000 10" 8"

VWH1000 10" 6" -- -- --

The flue from a Category IV vent system must have a condensate drain with provisions to properly collect and dispose of any condensate that may occur in the venting system.

Follow all requirements in the General Venting and Category IV General Venting sections for proper installation and for venting flue products to the outdoors with a vertical termination (see pages 19 and 20).

TABLE - 2C

VENT TERMINATION SIZES

CAT II

VENT SIZE

CAT IV

VENT SIZE

MODEL

CAT II

VENT SIZE

Vertical direct vent installation with rooftop combustion air inlet - see

CAT II/IV

page 15.

The Vertical Direct Vent system is installed with a Category IV flue and a separate combustion air pipe to the outdoors. The flue outlet and combustion air intake must both terminate on the rooftop.

CAT IV

VENT SIZE

The optional Direct Vent system requires the installation of specific venting materials that are purchased locally.

Follow all requirements in the General Venting and Category IV General Venting sections for proper installation

CAT II requires an adapter kit.

See page 14.

MODEL

VWH0500 5" 7" 5" 4" VWH1500 6" 8" 6" 6"

VWH0750 5" 9" 5" 5" VWH2000 8" 10" 8" 8"

VWH1000 6" 10" 6" 6" -- -- -- -- --

and for venting flue products to the outdoors with a vertical termination (see pages 19 and 20).

The Vertical Direct Vent system requires the installation of an additional pipe to supply combustion air from outdoors directly to the appliance. Follow all requirements under the Combustion Air Inlet section on pages 22 and 23.

TABLE - 2D

AIR & VENT TERMINATION SIZES

CAT II CAT IV

AIR

SIZE

VENT

SIZE

AIR

SIZE

VENT

SIZE

MODEL

CAT II CAT IV

AIR

SIZE

VENT

SIZE

AIR

SIZE

VENT

SIZE

Page 17

Installation & Operation Manual

2 Venting (continued)

Condensing vent options: CAT II & IV (CAT II vent options A, B, & C requires an adapter kit - see page 14)

Vent/Air Vertical installation with sidewall combustion air inlet - see page

CAT II/IV

CAT II requires an adapter kit.

See page 14.

Air Inlet Cap

15.

The Vent/Air Vertical with a Sidewall Combustion Air Vent system terminates the flue at the rooftop and air inlet at the sidewall. The flue outlet and combustion air intake terminate in different pressure zones.

The optional Vent/Air vent system requires the installation of specific venting materials that are purchased locally.

The Vent/Air Vertical system requires the installation of an additional pipe to supply combustion air from outdoors directly to the appliance. Follow all requirements under the Combustion Air Inlet section on pages 22 and 23.

Sidewall combustion air inlet: The air inlet cap for the sidewall air inlet must be purchased from the appliance manufacturer.

The part numbers for the required sidewall air inlet cap kit are listed by model. Each kit includes the special combustion air inlet cap for installation on an exterior sidewall. The sidewall air inlet cap supplied in the kit is sized to provide combustion air for a single appliance only.

TABLE - 2E

AIR INLET CAP TERMINATIONS

MODEL

VWH0500 5" 7" 5" 4" 9910117000 VWH1500 6" 8" 6" 6" 9910117002 VWH0750 5" 9" 5" 5" 9910117000 VWH2000 8" 10" 8" 8" 9910117004 VWH1000 6" 10" 6" 6" 9910117002 -- -- -- -- -- --

CAT II CAT IV

AIR

SIZE

VENT

SIZE

AIR

SIZE

VENT

SIZE

CAT IV

KIT

NUMBER

MODEL

CAT II CAT IV

AIR

SIZE

VENT

SIZE

AIR

SIZE

VENT

SIZE

IV KIT

NUMBER

Sidewall termination with combustion air from equipment room - see page

15.

The connection from the appliance flue outlet to the sidewall vent cap MUST be made with listed Category IV

CAT IV

Vent Cap

vent materials and accessories. The installer must supply suitable vent pipe material. The sidewall vent cap must be purchased from the appliance manufacturer.

The sidewall vent cap kit includes the wall penetration assembly and the discharge screen assembly. All required Category IV vent pipe and fittings must be purchased locally.

The termination point for the flue products must follow the sidewall vent termination clearance requirements on pages 25 and 26. These units can be identified by the Category IV as noted on the unit’s rating plate.

Follow all requirements in the General Venting and Category IV General Venting sections for proper installation and for venting flue products to the outdoors with a sidewall termination (see pages 19 and 20).

TABLE - 2F

FLUE VENT TERMINATION SIZES

MODEL

VWH0500 4" 9910118000 VWH1500 6" 9910118002

VWH0750 5" 9910118001 VWH2000 8" 9910118004

VWH1000 6" 9910118002 -- -- --

CAT IV

VENT SIZE

CAT IV

KIT

MODEL

CAT IV

VENT SIZE

CAT IV

KIT

CAT

Page 18

2 Venting

Condensing vent options: CAT IV

Horizontal direct vent installation with sidewall combustion air inlet - see page 15.

CAT IV

Air Inlet Cap

Vent Cap

The horizontal direct vent system is installed with a Category IV flue and a separate combustion air pipe to the outdoors. The flue outlet and combustion air intake must both terminate on the same sidewall.

The connection from the appliance flue outlet to the sidewall vent cap MUST be made with listed Category IV vent materials and accessories. The installer must supply suitable vent pipe material. The horizontal direct vent must be purchased from the appliance manufacturer.

The horizontal direct vent kit includes the wall penetration assembly and the discharge screen assembly for the flue and a combustion air inlet cap. All required vent pipe and fittings must be purchased locally.

The horizontal direct vent system requires the installation of an additional pipe to supply combustion air from outdoors directly to the appliance. Follow all requirements under the Combustion Air Inlet section on pages 22 and 23.

SIDEWALL AIR AND VENT TERMINATION SIZES

CAT IV

MODEL

VWH0500 5" 4" 9910119000 VWH1500 6" 6" 9910119002 VWH0750 5" 5" 9910119001 VWH2000 8" 8" 9910119006 VWH1000 6" 6" 9910119002 -- -- -- --

AIR

SIZE

VENT

SIZE

TABLE - 2G

CAT IV

KIT

Installation & Operation Manual

MODEL

CAT IV

AIR

SIZE

VENT

SIZE

CAT IV

KIT

CAT IV

Vent Cap

Horizontal vent/air installation with vertical or sidewall combustion air page 15.

The Horizontal Vent/Air vent system terminates the flue at the sidewall and air inlet at either the rooftop or a sidewall opposite the vent termination. The flue outlet and combustion air intake terminate in different pressure zones.

The connection from the appliance flue outlet to the sidewall vent cap MUST be made with listed Category IV vent materials and accessories. The installer must supply suitable vent pipe material. The Horizontal Vent/Air vent cap must be purchased from the appliance manufacturer.

The Horizontal Vent/Air vent system with a vertical air inlet requires a sidewall vent kit. The Horizontal Vent/Air vent system with a sidewall air inlet requires a horizontal direct vent kit. All required vent pipe and fittings must be purchased locally.

The Horizontal Vent/Air vent system requires the installation of an additional pipe to supply combustion air from outdoors directly to the appliance. Follow all requirements under the Combustion Air Inlet section on pages 21 and 22.

TABLE - 2H

SIDEWALL VENT TERMINATION SIZES

MODEL

VWH0500 VWH0750 VWH1000

CAT IV

AIR

SIZE

5" 5" 6"

VENT

SIZE

4" 9910118000 VWH1500 6" 6" 9910118002 5" 9910118001 VWH2000 8" 8" 9910118004 6" 9910118002 -- -- -- --

CAT IV

KIT

MODEL

CAT IV

AIR

SIZE

VENT

SIZE

CAT IV

KIT

Page 19

Installation & Operation Manual

2 Venting (continued)

Common Venting CAT II:

Flues of multiple VF Series water heaters may be combined by incorporating a vent increaser to change the Category IV appliance to a Category II vent system which can be common vented using an engineered vent system. The increaser kit must be provided by the manufacturer and the combined engineered vent system must be designed to ensure that flue products will be properly exhausted from the building at all times. Failure to use the correct vent increaser or a properly sized vent system may result in a hazardous condition where flue gases spill into an occupied living space. Consult a vent designer to determine the diameter of the common vent pipe required for combined vent installation. It is recommended that all vent joints and seams are sealed gastight. This vent system has specific vent material and installation requirements. The negative draft in a conventional vent installation must be within the range of 0.02 to 0.08 inches w.c. to ensure proper operation. Make all draft readings while the unit is in stable operation (approximately 2 to 5 minutes).

CAT II & IV General venting information - Vent options: All Categories

Vent installation for connection to gas vents or chimneys must be in accordance with “Venting of Equipment”, of the latest edition of the National Fuel Gas Code, ANSI Z223.1, in Canada, the latest edition of CAN/CGA Standard B149 Installation Code for Gas Burning Appliances and Equipment or applicable provisions of the local building codes.

All venting applications where combustion air is drawn from the equipment room must have adequate combustion and ventilation air supplied to the equipment room in accordance with the latest edition of CAN/CGA Standard B149 Installation Code for Gas Burning Appliances and Equipment or applicable provisions of the local building codes.

The distance of the vent terminal from adjacent buildings, windows that open and building openings MUST comply with the minimum clearances stated in this manual and the latest edition of the National Fuel Gas Code, ANSI Z223.1, in Canada, the latest edition of CAN/CGA Standard B149 Installation Code for Gas Burning Appliances and Equipment.

The vent connection is made directly to the flue outlet opening on the rear of the unit. The connection from the appliance vent to the stack must be made as direct as possible with no reduction in diameter.

NOTICE

Examine the venting system at least once a year. Check all joints and vent pipe connections for tightness. Also check for corrosion or deterioration. Immediately correct any problems observed in the venting system.

CAT IV Specific venting information: Vent Options A, B, C, D, E, & F

A Category IV venting system operates with a positive pressure in the vent. This positive pressure is generated by the internal combustion air blower which operates the combustion process and also exhausts the flue products from the building. The Category IV flue from this appliance cannot be combined with the vent from any other appliance. The Category IV flue from this appliance

must be a dedicated stack, there is one exception however. The Category IV flues from multiple VF Series appliances may only be combined when using an engineered vent system incorporating an induced draft fan to ensure that flue products will be properly exhausted from the building at all times. Failure to use a properly sized induced draft fan on a combined Category IV vent installation may result in a hazardous condition where flue gases spill into an occupied living space. Consult the

induced draft fan manufacturer to size the induced draft fan and to determine the diameter of the common vent pipe required for a combined vent installation. The flue from this Category IV appliance must have all vent joints and seams sealed gastight. A Category IV vent system has specific vent material and installation requirements.

The flue products in the vent system may be cooled below their dew point and form condensate in the flue. The flue materials used for a Category IV vent must be resistant to any corrosive damage from flue gas condensate. The flue from a Category IV vent system must have a condensate drain with provisions to properly collect and dispose of any condensate that may occur in the venting system.

The connection from the appliance vent to the stack or vent termination outside the building must be made with listed Category IV vent material and must be as direct as possible. The Category IV vent and accessories such as firestop spacers, thimbles, caps, etc., must be installed in accordance with the vent manufacturer’s instructions. The vent connector and firestop must provide correct spacing to combustible surfaces and seal to the vent connector on the upper and lower sides of each floor or ceiling through which the vent connector passes.

Any vent materials specified must be listed by a nationally recognized test agency for use as a Category IV vent material.

The venting system must be planned so as to avoid possible contact with concealed plumbing or electrical wiring inside walls, floors, or ceilings. Locate the appliance as close as possible to a chimney or gas vent.

Horizontal portions of the venting system shall be supported to prevent sagging. Horizontal runs should slope upwards not less than a 1/4 inch per foot from the drain tee installed in the flue to the vertical portion of the flue or to the vent terminal on sidewall venting installations. This ensures proper removal of any condensate that may form in the flue. Follow the installation instructions from the vent material manufacturer.

Page 20

Installation & Operation Manual

2 Venting

CAT IV Specific venting information (continued): Vent options A, B, C, D, E, & F

Do not use an existing chimney as a raceway if another appliance or fireplace is vented through the chimney. The weight of the venting system must not rest on the unit. Adequate support of the venting system must be provided in compliance with local codes and other applicable codes. All connections should be secured and sealed per the vent manufacturer’s specifications.

Vent connectors serving appliances vented by natural draft shall not be connected to any portion of the Category IV positive pressure vent system used by this appliance. Connection of a negative draft flue into the positive pressure stack from this appliance may cause flue products to be discharged into an occupied living space causing serious health injury.

When a Category IV vent system is disconnected for any reason, the flue must be reassembled and resealed according to the vent manufacturer’s instructions.

The flue may terminate either vertically at the rooftop or horizontally on a sidewall. Refer to the specific vent termination sections for information about recommended vent termination location and clearances.

Length of flue pipe

The installed length of the Category IV flue from the appliance to the point of termination, outside of the building, must not exceed a maximum of 50 equivalent feet (15.2m) in length. Subtract 5 feet (1.5m) of equivalent length for each 90° elbow installed in the vent. Subtract 2 1/2 feet (0.7m) of equivalent length for each 45° elbow installed in the vent.

CAT II/IV Drain Tee Requirements: Vent options A, B, C, D, E, & F

Drain tee installation

A drain tee must be installed in the Category II & IV vent pipe to collect and dispose of any condensate that may occur in the vent system. The drain tee should be installed at the point where the flue turns vertical for a rooftop termination or as one of the first fittings in a horizontal flue connector that will terminate on a sidewall. Ensure that horizontal portions of the vent are properly sloped to allow condensate to be evacuated at the drain tee. Plastic drain tubing, sized per the vent manufacturer’s instructions, shall be provided as a drain line from the tee. The drain tubing must have a trap provided by a 10” (25.4cm) diameter circular trap loop in the drain tubing. Prime the trap loop by pouring a small quantity of water into the drain hose before assembly to the vent. Secure the trap loop in position with nylon wire ties. Use caution not to collapse or restrict the condensate neutralization system or a suitable drain for disposal of condensate that may occur in the Category IV vent system. Ensure that the drain from the condensate tee is not exposed to freezing temperatures. See Section 7, Startup - Freeze Protection for more information.

Figure 2-3_Drain Tee Installation

Page 21

Installation & Operation Manual

2 Venting (continued)

Vertical Air Inlet: Vent options B & F

Vertical combustion air inlet

The air inlet cap for the vertical rooftop air inlet is assembled from components purchased locally. The air inlet cap consists of two 90° elbows installed at the point of termination for the air inlet pipe. The first 90° elbow is installed on the rooftop at the highest vertical point of the air inlet pipe and turned horizontal, the second 90° elbow is installed on the horizontal outlet of the first elbow and turned down.

A 90° elbow and a 90° street elbow may be used to make this assembly. If a straight piece of pipe is used between the two elbows, it should not exceed 6 inches (152mm) in length. The termination elbow on the air inlet must be located a minimum of 12 inches (0.30m) above the roof or above normal levels of snow accumulation.

Location of a vertical air inlet cap

Incorrect installation and/or location of the air inlet cap can allow the discharge of flue products to be drawn into the combustion process on the heater. This can result in incomplete combustion and potentially hazardous levels of carbon monoxide in the flue products. This will cause operational problems with the heater and possible spillage of flue products that can cause personal injury, death, or property damage.

The point of termination for the combustion air inlet cap MUST be at least 3 feet (0.91m) below the point of flue gas termination (vent cap) if it is located within a 10 foot (3.05m) radius of the flue outlet. Use care to ensure that the 90° elbow assembly is properly installed on the air inlet pipe.

The combustion air inlet cap must not be installed closer than 10 feet (3.05m) from an inside corner of an L-shaped structure.

The termination point of the combustion air inlet cap must be installed at least one foot (0.30m) above the rooftop and above normal snow levels.

The combustion air cap assembly used MUST adequately protect the combustion air inlet from wind and weather.

Combustion air supplied from outdoors must be free of contaminants (see Combustion and Ventilation Air, page 10). To prevent recirculation of flue products into the combustion air inlet, follow all instructions in this section.

The combustion air inlet caps for multiple appliance installations must maintain the minimum 3 foot (0.91m) clearance below the closest vertical flue outlet if within 10 feet (3.05m).

Figure 2-4_Vertical Air Inlet Clearances

Page 22

Installation & Operation Manual

2 Venting

Horizontal Air Inlet: Vent options C, E, & F

Sidewall combustion air inlet

The sidewall termination caps for both the flue products and combustion air must be purchased from the appliance manufacturer.

The part numbers for the required sidewall termination kit are listed under each designated table. Each kit includes both the special combustion air inlet cap and the sidewall flue cap for installation on an exterior sidewall. The sidewall air inlet cap supplied in the kit is sized to provide combustion air for a single appliance only.

Location of a sidewall air inlet cap

The termination point of the sidewall air inlet must be installed a minimum of 12 inches (0.30m) above ground level and above normal levels of snow accumulation.

The point of termination for the sidewall combustion air inlet cap MUST be located a minimum of 3 feet (0.91m) horizontally and 12 inches (0.30m) below the point of flue gas termination (vent cap) if it is located within a 10 foot (3.05m) radius of the flue outlet.

The combustion air inlet cap must not be installed closer than 10 feet (3.05m) from an inside corner of an L-shaped structure.

The combustion air cap assembly used MUST adequately protect the combustion air inlet from wind and weather.

Combustion air supplied from outdoors must be free of contaminants (see Combustion and Ventilation Air, page

10). To prevent recirculation of flue products into the combustion air inlet, follow all instructions in this section.

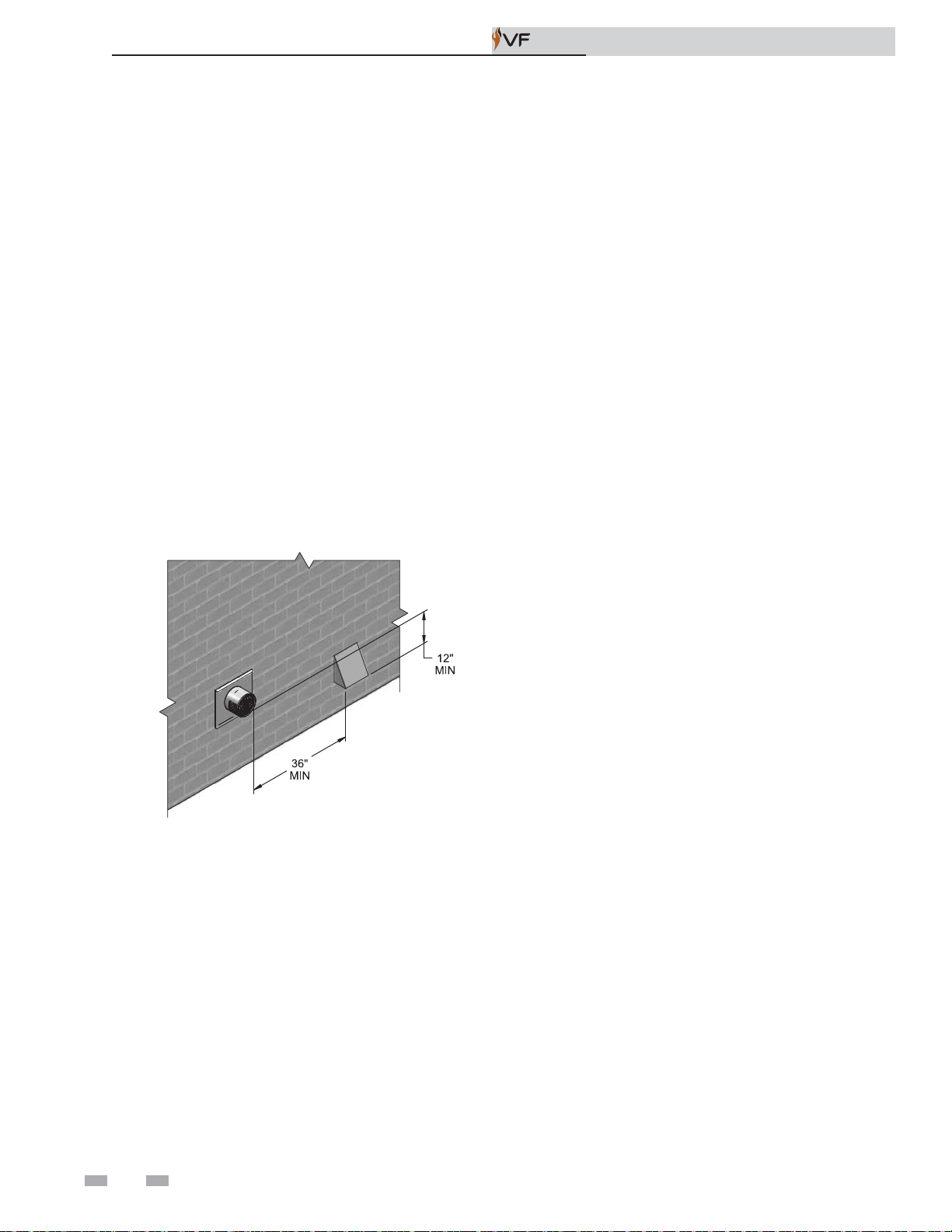

Figure 2-5_Horizontal Air Inlet Clearances

Multiple horizontal or vertical direct vent installations

The combustion air inlet caps for multiple appliance installations must maintain the same minimum clearance from the closest vent cap installed within a 10 foot radius of the point of flue gas termination as specified in single appliance installations. Multiple flue outlet caps may be installed side by side and multiple air inlet caps may be installed side by side, but the minimum clearance of a 3 foot (0.91m) horizontal radius and 12 inches (0.30m) below the closest flue outlet to the air inlet cap must be maintained. All clearance and installation requirements in this section and the applicable portions of the Category IV General Venting section must be maintained on multiple appliance installations.

Page 23

Installation & Operation Manual

2 Venting (continued)

Length of air inlet pipe for both vertical and horizontal - Vent options: All Categories

The maximum installed length of the air inlet pipe from the appliance to the air inlet cap is 50 equivalent feet (15.2m) in length. Subtract 5 feet (1.52m) of equivalent length for each 90° elbow installed in the air inlet pipe. Subtract 2 1/2 feet (0.7m) of equivalent length for each 45° elbow installed in the air inlet pipe.

Air inlet pipe materials:

The air inlet pipe(s) must be sealed. Choose acceptable combustion air inlet pipe materials from the following list:

PVC, CPVC or ABS

Dryer Vent or Sealed Flexible Duct (not recommended for rooftop air inlet)

Galvanized steel vent pipe with joints and seams sealed as specified in this section.

Type “B” double-wall vent with joints and seams sealed as specified in this section.

*Plastic pipe may require an adapter (not provided) to transition between the air inlet connection on the appliance and the plastic air inlet pipe.

 WARNING

NOTICE

Sealing of Type “B” double-wall vent material or galvanized vent pipe material used for air inlet piping on a sidewall or vertical rooftop Combustion Air Supply System:

a. Seal all joints and seams of the air inlet pipe using either Aluminum Foil Duct Tape meeting UL Standard 723 or 181A-P or a high quality UL Listed silicone sealant such as those manufactured by Dow Corning or General Electric.

b. Do not install seams of vent pipe on the bottom of horizontal runs.

c. Secure all joints with a minimum of three sheet metal screws or pop rivets. Apply Aluminum Foil Duct Tape or silicone sealant to all screws or rivets installed in the vent pipe.

d. Ensure that the air inlet pipes are properly supported.

The PVC, CPVC, or ABS air inlet pipe should be cleaned and sealed with the pipe manufacturer’s recommended solvents and standard commercial pipe cement for the material used. The PVC, CPVC, ABS, Dryer Vent or Flex Duct air inlet pipe should use a silicone sealant to ensure a proper seal at the appliance connection and the air inlet cap connection. Dryer vent or flex duct should use a screw type clamp to seal the vent to the appliance air inlet and the air inlet cap. Proper sealing of the air inlet pipe ensures that combustion air will be free of contaminants and supplied in proper volume. When a sidewall or vertical rooftop combustion air supply system is disconnected for any reason, the air inlet pipe must be resealed to ensure that combustion air will be free of contaminants and supplied in proper volume.

Using vent or air intake materials other than those specified, failure to properly seal all seams and joints or failure to follow vent pipe manufacturer’s instructions can result in personal injury, death or property damage. Mixing of venting materials will void the warranty and certification of the appliance.

The use of double-wall vent or insulated material for the combustion air inlet pipe is recommended in cold climates to prevent the condensation of airborne moisture in the incoming combustion air.

 DANGER

Failure to properly seal all joints and seams as required in the air inlet piping may result in flue gas recirculation, spillage of flue products and carbon monoxide emissions causing severe personal injury or death.

Combined combustion air inlet points - Category II & IV

The air inlet pipes from multiple appliances can be combined to a single common connection if the common air inlet pipe has a cross sectional area equal to or larger than the total area of all air inlet pipes connected to the common air inlet pipe. [Example: two 8" (20.3cm) air inlet pipes (50.3 in2(324.5cm2) area each) have a total area of 100.6 in2 (645.2cm2) requires a 12 inch (30.5cm) (113.1in2 area) (729.7cm2) common air inlet pipe.] The air inlet point for multiple water heater air inlets must be provided with an exterior opening which has a free area equal to or greater than the total area of all air inlet pipes connected to the common air inlet. This exterior opening for combustion air must connect directly to the outdoors. The total length of the combined air inlet pipe must not exceed a maximum of 50 equivalent feet (15.2m). You must deduct the restriction in area provided by any screens, grills, or louvers installed in the common air inlet point. These (screens, grills, or louvers) are common on the sidewall air inlet openings and some rooftop terminations. Screens, grills, or louvers installed in the common air inlet can reduce the free area of the opening from 25% to 75% based on the materials used.

Page 24

Installation & Operation Manual

2 Venting

Vertical Vent Termination Clearances - Venting options: A, B, & C

Figure 2-6_Vent Termination from Peaked Roof - 10 ft. or Less From Ridge

Figure 2-7_Vent Termination from Peaked Roof - 10 ft. or More From Ridge

The vent terminal should be vertical and exhaust outside the building at least 2 feet (0.61m) above the highest point of the roof within a 10 foot (3.05m) radius of the termination.

Figure 2-8_Vent Termination from Flat Roof - 10 ft. or Less From Parapet Wall

Figure 2-9_Vent Termination from Flat Roof - 10 ft. or More From Parapet Wall

The vertical termination must be a minimum of 3 feet (0.91m) above the point of exit.

A vertical termination less than 10 feet (3.05m) from a parapet wall must be a minimum of 2 feet (0.61m) higher than the parapet wall.

The vent cap should have a minimum clearance of 4 feet (1.22m) horizontally from and in no case above or below, unless a 4 foot (1.22m) horizontal distance is maintained from electric meters, gas meters, regulators, and relief equipment.

The venting system shall terminate at least 3 feet (0.9m) above any forced air inlet within 10 feet (3.05m).

The venting system shall terminate at least 4 feet (1.2m) below, 4 feet (1.2m) horizontally from, or 1 foot (30cm) above any door, window, or gravity air inlet into any building.

Do not terminate the vent in a window well, stairwell, alcove, courtyard, or other recessed area. The vent cannot terminate below grade. The bottom of the vent terminal shall be located at least 12 inches (30cm) above the roof or above normal snow levels.

To avoid a blocked flue condition, keep the vent cap clear of snow, ice, leaves, debris, etc.

Page 25

Installation & Operation Manual

2 Venting (continued)

Vertical Vent Termination Clearances - Venting options: A, B, & C

Flue gases from this appliance may contain large amounts of water vapor that will form a white plume in winter. Plume could obstruct window view.

Flue gas condensate can freeze on exterior surfaces or on the vent cap. Frozen condensate on the vent cap can result in a blocked flue condition. Flue gas condensate can cause discoloration of exterior building surfaces. Adjacent brick or masonry surfaces should be protected with a rust resistant sheet metal plate.

The manufacturer shall NOT be held liable for any personal injury or property damage due to ice formation or dislodging of ice from the vent system or vent termination.

Masonry chimney installations

A standard masonry chimney must NOT be used to vent the products of combustion from the flue of a Category IV, positive pressure appliance. If a masonry chimney is to be used, the chimney MUST use a sealed, metallic, corrosion resistant liner system to vent flue products from this high efficiency appliance. Sealed, metallic, corrosion resistant liner systems (single-wall, double-wall, flexible or rigid metallic lines) must be rated for use with a high efficiency, Category IV, positive pressure vent system. Corrosion resistant chimney liner systems are typically made from a high grade of corrosion resistant stainless steel such as AL29-4C. The corrosion resistant liner must be properly sized and fully sealed throughout the entire length if the flue is contained within the masonry chimney. Both the top and the bottom of the masonry chimney must be capped and sealed to provide a dead air space around the sealed corrosion resistant metallic liner. Consult with local code officials to determine code requirements or the advisability of using a masonry chimney with a sealed corrosion resistant liner system.

 CAUTION

Venting of a high efficiency Category IV appliance into a masonry chimney without a sealed stainless steel liner can result in operational and safety problems. Any breaks, leaks, or damage to the masonry flue/tile will allow spillage of the positive pressure flue products from the chimney. These flue products can easily escape into an occupied living space causing a health hazard. If there is any doubt about the condition of a masonry chimney, or its acceptability for use after insertion of a corrosion resistant liner system, consult with local code officials.

Location of a sidewall vent termination - Venting options: D, E, & F

The vent cap shall terminate at least 3 feet (0.91m) above any forced air inlet within 10 feet (3.05m).

The vent shall terminate at least 4 feet (1.22m) below, 4 feet (1.22m) horizontally from or 1 foot (0.30m) above and 2 feet (0.60m) horizontally from any door, window, or gravity air inlet to the building.

The sidewall vent termination must be at least 8 feet (2.4m) horizontally from any combustion air intake located above the sidewall termination cap.

Do not terminate the vent in a window well, stairwell, alcove, courtyard, or other recessed area. The vent cap cannot terminate below grade.

The vent shall not terminate directly above a public walkway due to the normal formation of water vapor in the combustion process. Horizontal terminations must not be located over areas of pedestrian or vehicular traffic.

The vent system shall terminate at least 1 foot (0.30m) above grade, above normal snow levels and at least 7 feet (2.13m) above grade when located adjacent to public walkways.

The vent terminal shall not be installed closer than 3 feet (0.91m) from an inside corner of an L-shaped structure.

Flue gas condensate can freeze on exterior walls or on the vent cap. Frozen condensate on the vent cap can result in a blocked flue condition. Some discoloration to exterior building surfaces can be expected. Adjacent brick or masonry surfaces should be protected with a rust resistant sheet metal plate.

The sidewall vent system MUST use the sidewall vent cap kit provided by the appliance manufacturer for installation on a sidewall termination.

The sidewall vent cap MUST be purchased as a kit from the appliance manufacturer to ensure proper operation. Locally purchased or fabricated sidewall vent caps should not be used.

Page 26

Installation & Operation Manual

2 Venting

Sidewall Vent Termination Clearances - Venting options: D, E, & F

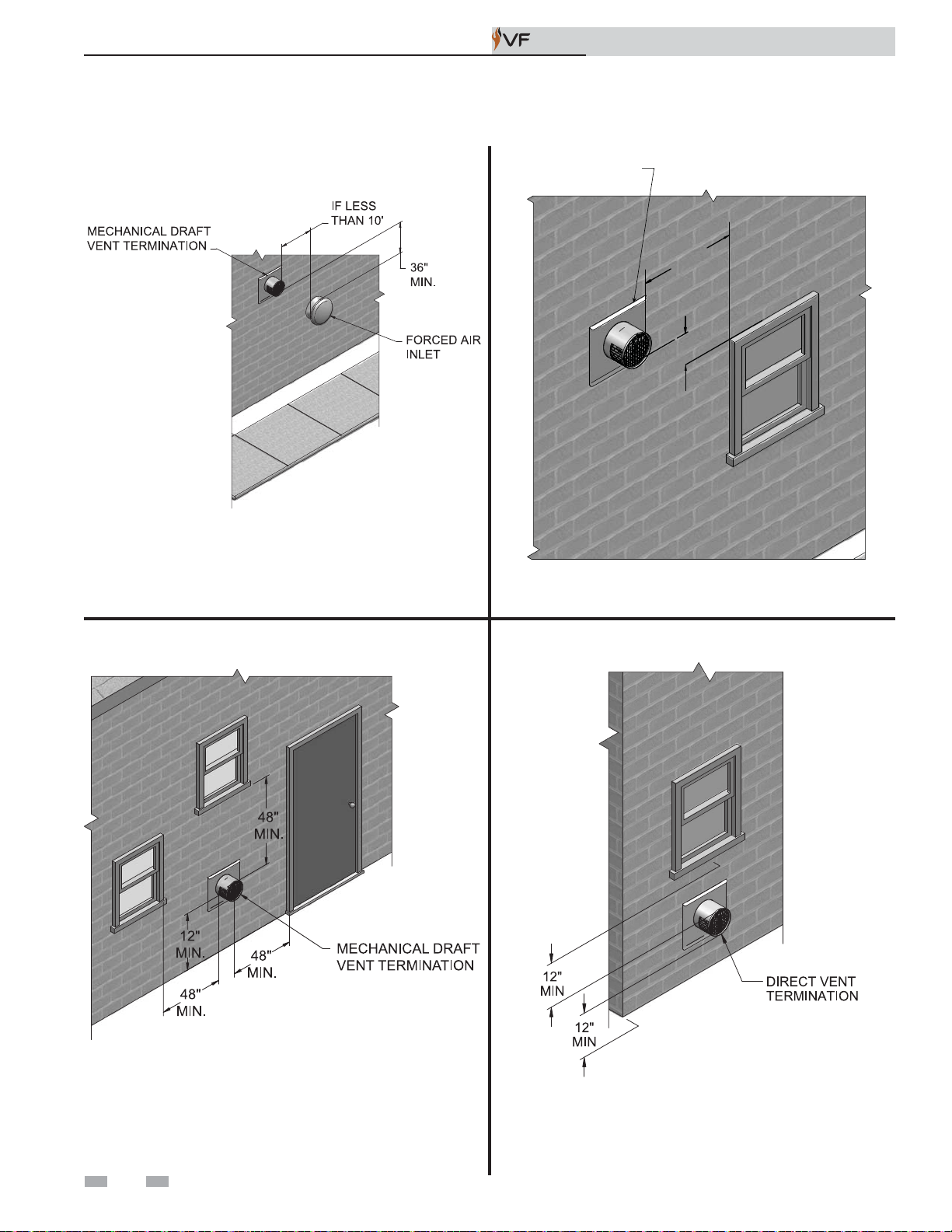

MECHANICAL DRAFT VENT TERMINATION

24"

MIN.

12" MIN.

Figure 2-10_Vent to Forced Air Inlet

Figure 2-12_Vent Above Window

Figure 2-11_Vent to Doors and Windows

Figure 2-13_Direct Vent Clearance

Page 27

3 Gas connections

Installation & Operation Manual

Gas supply

Verify that the appliance is supplied with the type of gas specified on the rating plate. This appliance is configured for operation up to 4000 feet altitude. Consult factory for installations above 4000 feet elevation.

Inlet gas pressure: Measured at the inlet pressure tap on the

appliance gas manifold. The pressure tap is located upstream of the redundant gas valve and downstream of the field installed gas cock.

TABLE 3A

INLET GAS PRESSURE

NATURAL LP

MODEL

500 -1000 14.0 4.0 13.0 11.0

1500 - 2000 14.0 4.0 14.0 8.0

Maximum inlet gas pressure must not exceed the value specified. Minimum value listed is for the purposes of input adjustment.

Max.

w.c.

Min.

w.c.

Max.

w.c.

Min.

w.c.

Gas pressure test

1. The appliance must be disconnected from the gas supply piping system during any pressure testing of that system at a test pressure in excess of 1/2 PSIG (3.5 kPa).

2. The appliance must be isolated from the gas supply piping system by closing a manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSIG (3.5 kPa).

3. The appliance and its gas connection must be leak tested before placing it in operation.

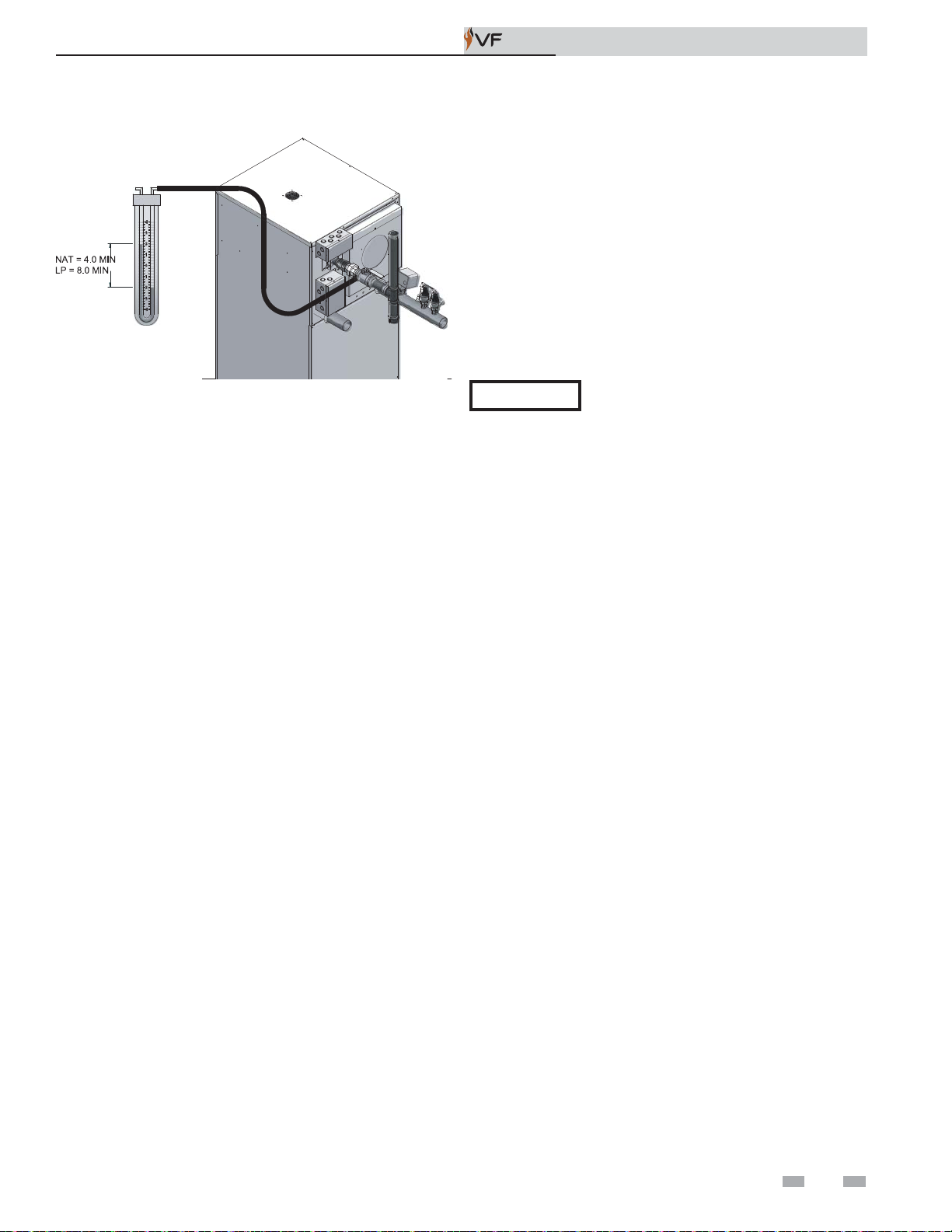

Checking manifold gas pressure

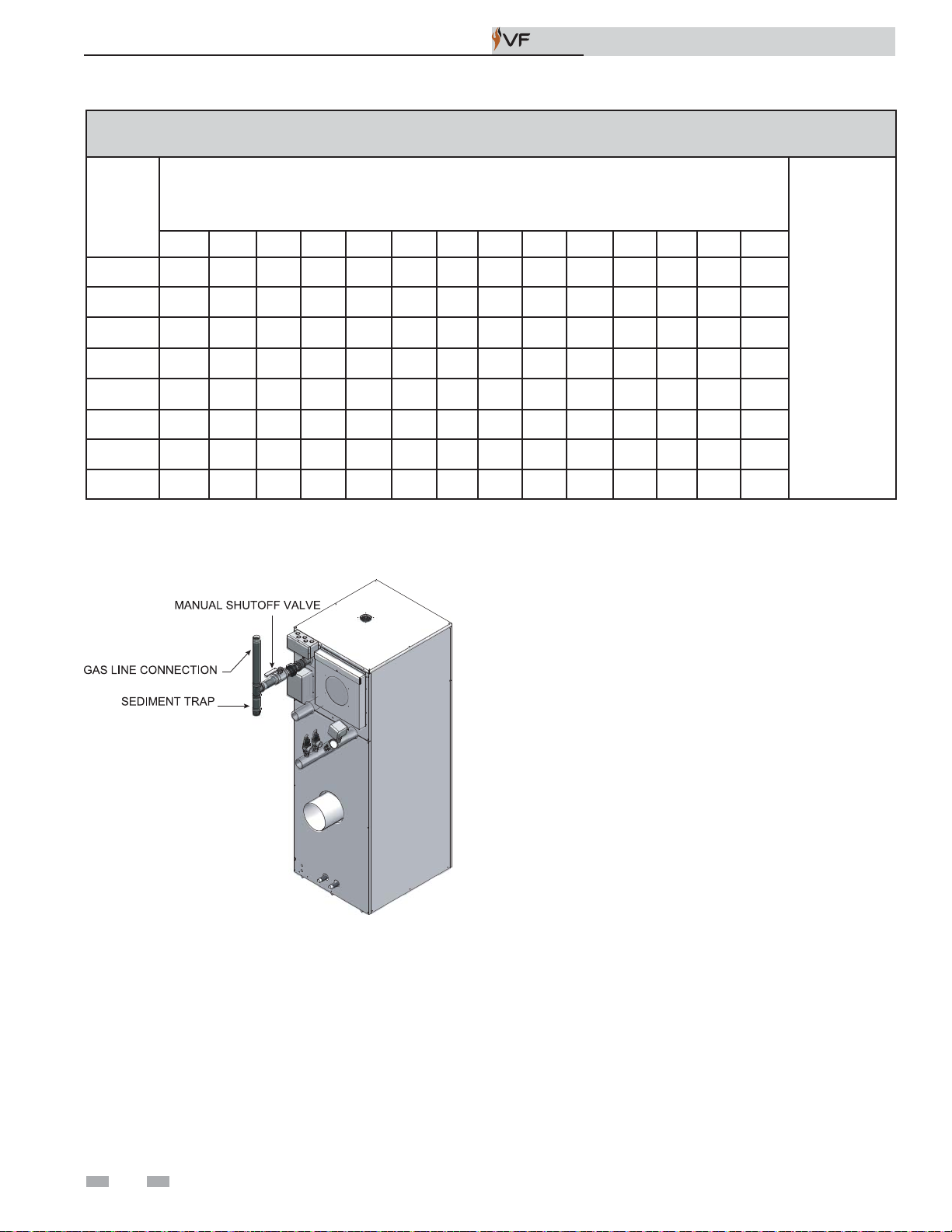

Gas connection

Safe operation of the appliance requires properly sized gas supply piping. See gas line sizing data:

1. Gas pipe size may be larger than appliance connection.

2. Installation of a union at the appliance gas line connection is required for ease of service and removal of the gas train.

3. If an additional manual shutoff valve is required by local codes, install the valve on the outside at the gas supply to the appliance as shown in FIG. 3-1.

4. A sediment trap (drip leg) MUST be provided in the inlet of the gas connection to the appliance, see FIG. 3-1.

5. Optional gas controls may require routing of bleeds and vents to the atmosphere, outside the building when required by local codes.

TABLE - 3B

FITTINGS TO EQUIVALENT STRAIGHT PIPE

Diameter Pipe

(inches)

Equivalent

length of

Straight Pipe

(feet)

NOTICE

1 1/2 2 3 4 5

4 5 10 14 20

If an inline high gas pressure regulator is used, it MUST BE of the lockup type and be located a minimum of 10 feet from the appliance. Failure to do so may result in insufficient gas volume supplied to the appliance.

Reference the VF Series Service Manual for information regarding manifold gas pressure.

Page 28

3 Gas connections

Installation & Operation Manual

TABLE - 3C

GAS PIPING SIZE CHART

Nominal

Iron Pipe

Size

Inches

3/4 369 256 205 174 155 141 128 121 113 106 95 86 79 74

1 697 477 384 328 292 267 246 256 210 200 179 164 149 138

1 1/4 1,400 974 789 677 595 543 502 472 441 410 369 333 308 287

1 1/2 2,150 1,500 1,210 1,020 923 830 769 707 666 636 564 513 472 441

2 4,100 2,820 2,260 1,950 1,720 1,560 1,440 1,330 1,250 1,180 1,100 974 871 820

2 1/2 6,460 4,460 3,610 3,100 2,720 2,460 2,310 2,100 2,000 1,900 1,700 1,540 1,400 1,300

3 11,200 7,900 6,400 5,400 4,870 4,410 4,000 3,800 3,540 3,300 3,000 2,720 2,500 2,340

4 23,500 16,100 13,100 11,100 10,000 9,000 8,300 7,690 7,380 6,870 6,150 5,640 5,130 4,720

10 20 30 40 50 60 70 80 90 100 125 150 175 200

Gas piping

Length of Pipe in Straight Feet

Install piping to control

1. The gas line should be a separate line direct from the meter unless the existing gas line is of sufficient capacity. Verify pipe size with your gas supplier.

Maximum Capacity of Pipe in Thousands of

Btu/hr per hour

for gas pressures

of 14 Inches

Water Column

(0.5 PSIG) or less

and a pressure

drop of 0.5 Inch

Water Column (Based on NAT

GAS, 1025 Btu/hr

per Cubic Foot of Gas and 0.60

Specific Gravity)

Figure 3-1_Gas Line Connection with Sediment Trap (Drip Leg) and Manual Main Gas Shutoff Valve

All gas connections must be made with pipe joint compound resistant to the action of liquefied petroleum and natural gas. All piping must comply with local codes and ordinances. Tubing installations must comply with approved standards and practices.

2. Use new, properly threaded black iron pipe free from chips. If tubing is used, make sure the ends are square, deburred and clean. All tubing bends must be smooth and without deformation. Avoid flexible gas connections. Internal diameter of flexible gas lines may not provide appliance with proper volume of gas.

3. Run pipe or tubing to the unit’s gas inlet. If tubing is used, obtain a tube to pipe coupling in order to connect the tubing to the unit’s gas inlet.

4. Install a sediment trap in the supply line to the unit’s gas inlet (see FIG. 3-1).

5. Remove seal over gas inlet to the appliance.

6. Apply a moderate amount of good quality pipe compound (DO NOT use Teflon tape) to pipe only, leaving two end threads bare.

7. Connect gas pipe to inlet of appliance. Use a wrench to support the gas manifold on the appliance.

8. For LP gas, consult your LP gas supplier for expert installation.

Page 29

3 Gas connections (continued)

Checking gas supply pressure

Installation & Operation Manual

14. Turn on the gas supply at the manual valve, turn on LP gas at the tank if required.

15. Turn the power switch to the “ON” position.

16. Adjust the temperature set point on the display of the control module to the desired water temperature so the appliance will call for heat.

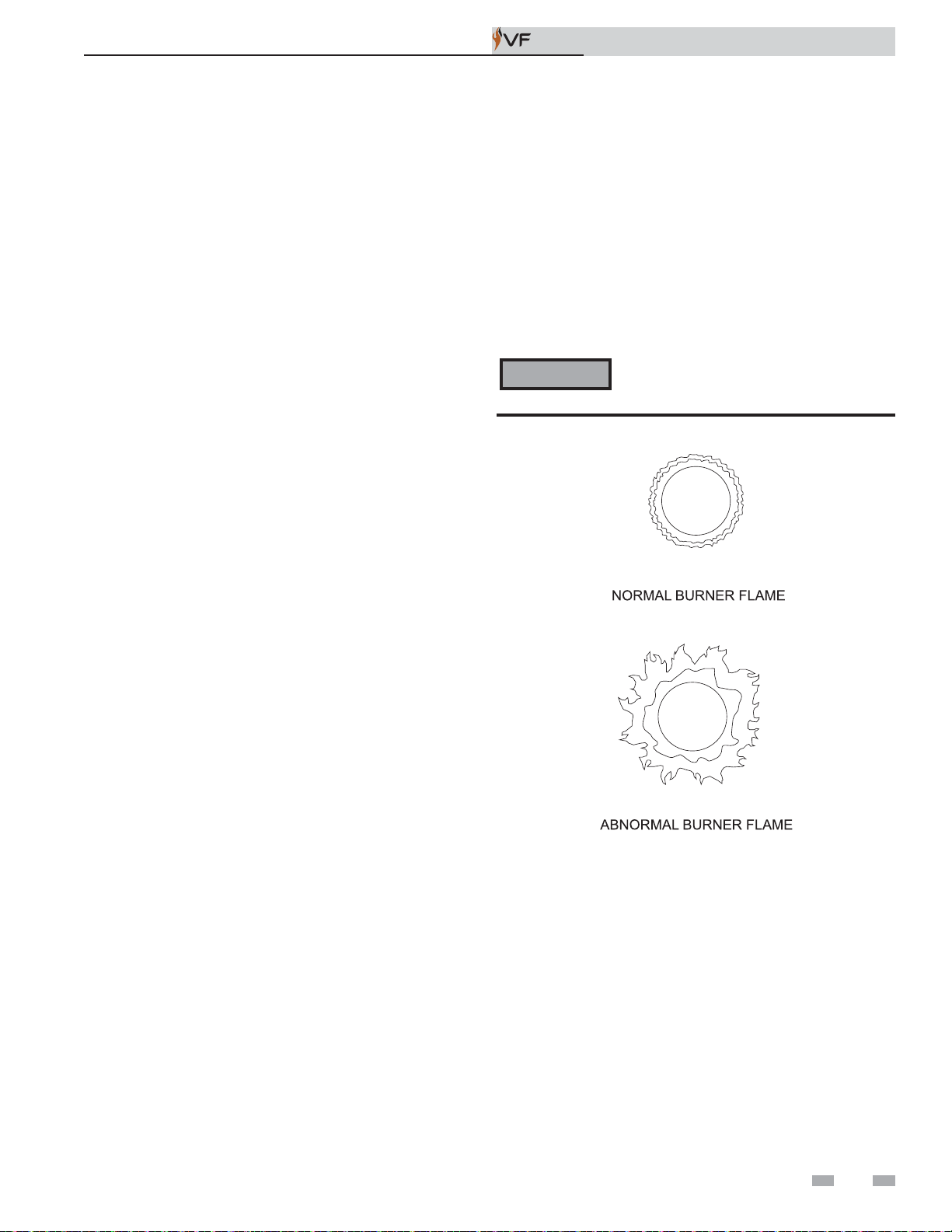

17. Check burner performance by cycling the system while you observe burner response. The burner should ignite promptly. Flame pattern should be stable, see “Maintenance

- Normal Flame Pattern” in the VF Series Service Manual. Turn system off and allow burner to cool, then cycle burner again to ensure proper ignition and flame characteristics.

Figure 3-2_Gas Supply Pressure Measurement

1. Turn the main power switch to the “OFF” position.

2. Shut off the gas supply at the manual gas cock in the gas piping to the appliance. If fuel supply is LP gas, shut off gas supply at the tank.

3. Remove the 1/8" hex plug from the gas pressure test port located on the manual shutoff valve at the rear of the appliance. Install a fitting in the inlet pressure tapping suitable to connect to a manometer or magnahelic gauge. Range of scale should be 14 inches water column or greater to check inlet pressure.

4. Turn on gas supply at the field installed manual gas cock, turn on LP gas at tank if required.

5. Turn the power switch to the “ON” position.

6. Adjust the temperature set point on the display to call for heat.

7. Observe the gas supply pressure as the burner fires at 100% of rated input. Percent of burner input will be shown on the display of the control module.

8. Ensure inlet pressure is within specified range. Minimum and maximum gas supply pressures are specified in the Gas Supply section of this manual.

9. If gas pressure is out of range, contact the gas utility, gas supplier, qualified installer or service agency to determine necessary steps to provide proper gas pressure to the control.

10. If gas supply pressure is within normal range, proceed to remove gas manometer and replace pressure tap fittings in the gas piping to the appliance.

11. Turn the power switch to the “OFF” position.

12. Shut off gas supply at the manual gas cock in the gas piping to the appliance. If fuel supply is LP gas, shut off gas supply at the tank.

13. Remove the manometer and related fittings from the gas pressure test port at the inlet gas supply connection to the appliance. Replace the 1/8" plug in the gas pressure test port and tighten.

NOTICE

If a pressure drop of more than 2" w.c. occurs between Standby (Static) Mode and Operating (Dynamic) Mode, a gas volume problem exists. Contact the gas utility, gas supplier, qualified installer, or service agency to determine the necessary steps to provide the proper gas volume to the appliance.

High and low gas pressure switches

1. Manual reset high and low gas pressure switches are supplied to meet Factory Mutual, GE GAP, and CSD-1 requirements.

2. In the Commonwealth of Massachusetts, gas appliances over 1,000,000 BTU must be equipped with manual reset high and low gas pressure switches when required to meet the Massachusetts requirements.

NOTE: Massachusetts code requires a pressure regulator to be installed upstream of the low gas pressure switch. A.O. Smith requires any inline regulator used MUST BE of the lockup type and be located a minimum of 10 feet from the appliance. Failure to do so may result in insufficient gas volume supplied to the appliance. Massachusetts also requires a shutoff valve be installed ahead of the regulator for replacement or service. When required, both regulator and shutoff valve are to be “field provided”.

3. Figures 3-3A and 3-3B on page 30 show piping connections for high and low gas pressure switches for respective VF Series models.

Page 30

Installation & Operation Manual

3 Gas connections

High and low gas pressure switches (continued)

TYPICAL PRESSURE REGULATOR

STYLE MAY VARY FROM SHOWN

“FIELD PROVIDED”

(IF REQUIRED BY LOCAL CODES)

TYPICAL SHUTOFF

VALVE

“FIELD PROVIDED”

(IF REQUIRED BY LOCAL CODES)

W/PRESSURE TAP

*SEE REGULATOR

INSTALLATION

NOTE ON PAGE 33

BALL VALVE

GAS

VALVE

ALUMINUM

TUBING

.25 X .03

ROUTING MAY VARY

GAS COCK

PRESSURE

SWITCH

LOW

PRESSURE

SWITCH

HIGH

Figure 3-3A_VF 500 - 1000 High & Low Gas Pressure Switches

TYPICAL PRESSURE REGULATOR

STYLE MAY VARY FROM SHOWN

“FIELD PROVIDED”

(IF REQUIRED BY LOCAL CODES)

TYPICAL SHUTOFF

VALVE

“FIELD PROVIDED”

(IF REQUIRED BY LOCAL CODES)

*SEE REGULATOR

INSTALLATION

NOTE ON PAGE 33

GAS VALVE

BALL VALVE

W/PRESSURE TAP

ALUMINUM

ROUTING MAY VARY

TUBING .25 X .03

BALL VALVE

PRESSURE

SWITCH

LOW

HIGH

PRESSURE

SWITCH

Figure 3-3B_VF 1500 - 2000 High & Low Gas Pressure Switches

NOTICE

The gas train and controls assembly provided on this unit have been tested under the applicable American National Standard to meet minimum safety and performance criteria such as safe lighting, combustion, and safety shutdown operation.

VF Series gas train

The ratio gas valve on this appliance uses line (120 VAC) voltage for operation. The valve contains the safety shutoff and operating valves required on water heaters. The ratio valve uses the negative pressure signal generated by the venturi to modulate the amount of gas, so that the proper mixture of air and gas is delivered to the burner throughout the full range of burner operation. The ratio gas valve does not require installation of a vent line - see the Venting of Gas Train Components section below.

There are no serviceable parts on the combination gas valve.

MANUAL SHUTOFF VALVE

VENTURI

DOWNSTREAM

TEST VALVE

RATIO VALVE

Figure 3-4_Gas Train Assembly VF 1500 - 2000

Venting of gas train components - and optional gas train components

Local codes may require the routing component bleeds and vents to the atmosphere outside the building. Components (valves, pressure switches) having vents which would require external vent lines are provided with threaded vent line connections. These vent line connection points may be accessed by removing the top jacket panels. Proper routing of vent lines to the atmosphere from the factory supplied termination points is the responsibility of the installing contractor.

Page 31

4 Water connections

Installation & Operation Manual

Inlet and outlet connections

For ease of service, install unions on the inlet and outlet of the appliance. The connection to the appliance marked “Water Inlet” on the header should be used for return from the system. The connection on the header marked “Hot Water Outlet” is to be connected to the supply side of the system. Minimum water pipe connections to this appliance are 2 1/2 inches (63.5mm) pipe. See the piping requirements in the water heater section of this manual for multiple appliance installations.

Initial set-up of maximum water flow

On initial start-up of the VF water heater, the maximum water flow to the heat exchanger must be checked and manually limited with a valve or bypass before normal operation begins.

Minimum water temperatures

A minimum return water temperature of 140°F (60°C) has been established to control condensate formation based on the Btu/hr output at rated burner input. Maintaining inlet water temperatures to the appliance equal to or higher than the specified minimum temperature ensures proper operation of the appliance and prevents condensate formation on the heat exchanger. An appliance allowed to sustain operation at water temperatures lower than the specified minimum temperature may not provide enough heat from the burner to maintain water temperature in the heat exchanger above the 140°F (60°C) dew point of flue products. Operation of the appliance at a temperature below the specified minimum set point will result in non-warrantable operational problems from the condensate formation on the primary heat exchanger (see the Low Temperature Bypass Requirements section on page 33 of this manual).

Figure 4-1_Water Connections

 CAUTION

An appliance allowed to operate at return temperatures below the specified minimum setting may experience problems with the operating controls, safety switches, obstruction of the flue gas passages on the heat exchanger, incomplete combustion and possible flue gas spillage. Sustained operation at lower than specified water temperatures may cause hazardous conditions that may result in personal injury or non-warrantable damage to the appliance.

Water flow switch

A water flow switch is factory installed in the outlet piping on all water heaters. The flow switch must prove water flow before a trial for ignition can begin. The flow switch requires a minimum flow of 26 GPM to make the flow switch and start burner operation. A water flow switch meets most code requirements for a low water cutoff device on water heaters requiring forced circulation for operation. A fault message, Flow Sw/LWCO will be indicated in the Operator Interface on a low water flow condition as sensed by the flow switch.

Page 32

4 Water connections

Installation & Operation Manual

Low water cutoff

If this water heater is installed above radiation level, a low water cutoff device must be installed at the time of installation. An electronic low water cutoff is available as a factory supplied option on all models. The low water cutoff should be inspected every 6 months. A fault message, Flow Sw/LWCO will be indicated in the Operator Interface on a low water condition as sensed by the low water cutoff.

Relief valve

This unit is supplied with a safety relief valve(s) sized in accordance with ASME Boiler and Pressure Vessel Code, Section IV (“Rules of Construction of Heating Boilers”). The relief valve(s) is installed in the vertical position and mounted in the hot water outlet. No valve is to be placed between the relief valve and the unit. To prevent water damage, the discharge from the relief valve shall be piped to a suitable floor drain for disposal when relief occurs. No reducing couplings or other restrictions shall be installed in the discharge line. The discharge line shall allow complete drainage of the valve and line. Relief valves should be manually operated at least once a year.

 CAUTION

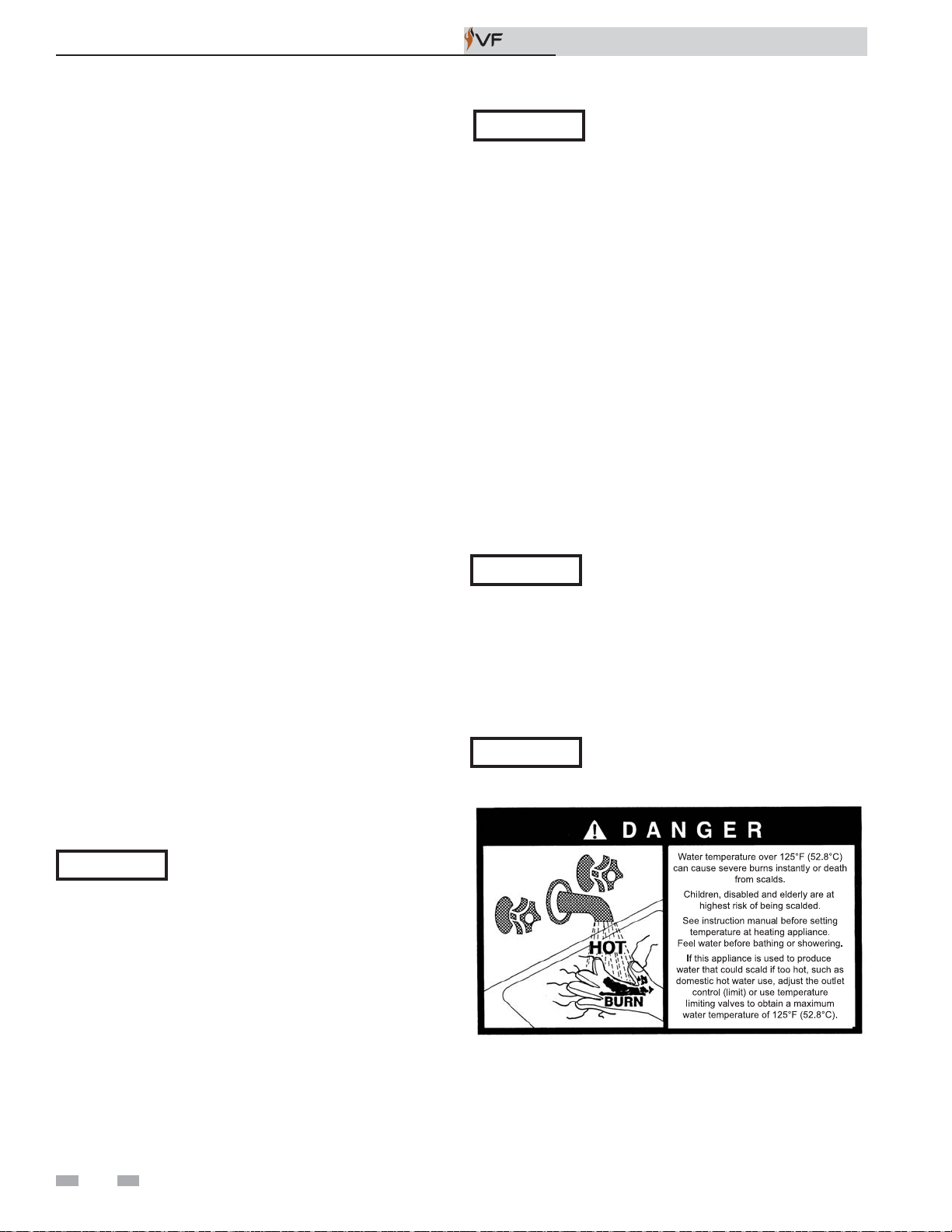

Avoid contact with hot discharge water.

Water heater installations

Piping of the water heater system

The drawings in this section show typical water heater piping installations, see FIG.’s 9-1 through 9-4. Before beginning the installation, consult local codes for specific plumbing requirements. The installation should provide unions and valves at the inlet and outlet of the appliance so it can be isolated for service. An air separation device must be supplied in the installation piping to eliminate trapped air in the system. Locate a system air vent at the highest point in the system. The system must also have a properly sized expansion tank installed. Typically, an air charged diaphragm-type expansion tank is used. The expansion tank must be installed close to the appliance and on the suction side of the system pump to ensure proper operation.

NOTICE

*Please note that these illustrations are meant to show system piping concept only, the installer is responsible for all equipment and detailing required by local codes.

 CAUTION

Hot water piping must be supported by suitable hangers or floor stands, NOT by the water heater. Copper pipe systems will be subject to considerable expansion and contraction. Rigid pipe hangers could allow the pipe to slide in the hanger resulting in noise transmitted into the system. Padding is recommended on rigid hangers installed with a copper system. The pressure relief valve must be piped to a suitable floor drain. See the Relief Valve section on this page.

The water heater system should not be operated at less than 12 PSIG.

Water connections

All water heaters have 2 1/2 inch copper pipe inlet and outlet connections. Installed piping to and from the appliance must be a minimum of 2 1/2 inch diameter.

 CAUTION

Any reduction in pipe size may decrease flow resulting in high water temperatures, water heater noise, flashing to steam, and non-warrantable heat exchanger damage.

It is important to guarantee that adequate flow is provided to properly dissipate heat from the water heater and also ensure that flow through the water heater does not exceed the maximum recommended flow rate of 75 GPM for Models 500

- 1000 and 90 GPM for Models 1500 - 2000 for a water heater equipped with a copper heat exchanger.

Field installed reducing bushings must not be used.

Water heater circulator requirements

This is a low mass, high efficiency hot water heater which must have adequate flow for quiet, efficient operation. Pump selection is critical to achieve proper operation. A pump should be selected to achieve proper system design water temperature rise. Pipe diameter and length are critical to ensure proper flow through the water heater. A Temperature Rise Chart (Table 4D on page 34) is provided to assist in proper pump selection. This table provides GPM and water heater head-loss at various temperature rises for each model based on Btu/hr input. Temperature rise is the difference in water heater inlet temperature and water heater outlet temperature while the water heater is firing at full rate.

Example: The water heater inlet temperature is 160°F (71.1°C) and the water heater outlet temperature is 180°F (82.2°C). This means that there is a 20°F (11.1°C) temperature rise across the water heater. The water heater temperature rise is visible in the Operator Interface on the water heater’s front control panel.

Page 33

4 Water connections (continued)

Installation & Operation Manual

Circulator pump specifications

1. Maximum operating pressure for the pump must exceed system operating pressure.

2. Maximum water temperature should not exceed the nameplate rating.

3. A properly sized expansion tank must be installed (reference Section 9 - Domestic Water Heaters).

Intermittent pump operation

An intermittent pump operation feature is provided. The water heater’s circulating pump will cycle on at each call for heat, before the burner fires. The pump will continue to operate while the burner is firing. The pump will run for a minimum 30 second period after the temperature set point is satisfied. This timing is selectable from the Operator Interface. This timing will remove any of the residual heat from the combustion chamber before turning the pump off. See the wiring diagram in Section 11 of this manual.

Pump Maintenance: Inspect the pump every six (6) months

and oil as necessary. Use SAE 30 non-detergent oil or lubricant specified by the pump manufacturer.

 CAUTION

At no time should the system pressure be less than 12 PSIG.

Low temperature bypass requirements

To prevent condensation problems, a water heater MUST NOT be operated (other than for brief periods during initial system startup) with an inlet water temperature of less than 140°F (60°C). If normal system return temperatures are less than the required 140°F (60°C) water heater inlet requirement, a method of low return water temperature protection MUST BE provided to protect the water heater.

 CAUTION

A water heater allowed to operate at set point temperatures below the specified minimum settings may experience operational problems with the operating controls and safety switches, obstruction of the flue gas passages on the heat exchanger, incomplete combustion and possible flue gas spillage. Operation at lower than specified water temperatures may cause hazardous conditions that result in non-warrantable damage to the appliance.

TABLE - 4A

MAXIMUM FLOW FOR HEATING WATER HEATER

The maximum flow rate through the water heater with a

copper heat exchanger must not exceed the following:

Low system water volume

System run time is very important to the overall operating efficiency of the water heater. Short cycling of the water heater creates problems with condensation in the vent stack, condensation on the heat exchanger, system temperature spikes, and mechanical component failures. To prevent short cycling of the water heater, it is important to limit the water heater cycles to six or fewer per hour.

Minimum water heater inlet temperatures

Inlet water temperatures below the specified minimum of 140°F (60°C) can excessively cool the products of combustion resulting in condensation on the heat exchanger. Condensation on the heat exchanger can cause operational problems, bad combustion, sooting, flue gas spillage and reduced service life of the related components. See the Low Temperature Bypass Requirements section for water heater system applications below the minimum specified temperature.

Model Maximum Flow

500 - 1000 75 GPM

1500 - 2000 90 GPM

If higher flow rates are required through the water heater, an optional Cupro-Nickel heat exchanger is available. Consult the factory for specific application requirements.

Page 34

4 Water connections

50 60 70 80 90 100

Press Drop in Feet Head

Flow in Gallons Per Minute

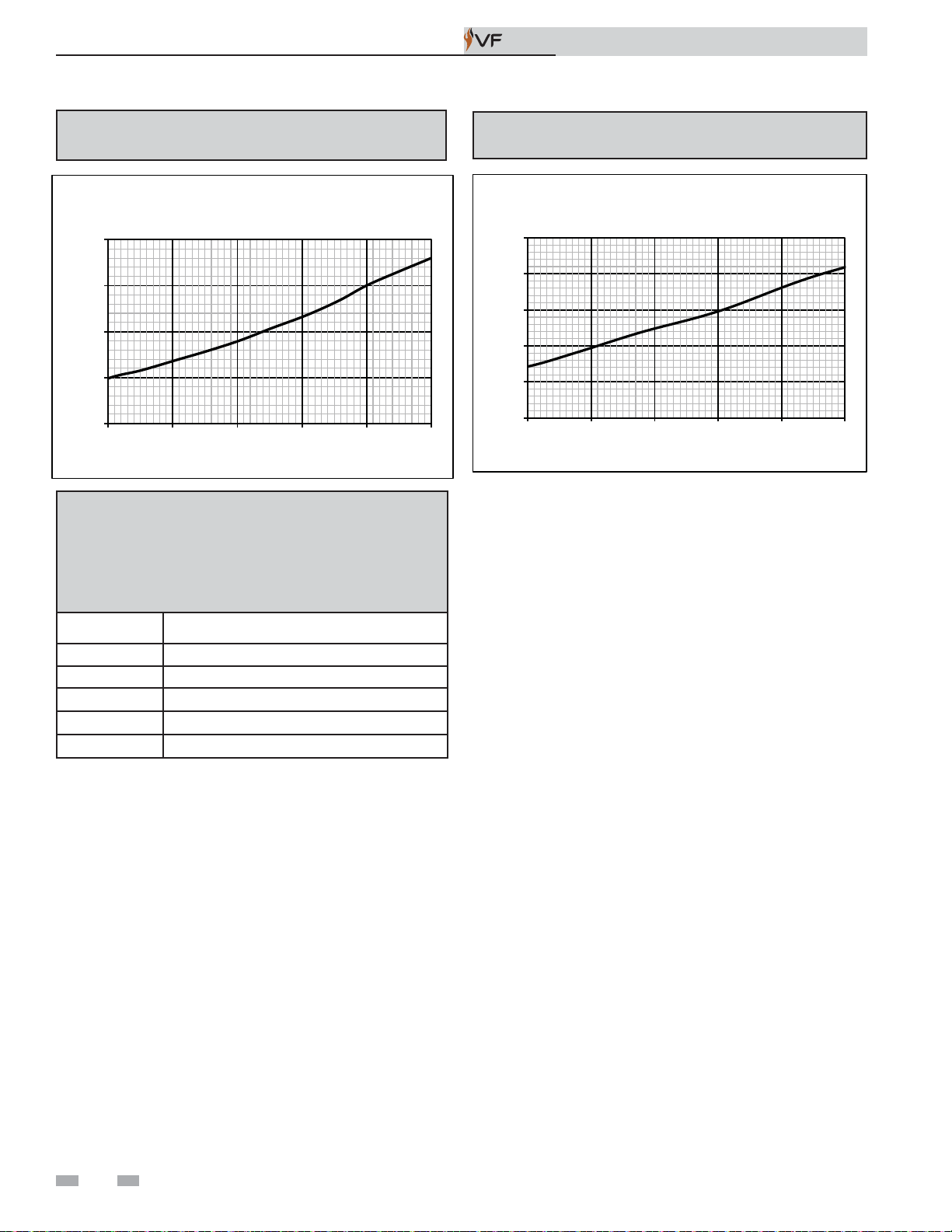

Pressure Drop Chart

Models 500-1000

70 80 90 100 110 120

Press Drop in Feet Head

Flow in Gallons Per Minute

Pressure Drop Chart

Models 1500-2000

Installation & Operation Manual

TABLE - 4B

TABLE - 4D

WATER HEATER TEMPERATURE RISE

AT MAXIMUM FLOW

Temperature Rise at Full Rate Fire,

75 and 90 GPM

Maximum Flow

Model Temperature Rise

500 11°F (6.1°C) @ 75 GPM 750 17°F (9.4°C) @ 75 GPM

1000 23°F (12.8°C) @ 75 GPM

1500 28°F (15.6°C) @ 90 GPM

2000 38°F (21.1°C) @ 90 GPM

TABLE - 4C

Typical water heating installations

General plumbing rules:

1. Check all local codes.

2. For serviceability of water heater, always install unions.

3. Always pipe pressure relief valve to an open drain.

4. Locate system air vents at highest point of system.

5. Expansion tank must be installed near the water heater and on the suction side of the system pump.

6. Support all water piping.

Water heater requirements

The installer must ensure that the water heater is supplied with adequate flow without excessive temperature rise. Flow rates exceeding the maximum recommended flow will result in erosion of the water heater tubes.

Page 35

5 Electrical connections

Water heater operating control module

The operating temperature control for the appliance is the control module. It is located on the inside of the control panel, behind the front access door. Access to adjust the temperature set point and other user adjustable points is made through the Operator Interface located on the right front access door. The outlet sensor is placed in a bulbwell installed in the outlet side of the heat exchanger top header. The inlet sensor is located in a bulbwell on the inlet side of the heat exchanger top header.

The operating sensor, inlet or outlet, is selectable from the screen in the Operator Interface.

The exact temperature set point is based on your system’s requirements. Set the control set point(s) to the desired operating water temperature.

The maximum temperature set point for a water heater is 190°F (88°C). The auto reset high limit is fixed at 200°F (93°C), and the adjustable manual reset high limit has a maximum setting of 210°F (98.9°C).

A 120 VAC, 15 Amp, 1 ph, 60 Hz circuit is required for operation of the appliance controls.

The appliance, when installed, must be electrically grounded in accordance with the requirements of the authority having jurisdiction or in the absence of such requirements, with the latest edition of the National Electrical Code ANSI/NFPA No.

70. When the unit is installed in Canada, it must conform to the CAE C22.1, Canadian Electrical Code, Part I and/or local Electrical Codes. Multiple units connected in a Cascade must be grounded to the same ground connection.

1. All wiring between the appliance and field installed devices shall be made with type T wire [63°F (35°C) rise].

2. All line voltage wire exterior to the appliance must be enclosed in approved conduit or approved metal clad cable.

3. The circulating pump must run continuously when the appliance is being fired.

4. To avoid serious damage, DO NOT energize the appliance until the system is full of water. Ensure that all air is removed from the heat exchanger and piping before beginning initial operation. Serious damage may result if the appliance is operated without proper flow.

5. Provide the appliance with proper overload protection.

Installation & Operation Manual

TABLE - 5A

AMP DRAW DATA

Model

500 6.7 8.8 15.5

750 6.7 8.8 15.5 1000 6.7 8.8 15.5 1500 6.5 8.8 15.3 2000 6.5 8.8 15.3

*Standard Pump Supplied with Water Heaters Only

NOTICE

 CAUTION

Blower &

Controls

Wiring must be N.E.C. Class 1.

If original wiring as supplied with the appliance must be replaced, use only type 105°C wire or equivalent.

Appliance must be electrically grounded as required by National Electrical Code ANSI/ NFPA 70 – latest edition.

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Pump FLA*

Approximate Total

Amps @ 120 VAC

Installation must comply with:

1. National Electrical Code and any other national, state, provincial, local codes, or regulations.

2. In Canada, CSA C22.1 Canadian Electrical Code Part 1, and any local codes.

Line voltage connections

1. Connect 120 VAC power wiring to the line voltage terminal strip in the junction box, as shown in FIG. 5-1.

2. Provide and install a fused disconnect or service switch (15 AMP recommended) as required by the code (see FIG. 5-1).

3. To activate a system pump, wire as shown in FIG. 5-1. If the motor is larger than 1 HP, you must install a contactor.

4. When connecting power to units which are to be cascaded, each unit must be connected to the same ground connection.

 WARNING

ELECTRICAL SHOCK HAZARD – For your safety, turn off electrical power supply before making any electrical connections to avoid possible electric shock hazard. Failure to do so can cause severe personal injury or death.

Page 36

5 Electrical connections

LOUVERS

LOUVER SUPPLY

OUT

CONTACTS

D I S C O N N E C T

3/4HP

MAX

LOUVER

CONTROL

SUPPLY

A L A R M

OUT

MAX

ALARM

CONTACTS

UNIT PUMP

UNIT

PUMP

R U N

OUT

MAX

RUN-TIME

CONTACTS

SUPPLY

I S C O N N E C T

OUT

1HP MAX

PUMP

CONTACTS

LNG

Installation & Operation Manual

120VAC UNIT

SUPPLY

I S C O N N E C T

TO UNIT

120V/IPH

50/60HZ POWER


EMS or remote thermostat connection

GLN

An EMS, remote thermostat or other remote temperature control may be connected to the water heater (see FIG. 5-3). Follow the manufacturer’s instructions supplied with the remote temperature control for proper installation and adjustment. Connection of a set of dry switching contacts or a remote on/off thermostat to the low voltage connection board will allow the unit to be switched on and off by making or breaking a 24 VAC control circuit.

Ensure that all wiring used to connect the switching contacts of the remote temperature controller to the connection board are a minimum of 18 gauge and have a maximum installed length of 300 feet (91.4m). Set the control to a set point temperature slightly higher than the setting of the remote temperature control. This will ensure that the remote temperature controller functions as the operating control for the heater.

GND

Figure 5-1_Line Voltage Field Wiring Connections

Low voltage connections

1. Route all low voltage wires through the knockouts in the rear of the heater, as shown in FIG. 5-2.

2. Connect low voltage wiring to the low voltage connection board as shown in FIG. 5-4 on page 38 of this manual and the heater wiring diagram.

Figure 5-3_Remote ON/OFF Wire Connection

Figure 5-2_Routing Field Wiring

Page 37

5 Electrical connections (continued)

Louver proving switch

1. When the operation of a louver proving switch needs to be verified before the water heater fires, remove the jumper wire from these terminals and connect them to the normally open contacts on its proving switch (FIG. 5-4).

Water heater Management System (BMS)

1. An external control may be connected to control either the firing rate or the set point of the appliance. Connect the 0 10 VDC terminals to the 0 - 10 VDC output of the external control. The control can be programmed to use the enable output of the Boiler Management System, or use the voltage signal to enable the heater. Connect the enable terminals to the enable output of the BMS, when used.

2. Make sure the ground terminal is connected to the ground output terminal of the external control, and the 0 - 10 VDC terminal is connected to the 0 - 10 VDC terminal of the external control.

Installation & Operation Manual

Runtime contacts

The control closes a set of dry contacts whenever the burner is running. This is typically used by Building Management Systems to verify that the water heater is responding to a call for heat.

Alarm contacts

The control closes another set of contacts whenever the heater is locked out or the power is turned off. This can be used to turn on an alarm, or signal a Building Management System that the water heater is down.

Page 38

5 Electrical connections

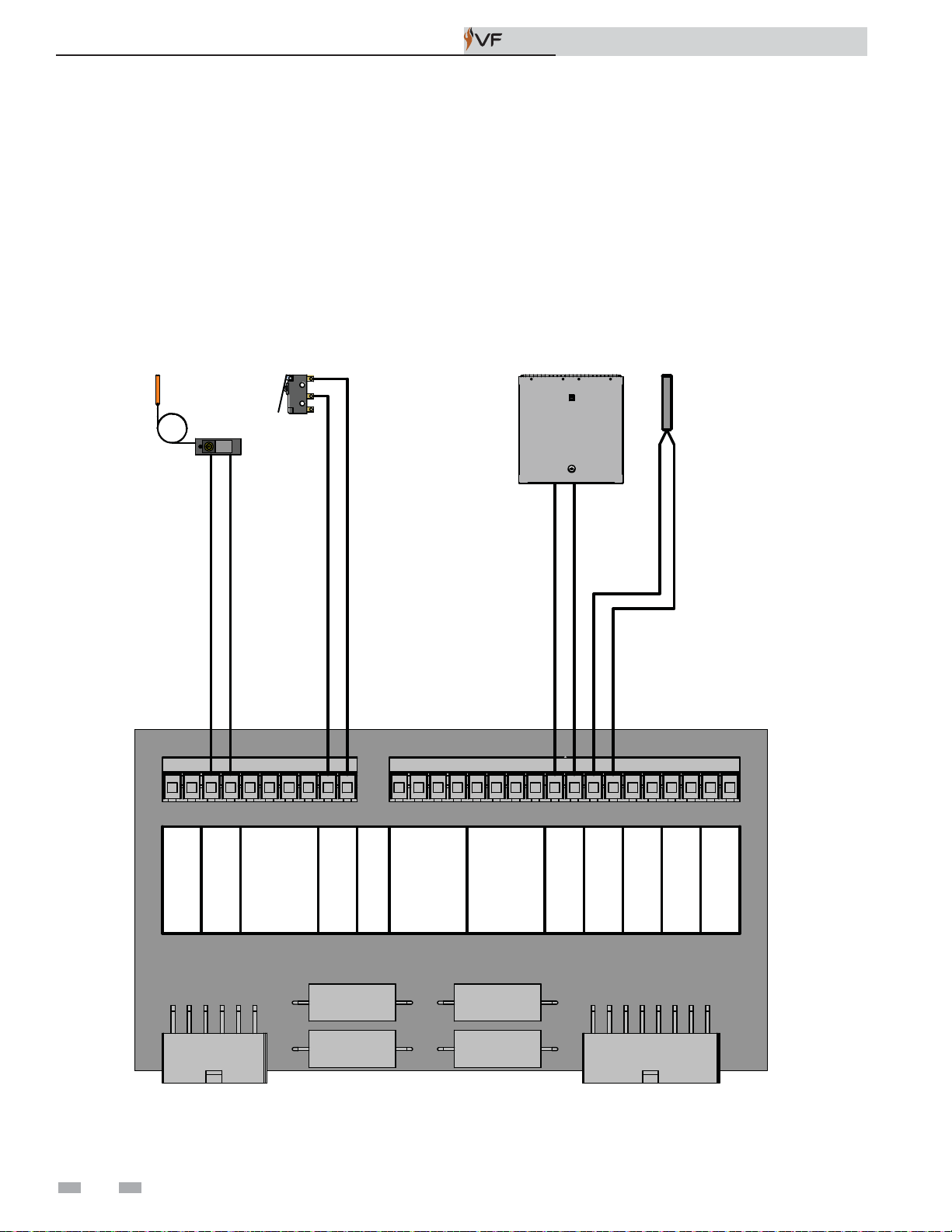

Figure 5-4_Low Voltage Field Wiring Connections

DHW TANK

THERMOSTAT

LOUVER

PROVING

SWITCH

Installation & Operation Manual

EXTERNAL

SEQUENCER /

BUILDING

AUTOMATION

0-10 V

CONTROL

COM

TANK SENSOR

0-10V INPUT

SENSOR

TANK

4 THERMOSTAT

LOUVER

10 PROVING

111213

161718

(-)

19 (+)

21 TANK

2324252627


Page 39

6 Condensate disposal

Condensate trap installation

1. Locate the condensate trap kit shipped loose with the

appliance. The kit includes a sheet metal mounting base, two (2) nuts and the condensate trap.

2. Install the condensate trap mounting base on the rear

of the appliance in the lower left-hand corner as depicted in FIG. 6-1. Use the pre-drilled holes on the appliance to secure the mounting base to the appliance.

3. Secure the condensate trap to the base using the two (2)

nuts supplied with the kit. The trap should be oriented so that the barb connections are pointing toward the appliance (FIG. 6-1).

4. Use a level to ensure that the condensate trap is level on

its base. Failure to keep the condensate trap level can result in the spillage of flue products from the condensate trap.

Installation & Operation Manual

5. Locate the two hoses exiting the back of the appliance.

Attach the larger hose on the appliance to the lower barb connection on the condensate trap. Secure the hose to the barb with a field supplied hose clamp (FIG. 6-1).

6. Attach the smaller hose on the unit to the upper barb

connection on the condensate trap. Secure the hose to the barb connection with a field supplied hose clamp (FIG. 6-1).

7. Route the 3-pin wiring harness from the condensate

trap to the matching connector on the lower back of the appliance as shown in FIG. 6-1. This is the blocked drain safety switch. This switch will shut the appliance off if the condensate trap becomes too full of liquid.

8. Remove the four (4) screws securing the top cover to

the condensate trap and remove the cover (FIG. 6-1).

9. Locate the plastic ball inside the float tube. Verify there

is nothing under the ball causing it to not seat properly (FIG. 6-1).

10. Fill with fresh water until the water begins to pour out

of the drain.

11. Replace the cover.

12. Replace the four (4) screws removed in Step 8.

Figure 6-1_Install Condensate Trap

 WARNING

NOTICE

14. Slope the condensate line down and away from the appliance into a drain or condensate neutralizing filter. Do not expose the condensate line to freezing temperatures.

NOTICE

Use a level to ensure that the condensate trap is level on its base. Failure to keep the condensate trap level can result in the spillage of flue products from the condensate trap.

Failure to follow this warning could result in product damage or improper operation, personal injury, or death.

Use materials approved by the authority having jurisdiction. In the absence of other authority, PVC and CPVC pipe must comply with ASTM D1785 or D2845. Cement and primer must comply with ASME D2564 or F493. For Canada use CSA or ULC certified PVC or CPVC pipe, fittings, and cement.

The condensate line must remain unobstructed, allowing free flow of condensate. If condensate is allowed to freeze in the line or if the line is obstructed in any other manner, the blocked drain safety switch will prevent the appliance from firing.

13. A 1/2" pipe connection is supplied on the condensate trap. Connect a suitable pipe or tube to this connection (see FIG. 6-1).

Page 40

7 Start-up

Installation & Operation Manual

Check/control water chemistry

 CAUTION

Do not use petroleum-based cleaning or sealing compounds in the water heater system. Damage to elastomer seals and gaskets in the system could occur, resulting in substantial property damage.

Filling hot water heater

1. Close the system’s drain valve by turning the handle clockwise.

2. Open a nearby hot water faucet to permit the air to escape.

3. Fully open the cold water inlet pipe valve allowing the water heater and piping to be filled.

4. Close the hot water faucet as water starts to flow.

5. The water heater is ready for operation.

 WARNING

Eliminate all system leaks. Continual fresh makeup water will reduce water heater life. Minerals can build up in the heat exchanger, reducing heat transfer, overheating the heat exchanger, and causing heat exchanger failure.

Inspect/fill condensate system

Inspect/check condensate lines and fittings

1. Inspect the condensate drain line, condensate PVC fittings and condensate trap.

Fill condensate trap with water

1. Remove the four (4) screws securing the top cover to the condensate trap and remove the cover (FIG. 7-1).

2. Locate the plastic ball inside the float tube. Verify there is nothing under the ball causing it to not seat properly.

3. Fill with fresh water until the water begins to pour out of the drain.

4. Replace the cover.

5. Replace the four (4) screws removed in Step 1.

Check for gas leaks

 WARNING

Before starting the water heater, and during initial operation, smell near the floor and around the water heater for gas odorant or any unusual odor. Remove the front access panel and smell the interior of the water heater enclosure. Do not proceed with startup if there is any indication of a gas leak. Use an approved leak detection solution. Repair any leaks at once.

Propane water heaters only – Your propane supplier mixes an odorant with the propane to make its presence detectable. In some instances, the odorant can fade, and the gas may no longer have an odor. Before startup (and periodically thereafter), have the propane supplier verify the correct odorant level in the gas.

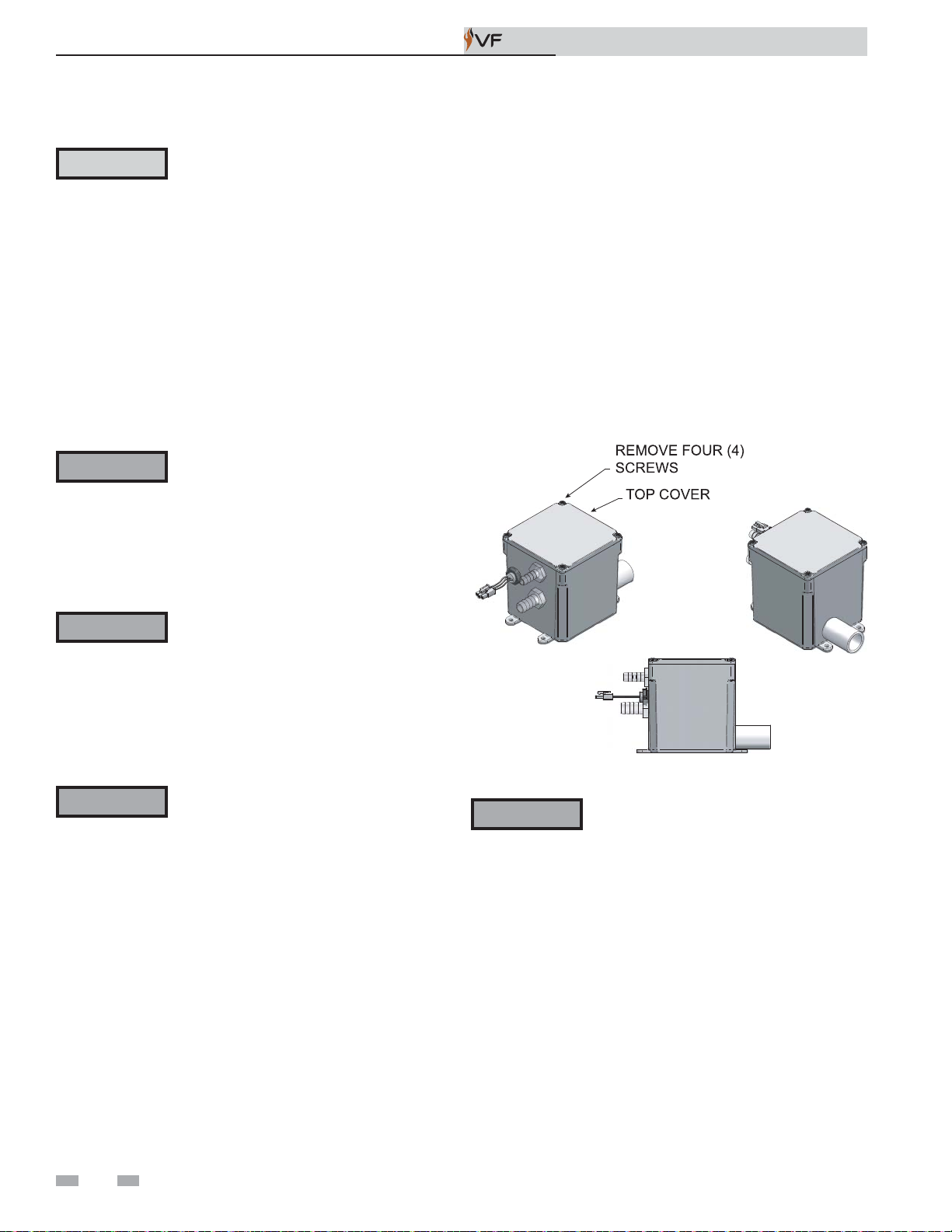

Figure 7-1_Condensate Trap

 WARNING

The condensate trap (FIG. 7-1) must be filled with water during all times of water heater operation to avoid flue gas emission from the condensate drain line. Failure to fill the trap could result in severe personal injury or death.

Check vent and air piping

1. Inspect vent piping and air piping for signs of deterioration from corrosion, physical damage or sagging. Verify air piping and vent piping are intact and correctly installed per this manual.

Page 41

7 Start-up (continued)

Installation & Operation Manual

Placing the water heater in operation

Water heater operational checks

2. Turn the water heater main power switch to the “ON” position.

3. Verify operation of the control module and Operator Interface.

4. Program the adjustable points from the Operator Interface.

5. Push the reset for the low water cutoff (if equipped).

6. Ensure that maximum flow to the water heater does not exceed 75 GPM on Models 500 - 1000 and 90 GPM on Models 1500- 2000. Verify by checking temperature rise while burner is firing at 100% of rated input.

7. Install a manometer on the gas supply to the water heater and verify minimum gas supply pressure as the burner fires at 100% of rated input.

8. Verify operation of safeties as necessary (low water cutoff, high limit, gas pressure, etc.,).

9. Verify that all adjustable points in the Operator Interface are set as required.

Water heater operation

10. Water heater should begin the start-up process for the sequence of operation.

11. The water heater will ignite at the proper ignition speed and will then modulate to meet the system demand.

12. Ensure that inlet water temperature does not fall below the specified minimum for the water heater.

13. Based on system demand, water heaters may run for an extended period of time at a reduced rate of input to maximize efficiency.

14. As system demand is satisfied, the burner will cycle off and the combustion air blower will run for a post purge operation before the water heater shuts down.

 WARNING

Set clock

The control has a built-in clock that it uses for its night setback feature and for logging events. This clock must be set when the appliance is installed, and anytime the appliance has been powered off for more than one month. Use the following procedure to set the clock:

1. Press and hold the SETUP/RETURN button (FIG. 8-1) for at least 5 seconds.

2. The display changes to ready “ENTER MENU CODE”, with four (4) zeros below it.

3. Change the zeros to match the user code (factory set at “0704”). Use the (+) and (-) buttons to increment or decrement the flashing digit, and the FORWARD and BACK buttons to select which digit flashes.

4. Press the SAVE/CLEAR button.

5. The display changes to read USER CODE for a few seconds, then displays a menu.

6. Press the SAVE/CLEAR button.

7. Press the (+) button twice to display “A3 DATE AND TIME”.

8. Press the SAVE/CLEAR button once.

9. The date and time are displayed as “YY:MM:DD W hh:mm”, where:

mm: minutes hh: hour (24 hour time; e.g., 2:00 PM = 14:00) W: day of the week (1 = Sunday, 2 = Monday, 3 = Tuesday, etc.,) YY: year MM: month DD: date

The venting system must be installed so that it will prevent flue gas spillage and carbon monoxide emissions, which will result in severe personal injury or death.

Start the water heater

1. Read and follow the Operating instructions in FIG. 7-2, on page 42.

If water heater does not start correctly

1. Check for loose connections, blown fuse or service switch off?

2. Is external limit control (if used) open? Is water temperature above 200°F (93.3°C)?

3. Is thermostat set below tank temperature?

4. Is gas turned on at meter or water heater?

5. Is incoming gas pressure less than 4 inches water column?

If none of the above corrects the problem, refer to the Troubleshooting section of the VF Series Service Manual.

NOTICE

Use the (+) and (-) buttons to increment or decrement the flashing number, and the FORWARD and BACK buttons to select which number flashes.

10. Press the SAVE/CLEAR button to save the setting.

11. Press the SETUP/RETURN button twice to exit the Programming Mode.

The internal clock does not adjust for Daylight Savings Time and therefore, will require a manual adjustment.

Page 42

7 Start-up

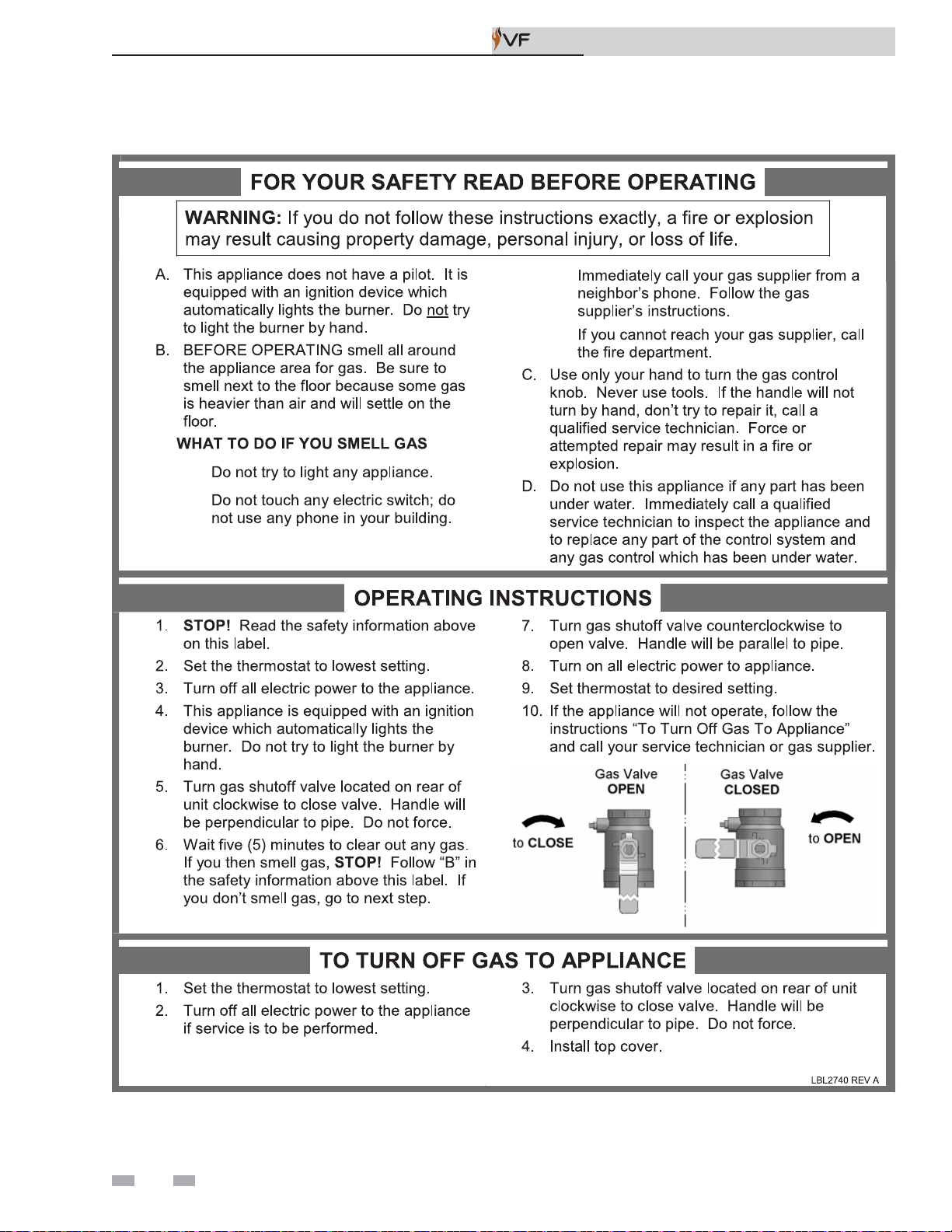

Figure 7-2_Operating Instructions

Installation & Operation Manual

Page 43

8 Operating information

Installation & Operation Manual

General

How the appliance operates

The VF Series uses a copper finned tube heat exchanger to transfer heat from the flue products to the water. An electronic control module monitors various inputs to initiate a call for heat. The blower provides both primary and secondary air to the burner and forces the flue products out of the combustion chamber and into the vent system. The control module regulates the blower speed to control the firing rate of the unit. The modulating gas valve monitors the amount of combustion air being pulled into the blower and regulates the amount of gas supplied, which then mixes with the combustion air and is supplied to the burner.

NOTICE

How the control module operates

The control module receives input from appliance sensors and external devices. The control module activates and controls the blower and gas valve to regulate heat input and switches the system pumps on and off as needed. The user programs the module to meet system needs by adjusting control parameters. These parameters set operating temperatures and appliance operating modes. Water heater operation can be based on a tank sensor or a tank thermostat.

Control inputs and outputs

Tank thermostat (field provided)

This input tells the water heater to provide water for heating a domestic hot water tank (see FIG. 5-4 on page 38 of this manual).

If a pressure drop of more than 2” water column occurs between Standby (static) Mode and Operating (dynamic) Mode, a gas volume problem exists. Contact the gas utility, gas supplier, qualified installer, or service agency to determine the necessary steps to provide the proper gas volume to the appliance.

0 - 10V input (set point or power)

The VF Series can be controlled by a Building Management System (BMS) using a 0 - 10 VDC signal. The control can be configured by the installer to use this signal to either control set point or firing rate.

Temperature control

Modulation

The VF Series is capable of modulating its firing rate from a minimum of 25% to a maximum of 100%. The firing rate is dictated by the call for heat (i.e., domestic hot water), the heating load, ramp delay (if enabled), and various other temperature limitations.

Gradient limiting

If during operation of the heater the outlet water temperature is rising too quickly, the control will reduce the firing rate to its lowest setting.

Night setback

The controller may be programmed to reduce the tank (water heaters) set points during a certain time each day. A start and stop time can be programmed for each day of the week.

Flame current support

To prevent nuisance shutdowns when the water heater is firing at minimum rates, the control will increase fan speed when the flame signal drops too low.

Protection features

Outlet temperature, flue temperature, and temperature rise limiting

The outlet temperature is monitored by the water heater outlet temperature sensor. When the outlet temperature exceeds 185°F (85°C), the unit will reduce the fan speed. If the outlet water temperature exceeds 195° (90.6°C) the control will shut the unit down until it cools off.

The control module monitors the flue temperature by a sensor located in the flue exhaust. If the flue temperature exceeds 400°F (204°C) the control will reduce the maximum fan speed. If the flue temperature exceeds 450°F (232°C) the control will shut the unit down. The unit will restart automatically once the flue temperature drops 100°F (56°C) and the minimum off time has expired.

The control monitors the temperature difference between the inlet and the outlet sensor. If this difference exceeds 55°F (31°C) the control will reduce the fan speed. If the temperature difference exceeds 65°F (36°C) the control will shut the unit down. The unit will restart automatically once the temperature difference has dropped 10°F (6°C) and the minimum off time has expired.

Page 44

8 Operating information

Installation & Operation Manual

Freeze protection

DO NOT install the appliance in a room likely to freeze.

The following integral feature of the control module provides some protection for the appliance only -- not for the system.

• The control module provides freeze-up protection as follows when the appliance water temperature drops below 45°F (7.2°C):

• Below 45°F (7.2°C), the appliance and system pumps operate constantly.

• Below 37°F (2.7°C), the appliance turns on.

• Appliance and pumps turn off if appliance water temperature rises above 45°F (7.2°C).

 CAUTION

High limit operations

When outlet temperature exceeds 200°F (93°C), high limit action occurs. The appliance shuts down until the outlet water cools down and the RESET button on the Operator Interface is pressed.

Low water cutoff protection

1. The control module uses temperature sensing of both inlet and outlet areas of the heat exchanger. If the flow rate is too low or the outlet temperature too high, the control module modulates and shuts the appliance down. This along with the flow switch, ensures appliance shutdown in the event of low water or low flow conditions.

2. Some codes and jurisdiction may accept these integral features of the control in lieu of requiring an additional limit control or low water cutoff. Consult local jurisdiction to determine. Contact manufacturer for low water cutoff kit availability.

This feature of the control module does not eliminate the possibility of freezing. The installer must still use recognized design, installation and maintenance practice to prevent freeze potential for the appliance and system.

Run-time and alarm outputs

The appliance provides dry contacts for indicating when the appliance is running, and when it is unable to operate.

Run-time and cycle counting

The control uses two timers to monitor the total hours of burner operation. One timer monitors the time the appliance is firing under 50% of rate. The other timer monitors the time the appliance is firing over 50% rate.

The control uses four (4) ignition counters to monitor the amount of appliance cycles. The first counter counts all ignitions of the control. The second counter counts only ignition attempts that have failed. The third and fourth counters are the same as the first and second respectively, but can be reset by the installer.

Service reminder

The control can be programmed for service reminder notification. This notification will become active when either a set time frame has expired, or a set amount of running hours or cycles has expired (all adjustable by the installer). The display will alternate the standard text on the display screen with Service Due every 5 seconds. The service reminder notification can be reset by the installer.

Error logging

The control will hold in memory the last 10 error codes as well as the last 10 turn-off functions. The date and time of the occurrence will be recorded as well. Only the 10 most current occurrences will be held in memory.

Water heater temperature regulation

Operating temperature (target)

The control module senses water temperature and regulates appliance firing and firing rate to achieve a target temperature. The target temperature can be set between 60°F (16°C) and 190°F (88°C).

Monitor external limits

Connections are provided on the connection board for external limits such as a louver proving switch. The will shut off the burner and inhibit relighting whenever any of these external limits open.

Page 45

Installation & Operation Manual

8 Operating information (continued)

Sequence of operation

OPERATION DISPLAY

1. The manual reset high limit must be closed before any action will take place.

HTR: Standby OUT: 123.8F(129)

2. Upon a call for heat the control turns on the appropriate pumps. The flow switch and low water cutoff (if equipped) must close.

3. • If the unit is equipped with a proof of closure valve, the proof of closure switch must be closed. The proof of closure valve is then energized. The gas pressure switch(es) (if equipped) must close.

• If the contact for the louvers is closed, the louver proving, blocked drain switch, and auto reset high limit (water heater only) inputs must close.

• If the air pressure switch is open, the prepurge cycle then begins by starting the combustion blower. Once started, the air pressure switch must close.

4. After prepurge, the blower slows down and the hot surface igniter (HSI) is energized.

5. Once the HSI is hot, the trial for ignition begins with the opening of the gas

valve.

6. If the control does not sense flame, it will lock out.

7. If the control senses flame at the end of the trial for

ignition period, it will fire the burner to maintain the set point. The firing rate will modulate as required to hold the actual temperature at the set point.

HTR: Standby OUT: 123.8F(129)

HTR: PREPURGE OUT: 123.9F(129)

HTR: IGNITION OUT: 123.9F(129)

HTR: POSTPURGE, LOCKOUT OUT: 123.9F(129)

HTR: SH 20% RATE OUT: 124.8F(129)

8. Once both calls for heat are satisfied, the control will turn off the burner. The blower will remain on for the postpurge cycle. The pump will continue to run for its respective pump delay times and then turn off.

9. System pump continues its delay if longer.

10. Pump off.

HTR: POSTPURGE OUT: 127.4F(129)

HTR: Standby OUT: 124.7F(129)

HTR: Standby OUT: 122.9F(129)

Page 46

Installation & Operation Manual

8 Operating information

VF Series control module

Use the control panel (FIG. 8-1) to set temperatures, operating conditions, and monitor appliance operation.

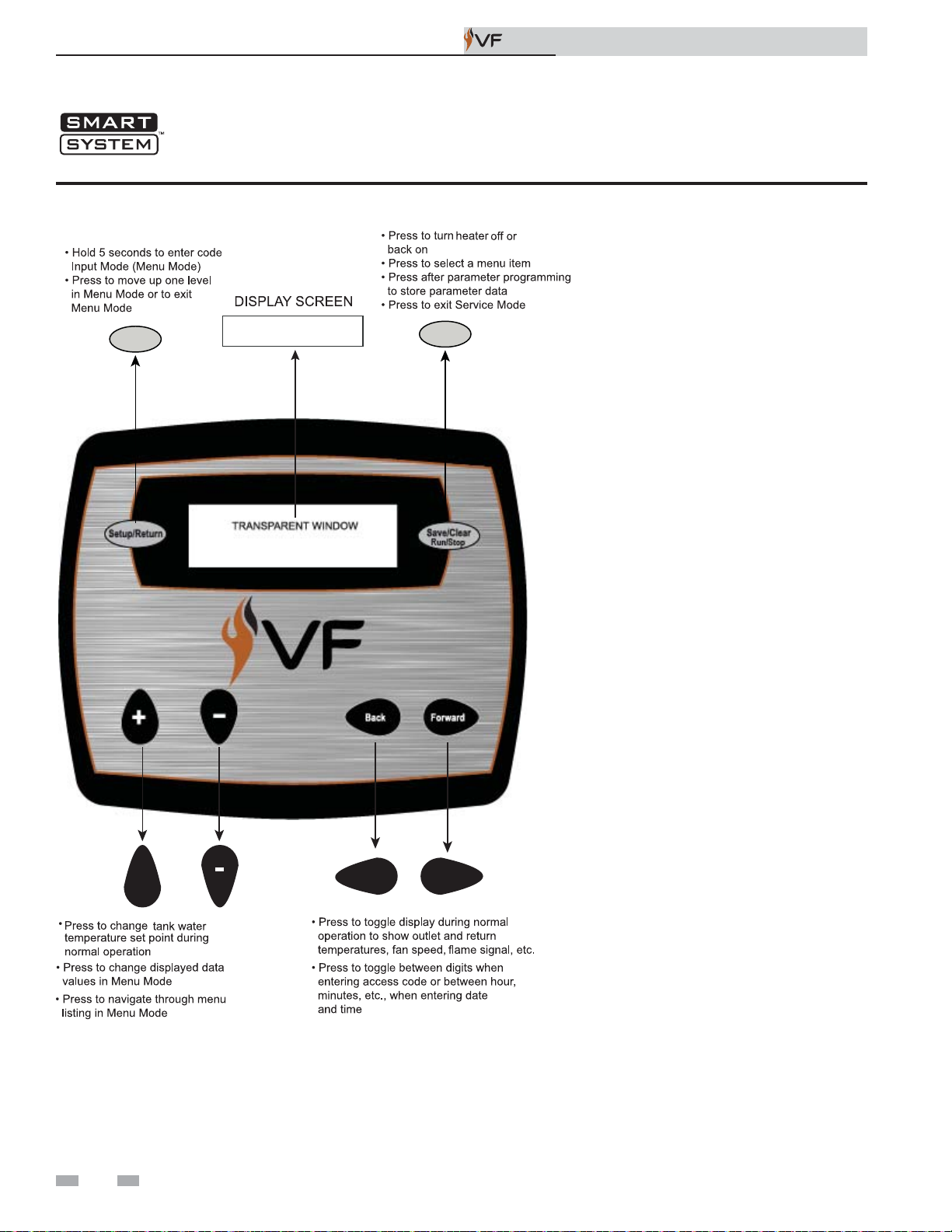

Figure 8-1_Control Panel - Operator Interface

SETUP/RETURN

BACK

SAVE/CLEAR

RUN/STOP

FORWARD

Access modes

User

The user can adjust the space heating target temperature and the tank target temperature (if a tank sensor is used) by using the (+) and (-) buttons (FIG. 8-1) at any time during normal operation. By entering the USER code (0704), the user can also change temperature units, time and date, and night setback settings. In User Mode, the following parameters can be viewed but not changed:

• Appliance model number

• Software version

• Total operating hours

• Total cycles

Installer

Most parameters are available only to the installer, accessible only by entering the installer access code, see the VF Series Service Manual.

Saving parameters (reference the

Parameter Table in the VF Series Service Manual)

To save parameters and exit programming:

Press the SAVE/CLEAR button, then the SETUP/RETURN button 3 times.

To keep parameter settings only for a current operating cycle:

Press the SETUP/RETURN button 3 times after making all desired parameter changes.

To enter a parameter and continue programming:

Press the SETUP/RETURN button 1 time to return to the parameter listings; press again to return to the menu listings. Remember to press the SAVE/CLEAR button when finished programming in order to save the changes made.

See the VF Series Service Manual for a detailed description of parameters and access modes.

Page 47

Installation & Operation Manual

8 Operating information (continued)

Status display screens

Status Display Screens

By using the Back/Forward (, ) arrow keys on the display panel, you can navigate through the nine (9) display screens. Each screen will contain two (2) viewable items. The following is a description of the individual items and what they can display:

Screen Display shows: Description

HTR: OFF

Standby The unit has not received a call for heat from a remote thermostat.

The unit has been turned OFF by the Enter/Reset button on the display panel.

Set Point Met

Prepurge

Ignition The unit has begun a trial for ignition.

DHW***% Rate The unit has fired and is running at the displayed percentage.

Postpurge

Service

OUT: ***F(***)

***F

The unit has met the water temperature set point, but is still receiving a call for heat from either a remote thermostat or a BMS.

The unit has initiated the prepurge and HSI warm-up periods on a call for heat.

The call for heat has been satisfied and the unit runs the fan for an additional postpurge period to clear the combustion chamber and vent system of residual flue products.

The unit has been placed in a temporary mode that will allow the unit to fire for the purpose of combustion analysis.

When the outlet sensor has been selected as the control sensor (default), the control will display the outlet temperature as well as the set point in parenthesis.

If the outlet sensor has not been selected as the control sensor or a system supply sensor is connected, only the outlet temperature will be displayed.

Open The control does not detect the outlet sensor.

Shorted The outlet sensor wires or the sensor itself has become shorted.

Press the Forward  arrow key on the display to access Screen #2.

If the inlet sensor has not been selected as the control sensor or a

IN: ***F

***F (***)

Open The control does not detect the inlet sensor.

Shorted The inlet sensor wires or the sensor itself has become shorted.

RISE: ***F

system return sensor is installed, only the inlet temperature will be displayed.

When the inlet sensor has been selected as the control sensor, the control will display the inlet temperature as well as the set point in parenthesis.

The difference between the inlet temperature and the outlet temperature.

Page 48

Installation & Operation Manual

8 Operating information

Status Display Screens (cont’d)

Screen Display shows: Description

Press the Forward  arrow key on the display to access Screen #3.

FLUE: ***F The control will display the flue temperature.

Open The control does not detect the flue sensor.

Shorted The flue sensor wires or the sensor itself has become grounded.

TANK: ***F The control will display the temperature.

Open The control does not detect the auxiliary sensor.

Shorted The auxiliary sensor wires or the sensor itself has become grounded.

Press the Forward  arrow key on the display to access Screen #4.

FAN SPD: ****RPM The control will display the actual fan motor RPM.

FLAME SIG: **.*uA The control will display the flame signal in dc microamps.

Press the Forward  arrow key on the display to access Screen #5.

DHW CFH: OFF

Press the Forward  arrow key on the display to access Screen #6.

DHW PUMP: OFF

Delay

0-10V IN: **.VDC

The control has not received a call for heat from a tank sensor or tank thermostat.

The control has received a call for heat from a tank sensor or tank thermostat.

The control has not received a DHW call for heat and has not powered the DHW pump.

The control has received a DHW call for heat and has powered the DHW pump.

The DHW call for heat has been satisfied and the DHW pump is running for a fixed time to remove any residual heat.

The control will display a 0-10 VDC signal received from a Building Management System (BMS) connected to the unit.

Press the Forward  arrow key on the display to roll back to Screen #1. At any point if you wish to access an earlier screen, press the Back  arrow key on the display.

Page 49

9 Domestic water heaters

Installation & Operation Manual

This section applies only to those appliances used to supply domestic hot water, installed with a storage tank(s). A circulating pump MUST be installed in the piping assembly to the storage tank and valves used to control water velocity through the appliance. Proper water velocity is important for correct operation of your water heater.

This section contains specific instructions for those appliances used to supply domestic hot water. All warnings, cautions, notes and instructions in the general installation and operation sections apply to these instructions. Water heaters are designed for installation with a storage tank. The operation of the circulating pump, proper sizing of the piping between the tank and heater and the control of water velocity, as explained in this section, are important for correct operation of your water heater.

NOTICE

To ensure proper velocity through the heat exchanger, it is necessary to regulate the temperature rise across the heat exchanger from inlet to outlet. This must be done on initial installation and periodically rechecked. With the correct temperature rise across the heat exchanger when the water heater is firing at 100% of rated input, you may be assured of the proper velocity in the tubes. This will yield long life and economical operation from your water heater.

Excessive lime/scale build-up in the heat exchanger tubes is a result of restricted flow and too little velocity in the tubes. Excessive pitting or erosion in the tube is caused by high water flow and too much velocity through the tubes. Care should be taken to measure temperature rise and maintain velocity as follows:

Initial set-up of maximum water flow

On initial start-up of the VF water heater the maximum water flow through the heat exchanger must be manually set before normal operation begins.

TABLE 9A

MAXIMUM WATER FLOW

 CAUTION: The maximum flow rate through a VF water heater with a copper heat exchanger must be set to provide and not exceed the following flow:

If higher flow rates are required through the water heater, an optional Cupro Nickel heat exchanger is available. Consult the factory for specific application requirements.

The heat exchanger is capable of operating within the design flow rates required for the water heater, storage tank(s), and connecting piping. Erosion of the finned copper tubes may occur if the flow rate exceeds the maximum allowable flow rate through the water heater. The maximum flow rate through the water heater must be adjusted. Maximum flow on Models 500 1000 is 75 GPM and 90 GPM on Models 1500 - 2000. Flow rate can be determined by measuring the temperature rise through the water heater when it is firing at full rate input.

TABLE - 9B

TEMPERATURE RISE AT FULL RATE FIRE

75 AND 90 GPM FLOW

Model Temperature Rise

500 11°F (6.1°C) @ 75 GPM

750 17°F (9.4°C) @ 75 GPM

1000 23°F (12.8°C) @ 75 GPM

1500 28°F (15.6°C) @ 90 GPM

2000 38°F (21.1°C) @ 90 GPM

1. The pump must run continuously when the burner is firing.

2. With the pump running and the burner in the water heater in the off cycle, the inlet water temperature and outlet water temperature readings on the Operator Interface should read approximately the same temperatures. Water Temperature Rise on the Operator Interface should read near zero.

3. Turn the water heater on and allow time for the temperature to stabilize. The Service Mode can be used to force the water heater to run at full fire. See the VF Series Service Manual for a detailed explanation of the Service Mode. Check the water temperature rise in the Operator Interface when the burner is firing at 100% of rated input.

4. Compare the water temperature rise in the Operator Interface with the required temperature rise. Should adjustment be needed, proceed as follows.

Model Maximum Flow

500 - 1000 75 GPM

1500 - 2000 90 GPM

Page 50

9 Domestic water heaters

Installation & Operation Manual

If the temperature rise is too high, the water velocity is too low, adjust as follows:

1. Check for restrictions in the outlet of the water heater.

2. Be sure all valves are open between the water heater and the storage tank. Ensure that all ball valves are fully ported.

3. Check the pump to be sure it is running properly and that the pump motor is running in the proper direction.

4. Check diameter and length of the piping between the storage tank and water heater against the head capacity of the circulating pump.

5. Be sure the pipes between the water heater and storage tank are not less than 2 1/2 inch (63.5mm) diameter. To increase flow and decrease temperature rise, increase the piping to 3 inch (76.2mm) diameter to decrease head loss in the piping to the storage tank.

6. Common manifold piping for multiple unit installations will require larger minimum pipe sizes and tank circulating tappings to ensure proper flow.

Water chemistry

NOTICE

The required temperature rise and the standard circulating pump are sized based on the heating of potable water with a hardness of 5 to 25 grains per gallon and a total dissolved solids not exceeding 350 ppm. Consult the manufacturer when heating potable water exceeding these specifications. Heating of high hardness and/or high total dissolved solids water may require a larger circulating pump, an optional Cupro Nickel heat exchanger and a revised temperature rise specification based on the water chemistry of the water to be heated. Water with a hardness of less than 5 grains per gallon will usually have a pH which can be aggressive and corrosive causing nonwarrantable damage to the heater, pump, and associated piping. Corrosion due to water chemistry generally shows up first in the hot water system because heated water increases the rate of corrosive chemical reactions.

Water temperature rise and maximum flow data is based on heating potable water with a hardness of 5 to 25 grains per gallon and total dissolved solids not exceeding 350 ppm.

If the temperature rise is too low, the water velocity is too high, adjust as follows:

1. Temperature rise can be increased by slowly closing the field-installed ball valve in the outlet piping from the water heater to the storage tank to achieve the proper temperature rise.

2. Sustained high water velocity and low temperature rise may result in pitting or erosion of the copper tubes in the heat exchanger. This is a non-warrantable failure. Temperature rise must be properly adjusted to achieve the specified flow rate.

3. Once temperature rise has been properly set, return to normal operation.

 CAUTION

Temperature rise cannot be adjusted when the burner is firing at less than 100% of rated input.

Page 51

Installation & Operation Manual

9 Domestic water heaters (continued)

Figure 9-1_Typical Water Heater Piping with Storage Tank

NOTES:

1. PREFERRED PIPING LAYOUT.

2. THE TEMPERATURE AND PRESSURE RELIEF VALVE SETTING SHALL NOT EXCEED PRESSURE RATING OF ANY

COMPONENT IN THE SYSTEM.

3. SERVICE VALVES ARE SHOWN FOR SERVICING WATER HEATER. HOWEVER, LOCAL CODES SHALL GOVERN

THEIR USAGE.

4. MAXIMUM PIPING LENGTH BETWEEN TANK AND WATER HEATER SHOULD NOT EXCEED A TOTAL OF 50 EQUIVALENT

FEET CONSTRUCTED OF 2-1/2 INCH PIPE SIZE OR LARGER.

Number of Units GPM

COMMON MANIFOLD SIZE (Min.)

1 75 2 1/2

Models: 500 - 1000

Diameter

(in.)

Number of Units GPM

COMMON MANIFOLD SIZE (Min.)

NOTICE

1 90 2 1/2

Models: 1500 - 2000

Diameter

(in.)

Please note that these illustrations are meant to show system piping concept only, the installer is responsible for all equipment and detailing required by local codes.

Page 52

9 Domestic water heaters

Figure 9-2_Single Water Heater Piping with Two Storage Tanks

NOTES:

1. PREFERRED PIPING LAYOUT.

2. THE TEMPERATURE AND PRESSURE RELIEF VALVE SETTING SHALL NOT EXCEED PRESSURE RATING OF ANY

COMPONENT IN THE SYSTEM.

3. SERVICE VALVES ARE SHOWN FOR SERVICING WATER HEATER. HOWEVER, LOCAL CODES SHALL GOVERN

THEIR USAGE.

4. MAXIMUM PIPING LENGTH BETWEEN TANK AND WATER HEATER SHOULD NOT EXCEED A TOTAL OF 50 EQUIVALENT

FEET CONSTRUCTED OF 2-1/2 INCH PIPE SIZE OR LARGER.

Installation & Operation Manual

Number of Units GPM

COMMON MANIFOLD SIZE (Min.)

1 75 2 1/2

Models: 500 - 1000

Diameter

(in.)

NOTICE

Number of Units GPM

COMMON MANIFOLD SIZE (Min.)

1 90 2 1/2

Models: 1500 - 2000

Diameter

(in.)

Please note that these illustrations are meant to show system piping concept only, the installer is responsible for all equipment and detailing required by local codes.

Page 53

Installation & Operation Manual

9 Domestic water heaters (continued)

Figure 9-3_Multiple Water Heater Piping with a Single Storage Tank

NOTES:

1. PREFERRED PIPING LAYOUT.

2. THE TEMPERATURE AND PRESSURE RELIEF VALVE SETTING SHALL NOT EXCEED PRESSURE RATING OF ANY

COMPONENT IN THE SYSTEM.

3. SERVICE VALVES ARE SHOWN FOR SERVICING WATER HEATER. HOWEVER, LOCAL CODES SHALL GOVERN

THEIR USAGE.

4. A.O. SMITH PIPING METHOD IS BASED ON 50 EQUIVALENT FEET OF PIPING. WATER HEATER PLACEMENT SHALL BE

AS CLOSE AS PRACTICAL TO THE STORAGE TANK. APPLICATIONS IN EXCESS OF THESE RECOMMENDATIONS

SHALL REQUIRE A LICENSED ENGINEER FOR DESIGN ASSISTANCE.

5. TEMPERATURE CONTROL PROBE (QUAD THERMISTOR PROBE, P/N 9006905005 MUST BE INSTALLED ONTO THE TANK,

AND CONNECTED TO EACH WATER HEATER.

Number of Units GPM

COMMON MANIFOLD SIZE (Min.)

2 150 3 1/2

3 225 4

4 300 5

5 375 6

6 450 6

7 525 6

8 600 8

Models: 500 - 1000

Diameter

(in.)

NOTICE

HOT WATER

TO FIXTURES

ALTERNATE COLD WATER

CONNECTION FOR

“OLD-STYLE” TANK

TANK

EXPANSION

3 270 5

4 360 6

5 450 6

6 540 6

7 630 8

8 720 8

COLD WATER

SUPPLY

2 180 4

Number of Units GPM

Models: 1500 - 2000

Diameter

(in.)

Please note that these illustrations are meant to show system piping concept only, the installer is responsible for all equipment and detailing required by local codes.

COMMON MANIFOLD SIZE (Min.)

Page 54

Installation & Operation Manual

9 Domestic water heaters

Figure 9-4_Multiple Water Heater Piping with Multiple Storage Tanks

Finished Floor

NOTES:

1. PREFERRED PIPING LAYOUT.

2. THE TEMPERATURE AND PRESSURE RELIEF VALVE SETTING SHALL NOT EXCEED PRESSURE RATING OF ANY

COMPONENT IN THE SYSTEM.

3. SERVICE VALVES ARE SHOWN FOR SERVICING WATER HEATER. HOWEVER, LOCAL CODES SHALL GOVERN

THEIR USAGE.

4. A.O. SMITH PIPING METHOD IS BASED ON 50 EQUIVALENT FEET OF PIPING. WATER HEATER PLACEMENT SHALL BE

AS CLOSE AS PRACTICAL TO THE STORAGE TANK. APPLICATIONS IN EXCESS OF THESE RECOMMENDATIONS

SHALL REQUIRE A LICENSED ENGINEER FOR DESIGN ASSISTANCE.

5. TEMPERATURE CONTROL PROBE (QUAD THERMISTOR PROBE, P/N 9006905005 MUST BE INSTALLED ONTO THE TANK,

AND CONNECTED TO EACH WATER HEATER.

Number of Units GPM

COMMON MANIFOLD SIZE (Min.)

2 150 3 1/2

3 225 4

4 300 5

5 375 6

6 450 6

7 525 6

8 600 8

Models: 500 - 1000

Diameter

(in.)

NOTICE

Number of Units GPM

8 720 8

Models: 1500 - 2000

Diameter

(in.)

TANK

EXPANSION

HOT WATER

TO FIXTURES

COLD WATER

SUPPLY

2 180 4

3 270 5

4 360 6

5 450 6

6 540 6

7 630 8

Please note that these illustrations are meant to show system piping concept only, the installer is responsible for all equipment and detailing required by local codes.

COMMON MANIFOLD SIZE (Min.)

Page 55

Installation & Operation Manual

9 Domestic water heaters (continued)

TABLE 9C

COMMON WATER MANIFOLD SIZE FOR

MULTIPLE WATER HEATER INSTALLATIONS

Pipe sizing chart provides minimum pipe size for common manifold piping to ensure adequate flow.

Common Manifold Size (Min.)

Number of Water Heaters

500 - 1000 1500 - 2000

1 2 1/2" 2 1/2"

2 3 1/2" 4"

34"5"

45"6"

56"6"

66"6"

7 8

Pump operation

1. The water heater must have a properly sized circulating pump. This pump is sized to circulate water between the heater and the storage tank only.

2. The pump is sized to the heater input and water chemistry specifications noted in the Water Chemistry section on page 50.

3. The diameter and length of the piping installed between the storage tank(s) and water heater must be properly sized based on the capacity of the circulating pump.

4. The pump must run continuously when the water heater is energized. This is the standard operating system for a water heater.

An intermittent pump control function with an all bronze pump is installed as standard equipment on all water heater systems. The pump will operate only while there is a “Call for Heat” and for a timed period after the water temperature set point is satisfied to remove any residual heat from the combustion chamber.

Models

6" 8"

8" 8"

The standard circulating pump on this water heater is sized based on installation of a single storage tank and heater in close proximity. If the number of fittings and straight pipe exceeds the specified maximum equivalent number of straight feet for a specified diameter of pipe, non-warrantable operational problems may be experienced.

500,000 - 1,000,000 Btu/hr Models

1/2 HP, 120 VAC, 9.8 Amps

1,500,000 - 2,000,000 Btu/hr Models

3/4 HP, 120 VAC, 8.8 Amp

The standard pump selection is based on the following pipe and fittings from the water heater to the storage tank:

6 - 90° elbows 2 - ball valves 2 - unions 1 - cold water tee

Not more than 45 feet of straight pipe.

For every elbow and tee in excess of those shown above, DEDUCT 6.5 FEET from the maximum allowable straight pipe in the heater to tank circulating loop.

TABLE 9D

MINIMUM PUMP PERFORMANCE

Based on heating potable water with a hardness of 5 to 25 grains per gallon and total dissolved solids not exceeding 350 ppm. See Water Chemistry section on page 50.

Model GPM Ft. Hd.

500 - 1000 75 15

1500 - 2000 90 15

When installing multiple water heaters and/or multiple storage tanks, the diameter of the inter-connecting pipe and all fittings must be increased. An increase in pipe diameter will decrease head loss in the system piping and ensure proper flow. Proper pipe size between the heater and storage tank MUST be maintained to ensure that the standard pump supplied on the water heater will maintain desired flow.

Heat exchanger

On all models, header inspection plugs in the heat exchanger can be removed for field inspection and cleaning of copper tubes. The heat exchanger may be removed from the unit.

5. Lubricate pump to manufacturer’s recommendations. Pump damage due to inadequate lubrication is non-warrantable.

The tank sensor must be installed in the tapping provided in the lower 25% of the storage tank to achieve proper operation. As shipped from the factory, the tank sensor is in the literature package shipped with the unit. Placing the sensor in the tapping provided on the storage tank will improve temperature response and prevent short cycles of operation.

Page 56

9 Domestic water heaters

Installation & Operation Manual

Thermostat adjustment procedure

1. Press the (+) or (-) button to view the set point setting.

2. Press either the (+) or (-) button to increase or decrease the displayed set point value.

3. Press the SAVE/CLEAR button to permanently store the new set point into the control module’s memory.

Failure to press the SAVE/CLEAR key after changing the display value will result in the set point reverting back to its previous value after the current heat demand ends.

The control may be adjusted any time regardless of call for heat status. When pressing the (+) or (-) key to enter any new set points, the control module will immediately begin controlling based on the new set point.

Minimum water temperatures (domestic hot water use)

Domestic water temperatures:

This high efficiency water heater should be operated at a temperature setting high enough to prevent condensing of the products of combustion on the unit’s heat exchanger or in the attached venting system. Use extreme caution when storing water at elevated temperatures. A water temperature setting maintained above the dew point of the products of gas combustion should prevent condensate formation and ensure proper performance of the venting system. The manufacturer recommends the use of a properly sized thermostatic mixing valve to supply domestic hot water at temperatures less than 140°F (60°C). Storing the water at a higher temperature and thermostatically mixing the water will increase the available quantity of mixed hot water, greatly reducing the possibility of condensate formation on the heat exchanger or in the venting system and help prevent the growth of water borne bacteria.

 CAUTION

The maximum temperature set point that can be programmed into the control module from the Operator Interface for water heater operation is 190°F (88°C). The control is factory pre-set at approximately 120°F (49°C). Facilities with small children or invalids may require 120°F (49°C) or a lower temperature setting to reduce risk of scald injury. Some states may require a lower temperature setting. Check with your gas supplier for local requirements governing the temperature setting. Remember, no water heating system will provide exact temperature at all times. Allow a few days of operation at this setting to determine the correct temperature setting consistent with your needs.

NOTICE

 CAUTION

An appliance allowed to operate at return temperatures below the specified minimum setting may experience problems with the operating controls, safety switches, obstruction of the flue gas passages on the heat exchanger, incomplete combustion, and possible flue gas spillage. Sustained operation at lower than specified water temperatures may cause hazardous conditions that may result in personal injury or non-warrantable damage to the appliance.

1. This water heater, when set at the lower temperature setting, is not capable of producing hot water of sufficient temperature for sanitizing purposes.

2. Higher stored water temperature increases the ability of the water heater to supply desired quantities of hot water, however remember --

Hotter water increases the risk of scald injury.

NOTICE

Inlet water temperatures below the specified minimum recommendations can excessively cool the products of combustion resulting in condensation on the heat exchanger. Condensation on the heat exchanger can cause operational problems, bad combustion, sooting, flue gas spillage and reduced service life of the related components.

Adequate care MUST be taken to prevent a potential scald injury when storing water at elevated temperatures for domestic use.

Figure 9-5_Danger Warning

Page 57

Installation & Operation Manual

9 Domestic water heaters (continued)

The following chart (Table 9E) details the relationship of water temperature and time with regard to scald injury and may be used as a guide in determining the safest water temperature for your applications.

TABLE 9E

APPROXIMATE TIME / TEMPERATURE

RELATIONSHIPS IN SCALDS

120°F More than 5 minutes 125°F 1 1/2 to 2 minutes 130°F About 30 seconds 135°F About 10 seconds 140°F Less than 5 seconds 145°F Less than 3 seconds 150°F About 1 1/2 seconds 155°F About 1 second

 CAUTION

Setting the temperature selector to higher settings provides hotter water, which increases the risk of scald injury.

Location of Cold Water Supply Piping Connections

Incorrect piping of the cold water supply to the system may result in excessive low temperature operation causing condensate formation on the primary heat exchanger and operational problems. The cold water supply piping must be installed in the discharge piping from the heater to the storage tank. This allows the cold water to be tempered in the storage tank before entering the heater. See typical installation drawings provided in this manual for correct piping (FIG.’s 9-1 thru 9-4). Higher water temperatures reduce the volume of condensate formed.

 WARNING

Should overheating occur or the gas supply fail to shut off, do not turn off or disconnect the electrical supply to the pump. Instead, shut off the gas supply at a location external to the appliance.

Adjustable high water temperature limit control

A high limit control is located on the inside of the left front panel, as shown in FIG. 9-6. The setting of this control knob limits maximum discharge water temperature. The water heater temperature limit control is adjustable up to a maximum setting of 210°F (99°C). This water heater also includes a fixed high water temperature limit control set to 200° (93.3°C). The RESET key on the display must be pushed whenever water temperature has exceeded the set point of the limit. The temperature of the water in the heat exchanger must drop a minimum of 15°F (8.3°C) below the setting of the high limit control before the reset function can be activated. A high limit message will be shown in the Operator Interface when water temperature exceeds the high water temperature limit control set point.

NOTICE

Optional relief valve

This water heater is normally supplied with a temperature and pressure relief valve sized in accordance with applicable codes. Units may be supplied with an optional pressure only relief valve. When a water heater is equipped with this optional relief valve and is piped to a separate storage vessel, the storage vessel must have a properly installed temperature and pressure relief valve which complies with local codes.

Thermal expansion

A relief valve that discharges periodically may be due to thermal expansion in a closed system. A water heater installed in a closed system, such as one with a backflow preventer or check valve installed in the cold water supply, shall be provided with means to control expansion. Contact the water supplier or local plumbing inspector on how to correct this situation. Do not plug or cap the relief valve discharge.

Cathodic protection

Hydrogen gas can be produced in a hot water system that has not been used for a long period of time (generally two weeks or more). Hydrogen gas is extremely flammable. To prevent the possibility of injury under these conditions, we recommend the hot water faucet be open for several minutes at the kitchen sink before you use any electrical appliance which is connected to the hot water system. If hydrogen is present, there will be an unusual sound such as air escaping through the pipe as the hot water begins to flow. There should be no smoking or open flames near the faucet at the time it is open.

The high limit control will not reset until the water temperature has dropped below the set point of the high limit.

DJUSTABLE HIGH WATER TEMPERATURE LIMIT CONTROL


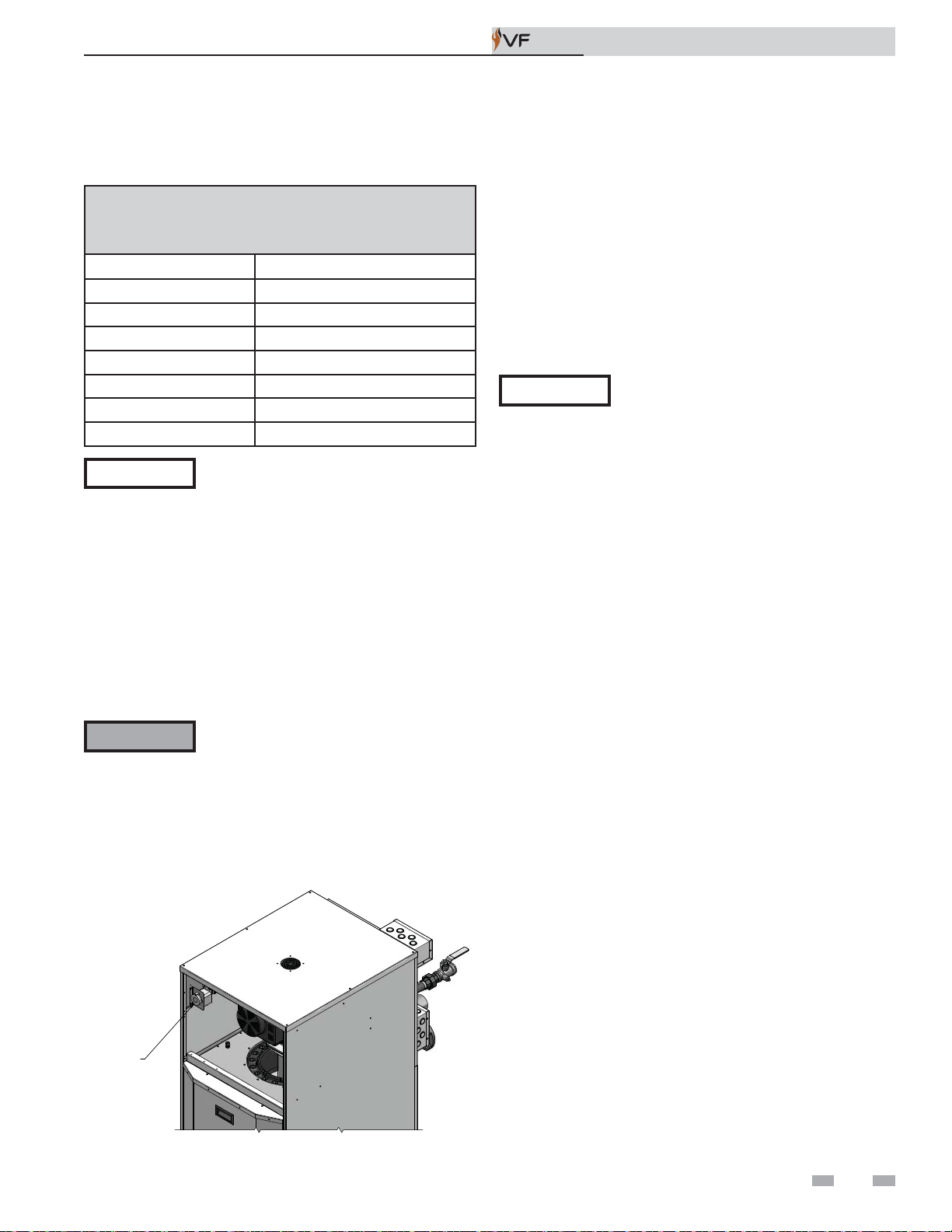

Figure 9-6_Adjustable High Water Temperature Limit Control

Page 58

10 Maintenance

Maintenance and annual startup

Table 10A_Service and Maintenance Schedules

Installation & Operation Manual

Service technician

(see the following pages for instructions)

General:

• Address reported problems

• Inspect interior; clean and vacuum if necessary;

• Inspect condensate system and flush with fresh water

• Check for leaks (water, gas, flue, condensate)

• Examine venting system

• Check system water pressure/system piping/expansion tank

• Check control settings

• Check igniter

• Check wiring and connections

ANNUAL START-UP

Owner maintenance

(see the VF Series User’s Information Manual for

instructions)

• Check appliance area

Daily

Monthly

• Check pressure/temperature gauge

• Check vent piping

• Check air piping

• Check relief valve

• Check condensate drain system

• Check flue gas passageways

• Flame inspection (stable, uniform)

• Inspect and clean the burner

• Perform start-up checkout and performance verification per Section 7 - Start-up.

If combustion or performance indicate need:

• Clean heat exchanger

• Remove and clean burner using compressed air only

• Clean the blower wheel

Periodically

Every

6 months

• Test low water cutoff (if used)

• Reset button (low water cutoff)

• Check appliance piping (gas and water) for leaks

• Operate relief valve

Page 59

10 Maintenance (continued)

 WARNING

Follow the service and maintenance procedures given throughout this manual and in component literature shipped with the appliance. Failure to perform the service and maintenance could result in damage to the appliance or system. Failure to follow the directions in this manual and component literature could result in severe personal injury, death, or substantial property damage.

Installation & Operation Manual

 WARNING

The appliance should be inspected annually only by a qualified service technician. In addition, the maintenance and care of the appliance designated in Table 10A and explained on the following pages must be performed to assure maximum appliance efficiency and reliability. Failure to service and maintain the appliance and system could result in equipment failure.

Electrical shock hazard – Turn off power to the appliance before any service operation on the appliance except as noted otherwise in this instruction manual. Failure to turn off electrical power could result in electrical shock, causing severe personal injury or death.

Address reported problems

1. Inspect any problems reported by the owner and correct

before proceeding.

Inspect appliance area

1. Verify that appliance area is free of any combustible

materials, gasoline and other flammable vapors and liquids.

Inspect appliance interior

1. Remove the outer access panels and inspect the interior of

the appliance.

2. Vacuum any sediment from inside the appliance and

components. Remove any obstructions.

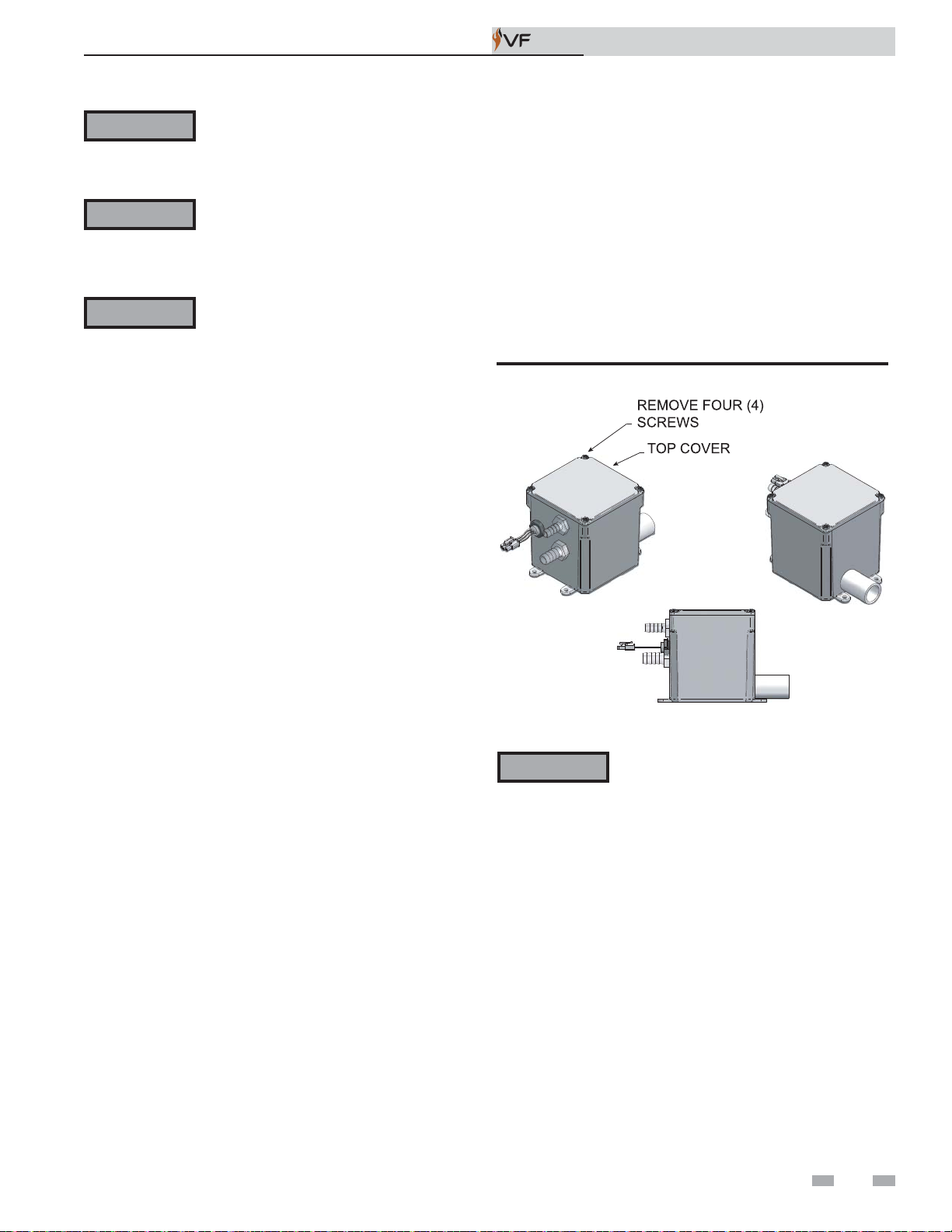

Figure 10-1_Condensate Trap

Inspect condensate system

1. Inspect the condensate drain line, condensate PVC fittings,

and condensate trap on an annual basis.

Flush condensate trap with water

1. Remove the four (4) screws securing the top cover to the

condensate trap and remove the cover (reference FIG. 10-1).

2. Locate the plastic ball inside the float tube. Verify there is

nothing under the ball causing it to not seat properly.

3. If necessary, flush with fresh water until the water begins to

pour out of the drain.

4. Replace the top cover on the condensate trap.

5. Replace the four (4) screws removed in Step 1.

Check all piping for leaks

 WARNING

1. Inspect all water and gas piping and verify to be leak free.

2. Look for signs of leaking lines and correct any problems found.

3. Check gas line using the procedure found in Section 3 - Gas Connections.

Eliminate all system or appliance leaks. Continual fresh makeup water will reduce appliance life. Minerals can build up in sections, reducing heat transfer, overheating heat exchanger, and causing heat exchanger failure. Leaking water may also cause severe property damage.

Page 60

10 Maintenance

Installation & Operation Manual

Flue vent system and air piping

1. Check for gastight seal at every connection, seam of air piping, and vent piping periodically inspected by a qualified service agency.

 WARNING

Venting system must be sealed gastight to prevent flue gas spillage and carbon monoxide emissions, which will result in severe personal injury or death.

Check water system

1. Verify all system components are correctly installed and operational.

2. Watch the system pressure as the water heater heats up (during testing) to ensure pressure does not rise too high. Excessive pressure rise indicates expansion tank sizing or performance problem.

3. Inspect automatic air vents and air separators. Remove air vent caps and briefly press push valve to flush vent. Replace caps. Make sure vents do not leak. Replace any leaking vents.

Check expansion tank

1. Expansion tanks provide space for water to move in and out as the heating system water expands due to temperature increase or contracts as the water cools. Tanks may be open, closed, diaphragm or bladder type. See Section 4 - Water Connections for suggested best location of expansion tanks and air eliminators.

Check relief valve

1. Inspect the relief valve and lift the lever to verify flow. Before operating any relief valve, ensure that it is piped with its discharge in a safe area to avoid severe scald potential. Read Section 4 - Water Connections before proceeding further.

 WARNING

2. After following the above warning directions, if the relief valve weeps or will not seat properly, replace the relief valve. Ensure that the reason for relief valve weeping is the valve and not over-pressurization of the system due to expansion tank waterlogging or undersizing.

Safety relief valves should be re-inspected AT LEAST ONCE EVERY THREE YEARS, by a licensed plumbing contractor or authorized inspection agency, to ensure that the product has not been affected by corrosive water conditions and to ensure that the valve and discharge line have not been altered or tampered with illegally. Certain naturally occurring conditions may corrode the valve or its components over time, rendering the valve inoperative. Such conditions are not detectable unless the valve and its components are physically removed and inspected. This inspection must only be conducted by a plumbing contractor or authorized inspection agency – not by the owner. Failure to re-inspect the water heater relief valve as directed could result in unsafe pressure buildup, which can result in severe personal injury, death, or substantial property damage.

Following installation, the valve lever must be operated AT LEAST ONCE A YEAR to ensure that waterways are clear. Certain naturally occurring mineral deposits may adhere to the valve, rendering it inoperative. When manually operating the lever, water will discharge and precautions must be taken to avoid contact with hot water and to avoid water damage. Before operating lever, check to see that a discharge line is connected to this valve directing the flow of hot water from the valve to a proper place of disposal. Otherwise severe personal injury may result. If no water flows, valve is inoperative. Shut down the appliance until a new relief valve has been installed.

Page 61

10 Maintenance (continued)

Installation & Operation Manual

Inspect/replace hot surface igniter

1. Turn off main electrical power to the appliance.

2. Turn off main manual gas shutoff to the appliance.

3. Carefully pull back the insulation flaps to expose the burner mounting flange.

4. Locate the hot surface igniter. Disconnect the two power leads to the hot surface igniter.

5. Loosen and remove the two wing nuts that mount the igniter.

6. Lift the igniter vertically out of the burner mounting flange. Use care, do not hit or break the silicon carbide igniter. Do not contaminate the igniter by handling with oily or dirty hands.

7. Check the replacement igniter for cracks or damage before installing.

8. Ensure that the fiber gasket used to seal the base of the igniter to the burner flange is reinstalled to seal the base of the replacement igniter.

Perform start-up and checks

1. Start appliance and perform checks and tests specified in Section 7 - Start-up.

2. Verify cold fill pressure is correct and that operating pressure does not go too high.

Check burner flame

Visually check main burner flames at each start-up after long shutdown periods or at least every six months. A burner viewport is located on the burner mounting flange.

 WARNING

Figure 10-2_Flame Pattern Illustration

The area around the burner viewport is hot and direct contact could result in burns.

9. Carefully insert the igniter into the mounting point on the burner flange and position on the mounting studs.

10. Reinstall the two wing nuts and tighten by hand only. Over tightening the wing nuts may break the ceramic mounting flange.

11. Ensure that the igniter gasket is properly installed and seals the point of contact between the igniter and burner mounting flange.

12. Reconnect the power leads to the igniter.

13. Replace the insulation blanket flaps.

14. Turn on main gas supply and main power.

15. Test fire the appliance to ensure proper operation.

Check all wiring

1. Inspect all wiring, making sure wires are in good condition and securely attached.

Check control settings

1. Set the control module display to Parameter Mode and check all settings. See Section 1 of the VF Series Service Manual. Adjust settings if necessary. See Section 1 of the VF Series Service Manual for adjustment procedures.

2. Check settings of external limit controls (if any) and adjust if necessary.

Normal Flame: A normal flame at 100% of burner input is blue, with slight yellow tips, a well defined flame and no flame lifting.

Yellow Tip: Yellow tipping can be caused by blockage or partial obstruction of air flow to the burner.

Yellow Flames: Yellow flames can be caused by blockage of primary air flow to the burner or excessive gas input. This condition MUST be corrected immediately.

Lifting Flames: Lifting flames can be caused by over firing the burner, excessive primary air or high draft.

If improper flame is observed, examine the venting system, ensure proper gas supply and adequate supply of combustion and ventilation air.

Page 62

10 Maintenance

Check flue gas passageways

Installation & Operation Manual

Access to the burner will require the following steps:

Any sign of soot around the inner jacket, outer jacket, flue pipe connections, burner or in the areas between the fins on the copper heat exchanger indicates a need for cleaning. The following cleaning procedure must only be performed by a qualified serviceman or installer. Proper service is required to maintain safe operation. Properly installed and adjusted units seldom need flue cleaning.

NOTICE

 CAUTION

All gaskets/sealants on disassembled components or jacket panels must be replaced with new gaskets/sealants on reassembly. Gasket and sealant kits are available from your distributor.

When a Category IV vent system is disconnected for any reason, the flue must be reassembled and resealed according to the vent manufacturer’s instructions.

Inspect and clean burner

The burner should be removed for inspection and cleaned on an annual basis. An appliance installed in a dust or dirt contaminated environment may require cleaning of the burner on a 3 to 6 month schedule or more often, based on severity of the contamination. The fan assisted combustion process may force airborne dust and dirt contaminants, contained in the combustion air, into the burner. With sustained operation, non-combustible contaminants may reduce burner port area, reduce burner input or cause non-warrantable damage to the burner.

Use extreme care when operating an appliance for temporary heat during new construction. Airborne contaminants such as dust, dirt, concrete dust or drywall dust can be drawn into the burner with the combustion air and block the burner port area. An external combustion air filter is provided with the appliance. This filter helps ensure clean air is used for the combustion process. Check this filter every month and replace when it becomes dirty. The burner of an appliance used for temporary heat without a combustion air filter installed will probably require a thorough cleaning before the unit is placed into normal service.

1. Turn off main electrical power to the appliance.

2. Turn off main manual gas shutoff to the appliance.

3. Remove the front outer control panel covers. Slide out the inner control panel to increase service clearances and carefully remove the multi-pin wiring connectors on the back of the control panel. Remove the screws along the front and rear edge of the top outer jacket panel to remove top. Remove the control panel to allow access to the components in the top of the appliance.

4. Remove the sensing tubes from the low air pressure switch to the combustion air blower.

5. Disconnect the wiring connections on the top of the combustion air blower.

6. Remove the six (6) hex head bolts attaching the gas/air venturi to the inlet of the combustion air blower.

7. Remove the four (4) nuts holding the combustion air blower to the top of the burner and remove the combustion air blower assembly.

8. Use care when removing the combustion air blower assembly to prevent damage to the venturi and burner gaskets.

9. Disconnect the power wires to the hot surface igniter.

10. Remove the hot surface igniter. The hot surface igniter is fragile. Use care to prevent impact damage to the silicone carbide igniter surface when removing the igniter.

11. Remove the eight (8) nuts holding the burner to the heat exchanger.

12. The burner can now be lifted vertically out of the heat exchanger chamber.

13. Use care when removing the burner to prevent damage to the woven burner port surface or gaskets on removal.

14. Remove any visible dust or dirt blockage from the surface of the burner with a vacuum. Compressed air may also be blown across the burner surface to clean the “pores” of the woven burner port material.

15. Reassemble in reverse order.

Page 63

10 Maintenance (continued)

Inspect and clean the heat exchanger

1. Turn off all power to the appliance.

2. Turn off main gas to appliance.

3. Remove the front outer jacket panel.

4. Remove the inner jacket panel (see FIG. 10-3).

5. Check the heat exchanger surface for soot. If soot is present, the heat exchanger must be cleaned and the problem corrected.

6. Remove the burner as described in the Inspect and Clean Burner section of the VF Series Service Manual.

7. Check the “V” baffles on the heat exchanger. Remove and clean if necessary.

8. Remove soot from the heat exchanger with a stiff bristle brush. Use a vacuum to remove loose soot from surfaces and inner chamber.

Installation & Operation Manual

9. The heat exchanger can be removed by disconnecting all water piping to the heat exchanger, removing the screws holding the heat exchanger to the top of the inner jacket and sliding the heat exchanger towards the front of the appliance. Once the heat exchanger is removed, a garden hose can be used to wash the tubes to ensure that all soot is removed from the heat exchanger surfaces. Note: Do not wet the insulation

blankets on the inside of the outer jacket panels.

10. Ensure that any soot present on the burner is removed. See Inspect and Clean Burner section of the VF Series Service Manual.

11. Carefully reinstall the heat exchanger and “V” baffles if removed from the appliance.

12. Reinstall the inner jacket panel, burner, manifolds, wires, and hoses. Use new gasket material to ensure a proper air seal.

13. Reassemble all gas and water piping. Test for gas leaks.

NOTICE

Upon completion of any testing on the gas system, leak test all gas connections with a soap and water solution while main burners are operating. Do not spray soap and water solution on the control module housing. The use of an excessive amount of soap and water solution can damage the control. Immediately repair any leak found in the gas train or related components. Do not operate an appliance with a leak in the gas train, valves, or related piping.

Figure 10-3_Location of the Heat Exchanger Inside Jacket

Review with owner

1. Review the VF Series User’s Information Manual with the owner.

2. Emphasize the need to perform the maintenance schedule specified in the VF Series User’s Information Manual (and in this manual as well).

3. Remind the owner of the need to call a licensed contractor should the appliance or system exhibit any unusual behavior.

4. Remind the owner to follow the proper shutdown procedure and to schedule an annual start-up at the beginning of the next heating season.

Oiled bearing circulators

Inspect the pump every six (6) months and oil as necessary. Use SAE 30 non-detergent oil or lubricant specified by the pump manufacturer.

14. Reassemble outer jacket panels.

15. Cycle unit and check for proper operation.

Page 64

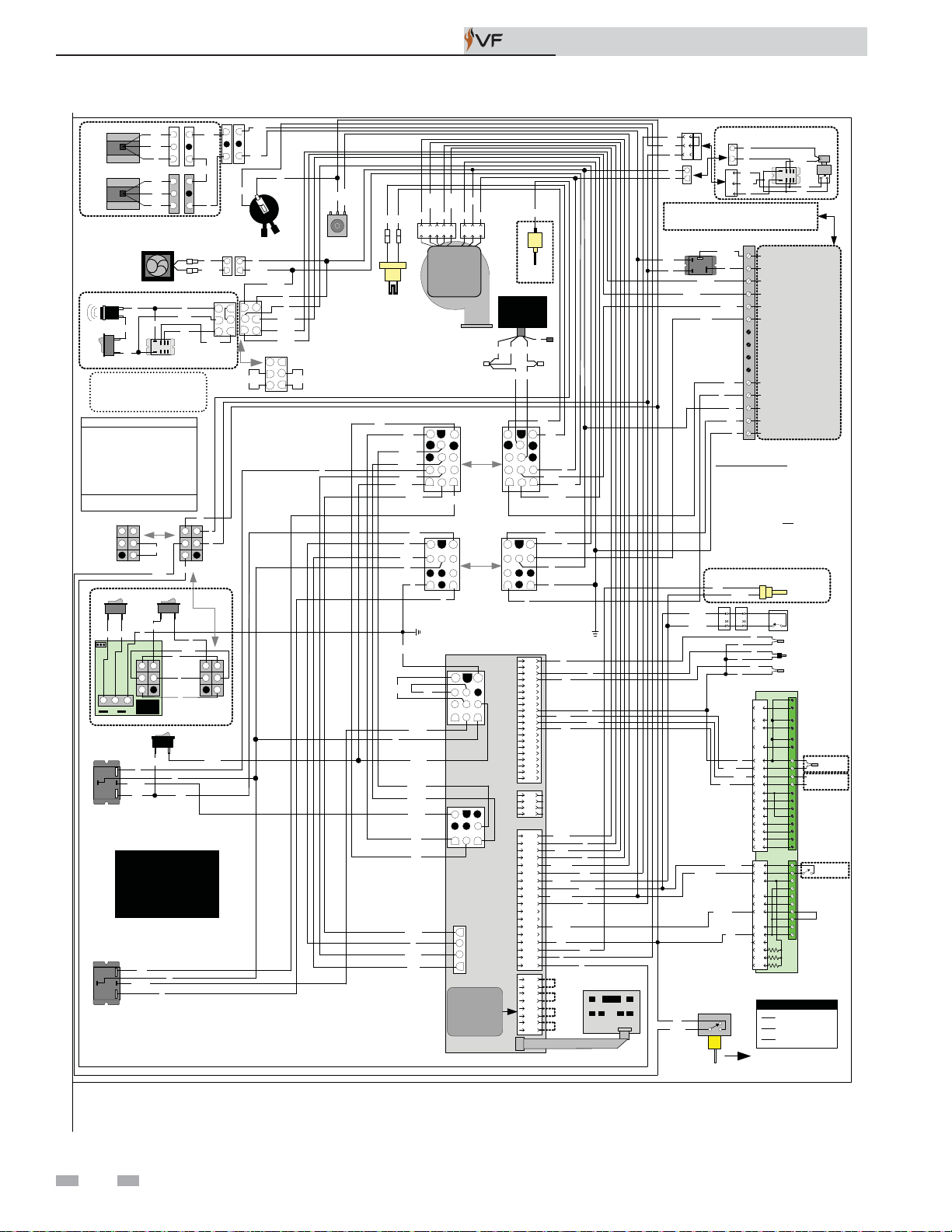

11 Connection diagram

Installation & Operation Manual

LO-GAS PRESSURE SWITCH

HI-GAS PRESSURE SWITCH

VENTILA TION

120VAC ALARM

SWITCH

SILENCE

DOTTED BOX DEPICTS

COLOR DESIGNATIONS W = WHI TE

BK = BLACK

PR = PURPL E

BL = BLUE

P = PI NK O = ORANGE

EXAMPLE OF STRIPED W IRE R/O = RED WI TH ORANGE T RACER

LWCO

JUMPER

MANUAL RES ET TES T

12 3

LOW WATER CU TOFF – 24 V

BLOWER RELAY

FAN

O/R

ALARM RE LAY

OPTION AL OR F IELD

SUPPLIED IT EMS

T = TAN

Y = YELLOW

BR = BROWN

G = GREEN

GY = GRAY R = RED

O/B K

ON/OFF POWER

SWITC H

BL/W

BR/W

Notes:

UNIT

1. All wiring must be installed in accordance with

PUM P

requirements per either N.E.C. in USA or C.S.A. in Canada.

RELAY

2. If any original equipment wire as supplied with decalpe

r rat ed for a mini mum of

3. Actual connector block locations may vary from lautca ot refeR .smargaid no nwohs esoht

comp onents fo r pro per co nnector block locat ions whe . tinu toohs elbuort ot smargaid gnisu n

O/R

O/B K

O/BK

BR/W

BK/R

356

O/PR

PR /

AIR SWITCH

121

BK/R

W O

O/BK

s gnivah eriw htiw

O/BK

O/BR O/PR

ALAR M JUMP ER

eguag eriw

GWA(

)

BL/

123

HI-LIMIT

IGNITER

COMBUSTION

WARNING:

BLOWER

To av oid poss ible

shock hazard,

disconnect power

before servicing.

BK/W

: local, state, provincial and national code

nail

ppa

W/B K

R/ B K

BK/R

O/BK

R/O

CHASSIS GROU ND

BL/BK

BR/W

BK/RBK/R

BK/W

W/B K

BL/W

O/BK

R/BK

R/O

sum ec

ti ,

per eb

105°C

4 5 1

120V

VAL VE

BK BL Y

BK/W

13 14

456

123

11 12

INTEGRATED CONTROL

10 12

789

456

123

7 9

DEPEND ENT

eb tsum

4 3

"X5"

BLOCK'S

WIRING IS

MODEL

12 11 10

987

654

321

GAS

11 1012

~~~~~ ~~~~~ ~~~~~

LWCO

PROB E

W/BK

456

2 8 4

3 11 16 14 13

1 12 15

5 18 17

6 19 20 10

9 17

4 13

6 14

5 10 16

7 11

1 15 12

R/B K

BK/R

O/BK

R/O

CHASSIS GROUND

R/ W

O/R

n/a n/a n/a n/a

Y/BL

T/W

BL/BK

BL/W

BL/R

PR /BK

W/B K

OPERA TOR INTERF ACE

O/R

CONNECTIONS FOR FIELD INSTALLED

ITEMS. SEE I &O MANUAL FOR DETAILS.

PR/ BK

O/PR

O/B K

PROOF OF CLOSU RE

O/R

NOTE

LOUVER

RELAY

O/BK

O/B R

R/BK

R/O

WARNING:

This appliance may be connected to one or more branch circuits. To prev ent el ectri cal shock, ensure all cir cui ts are d e-ener giz ed befor e attempti ng to service this equipment.

AUTO-RESET HIGH-LIMIT

WATER H EATER ONLY

BL/W

BL/R

BL/W

4 1

R/ W

O/R

11 12

13 14 15

8 7 6

BL/R

W/BK

11 12

4 3 7 2 1

PR/ BK

CONNECTION

FLOW

SWITC H

~~~~~ ~~~~~ ~~~~~

VALVE RELAY

OUT

LINE

OUT

LINE

OUT

LINE

PUMP

LINE

NEUTRAL

LINE

GROUND

BOARD

WIRING LEGEND

O/BK

O/R

LOUVER

CONTACTS

ALARM

CONTACTS

RUN-TIME

CONTACTS

PUM P

120 VAC BOILER

SUPP LY

branch

BLOCKED

DRAIN

SWITCH

OUTLET

SENSOR

FLUE

SENSOR

INLET

SENSOR

28 27

26 25

24 23

22 21 20

(- )

(+)

18 17 16 15 14 13 12 11

9 8 7 6 5 4 3 2 1

LOW VOLTAGE

120 VAC

GROUNDI NG

PROOF CLOSE VALVE

UNIT

TANK

SENSOR

0-10 VDC

LOUVER

PROVING

HEATER ENABLE

FACTORY

JUMPER

LBL20320 REV A

Page 65

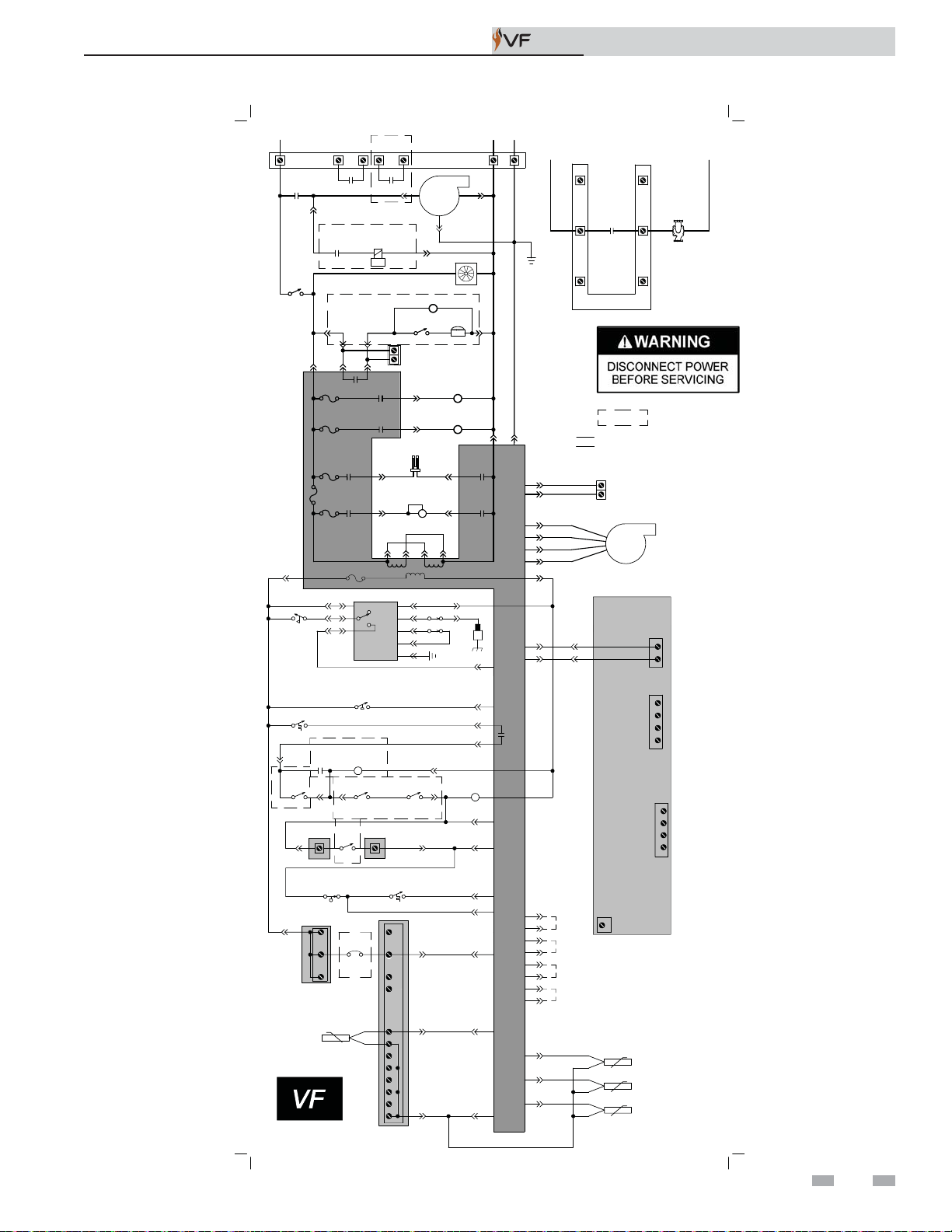

12 Ladder diagram

Installation & Operation Manual

BOILER SUPPLY

BLOWER

ON/OFF

SWITCH

INTERGRATED

CONTROL

BOARD

X6-1

RELAY

FLOW

SWITCH

X1-6

LOUVER

CONTACTS

LOUVER

RELAY

PROOF OF

CLOSURE RELAY

3.15A

1.6A

J3-6

J3-4

J3-5

1.6A

LOW WATER

ALARM

CONTACTS

ALARM RELAY

PROOF OF

CLOSURE VALVE

X3-4X3-3

X2-1

X2-6

X1-7

X1-5

CUTOFF

ALARM RELAY

SILENCE

SWITCH

ALARM

CONTACTS

X1-2

X2-7

HSI

GAS VALVE

24VAC

J3-2

J3-3

J2-3

J2-2

J2-1

TERMINAL

STRIP

BLOWER

VENTILATION FAN

UNIT PUMP RELAY

BLOWER RELAY

X2-2

X2-3

X1-8

X1-10

TEST

RESET

CHASSIS

ALARM

LWCO

PROBE

BOILER SUPPLY

X1-3

(

X6-3

PUMP

SUPPLY

CHASSIS

X1-12

X6-10

X3-1

X3-2

X6-18

X6-17

X6-9

X6-8

X8-5

X8-15

CN1-12

CN1-11

OUT

UNIT PUMP RELAY

OUT

BOX DEPICTS

OPTIONAL ITEMS

LOW VOLTAGE 120 VAC

RUN-TIME

CONTACTS

BLOWER

CONNECTION

BOARD

UNIT

PUMP

0-10VDC

PUMP

SUPPLY

LBL20321 REV A

LOW PRESSURE

MANUAL RESET

HIGH LIMIT

PROOF OF CLOSURE

SWITCH

CN2-4

PROOF OF

CLOSURE RELAY

PRESSURE SWITCH

21 3

CONNECTION

LOUVER

BOARD

PROVING

SWITCH

CN2-9

BLOCKED

DRAIN

SWITCH

CONNECTION

BOARD

FACTORY

TANK

SENSOR

AIR SWITCH

LOW GAS

HEATER ENABLE

JUMPER

CONNECTION

BOARD

AUTO-RESET

CONNECTION

BOARD

HIGH GAS

PRESSURE SWITCH

CN2-8

HIGH LIMIT

CN1-10

CN1-3 28

X6-12

X6-4

X6-13

LOUVER

RELAY

X6-5

X6-14

X6-15

X6-6

X6-11CN2-6

X8-12

X8-1

X5-1

X5-5

X5-2

X5-6

X5-3

X5-7

MODEL DPENDENT

X5-4

X5-8

X8-2

X8-3

X8-4

OUTLET SENSOR

INLET

SENSOR

FLUE

SENSOR

CONDITION IS PRESENT. SEE WI RING DIAGRAM FOR ADDIT

WATER OR ELECTRICITY) CONNECTED TO THE UNIT. AS SUCH, ACTUAL

DEPENDING UPON WHETHER UT ILITIES ARE CONNECTED OR A FAULT

WHERE POSSIBLE, SWITCHES ARE SHOWN WITHOUT UTILITIE

SWITCH STATES MAY VARY FROM THOSE SHOWN ON DIAGRAMS

IONAL NOTES.

S (GAS,

Page 66

Notes

Installation & Operation Manual

Page 67

13 Warranty

Installation & Operation Manual

LIMITEDWARRANTY

A. O. Smith Corporation, the warrantor, extends the following LIMITED WARRANTY to the owner of this water heater:

1. If within FIVE years after initial installation of the water heater, a heat exchanger or gas burner shall prove upon examination by the warrantor to be defective in material or workmanship, the warrantor, at his option will exchange or repair such part or portion. a. This warranty is extended to the owner for all other parts or portion during the FIRST year following initial installation of this water heater. b. The warranty on the repair or replacement of the part or portion will be limited to the unexpired term of the original warranty.

2. CONDITIONS AND EXCEPTIONS This warranty shall apply only when the water heater is installed in accordance with local plumbing and building codes, ordinances and regulations, the printed instructions provided with it and good industry practices. In addition, a pressure relief valve, certified by C.S.A. and approved by the American Society of Mechanical Engineers, must have been installed and fresh water used for filling and make-up purposes. a. This warranty shall apply only when the water heater is used:

(1) with inlet water temperature 140°F (60°C) and above and outlet water temperatures not exceeding the maximum setting of its operative and/

(2) at water pressure not exceeding the working pressure shown on the water heater; (3) when filled with water, free to circulate at all times and with the heat exchanger free of damaging scale deposits; (4) in a non-corrosive and non-contaminated atmosphere; (5) in the United States, its territories or possessions, and Canada; (6) at a water velocity flow rate not exceeding or below the water heater’s designed rates; b. Any accident to the water heater, any misuse, abuse (including freezing) or alteration of it, any operation of it in a modified form, or any attempt to repair leaks in the heat exchanger will void this warranty.

3. SERVICE AND REPAIR EXPENSE

4. LIMITATIONS ON IMPLIED WARRANTIES

Implied warranties, including any warranty of merchantability imposed on the sale of this water heater under state or provincial law are limited to one (1) year

5. CLAIM PROCEDURE

6. DISCLAIMERS

b. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

Fill in the following for your own reference. Keep it. Registration is not a condition of warranty. The model and serial number are found on the water heater’s rating plate.

Owner

Installation Address

City and

Date Installed .oN ledoM .oN laireS

Dealer’s Name Phone No.

Dealer’s Address

or high limit control;

Under this limited warranty the warrantor will provide only a replacement part. The owner is responsible for all other costs. Such costs may include but are not limited to: a. Labor charges for service, removal, repair, or reinstallation of the component part; b. Shipping, delivery, handling, and administrative charges for forwarding the replacement part from the nearest distributor and returning the claimed defective

part to such distributor.

c. All cost necessary or incidental for any material and/or permits required for installation of the replacement.

for

duration limitation may not apply to you.

Any claim under this warranty should be initiated with the dealer who sold the water heater, or with any other dealer handling the warrantor’s products. If this is not practicable, the owner should contact:

a. The warrantor will only honor replacement with identical or similar parts thereof which are manufactured or distributed by the warrantor. b. Dealer replacements are made subject to in-warranty validation by warrantor.

NO OTHER EXPRESS THE WATER HEATER OR THE INSTALLATION, OPERATION, REPAIR OR REPLACEMENT OF THE WATER HEATER. THE WARRANTOR SHALL NOT BE RESPONSIBLE FOR WATER CONSEQUENTIAL DAMAGE. THE WARRANTOR SHALL NOT BE LIABLE BY VIRTUE OF THIS WARRANTY OR OTHERWISE FOR DAMAGE TO ANY PERSONS OR PROPERTY, WHETHER DIRECT OR INDIRECT, AND WHETHER ARISING IN CONTRACT OR TORT. a. Some states and provinces do not allow the exclusion or limitation of the incidental or consequential damage, so the above limitations or exclusions may

the water heater or any of its parts. Some states and provinces do not allow limitations on how long an implied warranty lasts, so the above

sremotsuC naidanaC sremotsuC .S.U

3T6 A5N oiratnO ,droftartS NT ,ytiC dnalhsA

0258-562-008 :enohpeleT 3591-725 008 :enohpeleT

RESPECT

DAMAGE

.dtL sesirpretnE htimS .O .A noitaroproC htimS .O .A

teertS eirE 867 - 013 ,xoB .O .P yawkraP ztlaW ee

TO THE

PERSONAL

MERCHANTABILITY

PROPERTY, OR OTHER

not apply to you.

State

WARRANTY

DAMAGE,

ssenneT005

HAS BEEN OR

WILL

BE MADE ON BEHALF OF THE WARRANTOR WITH

LOSS OF USE OF THE UNIT, INCONVENIENCE, LOSS OR

FILL IN WARRANTY AND KEEP FOR FUTURE REFERENCE

Zip Code

Page 68

Revision Notes: Revision A (ECO #C1XXXX) initial

release.

VFS-I-O Rev A

03/13
