Anritsu MG3690C, MG3692C, MG3694C, MG3695C, MG3697C Technical Data Sheet

RF/Microwave
Signal Generators

MG3690C

0.1 Hz to 70 GHz/500 GHz

MG3692C, MG3694C, MG3695C, MG3697C

Technical Data Sheet

MG3690C Specifications

Introduction

The MG3690C is the "ideal microwave signal generator," offering unsurpassed frequency coverage, the lowest phase
noise, leveled output power, spectral purity, switching speed, modulation performance, size, upgradeability, reliability,
and service. Our signal generators are configurable for a broad range of applications from R&D to manufacturing and
depot repair. Anritsu provides you a total solution including proven reliability and standard 3 year warranty plus pre-sale
and post-sale support that is the best in the industry.

All specifications and characteristics apply to MG3690C signal generators Revision 2 and above under the following
conditions, unless otherwise stated. The specifications in the following pages describe the warranted performance of the
instrument for 25 ± 10 °C. "Typical" specifications describe expected, but not warranted performance. They do not
guarantee the performance of any individual product.

2 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Table of Contents

Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Signal Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Frequency Switching Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Signal Purity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Single-Sideband Phase Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Measured SSB Phase Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

RF Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Accuracy and Flatness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Other RF Output Power Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Millimeter-wave Frequency Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Definitions

All specifications and characteristics apply under the following conditions, unless otherwise stated:

Warm-Up Time After 30 minutes of warm-up time, where the instrument is left in the on state.

Temperature Range Over the 23 °C ±5 °C temperature range.

Typical Performance Typical specifications in parenthesis () describe performance that will be met by a minimum of 80% of all

Uncertainty A coverage factor of K=2 is applied to the measurement uncertainties.

Calibration Cycle Recommended calibration cycle is 2 years from the date of shipment (standard warranty).

products. They do not include guard bands and are not warranted.
Typical specifications that are not in parenthesis are not tested and not warranted. They are generally

representative of the nominal characteristic performance.

All specifications subject to change without notice. For the most current data sheet, please visit the Anritsu
web site:

www.anritsu.com

MG3690C TDS PN: 11410-00515 Rev. V 3 of 24

MG3690C Specifications

Signal Generator

General Specifications

Frequency Coverage

Model/Option No. Frequency Coverage

MG3692C 2 GHz to 20 GHz 2.92 mm K(f)
MG3694C 2 GHz to 40 GHz 2.92 mm K(f)
MG3695C 2 GHz to 50 GHz 1.85 mm V(f)
MG3697C 2 GHz to 67 GHz

Option 4 8 MHz to 2.2 GHz
Option 5 8 MHz to 2 GHz

b

c

c

Option 22 0.1 Hz to 10 MHz Model No. Dependent

a. For frequency coverage beyond 70 GHz, utilize millimeter-wave multiplier 2000-1694 series (see page
b. Operational to 70 GHz
c. All specifications apply ≥ 10 MHz

Options 4 and 5 Frequency extension down to 8 MHz

Two options are available to extend the 2 GHz low end frequency limit of the base models down to 8 MHz.
Option 4 uses a digital down-converter (DDC) with successive divide-by-two circuitry. It offers the best phase
noise performance of the two choices, at the expense of some analog performance < 500 MHz. In that
range, analog sweep mode is not available, and pulse modulation performance is specified as typical. In
addition, frequency and phase modulation mod index is scaled by the division ratio of each band of the
DDC. Option 5 maintains all analog performance by using a heterodyne mixing down-converter, but does
not improve phase noise performance.

Option 22 If frequency coverage down to 0.1 Hz is desired, Option 22 can be added with either Option 4 or 5.

Option 22 uses Direct Digital Synthesis (DDS) for CW and Step Sweep modes of operation. Modulation and
analog sweep are not available in the DDS band. Frequency resolution < 10 MHz is 0.02 Hz. Output power
across the complete instrument frequency range is degraded by 2 dB.

CW Mode

Internal Time Base Stability With aging: < 2 x 10

Accuracy Same as internal or external 10 MHz time base

With temperature: < 2 x 10

Resolution 0.01 Hz

Internal Time Base Calibration The internal time base can be calibrated via the System Cal menu to match an external reference

(10MHz±50Hz).

External 10 MHz Reference Input Accepts external 10 MHz ± 50 Hz (typical)

0 dBm to +20 dBm time base signal
Automatically disconnects the internal high-stability time-base option (if installed)
Rear panel BNC (50
Selectable bandwidth for best phase noise immunity or best phase tracking performance

10 MHz Reference Output 1 V

into 50 Ω, AC coupled

p-p

Rear panel BNC (50

Phase Offset Adjustable in 0.1 degree steps

Electronic Frequency Control (EFC) –4 V to +4 V input range

0.2 ppm/V typical sensitivity (0.08 ppm/V typical for Option 3x)

≤

250 Hz modulation bandwidth

Rear panel BNC (high impedance)

-9

/day (< 5 x 10

Ω

impedance)

Ω

impedance)

-10

–8

/day with Option 16)

/°C over 0 °C to 55 °C (< 2 x 10

a

2-19

Output Connector

1.85 mm V(f)
Model No. Dependent
Model No. Dependent

).

–10

/°C with Option 16)

Phase-Locked Step Sweep Mode

Sweep Width Independently selected, 0.01 Hz to full range

Accuracy Same as internal or external 10 MHz time base

Resolution (Minimum Step Size) 0.01 Hz

Linear/Log Sweep User-selectable linear or log sweep

Number of Steps Variable from 1 to 10,000

Step Size 0.01 Hz to the full frequency range of the instrument

Dwell Time Per Step Variable from 1 ms to 99 s

Fixed Rate Sweep Variable from 30 ms to 99 s

Every frequency step in sweep range is phase-locked.

In log sweep, step size logarithmically increases with frequency.

Steps User-selectable number of steps or the step size

If the step size does not divide into the selected frequency range, the last step is truncated.

4 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Analog Sweep Mode (Option 6)

Sweep Width Independently selected from 1 MHz to full frequency range

For units with Option 4 (Digital Down Converter), the start frequency during analog sweep is limited to

≥ 2.2GHz for stop frequencies >20GHz. For stop frequencies ≤ 20 GHz, the start frequency is limited to
≥ 500 MHz. A range error will be displayed if any of these analog sweep start/stop limits are exceeded.

Analog sweep is not available < 10 MHz with Option 22.

≤

Accuracy The lesser of ± 30 MHz or ± 2 MHz +0.25 % of sweep width for Sweep Speeds of

Sweep Time Range 30 ms to 99 s

50 MHz/ms (typical)

Alternate Sweep Mode

Manual Sweep Mode

List Sweep Mode

Programmable Frequency Agility

Sweep Triggering

Auto Triggers sweep automatically

External Triggers a sweep on the low to high transition of an external TTL signal.

Single Triggers, aborts, and resets a single sweep

General

Stored Setups Stores front panel settings and nine additional front-panel setups in a non-volatile RAM. A system menu

Memory Sequencing Input Accepts a TTL low-level signal to sequence through ten stored setups.

Self-Test Instrument self-test is performed when Self-Test soft-key is selected. If an error is detected, an error

Secure Mode Disables all frequency and power level state displays.

Parameter Entry Instrument-controlled parameters can be entered in multiple ways: keypad, rotary data knob, or the touch

Reset Returns all instrument parameters to predefined default states or values.

Master/Slave Operation Allows two output signals to be swept with a user-selected frequency offset.

User Level Flatness Correction Allows user to calibrate out path loss due to external switching and cables via entered power table from a

Warm Up Time: From Standby: 30 minutes

Power 85 VAC to 264 VAC, 48 Hz to 440 Hz, 250 VA maximum

Standby With AC line power connected, unit is placed in standby when front panel power switch is released from the

Weight 18 kg maximum

Dimensions (WxHxD) 429 mm x 133 mm x 450 mm

Warranty 3 years from ship date

Sweeps alternately in step sweep between any two sweep ranges. Each sweep range may be associated
with a power level.

Provides stepped, phase-locked adjustment of frequency between sweep limits.
User-selectable number of steps or step size.

Under GPIB or Ethernet control, or via the front panel, up to 4 tables with 2000 non-sequential
frequency/power sets can be stored and then addressed as a phase-locked step sweep. One table of 2000
points is stored in non-volatile memory. All other tables are stored in volatile memory.

Under GPIB or Ethernet control, up to 3202 non-sequential frequency/power sets can be stored and then
addressed as a phase-locked step sweep. Data is stored in volatile memory.

Sweep triggering is provided for Analog Frequency Sweep, Step Frequency Sweep, List Frequency Sweep,
and CW Power Sweep.

AUX I/O connector, rear panel

Reset sweep may be selected to be at the top or bottom of the sweep.

allows saving and recalling of instrument setups. Whenever the instrument is turned on, control settings
come on at the same functions and values existing when the instrument was turned off.

AUX I/O connector, rear panel

message is displayed in a window on the LCD identifying the probable cause and remedy.

Stored setups saved in secure mode remain secured when recalled.
Mode selectable from a system menu and via GPIB or Ethernet.

pads of the cursor-control key. Controlled parameters are frequency, power level, sweep time, dwell time,
and number of steps. Keypad entries are terminated by pressing the appropriate soft key. Edits are
terminated by exiting the edit menu.

Any pending GPIB or Ethernet I/O is aborted.
Selectable from the system menu

One instrument controls the other via AUX I/O and SERIAL I/O connections.
Requires a Master/Slave Interface Cable Set (part number ND36329).

GPIB power meter or calculated data. When user level correction is activated, entered power levels are
delivered at the point where calibration was performed.

Supported power meters are Anritsu ML2437A, ML2438A, ML2480A/B, ML2490A, and ML4803A and
HP 437B, 438A, and 70100A.

Five user tables are available with up to 801 points/table.

From Cold Start (0 °C): 120 hours to achieve specified frequency stability with aging
Instruments disconnected from AC line power for more than 72 hours require 30 days to return to specified

frequency stability with aging.

OPERATE position.

MG3690C TDS PN: 11410-00515 Rev. V 5 of 24

MG3690C Specifications

Markers

Description Up to 20 independent, settable markers (F0 – F9 and M0 – M9)

Video Markers +5 V or –5 V marker output, selectable from system menus

AUX I/O connector, rear panel

Intensity Markers Produces an intensity dot on analog display traces, obtained by a momentary dwell in RF sweep, in analog

sweeps of < 1 second.

Marker Accuracy Same as sweep frequency accuracy

Marker Resolution: Analog Sweep: 1 MHz or Sweep Width/4096, which ever is greater

Step Sweep: 0.01 Hz

Remote Operation

Description All instrument functions, settings, and operating modes (except for power on/standby) are controllable

Ethernet Port 10/100 Base-T

Ethernet Address DHCP with Auto-IP 169.254.90.55 (default) or static 192.168.0.254

GPIB Address Selectable from a system menu

GPIB Commands Native, SCPI

IEEE -488 Interface Function Subset Source Handshake: SH1

GPIB Status Annunciators When the instrument is operating in Remote, the GPIB status annunciators (listed below) will appear in a

Remote Operating on the GPIB or via Ethernet, all instrument front panel keys are ignored, except for the SYSTEM

LLO (Local Lockout) Disables the RETURN TO LOCAL soft key. Instrument can be placed in local mode only via Ethernet or GPIB,

Emulations The instrument responds to the published GPIB commands and responses of the Anritsu Models 6600,

using commands sent from an external computer via Ethernet (VXI-11 over TCP/IP) or
GPIB (IEEE-488 interface bus).

Note: For users who wish to use a USB control interface, the following adapter available from National
Instruments is recommended:

USB: NI GPIB-USB-MS

Acceptor Handshake: AH1
Talker: T6
Listener: L4
Service Request: SR1
Remote/Local: RL1
Parallel Poll: PP1
Device Clear: DC1
Device Trigger: DT1
Controller Capability: C0, C1, C2, C3, C28
Tri-State Driver: E2

window on the front panel LCD.

key and the RETURN TO LOCAL soft key.

or by cycling line power.

6700, and 6XX00-series signal sources. When emulating another signal source, the instrument will be
limited to the capabilities, mnemonics, and parameter resolutions of the emulated instrument.

Environmental (MIL-PRF-28800F, class 3)

Storage Temperature Range –40 °C to +75 °C

Operating Temperature Range 0 °C to +50 °C

Relative Humidity 5 % to 95 % at 40 °C (non-condensing)

Altitude 4,600 m, 43.9 cm-Hg

Vibration Random, 5 Hz to 500 Hz, 0.015 to 0.0039 g

EMC IEC 61326-1:2013

Safety IEC 61010-1:2010

2

/Hz PSD; Sinusoidal, 5 Hz to 55 Hz, 0.33 mm displacement

Regulatory Compliance

European Union EMC 2014/30/EU, EN 61326:2013, CISPR 11/EN 55011, IEC/EN 61000-4-2/3/4/5/6/8/11

Australia and New Zealand RCM AS/NZS 4417:2012

Canada ICES-1(A)/NMB-1(A)

South Korea KCC-REM-A21-0004

Low Voltage Directive 2014/35/EU
Safety EN 61010-1:2010
RoHS Directive 2011/65/EU applies to instruments with CE marking and noted as Rev. 2 or above on the rear
panel.

6 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Frequency Switching Time

Definitions

Free Running Mode Step or List Sweep

Lock Status Indicator Rear Panel AUX I/O connector (pin 11)

Single Frequency Trigger Mode (List, non-sequential, and CFx modes)

t

=Switching Time, Unlocked

sw

The lock status indicator goes high when the output is within 1 kHz of the final frequency.

= Locked Time = 1 ms + t

t

lk

tdw = Dwell Time, after locking. Selectable, 1 ms minimum

(min) = 2 ms

t

lk

t

= Trigger Response Time = 2 ms

r

(Applies to GPIB, Ethernet and External TTL triggers)

dw

Switching Time (tsw)

tswa (ms)

7 ms + 1 ms/GHz (typical) Step not starting at, or crossing band switching frequencies
8 ms + 1 ms/GHz (typical) Step starting at, or crossing band switching frequencies

a. Not applicable with FM mode active.

Band Switching Dwell Frequencies 2 (2.2 with Option 4), 10, 20, 40 GHz
Filter Switching Dwell Frequencies 3.3, 5.5, 8.4, 13.25, 25, 32 GHz

< 2.2 GHz w/Option 4 12.5, 15.625, 22.5, 31.25, 43.75, 62.5, 87.5, 125, 175, 250, 350, 500, 700, 1050, 1500 MHz

Condition

5 ms + 1 ms/GHz Step not starting at, or crossing dwell frequencies

MG3690C TDS PN: 11410-00515 Rev. V 7 of 24

MG3690C Specifications

Signal Purity

All specifications apply at the lesser of +10 dBm output or maximum specified leveled output power unless otherwise noted.

Harmonic and Harmonic-Related

Frequency Range Standard

2 GHz (> 2.2 GHz w/Option 4) to

a. –30 dBc typical with high power Option 15.
b. 20 GHz to 21 GHz, and 39 GHz to 40 GHz, –20 dBc typical (Option 15 only).

0.1 Hz to 10 MHz (Option 22) < –30 dBc

10 MHz to

> 100 MHz to

> 40 GHz to ≤ 50 GHz (MG3695C) < –40 dBc
> 40 GHz to ≤ 67 GHz (MG3697C) < –25 dBc

≤

100 MHz (Option 4) < –40 dBc

≤

10 MHz to
> 50 MHz to < 2 GHz (Option 5) < –40 dBc

2.2 GHz (Option 4) < –50 dBc

≤

50 MHz (Option 5) < –30 dBc

> 20 GHz to ≤ 40 GHz < –40 dBc

Non-Harmonic

Frequency Range Standard

0.1 Hz to 10 MHz (Option 22) < –30 dBc

10 MHz to

> 2 GHz (2.2 GHz w/Option 4) to

10 MHz to

≤

2.2 GHz (Option 4) < –60 dBc

≤

2 GHz (Option 5) < –40 dBc

Power Line and Fan Rotation Spurious Emissions (dBc)

Frequency

10 MHz to ≤ 500 MHz (Option 4) < –68 < –72 < –72

> 500 MHz to

> 1050 MHz to

≤

1050 MHz (Option 4) < –62 < –72 < –72

≤

2200 MHz (Option 4) < –56 < –66 < –66

≤

0.01 GHz to
> 8.4 GHz to

> 20 GHz to
> 40 GHz to

8.4 GHz < –50 < –60 < –60

≤

20 GHz < –46 < –56 < –60

≤

40 GHz < –40 < –50 < –54

≤

67 GHz < –34 < –44 < –48

≤

20 GHz < –60 dBc

≤

67 GHz < –60 dBc

Offset from Carrier

300 Hz 300 Hz to 1 kHz >1 kHz to 3 kHz

a

a,b

a

Residual FM

CW and Step Sweep modes, 50 Hz to 15 kHz BW (typical).
Note: Residual FM is not applicable with FM locked mode

Frequency Range

> 8.4 GHz to 20 GHz < 40 < 220

> 20 GHz to

> 40 GHz to

8.4 GHz < 40 < 120

≤

≤

40 GHz < 80 < 440

≤

67 GHz < 160 < 880

Option 3/3X Standard

Residual FM

Analog Sweep and Unlocked FM modes, 50 Hz to 15 kHz BW (typical)
Note: Residual FM is not applicable with FM locked mode

Frequency Range

0.01 GHz to ≤ 20 GHz < 10 < 25

> 20 GHz to

> 40 GHz to

≤

40 GHz < 20 < 50

≤

67 GHz < 40 < 100

Unlocked Narrow

FM mode

AM Noise Floor

Typically < –145 dBm/Hz at 0 dBm output and offsets > 5 MHz from carrier

Residual FM (Hz RMS)

Residual FM (kHz RMS)

Unlocked Wide

FM mode or Analog Sweep (typical)

8 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Single-Sideband Phase Noise

Phase noise is specified and guaranteed only with internal reference. In External Reference mode, the phase noise of the external supplied reference, and the
selected external reference bandwidth, will dictate the instrument phase noise performance. Phase noise is not degraded when adding high power
Option 15. Phase noise measured at +10 dBm < 5 GHz and +6 dBm

Single-Sideband Phase Noise

Frequency Range 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz

0.1 Hz to < 10 MHz (Option 22) –80 (–100) –90 (–110) –120 (–125) –130 (–139) –130 (–141) –130 (–141)

10 MHz to 15.625 MHz (Option 4) –102 (–113) –128 (–133) –142 (–149) –145 (–152) –145 (–153) –145 (–153)

> 15.625 MHz to 31.25 MHz (Option 4) –97 (–109) –125 (–130) –142 (–147) –144 (–149) –144 (–153) –145 (–155)

> 31.25 MHz to 62.5 MHz (Option 4) –92 (–104) –122 (–128) –140 (–146) –142 (–146) –143 (–150) –145 (–155)

> 62.5 MHz to 125 MHz (Option 4) –87 (–98) –114 (–118) –133 (–139) –130 (–140) –130 (–143) –145 (–155)

> 125 MHz to 250 MHz (Option 4) –82 (–93) –108 (–113) –126 (–134) –124 (–134) –124 (–138) –145 (–153)
> 250 MHz to 500 MHz (Option 4) –75 (–87) –102 (–109) –120 (–128) –118 (–127) –118 (–130) –143 (–149)

> 500 MHz to 1050 MHz (Option 4) –70 (–80) –94 (–100) –115 (–123) –115 (–122) –116 (–126) –138 (–144)

> 1050 MHz to 2200 MHz (Option 4) –65 (–74) –86 (–96) –113 (–117) –111 (–116) –114 (–120) –133 (–139)

10 MHz to < 2000 MHz (Option 5) –62 (–72) –85 (–95) –100 (–104) –102 (–106) –102 (–106) –111 (–114)

2 GHz to 6 GHz –54 (–64) –81 (–88) –102 (–109) –103 (–110) –106 (–114) –128 (–133)

> 6 GHz to 10 GHz –52 (–62) –75 (–85) –98 (–106) –104 (–109) –106 (–113) –126 (–132)
> 10 GHz to 20 GHz –45 (–55) –69 (–78) –92 (–101) –98 (–103) –98 (–106) –124 (–131)
> 20 GHz to 40 GHz –38 (–48) –62 (–72) –86 (–94) –92 (–100) –92 (–100) –118 (–124)
> 40 GHz to 67 GHz –32 (–42) –56 (–66) –80 (–88) –87 (–94) –82 (–91) –112 (–118)

(dBc/Hz): (Typical)

≥

5 GHz.

Single-Sideband Phase Noise

0.1 Hz to < 10 MHz (Option 22) –80 (–100) –90 (–110) –120 (–125) –130 (–139) –130 (–141) –130 (–141)

10 MHz to 15.625 MHz (Option 4) –102 (–120) –128 (–140) –142 (–150) –145 (–152) –148 (–153) –148 (–152)

> 15.625 MHz to 31.25 MHz (Option 4) –97 (–108) –125 (–128) –142 (–149) –145 (–153) –148 (–153) –148 (–155)

> 31.25 MHz to 62.5 MHz (Option 4) –92 (–109) –122 (–131) –140 (–146) –145 (–153) –148 (–153) –148 (–156)

> 62.5 MHz to 125 MHz (Option 4) –87 (–98) –114 (–118) –134 (–139) –142 (–147) –143 (–148) –148 (–155)

> 125 MHz to 250 MHz (Option 4) –82 (–93) –108 (–113) –129 (–134) –138 (–143) –137 (–142) –148 (–153)
> 250 MHz to 500 MHz (Option 4) –77 (–91) –102 (–114) –124 (–130) –132 (–137) –128 (–137) –144 (–153)

> 500 MHz to 1050 MHz (Option 4) –72 (–83) –98 (–103) –119 (–123) –126 (–132) –122 (–132) –139 (–150)

> 1050 MHz to 2200 MHz (Option 4) –66 (–77) –92 (–101) –113 (–119) –121 (–126) –117 (–125) –135 (–146)

10 MHz to < 2000 MHz (Option 5) –64 (–72) –85 (–95) –100 (–104) –102 (–106) –102 (–106) –111 (–114)

a. When fitted with Option 36 and when multiple units are connected for purposes of Ultra-St able Phase Tracking, phase noise may be degraded by up to 4 dB at 1 kHz and 10 kHz

offsets.

Frequency Range 10 Hz 100 Hz 1 kHz

2 GHz to 6 GHz –54 (–77) –82 (–93) –106 (–111) –115 (–119) –112 (–119) –136 (–140)

> 6 GHz to 10 GHz –52 (–73) –75 (–88) –102 (–109) –113 (–119) –115 (–120) –134 (–140)
> 10 GHz to 20 GHz –52 (–66) –69 (–82) –100 (–105) –109 (–115) –109 (–115) –130 (–137)
> 20 GHz to 40 GHz –45 (–59) –63 (–75) –94 (–98) –104 (–108) –103 (–109) –122 (–131)
> 40 GHz to 67 GHz –40 (–51) –58 (–68) –89 (–91) –97 (–103) –97 (–103) –118 (–125)

Single-Sideband Phase Noise

Frequency Range

0.1 Hz to < 10 MHz (Option 22) –60 (–70) –80 (–100) –90 (–110) –120 (–125) –130 (–139) –130 (–141) –130 (–141)

10 MHz to 15.625 MHz (Option 4) –94 (–103) –118 (–128) –136 (–141) –142 (–150) –145 (–152) –148 (–153) –148 (–152)

> 15.625 MHz to 31.25 MHz (Option 4) –88 (–96) –113 (–123) –130 (–137) –142 (–149) –145 (–153) –148 (–153) –148 (–155)

> 31.25 MHz to 62.5 MHz (Option 4) –83 (–90) –109 (–118) –125 (–133) –140 (–146) –145 (–153) –148 (–153) –148 (–156)

> 62.5 MHz to 125 MHz (Option 4) –77 (–86) –103 (–111) –119 (–127) –134 (–139) –142 (–147) –143 (–148) –148 (–155)

> 125 MHz to 250 MHz (Option 4) –71 (–81) –97 (–104) –113 (–121) –129 (–134) –138 (–143) –137 (–142) –148 (–153)
> 250 MHz to 500 MHz (Option 4) –67 (–76) –91 (–98) –107 (–115) –124 (–130) –132 (–137) –128 (–137) –144 (–153)

> 500 MHz to 1050 MHz (Option 4) –60 (–69) –84 (–92) –101 (–109) –119 (–123) –126 (–132) –122 (–132) –139 (–150)

> 1050 MHz to 2200 MHz (Option 4) –53 (–62) –77 (–87) –95 (–103) –113 (–119) –121 (–126) –117 (–125) –135 (–146)

10 MHz to < 2000 MHz (Option 5) –38 (–45) –68 (–78) –85 (–95) –100 (–104) –102 (–106) –102 (–106) –111 (–114)

2 GHz to 6 GHz –46 (–52) –70 (–77) –86 (–94) –106 (–111) –115 (–119) –112 (–119) –136 (–140)

> 6 GHz to 10 GHz –38 (–46) –68 (–77) –83 (–91) –102 (–109) –113 (–119) –115 (–120) –134 (–140)
> 10 GHz to 20 GHz –35 (–42) –64 (–72) –80 (–85) –100 (–105) –109 (–115) –109 (–115) –130 (–137)
> 20 GHz to 40 GHz –29 (–36) –58 (–65) –74 (–79) –94 (–98) –104 (–108) –103 (–109) –122 (–131)
> 40 GHz to 67 GHz –23 (–30) –53 (–59) –69 (–73) –89 (–91) –97 (–103) –97 (–103) –118 (–125)

a. When fitted with Option 36 and when multiple units are connected for purposes of Ultra-St able Phase Tracking, phase noise may be degraded by up to 4 dB at 1 kHz and 10 kHz.

offsets.

(dBc/Hz) – Option 3: (Typical)

(dBc/Hz) – Option 3X: (Typical)

Offset from Carrier

1 Hz 10 Hz 100 Hz 1 kHz

a

a

10 kHz

a

10 kHz

100 kHz 1 MHz

a

100 kHz 1 MHz

MG3690C TDS PN: 11410-00515 Rev. V 9 of 24

MG3690C Specifications

Measured SSB Phase Noise MG3690C with Options 3 & 4

-170

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

10 100 1000 10000 100000 1000000

Offset (Hz)

L(f) (dBc/Hz) L(f) (dBc/Hz)

2 GHz
10 GHz
20 GHz
40 GHz

Measured SSB Phase Noise MG3690C with Option 4

-170

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

10 100 1000 10000 100000 1000000

Offset (Hz)

2 GHz
10 GHz
20 GHz
40 GHz

-170

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

1 10 100 1000 10000 100000 1000000

1 GHz

2 GHz

6 GHz

10 GHz

20 GHz

Measured SSB Phase Noise

MG3690C with Options 3X and 4

Oset (Hz)

L(f) (dBc/Hz)

Measured SSB Phase Noise

1 GHz

67 GHz

1 GHz

67 GHz

10 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

RF Output

Power level specifications apply at 25 ± 10 ºC.

Maximum Leveled Output Power

For output power with Option 22, 0.1 Hz to 10 MHz coverage, derate all specifications by 2 dB.

Model

Number Configuration

With opt 4 or 5 < 2

MG3692C

STD > 10 to

Frequency Range

(GHz)

a

≥

2a to ≤ 10 +19 +18

≤

20 +17 +15

Output Power

(dBm)

+19 +18

Output Power with

Step Attenuator

(dBm)

Output Power with

Electronic Step

Attenuator (dBm)

Not Available STD

With opt 4 or 5 < 2a +15 +14

≥

MG3694C

STD

STD > 10 to
STD > 20 to

2b to

10

≤

20 +12 +10

≤

40 +9 +6

+15 +14

With opt 4 or 5 < 2a +12 +10

MG3695C

MG3697C

STD
STD > 20 to
STD > 40 to

With opt 4 or 5 < 2

STD
STD > 20 to
STD > 40 to

≥

2b to ≤ 20 +10 +8

≤

40 +6 +3

≤

50 +3 +0

a

≥

2b to ≤ 20 +10 +8

≤

40 +6 +3

≤

67 +3 +0c

+12 +10

Maximum Leveled Output Power with Option 15 (High Power) Installed

For output power with Option 22, 0.1 Hz to 10 MHz coverage, derate all specifications by 2 dB.

Model Number Configuration Frequency Range (GHz) Output Power (dBm)

a

< 2

MG3692C

MG3694C

With opt 4 or 5

Without opt 4 or 5

With opt 4 or 5

Without opt 4 or 5

b

2

to 10
> 10 to 16 +22 +20
> 16 to 20 +21 +19

2 to 10 +26 +25
> 10 to 16 +25 +23
> 16 to 20 +23 +21

a

+17 +16

< 2

≥

2b to ≤ 20 +21 +19

≤

40 +17 +15

> 20 to

≥

2 to ≤ 20 +23 +21

> 20 to

≤

40 +19 +17

+19 +18
+25 +24

Output Power with

Step Attenuator

(dBm)

Not Available

Not Available

Not Available

Output Power with

Electronic Step

Attenuator (dBm)

Not Available

Not Available

a

MG3695C

Without opt 4 or 5

MG3697C

Without opt 4 or 5

a.≤ 2.2 GHz with Option 4
b. > 2.2 GHz with Option 4
c. Typical 60 GHz to 67 GHz
d. Typical

With opt 4 or 5

With opt 4 or 5

< 2

≥

2b to ≤ 20 +21 +19

≤

40 +17 +15

> 20 to

≤

50 +11 +8

> 40 to

≥

2 to ≤ 20 +23 +21

≤

40 +19 +17

> 20 to

≤

50 +13 +10

> 40 to

a

< 2

+16 +15

≥

2b to ≤ 20 +19 +18

> 20 to

≤

40 +16 +14

≤

67 +9 +6

> 40 to
> 67 to ≤ 70 +3

≥

2 to ≤ 20 +21 +19

≤

40 +19 +16

> 20 to

≤

67 +9 +6

> 40 to
> 67 to ≤ 70 +3

+16 +14

d

d

0

0

Not Available

c

d

c

d

Not Available

MG3690C TDS PN: 11410-00515 Rev. V 11 of 24

MG3690C Specifications

Minimum Settable Output Power

Without an Attenuator –20 dBm

With an Attenuator –120 dBm

Minimum Leveled Output Power

Without an Attenuator –15 dBm (–20 dBm, typical)

With an Attenuator –115 dBm (MG3692C and MG3694C)

–105 dBm (MG3695C, and MG3697C)

Unleveled Output Power Range

Without an Attenuator > 40 dB below max power

With an Attenuator > 130 dB below max power

Power Level Switching Time

Without Change in Step Attenuator < 3 ms typical

With Change in Step Attenuator < 20 ms typical

With Change in Electronic Step Attenuator < 3 ms typical

Step Attenuator (Option 2)

Accuracy and Flatness

(typical)

(To within specified accuracy)

Power level changes across –70 dB step will result in 20 ms delay.

Adds a 10 dB/step attenuator

≤

110 dB range on models
90 dB range on models > 40 GHz

Flatness is included within the accuracy specification.

40 GHz

Step Sweep and CW Modes

Attenuation Below

Max Power

Accuracy

0 dB to 25 dB ± 1.0 dB ± 1.5 dB ± 1.5 dB ± 1.5 dB

25 dB to 60 dB ± 1.0 dB ± 1.5 dB ± 3.5 dB

60 dB to 100 dB ± 1.0 dB ± 2.5 dB

Flatness

0 dB to 25 dB ± 0.8 dB ± 1.1 dB ± 1.1 dB ± 1.1 dB

25 dB to 60 dB ± 0.8 dB ± 1.1 dB ± 3.1 dB

60 dB to 100 dB ± 0.8 dB ± 2.1 dB

a. With high power Option 15, Accuracy and Flatness are ± 1.5 dB.
b. Below 20 MHz, Accuracy and Flatness are ± 1.5 dB.
c. Typical

Analog Sweep Mode

Attenuation Below

Max Power

Accuracy

0 dB to 12 dB ± 2.0 dB ± 2.0 dB ± 2.0 dB ± 3.0 dB
12 dB to 30 dB ± 3.5 dB ± 3.5 dB ± 4.6 dB ± 5.6 dB
30 dB to 60 dB ± 4.0 dB ± 4.0 dB ± 5.2 dB ± 6.2 dB

60 dB to 122 dB ± 5.0 dB ± 5.0 dB ± 6.2 dB ± 7.2 dB

Flatness

0 dB to 12 dB ± 2.0 dB ± 2.0 dB ± 2.0 dB ± 2.5 dB
12 dB to 30 dB ± 3.5 dB ± 3.5 dB ± 4.1 dB ± 5.1 dB
30 dB to 60 dB ± 4.0 dB ± 4.0 dB ± 4.6 dB ± 5.6 dB

60 dB to 122 dB ± 5.0 dB ± 5.0 dB ± 5.2 dB ± 6.2 dB

a,b

≤ 40

(Typical)

0.01 to 0.05 0.05 to 20 20 to 40 40 to 67

Frequency (GHz)

40 to 50 50 to 60 60 to 67

c

c

c

Frequency (GHz)

± 3.5 dB

± 3.1 dB

c

c

c

N/A
N/A

N/A
N/A

12 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

32

30

28

26

24

22

20

18

16

02468101214161820

MG3692C, 20 GHz

with High Power Option 15

Maximum Leveled Output Power (Typical)

Output Power Level (dBm)

Frequency (GHz)

Low End Frequency Coverage:

MG3692C Standard Frequency

MG3692C with Option 4 or 5

Options 2 and/or 22
further reduce power.

32

30

28

26

24

22

20

18

16

0 5 10 15 20 25 30 35 40

MG3694C, 40 GHz

with High Power Option 15

Maximum Leveled Output Power (Typical)

Output Power Level (dBm)

Frequency (GHz)

Low End Frequency Coverage:

Options 2 and/or 22
further reduce power.

MG3694C Standard Frequency

MG3694C with Option 4 or 5

Available Output Power

MG3692C Typical Maximum Available Output Power

MG3694C Typical Maximum Available Output Power

MG3690C TDS PN: 11410-00515 Rev. V 13 of 24

MG3690C Specifications

Other RF Output Power Specifications

Output Units Output units selectable as either dBm or mV. Selection of mV assumes a 50 Ω load. All data entry and display

Output Power Resolution 0.01 dB or 0.001 mV

Output Impedance 50

Output SWR (Internal Leveling) < 2.0 typical

Power Level Stability with Temperature ± 0.04 dB/°C typical

Level Offset Offsets the displayed power level to establish a new reference level.

Output On/Off Toggles the RF output between an Off and On state. During the Off state, the RF oscillator is turned off. The

RF On/Off Between Frequency Steps System menu selection of RF On or RF Off during frequency switching in CW, Step Sweep, and List Sweep

RF On/Off During Retrace System menu selection of RF On or RF Off during retrace.

Internal Leveling Power is leveled at the output connector in all modes.

External Leveling External Detector Levels output power at a remote detector location.

are in the selected units.

Ω

nominal

On or Off state is indicated by two LEDs located below the OUTPUT ON/OFF key on the front panel.

modes.

.

Accepts a positive or negative 0.5 mV to 500 mV input signal from the remote
detector.
L1 adjusts the input signal range to an optimum value.
BNC connector, rear panel

External Power Meter Levels output power at a remote power meter location.

External Leveling
Bandwidth

User Level Flatness
Correction

Accepts a ± 1 V full scale input signal from the remote power meter.
L1 adjusts the input signal range to an optimum value.
BNC connector, rear panel

30 kHz typical in Detector mode

0.7 Hz typical in Power Meter mode

Number of points: 2 to 801 points per table
Number of tables: 5 available
Entry modes: GPIB power meter or computed data

CW Power Sweep

Range Sweeps between any two power levels at a single CW frequency.

Resolution 0.01 dB/step (Log) or 0.001 mV (Linear)

Accuracy Same as CW power accuracy

Log/Linear Sweep Power sweep selectable as either log or linear. Log sweep is in dB; linear sweep is in mV.

Step Size User-controlled, 0.01 dB (Log) or 0.001 mV (Linear) to the full power range of the instrument.

Step Dwell Time Variable from 1 ms to 99 seconds. If the sweep crosses a step attenuator setting, there will be a sweep dwell

Sweep Frequency/Step Power

of approximately 20 ms to allow setting of the step attenuator.

A power level step occurs after each frequency sweep.
Power level remains constant for the length of time required to complete each sweep.

14 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Modulation

Frequency/Phase Modulation (Option 12)

Frequency/Phase Modulation is not available <10 MHz with Option 22. Option 12 adds frequency and phase modulation, driven externally via a rear
panel BNC connector, 50 W. For internal modulation, add Internal LF Generator and Pulse Generator Option 27.

Φ

For the most accurate FM and
recommended. Measured residual FM effects must be subtracted from modulation meter measurements.

Frequency Generator Multiplication/Division Ratios

Frequency Range Divide Ratio, n

≥

10 MHz to ≤ 15.625 MHz (Option 4) 256

> 15.625 MHz to

> 31.25 MHz to

> 62.5 MHz to

> 125 MHz to
> 250 MHz to

> 500 MHz to

> 1050 MHz to

> 10 MHz to

Frequency Modulation

Parameter Modes

Locked Rate = 1 kHz to 8 MHz

Deviation

Deviation
Accuracy

Flatness

Bandwidth
(3 dB)

Incidental AM Locked and

Harmonic
Distortion

External
Sensitivity

Locked Low-noise

Unlocked Narrow Rate = DC to 8 MHz ± 10 MHz/n

Unlocked Wide Rate= DC to 100 Hz ± 100 MHz/n Rate = DC to 100 Hz ± 100 MHz/n
Locked and

Low-noise
Unlocked Narrow

Locked

Locked 1 kHz to 10 MHz

Locked Low-noise 30 kHz to 10 MHz

Unlocked Narrow DC to 10 MHz

Unlocked Wide DC to 100 Hz DC to 100 Hz

Low-noise
Unlocked Narrow

Locked

Locked
Locked Low-noise ± (10 kHz/V to 20 MHz/V)/n ± (10 kHz/V to 20 MHz/V)/n
Unlocked Narrow ± (10 kHz/V to 20 MHz/V)/n ± (10 kHz/V to 20 MHz/V)/n

Unlocked Wide

M measurements, Bessel Null methods are used. When verifying FM and ΦM, the use of the “carrier null” technique is

< 10 MHz (Option 22) Modulation not available

≤

31.25 MHz (Option 4) 128

≤

62.5 MHz (Option 4) 64

≤

125 MHz (Option 4) 32

≤

250 MHz (Option 4) 16

≤

500 MHz (Option 4) 8

≤

1050 MHz (Option 4) 4

≤

2200 MHz (Option 4) 2

≤

2000 MHz (Option 5) 1

> 2 GHz to
> 20 GHz to
> 40 GHz to

≤

20 GHz 1

≤

40 GHz 1/2

≤

67 GHz 1/4

For all Frequencies other than

< 2.2 GHz with Option 4

For Frequencies

< 2.2 GHz with Option 4

Conditions Specifications Conditions Specifications

Rate = 50 kHz to
8MHz

Rate = 100 kHz
Sine wave Int. or
1 V

Ext.

pk

Rate = 10 kHz to
1MHz

1 MHz Rate ± 1 MHz
Deviation

10 kHz Rate, ±1MHz
Deviation

± 1 V maximum input

± [Lesser of 10 MHz or

∗

mod rate)]/n

(300
± [Lesser of 10 MHz or

(3

∗

mod rate)]/n

10 % (5 % typical)

± 1 dB relative to 100 kHz

< 2 % typical

< 1 %

± (10 kHz/V to 20 MHz/V)/n

± (100 kHz/V to
100 MHz/V)/n

Rate = 1 kHz to Lesser of
8 MHz or (0.03 ∗ F

Rate = 50 kHz to Lesser of
8 MHz or (0.03 ∗ F

Rate = DC to Lesser of 8 MHz
or (0.03

∗

F

carrier

carrier

carrier

)

Rate= 100 kHz sine wave Int.
or 1 V

Ext.

pk

Rate = 10 kHz to Lesser of 1
MHz or (0.01

∗

F

carrier

)

Rate and Dev.= Lesser of 1

∗

F

MHz or (0.01

Rate = 10 kHz,
Dev.= ± 1 MHz /n

maximum input

± 1 V

pk

carrier

)

± [Lesser of 10 MHz or

)

(300 ∗ mod rate)]/n
± [Lesser of 10 MHz or

)

(3 ∗ mod rate)]/n

± 10 MHz/n

10 % (5 % typical)

± 1 dB relative to 100 kHz

1 kHz to Lesser of 10 MHz or
(0.03

∗

F

carrier

30 kHz to Lesser of 8 MHz or
(0.03

∗

F

carrier

DC to Lesser of 10 MHz or
(0.03

∗

F

carrier

< 2 % typical

< 1 %

± (10 kHz/V to 20 MHz/V)/n

± (100 kHz/V to 100 MHz/V)/n

)

)

)

MG3690C TDS PN: 11410-00515 Rev. V 15 of 24

MG3690C Specifications

Phase Modulation

Parameter Modes

Narrow Rate= DC to 8 MHz

Deviation

Wide Rate = DC to 1 MHz

Accuracy Narrow and Wide

Bandwidth
(3 dB)

Narrow DC to 10 MHz

Wide DC to 1 MHz

100 kHz Internal or 1 V
External, sine

Narrow Rate= DC to 1 MHz ± 1 dB relative to 100 kHz

Flatness

Wide Rate = DC to 500 kHz ± 1 dB relative to 100 kHz

External
Sensitivity

Narrow
Wide ± (0.25 rad/V to 500 rad/V)/n ± (0.25 rad/V to 500 rad/V)/n

± 1 V maximum input

Amplitude Modulation (Option 14)

Description Option 14 adds amplitude modulation, driven externally via a rear panel BNC connector 50 Ω. For internal

AM Depth Linear: 0 % to 90 % (nominal)

AM Bandwidth (3 dB) DC to 50 kHz minimum

Flatness (DC to 10 kHz rates) ± 0.3 dB

Incidental Phase Modulation (30 % depth, 10

Accuracy Reading ± 5 %

Distortion < 5 % typical

kHz rate) < 0.2 rad typical

External AM Input Log AM or Linear AM input

Sensitivity Log AM: Continuously variable from 0 dB per volt to 25 dB per volt.

Maximum Input ± 1 V

For all Frequencies other than

< 2.2 GHz with Option 4

Conditions Specifications Conditions Specifications

± [Lesser of 3 rad or
(5 MHz/mod rate)]/n

± [Lesser of 400 rad or (10
MHz/mod rate)]/n

pk

10 %

Rate = DC to Lesser of
8MHz or (0.03

Rate = DC to Lesser of
1MHz or (0.03

100 kHz Internal or 1 Vpk
External, sine

Rate = DC to (Lesser of
1MHz or (0.01

Rate = DC to Lesser of 500
kHz or (0.01

± (0.0025 rad/V to 5 rad/V)/n

modulation, add Internal LF and Pulse Generators Option 27. All amplitude modulation specifications apply
at 50 % depth, 1 kHz rate, with RF level set 6 dB below maximum specified leveled output power, unless

± 1 V

maximum input

pk

otherwise noted. Amplitude Modulation is not available < 10 MHz with Option 22.

Log: 0 dB to 20 dB (nominal)

DC to 100 kHz typical
Typical below 2.2 GHz, when ordered with Options 4 and 15

Ω

Rear-panel BNC (50

input impedance)

For internal modulation, add LF Generator Option 27.

Linear AM: Continuously variable from 0 % per volt to 100 % per volt.

pk

For Frequencies

< 2.2 GHz with Option 4

± [Lesser of 3 rad or

∗

F

)

carrier

(5 MHz/mod rate)]/n
± [Lesser of 400 rad or

∗

F

carrier)

(10 MHz/mod rate)]/n

10 %

DC to Lesser of 10 MHz or
(0.03

DC to Lesser of 1 MHz or
(0.03

± 1 dB relative to 100 kHz

∗

F

)

carrier

rate
± 1 dB relative to 100 kHz

∗

F

)

carrier

rate
± (0.0025 rad/V to 5 rad/V)/n

∗

∗

F

F

carrier

carrier)

)

16 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Pulse Modulation (Option 26)

Description Option 26 adds pulse modulation, driven externally via a rear panel BNC connector, TTL. For internal

On/Off Ratio > 80 dB or

Minimum Leveled Pulse Width 100 ns,

Minimum Unleveled Pulse Width < 10 ns

Level Accuracy Relative to CW (100 Hz to 1

MHz PRF) ± 0.5 dB,

Pulse Delay (typical) 50 ns in External Mode

PRF Range DC to 10 MHz, unleveled

External Input Rear-panel BNC

Drive Level TTL compatible input
Input Logic Positive-true or negative-true, selectable from modulation menu

Frequency Range

≥ 10 MHz to < 31.25 MHz (Opt. 4) 400 nsa

≥ 31.25 MHz to < 125 MHz Opt. 4) 90 ns

≥ 125 MHz to < 500 MHz (Opt. 4) 33 ns

≥ 500 MHz to < 2200 MHz (Opt. 4) 15 ns

≥ 10 MHz to < 1000 MHz (Opt. 5) 15 ns, 10 ns

≥ 1 GHz to < 2 GHz (Opt. 5) 10 ns, 5 ns

≥ 2 GHz to 67 GHz

a. Typical values.
b. Rise time and Pulse Width Compression, > 20 GHz, degrades by 2 ns, with High Power Option 15.
c. For 50 GHz and 67 GHz units, overshoot > 40 GHz is 20 % typical at rated power.

Internal LF and Pulse Generators (Option 27)

Description An internal pulse generator and two internal waveform generators are added, one providing a frequency or

Waveforms Sinusoid, square-wave, triangle, positive ramp, negative ramp, Gaussian noise, uniform noise

Resolution 0.1 Hz

Accuracy Same as instrument timebase ± 0.014 Hz

Waveform Outputs Two BNC connectors on the rear panel, FM/

Pulse Modes Singlet, doublet, triplet, quadruplet

Pulse Triggers Free-run, triggered, gated, delayed, triggered with delay, swept-delay

Pulse Inputs/Outputs Video pulse and sync out, rear-panel BNC connectors

Pulse Parameter

Pulse Width 10 ns to 160 ms 100 ns to 1.6 s
Pulse Period

Resolution 10 ns 100 ns
Accuracy 10 ns (5 ns typical) 10 ns (5 ns typical)

a. Period must be longer than the sum of delay and width by 5 clock cycles minimum.

a

Variable Delay

Singlet 0 ms to 160 ms 0 s to 1.6 s

Doublet 100 ns to 160 ms 300 ns to 1.6 s

Triplet 100 ns to 160 ms 300 ns to 1.6 s

Quadruplet 100 ns to 160 ms 300 ns to 1.6 s

modulation, add Internal LF and Pulse Generators Option 27. Pulse modulation specifications apply at
maximum rated power, unless otherwise noted. Pulse modulation is not available < 10 MHz with Option 22.

> 70 dB with high power Option 15;
> 70 dB with Option 4 or 5 and without Option 2 at 500 MHz

≥

1 GHz

μ

s, < 1 GHz

1

≥

± 1.0 dB, < 1

1 μs pulse width

μ

s pulse width

100 Hz to 5 MHz, leveled

For internal modulation, add Pulse Generator Option 27.

Rise and Fall Time

(10 % to 90 %) Overshoot

a

a

a

a

b

10 ns, 5 ns

phase modulating signal and the other an amplitude modulating signal. This Internal LF and Pulse
Generators option can only be ordered in combination with either FM/
26 respectively.

a

a

a

33 %

a

22 %

a

11 %

10 % 12 ns
10 % 8 ns
10 % 8 ns

10 %c

Pulse Width

Compression Video Feedthrough

a

40 ns

a

12 ns

a

12 ns

a

a

a

a

8 ns

Φ

M, AM, or Pulse options, 12, 14, and

± 130 mV

(Check Option 10 for User-defined.)

Rate 0.1 Hz to 10 MHz sinusoidal

0.1 Hz to 1 MHz square-wave, triangle, ramps

Φ

M OUT and AM OUT

Selectable Clock Rate

Narrow (100 MHz) Wide (10 MHz)

100 ns to 160 ms 600 ns to 1.6 s

± 70 mV

± 70 mV
± 50 mV
± 30 mV
± 30 mV
± 30 mV

a

a

a

a

a

a

a

MG3690C TDS PN: 11410-00515 Rev. V 17 of 24

MG3690C Specifications

10 MHz out

10 MHz in

100 MHz out

100 MHz in

100 MHz in

Ultra-Stable
between RF Outputs

Phase

Ultra-Stable Phase Tracking (Option 36)

Description Option 36 enables up to three MG3690C units fitted with Option 3 or 3X to phase track with a very high

100 MHz Reference Output Provides the reference signal to drive up to two other MG3690C generators.

100 MHz Reference Input Accepts the 100 MHz reference signal from another MG3690C fitted with Option 36.

Phase Drift < ± 1° over 5 seconds (typical)

User-Defined Modulation Waveform Software (Option 10)

A software package download that provides the ability to download user-defined waveforms into the internal LF Generator’s memory (requires Option
27, 28A, or 28B). The MG3690C provides as standard with the LF Generator sinusoidal, square-wave, triangle, positive ramp, Gaussian noise, and uniform
noise waveforms.

degree of stability. Option 36 provides additional rear panel connectors to link internal reference signals
together.

All MG3690C generators must have Option 36 and either Option 3 or 3X.
This signal is only intended for use with other Option 36 instruments.

This input is only intended for use with other Option 36 instruments.

< ± 1.5° over 100 seconds (typical), after 24 hours warm-up time

Two look-up tables of 65,536 points can be used to generate two pseudo-random waveforms, one for amplitude modulation and the other for frequency
or phase modulation. The download files are simple space-delimited text files containing integer numbers between 0 and 4095, where 0 corresponds to
the minimum modulation level and 4095 the maximum.

In addition to the capability of downloading custom waveforms, the software offers a virtual instrument modulation panel. Custom modulation setups
with user waveforms can be stored for future use. For IFF signal simulation, the internal generators can be synchronized. They can also be disconnected
from the internal modulators, making the low frequency waveforms available at the rear panel for external purposes.

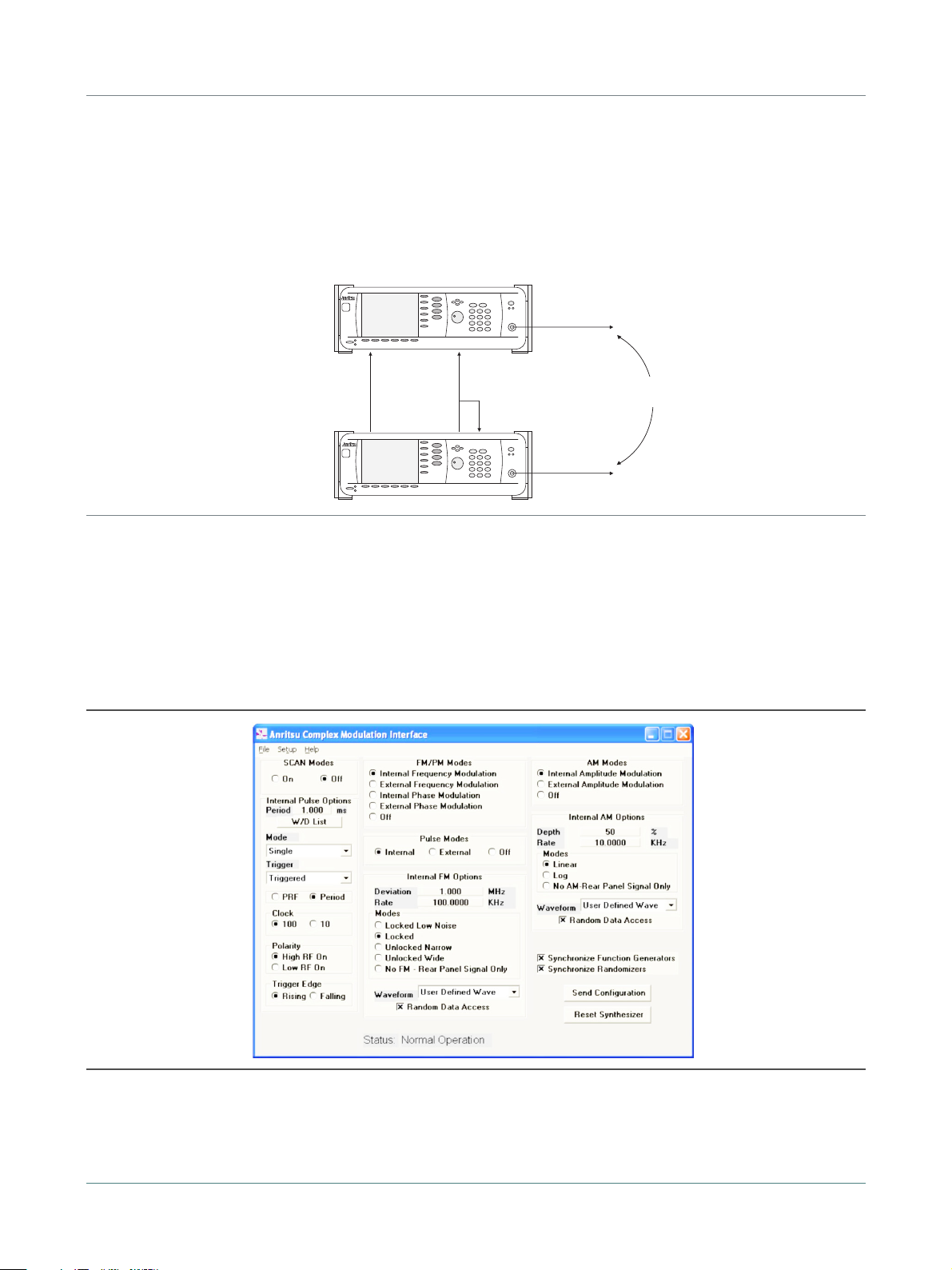

Figure 2-1. Complex Modulation Interface

18 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Millimeter-wave Frequency Coverage

Millimeter-Wave Multiplier 2000-1694 Series

2000-1694 series external waveguide output multipliers are available for banded frequency coverage up to 500 GHz. These external multipliers require at
a minimum, an MG3692C with 20 GHz coverage. The output power required to drive the modules is +10 dBm. They can be powered from an external
power supply (+12 VDC, 1.5 A typical) using the supplied double banana power cord, or from the 40-187-R DC Power Supply and 2000-1710-R
Millimeter-wave power supply adapter. Both included with the modules.

2000-1694 series multipliers have a saturated, unleveled, output power, yet their inherent flatness is exceptional. Modulating the input drive will indeed
modulate the output, except for the case of Amplitude Modulation. Since the output is saturated, Amplitude Modulation is not recommended with these
millimeter-wave modules. Frequency and Phase Modulation is possible, but the achieved deviation will be multiplied based on the multiplication factor of
the module. Pulse modulation is also possible, with even sharper rise and fall times than the input. All modulation performances are not specified.

For ease of operation, the MG3690C allows the user to enter a frequency scaling factor, the module's multiplication factor, which will be used only for
purposes of displaying the proper frequency at the output of the millimeter-wave module, on the MG3690C front panel display.

2000-1694

Multiplier P/N a b

Waveguide Input
Frequency

Waveguide Output
Frequency

c

-15-R

12.5 GHz to

18.8 GHz

50 GHz to

75 GHz

Waveguide Band WR-15 WR-12 WR-10

d

Flange
Output Power

(typical)
Output Flatness

(typical) (Unleveled)

(008) (009) (010) (M08) (M06) (M05) (M03) (M02.2)

+8 dBm +6 dBm +7 dBm –5 dBm –9 dBm –15 dBm –25 dBm

± 2 dB ± 2 dB ± 3 dB — — — — —

2000-1694

-12-R

10.0 GHz to

15.0 GHz

60 GHz to

90 GHz

2000-1694

-10-R

12.5 GHz to

18.4 GHz

75 GHz to

110 GHz

WM-2540

2000-1694

-08-R

11.2 GHz to

17.5 GHz

90 GHz to

140 GHz

WR-08

WM-2032

2000-1694

-06-R

9.1 GHz to

14.2 GHz

110 GHz to

170 GHz

WR-06

WM-1651

2000-1694

-05-R

11.6 GHz -

18.4 GHz

140 GHz to

220 GHz

WR-05

WM-1295

2000-1694

-03-R

12.2 GHz to

18.1 GHz

220 GHz to

325 GHz

WR-03

WM-864

e

2000-1694

-02-R

10.8 GHz to

16.7 GHz

325 GHz to

500 GHz
WR-02.2

WM-570

–27 dBm

e

Output Match > 11.7 dB > 11.7 dB > 11.7 dB > 11.7 dB > 11.7 dB > 11.7 dB 6 dB (typical) 6 dB (typical)
Multiplication Factor

(m)

x4 x6 x6 x8 x12 x12 x18 x30

Frequency Accuracy (Synthesizer Accuracy x m)
Frequency Resolution (Synthesizer Resolution x m)
Manual Adjustable

Attenuator
Harmonics and

Spurious
Input Power

Required

f

g,h

RF Input Connector SMA (female)
DC Power 12 VDC, 1.5 A (double-banana power cord included)

25 dB min N/A

–20 dBc (typical) N/A

+10 dBm

b

Dimensions 145 mm x 110 mm x 72 mm (not including feet, interfaces, or optional manual attenuation adjuster)
Weight < 1 kg
Temperature +20 ºC to +30 ºC

a. These millimeter-wave modules are produced by OML Inc. (Oleson Microwave Labs), located in Morgan Hill, CA., with mutual collaborative experiences over many years. For detailed

and up-to-date specifications, please call OML, Inc. or visit their website at

b. Multipliers require power from an external power supply (+12 VDC, 1.5 A typical) using the supplied double banana power cord, or from the 40-187-R DC Power Supply and

2000-1710-R Millimeter-wave Power Supply Adapter (both included with the modules).
c. Warranty period for the 2000-1694 Series is one year.
d. Waveguide output flanges are per MIL-DTL-3922/67D (UG387/U-M).
e. Output power is estimated.
f. Available as an option. To order, add "A" to multiplier module part number (for example, 2000-1694-15A-R). Not available with 2000-1694-02-R.
g. In-band mixing products typically ≤ –15 dBc in the lower 10 % of the waveguide band.
h. As relates to multiplied output frequencies.

http://www.omlinc.com

.

MG3690C TDS PN: 11410-00515 Rev. V 19 of 24

MG3690C Specifications

Inputs and Outputs

Description Connectors may be available but not active if option is not ordered.

EXT ALC IN Provides for leveling the RF output signal externally with either a detector or power meter.

RF OUTPUT (Option 9) Provides for RF output from 50

10 MHz REF IN Accepts an external 10 MHz ± 50 Hz, 0 dBm to +20 dBm time-base signal.

10 MHz REF OUT Provides a 1 V

100 MHz REF IN (Option 36) Accepts the 100 MHz signal from an MG3690C with Option 36 for ultra-stable phase tracking.

100 MHz REF OUT (Option 36) Provides the 100 MHz signal for an MG3690C with Option 36 ultra-stable phase tracking.

HORIZ OUT (Horizontal Sweep Output) Provides 0 V at beginning and +10 V at end of sweep, regardless of sweep width.

EFC IN Provides the capability to frequency modulate the internal crystal oscillator, allowing phase locking of the

AUX I/O (Auxiliary Input/Output) Provides for most of the rear panel BNC connections through a single, 25-pin, D type connector. Supports

SERIAL I/O Provides access to RS-232 terminal ports to support service and calibration functions and master-slave

ETHERNET (10/100 Base-T LAN) I/O Provides input/output connections for an Ethernet interface.

IEEE-488 GPIB Provides input/output connections for the General Purpose Interface Bus (GPIB).

PULSE TRIG IN (Option 26) Accepts an external TTL compatible signal to pulse modulate the RF output signal or to trigger or to gate the

PULSE SYNC OUT (Option 27) Provides a TTL compatible signal, synchronized to the internal pulse modulation output.

PULSE VIDEO OUT (Option 27) Provides a video modulating signal from the internal pulse generator.

AM IN (Option 14) Accepts an external signal to amplitude modulate the RF output signal.

Φ

M IN (Option 12) Accepts an external signal to frequency or phase modulate the RF output signal.

FM/

AM OUT (Option 27) Provides the amplitude modulation waveform from the internal LF generator. BNC type, rear panel.

Φ

M OUT (Option 27) Provides the frequency or phase modulation waveform from the internal LF generator.

FM/

Refer to the illustration

Signal requirements are shown in the RF Output specifications.
BNC type, rear panel

Option 9 moves the RF Output connector from the front to the rear panel.
K Connector (female) f
V Connector (female) f

Automatically disconnects the internal high-stability time-base option, if installed.

Ω

impedance

50
BNC type, rear panel

50

Ω

BNC type, rear panel

In CW mode, the voltage is proportional to frequency between 0 V at low end and +10 V at the high end of
the range.

In CW mode, if CW RAMP is enabled, a repetitive, 0 V to +10 V ramp is provided.
BNC type, rear panel

synthesizer inside an external lock loop. Specifications are
BNC type, rear panel

master-slave operation with another synthesizer or allows for a single-cable interface with the Model
56100A Scalar Network Analyzer and other Anritsu instruments. See Aux I/O Pin Descriptions
Also provides an Ethernet factory default IP address reset function via pin 19.

25 pin D-type, rear panel

operations.
RJ45 type, rear panel

RJ45 type, rear panel

Type 57, rear panel

optional internal pulse generator.
BNC type, rear panel

BNC type, rear panel

BNC type, rear panel

Ω

50
BNC type, rear panel

Ω

50
BNC type, rear panel

BNC type, rear panel

p-p

impedance

impedance

impedance

on page 2-21

≤ 40 GHz

max

≥ 40 GHz

max

, AC coupled, 10 MHz signal derived from the internal frequency standard.

.

Ω

source impedance.

on page 2-4

.

on page 2-21

.

20 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

10

11

12

13

14

9

8

7

6

5

4

3

2

1

Rear Panel

MG3690C Rear Panel

Aux I/O Pin Descriptions

Pin Description Pin Description

1 Horizontal Output 14 V/GHz Output
2 Chassis Ground 15 End-of-Sweep Input

25

24

23

22

21

20

19

18

17

16

15

3 Sequential Sync Output 16 End-of-Sweep Output
4 Low Alternate Enable Output 17 N/C
5 Marker Output 18 Sweep Dwell Input
6 Retrace Blanking Output 19 Ethernet Default Address Reset
7 Low Alternate Sweep Output 20 Bandswitch Blanking Output
8 Chassis Ground 21 Master Reset

9 N/C 22 Horizontal Sweep Input
10 Sweep Dwell Output 23 Horizontal Sweep Input Return
11 Lock Status Output 24 Chassis Ground
12 Penlift 25 Memory Sequencing Input

External Trigger Input

13

MG3690C TDS PN: 11410-00515 Rev. V 21 of 24

MG3690C Specifications

Ordering Information

Models

MG3692C 2 GHz to 20 GHz Signal Generator
MG3694C 2 GHz to 40 GHz Signal Generator
MG3695C 2 GHz to 50 GHz Signal Generator
MG3697C 2 GHz to 67 GHz Signal Generator (operational to 70 GHz)

Standard Accessories

Options

MG3690C/2A, MG3690C/2B, MG3690C/2C Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.

MG3690C/9V, MG3690C/9K Rear Panel Output Moves the RF output connector to the rear panel.

MG3690C/15A, MG3690C/15B,

MG3690C/15C, MG3690C/15D High Power. Adds high-power RF components to the instrument to increase its output power level.

MG3690C/26A, MG3690C/26B Pulse Modulation. External, via a rear panel BNC connector.

MG3690C/28A, MG3690C/28B Analog Modulation Suite. For ease of ordering and package pricing, this option bundles Options 12, 14, 26

MG3692C/97, MG3694C/97,

MG3695C/97, MG3697/97 Accredited Calibration to ISO17025 and ANSI/NCSL Z540-1. Includes calibration certificate, test report, and

(included)
11410-00976 Product documentation and software brochure.

2000-1732-R CAT-7 shielded, twisted-pair, Ethernet cable, 10 ft.

Miscellaneous Power Cord with plug-type and rating determined by destination country.

3 Year Factory Warranty Options and Accessories. 2 Year Factory Warranty for 2000-1694 Series.

MG3690C/1A Rack Mount with slides. Rack mount kit containing a set of track slides, mounting ears, and front panel

MG3690C/1B Rack Mount without slides. Modifies rack mounting hardware to install unit in a console that has mounting

MG3690C/3 Ultra Low Phase Noise. Adds new modules to significantly reduce SSB phase noise. Not available with

MG3690C/3X Premium Phase Noise. Improves Option 3 < 1 kHz offset. Not available with Option 3.

MG3690C/4 8 MHz to 2.2 GHz RF coverage, Ultra-Low Phase Noise version. Uses a digital down converter to significantly

MG3690C/5 8 MHz to 2 GHz RF Coverage. Uses an analog down converter. All specifications apply
MG3690C/6 Analog Sweep Capability. When used with Option 4, analog sweep capability is limited to

MG3690C/10 User-Defined Modulation Waveform Software. External software package provides the ability to download

MG3690C/12 Frequency and Phase Modulation. External, via a rear panel BNC connector.

MG3690C/14 Amplitude Modulation. External, via a rear panel BNC connector.

MG3690C/16 High Stability Time Base. Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
MG3690C/17 Delete Front Panel. Deletes the front panel for use in remote control applications where a front panel

MG3690C/22 0.1 Hz to 10 MHz Audio coverage. Uses a DDS for coverage down to approximately DC.

MG3690C/27 Internal LF and Pulse Generators. Provides modulation waveforms for internal AM (if Option 14 installed),

MG3690C/36 Ultra-Stable Phase Tracking. Provides the capability for ultra-stable phase tracking between instruments

MG3690C/CE CE Compliance with CE mark.

MG3690C/98 Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Includes calibration certificate.
MG3690C/99 Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Includes calibration certificate, test report, and

handles to let the instrument be mounted in a standard 19-inch equipment rack.

shelves. Includes mounting ears and front panel handles.

This option comes in different versions, based on instrument configuration.

Option 3X.

≥

reduce SSB phase noise. All specifications apply

This option comes in different versions, based on instrument configuration

user-defined waveforms into the memory of the internal waveform generator, serially or via GPIB or
Ethernet. External PC and an instrument with LF Generator, Option 27, are required.

For internal modulation capability, requires addition of an LF Generator, Option 27.

For internal modulation capability, requires addition of an LF Generator, Option 27.

This option comes in different versions, based on instrument configuration.

display and keyboard control are not needed. Only available with Options 1A or 1B.

When adding Option 22, the output power is derated by 2 dB.
Frequency resolution below 10 MHz is 0.02 Hz.
No modulation is available in the 0.1 Hz to 10 MHz band.
Not available without Option 4 or 5.

For internal modulation capability, requires addition of a Pulse Generator, Option 27.
This option comes in different versions, based on instrument configuration.

Φ

FM (if Option 12 installed),
Not available without Option 12, 14, or 26.

and 27, offering internally- and externally-driven AM, FM,
This option comes in different versions, based on instrument configuration.

using the internal 100 MHz reference. Requires Option 3 or 3X.

uncertainty data.

uncertainty data.

M (if Option 12 installed) and Pulse (if Option 26A/B installed).

10 MHz.

Φ

M, and Pulse Modulation.

≥

10 MHz.

≥

500 MHz

22 of 24 PN: 11410-00515 Rev. V MG3690C TDS

Specifications MG3690C

Accessories

34RKNF50 DC to 20 GHz, Ruggedized Type N female adapter for units with a K connector output

ND36329 MASTER/SLAVE interface cable set

760-278 Transit case (16 kg, 79.4 cm x 61.5 cm x 44.4 cm, roll-away on four wheels)

806-97 Aux I/O Cable, 25 pin to BNC: Provides BNC access to Aux I/O Data Lines: Sequential Sync, Marker Out,

Bandswitch Blanking, Retrace Blanking, Sweep Dwell In, V/GHz, Horizontal Out.

Millimeter Wave Accessories

Note: To order a multiplier with an optional manually adjustable attenuator, add an "A" to the multiplier module part number (for example,
2000-1694-15A-R). Not available with 200-1694-02-R

2000-1694-15-R 50 GHz to 75 GHz V band Multiplier Source Module, WR-15
2000-1694-12-R 60 GHz to 90 GHz E band Multiplier Source Module, WR-12
2000-1694-10-R 75 GHz to 110 GHz W band Multiplier Source Module, WR-10
2000-1694-08-R 90 GHz to 140 GHz F band Multiplier Source Module, WR-08
2000-1694-06-R 110 GHz to 170 GHz D band Multiplier Source Module, WR-06
2000-1694-05-R 140 GHz to 220 GHz G band Multiplier Source Module, WR-05
2000-1694-03-R 220 GHz to 325 GHz H band Multiplier Source Module, WR-03
2000-1694-02-R 325 GHz to 500 GHz Multiplier Source Module, WR-02.2

40-187-R DC Power Supply. Included with Multiplier Source Module.

2000-1710-R Millimeter wave Power Supply Adapter. Included with Multiplier Source Module.

Manuals

10370-10373 Operation Manual
10370-10374 Programming Manual (Native)
10370-10375 Programming Manual (SCPI)
10370-10376 Maintenance Manual

Upgrades

Economical upgrades are available to upgrade any model to any higher performing model. Consult Anritsu for details.

MG3690C Option Configuration Guide

Options

Models
MG3692C
MG3694C
MG3695C
MG3697C

OPT

1

1A 1B 2A 2B 2C 9K 9V

• • • •a

• • • •

• • • •a •a •

• • • •a •a •

OPT

2

OPT 3 OPT

3X

a

•

a

a

•

OPT 4 OPT 5 OPT

•b

•b •b • •

b

•b • • •

b

•b • • •

6

•b • •c

OPT

9

OPT

10

c

c

c

OPT

OP

12

14

• •

• •

• •

• •

OPT

15
Models
MG3692C
MG3694C
MG3695C
MG3697C

a. Options 3 and 3X cannot be ordered together.
b. Options 4 and 5 cannot be ordered together.
c. Option 10 can only be ordered with ei ther Options 27 or 28.
d. Option 17 can only be ordered with either Option 1A or 1B.
e. Option 22 can only be ordered with either Option 4 or 5.
f. Option 27 can only be ordered with either Options 12, 14 or 26 in any combination.
g. Option 28 cannot be ordered along with either Options 12, 14, 26, or 27.
h. Option 36 can only be ordered with either Option 3 or 3X.

15A 15B 15C 15D 26A 26B 28A 28B

• • •d

• • •d •e • •

• • •d •e • •f •g•

• • •d •e • •f •g•h • •

OPT

16

OPT

OPT

17

22

•e • •

Options (continued)

OPT

26

OPT

27

f

f

OPT

28

g

•

•g•

OPT

36

•h• •

h

h

OPT

OPT

98

99

• •

• •

MG3690C TDS PN: 11410-00515 Rev. V 23 of 24

Training at Anritsu

Anritsu has designed courses to help you stay up to date with technologies important to your job. For available training
courses, visit:

www.anritsu.com/training

• United States
Anritsu Americas Sales Company

450 Century Parkway, Suite 190
Allen, TX 75013, U.S.A.
Phone: +1-800-Anritsu (1-800-267-4878)

• Canada
Anritsu Electronics Ltd.

700 Silver Seven Road, Suite 120
Kanata, Ontario K2V 1C3, Canada
Phone: [phone]
Fax: [phone]

• Brazil
Anritsu Eletronica Ltda.

Praça Amadeu Amaral, 27 - 1 Andar
01327-010 - Bela Vista - Sao Paulo - SP
Brazil
Phone: [phone]
Fax: [phone]

• Mexico
Anritsu Company, S.A. de C.V.

Blvd Miguel de Cervantes Saavedra #169 Piso 1,
Col. Granada
Mexico, Ciudad de Mexico, 11520, MEXICO
Phone: [phone]

• United Kingdom
Anritsu EMEA L td.

200 Capability Green
Luton, Bedfordshire, LU1 3LU, U.K.
Phone: [phone]
Fax: [phone]

• France
Anritsu S.A.

12 avenue du Québec, Bâtiment Iris 1- Silic 612,
91140 Villebon-sur-Yvette, France
Phone: [phone]
Fax: [phone]

• Germany
Anritsu GmbH

Nemetschek Haus, Konrad-Zuse-Platz 1
81829 München, Germany
Phone: [phone]
Fax: [phone]

• Italy
Anritsu S.r.l.

Via Elio Vittorini 129, 00144 Roma, Italy
Phone: [phone]
Fax: [phone]

List Revision Date: 20200602

• Sweden
Anritsu AB

Isafjordsgatan 32C
164 40 Kista, Sweden
Phone: [phone]

• Finland
Anritsu AB

Teknobulevardi 3-5
FI-01530 Vantaa, Finland
Phone: [phone]
Fax: [phone]

• Denmark
Anritsu A/S

c/o Regus Winghouse, Ørestads Boulevard 73, 4th
floor,
2300 Copenhagen S, Denmark
Phone: [phone]

• Russia
Anritsu EMEA Ltd.

Representation Office in Russia

Tverskaya str. 16/2, bld. 1, 7th floor
Moscow 125009, Russia
Phone: [phone]
Fax: [phone]

• Spain
Anritsu EMEA Ltd.

Representation Office in Spain

Paseo de la Castellana, 141.
Planta 5, Edificio Cuzco IV
28046, Madrid, Spain
Phone: [phone]

• United Arab Emirates
Anritsu EMEA Ltd.

Dubai Liaison Office

902 Aurora Tower
P O Box: 500311- Dubai Internet City
Dubai, United Arab Emirates
Phone: [phone]
Fax: [phone]

• India
Anritsu India Private Limited

6th Floor, Indiqube ETA, No.38/4
Adjacent to EMC2, Doddanekundi, Outer Ring Road
Bengaluru 560048, India
Phone: [phone]
Fax: [phone]

• Singapore
Anritsu Pte. Ltd.

11 Chang Charn Road, #04-01, Shriro House
Singapore 159640
Phone: [phone]
Fax: [phone]

• P.R. China (Shanghai)
Anritsu (China) Co., Ltd.

Room 2701-2705, Tower A
New Caohejing International Business Center
No. 391 Gui Ping Road
Shanghai 200233, P.R. China
Phone: [phone]
Fax: [phone]

• P.R. China (Hong Kong)
Anritsu Company Ltd.

Unit 1006-7, 10/F.
Greenfield Tower, Concordia Plaza
No. 1 Science Museum Road
Tsim Sha Tsui East, Kowloon
Hong Kong, P.R. China
Phone: [phone]
Fax: [phone]

• Japan
Anritsu Corporation

8-5, Tamura-cho, Atsugi-shi, Kanagawa, 243-0016
Japan
Phone: [phone]
Fax: [phone]

• South Korea
Anritsu Corporation, Ltd.

5FL, 235 Pangyoyeok-ro
Bundang-gu, Seongnam-si
Gyeonggi-do 13494, South Korea
Phone: [phone]
Fax: [phone]

• Australia
Anritsu Pty. Ltd.

Unit 20, 21-35 Ricketts Road
Mount Waverley, Victoria 3149, Australia
Phone: [phone]
Fax: [phone]

• Taiwan
Anritsu Company Inc.

7F, No. 316, Sec. 1, NeiHu Rd. Taipei 114, Taiwan
Phone: [phone]
Fax: [phone]

Data subject to change without notice.
For the most recent specifications, visit: www.anritsu.com.

24

24 of 24

® Anritsu All trademarks are registered trademarks of their respective companies.

Copyright October 2020, Anritsu Company, USA. All Rights Reserved.

MG3690C TDS, PN: 11410-00515, Rev. V

Anritsu utilizes recycled paper and environmentally conscious inks and toner.
