amada 558 Drawing

Vipros 558 Layout Drawings ©Amada America Inc.

Vipros 558 Layout Drawings

Amada America Inc.

7025 Firestone Blvd.
Buena Park CA. 90621
Phone: [phone]

Fax: [phone]

e-mail: [e-mail]

Print Date 03/11/99 Revision 2.0 Page 1 of 8
This document available on the World Wide Web at http://www.amada.com/support

Vipros 558 Layout Drawings ©Amada America Inc.

Contents

Contents................................................................................................................................................................................2

Planning the Location of the Vipros 558................................................................................................................................3

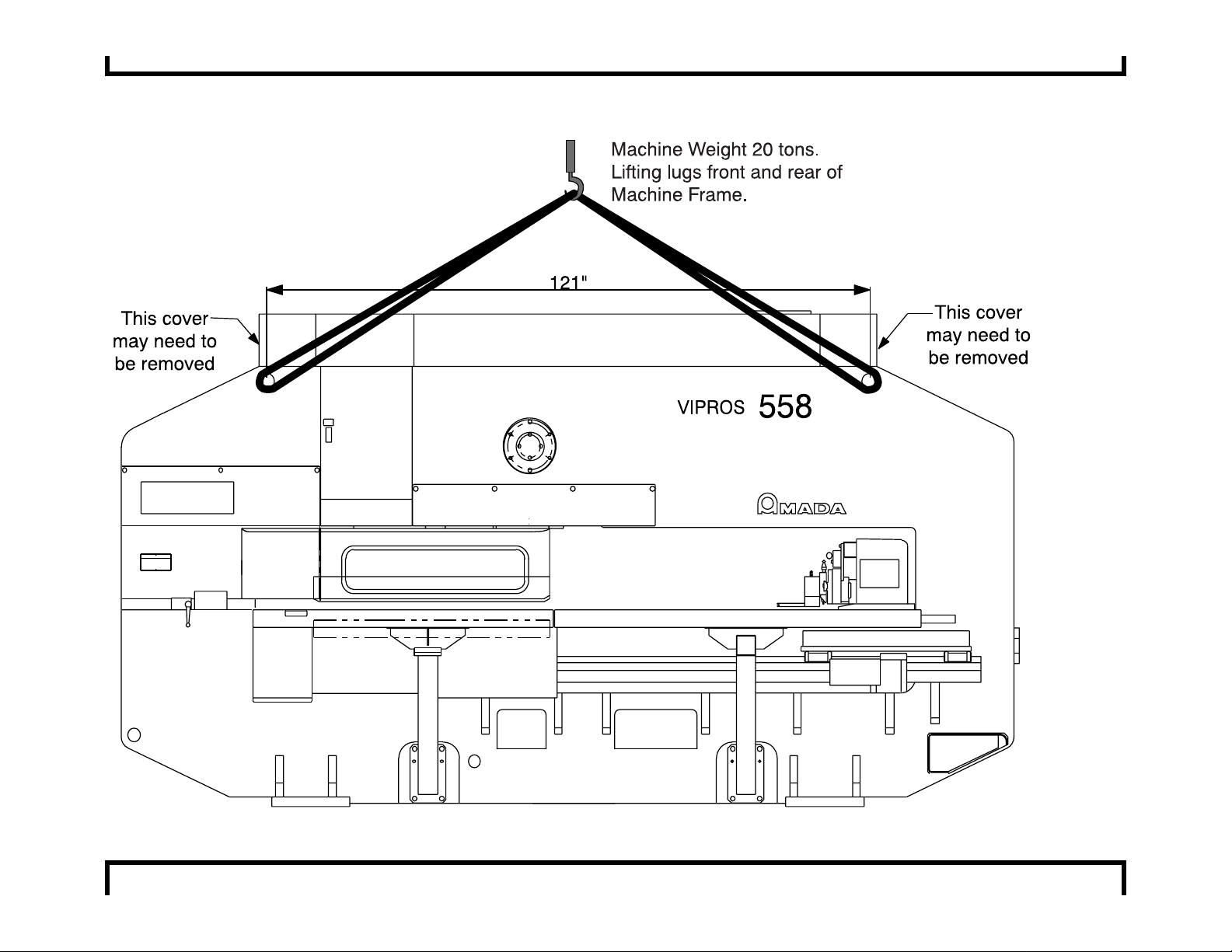

Lifting the Machine................................................................................................................................................................4

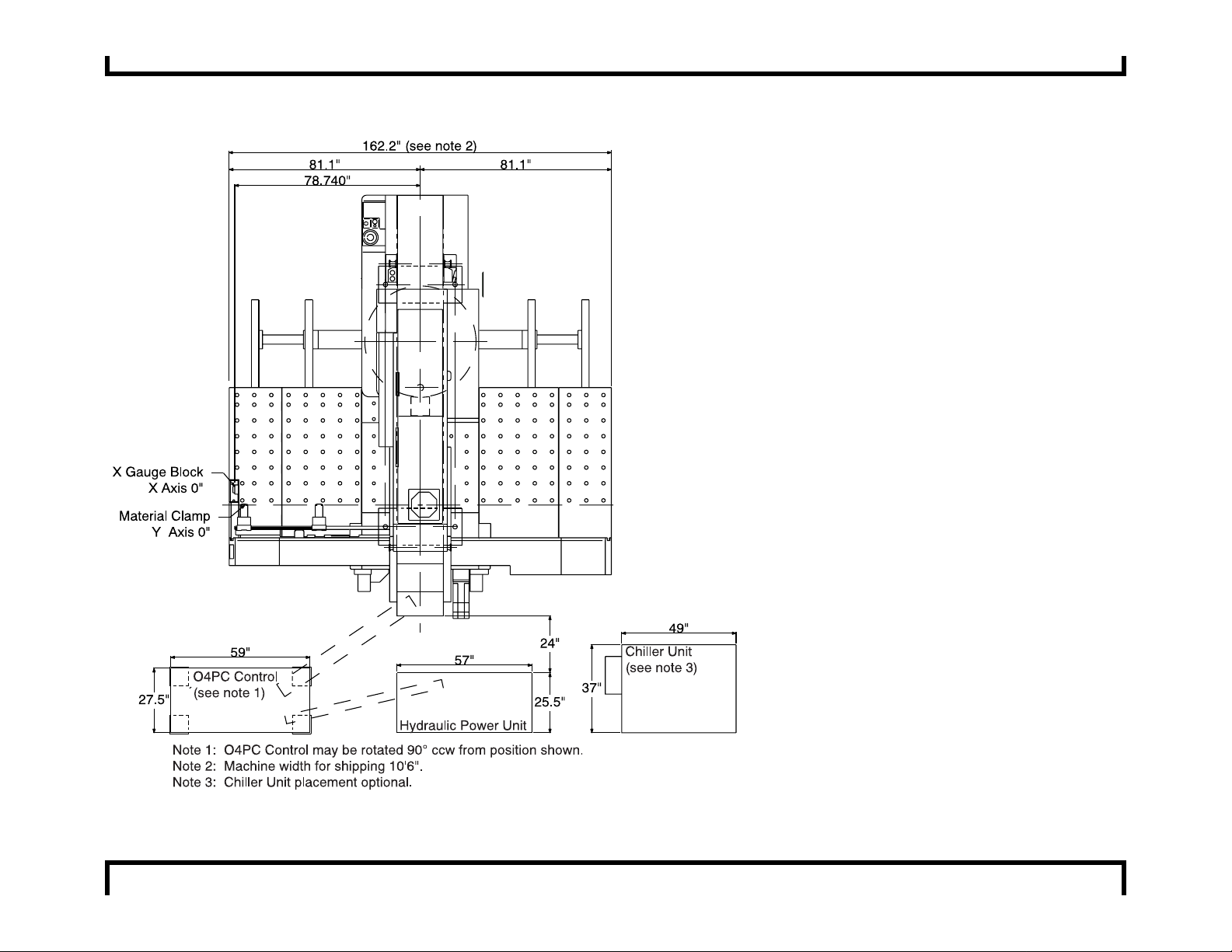

Machine Dimensions - Plan View..........................................................................................................................................5

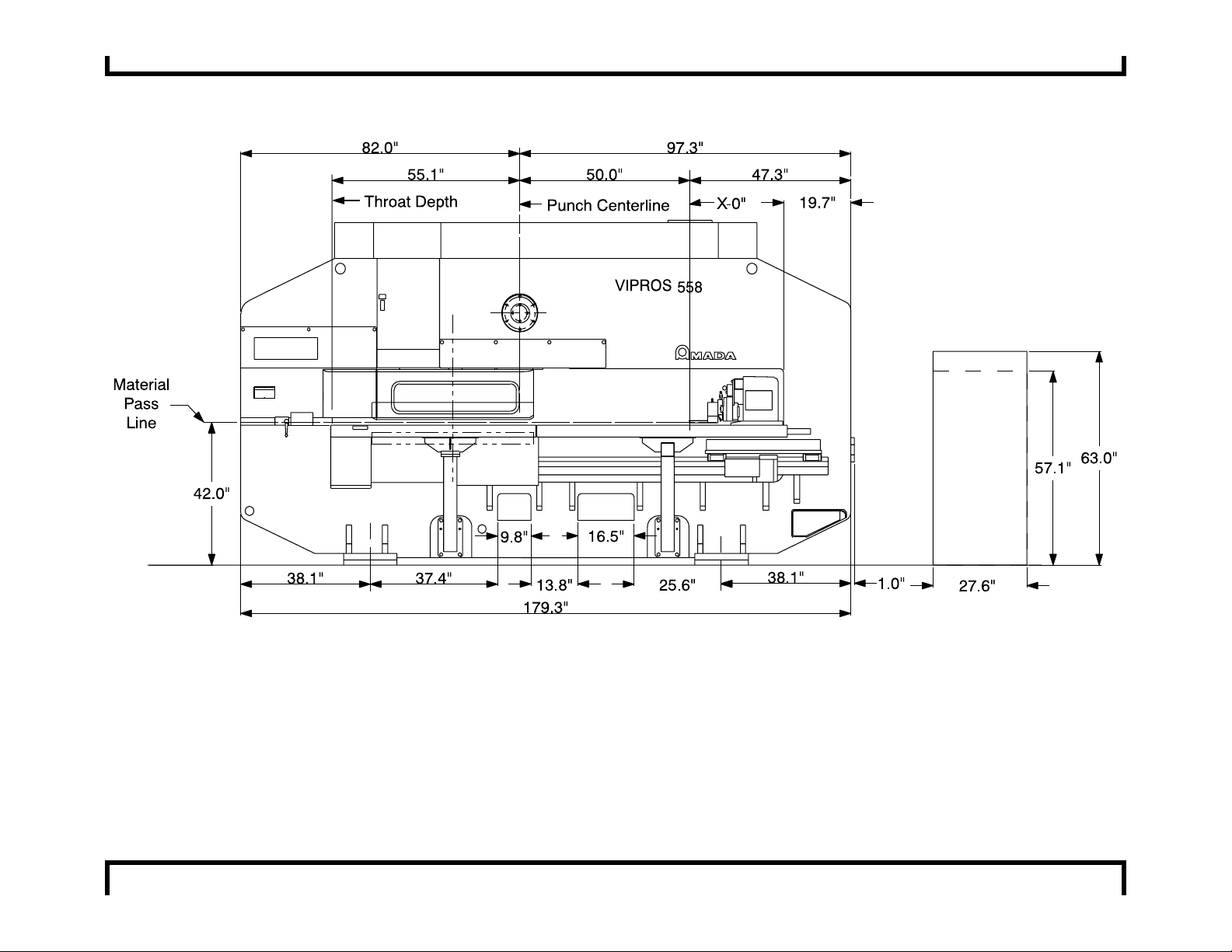

Machine Dimensions - Elevation View..................................................................................................................................6

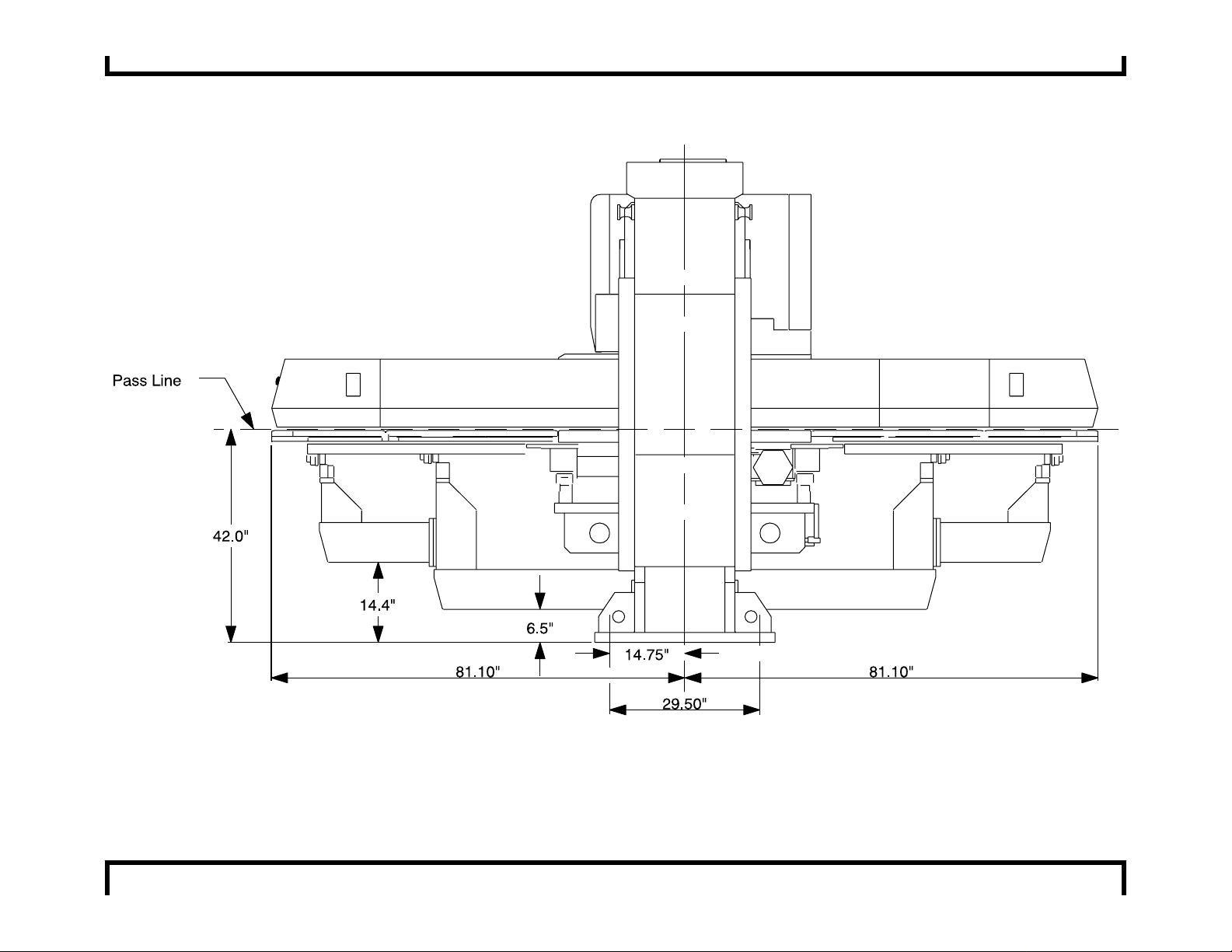

Machine Dimensions - End View...........................................................................................................................................7

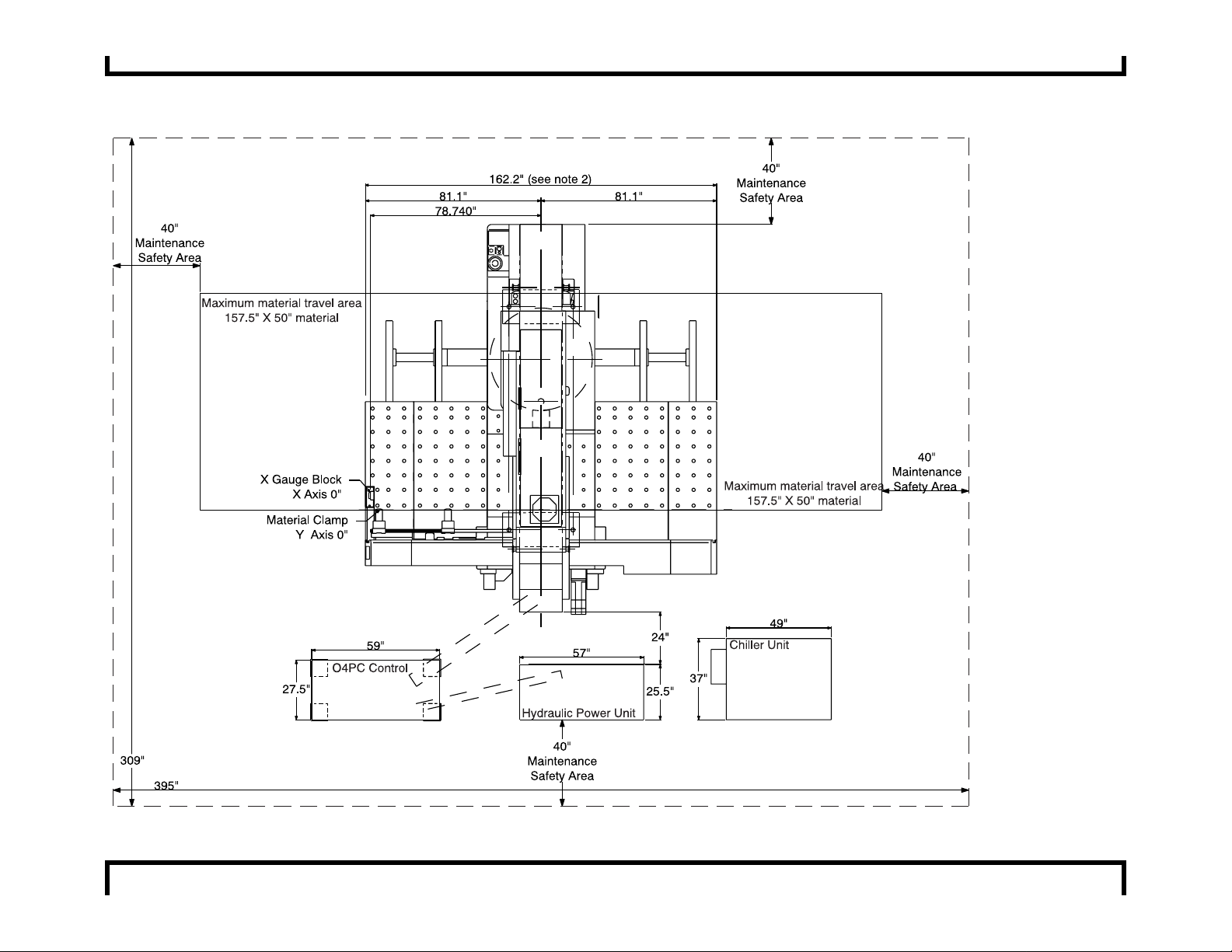

Maintenance Areas...............................................................................................................................................................8

Print Date 03/11/99 Revision 2.0 Page 2 of 8
This document available on the World Wide Web at http://www.amada.com/support

Vipros 558 Layout Drawings ©Amada America Inc.

Planning the Location of the Vipros 558

The following diagrams provide the details for positioning the Vipros 558.
No obstacles are allowed in the worksheet travel area and the ceiling must be at least 40" above the top of the Vipros 558.
All of the maintenance safety areas recommended should be used, but at a minimum you must ensure that the doors of

the Fanuc O4PC CNC unit can be opened.
The Vipros 558, Fanuc O4PC control, and SBC-5.5 chiller mu st be pro tected from direct sunlight or other heat sources.
The floor must be of sufficent quailty to addiquitly support the wieght of the machine.

Print Date 03/11/99 Revision 2.0 Page 3 of 8
This document available on the World Wide Web at http://www.amada.com/support
