Page 1
Vipros 358 King Layout Drawings Amada America Inc.
Vipros 358 King Layout Drawings
Print Date 11/05/97 Page 1 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 2
Vipros 358 King Layout Drawings Amada America Inc.
Contents
Contents....................................................................................................................................................2
Introduction ...............................................................................................................................................3
Lifting the Machine....................................................................................................................................4
Machine Dimensions - Plan View .............................................................................................................5
Machine Dimensions - Elevation View .....................................................................................................6
Machine Dimensions - End View..............................................................................................................7
Maintenance Areas...................................................................................................................................8
Print Date 11/05/97 Page 2 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 3
Vipros 358 King Layout Drawings Amada America Inc.
Introduction
This manual describes the tasks that the purchaser of a Vipros 358 King must complete before calling the service
organization to complete the installation and operator training.
An overview of the preparations is as follows:
Plan the location of the Vipros 358 King in the shop, taking into account all the maintenance areas indicated
on the floor plan.
Prepare the Vipros 358 King floor area as required.
Uncrate the Vipros 358 King and Fanuc O4PC control and place them on the floor.
Install the air supply.
Install the ele ctrical supply.
Remove the protective coating from the surface of the Vipros 358 King.
Anchor the Machine to the floor or foundation using the apropriate method described in this document
Note: It is the purchaser’s responsibility to install any safety devices to ensure the safety area.
Print Date 11/05/97 Page 3 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 4
Vipros 358 King Layout Drawings Amada America Inc.

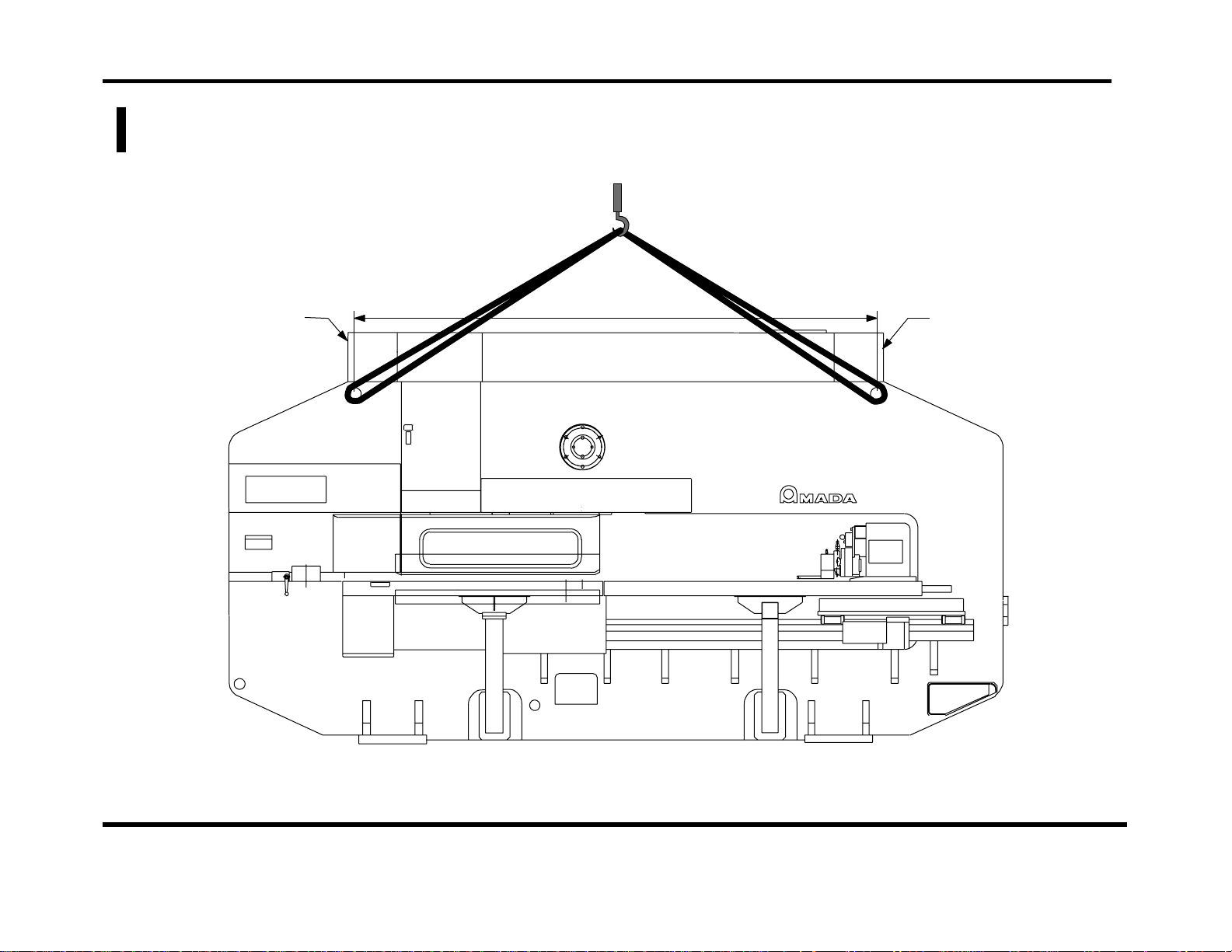

Lifting the Machine
Machine Weight 16 tons.
Lifting lugs front and rear of
Machine Frame.
This cover
may need to
be removed
121."
VIPROS
This cover
may need to
be removed
358
KING
Print Date 11/05/97 Page 4 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 5
Vipros 358 King Layout Drawings Amada America Inc.

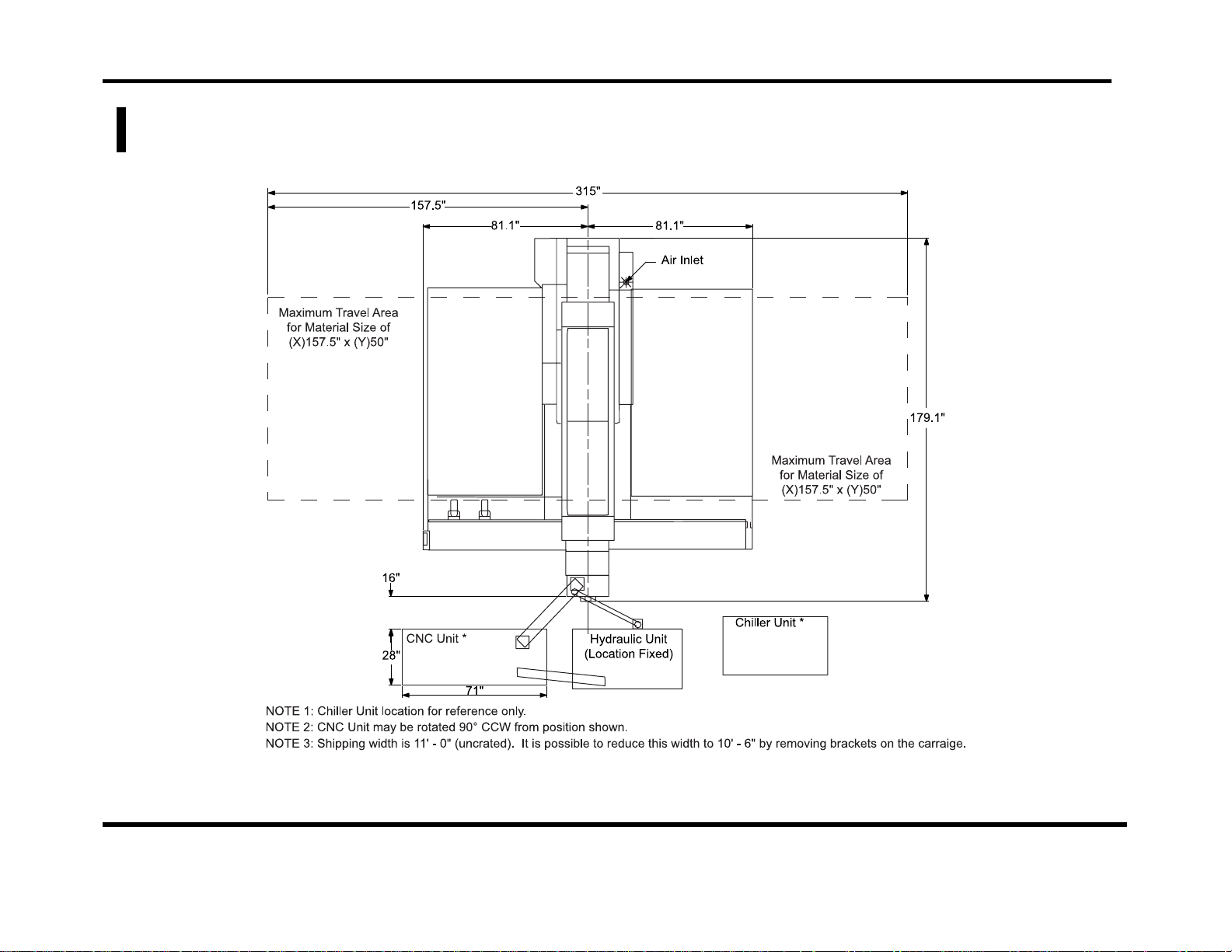

Machine Dimensions - Plan View
Print Date 11/05/97 Page 5 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 6
Vipros 358 King Layout Drawings Amada America Inc.

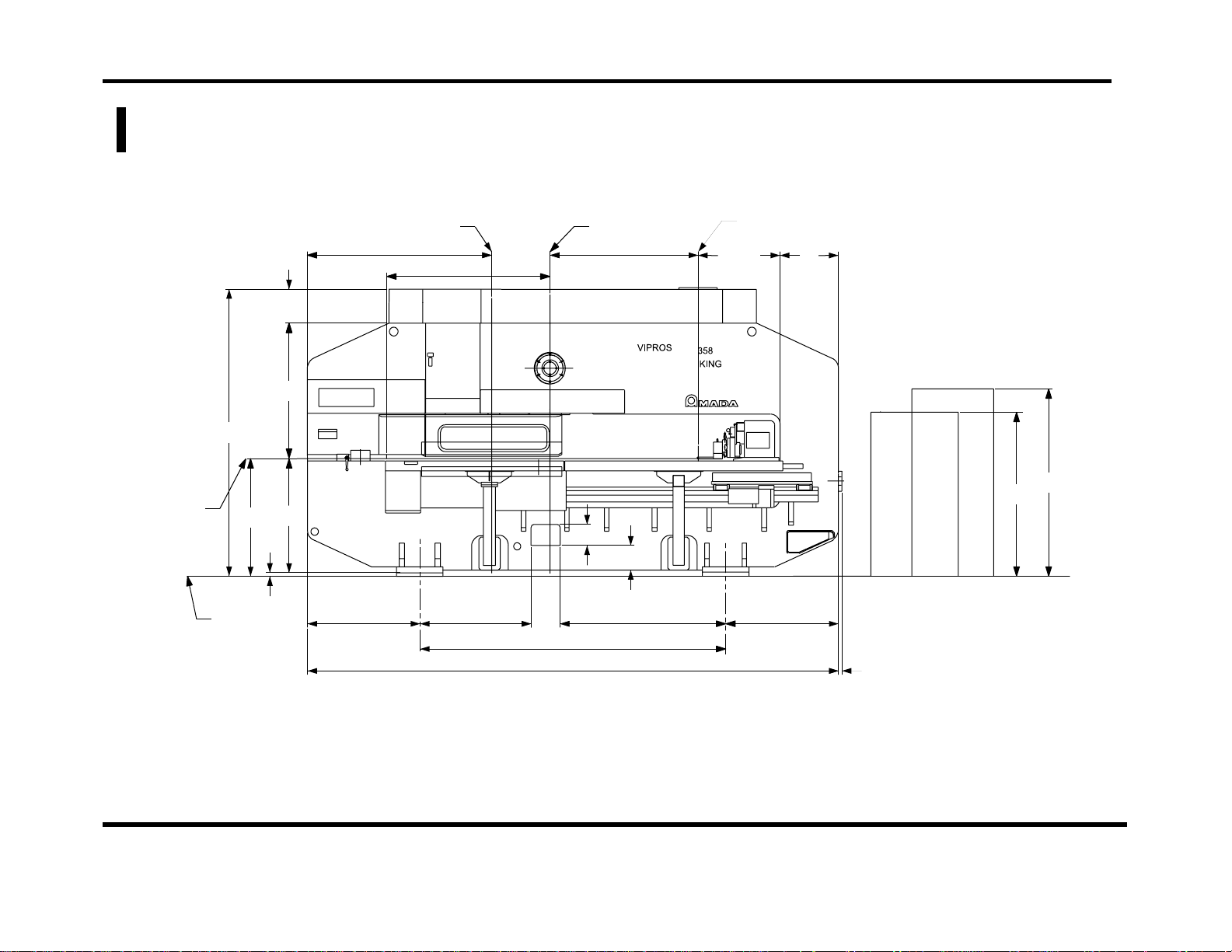

Machine Dimensions - Elevation View
Material
Pass
Line
96.5"
39.6"
Floor Level
1.3"
11.4"
45.5"
38.3"
Turret Center
62.2"
55.1"
37.4"38.0"
19.7"
9.8"
103.1"
179.1"
Punch Center
7.1"
50.0"
8.3"
27.6"
Y Axis Zero
38.0"55.9"
19.7"
1.2"
Hydraulic
Unit
CNC Unit
55.2"
63.0"
Print Date 11/05/97 Page 6 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 7
Vipros 358 King Layout Drawings Amada America Inc.

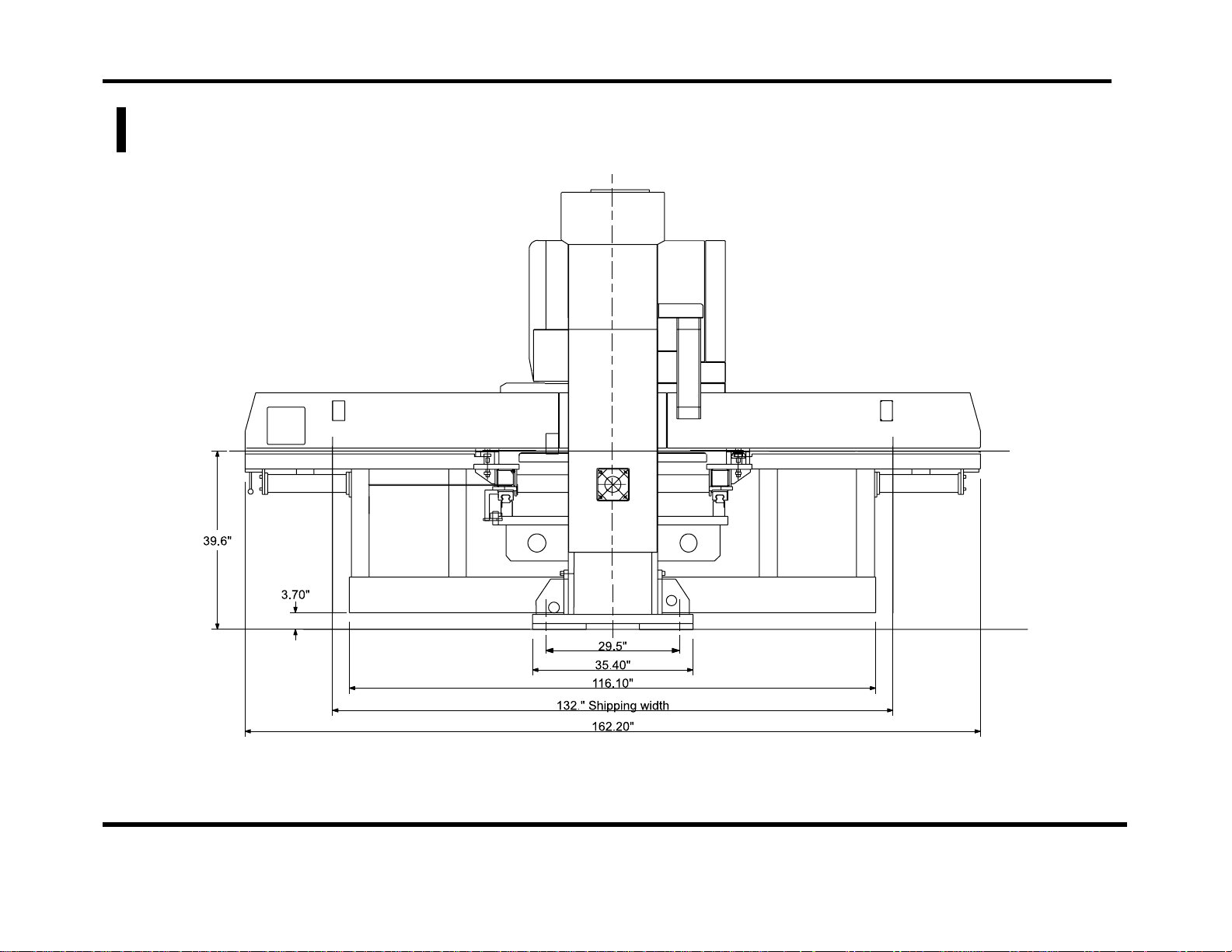

Machine Dimensions - End View
Print Date 11/05/97 Page 7 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 8
Vipros 358 King Layout Drawings Amada America Inc.

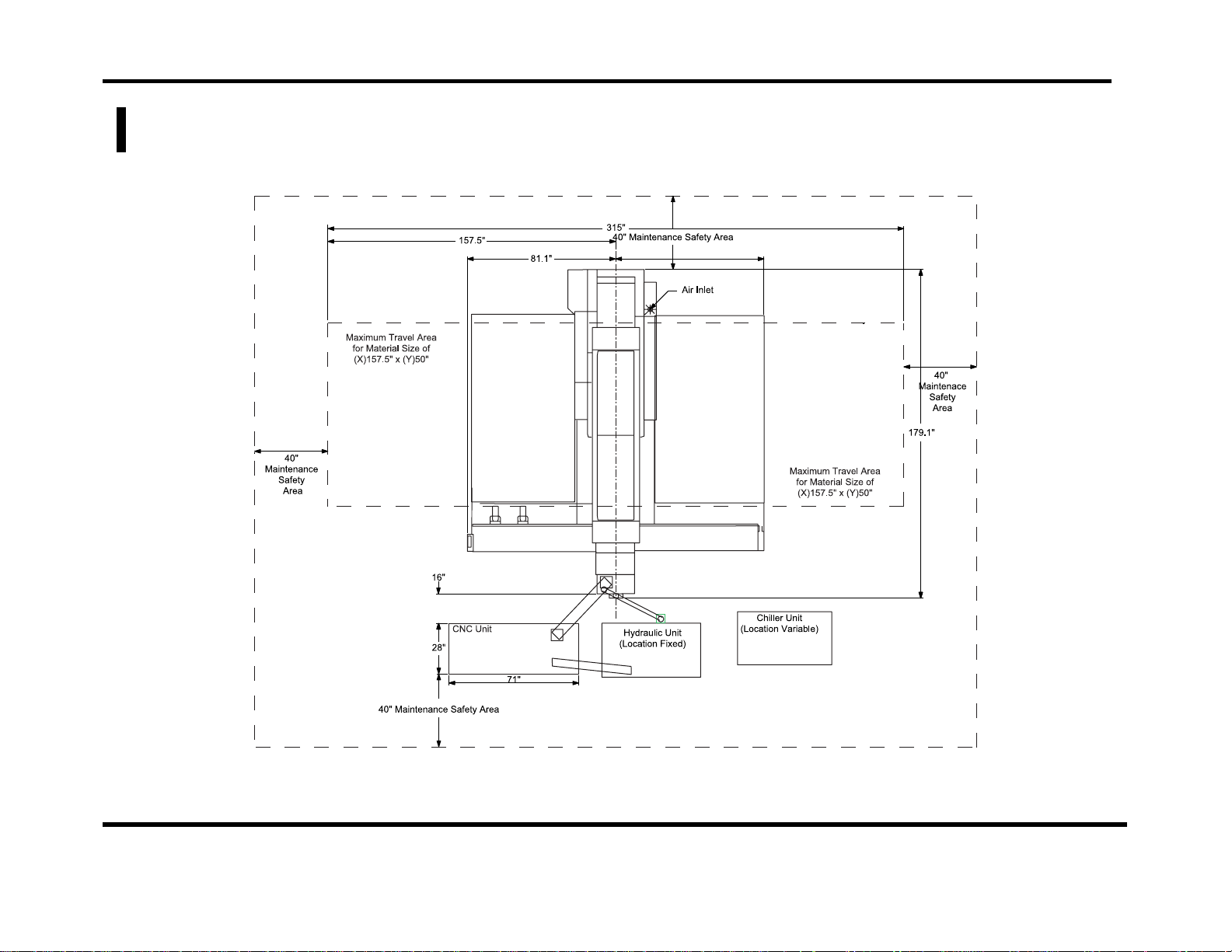

Maintenance Areas
81.1"
Print Date 11/05/97 Page 8 of 9
This document available on the World Wide Web at http://amada.com/support/pdf/v358kdrw.pdf
Page 9
Vipros 358 King Layout Drawings Amada America Inc.
Amada America Inc.
7025 Firestone Blvd.
Buena Park CA. 90621
Phone: (714) 739 2111
Fax: (714) 739 4099
