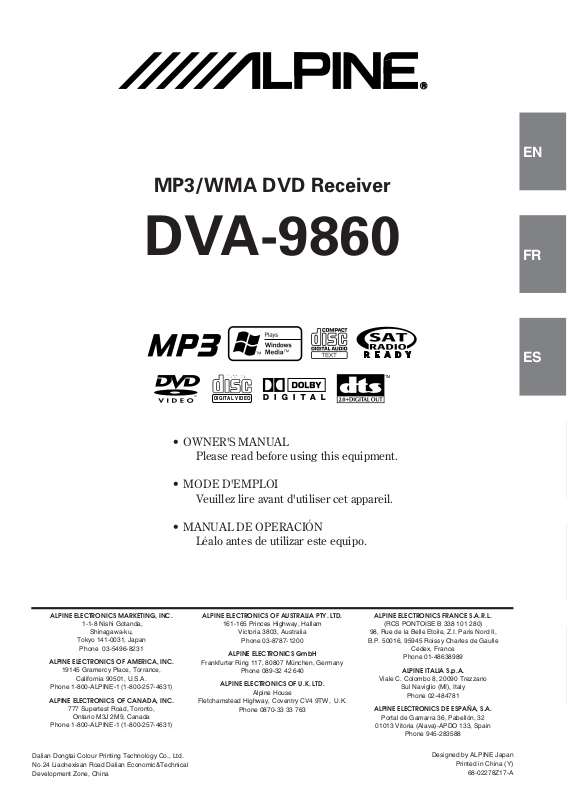

Alpine DVA-9860 User Manual

MP3/WMA DVD Receiver

DVA-9860

DIGITAL VIDEO

• OWNER'S MANUAL Please read before using this equipment.

• MODE D'EMPLOI Veuillez lire avant d'utiliser cet appareil.

• MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

Dalian Dongtai Colour Printing Technology Co., Ltd. No.24 Liaohexisan Road Dalian Economic&Technical Development Zone, China

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone 03-8787-1200

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Phone 0870-33 33 763

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

B.P. 50016, 95945 Roissy Charles de Gaulle

ALPINE ELECTRONICS DE ESPAÑA, S.A.

01013 Vitoria (Alava)-APDO 133, Spain

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

Portal de Gamarra 36, Pabellón, 32

Phone 945-283588

Printed in China (Y)

68-02278Z17-A

Contents

ENGLISH

Operating Instructions

WARNING

WARNING .................................................. 3

CAUTION ................................................... 3

PRECAUTIONS ......................................... 3

Getting Started

Turning Power On and Off ............................... 7

Initial System Start-Up ..................................... 7

Setting Time ...................................................... 7

Adjusting Volume ............................................. 7

Lowering Volume Quickly ................................ 7

Detaching and Attaching the Front Panel ......... 8

Radio

Listening to Radio ............................................. 8

Manual Storing of Station Presets .................... 9

Automatic Memory of Station Presets .............. 9

Tuning to Preset Stations .................................. 9

Station Title Search Function............................ 9

Frequency Search Function .............................. 9

CD/MP3/WMA

Playback .......................................................... 10

Repeat Play ..................................................... 10

M.I.X. (Random Play) .................................... 11

Scanning Programs ......................................... 11

Searching from CD Text ................................. 11

File/Folder Name Search

(concerning MP3/WMA) ............................ 11

Quick Search ................................................... 12

About MP3/WMA .......................................... 12

DVD/Video CD

Playing DVD/Video CD ................................. 14

Stopping Playback (PRE-STOP) .................... 15

Stopping Playback .......................................... 15

Fast-forwarding/Fast-reversing ....................... 15

Finding the Beginning of Chapters or Tracks ... 15

Playing Still Frames (pausing) ........................ 15

Foward/reverse frame-by-frame Playback ...... 15

Slow Motion Playback .................................... 15

Searching by Title Number (DVD only) ......... 15

Searching Directly by Chapter or Track Number ...

Quick Search ................................................... 16

Chapter/Track/Title Repeat Playback ............. 16

Switching the Audio Tracks ............................ 16

Switching the Angle (DVD only) ................... 16

Switching the Subtitles (subtitle language)

(DVD only) .................................................. 16

Displaying the Disc Status (DVD only).......... 17

Displaying the Disc Status

(Video CD only) .......................................... 17

Sound Setting

Adjusting Bass/Treble/Balance (Between Left

and Right)/Fader (Between Front and Rear)/

Defeat .......................................................... 17

Setting the Bass Control ................................. 18

Setting the Treble Control............................... 18

Setting the BBE Mode .................................... 18

Other Functions

Displaying the Title/Text ................................. 19

Titling Discs/Stations ...................................... 20

Erasing Disc Title/Station Title ....................... 20

Displaying Time.............................................. 20

Setting the Wallpaper ...................................... 20

SETUP

Sound Customizing

Subwoofer On and Off .................................... 21

Setting the Subwoofer System ........................ 21

Visual Customizing

Dimmer Control .............................................. 21

Scroll Type Setting .......................................... 21

Scroll Setting................................................... 21

Demonstration ................................................. 21

External Device

Connecting an MP3 Changer .......................... 22

Turning Mute Mode On/Off ........................... 22

Setting the AUX Mode (V-Link)..................... 22

Connecting to an External Amplifier .............. 22

Setting the Digital Output ............................... 22

Setting the Digital Audio Processor................ 22

1-EN

DVD Setup

DVD Setup Operation ..................................... 23

Setting the language ........................................ 23

Setting the TV Screen ..................................... 24

Setting the Country Code ................................ 24

Setting the Rating Level (Parental Lock)........ 24

Setting the Digital Output ............................... 25

Custom Setup

Custom Setup Operation ................................. 26

Setting the CD Play Mode .............................. 26

Setting the Video CD Play Mode .................... 26

Setting the Pause Mode................................... 26

Setting the Downmix Mode ............................ 26

SAT Radio Receiver (Optional)

Receiving Channels with the SAT Radio

Receiver (Optional) ..................................... 27

Checking the SAT Radio ID Number ............. 27

Storing Channel Presets .................................. 27

Receiving Stored Channels ............................. 28

Channel/Category Search Function ................ 28

Quick Search Function.................................... 28

Changing the Display...................................... 28

Setting the Auxiliary Data Field Display ........ 28

External Audio Processor (Optional)

Adjustment Procedure for Dolby Surround .... 29

Setting the Speakers ........................................ 30

Set MX Mode of the External Audio

Processor ..................................................... 30

X-OVER Adjustment ...................................... 30

Performing Time Correction Manually (TCR)/

Phase Switching .......................................... 31

Calculating the Time Correction ................. 31

Inputting the Time Correction ..................... 31

Switching the Phase ..................................... 32

Graphic Equalizer Adjustments ...................... 32

Parametric Equalizer Adjustments .................. 33

Setting Bass Compressor ................................ 34

Setting Bass Focus .......................................... 34

Speaker Setup ................................................. 34

Setting of Dolby 5.1ch .................................... 35

Adjusting the speaker levels ........................ 35

Mixing bass sound to the rear channel ........ 35

Adjusting the acoustic image ...................... 35

Achieving powerful high volume sound...... 36

Adjusting the DVD Level ............................... 36

Using the Pro Logic II Mode .......................... 36

Linear PCM Setting ........................................ 37

Storing Settings in the Memory ...................... 37

Getting out the Preset Memory ....................... 37

Remote Control Operation .............................. 38

iPod ™ (Optional)

Playback .......................................................... 39

Searching for a desired Song .......................... 39

Searching by Playlist ................................... 39

Searching by artist name ............................. 39

Searching by album name ........................... 40

Quick Search ................................................... 40

Random Play Shuffle (M.I.X.)...................... 40

Repeat Play ..................................................... 41

Displaying the Text ......................................... 41

Changer (Optional)

Controlling CD Changer (Optional) ............... 42

Playing MP3 Files with the CD Changer

(Optional) .................................................... 42

Multi-Changer Selection (Optional) ............... 42

Remote Control

Controls on Remote Control ........................... 43

When Using the Remote Control .................... 44

Battery Replacement ....................................... 44

Information

About DVDs ................................................... 45

Terminology .................................................... 46

List of Language Codes .................................. 47

List of Country Codes ..................................... 48

In Case of Difficulty ....................................... 50

Specifications .................................................. 53

Installation and Connections

Warning ........................................................... 54

Caution ............................................................ 54

Precautions ...................................................... 54

Installation ...................................................... 55

Connections .................................................... 56

System Example ............................................. 58

LIMITED WARRANTY

2-EN

Operating Instructions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as instructed. Rupture or chemical leakage from the battery may cause fire or personal injury.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

3-EN

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off.

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc.

CORRECT

Inserting Discs

Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. Your player will automatically eject any disc that is inserted incorrectly. If the player continues to eject a correctly inserted disc, push the RESET switch with a pointed object such as a ballpoint pen. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

New Discs

As a protective measure to prevent the CD from jamming, the CD player will automatically eject discs with irregular surfaces or inserted incorrectly. When a new disc is inserted into the player and ejected after initial loading, using your finger, feel around the inside of the centre hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

Centre Hole

New Disc

INCORRECT

CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the CD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the centre of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players.

Bumps

Outside (Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use any special shape discs. Use of special shape discs may cause damage to the mechanism.

Installation Location

Make sure the DVA-9860 will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

4-EN

Disc StabilizerTransparent Sheet

Discs playable on this unit

Playable Discs

The discs listed below can be played on this unit.

Mark (logo) Recorded

content

Disc size

Max.

playing time

Discs that cannot be played

DVD-ROMs, DVD-RAMs, DVD + Rs, DVD + RWs, CD-ROMs (excluding MP3/WMA files), photo CDs, etc.

DVD region number (playable region number)

This DVD player will play back any disc whose region number is 1 (or All). DVDs with a region number other than those listed below, cannot be played on this DVD player.

12 cm*

Audio

DVD

Video

DIGITAL VIDEO

Video

(Moving

pictures)

Audio

Video

(Moving

pictures)

8 cm

12 cm

8 cm

VIDEO CD

12 cm

Music

Audio

8 cm

(CD single)

* Two-layer DVD disc compatible

One-sided disc Approx. 4 hours

Two-sided disc Approx. 8 hours

One-sided disc Approx. 80 Minutes

Two-sided disc Approx. 160 Minutes

Approx. 74 Minutes

Approx. 20 Minutes

Approx. 74 Minutes

Approx. 20 Minutes

ALL

Video CDs

This DVD head unit is compatible with playback control (PBC) compatible video CDs (version 2.0). “PBC” is a function by which you can use menu screens recorded on the disc to find the scene you want to watch and view various types of information in dialogue style.

Using compact discs (CD/CD-R/CD-RW)

If you use unspecified compact discs, correct performance cannot be guaranteed. You can play CD-Rs (CD-Recordable)/CD-RWs (CDReWritable) which have been recorded only on audio devices. You can also play CD-Rs/CD-RWs containing MP3/WMA formatted audio files.

• Some of the following discs may not play on this unit:

Flawed discs, discs with fingerprints, discs exposed to extreme temperatures or sunlight (e.g., left in the car or this unit), discs recorded under unstable conditions, discs on which a recording failed or a re-recording was attempted, copy-protected CDs which do not conform to the audio CD industry standard.

• Use discs with MP3/WMA files written in a format compliant

with ISO9660 level 1 or level 2. For details, see pages 12 and

13.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last

recording session was closed (finalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback

again.

Tips for making your own CDs

The DVA-9860 plays DVD Video, Video CD, Audio CD and has a built in MP3/WMA decoder.

The following information is designed to help you create your own music CDs (either Audio CD or MP3/WMA encoded CD-R/ RW files).

What is the difference between an Audio and MP3/WMA CD?

An Audio CD is the same format as the commercial CDs you buy in the store (also known as CD-DA). MP3 (MPEG-1 Audio Layer

3)/WMA (Windows Media Audio) is a data file that uses a compression scheme to reduce the size of the music file.*

Hybrid Audio CD and Data (MP3/WMA) CD-R/RW discs:

The DVA-9860 can read either sector on the disc. Choose CD-DA to play the CD audio section or MP3/WMA to play the MP3/ WMA section.*

Continued

5-EN

Multisession CD-R/RW:

Once a recording has been stopped, this is considered one session. If the disc is not closed (finalized), additional data may be added. Once this additional data has been recorded, this becomes a “multisession” CD. The DVA-9860 can only read multisession DATA Formatted discs (MP3/WMA files - Not Audio CD files).

Properly formatted MP3/WMA Discs:

Use ISO9660 formatting to insure proper playback. You may use standard ISO naming Level 1 (8.3 DOS standard), Level 2 (32 characters) or Joliet (Windows or Macintosh long filenames) file naming conventions*.

*Please consult the Owner’s manual for additional information.

On handling compact discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

• Clean the disc when it is dusty.

• Make sure that the disc is smooth and flat.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never expose the disc to direct sunlight.

Heat and humidity may damage the disc and you may not be able to play it again.

Using DVD-Rs/DVD-RWs

• This unit is compatible only with discs recorded in the DVDVideo mode. Discs recorded in the DVD-VR mode cannot be played back.

• Note that discs not finalized (processed to enable to play on playback-only DVD players) cannot be played on this DVD player.

• Some discs may not play back, depending on the recording device. (This unit has a copy protection function. Discs copied illegally will not be played back. Some files recorded by a software using an improper recording system may be recognized as illegally copied.)

• In the following cases, the disc may not play on this unit: discs recorded by certain DVD recorders, certain irregular discs, flawed discs, dirty discs, when the pickup lens of this DVD player is dirty, or when moisture condensation has occurred inside the unit.

• Be sure to follow all cautions included with your DVD-Rs/ DVD-RWs discs.

• Do not put stickers, seals, or tape on the label side of DVD-Rs/ DVD-RWs.

• Compared to the regular discs, DVD-Rs/DVD-RWs are more affected by heat, moisture, and direct sunlight. If left in a car, etc., damage may occur and it might not play on this unit.

Disc terminology

Title

If titles are programmed for the DVD, these are the largest units of division of the information recorded on the disc.

Chapter

Each Title may also be divided into smaller divisions, called chapters. These can be specific scenes or musical selections.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• Manufactured under license from Dolby Laboratories. “Dolby,”

“Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS2.0 + Digital Out” are trademarks of Digital Theater Systems, inc.

• Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Apple and the Apple logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. iPod and iPod mini are trademarks of Apple Computer, Inc.

6-EN

Getting Started

SOURCE/ POWER

Rotary encoder

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first time, after installing the CD changer, after changing the car battery, etc.

Turn off the unit power.

Remove the detachable front panel.

Press RESET with a ball-point pen or similar

pointed object.

TITLE MUTE

About the alphanumeric display of this unit

• All English lower case characters are displayed as

upper case on this unit.

• The alphanumeric display in the following table shows

alphanumeric characters/numbers that may be difficult to distinguish.

Alphanumeric

Display

Alphanumeric

Display

02568ABD

GHKMQRSZ

Turning Power On and Off

Press SOURCE/POWER to turn on the unit.

• The unit can be turned on by pressing any other button except eject c and TITLE .

Press and hold SOURCE/POWER for at least 2 seconds to turn off the unit.

• The first time power is turned on, the volume will start from level 12.

RESET switch

Setting Time

In the Clock priority mode, press and hold TITLE

for at least 2 seconds while the time is displayed.

The time indication will blink.

Turn the Rotary encoder to adjust the hours

while the time indication is blinking.

When the hour has been adjusted, press the

Rotary encoder.

Turn the Rotary encoder to adjust the minutes

while the time indication is blinking.

The time is automatically set 5 seconds after the minute adjustment. The time can also be manually set by pressing the Rotary encoder.

•

To synchronize the clock to another clock/watch or radio time announcement, press and hold the Rotary encoder for at least 2 seconds after setting the “hour.” Minutes will reset to 00. If the display shows over “30” minutes when you do this, the time will advance one hour.

Adjusting Volume

Turn the Rotary encoder until the desired sound is obtained.

Lowering Volume Quickly

Activating the Audio Mute function will instantly lower the volume level by 20 dB.

Press MUTE to activate the MUTE mode.

The audio level will decrease by about 20 dB.

Pressing MUTE again will bring the audio back to its previous level.

7-EN

Detaching and Attaching the Front Panel

Detaching

Turn off the unit power.

Press (Release) at the lower left side until the

front panel pops out.

Grasp the left side of the front panel and pull it out.

Radio

SOURCE/ POWER

TUNE/ A.ME

BAND

SEARCH/ Q.S.

• The front panel may become hot in normal usage (especially the connector terminals on the back of the front panel.) This is not a malfunction.

•To protect the front panel, place it in the supplied carrying case.

Attaching

Insert the right side of the front panel into the main

unit. Align the groove on the front panel with the projections on the main unit.

Push the left side of the front panel until it locks

firmly into the main unit.

• Before attaching the front panel, make sure that there is no dirt or dust on the connector terminals and no foreign object between the front panel and the main unit.

• Attach the front panel carefully. Hold the panel by its sides to avoid pushing any buttons by mistake.

g f Rotary

encoder

Preset buttons (1 through 6)

Listening to Radio

Press SOURCE/POWER until a radio frequency

appears in the display.

Press BAND repeatedly until the desired radio

band is displayed.

F1(FM1) → F2(FM2) → AM → F1(FM1)

Press TUNE/A.ME to select the tuning mode.

DX SEEK (Distance mode) → SEEK (Local mode) → OFF (Manual mode) → DX SEEK

• The initial mode is Distance mode.

Distance mode:

Both strong and weak stations will be automatically tuned in (Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

Press g or f to tune in the desired station.

Holding down g or f will change the frequency continuously.

• The ST indicator appears on the display when a stereo FM station is tuned in.

8-EN

Manual Storing of Station Presets

Select the radio band and tune in a desired radio

station you wish to store in the preset memory.

Press and hold, for at least 2 seconds, any one of

the preset buttons (1 through 6) into which you wish to store the station.

The selected station is stored. The display shows the band, preset no. and station frequency memorized.

•A total of 18 stations can be stored in the preset memory (6 stations for each band; FM1, FM2 and AM).

• If you store a station in a preset memory which already has a station, the current station will be cleared and replaced with the new station.

Automatic Memory of Station Presets

Station Title Search Function

If the title of a radio station is entered, you can search for that radio station by its title while listening to the currently received radio station. .

Press SEARCH/Q.S. in Radio mode to switch to

Title Search mode.

The first title input blinks in the display.

Select the desired title by turning the Rotary

encoder within 10 seconds.

Press the Rotary encoder to receive the

frequency of the selected title.

•

Title Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds.

• If a station has no title, "NO TITLE" is displayed for 2 seconds.

Press BAND repeatedly until the desired radio

band is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

The frequency on the display continues to change while the automatic memory is in progress. The tuner will automatically seek and store 6 strong stations in the selected band. They will be stored into buttons 1 to 6 in order of signal strength. When the automatic memory has been completed, the tuner goes to the station stored in preset location no. 1.

• If no stations are stored, the tuner will return to the original station you were listening to before the auto memory procedure began.

Tuning to Preset Stations

Press BAND repeatedly until the desired band is

displayed.

Press any one of the station preset buttons (1

through 6) that has your desired radio station in memory.

The display shows the band, preset number and frequency of the station selected.

Frequency Search Function

You can search for a radio station by its frequency.

Press and hold SEARCH/Q.S. for at least 2

seconds in Radio mode to activate Frequency Search mode.

Turn the Rotary encoder within 10 seconds to

select the desired frequency.

Press the Rotary encoder to receive the selected

frequency.

•Frequency Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds.

9-EN

CD/MP3/WMA

Rotary

-/J8

encoder

SEARCH/ Q.S. c

• The track display for MP3/WMA data playback is the file numbers recorded on the disc.

• If the HDA-5460 model is connected to the unit, some operations (for example changing the source, selecting the file by holding buttons up or down, etc.), can be carried out on this unit.

• The playback time may not be correctly displayed when a VBR (Variable Bit Rate) recorded file is played back.

• If 8 is pressed during M.I.X. DISC platyback, new file will be played back in a random sequence. If 9 is pressed, the beginning of the current file will be played back.

MP3/WMA Play Display

The folder number and file number will be displayed as described below.

g f

F/SETUP

)

Playback

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

When a disc is already inserted, press SOURCE/POWER to switch to the DISC mode.

The mode will change every time the button is pressed.

TUNER → DISC → CD CHANGER* → TUNER

* Only when the CD changer is connected

While playing back MP3/WMA, press 8 or 9 to

select the desired folder.

Pressing and holding 8 or 9 will change folders continuously.

Press g or f to select the desired track (file).

Returning to the beginning of the current track (file) :

Press g.

Fast backward :

Press and hold g.

Advancing to the beginning of the next track (file) :

Press f.

Fast forward :

Press and hold f.

To pause playback, press -/J.

Pressing -/J again will resume playback.

)

TITLE

F01 T03 10'15

Folder number display

•Press TITLE to switch the display. Please see “Displaying the Title/Text” (page 19) for information about display switching.

Repeat Play

Press 4 ( ) to play back repeatedly the track being played.

The track (file) will be played repeatedly.

Press 4 ( ) again and select RPT to deactivate repeat play.

CD mode :

↓

RPT : Only a track is repeatedly played back

↓

RPT

(off)

*1 When a CD changer is connected

• If REPEAT is set to ON during M.I.X. (M.I.X. ONE) play in CD changer mode, M.I.X. will apply to the current disc only.

MP3/WMA mode :

RPT : Only a file is repeatedly played back

RPT :

RPT :A disc is repeatedly played back

(off)

: A disc is repeatedly played back

↓

Only files in a folder are repeatedly played back

↓

File number display

Elapsed time

To eject the disc, press c.

• Do not remove a CD during its eject cycle. Do not load more than one disc at a time. A malfunction may result from doing either.

• If the CD does not eject, press and hold c for at least 2 seconds.

• The CD-player can play discs containing audio data, MP3 data and WMA data.

•A WMA format file that is protected by DRM (Digital Rights Management) cannot be played back on this unit.

10-EN

*2 When an MP3 compatible CD changer is connected

• If a 6-disc CD changer or an MP3 compatible CD changer is connected: In the CD changer mode, press F/SETUP to illuminate the “ ” indicator, and go to the step above within 10 seconds.

• If a 12-disc CD changer is connected: In the CD changer mode, press F/SETUP twice to illuminate the “ ” indicator, and go to the step above within 10 seconds.

M.I.X. (Random Play)

Press 5 ( ) in the play or pause mode.

The tracks (files) on the disc will be played back in random sequence.

To cancel M.I.X. play, press 5 ( ) again.

Internal CD mode :

↓

M.I.X. : Tracks are played back in

random sequence.

↓

(off)

CD Changer mode :

↓

M.I.X. : Tracks are played back in

↓

M.I.X. : The tracks on all the CDs in the current

↓

(off)

• If M.I.X. is set to ON during RPT (REPEAT ALL) play in CD changer mode, M.I.X. will apply to the current disc only.

MP3/WMA mode :

↓

M.I.X. : Only files in a folder are played back in

↓

M.I.X. : Files are played back in random sequence.

↓

(off)

• If a 6-disc CD changer or an MP3 compatible CD changer is connected: In the CD changer mode, press F/SETUP to illuminate the “ ” indicator, and go to the step above within 10 seconds.

• If a 12-disc CD changer is connected: In the CD changer mode, press F/SETUP twice to illuminate the “ ” indicator, and go to the step above within 10 seconds.

random sequence.

magazine will be included in the random playback sequence.

random sequence.

If an MP3 compatible CD changer is connected, all files in a disc are played back in random sequence, and playback shifts to the next disc.

Scanning Programs

Press 6 ( ) to activate the Scan mode.

The first 10 seconds of each track (file) will be played back in succession.

To stop scanning, press 6 ( ) and deactivate the Scan mode.

• If a 6-disc CD changer or an MP3 compatible CD changer is connected: In the CD changer mode, press F/SETUP to illuminate the “ ” indicator, and go to the step above within 10 seconds.

• If a 12-disc CD changer is connected: In the CD changer mode, press F/SETUP twice to illuminate the “ ” indicator, and go to the step above within 10 seconds.

Searching from CD Text

Tracks can be searched and played using the CD text on the disc. In the case of discs and changers that do not support text, searches can be made using the track numbers.

Press SEARCH/Q.S. during play.

This will set the search mode.

Turn the Rotary encoder to select the desired

track, then press the Rotary encoder.

This will play the selected track.

•Press and hold SEARCH/Q.S. for at least 2 seconds in the search mode to cancel. Or, the search mode will be canceled when an operation has not been performed in 10 seconds.

• CD text search cannot be made during M.I.X. play.

File/Folder Name Search (concerning MP3/WMA)

You can display and search for the folder and file name while listening to the file currently being played back.

Main Unit Operation

Press SEARCH/Q.S. to select File Name Search

mode or Folder Name Search mode in MP3/WMA mode.

Folder Name Search mode

Turn the Rotary encoder within 10 seconds to

select the desired folder.

Press the Rotary encoder to play back the first

file in the selected folder.

•Folder Name Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds.

• While in Folder Name Search mode, press SEARCH/Q.S. to switch to File Search mode.

• “NO FILE” is displayed for 2 seconds if the folder that is selected by the Folder Name Search mode contains no files.

•“ROOT” is displayed for a folder that does not have a folder name.

•Folder Name Search cannot be made during M.I.X. play.

File Name Search mode

Press 8 or 9 to select another Folder.

Select the desired file by turning the Rotary

encoder within 10 seconds.

Press the Rotary encoder to play back the

selected file.

•File Name Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds.

• While in File Name Search mode, press SEARCH/Q.S. to switch to Folder Name Search mode.

•File Name Search cannot be made during M.I.X. play.

Continued

11-EN

Remote Control Operation

Press and hold SEARCH/Q.S. for at least 2 seconds during playback.

The Folder Name list is displayed.

Press 8 or 9 to select a folder name, then press

ENT.

The File Name list of the selected folder is displayed.

Press 8 or 9 to select a file name, then press ENT.

The selected file is played back.

• When there are 9 or more names on the list, a page number is displayed. Press ; or : to change the page.

•Press RETURN to deactivate the Search mode during the Folder Name Search mode.

• While in File Name Search mode, press RETURN to switch to Folder Name Search mode.

• While in Folder Name Search/File Name Search mode, press and hold SEARCH/Q.S. for at least 2 seconds to cancel the Folder Name Search/File Name Search mode.

Quick Search

You can search for tracks(files).

Press and hold SEARCH/Q.S. for at least 2

seconds in the CD/Changer/MP3/WMA mode to activate Quick Search mode.

Turn the Rotary encoder within 10 seconds to

select a desired track(file).

The selected track is played back immediately.

• Quick Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds.

About MP3/WMA

CAUTION

Except for private use, duplicating audio data (including MP3/ WMA data) or distributing, transferring, or copying it, whether for free or for a fee, without permission of the copyright holder is strictly prohibited by the Copyright Act and by international treaty.

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a compression standard prescribed by the ISO, the International Standardization Organization and MPEG which is a joint activity institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is capable of compressing audio data at extremely high ratios, reducing the size of music files to as much as one-tenth their original size. This is achieved while still maintaining near CD quality. The MP3 format realizes such high compression ratios by eliminating the sounds that are either inaudible to the human ear or masked by other sounds.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio data. WMA is similar to MP3 audio data and can achieve CD quality sound with small file sizes.

Method for creating MP3/WMA files

Audio data is compressed by using MP3/WMA specified software. For details on creating MP3/WMA files, refer to the user's manual for that software. MP3/WMA files that can be played back by this device have the file extension “mp3” / “wma”. Files with no extension cannot be played back. (WMA ver. 7.1 and 8 are supported)

Supported playback sampling rates and bit rates

MP3

Sampling rates : 32 kHz - 48 kHz Bit rates: 32 - 320 kbps

WMA

Sampling rates : 32 kHz - 48 kHz Bit rates: 32 - 320 kbps

Note that for sampling rates, this device’s frame display (Page

19) may not display correctly. This device may not play back correctly depending on sampling rates.

ID3 tags/WMA tags

If tag data is in an MP3/WMA file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data.

This device can only display single-byte alphanumeric characters and the underscore. For non-supported characters, “NO SUPPORT” is displayed. The number of characters may be limited, or not correctly displayed, depending on the tag information.

12-EN

Producing MP3/WMA discs

MP3/WMA files are prepared, then written to a CD-R or CD-RW using CD-R writing software. A disc can hold up to 1024 files/256 folders (including Root Folders).

Media supported

The media that this device can play back are CD-ROMs, CD-Rs, and CD-RWs.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or Level 2.

Under the ISO9660 standard, there are some restrictions to remember. The maximum nested folder depth is 8 (including the root directory). The number of characters for a folder/file name is limited. Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and ‘_’ (underscore).

This device also can play back discs in Joliet, Romeo, etc., and other standards that conform to ISO9660. However, sometimes the file names, folder names, etc., are not displayed correctly.

Formats supported

This device supports CD-ROM, CD-ROM XA, Mixed Mode CD, Enhanced CD (CD-Extra) and Multi-Session. This device cannot correctly play back discs recorded with Track At Once or packet writing.

Order of tracks

The unit plays the files in the order that the writing software writes them. Therefore, the playing order may not be the same as the order you input. The playback order of the folders and files is as follows. However, the folder and file playback order differs from the folder no. and file no. indicated on the display.

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The higher the bit rate, the higher the sound quality, but also the larger the files.

Sampling rate

This value shows how many times per second the data is sampled (recorded). For example, music CDs use a sampling rate of 44.1 kHz, so the sound is sampled (recorded) 44,100 times per second. The higher the sampling rate, the higher the sound quality, but also the larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into the specified audio compression format.

Tag

Song information such as track titles, artist names, album names, etc., written into MP3/WMA files. MP3: ID3 tag WMA: WMA tag

Root folder

The root folder is found at the top of the file system. The root folder contains all folders and files.

Root Folder

Folder MP3/WMA File

13-EN

DVD/Video CD

:/J

Rotary encoder

SEARCH/ Q.S.

Playing DVD/Video CD

Caution

• Not all functions will operate for every DVD. See the individual DVD’s instructions for details on the features supported.

•Fingerprints on a disc may adversely affect playback. If a problem occurs, remove the disc and check for fingerprints on the playback side. Clean the disc if necessary.

• When using the remote control, be careful to press one button at time. Pressing multiple buttons at the same time may cause erroneous operation.

• If you try to perform an invalid operation (based on the type of disc being played), the following mark is displayed on the monitor screen:

;

RETURN

:/J

CLR

DISP/TOP M.

AUDIO

•DVD and Video CD operation can be controlled from both the remote control and the main unit. In this section, both remote control and main unit operation are described.

•To view DVD and Video CD, the optional TV monitor is required.

• If a PAL type disc is inserted, the message “VIDEO SIGNAL SYSTEM IS NOT CORRECT” is displayed, and playback is not available.

)

ENT.

number keys (0 to 9)

ANGLE

SUBTITLE

Play Position Memory Function

Even if you turn power off or switch the Ignition Key to OFF during playback or change the source, playback will continue from the point where playback stopped when the power is turned ON again.

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

When a disc is already inserted, press SOURCE/POWER on the main unit to switch to the DISC mode.

The mode will change every time the button is pressed.

TUNER → DISC → CD CHANGER* → TUNER

* Only when the CD changer is connected

To eject the disc, press c on the main unit.

• Do not remove a disc during its eject cycle. Do not load more than one disc at a time. A malfunction may result from doing either.

• If the disc does not eject, press and hold c for at least 2 seconds.

• The reverse side of a double-sided DVD will not be played automatically. Remove the disc, turn it over, and reinsert it.

•Never insert map discs for navigation purposes as they could damage the equipment.

• Refer also to “DVD Setup” (pages 23 to 25).

If a menu screen appears

On DVDs and video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback.

• This operation is controlled using the remote control unit.

• For many discs, the menu screen can also be displayed by pressing MENU.

14-EN

DVD menu

Press 8, 9, ; or : to select the desired item, then press ENT.

•For some discs it is possible to select items directly from the menu screen using the number keys (“0” to “9”).

Video CD menu

Use the number keys (“0” to “9”) to select the desired number, then press ENT.

• The menu screen does not appear when the PBC function is turned off. In this case, set VCD PLAY MODE to turn on the PBC function. For details, refer to “Setting the Video CD Play Mode” (page 26).

Stopping Playback (PRE-STOP)

Press L during playback to stop playback. That position is stored in memory.

During playback, press L on the remote control

unit.

“PRE-STOP” is displayed.

Press -/J in the PRE-STOP mode.

Playback starts from the position at which it was stopped.

•For some discs, the position at which playback was stopped may not be accurate.

Stopping Playback

During playback, press L twice on the remote control unit.

“STOP” is displayed, and playback stops.

• Playback stops also when L is pressed for more than 2 seconds.

• Playback starts from the beginning when -/J is pressed while playback is stopped.

Fast-forwarding/Fast-reversing

During playback, press and hold g (fast-reverse)

or f (fast-forward) .

When pressed for more than 1 second, the disc is forwarded/reversed at double speed. When held in 5 more seconds, the disc is forwarded/ reversed at 8 times the normal speed.

Release g or f to return to normal playback.

• No sound is played during fast-forwarding/fast-reversing.

•Fast-forwarding/fast-reversing of only a track being played back can be made on the Video CD equipped with PBC (play back control).

•For DVDs and video CDs with playback control (PBC), the menu screen may reappear during fast-forwarding/fast-reversing.

Finding the Beginning of Chapters or Tracks

During playback, press g or f.

The chapter/track switches each time the button is pressed, and playback of the selected chapter/track starts.

f:Press this to start playback from the beginning of

the following chapter or track.

g:Press this to start playback from the beginning of

the current chapter or track.

• Some DVDs do not have chapters.

• The beginning of a track may not be found on the Video CD equipped with PBC (playback control). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the Video CD Play Mode” (page 26).

Supplementary explanation

“Chapters” are divisions of movies or musical selections on DVDs. “Tracks” are divisions of movies or musical selections on video and music CDs.

Playing Still Frames (pausing)

During playback, press -/J.

Press -/J to resume playback.

• No sound is played during the still mode.

• The image or sound may stop temporarily when playback starts from the pause mode. This is not a malfunction.

Foward/reverse frame-by-frame Playback

In the pause mode, press g or f.

The picture advances or reverses by one frame each time the button is pressed.

Press -/J to resume normal playback.

• No sound is output during forward/reverse frame-by-frame playback.

•For video CD, reverse frame-by-frame playback is not available.

Slow Motion Playback

When g or f is pressed and held in while in

the pause mode, the 1/8th speed slow motion playback mode is set.

When held in for 5 more seconds, the slow motion speed switches to 1/2 the normal speed.

Release g or f to pause, and press -/J to

playback.

• No sound is played during slow motion playback.

• Slow playback is not available when playing back a slide show.

• 1/2 and 1/8 are approximate speeds. The actual speed differs from disc to disc.

•For video CD, reverse slow motion playback is not available.

Searching by Title Number (DVD only)

Use this function to easily find positions on the DVD using the DVD’s title.

• This operation is controlled using the remote control unit.

When playback stops, input the number of the title

you want to play using the number keys (“0” to “9”).

Press ENT.

Playback starts from the selected title number.

• This function cannot be used on discs on which no title numbers are recorded.

•Press CLR to delete the last digit in the title number. Press and hold CLR for at least 2 seconds to clear all title numbers.

•Press RETURN to cancel the title search mode and resume normal playback.

• The playback starts automatically for two digit title numbers even if ENT. in procedure 2 is not pressed.

15-EN

Searching Directly by Chapter or Track Number

Use this function to easily move to the beginning of the chapters or tracks on the disc.

• This operation is controlled using the remote control unit.

During playback or pre-stop, input the chapter or

track number you desire using the number keys (“0” to “9”).

Press ENT.

Playback starts from the selected chapter or track.

• This function cannot be used on discs on which no chapter numbers are recorded.

• The beginning of a track number cannot be directly found on the Video CD equipped with PBC (playback control). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the Video CD Play Mode” (page 26).

• Depending on the number of digits input, playback may start automatically even if ENT. is not pressed in step 2.

•Press CLR to delete the last digit in the chapter/track number. Press and hold CLR for at least 2 seconds to clear “Chapter” and “Track” numbers.

•Press RETURN to cancel the chapter/track search mode and resume normal playback.

• The track/disc repeat modes cannot be used on video CDs with playback control (PBC). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the Video CD Play Mode” (page 26).

•For some discs it is not possible to switch the repeat mode.

Switching the Audio Tracks

DVDs can have up to 8 different audio tracks. These alternate tracks can be switched during playback.

• This operation is controlled using the remote control unit.

During playback, press AUDIO.

The sound switches between the alternate audio tracks recorded on the disc each time the button is pressed.

• The selected audio track becomes the default setting every time the power is turned on or the disc is replaced. If a disc does not include the language you selected for the default audio track, the disc’s default language is selected instead. Refer to “Setting the language” (page 23).

• Not all discs will allow changing the alternate audio tracks during playback. In these cases, select audio tracks from the DVDs menu.

• There may be a delay before the selected alternate track begins to play.

Quick Search

You can search for chapters (tracks).

Press and hold SEARCH/Q.S. on the main unit

for at least 2 seconds in the DVD/Video CD mode to activate Quick Search mode.

Turn the Rotary encoder on the main unit within

10 seconds to select a desired chapter (track).

The selected track is played back immediately.

• Quick Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds.

• The quick search mode cannot be used on video CDs with playback control (PBC). Set VCD PLAY MODE to turn the PBC function off. Refer to “Setting the Video CD Play MODE” (page 26) .

Chapter/Track/Title Repeat Playback

Use this function to play the disc’s titles, chapters or tracks repeatedly.

During playback, press 4 ( ) on the main unit.

The repeat mode switches each time the button is pressed.

DVD

↓

REPEAT CHAPTER

↓

REPEAT TITLE

↓

REPEAT OFF

• By pressing 4 ( ) for more than 2 seconds, the unit will switch to REPEAT OFF.

VIDEO CD

↓

REPEAT TRACK

↓

REPEAT DISC

↓

REPEAT OFF

* Displayed only in the changer mode.

The chapter is played repeatedly.

The title is played repeatedly.

The mode returns to normal playback. (Factory default)

The track is played repeatedly.

The entire disc is played repeatedly. (Factory default)

Playback does not repeat.

16-EN

Video CDs with multiplex audio

During playback, press AUDIO.

The left and right channels will be output as shown in the figure below, each time the button is pressed.

LR → LL → RR → LR

Switching the Angle (DVD only)

On DVDs in which scenes have been filmed from multiple angles, the angle can be switched during playback.

• This operation is controlled using the remote control unit.

During playback, press ANGLE.

The angle switches between the angles recorded on the disc each time the button is pressed.

• Some time may be required for the angle to change.

• Depending on the disc, the angle may switch in one of two ways.

- Seamless: The angle switches smoothly.

- Non-seamless: When the angle is switched, a still picture is displayed first, after which the angle switches.

Switching the Subtitles (subtitle language) (DVD only)

With multiple subtitle language DVDs, the subtitle language can be switched during playback, or subtitles can be hidden.

• This operation is controlled using the remote control unit.

During playback, press SUBTITLE.

The subtitle switches between the languages recorded on the disc and OFF each time the button is pressed.

• There may be a delay before the selected subtitle appears.

• Not all discs will allow changing the subtitles during playback. In these cases, select subtitles from the DVD's menu.

• The selected subtitle language becomes the default setting every time the power is turned on or the disc is replaced. If a disc does not include that language, the disc’s default language is selected instead. Refer to “Setting the language” (page 23).

•For some discs, the subtitles will be displayed even when this is set to off.

Tips

Switching from the disc menu.

For some discs, the audio language, angle and subtitles can be switched from the disc menu.

1 Press MENU, select the item, then press ENT. 2 Press 8, 9, ; or : to select the language or angle,

then press ENT. (For some discs, they can be selected using the number keys “0” to “9” while the language or the angle menu is displayed.)

Displaying the Disc Status (DVD only)

Use the procedure described below to display the status (title number, chapter number, etc.) of the currently playing DVD on the monitor screen.

• This operation is controlled using the remote control unit.

During playback, press DISP/TOP M.

The playback status is displayed.

The playback status display closes when DISP/TOP M. is pressed again.

Playback disc

Current title

number

Playback status

Repeat setting

(Default setting -

REPEAT OFF)

Current audio language/number

Current subtitle

language/number

Current chapter number

DVD– V IDEONTSC

1181

LAP

T:EPYEAROFF

AUD IO ENG 1 / 4

DOL BY 2 . 1D3 /

SUBT . J

PN 1 / 2

ANGLE

1/3

Current angle number

:23'45"

TV system (NTSC or PAL)

Chapter playback time

Current audio signal output

Displaying the Disc Status (Video CD only)

Use the procedure described below to obtain an on-screen display of the status (track number, etc.) of the currently playing video CD on the monitor screen.

• This operation is controlled using the remote control unit.

During playback, press DISP/TOP M.

The playback status is displayed.

The playback status display closes when DISP/TOP M. is pressed again.

Sound Setting

SOURCE/ POWER

Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat

• If the Rotary encoder is not pressed within 5 seconds after

* When the subwoofer mode is set to OFF, its level cannot be

• Depending on the connected devices, some functions and display

BAND Rotary encoder

CENTER f.

Press Rotary encoder repeatedly to choose the desired mode.

Each press changes the modes as follows:

BASS → TREBLE → SUBWOOFER* → BALANCE → FADER → DEFEAT → VOLUME → BASS

Bass : -7 ~ +10 Treble : -7 ~ +7 Subwoofer : 0 ~ +15 Balance : L15 ~ R15 Fader : R15 ~ F15 Defeat : ON/OFF Volume : 0 ~ 35

selecting the BASS, TREBLE, BALANCE, FADER, DEFEAT or SUBWOOFER mode, the unit automatically returns to normal mode.

adjusted.

Turn the Rotary encoder until the desired sound is obtained in each mode.

By setting Defeat ON, previously adjusted settings of BASS and TREBLE will return to the factory defaults and BBE is turned off.

indications do not work.

Current track

number

Playback status

Repeat setting

(Default setting -

REPEAT DISC)

Playback control

(PBC)

Playback disc

VIDEO–CD NTSC

LAP

EPYEARDIS

PBC

OFF

12 ' 34"

TV system (NTSC or PAL)

Tr ack playback time

• When PBC is set to ON, the current track number and track playback time is not displayed.

17-EN

Setting the Bass Control

You can change the Bass Frequency emphasis to create your own tonal preference.

Setting the Treble Control

You can change the Treble Frequency emphasis to create your own tonal preference.

Press CENTER f. to select the BASS (bass Center frequency) control mode.

BASS → TREBLE → normal mode → BASS

Setting the Bass Center Frequency

Press g or f to select the desired bass center frequency.

60Hz ↔ 80Hz ↔ 100Hz ↔120Hz

Emphasizes the displayed bass frequency ranges.

←→

Setting the Bass Band width (Q-Factor)

Press BAND to select the desired bass band width.

→

1 → 2 → 3 → 4

(Narrow) ←........... → (Wide)

Changes the bass boost band width to wide or narrow. A wide setting will boost a wide range of frequencies above and below the center frequency. A narrower setting will boost only frequencies near the center frequency.

Setting the Bass Level

Turn the Rotary encoder to select the desired bass level (–7~+10).

You can emphasize or weaken the bass frequency.

• If no buttons are pressed within 15 seconds, the bass control setting will be turned off automatically.

• The Bass Level settings will be individually memorized for each source (FM, AM, SAT, CD, etc.) until the setting is changed. The Bass frequency and Bass Band Width settings adjusted for one source are effective for all other sources (FM, AM, SAT, CD etc.).

• Depending on the connected devices, some functions and display indications do not work. However, Bass Level is still adjustable if an audio processor with the Bass function is connected.

• This function is inoperable when DEFEAT is ON.

Press CENTER f. to select the TREBLE (treble Center frequency) control mode.

BASS → TREBLE → normal mode → BASS

Setting the Treble Center Frequency

Press g or f to select the desired treble Center frequency.

→

7.5kHz ↔ 10.0kHz ↔ 12.5kHz ↔ 15.0kHz

Emphasizes the displayed Treble frequency ranges.

←

Setting the Treble Level

Turn the Rotary encoder to select the desired Treble Level (–7~+7).

You can emphasize the treble frequency.

• If no buttons are pressed within 15 seconds, the Treble control setting will be turned off automatically.

• The Treble Level settings will be individually memorized for each source (FM, AM, SAT, CD, etc.) until the setting is changed. The Treble frequency settings adjusted for one source are effective for all other sources (FM, AM, SAT, CD, etc.).

• Depending on the connected devices, some functions and display indications do not work. However, Treble Level is still adjustable if an audio processor with the Treble function is connected.

• This function is inoperable when DEFEAT is ON.

Setting the BBE Mode

BBE makes vocals or instruments sound distinct regardless of the music source. The FM radio, CD, and MP3, will be able to reproduce the music clearly even in cars with a lot of road noise.

Press SOURCE/POWER to select the source to

which you want to apply BBE.

Press and hold the Rotary encoder for at least 2

seconds to activate the level setting mode.

18-EN

Turn the BBE setting on by pressing the Rotary

encoder.

Turn the Rotary encoder to select your preferred

level (BBE 1 to 3) or EFFECT OFF.

Press and hold the Rotary encoder for at least 2

seconds to return to normal mode.

•To cancel BBE mode for all music sources, press the Rotary encoder to turn BBE off.

• BBE mode is automatically canceled if no buttons are pressed within 15 seconds.

• Each music source, such as FM radio, CD, and MP3/WMA can have its own BBE setting.

• This function is inoperable when DEFEAT is set to ON.

• There is no BBE mode for AM radio.

• When an external audio processor is connected, this setting cannot be made.

Other Functions

Rotary encoder-/J

About the indicator display

When displaying Title/Text, the following indicators are lit according to the mode.

Bass Level is usually displayed. When BBE is activated, the display changes according to the BBE setting.

TITLE

Displaying the Title/Text

It is possible to display the CD/Station title if the title has been previously inputted (“Titling Discs/Stations” page 20). Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. It is also possible to display the folder name, the file name, and the tag, etc., while playing MP3/WMA files.

Press TITLE

The display will change every time the button is pressed.

The display in Radio mode:

FREQUENCY → CLOCK → TITLE → FREQUENCY

The display in CD mode:

TRACK NO./ELAPSED TIME → TRACK NO./CLOCK → TEXT (DISC NAME)* TRACK NO./ELAPSED TIME

The display in MP3/WMA mode:

FOLDER NO./FILE NO./ELAPSED TIME → FOLDER NO./FILE NO./CLOCK → FOLDER NAME*

NAME*

→ ALBUM NAME*2 → TRACK NAME*2 → FRAME*

→ FOLDER NO./FILE NO./ELAPSED TIME

*1Displayed during playback of a disc with CD Text.

“NO TEXT” will be displayed when the CD contains no Text data.

*2ID3 tag/WMA tag

If an MP3/WMA file contains ID3 tag/WMA tag information, all the ID3 tag/WMA tag information is displayed (e.g., track name, artist name, and album name). All other tag data is ignored. “NO DATA” will be displayed when an MP3/WMA file contains no ID3 tag/WMA tag information.

*3The recording sampling rate and bit rate of the MP3/WMA file are

displayed.

*4“ROOT” is displayed for a folder that does not have a folder

name.

•You cannot display title or text information for DVD or video CD.

→ TEXT (TRACK NAME)*1 → TITLE →

→ FILE NAME → ARTIST

Indicator/ Mode

∗1

Tag information

∗2

When SAT Radio mode is activated.

CD Mode

Title displayed

—

Text displayed (Disc Name)

Text displayed (Track Name)

MP3/WMA Mode

—

Folder Name displayed

File Name displayed

Artist Name displayed

Album Name displayed

Track Name displayed

∗

TUNER Mode

—

Artist Name

∗

displayed

—

• Title displayed

• Music Title/ Channel Name displayed

∗

About “Title” and “Text”

Title:

With this device, it is possible to input the CD and radio station name (page 20). This inputted name is referred to as a “title.” You cannot input or display titles on MP3/WMA discs.

Text:

Text compatible CDs contain text information such as the disc name and track name. Such text information is referred to as “text.”

• Some characters may not be displayed correctly with this device, depending on the character type.

• When the Scroll Setting (page 21) is set to “SCROLL MANU,” press and hold TITLE for at least 2 seconds to scroll the Text

information only once (TEXT DISPLAY, FOLDER NAME DISPLAY, FILE NAME DISPLAY or TAG DISPLAY mode).

• “NO SUPPORT” is displayed when the desired text information cannot be displayed on this unit.

• If the title was not previously input, “NO TITLE” is displayed.

• The text or tag information may not be correctly displayed, depending on the contents.

19-EN

Titling Discs/Stations

It is possible to title your favorite CD's or radio stations. You cannot input titles for data discs containing MP3/WMAs, or DVD and Video CD discs.

Press TITLE and select the Title Display.

For details, see “Displaying the Title/Text” (page 19).

Press and hold TITLE for at least 2 seconds.

The first character will blink.

Turn the Rotary encoder to select the desired

letter/numeral/symbol available for naming.

Press the Rotary encoder to store the first

character.

The first character will stop blinking and the display will automatically advance to the next character. When that character begins to blink, you may choose the next letter or symbol of your title.

Repeat steps 3 and 4 above to complete the titling.

Pressing the Rotary encoder after entering the 8th character automatically stores the title into memory.

When entering a title of less than 8 characters (for example, 3 character title): After entering 3 characters, the 4th character space will be blinking. Go to step 6 to complete the title.

Press TITLE to record the title.

• If you cancel while entering a title, selected characters are not written.

•You can enter 18 CD titles and 24 station titles on this unit. If you try to store beyond the limit, the display will show “FULL DATA.” At this point, no more titles can be stored. To input a new title, one of the previously inputted titles must first be deleted.

• When you want to erase a title, enter the “ ” symbol into all spaces.

• The operations described in steps 3 to 5 must be made within 10 seconds. The input mode will be cancelled if no action is taken for over 10 seconds.

Displaying Time

Press TITLE repeatedly until the time is displayed.

Each press changes the display. For details, see “Displaying the Title/Text” (page 19).

• Selecting any tuner or CD function while in the clock priority mode will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

• When the power is off but the ignition key is on, press TITLE to display the time.

Setting the Wallpaper

A data file downloaded from the ALPINE Owner’s website is written to a CD-R/CD-RW disc, and automatically uploaded when the disc is inserted into the DVA-9860. The wallpaper file can be saved and displayed as long as a disc is not inserted, or while playing a CD/MP3/WMA audio, or if a DVD disc is stopped.

• If several files are stored in a disc, only the first file will be stored on the unit.

Insert a CD-R/CD-RW disc containing data.

After sensing the disc, the data file is updated.

• Up to 2 files can be stored on this unit. If a third file is downloaded, the first file is overwritten and new one memorized.

•To change the wallpaper, press and hold ENT. on the remote control unit for at least 2 seconds while disc is not inserted, or while PRE-STOP or STOP is set in disc mode.

• Even if the battery power cable is removed, the downloaded data is not cleared.

Erasing Disc Title/Station Title

Press TITLE to select the Title Display. Then,

press again and hold for at least 2 seconds.

Press and hold -/J for at least 2 seconds.

The title in the display will blink.

Press g or f repeatedly until the title you

want to erase is displayed.

Press and hold -/J for at least 2 seconds to erase

the title displayed.

Press TITLE to cancel the title erasing mode.

•You cannot erase CD-TEXT.

• “NO DATA” is displayed for 2 seconds if the title is not input in step 2, or if all titles are erased in step 4.

20-EN

SETUP

You can flexibly customize the unit to suit your own preferences and usage. From the SETUP menu, choose from Sound Customizing, Visual Customizing, etc., to make your desired setting.

SOURCE/ POWER

*1Displayed only when SUBW is ON. *2Displayed only when AUX IN is ON. *3Refer to “SAT Radio” (page 27).

BAND

f g

A typical SETUP procedure is shown in steps 1 to 4 as follows. See below for further information about each SETUP menu.

Press and hold F/SETUP for at least 2 seconds.

SETUP mode is activated.

Press g or f to select the desired SETUP menu.

(e.g. Select SUBW)

DIMMER ↔ SUBW (SUBW SYS)*1 ↔ CDDA/CDDA/MP3 ↔ SCROLL TYPE ↔ SCROLL ↔ MUTE ↔ AUX IN ↔ (AUXILIARY/TV/VCR/GAME)* OPT OUT ↔ H510/OTHER ↔ DEMO ↔ DIMMER

Press BAND to change the setting.

(e.g. Select SUBW ON or SUBW OFF.)

Pressing F/SETUP will return to normal mode.

F/SETUP

↔ POWER IC ↔ XM ADF*3 ↔

Setting the Subwoofer System

SUBW SYS1 (Initial setting) / SUBW SYS2

Select either SYS1 or SYS2 for the desired subwoofer effect.

SUBW SYS1: Subwoofer level changes according the main

volume setting.

SUBW SYS2: Subwoofer level change is different from the

main volume setting. For example, even at low volume settings, the subwoofer is still audible.

Visual Customizing

Dimmer Control

DIMMER AUTO (Initial setting) / DIMMER MANU

Set the DIMMER control to AUTO to decrease the illumination brightness of the unit with the head lights of the vehicle ON. This mode is useful if you feel the unit's button lighting is too bright at night.

Scroll Type Setting

TYPE1 (Initial setting) / TYPE2

Choose from two scrolling methods. Select the type you prefer.

Scroll Setting

SCROLL AUTO / SCROLL MANU (Initial setting)

This CD player can scroll the disc and track names recorded on CDTEXT discs, as well as the text information of MP3/WMA files, folder names, and tags.

SCROLL AUTO : The CD text information, the text information

of folder and file names, and the tags are scrolled automatically.

SCROLL MANU : The display is scrolled when a disc is

loaded or when a track is changed, etc.

• The unit scrolls CD text names, folder names, file names or tag display. The disc titles input manually (page 20) cannot be scrolled.

Demonstration

DEMO ON / DEMO OFF (Initial setting)

This unit has a Demonstration feature for the display and sound.

•To quit Demo mode, set to DEMO OFF.

Sound Customizing

Subwoofer On and Off

SUBW ON (Initial setting) / SUBW OFF

When the subwoofer is on, perform the steps below to adjust the subwoofer output level.

Press the Rotary encoder repeatedly to select the SUBWOOFER mode.

BASS → TREBLE → SUBWOOFER → BALANCE → FADER → DEFEAT → VOLUME → BASS

21-EN

External Device

Connecting an MP3 changer

CDDA (Initial setting) / CDDA/MP3

Perform this setting when connecting MP3 changer. MP3 changer can playback CDs containing both CD and MP3 data. However, in some situations (some enhanced CDs), playback may be difficult. For these special cases, you can select playback of CD data only. When a disc contains both CD or the MP3 data, playback starts from the CD data portion of the disc.

CDDA : Only CD data can be played back. CDDA/MP3 : Both CD data and MP3 file tracks can be

played back.

• Change discs after performing this setting.

Turning Mute Mode On/Off

MUTE ON (Initial setting) / MUTE OFF

If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device.

Setting the AUX Mode (V-Link)

AUX IN ON / AUX IN OFF (Initial setting)

You can input TV/video sound by connecting an optional Ai-NET/ RCA Interface cable (KCA-121B) or Versatile Link Terminal (KCA410C) to this component. You can change the AUX name display when AUX ON is set. Select the AUX name by pressing g or f. Then press BAND. If the KCA-410C is connected, it is possible to select two AUX names.

•Via KCA-410C, up to 2 external devices with RCA output can be connected. In this case, press SOURCE/POWER to select AUX mode and then press BAND to select your desired device.

Connecting to an External Amplifier

POWER IC ON (Initial setting) / POWER IC OFF

When an external amplifier is connected, sound quality can be improved by stopping the power supply of the built-in amplifier.

POWER IC OFF : Use this mode when the front and rear pre-

POWER IC ON : The speakers are driven by the built-in amplifier.

amplifier of the unit are used to drive an external amplifier connected to the speakers. In this setting, the head unit’s internal amplifier has no output to drive speakers.

Front

Amplifier

left

Front

right

Rear

left

Rear right

Speakers

SPEAKER RIGHT FRONT

SPEAKER RIGHT REAR

SPEAKER LEFT REAR

Front right

Rear right

Rear left

SPEAKER LEFT FRONT

Front left

• No sound is produced by the system when the power output is set to OFF.

Setting the Digital Output

OPT OUT ON / OPT OUT OFF (Initial setting)

To connect to a digitally to an audio processor, the optical digital output must be turned ON.

Setting the Digital Audio Processor

AP SELECT H510 / OTHER (Initial setting)

According to the type of Ai-NET compatible digital audio processor you are connecting, connect and change the setting as follows:

• Make sure OPT OUT is ON in “Setting the Digital Output” (this page) before switching this setting.

H510 : When connecting the PXA-H510, select the H510,

OTHER : When connecting other than the PXA-H510, select

using the optical digital input connection to the DVD.

OTHER, and connect the optical digital input terminal to the head unit.

• After input selection is completed, turn the ignition off and back on again. Setting of the optical digital input switch is completed.

22-EN

DVD Setup

;

RETURN

CLR

SETUP

DVD Setup Operation

•DVD Setup Operation is controlled using the remote control unit.

The following 4 steps are common to each of the DVD settings. Refer to the specific section for details.

Press SETUP before inserting a disc, or when in

stop mode.

The setup menu appears on the monitor.

SETUP

LANGUAGES TV SCREEN 16:9(WIDE) COUNTRY CODEUS–8583 P ARENT AL OFF D IGITAL OUT CUSTOM S ETU P

Press 8 or 9 to select your desired setting item,

then press ENT.

Further items will be displayed.

ENT.

number keys (0 to 9)

Setting the language

The audio language, subtitle language and menu language can be set according to your preferences. Once set, this becomes the default language. This function is convenient when you always want to listen in English. (Not all discs allow changing the default language. If not, the factory default language applies.)

Setting item: Language Further setting items: AUDIO / SUBTITLE / MENU

AUDIO:

Set the audio track language.

SUBTITLE:

Set the language of the subtitles displayed on the screen.

MENU:

Set the language used for the menus (title menu, etc.).

Setting contents:

∗1

AUTO

/ ENGLISH / JAPANESE / GERMAN / SPANISH / FRENCH OTHER

Press 8,9, ; or : to select your desired language, then press ENT.

/ ITALIAN / PORTUGUESE / RUSSIAN

∗2

∗1AUTO:

The disc is played with the audio language or subtitle language set as the priority language for the disc.

∗2OTHER:

Set this to play the disc with a language other than one of the languages displayed. Press ENT. then use the number keys “0” to “9” to input the 4-digit language code. Then press ENT. again. For the language codes, refer to “List of Language Codes” (pages 47).

SETUP

LANGUAGES

AUD I O AUTO

UBTITLE

AUTOS

AUTO

/ CHINESE /

• If you change the language setting when the disc is inside, the setting is decided with one of the following operations.

-Turn OFF the main unit

-Switch the source on the head unit.

•To temporarily change the language of the current disc, either do so from the DVD menu or using the operation described in the section “Switching the audio tracks” (page 16).

• If the disc does not include the selected language, the disc’s default language is set.

• Languages set upon shipment from the factory: Audio language : AUTO Subtitle language : AUTO Menu language : AUTO

•Press RETURN to return to the previous display.

Setting items:

LANGUAGES / TV SCREEN / COUNTRY CODE / PARENTAL / DIGITAL OUT / CUSTOM SETUP

*1 Refer to “Custom Setup” on page 26.

Press 8 , 9, ; or : to change the setting, then

press ENT.

Press RETURN repeatedly until the SETUP mode is

deactivated.

• When settings are changed, old settings are overwritten. Make a note of the current settings before making changes. If the vehicle’s battery is disconnected, the settings will be cleared and will return to the factory settings.

23-EN

Setting the TV Screen

Use the procedure described below to set the output screen according to the type of TV monitor being used.

Setting item: TV SCREEN Setting contents: 16:9 (WIDE) / 4:3 (LB) / 4:3 (PS)

•For some discs, the picture may not be set to the selected screen size. (For details, refer to the explanation on the disc’s jacket.)

•Press RETURN to return to the previous screen.

16:9 (WIDE)

Select this when connected to a wide screen TV. This is selected upon shipment from the factory.

4:3 LB (LETTER BOX)

Select this when connected to a conventional 4:3 size (normal TV aspect ratio) monitor. There may be black bands visible at the top and bottom of the screen (when playing a 16 : 9 size movie). The width of these stripes will depend upon the original aspect ratio of the theatre release of the movie.

4:3 PS (PAN- SCAN)

Select this when connected to a conventional 4:3 size monitor. The picture will fill the entire TV screen. However, due to the mismatch in aspect ratio, parts of the movie at the extreme left and right sides will not be visible (when playing a 16 : 9 size movie).

Setting the Country Code

Set the country code of which you want to set the parental level (Parental lock).

Setting item: COUNTRY CODE Setting contents: CODE

1Press 8 or 9 to select “COUNTRY CODE,” then press

ENT.

“COUNTRY CODE” will be reset.

COUNTRY CODE

- - - -

2 Use the number keys “0” to “9” to input the 4-digit

country code, then press ENT. Example: US “8583” is input

COUNTRY CODE 8 5 8 3

• If the input code is wrong, the unit returns to the country code input display, after displaying “CODE ERROR” for 5 seconds.

•For the country codes, refer to “List of Country Codes” (Pages

48).

• Can be erased one digit at a time each time CLR is pressed. Press CLR for at least 2 seconds to delete all digits.

•Press RETURN to return to the previous screen.

1Press 8 or 9 to select “PARENTAL,” then press ENT.

The password input mode is activated.

2 Use the number keys “0” to “9” to input the 4-digit

password, then press ENT.

PASSWORD ∗ ∗ ∗ ∗

Input numbers are displayed as “∗.“ The default password is 1111 upon shipment from the factory. The restriction level (PARENTAL LEVEL) input display appears.

• Can be erased one digit at a time each time CLR is pressed. Press CLR for at least 2 seconds to delete all digits.

•Press RETURN to return to the previous screen.

• If the password is wrong, the unit returns to the password input display, after displaying “PASSWORD ERROR” for 5 seconds.

3Press 8 , 9 ; or : to select the restriction level (1 to 8),

then press ENT.

SETUP

PARENTAL

OFF

87654321

CHANGE PASSWORD

Select “OFF” to cancel the parental lock or if you do not want to set a rating level. The lower the number, the higher the rating level.

•Press RETURN to return to the previous display.

4Press RETURN repeatedly until the SETUP mode is

deactivated.

• If you want to change the password, select “CHANGE PASSWORD,” then input the new password (4 digits).

• Write down the password on a piece of paper and store the piece of paper somewhere in case you forget it.

• On unrated DVDs, playback will not be restricted even if the rating level is set.

• Once set, this rating level remains in memory until changed. To enable the play of discs of higher rating levels or to cancel the parental lock, the setting must be changed.

• Not all DVDs provide a Parental Lock feature. If you are unsure about a DVD, play it first to confirm. Do not leave DVDs accessible to young children for whom you deem them inappropriate.

Tips

• Changing the rating level temporarily Some discs may request that you change the rating level set in the default settings during playback. In this case, the message appears on the monitor screen “PARENTAL LEVEL CHANGE OK?”

• To change parental level and play, press ENT. The password input mode is displayed. Input the 4-digit password you set in “Setting the Rating Level (Parental Lock)”, then press ENT.

• To play without changing the parental level, press L. (When L is pressed, playback will be at the parental level set with “Setting the Rating Level (Parental Lock).”)

Setting the Rating Level (Parental Lock)

Use this function to restrict the viewing of movies to children of appropriate age levels only.

Setting item: PARENTAL Setting contents: Password

24-EN

Setting the Digital Output

Use the following procedure to set the digital audio signal output from the DVA-9860.

Setting item: DIGITAL OUT Further setting items: DOLBY D / DTS / MPEG

Press 8 or 9 to select your desired setting item, then press ENT.

DOLBY D : Sets Dolby Digital output.

The initial setting is BITSTREAM.

DTS : Sets DTS output.

The initial setting is BITSTREAM.

MPEG : Sets MPEG audio output by converting

48kHz/16bit linear PCM (DVD) or 44.1 kHz (Video CD, CD). The initial setting is LPCM.

Setting contents: BITSTREAM / LPCM

Press 8 or 9 to select BITSTREAM or LPCM, then press ENT.

BITSTREAM :The digital output is switched automatically

according to the type of audio signal being

played. Be sure to select “BITSTREAM” when you want to connect a digital audio processor and play Dolby Digital audio. “BITSTREAM” is selected upon shipment from the factory.

LPCM : The audio signal recorded on the disc is

converted to 48 kHz/16 bit (for DVDs) or 44.1 kHz (for video CDs and CDs) linear PCM audio signals for output.

•Press RETURN to return to the previous screen.

Audio output/Optical digital audio output

Audio recording

Disc

DVD

Video CD CD

MP3

WMA

format

DTS

Dolby Digital

Linear

PCM

MPEG2

MPEG1

Linear PCM

DTS

MPEG-1 Audio Layer3 Bit Rate: 32kbps320kbps

Windows

Media Audio Bit Rate: 32kbps320kbps

48kHz/ 16bit 48kHz/ 20bit 48kHz/ 24bit 96kHz/ 16bit 96kHz/ 20bit 96kHz/ 24bit

32kHz/ 16bit

44.1kHz/ 16bit

48kHz/ 16bit

32kHz/ 16bit

44.1kHz/ 16bit

48kHz/ 16bit

Digital output

setting

AUTO

LPCM

AUTO LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM AUTO

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

AUTO or

LPCM

Optical digital

audio output

(when a digital

audio processor

is connected)

DTS Elementary

LPCM Encode 2ch Down mix

(44.1kHz or

48kHz/16bit)

Dolby Digital

LPCM

(48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(44.1kHz or

48kHz/16bit)

LPCM

(44.1kHz)

LPCM

(44.1kHz)

DTS Elementary

LPCM Encode 2ch Down mix

(44.1kHz/16bit)

LPCM

Encode 2ch

(32kHz/16bit)

LPCM Encode 2ch (44.1kHz/16bit)

LPCM Encode 2ch

(48kHz/16bit)

LPCM Encode 2ch

(32kHz/16bit)

LPCM Encode 2ch (44.1kHz/16bit)

LPCM Encode 2ch

(48kHz/16bit)

Analog

audio

output

(Ai-NET,

RCA output)

Stream

OK OK

Stream

25-EN

Custom Setup

ENT.

RETURN

SETUP

Custom Setup Operation

• Custom Setup Operation is controlled using the remote control unit.

The following 5 steps are common to each of the Custom Setup settings. Refer to the specific section for details.

Press RETURN repeatedly until the SETUP mode is

deactivated.

Setting the CD Play Mode

The unit can be set to play only the audio data or only the MP3/WMA files on discs containing both audio data and MP3/WMA data.

Setting item: CD PLAY MODE Setting contents: CD-DA/COMPRESSED AUDIO

CD-DA: Only CD data can be played

COMPRESSED AUDIO: Only MP3/WMA data can be

The initial setting at the factory is CD-DA.

• If a disc has already been inserted, perform the setting after you remove the disc.

back.

played back.

Setting the Video CD Play Mode

When playing a Playback Control (PBC) enabled video CD, you can choose to set PBC ON or OFF.

Setting item: VCD PLAY MODE Setting contents: PBC ON/PBC OFF

PBC ON: The PBC menu is displayed. PBC OFF: The PBC menu is not displayed.

The initial setting at the factory is PBC ON.

Press SETUP before inserting a disc, or when in

stop mode.

The setup menu appears on the monitor.

SETUP

LANGUAGES TV SCREEN 16:9(WIDE) COUNTRY CODEUS–8583 P ARENT AL OFF D IGITAL OUT CUSTOM S ETU P

Press 8 or 9 to select “CUSTOM SETUP,” then

press ENT.

Press 8 or 9 to select your desired setting item,

then press ENT.

CUSTOM SETUP items:

CD PLAY MODE / VCD PLAY MODE / PAUSE MODE / DOWNMIX MODE

SETUP

CUSTOM TU PSE

CD PLAY MO EDCOMPRE SS

VCD PLAY MO EDPBCON

PA SEUAUTO

MO ED

DO NMWIXMOEDSURROU DN

Setting the Pause Mode

In pause mode, screen blurring may occur. To overcome this, set AUTO/FIELD/FRAME accordingly.

Setting item: PAUSE MODE Setting contents: AUTO/FIELD/FRAME

If you experience blurring during pause mode, set to FIELD or FRAME. The initial setting at the factory is AUTO.

Setting the Downmix Mode

This function applies to Dolby Digital, DTS stream sound.

Setting item: DOWNMIX MODE Setting contents: STEREO/SURROUND ENCODED

STEREO: Stereo Downmix SURROUND ENCODED: Surround compatible Downmix

The initial setting at the factory is SURROUND ENCODED.

Press 8 or 9 to change the setting, then press

ENT.

26-EN

• When using the remote control unit, a SAT Radio Channel can be

SAT Radio Receiver (Optional)

SOURCE/ POWER

BAND

SEARCH/

Q.S.

directly called up with the numeric keypad of the remote control.

1 While in XM or SIRIUS Radio mode, enter the Channel

number you want to call up with the numeric keypad on the remote control.

2Press ENTER on the remote control within 5 seconds to

receive the Channel. If the channel number is 3 digits, the Channel is automatically received after the channel number is input.

Checking the SAT Radio ID Number

A unique Radio ID number is required to subscribe to SAT Radio

f g F/SETUP

Rotary encoder

SAT Receiver: XM or SIRIUS Receiver

When an optional XM or SIRIUS Receiver Box is connected via the Ai-NET bus, the following operations may be performed. However, the XM Receiver and SIRIUS Receiver cannot be connected at the same time.

Preset buttons (1 through 6)

TITLE

Receiving Channels with the SAT Radio Receiver (Optional)

About SAT Radio

Satellite Radio* is the next generation of audio entertainment, with over 100 digital audio channels. For a small monthly fee, subscribers can hear crystal-clear music, sports, news and talk, coast-to-coast via satellite. For more information, visit XM’s website at www.xmradio.com., or SIRIUS' website at www.sirius.com.

To receive SAT Radio, the separately sold XMDirect™ or SIRIUS Satellite Radio Tuner and an appropriate Ai-NET Interface Adapter will be required. For details, consult you nearest ALPINE dealer.

* XM and its corresponding logos are trademarks of XM Satellite

Radio Inc.

* SIRIUS and its corresponding logos are trademarks of SIRIUS

Satellite Radio Inc.

• The SAT Receiver controls on the DVA-9860 are operative only when a SAT Receiver is connected.

Press SOURCE/POWER to select XM or SIRIUS

mode.

Press BAND to select the desired band.

Each press changes the band:

XM mode: XM1 → XM2 → XM3 → XM1

SIRIUS mode: SR1 → SR2 → SR3 → SR1

Press 8 or 9 to select desired category.

Press g or f to select the desired channel.

Holding down g or f will change channels continuously.

programming. Each third party XM or SIRIUS radio comes with this number.

This number is an 8 character (for XM Radio) or 12 character (for SIRIUS Radio) alphanumeric number. It is printed on a label found on the SAT Receiver. It can also be displayed on the screen of the DVA-9860 in the following way.

While receiving a SAT Radio band, press g or

f to select channel “0.”

The unit alternately displays “RADIO ID” for 2 seconds, then the ID number for 10 seconds. While displaying "RADIO ID" as shown above, Demonstration (page 21) become nonfunctional.

To cancel the ID number display, change the

channel.

•You cannot use “O,” “S,”“ I,” or “F” for the ID Number (XM radio Receiver only).

•You can check the ID number printed on a label on your third party, SAT Radio Receiver package.

Storing Channel Presets

Press BAND to select the desired band you want

to store.

After tuning in the desired channel, press and hold,

for at least 2 seconds, any one of the preset buttons (1 through 6) into which you wish to

store the channel.

The selected station is stored.

Repeat the procedure to store up to 5 other

channels onto the same band.

•To use this procedure for other bands, simply select the band desired and repeat the procedure.

•A total of 18 channels can be stored in the preset memory (6 channels for each band; XM1, XM2 and XM3 or SR1, SR2 and SR3).

• If you store a channel in a preset memory which already has a station, the current channel will be cleared and replaced with the new one.

27-EN

Receiving Stored Channels

Press BAND to select the desired band.

Press the channel preset button that has your

desired satellite channel in memory.

Channel/Category Search Function

You can search for programs by Channel No. or Category.

Press SEARCH/Q.S. in the XM or SIRIUS mode

to select Channel Search mode or Category Search mode.

Channel Search mode:

Turn the Rotary encoder to select the desired

Channel No.* within 10 seconds.

* The Channel No. is selected within the selected Category.

Press Rotary encoder to receive the selected

Channel No.

• Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds in Channel Search mode.

• While in Channel Search mode, press 8 or 9 to select another Category.

• While in Channel Search mode, press SEARCH/Q.S. to switch to the Category Search mode.

Category Search mode:

Turn the Rotary encoder to select the desired

Category within 10 seconds.

Press Rotary encoder to receive the selected

Category.

• Search mode is canceled by pressing and holding SEARCH/Q.S. for at least 2 seconds in Category Search mode.

• While in Category Search mode, press SEARCH/Q.S. to switch to Channel Search mode.

Quick Search Function

You can search for all Channels.

Press and hold SEARCH/Q.S. for at least 2

seconds in XM or SIRIUS mode to activate Quick Search mode.

Turn the Rotary encoder to select the desired

Channel within 10 seconds.

The selected Channel is received.

Changing the Display

Text information, such as the channel name, artist name/feature, and song/program title, is available with each XM or SIRIUS channel. The unit can display this text information as explained below.

In XM or SIRIUS mode, press TITLE .

Each time you press this button, the display changes as shown below.

Channel Number → Channel Name → Song Title → Artist Name → Auxiliary Data Field* Channel Number

* XM mode only: When ADF is turned OFF, this information is not

displayed (see “Setting the Auxiliary Data Field Display” on this page).

• When the “Scroll Setting” (page 21) is set to “SCROLL AUTO,” the display scrolls continuously. When the Scroll Setting is set to “SCROLL MANU,” the display scrolls only once after any function is performed (PRESET, BAND, SEARCH, etc.). Press and hold TITLE for more than 2 seconds to scroll the display manually.

• “Channel Number” and “Clock” displays do not scroll.

• Depending on the model, the display may differ from the one shown above.

→ CLOCK →

Setting the Auxiliary Data Field Display

The XM Auxiliary Data Field (ADF) display can be switched on or off. There is no ADF function for the SIRIUS receiver.

28-EN

Press and hold F/SETUP for at least 2 seconds to

select the SETUP mode.

Select “XM ADF” by pressing g or f.

Select ON/OFF by pressing BAND.

When setting to ON, Auxiliary Data Field is displayed by pressing TITLE . (Refer to the “Changing the Display” section on page 28)

Pressing F/SETUP will return to normal mode.

External Audio Processor (Optional)

Rotary encoder

BAND

Adjustment Procedure for Dolby Surround

Make the adjustments described below in order to reproduce Dolby Digital and DTS sound with greater accuracy.

Adjustment procedure

Speaker Setup (page 34)

(Turning the speakers to be used on and off and setting their response)

CENTER f.

f g

When an external audio processor is connected to this unit, you can operate it from this unit. Some audio processors may not be operated. When PXA-H510 or PXA-H900 is connected, some of the operations may not be performed from this unit. In this case, operate them in the connected product. Explanations below is the case when PXA-H700 or PXA-H701 is connected for example. Refer also to the operating instructions of the connected audio processor.

• The adjustments or settings performed on the connected audio processor cannot be operated properly from this unit.

• The setting “Setting the Speakers”, “Setting Bass Sound Control”, and “Graphic Equalizer Adjustments” are not available if the MRA-D550 is connected. Also, the setting content differs between the PXA-H700 and PXA-H701.

Preset buttons (1 through 6)

Adjusting the speaker levels (page 35)

(Adjusting the signal output level to the various speakers)

Mixing bass sound to the rear channel (page

35)

(Achieving smooth sound in the rear seat by mixing the front audio signals with the rear speaker signals)

Adjusting the acoustic image (page 35)

(Adjusting the acoustic image to achieve a sound as

if the centre speaker were directly in front of the listener)

Achieving powerful high volume sound (page

36)

(Achieving energetic sound with even greater power, like the sound in a movie theatre)

Adjusting the DVD Level (page 36)

(Adjust the volume (signal level) in the Dolby Digital, Pro Logic II, DTS and PCM modes.)

Storing settings in the Memory (page 37)

(Storing all the settings and adjustments made on the

DVA-9860 (not only the above settings/adjusts) in the memory)

In case of combining the Automatic adjustments etc.

We recommend to make the Automatic adjustments before the Dolby Surround adjustments.
