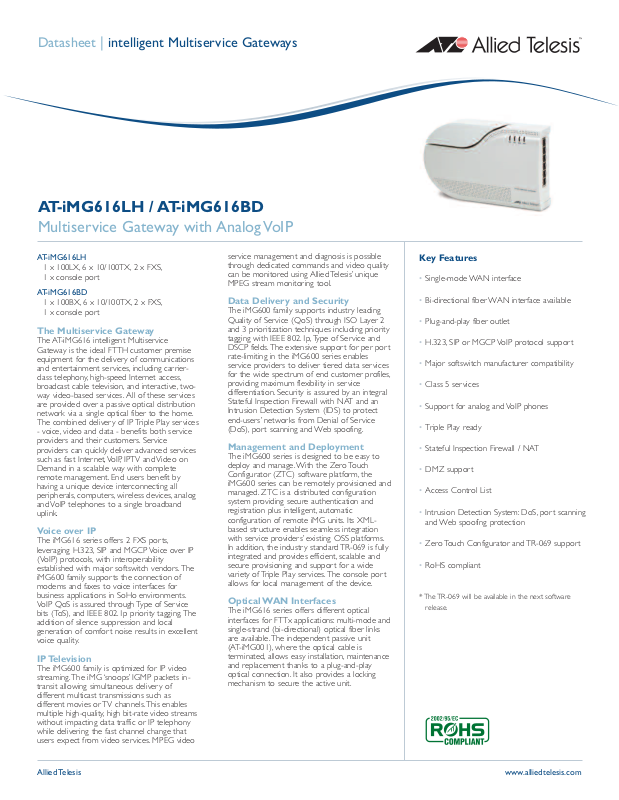

Datasheet | intelligent Multiservice Gateways
AT-iMG616LH / AT-iMG616BD
Multiservice Gateway with Analog VoIP
vice management and diagnosis is possible
T-iMG616LH
A
1 x 100LX, 6 x 10/100TX, 2 x FXS,
1 x console port
AT-iMG616BD
1 x 100BX, 6 x 10/100TX,
1 x console por t
2 x FXS,
The Multiservice Gateway
The AT-iMG616 intelligent Multiservice
Gateway is the ideal FTTH customer premise
equipment for the delivery of communications
and entertainment services, including carrierclass telephony, high-speed Internet access,
broadcast cable television, and interactive, twoway video-based services. All of these services
are provided over a passive optical distribution
network via a single optical fiber to the home.
The combined delivery of IP Triple Play services
- voice, video and data - benefits both ser vice
providers and their customers. Service
providers can quickly deliver advanced services
such as fast Internet,VoIP, IPTV and Video on
Demand in a scalable way with complete
remote management. End users benefit by
having a unique device interconnecting all
peripherals, computers, wireless devices, analog
and VoIP telephones to a single broadband
uplink.
Voice over IP
The iMG616 series offers 2 FXS por ts,
leveraging H.323, SIP and MGCP Voice over IP
(VoIP) protocols, with interoperability
established with major softswitch vendors.The
iMG600 family supports the connection of
modems and faxes to voice interfaces for
business applications in SoHo environments.
VoIP QoS is assured through Type of Service
bits (ToS), and IEEE 802.1p priority tagging.The
addition of silence suppression and local
generation of comfort noise results in excellent
voice quality.
IP Television
The iMG600 family is optimized for IP video
streaming.The iMG ‘snoops’ IGMP packets intransit allowing simultaneous delivery of
different multicast transmissions such as
different movies or TV channels.This enables
multiple high-quality, high bit-rate video streams
without impacting data traffic or IP telephony
while delivering the fast channel change that
users expect from video services. MPEG video
ser
through dedicated commands and video quality
can be monitored using
MPEG stream monitor
Data Delivery and Security
The iMG600 family supports industr y leading
Quality of Service (QoS) through ISO La
ioritization techniques including priority
and 3 pr
tagging with IEEE 802.1p,Type of Service and
DSCP fields.The extensive suppor t for per port
rate-limiting in the iMG600 ser
service providers to deliver tiered data services
for the wide spectrum of end customer profiles,
providing maximum flexibility in service
differentiation.
Stateful Inspection Firewall with NAT and an
Intrusion Detection System (IDS) to protect
end-users’ networks from Denial of Service
(DoS), port scanning and Web spoofing.
Security is assured by an integral
Management and Deployment
The iMG600 series is designed to be easy to
deploy and manage. With the Zero Touch
Configurator (ZTC) software platform, the
iMG600 series can be remotely provisioned and
managed. ZTC is a distributed configuration
system providing secure authentication and
registration plus intelligent, automatic
configuration of remote iMG units. Its XMLbased structure enables seamless integration
with service providers’ existing OSS platforms.
In addition, the industry standard TR-069 is fully
integrated and provides efficient, scalable and
secure provisioning and support for a wide
variety of Triple Play services.The console port
allows for local management of the device.
Optical WAN Interfaces
The iMG616 series offers different optical
interfaces f
single-str
are a
(A
ter
and replacement thanks to a plug-and-pla
optical connection.
mechanism to secure the activ
or FTTx applications:
and (bi-directional) optical f
The independent passiv
.
le
vailab
-iMG001),
T
minated,
where the optical cab
ws easy installation,
allo
Allied Telesis’ unique
ing tool.
ies enables
It also pro
vides a locking
e unit.
yer 2
ulti-mode and
m
iber links
e unit
le is
maintenance
y
Key Features
• Single-mode WAN interface
• Bi-directional fiber WAN interface available
• Plug-and-play fiber outlet
• H.323, SIP or MGCP VoIP protocol support
• Major softswitch manufacturer compatibility
• Class 5 services
• Support for analog and VoIP phones
• Triple Play ready
• Stateful Inspection Firewall / NAT
• DMZ support
• Access Control List
• Intrusion Detection System: DoS, port scanning
and Web spoofing protection
• Zero Touch Configurator and TR-069 support
• RoHS compliant
le in the next software
TR-069 will be a
The
*
release.
vailab
Allied Telesis www.alliedtelesis.com
AT-iMG616LH / BD | Multiservice Gateway with Analog VoIP
Specifications
Hardware
6 x 10/100TX (RJ45)
2 x VoIP FXS ports (RJ-11)
1 x console port
1 x 100LX single-mode (SC) (AT-iMG616LH)
1 x 100BX single-strand S.M. (simplex-SC) (AT-iMG616BD)
Optical Interfaces
IEEE 802.3z 100LX single-mode (SC): 1310 nm
Max sensitivity -32 dBm
Max input power -3 dBm
Max output power -5 dBm
IEEE 802.3ah 100BX-U single-strand single-mode
(simplex SC): TX 1310 nm ; RX 1550 nm
Max sensitivity -32 dBm
Max input power -3 dBm
Max output power -5 dBm
Ethernet
Layer 2 wirespeed packet switching
Tag based IEEE 802.1Q VLANs (max 512)
IEEE 802.1Q tag insertion and stripping
Port mirroring of ingress/egress traffic
DHCP client, server and relay
4K MAC address FDB
WAN Protocols
PPPoE
Global IP address pool
DNS proxy
Static and dynamic IP address assignment
Routing and Multicast
PPP and IP routing
RIPv1 and v2
IGMPv2
IGMP snooping
IGMP proxy
Security
NAT
Stateful Inspection Firewall
Dynamic port opening
Intrusion detection and blocking system
Access Control List
IPSec/VPN passthrough
PAP/CHAP authentication
QoS
IEEE 802.1p prioritization
Programmable ingress/egress rate limiting
4 QoS queues per port
DSCP/ToS
VoIP Protocols
H.323 3.0
SIP 2.0
MGCP/NCS 1.0
VoIP Features
G.711 a-law and µ-law 64kbps
G.729 8kbps
G.726 16/24/32/40kbps
G.168 LEC 8-32 msec
T.38 fax relay
1
RTP voice packet encapsulation
Automatic fax/modem detection
Voice Activity Detection (VAD)
Comfort Noise Generation (CNG)
Error mitigation/bad frame Interpolation
Adaptive jitter buffer
5 REN
Caller ID
Call transfer
Call forwarding1(unconditional, on busy, on no answer)
Call waiting
Call hold
Message waiting
3-way call (local RTP MUX)
1
1
1
1
1
DTMF relay
RFC 2833
1
Protocol dependant
Management
AlliedView NMS
Zero Touch Configurator
TR-069
Telnet
Remote software upgrade
Web GUI
CLI
SNMPv1, v2 and v3
* The TR-069 will be available in the next software
release.
Status LEDs
Power
System
WAN Link/Activity
VoIP Use/Activity
LAN
y
Memor
RAM:
Flash:
ower Characteristics
P
nal power supply
Exter
Input:
Output:
yp. power consumption: 8.2W
T
Link/Activity
16 MB
4 MB
100-240V AC, 50-60 Hz
12vDC, 1.5A
Environmental Specifications
Operating temperature 0ºC to 40ºC
Max operating humidity 80% RH (non-condensing)
Storage temperature -20ºC to 70ºC
Max storage humidity 95% RH (non-condensing)
Physical Characteristics
Dimensions (H x D x W) 4.5cm x 15cm x 24cm
Weight 400 gr
Approvals and Certifications
CE and UL marking
Safety EN 60950
CSA 950/US
UL 1950
FCC Part 68
Emission FCC Part 15 Class B
EN55022 Class B
Immunity EN55024
dering Information
Or
AT-iMG616LH-xx (990-001009-xx)
1 x 100LX, 6 x 10/100TX, 2 x FXS,
1 x console port
AT-iMG616BD-xx (990-001004-xx)
1 x 100BX, 6 x 10/100TX,
2 x FXS,
1 x console port
Where xx = 10 for U.S. power cord
30 for U.K. power cord
50 for European power cord
Options
AT-iMG001 (990-001044-00)
Fiber outlet with locking mechanism (10 pieces)
T-iMG006G-xx (990-002154-xx )
A
y backup
Batter
AT-RG009 (990-00530-00)
Battery backup cable
AT-RGCONSOLECABLE (990-011748-00)
Console cable
