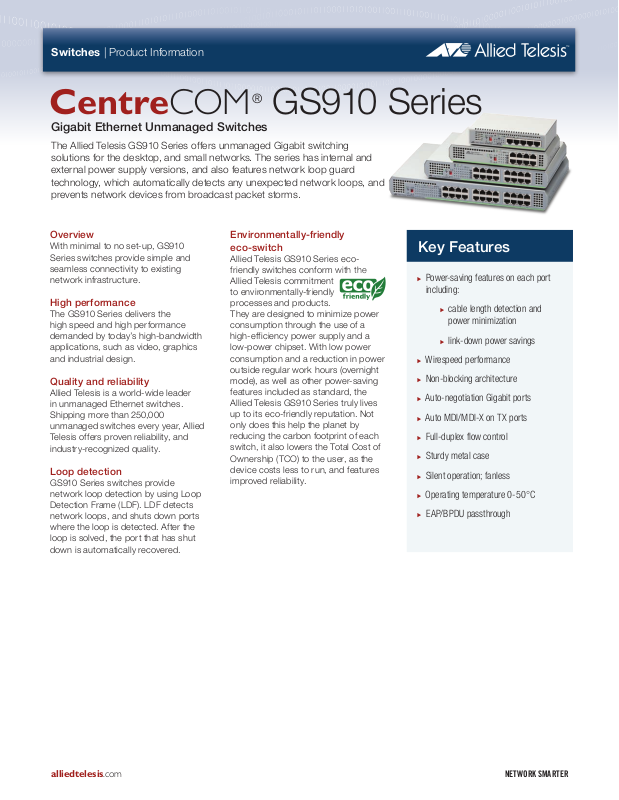

Allied Telesis AT-GS910-5E Product Information
Switches | Product Information
®
CentreCOM
Gigabit Ethernet Unmanaged Switches
The Allied Telesis GS910 Series offers unmanaged Gigabit switching
solutions for the desktop, and small networks. The series has internal and
external power supply versions, and also features network loop guard
technology, which automatically detects any unexpected network loops, and
prevents network devices from broadcast packet storms.
GS910 Series
Overview
With minimal to no set-up, GS910
Series switches provide simple and
seamless connectivity to existing
network infrastructure.
High performance
The GS910 Series delivers the
high speed and high performance
demanded by today’s high-bandwidth
applications, such as video, graphics
and industrial design.
Quality and reliability
Allied Telesis is a world-wide leader
in unmanaged Ethernet switches.
Shipping more than 250,000
unmanaged switches every year, Allied
Telesis offers proven reliability, and
industry-recognized quality.
Loop detection
GS910 Series switches provide
network loop detection by using Loop
Detection Frame (LDF). LDF detects
network loops, and shuts down ports
where the loop is detected. After the
loop is solved, the port that has shut
down is automatically recovered.
Environmentally-friendly
eco-switch
Allied Telesis GS910 Series ecofriendly switches conform with the
Allied Telesis commitment
to environmentally-friendly
processes and products.
They are designed to minimize power
consumption through the use of a
high-efficiency power supply and a
low-power chipset. With low power
consumption and a reduction in power
outside regular work hours (overnight
mode), as well as other power-saving
features included as standard, the
Allied Telesis GS910 Series truly lives
up to its eco-friendly reputation. Not
only does this help the planet by
reducing the carbon footprint of each
switch, it also lowers the Total Cost of
Ownership (TCO) to the user, as the
device costs less to run, and features
improved reliability.
Key Features
ۼ Power-saving features on each port
including:
ۼ cable length detection and
power minimization
ۼ link-down power savings
ۼ Wirespeed performance
ۼ Non-blocking architecture
ۼ Auto-negotiation Gigabit ports
ۼ Auto MDI/MDI-X on TX ports
ۼ Full-duplex flow control
ۼ Sturdy metal case
ۼ Silent operation; fanless
ۼ Operating temperature 0-50°C
ۼ EAP/BPDU passthrough
alliedtelesis.com
NETWORK SMARTER
GS910 Series | Gigabit Ethernet Unmanaged Switches
Specifications
PRODUCT WIDTH DEPTH HEIGHT
GS9 10/ 5
GS910/5E
GS9 10/ 8
GS910/8E
GS9 10/ 16
GS910/24
160 mm
(6.29 in)
130 mm
(5 .11 in)
210 mm
(8.26 in)
210 mm
(8.26 in)
263 mm
(10.35 i n)
341 mm
(13.42 in)
105 mm
(4 .13 i n)
101 mm
(3.97 in)
121 mm
(4.76 in)
121 mm
(4.76 in)
179 mm
(7.04 i n)
210 mm
(8.26 in)
35 mm
(1.3 7 i n)
30 mm
(1.18 i n)
38 mm
(1.49 in)
38 mm
(1.49 in)
38 mm
(1.49 in)
44 mm
(1.7 3 in)
OPERATING
TEMPERATURE
0-50°C
(3 2-12 2°F)
0-50°C
(3 2-12 2°F)
0-50°C
(3 2-12 2°F)
0-50°C
(3 2-12 2°F)
0-50°C
(3 2-12 2°F)
0-50°C
(3 2-12 2°F)
WEIGHT
0.5 kg
(1.10 l b)
0.72 kg
(1.5 8 lb)
0.78 kg
(1.7 12 lb)
0.72 kg
(1.5 8 lb)
1.5 kg
(3.30 lb)
2.1 kg
(4.62 lb)
SWITCHING
CAPAC IT Y
10Gbps 7.4 Mpps Max 2K 0.1A 3.1W
10Gbps 7.4 Mpps Max 2K 0.1A 3.6W
16Gb ps 11.9Mpps Max 4K 0.2A 4.5W
16Gb ps 11.9Mpps Max 4K 0.2A 5.0W
32Gbps 23.8Mpps Max 8K 0.3A 12W
48Gbps 35.7Mpps Max 8K 0.4A 17W
THROUGHPUT
MAC
ADDRESS
POWER
CURRENT
MAX P WR
CONSUMPTION
Performance
14,880pps for 10Mbps Ethernet
148,800 pps for 100 Mbps Ethernet
1,488,00 0pps for 1000Mbps Ethernet
Default aging time: 200 -60 0 seconds
Packet Buffer
GS910/5, 5E, 8, 8E: 128Kbytes
GS910/16, 24: 524Kbytes
Jumbo Frames
GS910/5, 5E, 8, 8E: 9216bytes
GS 910/16, 24: 10K by tes
EAP passthrough: Yes
BPDU passthrough: Yes
Half/full-duplex
Auto-negotiation
MDI/MDI-X
Interface connections
10/100/10 00 T RJ- 45
Power supply requirements
Voltage: 100 - 240V AC
Frequency: 50 - 60Hz
Standards and compliance
IEEE 802.3 10B ASE-T
IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet
Electrical/mechanical approvals
EAC certification
EN55024
ICES Class A
VCCI Class A
FCC Class A
RCM
CE
EN55022
CISPR 55022
Safety
UL60950 -1, 2nd Edition
CSA C22.2 No.60950-1-07, 2nd Edition
IEC60950-1(UL-EU, UL-CB)
Restrictions on Hazardous
Substances(RoHS) compliance
EU RoH S compliant
Wall-mount or desktop
GS910/5, 5E, 8, 8E: No Bracket
GS910/16, 24: Bracket
Features
BPDU/ EA P pass-through
Flow control
Loop guard
Jumbo Frame
Eco-friendly
Ordering Information
AT-GS910/5E
5-port 10/100/1000T unmanaged switch with
external P SU (AC adaptor)
AT-GS 9 10 /5
5-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/8E
8-port 10/100/1000T unmanaged switch with
external P SU (AC adaptor)
AT-GS910/8
8-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS 9 10 /16
16-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS910/24
24-port 10/100/1000T unmanaged switch with
internal PSU
Accessories
AT-R K MT-J08
Rack mount kit for GS910/8, and 8E
AT-B RK T- J23
Wall mount kit for GS910/5, 8, and 8E
