Alinco DJ-V17, DJ-V27, DJ-V47 User guide

ALINCO, INC.

VHF FM TRANSCEIVER

DJ-V17T/E/R/TFH

Instruction Manual

Thank you for purchasing your new Alinco transceiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference.

NOTICE / Compliance Information Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Tested to Comply With FCC Standards FOR HOME OR OFFICE USE

Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

VHF FM Transceiver DJ-V17T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Manufacturer:

ALINCO, INC. Shin-Dai building 9th Floor 2-6, 1-Chome Dojimahama, Kita-ku, Osaka 530-0004 JAPAN

NOTICE / Compliance Information Statement

Conformity Information

In case the unit you have purchased is marked with a CE symbol, a copy of relative conformity certificate or document can be reviewed at http://www.alinco.com/usa.html.

DJ-V17E: VHF FM Transceiver 144.000~145.995MHz CE 0336 This device is authorized for use in all EU and EFTA member states. An operator's license is required for this device.

Copyright © All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka, Japan, English Edition Printed in Japan.

Warning

To prevent any hazard during operation of Alinco's radio product, in this manual and on the product you may find symbols shown below. Please read and understand the meanings of these symbols before starting to use the product.

Alert

Environment and condition of use

The manufacturer declines any responsibilities against loss of life and/or property due to a failure of this product when used to perform important tasks like life-guarding, surveillance, and rescue.

Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel.

Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations.

In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin.

Keep the radio out of the reach of children.

Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause interference to those devices.

Do not drive while handling the radio for your safety. It is recommended that you check local traffic regulations regarding the use of radio equipment while driving. Some countries prohibit the operation of transceiver while driving.

■

Danger

This symbol is intended to alert the user to an immediate danger that may cause loss of life and property if the user disregards the warning.

Alert

This symbol is intended to alert the user to a possible hazard that may cause loss of life and property if the user disregards the warning.

Caution

This symbol is intended to alert the user to a possible hazard that may cause loss of property or injure the user if the warning is disregarded.

Alert symbol. An explanation is given.

Warning symbol. An explanation is given.

Instruction symbol. An explanation is given.

Warning

Handling this product

About chargers

About power supply

Do not plug multiple devices including the power supply into a single wall outlet. It may result in overheating and/or fire.

Do not connect cables in reverse polarity. It may result in electric shock, fire and/or malfunction.

Use only appropriate, reliable power supply of correct voltage and capacity.

■

Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result in fire, electric shock and/or damage to the product.

Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock and/or fire.

Do not handle adapter with a wet hand. It may result in electric shock.

Do not plug multiple devices using an adapter into a single wall outlet. It may result in overheating and/or fire.

Do not use adapters other than the specified voltage. It may result in electric shock, fire and/or malfunction.

■

Do not place the product in a container carrying conductive materials, such as water or metal in close proximity to the product. A short-circuit to the product may result in electric shock, fire and/or malfunction.

Do not operate this product in a wet place such as shower room. It may result in electric shock, fire and/or malfunction.

Do not open the unit without permission or instruction from the manufacturer. Unauthorized modification or repair may result in electric shock, fire and/or malfunction.

Be sure to reduce the audio output level to minimum before using an earphone or a headset. Excessive audio may damage hearing.

■

Use of third party accessory may result in damage to this product. It will void our warranty for repair.

The manufacturer declines any responsibilities against loss of life and property due to a failure of this product when used with or as a part of a device made by third parties.

Risk of explosion if battery is replaced with an incorrect type. Dispose of, or recycle used batteries according to your local regulations.

Do not use multiple radios in very close proximity. It may cause interference and/or damage to the product(s).

Warning

Cigar-lighter cable

In case of emergency

In case of the following situation(s), please turn off the product, switch off the source of power, then remove or unplug the power-cord. Please contact your local dealer of this product for service and assistance. Do not use the product until the trouble is resolved. Do not try to troubleshoot the problem by yourself.

• When a strange sound, smoke and/or strange odor comes out of the product.

• When the product is dropped or the case is broken or cracked.

• When a liquid penetrated inside.

• When a power cord (including DC cables, AC cables and adapters) is damaged.

Maintenance

Do not open the unit and its accessories. Please consult with your local dealer of this product for service and assistance.

■

For your safety, turn off then remove all related AC lines to the product and its accessories from the wall outlet if a thunderstorm is likely.

■

Do not handle cigar cable with a wet hand. It may result in electric shock.

Do not use the cable at any other than the specified voltage. It may result in electric shock, fire and/or malfunction.

■

Do not modify or remove fuse-assembly from the DC cable. It may result in fire, electric shock and/or damage to the product.

Do not plug the power supply into the wall socket if the contacts are dirty. Short-circuit and/or overheating may result in fire, electric shock and/or damage to the product.

Securely plug the power supply to the wall outlet. Insecure installation may result in short-circuiting, electronic shock and/or fire.

Do not handle a power supply with a wet hand. It may result in electric shock.

Warning

Caution

Environment and condition of use

About transceiver

About power supply

European users: When a unit is powered from an external DC power source (adapter, power supply, cigar-plug etc.), make sure that this power supply has approval to the level of IEC/EN 60950.

When using an external antenna, make sure that the antenna ground is not common with the ground of the power supply.

Always turn off the power supply when connecting or disconnecting the cables.

Use only reliable power supply of specific DC output range and be mindful of the polarity of the cable and DC-jack.

■

Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or benzene for cleaning.

Never pull the cord alone when you unplug AC cable form the wall outlet.

Turn off and remove the power source (AC cable, DC cable, battery, cigar cable, charger adapter etc.) from the product when the product is not in use for extended period of time or in case of maintenance.

Do not connect devices other than specified ones to the jacks and ports on the product. It may result in damage to the devices.

Be cautious of the whip antenna when carried in your shirt-pocket etc. It may make contact with your eye and cause injury.

■

Be cautious of a dew formation. Please completely dry the product before use when it happens.

Do not install the product in proximity to a source of heat and humidity such as a heater or a stove. Avoid placing the unit in direct sunlight.

Do not install in an unstable or vibrating position. It may result in electric shock, fire and/or malfunction when/if the product falls to the ground.

Do not install in a humid, dusty or insufficiently ventilated place. It may result in electric shock, fire and/or malfunction.

Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference.

■

Introduction

Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the finest in the world. This radio has been manufactured with state of the art technology and it has been tested carefully at our factory. It is designed to operate to your satisfaction for many years under normal use.

PLEASE READ THIS MANUAL COMPLETELY TO LEARN ALL THE FUNCTIONS THE PRODUCT OFFERS. WE MADE EVERY ATTEMPT TO WRITE THIS MANUAL TO BE AS COMPREHENSIVE AND EASY TO UNDERSTAND AS POSSIBLE. IT IS IMPORTANT TO NOTE THAT SOME OF THE OPERATIONS MAY BE EXPLAINED IN RELATION TO INFORMATION IN PREVIOUS CHAPTERS. BY READING JUST ONE PART OF THE MANUAL, YOU RISK NOT UNDERSTANDING THE COMPLETE EXPLANATION OF THE FUNCTION.

Contents

NOTICE / Compliance Information Statement................................................3

Warning...............................................................................................................5

Introduction ........................................................................................................9

Contents ...........................................................................................................10

1.Features .........................................................................................................13

1.1 Accessories .........................................................................................................13

2.Accessories ...................................................................................................14

2.1 Installations.........................................................................................................14

2.1.1 Antenna ......................................................................................................14

2.1.2 Hand Strap..................................................................................................14

2.1.3 Belt Clip .....................................................................................................14

2.1.4 Battery Pack ...............................................................................................15

2.1.5 Prevent Short Circuiting the Battery Pack .................................................17

2.1.6 Dry Cell Case (optional).............................................................................18

2.1.7 Battery-Level Icon......................................................................................18

3.Names and Operations of Parts ..................................................................19

3.1 Names and Operations of Keys and Ports...........................................................19

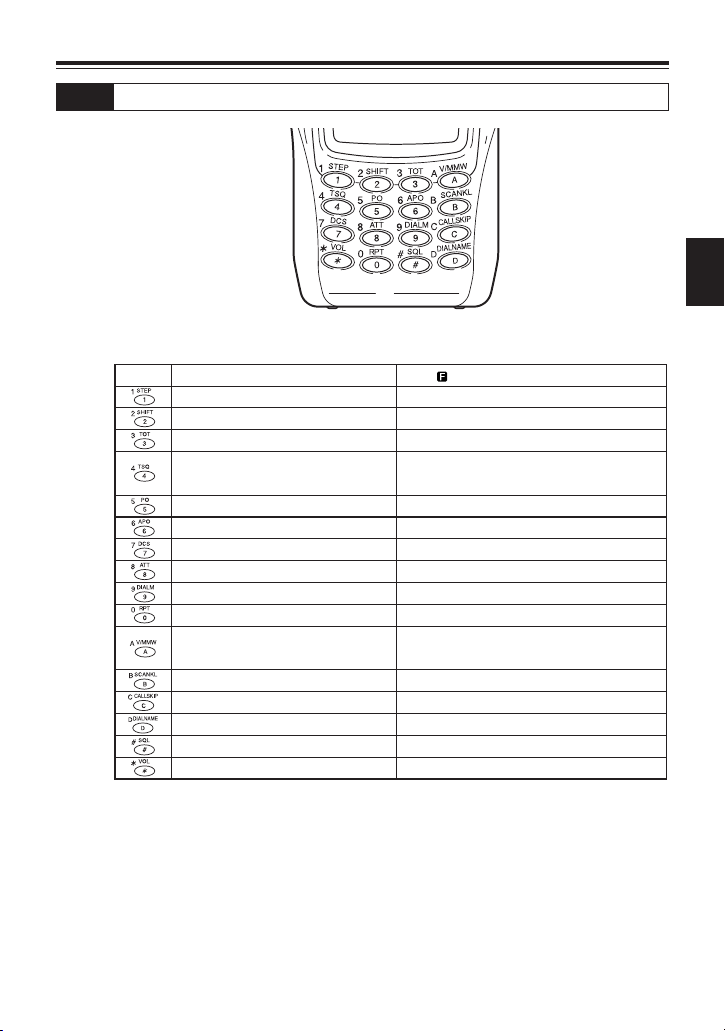

3.2 Keypad ................................................................................................................21

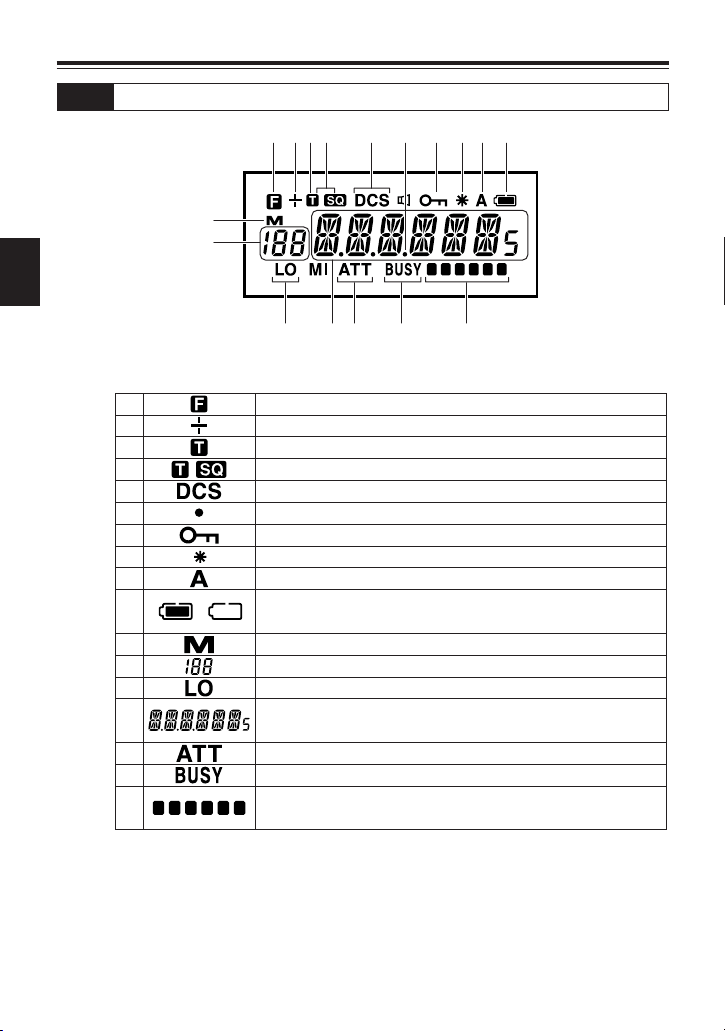

3.3 Display (LCD) ....................................................................................................22

4.Basic Operation ............................................................................................23

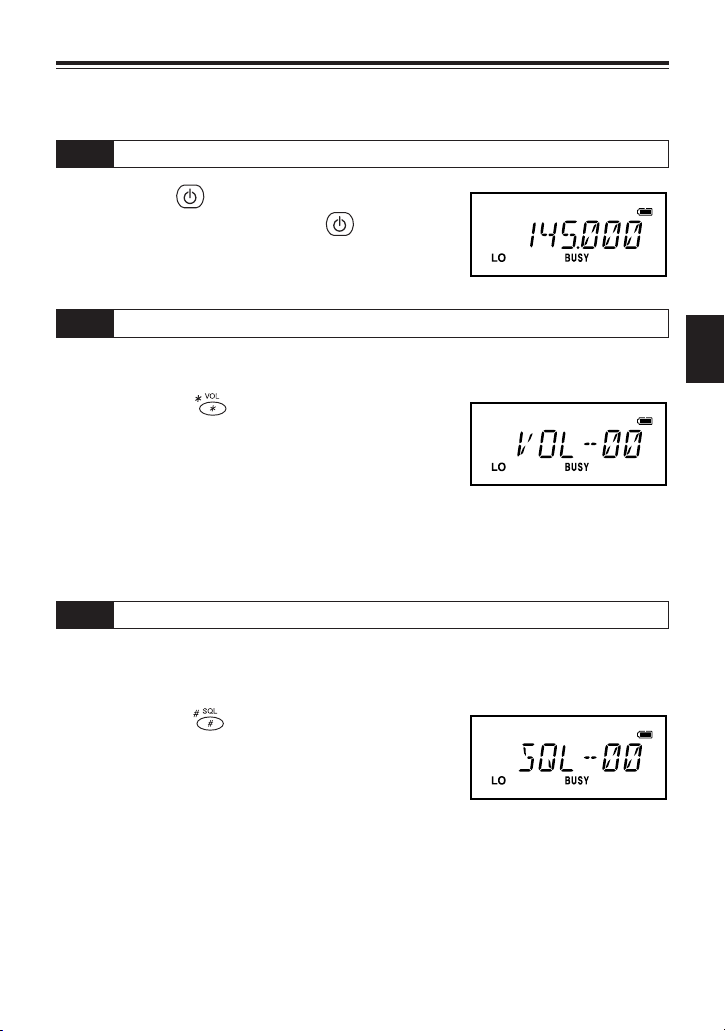

4.1 Turning On the Power.........................................................................................23

4.2 Adjusting the Audio Output (Volume) ...............................................................23

4.3 Adjusting the Squelch.........................................................................................23

4.4 Setting the Frequency in the VFO Mode ............................................................24

4.4.1 Setting the Frequency.................................................................................24

4.4.2 Setting the Tuning Step ..............................................................................25

4.4.3 Shift Direction and Offset Frequency Settings...........................................25

4.5 Memory Mode ....................................................................................................26

4.5.1 How to Program Memory Channel(s) ........................................................26

4.5.2 Recalling a Memory Channel.....................................................................27

4.5.3 Deleting a Memory Channel ......................................................................27

4.5.4 Programming a Repeater-Access Function Setting....................................27

4.5.5 Programmable Parameters in Memory Channels.......................................28

4.6 Call-Channel Mode.............................................................................................28

Contents

4.7 Receiving ............................................................................................................29

4.7.1 Monitor Function........................................................................................29

4.8 Transmitting .......................................................................................................30

4.8.1 Selecting the Output Level .........................................................................30

5.Useful Functions ...........................................................................................31

5.1 Scan Modes.........................................................................................................31

5.1.1 VFO-Scan...................................................................................................31

5.1.2 Memory-Scan .............................................................................................31

5.1.3 Setting Skip Channels ................................................................................32

5.2 Keylock...............................................................................................................32

5.3 Tone-Burst ..........................................................................................................32

5.4 Naming Memory Channels.................................................................................33

5.4.1 Setting Name-Tag.......................................................................................33

5.4.2 Using the Channel Name Function ............................................................33

5.5 Auto-Power-Off (APO) ......................................................................................34

5.5.1 Setting APO................................................................................................34

5.5.2 APO Operation ...........................................................................................34

5.6 Time-Out-Timer (TOT) ......................................................................................35

5.6.1 Setting TOT................................................................................................35

5.6.2 TOT Operation ...........................................................................................35

5.7 Lamp ..................................................................................................................35

6.Selective Calling............................................................................................36

Selective Calling Operations ...................................................................................36

6.1 Tone Squelch (TSQ) ...........................................................................................36

6.1.1 Setting the Tone Squelch............................................................................36

6.1.2 Switching Off the Tone Squelch ................................................................37

6.1.3 To Differentiate the ENC/DEC Tones .......................................................37

6.1.4 Tone Squelch Operation.............................................................................37

6.2 DCS ....................................................................................................................37

6.2.1 Setting the DCS..........................................................................................37

6.2.2 Changing the DCS Code ............................................................................38

6.2.3 Switching Off DCS ....................................................................................38

6.2.4 DCS Operation ...........................................................................................38

6.2.5 DET Mode in DCS Operation ....................................................................38

6.3 DTMF Tone Encoding........................................................................................39

6.4 Auto Dialer .........................................................................................................40

6.4.1 Setting the Auto Dialer...............................................................................40

6.4.2 Generating the Auto Dialer Codes .............................................................40

6.4.3 Redial..........................................................................................................41

■

Contents

7.Special Functions..........................................................................................42

7.1 ATT (Attenuator)................................................................................................42

7.2 Battery Refresh ...................................................................................................42

7.3 Repeater-Access..................................................................................................43

8.Set Mode........................................................................................................44

8.1 Set Mode Operation ............................................................................................44

8.2 Entering the Set Mode ........................................................................................44

8.3 Available Parameters ..........................................................................................45

8.3.1 Menu 1 Battery Save (BS) Function ..........................................................45

8.3.2 Menu 2 Timer/Busy Scan Setting ..............................................................45

8.3.3 Menu 3 Beep Function ...............................................................................45

8.3.4 Menu 4 Tone-Burst Frequency Setting ......................................................45

8.3.5 Menu 5 Clock Shift Setting........................................................................46

8.3.6 Menu 6 Busy Channel Lockout Setting .....................................................46

8.3.7 Menu 7 TOT Penalty Time ........................................................................47

8.3.8 Menu 8 DTMF WAIT Time.......................................................................47

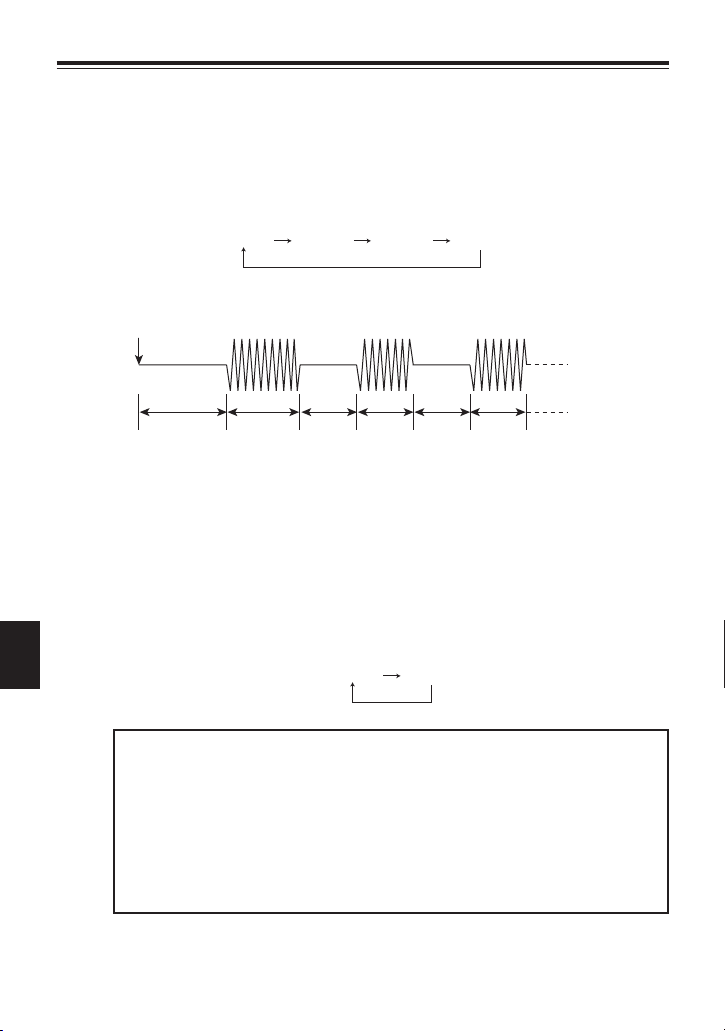

8.3.9 Menu 9 DTMF Burst/Pause Time ..............................................................47

8.3.10 Menu 10 DTMF First Digit Burst Time.....................................................48

8.3.11 Menu 11 Battery Charge Function .............................................................48

8.3.12 Menu 12 Battery Type Setting ...................................................................49

9.Cloning and Packet Operation ....................................................................50

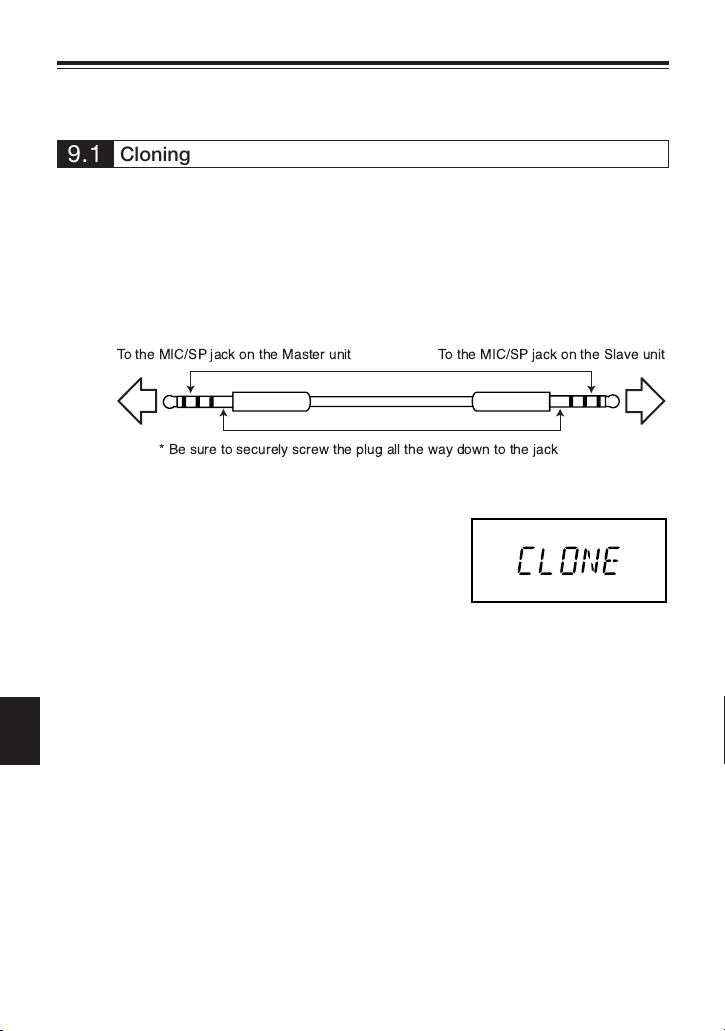

9.1 Cloning................................................................................................................50

9.1.1 Cable Connection .......................................................................................50

9.1.2 Master/Slave Units .....................................................................................50

9.1.3 Master Unit Operation................................................................................51

9.1.4 Slave Unit Operation ..................................................................................51

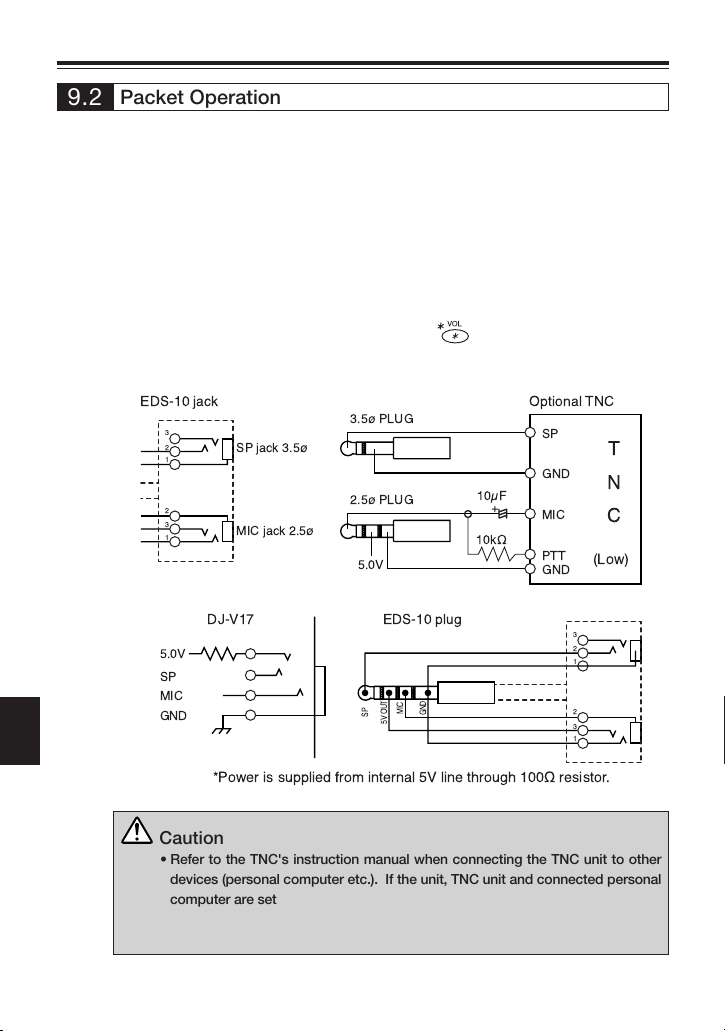

9.2 Packet Operation.................................................................................................52

9.2.1 Packet Operation Connections ...................................................................52

10.Maintenance and Reference......................................................................53

10.1 Troubleshooting ..................................................................................................53

10.2 Resetting .............................................................................................................54

10.3 Options................................................................................................................55

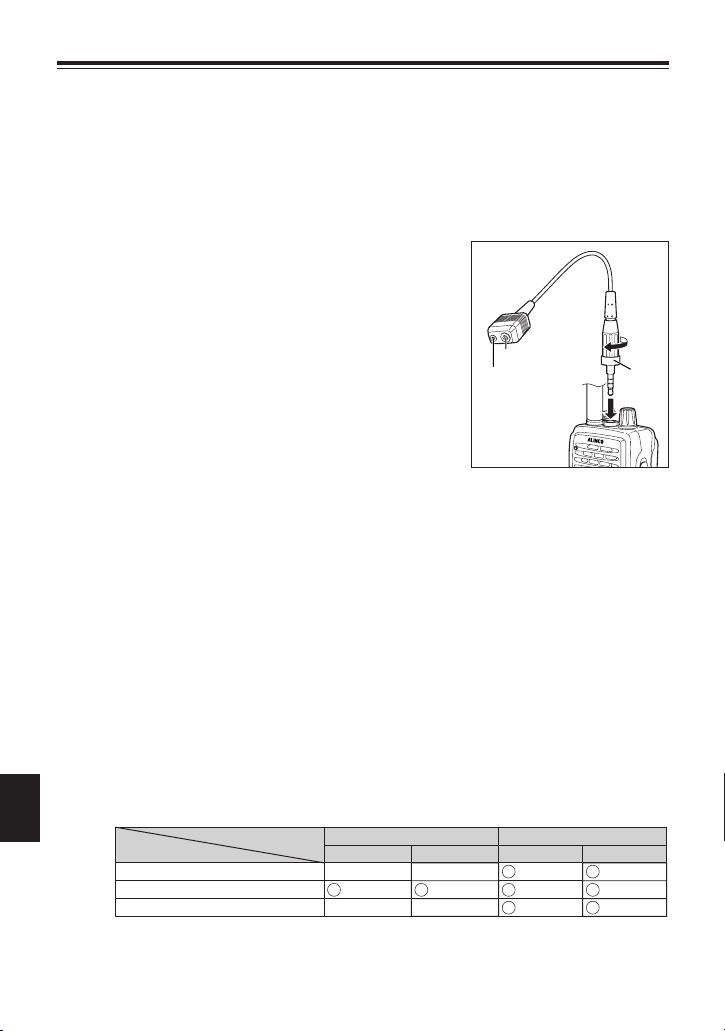

10.3.1 Microphone/Speaker Cable (EDS-10)........................................................56

10.3.2 Battery Packs..............................................................................................56

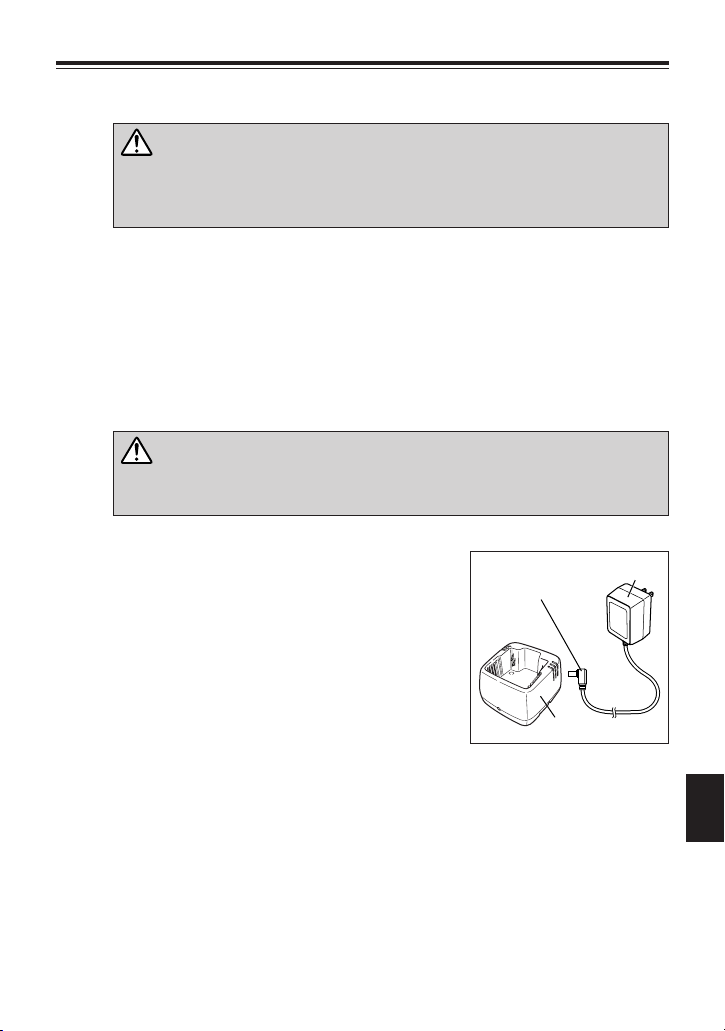

10.3.3 Using the Chargers .....................................................................................57

11.Specifications .............................................................................................63

1.Features

1. Features

This transceiver has the following main features.

High-grade waterproof compatible to IPX7 * (submersible 1m/3feet for 30min.) and rugged body 39 CTCSS tone squelch 104 DCS digital code squelch Time-Out-Timer Alphanumeric display 4 tone-burst tones (1750, 2100, 1000, 1450Hz) 9 auto dial memories easily accessed from the DTMF keypad with redial function Direct frequency entry from the DTMF keypad A quick "Repeater-Access" function Refresh function for rechargeable battery reconditioning Cable Cloning

* The factory guarantees this grade for 1 year when all the jack-covers are properly

and securely closed.

• Ni-MH battery pack EBP-65 (7.2V 700mAh)

• EDC-146 (AC 120V) wall charger (T version)

• EDC-147 (AC 230V) wall charger (E/TFH/R version)

• Flexible whip antenna EA0141 (T/E version)

• Flexible whip antenna EA0142 (TFH/R version)

• Belt clip

• Hand strap

• Instruction manual * Accessories may differ depending on the version you have purchased.

Please contact your local dealer for details of standard accessories and the warrantypolicy.

Accessories

1.1

■

2.Accessories

2. Accessories

2.1.1 Antenna Attaching the Antenna

1. Hold the antenna by its base.

2. Align the grooves at the base of the antenna with

the protrusions on the antenna connector.

3. Slide the antenna down and turn it clockwise until

it stops.

4. Confirm that the antenna is securely connected.

Removing the Antenna

Turn the antenna counter-clockwise to disconnect the antenna.

2.1.2 Hand Strap

Attach the hand strap as shown. There are two ways to attach it.

2.1.3 Belt Clip Attaching the Belt Clip

1. Put the belt clip on the back of the unit, and turn

the screw clockwise until it stops.

2. Confirm that the belt clip is securely attached.

Removing the Belt Clip

Turn the screw counter-clockwise to remove the belt clip.

■

Belt clip

■

Hand strap

■

NOTE:

This antenna has been designed very flexible. It is softer than conventional ones but not a defect.

■

Installations

2.1

2.Accessories

2.1.4 Battery Pack

For the specifications and the charging procedures, please refer to "Battery Packs"(page 56) and "Using the Chargers"(page 57).

Attaching the Battery Pack

Align the catches on the battery pack with the grooves on the unit, and close the latch until it clicks.

Removing the Battery Pack

Push the latch in the direction of the arrow, and pull out the battery pack.

■

Catch

Groove

Latch

■

Caution

• The battery pack isn't fully charged when shipped. It must be charged before use.

• Charging should be conducted in a temperature range of 0ºC to +40ºC (+32ºF to +104ºF).

• Don't modify, dismantle, incinerate or immerse the battery pack in the water as this can be dangerous.

• Never short-circuit the battery pack terminals, as this can cause damage to the equipment or lead to heating of the battery which may cause burns.

• Unnecessary prolonged charging (overcharging) can deteriorate battery performance.

• The battery pack should be stored in a dry place where temperature is in

-10ºC to +45ºC (-14ºF to +113ºF) range. Temperatures outside this range can cause the battery liquid to leak. Exposure to prolonged high humidity can cause corrosion of metal components.

• Battery-packs are a consuming part. When its operating time becomes considerably short after a normal charge, please consider that the pack is exhausted and replace it with a new one.

• The battery pack is recyclable. Check with your local waste officials for details on recycling options or proper disposal in your area.

2.Accessories

Charging the Battery Pack Using DC-Jack on the Unit

The unit can charge the EBP-65 and EBP-66 optional Ni-MH battery packs by supplying DC power through the DC-jack on the unit using EDC-146/147/148 wall chargers or an optional DC power supply (DC 12V~DC 16V, 1A or more: IEC/EN 60950 compliant).

1. Attach the battery pack by referring to "Battery Pack" (page 15).

2. Connect the AC adapter plug to the DC-jack on the unit then connect the charger's adapter to the wall outlet. * AC adapter may look different.

3. Turn on the unit and set the battery charge parameters. Please refer to "Set Mode" (page 44) then: * "Battery Charge Function" (page 48) Select CHG-ON. * "Battery Type Setting" (page 49) Select BATT-NI.

4. After completing the settings, a flashing appears on the display. Make sure the icon is flashing then turn off the unit. It takes about 10 hours/30hours for EBP-65/66 respectively to complete the charge.

IMPORTANT NOTE:

While this function is activated, without attaching a battery pack or the remaining battery level is below the usable range, the unit turns on by just connecting the DC source such as an adapter or a DC cable (without operating the power key).

AC adapter plug

AC adapter*

■

Caution

• Li-ion battery packs can't be charged using DC-jack on the unit (Only NiMH battery packs can be charged).

• Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an incorrect type. Use always the recommended types of batteries in this manual only.

2.Accessories

2.1.5 Prevent Short Circuiting the Battery Pack

Be extra cautious when carrying the rechargeable battery pack; short circuiting will produce surge current possibly resulting in fire.

DON'T carry with metals of any type, e.g. chains.

DON'T carry the battery pack inside bags made of conductive materials.

DON'T place in the proximity of metals or conductives, e.g. nails, chains.

Do enclose inside a non-conductive enclosure. (bags or handkerchief made only of non-conductive material)

Do protect by spreading a non-conductive sheet on a flat surface.

NOTE:

• Please read the general safety instructions included in the optional accessories to correctly and safely use them.

• EDC-146/147/148 can't be used as the adapter for operation. These adapters are for charging purposes only.

• Chargers can't perform the correct charge when the AC voltage is unstable.

• flashes even EBP-65/66 aren't attached. To avoid short-circuit, never activate this function when the pack isn't attached to the unit.

• Li-ion battery packs can't be charged in this way.

2.Accessories

2.1.6 Dry Cell Case (optional)

An EDH-34 is available for operation with using AA cells. Lift up the catches on the top of the case to remove the cover.

Place 6 AA cells, then close the cover in order of then . Be sure that the cover is securely closed.

2.1.7 Battery-Level Icon

During the operation, a black battery icon indicates that the battery-level is in usable range. When it turns to empty, please charge the pack or replace the cells with new ones.

Battery-level icon

The battery is in usable condition. Battery-level is low. Replace or charge the pack.

③

②

①

①

③

②

Caution

• This dry cell case isn't water-proof.

• Be extra-cautious to the polarity of the cells (+)/(-). Misplacing cells may result in leak, fire or explosion.

• Use new batteries of the same type and brand when placing them.

• Use of rechargeable cells is prohibited and the manufacturer declines any responsibilities for damages/injuries that may cause to the users and their properties.

• It is recommended to clean the battery contacting terminals with a clean dry cloth from time to time.

• Risk of explosion if batteries are replaced by an incorrect type.

• Batteries are recyclable. Please check the local rules for proper recycle/disposal in your area.

3.Names and Operations of Parts

3. Names and Operations of Parts

Top and Front

①

③

⑥

⑦

⑧

④

⑤

②

①

   

②



③

 ④ ⑤

 ⑥ ⑦ ⑧

Dial

Microphone/Spe aker jack TX/RX lamp

Speaker Power key

Microphone Display (LCD) Keypad

Rotate the dial to select the frequency of operation, memory channel, offset frequency, tone frequency, DCS code, Set mode settings, and the characters for name-tags. Rotating the dial while pressing the FUNC key increases or decreases the frequency in 1MHz order. For an optional speaker/Mic connection. Securely close the cover for water-proof while the accessory isn't in use. Lights green when the squelch is unmuted. Lights red during transmission. A speaker is built in. Press the power key down for approximately one second to turn on/off the unit. Speak into the microphone from a distance of about 5cm (2"). Refer to "Display" (page 22). Refer to "Keypad" (page 21).

■

Names and Operations of Keys and Ports

3.1

3.Names and Operations of Parts

Side

⑬

⑨

⑩

⑪

⑫

⑨

 ⑩



 ⑪ ⑫



 ⑬

SMA Antenna Connector FUNC key

PTT key MONI key

DC-IN jack

Attach the whip antenna. If you plan to use an optional antenna, select one that is tuned to the operating frequency. The FUNC key is used in combination with the other keys to access the various functions of the unit. To enter the Set mode to set operating parameters, press the FUNC key continuously for about 2 seconds. Press the PTT key to transmit, release to receive. When the MONI key is pressed, the squelch unmutes regardless of the TSQ/DCS setting. Pressing the MONI key after pressing the FUNC key illuminates display for about 5 seconds. Pressing the MONI key while pressing the PTT key transmits a tone-burst signal. Connect an external power source of DC 7.0V~DC 16.0V at 2A or more. An optional EDC-36 cigar-cable is available for mobile operation. EBP-65/66 packs can be charged using this jack (page 16).

Antenna side Dial side

■

3.Names and Operations of Parts

key

Without pressing the FUNC key.

Inputs* 1.

Inputs 2.

Inputs 3.

Inputs 4.

Inputs 5.

Inputs 6.

Inputs 7.

Inputs 8.

Inputs 9.

Inputs 0.

Switches between the VFO and

Memory mode (page 24).

Start/Stop scanning (page 31).

Access the Call channel (page 28).

Auto dialer operation (page 40).

SQL adjustment (page 23).

Audio level adjustment (page 23).

While appears after the FUNC key is pressed.

Channel step setting (page 25).

Offset frequency setting (page 26).

Time-Out-Timer setting (page 35).

Tone Encode / Tone Squelch setting

(page 36).

Hi / Low power setting (page 30).

Auto-Power-Off setting (page 34).

DCS (digital code squelch) setting (page 38).

ATT (Attenuator) setting (page 42).

Auto dialer memory setting (page 40).

Repeater-Access function setting (page 43).

Memory programming (page 26).

Key / Frequency lock setting (page 32).

Memory channel skip setting (page 32).

Naming memory channels setting (page 33).

N/A

* The numeric keys can be used for direct VFO frequency input within the DJ-V17's

operating range. DTMF tones are generated by pressing the keys during transmissions.

Keypad

3.2

3.Names and Operations of Parts

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

 ⑪ ⑫ ⑬ ⑭

 ⑮ ⑯ ⑰

Appears when the FUNC key is pressed.

Indicates the shift (+/-) direction.

Appears when setting the CTCSS tone encoder.

Appears when setting the tone squelch.

Appears when setting the DCS.

Displays the frequency and scan operation.

Displayed when the frequency or the keypad is locked.

Appears when the Repeater-Access function is activated.

Appears when Auto-Power-Off function is activated.

Indicates battery-level. The black icon flashes when the battery

charge function is on.

Displayed when in the Memory mode.

Displays the memory channel No.

Displayed when the transmission output is in LOW setting.

Displays the operating frequencies, name-tags and parameters

in the setting mode.

Appears when the attenuator is activated.

Appears when the squelch is unmuted.

Indicates the receiving signal (S-meter) and transmission output

levels (Power-meter).

⑪

①

⑬ ⑮⑭ ⑯ ⑰

②③④ ⑤ ⑥ ⑦ ⑨⑧ ⑩

⑫

Display (LCD)

3.3

4.Basic Operation

4. Basic Operation

Hold the key down for a second.

To turn off the power, hold the key down until the display turns off.

• There are 21 audio output levels (00~20).

• The default setting is level 00. There is no audio output at this status.

1. Press the key. The level is displayed on the LCD.

2. Rotate the dial to increase or decrease the level. As the setting value increases, the audio becomes louder.

3. Press any key except for the MONI key or just leave it for 5 seconds to

automatically complete the setting.

Squelch is a function that eliminates the noise when no signals are being received.

• There are 10 squelch levels (00~10).

• The default setting is Level 00.

1. Press the key. The squelch level is displayed on the LCD.

2. Rotate the dial to increase or decrease the squelch level. Set to the lowest level that the noise is cut.

3. Press any key except for the MONI key or just leave it for 5 seconds to automatically complete the setting.

Adjusting the Squelch

4.3

Adjusting the Audio Output (Volume)

4.2

Turning On the Power

4.1

4.Basic Operation

The factory default of this unit is the VFO mode. The VFO mode allows you to change the frequency and operating parameters by using the dial and key operations.

4.4.1 Setting the Frequency

To Select the VFO Mode

The key switches between the VFO and Memory mode each time the key is pressed. "" is displayed on the LCD when the unit is in the Memory mode.

Selecting the Operating Frequency

Rotate the dial clockwise to increase the frequency by one tuning step. Rotate the dial counter-clockwise to decrease it by one tuning step.

To Quickly Change the Frequency

Press the FUNC key, and while is displayed on the screen, rotate the dial to increase or decrease (depending on the direction of rotation) the frequency by 1MHz order.

Entry from the Keypad

Use the numeric keys to set the frequency. It accepts valid numbers only. ie: 145.210 MHz

1. Input the 100MHz digit by pressing

2. Input the 10MHz digit by pressing

3. Input the 1MHz digit by pressing

4. Input the 100kHz digit by pressing

5. Input the 10kHz digit by pressing

Depending on the tuning step, entry may be required to the 1kHz digit. The relationship between the tuning step and entry-completion digit is shown in the following chart. The setting will be completed automatically when the last digit is correctly entered and a high-tone beep sounds.

■

Setting the Frequency in the VFO Mode

4.4

4.Basic Operation

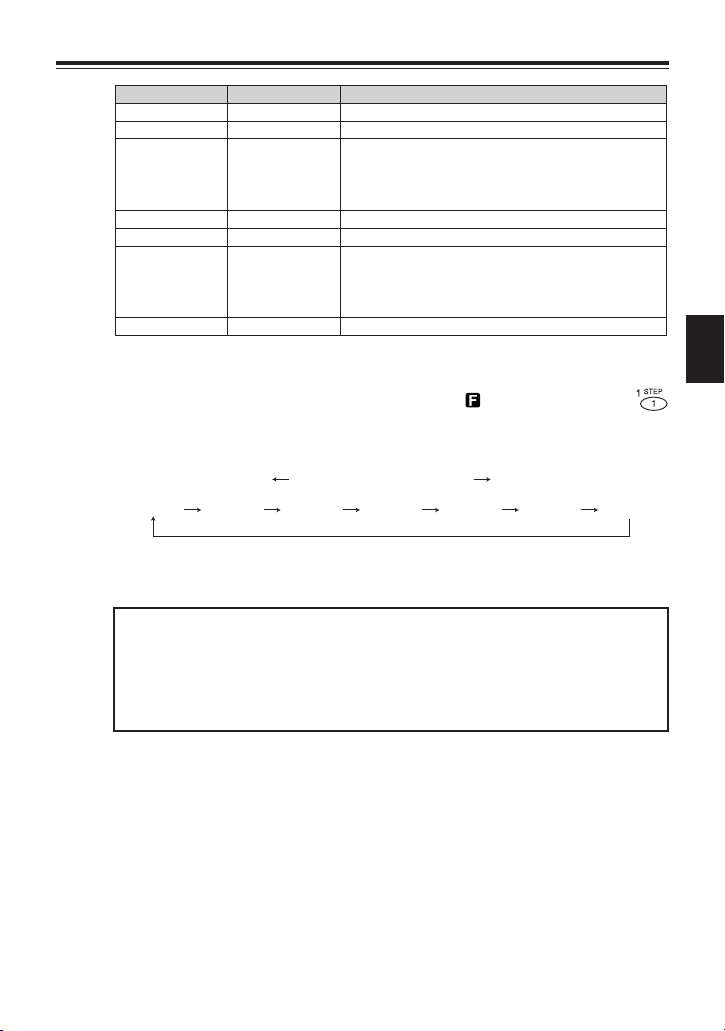

4.4.2 Setting the Tuning Step

1. Press the FUNC key in the VFO mode, and while is displayed, press the key to display the current tuning step.

2. Rotate the dial to select the desired tuning step.

3. Press any key except for the MONI key to complete setting.

NOTE:

• Tuning step can't be changed in the Memory mode.

• When the tuning step is changed from 5kHz,10kHz,15kHz,20kHz or 30kHz to

12.5kHz and 25kHz or vice versa, the operating frequency and the shift width automatically suite to the new setting.

Tuning step

5.0kHz

10.0kHz

12.5kHz

15.0kHz 20kHz 25kHz

30kHz

Entry completion digit

1kHz 10kHz 10kHz

10kHz 10kHz 10kHz

10kHz

Accept 0 or 5 as valid number. Accept any of 0 to 9 keys. When you input the 10kHz digit, the 1kHz digit is set automatically as follows. 0---00.0, 1---12.5, 2---25.0, 3---37.5, 4---invalid, 5---50.0, 6---62.5, 7---75.0, 8---87.5, 9---invalid Auto-complete after the 10kHz digit entry. Auto-complete after the 10kHz digit entry. When you input the 10kHz digit, the 1kHz digit is set automatically as follows. 0---00.0, 2---25.0, 5---50.0, 7---75.0 Other entries are invalid. Auto-complete after the 10kHz digit entry.

Final digit selection

DOWN

STP-5 STP-10

STP-12.5

STP-15 STP-20 STP-25 STP-30

(unit: kHz)UP

4.Basic Operation

4.4.3 Shift Direction and Offset Frequency Settings

In conventional repeater systems, a signal received on one frequency is retransmitted on another frequency. The difference between these two frequencies is called the offset frequency. The selectable offset frequency of this unit is from 0 to 99.995MHz.

1. Press the FUNC key, and while is displayed, press the key to display the

current offset frequency and shift direction settings.

2. Each time the key is pressed the shift direction changes as indicated below.

A (-) means that the TX frequency is lower than the RX frequency. A (+) means vice versa.

3. Rotate the dial while the shift frequency is being displayed.

Clockwise: each click increases the frequency by one tuning step. Counter-clockwise: each click decreases the frequency by one tuning step. Press the FUNC key and rotate the dial to increase or decrease the frequency in 1MHz steps.

4. Press any key except for the MONI or FUNC key to complete setting.

This mode allows recalling and operating the preprogrammed frequency or setting in the memory channels. This unit provides up to 200 memory channels, 1 CALL channel and 1 Repeater-Access function memory.

4.5.1 How to Program Memory Channel(s)

1. Select a frequency and operating parameters to be programmed in the VFO mode.

Programmable parameters are explained later. Press the key. " " appears on the display.

2. Press the FUNC key to display .

3. Rotate the main dial to select the desired memory channel number while is

displayed. An empty channel is shown with a flashing " ". Select C for CALL channel programming. "rP ALLFREQ" is explained later.

4. By pressing the key again while is on the display, a beep sounds and

programming is completed.

Memory Mode

4.5

NOTE:

Please refer to "Selective Calling" (page 36) to set the CTCSS/DCS tones usually required for conventional Repeater-Accesses.

-0.600 +0.600 OST-OF

4.Basic Operation

5. Pressing the FUNC then key while is displayed on the programmed channel will delete the memory data and it becomes available for reprogramming.

4.5.2 Recalling a Memory Channel

1. Select the Memory mode by pressing the key. " " and channel number appear on the display to indicate that the unit is in the Memory mode. Repeat to switch between the Memory and VFO modes.

2. Select a memory channel. Rotating the main dial will increase or decrease a memory channel number.

4.5.3 Deleting a Memory Channel

1. Select the Memory mode by pressing the key.

2. Rotate the dial to select the memory channel No. that you wish to delete.

3. Press the FUNC key, and while is displayed on the LCD, press the key. A beep sounds, then " " flashes on the display.

4.5.4 Programming a Repeater-Access Function Setting

The "Repeater-Access" function is to set the desired shift and tone parameters to the current operating frequency by just 2 key-touches. Please set the parameters to be applied to the Repeater-Access function here.

1. Enter the Memory mode (by pressing the key if necessary).

2. Rotate the dial to select MrpALLFRQ.

3. Set the most commonly used Repeater-Access parameters by referring to "RepeaterAccess" (page 43). The parameters can be programmed in this memory are marked * in the chart on the next page. By activating the Repeater-Access function these settings are applied to the operating frequency regardless of the VFO/Memory/CALL modes, by temporary replacing the current parameters.

4. After programming is completed, press the FUNC key then press the key while MrpALL is displayed to store the edited parameters.

5. Rotate the dial to operate in the Memory mode by selecting channels or press the

key for VFO mode operation.

NOTE:

When " " is flashing in step 3 (when the memory contents are displayed as is on the display), it is still possible to cancel the operation by pressing the FUNC key, and while is displayed on the LCD, press the key. After changing channels or modes, this is no longer possible.

4.Basic Operation

4.5.5 Programmable Parameters in Memory Channels

The following parameters can be stored in each of the memory channels.

• Frequency

• Offset frequency *

• Shift direction (+/-) *

• Tone encoder frequency *

• Tone decoder frequency *

• Tone encoder/decoder setting (TSQ) *

• DCS code *

• DCS setting *

• Skip channel setting

• Busy channel lockout (BCLO)

• Transmission power (H/L)

• Battery save setting

• Clock Shift setting

• Alphanumeric channel tag

• Attenata Level

This mode is used to recall a most frequently used memory channel (stored in MC channel) with a single key-touch.

1. Press the key.

"" is displayed on the LCD, and the channel programmed in MC is recalled.

2. Press the key again or the key in the

Call mode to return to original operating mode (VFO/memory).

Call-Channel Mode

4.6

NOTE:

Only parameters marked "*" are programmable in Repeater-Access function memory.

4.Basic Operation

1. Turn on the unit.

2. Press the key and rotate the dial to adjust the audio level as necessary.

3. Press the key and rotate the dial to adjust the squelch level.

4. Select the frequency that you wish to operate by using the dial or the keypad. When a signal is received on the frequency that you selected, and S-meter are displayed on the LCD, then the received signal can be heard. The green RX indicator also lights at this time.

4.7.1 Monitor Function

In case the receiving signal is weak and the audio is intermittently cut off by the squelch, press the MONI key. As long as this key is pressed, the squelch including TSQ/DCS unmutes making the audio easier to hear.

• The squelch is unmuted while the MONI key is pressed, regardless of the squelch

level setting.

• This function unmutes the squelch even if the DCS and Tone Squelch functions are

set.

Receiving

4.7

IMPORTANT NOTE:

• The dial and direct key-entry of frequency/memory channel are blocked in the Call mode.

• It is possible to temporary change the offset and CTCSS/DCS related parameters in the Call mode.

• The Scan function is deactivated in the Call mode.

• The CALL channel reprogramming is possible but it can't be deleted from the memory channel mode.

4.Basic Operation

1. Select the frequency that you wish by using the dial or keypad.

2. Press the PTT key. The red TX indicator turns on while transmitting.

3. While holding down the PTT key, speak into the unit at normal voice from the distance of 5cm (2").

4. Release the PTT key to receive.

4.8.1 Selecting the Output Level

Press the FUNC key, and while is displayed on the LCD, press the key to switch between high and low transmission power output. When the low power output is selected, " " is displayed on the LCD (nothing is displayed when the high power is selected). The initial setting is low power. The Power-meter display is when transmitting at the low power, and

when transmitting at the high power.

IMPORTANT NOTE:

The output level can't be altered while transmitting.

IMPORTANT NOTE:

• To transmit a tone-burst signal, press the MONI key while holding down the PTT key.

• Speaking too loud, too close or too far from the unit may distort the audio.

• "OFF" appears on the display when the TX frequency is out of the TX range. This may easily happen when the offset is activated.

Transmitting

4.8

5.Useful Functions

5. Useful Functions

The scan function automatically searches the receiving signals. There are 2 modes for scan-resume condition.

• Busy Scan: The scan stops when a signal is detected, stays until the signal is gone then resumes scanning.

• Timer Scan: The scan stops when a signal is detected, and resumes scanning after 5

seconds regardless of receiving status. During scanning, the 1MHz decimal point ( ) on the frequency display flashes. Press any key other than the MONI key to stop scanning. Scanning starts in the direction of the last dial operation (up or down).

5.1.1 VFO-Scan

1. Use the key to select the VFO mode.

2. Press the key to start scanning. The unit scans in accordance with the order

of one step.

3. Rotate the dial clockwise/counter-clockwise to change the scan direction.

VFO-scan scans the entire frequency range.

4. Press any key other than the MONI key to stop scanning.

5.1.2 Memory-Scan

1. Use the key to select the Memory mode.

2. Press the key to start memory scanning.

3. Rotate the dial clockwise/counter-clockwise to change the scan direction.

Memory-scan scans all programmed memory channels.

4. Press any key other than the MONI key to stop scanning.

NOTE:

Please set the squelch level correctly before scanning, even in the TSQ scanning the normal squelch level adjustment is required to activate this function.

NOTE:

Please refer to the Set mode to switch the setting between Timer and Busy scan modes (page 45).

Scan Modes

5.1

5.Useful Functions

5.1.3 Setting Skip Channels

You can select the memory channels that you wish to skip during the memory-scan.

• Press the FUNC key in the Memory mode, and while is displayed, press the

key to set the currently selected memory channel as a skip channel. Use the same procedure to clear the skip channel setting.

• The 10MHz decimal point appears for memory channels that are set as skip

channels.

Press the FUNC key, and while is displayed, press the key to set the Keylock function on, and repeat the same to quit. When the Keylock is on, the is displayed on the LCD. When the Keylock is on, other than the following, all operations are blocked. * PTT * LAMP * MONI * VOL * SQL * Tone-burst * POWER ON/OFF * DTMF tone

This function is to generate an audible tone to access European repeaters.

• To output the tone-burst tone, press the MONI key while holding down the PTT key.

The tone is transmitted as long as the MONI key is pressed. The initial setting for the tone-burst tone is 1750Hz, but this can be changed in the Set mode (page 45).

• While transmitting the tone-burst tone, the CTCSS/DCS tone is temporary

suspended.

Tone-Burst

5.3

NOTE:

Keylock function can't be activated on the Repeater-Access function memory channel.

Keylock

5.2

5.Useful Functions

In the Memory mode, it is possible to display up to 7 alphanumeric characters (Nametag) instead of conventional frequency display.

5.4.1 Setting Name-Tag

1. Select the memory channel.

2. Press the FUNC key, and while is displayed press the key.

3. [A ] flashes on the display.

4. Rotate the dial to select a character to be the first digit.

5. Press the key to input the next character. The previous character will stop

flashing.

6. Repeat the same sequence as necessary.

Press the key during setting to delete all characters.

7. Press any key (except MONI, , ) to complete the setting.

5.4.2 Using the Channel Name Function

• Programmed memory channels are displayed with alphanumeric characters. The

channel number is displayed as it normally is.

• Press the FUNC key to display the frequency display for 5 seconds. Pressing certain

keys during this 5 sec period may immediately recall the alphanumeric display, while other keys access their allocated functions.

Naming Memory Channels

5.4

5.Useful Functions

This function prevents an useless battery consumption.

5.5.1 Setting APO

Press the FUNC key, and while is displayed on the LCD, press the key. is displayed on the LCD, and the Auto-Power-Off function is set. Repeat the same to turn it off.

• The initial setting for the APO function is off.

5.5.2 APO Operation

• After having activated the APO and about 30 minutes elapse without any key-operation,

the unit turns off automatically alerting with beep sounds. The time to Auto-Power-Off is determined by the last key operation only, not the last signal received.

Auto-Power-Off (APO)

5.5

5.Useful Functions

This function automatically stops transmission when a preset time is elapsed.

5.6.1 Setting TOT

1. Press the FUNC key, and while is displayed on the LCD, press the key. T-

OFF is displayed on the LCD.

2. Rotate the dial to change the TOT setting time.

The maximum setting for the TOT time is 450 seconds.

3. Press any key other than the MONI key to complete the setting.

5.6.2 TOT Operation

When the preset time is about to be elapsed, a beep sounds to alert that the unit is forced to quit transmitting. Release PTT key to quit transmitting otherwise the TOT penalty may be activated. Refer to page 47 for TOT penalty time setting.

Press the FUNC key, and while is displayed on the LCD, press the MONI key to illuminate the display and DTMF keypad.

• The backlight automatically switches off if there is no key operation for 5 seconds.

• Pressing any key other than the LAMP key extends the LAMP function for another 5

seconds.

• Turning on the power while pressing the MONI key illuminates the backlight

permanently. Repeat the same to turn it off.

• When the lamp is set for the "permanent-on" position, pressing the FUNC key then

the MONI key to turn on/off the backlight.

NOTE:

The LAMP function consumes battery. The "permanent-on" position is recommended only for the operation using an external power source.

Lamp

5.7

Time-Out-Timer (TOT)

5.6

OFF 30

90 ------ 450

(unit: seconds)

6.Selective Calling

6. Selective Calling

Selective Calling Operations

• To communicate only with selected stations, use either the Tone Squelch or the DCS

function. The Tone Squelch function unmutes the squelch only when a signal added with one of the matching 39 CTCSS tone frequencies is received.

• The DCS function unmutes the squelch only when a signal added with one of

matching 104 digital codes is received.

• It isn't possible to use the Tone Squelch and DCS functions at the same time.

6.1.1 Setting the Tone Squelch

1. Press the FUNC key, and while is displayed on the LCD, press the

key to display the current TSQ settings. Each time the key is pressed, the display shows:

• When only is displayed, the unit encodes the CTSS tone.

• When is displayed, the unit encodes and decodes the CTCSS tone.

2. Rotate the dial while the tone frequency is displayed to select one of the 39 CTCSS

tones shown below. The tone can be set for encode/decode separately (refer to page 37 for details).

(unit: Hz)

67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5

94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8 123.0 127.3

131.8 136.5 141.3 146.2 151.4 156.7 162.2 167.9 173.8 179.9

186.2 192.8 203.5 210.7 218.1 225.7 233.6 241.8 250.3

3. Press any key other than the MONI key to complete the setting. Observe that both

and are displayed.

88.5 88.5 TCS-OF

T/SQ

Tone Squelch (TSQ)

6.1

■

6.Selective Calling

6.1.2 Switching Off the Tone Squelch

Press the key in Tone Squelch Setting mode to select TCS-OF, then press any key other than the MONI key to complete the setting.

6.1.3 To Differentiate the ENC/EDC Tones

It is possible to set the encode and decode tones independently in the Tone Squelch Setting mode.

• To set the encode tone, when displayed, select a desired tone. The decode tone is

set automatically to the same tone.

• To differentiate the decode tone, select another tone in status.

6.1.4 Tone Squelch Operation

The squelch unmutes only when the signal with the same decoding-setting tone is received.

6.2.1 Setting the DCS

1. Press the FUNC key, and while is displayed on the LCD, press the key.

"" is displayed on the LCD, and the DCS code is displayed. The initial setting is 023. Each time you press the key, the display switches between:

2. Press any key other than the MONI key to complete the setting. Observe that

"" is displayed.

DCS

023 DCS-OF

DCS

6.2

6.Selective Calling

6.2.2 Changing the DCS Code

1. Rotate the dial in DCS Code Setting mode (while " " is displayed).

2. Press any key other than the MONI key to complete the setting.

• The same DCS code is set for ENC/DEC, differential setting isn't available.

One of the following 104 DCS codes can be selected. 023 025 026 031 032 036 043 047 051 053 054 065 071 072 073 074 114 115 116 122 125 131 132 134 143 145 152 155 156 162 165 172 174 205 212 223 225 226 243 244 245 246 251 252 255 261 263 265 266 271 274 306 311 315 325 331 332 343 346 351 356 364 365 371 411 412 413 423 431 432 445 446 452 454 455 462 464 465 466 503 506 516 523 526 532 546 565 606 612 624 627 631 632 654 662 664 703 712 723 731 732 734 743 754

6.2.3 Switching Off DCS

Select DCS-OF in the DCS Code Setting mode to turn it off.

6.2.4 DCS Operation

The squelch unmutes only when the unit receives the matching code.

6.2.5 DET Mode in DCS Operation

DET Setting

If the DET mode in DCS operation is preferred, while in the DCS Code Setting mode and DCS-OF is displayed, rotate the dial to eliminate the hyphen (DCS OF) then proceed with the rest of setting sequence. DET on DCS function stands for Detect-Only mode. In DCS operation, the TX signal carries a digital code. The RX side, just like TSQ, detects this tone stream and determines the squelch operation. This DCS code stream is transmitted all the way through the communication like a CTCSS tone and it is necessary for receiver to correctly and CONTINUOUSLY receive this DCS stream to hold the squelch open, otherwise the CPU thinks that the signal is unwanted and it closes the squelch. But due to noise or weak signal strength etc, sometimes it is difficult to continuously receive a DCS stream. By activating DET, the receiver opens the squelch when the first corresponding DCS stream is received, then thereafter, regardless of the status of the DCS codes, the DCS squelch remains opened.

■

6.Selective Calling

Advantage of DET

It enables DCS squelch operation even in poorer signal conditions.

Disadvantage of DET

When it is activated, suppose 2 stations are sharing the same channel and using the DCS selective-calling technique and transmitting at the same time. After station A with its corresponding DCS is gone, you may still hear station B even his DCS code is different from A, although he can't open your DCS squelch by his signal alone.

To Manually Transmit DTMF Tones

1. Press the numeric, alphabetic or symbol keys while holding down the PTT key.

The tones sound as long as the key is pressed.

2. Up to 16 characters of manually transmitted DTMF tones are automatically stored

for redialing. Refer to "Redial" (page 41) for operation.

■

DTMF Tone Encoding

6.3

■

6.Selective Calling

The DTMF tones can be stored in the memory to automatically transmit.

6.4.1 Setting the Auto Dialer

• All 16 DTMF tones up to 16 characters are available for each of 9 memories called

an Auto Dialer memory.

Programming the Auto Dialer Memories

1. Press the FUNC key, and while is displayed on the LCD, press the key to

enter the Dialer Setting mode. The "M1" appears. There are six space available for characters on the display, and nothing is displayed initially.

2. Select a desired Auto Dialer memory channel from M1 to M9 by rotating the dial.

3. Use the DTMF key to input the DTMF tones.

For example: when programming 123456789, the display changes as follows:

[ 1] –> [ 12] –> [ 123] –> [ 1234] –> [ 12345] –> [123456] –> [234567] –> [345678] –> [456789]

• To set a pause instead of a tone, press the FUNC key, and while is displayed , press the key. "-" is displayed for a pause. The pausing time is approx. 1 second.

• Press the FUNC key, and while is displayed, rotate the dial to scroll the display to see the hidden characters.

• To clear the programming, press the FUNC key, and while is displayed, press the

key.

4. Press the PTT key to complete the programming.

6.4.2 Generating the Auto Dialer Codes

Please program the Auto Dialer memory channel(s) in advance.

1. Press the key. "DIAL" is displayed on the LCD.

2. Press one of the to key (corresponding to memory #1~#9) to automatically generate the DTMF tones.

Auto Dialer Operation While Transmitting

1. While pressing the PTT key, press the FUNC key. "DIAL" is displayed on the LCD. Don't release the PTT to proceed.

2. Press one of the to key to automatically transmit the DTMF tones.

■

Auto Dialer

6.4

6.Selective Calling

6.4.3 Redial

This function generates the last DTMF tones used by the unit.

1. Press the key while the unit is receiving.

2. Press the key. The last DTMF tones (either the auto dialer code or a

manually input DTMF code) is automatically generated from the speaker. The unit doesn't transmit the tones in this operation.

3. To transmit, press the FUNC key while pressing the PTT key, then the key.

Please note that you must operate the DTMF tones at least once to proceed above.

7.Special Functions

7. Special Functions

Use this function when the receiving signal is interfered by strong signals of nearby channels. When you activate this function, the transceiver attenuates the receiving sensitivity.

1. Press the FUNC key, and while is displayed on the LCD, press the key.

2. Rotate the dial to change the ATT level. There are 2 levels; ATT-1 attenuates the received signal by 10dB and ATT-2 does 20dB. Press any key other than the or MONI key to complete setting. Observe that " " appears on the display.

Press the key in the setting sequence to display "ATT-OFF" then press any key other than the or MONI key to turn off this function. Observe that "" disappears from the display.

Repeating improper recharge of the Ni-MH battery pack may cause so-called the "memory effect" that the battery holds less charge. To avoid this, it is recommended to fully discharge the battery pack then full charge. This function helps discharging the battery pack. Please remove the unit from a charger or a DC cable before this operation.

1. Activate the Keylock (page 32).

2. Press the key twice, the key twice, the

key twice and then the key twice. "DISCHG" will be displayed on the LCD, and the battery-refresh starts.

3. To cancel this operation, just turn off the unit, turn it on again, then unlock the Keylock function.

4. The unit will turn off automatically when finished the refresh.

Battery Refresh

7.2

ATT (Attenuator)

7.1

AT T-1 ATT-2

7.Special Functions

1. Press the FUNC key, and while is displayed on the LCD, press the key.

2. Preset parameters on the Repeater-Access function memory will be effective at any

frequency. Repeater-Access parameters have priorities over the parameters programmed in the VFO/memory/CALL modes.

Repeater-Access

7.3

Caution

• The time to refresh totally depends on the remaining charge of the battery pack. To discharge the fully-charged EBP-65 may take up to approx. 7 hours.

• When this function is on, the backlight and the keys are illuminated, and noise from the speaker can be heard.

• Before storing the rechargeable battery pack for an extended period of time, please full-charge it after this operation.

8.Set Mode

8. Set Mode

The Set mode is used to customize the various operational parameters of your DJ-V17.

This chart shows the available parameters in the Set mode.

1. Press the FUNC key for at least 2 seconds. The unit enters the Set mode. "BS-ON" is displayed as a factory-default.

2. Press the MONI key or FUNC key to select a menu. The Monitor function can't be used in this status.

3. Rotate the dial to change the parameter.

4. Press any key other than the MONI key and FUNC key to complete the settings.

The last operated menu will be selected the next time you enter the Set mode.

Entering the Set Mode

8.2

Set Mode Operation

8.1

   

01 BS-ON Battery Save ON/OFF

02 TIMER Timer/Busy scan setting

03 BEP-ON Beep sound ON/OFF

04 1750 Tone-Burst Frequency setting

05 SFT-OF CPU Clock Frequency shift ON/OFF

06 BCL-OF Busy Channel Lock Out ON/OFF

07 TP-OFF TOT Penalty setting

08 DWT-01 DTMF Wait time setting

09 DP-60 DTMF Pause/Burst time setting

10 DB-60 DTMF First Digit Burst time setting

11 CHG-OF Battery Charge ON/OFF

12 BATT-NI Battery type setting

MONI key

FUNC key

8.Set Mode

8.3.1 Menu 1 Battery Save (BS) Function

This function prevents useless battery consumption by switching the power ON/OFF at a fixed ratio if there is no key operation or receiving signal for a continuous period of 5 seconds or more.

1. BS-ON is displayed on the LCD.

2. Rotate the dial to select the battery save setting (on or off).

• The factory setting is BS-ON

• The Battery Save function is temporarily suspended when a key is operated or a

signal is received.

• Set this parameter OFF for packet operation.

• The display remain unchanged even the BS function is in the OFF cycle.

8.3.2 Menu 2 Timer/Busy Scan Setting

Select the scan-resume condition in this menu (page 31).

1. TIMER is displayed on the LCD.

2. Rotate the dial to select the scan-resume condition between TIMER and BUSY.

8.3.3 Menu 3 Beep Function

Select OFF to turn off all the beep sounds inclusive of alerting beeps.

1. BEP-ON is displayed on the LCD.

2. Rotate the dial to select the beep setting on and off.

8.3.4 Menu 4 Tone-Burst Frequency Setting

1. 1750 is displayed on the LCD.

2. Rotate the dial to select the tone-burst frequency.

1750 2100

1000

1450

(unit: Hz)

BEP-ON BEP-OF

TIMER BUSY

BS-ON BS-OFF

Available Parameters

8.3

8.Set Mode

8.3.5 Menu 5 Clock Shift Setting

In the unlikely event that you may hear a weak noise always on the same frequency, it may be so-called a CPU-clock noise. Unfortunately this is due to the circuit-design of this product and can't be eliminated, but can be moved away to another frequency.

1. SFT-OF is displayed on the LCD.

2. Rotate the dial to select the clock shift setting on and off.

8.3.6 Menu 6 Busy Channel Lockout Setting

This function restricts the PTT (transmit) operation.

1. BCL-OF is displayed on the LCD.

2. Rotate the dial to select the Busy Channel Lockout setting on and off.

When Busy Channel Lockout is set to on, transmission is possible only in the following conditions (and isn't possible otherwise). The alarm sounds if the PTT key is pressed when transmission is prohibited.

1) When no signal is being received (BUSY isn't displayed).

2) When the tone matchs and the squelch is unmuted based on the Tone Squelch setting conditions.

3) When the codes match and the squelch is unmuted based on the DCS setting conditions.

BCL-OF BCL-ON

NOTE:

This function isn't a noise-blanker.

SFT-OF SFT-ON

8.Set Mode

8.3.7 Menu 7 TOT Penalty Time

This parameter determines the time to resume the transmission after the unit is forced to quit transmitting by TOT.

1. TP-OFF is displayed on the LCD.

2. Rotate the dial to change the TOT Penalty Time setting.

Transmission is prohibited until the penalty time elapses.

• An alert beep sounds when the PTT key is pressed during the penalty time.

8.3.8 Menu 8 DTMF WAIT Time

Use this parameter to delay the time to start transmitting the DTMF tones in Auto Dialer operation. The initial setting is 100ms.

1. DWT-01 is displayed on the LCD.

2. Rotate the dial to change the DTMF wait time setting.

8.3.9 Menu 9 DTMF Burst/Pause Time

This parameter determines the length of DTMF tones and pause time between the tones.

1. DP-60 is displayed on the LCD.

2. Rotate the dial to change the DTMF burst/pause time setting.

DP-60 DP-80 DP-160 DP-200

(unit: ms)

DWT-01 DWT-04 DWT-07 DWT-10

(unit: 100ms)

NOTE:

The following 3 menus explain the Auto Dialer DTMF tone parameters. Please refer to the chart at the end for details.

TP-OFF TP-1 ----- TP-4 ----- TP-15

(unit: seconds)

8.Set Mode

8.3.10 Menu 10 DTMF First Digit Burst Time

It often happens that the radios fail to receive the very beginning instant of each communication due to squelch/TSQ/DCS etc. By setting the burst time of the first digit longer, the risk to miss the first DTMF tone will decrease.

1. DB-60 is displayed on the LCD.

2. Rotate the dial to select the initial-character burst time.

The DTMF Timing Chart

8.3.11 Menu 11 Battery Charge Function

The Ni-MH battery pack can be charged with an external power supply or an optional AC adapter using the DC-jack on the unit. Please select ON to activate this function. The factory setting is OFF.

1. CHG-OF is displayed on the LCD.

2. Rotate the dial to select the battery charge setting on and off.

3. Please be sure to read "Battery Type Setting " (page 49) to correctly use this function.

NOTE:

• Please be sure to select OFF when using a dry cell case otherwise it may risk a leak of battery liquid, heat or explosion of the battery cells and the battery case.

• While this function is activated, without attaching a battery pack or the remaining battery level is below the usable range, the unit turns on by just connecting the DC source such as an adapter or a DC cable (without operating the power key).

DB-60 DB-80 DB-160 DB-200

(unit: ms)

PTT ON DTMF code DTMF code DTMF code

WAIT Time First Digit

Burst Time

Pause

Time

Burst

Time

Pause

Time

Burst Time

CHG-OF CHG-ON

8.Set Mode

8.3.12 Menu 12 Battery Type Setting

Select the correct battery type from Ni-MH battery pack, Li-ion battery pack and Alkaline dry cells in order to display the battery-level icon correctly and to perform the battery-charge using the DC-jack.

1. BATT-NI is displayed on the LCD.

2. Rotate the dial to select battery type from Ni-MH battery pack (BATT-NI), Li-ion battery pack (BATT-LI) and Alkaline dry cells (BATT-AL).

• Cut out the Set Mode Function List below for use as a quick reference.

BS-ON Battery Save

TIMER Timer/Busy scan

BEP-ON Beep sound

1750 Tone-Burst Frequency

SFT-OF CPU Clock Frequency shift

BCL-OF Busy Channel Lock Out

TP-OFF TOT Penalty

DWT-01 DTMF Wait time

DP-60 DTMF Pause/Burst time

DB-60 DTMF First Digit Burst time

CHG-OF Battery Charge

BATT-NI Battery type

Reference (Set mode)

NOTE:

Please set this parameter correctly. When the BATT-LI or BATT-AL is selected, previously explained battery charge function can't be performed.

BATT-NI

(Ni-MH)

BATT-LI

(Li-ion)

BATT-AL (Dry cell)

9.Cloning and Packet Operation

9. Cloning and Packet Operation

The memory data and customized operational parameters can be transferred from a Master unit to other DJ-V17 (Slave units).

9.1.1 Cable Connection

• Make sure that both units are turned off before connecting the cable.

• Connect the Microphone/Speaker jack on the Master unit with the Slave unit using

an optional clone cable (EDS-11) as shown below, then turn on both units.

9.1.2 Master/Slave Units

Press the PTT key three times while holding down the MONI key.

"CLONE" is displayed on the LCD, and both units enter the Clone mode.

To the MIC/SP jack on the Master unit

*Besure to securely screw the plug all the way down to the jack

To the MIC/SP jack on the Slave unit

Cloning

9.1

9.Cloning and Packet Operation

9.1.3 Master Unit Operation

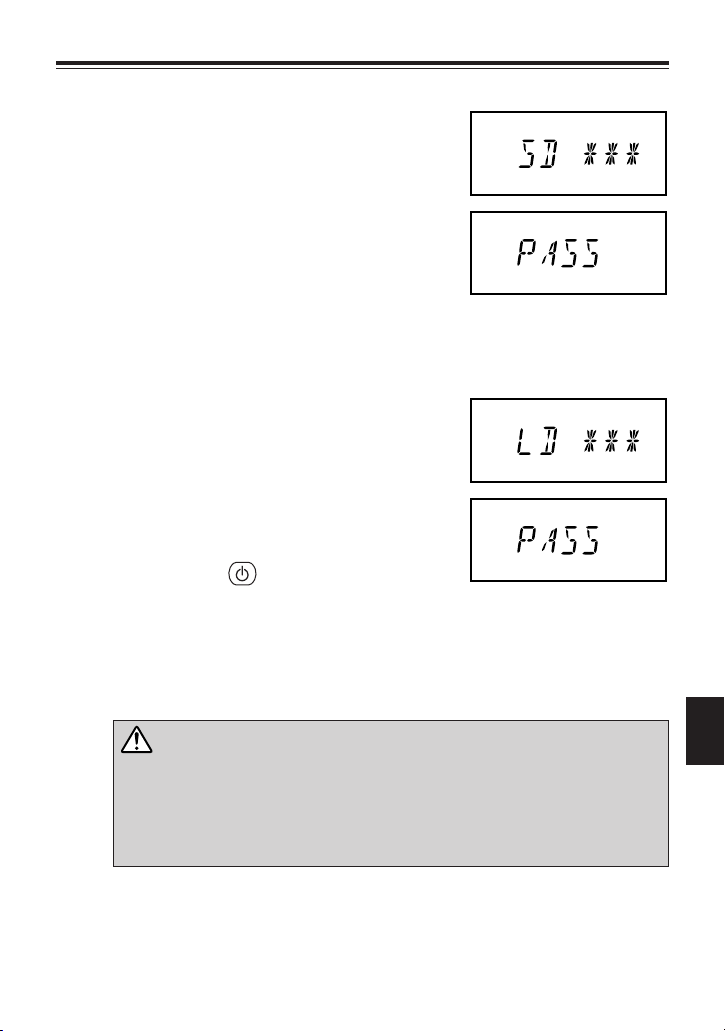

1. In the Clone mode, press the PTT key of the master unit. "SD***" is displayed on the LCD, and starts the data-transfer.

2. After the transfer is completed successfully, "PASS" is displayed.

3. Turn off the unit. Repeat the same sequence to clone more units.

Stop moving the SD***, COMERR etc. on the display means that the cloning is failed. Please read below and repeat the procedure.

9.1.4 Slave Unit Operation

1. When the data is sent from the master unit, "LD***" is displayed on the receiving unit, and the data-transfer starts.

2. After the transfer is completed, "PASS" is displayed.

3. After the cloning is done, turn off the unit by pressing the key and remove the cable. Repeat the same sequence to clone more units.

In case the transfer fails, please turn off the slave unit and perform the reset sequence (page 54) to turn on again before retry. If you quit cloning of this slave unit, please reset it anyway otherwise it may not work properly.

Caution

• Don't disconnect the cable during data transmission. If you disconnect the cable at this time, "COMERR" is displayed on the LCD of the master unit, and transmission is aborted.

• When data transfer is performed using the Clone function, all settings in the slave unit are overwritten by the master unit settings.

9.Cloning and Packet Operation

Packet operation is one of the data communication methods, which enables data transmission and reception with a personal computer through an optional TNC unit.

9.2.1 Packet Operation Connections

Connect an optional EDS-10 Microphone/Speaker cable plug to the MIC/SP jack on the top of the unit, and connect the TNC (Terminal Node Controller) to the SP jack with 3.5Ø plug, and to MIC jack with 2.5Ø plug on the EDS-10 as shown below.

• Input level adjustment: The unit doesn't have microphone and speaker level adjustment circuit. Adjust their level on the TNC side.

• Output level adjustment: Use the audio output ( key) of the unit to adjust the

output level from MIC/SP terminal.

         





 

!" #$

$%

 $%

(" #$

)

*+



( 

(

! 

 ,-) !"

&' ,-) ("

( 

(

! 

$%

 .#





$%

 &'

/%0 ,-) . 

%102 /%0 

Packet Operation

9.2

Caution

• Refer to the TNC's instruction manual when connecting the TNC unit to other devices (personal computer etc.). If the unit, TNC unit and connected personal computer are set too close, noise between them may cause interference.

• Turn the battery save function off during packet operations.

• DJ-V17 operates up to 1200bps only.

10.Maintenance and Reference

10. Maintenance and Reference

Please check the list below before concluding that the unit needs to be serviced. If a problem persists, please reset the unit. The setting/CPU program-related troubles are often resolved by the reset.

* Please be advised that the water-proof shields including jack caps are subject to

consume. The factory warranty for IPX7-grade water-proof is 1 year. Please consult with your local dealer when further service-assistance may be necessary. Please visit alinco.com's "DISTRIBUTION" menu to locate the nearest dealer.

Symptom

Nothing appears on the display when turning on the power.

No Speaker audio. No reception.

Frequency display is incorrect.

Won't scan. Frequency and memory number don't change. Key entry not possible. Repeater-Access can't be used. Can't transmit. Display flashes or goes out when you transmit. Can't transmit. Can't talk to other stations.

The display flashes or disappears during reception.

Possible Cause

Poor battery pack connection. Battery is exhausted. You are releasing the key too quickly. Volume too low. Squelch level too high. Tone squelch is on. DCS is on. You are pressing the PTT key and transmitting. CPU error. A channel name is set. Squelch is unmuted. Keylock is on. Transceiver is in the Call mode. Keylock is on. Incorrect setting of parameters. Battery is exhausted.

Not pressing the PTT key firmly enough. Off-frequency.

Incorrect frequency. Battery is exhausted.

Action

Check that the battery pack terminals are clean, and pack is correctly attached. Recharge or replace the battery. Hold the power key down until the display shows figures. Adjust the audio level. Adjust the squelch. Turn off tone squelch. Tur n off DCS. Release PTT key.

Reset the unit. See Naming Memory Channels function (page 33). Set squelch so that noise mutes. Turn off Keylock. Select the VFO or Memory mode.

Turn off Keylock. Set the correct parameters to suit your local repeaters. Recharge or replace the battery.

Press the PTT key and confirm that TX/RX lamp lights red. Be sure that you are in the TX range and/or check shift status. Check the shift status/repeater settings. Recharge battery or replace the battery.

Troubleshooting

10.1

10.Maintenance and Reference

When you reset the unit, all settings are returned to the initial factory settings. The reset deletes the programmed memory channels also.

1. Turn on the unit with the FUNC and keys pressed together.

2. All the icons appear on the display. Release the keys. All display will disappear for 2 seconds, and then reappear. The initial mode is the VFO.

Factory default settings

NOTE:

THE RESET DELETES ALL THE MEMORIES. Please take notes of the important data and keep it for future reference.

Resetting

10.2

VFO Frequency CALL Frequency Memory Channel Channel Step Shift Offset Frequency Tone Setting Tone Frequency DCS Setting DCS Code Transmitter Output Auto Dialer Code Keylock Time-Out-Timer Auto-Power-Off Volume Level Squelch Level Repeater Shift Repeater Offset Frequency Repeater Tone Setting

DJ-V17T

145.000MHz

145.000MHz 0~199ch Blank 5kHz None

0.6kHz None

88.5Hz None 023 Low None off off off 0 0

0.6kHz

88.5Hz

DJ-V17E

145.000MHz

145.000MHz 0~199ch Blank

12.5kHz None

0.6kHz None

88.5Hz None 023 Low None off off off 0 0

0.6kHz

88.5Hz

155.000MHz

155.000MHz 0~199ch Blank 5kHz None

0.6kHz None

88.5Hz None 023 Low None off off off 0 0

0.6kHz

88.5Hz

DJ-V17TFH/R

10.Maintenance and Reference

EBP-63 Li-ion Battery Pack (DC 7.4V 1100mAh) EBP-64 Li-ion Battery Pack (DC 7.4V 1600mAh) EBP-65 Ni-MH Battery Pack (DC 7.2V 700mAh) EBP-66 Ni-MH Battery Pack (DC 7.2V 2000mAh) EDC-36 Mobile Cigarette Lighter Adapter with Active Noise Filter EDC-37 External DC Power Supply Cable EDC-43 Mobile Cigarette Lighter Cable for Charging Ni-MH Packs EDC-143T/E/UK Trickle Battery Charger (T: 120V E: 240V UK: 240V UK plug) EDC-143R Multiple-Charger Basket (An external DC power supply required) EDC-144A/E/UK Rapid Battery Charger (A: 120V E/UK: same as above) EDC-144R Multiple-Charger Basket (An external DC power supply required) EDC-146 Wall Charger (120V) EDC-147 Wall Charger (230V) EDC-148 Wall Charger (230V) U.K. Socket EDH-34 Dry Cell Case EDS-10 Microphone/Speaker Cable EDS-11 Clone Cable EME-6 Earphone EME-12 Headset with VOX * EME-13 Earphone and MIC with VOX * EME-15 Tie-pin MIC with VOX * EME-20 Earphone Microphone * EMS-47 Speaker Microphone with Audio Control * EMS-59 Speaker Microphone * ESC-41 Soft Case

IMPORTANT NOTE:

All accessories except EBP-63/64/65/66 and soft cases above listed are NOT water-proof. Never use these accessories in wet conditions.

NOTE:

FOR EUROPEAN USERS Please be advised that some of the accessories listed above aren't RoHS compliant at the moment this manual has been edited. Please refer to an updated brochure or ask your dealer for eventual replacements at the moment of the purchase after July 2006. Use of cigar-plug and DC cables are at your own risk per IEC/EN60950. Refer to page 8 for details.

Options

10.3

10.Maintenance and Reference

• Please purchase an optional EDS-10 cable to operate optional accessories marked *.

• When using EDC-36, EDC-37, EDC-43, EDC-146, EDC-147, EDC-148, connect them to the unit first before turning on the unit.

• EBP-63, 64, 65 and 66 are IPX7-grade water-proof only when correctly attached and used with DJ-V17.

10.3.1 Microphone/Speaker Cable (EDS-10)

1. Turn off the unit.

2. Turn the plug clockwise until it stops. Check to be

sure it is securely connected.

3. Connect the Microphone/Speaker plugs to the each

jack.

10.3.2 Battery Packs

The battery packs aren't fully charged when shipped. Please charge the pack completely before use.

Available Battery Packs for DJ-V17:

EBP-63 Li-ion Battery Pack (DC 7.4V 1100mAh) EBP-64 Li-ion Battery Pack (DC 7.4V 1600mAh) EBP-65 Ni-MH Battery Pack (DC 7.2V 700mAh) EBP-66 Ni-MH Battery Pack (DC 7.2V 2000mAh)

Charging Battery Packs

Refer to the chart below for the combination of the proper battery pack and charger. The indicates the usable combination, (* hrs) means the approximate time necessary to full charge the empty pack.

Battery Packs

Chargers

Trickle Charger EDC-143 Rapid Charger EDC-144 Wall Charger EDC-146/147/148

Li-ion Battery Pack

EBP-63

(2hrs)

Ni-MH Battery Pack

EBP-65

(10hrs) (1.5hrs) (10hrs)

EBP-64

(3hrs)

EBP-66

(14hrs) (3.5hrs) (30hrs)

○

■

Plug

Microphone jack

Speaker jack

10.Maintenance and Reference

10.3.3 Using the Chargers

Charging with the EDC-143 (Trickle Charger)

Please make sure that following items are included in the package.

• EDC-143T: EDC-143 basket, EDC-146 adapter (AC 120V), insulation sheet

• EDC-143E: EDC-143 basket, EDC-147 adapter (AC 240V), insulation sheet

• EDC-143UK: EDC-143 basket, EDC-148 adapter (AC 240V), insulation sheet

• EDC-143R: EDC-143 basket, connection cable, insulation sheet, 2 screws,

connective stay

1. Connect the AC adapter plug to the DC-IN jack on

the back of the basket. *The design of the AC adapter may vary

depending on the models.

2. Connect the adapter to an outlet.

AC adapter plug

Basket

AC adapter*

■

Caution

Before using them for the first time, attach the insulation sheet to cover the screw-terminals to avoid short-circuiting. Please refer to page 61 for instruction.

Caution

Please also read the "Warning" (page 5 of this manual) and the safety instruction that is included in the accessories' package before operating with them for your safety.

10.Maintenance and Reference

3. Press the sides of the adjustment plate, and attach

it to the proper grooves of the basket according to the size of the battery pack. Please be sure to place the plate all the way down to the bottom.

4. Mount the battery (with or without being attached

to the unit) in the basket as shown. Turn off the unit while charging.

The red indicator on the basket turns on and charging starts.

5. After charging time is elapsed (page 56), remove the battery pack from the basket.

The red indicator stays turned on as long as the pack is mounted on the basket regardless of the charging status.

Specifications

*The charging time may vary depending on the condition of the battery pack and the

temperature of the environment.

Input Voltage Operating Temperature Range Charging Current Battery Capacity Charging Time

EBP-65

DC 12.0V 150mA 0˚C~+40˚C (+32˚F~+104˚F) 70mA DC 7.2V 700mA Approx. 10 hours

EBP-66

DC 12.0V 150mA 0˚C~+40˚C (+32˚F~+104˚F) 140mA DC 7.2V 2000mA Approx. 14 hours

Indicator

Groove

EBP-66 EBP-64 EBP-63/65

Adjustment plate

EBP-63/65

EBP-64

EBP-66

Attached to the unit

10.Maintenance and Reference

Charging with the EDC-144 (Quick Charger)

Please make sure that following items are included in the package

• EDC-144A: EDC-144 basket, EDC-150 adapter (AC 120V), insulation sheet

• EDC-144E: EDC-144 basket, EDC-151 adapter (AC 240V), insulation sheet

• EDC-144UK: EDC-144 basket, EDC-152 adapter (AC 240V), insulation sheet

• EDC-144R: EDC-144 basket, connection cable, insulation sheet, 2 screws,

connective stay

1. Connect the AC adapter plug to the DC-IN jack on

the back of the basket. *The design of the AC adapter may vary

depending on the models.

2. Connect the adapter to an outlet.

3. Press the sides of the adjustment plate, and attach

it to the proper grooves of the basket according to the size of the battery pack. Please be sure to place the plate all the way down to the bottom.

EBP-64

EBP-66

EBP-63/65

Adjustment plate

EBP-63/65

EBP-64

EBP-66

Attached to the unit

■

Caution

Before using them for the first time, attach the insulation sheet to cover the screw-terminals to avoid short-circuiting. Please refer to page 61 for instruction.

AC adapter plug

Basket

Groove

AC adapter*

Adjustment plate

10.Maintenance and Reference

4. Mount the battery (with or without being attached

to the unit) in the basket as shown. Turn off the unit while charging.

The red indicator on the basket turns on and charging starts.

5. The red indicator turns off when the charge is completed. Remove the battery pack

from the basket.

Specifications

*The charging time may vary depending on the condition of the battery pack and the

temperature of the environment.

Input Voltage Operating Temperature Range Charging Current

DC 12.0V 700mA 0˚C~+40˚C (+32˚F~+104˚F)

600mA Battery Capacity Charging Time

EBP-63

DC 7.4V 1100mA

Approx. 2 hours

EBP-64

DC 7.4V 1600mA Approx. 3 hours

EBP-65

DC 7.2V 700mA Approx. 1.5 hours

EBP-66

DC 7.2V 2000mA Approx. 3.5 hours

NOTE:

The flashing red indicator means that the charger isn't working properly. Stop using it immediately, remove the cord form the outlet and consult with your local Alinco dealer.

Indicator

10.Maintenance and Reference

Connecting Additional Baskets (EDC-143R/144R)

In order to use EDC-143R and EDC-144R, an optional power supply (IEC/EN 60950 compliant) of 1A/5A minimum respectively is required. A DC cable isn't included in the package; the suggested DC cable is 20 AWG wire, shorter than 1m (3feet) in length.

1. Make sure that the output voltage of the power supply is DC 12.0V.

2. Connect the terminals with the provided connection cable, the red cable to the positive and the black cable to the negative terminals. The additional basket can be connected up to 5 in the same way.

3. Connect the ends of the DC cable to the terminals of the basket. * This DC cable isn't provided in the products.

4. Attach the connective stay and the insulation sheets to cover the terminals to avoid shortcircuiting.

Insulation sheet*

Connective stay

■

Caution

This insulation sheet marked * is provided to all EDC-143/144 series chargers. Please be sure to cover the bottom of the charger with this sheet as shown above to prevent short-circuiting.

Black cable

Red cable

To the power supply

DC cable*

10.Maintenance and Reference

5. Connect the other ends of the DC cable to the output terminals of the power supply. Be mindful to the polarities of the terminals.

DC cable

Power supply

11.Specifications

11. Specifications

General

Frequency range T: TX144~147.995MHz * 144~147.995MHz

RX130~173.995MHz * 144~147.995MHz

E: TX144~145.995MHz * 144~145.995MHz

RX144~145.995MHz * 144~145.995MHz

TFH/R:TX130~173.995MHz * 150~173.995MHz

RX130~173.995MHz * 150~173.995MHz

* Guaranteed range Modulation: F3E (FM) Frequency step: 5, 10, 12.5, 15, 20, 25, 30kHz step Memory channel: 200 channels + 1 call channel + 1 Repeater-Access

function memory Ant. impedance: 50 Ω unbalanced Frequency stability: ±5ppm Mic. impedance: 2k Ω Supply voltage: DC 7.0~16.0V (EXT DC-IN) Current consumption: 1.4A (typical) Transmit high at 5W

250mA (typical) Receive at 500mW

70mA (typical) Standby

25mA (typical) Battery save on Temperature range: External DC: -10°C~+60°C (+14°F~+140°F)

Battery packs: -10°C~+45°C (+14°F~+113°F) Ground: Negative ground Dimension: 58(W)x110(H)x36.4(D)mm

(2.28"(W)x4.33"(H)x1.43"(D))

(with EBP-65N) Weight: Approx. 280g (9.9oz)

(with EBP-65N) DTMF: 16 Buttons Keypad Sub audible Tone (CTCSS): encoder/decoder installed (39 tones) Sub audible Tone (DCS): encoder/decoder installed (104 codes)

■

11.Specifications

Transmitter

Power output: Approx. 5W (with EBP-65N)

Approx. 5W (with DC 13.8V)

Approx. 0.8W (LOW output)

Modulation: Variable reactance Spurious emission: -60dB or less Max. deviation: ±5kHz Mic. impedance: 2k Ω

Receiver

System: Double-conversion super heterodyne Sensitivity: -14.0dBµ (0.2µ V) or less Intermediate frequency: 1st IF 21.7MHz 2nd IF 450kHz Sensitivity: -6dB: 12kHz or more

-60dB: 26kHz or less

AF output: 500mW (MAX)

400mW (8 Ω, 10% distortion)

■
