Alesis TRANSACTIVE WIRELESS User manual

] QUICK START OWNER’S MANUAL

ENGLISH ::: 1 – 3

] MANUAL DE INICIO RÁPIDO PARA EL USUARIO

ESPAÑOL ::: 4 – 6

] SCHNELLBEDIENUNGSANLEITUNG

DEUTSCH ::: 7 – 9

] MANUEL D’UTILISATION DU PROPRIETAIRE

FRANÇAIS ::: 10 – 12

] MANUALE RAPIDO DI UTILIZZAZIONE

ITALIANO ::: 13 – 15

QUICKSTART GUIDE

BOX CONTENTS

 Transactive Mobile
 (1) Microphone Cable
 (1) Microphone
 (1) Power Cable (standard IEC)

QUICK SETUP GUIDE

Important: With all large speakers, an initial “break-in” period is needed to perform at optimal

levels. To properly “break-in” your Transactive Mobile, play an audio source at medium volume
for a few hours.

To RCA input on additional
Transactive Mobile
(Cable sold separately)

OR

Cable sold separately

1

FULLY CHARGE THE BATTERY BEFORE FIRST USE FOR

MAXIMUM BATTERY LIFE!

1. Make sure all items listed on the front of this guide are included in the box.

2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.

3. MAKE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY.

4. Study this setup diagram.

5. Place product in an appropriate position for operation.

6. Make sure all input devices such as microphones, CD players, mp3 players, and linked

amplifiers/PAs are turned off and volume settings are set at “zero”

7. Connect all devices as shown above.

8. Connect the stereo outputs to the power amplifier(s), tape decks, and/or audio sources.

9. Switch everything on in the following order:

 audio input sources (i.e. microphones, instruments, CD/MP3 Players)
 Transactive Mobile
 last, any amplifiers

10. When turning off, always reverse this operation by:

• turning off amplifiers

• Transactive Mobile

• last, any input devices

Go to http://www.alesis.com for product registration.

DIAGRAM AND PARTS DESCRIPTION

1. Microphone 1 Balanced Input with Gain Control (1/4” and XLR): This jack can either

take a ¼” balanced or a XLR balanced cable. An XLR Cable is included with the
microphone.

2. Instrument/Microphone 2 Input with Gain Control (1/4”): This mono input accepts a ¼”
input such as a microphone, guitar, or other musical instrument.

3. iPod/Auxuliary input with Gain Control (Stereo RCA): This knob controls the level of
the iPod* and the RCA input. This stereo RCA input can be used to connect a CD, MP3,
or other audio source. To connect to a portable device with a 1/8” headphone jack, you
need a standard (1/8” to RCA) adapter which is NOT included.

4. Master Volume Control: This knob controls the master volume of the Transactive Mobile.

* iPod is a trademark of Apple, Inc., registered in the U.S.A. and other countries.

2

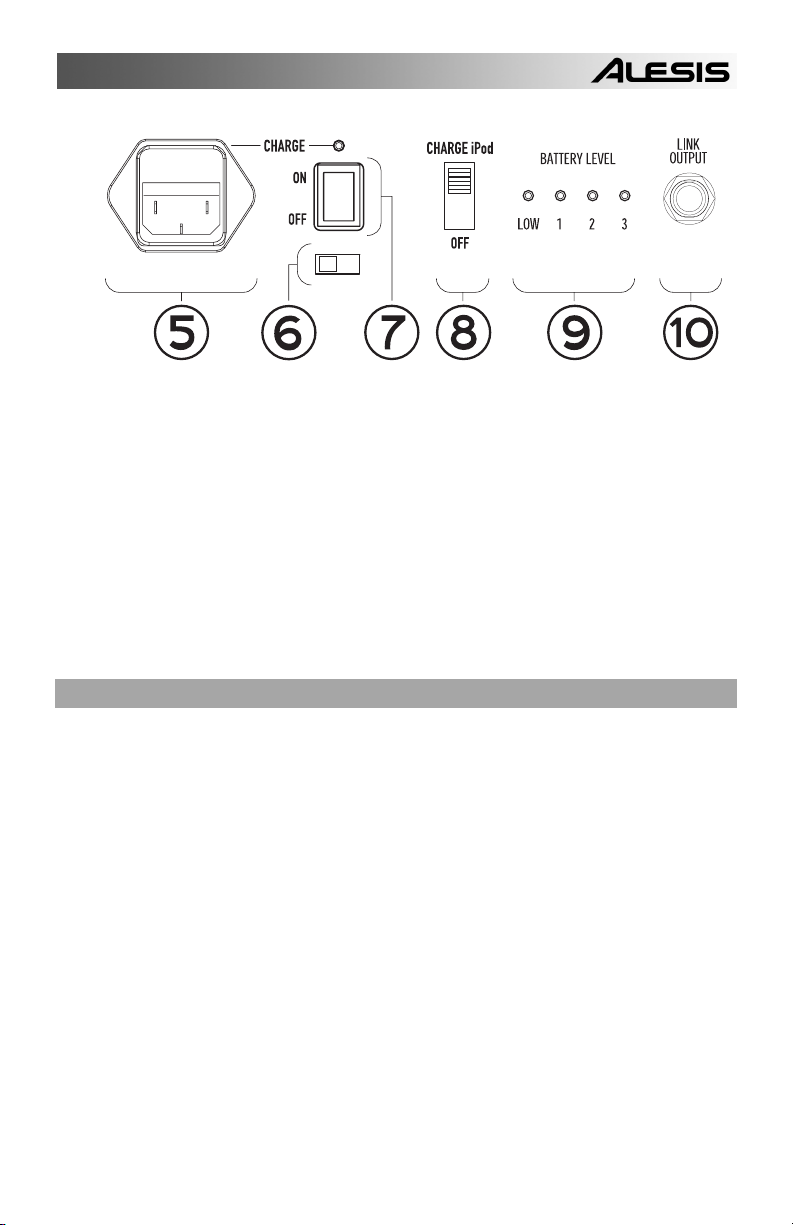

5. Power Adapter (IEC): Insert the included power cable here to charge the unit. Note that
the Transactive Mobile can run off the power adapter while it simultaneously charges the
battery. The charge indicator illuminates when the battery is charging.

6. Voltage Selector: Set this to the correct voltage for your location standard.

7. Power ON/OFF Switch

8. iPod Charging Switch

9. Battery Level Indicator: While the unit is powered ON, these four lights indicate the
power left in the battery. Battery life varies based on volume and usage.

10. Link Output: This ¼” jack is a stereo line level output that can be connected to the stereo
input of an amplifier or amplified loudspeaker such as another Transactive Mobile.

TROUBLESHOOTING GUIDE

Use this troubleshooting guide if: The sound is distorted at high volumes.

• Input is clipping: Try lowering the input gain or the volume control on your sound source

or music instrument.

• Output is clipping: Lower the main volume level.

• There is too much bass: Try adjusting the tone or EQ control on your sound source to

lower the bass level. This will allow you to play the music louder before clipping (distortion)
occurs.

• The link cable: is being plugged into the instrument or MIC input instead of the RCA line

input.

SPECIFICATIONS

Input Voltage: AC 100-120V/ 60Hz 220-240V/ 50Hz

•

• Power Consumption: 20W (110/220V), 36W (220/240V)

• Output Wattage: (Peak) 22W

• Output Wattage: (RMS) 15W, 1%THD

• Frequency Response: 70Hz~ 50kHz +/- 3dB

• Bottom pole mount specifications: Standard Pole Mount found at professional audio

retailer

o depth 80mm (3.15”)
o Diameter 35.5mm (1.40”)

• Time required to fully charge the Transactive Mobile: under 4 hours

• Battery life: Over 6 hours* at full volume of the Transactive Mobile when fully charged.

• iPod compatibility: made for iPod (4G and later), iPod Nano and iPod Mini.

*Note: Battery life may vary based on temperature, age, and volume usage of product.

3

GUÍA DE INSTALACIÓN RÁPIDA

CONTENIDO DE LA CAJA

 Transactive Mobile
 (1) cable para micrófono
 (1) micrófono
 (1) cable de alimentación

A RCA entrado en Transactive

Mobile adicional

(Cable vendido por separado)

Cable vendido por separado

O

4
