Akai AD-V63-DR Service Manual

PANEL

EXPLODED VIEW

17

EXPLODED VIEW PARTS LIST

PANEL

Ref. No. Description RS Part No. Mfr’s Part No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

(Open) Spring ROHS

LCD Bracket Real (E) ROHS

LCD DVD3030 TN POS 23X84MM Pin Type ROHS

CD 1007 Back Light CHT/Red ROHS

Panel Top (Black/White) N/SD DVD3032 ROHS

Panel Bottom W/O SD ROHS

AKAI Logo Silver Hot Stamp ROHS

Open Knob ROHS

EJ Knob (S.N0000) ROHS

Power Knob (S.N0000) ROHS

S-M Knob (S.N0000) ROHS

BND Knob (S.N0000) ROHS

AMS Knob (S.N0000) ROHS

TITL Knob (S.N0000) ROHS

1PAU Knob (S.N0000) ROHS

2SCN Knob (S,N0000) ROHS

3RPT Knob (S.N0000) ROHS

4SHF Knob (S.N0000) ROHS

5 Knob (S.N0000) ROHS

6 Knob (S.N0000) ROHS

MOD Knob (S.N0000) ROHS

DSP/SCN Knob (S.N0000) ROHS

EQ Knob (S.N0000) ROHS

VOL Knob (S.N1204) ROHS

FF/FW Knob (S.N0000) ROHS

CD Light ROHS

Volume Decoration Ring ROHS

Lens: DVD3032 W/IR N/RDS (S.N0000/White) (AKAI-AD-63

DR) ROHS

Key Board

Volume Encoder EC11E15D4MA1 POSTEC ROHS

Screw Ø2X8 BA/ST Black ROHS

3600-040205-00

3900-0E2004-00

2710-303001-01Y

0200-001007-02

5100-303221-31W

5100-303223-000

5200-0G6240-01

5200-303224-000

5200-303225-310

5200-303226-310

5200-303227-320

5200-303228-310

5200-303228-312

5200-303228-313

5200-303228-340

5200-303228-350

5200-303228-360

5200-303228-370

5200-303228-380

5200-303228-390

5200-303228-314

5200-303229-320

5200-303230-320

5200-303232-800

5200-303234-300

5200-303235-000

5200-303238-000

5300-303236-37W

1121-303230-3313

1800-000115-00P

4000-012008-21

18

CABINET

EXPLODED VIEW

19

EXPLODED VIEW PARTS LIST

CABINET

Ref. No. Description RS Part No. Mfr’s Part No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

Panel

Ring/ABS +SPY (S.N0000) ROHS

Base (W/O SD) ROHS

Rear-right Cabinet W/Spring For DVD-Wire ROHS

(DVD2685)+(HD65)+(M. Motor)With Convert PCB ROHS

Left Cabinet T-Heat Sink W/Spring ROHS

Top Cabinet ROHS

Bottom Cabinet ROHS

Main Fiber ROHS

Main Board

Mounting Box ROHS

Shade ROHS

CD Windows Sheet ROHS

Lock Panel Knob ROHS

Spring For EJ Panel CD200 ROHS

Hook Knob ROHS

Spring For Hook Knob CD200 ROHS

Deck Front BKT (Detachable) ROHS

Deck Rear BKT For DVD ROHS

Shield Cover (Mitsumi Tuner) ROHS

Mitsumi Tuner FAE376-P01(V-Type) ROHS

Power IC BKT ROHS

12VDC Fan 40X40X10MM Wire 80MM JS2.0 ROHS

Wire Clip 1.0MM ROHS

Screw Ø5X18 HH ROHS

Spring Washer M5 ROHS

Hexagon Nut M5 ROHS

Fan Cover ROHS

TV Tuner TALN-S200T(PAL+SECAM)(H-Type) LG ROHS

Screw Ø2.6 X 5 BH/TAPTITE ROHS

Screw Ø2.6 X 6 BH/MS ROHS

Screw Ø2.6 X 6 PH/MS Black ROHS

Screw Ø2.6 X 8 BH/MS ROHS

Screw Ø2.6 X 16MM BH/MS ROHS

Screw M2.6 X 20 PH/MS ROHS

Screw Ø2.6 X 4 BH/MS ROHS

5100-0E2022-30

5100-0H3927-00

6120-300003-002

9400-022685-01

6100-300004-003

6100-300001-000

6100-300002-000

3500-300001-000

1121-500031-0813

6100-300005-000

8100-069005-03

4300-0A3103-00

5200-0E2041-00

3600-0E2001-00

5200-0E2040-01

3600-0E2002-00

3900-300001-000

3900-300005-000

3900-0N2047-00

2900-000376-03

3900-300006-000

4900-004010-13

3900-0B1415-00

4000-005018-04

3500-050001-00

3500-040005-00

3900-0D2109-00

2900-S20000-00

4000-002605-03

4000-002606-01

4000-002606-20

4000-002608-01

4000-002616-01

4000-002620-00

4000-002604-01

20

EXPLODED VIEW (DECK)

21

EXPLODED VIEW PARTS LIST (DECK)

Ref. No. Description Parts No. Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

SENSOR

SENSOR PCB

SCREW

COVER-UPPER

LEVER DISC

GUIDE UP

BUSHING ROLLER

ROLLER DISC

SHAFT ROLLER

PIN ROLLER

PVC CAP

B/K ROLLER

PIN PULLEY

PIN IDLE

GEAR IDLE

GEAR PULLEY

BELT PULLEY

GEAR ROLLEY

LOCKER (L)

CAM (L)

S/P CAM (L)

S/P RACK

CAM (R)

LOCKER ®

GEAR RACK

GEAR LOAD ©

GEAR LOAD (D)

GEAR LOAD (B)

GEAR LOAD (A)

PIN LOAD

B/K GEAR

MOTOR

GEAR WORM

SERVO PCB ASSY

SPECIAL SCREW

S/P RO (L)

SUPPORT DAMPER

S/P RO ®

CHASSIS MAIN

ST-23G

FR

CA/H 0” TT 2*3

SECC T1.0

POM (F20-03)

POM (F20-03)

POM (F20-03)

SLICON

SUS 303

SUM24L-NI (PLATE)

PVC

SECC T1.0

SUM24L-NI (PLATE)

SUM24L-NI (PLATE)

POM (F20-03)

POM (F20-03)

CR-WRT

POM (F20-03)

POM (F20-03)

POM (F20-03)

SUS304WPB

SUS304WPB

POM (F20-03)

POM (F20-03)

POM (F20-03)

POM (F20-03)

POM (F20-03)

POM (F20-03)

POM (F20-03)

SUM24L-NI (PLATE)

SECC T1.0

FF-050SH-11190

POM (F20-03)

GLASS EPOXY 1.2T

P/H TTS 2*2

SUS304WPB

POM (F20-03)

SUS304WPB

SEEC T1.0

2

1

12

1

1

1

2

2

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

4

1

1

1

1

4

1

3

1

1

22

EXPLODED VIEW PARTS LIST - CONTINUED (DECK)

Ref. No. Description Parts No. Q’ty

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

CLAMP DISC

HOLD CLAMPER

S/P CLAMPER

TURN TABLE

BASE PU

PIN SIDE (A)

SCREW

PIN SIDE (B)

DAMPER

S/P BASE

MOTOR

GEAR PU (B)

GEAR PU (A)

SCREW

MOTOR

HOUSING GEAR

SHAFT PU

SCREW

4P CONT WIRE

SPRING TENSION

GEAR PU ©

LEAD SCREW

SWITCH

SCREW

PICK UP

FPC WIRE

SPRING PU

FIBER PAPER

S/P CAM ®

TRANSIT SCREW

INSULATOR COVER

SWITCH

WASHER PE

S/P BASE ®

POM (F20-03)

SECC T1.0

SUS304WPB

ABS G/F 20%

POM (F20-03)

SUM24L-NI (PLATE)

CA/H 0” M/S 1.7*2.5

SUM24L-NI (PLATE)

BUTHYL

SUS304WPB

RF-300CA-11400

HYTRELL 5526

POM (F20-03)

CA/H 0” M/S 2*2

FF-030PK-09210

POM (F20-03)

KNN11 (PCD18)

R/H (W/W) TTB2*5

1007 #28

SUS304WPB

POM (F20-03)

BSBM

SW-110

B/H TTB1.7*8

HD65

POLY AMIDE

SUS T0.2

0.55

4.5*18

PE

SW-111

PE

SUS304WPB

1

1

1

1

1

2

2

2

1

2

1

1

1

6

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

2

2

23

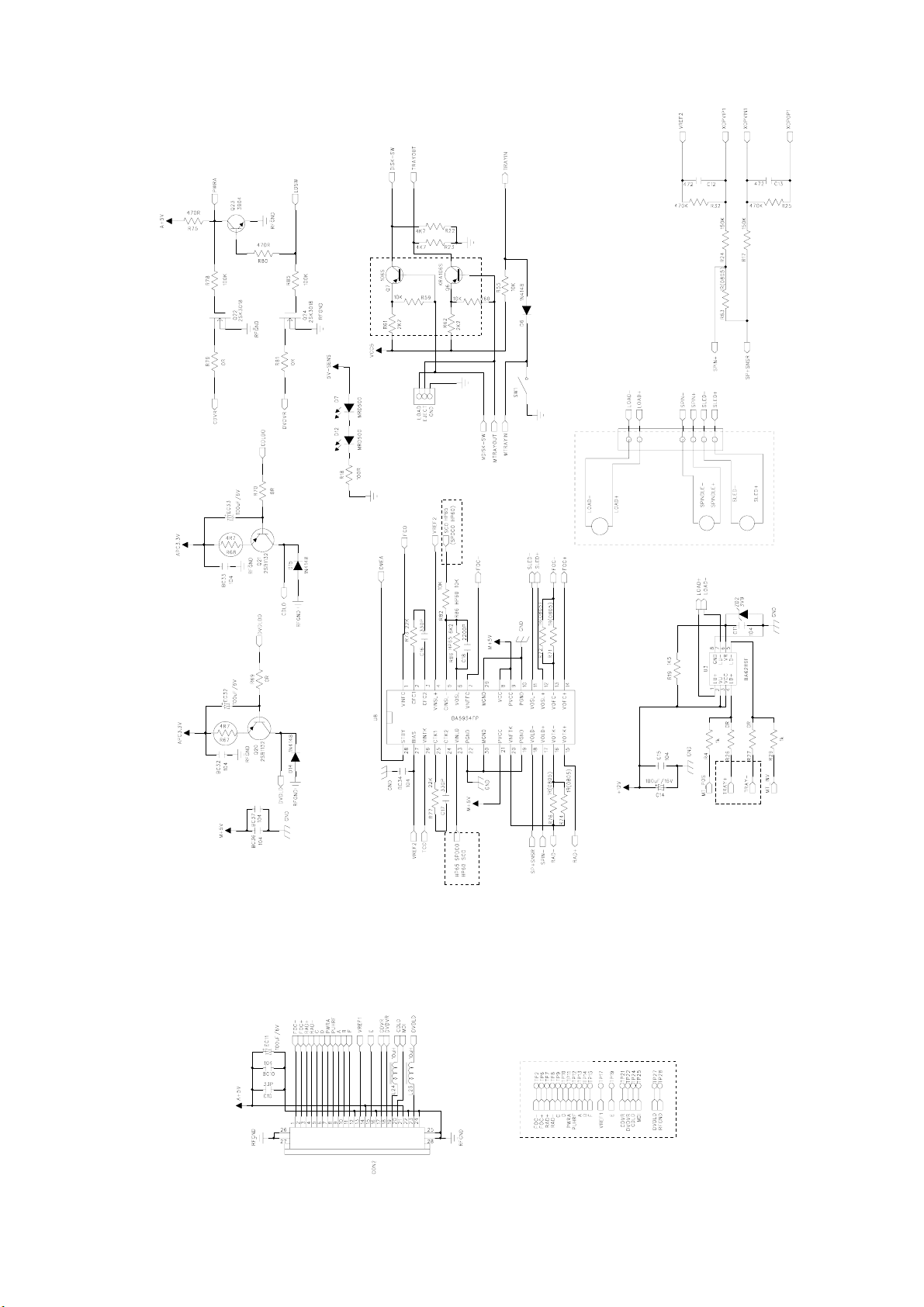

SCHEMATIC DIAGRAM (MAIN BOARD-MCU)

24

SCHEMATIC DIAGRAM (MAIN BOARD-MPEG SDRAM)

25

SCHEMATIC DIAGRAM (MAIN BOARD-RF)

26

SCHEMATIC DIAGRAM (MAIN BOARD-AUDIO)

27

SCHEMATIC DIAGRAM (MAIN BOARD-POWER)

28

SCHEMATIC DIAGRAM (KEY BOARD)

29

SCHEMATIC DIAGRAM (REMOTE BOARD)

30

ELECTRICAL PARTS LIST

Ref. No. Part No. Description Q’ty

PC BOARD ASSY, MAIN BOARD

C225,226 0500-063153-01D CHIP CAP 0.015UF X7R 0603 SMT ROHS 2
C705,706 0600-016225-54 E.CAP 2.2uF .SMD ROHS 2
R705,706 0700-063102-00 RES SMD 1KΩ ±5% 1/10W 0603 ROHS 2
R229 0700-063271-00 RES SMD 270Ω ±5% 1/10W 0603 ROHS 1
IC801 0300-007388-00 IC TDA7388 (4x40W) ST "Y" ROHS 1
XT901 0400-017734-00 CRYSTAL 17.734MHZ 50PPM HC- ROHS 1

CN302 2500-0F1476-00D CONNECTOR FEMALE 15PIN P=2.3MM

TU201 2900-000376-03 MITSUMI TUNER FAE376-P01(V-TYPE)

TUJ901 2900-S20000-00 TV TUNER

Q202,Q805 0100-000812-00F 2SA812-G(ROHS) 2
Q808 0100-001385-00 KTA1385D-Y (DPAK) ROHS 1
Q801~804,Q806,Q809,Q205,Q207,Q209,Q203

,Q210,Q812,Q506,Q507,Q8

Q807,Q813 0100-004375-00 TR NPN KTC4375-Y SOT-89 ROHS 2
Q206 0100-007002-00 TR CHIP RK7002 ROHM ROHS 1
ZD302,ZD303 0200-000062-07 E.S.D.DIODE SMD NNCD6.2G SOT23-5L

D801,D802,D806 0200-004001-01 DIODE SMD IN-4001 SOD-106 TAPPING

D201,D1,D02 0200-004148-02 DIODE SMD RLS4148 LL-34 ROHM ROHS 3
ZD1 0200-050039-01 ZENER DIODE SMD 3.9V 0.5W ±5% LL-34

ZD201,ZD301 0200-050056-01 ZENER DIODE SMD 5.6V 0.5W ±2% LL-34

ZD202 0200-050082-01 ZENER DIODE SMD 8.2V 0.5W LL-34

ZD803,ZD805 0200-050100-02 ZENER DIODE SMD 10V 0.5W ±5% LL-34

IC503 0300-002235-00 IC CHIP NJM2235M JRC ROHS 1
IC502 0300-002313-00 I.C.PT2313L ROHS 1
IC305 0300-002408-01 IC AT24C08 SOIC ATMEL ROHS 1
IC701 0300-003801-10 IC BD3801FS(SSOP-A32) ROHS 1
IC504 0300-004558-16 I.C. BA4558F ROHS 1
IC805,IC303 0300-007805-02A IC LM78L05 (SOP-89) (ASB) ROHS 2
IC301 0300-008649-03F MCV TMP86FS49 FOR DVD200

IC201 0300-009257-00 IC TC9257F ROHS 1
IC803 0300-017805-00 IC CHIP BA178M05FP ROHM ROHS 1

1600-001138-00 TACT SWITCH FOR DVD248 RESET ROHS 1
2000-020360-08 RCA CABLE WIRE 360MM GREY ROHS 1
2500-050010-00 AVOUT +AVIN 6PIN SOCKET ROHS 1

H-TYPE DR-F15-2.3 EAST SUN ROHS

ROHS

TALN-S200T(PAL+SECAM)(H-TYPE) LG
ROHS

3200-083210-01 ANT SOCKET W/GND ∮3MM L=210MM

ROHS

3200-303290-00 TV ANT SOCKET WIRE 90MM ROHS 1

0100-001623-00F 2SSC1623-G(ROHS) 16

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

(YOUSHENG) ROHS

1

1

1

1

2

3

1

2

1

2

1

31

ELECTRICAL PARTS LIST-CONTINUED

Ref. No. Part No. Description Q’ty

C756,C757 0500-016225-54 TAN CAP SMD 2.2uF 16V ±10% 3.2×1.6×

1.6MM ROHS

C231 0500-063101-00 CER.CAP SMD 100PF 50V ±5% NPO 0603

ROHS

C803~806,C212 0500-063102-00 CER.CAP SMD 1000PF 50V ±5% NPO 0603

ROHS

C316,C317 0500-063103-01 CER.CAP SMD 0.01uF 50V ±10% X7R 0603

ROHS
C802,C815,C752,C861,C308,C330,C533,C514
,C754,C755,C306,C325,C223,C302,C261,C26
2,C841,C811,C866,C873

C219,C220~222,C216,C218,C211,C233,C303,
C237,C217

C509~512 0500-063224-02 CER.CAP SMD 0.22uF 16V ±20% X7R 0603

C502,C503 0500-063272-01 CER.CAP SMD 2700PF 50V ±10% X7R 0603

C320,C321,C312,C313 0500-063300-00 CER.CAP SMD 30PF 50V ±5% NPO 0603

C213,C210,C215 0500-063330-00 CER.CAP SMD 33PF 50V ±5% NPO 0603

C229 0500-063471-00 CER.CAP SMD 470PF 50V ±5% NPO 0603

C227,C228 0500-063472-01 CER.CAP SMD 4700PF 50V ±10% X7R 0603

C836 0500-063474-02F CER.CAP SMD 0.47uF 16V +80/-20% X5R

C820,C856,C327,C304,C863,C880 0600-016106-54 E.CAP SMD 10uF ±10% 16V ∮4×5.5MM

C857,C504,C860,C751,C224,C532,C840,C562
,C565,C301,C232

C810,C701~704,C807~809,C573,C574,C563,C
564,C505,C508,C758,C759,C526,C527,C238,
C543,C544
C506,C507,C234 0600-016334-54 E.CAP SMD 0.33uF 16V ±10% ∮4×5.5MM

C835 0600-016475-54 E.CAP SMD 4.7uF 16V ±20% ∮4×5.5MM

C753,C501,C834,C858,C14,C201,C240 0600-016476-54 E.CAP SMD 47uF 16V ±10% ∮5×5.5MM

C525 0600-035336-54 E.CAP SMD 33uF 35V ±10% ∮6.3×5.5MM

C235,C236,C731,C732,C855 0600-050105-54 E.CAP SMD 1uF 50V ±20% ∮4×5.5MM

R205,R38,R204 0700-005100-54 RES SMD 10Ω ±5% 1/10W 0805 ROHS 3
R27,R34,R880 0700-063000-00 RES SMD 0Ω ±5% 1/10W 0603 ROHS

R330~333,R336,R338,R43,R28,R56,R362 0700-063101-00 RES SMD 100Ω ±5% 1/10W 0603 ROHS 10
R571~573,R850,R859,R827,R701~704,R352,R

353,R322,R240,R210,R370,R379,R380,R209,
R368,R369,R238,R371,R374,R375

0500-063104-02 CER.CAP SMD 0.1uF 50V ±20% Y5V 0603

ROHS

0500-063223-01 CER.CAP SMD 0.022uF 50V ±10% X7R

0603 ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

0603 ROHS

ROHS

0600-016107-54 E.CAP SMD 100uF 16V ±10% ∮6.3×5.5MM

ROHS

0600-016225-54 E.CAP 2.2uF .SMD ROHS 27

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

0700-063102-00 RES SMD 1KΩ ±5% 1/10W 0603 ROHS 36

2

1

5

2

20

14

4

2

4

4

1

2

1

6

11

3

1

7

1

5

3

32

ELECTRICAL PARTS LIST-CONTINUED

Ref. No.

R801~804,R746,R324,R325,R5,R565,R567,R2
19,R217,R345,R343,R208,R220,R236,R302~3
14,R215,.R574,R575,R254,R747,R854,R372,R
373,R247,R255,R246

R738,R736,R819 0700-063104-00 RES SMD 100KΩ ±5% 1/10W 0603 ROHS 3
R239 0700-063151-00 RES SMD 150Ω ±5% 1/10W 0603 ROHS 1
R855,R856,R864 0700-063152-00 RES SMD 1.5KΩ ±5% 1/10W 0603 ROHS 3
R243,R244 0700-063153-00 RES SMD 15KΩ ±5% 1/10W 0603 ROHS 2
R751,R501,R232,R232A,R334,R335 0700-063220-00 RES SMD 22Ω ±5% 1/10W 0603 ROHS 6
R230,R235,R816 0700-063221-00 RES SMD 220Ω ±5% 1/10W 0603 ROHS 3
R315 0700-063222-00 RES SMD 2.2KΩ ±5% 1/10W 0603 ROHS 1
R853,R568,R562,R354,R364,R363,R377 0700-063223-00 RES SMD 22KΩ ±5% 1/10W 0603 ROHS 7
R815 0700-063270-00 RES SMD 27Ω ±5% 1/10W 0603 ROHS 1
R761,R762 0700-063273-00 RES SMD 27KΩ ±5% 1/10W 0603 ROHS 2
R301 0700-063330-00 RES SMD 33Ω ±5% 1/10W 0603 ROHS 1
R242,R241 0700-063331-00 RES SMD 330Ω ±5% 1/10W 0603 ROHS 2
R226,R227,R544,R542,R538,R535,R502,R503

,R237
R543,R541,R564,R563 0700-063333-00 RES SMD 33KΩ ±5% 1/10W 0603 ROHS 4

R753 0700-063393-00 RES SMD 39KΩ ±5% 1/10W 0603 ROHS 1
R228,R250 0700-063471-00 RES SMD 470Ω ±5% 1/10W 0603 ROHS 2
R216,R218,R321,R731,R732,R16,R344,R349,

R396
R569,R566,R743,R851,R711,R709,R710,R712
,R206
R5 0700-063562-00 RES SMD 5.6KΩ ±5% 1/10W 0603 ROHS 1

R561,R212 0700-063680-00 RES SMD 68Ω ±5% 1/10W 0603 ROHS 2
R224,R225 0700-063682-00 RES SMD 6.8KΩ ±5% 1/10W 0603 ROHS 2
R539 0700-063750-00 RES SMD 75Ω ±5% 1/10W 0603 ROHS 1
R805~808 0700-063822-00 RES SMD 8.2KΩ ±5% 1/10W 0603 ROHS 4
L201 0900-000100-54 INDUCTOR 10uH SMD 0805 ROHS 1
L1/L503 0900-070010-02 CHIP CI160808-IROK 0603 ROHS 2

IC302 0300-007035-00 IC KIA7035AP TO-92 ROHS 1
IC802 0300-007818-00C IC 78L18-CSI ROHS 1
IC304 0300-008563-00 IC PCF8563P ROHS 1
XT301 0400-000016-03 CRYSTAL 16MHZ HC49US DIP ROHS 1
XT202 0400-000072-01 CRYSTAL 7.2MHZ +/-30PPM HC-49U/S

XT302 0400-000327-00 CRYSTAL 32.768KHZ +/-20PPM ZDT-38(∮

C801,818 0600-016338-00J E.CAP 3300uF 16V ±20% ∮13×25MM

R881,811 0700-005100-10 RES. 10R ROHS 2

JC3 3200-002180-02 IR WIRE W/CD JACK 260MM ROHS 1

Part No.

0700-063103-00 RES SMD 10KΩ ±5% 1/10W 0603 ROHS 44

0700-063332-00 RES SMD 3.3KΩ ±5% 1/10W 0603 ROHS 9

0700-063472-00 RES SMD 4.7KΩ ±5% 1/10W 0603 ROHS 9

0700-063473-00 RES SMD 47KΩ ±5% 1/10W 0603 ROHS 9

1121-500031-0813 PCB DVD/D5000 W/TV D/S

185X151X1.2MM

22pf SS-1918 ROHS

3X8MM) 12.5PF SW-0227 ROHS

ROHS

1600-000035-10I 3.5MM JACK 4PIN BLACK 1
1600-000035-20I 3.5MM JACK 4PIN YELLOW 1

Description Q’ty

1

1

1

2

PC BOARD ASSY, KEY BOARD

33

ELECTRICAL PARTS LIST-CONTINUED

Ref. No.

C601 0500-003223-10 CER.CAP SMD 0.022uF 50V ±10% X7R

INH 0500-016475-10 TAN CAP SMD 4.7uF 16V ±10% 3.2×1.6×

C602(RC) 0500-063104-02 CER.CAP SMD 0.1uF 50V ±20% Y5V 0603

R617(DSP) 0700-063000-00 RES SMD 0Ω ±5% 1/10W 0603 ROHS

R630(RC) 0700-063101-00 RES SMD 100Ω ±5% 1/10W 0603 ROHS 1
R619(EQ) 0700-063393-00 RES SMD 39KΩ ±5% 1/10W 0603 ROHS 1

M1-M6/MOD/AMS/ST 1600-001107-02K SWITCH TACT KPT-1107B 6×3.5×4.3MM

VOL+/- SEL 1800-000115-00P VOL ENCODER EC11E15D4MA1 12×11.7×

LCD 2710-303001-01Y LCD DVD3030 TN POS 23X84MM PIN

REM1 2900-001201-00 IR RECEIVER GP1UM261XK(SHARP)

ZD601 0200-000062-07 E.S.D.DIODE SMD NNCD6.2G SOT23-5L

LED1~20 0200-001112-06H SMD LED 0805 SUPER BLUE ROHS 20
D600 0200-004148-02 DIODE SMD RLS4148 LL-34 ROHM ROHS 1
ZD602~603 0200-050051-03 ZENER DIODE SMD 5.1V 0.5W ±5% LL-34

IC1 0300-006524-00 IC PT6524LQFP ROHS 1
C605 0500-003101-10 CER.CAP SMD 100PF 50V ±10% 0805 Y5P

C603/6/7 0500-063104-02 CER.CAP SMD 0.1uF 50V ±20% Y5V 0603

C604 0500-063223-00 CER.CAP SMD 0.022uF 50V ±5% NPO 0603

R627 0700-063104-00 RES SMD 100KΩ ±5% 1/10W 0603 ROHS 1
R661~666 0700-063121-00 RES SMD 120Ω ±5% 1/10W 0603 ROHS 6
R635 0700-063122-00 RES SMD 1.2KΩ ±5% 1/10W 0603 ROHS 1
R639 0700-063123-00 RES SMD 12KΩ ±5% 1/10W 0603 ROHS 1
R623/601/648 0700-063181-00 RES SMD 180Ω ±5% 1/10W 0603 ROHS 3
R612,R600 0700-063183-00 RES SMD 18KΩ ±5% 1/10W 0603 ROHS 2
R602,R610,R609,R649,R660 0700-063221-00 RES SMD 220Ω ±5% 1/10W 0603 ROHS 5
R614,607 0700-063222-00 RES SMD 2.2KΩ ±5% 1/10W 0603 ROHS 2
R640 0700-063223-00 RES SMD 22KΩ ±5% 1/10W 0603 ROHS 1
R624,611,606 0700-063272-00 RES SMD 2.7KΩ ±5% 1/10W 0603 ROHS 3
R643,645,644 0700-063273-00 RES SMD 27KΩ ±5% 1/10W 0603 ROHS 3
R642 0700-063274-00 RES SMD 270KΩ ±5% 1/10W 0603 ROHS 1
R603 0700-063331-00 RES SMD 330Ω ±5% 1/10W 0603 ROHS 1
R622 0700-063392-00 RES SMD 3.9KΩ ±5% 1/10W 0603 ROHS 1
R604,618 0700-063471-00 RES SMD 470Ω ±5% 1/10W 0603 ROHS 2
R628 0700-063473-00 RES SMD 47KΩ ±5% 1/10W 0603 ROHS 1
R620 0700-063561-00 RES SMD 560Ω ±5% 1/10W 0603 ROHS 1
R646 0700-063622-00 RES SMD 6.2KΩ ±5% 1/10W 0603 ROHS 1

Part No.

0805 ROHS

1.6MM ROHS

ROHS

ROHS

0200-001007-02 CD 1007 B.LI CHT/RED 1

KIE ROHS

14.5MM POSTEC ROHS

TYPE ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

Description Q’ty

1

1

1

1

9

1

1

1

1

2

1

3

1

34

ELECTRICAL PARTS LIST-CONTINUED

Ref. No.

R605,R613,R647,631,632 0700-063681-00 RES SMD 680Ω ±5% 1/10W 0603 ROHS 5
R621,615 0700-063751-00 RES SMD 750Ω ±5% 1/10W 0603 ROHS 2
R629 0700-063823-00 RES SMD 82KΩ ±5% 1/10W 0603 ROHS 1

PC BOARD ASSY, MAIN BOARD TVB/PTB/TB SECTION

Q810,302 0100-001386-00 TR. 2SB1386 SMD ROHM ROHS 2
Q811,303,505 0100-001623-00 TR NPN 2SC1623(L7) SOT-23 NEC ROHS 3
Q504 0100-004375-00 TR NPN KTC4375-Y SOT-89 ROHS 1
IC901 0300-007062-00 IC CHIP BA7062F ROHM ROHS 1
IC902 0300-074763-00 IC LC74763M-9602 SANYO ROHS 1
C902,920 0500-063102-10 CER.CAP SMD 1000PF 100V ±10% X7R

C959 0500-063103-01 CER.CAP SMD 0.01uF 50V ±10% X7R 0603

C960,862,926,916,328,329,955,930 0500-063104-02 CER.CAP SMD 0.1uF 50V ±20% Y5V 0603

C958,923 0500-063223-01 CER.CAP SMD 0.022uF 50V ±10% X7R

C924 0500-063270-00 CER.CAP SMD 27PF 50V ±5% NPO 0603

C911/2,925 0500-063300-00 CER.CAP SMD 30PF 50V ±5% NPO 0603

C918 0500-063560-00 CER.CAP SMD 56PF 50V ±5% NPO 0603

C921 0500-063682-01 CER.CAP SMD 6800PF 50V ±10% X7R 0603

C917 0600-016107-54 E.CAP SMD 100uF 16V ±10% ∮6.3×5.5MM

C903 0600-016225-54 E.CAP 2.2uF .SMD ROHS 1
C518,515,901,904 0600-016226-54 E.CAP SMD 22uF 16V ±10% ∮5×5.5MM

C919,922,915 0600-050105-54 E.CAP SMD 1uF 50V ±20% ∮4×5.5MM

C956 0600-063227-54 E.CAP SMD 220uF 6.3V ±10% ∮6.3×5MM

R954,520,517 0700-063101-00 RES SMD 100Ω ±5% 1/10W 0603 ROHS 3
R919 0700-063102-00 RES SMD 1KΩ ±5% 1/10W 0603 ROHS 1
R957,394/3/2/1,911,933,926,979,980 0700-063103-00 RES SMD 10KΩ ±5% 1/10W 0603 ROHS 10
R920 0700-063121-00 RES SMD 120Ω ±5% 1/10W 0603 ROHS 1
R903 0700-063124-00 RES SMD 120KΩ ±5% 1/10W 0603 ROHS 1
R861,922 0700-063152-00 RES SMD 1.5KΩ ±5% 1/10W 0603 ROHS 2
R901,923 0700-063221-00 RES SMD 220Ω ±5% 1/10W 0603 ROHS 2
R955/6 0700-063222-00 RES SMD 2.2KΩ ±5% 1/10W 0603 ROHS 2
R953/8,395 0700-063472-00 RES SMD 4.7KΩ ±5% 1/10W 0603 ROHS 3
R863,519,511,516,518 0700-063473-00 RES SMD 47KΩ ±5% 1/10W 0603 ROHS 5
R902 0700-063474-00 RES SMD 470KΩ ±5% 1/10W 0603 ROHS 1

Part No.

1121-303230-3313 PCB DVD/D3032KB D/S 183X43X1.2MM 1
1600-021130-01 TACT SW DT2113CH 250G/4.3 SMD RED

D.S

2500-0M1475-00 CONNECTOR SMD MALE 15PIN P=2.3MM

H-TYPE R41/1475A MITSUMI ROHS

0603 ROHS

ROHS

ROHS

0603 ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

Description Q’ty

9

1

4

1

8

2

1

3

1

1

1

4

3

1

35

ELECTRICAL PARTS LIST-CONTINUED

Ref. No.

R921 0700-063682-00 RES SMD 6.8KΩ ±5% 1/10W 0603 ROHS 1
L905 0800-002056-00 IFT CP4L2-5R6 (MILKLY)

L305,6,7,9 0900-000010-00N CHIP INDUCTOR 1uH±10%

L951 0900-000100-54 INDUCTOR 10uH SMD 0805 ROHS 1
C906 0900-000220-54 INDUCTOR 22uH SMD 1210 ROHS 1
L907 0900-070010-02 CHIP CI160808-IROK 0603 ROHS 1

PC BOARD ASSY, MAIN BOARD SERVO BOARD SECTION

BC9,13,19,23 0500-063224-02 CER.CAP SMD 0.22uF 16V ±20% X7R 0603

R63 0700-005010-54D CHIP RES 1 0805 SMT ROHS 1
65R1~65R4 0700-063000-00 RES SMD 0Ω ±5% 1/10W 0603 ROHS

R127 0700-063123-00 RES SMD 12KΩ ±5% 1/10W 0603 ROHS 1
R126 0700-063473-00 RES SMD 47KΩ ±5% 1/10W 0603 ROHS 1
R86 0700-063622-00 RES SMD 6.2KΩ ±5% 1/10W 0603 ROHS 1
L10 0900-000027-54 INDUCTOR 2.7uH SMD 1210 ROHS 1

Q812 0100-000106-10 KRC106S (SOT-23) SMD ROHS 1
Q881 0100-000812-00F 2SA812-G(ROHS) 1
Q20,Q21 0100-001132-00 TR PNP 2SB1132Q SOT-89 ROHM ROHS 2
Q22,Q24 0100-003018-00 TR CHIP 2SK 3018 ROHS 2
Q23 0100-003904-00 TR NPN 2N3904 SOT-23 ROHS 1
D11,12 0200-002040-00 SCHOTTKY MBRS2040T3 SMD ROHS 2
D6,D14,D15 0200-004148-02 DIODE SMD RLS4148 LL-34 ROHM ROHS 3
ZD2 0200-050043-00 ZENER DIODE SMD 4.3V 0.5W LL-34

IC807 0300-001117-01 FIX 3.3V VOLTAGE REGVLATER

IC804 0300-001117-03 VOL TAGE REGVLATER AS1117-1.8

U11 0300-002402-00A AT24C2BN-10SU-1.8 (ROHS) 1
IC806 0300-004060-06 IC ACT4060SH DC/DC SOP8 ROHS 1
U2 0300-004344-00 IC CS4344 STEREO D/A CONVERTER

U8 0300-005954-00 BA5954FP (HSOP-28PIN) ROHS 1
U3 0300-006289-00 IC BA6289F (SOP8) ROHS 1
U10 0300-006416-00 IC 4*16 W9864G6GH-6 TSSOP-54PIN ROHS 1
U13 0300-008202-01 SUNPLUS IC SPHE8202D-216PIN ROHS 1
U12 0300-029800-20 AM29LV800BT-90(TSOP-48) DVD-218

C23,C42,C1 0500-063100-00 CER.CAP SMD 10PF 50V ±5% NPO 0603

C2,C3,C881,BC1,BC33 0500-063101-00 CER.CAP SMD 100PF 50V ±5% NPO 0603

C53,C54,BC74,C34,C864 0500-063103-01 CER.CAP SMD 0.01uF 50V ±10% X7R 0603

Part No.

5.6UH+/-1%(SUMIDA) ROHS

WL322522-1ROK SMD ROHS

ROHS

ROHS

2500-000171-24 24PIN 0.5MM WIRE FFC (POSITIVE) ROSH 1

ROHS

AMS1117-3.3 ROHS

SOT-223 ROHS

(8L.SOIC) ROHS

ROHS

ROHS

ROHS

ROHS

Description Q’ty

1

4

4

4

1

1

1

1

1

3

5

5

36

ELECTRICAL PARTS LIST-CONTINUED

Ref. No. Part No. Description Q’ty

BC50/1/3~7,75/3,1~3,8,10~2/4~8,20~2/5/7~9,3
2~4,6,5,48,C44,37/9,26/9/4,63,874,58

C41,C38,C40,C27 0500-063105-00 CER.CAP SMD 1uF 25V ±20% Y5V 0603

BC4,C61 0500-063152-00N CER.CAP SMD 1500PF 50V ±5% NPO 0603

C18 0500-063222-01 CER.CAP SMD 2200PF 50V ±10% X7R 0603

C865 0500-063223-01 CER.CAP SMD 0.022uF 50V ±10% X7R

C52,892 0500-063224-01 CER.CAP SMD 0.22uF 16V ±10% X7R 0603

C56 0500-063301-00 CER.CAP SMD 300PF 50V ±5% NPO 0603

C64,C65 0500-063330-00 CER.CAP SMD 33PF 50V ±5% NPO 0603

C59,C16,C17 0500-063331-00 CER.CAP SMD 330PF 50V ±5% NPO 0603

C28,C30 0500-063470-00 CER.CAP SMD 47PF 50V ±5% NPO 0603

C12,C13 0500-063472-01 CER.CAP SMD 4700PF 50V ±10% X7R 0603

C55 0500-063473-00 CHIP CAP 0.047PF ROHS 1
C48,C49,C43,C51,C32 0500-063681-00 CER.CAP SMD 680PF 50V ±5% NPO 0603

C31 0500-063683-00 SHIP CAP 0.068 ROHS 1
C57,C60 0500-063821-00 CER.CAP SMD 820PF 50V ±5% NPO 0603

C523,C524,EC1,EC2,EC5,EC14 0600-016106-54 E.CAP SMD 10uF ±10% 16V ∮4×5.5MM

C870,871,875,851 0600-016107-54 E.CAP SMD 100uF 16V ±10% ∮6.3×5.5MM

C845,846 0600-016227-54 E.CAP CHIP 220u/16V +/-10% ∮6.3X7.6

EC11 0600-016476-54 E.CAP SMD 47uF 16V ±10% ∮5×5.5MM

EC34/6/5,3,17,26/5,18,7,15,10,6,EC23,32,8,16,
33,4
C872,EC13 0600-063227-54 E.CAP SMD 220uF 6.3V ±10% ∮6.3×5MM

R44,R74,R76,R71,R72 0700-005010-54D CHIP RES 1 0805 SMT ROHS 5
R120,R81,R69,R70,R79 0700-063000-00 RES SMD 0Ω ±5% 1/10W 0603 ROHS

R44,74,76,71,72 0700-063010-00 RES SMD 1Ω ±5% 1/10W 0603 ROHS 5
R36 0700-063022-01 CHIP RES 2.2 0603 ROHS 1
R67,R68 0700-063047-01 RES SMD 4.7 Ω ±% 1/10W 0603 ROHS 2
R52 0700-063100-00 RES SMD 10Ω ±5% 1/10W 0603 ROHS 1
R119,R35,R37 0700-063101-00 RES SMD 100Ω ±5% 1/10W 0603 ROHS 3
R88,R89 0700-063102-00 RES SMD 1KΩ ±5% 1/10W 0603 ROHS 2
R102,R11,R15,R101,R82,R55,879,886 0700-063103-00 RES SMD 10KΩ ±5% 1/10W 0603 ROHS 8
R885,R78,R85 0700-063104-00 RES SMD 100KΩ ±5% 1/10W 0603 ROHS 3
R113 0700-063122-01 RES SMD 1.2KΩ ±1% 1/10W 0603 ROHS 1

0500-063104-02 CER.CAP SMD 0.1uF 50V ±20% Y5V 0603

ROHS

ROHS

ROHS

ROHS

0603 ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

ROHS

0600-063107-54 E.CAP CHIP 100UF/6.3V ∮6.3X5 ROHS 18

ROHS

ROHS

52

4

2

1

1

2

1

2

3

2

2

5

2

6

4

2

1

2

5

37

ELECTRICAL PARTS LIST-CONTINUED

Ref. No. Part No. Description Q’ty

R107,R19 0700-063152-00 RES SMD 1.5KΩ ±5% 1/10W 0603 ROHS 2
R90,R91 0700-063153-00 RES SMD 15KΩ ±5% 1/10W 0603 ROHS 2
R17,R24 0700-063154-00 RES SMD 150KΩ ±5% 1/10W 0603 ROHS 2
R118 0700-063201-00 CHIP RES 200 0603 SMT ROHS 1
R111 0700-063203-00 RES SMD 20KΩ ±5% 1/10W 0603 ROHS 1
R128,R129 0700-063222-00 RES SMD 2.2KΩ ±5% 1/10W 0603 ROHS 2
R73,R77,R9,R13 0700-063223-00 RES SMD 22KΩ ±5% 1/10W 0603 ROHS 4
R884 0700-063224-00 RES SMD 220KΩ ±5% 1/10W 0603 ROHS 1
R883 0700-063303-00 RES SMD 30KΩ ±5% 1/10W 0603 ROHS 1
R103,R40,R39,R20 0700-063330-00 RES SMD 33Ω ±5% 1/10W 0603 ROHS 4
R121 0700-063333-01 RES SMD 33KΩ ±1% 1/10W 0603 ROHS 1
R106 0700-063391-00 RES SMD 390Ω ±5% 1/10W 0603 ROHS 1
R75,R80 0700-063471-00 RES SMD 470Ω ±5% 1/10W 0603 ROHS 2
R140,R130,887 0700-063472-00 RES SMD 4.7KΩ ±5% 1/10W 0603 ROHS 3
R25,R32 0700-063474-00 RES SMD 470KΩ ±5% 1/10W 0603 ROHS 2
R6 0700-063511-00 RES SMD 510Ω ±5% 1/10W 0603 ROHS 1
R108,R109 0700-063512-00 RES SMD 5.1KΩ ±5% 1/10W 0603 ROHS 2
R110,3 0700-063750-00 RES SMD 75Ω ±5% 1/10W 0603 ROHS 2
R882 0700-063912-00 RES SMD 9.1KΩ ±5% 1/10W 0603 ROHS 1
L27,11,13,21,12,8,100,5,18,22,16,24/5,4 0900-000100-54 INDUCTOR 10uH SMD 0805 ROHS 14
L815 0900-000220-54A INDUCTOR 22 CD105 5MM SMT ∮9.8X5.4

ROHS
L29 0900-000270-00 CHIP SGMI1608M2R7KT ROHS 1

L811 0900-070275-54 CHOKE COIL 275uH SMD ∮7.8X3.5

(XDN-345-275uH ROHS

CN4 2500-008360-13A SOCKET SMD 13PIN P=1.0MM

XT1 0400-000270-00S CRYSTAL OSCILLATOR 27MHZ ±5PPM

L808,809 0900-003315-00 SL0805-3R3M1R5 ROHS 2

PC BOARD ASSY, REMOTE BOARD

Q1 0100-001781-18 TR. 2SD1781K-R (ROHM) ROHS 1
D8,9 0200-004148-02 DIODE SMD RLS4148 LL-34 ROHM ROHS 2
IC1 0300-002222-00 IC PT2222-001 SOP ANGUS ROHS 1
C6 0500-063104-01 CER.CAP SMD 0.1uF 50V ±10% X7R 0603

C3,4 0500-063121-00 CER.CAP SMD 120PF 50V ±5% NPO 0603

C5 0600-063476-00 E.CAP 47UF/6.3V MM ROHS 1
R12,16 0700-063000-00 RES SMD 0Ω ±5% 1/10W 0603 ROHS

S2 1600-001218-03 MINI SLIDE SWITCH 1P 3T SMT ROHS 1

2500-000135-24 SOCKET SMD 24PIN P=0.5MM

TOP-CONTACT H-TYPE ROHS

TOP-CONTACT H-TYPE Hong- XingChen

ROHS

HC-49U/S ROHS

2500-000171-13 13PIN 1.0MM WIRE FFC ROHS 1

ROHS

ROHS

ROHS

1121-702020-503 PCB REM D/S

THK=1.0MM(137.5X45MM)(FR-4)

1

1

1

1

1

1

2

2

1

38

ELECTRICAL PARTS LIST-CONTINUED

Ref. No. Part No. Description Q’ty

LED1 0200-000334-00 INFRARED LED WL=940NM ∮3MM

DYNA-LINK ROHS

C5 0600-063476-00 E.CAP 47UF/6.3V MM ROHS 1
XT1 0900-050455-05J CER RESONATOR ZTB455E ROHS 1

PC BOARD ASSY, CHOKE BOARD

D901 0200-005401-00 DIODE IN5401 DO-27 ROHS 1
C917 0500-000104-82 CER CAP 0.1UF 25V ±10% ∮5.2MM ROHS 1
C918 0600-016108-00 E.CAP 1000uF 16V ±20% ∮10×15MM

ROHS

T901 1500-000028-00C TRANS EI-28 30.5×27.5×28MM ROHS 1
ISO 2500-0F1004-03 16PIN ISO EIA ROHS 1

1111-402840-9210 PCB (EI-28) TRANSFOMER 42X26X1.6MM 1

3100-016200-04 AWG #16 5X10X200MM YELLOW ROHS 1
3100-016200-10 AWG#16 5X10X200MM BLKCK ROHS 1

1

1

39

SPECIFICATIONS

T. H. D........................................................................................................................................... Less than 0.35%

Signal to Noise Radio ................................................................................................................... More than 60 dB

Channel Separation...................................................................................................................... More than 50 dB

Frequency Response .......................................................................................................................... 20Hz-20kHz

Stereo Separating (FM) .................................................................................................................. 30 dB (at 1kHz)

Signal to Noise Ratio (FM) .......................................................................................................... Better than 50 dB

Output Power............................................................................................................................................. 4 X 40W

Speaker Output Impedance................................................................................................................... 4 To 8 ohm

Power Source ................................................................................................................DC 12V, Negative ground.

Frequency Range ............................................................................... FM 65.0 – 74.0MHz (FM 87.5 – 108.0MHz)

................................................................................................................................................... MW 522-1620 kHz

Sensitivity............................................................................................................................... FM 3 µV (S/N=30dB)

......................................................................................................................................... MW 32 dBµ (S/N=20 dB)

Specifications are subject to change without notice.

40
