Agfa Classic E.O.S. Installation manual

Order No.: DD+DIS303.03E

*1WACPK1*

1 piece WACPK MA 1

INSTALLATION PLANNING and

Installation Planning

Classic E.O.S.

Type 5270/100

Classic E.O.S. CL

Type 5270/105

Technical Data

Internal Version 6

0

0

0

1

_

0

7

2

5

The Installation Planning Instructions can also be ordered separately.
Order number: DD+DIS303.03E

printed in Germany 02 / 2004

Agfa Group Confidential

R

D

C

.

2

0

_

0

Caution:

This system uses mains voltage. Please observe the pertinent safety
instructions.

These instructions describe adjustments and routines,
which must only be performed by qualified technical personnel.

Note:

Electrical repairs and connections must only be made by certified electricians.

Mechanical repairs and connections must only be made by certified
technicians.

CE Declaration:

According to the medical directives the CE Declaration
(CE Conformity) becomes void if the product is modified without permission of
the manufacturer!
This applies to all parts, not only the safety devices!

We reserve the right to change data and characteristics in the light of
technical progress.

DD+DIS303.03E Installation Planning

Chapter 14

Contents

1 Safety............................................................................. 1

2 Scope of Delivery and Accessories............................ 3

2.1 Classic E.O.S. Type 5270/100..............................................3

2.2 Classic E.O.S. CL Type 5270/105 ........................................3

2.3 Peripheral equipment ...........................................................4

2.4 Exhaust connection through the floor ................................4

3 System Overview.......................................................... 5

3.1 Classic E.O.S. Type 5270/100..............................................5

3.2 Classic E.O.S. CL Type 5270/105 ........................................6

4 Machine Dimensions.................................................... 7

4.1 Classic E.O.S. Type 5270/100..............................................7

4.2 Classic E.O.S. CL Type 5270/105 ........................................8

5 Transport path .............................................................. 9

6 Access for Repair and Maintenance......................... 10

6.1 Classic E.O.S. Type 5270/100............................................10

6.2 Classic E.O.S. CL Type 5270/105 ......................................11

7 Daylight / Darkroom Installation

(only Classic E.O.S. Type 5270/100) ......................... 12

7.1 Machine in the daylight, film feed in the darkroom,

light seal at the darkroom feed table.................................12

7.1.1 Installation at the wall opening ..............................................12

7.1.2 Installation with light tight wall...............................................13

7.2 Machine in the darkroom, film exit in the daylight,

light seal at the dryer with light tight wall .........................14

7.2.1 Installation at the wall opening with light tight wall.................14

7.3 Light tight wall ....................................................................15

8 Installation .................................................................. 16

8.1 Hoses and installation material .........................................16

8.2 Supply and disposal through the lower front panel

(only Classic E.O.S. Type 5270/100) ..................................17

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / I
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

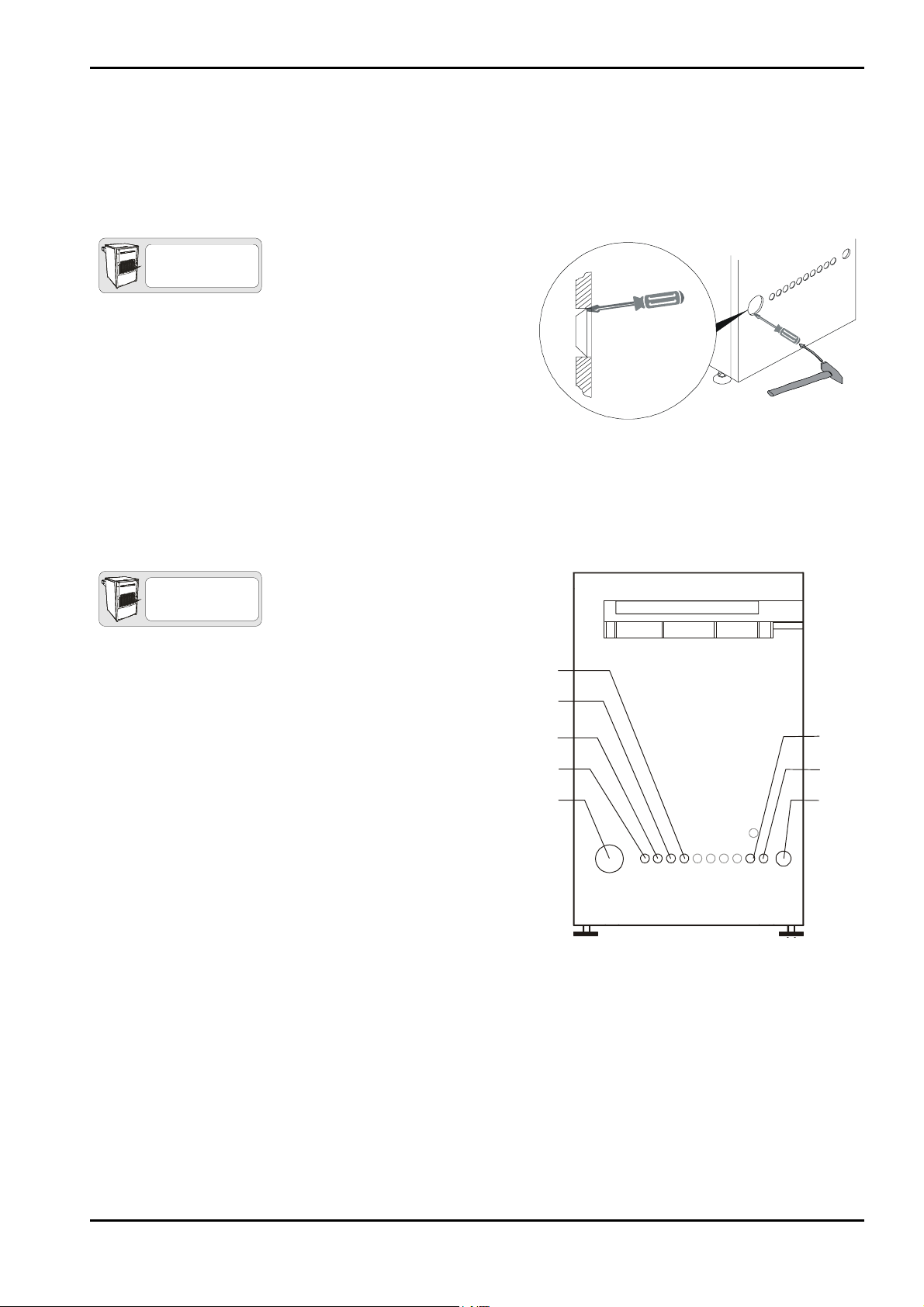

Instructions for breaking out the openings............................ 17

8.2.1

8.2.2 Required openings for standard installations........................ 17

8.2.3 Installing the developer / fixer supply hoses ......................... 18

8.2.4 Installing the disposal hoses ................................................ 19

8.3 Supply and disposal through the floor............................. 20

8.3.1 Installing the disposal hoses ................................................ 21

8.4 Replenisher tanks for developer and fixer ....................... 22

8.5 Disposal tanks.................................................................... 23

8.6 Water connection ............................................................... 24

8.6.1 Wall / machine connection at a water pressure of 2 – 6 bar . 25

8.6.2 Wall / machine connection at a water pressure > 6 bar ........ 26

8.6.3 Overview of adaptation parts for water installations:............. 27

8.7 Exhaust connection ........................................................... 29

8.7.1 Exhaust connection through lower front panel

(only Type 5270/100) ........................................................... 29

8.7.2 Exhaust connection through the floor ................................... 30

8.8 Electrical connection of the machine ............................... 31

9 Technical Data.............................................................33

9.1 Electrical data..................................................................... 33

9.2 Ambient and climatic conditions ...................................... 33

9.3 Transport and storage conditions .................................... 34

10 Machine Specifications...............................................35

10.1 Type overview .................................................................... 35

10.2 Film types ........................................................................... 35

10.3 Film formats ....................................................................... 35

10.4 Functional data................................................................... 36

11 Dimensions and Weights............................................37

11.1 Classic E.O.S. Type 5270/100 ........................................... 37

11.2 Classic E.O.S. CL Type 5270/105 ..................................... 37

12 Machine Standards and Directives ............................38

12.1 Safety.................................................................................. 38

12.2 Radio interference suppression........................................ 38

12.3 Electromagnetic compatibility .......................................... 38

12.4 Certificates and guidelines................................................ 39

13 Checklist for Installation Planning.............................41

Chapter 14 / II Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

gg

1 Safety

General safety instructions

• The machine must only be used as described in the operating instructions.
Any other use may result in damage to the machine or may affect the
machine function with the consequence that the machine can no longer be
used as intended, and therefore presents a risk for patients, user, and
environment.

• The machine must only be operated by qualified personnel trained on the
machine.

• Ensure that only trained personnel have access to the machine.

• Ensure that the machine can always be supervised and that any tampering

is prevented.

• Repairs or modifications on the machine must only be performed by
trained service personnel authorized by Agfa.

• In case of visible damage on the machine housing the machine must not
be operated or used, and must immediately be disconnected from the
mains.

• Built-in or external safety devices must not be circumvented or disabled.

• Disconnect the machine from the mains before starting any maintenance.

• If a mains connection is absolutely required these maintenance routines

must only be made by specially trained personnel.

• Like all technical devices, this machine must be operated, cared for and
serviced correctly as described in the documentation provided with the
machine.

• If the machine is not operated correctly, or if it is not serviced correctly,
Agfa will not be liable for any resulting disturbances, damage or injuries.

• When installing the machine make sure that either the mains plug or an
all-cable disconnecting device is provided in the internal installation close
to the machine and is easily accessible.

• If the machine is connected with other components or assemblies, Agfa
will guarantee safety only for combinations which are approved by Agfa.

• In case of conspicuous smoke or noises, immediately disconnect the
machine from the mains.

Special instructions for the handling of chemicals

• When handling chemicals, always observe the applying safety and
environmental regulations, as well as the operating and warning
instructions pertaining to these chemicals.

• Wear stipulated protective clothing and safety goggles.

• When disposing of chemicals and waste water, you must comply with the

local regulations concerning waste water and environmental protection.

• If photo-chemicals get in your eyes, proceed exactly according to the
warning instructions and/or the instructions published by the
manufacturers of the chemicals. If required, immediately rinse your eyes
with cold water. Afterwards see the doctor immediately.

• Avoid inhaling of chemical fumes. Make sure that there is sufficient
ventilation at the installation site of the machine, i.e. an air exchange that
is at least ten times the room volume per hour.

• Always comply with the installation instructions.

• Verify tightness of all connections for chemicals and water, as well as

waste water, on the machine in regular intervals. At least check whenever

ested in the operating instructions and/or service instructions.

su

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 1
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

• If solution gets into the inside of the machine (e.g. by spilling during tank
filling), the machine must immediately be disconnected from the mains and
cleaned thoroughly by the service personnel.

• Do not use chlorine or chlorine containing substances in the film
processor. The use of chlorine or chlorine containing substances may
cause irreparable damage in your film processor. Use of these substances
may result in termination of the manufacturer’s warranty.

The film processor must not be operated in the direct vicinity of the
patients as defined in EN60601-1 and IEC 601-1.

Adherence to safety regulations

• This film processor meets the safety requirements as defined in EN 60950:
1997 (IEC 950) and EN 60601-1-2: 1993, UL 1950 and CSA C22.2 No. 950
and has interference suppression as defined in EN 50081-1, EN 55011,
and FCC 47 Part 15, Subchapter B, Class A.

• The water connection is in compliance with DIN 1988 / EN 1717:2001.

Chapter 14 / 2 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

2 Scope of Delivery and Accessories

2.1 Classic E.O.S. Type 5270/100

Machine Type Power connection ABC

Code

Classic E.O.S. 5270/100 1 N~ 230 V (200-240 V) 50/60 Hz 37XK3

Accessory box

• Wire chute

• Exhaust hose including joint to the connection stub

• Power cable UL NEMA 6-20 P

• Power cable VDE CEE 7 standard cover VII

• Sealing tape 12x12mm; 1.3m long; self-adhesive

• Pipe

• Label (wrap-around) DEV, FIX, WAT; OVERFLOW

• Installation kit

• Accessory box with small installation parts

• Accessory box with installation parts for the exhaust

• Technical documentation

2.2 Classic E.O.S. CL Type 5270/105

Machine Type Power connection ABC

Classic E.O.S. CL 5270/105 1 N~ 230 V (200-240 V) 50/60 Hz EFPHK

Accessory box

• Wire chute

• Exhaust hose including joint to the connection stub

• Power cable UL NEMA 6-20 P

• Power cable VDE CEE 7 standard cover VII

• Sealing tape 12x12mm; 1.3m long; self-adhesive

• Pipe

• Label (wrap-around) DEV, FIX, WAT; OVERFLOW

Code

• Installation kit

• Accessory box with small installation parts

• Accessory box with installation parts for the exhaust

• Technical documentation

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 3
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

2.3 Peripheral equipment

Mixer

Type 5280

Mixer communication cable
(Mixer to film processor)

Replenisher tanks (2 x 30 liters)
with level sensor / cable 5 m

Replenisher tanks (2 x 80 liters)
with level sensor / cable 6 m

2.4 Exhaust connection through the floor

Order an additional exhaust stub Ø 100 mm, CM+9522030091

CM+9528030301

Type 8186 / 701
ABC Code: FJ1QL

Type 8186 / 101
ABC Code: F98XW

Chapter 14 / 4 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

3 System Overview

3.1 Classic E.O.S. Type 5270/100

TYPE 5270/100

4

1

3

2

5270_10014_006.cdr

Figure 1

The system requires the following components which must be considered in
the planning:

1 Film processor Classic E.O.S. 5270/100
2 Disposal tanks or connection to a centralized disposal system
3 Chemical solution mixer
4 Replenisher tanks for developer and fixer instead of mixer

-- Water connection via water filter (not shown)

Depending on the customer’s wishes, the film processor can be combined with
the following additional equipment.
According to the required configuration further installation planning for
corresponding equipment (e.g. mixer) must be taken into consideration.

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 5
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

3.2 Classic E.O.S. CL Type 5270/105

The system requires the following components which must be considered in

TYPE 5270/105

the planning:

1

2

3

5

4

5270_10014_005.cdr

Figure 2

1 Film processor Classic E.O.S. CL 5270/105
2 Laser Imager LR3300
3 Disposal tanks or connection to a centralized disposal system
4 Chemical solution mixer
5 Replenisher tanks for developer and fixer instead of mixer

-- Water connection via water filter (not shown)

Depending on the customer’s wishes, the film processor can be combined with
the following additional equipment.
According to the required configuration further installation planning for
corresponding equipment (e.g. mixer) must be taken into consideration.

Chapter 14 / 6 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

4 Machine Dimensions

4.1 Classic E.O.S. Type 5270/100

710 (27.95)

TYPE 5270/100

1130 (44.49)

985 (38.78)

760 (29.92)

710 (27.95)

385 (15.16)

540 (21.26)

5270_10014_003.cdr

210 (8.27)

1130 (44.49)

615 (24.21)

30

(1.18)

)
5
9

.
7
2

(
0

1
7

470 (18.5)

60 (2.36)

120 (4.72)

945 (37.20)

30 (1.18)

130 (5.12)

1065 (41.93)

80 (3.15)

495 (19.49)

105 (4.13)

Figure 3

Dimensions in mm (inch)

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 7
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

4.2 Classic E.O.S. CL Type 5270/105

710 (27.95)

TYPE 5270/105

1165 (45.87)

1020 (40.16)

795 (31.3)

745 (29.3)

420 (16.54)

540 (21.26)

740 (29.13)

740 (29.156)

985 (38.81)

35 (1.38)

35 (1.38)

210 (8.27)

65 (2.56)

1760 (69.344)

740 (29.156)

1165 (45.87)

650 (25.59)

120 (4.72)

)
5

9

.

LR3300

5270_10014_004.cdr

7
2

(
0

470 (18.5)

1
7

Figure 4

Dimensions in mm (inch)

Chapter 14 / 8 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

5 Transport path

The film processor must fit through all doors and hallways on its transport path
to the installation site.

Classic E.O.S. / Classic E.O.S. CL
(Type 5270/100/105)

without pallet at least 73 cm (29 inch)

Smallest door width

with pallet

at least 82 cm (32 inch)

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 9
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

6 Access for Repair and Maintenance

6.1 Classic E.O.S. Type 5270/100

The required floor space for the film processor (with feed table, chute and the

TYPE 5270/100

required clearance on the left) is 1270 x 860 mm (50.03 x 33.88 inch).

The free space indicated in the illustration must be guaranteed for repair and
maintenance, otherwise the time required for service will increase.

Optimum dimensions:
We recommend to plan on this free space.

Minimum dimensions:

Do not go below this minimum space.

2340 (92.19)

5270_10001_004.cdr

310

(12.21)

A

Figure 5

(A) Operation side
Dimensions in mm (inch)

Chapter 14 / 10 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

6.2 Classic E.O.S. CL Type 5270/105

The required floor space for the film processor in combination with the Laser

TYPE 5270/105

Imager LR3300, feed table, chute and the required clearance on the left is
1700 x 860 mm (66.98 x 33.88 inch).

In case of an installation of the Laser Imager LR3300 or another daylight
system observe the installation documentation enclosed with the machine.

The free space indicated in the illustration must be guaranteed for repair and
maintenance, otherwise the time required for service will increase.

Optimum dimensions:
We recommend to plan on this free space.

Minimum dimensions:

Do not go below this minimum space.

2710 (106.77)

3120 (122.92)

2120 (83.52)

380

(14.97)

1700 (66.98)

40 (1.57)

600

740 (29.15)

740 (29.15)

400

(15.76)

(23.64)

1710 (67.37)

600 (23.64)

1910 (75.25)

860 (33.88)

LR3300

600

(23.64)

(15.76)

A

5270_10001_005.cdr

400

700 (27.58)

300

1000 (39.4)

(11.82)

Figure 6

A

(A) Operation side
Dimensions in mm (inch)

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 11
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

7 Daylight / Darkroom Installation

(only Classic E.O.S. Type 5270/100)

Chapter 7 “Daylight / Darkroom Installation” only refers to the Standalone
Version Type 5270/100.
Type 5270/105 has been designed for installation as daylight system.

7.1 Machine in the daylight, film feed in the darkroom,
light seal at the darkroom feed table

7.1.1 Installation at the wall opening

Darkroom Daylight

4

6

3

1

2

5

min. 1120 (44.1)

TYPE 5270/100

Film feed
Film output

(wire chute)
A 60° chamfer must be

provided on the wall
opening.

Wall
Wall base
Light seal

(foam rubber – by the meter)
Order no. CM+0000014259

Wall opening:

Wall
Wall base
Wall opening

50 (1.97)

Figure 7

Dimensions in mm (inch)

min. 580 (22.8)

max. 680 (26.8)

3

max. 1120 (44.1)

2

50 (1.97)

Figure 8

527214nm.cdr

1

527014jm.cdr

Dimensions in mm (inch)

Chapter 14 / 12 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

7.1.2 Installation with light tight wall

Darkroom Daylight

3

2

4

TYPE 5270/100

Film feed

A 60° chamfer must be provided

on the wall opening.

Wall
Light tight wall
Film output (wire chute)

1

Wall base
Light seal

(foam rubber – by the meter)
Order no. CM+0000014259

min. 1120 (44.1)

max. 1500 (59.1)

7

6

5

Wall opening

Wall

Overlap wall / light tight
wall at least 5 cm on all
sides

Wooden board, 20 mm
(0.79 inch) with opening

Figure 9

Dimensions in mm (inch)

3

1550 (61.0)

min. 1110 (43.7)

max. 1120 (44.1)

50 (1.97)

min. 670 (26.4)
max. 680 (26.8)

527014pm.cdr

2

2

1

1

527014lm.cdr

Figure 10

Dimensions in mm (inch)

See 7.3, Light tight wall

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 13
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

(

)

7.2 Machine in the darkroom, film exit in the daylight,
light seal at the dryer with light tight wall

7.2.1 Installation at the wall opening with light tight wall

Darkroom Daylight

2

3

TYPE 5270/100

1

Film feed

2

Wall

3

A 60° chamfer must be
provided on the wall opening.

4

Light tight wall

5

Film output (wire chute)

6

Light seal

1

59.1

(foam rubber – by the meter)
Order no. CM+0000014259

min. 1120 (44.1)

7

Wall base

6

7

527014rm.cdr

Figure 11

max. 1500

Dimensions in mm (inch)

The lower the height of the wall opening the more difficult will be the access
to the film removal.

Wall opening

1

Wall

2

Overlap wall / light tight
wall at least 50 mm (1.97
inch) on all sides

Wooden board, 20 mm

3

(0.79 inch) with opening

1550 (61.0)

min. 1110 (43.7)

max. 1120 (44.1)

3

2

2

1

1

50 (1.97)

min. 670 (26.4)
max. 680 (26.8)

527014lm.cdr

Figure 12

Dimensions in mm (inch)

See 7.3, Light tight wall

Chapter 14 / 14 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

7.3 Light tight wall

TYPE 5270/100

5273_10003_004.cdr

min. 1110 (43.7)

max. 1120 (44.1)

min. 670 (26.4)
max. 680 (26.8)

1020 (40.2)

Figure 13

Dimensions in mm (inch)
Coverage of a wall opening of up to 1400 mm x 900 mm

(55.16 inch x 35.46 inch) is possible.

An overlap of 50 mm (1.97 inch) must be guaranteed on all sides.

The manufacturer does not supply the light tight wall (wooden board) required
for the installation of a film processor!

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 15
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

8 Installation

8.1 Hoses and installation material

Only use fiber-reinforced PVC hoses Ø 19x4 mm for the external hose
connections (outside the machine)!

The supply and disposal hoses for developer, fixer, water, and safety
overflow in the machine are marked by tapes:

DEV
FIX

Tapes to be wrapped around external hoses are included in the accessory
box.

The following hoses are to be used for the supply connections:

Supply
connection

Developer red (DEV) 10x3 / 0.39x0.12

Fixer blue (FIX) 10x3 / 0.39x0.12

The following hoses are to be used for the disposal connections:

Disposal
connection

Developer red (DEV) 19x4 / 0.75x0.16

Fixer blue (FIX) 19x4 / 0.75x0.16

Water
safety overflow

The accessory box includes an approx. 50 cm (19.69 inch) long PAP hose for
the exhaust connection.
The PAP hose (Ø 100 mm / Ø 3.94 inch) can be ordered by the meter:
Order number CM+0000064117

Hose clamp Supply
Disposal
Exhaust

= developer
= fixer

Color Dimensions

Color Dimensions

transparent
(WAT)

WAT
OVERFLOW

(mm / inch)

fiber-reinforced

fiber-reinforced

(mm / inch)

fiber-reinforced

fiber-reinforced
19x4 / 0.75x0.16
fiber-reinforced

= water
= safety overflow

Order number

CM+0000064082

CM+0000064083

Order number

CM+0000064133

CM+0000064134

CM+0000007620

CM+9037170090
CM+9037200400
CM+7037196490

Hose connection Supply
Disposal

Threaded bush

Y – connector

Exhaust connection ∅ 100 mm (3.93 inch)

Order an additional joint for the floor connection!

Chapter 14 / 16 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

CM+9521075161
CM+9521075041

CM+9521075050

CM+9034200440

CM+9522030091

DD+DIS303.03E Installation Planning

8.2 Supply and disposal through the lower front panel
(only Classic E.O.S. Type 5270/100)

8.2.1 Instructions for breaking out the openings

TYPE 5270/100

8.2.2 Required openings for standard installations

TYPE 5270/100

• It is not necessary to remove
the front panel in order to
break out the openings.

• Mark the recesses to be
broken out with a felt-tip
marker.

• The material can be broken
out by holding a screwdriver
against he groove and hitting it
with a hammer.

(A) Exhaust connection
(B) Developer overflow / drain

(C) Fixer overflow / drain 1

527303nm.cdr

Figure 14

(D) Water overflow / drain

(E) Safety overflow, tanks

(F) Developer supply

(G) Fixer 2 supply

(H) Water supply

E

D

B

C

A

Figure 15

G

H

5273_10002_004.cdr

F

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 17
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

8.2.3 Installing the developer / fixer supply hoses

TYPE 5270/100

Only use fiber-reinforced PVC hoses Ø 10x3 mm (0.39x0.12 inch) for the
external hose connections (outside the machine)!

Position the hoses without kinks!

Installing the developer / fixer supply:

2

1

3

4

5

7

6

7

G

8

10

9

F

A

527003OM.CDR

Figure 16

(F) Developer (DEV) (A) Supply direction
(G) Fixer (FIX)

POS Designation Configuration
1 PVC hose

Ø 9x1.5 mm (0.35x0.06 inch)

2 Hose positioning /

reinforcement bend-protection
3 Hose clamp
4 Hose connection stub
5 Threaded bush Included in the accessory box
6 Rubber elbow

Ø 10 mm (0.39 inch)
7 Hose clamp Not included in shipment, can be

8 Pipe stub

Ø 10x1 mm (0.39x0.04 inch)
9 PVC hose

Ø 10x3 mm (0.39x0.12 inch)

fiber-reinforced

Developer: red

Fixer: blue
10 Hose clamp Not included in shipment, can be

Pre-installed in the machine

Not included in shipment, can be
ordered, CM+7946064580
Pre-installed in the machine

Not included in shipment, can be
ordered, CM+9511017970

ordered, CM+7037200210
Not included in shipment, can be
ordered, CM+9511017920
Not included in the shipment, can
be ordered,

CM+0000064082
CM+0000064083

ordered, CM+7037200230

Chapter 14 / 18 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.2.4 Installing the disposal hoses

TYPE 5270/100

Only use fiber-reinforced PVC hoses Ø 19x4 mm (0.75x0.16 inch) for the
external hose connections (outside the machine)!

Position the hoses without kinks!

A

2

1

3

4

5

6

5

7

5

8

Figure 17

B

527003QM.CDR

D

E

(A) Drain direction (D) Water drain / overflow
(B) Developer drain / overflow (E) Safety overflow, tanks
(C) Fixer drain / overflow

Pos Designation Configuration
1 PVC hose Ø 19x2.5 mm

(0.75x0.10 inch) transparent

Pre-installed in the machine

2 Hose clamp
3 Hose connection stub

Ø 20 mm (0.79 inch)
4 Threaded bush Included in the accessory box
5 Hose clamp Not included in shipment, can

be ordered, CM+9037200400

6 Rubber elbow Not included in shipment, can

be ordered, CM+9889629521

7 Pipe stub

Ø 20 mm (0.79 inch)

Not included in shipment, can

be ordered, CM+7839185010
8 PVC hose, Not included in shipment,
Developer (red, fiber-reinforced):

Ø 19x4 mm (0.75x0.16 inch)

Fixer (blue, fiber-reinforced):

Ø 19x4 mm (0.75x0.16 inch)

can be ordered

CM+0000064133

CM+0000064134
Water (transparent, fiber-reinforced):
Ø 19x4 mm (0.75x0.16 inch) CM+0000007620

• Combine the hoses of the safety overflow (OVERFLOW) and water (WAT)
with a Y piece and connect them with one drain hose, if this is permitted by
the local regulations. Install the drain hose to the floor drain.

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 19
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

8.3 Supply and disposal through the floor

Only use fiber-reinforced PVC hoses Ø 10x3 mm (0.39x0.12 inch) for the
external hose connections (outside the machine)!
Position the hoses without kinks!

Classic E.O.S. (5270/100)

Classic E.O.S. CL (5270/105)

TYPE 5270/100

1

H

4

9

Figure 18

3

10

1

4

9

5270_10003_016.CDR

TYPE 5270/105

H

1

3

4

10

9

Figure 19

5270_10014_011.CDR

Pos Designation Configuration

1

PVC hose

Ø 9x1.5 mm (0.35x0.06 inch)

3

Hose clamp

4

Hose connection stub

10

Hose clamp Not included in shipment, can be

Pre-installed in the machine

ordered, CM+7037200230

9

PVC hose

Ø 10x3 mm (0.39x0.12 inch)
fiber-reinforced
Developer: red
Fixer: blue

H

Safety pressure hose Included in the accessory box

Not included in the shipment, can
be ordered,

CM+0000064082
CM+0000064083

• If necessary shorten the internal supply hoses and insert the hose
connection stub (4) again.

• Connect the fiber-reinforced (external) PVC hoses with the hose
connection stub (4) of the internal supply hoses.

• Position the hoses together through the opening in the bottom to the mixer
or to the individual tanks.

Chapter 14 / 20 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.3.1 Installing the disposal hoses

FIX2 FIX1 DEVWAT

1

2

3

5

8

5270_10003_017.CDR

Figure 20

Pos Designation Configuration
1 PVC hose Ø 19x2.5 mm

(0.75x0.10 inch) transparent

Pre-installed in the machine

2 Hose clamp
3 Hose connection stub

Ø 20 mm (0.79 inch)

5 Hose clamp Not included in the shipment,

CM+9037200400
8 PVC hose, Not included in shipment,
Developer (red, fiber-reinforced):

Ø 19x4 mm (0.75x0.16 inch)

Fixer (blue, fiber-reinforced):

Ø 19x4 mm (0.75x0.16 inch)

Water (transparent, fiber-reinforced):

Ø 19x4 mm (0.75x0.16 inch)

can be ordered

CM+0000064133

CM+0000064134

CM+0000007620

• Shorten the internal disposal hoses if necessary and insert the hose
connection stub (3) again.

• Connect the fiber-reinforced (external) PVC hoses with the hose connection
stub (3) of the internal disposal hoses.

• Position the disposal hoses of developer (DEV) and fixer (FIX) together
through the opening in the bottom and to the central disposal site.

• Combine the hoses of the safety overflow (OVERFLOW) and water (WAT)
with a Y piece and connect them with one drain hose, if this is permitted by
the local regulations. Install the drain hose to the floor drain.

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 21
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

8.4 Replenisher tanks for developer and fixer

Replenisher pump with filter
Replenisher tanks or Mixer

Figure 21

• To be observed for the use of individual tanks or a mixer:
maximum suction height:

maximum suction length:

Replenisher tanks must not be installed inside the machine!
The customer cannot refill the tanks!

Level monitoring in the replenisher tanks

Four plugs are provided on the Control Board PCB1 for connection of the
replenisher supply for mixer, developer, fixer, and for the anti-algae solution.

A communication cable with 20 m (787.4 inch) an be ordered for the Mixer:

CM+9528030301

2 m (78.74 inch)
15 m (590.55 inch)

Replenisher hose

Chapter 14 / 22 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.5 Disposal tanks

For disposal of chemicals and wash water the regulations of the local
authorities regarding the pertaining Sewage Act must be observed!

If it is allowed to drain the exhausted solutions into the sewer, then the drain
pipe must be a polyethylene pipe up to the main pipe (vertical drain pipe).

The installation of the disposal lines to the disposal tanks must be carried out
professionally by authorized technicians.
In Germany this must be done in compliance with §19 WHG and DIN 1988 /
EN 1717:2001. In other countries the corresponding national regulations
must be considered.

It must be guaranteed that developer or fixer solution never gets into the wash
water, not even in case of overflow due to clogged lines, if the wash water is
drained into the public sewage system. Install the respective hoses and
protection facilities.

In Germany the pertaining regulations are the general minimum requirements
for the disposal of waste water in waters, dated Jan. 31, 1994, Appendix 53 –
Photographic Processes (silver halide photography). In other countries the
respective country-specific regulations and laws must be observed.

Disposal possibilities
Disposal through the front panel

(only type 5273/100):

Disposal connections through the lower
front panel:

• Disposal in individual tanks
(developer / fixer), and water is
drained in the sewer, or

• Disposal in centralized disposal
station

Disposal connections through the

Figure 22
lower front panel
Disposal tanks

In case of a disposal with individual tanks, the disposal hoses are
always filled with chemicals.

Disposal through the floor:

Disposal through the floor to the
centralized disposal station with one
disposal hose each for developer, fixer,
and water.
For maintenance purposes we
recommend a separate drain fro
cleaning chemicals.

Centralized disposal
Drain hoses (below the film

processor)

Figure 23

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 23
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

(

)

8.6 Water connection

Also see Chapter 3

Water consumption

Permanent replenishment:
max. 3 liters / min (101.45 fl.oz. / min).

The water supply rate per square meter of processed
film can be changed via code.

Water pressure

2 bar (200 kPa) to 6 bar (600 kPa)

Water temperature min. 5 °C

pH value

Water conductivity
value

6.5 to 8

min. 3µS/cm
Reliable level detection in the water tank cannot be
guaranteed if this value is too low.

Regulations The free water supply of the machine is in compliance with

the regulations of DIN 1988 / EN 1717:2001 (technical
regulations for the installation of drinking water).

-

not
included
in
shipment

3

12 4

5

6

7

230

2000

78.7

Shut-off valve
Clutch

Threaded fitting
Pressure reducer

(manometer),
for water pressure > 6 bar

Flexible safety
pressure hose

Solenoid valve
Dirt filter

527314sm.cdr

Dimensions in mm (inch)

Figure 24

• Position the safety pressure hose, mounted at the dirt filter, all the way to
the shut-off valve or pressure reducer.

Safety
pressure hose:

CM+9036260160
tested in compliance with DIN 57700 Part 600
2 m (78.74 inch) long

" union nut

³/

4

• For safety we recommend to provide a floor drain close to the machine.

Chapter 14 / 24 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.6.1 Wall / machine connection at a water pressure of 2 – 6 bar

To protect the drinking water from a return flow of waste water via the hand
shower a safety fitting (1) must be installed. This consists of a ventilation valve
with integrated check valve. The installation according to the standard DIN
1988 / EN 1717:2001 must follow the illustration!

3

3/4"

(1/2)"

(3/4)" USA

4

527214VM.CDR

Figure 25

Y

1/2"

2

1

min. 150 mm

X

Z

If necessary the individual assemblies must
be supported.

X Cleaning sink
Y Overflow
Z Waste water

Pos. Part number Qty Designation Size Remarks

FU+8966008 1 Safety combination,

1

2

FU+58618 1 Hand shower with

chromium plated

½" optional

½"

hose

3

CM+9034200580 1 Hexagon reduction

¾" USA

piece (brass)

4

CM+9034200590 1 Hexagon reduction

¾"

piece (brass)

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 25
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

Y

8.6.2 Wall / machine connection at a water pressure > 6 bar

To protect the drinking water from a return flow of waste water via the hand
shower a safety fitting (1) must be installed. This consists of a ventilation valve
with integrated check valve. The installation according to the standard DIN
1988 / EN 1717:2001 must follow the illustration!

Set the pressure reducer to a pressure value between 2 and 6 bar!

3/4"

(1/2)"

(3/4)" USA

1/2"

3

527214WM.CDR

Figure 26

1/2"

1

2

4

5

min. 150mm

X

Z

If necessary the individual assemblies must
be supported.

X Cleaning sink
Y Overflow
Z Waste water

Pos. Part number Qty Designation Dimensions Remarks

FU+8966008 1 Safety

1

combination,

½"

chromium plated

2

FU+58618 1 Hand shower with

½"

hose

3

FU+8656001 1 Pressure reducer

½" optional

SYR 315

4

FU+8656002 1 Manometer

½"

0 - 10 bar

5

CM+9034200590 1 Hexagon

¾"
reduction piece
(brass)

Chapter 14 / 26 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.6.3 Overview of adaptation parts for water installations:

Adaptation part with name Connection Order number/

part number

A ½ " external thread
B ¾ " external thread

CM+7034200320

Reduction nipple (brass)

A ¾ " external thread

CM+9034200600

B ¾ " external thread

Double nipple (brass)

A ½ " external thread
B ½ " external thread

CM+7034200260

Double nipple
(brass, chromium plated)

Reduction piece with seal
(movable parts; brass,
chromium plated)

Reduction nipple
(brass)

A ¾ " internal thread
+ seal

B ½ " external thread

A ½ " internal thread
B ¾ " external thread

A ¾ " external thread
B ½ " internal thread

CM+7034215230

CM+7034200280

CM+9034200590

Reduction piece (brass)

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 27
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

Adaptation part with name Connection Order number/

part number

Reduction piece
(fitting for USA)

Fitting for USA
(water connection humidifier)

A ¾ " external thread

B 1.085-12 UNS-3B

internal thread
PIPE THREADS
American National

Standard

A ¾ " external thread
(GHT)
PIPE THREADS
American National

Standard

B ½ " internal thread

A ¾ " internal thread

B ½ " external thread

CM+9034200580

CM+7512017410

CM+7523010550

Reduction piece
(brass, compact part)

Flat seal

Pressure hose

for
½ " screw connection
¾ " screw connection

A ¾" union nut
B ¾" union nut

CM+9896611740
CM+9034200610

CM+9036260160

Chapter 14 / 28 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.7 Exhaust connection

Also see Chapter 3, Section 6

8.7.1 Exhaust connection through lower front panel (only Type 5270/100)

Flexible exhaust hose ∅ 100 mm
Crossover
Connection piece for exhaust

hose

Dimensions in mm

Figure 27

The film processor has an integrated exhaust unit.

• Connection stub at the machine: ∅ 100 mm

• Max. length of the exhaust hose: 5 m.

If the hose is longer install an additional fan!

• Exhaust volume:
min. 50 m³/h – max. 100 m³/h

For functional reasons the exhaust connection must always lead out of the
machine.

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 29
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

_

8.7.2 Exhaust connection through the floor

Flexible exhaust hose
∅ 100 mm

Exhaust connection through the
floor

Exhaust connection:
2 screw-type exhaust
connections;
center hole through the floor

>

114 mm

Dimensions in mm

Figure 28

The film processor has an integrated exhaust unit.

• Connection stub at the machine: ∅ 100 mm

• Max. length of the exhaust hose: 5 m

If the hose is longer install an additional fan!

• Exhaust volume:
min. 50 m³/h – max. 100 m³/h

For functional reasons the exhaust connection must always lead out of the
machine.

∅
Order no.: CM+9522030091

Chapter 14 / 30 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

8.8 Electrical connection of the machine

Power connection

1N~ 230 – 240 V; 50/60 Hz (200 - 240 V)

Fuse protection

Leakage current
towards PE

Protective earth

Installation regulations

Mains connection in
the installation room

Required connection
cable

(scope of delivery)

15 / 16 A

A GFI switch: (IN = 30 mA in compliance with
VDE 664) is integrated in the machine.

< 3.5 mA

< 0.1 Ω towards ground

VDE Electrical installations in the installation

room must be in compliance with the
regulations IEC 364, VDE 0100 and VDE

0107.

UL Electrical installations in the installation

room must be in compliance with the
regulation "National Electrical Code" (NEC)
(NFPA 70).

VDE Double shockproof outlet according to DIN

49441 and CEE 7 standard plate VII

UL Outlet for three-prong plugs

NEMA 6-20 R

VDE PVC line H05VV - F 3G 1.5 (3 wires)

cable length 3.5 m
usable length 2.3 m

UL Cable included in the accessory box to

replace the VDE cable.
PVC line SJT 3 x AWG 12
(with plug NEMA 6-20 P)
cable length 3.4 m
usable length 2.4 m

Main breaker

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 31
(Type 5270 / 100 / 105)

Upon machine installation it must be ensured that
either the mains connector or an all-pole circuit
breaker for the installation on site is located close
to the machine and easily accessible.

Installation Planning DD+DIS303.03E

Outlet connection:

All-pole main breaker
(option: if there is no access
to the outlet)
Mains supply with outlet
Power cable with three-prong
plug
GFI switch

= 30 mA, in compliance

(I

N

with VDE 664)

Note:

Parts

and are not
included in the machine
shipment.

52731 4km.cdr

Figure 29

4

1

2

3

Chapter 14 / 32 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

9 Technical Data

9.1 Electrical data

Power connection

1N~ 230 – 240 V; 50/60 Hz (200 - 240 V)

Power consumption:

Standby
(room temperature ~ 20 °C)

during film processing

Fuse protection

Leakage current towards PE

Main breaker

Safety regulations

0.45 kWh (1620 kJ)

2.9 kW/h (10440 kJ/h)

15 A / 16 A

< 3.5 mA

Upon machine installation it must be
ensured that either the mains
connector or an all-pole circuit
breaker for the installation on site is
located close to the machine and
easily accessible.

Electrical installations in the installation
room must be incompliance with IEC 364
(VDE 0100 / 0107).

A GFI switch: (IN = 30 mA in
compliance with VDE 664) is

integrated in the machine.

9.2 Ambient and climatic conditions

Room temperature

Relative humidity

Ventilation

Light-tightness

Acoustic test
ISO 7779
(airborne noise)

min. 10 °C (50 °F), max. 30 °C (86 °F)
Room temperature min. 5 °C (41 °F) below the set
developer temperature

min. 10 %, max. 80 %, no condensation
Avoid inhaling of chemical fumes. Make sure that

there is sufficient ventilation at the installation site
of the machine, i.e. an air exchange that is at
least ten times the room volume per hour.

maximum 2500 Lux

during standby max. 35 dB (A)
during film cycle max. 48 dB (A)

The machine must not be opened
during the operation. It is light tight
only if all panels are correctly
mounted.

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 33
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

Radiation effects

Upon machine installation in the close vicinity to
the X-ray room, the local regulations for radiation
protection must be followed (protection of
personnel against scattered radiation). The
machine has not been designed for the
installation in the X-ray room, i.e. there is no
internal screening against scattered radiation.

Floor conditions

Floor load

Cleaning sink

Heat emission
(approx. values)

Waterproof, chemical-resistant floor covering
(pH value 4 - 11)
A floor drain close to the film processor is
recommended.

50 N / cm² (7.75 N / in²)

A cleaning sink with water tap and hose shower
should be provided for maintenance work.

Minimum inside dimensions of the sink:
Width

Depth
Height

Standby
(max.)
Film run
(max.)
into the room 900 W / 3240 kJ/h
total 2100 W / 7560 kJ/h
Exhaust
connect.

70 cm (27.56 inch)
40 cm (15.75 inch)
20 cm (7.87 inch)

into the room 250 W / 900 kJ/h

into the connected
exhaust

Integrated exhaust in the dryer is a
standard feature.
During film cycle the exhaust runs at full
capacity. During standby mode the
exhaust can be set to half-capacity via
the service program.

1200 W / 4320 kJ/h

9.3 Transport and storage conditions

Ambient
temperature

Chapter 14 / 34 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

up to max. -25 °C for 72 h (IEC 68-2-1 (Ab))
max. 55 °C for 96 h (IEC 68-2-2 (Bb))

Relative humidity in the given temperature range
between 5% and 95%.

DD+DIS303.03E Installation Planning

10 Machine Specifications

10.1 Type overview

Machine Type Power connection ABC

Code

Classic E.O.S. 5270/100 1N~ 230-240 V (200 - 240 V)

Classic E.O.S. CL 5270/105 1N~ 230-240 V (200 - 240 V)

10.2 Film types

All commercially available medical x-ray films suitable for machine processing.

10.3 Film formats

Type 5270/100

Sheet films

Roll film Processing of roll film is NOT possible!

Type 5273/105

Sheet films

Roll film Processing of roll film is NOT possible!

smallest size 10 x 10 cm (3.9 x 3.9 inch)
largest size 35 x 43 cm (13.8 x 16.9 inch)
max. film width 43.5 cm (17.1 inch)

smallest size 13 x 18 cm (5.1 x 7.1 inch)
largest size 35 x 43 cm (13.8 x 16.9 inch)
max. film width 43.5 cm (17.1 inch)

50/60 Hz

50/60 Hz

ECZ26

ECZ38

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 35
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

10.4 Functional data

Process code HT (60s) IP (90s) RP (2min) EXT (3min)
Feeding speed

Processing time in DEV
Processing time
(film 35 x 35 cm)
Film: end / end
incl. Film
Films / h (35 x 35 cm)
Machine tank volumes
Developer
Fixer 1
Fixer 2
Water
Developer tank temperature
standard
adjustable between
25 °C (77 °F) - 39 °C (102.2 °F)
Fixer 2 tank temperature
Heating time from
20 °C (68 °F) to
34 °C (93.2 °F)
Dryer step setting

Standard setting
replenishment cycles
Developer / fixer
Standard setting
Replenishment rate
Developer / fixer
Water
Range
Replenishment rate
Developer / fixer
Water
Water supply
Adjustment range
for water pressure
min.
max.
Water conductivity value

Water pH value
Silver concentration in the
waste water

160 cm/min
(62.99 in/min)

12.5 sec 18.8 sec 24.9 sec 38.3 sec

71 sec
82 sec

220 150 110 75

8.8 l (297.6 fl.oz.)
10 l (338.18 fl.oz.)

5.8 l (196.15 fl.oz.)

5.8 l (196.15 fl.oz.)

38 °C
(100.4 °F)

34 °C (93.2 °F)
approx. 20 min

13 (Software Version CLLC1107;
older versions: 10 steps)

0.25 m² (3.88 in²)

400 ml/m²
30000 ml/m²

50 – 800 ml/m²
3000 – 30000 ml/m²
3000 ml/min (101.45 fl.oz./min)

2 bar
6 bar

min. 3 µS / cm
If the value drops below this threshold reliable level detection
in the water tank can no longer be guaranteed!

6.5 to 8
< 1 ppm

106 cm/min
(41.73 in/min)

107 sec
124 sec

36 °C
(96.8 °F)

80 cm/min
(31.5 in/min)

142 sec
164 sec

34 °C
(93.2 °F)

52 cm/min
(20.47 in/min)

218 sec
253 sec

34 °C
(93.2 °F)

Chapter 14 / 36 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

11 Dimensions and Weights

11.1 Classic E.O.S. Type 5270/100

Dimensions

Length mm

(inch)

incl. packing box 1200 (47.24) 800 (31.5) 1460 (57.48)
without packing
material
(with feed table
and chute)

Weight

Weight approx. kg (lbs)

with packing material 200 (441)
without packing material 135 (297)
with full tanks 165 (364)

1270 (50) 710 (27.95) 1130 (44.49)

Width mm (inch) Height mm

(inch)

11.2 Classic E.O.S. CL Type 5270/105

Dimensions

Length mm

(inch)

incl. packing box 1200 (47.24) 800 (31.5) 1460 (57.48)
without packing
material
(with docking unit
and chute)

Weight

Weight approx. kg (lbs)

with packing material 200 (441)
without packing material 135 (297)
with full tanks 165 (364)

1070 (42.16) 710 (27.95) 1130 (44.49)

Width mm (inch) Height mm

(inch)

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 37
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

12 Machine Standards and Directives

12.1 Safety

Europe
EN 60950 / A11 1997 "Safety of Information Technology Equipment"

(identical with IEC 950: 1992 and with VDE 0805/ 11. 97).
USA
UL 1950 July 3, 1995 “Safety of Information Technology Equipment,

Including Electrical Business Equipment”.
Canada
CSA 22.2 No. 950 - 95 “Safety of Information Technology Equipment,

Including Electrical Business Equipment”.

12.2 Radio interference suppression

Europe
In compliance with EN 50081-1: 1992 "Generic Standard for Emission
Requirements", (identical with VDE 0839, Part 81-1/ 03. 93)
EN 55011 1998, Class B "Radio Disturbance Characteristics of Medical
Equipment" (corresponds to VDE 0878, Part 22 / 04.98)
For equipment in residential areas, business and commercial areas, and in
doctors’ offices.
North-America (USA, Canada)
US Standard FCC 47 Part 15, Subchapter B, Class A / Edition 8/ 1976
Equipment considered “Non-Household Appliances”

12.3 Electromagnetic compatibility

EMVG (German Electromagnetic Compatibility Act) and
EC Regulation 89 / 336 / EEC; EN 50082-1: 1997
EN 61000-3-2 “Limit Values for Harmonic Emissions”
EN 61000-3-3 “Limit Values for Flicker”

Chapter 14 / 38 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

12.4 Certificates and guidelines

CE Medical Device Directive 93/42 EEC
TÜV Product Service Mark “Design tested and monitored”

UL Approbation E 477 50 (M)
C-UL Approbation E 477 50 (M)

“Technical directives for
drinking water installations,
protection against reflux”

General conditions and
administrative regulations for
minimum requirements on
the disposal of waste water
into public waters, dated

31.01.1994

(Germany)

Ministry for Environmental
Protection
(France)

DIN 1988, Part 4/ 1988 / EN 1717:2001

Appendix 53 – Photographic Processes
(silver halide photography)

Rubrique No. 2950
Maximum water consumption for

- single-layer emulsions must not exceed a

maximum of 15l/m

- double-sided emulsions must not exceed a

maximum of 30l/m

2

*

2

*
* Activated in the program <Service
Settings / Replenishment / Wat. Repl.
Value>

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 39
(Type 5270 / 100 / 105)

Installation Planning DD+DIS303.03E

Chapter 14 / 40 Classic E.O.S. / Classic E.O.S. CL Edition 6, Revision 0
(Type 5270 / 100 / 105)

DD+DIS303.03E Installation Planning

13 Checklist for Installation Planning

General

System components

1

Transport path

2

Installation version

3

Unloading and unpacking

4

Required external connections: prepared: yes no

Film processor
Daylight system
Mixer
Replenisher tanks
Centralized disposal
Disposal tanks
Silver recovery (fixer, water)

Sufficient floor load
Elevator (door size, load)
Door size

Daylight
Darkroom

Free space provided for lifting the
machines off the pallet

yes no

 
 
 
 
 
 
 

 
 
 

 
 

 

Film processor

5

Mixer

6

Silver recovery

6

Hose connections

7

Air conditioning system

8

Water connection

9

Free space around machine

10

Wall opening

11

All-pole circuit breaker
Outlet (distance to machine:_____m)

Outlet (distance to machine:_____m)
Outlet (distance to machine:_____m)
Supply and disposal through rear wall

Supply and disposal through the floor
Exhaust hose required, length_____m
Exhaust: connection piece installed on
site
Supply hoses installed
Disposal hoses installed

Exhaust connection installed
Exhaust rate sufficient

present
Required minimum guaranteed
considered

 
 

 
 

 
 
 
 
 
 

 
 
 
 
 

Edition 6, Revision 0 Classic E.O.S. / Classic E.O.S. CL Chapter 14 / 41
(Type 5270 / 100 / 105)

AGFA and the Agfa-Rhombus are trademarks of Agfa-Gevaert AG, Germany

Herausgegeben von / Published by / Edité par

Agfa-Gevaert AG
Fototechnik
Tegernseer Landstraße 161
D - 81539 München

Printed in Germany / Imprimé en Allemagne /
stampato in Germania
