ADOBE Fireworks CS4 User Manual

Using

ADOBE® FIREWORKS® CS4

This user guide is protected under copyright law, furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Adobe Systems Incorporated. Adobe Systems Incorporated assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this guide.

This user guide is licensed for use under the terms of the Creative Commons Attribution Non-Commercial 3.0 License. This License allows users to copy, distribute, and transmit the user guide for noncommercial purposes only so long as (1) proper attribution to Adobe is given as the owner of the user guide; and (2) any reuse or distribution of the user guide contains a notice that use of the user guide is governed by these terms. The best way to provide notice is to include the following link. To view a copy of this license, visit

http://creativecommons.org/licenses/by-nc-sa/3.0/

Adobe, the Adobe logo, Adobe AIR, Acrobat, ActionScript, Creative Suite, Director, Dreamweaver, Fireworks, Flash, Flex, Flex Builder, Freehand, GoLive, HomeSite, Illustrator, InCopy, InDesign, Photoshop, Reader, Version Cue, and XMP are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Apple, Macintosh, and Mac OS are trademarks of Apple Inc., registered in the United States and other countries. Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners.

Updated Information/Additional Third Party Code Information available at http://www.adobe.com/go/thirdparty.

This product includes software developed by the Apache Software Foundation (http://www.apache.org/).

The Proximity/Merriam-Webster Inc. Database © Copyright 1990. The Proximity/Franklin Electronic Publishers Database © Copyright 1994. © Copyright 1990, 1994, 1997 All Rights Reserved. Proximity Technology Inc.

This Program was written with MacApp®: ©1985-1988 Apple Computer, Inc. APPLE COMPUTER, INC. MAKES NO WARRANTIES WHATSOEVER, EITHER EXPRESS OR IMPLIED, REGARDING THIS PRODUCT, INCLUDING WARRANTIES WITH RESPECT TO ITS MERCHANTABILITY OR ITS FITNESS FOR ANY PARTICULAR PURPOSE. The MacApp software is proprietary to Apple Computer, Inc. and is licensed to Adobe for distribution only for use in combination with Adobe Fireworks.

PANTONE® colors displayed here may not match PANTONE-identified standards. Consult current PANTONE Color Publications for accurate color. PANTONE® and other Pantone, Inc. trademarks are the property of Pantone, Inc. © Pantone, Inc., 2008.

Portions contributed by Focoltone Colour System.

Portions produced under Dainippon Ink and Chemical, Inc. copyright of color-data-base derived from Sample Books.

Sorenson Spark™ video compression and decompression technology licensed from Sorenson Media, Inc.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Adobe Systems Incorporated, 345 Park Avenue, San Jose, California 95110, USA.

Notice to U.S. Government End Users. The Software and Documentation are “Commercial Items,” as that term is defined at 48 C.F.R. §2.101, consisting of “Commercial Computer Software” and “Commercial Computer Software Documentation,” as such terms are used in 48 C.F.R. §12.212 or 48 C.F.R. §227.7202, as applicable. Consistent with 48 C.F.R. §12.212 or 48 C.F.R. §§227.7202-1 through 227.7202-4, as applicable, the Commercial Computer Software and Commercial Computer Software Documentation are being licensed to U.S. Government end users (a) only as Commercial Items and (b) with only those rights as are granted to all other end users pursuant to the terms and conditions herein. Unpublished-rights reserved under the copyright laws of the United States. Adobe Systems Incorporated, 345 Park Avenue, San Jose, CA 95110-2704, USA. For U.S. Government End Users, Adobe agrees to comply with all applicable equal opportunity laws including, if appropriate, the provisions of Executive Order 11246, as amended, Section 402 of the Vietnam Era Veterans Readjustment Assistance Act of 1974 (38 USC 4212), and Section 503 of the Rehabilitation Act of 1973, as amended, and the regulations at 41 CFR Parts 60-1 through 60-60, 60-250, and 60-741. The affirmative action clause and regulations contained in the preceding sentence shall be incorporated by reference.

Last updated 3/8/2011

Chapter 1: Resources

Activation and registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Help and support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Services, downloads, and extras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

What's new in Fireworks CS4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 2: Fireworks basics

About working in Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Vector and bitmap graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Creating a new Fireworks document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Opening and importing files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Create Fireworks PNG files from HTML files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Insert objects into a Fireworks document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Saving Fireworks files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

iii

Chapter 3: Workspace

Workspace basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Navigate and view documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Change the canvas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Undo and repeat multiple actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Chapter 4: Selecting and transforming objects

Select objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Modify a selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Select pixels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Edit selected objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9-slice scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Organize multiple objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Chapter 5: Working with bitmaps

Creating bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Editing bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Retouching bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Adjust bitmap color and tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Blurring and sharpening bitmaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Add noise to an image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Chapter 6: Working with vector objects

Basic shapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Auto Shapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Free-form shapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Special vector-editing techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Last updated 3/8/2011

USING FIREWORKS CS4

Contents

Chapter 7: Working with text

Enter text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Format and edit text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Chapter 8: Applying color, strokes, and fills

Applying colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Kuler panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Applying strokes and fills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Chapter 9: Using Live Filters

Applying Live Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Edit and customize Live Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Chapter 10: Layers, masking, and blending

Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Masking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Blending and transparency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Chapter 11: Styles, symbols, and URLs

Styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

URLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Chapter 12: Slices, rollovers, and hotspots

Creating and editing slices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Interactive slices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Preparing slices for export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Hotspots and image maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Chapter 13: Creating buttons and pop-up menus

Navigation basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Create button symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Edit button symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Pop-up menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Chapter 14: Prototyping websites and application interfaces

Prototyping workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Working with Fireworks pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Creating CSS-based layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Prototyping Flex applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Prototyping Adobe AIR applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Chapter 15: Creating animations

Animation basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Create animation symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Edit animation symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Manipulate states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

About onion skinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Last updated 3/8/2011

USING FIREWORKS CS4

Contents

Tweening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Preview an animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Optimize an animation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Work with existing animations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Create twist and fade animations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Chapter 16: Creating slide shows

Build and arrange a slide show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Customize a slide show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Create a custom Fireworks album player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Chapter 17: Optimizing and exporting

Use the Export Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Use the Image Preview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Optimize in the workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Optimize GIF, PNG, TIFF, BMP, and PICT files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

Optimize JPEGs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Export from the workspace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Send a Fireworks document as an e-mail attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Chapter 18: Using Fireworks with other applications

Working with Dreamweaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Working with HomeSite, GoLive, and other HTML editors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Working with Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

Working with FreeHand and Illustrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Working with Photoshop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Working with Director . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

About Adobe Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Share image metadata with Adobe XMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Chapter 19: Automating tasks

Finding and replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

Select the source for the search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

Set options for finding and replacing in multiple files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Find and replace text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Find and replace fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Find and replace colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Find and replace URLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Find and replace non-websafe colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Batch-processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Using commands for batch-processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273

Extending Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

Scripting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275

Manage commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

Chapter 20: Preferences and keyboard shortcuts

Set preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279

Select and customize keyboard shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

Last updated 3/8/2011

USING FIREWORKS CS4

Contents

Work with configuration files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

About reinstalling Fireworks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

View package contents (Mac OS only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Index ...............................................................................................................286

Last updated 3/8/2011

Chapter 1: Resources

Adobe® Fireworks® delivers an efficient design environment for rapidly prototyping websites and user interfaces, and for creating and optimizing images for the web. Fireworks offers the flexibility to edit both vector and bitmap images, a common library of prebuilt assets, and time-saving integration with Adobe Photoshop®, Adobe Illustrator®, Adobe Dreamweaver®, and Adobe Flash® Professional software.

Activation and registration

Help with installation

For help with installation issues, see the Installation Support Center at www.adobe.com/go/cs4install.

License activation

During the installation process, your Adobe software contacts Adobe to complete the license activation process. No personal data is transmitted. For more information on product activation, visit the Adobe website at

www.adobe.com/go/activation.

A single-user retail license activation supports two computers. For example, you can install the product on a desktop computer at work and on a laptop computer at home. If you want to install the software on a third computer, first deactivate it on one of the other two computers. Choose Help

> Deactivate.

Register

❖ To register, follow the on-screen instructions in the Registration dialog box, which appears after you install the

software.

If you postpone registration, you can register at any time by choosing Help > Registration.

Adobe Product Improvement Program

After you have used your Adobe software a certain number of times, a dialog box appears, asking whether you want to participate in the Adobe Product Improvement Program.

If you choose to participate, data about your use of Adobe software is sent to Adobe. No personal information is recorded or sent. The Adobe Product Improvement Program only collects information about the features and tools that you use in the software and how often you use them.

You can opt in to or opt out of the program at any time:

• To participate, choose Help > Adobe Product Improvement Program and click Yes, Participate.

• To stop participating, choose Help > Adobe Product Improvement Program and click No, Thank You.

Last updated 3/8/2011

USING FIREWORKS CS4

Resources

ReadMe

A ReadMe file for your software is available on-line and on the installation disc. Open the file to read important information about topics such as the following:

• System requirements

• Installation (including uninstalling the software)

• Activation and registration

• Font installation

• Troubleshooting

• Customer support

• Legal notices

Help and support

Community Help

Community Help is an integrated environment on Adobe.com that gives you access to community-generated content moderated by Adobe and industry experts. Comments from users help guide you to an answer.

Community Help draws on a number of resources, including:

• Videos, tutorials, tips and techniques, blogs, articles, and examples for designers and developers.

• Complete on-line product Help, which is updated regularly by the Adobe documentation team.

• All other content on Adobe.com, including knowledgebase articles, downloads and updates, Developer

Connection, and more.

Choose Help > product name Help in the application to access the Help and Support page, the portal to all of the Community Help content for your product. You can also use the Help search field in some Creative Suite 4 applications, or press F1 (Windows), to access Community Help for your product.

The sites searched by the default Community Help search engine are hand-selected and reviewed for quality by Adobe and Adobe Community Experts. Adobe experts also work to ensure that the top search results include a mixture of different kinds of content, including results from on-line product Help.

For more information on using Community Help, see http://help.adobe.com/en_US/CommunityHelp/.

For a video overview of Community Help, see www.adobe.com/go/lrvid4117_xp.

For frequently asked questions about Community Help, see http://community.adobe.com/help/profile/faq.html

Product Help

Adobe provides a comprehensive user guide for each product in several formats, including on-line product Help, PDF, and printed book. Results from on-line product Help are included in your results whenever you search Community Help.

If you’re connected to the Internet, the Help menu within the product opens the product Help and Support page by default. This page is a portal to all of the Community Help content for the product. If you want to consult or search on-line product Help only, you can access it by clicking the product Help link in the upper-right corner of the Help and Support page. Be sure to select the This Help System Only option before you do your search.

Last updated 3/8/2011

USING FIREWORKS CS4

Resources

If you’re not connected to the Internet, the Help menu within the product opens local Help, a subset of the content available in on-line product Help. Because local Help is not as complete or up-to-date as on-line product Help, Adobe recommends that you use the PDF version of product Help if you want to stay offline. A downloadable PDF of complete product Help is available from two places:

• The product’s Help and Support page (upper-right corner of the page)

• Local and web Help (top of the Help interface)

For more information on accessing product help, see http://help.adobe.com/en_US/CommunityHelp/.

If you are working in Adobe InDesign, Photoshop, Illustrator, Flash, Fireworks, or Dreamweaver, and you want to turn off Community Help so that local Help opens by default, do the following:

1 Open the Connections panel (Window > Extensions > Connections).

2 From the Connections panel menu , select Offline Options.

3 Select Keep Me Offline and click OK.

Note: When you disable web services from the Connections panel, all other web services (such as Adobe Kuler and Adobe ConnectNow) are also disabled.

Printed resources

Printed versions of the complete on-line product Help are available for the cost of shipping and handling at

www.adobe.com/go/store.

Support resources

Visit the Adobe Support website at www.adobe.com/support to learn about free and paid technical support options.

Services, downloads, and extras

You can enhance your product by integrating a variety of services, plug-ins, and extensions in your product. You can also download samples and other assets to help you get your work done.

Adobe creative on-line services

Adobe® Creative Suite® 4 includes new on-line features that bring the power of the web to your desktop. Use these features to connect with the community, collaborate, and get more from your Adobe tools. Powerful creative on-line services let you complete tasks ranging from color matching to data conferencing. The services seamlessly integrate with desktop applications so you can quickly enhance existing workflows. Some services offer full or partial functionality when you’re offline too.

Visit Adobe.com to learn more about available services. Some Creative Suite 4 applications include these initial offerings:

Kuler™ panel Quickly create, share, and explore color themes on-line.

Adobe® ConnectNow Collaborate with dispersed working teams over the web, sharing voice, data, and multimedia.

Resource Central Instantly access tutorials, sample files, and extensions for Adobe digital video applications.

For information on managing your services, see the Adobe website at www.adobe.com/go/learn_creativeservices_en.

Last updated 3/8/2011

USING FIREWORKS CS4

Resources

Adobe Exchange

Visit the Adobe Exchange at www.adobe.com/go/exchange to download samples as well as thousands of plug-ins and extensions from Adobe and third-party developers. The plug-ins and extensions can help you automate tasks, customize workflows, create specialized professional effects, and more.

Adobe downloads

Visit www.adobe.com/go/downloads to find free updates, tryouts, and other useful software.

Adobe Labs

Adobe Labs at www.adobe.com/go/labs gives you the opportunity to experience and evaluate new and emerging technologies and products from Adobe. At Adobe Labs, you have access to resources such as these:

• Prerelease software and technologies

• Code samples and best practices to accelerate your learning

• Early versions of product and technical documentation

• Forums, wiki-based content, and other collaborative resources to help you interact with like-minded users.

Adobe Labs fosters a collaborative software development process. In this environment, customers quickly become productive with new products and technologies. Adobe Labs is also a forum for early feedback. The Adobe development teams use this feedback to create software that meets the needs and expectations of the community.

Adobe TV

Visit Adobe TV at http://tv.adobe.com to view instructional and inspirational videos.

Extras

The installation disc contains a variety of extras to help you make the most of your Adobe software. Some extras are installed on your computer during the setup process; others are located on the disc.

To view the extras installed during the setup process, navigate to the application folder on your computer.

• Windows®: [startup drive]\Program Files\Adobe\[Adobe application]

• Mac OS®: [startup drive]/Applications/[Adobe application]

To view the extras on the disc, navigate to the Goodies folder in your language folder on the disc. Example:

• /English/Goodies/

What's new in Fireworks CS4

Improved performance, stability

Work faster, smarter with Fireworks overall performance enhancements from file open and save, to symbol update and intensive bitmap and vector operations.

Last updated 3/8/2011

USING FIREWORKS CS4

Resources

New user interface

Switch from other Creative Suite applications—like Photoshop, Illustrator, and Flash—with the ease and familiarity of universal user interface design.

CSS based layouts

Design complete Web pages in Fireworks’ robust graphic environment and then export web standards compliant, CSS-based layouts, complete with external style sheets in one step. Start with one of the six most common layouts and integrate foreground and background graphics with automatic margin and padding detection. Drop HTML rich symbols on your Fireworks layouts to specify headings, links, and form properties for precise CSS control.

PDF Export

Generate high-fidelity, interactive, secure PDF documents from your Fireworks design comps for enhanced client communication.

Adobe Type Engine

Produce superior type designs with the enhanced typesetting capabilities of the Adobe Type Engine, familiar to users of Photoshop and Illustrator, and now in Fireworks. Import or copy/paste double-byte characters from Adobe Illustrator or Photoshop without loss of fidelity. Float text inside a path for high impact text logos.

Live styles

Take a Fireworks object or text with professionally designed styles or your own custom collection. Update applied effects, colors, and text attributes by modifying a single style source.

Workspace improvements

Smart Guides for swift, accurate positioning and measurement of guides and elements on the canvas: heads-up display lets you know where you are on the canvas as you drag guides in place. In-place symbol editing for precise symbol refinement in context with the rest of your design; expansive 9-slice scaling tool now applies to any object on the canvas, not just symbols.

Adobe AIR authoring

Create your Adobe AIR prototype directly within Fireworks as a click-through mock-up, ready to be deployed to HTML and CSS, Flex, or SWF.

Last updated 3/8/2011

Chapter 2: Fireworks basics

About working in Fireworks

Adobe® Fireworks® is a versatile program for creating, editing, and optimizing web graphics. You can create and edit both bitmap and vector images, design web effects such as rollovers and pop-up menus, crop and optimize graphics to reduce their file size, and save time by automating repetitive tasks. You can export or save a document as a JPEG file, GIF file, or file of another format. These files can be saved along with HTML files containing HTML tables and JavaScript code so you can use them on the web.

For a video tutorial that introduces Fireworks basics, see www.adobe.com/go/lrvid4032_fw.

Draw and edit vector and bitmap objects

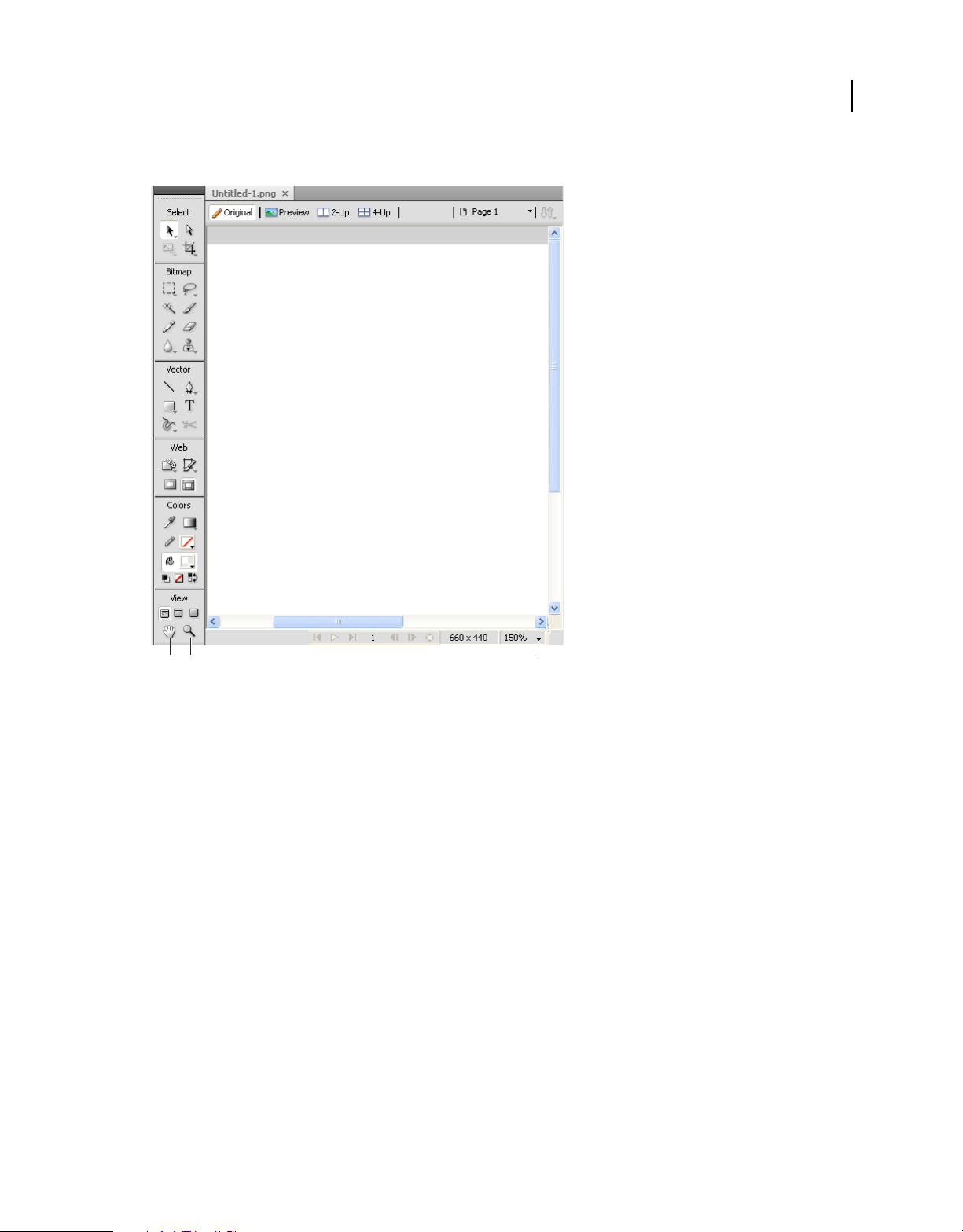

The Fireworks Tools panel includes distinct sections containing tools for drawing and editing vectors and bitmaps. The tool you select determines whether the object you create is a vector or a bitmap. After drawing an object or text, you can use a wide array of tools, effects, commands, and techniques to enhance your graphics or to create interactive navigation buttons.

You can also import and edit graphics in JPEG, GIF, PNG, PSD, and many other file formats.

Add interactivity to graphics

Slices and hotspots are web objects that specify interactive areas in a web graphic. Slices cut an image into exportable sections to which you can apply rollover behaviors, animation, and Uniform Resource Locator (URL) links. On a web page, each slice appears in a table cell.

Use the drag-and-drop rollover handles on slices and hotspots to quickly assign swap image and rollover behaviors to graphics. Use the Fireworks Button Editor and Pop-up Menu Editor to build special interactive graphics for navigating websites.

Optimize and export graphics

Use the powerful optimization features of Fireworks to achieve the right balance between file size and acceptable visual quality for exported graphics. The type of optimization you choose depends on the needs of your users and the content.

After you optimize your graphics, the next step is to export them for use on the web. From your Fireworks source PNG document, you can export files of a number of types, including JPEG, GIF, animated GIF, and HTML tables containing sliced images in multiple file types.

Vector and bitmap graphics

Computers display graphics in either vector or bitmap format. Understanding the difference between the two formats helps you understand Fireworks, which contains both vector and bitmap tools and is capable of opening or importing both formats.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

About vector graphics

Vector graphics render images using lines and curves (vectors) that include color and position information. For example, the image of a leaf can be defined by a series of points that describe the outline of the leaf. The color of the leaf is determined by the color of its outline (the stroke) and the color of the area enclosed by the outline (the fill).

Vector graphics are resolution-independent. That means the quality of a vector graphic's appearance won't change when you change its color; move, resize, or reshape it; or when the resolution of the output device changes.

About bitmap graphics

Bitmap graphics are composed of dots (pixels) arranged in a grid. Your computer screen is a large grid of pixels. In a bitmap version of the leaf, the image is determined by the location and color value of each pixel in the grid. Each pixel is assigned a color. When viewed at the correct resolution, the dots fit together like tiles in a mosaic.

When you edit a bitmap graphic, you modify pixels rather than lines and curves. These bitmap graphics are resolutiondependent, which means that the data describing the image is fixed to a grid of a particular size. Enlarging a bitmap graphic redistributes the pixels in the grid, which can make the edges of the image appear ragged. Displaying a bitmap graphic on an output device with a lower resolution than the image itself can also degrade the image's quality.

Creating a new Fireworks document

New documents in Fireworks are saved as Portable Network Graphic (PNG) documents. PNG is the native file format for Fireworks.

Graphics created in Fireworks can be exported to or saved in several web and graphic formats. Regardless of the optimization and export settings you select, the original Fireworks PNG file is preserved to allow easy editing later.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

Create a new document

1 Select File > New.

The New Document dialog box opens.

2 Enter document settings and click OK.

Note: Use the Custom color box pop-up window to select a custom canvas color.

Create a new document the same size as an object on the Clipboard

1 Copy an object to the Clipboard from another Fireworks document, a web browser, or from any application that is

acceptable for pasting.

2 Select File > New.

The New Document dialog box opens with the width and height dimensions of the object on the Clipboard.

3 Set the resolution and canvas color, and click OK.

4 Select Edit > Paste to paste the object from the Clipboard into the new document.

Opening and importing files

Note: When you import a file from Adobe Dreamweaver®, Fireworks preserves many, but not all JavaScript behaviors. If Fireworks supports a particular behavior, it recognizes that behavior and maintains it when you move a file back to Dreamweaver.

Open a Fireworks document

❖ Select File > Open and select the file.

To open a file without overwriting the previous version, select Open As Untitled, and then save the file using a different name.

Open a recently closed file

1 Select File > Open Recent.

2 Select a file from the submenu.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

Open a recently closed file when no files are open

❖ Click the file name on the Start page.

Open graphics created in other applications

You can open files created in other applications or file formats, including Photoshop®, Adobe FreeHand®, Adobe Illustrator®, WBMP, EPS, JPEG, GIF, and animated GIF files.

When you open a file format other than PNG using File > Open, you create a new Fireworks PNG document based on the file you open. You can use all of the features of Fireworks to edit the image. You can then either select Save As to save your work as a new Fireworks PNG file or as another file format.

In some cases, you can save the file in its original format. If you do this, the image flattens to a single layer, and you will be unable to edit the Fireworks-specific features you added to the image.

The following file formats can be saved directly from Fireworks: Fireworks PNG, GIF, animated GIF, JPEG, BMP, WBMP, TIFF, SWF, AI, PSD, and PICT (Mac only).

Note: Fireworks saves 16-bit TIFF images at 24-bit color depth.

Animated GIFs

• Import an animated GIF as an animation symbol and then edit and move all the elements of the animation as a

single unit. Use the Document Library panel to create new instances of the symbol.

Note: When you import an animated GIF, the state delay setting defaults to 0.07 seconds. If necessary, use the States panel to restore the original timing.

• Open an animated GIF as you would open a normal GIF file. Each element of the GIF is placed as a separate image

in its own Fireworks state. You can convert the graphic to an animation symbol in Fireworks.

EPS files

Fireworks opens most EPS files as flattened bitmap images in which all objects are combined on a single layer. Some EPS files exported from Adobe Illustrator retain their vector information.

PSD files

Fireworks can open PSD files created in Photoshop and preserve most PSD features, including hierarchical layers, layer effects, and commonly used blend modes.

WBMP files

Fireworks can open WBMP files, which are 1-bit (monochrome) files optimized for mobile computing devices. This format is for use on Wireless Application Protocol (WAP) pages.

You can use the Import Multiple Files extension to import multiple selected files into new pages of a Fireworks PNG

file. This utility helps you aggregate your project files created in earlier versions of Fireworks. You can also import flattened PNG file, PSD, AI, BMP, Freehand, GIF, animated GIF, JPEG, PICT, and TIFF formats. You can download this extension from

http://www.adobe.com/cfusion/exchange/index.cfm?event=extensionDetail&loc=en_us&extid=1581018.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

Create Fireworks PNG files from HTML files

Fireworks can open and import HTML content created in other applications that contain basic HTML table elements.

Open all tables of an HTML file

1 Select File > Reconstitute Table.

2 Select the HTML file that contains the tables you want to open, and click Open.

Each of the tables opens in its own document window.

Open only the first table of an HTML file

1 Select File > Open.

2 Select the HTML file that contains the table you want to open, and click Open.

The first table in the HTML file opens in a new document window.

Import the first table of an HTML file into an open Fireworks document

1 Select File > Import.

2 Select the HTML file you want to import from, and click Open.

3 Click to place the insertion point where you want the imported table to appear.

Note: Fireworks can import documents that use UTF-8 encoding and those that are written in XHTML.

Insert objects into a Fireworks document

Drag an image or text into Fireworks

You can drag vector objects, bitmap images, or text from any application that supports dragging.

❖ From the other application, drag the object or text into Fireworks.

Paste into Fireworks

Pasting an object copied from another application into Fireworks places the object in the center of the active document.

Text or objects in any of these formats can be pasted from the Clipboard:

• Adobe FreeHand 7 or later

• Adobe Illustrator

• PNG

• PICT (Mac OS)

• DIB (Windows)

• BMP (Windows)

• ASCII text

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

• EPS

• WBMP

• TXT

• RTF

1 In the other application, copy the object or text that you want to paste.

2 In Fireworks, paste the object or text into your document.

Location of pasted objects

The placement of the pasted object depends on what is selected:

• If at least one object on a single layer is selected, the pasted object is placed in front of (stacked directly above) the

selected object on the same layer.

• If the layer itself is selected and either no objects or all objects are selected, the pasted object is placed in front of

(stacked directly above) the topmost object on the same layer.

• If two or more objects on more than one layer are selected, the pasted object is placed in front of (stacked directly

above) the topmost object in the topmost layer.

• If the Web Layer or an object on the Web Layer is selected, the pasted object is placed in front of (stacked above)

all other objects on the bottommost layer.

Note: The Web Layer is a special layer that contains all web objects. It always remains at the top of the Layers panel.

Resample pasted objects

Resampling adds pixels to or subtracts pixels from a resized bitmap to match the appearance of the original bitmap as closely as possible. Resampling a bitmap to a higher resolution typically causes little loss of quality. Resampling to a lower resolution always causes data loss and usually results in a drop in quality.

Resample a bitmap object by pasting

1 Copy the bitmap to the Clipboard in Fireworks or another program.

2 Select Edit > Paste in Fireworks.

3 If the bitmap image on the Clipboard has a different resolution than the current document does, choose a resample

option.

Resample Maintains the original width and height of the pasted bitmap, adding, or subtracting pixels as necessary.

Don't Resample Maintains all the original pixels, which may make the relative size of the pasted image larger or

smaller than expected.

Import a PNG file into a Fireworks document layer

When you import Fireworks PNG files into the current layer of the active Fireworks document, hotspot objects and slice objects are placed on the document's Web Layer. Fireworks retains the proportions of the imported image.

1 In the Layers panel, select the layer into which you want to import the file.

2 Select File > Import to open the Import dialog box.

3 Navigate to the file you want to import and click Open.

4 On the canvas, position the import pointer where you want to place the upper left corner of the image.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

5 Do one of the following:

• Click to import the full-size image.

• Drag the import pointer to resize the image as you import.

Import from a digital camera or scanner

You can import images from a digital camera or scanner only if it is TWAIN compliant (Windows) or uses built-in Image Capture capability (Mac OS). Images imported into Fireworks from a digital camera or scanner open as new documents.

Before you try to import images into Fireworks, install all required software drivers, modules, and plug-ins for the camera or scanner.

The Plug-ins folder is located inside the Fireworks application folder. In Mac OS, Fireworks automatically looks for Photoshop Acquire plug-ins in that folder.

Direct Fireworks to Photoshop Acquire plug-ins

1 In Fireworks, select Edit > Preferences (Windows) or Fireworks > Preferences (Mac OS).

2 Click the Plug-ins category.

3 Select Photoshop Plug-Ins and navigate to the folder containing the plug-ins.

If the Select The Photoshop Plug-ins Folder (Windows) or Choose A Folder (Mac OS) dialog box doesn't open automatically, browse to the folder.

Import an image from a digital camera (Windows)

1 Connect the camera to your computer.

2 In Fireworks, select File > Scan, and then select either Twain Acquire or Twain Select.

3 Select the source for the images and the images you want to import.

The user interface for your camera software appears.

4 Follow the instructions to apply settings.

Import an image from a digital camera (Mac OS)

1 Connect the camera to your computer.

2 In Fireworks, select File > Acquire, and then select either Camera Acquire or Camera Select.

3 Select the camera and the images you want to import.

4 Follow the instructions to apply settings.

Import an image from a scanner

1 Connect the scanner to your computer.

2 Install the software that accompanies the scanner if you have not already done so.

3 Do one of the following:

• (Windows) In Fireworks, select File > Scan, and then select either Twain Acquire or Twain Select.

• (Mac OS) In Fireworks, select File > Acquire, and then select either Twain Acquire or Twain Select.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

Note: For most TWAIN modules or Photoshop Acquire plug-ins, additional dialog boxes prompt you to set other options.

4 Follow the instructions to apply settings.

Saving Fireworks files

When you create a document or open files in formats like PSD or HTML, the File > Save command creates a Fireworks PNG file. Fireworks PNG files have the following advantages:

• The source PNG file is always editable. You can go back and make additional changes even after you export the file

for use on the web.

• You can slice complex graphics into pieces in the PNG file and export them as multiple files with different file

formats and various optimization settings.

If Fireworks takes time to save a complex document, you can edit other open documents while the save operation

completes.

Save a Fireworks PNG file for use in an earlier version

1 Select File > Export.

2 Browse to the location where you want to save the file.

3 If the Fireworks file has more than one page, select Pages To Files in the Export pop-up menu.

4 Select either Images or Fireworks PNG in the Export As pop-up menu. If you select Images, each page is saved in

the default file format. This file format can be set using the Optimize panel. For more information see

and exporting” on page 212.

All objects on the top-level layers are saved in the export. Items on sublayers are not exported.

“Optimizing

Save all open documents

You can save all open documents even while continuing to work on them and specify filenames for any unnamed documents. Documents that have changed since the last save appear with an asterisk (*) against the filename on the document tab.

❖ Select Commands > Save All.

Note: You can use the Fireworks Auto Backup utility to automatically back up all open Fireworks documents. Download the utility from Adobe AIR Marketplace at

http://www.adobe.com/cfusion/exchange/index.cfm?event=extensionDetail&extid=1698332.

Save documents in other formats

If you use File > Open to open a file in a format other than PNG, you can later select File > Save As to save your work as a new Fireworks PNG file, or you can select a different format.

For the following file types, you can choose File > Save to save the document in its original format: Fireworks PNG, GIF, animated GIF, JPEG, BMP, WBMP, TIFF, SWF, AI, PSD, and PICT (Mac OS only). Fireworks saves 16-bit TIFF images at 24-bit color depth.

Last updated 3/8/2011

USING FIREWORKS CS4

Fireworks basics

Note: If you save a PNG file as a bitmap file such as a GIF or JPEG, the graphic objects you manipulated in the PNG are no longer available in the bitmap file. To revise the image, edit the source PNG file and then export it again.

Add a picture frame

1 Select Commands > Creative > Add Picture Frame.

2 Select a pattern and set the frame size.

3 Click OK.

Reset warning messages

If you have disabled warning messages from reappearing, you can re-enable the messages.

❖ Select Commands > Reset Warning Dialogs.

Take screenshot (Windows only)

1 Select Commands > Take Screenshot.

2 Switch to the window you want to take a screenshot of.

3 Click OK and then drag to select the area of the window.

4 Paste the clipboard contents on to the canvas or any image editing application.

Last updated 3/8/2011

Chapter 3: Workspace

Workspace basics

Fireworks workspace overview

When you open a document in Adobe® Fireworks® for the first time, the workspace includes the Tools panel, Property inspector, menus, and other panels. The Tools panel, on the left of the screen, contains labeled categories, including bitmap, vector, and web tool groups. The Property inspector appears along the bottom of the document by default and initially displays document properties. It then changes to display properties for a newly selected tool or currently selected object as you work in the document. The panels are initially docked in groups along the right side of the screen. The document window appears in the center of the program.

The Start page

When you start Fireworks without opening a document, the Fireworks Start page appears in the work environment. The Start page gives you quick access to Fireworks tutorials, recent files, and Fireworks Exchange, where you can add new capabilities to some Fireworks features. To disable the start page, click Don't Show Again when the Start page opens.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

About Fireworks panels

Panels are floating controls that help you edit aspects of a selected object or elements of the document. Panels let you work on states, layers, symbols, color swatches, and more. Each panel is draggable, so you can group panels in custom arrangements.

Optimize panel Lets you manage the settings that control size and type of a file and work with the color palette of the

file or slice.

Layers panel Organizes the structure of a document and contains options for creating, deleting, and manipulating

layers.

Common Library panel Displays the contents of the Common Library folder, which contains symbols. You can easily

drag instances of these symbols from the Document Library panel to your document.

Pages panel Displays the pages in the current file and contains options for manipulating pages.

States panel Displays the states in the current file and includes options for creating animations.

History panel Lists commands you have recently used so that you can quickly undo and redo them. In addition, you

can select multiple actions, and then save and reuse them as commands.

Auto Shapes panel Contains Auto Shapes that are not displayed in the Tools panel.

Styles panel Lets you store and reuse combinations of object characteristics or select a stock style.

Document Library panel Contains graphic symbols, button symbols, and animation symbols that are already in the

current Fireworks document. You can easily drag instances of these symbols from the Document Library panel to your document. You can make global changes to all instances by modifying only the symbol.

URL panel Lets you create libraries containing frequently used URLs.

Color Mixer panel Lets you create new colors to add to the color palette of the current document or to apply to selected

objects.

Swatches panel Manages the color palette of the current document.

Info panel Provides information about the dimensions of selected objects and the exact coordinates of the pointer as

you move it across the canvas.

Behaviors panel Manages behaviors, which determine what hotspots and slices do in response to mouse movement.

Find panel Lets you search for and replace elements such as text, URLs, fonts, and colors in a document or multiple

documents.

Align panel Contains controls for aligning and distributing objects on the canvas.

Auto Shape Properties panel Lets you change the properties of an Auto Shape after you insert one into your

document.

Color Palette panel (Window > Others) Enables you to create and swap color palettes, export custom ACT color

swatches, explore various color schemes and access commonly used controls for choosing colors.

Image Editing (Window > Others) Organizes common tools and options used for bitmap editing into one panel.

Path panel (Window > Others) Provides quick access to many path-related commands.

Special Characters (Window > Others) Displays the special characters that can be used in text blocks.

Symbol Properties Manages the customizable properties of graphic symbols.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Workspace overview

You create and manipulate your documents and files using various elements, such as panels, bars, and windows. Any arrangement of these elements is called a workspace. The workspaces of the different applications in Adobe® Creative Suite® 4 share the same appearance so that you can move between the applications easily. You can also adapt each application to the way you work by selecting from several preset workspaces or by creating one of your own.

Although the default workspace layout varies in different products, you manipulate the elements much the same way in all of them.

B DC

Default Illustrator workspace A. Tabbed Document windows B. Application bar C. Workspace switcher D. Panel title bar E. Control panel F. Tools panel G. Collapse To Icons button H. Four panel groups in vertical dock

• The Application bar across the top contains a workspace switcher, menus (Windows only), and other application

controls. On the Mac for certain products, you can show or hide it using the Window menu.

• The Tools panel contains tools for creating and editing images, artwork, page elements, and so on. Related tools are

grouped.

• The Control panel displays options for the currently selected tool. The Control panel is also known as the options

bar in Photoshop. (Adobe Flash®, Adobe Dreamweaver®, and Adobe Fireworks® have no Control panel.)

• Flash, Dreamweaver, and Fireworks have a Property inspector that displays options for the currently selected

element or tool.

• The Document window displays the file you’re working on. Document windows can be tabbed and, in certain cases,

grouped and docked.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

• Panels help you monitor and modify your work. Examples include the Timeline in Flash, the Layers panel in Adobe

Photoshop®, and the CSS Styles panel in Dreamweaver. Panels can be grouped, stacked, or docked.

• On the Mac, the Application frame groups all the workspace elements in a single, integrated window that lets you

treat the application as a single unit. When you move or resize the Application frame or any of its elements, all the elements within it respond to each other so none overlap. Panels don’t disappear when you switch applications or when you accidentally click out of the application. If you work with two or more applications, you can position each application side by side on the screen or on multiple monitors. If you prefer the traditional, free-form user interface of the Mac, you can turn off the Application frame. In Adobe Illustrator®, for example, select Window > Application Frame to toggle it on or off. (In Flash, the Application frame is on permanently. Dreamweaver does not use an Application frame.)

Hide or show all panels

• (Illustrator, Adobe InCopy®, Adobe InDesign®, Photoshop, Fireworks)To hide or show all panels, including the

Tools panel and Control panel, press

• (Illustrator, InCopy, InDesign, Photoshop) To hide or show all panels except the Tools panel and Control panel,

press Shift+Tab.

You can temporarily display hidden panels if Auto-Show Hidden Panels is selected in Interface preferences. It’s always on in Illustrator. Move the pointer to the edge of the application window (Windows®) or to the edge of the

monitor (Mac

OS®) and hover over the strip that appears.

Tab.

• (Flash, Dreamweaver, Fireworks) To hide or show all panels, press F4.

Display panel options

❖ Click the panel menu icon in the upper-right corner of the panel.

You can open a panel menu even when the panel is minimized.

(Illustrator) Adjust panel brightness

❖ In User Interface preferences, move the Brightness slider. This control affects all panels, including the Control

panel.

Reconfigure the Tools panel

You can display the tools in the Tools panel in a single column, or side by side in two columns. (This feature is not available in the Tools panel in Fireworks and Flash.)

In InDesign and InCopy, you also can switch from single-column to double-column (or single-row) display by setting

an option in Interface preferences.

❖ Click the double arrow at the top of the Tools panel.

Manage windows and panels

You can create a custom workspace by moving and manipulating Document windows and panels. You can also save workspaces and switch among them.

Note: The following examples use Photoshop for demonstration purposes. The workspace behaves the same in all the products.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

A B

Narrow blue drop zone indicates Color panel will be docked on its own above the Layers panel group. A. Title bar B. Tab C. Drop zone

In Photoshop, you can change the font size of the text in the Control panel, in the panels, and in tool tips. Choose a

size from the UI Font Size menu in Interface preferences.

Manage Document windows

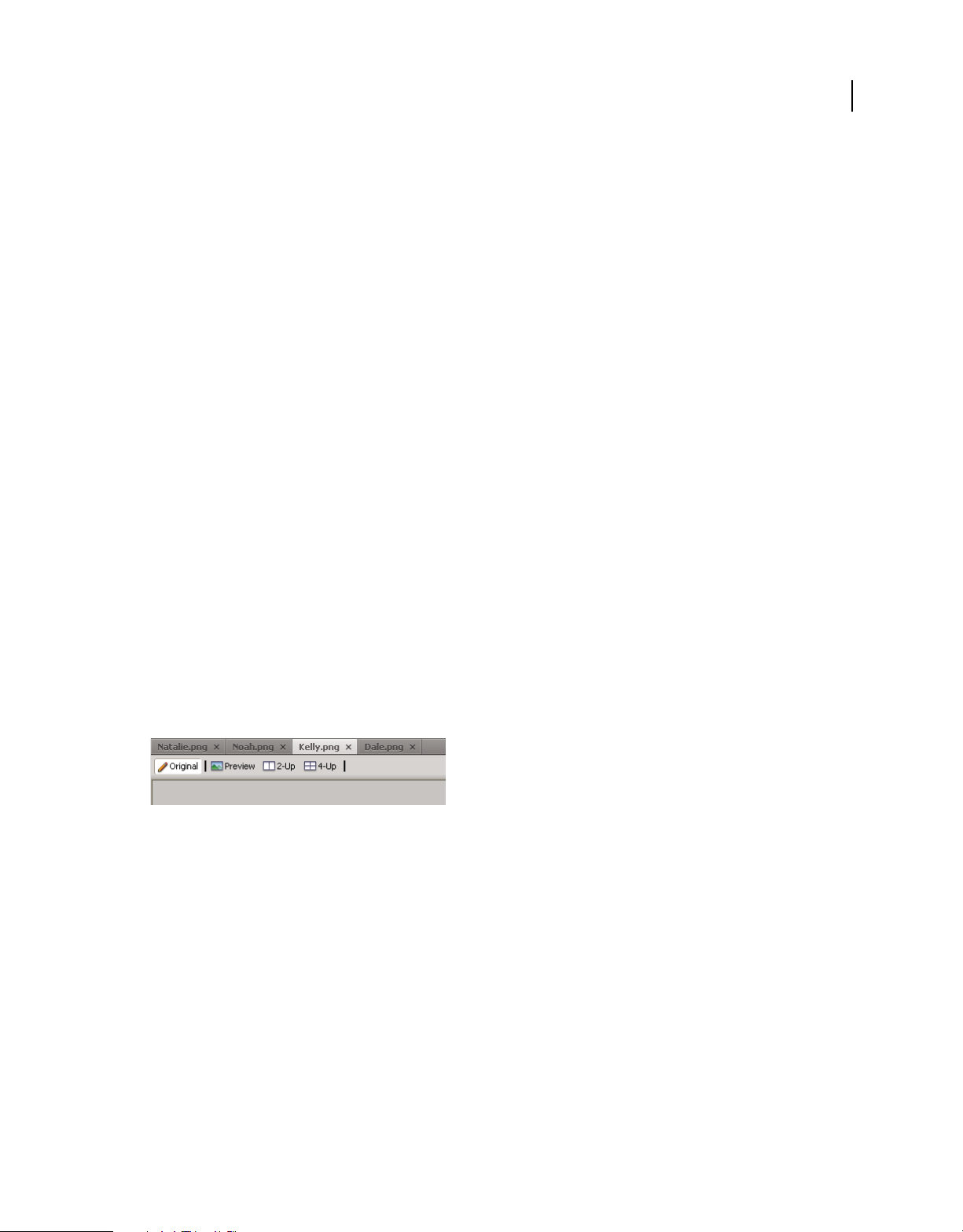

When you open more than one file, the Document windows are tabbed.

• To rearrange the order of tabbed Document windows, drag a window’s tab to a new location in the group.

• To undock a Document window from a group of windows, drag the window’s tab out of the group.

• To dock a Document window to a separate group of Document windows, drag the window into the group.

Note: Dreamweaver does not support docking and undocking Document windows. Use the Document window’s Minimize button to create floating windows.

• To create groups of stacked or tiled documents, drag the window to one of the drop zones along the top, bottom, or

sides of another window. You can also select a layout for the group by using the Layout button on the Application bar.

Note: Some products do not support this functionality. However, your product may have Cascade and Tile commands in the Window menu to help you lay out your documents.

• To switch to another document in a tabbed group when dragging a selection, drag the selection over the document’s

tab for a moment.

Note: Some products do not support this functionality.

Dock and undock panels

A dock is a collection of panels or panel groups displayed together, generally in a vertical orientation. You dock and undock panels by moving them into and out of a dock.

Note: Docking is not the same as stacking. A stack is a collection of floating panels or panel groups, joined top to bottom.

• To dock a panel, drag it by its tab into the dock, at the top, bottom, or in between other panels.

• To dock a panel group, drag it by its title bar (the solid empty bar above the tabs) into the dock.

• To remove a panel or panel group, drag it out of the dock by its tab or title bar. You can drag it into another dock

or make it free-floating.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Navigator panel being dragged out to new dock, indicated by blue vertical highlight

Navigator panel now in its own dock

You can prevent panels from filling all the space in a dock. Drag the bottom edge of the dock up so it no longer meets

the edge of the workspace.

Move panels

As you move panels, you see blue highlighted drop zones, areas where you can move the panel. For example, you can move a panel up or down in a dock by dragging it to the narrow blue drop zone above or below another panel. If you drag to an area that is not a drop zone, the panel floats freely in the workspace.

• To move a panel, drag it by its tab.

• To move a panel group or a stack of floating panels, drag the title bar.

Press Ctrl (Windows) or Command (Mac OS) while moving a panel to prevent it from docking. Press Esc while

moving the panel to cancel the operation.

Note: The dock is stationary and can’t be moved. However, you can create panel groups or stacks and move them anywhere.

Add and remove panels

If you remove all panels from a dock, the dock disappears. You can create a dock by moving panels to the right edge of the workspace until a drop zone appears.

• To remove a panel, right-click (Windows) or Control-click (Mac) its tab and then select Close, or deselect it from

the Window menu.

• To add a panel, select it from the Window menu and dock it wherever you want.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Manipulate panel groups

• To move a panel into a group, drag the panel’s tab to the highlighted drop zone in the group.

Adding a panel to a panel group

• To rearrange panels in a group, drag a panel’s tab to a new location in the group.

• To remove a panel from a group so that it floats freely, drag the panel by its tab outside the group.

• To move a group, drag the title bar (the area above the tabs).

Stack floating panels

When you drag a panel out of its dock but not into a drop zone, the panel floats freely. The floating panel allows you to position it anywhere in the workspace. You can stack floating panels or panel groups so that they move as a unit when you drag the topmost title bar. (Panels that are part of a dock cannot be stacked or moved as a unit in this way.)

Free-floating stacked panels

• To stack floating panels, drag a panel by its tab to the drop zone at the bottom of another panel.

• To change the stacking order, drag a panel up or down by its tab.

Note: Be sure to release the tab over the narrow drop zone between panels, rather than the broad drop zone in a title bar.

• To remove a panel or panel group from the stack, so that it floats by itself, drag it out by its tab or title bar.

Resize panels

• To minimize or maximize a panel, panel group, or stack of panels, double-click a tab. You can also single-click the

tab area (the empty space next to the tabs).

• To resize a panel, drag any side of the panel. Some panels, such as the Color panel in Photoshop, cannot be resized

by dragging.

Manipulate panels collapsed to icons

You can collapse panels to icons to reduce clutter on the workspace. In some cases, panels are collapsed to icons in the default workspace.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Panels collapsed to icons

Panels expanded from icons

• To collapse or expand all panel icons in a dock, click the double arrow at the top of the dock.

• To expand a single panel icon, click it.

• To resize panel icons so that you see only the icons (and not the labels), adjust the width of the dock until the text

disappears. To display the icon text again, make the dock wider.

• To collapse an expanded panel back to its icon, click its tab, its icon, or the double arrow in the panel’s title bar.

In some products, if you select Auto-Collapse Icon Panels from the Interface or User Interface Options preferences, an expanded panel icon collapses automatically when you click away from it.

• To add a floating panel or panel group to an icon dock, drag it in by its tab or title bar. (Panels are automatically

collapsed to icons when added to an icon dock.)

• To move a panel icon (or panel icon group), drag the icon. You can drag panel icons up and down in the dock, into

other docks (where they appear in the panel style of that dock), or outside the dock (where they appear as floating, expanded panels).

Restore the default workspace

• Select the default, Essentials workspace from the workspace switcher in the Application bar.

• (Photoshop) Select Window > Workspace > Essentials (Default).

• (InDesign, InCopy) Select Window > Workspace > Reset [Workspace Name].

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Manage connections to web services

In Adobe® Creative Suite® 4, the Connections panel lets you manage connections to web services and the locally installed extensions that interact with them. The Connections panel itself is an extension. Additional extensions installed with Creative Suite applications include the following:

Adobe ConnectNow Collaborate with dispersed working teams over the web, sharing voice, data, and multimedia.

Kuler™ panel Quickly create, share, and explore color themes online.

Search for Help In the upper-right corner of applications, enter search terms to access Community Help. Community

Help includes Adobe product Help, plus additional content from the design and production communities.

Visit www.adobe.com to learn about additional services and extensions.

Log into Adobe web services

Regardless of which application you use to access the Connections panel, logging in automatically connects you to services such as ConnectNow meetings.

1 In Adobe InDesign, Photoshop, Illustrator, Flash, Fireworks, or Dreamweaver, choose Window > Extensions >

Connections.

2 Enter your Adobe ID and password. (If you lack an ID or can’t remember it, click the appropriate link.)

3 (Optional) To remain logged in when you restart the computer, select Remember Me On This Computer.

4 Click Log In.

Disable automatic extension updates

By default, the Connections panel automatically updates installed extensions. However, you can disable automatic updates and instead check for them manually.

1 From the Connections panel menu , select Update Preferences.

2 Deselect Check For Updates Automatically.

3 Restart any open Adobe Creative Suite applications.

Manually check for updated extensions

❖ From the Connections panel menu , select Check For Updates.

Disable web services

If your work environment disallows online connections, you can disable web services. You can also use this option to disable your product from accessing online Community Help. When you disable web services and search for help, the product provides results from the local help system only.

Note: Local Help includes only a portion of the full version of online product Help.

1 From the Connections panel menu , select Offline Options.

2 Select Keep Me Offline.

To disable the Connections panel and web services only in Photoshop, deselect Allow Extensions To Connect in the

Plug-Ins section of the Preferences dialog box.

More Help topics

“Help and support” on page 2

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Working with ConnectNow

Adobe® ConnectNow provides you with a secure, personal online meeting room where you can meet and collaborate with others via the web in real time. With ConnectNow, you can share and annotate your computer screen, send chat messages, and communicate using integrated audio. You can also broadcast live video, share files, capture meeting notes, and control an attendee's computer.

You can access ConnectNow directly from the application interface.

1 Choose File > Share My Screen.

2 In the Share My Screen dialog box, enter your Adobe ID and password, and click Sign In. If you don’t have an

Adobe ID and password, click the Create a Free Adobe ID link at the top of the dialog box.

3 To share your screen, click the Share My Computer Screen button at the center of the ConnectNow application

window.

For complete instructions on using ConnectNow, see

http://help.adobe.com/en_US/Acrobat.com/ConnectNow/index.html.

For a video tutorial about using ConnectNow, see Using ConnectNow to share your screen (7:12). (This demonstration is in Dreamweaver.)

Save and switch workspaces

By saving the current size and position of panels as a named workspace, you can restore that workspace even if you move or close a panel. The names of saved workspaces appear in the workspace switcher in the Application bar.

In Photoshop, the saved workspace can include a specific keyboard shortcut set and menu set.

Save a custom workspace

1 With the workspace in the configuration you want to save, do one of the following:

• (Photoshop, Illustrator) Choose Window > Workspace > Save Workspace.

• (InDesign, InCopy) Choose Window > Workspace > New Workspace.

• (Dreamweaver) Choose Window > Workspace Layout > New Workspace.

• (Flash) Choose New Workspace from the workspace switcher in the Application bar.

• (Fireworks) Choose Save Current from the workspace switcher in the Application bar.

2 Type a name for the workspace.

3 (Photoshop, InDesign) Under Capture, select one or more options:

Panel Locations Saves the current panel locations.

Keyboard shortcuts Saves the current set of keyboard shortcuts (Photoshop only).

Menus Saves the current set of menus.

4 Click OK or Save.

Display or switch workspaces

❖ Select a workspace from the workspace switcher in the Application bar.

In Photoshop, you can assign keyboard shortcuts to each workspace to navigate among them quickly.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Delete a custom workspace

• Select Manage Workspaces from the workspace switcher in the Application bar, select the workspace, and then

click Delete. (The option is not available in Fireworks.)

• (Photoshop, InDesign, InCopy) Select Delete Workspace from the workspace switcher.

• (Illustrator) Choose Window > Workspace > Manage Workspaces, select the workspace, and then click the Delete icon.

• (InDesign) Choose Window > Workspace > Delete Workspace, select the workspace, and then click Delete.

(Photoshop) Start with the last or default panel locations

When you start Photoshop, panels can either appear in their original default locations, or appear as you last used them.

In Interface preferences:

• To display panels in their last locations on startup, select Remember Panel Locations.

• To display panels in their default locations on startup, deselect Remember Panel Locations.

The Tools panel

The Tools panel is organized into six categories: Select, Bitmap, Vector, Web, Colors, and View. When you select a tool, the Property inspector displays tool options.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

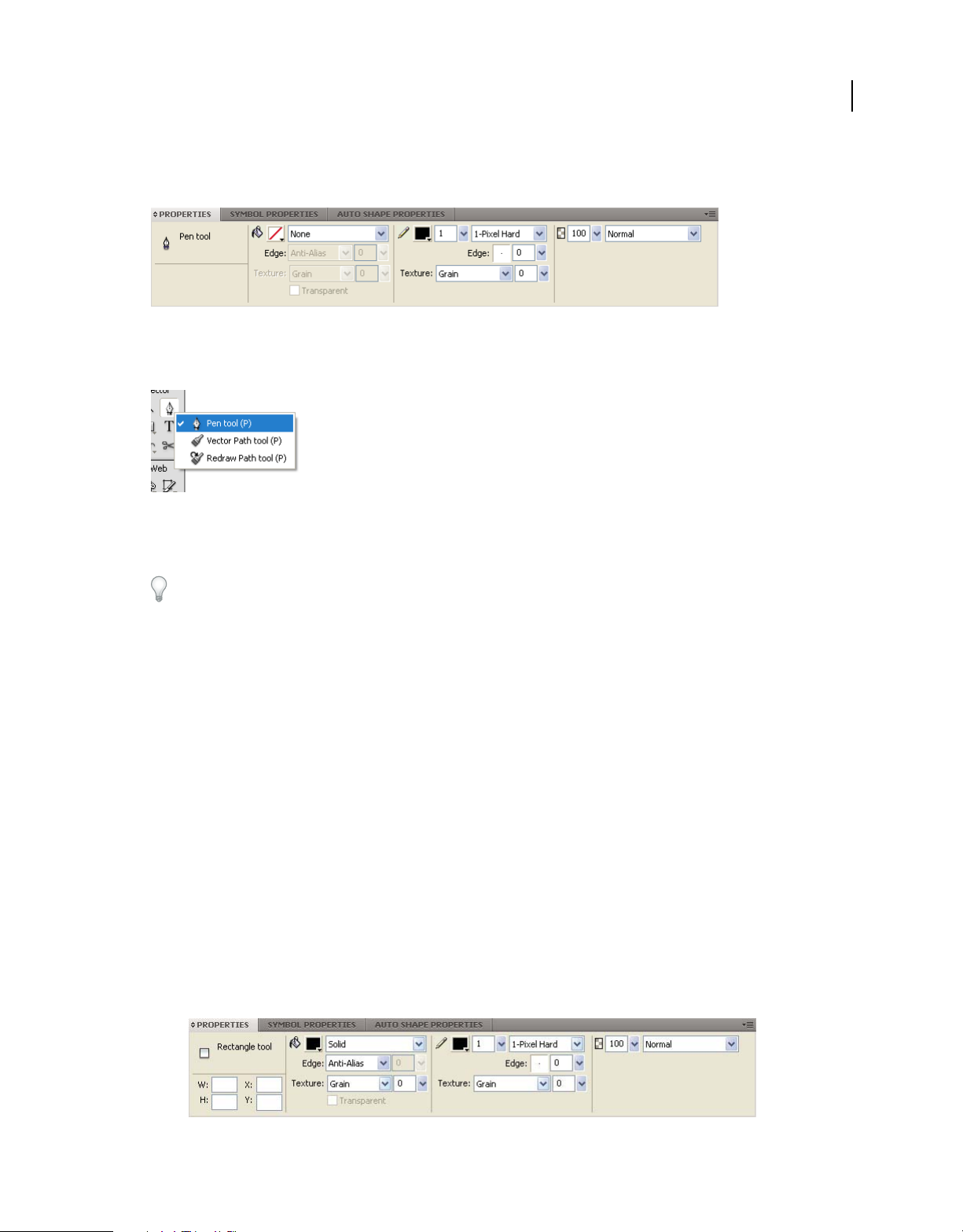

Display tool options in the Property inspector

❖ With a tool selected, choose Select > Deselect to deselect all objects on the canvas.

Select a tool from a tool group

A small triangle in the lower right corner of a tool in the Tools panel indicates that it is part of a tool group.

1 Click the tool icon and hold down the mouse button.

2 Drag the pointer to highlight the tool you want, and release the mouse button.

To quickly select a hidden tool, repeatedly press the group keyboard shortcut until the tool you want appears.

(Shortcuts are displayed in parentheses next to tool names.)

The Property inspector

The Property inspector is a context-sensitive panel that displays current selection properties, current tool options, or document properties. By default, the Property inspector is docked at the bottom of the workspace.

The Property inspector can be open at half height, displaying two rows of properties, or at full height, displaying four rows. You can also fully collapse the Property inspector while leaving it in the workspace.

Note: In Windows, the Options menu is available only when the Property inspector is docked.

Undock the Property inspector

❖ Drag the panel tab to another part of the workspace.

Dock the Property inspector at the bottom of the workspace

❖ Drag the panel tab to the bottom of the screen.

Expand or collapse the Property inspector

❖ Do one of the following:

• Double-click the panel tab.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

• Click the arrow in the upper-left corner of the panel.

Display and move toolbars (Windows only)

Show or hide a toolbar

❖ Choose Window > Toolbars, and select either of the following:

Main Displays a toolbar above the document window with buttons for common file commands such as Open, Save,

Print, and Copy.

Modify Displays a toolbar below the document window with buttons for object grouping, arrangement, alignment,

and rotation commands.

Undock a toolbar

❖ Drag the toolbar away from its docked location.

Dock a toolbar (Windows only)

❖ Drag the toolbar onto a docking area at the top of the application window until the placement preview rectangle

appears.

Navigate and view documents

Use document tabs to select documents

When your document is maximized, use the document tabs that appear at the top of the document window to move among multiple open documents. The filename of each open document appears on a tab located above the view buttons.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Zoom and pan in and out

A CB

A. Hand tool B. Zoom tool C. Set magnification pop-up menu

Zoom in, using preset increments

❖ Do one of the following:

• Select the Zoom tool and click to specify the new center point inside the document window. Each click magnifies

the image to the next preset magnification.

• Select a zoom setting from the Set Magnification pop-up menu at the bottom of the document window.

• Select Zoom In or a preset magnification from the View menu.

Zoom out, using preset increments

❖ Do one of the following:

• Select the Zoom tool and Alt-click (Windows) or Option-click (Mac OS) inside the document window. Each

click reduces the view to the next preset percentage.

• Select a zoom setting from the Set Magnification pop-up menu at the bottom of the document window.

• Select Zoom Out or a preset magnification from the View menu.

Zoom in on a specific area

1 Select the Zoom tool.

2 Drag over the part of the image that you want to magnify.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

The size of the zoom selection box determines the precise magnification percentage, which is displayed in the Set Magnification box.

Note: You cannot enter a magnification percentage in the Set Magnification box.

Zoom out of a specific area

❖ Alt-drag (Windows) or Option-drag (Mac OS) a selection area with the Zoom tool.

Return to 100% magnification

❖ Double-click the Zoom tool in the Tools panel.

Pan around the document

1 Select the Hand tool.

2 Drag the hand pointer.

As you pan beyond the canvas edge, the view continues to pan so that you can work with pixels along the canvas edge.

Fit the document in the current view

❖ Double-click the Hand tool.

Use view modes to manage the workspace

In the Tools panel, select from one of three view modes to control the layout of your workspace.

Standard Screen mode The default document window view.

Full Screen with Menus mode A maximized document window view set against a gray background. Menus,

toolbars, scroll bars, and panels are visible.

Full Screen mode A maximized document window view set against a black background. No menus, toolbars, or

title bars are visible.

For more information, see the article on the Fireworkszone website.

Display multiple views of a document

Use multiple views to see one document at different magnifications simultaneously. Changes you make in one view are automatically reflected in all other views of the same document.

1 Select Window > Duplicate Window.

2 Select a zoom setting for the new window.

Control how a document redraws on the screen

❖ Select View > Full Display.

When Full Display is selected, Fireworks displays the document in all available colors with full detail.

When Full Display is deselected, Fireworks displays paths as 1 pixel wide with no fill. Images appear with an X through them.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Full Display and draft modes

View documents as they appear on different platforms

❖ Do one of the following:

• In Windows, select View > Macintosh Gamma.

• On the Macintosh®, select View > Windows Gamma.

Change the canvas

You can adjust the canvas at any time.

Change the canvas size

1 Do one of the following:

• Select Modify > Canvas > Canvas Size.

• Choose Select > Deselect, click the Pointer tool to display the document properties in the Property inspector,

and click the Canvas Size button.

2 Enter the new dimensions in the Width and Height text boxes.

3 Click an Anchor button to specify which sides of the canvas Fireworks add to or delete from, and click OK.

Note: By default, the center anchor is selected, indicating that changes to the size of the canvas are made on all sides.

Change the canvas color

❖ Do one of the following:

• Select Modify > Canvas > Canvas Color, and select a color option. For a Custom color, click a color in the

Swatches pop-up window.

• From the Property inspector, choose Select > Deselect, click the Pointer tool to display the document properties,

and click the Canvas color box. Pick a color from the Swatches pop-up window or click the eyedropper on a color. To select a transparent canvas, click the Transparent button in the Swatches pop-up window.

To change the default canvas color, click the Custom swatch in the New Document dialog box. (See “Creating

a new Fireworks document” on page 7.)

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Resize a document and its contents

1 Do one of the following:

• Choose Select > Deselect, click the Pointer tool to display the document properties in the Property inspector,

and click the Image Size button in the Property inspector.

• Select Modify > Canvas > Image Size.

The Image Size dialog box opens.

2 In the Pixel Dimensions text boxes, enter new horizontal and vertical dimensions.

(Optional) Change the units of measure. If Resample Image is deselected, you can change the resolution or print size but not pixel dimensions.

3 In the Print Size text boxes, enter horizontal and vertical dimensions for the printed image.

4 In the Resolution box, enter a new resolution for the image.

Changing the resolution changes the pixel dimensions.

5 Do one of the following:

• To maintain the same ratio between the document's horizontal and vertical dimensions, select Constrain

Proportions.

• To resize width and height independently, deselect Constrain Proportions.

6 To add or remove pixels when resizing so the image retains approximately the same appearance at a different size,

select Resample Image.

7 Select Current Page Only to apply the canvas size change only to the current page.

About resampling

Fireworks resamples (resizes) images differently than most image-editing applications do.

• When a bitmap object is resampled, pixels are added to or removed from the image to make it larger or smaller.

• When a vector object is resampled, little quality loss occurs because the path is redrawn mathematically at a larger

or smaller size.

Because the attributes of vector objects in Fireworks are visible as pixels, some strokes or fills may appear slightly different after resampling. This occurs because the pixels that compose the stroke or fill must be redrawn.

Note: Guides, hotspot objects, and slice objects are resized when the document's image size is changed.

You can alter the size of a bitmap image by adjusting the resolution or by resampling the image.

• When adjusting the resolution, you change the size of the pixels in the image so that more or fewer pixels fit in a

given space. Adjusting the resolution without resampling does not result in data loss.

• When resampling, you either add or remove pixels:

Resampling up Adds pixels to make the image larger. This approach can result in quality loss because the pixels

being added do not always correspond to the original image.

Downsampling Removes pixels to make the image smaller and results in data loss in the image. This approach

always causes quality loss because pixels are discarded to resize the image.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Rotate the canvas

Rotate the canvas when an image is imported upside down or sideways. You can rotate the canvas 180°, 90° clockwise, or 90° counterclockwise. When you rotate the canvas, all objects in the document rotate.

❖ Select Modify > Canvas > and choose a rotation option

Trim or fit the canvas

Expand or trim the size of the canvas to fit the objects it contains.

Original canvas (left); trimmed canvas (right)

1 Choose Select > Deselect to view the document properties in the Property inspector.

2 Click Fit Canvas in the Property inspector.

Crop a document

Cropping deletes unwanted portions of a document. The canvas is resized to fit an area that you define.

By default, cropping deletes objects that extend beyond the canvas boundaries. You can retain objects outside the canvas by changing a preference before cropping.

1 Select the Crop tool from the Tools panel or select Edit > Crop Document.

2 Drag a bounding box on the canvas. Adjust the crop handles until the bounding box surrounds the area that you

want to keep.

3 Double-click inside the bounding box or press Enter to crop the document.

Fireworks resizes the canvas to the area you define and deletes objects beyond the edges of the canvas.

To retain objects outside the canvas, deselect Delete Objects When Cropping on the Edit tab of the Preferences dialog box before cropping.

Use rulers, guides, and the grid

Rulers, guides, and the grid are drawing aids that help you to place and align objects. Guides are lines that you drag onto the document canvas from the rulers. You can use guides to mark important parts of your document, such as the margins and the document center point. The grid displays a system of horizontal and vertical lines on the canvas for precise placement. Guides and grids do not reside on a layer and are not exported with a document.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

You can use the following Fireworks extensions to work easily with guides:

Guides Panel extension When you install this extension, a Guides panel appears in your workspace, which allows you

to manipulate the guides within the document or export and import guides from a previously saved set of guides. This extension is available at

Copy-Paste Guides extension This extension allows you to copy guides from one page and past them to another within

http://www.adobe.com/devnet/fireworks/articles/guides_panel.html.

the same document. Use this extension if your Fireworks document has multiple pages that need similar guides across pages. This extension is available at

http://www.adobe.com/cfusion/exchange/index.cfm?event=extensionDetail&loc=en_us&extid=1352518.

Inherit Guides extension This extension allows you to copy guides from the master page or the current page and apply

to all pages in the document. This extension is available at

http://www.adobe.com/cfusion/exchange/index.cfm?event=extensionDetail&loc=en_us&extid=1333018.

To change grid size or guide and grid color, see “Guides and Grids preferences” on page 280.

Show and hide rulers

❖ Select View > Rulers.

Vertical and horizontal rulers appear along the margins of the document window. Rulers measure in pixels.

Create a horizontal or vertical guide

1 Click and then drag from the corresponding ruler.

2 Position the guide on the canvas and release the mouse button.

Note: You can reposition the guide by dragging it again.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

Move a guide to a specific position

1 Double-click the guide.

2 Enter the new position in the Move Guide dialog box, and click OK.

Show or hide guides or the grid

❖ Select View > Guides > Show Guides or View > Grid > Show Grid.

Snap objects to guides or to the grid

❖ Select View > Guides > Snap To Guides or View > Grid > Snap To Grid.

Lock or unlock all guides

❖ Select View > Guides > Lock Guides.

Remove a guide

❖ Drag the guide off the canvas.

Display distance between guides

❖ Press Shift when the pointer is placed between the guides.

Press Shift while dragging guides into the canvas to display the distance between guides.

Smart Guides

Smart Guides are temporary snap-to guides that help you create, align, edit, and transform objects relative to other objects. To activate and snap to Smart Guides, choose View Snap To Smart Guides.

You can use Smart Guides in the following ways:

> Smart Guides, and then select Show Smart Guides and

• When you create an object, use Smart Guides to position it relative to existing objects. The line, rectangle, ellipse,

polygon, and autoshape tools display Smart Guides, as do the rectangular and circular slice tools.

• When you move an object, use Smart Guides to align it with other objects.

• When you transform an object, Smart Guides automatically appear to assist the transformation.

To change when and how Smart Guides appear, set Smart Guide preferences. (See “Guides and Grids preferences” on

page 280.)

Undo and repeat multiple actions

The History panel lists the most recent actions you performed in Fireworks. You can specify the number of steps in the Undo Steps field in the Fireworks Preferences dialog box.

Undo and redo actions

1 Select Window > History to open the History panel.

Last updated 3/8/2011

USING FIREWORKS CS4

Workspace

2 Drag the Undo marker up or down.

Repeat actions

1 Perform the actions.

2 Do one of the following to highlight the actions you want to repeat in the History panel:

• Click an action to highlight it.

• Control-click (Windows) or Command-click (Mac OS) to highlight multiple individual actions.

• Shift-click to highlight a continuous range of actions.

3 Click the Replay button at the bottom of the History panel.

Save actions for reuse

1 Highlight the actions you want to save in the History panel.

2 Click the Save button at the bottom of the panel.

3 Enter a command name.

Use the saved custom command

❖ Select the command name from the Commands menu.

Last updated 3/8/2011

Chapter 4: Selecting and transforming objects

Select objects

Before you can do anything with any object on the canvas, select it. This applies to a vector object, path, or points; a text block, word, or letter; a slice or hotspot; an instance; or a bitmap object. To select an object, use the Layers panel or a selection tool.

The Layers panel Displays each object. You can click an object in the Layers panel to select it when the panel is open

and layers are expanded.

The selection tools Each have a specific purpose:

The Pointer tool selects objects when you click the objects or drag a selection area around them.

The Subselection tool selects an individual object in a group or the points of a vector object.

The Select Behind tool selects an object that is behind another object.

The Export Area tool selects an area to be exported as a separate file.

Select objects by clicking

❖ Do one of the following:

• Move the Pointer tool over the object's path or bounding box and click.

• Click the object's stroke or fill.

• Select the object in the Layers panel.

To preview what is selected when you click an object beneath the pointer on the canvas, select the Mouse Highlight option in the Editing category of the Preferences dialog box.

Select objects by dragging

❖ Drag the Pointer tool to include one or more objects in the selection area.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Move or modify objects with the Subselection tool

Use the Subselection tool to select, move, or modify points on a vector path or an object that is part of a group.

1 Select the Subselection tool.

2 Make a selection.

3 Do one of the following:

• To modify an object, drag one of its points or selection handles.

• To move the entire object, drag anywhere in the object except a point or selection handle.

Select an object that is behind other objects

❖

Click the Select Behind tool repeatedly over the stacked objects, starting with the top until you select the object you want.

Note: You also can select a hard-to-reach object by clicking it in the Layers panel when the layers are expanded.

Selection information in the Property inspector

When you select an object, the Property inspector identifies the selection. The upper left area of the Property inspector contains a description of the item being inspected, and the number of selected objects if multiple objects are selected. The Property inspector also provides a box for entering a name for the items selected.

Note: The name appears in the title bar of the document whenever you select this item. For slices and buttons, the name is the filename when exported.

(Windows only) If the status bar is turned on, selected objects are identified in the status bar at the bottom of the document window.

Modify a selection

After you select a single object, you can add objects to the selection and deselect objects that are selected. Using a single command, you can select or deselect everything on every layer in a document. You can also hide the selection path so that you can edit a selected object while viewing it as it appears on the web or in print.

Add to a selection

❖ Hold down Shift while clicking additional objects with the Pointer, Subselection, or Select Behind tool.

Deselect an object while leaving other objects selected

❖ Hold down Shift while clicking the selected object.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Select everything on every layer in the document

❖ Choose Select > Select All.

Note: Select All does not select hidden objects.

Deselect all selected objects

❖ Choose Select > Deselect.

Note: Deselect the Single Layer Editing preference to select all visible objects on all layers in a document. When you select the Single Layer Editing preference, only objects on the current layer are selected. For more information, see

layers” on page 125.

“Organize

Hide the path selection feedback of a selected object

❖ Select View > Edges.

Note: You can use the Layers panel or the Property inspector to identify the selected object when the outline and points are hidden.

Hide selected objects

❖ Select View > Hide Selection.

Note: Hidden objects are not exported. (This does not apply to slice and hotspot web objects on the Web Layer.)

Show all objects

❖ Select View > Show All.

Note: To hide objects regardless of whether they are selected, click or drag along the Eye column in the Layers panel.

Select pixels

You can edit pixels over an entire canvas or select one of the selection tools to constrain your editing to a particular area of an image:

The Marquee tool selects a rectangular area of pixels in an image.

The Oval Marquee tool selects an elliptical area of pixels in an image.

The Lasso tool selects a free-form area of pixels in an image.

The Polygon Lasso tool selects a straight-edged free-form area of pixels in an image.

The Magic Wand tool selects an area of similarly colored pixels in an image.

The pixel selection tools draw selection marquees that define the area of selected pixels. After you draw the selection marquee, manipulate it by moving it, adding to it, or basing another selection on it. You can edit the pixels inside the selection, apply filters to the pixels, or erase pixels without affecting the pixels beyond the selection. You can also create a floating selection of pixels that you can edit, move, cut, or copy.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Options for bitmap selection tools

Various options are available for the tools used to select bitmaps.

Edge options

Hard Creates a marquee selection with a defined edge.

Anti-alias Prevents jagged edges in the marquee selection.

Feather Lets you soften the edge of the pixel selection.

Marquee or Oval Marquee style options

Normal Lets you create a marquee in which the height and width are independent of each other.

Fixed Ratio Constrains the height and width to defined ratios.

Fixed Size Sets the height and width to a defined dimension.

Note: The Magic Wand tool also has a Tolerance setting. For more information, see “Select pixels in areas of similar color” on page 40.

Create pixel selection marquees

Use tools in the Bitmap section of the Tools panel to draw a marquee around specific pixel areas of a bitmap image.

Note: To change the settings for your selection while using one of these tools, select the Live marquee box before making your selection.

Select a rectangular or elliptical area of pixels

1 Select the Marquee or Oval Marquee tool.

2 Set the Style and Edge options in the Property inspector.

3 Drag to draw a selection marquee, which defines the pixel selection.

• To draw additional square or circular marquees, hold down Shift as you drag the Marquee or Oval Marquee tool.

If Live marquee is turned on while you make a series of selections, the Live marquee feature affects only the last selection in the series.

• To draw a marquee from a center point, deselect any other active marquees, and then hold down Alt (Windows)

or Option (Mac OS) as you draw.

Select a free-form area of pixels

1 Select the Lasso tool.

2 Select an Edge option in the Property inspector.

3 Drag the pointer around the pixels you want to select.

Plot points to create a marquee selection

Use the Polygon Lasso tool to select a polygonal area of specific pixels in a bitmap image.

1 Select the Polygon Lasso tool.

2 Select an Edge option in the Property inspector.

3 Outline the selection by clicking to plot points around the perimeter of the object or area.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Hold down Shift to constrain Polygon Lasso marquee segments to 45° increments.

4 Do one of the following to close the polygon:

• Click the starting point.

• Double-click in the workspace.

Select pixels in areas of similar color

1 Select the Magic Wand tool.

2 Select an Edge option.

3 Set the tolerance level by dragging the tolerance slider in the Property inspector.

Tolerance represents the tonal range of colors that are selected when you click a pixel with the Magic Wand. If you enter 0 and click a pixel, only adjacent pixels of the same tone are selected. If you enter 65, a wider range of tones is selected.

4 Click the area of color you want to select.

A marquee appears around the selected range of pixels.

Pixels selected with a lower tolerance (above), then a higher tolerance (below)

Select similar colors throughout a document

1 Select an area of color with a marquee or lasso tool, or with the Magic Wand tool.

2 Choose Select > Select Similar.

One or more marquees show all areas containing the selected range of pixels. This depends on the current Tolerance setting in the Property inspector for the Magic Wand tool.

Note: To adjust the tolerance for the Select Similar command, select the Magic Wand tool and change the Tolerance setting in the Property inspector before using the command. Or, select the Live marquee box to change the Tolerance setting while using the Magic Wand tool.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Create a selection based on opaque areas of objects

With a bitmap object selected, you can create a pixel selection based on the opacity of any object or mask in the Layers panel.

1 Select a bitmap object on the canvas.

2 In the Layers panel, position the pointer over the thumbnail of the object you want to use to create the pixel

selection.

3 Hold down Alt (Windows) or Option (Mac OS).

The pointer changes to indicate you are about to select the alpha channel (the opaque area) of the object.

4 Click the thumbnail.

A new pixel selection is created on the selected bitmap.

5 (Optional) To add to the selection, Alt-Shift-click (Windows) or Option-Shift-click (Mac OS) another object in the

Layers panel.

To subtract from the selection, Ctrl-Shift-click objects.

Remove a selection marquee

You can remove a selection marquee without affecting the document.

❖ Do one of the following:

• Draw another marquee.

• Click outside the current selection with a marquee or lasso tool.

• Press Escape.

Adjust selection marquees

Reposition a selection while creating it

1 Begin dragging to draw the selection.

2 Without releasing the mouse button, hold down the spacebar.

3 Drag the marquee to another location on the canvas.

4 While still holding down the mouse button, release the spacebar.

5 Continue dragging to draw the selection.

Move an existing marquee

❖ Do one of the following:

• Drag the marquee with the Marquee, Lasso, or Magic Wand tool.

• Use the arrow keys to nudge the marquee in 1-pixel increments.

• Press Shift and use the arrow keys to move the marquee in 10-pixel increments.

Add pixels to an existing selection

1 Select any bitmap selection tool.

2 Hold down Shift and draw additional selection marquees.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

3 Repeat steps 1 and 2 with any bitmap selection tool to continue adding to the selection.

Overlapping marquees join to form a contiguous marquee.

Subtract pixels from a selection

❖ Hold down Alt (Windows) or Option (Mac OS) and use a bitmap selection tool to select the pixel area you want to

remove.

Select part of an existing marquee

Select part of an existing marquee by drawing a new marquee that overlaps the original.

1 Hold down Alt+Shift (Windows) or Option+Shift (Mac OS) while creating a marquee selection that overlaps the

original marquee.

2 Release the mouse button.

Only pixels in the overlapping area of the two marquees are selected.

Inverse a pixel selection

Using a current pixel selection, you can create another pixel selection that selects all currently deselected pixels.

1 Make a pixel selection, using any bitmap selection tool.

2 Choose Select > Select Inverse to select all pixels that were not originally selected.

Feather a pixel selection

Feathering creates a see-through effect for the selected pixels.

1 Choose Select > Feather.

2 Enter a Feather amount in the Feather dialog box.

3 If necessary, change the number in the Feather dialog box to adjust the feather amount.

To view the appearance of the feathered selection without the surrounding pixels, choose Select > Select Inverse, and then press Delete.

Expand or contract a marquee

After you draw a marquee to select pixels, you can expand or contract its border.

1 After drawing the marquee, choose Select > Expand Marquee.

2 Enter the number of pixels by which you want to expand or contract the border of the marquee, and click OK.

Select an area around an existing marquee

To add special graphic effects to a marquee, create an additional marquee that frames the existing marquee.

1 After drawing a marquee, choose Select > Border Marquee.

2 Enter the width of the marquee that you want to place around the existing marquee, and click OK.

Smooth the border of a marquee

Eliminate any excess pixels that appear along the border of a pixel selection or marquee after using the Magic Wand tool.

1 Choose Select > Smooth Marquee.

2 Enter a sample radius to specify the desired degree of smoothing, and click OK.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

A pixel selection before and after smoothing

Convert, transfer, or save marquee selections

Convert a marquee to a path

You can convert a bitmap selection to a vector object by drawing a marquee around the part of the bitmap that you want to convert. This process is useful if you want to start creating an animation by tracing a selection from a bitmap.

❖ After drawing a marquee, choose Select > Convert Marquee to Path.

Transfer a marquee selection to another bitmap object

You can transfer a marquee selection from one bitmap to another or to a mask.

1 Make a selection by drawing the marquee.

2 In the Layers panel, select a different bitmap object on any layer.

For more information, see “Masking” on page 128.

Save or restore a marquee selection

1 Choose Select > Save Bitmap Selection or Select > Restore Bitmap Selection.

2 From the Document menu, choose the open document that contains the saved selection.

3 From the Selection menu, either choose New or a previously saved selection that you want to modify.

4 If you chose New above, enter a name for your new selection.

5 (Restore only) To invert the restored selection, select the Invert box.

6 Select an option in the Operation section:

Note: If you’re saving a new selection, all modification options below are disabled.

New selection Replaces the active selection in the active document with the one specified in the Selection box.

Add to selection Adds the active selection to the one specified in the Document and Selection boxes.

Subtract from selection Subtracts the active selection from the one specified in the Document and Selection boxes.

Intersect with selection Intersects the active selection with the one specified in the Document and Selection boxes.

7 Click OK, and then repeat this process for each marquee selection that you want to save or restore.

Delete a saved marquee selection

Note: This feature is enabled only if an open document contains at least one saved selection.

1 Choose Select > Delete Bitmap Selection.

2 From the Document menu, choose the open document that contains the saved selection.

3 From the Selection menu, choose the selection.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Copy or move the contents of a marquee selection

When you use a selection tool to drag a marquee to a new location, the marquee moves, but not its contents. To copy or move the selected pixels, either use the Pointer tool

If you hold down the modifier keys noted below, you can move and copy selections with the arrow keys. To move in

10-pixel increments, also hold down Shift.

Move the contents of a marquee selection

1 Make a pixel selection with a bitmap selection tool.

2 Do one of the following:

• Using any tool from the Bitmap section of the Tools panel, hold down Control (Windows) or Command (Mac

OS), and drag the selection.

• Using the Pointer tool, drag the selection.

Copy the contents of a marquee selection

❖ Do any of the following:

• Drag the selection with the Subselection tool .

• Drag the selection with the Pointer tool, while holding down Alt (Windows) or Option (Mac OS).

•

Drag the selection with any Bitmap tool, while holding down Ctrl+Alt (Windows) or Command+Option (Mac OS).

Note: When you use either procedure above, the moved or copied selection remains part of the current bitmap object. To create a bitmap from a pixel selection, complete the procedure below.

or hold down a modifier key while using any Bitmap tool.

Insert a new bitmap by copying a selection

1 Select an area of pixels, using a pixel selection tool.

2 Do one of the following:

• Select Edit > Insert > Bitmap Via Cut.

A new bitmap object based on the pixel selection is created in the current layer, and the selected pixels are removed from the original bitmap object.

• Select Edit > Insert > Bitmap Via Copy.

A new bitmap object based on the pixel selection is created in the current layer. In the Layers panel, a thumbnail of the new bitmap appears in the current layer, above the object from which it was cut or copied.

Edit selected objects

Move, duplicate, or delete objects

Move a selection

❖ Do one of the following:

• Drag it with the Pointer, Subselection, or Select Behind tool.

• Press any arrow key to move the selection in 1-pixel increments.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

• Hold down Shift while pressing any arrow key to move the selection in 10-pixel increments.

• In the Property inspector, enter the x and y coordinates for the location of the upper-left corner of the selection.

• Enter the object's x and y coordinates in the Info panel. If the X and Y boxes aren't visible, drag the bottom edge

of the panel.

Move or copy selected objects by pasting

1 Select an object or multiple objects.

2 Select Edit > Cut or Edit > Copy.

3 Select Edit > Paste.

Duplicate one or more selected objects

❖ Select Edit > Duplicate.

As you repeat the command, duplicates of the selected object appear in a cascading arrangement from the original. Duplicates appear 10 pixels lower and 10 pixels to the right of the previous duplicate. The most recently duplicated object becomes the selected object.

Clone a selection

❖ Select Edit > Clone.

The clone of the selection is stacked precisely in front of the original and becomes the selected object.

Note: To move a selected clone away from the original with pixel-by-pixel precision, use the arrow keys or Shift+arrow keys. This is a convenient way to maintain a specific distance between clones or to maintain the vertical or horizontal alignment of the clones.

Delete selected objects

❖ Do one of the following:

• Press Delete or Backspace.

• Select Edit > Clear or Edit > Cut.

• Right-click (Windows) or Control-click (Mac OS) the object and select Edit > Cut from the context menu.

Cancel or deselect a selection

❖ Do one of the following:

• Choose Select > Deselect.

• Click anywhere in the image outside the selected area if you are using the Marquee, Oval Marquee, or Lasso tool.

• Press Escape.

Transform and distort objects and selections

Transform a selected object, group, or a pixel selection by using the Scale, Skew, and Distort tools and menu commands:

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Scale enlarges or reduces an object.

Skew slants an object along a specified axis.

Distort moves the sides or corners of an object in the direction you drag a selection handle while the tool is active. This is helpful in creating a 3D look.

When you select any transformation tool or Transform menu command, Adobe® Fireworks® displays transform handles around selected objects.

A. Center point B. Transform handles

Object rotated, scaled, skewed, distorted, and flipped vertically and horizontally

Transform selected objects by using the transform handles

1 Select a transformation tool.

As you move the pointer on or near the selection handles, the pointer changes to indicate the current transformation.

2 Do one of the following:

• Place the pointer near a corner point and then drag to rotate.

• Drag a transform handle to transform according to the active transformation tool.

3 Double-click inside the window or press Enter to apply the changes.

Resize a selected object

Scaling (also called resizing) an object enlarges or reduces it horizontally, vertically, or in both directions.

1 Do one of the following:

• Select the Scale tool .

• Select Modify > Transform > Scale.

2 Drag the transform handles:

• To scale the object both horizontally and vertically, drag a corner handle. Proportions are constrained if you

press the Shift key as you scale.

• To scale the object horizontally or vertically, drag a side handle.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

• To scale the object from the center, press Alt while dragging any handle.

Resize all selected objects

You can select objects on your canvas and resize them horizontally, vertically, or in both directions.

1 Select the objects on the canvas using the Pointer tool.

2 Select Commands > Resize Selected Objects.

3 Use the resize controls on the dialog box to resize the objects horizontally or vertically, and click Apply.

Note: Select the larger or smaller controls to adjust the resizing increments.

Skew objects

Skew an object to transform it by slanting it along the horizontal axis, the vertical axis, or both.

1 Do one of the following to display the transform handles:

• Select the Skew tool .

• Select Modify > Transform > Skew.

2 Drag a handle to skew the object.

To create the illusion of perspective, drag a corner point.

3 Double-click the document, or press Enter.

Distort objects

Change the size and proportions of an object by dragging a selection handle with the Distort tool.

1 Do one of the following to display the transform handles:

• Select the Distort tool .

• Select Modify > Transform > Distort.

2 Drag a handle to distort the object.

3 Double-click inside the window or press Enter.

Rotate or flip objects

A rotated or flipped object pivots on its center point.

To create the illusion of perspective, suggesting that an object has rotated in three dimensions, see

Rotate a selected object 90° or 180°

❖ Select Modify > Transform and select a Rotate command from the submenu.

Rotate a selected object by dragging

1 Select any transformation tool.

“Skew objects

” on page 47.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

2 Move the pointer outside the object until the rotation pointer appears.

3 Drag to rotate the object.

To constrain rotation to 15° increments relative to the horizon, Shift-drag the pointer.

4 Double-click inside the window or press Enter to apply the changes.

Relocate the axis of rotation

❖ Drag the center point away from the center.

Reset the axis of rotation to the center of the selection

❖ Do one of the following:

• Double-click the center point.

• Press Escape to deselect the object, and then select it again.

Flip an object while maintaining relative position

❖ Select Modify > Transform > Flip Horizontal or Flip Vertical.

Numerically transform objects

Instead of dragging an object to scale, resize, or rotate it, you can transform it by entering specific values. Use the Property inspector, Info panel, or Numeric Transform command.

❖ In the Property inspector or Info panel, enter new width (W) or height (H) measurements.

Note: If the W and H boxes aren’t visible in the Property inspector, click the expander arrow to see all properties.

Scale or rotate selected objects by using the Numeric Transform command

1 Select Modify > Transform > Numeric Transform.

2 From the pop-up menu, select the type of transformation to perform.

3 Select Constrain Proportions to maintain horizontal and vertical proportions when scaling or resizing a selection.

4 Select Scale Attributes to transform the fill, stroke, and effects of the object along with the object itself.

5 Deselect Scale Attributes to transform only the path.

6 Type numeric values to transform the selection, and then click OK.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

View numeric transformation information

Use the Info panel to view numeric transformation information for the currently selected object. The information updates as you edit the object.

❖ Select Window > Info.

9-slice scaling

9-slice scaling lets you scale vector and bitmap objects without distorting their geometry, retaining the look of key elements like text or rounded corners.

Fireworks provides two methods of 9-slice scaling: symbol scaling with permanent slicing guides you can readjust, and standard scaling with temporary guides you apply once. Symbol scaling is ideal for objects you plan to reuse many times. Standard scaling is ideal for quick, one-time adjustments to bitmap objects or basic shapes that you’re incorporating into design mockups.

For a video tutorial on creating scalable objects with 9-slice scaling, see www.adobe.com/go/lrvid4036_fw. For a demonstrative example of using 9-slice scaling, see the article by Sarthak Singhal at

http://www.adobe.com/devnet/fireworks/articles/9-slice_scaling.html.

To achieve the most flexible scaling, make the center slice as large as possible. (When you dramatically shrink an

object, Fireworks limits surrounding slices to their original size.)

More Help topics

“Symbols” on page 146

“Open graphics created in other applications” on page 9

“Guides and Grids preferences” on page 280

9-slicing symbols

Apply 9-slice guides to a symbol

1 Double click the symbol or button to enter symbol-editing mode.

2 In the Properties panel, select Enable for 9-slice Scaling Guides.

3 Move the guides and place them appropriately on the button or symbol. Make sure that the parts of the symbol that

you don't want to be distorted when scaling (for example the corners) are outside the guides.

9-slice scaling guides positioned so that corners aren’t distorted when the button is resized.

4 (Optional) Lock the guides: In the Properties panel, select Lock for 9-slice scaling guides.

5 To return to the containing page, click the page icon at the top of the document panel .

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

6 Resize the symbol as needed by using the Scale tool .

The button scales without distorting corner shape.

After applying 9-slice guides to a symbol, you can nest it in the protected regions of other 9-sliced symbols, creating complex objects that scale perfectly.

More Help topics

“Symbols” on page 146

Scale in one dimension with three slices

If you plan to scale an object in only one dimension, you can use three slices instead of nine.

❖ Complete the standard 9-slice procedure, but in step 3 do one of the following:

• For vertical scaling, drag the horizontal slicing guides to the edge of the object.

• For horizontal scaling, drag the vertical guides to the edge.

Identify symbols that use 9-slice scaling

❖ In the Document Library panel, double-click a symbol icon to enter symbol-editing mode, and look for slicing

guides.

More Help topics

“Switch from symbol editing to page editing” on page 148

9-slicing standard objects

The 9-Slice Scaling tool creates temporary slicing guides that help you scale objects without distorting their geometry. This tool is helpful for quickly scaling bitmap objects or basic shapes for design prototypes and mockups.

Guides you create with the 9-Slice Scaling tool disappear after a single use. For more permanent slicing guides that you can reuse multiple times, see

1 On the canvas, select a bitmap object or vector shape.

2 In the Tools panel, select the 9-Slice Scaling tool .

Note: If you selected an Auto Shape in step 1, Fireworks prompts you to ungroup it. Do so only if you have finished adjusting Auto Shape control points.

3 On the canvas, arrange the slicing guides to best retain the geometry of the object. (For details, see “9-slice scaling”

on page 49.)

4 Transform the object by dragging a corner or side handle.

“9-slicing symbols” on page 49.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

More Help topics

“Basic shapes” on page 71

“Auto Shapes” on page 73

“Edit preferences” on page 279

Organize multiple objects

Options for organizing objects

Group objects Treats objects as one or protects each object's relationship to the others in the group.

Stack the order of objects Arranges objects behind or in front of other objects.

Align selected objects Aligns objects to an area of the canvas or to a vertical or horizontal axis.

Group or ungroup objects

Group individual selected objects and then manipulate them as if they are a single object. For example, after drawing the petals of a flower as individual objects, group them to select and move the entire flower as a single object.

You can edit groups without ungrouping them. You can select an individual object in a group for editing without ungrouping the objects. You can also ungroup the objects at any time.

❖ Select Modify > Group or Modify > Ungroup.

Select objects within groups

To work with individual objects within a group, either ungroup the objects or use the Subselection tool to select individual objects while leaving the group intact.

Modifying the attributes of a subselected object changes only the subselected object. Moving a subselected object to another layer removes the object from the group.

Subselecting an object within a group

Select an object that is part of a group

❖ Select the Subselection tool and click the object or drag a selection area around it. To add objects to or remove them

from the selection, hold down Shift as you click or drag.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

Select the group that contains a subselected object

❖ Do one of the following:

• Right-click (Windows) or Control-click (Mac OS) anywhere in the group and choose Select > Superselect from

the context menu.

• Choose Select > Superselect.

Select all objects within a selected group

❖ Do one of the following:

• Right-click (Windows) or Control-click (Mac OS) anywhere on the group and choose Select > Subselect from

the context menu.

• Choose Select > Subselect.

Stack the order of objects

Within a layer, Fireworks stacks objects based on the order in which they were created, placing the most recently created object on the top. The stacking order of objects determines how they appear when they overlap.

Layers also affect the stacking order. For example, suppose a document has two layers named Layer 1 and Layer 2. If Layer 1 is listed below Layer 2 on the Layers panel, then everything on Layer 2 appears in front of everything on Layer 1.

You can change the order of layers by dragging the layer in the Layers panel to a new position. For more information,

“Organize layers” on page 125.

see

Change the stacking order of a selected object or group within a layer

• To move the object or group to the top or bottom of the stacking order, select Modify > Arrange > Bring to Front

or Send to Back.

• To move the object or group up or down one position in the stacking order, select Modify > Arrange > Bring

Forward or Send Backward.

If more than one object or group is selected, the objects move in front of or behind all unselected objects while maintaining their order relative to one another.

Arrange objects among layers

The Layers panel offers another dimension of organizational control. To move selected objects from one layer to another, drag the object thumbnail or the blue selection indicator to another layer.

Align objects

You can apply one or more Align commands to selected objects.

For quick access to these commands, use the Align panel (Window > Align).

Align selected objects

1 Select Modify > Align.

Last updated 3/8/2011

USING FIREWORKS CS4

Selecting and transforming objects

2 Choose one of the following options:

Left Aligns the objects to the leftmost selected object.

Center Vertical Aligns the center points of the objects along a vertical axis.

Right Aligns the objects to the rightmost selected object.

Top Aligns the objects to the topmost selected object.

Center Horizontal Aligns the center points of the objects along a horizontal axis.

Bottom Aligns the objects to the bottommost selected object.

Evenly distribute the widths or heights of three or more selected objects

❖ Select Modify > Align > Distribute Widths or Modify > Align > Distribute Heights.

Last updated 3/8/2011

Chapter 5: Working with bitmaps

Creating bitmaps

Bitmaps are graphics composed of small colored squares called pixels, which combine like the tiles of a mosaic to create an image. Examples of bitmap graphics include photographs, scanned images, and graphics created from paint programs. They are sometimes referred to as raster images.

Adobe® Fireworks® combines the functionality of photo-editing, vector-drawing, and painting applications. You can create bitmap images by drawing and painting with bitmap tools, by converting vector objects to bitmap images, or by opening or importing images. Bitmap images cannot be converted to vector objects.

More Help topics

“About bitmap graphics” on page 7

Create bitmap objects by drawing

When you create a bitmap object, it appears on the current layer. In the Layers panel with layers expanded, you can see a thumbnail and name for each bitmap object under the layer on which it resides. Although some bitmap applications consider each bitmap object a separate layer, Fireworks combines bitmap objects, vector objects, and text on layers.

1 Select the Brush or Pencil tool from the Bitmap section of the Tools panel.

2 Paint or draw with the Brush or Pencil tool to create bitmap objects on the canvas.

A new bitmap object is added to the current layer in the Layers panel. For more information on using the Pencil or Brush tools, see

“Editing bitmaps” on page 55.

Create empty bitmap objects

You can create an empty bitmap and later draw or paint pixels in it.

❖ Do one of the following:

• Click the New Bitmap Image button in the Layers panel.

• Select Edit > Insert > Empty Bitmap.

• Draw a selection marquee, starting in a blank area of the canvas, and fill it. For more information, see “Create

pixel selection marquees” on page 39.

An empty bitmap is added to the current layer in the Layers panel.

Cut or copy pixels and paste them as a new bitmap object

1 Make a pixel selection, using the Marquee tool, Lasso tool, or Magic Wand tool.

2 Cut and then paste, or copy the selection into a new bitmap.

The selection appears in the Layers panel as an object on the current layer.

Note: You can also right-click (Windows) or Control-click (Mac OS) a pixel marquee selection and select a cut or copy option.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Convert selected vector objects to a bitmap image

Note: A vector-to-bitmap conversion is irreversible, except when Edit > Undo or undoing actions in the History panel is still an option.

❖ Do one of the following:

• Select Modify > Flatten Selection.

• Select Flatten Selection from the Layers panel Options menu.

Editing bitmaps

Most commonly used tools for photo editing are located in the Image Editing panel (Window > Others > Image Editing). For more information, see Ruth Kastenmayer’s article, Adobe Dev Center.

Draw bitmap objects

1 Select the Pencil tool .

2 Set tool options in the Property inspector:

Anti-aliased Smoothes the edges of the lines you draw

Using the Image Editing Panel in Fireworks, at the

Auto Erase Uses the fill color when the Pencil tool is clicked over the stroke color

Preserve Transparency Restricts the Pencil tool to drawing only in existing pixels, not in transparent areas of a

graphic

3 Drag to draw. Shift-drag to constrain the path to a horizontal, vertical, or diagonal line.

Paint an object with the Brush tool

For more information, see “Apply and change strokes” on page 110.

1 Select the Brush tool .

2 Set the stroke attributes in the Property inspector.

3 Drag to paint.

Change pixels to the fill color

1 Select the Paint Bucket tool .

2 Select a color in the Fill Color box.

3 Set the tolerance value in the Property inspector.

Note: Tolerance determines how similar in color pixels must be to be filled. A low tolerance value fills pixels that have color values similar to the pixel you click. A high tolerance fills pixels that have a broader range of color values.

4 Click the image.

All pixels within the tolerance range change to the fill color.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Apply a gradient fill to a pixel selection

1 Make the selection.

2 Click the Paint Bucket tool in the Tools panel and select the Gradient tool from the pop-up menu.

3 Set the fill attributes in the Property inspector.

4 Click the pixel selection to apply the fill.

Sample a color to use as a stroke or fill color

Note: The color box eyedropper pointer is different from the Eyedropper tool. See “Sample colors from a color pop-up

window” on page 106.

Use the Eyedropper tool to sample a color from an image.

1 If the correct attribute is not already active, do one of the following:

• Click the stroke icon next to the Stroke Color box in the Tools panel to make it the active attribute.

• Click the fill icon next to the Fill Color box in the Tools panel to make it the active attribute.

Note: Do not click the color box itself. If you do, the eyedropper pointer appears instead of the Eyedropper tool.

2 Open a Fireworks document or any file that Fireworks can open.

3 Select the Eyedropper tool from the Colors section of the Tools panel. Then set the Color Averaging Sample setting

in the Property inspector:

1-pixel Creates a stroke or fill color from a single pixel

3x3 Average Creates a stroke or fill color from the average of color values in a 3-by-3-pixel area

5x5 Average Creates a stroke or fill color from the average of color values in a 5-by-5-pixel area

4 Click the Eyedropper tool anywhere in the document.

The sampled color appears in all Stroke Color or Fill Color boxes throughout Fireworks.

Erase pixels in a bitmap object or selection

1 Select the Eraser tool .

2 In the Property inspector, select the round or square eraser shape.

3 Drag the sliders to set the Edge, Size, and Opacity levels.

4 Drag the Eraser tool over the pixels you want to erase.

Crop a selected bitmap

You can isolate a single bitmap object in a Fireworks document and crop only that bitmap object, leaving other objects on the canvas intact.

1 Select a bitmap object or draw a selection marquee, using a bitmap selection tool.

2 Select Edit > Crop Selected Bitmap.

3 Adjust the crop handles until the bounding box surrounds the area of the bitmap image that you want to keep.

Note: To cancel a crop selection, press Escape.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Bounding box

4 Double-click inside the bounding box or press Enter to crop the selection.

Retouching bitmaps

The Rubber Stamp tool lets you copy or clone one area of an image to another.

The Blur tool decreases the focus of selected areas in an image.

The Smudge tool picks up color and pushes it in the direction that you drag in an image.

The Sharpen tool sharpens areas in an image.

The Dodge tool lightens parts of an image.

The Burn tool darkens parts of an image.

The Red-eye Removal tool reduces the appearance of red-eye in photos.

The Replace Color tool paints over one color with another color.

Clone pixels

Cloning pixels is useful when you want to fix a scratched photograph or remove dust from an image; you can copy a pixel area of a photo and replace the scratch or dust spot with the cloned area.

1 Select the Rubber Stamp tool.

2 Click an area to designate it as the source (the area you want to clone).

The sampling pointer becomes a cross-hair pointer.

Note: To designate a different area of pixels to clone, Alt-click (Windows) or Option-click (Mac OS) another area of pixels.

3 Move to a different part of the image and drag the pointer.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Two pointers appear.

• The first is the source and is in the shape of a cross hair.

• Depending upon the brush preferences you've selected, the second pointer is a rubber stamp, a cross hair, or a

blue circle. As you drag the second pointer, pixels beneath the first pointer are copied and applied to the area beneath the second.

Set options for the Rubber Stamp tool

1 Select the Rubber Stamp tool.

2 In the Property inspector, set Rubber Stamp options:

Size Determines the size of the stamp.

Edge Determines the softness of the stroke (100% is hard; 0% is soft).

Source Aligned Determines the sampling operation. When Source Aligned is selected, the sampling pointer moves

vertically and horizontally in alignment with the second. When Source Aligned is deselected, the sample area is fixed, regardless of where you move and click the second pointer.

Use Entire Document Samples from all objects on all layers. When this option is deselected, the Rubber Stamp tool

samples from the active object only.

Opacity Determines how much of the background can be seen through the stroke.

Blend Mode Determines how the cloned image affects the background.

Duplicate a pixel selection

• Drag the pixel selection with the Subselection tool.

• Alt-drag (Windows) or Option-drag (Mac OS) the pixel selection, using the Pointer tool.

Blur, sharpen, and smudge images

The Blur and Sharpen tools affect the focus of pixels. The Blur tool lets you emphasize parts of an image by selectively blurring the focus of elements. The Sharpen tool is useful for repairing scanning problems or out-of-focus photographs. The Smudge tool lets you gently blend colors.

1 Select the Blur, Sharpen, or Smudge tool.

2 Set brush options in the Property inspector:

Size Sets the size of the brush tip.

Edge Specifies the softness of the brush tip.

Shape Sets a round or square brush tip shape.

Intensity Sets the amount of blurring or sharpening.

Smudge options

Pressure Sets the intensity of the stroke.

Smudge Color Allows you to smudge using a specified color at the beginning of each stroke. If this option is

deselected, the tool uses the color under the tool pointer.

Use Entire Document Smudges using color data from all objects on all layers. If this option is deselected, the

Smudge tool uses colors from the active object only.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

3 Drag the tool over the pixels you want to sharpen, blur, or smudge.

Hold down Alt (Windows) or Option (Mac OS) to change from one tool behavior to the other.

Lighten and darken parts of images

Use the Dodge or Burn tool to lighten or darken pixels in an image. Using these tools is like increasing or decreasing the light exposure when developing a photograph.

1 Select the Dodge tool to lighten parts of an image or the Burn tool to darken parts of an image.

2 Set the brush options and the exposure in the Property inspector.

The exposure ranges from 0% to 100%. Higher values yield stronger effects.

3 Set the range in the Property inspector:

Shadows Changes mainly the dark portions of the image

Highlights Changes mainly the light portions of the image

Midtones Changes mainly the middle range per channel in the image

4 Drag over the part of the image you want to lighten or darken.

Note: To temporarily switch between the Dodge tool and the Burn tool, hold down Alt (Windows).

Remove red-eye from photos

The Red-eye Removal tool quickly paints only the red areas of a photograph, replacing reddish colors with grays and blacks.

Original photograph; after using the Red-eye Removal tool

1 In the Bitmap section of the Tools panel, select the Red-eye Removal tool . (If the tool isn’t visible, hold down

the Rubber Stamp tool until a pop-menu appears.)

2 In the Property inspector, set these options:

Tolerance Determines the range of hues to replace (0 replaces only red; 100 replaces all hues that contain red).

Strength Sets the darkness of the grays used to replace reddish colors.

3 Drag the cross-hair pointer over the red pupils in the photograph.

If red-eye remains, choose Edit > Undo, and repeat steps 2 and 3 with different Tolerance and Strength settings.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Replace colors in bitmap objects

Original photograph; after using the Replace Color tool

Replace a color by using the color swatch

1 In the Bitmap section of the Tools panel, select the Replace Color tool . (If the tool isn’t visible, hold down the

Rubber Stamp tool until a pop-up menu appears.)

2 In the From box in the Property inspector, click Swatch.

3 Click the From color box to select the color probe, and select a color from the pop-up menu to specify the color you

want to replace.

4 Click the To color box in the Property inspector and select a color from the pop-up menu.

5 Set the other stroke attributes in the Property inspector:

Tolerance Determines the range of colors to replace (0 replaces only the From color; 100 replaces all colors similar

to the From color).

Strength Determines how much of the From color is replaced.

Colorize Replaces the From color with the To color. Deselect Colorize to tint the From color with the To color,

leaving some of the From color intact.

6 Drag the tool over the color you want to replace.

Replace a color with a selected color in an image

1 In the Bitmap section of the Tools panel, select the Replace Color tool . (If the tool isn’t visible, hold down the

Rubber Stamp tool until a pop-up menu appears.)

2 In the From box in the Property inspector, click Image.

Click the To color box in the Property inspector to select the color probe, and then select a color from the pop-up menu.

4 Set the other stroke attributes in the Property inspector.

5 Using the tool, click down on a section of the bitmap image that contains the color you want to replace. Without

lifting the tool, continue to brush across the image with it.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Blur edges by feathering

Feathering blurs the edges of a pixel selection and helps to blend the selected area with the surrounding pixels. Feathering is useful when you copy a selection and paste it onto another background.

1 Import the image that you want to feather on the canvas using File > Import.

2 Select the part of the image that you want to feather using any of the selection tools.

3 Select Select > Inverse.

4 Select Select > Feather. Alternatively, you can select the option from the Edge menu in the Properties panel.

5 In the Feather Selection dialog box, type a feather radius value. The default value of 10 is good for most practical

purposes. Alternatively select a value for the feather radius in the Edge menu.

6 Press Delete.

Adjust bitmap color and tone

For more information, see “Control how a document redraws on the screen” on page 29.

Use color- and tone-adjustment filters to improve and enhance the colors in your bitmap images.

• To apply filters that are removable, editable, and that do not permanently alter pixels, use Live Filters. Adobe

recommends using filters as Live Filters whenever possible.

Note: Although Live Filters are more flexible, large numbers of Live Filters in a document can slow down Fireworks' performance.

• To apply filters in an irreversible, permanent way, select them from the Filters menu.

• You can't apply Live Filters from the Filters menu to pixel selections. You can define an area of a bitmap and create

a separate bitmap from it, and then apply a Live Filter to it.

• If you apply a filter to a selected vector object using the Filters menu, Fireworks converts the selection to a bitmap.

Apply a Live Filter to an area defined by a bitmap selection marquee

1 Select a bitmap selection tool and draw a selection marquee.

2 Select Edit > Cut.

3 Select Edit > Paste.

Fireworks pastes the selection exactly where the pixels were originally located, but the selection is now a separate bitmap object.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

4 Click the thumbnail of the new bitmap object in the Layers panel to select the bitmap object.

5 Apply a Live Filter from the Property inspector.

Fireworks applies the Live Filter only to the new bitmap object, simulating the application of a filter to a pixel selection.

Adjust tonal range in bitmaps

A bitmap with a full tonal range must have an even number of pixels in all areas. Three options are available for adjusting tonal range: using Levels, using Curves for precise control, or using Auto Levels for automatic adjustments.

The Levels feature corrects bitmaps with a high concentration of pixels in the highlights, midtones, or shadows.

Highlights Corrects an excess of light pixels, which makes the image look washed out

Midtones Corrects an excess of pixels in the midtones, which makes the image bland

Shadows Corrects an excess of dark pixels, which hides much of the detail

The Levels feature sets the darkest pixels as black and the lightest pixels as white, and then redistributes the midtones proportionally. This produces an image with the sharpest detail in all of its pixels.

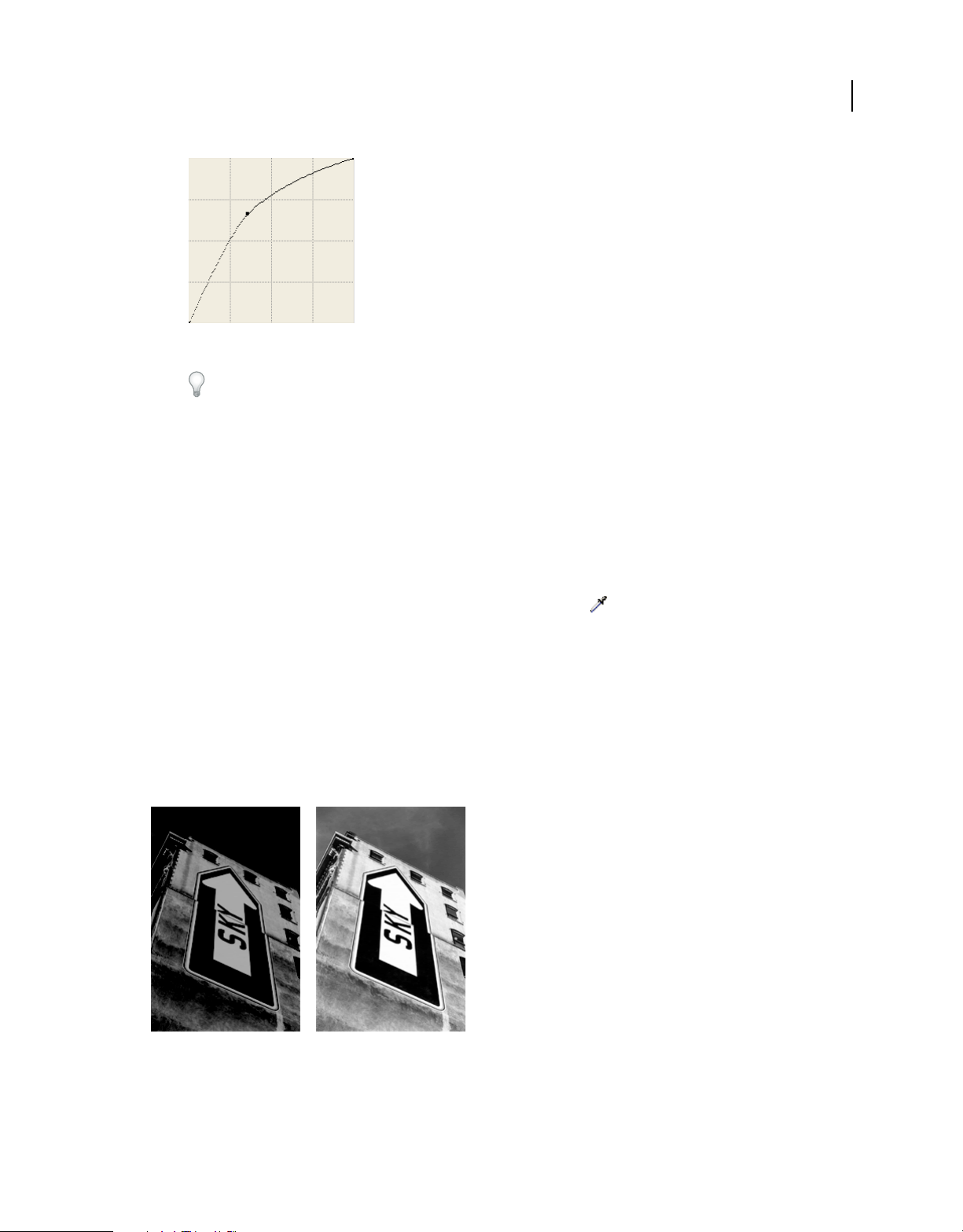

Original with pixels concentrated in the highlights; after adjusting with Levels

Use the Histogram in the Levels dialog box to view the pixel distribution of a bitmap. The Histogram is a graphical representation of the distribution of pixels in the highlights, midtones, and shadows.

The Histogram helps you determine the best method of correcting an image's tonal range. A high concentration of pixels in the shadows or highlights indicates that you could improve the image by applying the Levels or Curves feature.

The horizontal axis represents color values from darkest (0) to brightest (255). Read the horizontal axis from left to right: the darker pixels are on the left, the midtone pixels are in the center, and the brighter pixels are on the right.

The vertical axis represents the number of pixels at each brightness level. Typically, you adjust the highlights and shadows first. Adjusting the midtones second lets you improve their brightness value without affecting the highlights and shadows.

Adjust highlights, midtones, and shadows with Levels

1 Select the bitmap image.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

2 Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, and then select Adjust Color > Levels

from the Filters pop-up menu.

• Select Filters > Adjust Color > Levels.

Levels dialog box

To view your changes in the workspace, select Preview in the dialog box. As you make changes, the image updates.

3 In the Channel pop-up menu, select to apply changes to individual color channels (Red, Blue, or Green) or to all

color channels (RGB).

4 Drag the Input Levels sliders under the Histogram:

• The right slider adjusts the highlights using values from 255 to 0.

• The center slider adjusts the midtones using values from 10 to 0.

• The left slider adjusts the shadows using values from 0 to 255.

Note: The shadow value cannot be higher than the highlight value; the highlight value cannot be lower than the shadow value; and the midtones must fall between the shadow and highlight settings.

5 Drag the Output Levels sliders to adjust the contrast values:

• The right slider adjusts the highlights using values from 255 to 0.

• The left slider adjusts the shadows using values from 0 to 255.

Adjust highlights, midtones, and shadows automatically

1 Select the image.

2 Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, and then select Adjust Color > Auto

Levels from the Filters pop-up menu.

• Select Filters > Adjust Color > Auto Levels.

You can also adjust highlights, midtones, and shadows automatically by clicking the Auto button in the Levels or Curves dialog box.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Adjust a specific color in the tonal range with Curves

The Curves feature provides more precise control over the tonal range than the Levels feature. The Curves feature lets you adjust any color along the tonal range, without affecting other colors.

The grid in the Curves dialog box illustrates two brightness values:

The horizontal axis Represents the original brightness of the pixels, shown in the Input box

The vertical axis Represents the new brightness values, shown in the Output box

When you first open the Curves dialog box, the diagonal line indicates that no changes have been made, so the input and output values are the same for all pixels.

1 Select the image.

2 Do one of the following to open the Curves dialog box:

• In the Property inspector, click the Plus (+) button beside the Filters label, and then select Adjust Color > Curves

from the Filters pop-up menu.

Note: If the Property inspector is partially minimized, click the Add Filters button instead of the Plus button.

• Select Filters > Adjust Color > Curves.

Curves dialog box

3 In the Channel pop-up menu, select whether to apply changes to individual color channels or to all colors.

4 Click a point on the grid's diagonal line and drag it to a new position to adjust the curve.

• Each point on the curve has its own Input and Output values. When you drag a point, the Input and Output

values update.

• The curve displays brightness values of 0 to 255, with 0 representing the shadows.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Curve after dragging a point to adjust

To adjust highlights, midtones, and shadows automatically, click the Auto button in the Curves dialog box.

Delete a point along the curve

❖ Drag the point off the grid.

Note: You cannot delete the end points of the curve.

Adjust the tonal balance manually

1 Open the Levels or Curves dialog box, and select a color channel from the Channel pop-up menu.

2 Select the appropriate eyedropper to reset the tonal values in the image:

• Click the lightest pixel in the image with the Highlight eyedropper to reset the highlight value.

• Click a pixel of neutral color in the image with the Midtone eyedropper to reset the midtone value.

• Click the darkest pixel in the image with the Shadow eyedropper to reset the shadow value.

3 Click OK.

Adjust brightness and contrast

The Brightness/Contrast feature modifies the contrast or brightness of pixels in an image. This affects the highlights, shadows, and midtones of an image.

Original; after adjusting brightness

1 Select the image.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

2 Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, and then select Adjust Color >

Brightness/Contrast from the Filters pop-up menu.

• Select Filters > Adjust Color > Brightness/Contrast.

3 Drag the Brightness and Contrast sliders to adjust the settings between the range of –100 to 100.

Change object colors by blending

For more information, see “About blending modes” on page 139.

When you blend colors, the color is added on top of the object. Blending a color into an existing object is like using Hue/Saturation. However, blending lets you quickly apply a specific color from a color swatch panel.

1 In the Property inspector, click the plus (+) icon next to the Filters label, and then select Adjust Color > Color Fill

from the Filters pop-up menu.

2 Select a blending mode. The default is Normal.

3 Select a fill color from the color box pop-up menu.

4 Select a percentage of opacity for the fill color and press Enter.

Adjust hue and saturation

Adjust the shade of a color (hue), the intensity of a color (saturation), or the lightness of a color in an image.

Original; after adjusting the saturation

1 Select the image.

2 Do one of the following:

• In the Property inspector, click the the plus (+) icon next to the Filters label, and then select Adjust Color >

Hue/Saturation from the Filters pop-up menu.

• Select Filters > Adjust Color > Hue/Saturation.

3 Drag the sliders to adjust the image colors.

• Hue values range from –180 to 180.

• Saturation and Lightness values range from –100 to 100.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Change an RGB image to a two-tone image or add color to a grayscale image

❖ Select Colorize in the Hue/Saturation dialog box.

Note: When you select Colorize, the value range of the Hue and Saturation sliders changes. Hue changes to 0 to 360. Saturation changes to 0 to 100.

Invert an image's color values

You can change each color in an image to its inverse on the color wheel. For example, applying the filter to a red object (R=255, G=0, B=0) changes the color to light blue (R=0, G=255, B=255).

A monochrome image; after inverting

A color image; after inverting

1 Select the image.

2 Do one of the following:

• In the Property inspector, click the the plus (+) icon next to the Filters label, and then select Adjust Color >

Invert from the Filters pop-up menu.

• Select Filters > Adjust Color > Invert.

Change an object to grayscale

1 Select the object.

2 Select Commands > Creative > Convert To Grayscale.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Change an object to sepia tone

1 Select the object.

2 Select Commands > Creative > Convert To Sepia Tone.

Blurring and sharpening bitmaps

Blurring options

Blur Softens the focus of selected pixels.

Blur More Blurs about three times as much as Blur.

Gaussian Blur Applies a weighted average of blur to each pixel to produce a hazy effect. Blur radius values range from

0.1 to 250. An increase in radius results in a stronger blur effect.

Motion Blur Creates the appearance that the image is moving. Distance values range from 1 to 100. An increase in

distance results in a stronger blur effect.

Radial Blur Creates the appearance that the image is spinning. Quality values range from 1 to 100. An increase in

quality results in a blur effect with fewer repetitions of the original image.

Zoom Blur Creates the appearance that the image is moving toward or away from the viewer. Requires Amount and

Quality values. An increase in quality results in a blur effect with fewer repetitions of the original image. An increase in amount results in a stronger blur effect.

1 Select the image.

2 Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, and then select a Blur option from the

Filters pop-up menu.

• Select Filters > Blur > [blur option].

3 Set other values for the selected blur option.

Change a bitmap into a line drawing

Change bitmaps to look like line drawings by identifying the color transitions in the images and changing them to lines. Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, and then select Other > Find Edges from

the Filters pop-up menu.

• Select Filters > Other > Find Edges.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

Original; after applying Find Edges

Convert an image to a transparency

Convert an object or text into a transparency based upon the transparency of the image. Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, and then select Other > Convert to Alpha

from the Filters pop-up menu.

• Select Filters > Other > Convert to Alpha.

Sharpen an image

Use a Sharpen option to correct blurry images:

Sharpen Adjusts the focus of a blurred image by increasing the contrast of adjacent pixels.

Sharpen More Increases the contrast of adjacent pixels about three times as much as Sharpen.

Unsharp Mask Sharpens an image by adjusting the contrast of the pixel edges. This option offers the most control, so

it is usually the best option for sharpening an image.

Original; after sharpening

1 Select the image.

2 Do one of the following:

• In the Property inspector, click the plus (+) icon next to the Filters label, select Sharpen, and then select a

Sharpen option from the Filters pop-up menu.

• Select Filters > Sharpen > [sharpen option].

The Sharpen or Sharpen More options take effect.

(Unsharp Mask option) Drag the Sharpen Amount slider to select the amount of sharpening effect from 1% to 500%.

4 Drag the Pixel Radius slider to select a radius from 0.1 to 250.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with bitmaps

An increase in radius results in a greater area of sharp contrast surrounding each pixel edge.

5 Drag the Threshold slider to select a threshold of 0 to 255.

Values between 2 and 25 are most commonly used. An increase in threshold sharpens only those pixels of a higher contrast in the image. A decrease in threshold includes pixels of lower contrast. A threshold of 0 sharpens all pixels in the image.

Add noise to an image

When viewed at high magnification levels, most images obtained from digital cameras and scanners do not have perfectly uniform colors. Instead, the colors you see consist of pixels of many different colors. In image editing, noise refers to these random color variations in the pixels that make up an image.

Sometimes, such as when you are pasting part of one image into another, the difference in the amount of random color variation in the two images can stand out. This can prevent the images from blending together smoothly. In such a case, add noise to one or both images to create the illusion that both images come from the same source. You can also add noise to an image for artistic reasons—for instance, to simulate an old photograph or static on a television screen.

Original photograph; after adding noise

Add noise

1 Select the image.

2 Do one of the following to open the Add Noise dialog box:

• In the Property inspector, click the plus (+) icon next to the Filters label, and select Noise > Add Noise from the

Filters pop-up menu.

• Select Filters > Noise > Add Noise.

Note: Applying a filter from the Filters menu is destructive; that is, it cannot be undone except when Edit > Undo is an option. To maintain the ability to adjust, turn off or remove this filter, and then apply it as a Live Filter as described in the first bulleted option in this step. For more information, see

3 Drag the Amount slider to set the amount of noise.

Values range from 1 to 400. An increase in amount results in an image with more randomly placed pixels.

4 Select the Color option to apply color noise. Deselect the option to apply monochrome noise only.

5 Click OK.

“Using Live Filters” on page 117.

Last updated 3/8/2011

Chapter 6: Working with vector objects

A vector object is a computer graphic whose shape is defined by a path. The shape of a vector path is determined by points that are plotted along the path. A vector object's stroke color follows the path, and its fill occupies the area inside the path. The stroke and fill determine how the graphic looks when published in print or on the web.

Vector object shapes include basic shapes, Auto Shapes (vector object groups that have special controls for adjusting their attributes), and free-form shapes. You can use a variety of tools and techniques to draw and edit vector objects.

Basic shapes

Basic shapes include lines, rectangles, ellipses, rounded rectangles, polygons, and stars.

Draw and edit basic shapes

The Rectangle tool and the Rounded Rectangle tool draw rectangles as grouped objects. To move a rectangle corner point independently, ungroup the rectangle or use the Subselection tool

For more information on resizing and scaling objects, see “Transform and distort objects and selections” on page 45.

Draw a line, rectangle, or ellipse

1 From the Tools panel, select the Line, Rectangle, or Ellipse tool.

2 (Optional) Set the stroke and fill attributes in the Property inspector.

3 Drag on the canvas to draw the shape.

• For the Line tool, Shift-drag to constrain lines to 45° increments.

• For the Rectangle or Ellipse tool, Shift-drag to constrain shapes to squares or circles.

Increase the sharpness of lines

Use the Snap To Pixel (Modify > Snap To Pixel) command to increase the sharpness of lines. The command does not work for paths. Resizing the object can make the line blurred again.

Note: You cannot undo the Snap To Pixel command.

Scenario Problem Solution

A rectangle drawn using Snap To Pixels is scaled with Scale Strokes and Effects option disabled in the Preferences dialog box.

A line with even stroke width is drawn using the Line tool.

A straight line vector path drawn using the Pen tool.

The rectangle doesn’t snap to pixels. Select the the object, right-

click, and select Snap To Pixel.

The line appears blurred. Select the object, and select

Modify > Snap To Pixel.

The path appears blurred. Right-click the path, and

select Snap To Pixel.

Draw a shape from the center point

❖ Position the pointer at the intended center point and Alt-drag (Windows) or Option-drag (Mac OS) the drawing

tool. To constrain proportions, also hold down Shift.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Add arrowheads to a line

1 Draw or select a line.

2 Select Commands > Creative > Add Arrowheads.

3 Set the following:

• Select Add To Start and Add To End as necessary and set the arrowhead style.

• Select Apply Stroke and Solid Fill as necessary.

Adjust the position of a basic shape as you draw it

❖ While holding down the mouse button, press and hold the spacebar (rectangle or ellipses only), and then drag the

object to another location on the canvas. Release the Spacebar to continue drawing the object.

Resize a selected line, rectangle, or ellipse

Scaling a vector object does not change its stroke width. Objects resize proportionally.

❖ Do one of the following:

• Enter new width (W) or height (H) values in the Property inspector or the Info panel.

• In the Select section of the Tools panel, select the Scale tool and drag a corner transform handle.

• Select Modify > Transform > Scale and drag a corner transform handle, or select Modify > Transform >

Numeric Transform and enter new dimensions.

• Drag a corner point on a rectangle.

Draw basic rounded rectangles

You specify corner roundness in either percentage or pixels. When specifying roundness in pixels, the maximum value is half the length of the shortest rectangle side; higher values have no increased effect.

For information on preserving the rectangle roundness while scaling the object, see Sarthak's article.

1 In the Vector section of the Tools panel, select the Rectangle tool.

2 Drag on the canvas to draw the rectangle.

3 In the Property inspector, choose percentage or pixels from the pop-up menu to the right of the Roundness box.

Set the percentage using the slider or enter a value from 0 to 100 in the box. If you chose pixels, you can enter up to half the length of the shortest rectangle side.

Press the Up or Right arrow keys while dragging to get rounded corners. Use Down or Left Arrow keys to reduce the curve.

Draw a basic polygon

The Polygon tool draws equilateral polygons (including triangles), starting from a center point.

1 In the Vector section of the Tools panel, select the Polygon tool.

2 In the Property inspector, do one of the following to specify the number of sides:

• Use the Sides pop-up slider to select 3 - 25.

• Enter a number from 3 to 360 in the Sides box.

3 Drag to draw the polygon.

To constrain a polygon's orientation to increments of 45°, hold down Shift as you draw.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Draw a star

1 In the Vector section of the Tools panel, select the Polygon tool.

2 In the Property inspector, select Star from the Shape pop-up menu.

3 In the Sides box, enter the number of points for the star.

4 In the Angle box, select Automatic or enter a value. Values closer to 0 result in long, thin points; values closer to

100 result in short, stubby points.

5 Drag the canvas to draw the star.

To constrain a star's orientation to increments of 45°, hold down Shift as you drag.

Auto Shapes

Auto Shapes, unlike other object groups, have diamond-shaped control points in addition to the object group handles. Dragging a control point alters only its associated visual property. Most control points have tool tips that describe how they affect the Auto Shape.

Auto Shape tools create shapes in preset orientations. For example, the Arrow tool draws arrows horizontally. Similarly, for the Star auto shape, click and drag the left control point up or down vertically to change the number of points. You can use the other control points to modify the “sharpness” and “depth” of the rays.

For information about changing the orientation, see “Transform and distort objects and selections” on page 45.

The Auto Shape tools

Arrow Simple arrows of any proportions, and straight or bent lines.

Arrow Line Straight, thin arrow lines providing quick access to common arrowheads (simply click either end of the

line).

Beveled Rectangle Rectangles with beveled corners.

Chamfer Rectangle Rectangles with chamfers (corners that are rounded inside the rectangle).

Connector Line Three-segment connector lines, such as those used to connect the elements of a flowchart or

organizational chart.

Doughnut Filled rings.

L-Shape Right-angled corner shapes.

Measure Tool Simple arrow lines that indicate dimensions for key design elements in pixels or inches.

Pie Pie charts.

Rounded Rectangle Rectangles with rounded corners.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Smart Polygon Equilateral polygons with 3 to 25 sides.

Spiral Open spirals.

Star Stars with any number of points from 3 to 25.

Draw an Auto Shape

1 In the Vector section of the Tools panel, select an Auto Shape tool from the pop-up menu.

2 Do one of the following:

• Drag the canvas to draw the shape.

• Click the canvas to place the shape at its default size.

Add a shadow to an Auto Shape

The Add Shadow command adds a shadow beneath the selected object based on the dimensions of that object. The shadow is actually an Auto Shape with control points that you can use to manipulate its appearance. For example, you can Shift-drag the direction control point to constrain its movement to a 45-degree angle. Clicking the direction control point resets the shadow to the original shape. The Add Shadow command automatically sends the new shadow shape back by one level. Unless you apply this command to only one object at the top of the current layer, the shadow appears above the selected object.

1 Select an object on the canvas.

2 Select Commands > Creative > Add Shadow.

3 (Optional) To change the shadow, do any of the following:

• Drag the direction control point to constrain its movement on a 45-degree angle.

• Click the direction control point to reset the shadow (its size is identical to the original shape).

• Control-click or Command-click the direction control point to reset the x axis only.

• Double-click the perspective control point to reset the width of the shadow only.

Change Auto Shape properties precisely

Use the Auto Shape Properties panel to exert precise numeric control over a selected Auto Shape or to insert another Auto Shape into your document.

Note: This panel only supports Auto Shapes that appear in the Tools panel. It does not support third-party Auto Shapes or those in the Shapes panel (Window

The properties that you can change depend on the type of Auto Shape.

1 Insert an Auto Shape into your document.

2 Select Window > Auto Shape Properties.

3 Adjust the properties.

For Rectangle shapes, you can lock the shape corners so that changes to one corner affect all four. You can also change the properties for each corner individually.

> Auto Shapes).

4 To apply the changes, press Tab or Enter.

To further adjust the Auto Shape on the canvas, use the control points. The corresponding values in the Auto Shape Properties panel are updated dynamically.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Change Auto Shape properties by using control points

Select an Auto Shape, and then use the yellow control points to adjust the Auto Shape properties.

Names for control points reveal their function. To see a name, hover the mouse over a control point until a tool tip

appears.

Adjust Arrow Auto Shapes

• To adjust the flare and sharpness of the arrowhead, drag the Arrow Tip and Arrow Size control points.

• To adjust the width, height, thickness, and corner roundness of the tail, drag the control point with a corresponding

name.

To create a bent arrow, drag the width or height control point to the right or left.

Adjust Arrow Line Auto Shapes

• To cycle through arrowhead options, click a control point at either end of the line.

• To extend or shorten the line, drag a control point.

Adjust beveled, chamfered, and rounded rectangle Auto Shapes

• To adjust all corners of a rectangle together, drag a corner control point.

• To adjust a single corner of a rectangle, Alt-drag (Windows) or Option-drag (Mac OS) a corner control point.

• To resize a rectangle without affecting the corners, drag the drag-to-resize control point.

• To convert all corners of a rectangle to a different type, click any corner control point.

• To convert a single corner to a different type, Alt-click (Windows) or Option-click (Mac OS) any corner control

point.

Adjust Connector Line Auto Shapes

• To move the start or end point, drag the control point at the start or end of the connector line.

• To reposition the crossbar, drag the horizontal position control point.

• To adjust all corners, drag a corner control point.

• To adjust a single corner, Alt-drag (Windows) or Option-drag (Mac OS) a corner control point.

Adjust Doughnut Auto Shapes

Doughnut Auto Shapes initially have three control points. For any new section that you add, Fireworks adds a control point for resizing or splitting the new section.

• To add sections, Alt-drag (Windows) or Option-drag (Mac OS) an add/divide sector control point on the outer

perimeter of the shape.

• To remove a section, drag the add/divide sector control point on the outer perimeter of the shape to define the

portion of the shape that you want to remain on the canvas.

• To resize the inner radius, drag the inner radius control point.

• To set the inner radius to zero, click the reset radius control point.

Adjust L-shaped Auto Shapes

• To change the height or width of a section, drag one of the two height/width control points.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

• To adjust the roundness of the corners, drag the corner radius control point.

Adjust Measure Tool Auto Shapes

• To change the length or angle of the measured section, drag a control point at either end of the line.

• To switch the units from pixels to inches, hold down Control (Windows) or Command (Mac OS) as you drag a

control point at either end.

• To extend or shorten the boundary lines for the measured area, drag a control point on either side of the numeric

measurement.

The Measure Tool is helpful when creating interface specifications. To hide measurements, click the eye icon in the

Layers panel.

Adjust Pie Auto Shapes

Pie Auto Shapes initially have three control points. For any new section that you add, Fireworks adds a control point for resizing or splitting the new section.

• To add sections, Alt-drag (Windows) or Option-drag (Mac OS) a drag-to-segment control point on the outer

perimeter of the shape.

• To resize a pie slice, drag a drag-to-segment control point on the outer perimeter of the shape.

• To reset a pie to one slice, click the reset control point.

Adjust Smart polygon Auto Shapes

• To resize or rotate the polygon, drag the scale/rotate control point. To rotate only, Alt-drag (Windows) or Option-

drag (Mac OS) the scale/rotate control point.

• To add or remove sections, drag the sections control point.

• To change the number of sides, drag the sides control point.

• To split the polygon into segments, Alt-drag (Windows) or Option-drag (Mac OS) the sides control point.

• To resize an inner polygon, drag the inner polygon control point.

• To reset an inner polygon, click the reset inner polygon control point.

Adjust Spiral Auto Shapes

• To adjust the number of turns, drag the spirals control point.

• To open or close the spiral, click the open/close spiral control point.

Adjust Star Auto Shapes

• To change the number of sides, drag the points control point.

• To adjust the valleys, drag the valley control point.

• To adjust the points, drag the peak control point.

• To adjust the roundness of peaks or valleys, drag a roundness control point.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Use additional Auto Shapes

The Auto Shapes panel contains additional Auto Shapes that are more complex than those in the Tools panel. Place these Auto Shapes into your drawing by dragging them from the Auto Shapes panel to the canvas.

1 Select Window > Auto Shapes to display the Auto Shapes panel.

2 Drag an Auto Shape preview from the Auto Shapes panel to the canvas.

3 (Optional) Edit the Auto Shape by dragging any of its control points.

Add new Auto Shapes to Fireworks

Add new Auto Shapes from the Adobe® Fireworks® Exchange website. New Auto Shapes appear either in the Auto Shapes panel or the Tools menu.

You can also add new Auto Shapes to Fireworks by writing JavaScript code. For more information, see Extending Fireworks.

1 Select Window > Auto Shapes to display the Auto Shapes panel.

2 From the Options menu, select Get More Auto Shapes.

3 In the Exchange website, follow the onscreen instructions for adding new shapes.

Free-form shapes

You can draw and edit vector paths to create almost any shape of vector object.

Draw free-form paths with the Vector Path tool

The Vector Path tool, located in the Pen tool pop-up menu, is like using a felt-tip marker or crayon.

The tool has a wide variety of brush stroke categories, including Air Brush, Calligraphy, Charcoal, Crayon, and Unnatural. Each category typically has a choice of strokes, such as Light Marker and Dark Marker, Splattered Oil, Bamboo, Ribbon, Confetti, 3D, Toothpaste, and Viscous Alien Paint.

Although the strokes look like paint or ink, each has the points and paths of a vector object. This means that you can change the shape of the stroke using any of several vector-editing techniques. After you reshape the path, the stroke is redrawn. You can also modify existing brush strokes and add fills to selected objects you have drawn with the Vector Path tool.

See “Applying color, strokes, and fills” on page 102.

1 From the Pen tool pop-up menu, select the Vector Path tool .

2 (Optional) Set stroke attributes and Vector Path tool options in the Property inspector. (Optional) For more precise

path smoothing, select a number from the Precision pop-up menu in the Property inspector for the Vector Path tool. The higher the number you select, the greater the number of points that appear on the path you draw.

3 Drag to draw. To constrain the path to a horizontal or vertical line, hold down Shift while dragging.

4 Release the mouse button to end the path. To close the path, release the mouse button when you return the pointer

to the point at the beginning of the path.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Draw free-form paths by plotting points with the Pen tool

Plotting points is like drawing a connect-the-dots picture. When you click each point with the Pen tool, Fireworks automatically draws the path of the vector object from the last point you clicked.

In addition to connecting the points with straight segments, the Pen tool can draw smooth, mathematically derived curve segments known as Bezier curves. Each point's type—corner point or curve point—determines whether the adjacent curves are straight lines or curves.

You can modify straight and curved path segments by dragging their points. You can further modify curved path segments by dragging their point handles. You can also convert straight path segments to curved (and vice versa) by converting their points.

Draw a path with straight line segments

1 In the Tools panel, select the Pen tool.

2 (Optional) Select Edit > Preferences (Windows) or Fireworks > Preferences (Mac OS X) and select one of the

options on the Edit tab, and click OK:

Show Pen Preview Previews the line segment that would result from the next click.

Show Solid Points Shows solid points while you draw.

3 Click the canvas to place the first corner point.

4 Move the pointer and click to place the next point.

5 Continue plotting points. Straight segments bridge each gap between points.

6 Do one of the following:

• Double-click the last point to end the path as an open path.

• Select another tool to end the path as an open path.

Note: When you select another tool (other than the Text tool) and then return to the Pen tool, Fireworks resumes drawing the object at your next click.

• To close the path, click the first point you plotted. The beginning and end points of a closed path are the same.

Note: Loops formed by a path overlapping itself are not closed paths. Only paths that begin and end on the same point are closed paths.

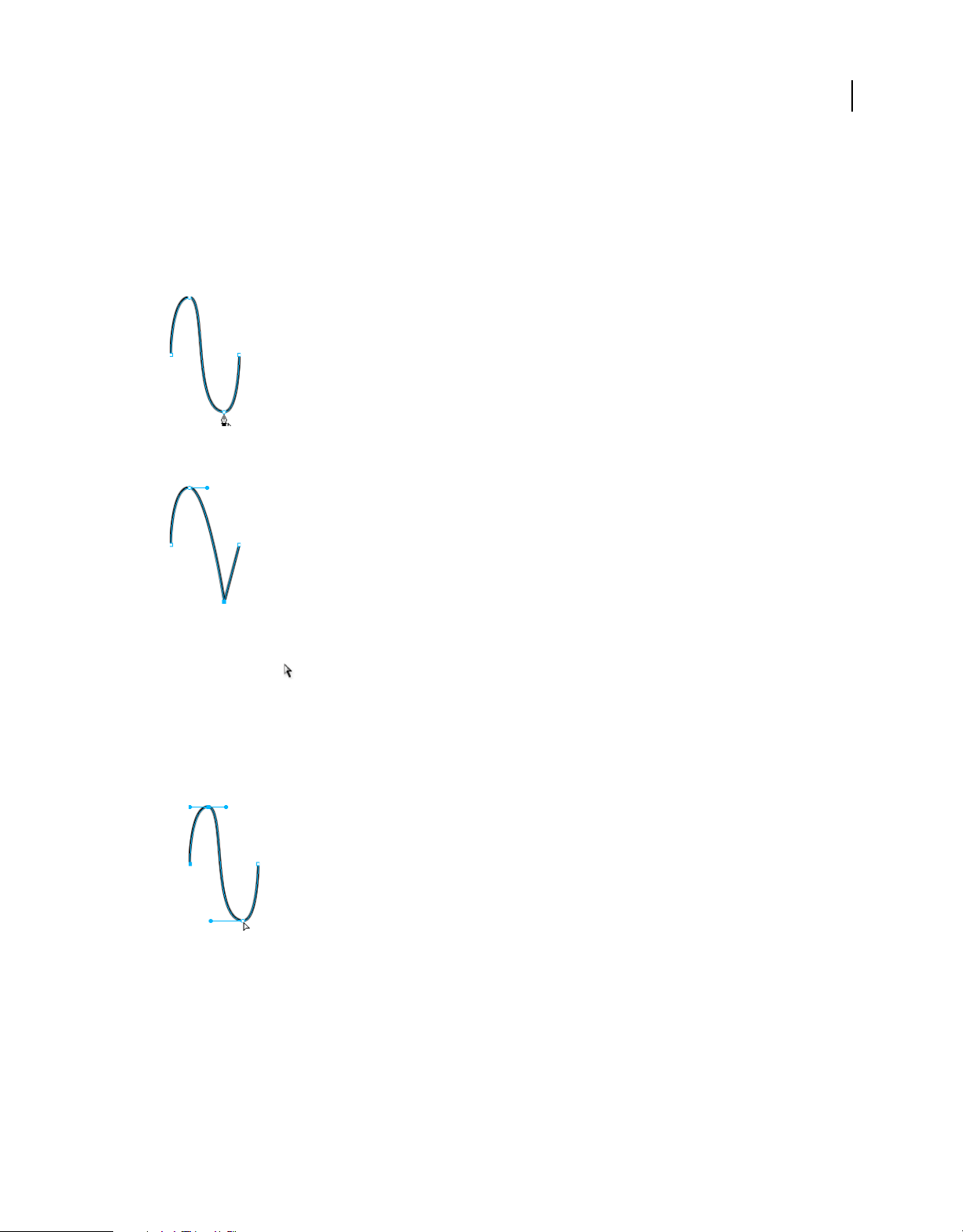

Draw a path with curved segments

1 In the Tools pane, select the Pen tool.

2 Click to place the first corner point.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

3 Move to the location of the next point, and then drag to produce a curve point. Each time you drag, Fireworks

extends the line segment to the new point.

4 Continue plotting points. If you drag a new point, you produce a curve point; if you just click, you produce a corner

point.

You can temporarily switch to the Subselection tool to change the location of points and the shape of curves as you draw. Press Control (Windows) or Command (Mac OS) while dragging a point or point handle with the Pen tool.

5 Do one of the following:

• To end the path as an open path, double-click the last point or select another tool. When you select certain tools

and then return to the Pen tool, Fireworks resumes drawing the object at your next click.

• To close the path, click the first point you plotted. The beginning and end points of a closed path are the same.

Convert path segments to straight or curved points

Straight path segments are intersected by corner points. Curved path segments contain curve points.

You can convert a straight segment to a curved segment and vice versa by converting its point.

Convert a corner point to a curve point

1 In the Tools panel, select the Pen tool.

2 Click a corner point on a selected path and drag away from it.

The handles extend, curving the adjacent segments.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Note: To edit the point's handles, choose the Subselection tool or press Control (Windows) or Command (Mac) while the Pen tool is active.

Convert a curve point to a corner point

1 In the Tools panel, select the Pen tool.

2 Click a curve point on a selected path.

The handles retract, and the adjacent segments straighten.

Edit free-form paths by using points and point handles

The Subselection tool in the Tools panel lets you select multiple points. Before selecting a point with the Subselection tool, select the path using the Pointer or Subselection tool or by clicking its thumbnail in the Layers panel.

Select specific points on a selected path

❖ Using the Subselection tool, do one of the following:

• Click a point, or hold down Shift and click multiple points one by one.

• Drag around the points to be selected.

Insert a point on a selected path

Adding points to a path gives you control over a specific segment within the path.

❖ Using the Pen tool, click anywhere on the path which is not a point.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Delete a point from a selected path

Deleting points from the path reshapes it or simplifies editing.

❖ Do one of the following:

• Click a corner point on a selected object with the Pen tool.

• Double-click a curve point on a selected object with the Pen tool.

• Select a point with the Subselection tool and press Delete or Backspace.

Move a point

❖ Drag it with the Subselection tool.

Change a straight path segment

1 Select the path with the Pointer or Subselection tool.

2 Click a point with the Subselection tool.

Selected corner points appear as solid blue squares.

3 Drag the point or use the arrow keys to move the point to a new location.

Change the shape of a curved path segment

1 Select the path with the Pointer or Subselection tool.

2 Click a curve point with the Subselection tool.

A selected curve point appears as a solid blue square. The point handles extend from the point.

3 Drag the handles to a new location. To constrain handle movement to 45° angles, press Shift while dragging.

The blue path preview shows where the new path is drawn if you release the mouse button.

CBA

A. Point handle B. Selected point C. Subselection pointer D. Path preview E. Path

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

For example, if you drag the left point handle downward, the right point handle goes up. Alt-drag a handle to move it independently.

Adjust the handle of a corner point

1 Using the Subselection tool, select a corner point.

2 Alt-drag (Windows) or Option-drag (Mac OS) the point to display its handle and bend the adjacent segment.

Dragging a corner point handle with the Subselection tool to edit the adjacent path segment

Extend and merge free-form paths

Use the Pen tool to continue drawing an existing open path and to merge paths.

Resume drawing an existing open path

1 In the Tools panel, select the Pen tool.

2 Click the end point and continue the path.

Merge two open paths

When you connect two paths, the topmost path's stroke, fill, and filter attributes become the attributes of the newly merged path.

1 Select the Pen tool in the Tools panel.

2 Click the end point of one of the paths.

3 Move the pointer to the end point of the other path and click.

Auto-join similar open paths

You can join one open path with another that has similar stroke and fill characteristics.

1 Select an open path.

2 Choose the Subselection tool and drag an end point of the path within a few pixels of the end point of the similar

path.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Special vector-editing techniques

In addition to dragging points and point handles, you can use several Fireworks tools to edit vector objects directly. You can also use path operations to create new shapes by combining or altering existing paths. And, you can use the Path panel to gain quick access to path-related commands.

Edit with vector tools

Vector tools appear in the Tools panel.

Bend and reshape vector objects with the Freeform tool

The Freeform tool lets you bend and reshape vector objects directly instead of manipulating points. You can push or pull any part of a path, regardless of where the points are located. Fireworks adds, moves, or deletes points along the path as you change the vector object's shape.

Freeform tool pulling a path segment; A indicates the specified length

Freeform tool pushing a path segment

As you move the pointer over a selected path, it changes to the push or pull pointer, depending on its location relative to the selected path. You can change the size of the push or pull pointer.

Pointer Meaning

The Freeform tool is in use.

The Freeform tool is in use, and the pull pointer is in position to pull the selected path.

The Freeform tool is in use, and the pull pointer is pulling the selected path.

The Freeform tool is in use, and the push pointer is active.

The Reshape Area tool is in use, and the reshape area pointer is active. The area from the inner circle to the outer circle represents reduced strength.

Note: The Freeform tool also responds to pressure from a Wacom or other compatible tablet.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Pull a selected path

When the pointer is directly over the path, you can pull the path.

1 In the Tools panel, select the Freeform tool .

2 Move the pointer directly over the selected path.

3 Drag the path.

Push a selected path

When the pointer is not directly over the path, you can push the path.

1 In the Tools panel, select the Freeform tool.

2 Point slightly away from the path.

3 Drag toward the path to push it. Nudge the selected path to reshape it.

Change the size of the push pointer

❖ Do one of the following:

• While holding down the mouse button, press the Right Arrow key or the 2 key to increase the width of the

pointer.

• While holding down the mouse button, press the Left Arrow key or the 1 key to decrease the width of the pointer.

• To set the size of the pointer (in pixels) and set the length of the path segment that it affects, deselect all objects

in the document, and then enter a value from 1 to 500 in the Size box of the Property inspector.

Distort selected paths with the Reshape Area tool

The Reshape tool pulls the area of all selected paths within the outer circle of the reshape area pointer.

The pointer's inner circle is the boundary of the tool at full strength. The area between the inner and outer circles reshapes paths at less than full strength. The pointer's outer circle determines the gravitational pull of the pointer. You can set its strength.

Note: The Reshape Area tool also responds to pressure from a Wacom or other compatible tablet.

1 From the Freeform tool pop-up menu, select the Reshape Area tool.

2 Drag across the paths to redraw them.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Change the size of the reshape area pointer

❖ Do one of the following:

• While holding down the mouse button, press the Right Arrow key or the 2 key to increase the width of the

pointer.

• While holding down the mouse button, press the Left Arrow key or the 1 key to decrease the width of the pointer.

• To set the size of the pointer (in pixels) and set the length of the path segment that it affects, deselect all objects

in the document, and then enter a value from 1 to 500 in the Size box of the Property inspector.

Set the strength of the inner circle of the reshape area pointer

❖ In the Strength box of the Property inspector, enter a value from 1 to 100 to specify the percentage of the pointer's

potential strength. The higher the percentage, the greater the strength.

Redraw or extend a selected path segment with the Redraw Path tool

When you use the Redraw Path tool, the path's stroke, fill, and effect characteristics are retained.

1 From the Pen tool pop-up menu, select the Redraw Path tool .

2 (Optional) Change the precision level of the Redraw Path tool by selecting a number from the pop-up menu in the

Precision box of the Property inspector. The higher the number, the greater the number of points that appear on the path.

3 Move the pointer directly over the path.

4 Drag to redraw or extend a path segment.

5 Release the mouse button.

Change path appearance by varying pressure and speed with Path Scrubber tools

Using varying pressure or speed, you can change a path's stroke properties. To specify which of these properties is affected by the Path Scrubber tools, use the Sensitivity tab of the Edit Stroke dialog box. You can also specify how much pressure and speed affects the properties.

For details on setting options in the Edit Stroke dialog box, see “Apply and change strokes” on page 110.

Slice a path into multiple objects with the Knife tool

1 In the Tools panel, select the Knife tool .

Note: Using the eraser on Wacom pens automatically selects the Knife tool.

2 Do one of the following:

• Drag the pointer across the path.

• Click the path.

3 Deselect the path.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Edit with path operations

You can use path operations in the Modify menu to create new shapes by combining or altering existing paths. For some path operations, the stacking order of selected path objects defines how the operation works.

For information on arranging the stacking order of selected objects, see “Stack the order of objects” on page 52.

Note: Using a path operation removes all pressure and speed information from the affected paths.

Create one continuous path from two open paths

1 In the Tools panel, choose the Subselection tool.

2 Select two end points on two open paths.

3 Select Modify > Combine Paths > Join.

Create a composite path

1 Select two or more open or closed paths.

2 Select Modify > Combine Paths > Join.

Break apart a composite path

1 Select the composite path.

2 Select Modify > Combine Paths > Split.

Combine selected closed paths as one path enclosing the entire area of the original paths

❖ Select Modify > Combine Paths > Union. The resulting path assumes the stroke and fill attributes of the object that

is placed farthest back.

Convert a path to a marquee selection

You can convert a vector shape to a bitmap selection, and then use the bitmap tools to edit the new bitmap.

1 Select a path.

2 Select Modify > Convert Path To Marquee.

3 In the Convert Path To Marquee dialog box, select an Edge setting for the marquee.

4 If you chose Feather in the Edge setting, specify the value you want to use for the amount of feather.

5 Click OK.

Note: Converting a path to a marquee deletes the selected path. To change this default, select Edit > Preferences > Edit, and then deselect the Delete Paths When Converting To Marquee setting.

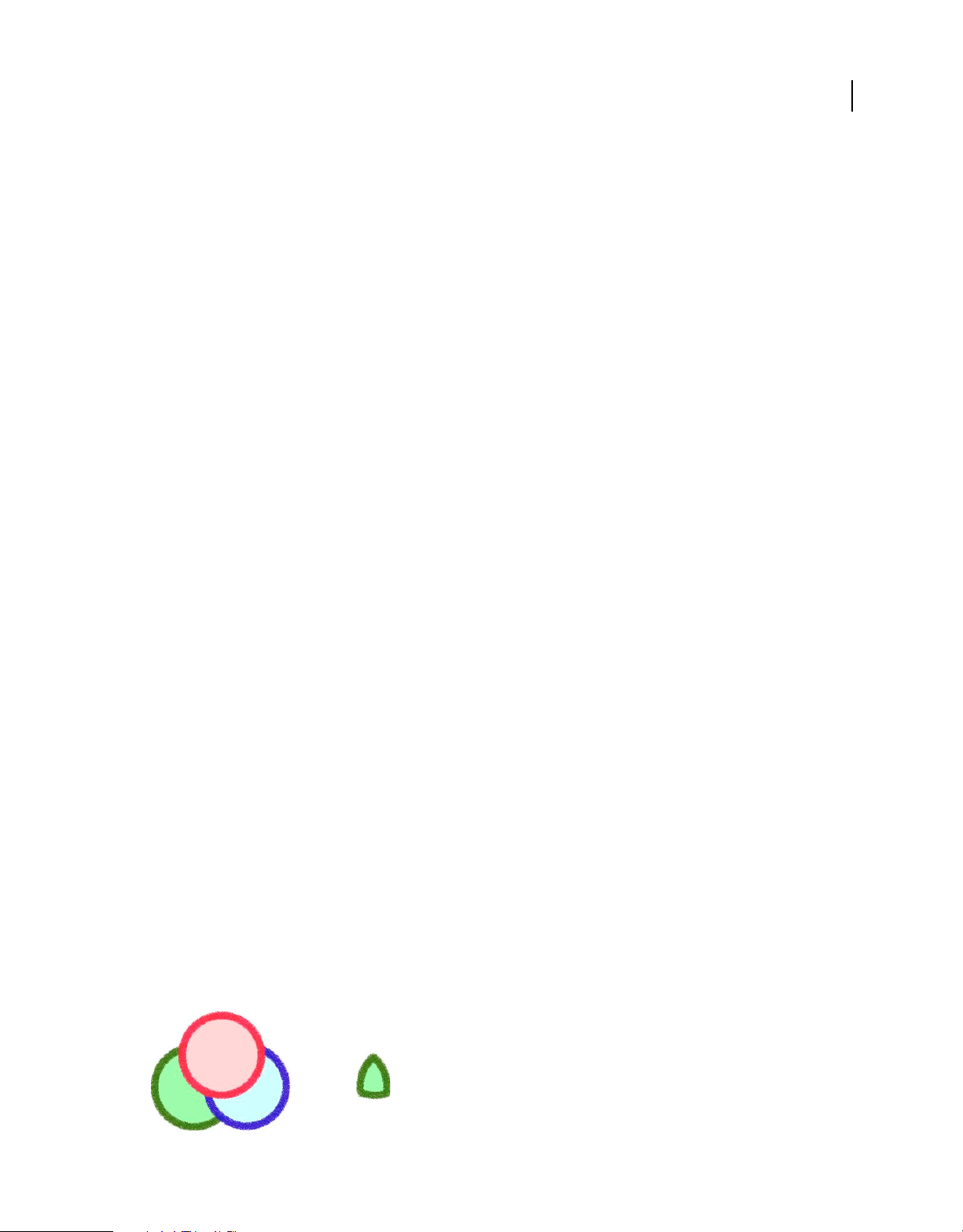

Create an object from the intersection of other objects

❖ Select Modify > Combine Paths > Intersect. The resulting path assumes the stroke and fill attributes of the object

that is placed farthest back.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Remove portions of a path object

You can remove portions of a selected path object as defined by the overlapping portions of another selected path object arranged in front of it.

1 Select the path object that defines the area you want to remove.

2 Select Modify > Arrange > Bring To Front.

3 Hold down Shift and add to the selection the path object from which the portions you want to remove.

4 Select Modify > Combine Paths > Punch.

Crop a path

You can crop a path using the shape of another path. The front or topmost path defines the shape of the cropped area.

1 Select the path object that defines the area you want to crop.

2 Select Modify > Arrange > Bring To Front.

3 Hold down Shift and add to the selection the path object you want to crop.

4 Select Modify > Combine Paths > Crop.

The resulting path object retains the stroke and fill attributes of the object that is placed farthest back.

Simplify a path

The Simplify command removes redundant points on your path by an amount you specify. Examples of redundant points are more than two points on a straight line or points that lie exactly on top of one another.

1 Select Modify > Alter Path > Simplify.

2 Enter a simplification amount and click OK.

Simplifying a path increases the extent to which Fireworks can alter the path to reduce the number of points on that path.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Expand a selected object's stroke

You can convert the stroke of a selected path into a closed path. The result creates the illusion of a path with no fill and a stroke that takes on the same attributes as the original object's fill.

Note: Expanding the stroke of a path that intersects itself can produce interesting results. If the original path contains a fill, the intersecting portions of the path will not contain a fill after the stroke is expanded.

1 Select Modify > Alter Path > Expand Stroke.

2 Set the width of the resulting closed path.

3 Select a corner type.

4 If you chose miter, set the miter limit (the point at which a miter corner automatically becomes a beveled corner).

The miter limit is the ratio of miter corner length to stroke width.

5 Select an end cap option, and then click OK.

Contract or expand a path

1 Select Modify > Alter Path > Inset Path.

2 Select a direction to contract or expand the path:

Inside Contracts the path.

Outside Expands the path.

3 Set the width between the original path and the contracting or expanding path.

4 Select a corner type.

5 If you chose miter, set the miter limit.

6 Click OK.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with vector objects

Edit paths using the Path panel

To speed up path editing tasks, use the following tools in the Path panel (Window > Others > Path).

Last updated 3/8/2011

Chapter 7: Working with text

Adobe® Fireworks® enables you to use many features typically reserved for sophisticated desktop publishing applications, including using a variety of fonts and sizes and adjusting kerning, spacing, color, leading, and baseline shift. You can edit text any time—even after you apply Live Filters, and can import editable text from an Adobe Photoshop® document.

Enter text

Use the Text tool and the options in the Property inspector to enter, format, and edit text in your graphics.

Note: If the Property inspector is minimized, click the expander arrow in the lower-right corner to see all text properties.

Text objects are automatically saved under a name that matches the text you've typed. You can change the assigned name in the Text box of the Property inspector or in the object panel thumbnail in the Layers panel.

More Help topics

“Type preferences” on page 280

Create and move text blocks

Text in a Fireworks document appears inside a text block (a rectangle with handles). Text blocks are either auto-sizing or fixed-width blocks.

• An auto-sizing text block expands horizontally as you type and shrinks when you remove text. Auto-sizing text

blocks are created by default when you click on the canvas with the Text tool and start typing.

• Fixed-width text blocks allow you to control the width of wrapped text. Fixed-width text blocks are created by

default when you drag to draw a text block using the Text tool.

• When the text pointer is active within a text block, a hollow circle or hollow square appears in the upper-right

corner of the text block. The circle indicates an auto-sizing text block; the square indicates a fixed-width text block. Double-click the corner to change from one text block to the other.

1 Select the Text tool.

2 Select text characteristics.

3 Create a text block:

• To create an auto-sizing text block, click in your document where you want the text block to begin to create an auto-

sizing text block.

• To create a fixed-width text block, drag to draw a text block. To move the text block while you drag to create it, hold

down the mouse button, press and hold down the spacebar, and drag the text block to another location.

1 Type the text.

2 (Optional) Highlight text within the text block and reformat it.

3 (Optional) To move the text block, drag it to a new location.

4 Do one of the following:

• Click outside the text block.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with text

• Select another tool in the Tools panel.

• Press Escape.

Change auto-sized and fixed-width text blocks

A fixed-width text block and an auto-sizing text block A. Fixed-width indicator B. Auto-sizing indicator

• To change a text block to fixed-width or auto-sizing, double-click inside the text block, and then double-click the

circle or square in the upper-right corner of the text block.

• To change a selected text block to fixed-width by resizing it, drag a resize handle.

• To change multiple text blocks to fixed-width, select the text blocks, and then select Commands > Text > Set Width.

• To change fixed-width text blocks to auto-sizing, select the text blocks, and then select Commands > Text > Toggle

Fixed Width.

Format and edit text

The quickest method of editing text with detailed editing control is to use the Property inspector. As an alternative to the Property inspector, use commands in the Text menu.

Important: Changes you make during a text-editing session constitute only one Undo. Choosing Edit > Undo while editing text will undo every text edit you've made from the time you double-clicked the text block to edit its contents.

1 Do one of the following to select the text you want to change:

• Click a text block with the Pointer or Subselection tool to select the entire block. To select multiple blocks

simultaneously, hold down Shift as you select each block.

• Double-click a text block with the Pointer or Subselection tool, and then highlight a range of text.

• Click inside a text block with the Text tool, and then highlight a range of text.

2 Change the text or to the font. Fonts are measured in points.

3 Do one of the following:

• Click outside the text block.

• Select another tool in the Tools panel.

• Press Escape.

About fonts

A font is a complete set of characters—letters, numbers, and symbols—that share a common weight, width, and style, such as 10-pt Adobe Garamond Bold.

Typefaces (often called type families or font families) are collections of fonts that share an overall appearance, and are designed to be used together, such as Adobe Garamond.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with text

A type style is a variant version of an individual font in a font family. Typically, the Roman or Plain (the actual name varies from family to family) member of a font family is the base font, which may include type styles such as regular, bold, semibold, italic, and bold italic.

In addition to the fonts installed on your system, you can also use the fonts installed in these folders:

Windows Program Files/Common Files/Adobe/Fonts

Mac OS Library/Application Support/Adobe/Fonts

If you install a Type 1, TrueType, OpenType, or CID font into the local Fonts folder, the font appears in Adobe applications only.

Previewing fonts

You can view samples of a font in the font family and font style menus in the Character panel and other areas in the application from where you can choose fonts. The following icons are used to indicate different kinds of fonts:

• OpenType

• Type 1

• TrueType

• Multiple Master

• Composite

You can turn off the preview feature or change the point size of the font names or font samples in Type preferences.

Specify a typeface size

By default, typeface size is measured in points (a point equals 1/72 of an inch). You can specify any typeface size from

0.1 to 1296 points, in 0.001-point increments.

1 Select the characters or type objects you want to change. If you don’t select any text, the typeface size applies to new

text you create.

2 Do one of the following:

• In the Character panel or Control bar set the Font Size option.

• Choose a size from the Type > Size menu. Choosing Other lets you type a new size in the Character panel.

You can change the unit of measurement for type in the Preferences dialog box.

Make missing fonts available

❖ Do any of the following:

• Install the missing fonts on your system.

• Activate the missing fonts using a font-management application.

• Place the missing fonts in the Fonts folder, which is located in the application folder. Fonts in this folder are

available only to the application. For Mac

> Fonts folder. Fonts installed here can only be used by Adobe products.

Adobe

If you don’t have access to the missing fonts, search for and replace missing fonts.

OS, fonts can be installed to the HD > Library > ApplicationSupport >

Last updated 3/8/2011

USING FIREWORKS CS4

Working with text

Choose a font family and style

You can choose a font family and style with the Property inspector or the Text menu.

More Help topics

“Type preferences” on page 280

Choose a font family and style with the Property inspector

1 Choose a family from the Font menu. If more than one copy of a font is installed on your computer, an abbreviation

follows the font name: (T1) for PostScript fonts, (TT) for TrueType fonts, or (OT) for OpenType fonts.

You can choose a font family and style by typing its name in the box. As you type, the name of the first font or style beginning with that letter appears. Continue typing until the correct font or style name appears.

2 To choose a typeface style, do one of the following:

• Choose an installed style from the Style menu in the Property inspector.

• If the font family does not include styles, click the Faux Bold, Faux Italic, or Underline button to apply a

simulated style.

Choose a font family and style with the Text menu

❖ Choose Text > Font > [family] > [style]. If the font family does not include styles, choose Regular, Faux Bold, Faux

Italic, or Underline from the Text

> Style menu.

Change text to uppercase

You can change the selected text to uppercase.

❖ Select Commands > Text > Case Uppercase.

Change text to lowercase

You can change the selected text to lowercase.

❖ Select Commands > Text > Case Lowercase.

Change text to sentence case

You can change the selected text to start with an uppercase letter.

❖ Select Commands > Text > Case Uppercase First.

Insert special characters

1 After creating a text block, click the location inside the text block where you want to insert a special character.

2 Select Window > Others > Special Characters, and then select the character you want to insert.

Insert placeholder text

You can insert a block of placeholder text that does not have any specific meaning. This option places a block of text (lorem ipsum) into your canvas.

❖ Select Commands > Text > Lorem Ipsum.

Last updated 3/8/2011

USING FIREWORKS CS4

Working with text

Note: You can also use the LoremIpsum random text generator extension for quickly adding placeholder text for your mockups. The extension is available at

http://www.adobe.com/cfusion/exchange/index.cfm?event=productHome&exc=6&loc=en_us.

Apply color to text

• By default, text is black and has no stroke. You can change the color of all text in a selected text block or of all

highlighted text in a text block. In addition, stroke and Live Filters can be added to all text in a selected text block but not to text that is highlighted in a text block.

• The Text tool retains the current text color from text block to text block.

• Stroke characteristics and Live Filters that are applied to a text block are updated as you edit text in the text block,

but those updates are not applied to new text blocks.

• The Text tool retains the current text color regardless of the fill color of other tools. After you use a fill color and

return to the Text tool, the fill color reverts to the most recent Text tool setting, and the stroke is reset to None.

See “Save stroke, fill, and filter text attributes as a style” on page 98.

Set the color of text in a selected text block

❖ Do one of the following:

• Click the Fill Color box in the Property inspector and select a color from the color pop-up window. Or, with

either color pop-up window open, use the eyedropper pointer to sample a color from anywhere on the screen.

Fill Color box

• In the Tools panel, click the icon next to the Fill Color box and select a color from the color pop-up window. Or,

with the Fill Color box pop-up window open, use the eyedropper to sample a color anywhere on the screen.

Note: When you apply a stroke to highlighted text in a text block, the entire text block is automatically selected.

Set spacing between lines and letters

Kerning increases or decreases the spacing (in percentages) between certain pairs of letters to improve their appearance. Auto-kerning uses a font's kerning information when displaying text. Tracking increases or decreases the spacing between selected characters.

To disable auto-kerning, deselect Auto Kern in the Property inspector.
