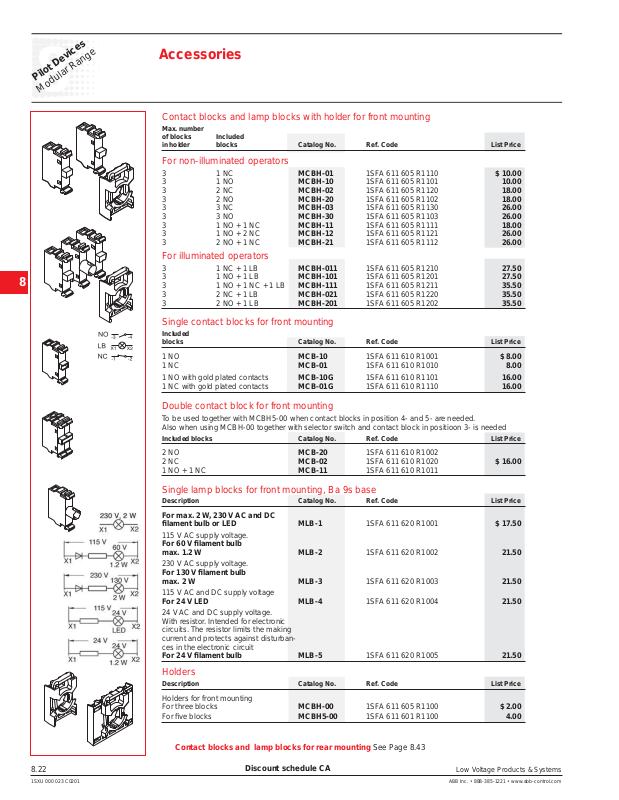

ABB Accessories Catalog Page
Pilot Devices
8
Modular Range
8
Accessories
Contact blocks and lamp blocks with holder for front mounting
Max. number
of blocks Included
in holder blocks Catalog No. Ref. Code List Price
For non-illuminated operators
3 1 NC MCBH-01 1SFA 611 605 R1110 $ 10.00
3 1 NO MCBH-10 1SFA 611 605 R1101 10.00
3 2 NC MCBH-02 1SFA 611 605 R1120 18.00
3 2 NO MCBH-20 1SFA 611 605 R1102 18.00
3 3 NC MCBH-03 1SFA 611 605 R1130 26.00
3 3 NO MCBH-30 1SFA 611 605 R1103 26.00
3 1 NO + 1 NC MCBH-11 1SFA 611 605 R1111 18.00
3 1 NO + 2 NC MCBH-12 1SFA 611 605 R1121 26.00
3 2 NO + 1 NC MCBH-21 1SFA 611 605 R1112 26.00
For illuminated operators
3 1 NC + 1 LB MCBH-011 1SFA 611 605 R1210 27.50
3 1 NO + 1 LB MCBH-101 1SFA 611 605 R1201 27.50
3 1 NO + 1 NC + 1 LB MCBH-111 1SFA 611 605 R1211 35.50
3 2 NC + 1 LB MCBH-021 1SFA 611 605 R1220 35.50
3 2 NO + 1 LB MCBH-201 1SFA 611 605 R1202 35.50
Single contact blocks for front mounting
Included
blocks Catalog No. Ref. Code List Price
1 NO MCB-10 1SFA 611 610 R1001 $ 8.00
1 NC MCB-01 1SFA 611 610 R1010 8.00
1 NO with gold plated contacts MCB-10G 1SFA 611 610 R1101 16.00
1 NC with gold plated contacts MCB-01G 1SFA 611 610 R1110 16.00
Double contact block for front mounting
To be used together with MCBH5-00 when contact blocks in position 4- and 5- are needed.
Also when using MCBH-00 together with selector switch and contact block in positioon 3- is needed
Included blocks Catalog No. Ref. Code List Price
2 NO MCB-20 1SFA 611 610 R1002
2 NC MCB-02 1SFA 611 610 R1020 $ 16.00
1 NO + 1 NC MCB-11 1SFA 611 610 R1011
Single lamp blocks for front mounting, Ba 9s base
Description Catalog No. Ref. Code List Price
For max. 2 W, 230 V AC and DC
fi lament bulb or LED MLB-1 1SFA 611 620 R1001 $ 17.50
115 V AC supply voltage.
For 60 V fi lament bulb
max. 1.2 W MLB-2 1SFA 611 620 R1002 21.50
230 V AC supply voltage.
For 130 V fi lament bulb
max. 2 W MLB-3 1SFA 611 620 R1003 21.50
115 V AC and DC supply voltage
For 24 V LED MLB-4 1SFA 611 620 R1004 21.50
24 V AC and DC supply voltage.
With resistor. Intended for electronic
circuits. The resistor limits the making
current and protects against disturbances in the electronic circuit
For 24 V fi lament bulb MLB-5 1SFA 611 620 R1005 21.50
Holders
Description Catalog No. Ref. Code List Price
Holders for front mounting
For three blocks MCBH-00 1SFA 611 605 R1100 $ 2.00
For fi ve blocks MCBH5-00 1SFA 611 601 R1100 4.00
Contact blocks and lamp blocks for rear mounting See Page 8.43
8.22 Low Voltage Products & Systems
1SXU 000 023 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Discount schedule CA
Pilot Devices
Accessories
Modular Range
Transformer block
For 6 or 24 V fi lament bulb and 24 V LED. Rated power 1.5 W.
Primary Secondary
voltage voltage Catalog No. Ref. Code List Price
With lamp holder for front mounting, Ba 9s base
Intended to supply a 1.2 W fi lament bulb.
110 - 127V AC 6 V AC KTR1-1001 1SFA 616 950 R1001
220 - 250 V AC 6 V AC KTR1-1002 1SFA 616 950 R1002
380 - 420 V AC 6 V AC KTR1-1003 1SFA 616 950 R1003
440 - 480 V AC 6 V AC KTR1-1004 1SFA 616 950 R1004
500 - 600 V AC 6 V AC KTR1-1005 1SFA 616 950 R1005
110 - 127 V AC 24 V AC
220 - 250 V AC 24 V AC
380 - 420 V AC 24 V AC 1 KTR1-1013 1SFA 616 950 R1013
440 - 480 V AC 24 V AC 1 KTR1-1014 1SFA 616 950 R1014
1 KTR1-1011 1SFA 616 950 R1011
1 KTR1-1012 1SFA 616 950 R1012
$ 35.00
For illuminated operators 2
Intended to supply a 1.2 W fi lament bulb mounted in
lamp block MLB-1 (1SFA 611 620 R1001) only.
110 - 127V AC 6 V AC KTR1-2001 1SFA 616 950 R2001
220 - 250 V AC 6 V AC KTR1-2002 1SFA 616 950 R2002
380 - 420 V AC 6 V AC KTR1-2003 1SFA 616 950 R2003
440 - 480 V AC 6 V AC KTR1-2004 1SFA 616 950 R2004
500 - 600 V AC 6 V AC KTR1-2005 1SFA 616 950 R2005
110 - 127 V AC 24 V AC
220 - 250 V AC 24 V AC 1 KTR1-2012 1SFA 616 950 R2012
380 - 420 V AC 24 V AC 1 KTR1-2013 1SFA 616 950 R2013
440 - 480 V AC 24 V AC 1 KTR1-2014 1SFA 616 950 R2014
1 KTR1-2011 1SFA 616 950 R2011
35.00
8
8
Diode block
To be used if several lamps are to be connected to a common lamp-test pushbutton.
A diode must be connected in series with each lamp. The diode block snaps onto
the lamp block or is placed at the side.
Description Catalog No. Ref. Code List Price
Diode block MDB-1001 1SFA 611 630 R1001 $ 14.00
Diagram for lamp test with three diode block
1 Can be used with LED bulb
2 To be used with with directly supplied lamp blocks only.
Low Voltage Products & Systems 8.23
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
