4ipnet EAP220 User Manual

Enterprise Access Point

Indoor EAP Series/

Outdoor OWL Series

User’s Manual

Enterprise Access Point ENGLISH

Copyright & Disclaimer

Copyright

The contents of this publication may not be reproduced in any part or as a whole, stored,

transcribed in an information retrieval system, translated into any language, or transmitted in any

form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or

otherwise, without the prior written permission of 4IPNET, INC.

Disclaimer

4IPNET, INC. does not assume any liability arising out the application or use of any products, or

software described herein. Neither does it convey any license under its parent rights not the parent

rights of others. 4IPNET further reserves the right to make changes in any products described herein

without notice. The publication is subject to change without notice.

Trademarks

4IPNET (4ipnet) is a registered trademark of 4IPNET, INC. Other trademarks mentioned in this

publication are used for identification purposes only and may be properties of their respective

owners.

1

User’s Manual

Enterprise Access Point ENGLISH

Table of Contents

1. Before You Start .................................................................................................................................. 5

1.1 Preface ................................................................................................................................................. 5

1.2 Document Conventions .................................................................................................................... 6

1.3 Package Content ................................................................................................................................ 7

2. System Overview and Getting Started ........................................................................................... 11

2.1 Introduction of 4ipnet Access Points ........................................................................................... 11

2.2 Hardware Description ................................................................................................................... 12

2.3 Hardware Installation .................................................................................................................... 36

2.4 Access Web Management Interface ............................................................................................. 49

3. Connect your AP to your Network .................................................................................................. 52

4. Adding Virtual Access Points .......................................................................................................... 58

5. Securing the AP ................................................................................................................................. 60

6. Creating a WDS Bridge between two APs ...................................................................................... 71

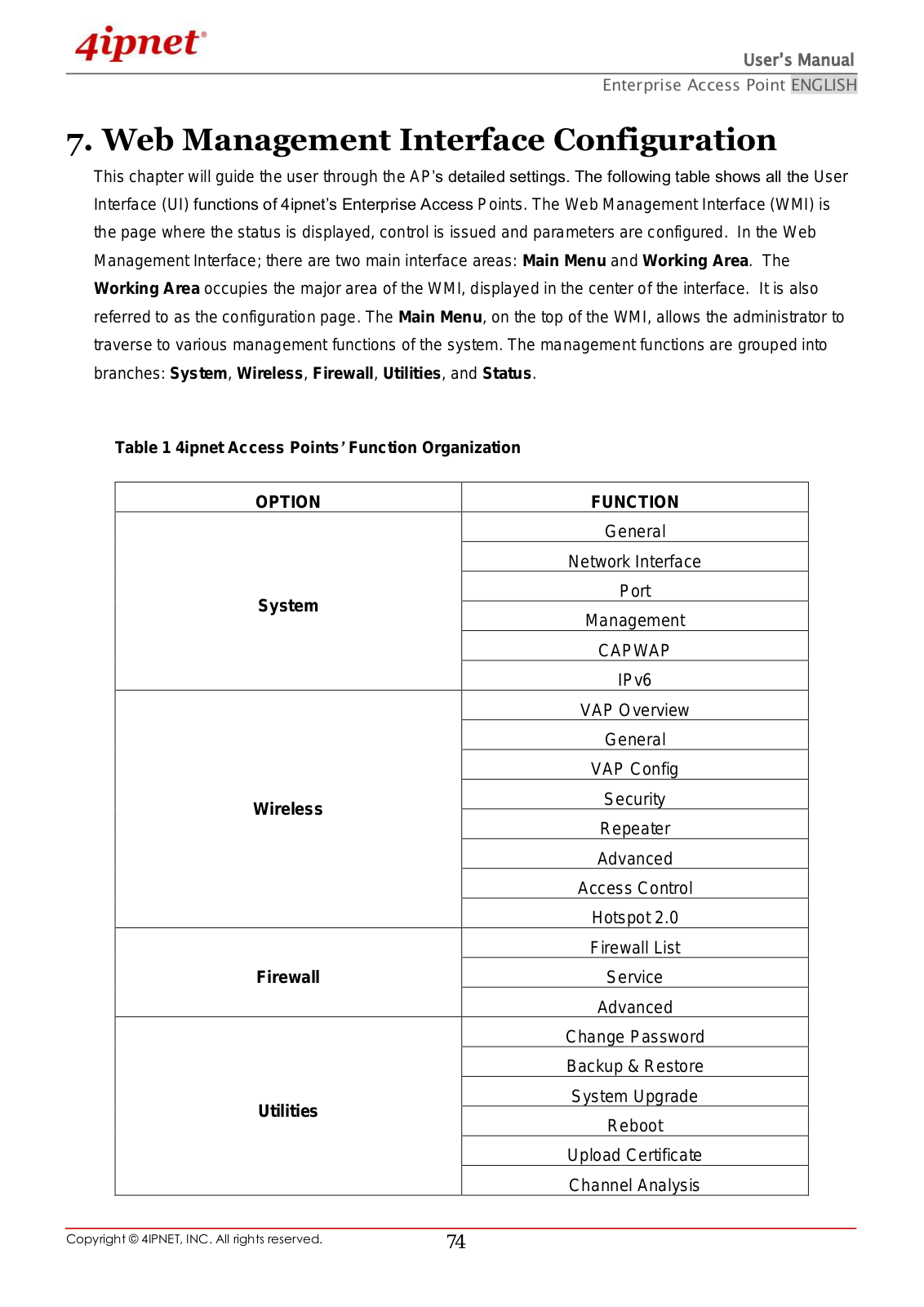

7. Web Management Interface Configuration ................................................................................... 74

7.1 System ............................................................................................................................................... 76

7.1.1 General ............................................................................................................................ 76

7.1.2 Network Interface ........................................................................................................... 78

7.1.3 Port ..................................................................................................................................80

7.1.4 Management ................................................................................................................... 81

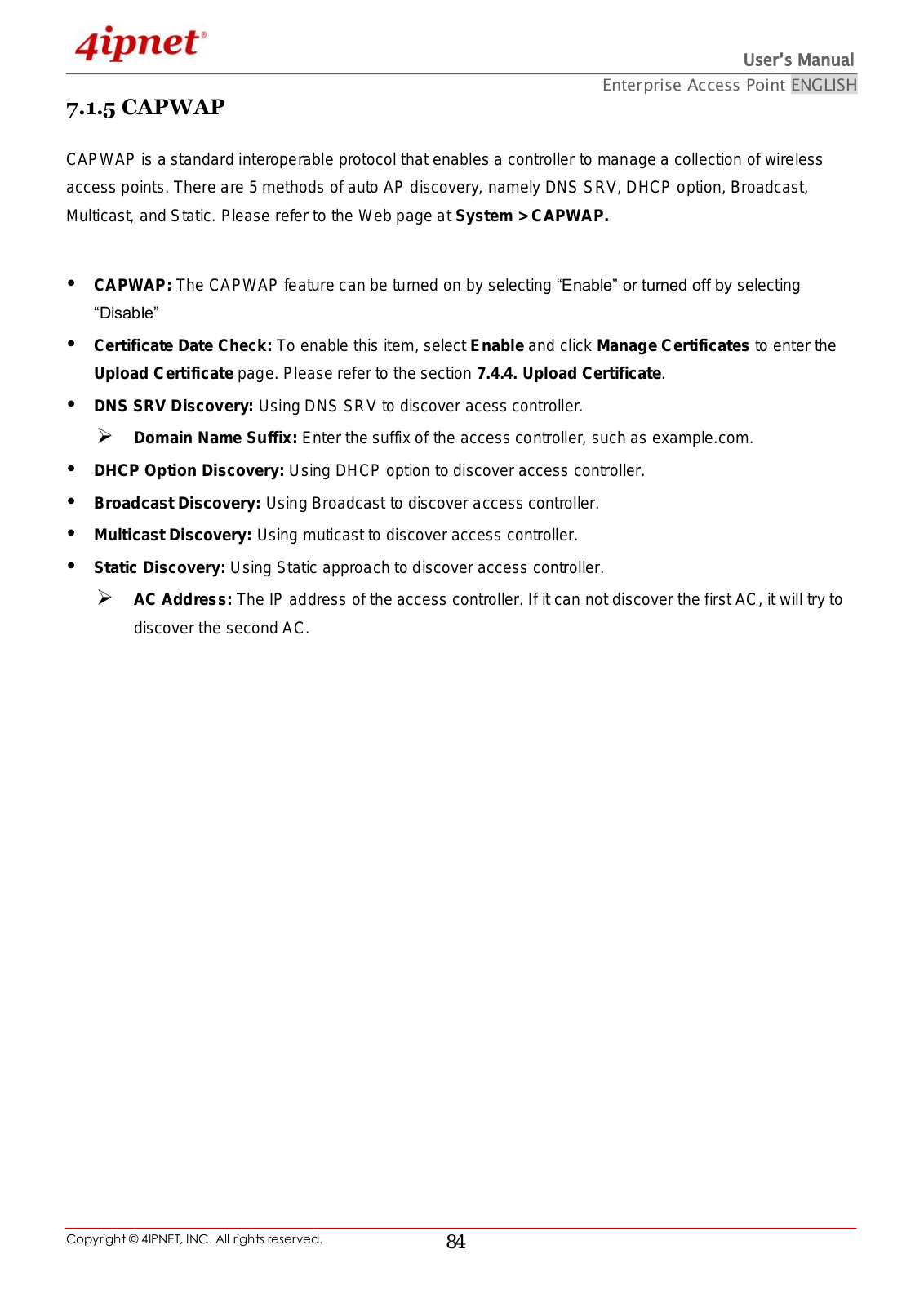

7.1.5 CAPWAP ......................................................................................................................... 84

7.1.6 IPv6 ................................................................................................................................. 85

7.2 Wireless ............................................................................................................................................ 86

7.2.1 VAP Overview ................................................................................................................. 86

7.2.2 General ........................................................................................................................... 89

7.2.3 VAP Configuration ......................................................................................................... 93

7.2.4 Security ........................................................................................................................... 95

7.2.5 Repeater ....................................................................................................................... 100

7.2.6 Advanced ...................................................................................................................... 102

7.2.7 Access Control .............................................................................................................. 104

7.2.8 Hotspot 2.0 .................................................................................................................. 108

7.3 Firewall ........................................................................................................................................... 110

7.3.1 Firewall List ................................................................................................................... 110

7.3.2 Service ........................................................................................................................... 113

7.3.3 Advanced ....................................................................................................................... 114

7.4 Utilities ........................................................................................................................................... 115

7.4.1 Change Password ........................................................................................................... 115

7.4.2 Backup & Restore .......................................................................................................... 116

2

User’s Manual

Enterprise Access Point ENGLISH

7.4.3 System Upgrade ............................................................................................................ 118

7.4.4 Reboot ........................................................................................................................... 118

7.4.5 Upload Certificate ......................................................................................................... 119

7.4.6 Channel Analysis .......................................................................................................... 120

7.4.7 Background Scan ........................................................................................................... 121

7.5 Status .............................................................................................................................................. 122

7.5.1 Overview ....................................................................................................................... 122

7.5.2 Interfaces ...................................................................................................................... 124

7.5.3 Associated Clients ........................................................................................................ 125

7.5.4 WDS Link Status .......................................................................................................... 127

7.5.5 Event Log ...................................................................................................................... 128

7.5.6 Monitor ......................................................................................................................... 129

8. CPE Mode Configuration (OWL530/EAP210) .......................................................................... 130

8.1 System ....................................................................................................................................... 132

8.1.1 System Information ................................................................................................... 132

8.1.2 Operating Mode ..................................................................................................... 134

8.1.3 Network Settings .................................................................................................... 135

8.1.4 Management ........................................................................................................... 138

8.2 Wireless .................................................................................................................................... 140

8.2.1 General Settings ..................................................................................................... 140

8.2.2 Advanced Wireless Settings .................................................................................... 141

8.2.3 Security Settings ..................................................................................................... 142

8.2.4 Site Survey .............................................................................................................. 144

8.3 Firewall ..................................................................................................................................... 147

8.3.1 IP/ Port Forwarding ............................................................................................... 147

8.3.2 Demilitarized Zone ................................................................................................. 148

8.4 Utilities ..................................................................................................................................... 149

8.4.1 Change Password ................................................................................................... 149

8.4.2 Backup & Restore ................................................................................................... 150

8.4.3 System Upgrade ...................................................................................................... 151

8.4.4 Reboot .................................................................................................................... 152

8.4.5 Upload Certificate .................................................................................................. 153

8.5 Status ........................................................................................................................................ 154

8.5.1 System Overview .................................................................................................... 154

8.5.2 Interfaces ................................................................................................................ 156

8.5.3 Event Log ................................................................................................................ 159

8.5.4 Monitor ................................................................................................................... 160

8.5.5 DHCP Leases ........................................................................................................... 161

3

User’s Manual

Enterprise Access Point ENGLISH

8.5.6 UPnP Status ............................................................................................................ 162

9. Console Interface Configuration ................................................................................................... 163

4

User’s Manual

EAP210

Up to software version 1.40

EAP220

Up to software version 1.40

EAP320

Up to software version 2.40

EAP330

Up to software version 1.20

EAP701

Up to software version 1.13

EAP705

Up to software version 1.10

EAP706

Up to software version 1.10

EAP717

Up to software version 1.13

EAP727

Up to software version 1.10

EAP757

Up to software version 2.40

EAP760

Up to software version 1.20

EAP767

Up to software version 1.20

OWL530

Up to software version 1.40

OWL620

Up to software version 1.70

OWL630

Up to software version 1.20

Enterprise Access Point ENGLISH

1. Before You Start

1.1 Preface

This manual is intended for using by system integrators, field engineers and network administrators to help them set up Access Points in their network environments. It contains step by step procedures and pictures to guide users with basic network system knowledge to complete the installation.

Corresponding Software Versions for each Model

5

User’s Manual

Represents essential steps, actions, or messages that should not be ignored.

 Note:

Contains related information that corresponds to a topic.

Indicates that clicking this button will save the changes you made, but you must reboot the system for the changes to take effect.

Indicates that clicking this button will clear what you have set before the settings are applied.

1.2 Document Conventions

Enterprise Access Point ENGLISH

6

User’s Manual

1.3 Package Content

The standard package of EAP210 includes:

 4ipnet EAP210 x1  Quick Installation Guide (QIG) x1  Console Cable x1  Power Adaptor (12V) x1  Detachable Antenna x2

The standard package of EAP220 includes:

 4ipnet EAP220 x1

Enterprise Access Point ENGLISH

 Quick Installation Guide (QIG) x1  Console Cable x1  Ethernet Cable x1  Power Adaptor (12V) x1  Detachable Antenna x4

The standard package of EAP320 includes:

 4ipnet EAP320 x1  Quick Installation Guide (QIG) x1  Console Cable x1  Ethernet Cable x1  Power Adaptor (12V) x1  Detachable Antenna x4

The standard package of EAP330 includes:

 4ipnet EAP330 x1  Quick Installation Guide (QIG) x1  Console Cable x1  Ethernet Cable x1  Power Adaptor (12V) x1  Detachable Antenna x6

7

User’s Manual

The standard package of EAP701 includes:

 4ipnet EAP701 x1  Quick Installation Guide (QIG) x1  Mounting Screws x2  Surface Mounting Panel x1  Outlet Mounting Panel x1  Mounting Plate Unfastening Tool x1  Power Adaptor (5V) (Optional) x1

The standard package of EAP705 includes:

 4ipnet EAP705 x1  Quick Installation Guide (QIG) x1  Mounting Screws x2

Enterprise Access Point ENGLISH

 Universal Mounting Panel x1  Mounting Plate Lock Tool x1  Power Adaptor (12V) (Optional) x1

The standard package of EAP706 includes:

 4ipnet EAP706 x1  Quick Installation Guide (QIG) x1  Mounting Screws x2  Universal Mounting Panel x1  Mounting Plate Lock Tool x1  Power Adaptor (12V) (Optional) x1  Detachable Antenna x4

The standard package of EAP717 includes:

 4ipnet EAP717 x1  Quick Installation Guide (QIG) x1  Ethernet Cable x1  Console Cable x1  Mounting Kit x1  Power Adaptor (5V) (Optional) x1

8

User’s Manual

The standard package of EAP727 includes:

 4ipnet EAP727 x1  Quick Installation Guide (QIG) x1  Mounting Kit x1  Power Adaptor (12V) (Optional) x1

The standard package of EAP757 includes:

 4ipnet EAP757 x1  Quick Installation Guide (QIG) x1  Ethernet Cable x1  Mounting Kit x1  Power Adaptor (12V) (Optional) x1

Enterprise Access Point ENGLISH

The standard package of EAP760 includes:

 4ipnet EAP760 x1  Quick Installation Guide (QIG) x1  Mounting Kit x1  Power Adaptor (12V) (Optional) x1  Detachable Antenna x3

The standard package of EAP767 includes:

 4ipnet EAP767 x1  Quick Installation Guide (QIG) x1  Wall Mount Kit x1  Ceiling Mount Kit x1  Power Adaptor (12V) (Optional) x1

The standard package of OWL530 includes:

 4ipnet OWL530 x1  Quick Installation Guide (QIG) x1  Ground Wire x1  Mounting Kit x1  Power Sourcing Equipment (Optional) x1

9

User’s Manual

It is recommended to keep the original packing materials for possible future shipment when repair or maintenance is required. Any returned product should be packed in its original packaging to prevent damage during delivery.

The standard package of OWL620 includes:

 4ipnet OWL620 x1  Quick Installation Guide (QIG) x1  Mounting Kit x1  Waterproof RJ45 Connector Pack x2  Power Sourcing Equipment (Optional) x1

The standard package of OWL630 includes:

 4ipnet OWL630 x1  Quick Installation Guide (QIG) x1  Mounting Kit x1  Ground Wire x1  Waterproof RJ45 Connector Pack x2

Enterprise Access Point ENGLISH

 Waterproof M12 Connector Pack x1  Power Sourcing Equipment (Optional) x1

10

User’s Manual

11

 Please note that screenshots are taken from APs which feature dual RF cards. Single RF

Card APs can be configured in the same manner from the User Interface.

Enterprise Access Point ENGLISH

2. System Overview and Getting Started

2.1 Introduction of 4ipnet Access Points

Indoor – EAP210 / EAP220 / EAP320 / EAP330 / EAP701 / EAP705 / EAP706 / EAP717 / EAP727 / EAP757 / EAP760 / EAP767

The 4ipnet’s Enterprise Access Point EAP Series are embedded with 802.11 a/b/g/n/ac MIMO technology, designed for seamless wireless connectivity in enterprise or industrial environments of all dimensions. EAP220 / EAP320 / EAP330 / EAP705 / EAP706 / EAP727 / EAP757 / EAP760 / EAP767 feature dual radio RF cards to offer flexible implementations needed for the growing wireless networking applications. The EAP Series make wireless communication fast, secure and easy. They support business grade security, namely 802.1X, and Wi-Fi Protected Access (WPA and WPA2). By pushing a purposely built button, the 4ipWES (Press-n-Connect) feature makes it easy to bridge wireless links of multiple access points for forming a wider wireless network coverage. The EAP Series also features multiple ESSIDs with VLAN tags and multiple Virtual APs, great for enterprise applications, such as separating traffic from different departments using different ESSIDs. The PoE LAN port is able to receive power from Power over Ethernet (PoE) sourcing devices. EAP210, EAP220, EAP320 and EAP330’s metal housing is IP50 anti-dust compliant, which means that these Access Points are well suited to WLAN deployment in industrial environments. EAP701 / EAP705 / EAP706 / EAP717 / EAP727 / EAP757 / EAP760 / EAP767 are packed in wall/ceiling mountable plastic enclosures, and are built perfectly to blend in with your décor.

Outdoor – OWL530 / OWL620 / OWL630

The 4ipnet OWL530 / OWL620 / OWL630 Outdoor Access Point is embedded with dual (OWL620 and OWL630) / single (OWL530) radio RF cards (802.11 a/b/g/n/ac MIMO) in weatherproof housing, designed for building municipal or campus wide wireless networks in harsh outdoor environments. The OWL Series’ rust-free die-cast Aluminum housing is IP68 compliant and high wind load resilient. All the components are designed to operate in a wide range of temperature. The OWL Series Outdoor Access Point makes wireless communication fast, secure and easy. It supports business grade security, namely 802.1X, and Wi-Fi Protected Access (WPA and WPA2). Combined with a variety of directional antennas (chosen by professionals), one OWL620/OWL630 with dual radios is easy to serve clients located in different directions as well as to cover longer range. With all modules supporting a/b/g/n bands, more channels are available for better channel planning. For example, to reduce radio interferences, network planners may select channels in 5 GHz for backhaul or bridges while allocating non-overlapping channels in 2.4 GHz for serving clients.

User’s Manual

12

1 (1) 2 3

7

1 (2)4

5

6

1

Antenna Connector

Reverse SMA connectors for attaching antennas. 1 (1) is the primary antenna connector and 1 (2) is the secondary.

2

12V 2A

Power Socket for the power adaptor.

3

Uplink Port

The port for uplink connection to another gateway or device. PoE (802.3af/at) is supported.

4

WES Button

WDS Easy Setup. Press the button to build up a WDS link with another peer. 4 WDS links can be set up.

5

Restart Button

Press to restart the system

6

LED Indicators

Power

On indicates power on.

Status

On indicates the system is ready.

WLAN

On indicates wireless network interface is ready for service.

2.2 Hardware Description

This section depicts the hardware information including all panel description.

EAP210

Front Panel

EAP210 Front Panel

Enterprise Access Point ENGLISH

Rear Panel

EAP210 Rear Panel

User’s Manual

13

WES

For indicating WDS connection status.

Master (Press for more than 3 seconds)

Slave (Press once and then release right away)

WES Start

LED (Green) OFF and then BLINKING SLOWLY

LED (Green) BLINKS SLOWLY

WES Negotiate

BLINKING SLOWLY (Green)

BLINKING RAPIDLY (Green)

WES Success

LED (Green) ON

WES Fail/Timeout

LED (Green) OFF

7

Console Port

To access EAP210 via the console interface

Enterprise Access Point ENGLISH

14

EAP220

1 2 3 4

Front Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP220 Front Panel

User’s Manual

15

A (1)

Primary antenna connector (Ant1) for RF Card A

A (2)

Secondary antenna connector (Ant2) for RF Card A

B (1)

Primary antenna connector (Ant1) for RF Card B

B (2)

Secondary antenna connector (Ant2) for RF Card B

1

Restart / Reset

Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds.

2

WES Button (RF B)

WDS Easy Setup. Press the button to build up a WDS link with another peer. 4 WDS links can be set up per RF card. Note that the WES Button only runs on the 5 GHz RF Card B.

3

Console Port

To access EAP220 via the console interface.

4

LAN 1~4 Ports

The ports for connections with LAN side devices.

5

Uplink Port (PoE)

The port for uplink connection to another gateway or device. PoE (802.3at) is supported.

6

12V 2A

Power Socket for the power adaptor

Enterprise Access Point ENGLISH

Rear Panel

16

EAP320

1

Restart / Reset

Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds.

2

WES Button (RF B)

WDS Easy Setup. Press the button to build up a WDS link with another peer. 4 WDS links can be set up per RF card. Note that the WES Button only runs on the 5 GHz RF Card B.

3

Console Port

To access EAP220 via the console interface.

4

LAN 1~4 Ports

The ports for connections with LAN side devices.

5

Uplink Port (PoE)

The port for uplink connection to another gateway or device. PoE (802.3at) is supported.

6

12V 2A

Power Socket for the power adaptor

A (1)

Primary antenna connector (Ant1) for RF Card A

A (2)

Secondary antenna connector (Ant2) for RF Card A

B (1)

Primary antenna connector (Ant1) for RF Card B

B (2)

Secondary antenna connector (Ant2) for RF Card B

Front Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP320 Front Panel

17

Rear Panel

1

12V 2A

Power Jack Socket

2

Restart / Reset

Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds.

3

WES Button (A / B)

WDS Easy Setup. Press the button to build up a WDS link with another peer. 4 WDS links can be set up per RF card.

4

LED Indicators

6 indicators that displays the states of 6 various functions or progresses. The numbers are explained on the leftmost side of the rear panel.

5

Uplink Port (PoE)

The port for uplink connection to another gateway or device. PoE is supported.

6

LAN Ports 1~2

The ports for connections with LAN side devices.

7

Console Port

To access EAP320 via the console interface.

User’s Manual

Enterprise Access Point ENGLISH

EAP320 Back Panel

18

EAP701

1

1 2

1 2 3

1

LAN 1 – 2 Ports

Attach Ethernet cables here to connect to the wired local network.

2

DC Jack 5V 2 A

Attach the power adaptor here.

1

Restart / Reset Button

Press once to restart the system; Press and hold for more than 5 seconds to reset to factory default.

2

LED Indicators

4 LED lights. Representation is listed at the top of the panel.

3

WES Button

WDS Easy Setup. Press the button to build up a WDS link with another peer.

Lower Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP701 Lower Panel

Upper Panel

EAP701 Upper Panel

19

Back Panel

1 2

1

110 Punchdown Block

Copper wire punch down for in-wall application

2

Uplink (PoE) Port

For Uplink connection. This port can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

User’s Manual

Enterprise Access Point ENGLISH

EAP701 Lower Panel

20

EAP705

1

32

1 2 3

1

LAN 1 – 2 Ports

Attach Ethernet cables here to connect to the wired local network.

2

Bypass

RJ-45 pass-through port

3

DC Jack 12V 1 A

Attach the power adaptor here.

1

Restart / Reset Button

Press once to restart the system; Press and hold for more than 5 seconds to reset to factory default.

2

LED Indicators

4 LED lights. Representation is listed at the top of the panel.

3

WES Button

WDS Easy Setup. Press the button to build up a WDS link with another peer.

Lower Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP705 Lower Panel

Upper Panel

EAP705 Upper Panel

21

Back Panel

1

2 3

1

Uplink (PoE) Port

For Uplink connection. This port can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

2

110 Punchdown Block (Pass-through)

Copper wire punch down for wiring bypass.

3

110 Punchdown Block (Uplink PoE)

Copper wire punch down for Uplink connection. This can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

User’s Manual

Enterprise Access Point ENGLISH

EAP705 Back Panel

22

EAP706

1

1 32

1 2

3

1

LAN 1 – 2 Ports

Attach Ethernet cables here to connect to the wired local network.

2

Bypass

RJ-45 pass-through port

3

DC Jack 12V 1 A

Attach the power adaptor here.

1

Restart / Reset Button

Press once to restart the system; Press and hold for more than 5 seconds to reset to factory default.

2

LED Indicators

4 LED lights. Representation is listed at the top of the panel.

3

WES Button

WDS Easy Setup. Press the button to build up a WDS link with another peer.

Lower Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP706 Lower Panel

Upper Panel

EAP706 Upper Panel

23

Back Panel

1

2 3

4a (2)

4b (2)

4a (1)

4b (1)

1

Uplink (PoE) Port

For Uplink connection. This port can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

2

110 Punchdown Block (Pass-through)

Copper wire punch down for wiring bypass.

3

110 Punchdown Block (Uplink PoE)

Copper wire punch down for Uplink connection. This can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

4a

SMA Connectors (2.4GHz)

Connect external antennas for RF Card A here. (1) is the primary antenna connector while (2) is the secondary connector.

4b

SMA Connectors (5GHz)

Connect external antennas for RF Card B here. (1) is the primary antenna connector while (2) is the secondary connector.

User’s Manual

Enterprise Access Point ENGLISH

EAP706 Back Panel

24

EAP717

1 2 3 4 5

1

LAN 1 – 2 Ports

Attach Ethernet cables here to connect to the wired local network.

2

Uplink (PoE) Port

For Uplink connection. This port can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

3

LED Indicators

4 LED lights. Representation is listed at the top of the panel.

4

Phone Jack

A telephone can bypass to a connected phone line in the back of the AP when connected to the socket.

5

5V 2 A

Attach the power adaptor here.

Front Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP717 Front Panel

25

Rear Panel

1 2 3

1

WES Button

WDS Easy Setup. Press the button to build up a WDS link with another peer.

2

Restart / Reset Button

Press once to restart the system; Press and hold for more than 5 seconds to reset to factory default.

3

Console Port

To access EAP717 via the console interface.

User’s Manual

Enterprise Access Point ENGLISH

EAP717 Rear Panel

User’s Manual

26

1

2

3

4

1

LED Indicators

An LED indicator is available to show the uplink status

2

12V 1.0 A

Attach power adaptor here

3

Uplink (PoE) Port

Offers uplink connection. This port can be used to connect to a controller, gateway, or directly to the Internet. 802.3af PoE is also supported

4

Restart / Reset

Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds.

Enterprise Access Point ENGLISH

EAP727

EAP727’s Front Panel EAP727’s Rear Panel

27

EAP757

1 2 3 4 5 6 7

1

12V 2 A

Attach the power adaptor here.

2

Restart / Reset Button

Press once to restart the system; Press and hold for more than 5 seconds to reset to factory default.

3

WES Button

WDS Easy Setup. Press the button to build up a WDS link with another peer.

4

LED Indicators

4 LED lights. Representation is listed at the bottom of the panel. (Top 2 reserved for RF Card B if applicable)

5

Uplink (PoE) Port

For Uplink connection. This port can be used to connect to a controller, gateway, or directly to the internet. PoE is supported.

6

LAN 1 – 2 Ports

Attach Ethernet cables here to connect to the wired local network.

Rear Panel

User’s Manual

Enterprise Access Point ENGLISH

EAP757 Back Panel

User’s Manual

28

1a

2

1b 1c

1

External Antenna

External antennas via SMA connectors. 1a, 1b and 1c corresponds to Ant1, Ant2 and Ant3 of the system.

2

LED Indicator

An LED indicator is available to show the uplink status.

Enterprise Access Point ENGLISH

EAP760

Front View

EAP760 Front View

29

Back View

1 2 3

4 5a 6 5b

7

1

12V 2.5 A

Attach power adaptor here

2

Uplink (PoE) Port

Offers uplink connection. This port can be used to connect to a controller, gateway, or directly to the Internet. 802.3at PoE is also supported

3

LAN 1 Port

The ports for connections with LAN side devices

4

USB Port

USB interface reserved for future use

5

WES Button

For IT administrators to easily setup WDS links with RF Card (A) and RF Card (B) respectively.

6

Restart / Reset

Press once to restart the system; to reset the system to factory default settings, hold for more than 5 seconds.

7

Console Port

To access EAP760 via the console interface.

User’s Manual

Enterprise Access Point ENGLISH

EAP760 Back View
