3M MP8030 User Manual
MP8030 Multimedia Projector
Operator’s Guide
MP8030 Appareil de projection multimédia Guide de l’opérateur
MP8030 Multimedia-Projektor Bedienerhandbuch
Portatil Multimedia MP8030 Manual del usuario
MP8030 Projettore multimedia Manuale dell’operatore
MP8030 Multimedia-Projektor Instruktionsbok
MP8030 Multimedia Projector Gebruiksaanwyzing
Table of Contents
Table of Contents
Warranty 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safeguards 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 1: Unpack 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1. Contents of Shipping Box 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2. Keep Your Packing Materials 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3. What’s Next? 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 2: Product Description 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1. Machine Characteristics 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2. Parts Identification List 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 3: Setup 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1. Cable Connections 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2. Projector SetUp 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-3. Now What? 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 4: Operating the Projector 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1. Turning On the Projector 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-2. Turning Off the Projector 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-3. Memory Function/Factory Defaults 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-4. Adjusting the Picture 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-5. Using System Menus 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-6. Setup Menu (RGB and Video Picture) 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-7. Input Menu 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-7-1. Selecting the Input Source 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8. Image Menu 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8-1. Inverting the Image 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8-2. Changing the Screen Background Color (Blank Button) 14. . . . . . . . . . . . . . . . . . . . . . . . .
4-8-3. Changing the Screen Reveal Rate 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8-4. Changing the Menu Size 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-8-5. Display Startup Screen/Error Message 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9. Options (OPT.) Menu 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9-1. Communication Speed 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9-2. Communication Bits 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9-3. Mouse Speed 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9-4. Set Countdown Timer 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9-5. Language 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-9-6. Auto Power Off 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 5: Remote Control 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-1. How to Operate the Remote Control 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
i
Table of Contents, continued
Section 6: Lamp Replacement 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6-1. Metal Halide Projector Lamp 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6-2. Replacing the Lamp 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 7: Maintenance 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7-1. Cleaning 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 8: Troubleshooting 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-1. Service Information 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 9: Technical Specifications 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-1. Specifications 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-2. Projector-to-Screen Distances 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-3. Physical Dimensions 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-4. Computer Video (RGB) Input Signal 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-5. Computer Video (RGB) Input Terminal 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-6. S-Video Input Signal Terminal 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9-7. RS-232 Cable (Mouse Control) 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 10: Accessories 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-1. Multimedia Projector Accessories 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
W arranty
THANK YOU FOR CHOOSING 3M
Thank you for choosing 3M multimedia projection equipment. This product has been produced in accordance
with 3M’s highest quality and safety standards to ensure smooth and troublefree use in the years to come.
For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using
this high performance product in your meetings, presentations and training sessions.
LIMITED WARRANTY
3M warrants this product against any defects in material and workmanship, under normal use and storage, for
a period of one year from date of purchase. Proof of purchase date will be required with any warranty claim.
In the event this product is found to be defective within the warranty period, 3M’s only obligation and your
exclusive remedy shall be replacement of any defective parts (labor included).
To obtain warranty service, immediately notify the dealer from which you purchased the product of any
defects. The dealer has the option of repairing the product or returning it to 3M for repair or replacement. In
the USA call 1-800-328-1371 for warranty or repair service.
LIMITATION OF LIABILITY
THE FOREGOING W ARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, AND 3M
SPECIFICALLY DISCLAIMS ANY IMPLIED W ARRANTY OF MERCHANTABILITY AND FITNESS. 3M SHALL NOT BE
LIABLE FOR ANY DAMAGES, DIRECT, CONSEQUENTIAL, OR INCIDENTAL, ARISING OUT OF THE USE OR
INABILITY TO USE THIS PRODUCT.
Important: The above warranty shall be void if the customer fails to operate product in accordance with 3M’s
written instructions. This warranty gives you specific legal rights and you may have other rights which vary
from state to state.
FCC STATEMENT – CLASS A: This equipment generates, uses and can radiate radio frequency energy, and
if not installed and used in accordance with the instruction manual may cause interference to radio
communications. It has been tested and found to comply with the limits for a Class “A” computing device
pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection
against such interference when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference in which case the user at his/her own expense will be required to
take whatever measures may be required to correct the interference.
EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for
EMC (Electro Magnetic Compatibility) and fulfills these requirements.
Video signal cables: Double shielded coaxial cables (FCC shield cable) must be used and the outer shield
must be connected to the ground. If normal coaxial cables are used, the cables must be enclosed in metal pipes
or in a similar way to reduce the interference noise radiation.
Power Cord: A shielded power cord (supplied) must be used. The outer shield must be connected to the
ground.
Video inputs: The input signal amplitude must not exceed the specified level. See Section 9.
IBM is a registered trademark of International Business Machines Corporation. MAC II is a registered
trademark of Apple Computer, Inc. All other products are trademarks or registered trademarks of their
respective companies.
3M 1996
3M Multimedia Projector MP8030
1
Safeguards
IMPORTANT SAFEGUARDS
1. Read and understand all instructions before using. Pay particular attention to areas where this
!
symbol
!
is shown.
WARNING – Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
!
Caution – Indicates a potentially hazardous situation which, if not avoided, could result
in minor or moderate injury. It may also be used to alert against unsafe practices.
2. Close supervision is necessary when any appliance is used by or near children. Do not leave
appliance unattended while in use.
3. Never look directly into the projector lens when the lamp is on. The metal halide lamp produces
a strong light which could damage your eyesight.
!
4. Care must be taken as burns can occur from touching hot parts.
5. Do not operate appliance with a damaged cord or if the appliance has been dropped or
damaged — until it has been examined by a qualified service technician.
!
6. Position the cord so that it will not be tripped over, pulled or contact hot surfaces.
7. If an extension cord is necessary, a cord with a current rating at least equal to that of the
appliance should be used. Cords rated for less amperage than the appliance may overheat.
8. Always unplug appliance from electrical outlet before cleaning and servicing and when not in
use. Grasp plug and pull to disconnect.
!
9. Let appliance cool completely before putting away or when replacing lamp. Loop cord loosely
around appliance when storing.
10. Disconnect this unit from its source of supply before replacing the projection lamp.
11. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
12. To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified
technician when service or repair work is required. Incorrect reassembly can cause electric
shock when the appliance is subsequently used.
13. The use of an accessory attachment not recommended by the manufacturer may cause a risk of
fire, electric shock, or injury to persons.
14. Connect this appliance to a grounded outlet.
!
15. This unit is equipped with optical lenses and should not be exposed to direct sunlight.
16. Keep ventilation openings free of any obstructions.
17. Always remove the lens cap when the projection lamp is on.
SAVE THESE INSTRUCTIONS
The information contained in this manual will help you operate and maintain your 3M Multimedia
Projector MP8030 machine.
2
3M Multimedia Projector MP8030
3M 1996
Section 1: Unpack
1-1. Contents of Shipping Box
The 3MMultimedia Projector MP8030 is shipped with the necessary cables required for standard VCR, PC,
MAC II or laptop computer connections. Carefully unpack and verify that you have all of the items shown
below in Figure 1-1. If any of these items are missing, please contact your place of purchase.
MP8030 Projector
Remote Control Transmitter
(2-AA batteries included)
Lens Cap
3-Conductor
Video/Audio Cable
3-Power Cords
(U.S., U.K., Europe)
Video Cable
(S-Video mini DIN4-pin)
VGA Cable
(15-15 pin M/M)
Figure 1-1. Inventory of Shipping Box
RS-232 Cable
(9 pin M/M)
Apple MAC II Video Adaptor
Cable (15-15 pin F/M)
Stereo Mini Jack Cable
1-2. Keep Your Packing Materials
Save the shipping box and packing materials in the event the MP8030 should require shipping to a 3M Service
Center for repair.
1-3. What’s Next?
After you have unpacked the MP8030 system and identified all the parts, you are ready to set up the projector.
Take a few minutes to review Section 2 to familiarize yourself with the MP8030 machine characteristics and
then turn to Section 3 to set up the projector.
3M 1996
3M Multimedia Projector MP8030
3
Section 2: Product Description
2-1. Machine Characteristics
The 3MMultimedia Projector MP8030 integrates metal halide lamp and polysilicon display technology into
a single unit. It accepts input from two different computer sources and two video/audio sources and projects a
bright super crisp image. Switching your presentation from a computer to a video image back to a computer
simply requires the push of a button on the remote control keypad or control panel keypad.
The MP8030 Multimedia Projector offers the following features:
D Easy to set up and use
D Portable (suitcase-style carrying handle)
D Metal halide projection lamp
D 500 lumens lamp output
D 640 x 480 VGA image (NTSC, PAL, SECAM)
D Ability to display 16.7 million colors
D Two computer input connections
D Two video input connections
D Power zoom and focus
D Full function remote control (mouse emulation
via serial port)
D Lighted control panel keypad (push button
back-lit remote control keypad)
D Built-in speaker (3 Watts)
D Horizontal and vertical image inverting
function allows rear projection or ceiling mount
D Horizontal and vertical image position control
D On-screen menu displays in your choice of
seven different languages
D On-screen menu to adjust video image: tint,
brightness, color, contrast, sharpness, video
system, screen blank color, timer, reveal rate
and menu size
D On-screen menu to adjust computer video
(RGB) synchronization, image brightness,
sharpness, horizontal phase and horizontal size
D Automatic keystone correction
D Universal power supply
2-2. Parts Identification List
The numbers shown below correspond to the names of the projector parts in Figure 2-1.
4
5
3
2
6
1
Lock Lever
12
1. Lens
2. Height Adjustment Feet (with lock lever)
3. Remote Control Sensor
4. Remote Control Transmitter
5. Built-In Speaker
6. Indicator Lights (On, Lamp, Temp)
7
9
11
7. Control Panel Keypad
a. Standby/On button
b. Input Button
c. Mute Button
8
d. Zoom Button
e. Focus Button
10
f. Menu Button
g. Reset Button
8. Video/Audio Input Terminals
a. SVideo1/SVideo2 (Mini DIN4pin)
b. Video1/Video2 (RCA Jack)
c. AudioL/AudioR (RCA Jack)
9. Computer Video (RGB) Input Terminals
a. RGB1/RGB2 (D sub 15pin)
b. AudioL/AudioR (Stereo MiniJack)
10. Output Terminals
a. RGB (D sub 15pin) CRT Display
b. RS232 (D sub 9pin) Mouse Control
c. Audio (RGB/Video) Stereo Output
11. Power Switch
12. Power Cord Connector
Figure 2-1. Identifying MP8030 Projector Parts
4
3M Multimedia Projector MP8030
3M 1996
Section 3: Setup
3-1. Cable Connections
It only takes a few minutes to connect the 3MMultimedia Projector MP8030 to your computer, VCR or other
video device (Figure 3-1).
Desktop Computer
Laptop Computer
Figure 3-1. Typical Cable Configuration
Terminal Connection Panel
Take a moment to look over the input connection
terminals (Figure 3-2) on the side of the projector.
Connect your first input source to the Terminal 1
connectors and your second input source to the
Terminal 2 connectors.
Terminal connectors for VIDEO/AUDIO 1&2 are:
S-Video, Video, Audio-L and Audio-R.
Terminal connectors for Computer1 (RGB1) are:
RGB-In and Audio-In 1.
Video/Audio1
Video/Audio2
Audio-In 1/2
Computer 1
(RGB1)
Computer 2
(RGB2)
CRT Display
Audio-Out
(stereo)
CRT Display
(RGB-Out)
RS-232
Mouse Control
Terminal connectors for Computer2 (RGB2) are:
RGB-In, Audio-In 2 and Control.
Terminal connectors for output are: RGB-Out (CRT),
Audio-Out (stereo) and RS-232 (mouse control).
3M 1996
3M Multimedia Projector MP8030
Power Cord Power Switch
Figure 3-2. Input Connection Terminals
5
Power Connection
!
Caution
To prevent damage to equipment, all power to
the 3MMultimedia Projector MP8030 and
input sources must be turned OFF during cable
hook up.
The power cord (Figure 3-3) is detachable from the
projector and has different connection plugs on each
end. Plug the female end into the power cord
terminal on the projector and the male end into a
properly grounded electrical outlet.
Figure 3-3. Connecting the Power Cord
Computer (RGB) Connection
There are two input jacks and one output jack available for connecting either desktop or laptop computers.
Find the cable that fits your computer type. The MP8030 comes with two computer input cables. The first
cable (Figure 3-4) fits IBM PC and compatible VGA video systems, and the other cable (Figure 3-5) fits on
the end of the first cable and adapts it to fit Apple MACII computers and Apple MAC Powerbook laptop
computers. Connect the CRT cable into the RGB-Out terminal to view the image on both the monitor and
MP8030.
Figure 3-4. IBM PC Computer
Figure 3-5. Apple MAC II Computer
S-V ideo Connection
Some video devices can generate S-VHS video, or
S-Video (Y/C). The MP8030 will accept this signal
through the S-VIDEO1 or S-VIDEO2 connectors.
The S-VHS cable has identical round four-pin
connectors on either end (Figure 3-6). Connect one
end to the S-Video jack on the input source device,
and the other end to the S-VIDEO1 or S-VIDEO2
terminal on the MP8030. Remember to connect the
audio cables for sound output.
Four-Pin Connector S-VHS Cable
Figure 3-6. S-Video Input
Video/Audio Connection
Find the small, circular connector on your camcorder laserdisc player, VCR, or other video source marked
VIDEO OUT, TO MONITOR, or something similar.
Use the 3-conductor video/audio cable and insert the video (white) connector into the video output jack of
your video source device, and the other end into the MP8030’s VIDEO1 or VIDEO2 connector.
6
3M Multimedia Projector MP8030
3M 1996
Next, find the AUDIO OUT terminals on your VCR or other audio source. Insert the left and right audio cable
connectors (Figure 3-7) to the input source, and connect the other end to the AUDIO-L and AUDIO-R
terminals on the MP8030.
Figure 3-7. 3-Conductor Video/Audio Input Cable
Use the Audio-Out terminal to disable the MP8030 speaker and channel sound to external speakers. The
remote control VOLUME and MUTE buttons will control the external speaker volume levels. If you are
giving a multimedia presentation that is complete with stereophonic sound, then you may want to consider
connecting your audio source to a high-quality stereo system. Of course, if you route your audio cables this
way, the MP8030 audio controls (VOLUME and MUTE) will not function.
RS-232 Mouse Control Connection (IBM Compatibles)
The MP8030 projector has an RS-232 connector (Figure 3-8) that
allows IBM compatible serial mouse emulation.
Projector
(9-pin)
Computer
(9-pin)
To emulate a serial mouse:
Figure 3-8. RS-232 Terminal
a. Power down the MP8030 and PC computer
b. Connect the RS-232 cable to the PC mouse serial port and MP8030 Control connector
c. Power up the MP8030
d. Power up the PC
e. If the PC has an internal pointing device, it must be disabled (refer to your owners manual for
instructions)
f. After the pointing device is disabled, reboot the PC and the operating system (DOS, Windows)
should recognize the MP8030 stick switch as the pointing device

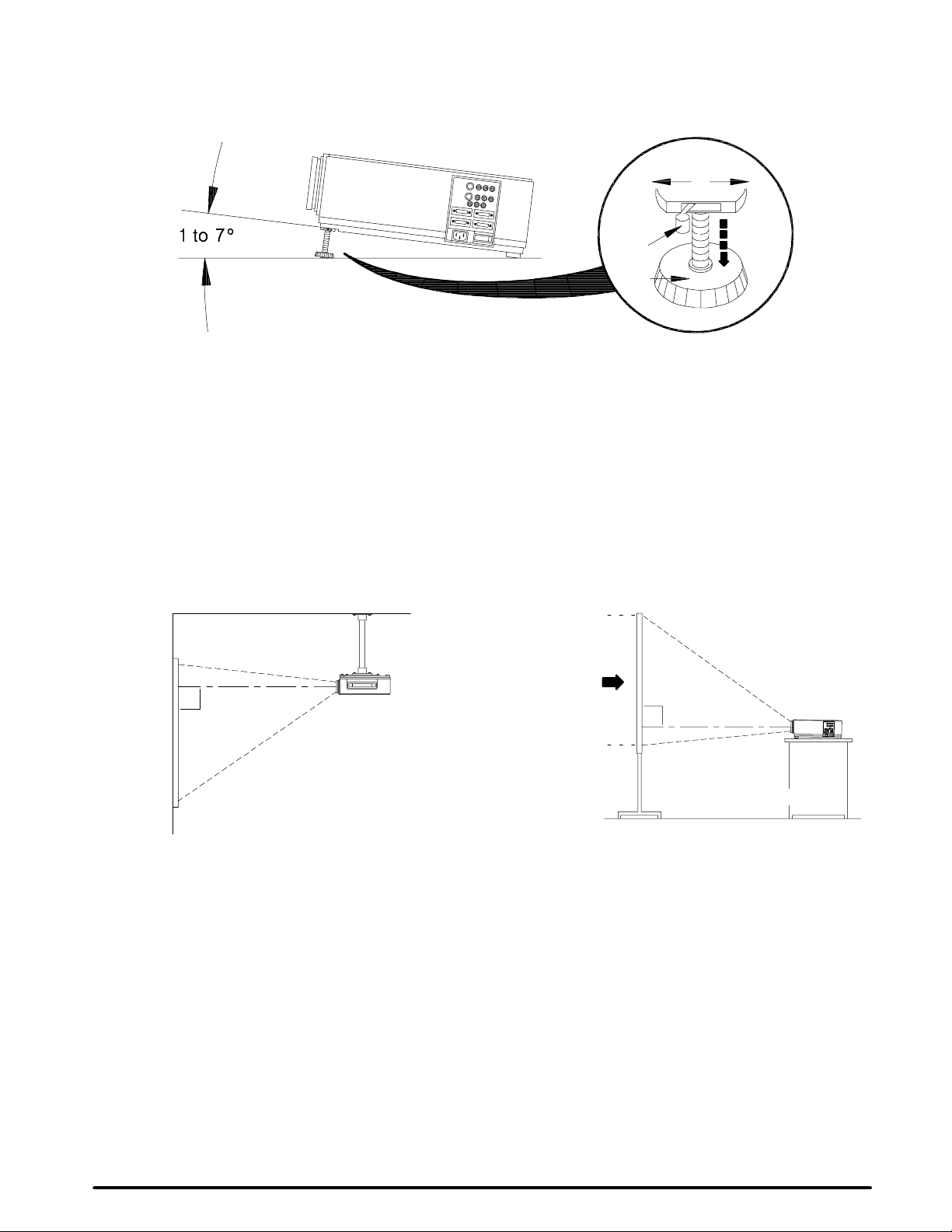

3-2. Projector SetUp
The meeting room is your operating environment and any stray light hitting the projection screen will become
glare. It is best to use a meeting room without wide-open windows. If there are “light stripes” from venetian
blinds, try to find a viewing area that’s away from them—and remember, the light stripes will move as the
hour changes.
Note
Whenever you have a choice, light the room from the rear, away from the projection screen. The
MP8030 has a brightness adjustment to achieve the best image possible.
Distance to Viewing Screen
The 3MMultimedia Projector MP8030 can be used in a small or large meeting room to project a quality
image from 46 cm (18 in.) to 762 cm (300 in.) in size. The distance between the projector and the viewing
screen (see “a” in Figure 3-10) and the zoom lens setting (minimum to maximum) will determine the size of
the projected image. Refer to the table in Section 9-2 to determine how far away from the viewing screen you
need to place the projector to fill the screen with the projected image.
Remember that increasing the projector-to-screen distance also decreases the image’s brightness dramatically.
In other words, as the image grows larger, it also grows dimmer. For best results, experiment to find the right
combination of projector-to-screen distance and room lighting.
3M 1996
3M Multimedia Projector MP8030
7
Loading...
