2Wire 2701HG User Guide

2Wire Gateway
User Guide

For 2701HG

Notice to Users

©2008 2Wire, Inc. All rights reserved. This manual in whole or in par t, may not be reproduced, translated, or reduced to any machine­readable form without prior written approval.

2WIRE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND
HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH
REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION, IN NO EVENT SHALL 2WIRE, INC. BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR
IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

2Wire, Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice.
The software described herein is governed by the terms of a separate user license agreement.

Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and
credit card information. Financial services may require prior arrangements with participating financial institutions.

2Wire, the 2Wire logo, and HomePortal are registered trademarks, and HyperG, Greenlight, FullPass, and GuestPass are trademarks
of 2Wire, Inc. All other trademarks are trademarks of their respective owners.

5100-000480-000 Rev 001 (06/2008)

Contents

Introduction ................................................................................................................1

Networking Technology Overview ...................................................................................1

System Tab .................................................................................................................2

Viewing Your System Summary ......................................................................................2

Network at a Glance Panel ................................................................................3

System Area of the Network at a Glance Panel .............................................3

Broadband Link Area of the Network at a Glance Panel .................................4

Home Network Area of the Network at a Glance Panel ...................................4

Enabling Enhanced Services ..............................................................................5

Web Remote Access ...................................................................................5

Firewall Monitor ..........................................................................................5

Parental Controls .......................................................................................5

Setting a System Password ...........................................................................................6

Resetting the System Password ........................................................................7

Changing Your Time Zone Settings ..............................................................8

Viewing System Details .................................................................................................9

Broadband Link Tab .....................................................................................................10

Viewing Your Broadband Link Summary ..........................................................................10

Connection Status ............................................................................................10

Connection Speed ............................................................................................11

Connection Information .....................................................................................11

Finding Your Hardware Address ...................................................................11

Connection Details ...........................................................................................12

Monitor Internet Connection ..............................................................................15

Test Connection Speed .....................................................................................16

Using Broadband Diagnostics ........................................................................................16

Viewing Statistics .........................................................................................................17

Using Advanced Settings ..............................................................................................19

Modifying DSL and ATM Settings .......................................................................20

Modifying Broadband Connection Settings ..........................................................21

Modifying the Hardware Address .......................................................................21

Enabling Hostname Override .............................................................................21

Modifying the Broadband IP ...............................................................................21

Modifying the Broadband DNS ...........................................................................22

Home Network Tab ......................................................................................................23

Viewing Your Home Network Summary ...........................................................................23

Understanding the Local Devices Panel ..............................................................23

Understanding the Status at a Glance Panel ......................................................25

Monitoring Your Wireless Settings .................................................................................25

Customizing Security Settings ...........................................................................27

Configuring Additional Settings ..........................................................................28

Configuring Advanced Settings ......................................................................................28

Setting up a Private Network .............................................................................28

Setting Up a Public Network ..............................................................................30

Setting Up a Bridge Network .............................................................................31

Showing a Device as Inactive ............................................................................31

i

VoIP Network Tab ........................................................................................................32

Configuring the VoIP Phones .........................................................................................32

Firewall Tab ................................................................................................................35

Firewall Features ..........................................................................................................35

Viewing Your Firewall Summary ......................................................................................36

Hosting an Application ..................................................................................................37

Updating the Application Profile List ...................................................................39

Adding an Application Profile .............................................................................39

Allowing all Applications (DMZplus) ................................................................................41

Viewing the Firewall Log ................................................................................................43

Configuring the Firewall (Advanced) ................................................................................45

Enabling Advanced Security ...............................................................................45

Stealth Mode .............................................................................................46

Block Ping .................................................................................................47

Strict UDP Session Control .........................................................................48

Allowing Inbound and Outbound Traffic ...............................................................49

Disabling Attack Detection ................................................................................49

Management and Diagnostic Console ...........................................................................52

Accessing the MDC ......................................................................................................52

Using the MDC .............................................................................................................52

System Summary Page .....................................................................................54

Broadband Link Pages ......................................................................................54

Local Network Pages ........................................................................................54

Firewall Pages ..................................................................................................54

Troubleshooting Pages .....................................................................................54

Advanced Pages ...............................................................................................54

Remote Management Feature .......................................................................................55

System Summary Page .................................................................................................56

Broadband Link - Summary Page ...................................................................................58

Broadband Link - Statistics Page ...................................................................................61

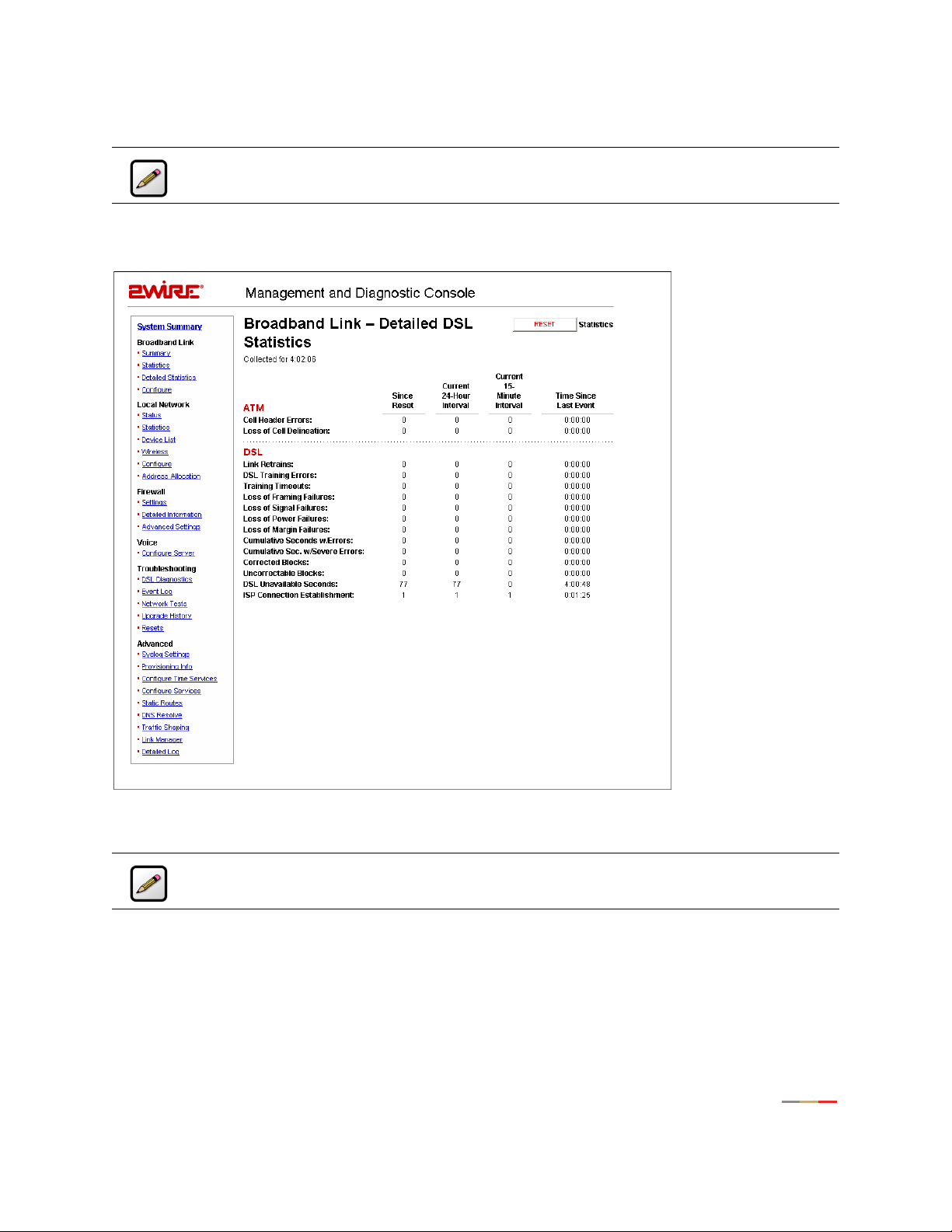

Broadband Link - Detailed DSL Statistics Page ...............................................................63

Broadband Link - Configuration Page ..............................................................................66

Modifying DSL and ATM Settings .......................................................................67

Modifying Internet Connection and Authentication Settings ..................................67

Modifying Hardware Address .............................................................................68

Modifying Internet Address Settings ...................................................................68

Modifying DNS Information ................................................................................68

Local Network - Status Page ..........................................................................................69

Local Network - Statistics Page .....................................................................................71

Local Network - Device List Page ...................................................................................73

Local Network - Wireless Settings Page ..........................................................................74

Customizing Security Settings ...........................................................................75

Additional Settings ...........................................................................................75

Local Network - Configuration Page ................................................................................76

Private Network Settings ...................................................................................76

Public Network Settings ....................................................................................77

Bridge Network Settings ...................................................................................77

Display Settings ...............................................................................................77

Enable Router Behind Router Alert .....................................................................77

Contents

ii

Local Network - Address Allocation Page ........................................................................78

Firewall - Settings Page .................................................................................................79

Hosting an Application ......................................................................................80

Creating an Application Profile ...........................................................................80

Allowing all applications ....................................................................................82

Firewall - Detailed Information Page ...............................................................................83

Pinholes ..........................................................................................................83

NAT Sessions ..................................................................................................83

Firewall - Advanced Settings Page ..................................................................................84

Enabling Security Features ................................................................................85

Controlling Inbound and Outbound Traffic ...........................................................85

Disabling Attack Detection ................................................................................85

Enabling Full Logging ........................................................................................85

Voice - Configure Server Page ........................................................................................86

Troubleshooting - DSL Diagnostics Page ........................................................................88

Analyzing General Information ...........................................................................88

Reviewing Training History .................................................................................90

Reviewing Bitloading .........................................................................................92

Troubleshooting - Event Log Page ..................................................................................93

Troubleshooting - Network Tests Page ............................................................................95

Troubleshooting - Upgrade History Page .........................................................................97

Troubleshooting - Resets Page ......................................................................................98

Advanced - Syslog Settings Page ...................................................................................100

Advanced - Provisioning Info Page ..................................................................................101

Advanced - Configure Time Services Page .......................................................................103

Advanced - Configure Services Page ...............................................................................105

Routing ...........................................................................................................105

Changing Timeout Parameters ...........................................................................108

Enabling Broadband Status Notification .............................................................108

Enabling Missing DSL Filter Notification .............................................................108

Enabling SIP Application Layer Gateway .............................................................108

Changing the Upstream MTU .............................................................................108

Advanced - Static Routes ..............................................................................................109

Advanced - DNS Resolve Page .......................................................................................111

Advanced - Traffic Shaping Page ....................................................................................112

Advanced - Link Manager States Page ............................................................................113

Advanced - Detailed Log Page .......................................................................................116

Glossary ......................................................................................................................120

Compliance Information ...............................................................................................125

Regulatory Information ................................................................................................126

Contents

iii

Introduction

The 2Wire gateway allows you to create a network with your computers and peripheral devices. Following
are just a few of the benefits derived from using the 2Wire gateway to network your home or office.

1

High performance integrated modem. 2Wire’s technology improves DSL
homes further away from the local exchange. It also minimizes common interference found when other
devices (such as dimmer switches or fluorescent lighting) are in contact with the DSL line.

Super-fast router. The 2Wire gateway’s router provides the fastest data transfer speeds available between
your network and the Internet. The high-performance router distributes data seamlessly to all of the
computers on your network, without a dramatic loss of performance or speed.

Professional-grade firewall. The 2Wire gateway firewall includes both standard NAT/PAT security and
Stateful Packet Inspection to defend against Denial of Service Internet attacks.

performance, especially for

Flexible networking. The 2Wire gateway includes a variety of home networking technologies in one box:
Ethernet, direct USB, and HyperG wireless
with your computers and peripherals.

2

. Use any or all of the following technologies to create a network

Networking Technology Overview

Ethernet. Ethernet is a local area network (LAN) technology that transmits information between computers
at speeds of 10 or 100 Mbps. 2Wire gateways have either 1 or 4 Ethernet ports for directly connecting
computers or devices. If your home or office is wired for Ethernet, you can use the Ethernet interface(s) on
the gateway to create a broadband network.

USB. The 2Wire gateway’s USB 1.1 port allows you to directly connect a computer or other network-ready
device.

Wireless. The 2Wire gateway includes an integrated wireless access point, which allows users to roam
wirelessly throughout the home or office. 2Wire’s high-powered wireless technology virtually eliminates
wireless “coldspots” in the home. The 2Wire gateway’s high power 400mW transmitter ensures that users
benefit from increased wireless bandwidth throughout the coverage area. In addition, the 2Wire gateway
employs a special triple antenna design. The third antenna is used only for transmitting packets, thus
mitigating the power loss associated with switching the antenna use back and forth between transmit and
receive. This results in greater access point sensitivity, as antenna placement can be better optimized with
a dedicated set of receive-only antennas.

1. The 200 series gateways connect via Ethernet.

2. Some interfaces are not available on specific models.

1

System Tab

This chapter describes the 2Wire gateway System features.

Note: 2Wire recommends that you use Internet Explorer 5.5 (or higher) or Netscape 6 (or

higher).

Viewing Your System Summary

The System Summary page provides general information and links to your system’s most commonly used
features.

To access the System Summary page:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2wire.net.

• Click the System tab to open the System Summary page.

Figure 1. System Summary Page

2

System Tab

Network at a Glance Panel

The Network at a Glance panel provides a summary of the System, Broadband Link, and Home Network
states of your gateway.

System Area

Broadband
Link Area

Home
Network Area

Figure 2. Network at a Glance Panel

System Area of the Network at a Glance Panel

The System area of the Network at a Glance panel displays your 2Wire gateway model name, the version of
gateway software that you are using, and the status of your gateway password.

The diamond symbol in this area indicates the gateway’s

POWER light status and corresponds to the Power

light on the front of your gateway.

The following table shows a list of possible

POWER light states and their associated meanings:

Power Light Condition

Off Power is not being supplied to the system. The power supply is not

plugged in correctly, or the power adapter has malfunctioned.

Blinking Green The system is performing a self test.

Solid Green Power is on.

Blinking Orange The gateway is undergoing a software upgrade.

Solid Red System error. Contact Technical Support.

If you have not set a system password, the Set system password
the Change system password

link displays. You must enter the system password whenever you change

link displays. If you have set a password,

system settings.

Note: For additional information, refer to “Setting a System Password” on page 6.

3

System Tab

Click the Privacy policy link to review the 2Wire privacy policy.

Broadband Link Area of the Network at a Glance Panel

The Broadband Link area of the Network at a Glance panel displays the overall status of your gateway’s
physical connectivity.

The diamond symbol in this area indicates the overall status of the broadband link and corresponds to the

internet light on the front of your gateway.

The following table shows a list of possible

BROADBAND LINK light states and their associated meanings:

Broadband Link Light Condition

Off The gateway has been unable to detect a DSL

signal.
DSL signal detected; the gateway is
attempting to train.

Solid Green The gateway is fully connected to your

broadband service(s).

Connection Speed displays the broadband speed for which DSL is configured by your ISP. Both the Incoming
(or Downstream — from your service provider to your system) and Outgoing (or Upstream — from your
system to your service provider) connection rates are shown. The actual throughput of your Internet
connection rate (such as downloading a file from a Web site) will be somewhat less, because of the
overhead required to send information over the Internet.

Accessing the Broadband Link Summary Page

The Broadband Link Summary page provides general information about the current status of your
broadband link connection and your system configuration. To access the Broadband Link Summary page,
click the

Broadband Link icon or the View summary link.

Launching the 2Wire Bandwidth Meter

The Bandwidth Meter measures the maximum data throughput obtained from 2Wire’s Web site to your
system. Because it tests the speed over the Internet, your results may vary, depending on Internet
conditions.

To launch the 2Wire Bandwidth Meter, click the Test connection speed

link.

Home Network Area of the Network at a Glance Panel

The Home Network area of the Network at a Glance panel displays your system’s

LOCAL NETWORK light

status and a list of the devices currently connected to your local network.

The diamond symbol in this area indicates the overall status of the network and corresponds to the

Ethernet, USB, or Wireless light on the front of your gateway.

Ethernet, USB, or Wireless Light Condition

Off The gateway is powered off or booting up.

Solid Green Device(s) connected via Ethernet, USB, or Wireless.

4

System Tab

Accessing the Home Network Summary Page

The Home Network Summary page displays information about the devices installed on your network. To
access the Home Network Summary page, click the View the home network

link.

Enabling Enhanced Services

2Wire provides a suite of enhanced services: Web Remote Access, Firewall Monitor, and Parental Controls.
If your service provider offers these enhanced services, links to set them up are available on the gateway
Home page. Following is a brief description of these services.

Web Remote Access

The Web Remote Access enhanced service allows you to access your home computer files from remote
locations using any standard Web browser. Web Remote Access authenticates and encrypts access
between the Web browser and the 2Wire gateway, enabling you to securely access and download important
files or manage other enhanced services such as Parental Controls or Firewall Monitor.

You can optionally define a unique Web Domain Name during setup (for example, http://
myname.accessmyhome.net), making it easy for users that are allowed to access the home network to
manage the gateway when away from the home.

For additional information, please refer to the Web Remote Access User Guide.

Firewall Monitor

The 2Wire Firewall Monitor enhanced service extends the professional-grade firewall capabilities of your
2Wire gateway by continuously assessing threats to your home network. Firewall Monitor allows you to:

• Automatically download updates to your firewall software to protect against new threats.

• Receive on-screen notification to alert you of network attacks.

• Review details about attacks blocked and the source of the attacks.

For additional information, please refer to the Firewall Monitor User Guide.

Parental Controls

The 2Wire Parental Controls enhanced service offers two features that allow parents to maintain control
over what their children can access on the Internet, and how often: Content Screening and Internet Access
Controls.

Content Screening allows you to protect your children from Websites with questionable content. You control
what sites or types of sites your child can and cannot access. Internet Access Control gives you power to
decide when your child can use the Internet and allows you to restrict Internet access by day of week and
time of day.

For additional information, please refer to the Parental Controls User Guide.

5

System Tab

Setting a System Password

Setting a system password protects your gateway settings from being modified or changed by someone who
has not been given permission to do so. After setting a system password, you will be required to enter it
whenever you attempt to access a gateway configuration page — for example, if you try to change the
gateway’s broadband connection settings or upgrade the gateway software. If a password has not been set,
a reminder notice is displayed when you attempt to access pages where settings can be changed.

To set your system password:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2wire.net.

• Click the

• Click the System Password

System tab.

link in the System area of the Network at a Glance panel to open the Edit

System Password page.

Figure 3. Edit System Password Page

1.

In the Settings panel, click the Enable checkbox.

2. In the Enter New Password field, enter your password.

3. In the Confirm New Password field, re-enter your password.

4. Optional: In the Enter Your Hint field, enter a hint.

A hint is a word, phrase, or question that reminds you what the password is. There is an I forgot the
password link on the password entry page. When you click this link, it shows you your hint and allows
you to enter your password.

5. Click SAVE.

6

System Tab

To disable password protection, deselect the Enable checkbox and click SAVE.

To safeguard your network against unauthorized users, it is also a good practice to periodically change your
password.

Resetting the System Password

If you forget your password and still cannot remember it
after seeing your hint, click the
I still can’t remember the password

The Reset System Password page opens.

link.

Figure 4. Reset System Password Page

To obtain access to your system:

1. In the System Key field enter the 10-digit system key located on the bottom of your gateway.

2. In the Enter New Password field, enter a new system password. In the Confirm New Password field, re-

enter the system password.

3. In the Enter Your Hint field, enter an appropriate hint as described under “Setting a System Password”

on page 6.

4. Click Submit.

7

System Tab

Changing Your Time Zone Settings

The 2Wire gateway sets the time automatically using time servers on the Internet. It retrieves date/time
information in Greenwich Mean Time (GMT). Your local time is set using the Time Zone setting you
configured when you set up your system. If your Time Zone is incorrectly set, you can change it in the Edit
Date and Time Settings page.

To change your time zone settings:

• Open a Web browser and access the gateway user interface by entering http://gateway.2wire.net.

• Click the

• Click the Date and Time Settings

System tab.

link in the System area of the Network at a Glance panel to open the

Edit Date and Time Settings page.

Figure 5. Edit Date and Time Settings Page

1.

From the drop-down menu, select the time zone.

2. Click SAVE.

8

System Tab

Viewing System Details

The System Details page provides information about your gateway, any enhanced services you may have,
and provides a link that you can use to restart your system.

To view the System Details page:

• Open a Web browser and access the gateway user interface by entering http://gateway.2wire.net.

• Click the

• Click the View details
Details page.

Figure 6. View System Details Page

The Restart the system link restarts your system. Your network connections and your broadband
connectivity will be briefly disrupted until your system restarts and broadband connectivity is
re-established with your broadband service provider.

The View available upgrades and options
enhanced services. If your gateway is running the latest software or enhanced services are not available,
the following message displays.

System tab.

link in the System area of the Network at a Glance panel to open the View System

link accesses a page that displays available software upgrades or

9

Broadband Link Tab

This chapter describes the 2Wire gateway Broadband Link features, and provides detailed instructions on
how to customize your broadband settings.

Viewing Your Broadband Link Summary

The Broadband Link Summary page provides general information about the current status of your
broadband link connection and your system configuration.

To access your Broadband Link Summary:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

• Click the Summary

Figure 7. View Broadband Link Summary Page

The Connection panel shows information about your gateway’s connection to the Internet. The elements
displayed will vary, depending on your gateway model and the type of broadband service you have.

Broadband Link tab.

link under the tab to open the View Broadband Link Summary page.

Connection Status

There are two ways you can check the current status of your gateway’s broadband connection: you can use

DSL and Internet indicator lights on the front of your gateway, or, if your computer is connected to the

the
network, you can view the user interface.

10

Broadband Link Tab

Connection Speed

Connection Speed shows the incoming and outgoing data rates of your DSL connection, measured in
kilobits per second (Kbps). Incoming is the speed of data flowing from the Internet to your network;
Outgoing is the speed of data flowing from your network to the Internet.

Connection Information

Connection Information shows the following basic system configuration information:

• Internet Address. The broadband IP address assigned by your service provider to your gateway so that
it can communicate on the Internet. This address is assigned to you by your Internet Service Provider
for all communication on the Internet, and can either be Static (permanently assigned and manually
entered) or Dynamic (automatically assigned and configured), depending on your subscribed service
type.

• Hardware Address. (Also known as the MAC address, physical address or, if you are a cable customer,
the C number.) When your gateway is connected to the broadband network, an association is made
between its unique hardware address and its Internet address before it can communicate to the
Internet.

Note: This field displays the hardware address only if the gateway is connected to the Internet via PPPoE.

• Key Code. The activation code that tells your gateway how to connect to your service provider. The key
code is used during the installation process to customize the setup screens and settings for your
broadband provider.

Finding Your Hardware Address

If required to find your Hardware (MAC) address, refer to the following table and follow the instructions for
your operating system.

Windows OS Macintosh 8.x & 9.x Macintosh OS X

1. Click the Start menu.

2. Click Run.

3. Enter “cmd” in the

entry field.

4. Click OK.

5. At the C:\> prompt,

enter “ipconfig/all”.

6. Locate the Physical

address (for example,
01-24-H5-18-B3-00).

7. To close the window,

1. Click the Apple icon.

2. Select Control Panels.

3. Select TCP/IP.

4. From the Configure

pulldown menu, select

Built-in Ethernet.

5. From the File menu,
Get Info. Your MAC

select
address appears as
either the Hardware
Address or the Ethernet
Address.

1. Click the Apple icon.

2. Select System

Preferences

3. Click the Network icon.

4. Click the TCP/IP tab.

5. From the Configure

.

pulldown menu, select

Built-in Ethernet. Your

MAC address appears in
the lower-left corner as
the Ethernet Address.

enter “exit” at the
C:\> prompt.

11

Broadband Link Tab

Connection Details

The View connection details link accesses the Broadband Link Details page, which displays technical
information about your broadband connection. Technical support representatives use this information to
help troubleshoot problems with your broadband connection.

Figure 8. View Broadband Link Details Page

The following table shows the information that may be displayed on the Broadband Link Details page.

Note: The information displayed depends on the type of broadband service you have and your

gateway model.

Item Description

DSL Connection

DSL Line (Wire Pair) The DSL signal can be transmitted on Line 1 (inner pair) or

Line 2 (outer pair). During installation, the gateway
automatically detects on which line the DSL signal is being
transmitted.

Protocol Displays which DSL protocol is being used to communicate

between your system and your service provider.

12

Broadband Link Tab

Item Description

Downstream Rate The speed at which data comes over your broadband

connection from the Internet to your network, measured in
kilobits per second (kbps).

Upstream Rate The speed at which data goes over your broadband

connection from your network to the Internet, measured in
kilobits per second (kbps).

Channel The setting in this field is determined by your ISP’s DSLAM

equipment.

Current Noise Margin Indicates how much the noise on the DSL line can increase

before it begins to affect the DSL signal. As the noise on the
DSL line increases, the margin will approach zero. If the noise
exceeds the current noise margin, the DSL signal will be lost.
The level is measured in decibels (dBs).

Current Attenuation Represents the decrease in signal strength between

origination of the DSL (Central Office) and your gateway.
Customers who live close to their Central Office usually will
have less signal loss and a low current attenuation. The level
is measured in decibels (dBs).

Current Output Power The current DSL transmit power of your gateway. The level is

measured in decibels (dBs).

DSLAM Vendor Information A DSLAM is the piece of equipment located in the Central

Office (CO) that provides the DSL signal to your DSL line. The
Vendor Information identifies information about the
configuration of this equipment.

PVC Info Displays the pair of numbers that uniquely identifies the ATM

virtual circuit between the system and the provider of your
DSL service.

Internet Connection Details

Connection Type Identifies the method by which the gateway connects to the

Internet Service Provider (ISP): PPPoE, PPPoA, or Direct.

Username The name used to connect with your Internet Service Provider

(ISP). Your username was either assigned to you or configured
by you during the install process. The correct username is
required to successfully connect to the Internet.

13

Broadband Link Tab

Item Description

Internet Address A number that is assigned to a computer so that it can

communicate on a network and on the Internet. This address
is assigned to you by your Internet Service Provider for all
communication on the Internet, and can be either Static
(permanently assigned and manually entered) or Dynamic
(automatically assigned and configured).
The typical configuration is for your ISP to automatically
assign and configure an Internet address (Dynamic) when your
system connects to the Internet.
Businesses or power users may use a static address enabling
them to run advanced services such as Internet servers and
video conferencing. Static addresses typically cost more
because they must be leased from the ISP.
If you receive your Internet address settings automatically, the
subnet mask has been set for you. If you manually set your
Internet address (Static IP), this is the information that was
provided to you by your ISP and entered by you during gateway
installation.

Subnet Mask Part of the Internet address settings and used in conjunction

with your Internet address. If you receive your Internet
address settings automatically, the subnet mask has been
set for you. If you manually set your Internet address (Static
IP), this is the information that was provided to you by your ISP
and entered by you during gateway installation.

Default Gateway Part of the Internet address settings. The default gateway is a

device your 2Wire gateway communicates with directly to give
you access to the Internet.
If you receive your Internet address settings automatically, the
subnet mask has been set for you. If you manually set your
Internet address (Static IP), this is the information that was
provided to you by your ISP and entered by you during the
system installation.

Primary Domain Name Server Part of the Internet address settings. A domain name is a

meaningful, easy-to-remember “handle” for an Internet
address. The DNS allows Internet users to specify a name
(domain name) to reach a Web page (for example,
www.domainname.com) instead of its Internet address (for
example, 111.222.111.222). When you enter the name of a
Web location (URL), the DNS looks up the name and resolves
it to the Web page’s Internet address.
If you receive your Internet address settings automatically, the
subnet mask has been set for you. If you manually set your
Internet address (static IP), this is the information that was
provided to you by your ISP and entered by you during gateway
installation.

14

Item Description

Broadband Link Tab

Secondary Domain Name
Server

Domain The name that associates your gateway with your ISP on the

Maximum Transmission Unit
(MTU)

Gateway Ping The 2Wire gateway periodically checks the connection

DNS Communication The gateway periodically checks the connection between itself

Used as a backup if the Primary server fails to respond.
If you receive your Internet address settings automatically, the
subnet mask has been set for you. If you manually set your
Internet address (Static IP), this is the information that was
provided to you by your ISP and entered by you during the
system installation. This parameter may not be necessary and
may be left blank.

broadband link. This parameter may not be necessary and
may be left blank.
If you receive your Internet address settings automatically, the
subnet mask has been set for you. If you manually set your
Internet address (Static IP), this is the information that was
provided to you by your ISP and entered by you during gateway
installation.

Shows the maximum size allowed on packets that are sent to
and from your network to your ISP.

between itself and your ISP’s Default Gateway. This field
informs you that the check has been performed and whether
or not it was successful.

and your ISP’s domain name server(s) to make sure DNS is
available. This field informs you that the check has been
performed and whether or not it was successful.

Configuration Server Post The gateway periodically checks the connection between itself

and the 2Wire Component Management System. This field
informs you that the check has been performed and whether
or not it was successful.

Monitor Internet Connection

The Monitor Internet connection link launches the Speed Meter. The Speed Meter measures the actual rate
at which data is coming into (Incoming Kbps) and going out of (Outgoing Kbps) your system. It measures
real-time data throughput in Kilobits per second and displays in one-second intervals.

The Speed Meter monitors the actual data rates while connecting to a Web site. This data rate can differ
from the reported speed of your broadband connection due to many factors, including traffic to the Web site
or the speed of the Web servers at the site you are visiting.

Note: To use the Speed Meter, your browser must support Java 2.

15

Broadband Link Tab

Test Connection Speed

The Test connection speed link launches the 2Wire Bandwidth Meter. The Bandwidth Meter measures the
maximum download speed from 2Wire’s Web site to your system in Kilobits per second (Kbps).

The 2Wire Bandwidth Meter estimates your connection speed from the Internet. Because the Internet
consists of thousands of interconnections, your connection to a Web site could be affected by many
different factors. If you experience slow performance on a particular Web site, you can use the 2Wire
Bandwidth Meter to verify whether this is isolated to that particular Web site, or if it is a more general
occurrence. Because the 2Wire Bandwidth Meter measures the download speed from 2Wire’s Web site to
your computer and can be affected by many factors on the Internet, it is not an accurate measurement of
the service from your ISP.

Using Broadband Diagnostics

Diagnostics displays an itemized list of your broadband connection’s current status. Technical support
representatives use this information to help troubleshoot problems with your broadband connection.

To access the Broadband Link Diagnostics page:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

• Click the Diagnostics

Figure 9. Broadband Link Diagnostics Page

To update the broadband link status, click REFESH.

To initiate a full test of your broadband link, click
system reestablishes all broadband connections. You will not be able to access the Internet until the test is
complete.

Broadband Link tab.

link under the tab to open the Broadband Link Diagnostics page.

TEST. The test will take several minutes, during which the

16

Broadband Link Tab

Viewing Statistics

The View Broadband Link Statistics page shows statistics associated with the 2Wire gateway broadband
link, including cumulative DSL statistics.

To access the Broadband Link Statistics page:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

• Click the Statistics

Broadband Link tab.

link under the tab to open the View Broadband Link Statistics page.

Figure 10. View Broadband Link Statistics Page

The Transmit and Receive Data panel displays the following information.

• Transmit. The cumulative number of IP packets transmitted, the cumulative number of IP payload bytes
transmitted, and the number and percentage transmitted in error.

• Receive. The number of bytes and packets received, and the number and percentage received in error.

17

Broadband Link Tab

The Data Errors panel displays the following information.

Data Error Description

ATM Cell Header Errors The number of ATM cell header CRC errors since the 2Wire gateway

was last restarted, and the elapsed time since the last cell header
error.

ATM Loss of Cell Delineation The number of ATM loss of cell delineation errors since the 2Wire

gateway was last restarted, and the elapsed time since the last
loss of cell delineation error.

DSL Link Retrains The number of DSL retrains since the 2Wire gateway was last

restarted, and the time elapsed since the last retrain.

DSL Training Errors The number of failed DSL retrains since the 2Wire gateway was

last restarted, and the elapsed time since the last failed retrain.

DSL Training Timeouts The number of timeouts waiting for response from ATU-C since the

2Wire gateway was last restarted, and the elapsed time since the
last initialization timeout.

DSL Loss of Framing Failures The number of DSL loss of framing failures since the 2Wire

gateway was last restarted, and the elapsed time since the last
line search initialization.

DSL Loss of Signal Failures The number of DSL loss of signal failures since the 2Wire gateway

was last restarted, and the elapsed time since the last loss of
signal failure.

DSL Loss of Power Failures The number of DSL loss of power indications from the ATU-C since

the 2Wire gateway was last restarted, and the elapsed time since
the last loss of power indication.

DSL Loss of Margin Failures The number of DSL loss-of-margin failures at current data rate

since the 2Wire gateway was last restarted, and the elapsed time
since the last loss of margin failure.

DSL Cumulative Errored
Seconds

The number of cumulative errored seconds since the 2Wire
gateway was last restarted, and the elapsed time since the last
error.

DSL Severely Errored Seconds The number of severely errored seconds since the 2Wire gateway

was last restarted, and the elapsed time since the last severely
errored second.

DSL Corrected Blocks The number of corrected DSL superframes that had data errors

detected during reception.

18

Broadband Link Tab

Data Error Description

DSL Uncorrected Blocks The number of uncorrected DSL superframes that had data errors

detected.

ISP Connection Establishment The number of times the ISP connection was established since the

statistics were last reset, and the elapsed time since the last
establishment.

Using Advanced Settings

The Advanced Settings page allows you to manually configure your DSL and Internet connection settings.
Typically, these settings are automatically provided by your service provider. You should adjust these
settings ONLY if you are very familiar with DSL and networking technology.

To access the Broadband Link Advanced Settings page:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Broadband Link tab.

19

Broadband Link Tab

• Click the Advanced Settings link under the tab to open the Broadband Link Advanced Settings page.

Figure 11. Broadband Link Advanced Settings Page

Modifying DSL and ATM Settings

By default, the gateway automatically detects which DSL line to use. The DSL and ATM panel allows you to
select a DSL line and manually configure your ATM settings.

1. From the DSL Line Selection drop-down menu, select Automatic, Line 1 (inner pair), or Line 2 (outer

pair).

2. In the ATM Circuit Identifier VPI and VCI fields, enter the VPI and VCI you want the gateway to use to

connect to your ISP.

3. From the ATM Encapsulation drop-down menu, select Bridged LLC, Bridged VC-Mux, Routed LLC, or

Routed VC-Mux.

20

Broadband Link Tab

4. In the ATM/PVC Search field, click the Enabled or Disabled radio button.

5. Click SAVE.

Modifying Broadband Connection Settings

The Broadband Connection panel allows you to modify your broadband connection.

1. From the Connection Type drop-down menu, select the connection type: PPPoE, PPPoA, Direct IP (DHCP

or Static), or Routed IPoA.

If you connect via PPPoE or PPPoA, proceed to step 2. If you connect via Direct IP or Routed IPoA,
proceed to step 5. Direct IP and Routed IPoA connections do not require a user name or password.

2. In the Username field, enter your user name.

3. In the Password field, enter your password.

4. In the Confirm Password field, re-enter your password.

5. In the PPP on Demand field, enter a value for the length of time you wish the PPP session to remain

active.

If the value is set to 0, the PPP session will not time-out (it will be always-on). If the value is between 1
to 10080 minutes, the PPP session will time-out if the gateway doesn’t detect outbound traffic destined
for the Internet in the specified time.

6. Click SAVE.

Modifying the Hardware Address

By default, the gateway uses its built-in hardware address. The Hardware Address Override panel allows you
to manually override the MAC address of the broadband connection, which is sometimes required for cable
modems that perform MAC address authentication.

1. Click the Override the built-in hardware address radio button.

2. In the Hardware Address field, enter the alternative hardware address.

3. Click SAVE.

Enabling Hostname Override

In the DHCP Host Name field, enter the DHCP host name you want the gateway to use. This field is only
relevant if your ISP uses DHCP host name authentication.

Modifying the Broadband IP

By default, the gateway automatically obtains its Internet address. The Broadband IP panel allows you to
manually configure your Internet address settings.

1. Click the Manually configure IP address settings radio button.

2. In the IP address field, enter the IP address you want the gateway to use.

21

Broadband Link Tab

3. In the Subnet Mask field, enter the subnet mask you want the gateway to use.

4. In the Default Gateway field, enter the default gateway address you want the gateway to use.

5. Click SAVE.

Modifying the Broadband DNS

By default, the gateway automatically obtains the DNS server addresses via DHCP. The Broadband DNS
panel allows you to manually configure your DNS information.

1. Click the Manually configure your DNS information radio button.

2. In the Primary Server field, enter the IP address of the primary DNS server that the gateway is to use for

DNS name resolution.

3. In the Secondary Server field, enter the IP address of the secondary DNS server that the gateway is to

use for DNS name resolution.

4. In the Domain Name field, enter the specific domain name to be used by the gateway.

5. Click SAVE.

Note: If you choose to manually configure your system and have a problem, re-run your

installation and follow the installation instructions provided to you by your service provider.

22

Home Network Tab

This chapter describes the 2Wire gateway Home Network features, and provides detailed instructions on
how to customize your network settings.

Viewing Your Home Network Summary

The Home Network Summary page displays information about the devices installed on your network.

To access the Home Network Summary page:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Figure 12. View Network Summary Page

Home Network tab to open the View Network Summary page.

Understanding the Local Devices Panel

The Local Devices panel shows you the name of the device, how it is connected, any special configuration
information, and provides links to other system features that you can set up for the device. A “device” on
your network is usually a computer — either a personal computer used by a household member, or a
computer that is dedicated to a specific use (such as a Web server that hosts online games). The status of
each device is shown in the Local Devices list in your 2Wire gateway user interface.

23

Home Network Tab

Each device on your home network is represented with a computer icon.
If the “show inactive devices” option is enabled, and the device becomes inactive
because it is powered off or removed from your network, this icon will display as Inactive.

Note: For additional information, refer to “Showing a Device as Inactive” on page 31.

A symbol next to the device shows how it is connected to your home network:

Ethernet USB Wireless

If you defined a name for your computer during System Setup or when your computer was set up, the name
displays next to the device. However, there are two instances where the device name will not appear:

• If your computer was manually configured with a static IP address, the static IP address displays
instead of the computer’s name.

• If you have not named the device but it still obtains its Internet address from the system, the word
“Unknown” displays.

You can change the name of the device so that it will display in the system user interface by clicking the

Change name link.

If you have configured the firewall to allow information from the Internet to pass through to the computer
(also referred to as “hosting an application”), the name of the application(s) that you are hosting are
displayed under the device name.

Note: For additional information, refer to “Hosting an Application” on page 37.

If you have defined special features for the computer (such as DMZplus mode), the feature is displayed
under the device name.

24

Home Network Tab

Depending on the permissions you have set for devices on your network, the following links may display
next to the device:

• Access shared files. Accesses the shared files available from this computer. This feature only works
with Microsoft Windows computers that have shared files and file sharing installed.

Note: If your computer is configured with a static IP address, this link will not appear.

• Edit firewall settings. Accesses the system user interface page, which allows you to edit the firewall
pass-through settings for the computer. For example, you may need to change the pass-through settings
for the computer if you want to play an Internet game.

• View Internet Access Control. Accesses the Internet Access Restriction schedule for this computer.

• Edit Content Screening. Accesses the Content Screening settings page, allowing you to change the Web
site permissions for users on your network.

• View device details. Displays the technical networking details about the device. If you are experiencing
difficulties, this information may be helpful to a technical support representative.

Understanding the Status at a Glance Panel

The Status at a Glance panel shows you a list of network connection
types, the number of devices connected via each connection type,
and your wireless settings.

To change your wireless settings, click the

To disable a network device, click the
A message asks you to confirm your decision.

EDIT SETTINGS button.

DISABLE button.

Monitoring Your Wireless Settings

Your 2Wire gateway has an integrated wireless access point, which enables you to connect your wireless­enabled computers to your home network.

By default, the 2Wire gateway ships with WEP enabled and a preconfigured network name. The default WEP
key is located on the bottom of the gateway, next to the serial number.

To check your current settings and configure changes:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Home Network tab.

25

• Click the Wireless Settings link to open the Configure the Wireless Network page.

Home Network Tab

Figure 13. Configure the Wireless Network Page

26

Home Network Tab

The Current Settings panel shows the 2Wire gateway’s wireless access point settings:

• Access Point. The designated name of the wireless access point.

• Network Name. The name assigned to your wireless network. The default is 2WIREXXX, where XXX
represents the last three digits of your 2Wire gateway serial number (for example, 2WIRE954).

• Channel. The radio frequency band the access point uses for your wireless network (the default is 6).
Wireless adapter cards auto-detect which channels to use. If you are having problems with your
wireless network, it could be due to radio interference. You can change the wireless channel to see if
interference is reduced on a different channel.

Note: For more information on wireless channels, refer to the wireless channel entry on page 123 in the
Glossary.

• Authentication. The security method used to ensure that users are authorized to access the wireless
network: WEP-Open, WEP-Shared, or WPA-PSK.

• Encryption. The security setting that makes it difficult for unauthorized users to access your network.

Customizing Security Settings

You should always enable encryption for wireless communication. When encryption is enabled, you must
define an encryption key for the 2Wire gateway’s wireless access point and configure that same key on each
wireless client that will use your 2Wire gateway wireless network.

Note: If encryption is enabled, each wireless client must be configured with the encryption key

defined on the system before it can operate on your wireless network.

You can customize the following wireless settings in the Wireless Security panel.

1. From the Authentication pull-down menu, select an authentication setting: WEP-Open, WEP-Shared, or

WPA-PSK.

Note: WPA-PSK authentication is supported only on HG model gateways.

Open authentication allows users to configure their wireless adapter as either Open or Shared; in either
case an encryption key is required. Shared authentication allows users to configure their wireless
adapter for Shared authentication, which requires an encryption key. WPA-PSK requires that users
configure their wireless adapter using TKIP.

2. To use the encryption key that came with your gateway, click the Use default encryption key radio button.

To create a custom encryption key, click the

If you select

Use custom encryption key, you can define a 64-bit or 128-bit encryption key. For 64-bit

encryption, enter a 10-digit hexadecimal number. For 128-bit encryption, enter a 26-digit hexadecimal
number. A hexadecimal number uses the characters 0-9, a-f, or A-F.

3. Click SAVE.

Use custom encryption key radio button.

27

Home Network Tab

Configuring Additional Settings

The Additional Settings panel allows you to customize wireless settings. In general, it is recommended that
you leave the default settings in place; however, if you are experiencing connection or performance
difficulties, altering these settings may improve performance.

Note: Because the fields that display are dependent on the type of wireless adapter you are

using, some of these settings may not display.

• Wireless Mode. Allows you to force the gateway to use 802.11b/g, 802.11b-only, or 802.11g-only
modes of operation.

Note: This field displays only for 802.11b/g based models.

• DTIM Period (seconds). Determines at which interval the access point will send its broadcast traffic.
The default value is 4 seconds.

• Maximum Connection Rate. The maximum rate at which your wireless connection works (1, 2, 5.5, 11,
or 22 Mbps for 802.11b-based models; 1, 2, 5.5, 11, 6, 9, 12, 24, 36, 48, or 54 Mbps for 802.11b/
g-based models).

• Power Setting. Allows you to select the power level for your wireless connection. The default list is 1 to
4; additional options may appear based on the service provider’s configuration.

If you have customized your wireless system configuration, you can restore the wireless settings to factory
defaults by clicking the

RESTORE DEFAULTS button.

Configuring Advanced Settings

The Edit Advanced Home Network Settings page displays the current IP settings in use by your system for
your home network, and allows you to configure your home network settings. You should adjust these
settings ONLY if you are very familiar with computer networking technologies.

The Current Settings panel shows the following information:

• Router Address. The IP address used by your system on the private home network (the default is

192.168.0.1). The system has two IP addresses: a private address that it uses on the home network,
and one that is used on the public broadband connection on the Internet. You can change the home
network IP address by changing the home network IP address range.

• Subnet Mask. The subnet mask is determined by the home network IP address range settings (the
default is 255.255.0.0).

• DHCP Range. The range of IP addresses used by your system (the default is 192.16.1.33 through

192.16.1.250). IP addresses can be either static (permanently assigned) or dynamic (automatic and
temporary).

Setting up a Private Network

By default, the 2Wire gateway uses the 192.168.1.0/255.255.0.0 IP address range. You can select from
two additional IP address ranges, or configure the network settings manually. You should manually configure
these settings ONLY if you thoroughly understand IP internetworking, because an incorrect configuration can
cause unpredictable results.

28

To set up a private network:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

Home Network Tab

• Click the

Home Network tab.

• Click the Advanced Settings

link under the tab to open the Edit Advanced Home Network Settings page.

Figure 14. Advanced Home Network Settings Page

29

Home Network Tab

1. Click the radio button that corresponds to the IP address range you wish to use.

If you select the 172.16.0.0 / 255.255.0.0 or 10.0.0.0 / 255.255.0.0 range, continue to step 5. If
you select

2. In the Router Address field, enter the IP address used by your system on the private home network.

3. In the Subnet Mask field, enter the subnet mask. The subnet mask is determined by the home network

Configure manually, continue to step 2.

IP address range settings.

4. Click the Enable DHCP checkbox.

a. In the First DHCP Address field, enter the first DHCP address that you’ll be distributing over the

private network.

b. In the Last DHCP Address field, enter the last DHCP address that you’ll be distributing over the

private network.

c. In the Set DHCP Lease Time field, enter a value for the number of hours before the DHCP lease

expires.

5. Click SAVE.

Note: If you change the home network IP address range, you must renew the DHCP lease on

all devices on your home network and manually reconfigure all devices configured with static IP
addresses. If you are using the 2Wire Network Support Tool, you can renew the DHCP lease by
selecting “Refresh Network Connection” in the Network Support Tool menu.

Setting Up a Public Network

The Public Network pane allows you to create a local network that has broadband network-accessible IP
addresses by creating a route from the Internet to the specified public network. The public network
operates without Network Address Translation (NAT). This feature is typically used in conjunction with
broadband service that provides a range of available IP addresses. Once enabled, the public IP addresses
can be assigned to local computers.

To set up a public network:

1. Check the Enable checkbox.

2. In the Router Address field, enter the router address (this is typically provided by your service provider).

3. In the Subnet Mask field, enter the subnet mask (this is typically provided by your service provider).

4. Click SAVE.

30

Home Network Tab

Setting Up a Bridge Network

The Bridge Network pane allows you to create a local network that has broadband-accessible IP addresses.
Bridge Network is a public network in which the local network is an extension of the broadband network and
does not require any special routing. Computers that are assigned Bridge Network IP addresses operate
without Network Address Translation (NAT). This feature is typically used in conjunction with broadband
service that provides a range of IP addresses. Once enabled, the bridge network IP addresses can be
assigned to local computers.

To set up a bridge network:

1. Check the Enable checkbox.

2. In the Subnet Mask field, enter the subnet mask (this is typically provided by your service provider, and

defines how large your IP pool is).

3. Click SAVE.

Showing a Device as Inactive

To show a device as Inactive:

1. Open a Web browser and access the 2Wire gateway user interface.

2. Click the Home Network tab.

3. Click the Advanced Settings link under the tab.

4. In the Settings pane, select the Show inactive devices in network list checkbox.

5. Click SAVE.

31

VoIP Network Tab

This chapter describes the 2Wire gateway VoIP Network features, and provides detailed instructions on
setting up a VoIP network.

Configuring the VoIP Phones

To configure VoIP via the gateway user interface, follow these steps.

1. Access the gateway user interface by opening a web browser and entering http://2wire.gateway.net.

Click the Voice Network tab. The View Voice Network page opens.

2. Click Step 2: Set Up Phone Lines. Click EDIT to change the settings.

32

VoI P Ne two rk Tab

3. The account is based on username or phone number. To change this setting, from the pull-down menu

select Username or Phone Number. To ensure that the settings cannot be changed, in the Password
field enter a password. From the Ring Tone pull-down menu, select the tone you wish to associate with
the phone. To block the outgoing caller ID, click the

4. The Phone Settings page allows you to match each phone to a line.To do so, click EDIT.

Anonymous checkbox. Click SUBMIT.

33

VoI P Ne two rk Tab

5. In the Phone Name field, select a name to associate with the phone. If you have more than one digital

voice line, in the Assign Number field select which phone line you wish to associate with this phone.

SUBMIT.

Click

6. Setup is complete. Click DONE to return to the View Voice Network page.

34

Firewall Tab

This chapter describes the 2Wire gateway firewall features, and provides detailed instructions on how to
modify the firewall settings.

Firewall Features

The 2Wire gateway has a professional-grade firewall to help prevent unauthorized users from accessing
your local network. The 2Wire gateway firewall includes the following features:

Stateful packet inspection. Blocks common Denial of Service attacks (such as SYN/FIN flooding or Smurf),
and detects and logs TCP and UDP port scans.

Stateless packet inspection. Filters specific NetBios traffic, suspicious packets and IP fragments; blocks
packets sent from the private network to the Internet that have spoofed IP addresses.

Network Address Translation (NAT). Translates a local network’s IP address to an external address
maintained by the 2Wire gateway, effectively “hiding” the existence of a home network to the Internet. The
2Wire gateway then uses this external address to communicate with the Internet on behalf of devices
connected to the local network.

Port Address Translation (PAT). A function provided by some routers which allows hosts on a LAN to
communicate with the rest of a network (such as the Internet) without revealing their own private IP
address. All outbound packets have their IP address translated to the router’s external IP address. Replies
come back to the router, which then translates them back into the private IP address of the original host for
final delivery. During PAT, each computer on the LAN is translated to the same IP address, but with a
different port number assignment.

Inbound and outbound port blocking. Blocks common inbound and outbound protocol types from passing
information to or receiving information from the Internet.

35

Firewall Tab

Viewing Your Firewall Summary

The Firewall Summary page provides summary information and links to the most commonly used security­related features of your system.

To access the Firewall Summary page:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Figure 15. View Firewall Summary Page

The Firewall Settings panel displays the Current Settings for your firewall.

• Default. Unsolicited inbound traffic is not allowed to pass through the firewall.

• Custom. Applications are associated with computers on your network.

An access list shows the computers (Devices) on your network and the names of the Allowed Applications
for each computer. When you allow application traffic, external users on the Internet can have limited
access to your home network. This access might be required to allow some programs (such as game
servers or instant messaging software) to operate properly.

Firewall tab to open the View Firewall Summary page.

For example, a remote game player on the Internet might need to contact the game server program that you
have installed on your home network in order to play against you. Normally, the firewall blocks this
communication. By changing the firewall settings, this communication is permitted to pass through a
“pinhole” in the firewall. This function may be referred to as “port-mapping” or “port-forwarding” in your
software program documentation.

36

Firewall Tab

Click VIEW DETAILS to access the Firewall Details page, which shows a list of all the devices that have
applications configured in the firewall and the details of these configurations.

Figure 16. View Firewall Details Page

If you have the Firewall Monitor enhanced service, the Firewall Monitor panel shows a brief summary of the
number of attacks that were blocked for the current day and week. Click

VIEW DETAILS to access the Monitor

the Firewall page.

Hosting an Application

When you host an application on your network for Internet users to access, you must configure the 2Wire
gateway firewall to pass through specific application data to a selected computer.

To host an application:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Firewall tab.

37

• Click the Firewall Settings link under the tab to open the Edit Firewall Settings page.

Firewall Tab

Figure 17. Edit Firewall Settings Page

1.

From the Select a computer pull-down menu, select the computer that you wish to host the application.

2. Click the Allow individual application(s) radio button.

3. In the Applications panel, select an application.

4. Click the ADD > button. The application you selected now appears in the Hosted Applications pane.

5. Click DONE.

To stop hosting an application:

1. In the Hosted Applications panel, select the application you wish to stop hosting.

2. Click the < REMOVE button.

3. Click DONE.

38

Firewall Tab

Updating the Application Profile List

If the application you want to host does not appear in the Application Profile list, you may need to update
the application list. If an update is available, the

UPDATE APPLICATION LIST button appears above the list of

application profiles. If the application that you want to host is not included in the updated application list,
you may need to add your own application profile.

Adding an Application Profile

If you wish to host an application that is not included in the Application Profile list, you can add an
application using the Add Application Profile page.

An application profile configures your system’s firewall to pass through application-specific data. This
feature is typically used if the application for which you would like to pass through data to a given computer
is new or has been recently updated to a new version.

To create a new application profile:

• Open a Web browser and access the gateway user interface by entering
http://gateway.2Wire.net.

• Click the

• Click the Firewall Settings

Firewall tab.

link under the tab to open the Edit Firewall Settings page.

• In the Applications panel, click the
page.

Add a new user-defined application link to open the Edit Application

Figure 18. Edit Application Page

39

Firewall Tab

1. In the Application Name field, enter a name for the application profile. You can enter any name you like,

although it’s recommended that you use the name of the application (for example, Redwing Game
Server).

2. In the Definition panel, create a definition for your application.

A definition consists of a series of protocol-specific ports that are to be allowed through the firewall.
This information should be contained in the documentation provided by the company that produces the
application.

a. In the

Protocol field, select the TCP or UDP radio button. If the application you are adding requires

both, you must create a separate definition for each.

b. In the

Port (or Range) field, enter the port or por t range the application uses.

For example, some applications may require only one port to be opened (such as TCP port 500);
others may require that all TCP ports from 600 to 1000 be opened.

c. In the

Protocol Timeout (seconds) field, you may optionally enter a value for the amount of time that

can pass before the application “times out.” You can also leave the field blank, in which case the
system uses the default values (86,400 seconds for the TCP protocol; 600 seconds for the UDP
protocol).

d. In the

Map to Host Port field, enter a value that will map the port range you established in step b to

the local computer. For example, if you set the value to 4000 and the range being opened is 100 to
108, the forwarded data to the first value in the range will be sent to 4000. Subsequent ports will
be mapped accordingly; 101 will be sent to 4001, 102 will be sent to 4002, etc.

e. From the

Application Type drop-down menu, select the application type. If you do not know the

application type, select None (Default).

3. Click ADD DEFINTION to add the values to the profile definition list.

4. Click DONE.

Repeat these steps for each port or range of ports required for the application profile.

To edit or delete an application profile:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

• Click the Firewall Settings

Firewall tab.

link under the tab to open the Edit Firewall Settings page.

40

Firewall Tab

• In the Applications panel, click the Edit or delete user-defined application link. The Select a Hosted
Application page opens.

Figure 19. Select a Hosted Application Page

1.

In the User-Defined Application Profiles panel, highlight the application you wish to edit or delete.

f. To edit the application profile, click

changes to the application profile and click

g. To delete the application profile, click

EDIT. The Edit Application screen appears. Make the necessary

DONE.

DELETE.

Allowing all Applications (DMZplus)

DMZplus is a special firewall mode that is used for hosting applications if you cannot get an application to
work properly using the “Allow individual application(s)” option. When in DMZplus mode, the designated
computer:

• Shares your gateway’s IP address (Router Address).

• Appears as if it is directly connected to the Internet.

• Has all of the unassigned TCP and UDP ports opened and pointed to it.

• Can receive unsolicited network traffic from the Internet.

Although the computer in DMZplus mode appears to Internet users as though it is directly connected to the
Internet, it is still protected by your system firewall. All traffic is inspected by the firewall’s Stateful Packet
Inspection engine and all known hacker attacks continue to be blocked.

Because all filtered traffic is forwarded to the designated computer, you should use DMZplus mode with
caution. A computer in DMZplus mode is less secure because all available ports are open and all incoming
Internet traffic is directed to this computer.

41

Note: DMZplus can only be configured for one computer on your home network at a time.

To configure DMZplus:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

Firewall Tab

• Click the

Firewall tab.

• Click the Firewall Settings

link under the tab to open the Edit Firewall Settings page.

Figure 20. Edit Firewall Settings Page

1.

From the Select a computer pull-down menu, select the computer to which you would like to have all data
sent.

2. Click Allow all applications (DMZplus mode).

3. Click DONE.

42

Firewall Tab

4. Access the computer that you selected in step 1.

5. Confirm that the computer is configured for DHCP. If it is not, configure it for DHCP.

6. Restart the computer. When the computer restarts, it receives a special IP address from the system

and all unassigned TCP and UDP ports are forwarded to it.

To stop DMZplus:

1. From the Select a computer pull-down menu, select the computer for which you would like to disable

DMZplus.

2. In the Edit firewall settings for this computer pane, click Maximum protection.

3. Click DONE.

4. Access the computer that you selected in step 1. If the computer will continue to automatically obtain

an IP address, proceed to step 5. If the computer will have a static IP address, configure it with a valid
static IP address.

5. Restart the computer.

Viewing the Firewall Log

The 2Wire gateway keeps a log of all firewall-related events that occur. Each log entry contains the date and
time the event occurred, the severity level of the event, and details about the event.

To view the log:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Firewall tab.

43

• Click the Firewall Log link under the tab to open the View Firewall Log page.

Firewall Tab

Figure 21. View Firewall Log Page

The following table provides additional information about the log entries.

Severity • Info. Informational only—the event does not imply a

threat to network security.

• Low. Occurs when the firewall detects a low-level threat
to the network, such as an invalid IP header or invalid
packet length.

• Medium. Occurs when a medium-level threat is detected,
such as an invalid IP fragment offset.

• High. Occurs when an attack is launched against the
network (for example, a SYN Flood).

Details Includes the following information:

• The IP address from which the packet originated.

• The destination IP address of the packet.

• The action that was taken.

CLEAR LOG to clear the log.

Click

44

Firewall Tab

Configuring the Firewall (Advanced)

The Edit Advanced Firewall Settings page allows you to configure advanced features on your firewall.

Figure 22. Edit Advanced Firewall Settings Page

Note: These features should be used only if you are thoroughly familiar with firewalls and

networking.

Enabling Advanced Security

Your 2Wire gateway firewall already provides a high level of security. You can configure the firewall to provide
advanced security features, including stealth mode, strict UDP, or block pings.

45

Firewall Tab

Stealth Mode

In normal firewall operation, when an unknown remote device makes a request to connect to a user’s
network the firewall does not allow the connection to be made and responds with a “connection not
available” message. This may not discourage a determined hacker, because the message confirms that
there is an active network sending the response. The hacker may then use more sophisticated tools in an
attempt to access your network.

When in stealth mode, the 2Wire gateway firewall does not return any information in response to network
queries; that is, it will appear to the hacker who is trying to access your network that your network does not
exist. This discourages hackers from further attempts at accessing your network, because to them it will
appear as though there is no active network to access.

To enable Stealth Mode:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Firewall tab.

• Click the Advanced Settings

link under the tab to open the Edit Advanced Firewall Settings page.

1. In the Security pane, click the Stealth Mode checkbox.

2. Click SAVE.

46

Firewall Tab

Block Ping

Ping is a basic Internet program that, when used without malicious intent, allows a user to verify that a
particular IP address exists and can accept requests. Ping is used diagnostically to ensure that a host
computer you are trying to reach is operating. It can also be used to see how long it takes to get a response
back from a specific host computer.

Hackers can use ping to launch an attack against your network, because ping can determine the number
form of the network’s IP address (for example, 105.246.172.72) from the domain name (for example,
www.mynetwork.com). If you enable Block Ping, your network will block all ping requests.

To block ping:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Firewall tab.

• Click the Advanced Settings

link under the tab to open the Edit Advanced Firewall Settings page.

1. In the Security pane, click the Block Pings checkbox.

2. Click SAVE.

47

Firewall Tab

Strict UDP Session Control

Enabling this feature provides increased security by preventing the 2Wire gateway from accepting packets
sent from an unknown source over an existing connection.

Strict UDP instructs the 2Wire gateway to be more restrictive about what packets are allowed to transmit
over an established connection from a local network computer to the Internet. In addition to relying on
information about the destination (3-tuple), the 2Wire gateway will also use information about the source of
the connection (5-tuple).

Note: The ability to send traffic based on destination only is required by some applications.

Enabling this feature may not allow some on-line applications to work properly.

To enable strict UDP session control:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Firewall tab.

• Click the Advanced Settings

link under the tab to open the Edit Advanced Firewall Settings page.

1. In the Security pane, click the Strict UDP Session Control checkbox.

2. Click SAVE.

48

Firewall Tab

Allowing Inbound and Outbound Traffic

The Inbound and Outbound Control pane displays some common protocol types. When one of the Inbound
protocol boxes is checked, the firewall allows the corresponding protocol to pass through from the Internet
to the network. If one of the Outbound protocol boxes is checked, the firewall allows the traffic from the
network to pass through the firewall to the Internet.

Note: If you configure the firewall to block an Inbound protocol, you may disable support for

hosted applications that require that type of protocol.

To block an Inbound or Outbound protocol:

• Open a Web browser and access the 2Wire gateway user
interface by entering http://gateway.2Wire.net.

• Click the

• Click the Advanced Settings

Firewall tab.

link under the tab to open the

Edit Advanced Firewall Settings page.

1. In the Inbound and Outbound Control pane, deselect the

checkbox of the protocol you wish to block.

2. Click SAVE.

Disabling Attack Detection

By default, the 2Wire gateway firewall rules block the attack
types listed in the Attack Detection pane. There are some
applications and devices that require the use of specific data
ports through the firewall. The gateway allows users to open the necessary ports through the firewall using
the Firewall Settings page. If the user requires that a computer have all incoming traffic available to it, this
computer can be set to the DMZplus mode. While in DMZplus mode, the computer is still protected against
numerous broadband attacks (for example, SYN Flood or Invalid TCP flag attacks).

In rare cases, the incoming traffic may be inadvertently blocked by the firewall (for example, when
integrating with external third-party firewalls or VPN servers). You may need to disable one or more of the
attack detection capabilities for any device placed in the DMZplus. In this case, the third-party server
provides the attack protection normally provided by the gateway.

49

The following table lists the attacks for which the gateway firewall filters continuously check.

Attack Description and Action Taken

Excessive Session Detection When enabled, the firewall will detect applications on the

local network that are creating excessive sessions out to
the Internet. This activity is likely due to a virus or “worm”
infected computer (for example, Blaster Worm). When the
event is detected, the gateway displays a HURL warning
page.

TCP/UDP Port Scan A port scan is a series of messages sent by someone

attempting to break into a computer to learn which
computer network services, each associated with a well­known port number (such as UDP and TCP), the computer
provides. When enabled, the firewall detects UDP and TCP
port scans, and drops the packet.

Firewall Tab

Invalid Source/Destination IP
address

When enabled, the firewall will verify IP addresses by
checking for the following:
IP source address is broadcast or multicast — drop
packet.
TCP destination IP address is not unicast — drop packet.
IP source and destination address are the same — drop
packet.
Invalid IP source received from private/home network —
drop packet.

Packet Flood (SYN/UDP/ICMP/
Other)

When enabled, the firewall will check for SYN, UDP, ICMP,
and other types of packet floods on the local and Internet
facing interfaces and stop the flood.

Invalid TCP Flag Attacks (NULL/
XMAS/Other)

When enabled, the firewall will scan inbound and
outbound packets for invalid TCP Flag settings, and drop
the packet to prevent SYN/FIN, NULL, and XMAS attacks.

Invalid ICMP Detection The firewall checks for invalid ICMP/code types, and drops

the packet.

Miscellaneous The firewall checks for the following:

Unknown IP protocol — drop packet.
Port 0 attack detected — drop packet.
TCP SYN packet — drop packet.
Not a start session packet — drop packet.
ICMP destination unreachable — terminate session.

To disable attack detection for a specific port:

• Open a Web browser and access the 2Wire gateway user interface by entering
http://gateway.2Wire.net.

• Click the

Firewall tab.

50

Firewall Tab

• Click the Advanced Settings link under the tab to open the Edit Advanced Firewall Settings page.

Figure 23. Edit Advanced Firewall Settings Page

1.

In the Attack Detection panel, deselect the appropriate checkbox.

2. Click SAVE.

51

Management and Diagnostic Console

This chapter describes the 2Wire gateway Management and Diagnostic Console (MDC). The Management
and Diagnostic Console provides information about the status of the 2Wire gateway, its broadband network
connections, attached home networking devices, system and security information, and a running log of any
error conditions.

You can use the tools provided to:

• View configuration and service provisioning information.

• View operation logs.

• Perform diagnostic tests.

• Configure the gateway.

The following sections describe how to access the Management and Diagnostic Console, use the
diagnostic and configuration tools, and modify settings.

Note: The MDC pages available are dependent on the 2Wire gateway software release. The

MDC pages shown in this chapter are for 2Wire gateways running software release 4.21.x If
your gateway is running a software release earlier than 4.21.x, some of these pages may not
be available.

Accessing the MDC

To access the MDC from your in-home or office network, enter the following URL:
http://gateway.2wire.net/management

Using the MDC

After you access the Management and Diagnostic Console, a navigation bar allows you to quickly select
pages on the site. The navigation bar consists of the following links:

Group Link

Summary System Summary

Broadband Link Summary

Statistics

Detailed Statistics

Configure

Local Network Status

Statistics

52

Group Link

Local Network

Device List

Wireless

Configure

Address Allocation

Firewall Settings

Detailed Information

Advanced Settings

Voice Configure Server

Troubleshooting DSL Diagnostics

Event Log

Network Tests

Management and Diagnostic Console

Upgrade History

Resets

Advanced Syslog Settings

Provisioning Info

Configure Time Services

Configure Services

Static Routes

DNS Resolve

Traffic Shaping

Link Manager

Detailed Log

Note: The link groups that display are dependent on the 2Wire gateway model. For example,

DSL Diagnostics will display only if a user has a gateway that connects to the Internet via DSL.

53

Management and Diagnostic Console

System Summary Page

The System Summary page shows general information about the 2Wire gateway, its configuration, and
components. For example, it shows the hardware and software version being used by the 2Wire gateway.

Broadband Link Pages

The Broadband Link pages show summary, detailed status, and statistical information about the 2Wire
gateway broadband link; and lets you change configuration settings. For example, the Statistics page shows
current upstream and downstream DSL data rates.

Local Network Pages

Local Network pages show the general operating status of the home network, and statistics associated
with network interfaces. For example, the Statistics page shows the transmit and receive packet count for
Ethernet, Wireless, HomePNA, and USB interfaces.

Firewall Pages

Firewall pages allow you to access settings and detailed information for the gateway’s firewall, and to
configure the firewall if necessary. For example, you can use the Firewall Settings page to access
applications that are usually blocked by the firewall.

Troubleshooting Pages

Troubleshooting pages allow you to view detailed logs that maintain a record of all significant 2Wire gateway
events, and to perform diagnostic tests. For example, if you are experiencing connection problems you can
use the Ping tool on the WAN Tests page to ensure that the 2Wire gateway can “ping” a designated IP
address.

Advanced Pages

Advanced pages provide detailed information and sophisticated diagnostics that, in general, should only be
accessed by technically advanced users.

54

Management and Diagnostic Console

Remote Management Feature

Management and Diagnostic Console pages that affect gateway configuration can be accessed remotely
only if your organization has enabled the Remote Management feature. If the feature is not enabled, an
error message will display when you click the link to access the following pages.

• Broadband Link - Configuration

• Local Network - Configuration

• Local Network - Address Allocation

• Firewall - Settings

• Firewall - Detailed Information

• Firewall - Advanced Settings

• Troubleshooting - Configure Logs

• Troubleshooting - Resets

• Advanced - Syslog Settings

• Advanced - Configure Time Services

• Advanced - Configure Services

• Advanced - Static Routes

• Advanced - DNS Resolve

• Advanced - Traffic Shaping

The following section shows Management and Diagnostic Console pages and describes how to use the
information provided to troubleshoot the 2Wire gateway.

55

Management and Diagnostic Console

System Summary Page

The System Summary page shows general information about the 2Wire gateway, its configuration, and
components.

Figure 24. MDC System Summary Page

Depending on the service provider and the components installed, the System Summary page includes the
following information:

Item Description

System

Model 2Wire gateway model number (for example,

“2700HGV Gateway”).

Serial Number 2Wire gateway serial number.

MAC Address 2Wire gateway MAC address.

56

Management and Diagnostic Console

Item Description

Hardware Version 2Wire gateway hardware version.

Hardware Options The type of peripheral device installed.

DSL Modem Type ADSL or ISDN.

Current Software 2Wire gateway software version.

Configuration

Key Code The key code associated with the current

provisioning settings. The value is
Unprovisioned if the 2Wire gateway has not yet
been provisioned.

System Time The day, month, year, and time; or “Retrieving

date and time settings from Internet” if not set.

Time Since Last Boot The time elapsed since the 2Wire gateway was

last restarted.

Last ID Post The time elapsed since the 2Wire gateway

communicated with the configuration server.

Components

DSL Modem DSL modem software version.

Firewall Rules Current version of the installed firewall rules

database.

Application List Current version of the application list.

Note: The contents of the Components list varies according to service provider-specific

information. For example, the Components list may contain language files (such as
common_en, common_es, or common_fr); user interface files (such as base_ui); or VoIP files
(such as base_voice).

57

Management and Diagnostic Console

Broadband Link - Summary Page

The Broadband Link - Summary page allows you to view 2Wire gateway broadband connectivity-related
settings, and reset the Broadband Link and ISP Connection.

Figure 25. MDC Broadband Link Summary Page

The Broadband Link – Summary page includes the following information:

Item Description

Connection Information

Broadband Connection Built-in ADSL Modem or External Broadband Modem via

Ethernet.

58

Management and Diagnostic Console

Item Description

Current Status The current operating condition of the broadband link.

Fully operational. The broadband link is operational
(including connection to ISP and other services).

Initializing. The broadband link is preparing to connect.
Establishing link. The broadband link is connecting.
No physical link signal. No physical signal detected on the

broadband link.

Physical connection. The broadband link is connected.
Error. There is a broadband link error.

DSL Connection Details (for DSL models only)

DSL Line (Wire Pair) Line 1 (inner pair), Line 2 (outer pair), or Searching for DSL

signal. During installation, the 2Wire gateway auto detects
whether the DSL signal is on line 1 or line 2.

Protocol G.dmt, G.lite, or ANSI (T1.413).

DSL Channel Fast or Interleaved.

DSLAM DSLAM vendor identification. For G.dmt or G.lite protocol,

values are Country, Vendor, and Specific. For ANSI (T1.413)
protocol, values are ID, Rev (Revision), and Std (Standard).

ATM PVC Info The ATM VPI/VCI.

ATM Encapsulation LLC or VCMux.

ISP Details

Connection Type The method by which the 2Wire gateway connects to the ISP:

Direct_IP, PPPoA, or PPPoE. For the HomePortal 1000, direct
uses an RFC2684 (formerly RFC 1483) bridged Ethernet
connection without FCS (PID=0x00-07) format.

User Name The 2Wire gateway user name.

PPPoE Access Concentrator This field is present only when the connection type is PPPoE.

PPPoE Service The type of PPPoE services being used. This field is present

only when the connection type is PPPoE.

IP Address Range The broadband address of the 2Wire gateway.

Subnet Mask The subnet mask to be used by the 2Wire gateway on the

broadband link.

Gateway The IP address of the default gateway (default router) that

the 2Wire gateway connects to on the broadband link.

59

Management and Diagnostic Console

Item Description

Primary DNS The IP address of the primary DNS server that the 2Wire

gateway is to use for DNS name resolution on the broadband
link.

Secondary DNS The IP address of the secondary DNS server that the 2Wire

gateway is to use for DNS name resolution on the broadband
link.

Host Name The 2Wire gateway host name. This field is only present if

the user configures the 2Wire gateway with a host name.

Domain Name The domain name associated with the 2Wire gateway on the

broadband link.

MTU Maximum size of the packets sent from a computer to the

network.

Spoof MAC Address Either Disabled (if the default factory-set MAC address is

used) or Enabled (if the computer’s MAC address is used).

If there is an error on the broadband link or with the ISP connection, click the Reset Broadband Link or Reset

ISP Connection

button to reset the connections.

60

Management and Diagnostic Console

Broadband Link - Statistics Page

The Broadband Link - Statistics page shows statistics associated with the 2Wire gateway broadband link.

Note: To update the information displayed on this page, click the browser’s Refresh button.

Figure 26. MDC Broadband Link Statistics Page

The Broadband Link – Statistics page includes the following information:

Item Description

DSL (for DSL models only)

Current Rate The DSL downstream and upstream rate, in kilobits.

Max Rate The maximum DSL downstream and upstream rate, in

kilobits.

61

Management and Diagnostic Console

Item Description

Current Connection Current Noise Margin. The current downstream and

upstream noise margin in dB.
Current Attenuation. The current downstream and
upstream DSL attenuation in dB.
Current Output Power. The current downstream and
upstream DSL transmit and receive power in dB.

ATM

Transmit The cumulative number of cells transmitted, and the

number and percentage transmitted in error.

Receive The cumulative number of cells received, and the number

and percentage received in error.

IP

Transmit The cumulative number of IP packets transmitted, the

cumulative number of IP payload bytes transmitted, and
the number and percentage transmitted in error.

Receive The number of bytes and packets received, and the

number and percentage received in error.

To reset the broadband link statistics, click the Reset button.

62

Management and Diagnostic Console

Broadband Link - Detailed DSL Statistics Page

Note: This link is present only if the 2Wire gateway connects to the Internet via ADSL.

The Broadband Link – Detailed DSL Statistics page shows a set of cumulative DSL statistics associated
with the 2Wire gateway.

Figure 27. MDC Broadband Link Detailed DSL Statistics Page

Note: To update the information displayed on this page, click the browser’s Refresh button.

63

Management and Diagnostic Console

The Broadband Link – Detailed DSL Statistics page includes the following information:

Item Description

ATM

Cell Header Errors The number of ATM cell header CRC errors since the

2Wire gateway was last restarted, and the elapsed time
since the last cell header error.

Loss of Cell Delineation The number of ATM loss of cell delineation errors since

the 2Wire gateway was last restarted, and the elapsed
time since the last loss of cell delineation error.

DSL

Link Retrains The number of DSL retrains since the 2Wire gateway was

last restarted, and the time elapsed since the last

retrain.

DSL Training Errors The number of failed DSL retrains since the 2Wire

gateway was last restarted, and the elapsed time since

the last failed retrain.

Training Timeouts The number of timeouts waiting for response from ATU-C

since the 2Wire gateway was last restarted, and the

elapsed time since the last initialization timeout.

Loss of Framing Failures The number of DSL loss of framing failures since the

2Wire gateway was last restarted, and the elapsed time

since the last line search initialization.

Loss of Signal Failures The number of DSL loss of signal failures since the 2Wire

gateway was last restarted, and the elapsed time since

the last loss of signal failure.

Loss of Power Failures The number of DSL loss of power indications from the

ATU-C since the 2Wire gateway was last restarted, and

the elapsed time since the last loss of power indication.

Loss of Margin Failures The number of DSL loss-of-margin failures at current data

rate since the 2Wire gateway was last restarted, and the

elapsed time since the last loss of margin failure.

Cumulative Seconds w/Errors The number of cumulative errored seconds since the

2Wire gateway was last restarted, and the elapsed time

since the last error.

64

Item Description

Management and Diagnostic Console

Cumulative Sec.w/Severe

Errors

The number of severely errored seconds since the 2Wire

gateway was last restarted, and the elapsed time since

the last severely errored second.

Corrected Blocks The number of corrected DSL superframes that had data

errors detected during reception.

Uncorrectable Blocks The number of uncorrected DSL superframes that had

data errors detected.

DSL Unavailable Seconds The number of unavailable seconds (modem downtime)

since the 2Wire gateway was last restarted, and the

elapsed time since the last unavailable second.

ISP Connection Establishment The number of times the ISP connection was established

since the statistics were last reset, and the elapsed time

since the last establishment.

To reset the DSL statistics, click the Reset button.

65

Management and Diagnostic Console

Broadband Link - Configuration Page

The Broadband Link – Configuration page allows you to modify specific broadband connection settings.

Figure 28. MDC Broadband Link Configuration Page

Note: Modifying the settings on this page can impact the ability of computers on the local

network to access the broadband connection. You should modify these settings ONLY if you are
thoroughly familiar with networking.

66

Management and Diagnostic Console

Modifying DSL and ATM Settings

By default, the gateway automatically detects which DSL line to use. The DSL and ATM Settings pane allows
you to select a DSL line and manually configure your ATM settings.

To modify DSL or ATM settings:

1. From the DSL Line Selection pull-down, select Automatic, Line 1(inner pair), or Line 2 (outer pair).

2. In the ATM Circuit Identifier VPI and VCI fields, enter the VPI and VCI you want the gateway to use to

connect to the ISP.

3. From the ATM Encapsulation pull-down menu, select VC-Mux or LLC.

4. In the ATM/PVC Search field, click the Enabled or Disabled radio button.

5. Click the Submit button.

Modifying Internet Connection and Authentication Settings

The Internet Connection Settings - Connection and Authentication pane allows you to modify the method by
which you connect to the Internet.

To modify Internet connection and authentication settings:

1. Ensure that the Broadband connection Enabled radio button is selected (default).

2. From the Connection Type pull-down menu, select the connection type (either Direct IP (DHCP or Static),

PPPoE, or PPPoA).

If you connect via PPPoE or PPPoA, proceed to step 2. If you connect via Direct IP, proceed to step 5.
Direct IP connection does not require a user name or password.

3. In the Username field, enter your user name.

4. In the Password field, enter your password.

5. In the Confirm Password field, re-enter your system password.

6. Click the Submit button.

The PPP on Demand field allows you to enable PPP on-demand. If the value is set to 0 minutes, the PPP
session will be persistent (always-on). If the value is between 1 to 10080 minutes, the PPP session will
timeout if the 2Wire gateway does not detect outbound traffic destined for the Internet in the specified time.
When the 2Wire gateway detects outbound traffic, the session is reestablished.

Note: By default, the minimum timeout value is 3 minutes.

67

Management and Diagnostic Console

Modifying Hardware Address

By default, the 2Wire gateway uses its built-in hardware address. The Internet Connection Settings ­Hardware Address Override pane allows you to manually override the MAC address of the broadband
connection, which is sometimes required for cable modems that perform MAC address authentication.

To modify the hardware address:

1. Click the Override the built-in hardware address radio button.

2. In the Hardware Address field, enter the alternative hardware address.

3. Click the Submit button.

Modifying Internet Address Settings

By default, the 2Wire gateway automatically obtains its Internet address. The Internet Connection Settings ­Internet Address pane allows you to manually configure your Internet address settings.

To manually configure your Internet address settings:

1. Click the Manually configure Internet address settings radio button.

2. In the IP Address field, enter the IP address you want the 2Wire gateway to use.

3. In the Subnet Mask field, enter the subnet mask you want the 2Wire gateway to use.

4. In the Default Gateway field, enter the default gateway address you want the 2Wire gateway to use.

5. Click the Submit button.

Modifying DNS Information

By default, the 2Wire gateway automatically obtains DNS server addresses via DHCP. The Internet
Connection Settings - DNS pane allows you to manually configure your DNS information.

To manually configure your DNS information:

1. Click the Manually configure your DNS information radio button.

2. In the Primary Server field, enter the IP address of the primary DNS server that the 2Wire gateway is to

use for DNS name resolution.

3. In the Secondary Server field, enter the IP address of the secondary DNS server that the 2Wire gateway

is to use for DNS name resolution.

4. In the Domain Name field, enter the specific domain name to be used by the 2Wire gateway.

5. Click the Submit button.

68

Management and Diagnostic Console

Local Network - Status Page

The Local Network – Status page shows the status of the local network.

Figure 29. MDC Local Network Status Page

The Local Network – Status page includes the following information:

Item Description

IP

Gateway The IP address allocated to the 2Wire gateway.

IP Network The IP address used by the network.

Subnet Mask The subnet mask allocated to the 2Wire gateway.

DHCP Range The range of IP addresses available on the network, the

number of addresses Allocated, and the number of

addresses Remaining.

69

Management and Diagnostic Console

Item Description

DHCP Timeout The time, in minutes, before the DHCP lease must be

renewed.

Devices

Ethernet The number of Active and Inactive Ethernet devices on

the network.

Wireless (802.11) The number of Active and Inactive wireless devices on the

network.

USB Specifies whether a USB device is present (Active) on the

network. If a USB device is not present, the value is

Inactive.

Public Network

Router Address Defines a separate network on the home side.

Subnet Mask The subnet mask allocated for public address.

Bridge Network

Router Address Creates a bridge network with the broadband.

Subnet Mask The subnet mask allocated for public address.

Note: If you have Enhanced Services (such as Internet Access Control) installed, the specific

service and its status display in the Devices panel.

70

Management and Diagnostic Console

Local Network - Statistics Page

The Local Network – Statistics page shows information about the interfaces on the local network.

Figure 30. MDC Local Network Statistics Page

The Local Network – Statistics page includes the following information:

Item Description

Ethernet

Transmit The cumulative number of frames transmitted over the

Ethernet home network interface, the number of payload
bytes transmitted, and the number and percentage of
transmitted packets in error.

71

Management and Diagnostic Console

Item Description

Receive The cumulative number of frames received over the

Ethernet home network interface, the number of payload
bytes received, and the number and percentage of
received packets in error.

Wireless (this field is present only on wireless 2Wire gateway models)

Transmit The cumulative number of frames transmitted over the

wireless home network interface, the number of payload
bytes transmitted, and the number and percentage of
transmitted packets in error.

Receive The cumulative number of frames received over the

wireless home network interface, the number of payload
bytes received, and the number and percentage of
received packets in error.

USB

Transmit The cumulative number of frames transmitted over the

USB home network interface, the number of payload bytes
transmitted, and the number and percentage of
transmitted packets in error.

Receive The cumulative number of frames received over the USB

home network interface, the number of payload bytes
received, and the number and percentage of received
packets in error.

To reset the local network statistics, click the Reset button.

72

Management and Diagnostic Console

Local Network - Device List Page

The Local Network - Device List page displays information about each device in the local network.

Figure 31. MDC Local Network Device List Page

The following information is displayed.

Item Description

Identity The name of the device. If the device does not have a name

associated with it, the device IP address is displayed.

Type The type of connection used by the device to connect to the

local network: Ethernet, USB, or Wireless.

MAC Address The hardware address used by the device.

IP Address The IP address used by the device.

73

Management and Diagnostic Console

Local Network - Wireless Settings Page

The Local Network - Wireless Settings page allows you to view or change the wireless settings with which
your gateway is configured.

Figure 32. MDC Local Network Wireless Settings Page

The Current Settings panel shows the 2Wire gateway’s wireless access point settings.

• Access Point. The designated name of the wireless access point.

• Network Name. The name assigned to your wireless network. The default is 2WIREXXX, where XXX
represents the last three digits of your 2Wire gateway serial number (for example, 2WIRE954).

• Channel. The radio frequency band the access point uses for your wireless network (the default is 6).
Wireless adapter cards auto-detect the channels to use. If you are having problems with your wireless
network, it could be due to radio interference. You can change the wireless channel to see if
interference is reduced on a different channel.

• Authentication. The security method used to ensure that users are authorized to access the wireless
network: WEP-Open, WEP-Shared, or WPA-PSK.

• Encryption. The security setting that makes it difficult for unauthorized users to access your network.

74

Management and Diagnostic Console

The Settings panel allows you to change the Network Name and Wireless Channel, and enable SSID
broadcast.

Customizing Security Settings

You should always enable encryption for wireless communication. When encryption is enabled, you must
define an encryption key for the 2Wire gateway’s wireless access point and configure that same key on each
wireless client that will use your 2Wire gateway wireless network.

Note: If encryption is enabled, each wireless client must be configured with the encryption key

defined on the system before it can operate on your wireless network.

You can customize the following wireless settings in the Wireless Security panel.

1. From the Authentication pull-down menu, select an authentication setting: WEP-Open, WEP-Shared, or

WPA-PSK.

Open authentication allows users to configure their wireless adapter as either Open or Shared; in either
case an encryption key is required. Shared authentication allows users to configure their wireless
adapter for Shared authentication, which requires an encryption key. WPA-PSK requires that users
configure their wireless adapter using TKIP.

2. To use the encryption key that came with your gateway, click the Use default encryption key radio button.

To create a custom encryption key, click the

Use custom encryption key radio button.

If you select

Use custom encryption key, you can define a 64-bit or 128-bit encryption key. For 64-bit

encryption, in the Key field enter a 10-digit hexadecimal number. For 128-bit encryption, enter a 26-digit
hexadecimal number. A hexadecimal number uses the characters 0-9, a-f, or A-F.

3. Click the Submit button.

Additional Settings

The Additional Settings panel allows you to customize wireless settings. In general, it is recommended that
you leave the default settings in place; however, if you are experiencing connection or performance
difficulties, altering these settings may improve performance.

Note: Because the fields that display are dependent on the type of wireless adapter you are

using, some of these settings may not display.

• Wireless Mode. Allows you to force the gateway to use 802.11b/g, 802.11b-only, or 802.11g-only
modes of operation.

• DTIM Period (seconds). Determines at which interval the access point will send its broadcast traffic.
The default value is 1 second.

• Power Setting. Allows you to select the power level for your wireless connection. The default list is 1 to
4; additional options may appear based on the service provider’s configuration.

• Maximum Connection Rate. The maximum rate at which your wireless connection works (1, 2, 5.5, 11,
or 22 Mbps for 802.11b-based models; 1, 2, 5.5, 11, 6, 9, 12, 24, 36, 48, or 54 Mbps for 802.11b/
g-based models).

75

Management and Diagnostic Console

Local Network - Configuration Page

Note: To access this page, your organization must have the Remote Management feature

enabled. If the feature is not enabled, an error message will display when you click the link to
access this page.

The Local Network - Configuration page allows you to change the gateway’s default local network settings.
You must click the

Submit button for changes to take effect.

Figure 33. MDC Local Network Configuration Page

Private Network Settings

By default, the gateway uses the 192.168.0.1/255.255.0.0 IP address range. The Private Network pane
allows you to change the IP address range used by the local network. You can choose from three standard
configuration options, or configure the network settings manually.

76

Management and Diagnostic Console

Note: If you change the local network IP address range, you must renew the DHCP lease on all

devices on the gateway’s local network and manually reconfigure all devices configured with
static IP addresses.

Public Network Settings

The Public Network pane allows you to create a local network that has broadband network-accessible IP
addresses by creating a route from the Internet to the public network specified. The public network
operates without the use of Network Address Translation (NAT). This feature is typically used in conjunction
with broadband service that provides a range of available IP addresses. Once enabled, the public IP
addresses can be assigned to local computers.

Bridge Network Settings

The Bridge Network pane allows you to create a local network that has broadband-accessible IP addresses.
Bridge Network is a public network in which the local network is an extension of the broadband network and
does not require any special routing. Computers that are assigned Bridge Network IP addresses operate
without the use of Network Address Translation (NAT). This feature is typically used in conjunction with
broadband service that provides a range of IP addresses. Once enabled, the bridge network IP addresses
can be assigned to local computers.

Display Settings

If the Show Inactive Devices checkbox is checked, devices that are no longer on the local network will display
in the Local Network Local Devices list as an inactive device. If this checkbox is not checked, inactive
devices will not be displayed in the device list.

Enable Router Behind Router Alert

If the Display alert when another router is connected to this router checkbox is checked, the Router Behind
Router error page displays in the gateway user interface if the gateway detects the presence of a third-party
router. If a third-party router is connected to the 2Wire gateway, the network can become unstable because
both devices are trying to manage private IPs via NAT.

77

Management and Diagnostic Console

Local Network - Address Allocation Page

Note: To access this page, your organization must have the Remote Management feature

enabled. If the feature is not enabled, an error message will display when you click the link to
access this page.

The Local Network - Address Allocation page shows the name and IP address of each device on the
gateway’s local network, and allows you to create DHCP mappings for each device.

Figure 34. MDC Local Network Address Allocation Page

To change the DHCP mapping for a device:

1. From the IP Address pull-down menu next to the device, select an address from any of the

available networks.

2. Click the Submit button.

Note: If you change the home network IP address range, you must renew the DHCP lease on

all devices on your home network and manually reconfigure all devices configured with static IP
addresses.

78

Management and Diagnostic Console

Firewall - Settings Page

Note: To access this page, your organization must have the Remote Management feature

enabled. If the feature is not enabled, an error message will display when you click the link to
access this page.

The Firewall - Settings page allows you to configure the firewall to pass through specific application data to
a selected computer.

Figure 35. MDC Firewall Settings Page

79

Management and Diagnostic Console

Hosting an Application

To host an application on the gateway’s network for Internet users to access (such as a Web server), the
firewall must be configured to allow users on the Internet to access it.

To host an application:

1. From 1 Select a computer, select a computer from the pull-down menu.

2. From 2 Edit firewall settings for this computer, click the Allow individual application(s) radio button.

3. From the Applications list, select an application profile.

4. Click the ADD > button. The application displays in the Hosted Applications list.

5. Click the Submit button.

To stop an application that is routed to a selected computer:

1. From the Hosted Applications list, select the application profile name.

2. Click the < REMOVE button.

Note: If an application does not appear in the Applications list, the list may need updating. If

an update is available, click the

UPDATE APPLICATION LIST button.

Creating an Application Profile

If the application that the user wishes to host is not included in the updated application list, you may need
to create an application profile. An application profile configures the system’s firewall to pass through
application-specific data.

80

Management and Diagnostic Console

To create an application profile:

1. Click the Add a new user-defined application link. The Edit Application page opens.

Figure 36. MDC Firewall Edit Application Page

2.

In the Application Name field, enter a name for the application profile.

3. In the Protocol field, click the TCP or UDP radio button. If both protocols are required, you must create a

definition for each.

4. In the Port (or Range) field, enter the port or port range used by the application.

5. In the Protocol Timeout (seconds) field, enter the amount of time (in seconds) that the connection in

the specified range should remain open when there is no data transfer. In most cases the default value
is appropriate.

6. In the Map to Host Port field, enter the value that provides the mapping offset to the local computer. For

example, if this value is set to 4000 and the range being opened is 100 to 108, the forwarded data to
the first value in the range will be sent to 4000. Subsequent ports will be mapped accordingly; 101 will
be sent to 4001, 102 will be sent to 4002, etc.

81

Management and Diagnostic Console

7. From the Application Type pull-down menu, select the application type: None (Default), File Transfer

Protocol (FTP), Microsoft Games, H.323-based Internet telephony, IRC (Internet relay chat) server, or
PPTP virtual private network server.

8. Click the Add Definition button.

9. Repeat the previous step for each port or range of ports required for the application profile.

Allowing all applications

DMZplus is used for hosting applications if an application will not operate properly using the “Allow
individual application(s)” option. When in DMZplus mode, the designated computer:

• Shares the gateway’s IP address.

• Appears as if it is directly connected to the Internet.

• Has all of the unassigned TCP and UDP ports opened and pointed to it.

• Can receive unsolicited network traffic from the Internet.

Note: DMZplus can only be configured for one computer on the local network at a time.

To configure a computer on the user’s network for DMZplus mode:

1. Select the computer to which the user wishes to have all data sent.

2. Click the Allow all applications (DMZplus mode) radio button.

3. Click Submit.

4. Access the selected computer.

5. Confirm that the computer is configured for DHCP. If it is not, configure it for DHCP.

6. Restart the computer.

When the computer restarts, it receives a special IP address from the system and all unassigned TCP and
UDP ports are forwarded to it.

82

Management and Diagnostic Console

Firewall - Detailed Information Page

Note: To access this page, your organization must have the Remote Management feature

enabled. If the feature is not enabled, an error message will display when you click the link to
access this page.

The Firewall - Detailed Information page shows detailed information about the gateway’s firewall.

Figure 37. MDC Firewall Detailed Information Page

Pinholes

A pinhole is a configuration setting in the firewall that allows access to specific services running on the
network. For example, in order for users outside the network to access a specific application (such as a
game), a pinhole must be opened on the gateway firewall to allow requests to the application.

The Pinholes pane shows the number of pinholes that are currently open. There are 192 pinholes available.

NAT Sessions

The NAT Sessions pane shows the number of NAT sessions currently running.

83

Management and Diagnostic Console

Firewall - Advanced Settings Page

Note: To access this page, your organization must have the Remote Management feature

enabled. If the feature is not enabled, an error message will display when you click the link to
access this page.

The Firewall - Advanced Settings page allows you to configure the gateway’s firewall.

Figure 38. MDC Firewall Advanced Settings Page

84

Management and Diagnostic Console

Enabling Security Features

The Security pane allows you to configure the gateway’s firewall to provide additional security features.
Following are descriptions of the features.

Stealth Mode. Enabling Stealth Mode suppresses error responses (for example, TCP resets).

Block Ping. Enabling Block Ping blocks ping responses.

Strict UDP Session Control. Enabling Strict UDP Session Control prevents another source from

“piggybacking” onto a UDP session.

Controlling Inbound and Outbound Traffic

If an Inbound box is checked, the firewall allows the corresponding protocol to pass through from the
Internet to the network. If an Outbound box is checked, the firewall allows the traffic from the network to
pass through the firewall to the Internet. You must click the

Submit button for changes to take effect.

Note: Allowing inbound traffic does not mean that the firewall automatically allows this type of

traffic to pass through the firewall to the network. Even if a particular protocol/application type
is allowed, the firewall still checks and blocks all unsolicited traffic from the Internet unless the
firewall is configured to allow the traffic through using an application profile.

Disabling Attack Detection

By default, the 2Wire gateway firewall rules block the attack types listed in the Attack Detection pane. Some
hosted applications require that the user open specific ports (for example, TCP or UDP) to allow outside
users to access their network. The Attack Detection pane allows you to configure the gateway’s firewall
rules to allow traffic through on the specified ports.

To disable attack detection for a specific port, deselect the corresponding checkbox and click the
button.

Submit

Enabling Full Logging

To log all packets, check the Enable Full Logging checkbox.

Note: When full logging is enabled, the gateway logs every packet. This will significantly

reduce overall system performance because the log buffer capacity will be reached more
quickly.

85

Management and Diagnostic Console

Voice - Configure Server Page

Note: This link is present only if the 2Wire gateway is VoIP-enabled.

The Voice - Configure Server page allows you to set up your VoIP server, and is used primarily for test
purposes.

Figure 39. MDC Voice Configure Server Page

86

Management and Diagnostic Console

The Edit VoIP Settings panel displays the current SIP settings, and allows you to edit the settings. The
following table describes the fields.

Server

IP Address Corresponds to the SIP proxy address.

Port Corresponds to the SIP proxy destination port.

Number of Lines Displays the number of lines allowed on the gateway.

End Point

Domain Displays the IP domain of the SIP endpoint.

Register Expire Time Displays the default expiration (in seconds) of the SIP

registration, and indicates how frequently re-registration will
occur.

Register Retry Interval Indicates the period of time (in seconds) before the gateway will

retry registration after a failed attempt.

By default, the Show CID Names and Require Authentication checkboxes are checked. Show CID Names allows
the gateway to display the configured outbound caller ID information.
gateway to use authentication when registering with the SIP proxy.

Require Authentication allows the

Use 11-digit DIDs allows the gateway to

automatically append a “1” to the registration phone number.

87

Management and Diagnostic Console

Troubleshooting - DSL Diagnostics Page

The Troubleshooting - DSL Diagnostics page displays data associated with the 2Wire gateway’s DSL link.

Figure 40. MDC Troubleshooting DSL Diagnostics Page

Analyzing General Information

The General Information pane shows diagnostic information for the current DSL connection (or connection
attempt). These values are also listed in the last row of the Training History pane.

Item Description Value Comment

DSLAM Lists information about the

DSLAM, including country,
DSLAM vendor, and specifics.

DSL Line During line search, the value

will alternate between 1 and

2. The “Searching for DSL
signal” comment appears until
the ADSL protocol is
confirmed with the DSLAM on
the current line.

Downstream
Rate Cap

The configured DSL service
downstream speed.

1 or 2.

Varies by service
provider.

None or Searching for DSL
signal

.

88

Management and Diagnostic Console

Item Description Value Comment

Downstream
Atten. at 300kHz

The measurement (in kbps) of
the decrease in downstream
signal strength.

Uncancelled Echo Measure (in dB) of the

uncancelled echo relative to
the background noise on the
line, indicating how much the
uncancelled echo is affecting
DSL performance.

VCXO Frequency
Offset

Indicates the difference
between the gateway’s and the
DSLAM port’s crystal
frequency in parts per million
(ppm).

Final Rx Gain Indicates the current receive

gain setting (in dB).

Varies by service
provider.

Appropriate values
usually range
between -25dB and

-6dB. A positive
value (for example,
+12) could
indicate the
presence of an
unfiltered
telephony device
and/or an alarm.

The ideal value is
zero (0). The
maximum
difference should
be less than 150
ppm.

Dependent on DSL
line length.

Ok or Suspicious - check
phone filters and alarm

Ok or Suspicious ­hardware frequency
mismatch

Ok or Suspicious ­possible saturation

.

.

.

Impulse Noise
Comp. Tones

Excessive
Impulse Noise

Indicates the number of
compensation tones on which
impulse noise is detected. For
non-interleaved lines with
impulse noise, the connect
rate will be lowered to avoid
excessive errors on the line;
however, impulse noise may
vary with time, so connect
rates may vary accordingly.
Impulse Noise Compensation
is currently disabled for
interleaved lines.

Indicates to what degree
impulse noise is present on
the line.

The ideal value is
zero (0).

The ideal value is
zero (0).

Ok or Suspicious ­Impulse noise detected

.

89

Management and Diagnostic Console

Item Description Value Comment

Impulse noise
protection

Delay of latency
path

Measurement of how much
impulse noise can be
mitigated. Dependent on the
current line configuration.

Measurement of how much
delay is introduced.
Dependent on the current line
configuration.

Reviewing Training History

The Training History pane provides a record of the last 20 connection attempts. The current connection or
connection attempt is displayed in the last row.

Item Description

Time Initially this field will display the time (since power on) in DAYS HH:MM:SS format,

until the gateway can access the Internet and retrieve the current local time.
Subsequently the time (since power on) is displayed in YY:MM:DD and HH:MM:SS
format.

Line The line (1 or 2) on which the gateway is searching for a DSL signal.

Downstream

Rate The net user data rate (in kbps) for the connection.

Max 1 Maximum rate achievable at the time of the initial connection based on the line

quality (specifically, the uncapped rate).

Max 2 Latest estimate of maximum achievable rate adjusted for changing line conditions.

Max 3 Current or final estimated maximum achievable rate without impulse noise

compensation.

Mgn 1 Noise margin (in dB) at the start of the connection.

Mgn 2 Latest noise margin adjusted for changing line conditions since the connection was

first established.

Attn Measured attenuation (in dB) of the line.

Pwr Transmit power (in dB).

CRCs Total uncorrected errors for this connection.

FECs Total corrected errors for this connection.

INP Impulse noise protection.

DLY Delay of latency path.

90

Management and Diagnostic Console

Item Description

Upstream

Rate The new user data rate (in kbps) for the connection.

Max Maximum rate achievable at the time of the initial connection based on the line

quality (specifically, the uncapped rate).

Mgn Noise margin (in dB) at the start of the connection.

Attn Measured attenuation (in dB) of the line.

Pwr Transmit power (in dB).

CRCs Total uncorrected errors for this connection.

FECs Total corrected errors for this connection.

Mode The DSL mode used (G.DMT, T1.413, or G.LITE).

Vendor Vendor ID of the DSLAM (for example, ALCB indicates Alcatel DSLAM in G.DMT

mode).

State The internal state of the modem. If there are repeated connection problems,

technical support representatives can use this information to determine at what
point during training the modem failed, or whether the modem is repeatedly failing
at the same point.

Exit Code Indicates the reason for a lost connection or a terminated training attempt.

Following are examples of the typical values that can be represented:
ERR_LOF_LIMIT - Retrained due to loss of framing.
ERR_LOS_LIMIT - Retrained due to loss of signal.
ERR_HI_BER_LIMIT - Retrained due to excessive CRCs.
RESTART - System deliberately restarted modem (line search, reprovisioning, or 30­second timeout when waiting for DSL signal.
ERR_STATE_TIMEOUT - Modem timed out during training (for example, the modem
failed to detect pilot signal at the appropriate time).
ERR_ALL_OPTIONS_FAIL - Failed to negotiate a final bitrate with DSLAM.
RETRAIN_HIGHER - Proactive retrain in order to obtain a significantly higher connect
rate.

Echo A measure of the uncancelled echo relative to the background noise on the line.

This is an indication of how much the uncancelled echo is affecting DSL
performance, rather than an absolute measure of the uncancelled echo.

VXCO Indicates the difference between the gateway’s and the DSLAM port’s crystal

frequency in parts per million (ppm).

Rx Gain Indicates the current receive gain settings, which will depend on the length of the

DSL line.

INC Tones Indicates the number of compensation tones on which impulse noise is detected.

91

Management and Diagnostic Console

Reviewing Bitloading

The Bitloading pane shows the bits loaded per tone for the upstream (tones 6 to 31) and downstream
(tones 32 to 255) spectrum. A single hex-digit for each tone shows the numeric values (0 to F) in addition to
the bar-graph depiction.

92

Management and Diagnostic Console

Troubleshooting - Event Log Page

The Troubleshooting – Event Log page displays all security related events for the broadband and local
network. Log information is stored in an 8 KB buffer. When the buffer is full, the oldest items are purged
from the log. You can also clear the log contents by clicking the

Clear Log button.

Figure 41. MDC Troubleshooting Event Log Page

You can view specific information by selecting which log to view from the pull-down menu and then clicking

Filter button (the screen capture depicted above has the system filter applied). Following are

the
descriptions of the logs.

• Access. Shows the current access log, which registers all significant Content Screening and Internet
Access Control events.

• All. Shows all logs that register a significant event (access, firewall, fw alert, system, and wra).

• Firewall. Shows all detailed firewall events, including Internet Access Control and Firewall Monitor.

• FW Alert. Shows the current Firewall Monitor log, which registers all significant Firewall Monitor-related
events.

• HURL. Shows the Broadband Redirect messages that have been enabled by a service provider.

93

Management and Diagnostic Console

• Modem. Shows the current modem log, which registers all significant modem-related events.

• System. Shows the current system log, which registers all significant events within the 2Wire gateway
since it was last restarted.

• WRA. Shows the current Web Remote Access log, which registers all significant Web Remote Access­related events.

Each log entry includes the severity level, a description of the event, and the actual time that it occurred.
The most recent events display at the bottom of the list.

Events generate an Informational (INF) or Warning (WRN) severity level. Informational indicates events that
are informational only; Warning indicates an unexpected condition that does not affect the 2Wire gateway’s
ability to operate (for example, a network problem or the 2Wire gateway is not configured properly).

For events that involve the transfer of packets, the following additional information is displayed.

Item Description

src Source IP address

dst Destination IP address

ipprot Protocol number as indicated in the IP header field

sport Source port (TCP and UDP)

dport Destination port (TCP and UDP)

Disposition of the event The action taken when the event occurs (for example,

“Unknown inbound session stopped”)

94

Management and Diagnostic Console

Troubleshooting - Network Tests Page

The Troubleshooting – Network Tests page provides the Ping, Traceroute, and DNS Query tools, which help
diagnose problems with the 2Wire gateway or 2Wire gateway connections.

Figure 42. MDC Troubleshooting Network Tests Page

The Ping test allows you to ensure that the 2Wire gateway can send data packets to (ping) a remote host.
The Traceroute test traces the number of times a data packet sent from the 2Wire gateway is routed before
it reaches its destination. The DNS Query test finds the IP address of the domain name service.

95
