2N Analogue GSM gateway 2N SmartGate Quick start

© 2007, 2N TELEKOMUNIKACE a.s. – Prague, PS 1442 v.1.2

Read the CD-ROM User Manual carefully to get familiar with all system functions.

Security Precautions

• Do not switch on SmartGate in the vicinity of medical
apparatuses to avoid interference. The minimum distance
of the antenna and pacemakers should be 0.5 m.

• Do not switch on SmartGate aboard a plane.

• Do not switch on SmartGate near petrol stations, chemical

facilities or sites where explosives are used.

• Any mobile telephone use prohibition based on RF energy
radiation applies to SmartGate too.

• SmartGate may disturb the function of TV sets, radio sets
and PCs.

• Warning! SmartGate contains components that can be
swallowed by small children (SIM card, antenna, etc.).

• The voltage value mentioned on the power adapter may
not be exceeded. If you connect SmartGate to another

power supply, make sure that the voltage value is in the

acceptable range.

• When your SmartGate comes to the end of its operational

life, dispose of it in accordance with applicable regulations.

Basic Functions

• The primary purpose of SmartGate is to
transmit voice between a GSM network
and connected telecommunication devices.

• You can establish data connections
(GPRS, CSD) and send/receive SMS in
combination with a PC.

• You can send an SMS to a pre­programmed number using the SMS
sending input.

• Models of SmartGate with fax converter
can transmit fax messages using
analog fax Group 3 on telephone line.

External Antenna Connection

Screw the antenna into the SMA antenna
connector. Tighten the antenna connector
gently with your hand, never use spanner!
Use antenna with coax cable if the GSM
signal is poor, or in case of interference.

SIM Card Installation

Open the SIM card holder on
SmartGate’s back side, insert the SIM
card and close the holder properly.
Select the required GSM provider and
SIM card services, such as call
forwarding, call barring, preferred
networks, SMS centre, etc. using your
mobile phone before inserting your SIM
card in SmartGate.

SmartGate QuickStart

A SmartGate delivery contains:

SmartGate 1 pc
Antenna for direct

connection
Antenna with coax cable 1 pc
Supply adapter 1 pc
Telephone cable 2 pc
PC-connection serial cable 1 pc
SMS sending input

connector
Dowels 2 pcs
Screws 2 pcs
SW programs and User
Manual on a CD-ROM
QuickStart manual +
mounting pattern
Warranty certificate 1 pc

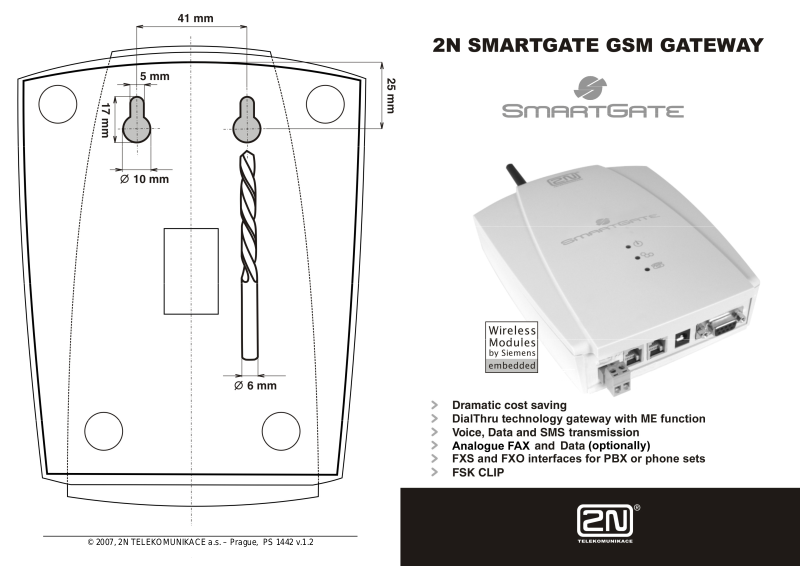

Proper Location

• SmartGate is designed for vertical mounting on
suspension holes (use the mounting pattern). This
position is the best for GSM signal reception.

• Install SmartGate with respect to a good GSM signal
strength.

• Place SmartGate out of range of sensitive devices and
human bodies for electromagnetic interference reasons.

• SmartGate is designed for indoor use. Do not place it
near heat sources and on sites exposed to direct solar
radiation. It may not be exposed to rain, flowing water
and moisture. In addition, it may not be exposed to
aggressive gas, acid vapours, solvents, etc.

Telephone Lines Connection

Connect any FXO-interface equipment (standard
telephone set, answering machine, PBX CO line,...) to
FXS interface (Phone icon) on SmartGate. To FXO interface
on SmartGate (crossed out Phone icon) connect FXS­interface equipment (internal line of PBX). SmartGate is
equipped with CLIP via FSK on FXS interface and so it is

advantageous to connect a terminal that is able to display the

CLI.

Power Supply Connection

SmartGate is powered with 10-16V DC voltage. Where a
source other than the included supply adapter is used, the
voltage range and polarity shown on the SmartGate supply
connector have to be maintained. Do not switch on the power
supply until the antenna is connected to SmartGate to avoid
the GSM module damage.

1 pc

1 pc

1 pc
1 pc

SIM Card PIN protection

1. Hook off the telephone, you can hear the PIN
tone:

2. Enter the PIN using the DTMF and press a
for confirmation. To cancel a wrong PIN hang
up the telephone line.

3. If you hear the busy tone in a while (a few
seconds), you have entered the PIN correctly.
The PIN will be entered automatically upon the
next power up.

4. If you hear the PIN tone again in a while, you
have entered a wrong PIN. Re-enter the PIN.

Phone calls – DialThru gateway

Initial SmartGate behavior is like that:

• Calls from FXS interface are routed to GSM
network.

• Incoming calls from GSM rings on FXS
interface.

• In case of incoming ringing on FXO interface,
both analog interfaces on SmartGate are
interconnected. So ringing is transferred to
FXS interface and FXO-FXS call is enabled.

For advanced calls routing you have to
program Routing tables. Some local
distributors may preprogram tables for usual
use in your country.

• SmartGate is able to route calls according to
phone number prefix. Calls from FXS interface
can be routed not only to GSM network, but
also to FXO interface. It is necessary to
program FXS routing table for this.

• ME – Mobility Extension is new useful
function on our gateways. If ME is activated
and incoming call rings on FXO interface,
SmartGate routes this call to FXS interface and
simultaneously establishes call to GSM
network. You can receive the call on analog
line as well as on your mobile phone.

Phone calls – gateway for PBX internal line

You can switch SmartGate from DialThru
gateway to gateway for PBX internal line by
setting of only one parameter. You can find it on
FXO routing table page.

• Calls from FXO interface are routed to GSM
network.

• If incoming calls from GSM network have to be
routed back to FXO interface, it is moreover
necessary to program the Other CLI’s row in
GSM routing table. (If you want SmartGate to
route incoming GSM calls according to CLI, fill

Analogue FAX and Data Connection (optional)

SmartGate with fax converter has ability to
manage fax messages using analogue fax
Group 3 and data connection using analogue
modem connected to telephone line. The fax or
data service must be registered with your GSM
operator.

Outgoing FAX Call and Data Connection

Before destination number dial code *01* for fax
call or *02* for data connection.

Incoming FAX Call and Data connection

It is recommended to activate separate fax
number on your SIM card –multinumbering
scheme. Fax messages and data connection
should be routed to appropriate number.
It is possible to set fax engine in the gateway to
receive the next call as fax or data call or make
this setting permanent - see the manual on CD.

Indication LEDs

Power
supply

• Light is on whenever SmartGate is
on.

• light = registered to GSM

• flashes once in 1s = not registered,

GSM

network

SIM card inserted

• flashes once in 3s = not registered,
SIM card not inserted

• flashes 4 / 8 times quickly = enter
your PIN / PUK

• no light = standby

Orange for FXS interface:

• flashes quickly = line off-hook or
ringing

• light = call FXS – GSM

• flashes once in 3s = data connection

in progress

On FAX models:

Phone

line

• Flashes 2 times then pause = fax
connection in progress; after power
on signalize need of FW upgrade

Green for FXO interface:

• flashes quickly = line off-hook or
ringing

• light = call FXO – GSM

Alternately orange and green:

• quickly = ringing from FXO is
connected to FXS interface

• slowly = call FXS – FXO

in GSM routing table rows, as you need).

The manufacturer, 2N TELEKOMUNIKACE a.s, hereby declares that the 2N SmartGate equipment is in
compliance with the essential requirements and other relevant provisions of the 1999/5/EC Directive.
The Declaration of Conformity is available on CD-ROM and at website www.2n.cz.
