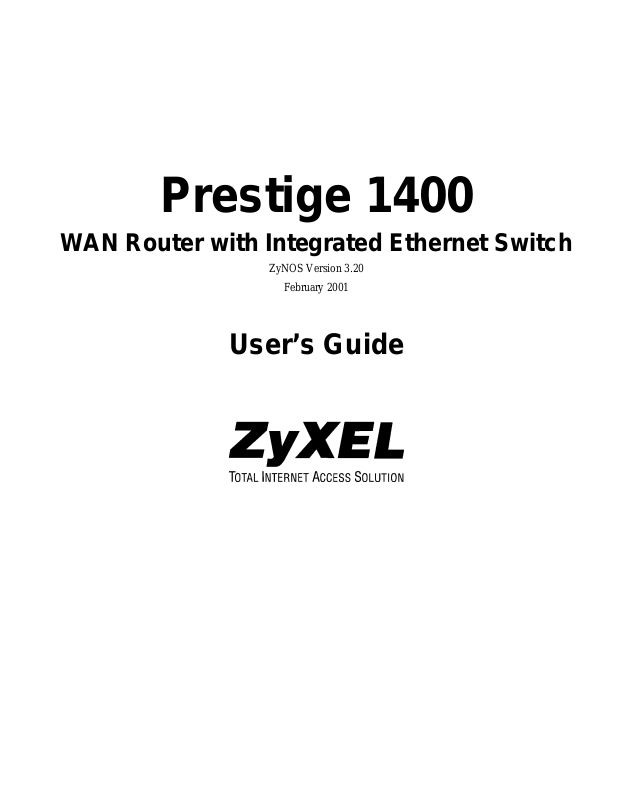

Zyxel PRESTIGE 1400 update guide

Prestige 1400

WAN Router with Integrated Ethernet Switch

ZyNOS Version 3.20

February 2001

User’s Guide

Prestige 1400 WAN Router with Integrated Ethernet Switch

Prestige 1400

WAN Router with Integrated Ethernet Switch

Copyright

Copyright © 2000 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval

system, translated into any language, or transmitted in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL
Communications Corporation.

Published by ZyXEL Communications Corporation. All rights reserved.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described
herein. Neither does it convey any license under its patent rights nor the patents rights of others. ZyXEL further
reserves the right to make changes in any products described herein without notice. This publication is subject to
change without notice.

Trademarks

Trademarks mentioned in this publication are used for identification purposes only and may be properties of their
respective owners.

ii Copyright

Prestige 1400 WAN Router with Integrated Ethernet Switch

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or
workmanship for a period of up to two (2) years from the date of purchase. During the warranty period, and upon
proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL
will, at its discretion, repair or replace the defective products or components without charge for either parts or labor,
and to whatever extent it shall deem necessary to restore the product or components to proper operating condition.
Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be
solely at the discretion of ZyXEL. This warranty shall not apply if the product is modified, misused, tampered with,
damaged by an act of God, or subjected to abnormal working conditions.

Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is

in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a
particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind
of character to the purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center; refer to the separate Warranty Card for
your Return Material Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended
that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated
warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor.
All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid
(USA and territories only). If the customer desires some other return destination beyond the U.S. borders, the
customer shall bear the cost of the return shipment. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.

ZyXEL Limited Warranty iii

Prestige 1400 WAN Router with Integrated Ethernet Switch

Customer Support

If you have questions about your ZyXEL product or desire assistance, contact ZyXEL Communications
Corporation offices worldwide, in one of the following ways:

Contacting Customer Support

When you contact your customer support representative, have the following information ready:

♦ Prestige model and serial number
♦ Information in Menu 24.2.1 -System Information
♦ Warranty information
♦ Date you received your Prestige
♦ Brief description of the problem and the steps you took to solve it.

METHOD

LOCATION
Worldwide

America

E-MAIL - SUPPORT/

SALES

[e-mail]
[e-mail]

[e-mail] [phone] ftp.europe.zyxel.co

[e-mail] [phone]

[e-mail] [phone] ftp.zyxel.com
[e-mail] [phone] www.zyxel.dkScandinavia
[e-mail] [phone] ftp.zyxel.dk
[e-mail] [phone] www.zyxel.atAustria
[e-mail] [phone] ftp.zyxel.at

[e-mail] [phone] www.zyxel.deGermany

[e-mail] [phone]

TELEPHONE/FAX WEB SITE/ FTP

SITE

[phone] www.zyxel.com

www.europe.zyxel.
com

m
www.zyxel.comNorth

800-255-4101

REGULAR MAIL

ZyXEL Communications
Corp., 6 Innovation Road II,
Science-Based Industrial
Park, HsinChu, Taiwan 300,
R.O.C.

ZyXEL Communications Inc.,
1650 Miraloma Avenue,
Placentia, CA 92870, U.S.A.

ZyXEL Communications A/S,
Columbusvej 5, 2860
Soeborg, Denmark.

ZyXEL Communications
Services GmbH.
Thaliastrasse 125a/2/2/4 A­1160 Vienna, Austria

ZyXEL Deutschland GmbH.
Adenauerstr. 20/A4 D-52146
Wuerselen, Germany

iv Customer Support

Prestige 1400 WAN Router with Integrated Ethernet Switch

Table of Contents

Prestige 1400 ............................................................................................................................................................ii

Customer Support ....................................................................................................................................................iv

Table of Contents ......................................................................................................................................................v

List of Figures...........................................................................................................................................................xi

List of Tables............................................................................................................................................................xv

Preface.................................................................................................................................................................. xvii

Chapter 1 Getting to Know Your Prestige...........................................................................................................................1-1

1.1 Overview of the Prestige 1400......................................................................................................................1-1

1.2 Example Internet Access Application............................................................................................................1-2

1.3 Example LAN-to-LAN Application .................................................................................................................1-3

Chapter 2 The Integrated Switch..........................................................................................................................................2-1

2.1 The Integrated Switch ................................................................................................................................... 2-1

2.2 Purposes of the Prestige Integrated Switch.................................................................................................. 2-1

2.2.1 Connect to Networking Devices Example ............................................................................................2-1

2.2.2 Connect to Computers Directly.............................................................................................................2-2

2.2.3 Connect to Local Application Servers ..................................................................................................2-3

2.2.4 Connect the VLAN Configuration Port ................................................................................................2-3

Chapter 3 Hardware Installation & Initial Setup..................................................................................................................3-1

3.1 Unpacking Your Prestige...............................................................................................................................3-1

3.2 Additional Installation Requirements.............................................................................................................3-1

3.3 Front Panel....................................................................................................................................................3-1

3.3.1 Front Panel Router Connections........................................................................................................... 3-2

3.4 Rear Panel – Power Connection................................................................................................................... 3-3

3.5 Front Panel LEDs.......................................................................................................................................... 3-3

3.6 Initial Screen..................................................................................................................................................3-4

3.6.1 Password ...............................................................................................................................................3-4

3.7 Navigating the SMT Interface........................................................................................................................3-5

3.8 SMT Menus At A Glance...............................................................................................................................3-5

3.8.1 P1400 Main Menu................................................................................................................................. 3-7

3.9 Changing the System Password................................................................................................................... 3-8

3.9.1 Resetting the Prestige............................................................................................................................3-8

3.10 General Setup ........................................................................................................................................... 3-9

Chapter 4 WAN Port Setup...................................................................................................................................................4-1

4.1 Configuring The WAN Port For PPP over HDLC ..........................................................................................4-1

4.2 Configuring The WAN Port For Frame Relay................................................................................................4-2

4.2.1 Standards............................................................................................................................................... 4-3

Table of Contents

v

Prestige 1400 WAN Router with Integrated Ethernet Switch

4.2.2 How To Configure The WAN Port For Frame Relay...........................................................................4-3

4.3 How To Configure Frame Relay for Internet Access.....................................................................................4-3

4.3.1 Encapsulation........................................................................................................................................4-3

4.3.2 DLCI......................................................................................................................................................4-4

4.3.3 CIR (Committed Information Rate) ......................................................................................................4-4

4.3.4 EIR (Excess Information Rate) .............................................................................................................4-4

4.3.5 How To Configure Frame Relay for Internet Access............................................................................4-4

4.4 How To Configure Frame Relay For A Remote Node...................................................................................4-5

Chapter 5 Internet Access .................................................................................................................................................... 5-1

5.1 TCP/IP and DHCP for LAN............................................................................................................................5-1

5.1.1 IP Address and Subnet Mask.................................................................................................................5-1

5.1.2 RIP Setup...............................................................................................................................................5-1

5.1.3 DHCP Configuration.............................................................................................................................5-1

5.1.4 IP Multicast...........................................................................................................................................5-2

5.2 IP Policies......................................................................................................................................................5-2

5.3 TCP/IP Ethernet Setup ..................................................................................................................................5-3

5.4 Collecting Internet Account Information.........................................................................................................5-4

5.5 Internet Access using the Prestige................................................................................................................5-4

Chapter 6 Remote Node Configuration............................................................................................................................... 6-1

6.1 Remote Node Setup ......................................................................................................................................6-1

6.2 Outgoing Authentication Protoc ol..................................................................................................................6-3

6.3 Editing PPP Options......................................................................................................................................6-3

6.4 Edit IP Parameters ........................................................................................................................................6-4

Chapter 7 Static Route..........................................................................................................................................................7-1

7.1 Basics ............................................................................................................................................................7-1

7.2 Static Route Setup.........................................................................................................................................7-1

Chapter 8 Network Address Translation (NAT) .................................................................................................................. 8-1

8.1 Introduction....................................................................................................................................................8-1

8.1.1 NAT Definitions....................................................................................................................................8-1

8.1.2 What NAT Does....................................................................................................................................8-1

8.1.3 How NAT works ...................................................................................................................................8-2

8.1.4 NAT Mapping Types.............................................................................................................................8-2

8.1.5 SUA (Single User Account) Versus NAT.............................................................................................8-3

8.2 SMT Menus ...................................................................................................................................................8-3

8.2.1 Applying NAT in the SMT Menus........................................................................................................8-3

8.2.2 Configuring NAT..................................................................................................................................8-5

8.2.3 Address Mapping Sets and NAT Server Sets:.......................................................................................8-5

8.2.4 Ordering Your Rules.............................................................................................................................8-7

vi Table of Contents

Prestige 1400 WAN Router with Integrated Ethernet Switch

8.3 NAT Server Sets............................................................................................................................................ 8-9

8.3.1 Multiple Servers behind NAT...............................................................................................................8-9

8.3.2 Configuring Inside Servers....................................................................................................................8-9

8.4 Examples.....................................................................................................................................................8-10

8.4.1 Internet Access Only........................................................................................................................... 8-10

8.4.2 Example 2 - Internet Access with a Default Inside Server..................................................................8-11

8.4.3 Example 3 - General Case................................................................................................................... 8-12

8.4.4 NAT Unfriendly Application Programs.............................................................................................. 8-14

8.4.5 Applying NAT to the Ethernet Port.................................................................................................... 8-14

Chapter 9 Filter Configuration..............................................................................................................................................9-1

9.1 About Filtering ...............................................................................................................................................9-1

9.2 The Filter Structure of the Prestige ...............................................................................................................9-1

9.3 Configuring a Filter Set .................................................................................................................................. 9-3

9.3.1 Filter Rules Summary Menu................................................................................................................. 9-4

9.4 Configuring a Filter Rule................................................................................................................................9-5

9.5 Filter Types and NAT..................................................................................................................................... 9-5

9.5.1 TCP/IP Filter Rule.................................................................................................................................9-6

9.5.2 Device Filter Rule.................................................................................................................................9-9

9.6 Applying a Filter........................................................................................................................................... 9-11

9.6.1 Ethernet traffic ....................................................................................................................................9-11

9.6.2 Remote Node Filters ...........................................................................................................................9-12

9.7 Filter Example.............................................................................................................................................. 9-12

9.7.1 Configuring a FTP_WAN Filter Rule................................................................................................. 9-12

Chapter 10 SNMP Configuration..........................................................................................................................................10-1

10.1 About SNMP............................................................................................................................................ 10-1

10.2 Supported MIBs....................................................................................................................................... 10-2

10.3 SNMP Configuration................................................................................................................................ 10-2

10.4 SNMP Traps............................................................................................................................................ 10-3

Chapter 11 System Password..............................................................................................................................................11-1

11.1 Changing the System Password............................................................................................................. 11-1

Chapter 12 Remote Management.........................................................................................................................................12-1

12.1 Flexible Network Management................................................................................................................12-1

12.2 Remote Configuration ............................................................................................................................. 12-1

12.3 Telnet Behind NAT...................................................................................................................................12-2

12.4 Telnet Capabilities................................................................................................................................... 12-2

12.4.1 Single Administrator.......................................................................................................................12-2

12.4.2 System Timeout ..............................................................................................................................12-2

12.5 Remote Management Through NAT .......................................................................................................12-2

Table of Contents

vii

Prestige 1400 WAN Router with Integrated Ethernet Switch

Procedure to Set Up NAT for Remote Management.......................................................................................12-3

Chapter 13 System Information and Maintenance............................................................................................................. 13-1

13.1 System Status..........................................................................................................................................13-1

13.1.1 WAN/LAN Status ...........................................................................................................................13-2

13.1.2 Route Status.....................................................................................................................................13-3

13.2 System Information..................................................................................................................................13-4

13.2.1 Console Port Speed .........................................................................................................................13-5

13.3 Log and Trace..........................................................................................................................................13-5

13.3.1 Viewing Error Log ..........................................................................................................................13-5

13.3.2 Syslog And Accounting...................................................................................................................13-6

13.4 Diagnostic................................................................................................................................................13-7

13.5 Boot Module Commands.........................................................................................................................13-7

13.6 Command Interpreter Mode ....................................................................................................................13-8

13.7 Time and Date Setting.............................................................................................................................13-9

Chapter 14 Configuration & Firmware Maintenance.......................................................................................................... 14-1

14.1 Filenames................................................................................................................................................14-1

14.2 Backup Configuration ..............................................................................................................................14-3

14.2.1 Backup using FTP...........................................................................................................................14-3

14.2.2 Backup using TFTP.........................................................................................................................14-3

14.2.3 Backup using the Console Port........................................................................................................14-3

14.3 Restore Configuration..............................................................................................................................14-4

14.3.1 Restore using FTP...........................................................................................................................14-4

14.3.2 Restore using TFTP.........................................................................................................................14-5

14.3.3 Restore using the Console Port........................................................................................................14-5

14.4 Upload Firmware .....................................................................................................................................14-6

14.4.1 Dual Firmware Block Structure.......................................................................................................14-6

14.4.2 Upload Prestige Firmware using FTP.............................................................................................14-6

14.4.3 Example - Using the FTP command from the DOS Prompt...........................................................14-7

14.4.4 Upload Prestige Firmware using TFTP...........................................................................................14-8

14.4.5 Third Party TFTP Clients - General Commands.............................................................................14-8

14.4.6 Upload Prestige Firmware via the Console Port .............................................................................14-8

14.5 Upload Prestige Configuration File..........................................................................................................14-9

14.5.1 Upload Prestige Configuration File using FTP...............................................................................14-9

14.5.2 Upload Prestige Configuration File using TFTP...........................................................................14-10

14.5.3 Upload Prestige Configuration File using the Console Port..........................................................14-10

Chapter 15 IP Policy Routing...............................................................................................................................................15-1

15.1 Introduction..............................................................................................................................................15-1

viii Table of Contents

Prestige 1400 WAN Router with Integrated Ethernet Switch

15.1.1 Benefits ...........................................................................................................................................15-1

15.1.2 Routing Policy.................................................................................................................................15-1

15.2 IP Routing Policy Setup...........................................................................................................................15-2

15.3 Applying an IP Policy............................................................................................................................... 15-4

15.3.1 Ethernet IP Policies......................................................................................................................... 15-4

15.3.2 Remote Node Routing Policies....................................................................................................... 15-5

15.4 IP Policy Routing Example...................................................................................................................... 15-5

Chapter 16 Troubleshooting.................................................................................................................................................16-1

16.1 Problems Starting Up the Prestige..........................................................................................................16-1

16.2 Problems with the WAN Port...................................................................................................................16-1

16.3 Problems with the LAN Interface.............................................................................................................16-2

16.4 Problems Connecting to a Remote Node or ISP..................................................................................... 16-2

16.5 General Problems ...................................................................................................................................16-2

Hardware Specifications ...........................................................................................................................................A

CI Commands ..........................................................................................................................................................B

Glossary ....................................................................................................................................................................J

Index.........................................................................................................................................................................O

Table of Contents

ix

Prestige 1400 WAN Router with Integrated Ethernet Switch

List of Figures

Figure 1-1 Prestige Building Deployment Example....................................................................................................................1-3

Figure 1-2 LAN-to-LAN Application.........................................................................................................................................1-4

Figure 2-1 Prestige Integrated Switch.........................................................................................................................................2-1

Figure 2-2 Prestige – Phoneline Switch Connections Example ..................................................................................................2-2

Figure 2-3 Direct Connection Example....................................................................................................................................... 2-3

Figure 2-4 VLAN Configurator Main Menu...............................................................................................................................2-4

Figure 2-5 Port Setup Menu........................................................................................................................................................2-4

Figure 2-6 Port Setup Dialog.......................................................................................................................................................2-5

Figure 2-7 VLAN Setup Menu....................................................................................................................................................2-5

Figure 2-8 Modifying a Port’s Visibility .....................................................................................................................................2-6

Figure 2-9 Modifying Multiple Ports..........................................................................................................................................2-6

Figure 2-10 Deleting a Group......................................................................................................................................................2-7

Figure 2-11 Cannot Delete a Group.............................................................................................................................................2-7

Figure 2-12 Trunk Setup 1...........................................................................................................................................................2-7

Figure 2-13 Trunk Setup 2...........................................................................................................................................................2-7

Figure 2-14 Modifying Trunk Setup Example ............................................................................................................................2-8

Figure 2-15 Restore Default Setup Menu....................................................................................................................................2-8

Figure 2-16 View Setup Menu ....................................................................................................................................................2-9

Figure 3-1 Front Panel Connections............................................................................................................................................3-2

Figure 3-2 Prestige Rear Panel.................................................................................................................................................... 3-3

Figure 3-3 Front Panel LEDs ......................................................................................................................................................3-4

Figure 3-4 Power-On Display .....................................................................................................................................................3-4

Figure 3-5 Login Screen..............................................................................................................................................................3-4

Figure 3-6 Prestige 1400 Main Menu..........................................................................................................................................3-7

Figure 3-7 Menu 23 - System Security........................................................................................................................................3-8

Figure 3-8 Menu 23.1 - System Security - Change Password.....................................................................................................3-8

Figure 3-9 Menu 1 - General Setup.............................................................................................................................................3-9

Figure 4-1 Menu 2 - WAN Port Setup.........................................................................................................................................4-1

Figure 4-2 Configuring The WAN Port for PPP over HDLC......................................................................................................4-2

Figure 4-3 Configuring The WAN Port For Frame Relay...........................................................................................................4-2

Figure 4-4 Menu 2.1.2 - Frame Relay Setup...............................................................................................................................4-3

Figure 4-5 Menu 4 - Internet Access Setup.................................................................................................................................4-5

Figure 4-6 Menu 4.2 - Internet Setup Frame Relay Options .......................................................................................................4-5

Figure 4-7 Menu 11.1 - Remote Node Profile.............................................................................................................................4-6

Figure 4-8 Menu 11.4 - Remote Node Frame Relay Options ......................................................................................................4-6

Figure 5-1 Menu 3.2 - TCP/IP Ethernet Setup............................................................................................................................5-3

Figure 5-2 Menu 4 - Internet Access Setup.................................................................................................................................5-5

List of Figures xi

Prestige 1400 WAN Router with Integrated Ethernet Switch

Figure 6-1 Menu 11 – Remote Node Setup................................................................................................................................. 6-1

Figure 6-2 Menu 11.1 - Remote Node Profile.............................................................................................................................6-1

Figure 6-3 Menu 11.2 - Remote Node PPP Options ...................................................................................................................6-3

Figure 6-4 Menu 11.3- Remote Node Network Layer Options...................................................................................................6-4

Figure 7-1 An Example of Static Routing Topology...................................................................................................................7-1

Figure 7-2 Menu 12 - IP Static Route Setup............................................................................................................................... 7-2

Figure 7-3 Menu 12.1 - Edit IP Static Route...............................................................................................................................7-2

Figure 8-1 How NAT Works.......................................................................................................................................................8-2

Figure 8-2 Applying NAT for Internet Access............................................................................................................................8-4

Figure 8-3 Applying NAT to the Remote Node..........................................................................................................................8-4

Figure 8-4 Menu 15 NAT Setup..................................................................................................................................................8-5

Figure 8-5 Menu 15.1 Address Mapping Sets.............................................................................................................................8-5

Figure 8-6 SUA Address Mapping Rules ...................................................................................................................................8-6

Figure 8-7 First Set in Menu 15.1.1............................................................................................................................................ 8-7

Figure 8-8 Editing an Individual Rule in a Set............................................................................................................................8-8

Figure 8-9 Multiple Servers Behind NAT...................................................................................................................................8-9

Figure 8-10 Menu 15.2 - NAT Server Setup.............................................................................................................................8-10

Figure 8-11 NAT Example 1.....................................................................................................................................................8-11

Figure 8-12 NAT Example for Internet Access.........................................................................................................................8-11

Figure 8-13 NAT Example 2.....................................................................................................................................................8-11

Figure 8-14 Specifying an Inside Sever....................................................................................................................................8-12

Figure 8-15 NAT - Example 3...................................................................................................................................................8-12

Figure 8-16 Example 3 - Menu 15.1.1.1...................................................................................................................................8-13

Figure 8-17 Example 3 Final Menu 15.1.1...............................................................................................................................8-13

Figure 8-18 Example 3 - Menu 15.2.........................................................................................................................................8-14

Figure 8-19 Ethernet NAT.........................................................................................................................................................8-14

Figure 8-20 Applying NAT to an Ethernet Port........................................................................................................................8-15

Figure 9-1 Outgoing Packet Filtering Process ............................................................................................................................9-1

Figure 9-2 Filter Rule Process.....................................................................................................................................................9-2

Figure 9-3 Menu 21 - Filter Set Configuration...........................................................................................................................9-3

Figure 9-4 Menu 21.1 - Filter Rules Summary........................................................................................................................... 9-4

Figure 9-5 Protocol and Device Filter Sets.................................................................................................................................9-6

Figure 9-6 Menu 21.1.1 - TCP/IP Filter Rule.............................................................................................................................9-7

Figure 9-7 Executing an IP Filter................................................................................................................................................9-9

Figure 9-8 Menu 21.1.2 - Device Filter Rule............................................................................................................................ 9-10

Figure 9-9 Filtering Ethernet Traffic.........................................................................................................................................9-11

Figure 9-10 Filtering Remote Node traffic................................................................................................................................9-12

Figure 9-11 FTP_WAN Filter Configuration............................................................................................................................9-13

Figure 9-12 Filter Rule Configuration ......................................................................................................................................9-13

xii List of Figures

Prestige 1400 WAN Router with Integrated Ethernet Switch

Figure 9-13 Filter Rule Configuration....................................................................................................................................... 9-14

Figure 9-14 FTP_WAN Filter Rules Summary .........................................................................................................................9-14

Figure 9-15 Remote Node Profile............................................................................................................................................. 9-15

Figure 10-1 SNMP Management Model...................................................................................................................................10-1

Figure 10-2 Menu 22 - SNMP Configuration ...........................................................................................................................10-3

Figure 11-1 Menu 23 - System Security....................................................................................................................................11-1

Figure 11-2 Menu 23.1 - System Security - Change Password.................................................................................................11-1

Figure 12-1 Remote Management.............................................................................................................................................12-1

Figure 12-2 Remote Management Via NAT..............................................................................................................................12-2

Figure 12-3 Pick An Address Mapping Set...............................................................................................................................12-3

Figure 12-4 Address Mapping Rule..........................................................................................................................................12-3

Figure 12-5 Address Mapping Rule Summary..........................................................................................................................12-4

Figure 12-6 Apply the New NAT Set........................................................................................................................................12-4

Figure 13-1 Menu 24 - System Maintenance............................................................................................................................13-1

Figure 13-2 Menu 24.1 - System Maintenance - Status ............................................................................................................13-2

Figure 13-3 Menu 24.1.1 - WAN/LAN Status...........................................................................................................................13-2

Figure 13-4 Menu 24.1.1 With Frame Relay Configured..........................................................................................................13-3

Figure 13-5 Menu 24.1.5 - Router Status..................................................................................................................................13-4

Figure 13-6 Menu 24. 2.1 - System Maintenance Information .................................................................................................13-4

Figure 13-7 Menu 24.2.2 - System Maintenance - Change Console Port Speed.....................................................................13-5

Figure 13-8 Examples of Error and Information Messages.......................................................................................................13-6

Figure 13-9 Syslog and Accounting..........................................................................................................................................13-6

Figure 13-10 Menu 24.4 - System Maintenance - Diagnostic...................................................................................................13-7

Figure 13-11 Boot Module Commands.....................................................................................................................................13-8

Figure 13-12 Command Mode..................................................................................................................................................13-9

Figure 13-13 System Maintenance - Time and Date Setting.....................................................................................................13-9

Figure 14-1 Internal and External Filenames............................................................................................................................14-2

Figure 14-2 Menu 24.5 as seen using Telnet.............................................................................................................................14-3

Figure 14-3 Menu 24.5 - Menu 24.5 as seen using the Console Port........................................................................................14-4

Figure 14-4 Backup Example Using HyperTerminal ................................................................................................................14-4

Figure 14-5 Successful Backup Confirmation Screen...............................................................................................................14-4

Figure 14-6 Menu 24.6 as seen using Telnet.............................................................................................................................14-5

Figure 14-7 Menu 24.6 as seen using the Console Port ............................................................................................................14-5

Figure 14-8 Successful Restoration Confirmation Screen.........................................................................................................14-6

Figure 14-9 Menu 24.7 - System Maintenance - Upload Firmware..........................................................................................14-6

Figure 14-10 Menu 24.7.1 as seen using Telnet........................................................................................................................14-7

Figure 14-11 FTP Session Example..........................................................................................................................................14-7

Figure 14-12 Menu 24.7.1 as seen using the Console Port. ......................................................................................................14-9

Figure 14-13 Menu 24.7.2 as seen using Telnet......................................................................................................................14-10

List of Figures

xiii

Prestige 1400 WAN Router with Integrated Ethernet Switch

Figure 14-14 Menu 24.7.2 as seen using the Console Port.....................................................................................................14-10

Figure 15-1 Menu 25 - IP Routing Policy Setup.......................................................................................................................15-2

Figure 15-2 Menu 25 - IP Routing Policy Summary ................................................................................................................15-2

Figure 15-3 Menu 25.1.1 - IP Routing Policy...........................................................................................................................15-3

Figure 15-4 Ethernet IP Policies...............................................................................................................................................15-5

Figure 15-5 Remote Node Routing Policies..............................................................................................................................15-5

Figure 15-6 Example of IP Policy Routing...............................................................................................................................15-6

Figure 15-7 IP Routing Policy Example...................................................................................................................................15-7

Figure 15-8 IP Policy Routing..................................................................................................................................................15-7

Figure 15-9 Applying IP Policies..............................................................................................................................................15-8

xiv List of Figures

Prestige 1400 WAN Router with Integrated Ethernet Switch

List of Tables

Table 3-1 Front Panel LEDs........................................................................................................................................................3-4

Table 3-2 Navigating the SMT....................................................................................................................................................3-5

Table 3-3 Main Menu Summary..................................................................................................................................................3-7

Table 3-4 General Setup Fields ...................................................................................................................................................3-9

Table 4-1 WAN Setup Menu Fields .............................................................................................................................................4-1

Table 4-2 Menu 2.1.2 - Frame Relay Setup.................................................................................................................................4-3

Table 4-3 Data Link Connection Identifiers................................................................................................................................4-4

Table 4-4 Menu 4.2 - Internet Setup Frame Relay Options.........................................................................................................4-5

Table 5-1 Default Prestige IP Assignment...................................................................................................................................5-2

Table 5-2 LAN DHCP Setup Menu Fields..................................................................................................................................5-3

Table 5-3 LAN TCP/IP Setup Menu Fields.................................................................................................................................5-3

Table 5-4 Internet Account Information......................................................................................................................................5-4

Table 5-5 Internet Access Setup Menu Fields.............................................................................................................................5-5

Table 6-1 Remote Node Profile Menu Fields for Leased Lines..................................................................................................6-2

Table 6-2 Remote Node PPP Options Menu Fields.....................................................................................................................6-4

Table 6-3 TCP/IP related fields in Menu 11.1 - Remote Node Profile........................................................................................6-5

Table 6-4 Remote Node TCP/IP Configuration...........................................................................................................................6-5

Table 7-1 Edit IP Static Route Menu Fields................................................................................................................................7-3

Table 8-1 NAT Mapping Types...................................................................................................................................................8-3

Table 8-2 Applying NAT in Menus 4 & 11.3.............................................................................................................................. 8-4

Table 8-3 SUA Address Mapping Rules.....................................................................................................................................8-6

Table 8-4 Menu 15.1.1 ................................................................................................................................................................8-7

Table 8-5 Menu 15.1.1.1 - Configuring an Individual Rule ........................................................................................................8-8

Table 8-6 Common Services & Port numbers...........................................................................................................................8-10

Table 9-1 Abbreviations Used in the Filter Rules Summary Menu.............................................................................................9-4

Table 9-2 Abbreviations Used If Filter Type Is IP ......................................................................................................................9-5

Table 9-3 Abbreviations Used If Filter Type Is Dev ...................................................................................................................9-5

Table 9-4 TCP/IP Filter Rule Menu Fields..................................................................................................................................9-7

Table 9-5 Device Filter Rule Menu Fields ................................................................................................................................9-10

Table 10-1 SNMP Configuration Menu Fields.......................................................................................................................... 10-3

Table 13-1 System Maintenance - Status Menu Fields..............................................................................................................13-2

Table 13-2 Menu 24.1.1 With Frame Relay Configured...........................................................................................................13-3

Table 13-3 Fields in System Maintenance.................................................................................................................................13-4

Table 13-4 System Maintenance Menu Syslog Parameters.......................................................................................................13-6

Table 13-5 System Maintenance Menu Diagnostic...................................................................................................................13-7

Table 13-6 Time and Date Setting Fields ..................................................................................................................................13-9

Table 14- 1 Filenam es................................................................................................................................................................14-2

List of Tables

xv

Prestige 1400 WAN Router with Integrated Ethernet Switch

Table 14-2 Third Party FTP Clients - General Commands....................................................................................................... 14-7

Table 14-3 Third Party TFTP Clients - General Commands.....................................................................................................14-8

Table 15-1 IP Routing Policy Summary....................................................................................................................................15-3

Table 15- 2 IP Routing Policy.................................................................................................................................................... 15-4

Table 16-1 Troubleshooting the Start-Up of your Prestige .......................................................................................................16-1

Table 16-2 Troubleshooting the WAN Port Connection............................................................................................................16-1

Table 16- 3 Troubleshooting the LAN Interface........................................................................................................................16-2

Table 16-4 Troubleshooting a Connection to a Remote Node or ISP ....................................................................................... 16-2

xvi List of Tables

Prestige 1400 WAN Router with Integrated Ethernet Switch

Preface

Congratulations on your purchase of the Prestige 1400 WAN Router with Integrated Ethernet Switch.
This preface introduces you to your router and discusses the organization and conventions of this user’s guide. It

also provides information on other rel at ed documentation.

About the Prestige

Coupled with the local loop switches, e.g., phoneline networking/ADSL/VDSL-to-Ethernet switches, from ZyXEL,
the Prestige 1400 is the ideal WAN router for large buildings and campuses. It also allows you to connect local
application servers such as web, e-mail, video, gaming, building automation servers and so on, without an external
switch. Moreover, the virtual LAN (VLAN) capability isolates each port from one another, thereby eliminating the
security problems inherent in broadcast media such as Ethernet. In a typical setup, you can connect up to 14 local
loop switches to the Prestige, making it the premier WAN router of choice for both business and residential use.

Used alone without the local loop switches, the P1400 is equally at home for Internet café, campus networks, inter­office connectivity and other applications.

Configuring your Prestige

You can use the System Management Terminal (SMT) interface or the CLI (Command Line Interpreter) commands
to configure your Prestige. The SMT is a menu-driven interface that you can access from either a VT100
compatible terminal or a terminal emulation program on a computer via the console port or telnet. Use of CLI/CI
commands are recommended only for advanced users.

About this Guide

This user's guide covers all operations of the Prestige 1400 and shows you how to get the best out of the multiple
advanced features of your Prestige router. It is designed to help you to configure the Prestige correctly for various
applications using the SMT interface via the console port or telnet. For detailed CI commands please refer to the
section Related Documentation.

Syntax Conventions

“Enter” means for you to type one or more characters and press the carriage return. “Select” or “Choose” means
for you to select one from the predefined choices.

The SMT menu titles and labels are in Bold Times font. The choices of a menu item are in Bold Arial font. A
single keystroke is in Arial font and enclosed in square brackets, for instance, [ENTER] means the Enter, or
carriage return, key; [ESC] means the Escape key.

For brevity’s sake, we will use “e.g.” as a shorthand for “for instance”, and “i.e.” as a shorthand for “that is” or “in
other words” throughout this manual.

The Prestige 1400 will also be referred to as the Prestige or the P1400 in this manual.

Related Documentation

Support Notes

More detailed information about the Prestige and examples of its use can be found in the Support Notes accessible
through the ZyXEL web pages at zyxel.com.

ZyXEL Web Page and FTP Server Site

You can access release notes as well as firmware upgrades at ZyXEL web and FTP sites. Refer to the Customer
Support page in this User’s Guide for more information.

Preface

xvii

Prestige 1400 WAN Router with Integrated Ethernet Switch

Chapter 1

Getting to Know Your Prestige

This chapter describes the key features, benefits and applications of your Prestige.

Coupled with the local loop switches, e.g., phoneline networking/ADSL/VDSL-to-Ethernet switches, from ZyXEL,
the Prestige is the ideal WAN router for large buildings and campuses. It also allows you to connect local
application servers such as web, e-mail, video, gaming, building automation servers and so on, without an external
switch. Moreover, the virtual LAN (VLAN) capability isolates each port from one another, thereby eliminating the
security problems inherent in broadcast media such as Ethernet. In a typical setup, you can connect up to 14 local
loop switches to the Prestige, making it the premier WAN router of choice for both business and residential use.

Used alone without the local loop switches, the P1400 is equally at home for Internet café, campus networks, inter­office connectivity and other applications

1.1 Overview of the Prestige 1400

Integrated Switch

The 16-port auto-negotiating 10/100MB Fast Ethernet switch is equipped with VLAN (Virtual LAN) security
feature. You can connect up to 15 devices to this switch (ports 1 to 15).

VLAN Configuration Port

This port (marked VLAN CONF.) allows you to access the VLAN configuration using either a VT100 compatible
terminal or a terminal emulation program and the enclosed cable.

Auto-negotiating 10/100 Mbps Ethernet Interface

This 10/100 Mbps auto-negotiating Fast Ethernet interface connects the routing module to the integrated switch
(port16).

Console Port

The console port is for out-of-band local management.

WAN Interface

! One FlexWAN port.

Frame Relay Support

Frame relay support allows the Prestige to connect to a frame relay network.

Internet Protocols

! IP routing
! IP Policy Routing - IP Policy Routing (IPPR) provides a mechanism to override the default routing

behavior and alter the packet forwarding based on the policy defined by the network administrator.

! IP packet filtering, including network level and device level filtering
! RIP-1 and RIP-2 - (Routing Information Protocol, RFC1058 and RFC 1389) allows a router to exchange

routing information with other routers.

Getting to Know Your Prestige

1-1

Prestige 1400 WAN Router with Integrated Ethernet Switch

! Static IP Route - Static routes tell a router routing information that it cannot learn automatically through

other means. This can arise in cases where RIP is disabled on the LAN or a remote network is beyond the
one that is directly connected to a remote node.

! IP Multicast - Traditionally, IP packets are transmitted in two ways - unicast or broadcast. Multicast is a

third way to deliver IP packets to a group of hosts. IGMP (Internet Group Management Protocol) is the
protocol used to support multicast groups. The latest version is version 2 (see RFC 2236). Both versions 1
and 2 are supported by the Prestige.

! DHCP - The Prestige's DHCP server capability (RFC 2131) allows you to automatically assign TCP/IP

settings to a workstation on your LAN.

! NAT (Network Address Translation - NAT, RFC 1631) allows multiple stations to share one IP address to

conserve public IP addresses.

PPP Support

! PPP for WAN connection

Network Management

! Menu driven SMT (System Management Terminal) management
! SNMP manageable
! Local SMT session via console port
! Remote SMT session via Telnet

Security

! CHAP, PAP authentication
! Password protected SMT
! LAN, WAN filters to block unwanted incoming and outgoing packets.

Time and Date Setting

The Prestige has a battery powered real time clock. Set the time and date of your Prestige in Menu 24.9. Real time
is then displayed in the Prestige error logs.

Logging and Tracing

! Built-in message logging and packet tracing.
! Unix syslog facility support.

Remote Firmware Upgrades

! Console, Telnet, TFTP and FTP Firmware Upgrades

Internet Access Sharing

The Prestige supports Single User Account (SUA)/Network Address Translation (NAT) which enables multiple
subscribers to access the Internet using a single IP address. The ZyXEL Network Operating System (ZyNOS)
implementation of SUA/NAT supports NetMeeting, CuSeeMe, ICQ and other multimedia applications.

1.2 Example Internet Access Application

The following diagram depicts a typical application for the P1400 in a large residential building that leverages the
existing building phone line wiring using phoneline networking technology to provide economical Internet access
to tenants.

1-2 Getting to Know Your Prestige

Prestige 1400 WAN Router with Integrated Ethernet Switch

Tenants connect to the 1Mbps phoneline network using a phoneline PCI card such as ZyXEL’s PPC-10 or a
phoneline Ethernet Converter such as ZyXEL’s PEC-50. The phoneline switches are connected to a Main
Distribution Frame (MDF) from which all tenants already have phone line connections. You may connect up to 15
switches (14 if you wish to connect a local application server to port 15 of the integrated Ethernet switch) to the
Prestige, easily meeting multiple tenant Internet access requirements. See your phoneline switch manual for details
on switch connections.

Figure 1-1 Prestige Building Deployment Example

1.3 Example LAN-to-LAN Applicatio n

You can use the Prestige to connect two geographically dispersed networks over the WAN connection. A typical
LAN-to-LAN application for your Prestige is shown next.

Getting to Know Your Prestige

1-3

Prestige 1400 WAN Router with Integrated Ethernet Switch

Figure 1-2 LAN-to-LAN Application

1-4 Getting to Know Your Prestige

Prestige 1400 WAN Router with Integrated Ethernet Switch

Chapter 2

The Integrated Switch

2.1 The Integrated Switch

Figure 2-1 Prestige Integrated Switch

The integrated switch consists of 16 ports with VLAN capability. Ports 1 to 14 are logically independent and are
invisible to each other. In factory default, all ports are visible to port 15 (reserved to connect a local application
server) and port 16 (reserved to connect the switch to the Prestige routing module).

2.2 Purposes of the Prestige Integrated Switch

The Prestige Integrated Switch can be used to:

1. Connect to networking devices

2.

Connect to computers in an MTU application

3.

Connect to local application servers

4.

Connect the VLAN Configurator

2.2.1 Connect to Networking Devices Example

In a multiple switch system, you link the uplink port of each switch (see your switch documentation) to a Prestige
integrated Ethernet switch port (1 to 15) using a straight through Category 5 UTP (Unshielded Twisted Pair) cable
with RJ-45 connectors.

The following figure shows you a Prestige – phoneline switch connections example which might be seen in a large
building. The tenants’ computers have phoneline PCI cards installed.

Tenants connect to the 1Mbps phoneline network using a phoneline PCI card such as ZyXEL’s PPC-10 or a
phoneline Ethernet Converter such as ZyXEL’s PEC-50. The phoneline switches are connected to a Main
Distribution Frame (MDF) from which all tenants already have phone line connections. You may connect up to 15
switches (14 if you wish to connect a local application server to port 15 of the integrated Ethernet switch) to the
Prestige, easily meeting multiple tenant Internet access requirements. See your phoneline switch manual for details
on switch connections.

The Prestige Integrated Switch

2-1

Prestige 1400 WAN Router with Integrated Ethernet Switch

Figure 2-2 Prestige – Phoneline Switch Connections Example

2.2.2 Connect to Computers Directly

Connect computers directly to a Prestige integrated Ethernet switch port (1 to 15) using a straight through Category
5 UTP (Unshielded Twisted Pair) cable with RJ-45 connectors as in an the following example application (see
following figure).

2-2 The Prestige Integrated Switch

Prestige 1400 WAN Router with Integrated Ethernet Switch

Figure 2-3 Direct Connection Example

2.2.3 Connect to Local Application Servers

Connect a local application server such as a web, e-mail, video, gaming, building automation, etc. to port 15
(reserved by default) of the integrated Ethernet switch. If you wish to connect more than one local application
server, then either hook them up with an external Ethernet switch and connect its uplink port to port 15 or to port 1
to 14, but remember to make that port visible to the entire switch (see next).

2.2.4 Connect the VLAN Configuration Port

In case you need to change the default Virtual LAN (VLAN) configuration of the integrated Ethernet switch, use a
terminal emulator on a computer and connect it to the VLAN CONF. port. Connect the RJ-11 connector end of the
supplied cable to the VLAN CONF. port of the switch and the 9-pin end to a serial port (COM1, COM2 or other
COM port) of your computer.

Please exercise caution when changing the default switch VLAN configuration as there may be security

Virtual LANs (VLANs)

VLAN stands for Virtual Local Area Network. It partitions a physical network into multiple virtual, or logical,
networks. The stations on a logical network belong to one group; however, a station can belong to more than one
group. With VLAN, a station cannot directly talk to or hear from stations that are not in the same group(s); the
traffic must first go through a router. This isolates the subscribers from one another and prevents a subscriber from
discovering the resources, e.g., shared drives or printers, of another subscriber. The Prestige factory default is that
ports 1 to 14 of the integrated switch are in their own individual groups (networks) and ports 15 and 16 belong to
all groups.

ramifications.

VLAN also increases network performance by containing broadcasts to a smaller and more manageable logical
broadcast domain. In traditional switched environments, all broadcast packets go to each and every individual port.
With VLAN implemented, all broadcasts are confined to a specific broadcast domain.

The Prestige Integrated Switch

2-3

Prestige 1400 WAN Router with Integrated Ethernet Switch

VLAN CONF. Menus

Connect the RJ-11 connector end of the supplied console cable to the VLAN CONF. port of the Prestige and the 9­pin end to a serial port (COM1, COM2 or other COM port) of your computer.

Set your terminal emulation software as follows:

" VT100 terminal emulation
" 9600 bps
" No parity, 8 data bits, 1 stop bit
" No flow control

No password is required. Correct cable connection and terminal emulation software settings should bring up the
following screen.

16 Ports Switch Setup V1.38
======== Main Menu ======

1. Port Setup

2. VLAN Setup

3. Trunk Setup

4. Restore Default Setup

5. View Setup
Select?1

Figure 2-4 VLAN Configurator Main Menu

1. Port Setup

Under normal circumstances, you do not have to configure this menu – it is usually used for debugging purposes.
Enter 1 to bring up the following menu that allows you to set up the auto-negotiation, speed, duplex mode and flow
control parameters for each port.

Port Setup:(1=100M,0=10M,F=Full,H=Half,E=Enable,D=Disable)
Port No: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Auto Negotiation:E E E E E E E E E E E E E E E E
Speed: x x x x x x x x x x x x x x x x
Duplex: x x x x x x x x x x x x x x x x
Flow Control: E E E E E E E E E E E E E E E E

m=Modify,q=Quit?

Figure 2-5 Port Setup Menu

Enter m to modify port settings and the software begins a dialog such as shown in the following screen example.
Your new port setup configuration is displayed on finishing the dialog for a port and you are then asked to confirm
your configuration “Save & Update? (Y/N)” when you decide to quit (q).

2-4 The Prestige Integrated Switch

Prestige 1400 WAN Router with Integrated Ethernet Switch

m=Modify,q=Quit?m
Which port no:(1-16,q)
Which port no:(1-16,q)8
Auto Negotiation ?(e=Enable,d=Disable,q)d
Speed ?(1=100MTx,0=10M,q)1
Duplex ?(f=Full,h=Half,q)f

---------------------------------------------------------------------­Port Setup:(1=100M,0=10M,F=Full,H=Half,E=Enable,D=Disable)
Port No: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Auto Negotiation:E E E E E E E D E E E E E E E E
Speed: x x x x x x x 1 x x x x x x x x
Duplex: x x x x x x x F x x x x x x x x
Flow Control: D E E E E E E x E E E E E E E E

m=Modify,q=Quit?q
Save & Update? (Y/N)

Figure 2-6 Port Setup Dialog

2. VLAN Setup

The default setting is that ports 1 to 14 are logical independent networks that are invisible to each other. All ports
are visible to port 15 (reserved to connect a local application server) and port 16 (reserved to connect the switch to
the Prestige routing module). You may wish to make a port in the 1 to 14 range visible to other ports if for example
you want to connect an application server to it. Enter 2 from the Port Switch Setup menu to bring up the VLAN
menu shown next. A “v” indicates where the port is visible.

Group 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 v vv
2 v vv
3 v vv
4 v v v
5 v v v
6 v v v
7 v v v
8 v v v
9 v v v
10 v v v
11 vvv
12 vvv
13 vvv
14 vvv
m=Modify,a=Add,d=Delete,q=Quit?

Port No

Figure 2-7 VLAN Setup Menu

The Prestige Integrated Switch

2-5

Prestige 1400 WAN Router with Integrated Ethernet Switch

All ports in the same group are visible to each other. All ports are visible to ports 15 and 16. To make port 2 visible
to port 1 (default not visible), you need to put port 2 (which belongs to group 2) in group 1. First type m (modify)
and then follow the dialog as shown in the following screen.

m=Modify,a=Add,d=Delete,q=Quit?m
Which group no:(1-16,q)1
Which port no:(1-16,q)2
VLAN:(a=Add,r=Remove,q)a
Which port no:(1-16,q)q

---------------------------------------------------------------------­VLAN Setup:(v=At VLAN group)

Group 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 v v vv
2 v vv
3 v vv
4 v v v
5 v v v
6 v v v
7 v v v
8 v v v
9 v v v
10 v v v
11 vvv
12 vvv
13 vvv
14 vvv
m=Modify,a=Add,d=Delete,q=Quit?

Port No

Figure 2-8 Modifying a Port’s Visibility

Your new port setup configuration is displayed on finishing the dialog for a port and you are then asked to confirm
your configuration “Save & Update? (Y/N)” when you decide to quit (q).

To put a port in multiple groups use a (add) as shown in the following example.

m=Modify,a=Add,d=Delete,q=Quit?a
Which group no:(1-16,q)3
Which port no:(1-16,q)4
Which port no:(1-16,q)5
Which port no:(1-16,q)6
Which port no:(1-16,q)7
Which port no:(1-16,q)q

---------------------------------------------------------------------­VLAN Setup:(v=At VLAN group)

Group 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 v vv
2 v vv
3 vvvvv v v
4 v v v
5 v v v
6 v v v
7 v v v
8 v v v
9 v v v
10 v v v
11 vvv
12 vvv
13 vvv
14 vvv
m=Modify,a=Add,d=Delete,q=Quit?

Port No

Figure 2-9 Modifying Multiple Ports

2-6 The Prestige Integrated Switch

Prestige 1400 WAN Router with Integrated Ethernet Switch

To delete a group use d (delet e) as shown in the nex t exam ple.

m=Modify,a=Add,d=Delete,q=Quit?d
Which group no:(1-16,q)3

Group 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 v vv
2 v vv
4 v v v
5 v v v
6 v v v
7 v v v
8 v v v
9 v v v
10 v v v
11 vvv
12 vvv
13 vvv
14 vvv
m=Modify,a=Add,d=Delete,q=Quit?

Port No

Figure 2-10 Deleting a Group

However after deleting a group, you will see this warning message when you quit.

m=Modify,a=Add,d=Delete,q=Quit?q
** Port: 3 MUST be in any VLAN group
Press Any key

Figure 2-11 Cannot Delete a Group

When you restore the group the software allows you to save your configuration “Save & Update? (Y/N)”.

3. Trunk Setup

Option 3 allows you to configure the Trunk Setup menu. First you must disable VLAN as shown in the next
screen.

Select?3
Disable VLAN?(Y/N)

Figure 2-12 Trunk Setup 1

Select y (yes) to disable VLAN and bring up the Trunk Setup menu shown in the following screen. These are the
trunk ports that can be configured in this example.

Trunk Setup:
Trunk 1:
Trunk 2:

Can be Setup Trunk port no:
Trunk 1: 9, 1,10, 2,11, 3
Trunk 2:15, 7,16, 8
m=Modify,q=Quit?

Figure 2-13 Trunk Setup 2

The Prestige Integrated Switch

2-7

Prestige 1400 WAN Router with Integrated Ethernet Switch

To modify the trunk follow the dialog as in the next example.

m=Modify,q=Quit?m
Which Trunk?(1/2)1
How many Trunk ports ?(0/2/4/6,q)2

---------------------------------------------------------------------­Trunk Setup:
Trunk 1: Port 9, 1
Trunk 2:

Can be Setup Trunk port no:
Trunk 1: 9, 1,10, 2,11, 3
Trunk 2:15, 7,16, 8
m=Modify,q=Quit?

Figure 2-14 Modifying Trunk Setup Example

As usual you are then asked to confirm your configuration “Save & Update? (Y/N)” when you decide to quit (q).

4. Restore Default Setup

Enter 4 from the Port Switch Setup menu to bring up the Restore Default Setup menu shown next. Enter y to
restore the default setup then confirm by typing y again at the “Save & Update? (Y/N)” prompt.

16 Ports Switch Setup V1.38
======== Main Menu ======

1. Port Setup

2. VLAN Setup

3. Trunk Setup

4. Restore Default Setup

5. View Setup
Select?4
Restore Default ?(Y/N)n

5. View Setup

Figure 2-15 Restore Default Setup Menu

2-8 The Prestige Integrated Switch
