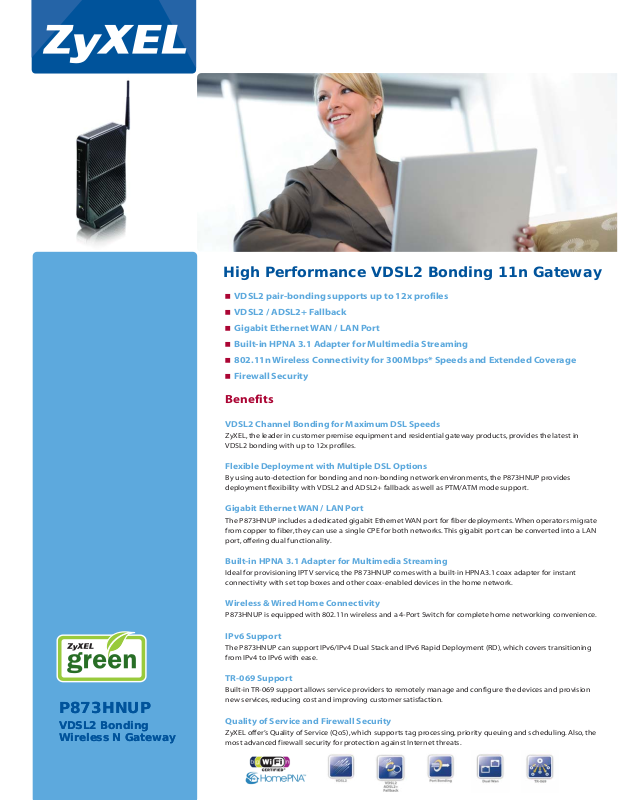

Zyxel P873HNUP specifications
High Performance VDSL2 Bonding 11n Gateway
■
VDSL2 pair-bonding supports up to 12x profiles
■
VDSL2 / ADSL2+ Fallback
■
Gigabit Ethernet WAN / LAN Port
■
Built-in HPNA 3.1 Adapter for Multimedia Streaming
■
802.11n Wireless Connectivity for 300Mbps* Speeds and Extended Coverage
■
Firewall Security
Benefits
VDSL2 Channel Bonding for Maximum DSL Speeds
ZyXEL, the leader in customer premise equipment and residential gateway products, provides the latest in
VDSL2 bonding with up to 12x profiles.
Flexible Deployment with Multiple DSL Options
By using auto-detection for bonding and non-bonding network environments, the P873HNUP provides
deployment flexibility with VDSL2 and ADSL2+ fallback as well as PTM/ATM mode support.
Gigabit Ethernet WAN / LAN Port
The P873HNUP includes a dedicated gigabit Ethernet WAN port for fiber deployments. When operators migrate
from copper to fiber, they can use a single CPE for both networks. This gigabit port can be converted into a LAN
port, offering dual functionality.
Built-in HPNA 3.1 Adapter for Multimedia Streaming
Ideal for provisioning IPTV service, the P873HNUP comes with a built-in HPNA3.1 coax adapter for instant
connectivity with set top boxes and other coax-enabled devices in the home network.
P873HNUP
P873HNUP
VDSL2 Bonding
VDSL2 Bonding
Wireless N Gateway
Wireless N Gateway
Wireless & Wired Home Connectivity
P873HNUP is equipped with 802.11n wireless and a 4-Port Switch for complete home networking convenience.
IPv6 Support
The P873HNUP can support IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD), which covers transitioning
from IPv4 to IPv6 with ease.
TR-069 Support
Built-in TR-069 support allows service providers to remotely manage and configure the devices and provision
new services, reducing cost and improving customer satisfaction.
Quality of Service and Firewall Security
ZyXEL offer’s Quality of Service (QoS), which supports tag processing, priority queuing and scheduling. Also, the
most advanced firewall security for protection against Internet threats.
P873HNUP
P873HNUP
VDSL2 Bonding Wireless N Gateway
VDSL2 Bonding Wireless N Gateway
Specifications
System Specifications
VDSL Compliance
• ITU.T G.993.2 VDSL2 (Profile: Up to 17a support with
100 Mbps/45 Mbps downstream/upstream rate)
• Dual latency
• INP value up to 16
• PhyR PHY Level Retransmission Technology
• One firmware supports 6 operation modes
• VDSL2 bonding up to 12 MHz profile
• VDSL2 single line up to 17a profile
• Auto detect VDSL2 / ADSL2+ in bonding mode
• Auto detect VDSL2 / ADSL2+ in single line mode
ADSL Compliance
• G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2),
G.992.5 (ADSL2+) compliant, Annex A, L and M
• ADSL physical connection ATM AAL5 (ATM
Adaptation Layer type 5)
• Support multi-protocol over AAL5
(RFC2684/1483)
(RFC2684/1483) ADSL2+ bonding mode with ATM
• ADSL2+ bonding mode with PTM
• ADSL2+ single line mode with ATM
• ADSL2+ single line mode with PTM
• Auto detect ADSL2+ in bonding mode
• Auto detect ADSL2+ in single line mode
• Auto detect ATM and PTM
IEEE 802.11n Compliance
• Frequency: 2.4 GHz
• Data rate: 300 Mbps*
• Backward compatible to 802.11b/g
• 64/128 bits WEP data encryption
• WPA/WPA2 (Wi-Fi Protected Access) Security
• WPS (Wireless Protected Setup)
• WDS (Wireless Distribution System)
Application Diagram
Router
• IPv6 / IPv4 Dual Stack
• IPv6 Rapid Deployment (RD)
• NAT (includes multi-to-multi NAT)/SUA
• Dynamic DNS
• DHCP client/server/relay with DHCP option 60
• PPPoE, PPPoA
• RIP I/RIP II
• IGMP v1, v2, v3
• IGMP Proxy Snooping
• UPnP
USB
• File sharing
• Printing server support
Firewall/Security
• Stateful Packet Inspection (SPI)
• Denial of Service (DoS) Prevention
• Multiple VPN (IPSec, PPTP) pass-through
• Packet Filtering
• URL keyword blocking
• Parental Controls
QoS
• Support flexible packet classification
• Support Tag Processing (802.1p/802.1q, DSCP)
• Priority Queuing and Scheduling
-One RJ-11 port for VDSL2/ADSL2+ over POTS
-One RJ-45 port for Gigabit Ethernet, 10/100/1000Base-T
• LAN:
-Four RJ-45 ports for Fast Ethernet, 10/100Base-T
• Wireless LAN:
-One external 2 dBi antenna and one internal 2 dBi antenna
• HPNA interface: One coaxial F-connector for HPNA 3.1
• USB: One type-A USB connector for USB 2.0 host interface
• WLAN/WPS button:
-One push button for WLAN on-off and WPS configuration
• Reset: Recessed push button (reset & factory default)
• Status LEDs indicator: POWER, ETHERNET,
ETHERNET WAN, USB, DSL, INTERNET, WLAN/WPS
• Power input: 12 V DC 1.5 A
Physical Specifications
• Item weight: 1.02 lb (460 g)
• Item dimensions:
1.57” (W) x 6.06” (D) x 8.27” (H) inches
(40 (W ) x 154 (D) x 210 (H) mm)
• Item and package weight: 2.08 lb (941 g)
• Package dimensions:
2.6” (W) x 8.86” (D) x 10.63” (H) inches
(66 (W ) x 225 (D) x 270 (H) mm)
Environmental Specifications
Operating Environment
• Temperature: 32°F ~ 104°F (0°C ~ 40°C)
• Humidity: 20% ~ 85% RH (non-condensing)
Storage Environment
Management
• Embedded web configuration
• TR-069, TR-098 remote management
• TR-064 local management
• Logs and statistics
• Command Line Interpreter (CLI) via Telnet
Hardware Specifications
• WAN:
*300M wireless data transfer rate is theoretical. The actual data transfer rate may vary depending on the network environment
• Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
• Humidity: 20% ~ 90% RH (non-condensing)
Certification
EMC
• FCC Part 15 (Class B)
Safety
• UL 60950-1
Ethernet
Coax
Copper
Fiber
Provider’s
Network
Central
Office
VDSL2 Bonding DSLAM
Broadband Internet Access
OR
Fiber COE
FTTH End -
Point Device
For more product information, visit us on the web at www.ZyXEL.com
Copyright © 2011 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logo†are registered trademarks of ZyXEL Communications Corp.
All other brands, product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.
P873HNUP
Bonding
VDSL2
Smart Wi-fi
USB Printer
Device
Wireless
Laptop PC
Wired Desktop PC
Video with
Set-Top Box
Gaming Console
