Quick Start Guide
GS3700/XGS3700 Series
GbE L2+ Switch
Version 4.10
Edition 3, 06/2014
User’s Guide
Default Login Details
IP Address http://192.168.0.1 (Out-
of-band MGMT port)
www.zyxel.com
User Name admin
Password 1234
http://192.168.1.1 (In-
band ports)
Copyright © 2014 ZyXEL Communications Corporation
IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP THIS GUIDE FOR FUTURE REFERENCE.
Note: This guide is a reference for a series of products. Therefore some features or
options in this guide may not be available in your product.
Screenshots and graphics in this book may differ slightly from your product due to differences in
your product firmware or your computer operating system. Every effort has been made to ensure
that the information in this manual is accurate.
Related Documentation
• Fan Module Hardware Installation Guide
This guide shows how to install and remove the fan module in the Switch.
• Power Supply Module Hardware Installation Guide
This guide shows how to install and remove the power supply module in the Switch.
• Rack Mounting Hardware Installation Guide
This guide shows how to use the rack mounting kit to install the Switch in a rack.
• CLI Reference Guide
This guide explains how to use the Command-Line Interface (CLI) to configure the Switch.
Note: It is recommended you use the Web Configurator to configure the Switch.
• Web Configurator Online Help
Click the help icon in any screen for help in configuring that screen and supplementary
information.
GS3700/XGS3700 Series User’s Guide
2
Contents Overview
Contents Overview
User’s Guide .......................................................................................................................................18
Getting to Know Your Switch ...................................................................................................................19
Hardware Installation and Connection ....................................................................................................24
Hardware Overview .................................................................................................................................28
The Web Configurator .............................................................................................................................35
Technical Reference ..........................................................................................................................44
ZON Utility, ZON Neighbor Management and Port Status ......................................................................45
Basic Setting ..........................................................................................................................................52
VLAN .......................................................................................................................................................81
Static MAC Forward Setup ......................................................................................................................99
Static Multicast Forward Setup ..............................................................................................................101
Filtering .................................................................................................................................................104
Spanning Tree Protocol .........................................................................................................................106
Bandwidth Control .................................................................................................................................124
Broadcast Storm Control .......................................................................................................................126
Mirroring ................................................................................................................................................128
Link Aggregation ...................................................................................................................................137
Port Authentication ................................................................................................................................145
Port Security ..........................................................................................................................................153
Classifier ...............................................................................................................................................156
Policy Rule ...........................................................................................................................................162
Queuing Method ....................................................................................................................................167
VLAN Stacking ......................................................................................................................................170
Multicast ................................................................................................................................................177
AAA .......................................................................................................................................................200
IP Source Guard ...................................................................................................................................213
Loop Guard ...........................................................................................................................................235
VLAN Mapping ......................................................................................................................................238
Layer 2 Protocol Tunneling ...................................................................................................................241
sFlow .....................................................................................................................................................245
PPPoE ...................................................................................................................................................249
Error Disable .........................................................................................................................................257
MAC Pinning .........................................................................................................................................263
Private VLAN .........................................................................................................................................265
Green Ethernet ......................................................................................................................................269
Link Layer Discovery Protocol (LLDP) ..................................................................................................271
Static Route ...........................................................................................................................................297
GS3700/XGS3700 Series User’s Guide
3
Contents Overview
Policy Routing .......................................................................................................................................301
Differentiated Services ..........................................................................................................................305
DHCP ....................................................................................................................................................313
VRRP ....................................................................................................................................................327
Load Sharing .........................................................................................................................................336
ARP Setup ............................................................................................................................................338
Maintenance ..........................................................................................................................................344
Access Control ......................................................................................................................................352
Diagnostic .............................................................................................................................................373
Syslog ...................................................................................................................................................375
Cluster Management .............................................................................................................................378
MAC Table .............................................................................................................................................384
IP Table .................................................................................................................................................387
ARP Table .............................................................................................................................................389
Routing Table ........................................................................................................................................391
Path MTU Table ....................................................................................................................................392
Configure Clone ....................................................................................................................................393
Neighbor Table ......................................................................................................................................395
Troubleshooting ....................................................................................................................................397
GS3700/XGS3700 Series User’s Guide
4
Table of Contents
Table of Contents
Contents Overview ..............................................................................................................................3
Table of Contents .................................................................................................................................5
Part I: User’s Guide .........................................................................................18
Chapter 1
Getting to Know Your Switch.............................................................................................................19
1.1 Introduction .......................................................................................................................................19
1.1.1 Bridging Example ....................................................................................................................20
1.1.2 High Performance Switching Example ....................................................................................20
1.1.3 Gigabit Ethernet to the Desktop ..............................................................................................21
1.1.4 IEEE 802.1Q VLAN Application Example ................................................................................21
1.1.5 IPv6 Support ............................................................................................................................22
1.2 Ways to Manage the Switch ..............................................................................................................22
1.3 Good Habits for Managing the Switch ...............................................................................................23
Chapter 2
Hardware Installation and Connection.............................................................................................24
2.1 Freestanding Installation ..................................................................................................................24
2.2 Mounting the Switch on a Rack ........................................................................................................25
2.3 Installation Requirements ..................................................................................................................25
2.3.1 Precautions .............................................................................................................................25
2.4 Attaching the Brackets to the Switch .................................................................................................25
2.5 Mounting the Switch on a Rack .........................................................................................................26
2.6 Power Module Installation .................................................................................................................27
Chapter 3
Hardware Overview ............................................................................................................................28
3.1 Front Panel Connections ..................................................................................................................28
3.1.1 Ethernet Ports ..........................................................................................................................29

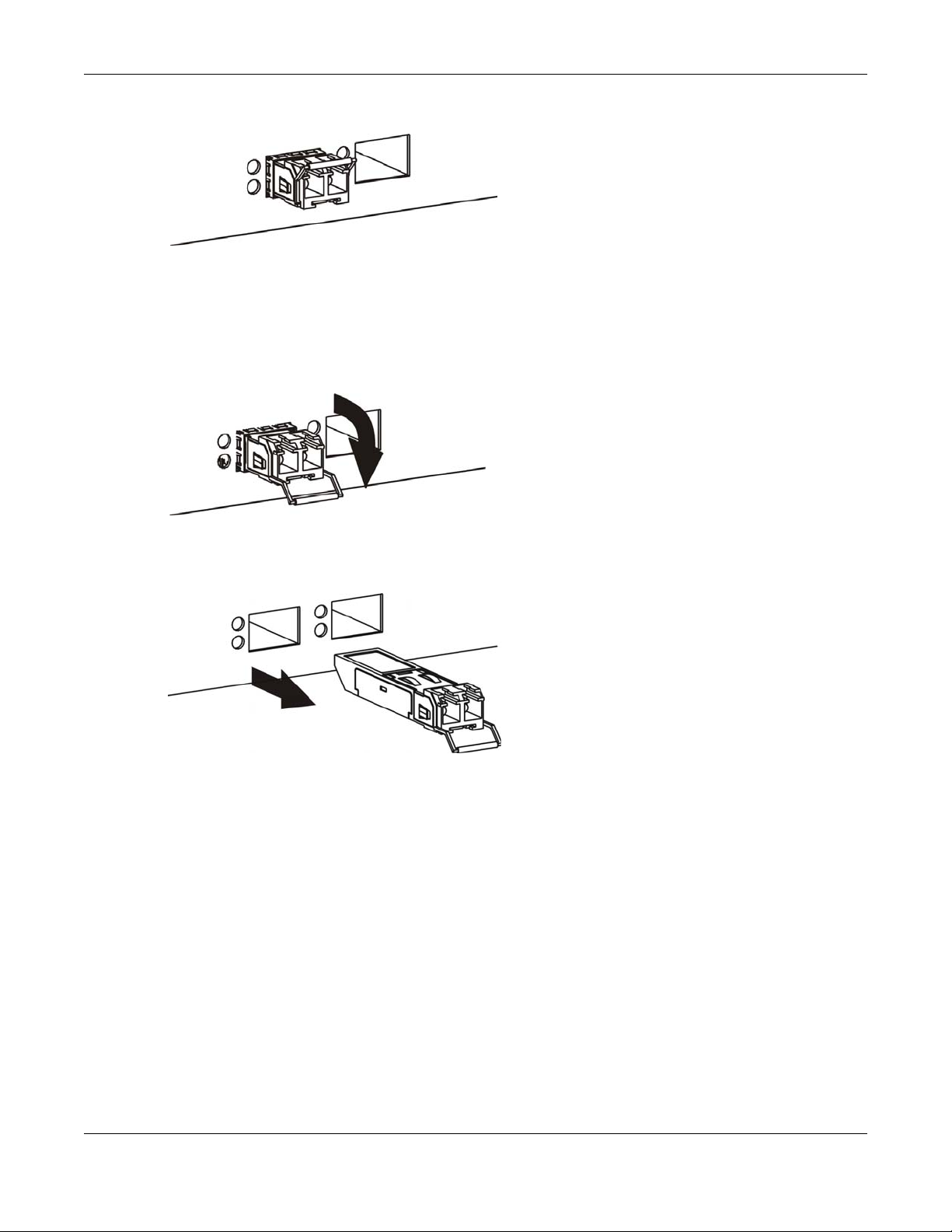

3.1.2 SFP/SFP+ Slots ......................................................................................................................30
3.1.3 Management Port ....................................................................................................................31
3.1.4 Console Port ...........................................................................................................................31

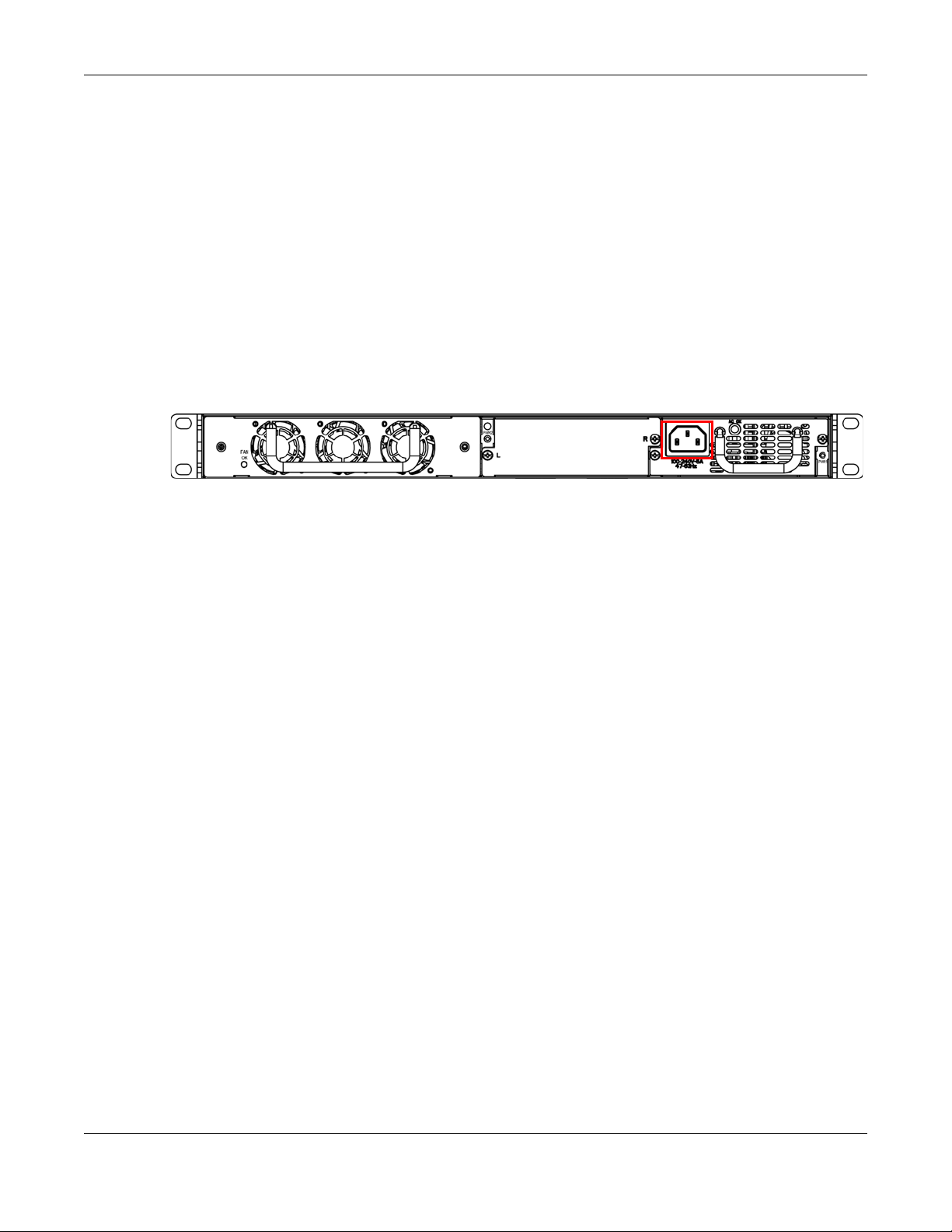

3.2 Rear Panel ........................................................................................................................................32
3.2.1 Removing and Installing the Fan Module ................................................................................32
3.2.2 Power Connection ...................................................................................................................32
3.3 LEDs .............................................................................................................................................33
GS3700/XGS3700 Series User’s Guide
5
Table of Contents
Chapter 4
The Web Configurator........................................................................................................................35
4.1 Introduction .......................................................................................................................................35
4.2 System Login .................................................................................................................................35
4.3 The Web Configurator Layout .........................................................................................................36
4.3.1 Change Your Password ........................................................................................................41
4.4 Saving Your Configuration ................................................................................................................41
4.5 Switch Lockout ................................................................................................................................41
4.6 Resetting the Switch ......................................................................................................................42
4.6.1 Reload the Configuration File .................................................................................................42
4.7 Logging Out of the Web Configurator ..............................................................................................43
4.8 Help ..................................................................................................................................................43
Part II: Technical Reference............................................................................44
Chapter 5
ZON Utility, ZON Neighbor Management and Port Status...............................................................45
5.1 Overview ...........................................................................................................................................45
5.2 ZyXEL One Network (ZON) Utility Screen .......................................................................................45
5.3 ZON Neighbor Management Screen ................................................................................................46
5.4 Port Status Summary ...................................................................................................................47
5.4.1 Status: Port Details ..............................................................................................................49
Chapter 6
Basic Setting ......................................................................................................................................52
6.1 System Information ........................................................................................................................52
6.2 General Setup ...............................................................................................................................54
6.3 Introduction to VLANs ......................................................................................................................55
6.4 Switch Setup ....................................................................................................................................56

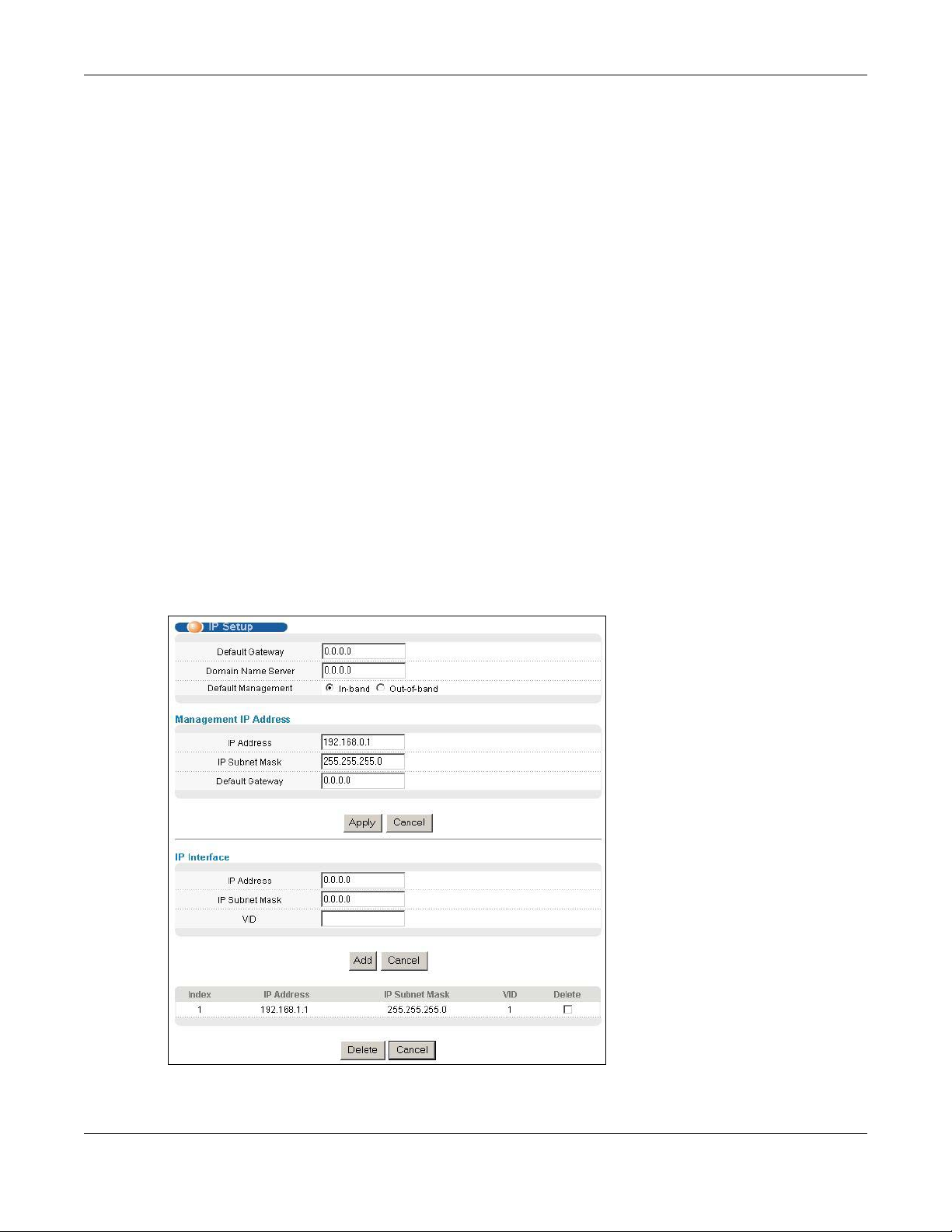

6.5 IP Setup .........................................................................................................................................58
6.5.1 IP Interfaces ...........................................................................................................................58

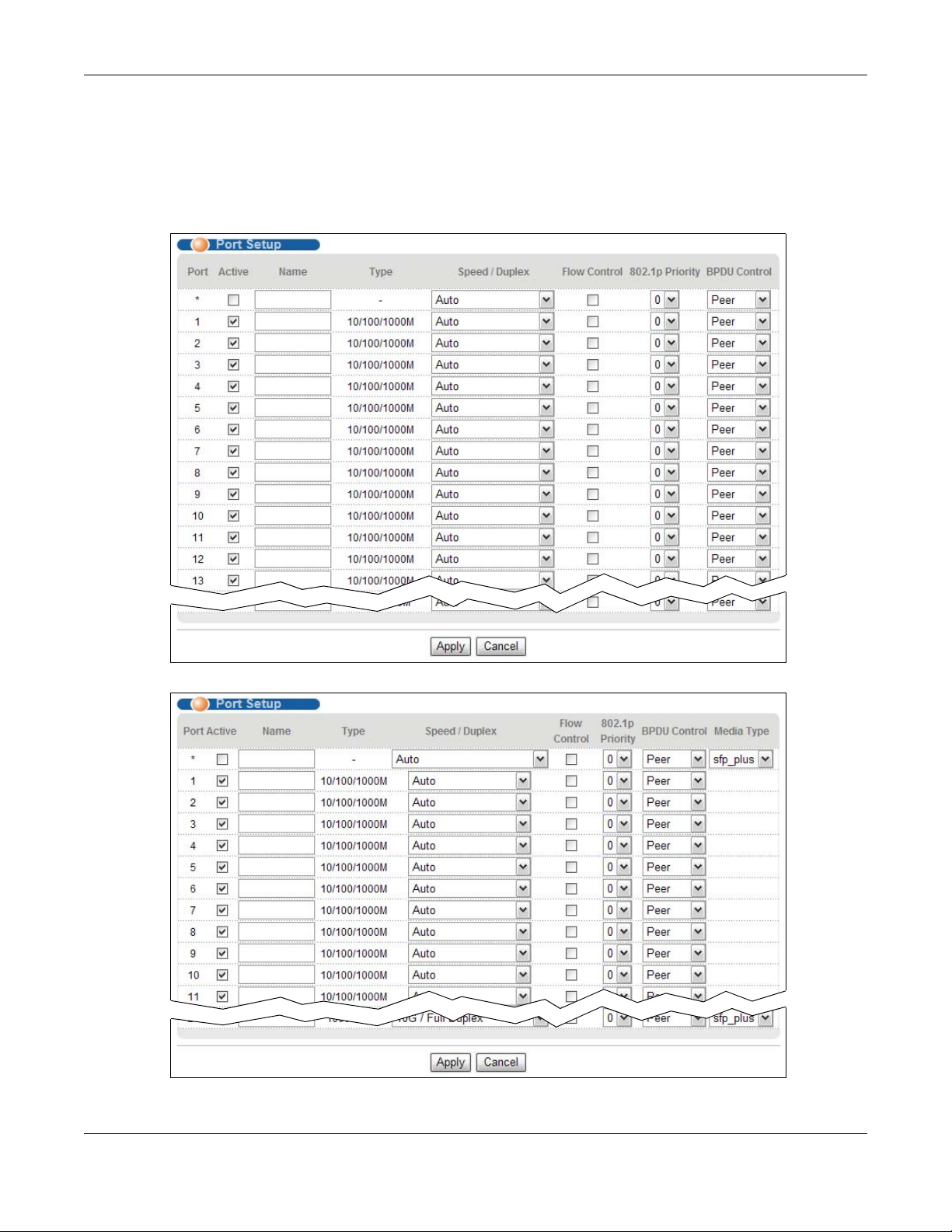

6.6 Port Setup ........................................................................................................................................60

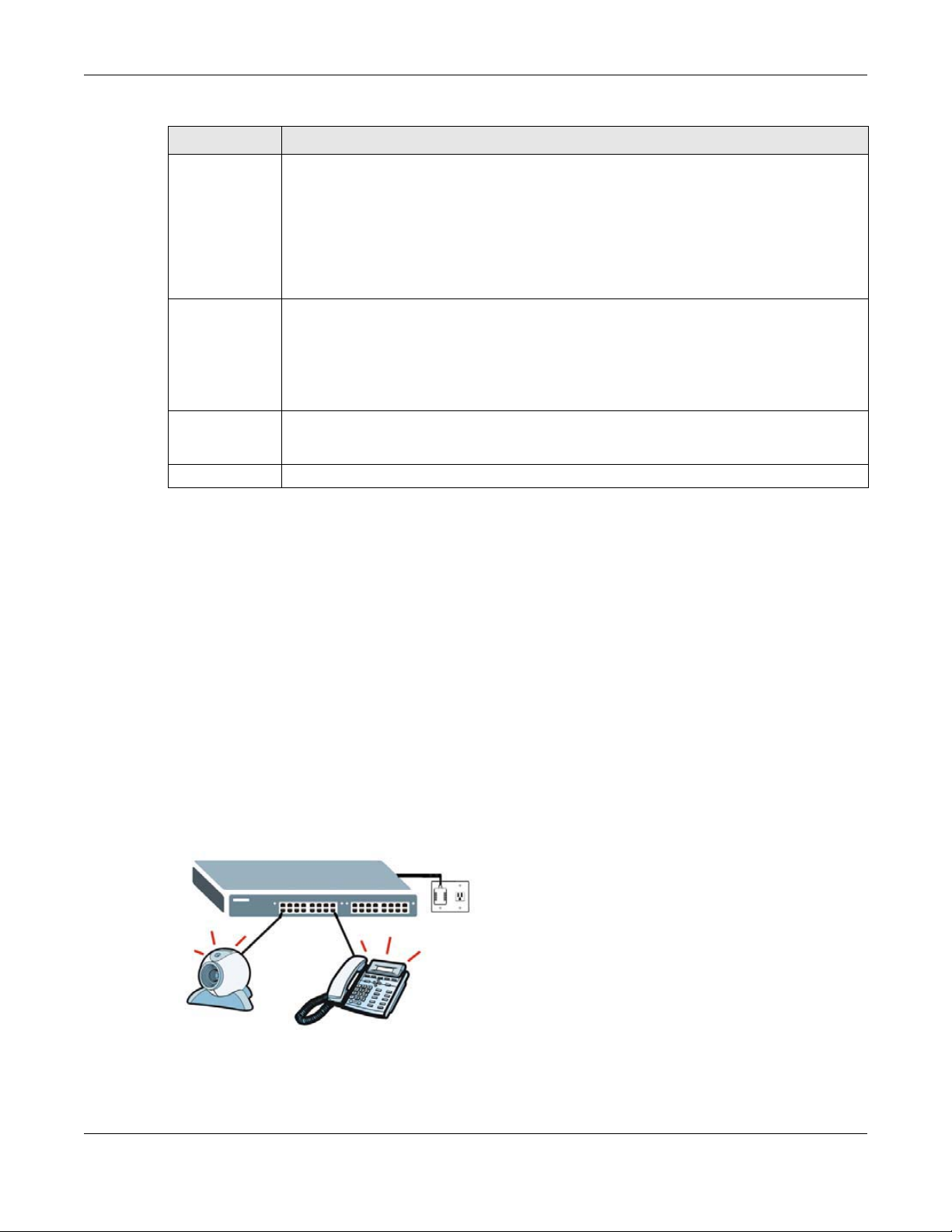

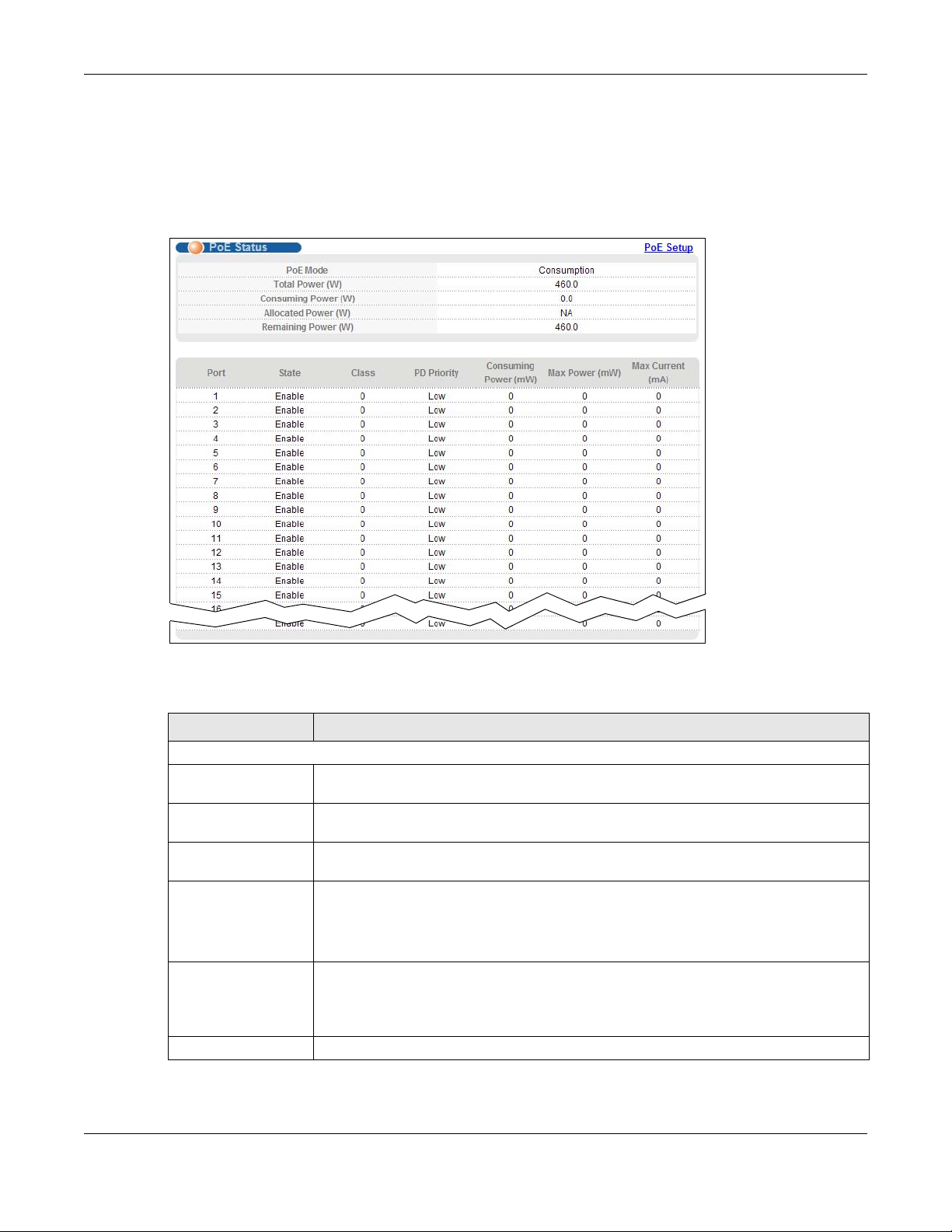

6.7 PoE ................................................................................................................................................62
6.7.1 PoE Setup ...............................................................................................................................64
6.8 Interface Setup .................................................................................................................................66
6.9 IPv6 ...................................................................................................................................................67

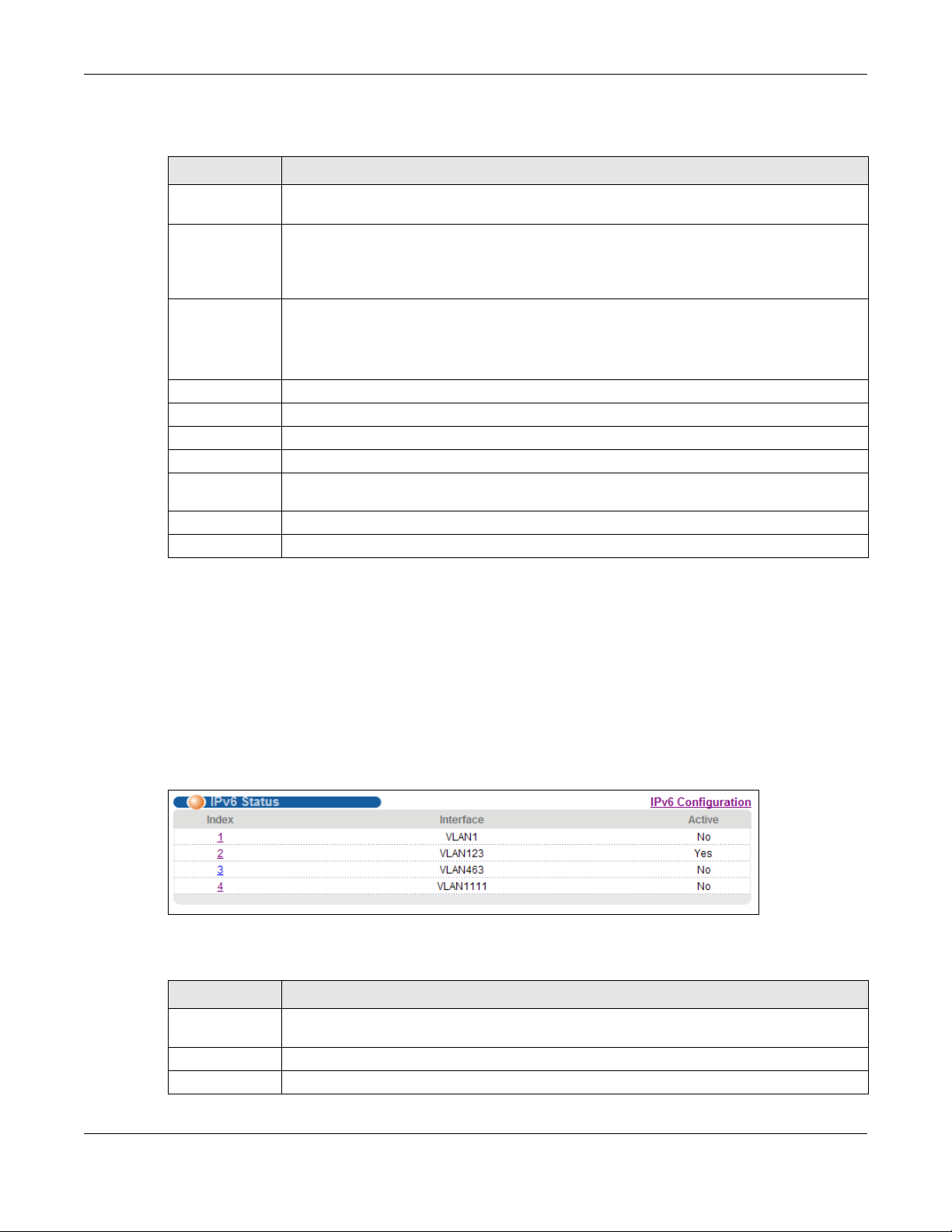

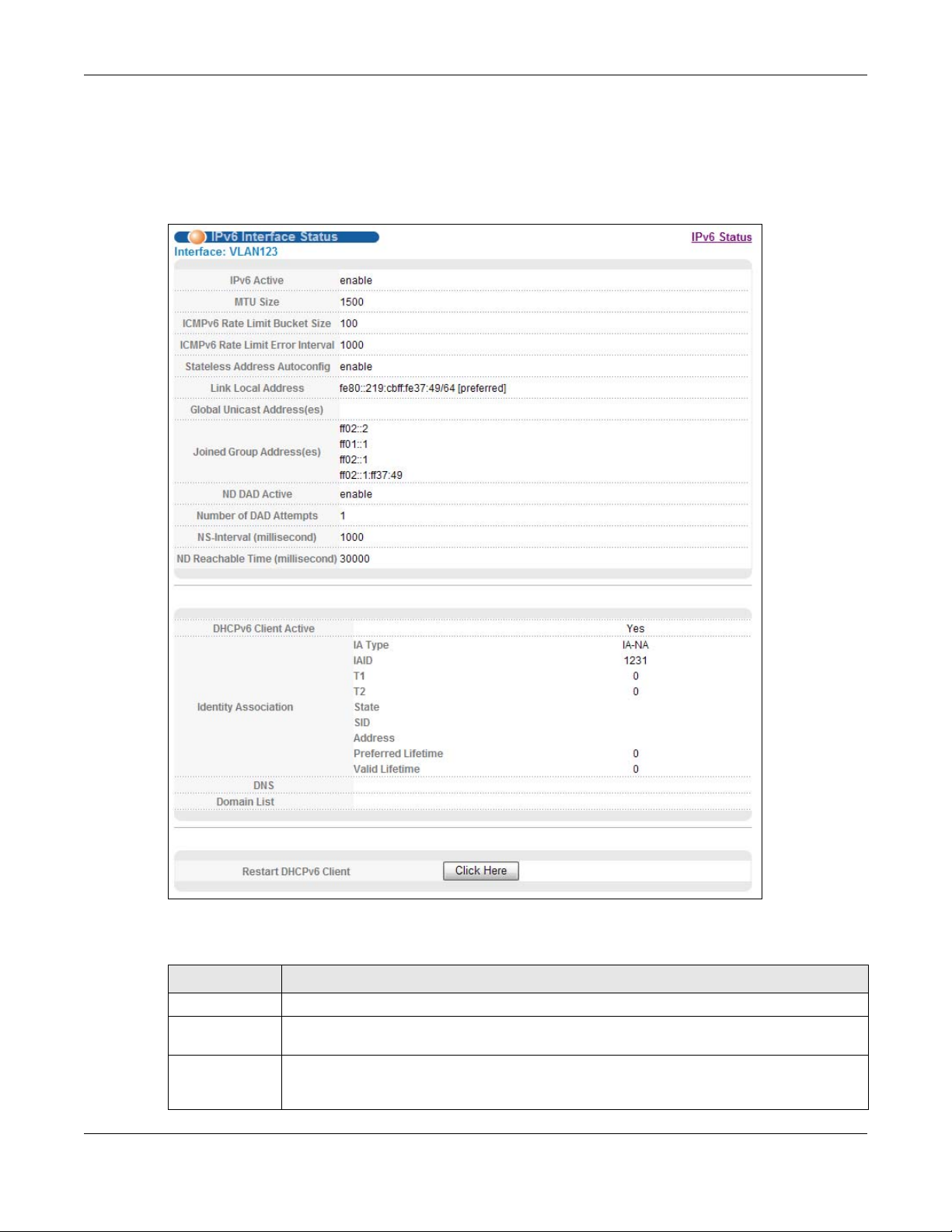

6.9.1 IPv6 Interface Status ...............................................................................................................68
6.9.2 IPv6 Configuration ...................................................................................................................70
6.9.3 IPv6 Global Setup ....................................................................................................................71
6.9.4 IPv6 Interface Setup ................................................................................................................71
6.9.5 IPv6 Link-Local Address Setup ...............................................................................................72
GS3700/XGS3700 Series User’s Guide
6
Table of Contents

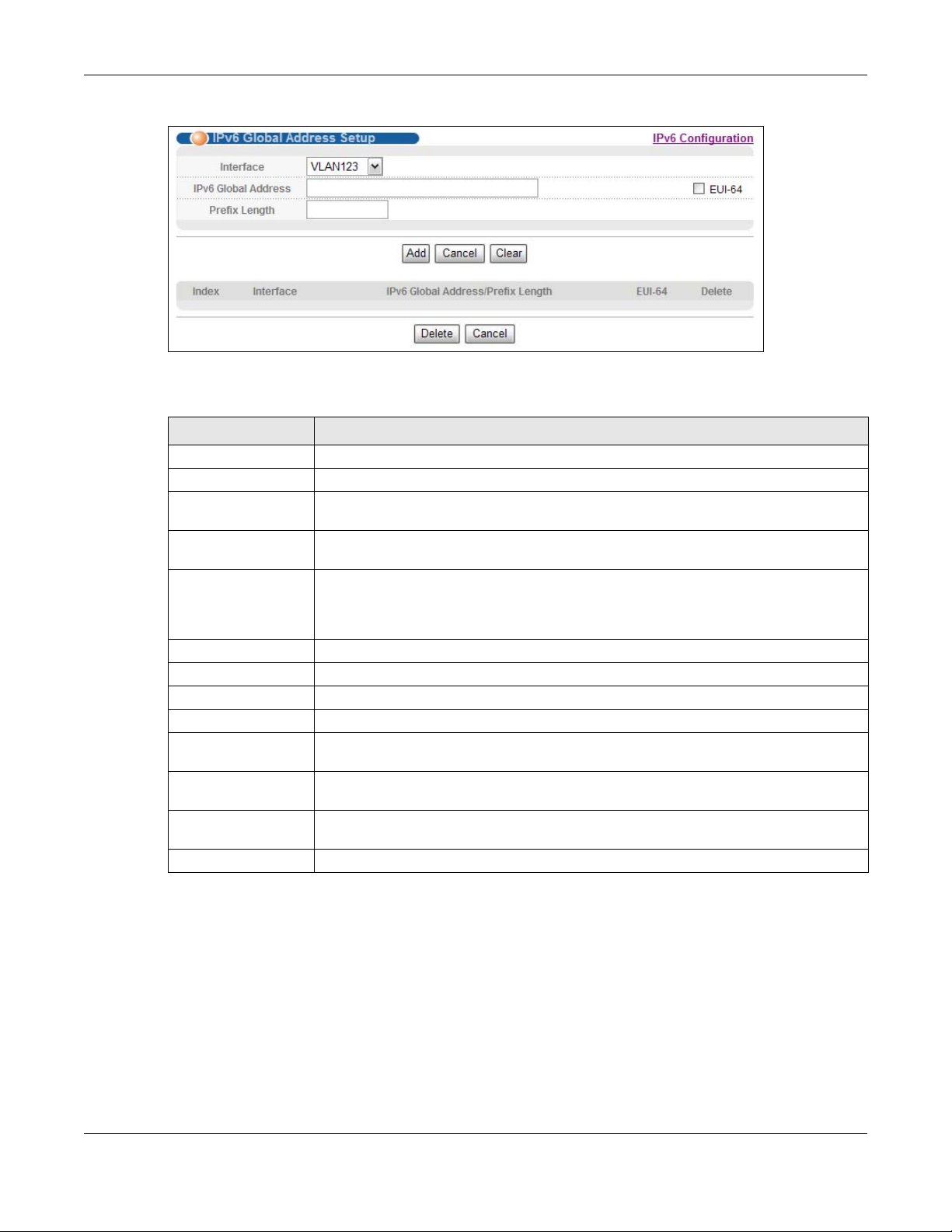

6.9.6 IPv6 Global Address Setup .....................................................................................................73

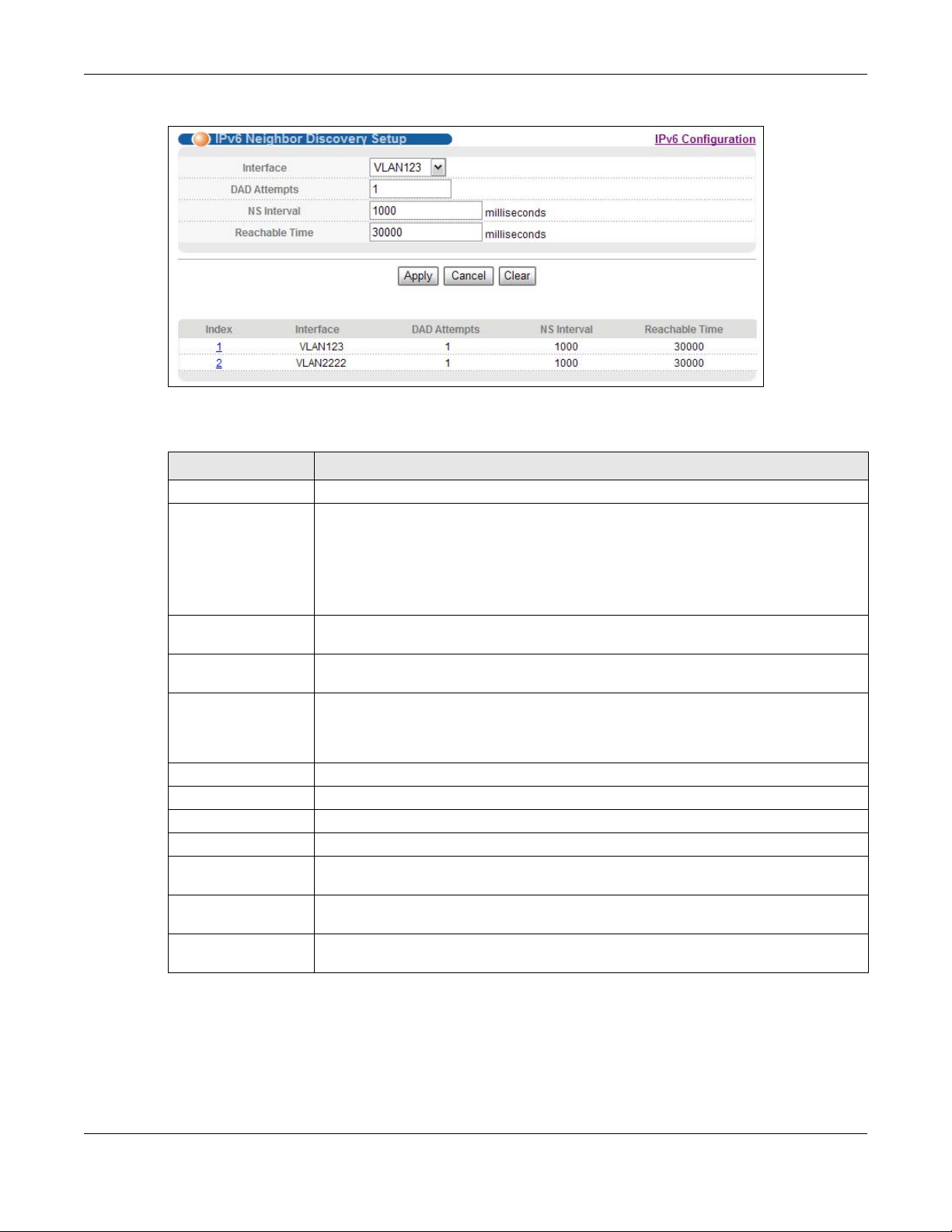

6.9.7 IPv6 Neighbor Discovery Setup ...............................................................................................74

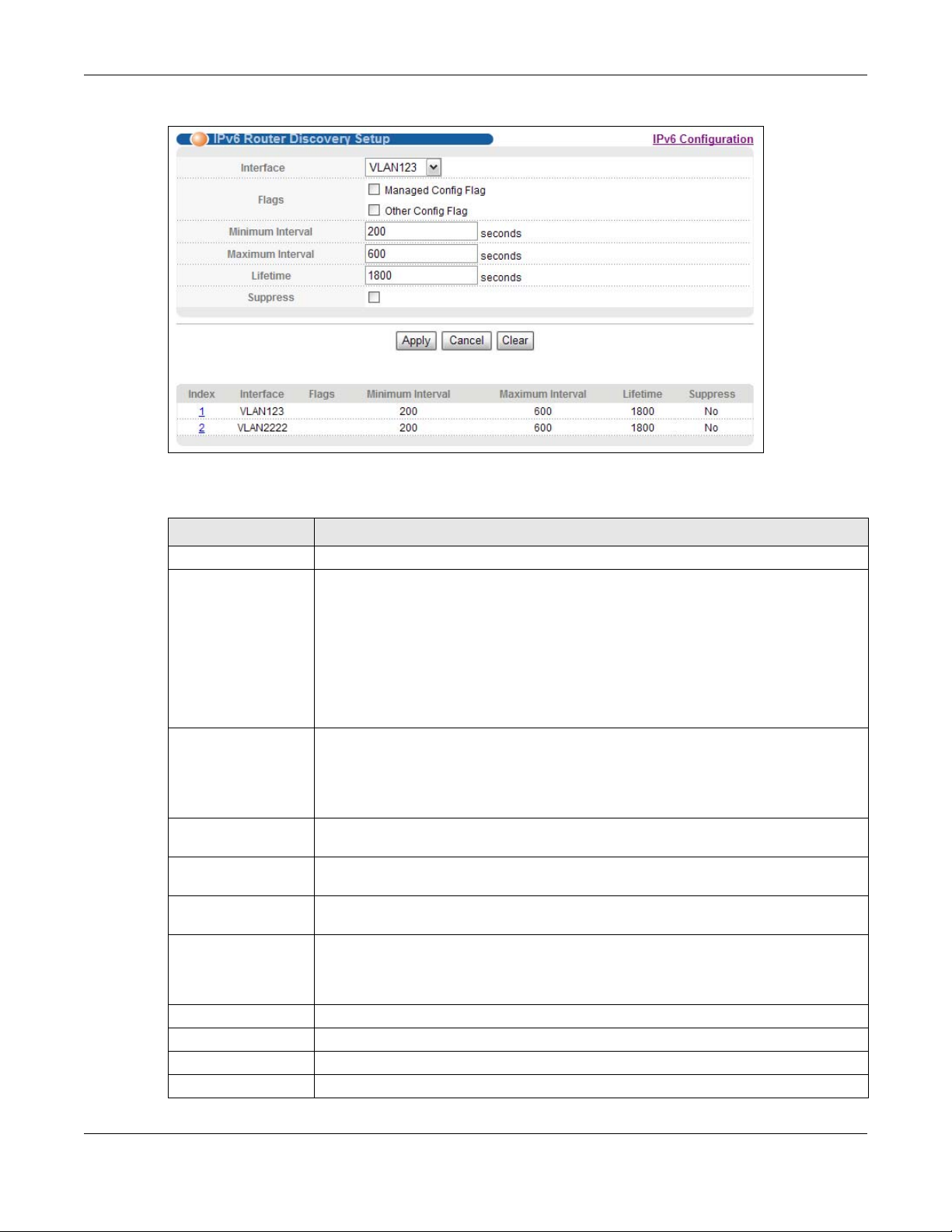

6.9.8 IPv6 Router Discovery Setup ..................................................................................................75

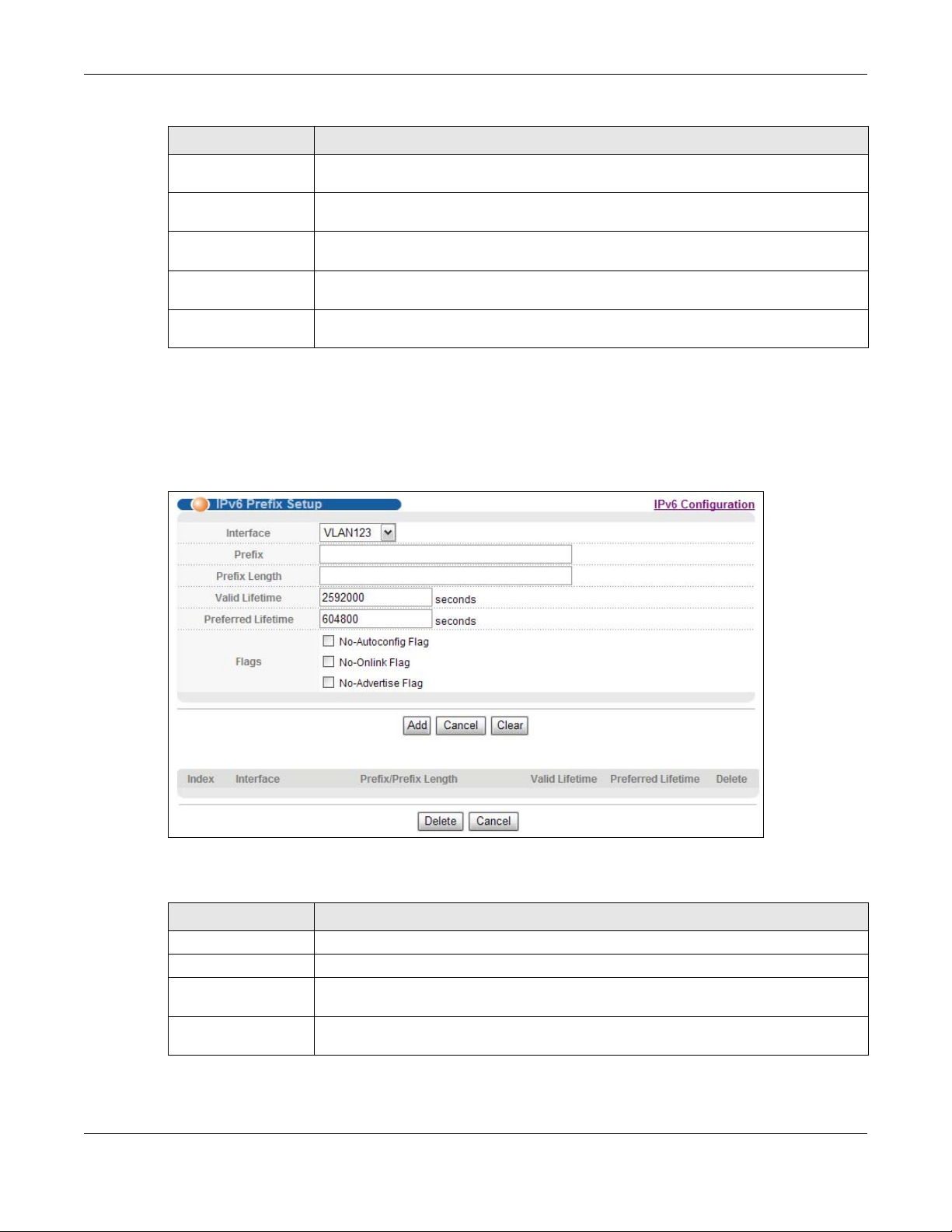

6.9.9 IPv6 Prefix Setup .....................................................................................................................77

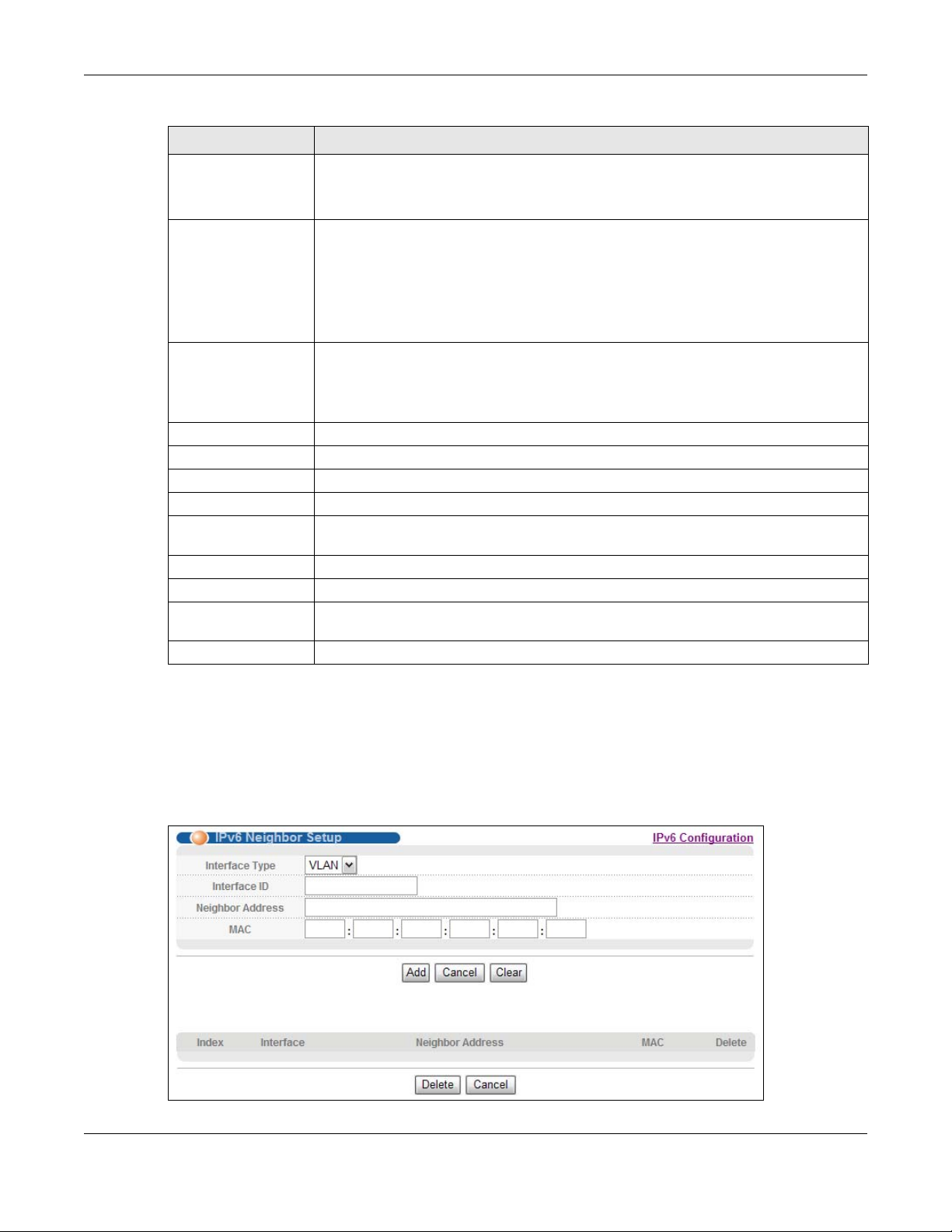

6.9.10 IPv6 Neighbor Setup .............................................................................................................78
6.9.11 DHCPv6 Client Setup ............................................................................................................79
Chapter 7
VLAN....................................................................................................................................................81
7.1 Introduction to IEEE 802.1Q Tagged VLANs ...............................................................................81
7.1.1 Forwarding Tagged and Untagged Frames .............................................................................81
7.2 Automatic VLAN Registration ...........................................................................................................82
7.2.1 GARP ......................................................................................................................................82
7.2.2 GVRP ......................................................................................................................................82
7.3 Port VLAN Trunking .........................................................................................................................83
7.4 Select the VLAN Type ......................................................................................................................83
7.5 802.1Q Static VLAN ..........................................................................................................................83
7.5.1 VLAN Status ...........................................................................................................................84

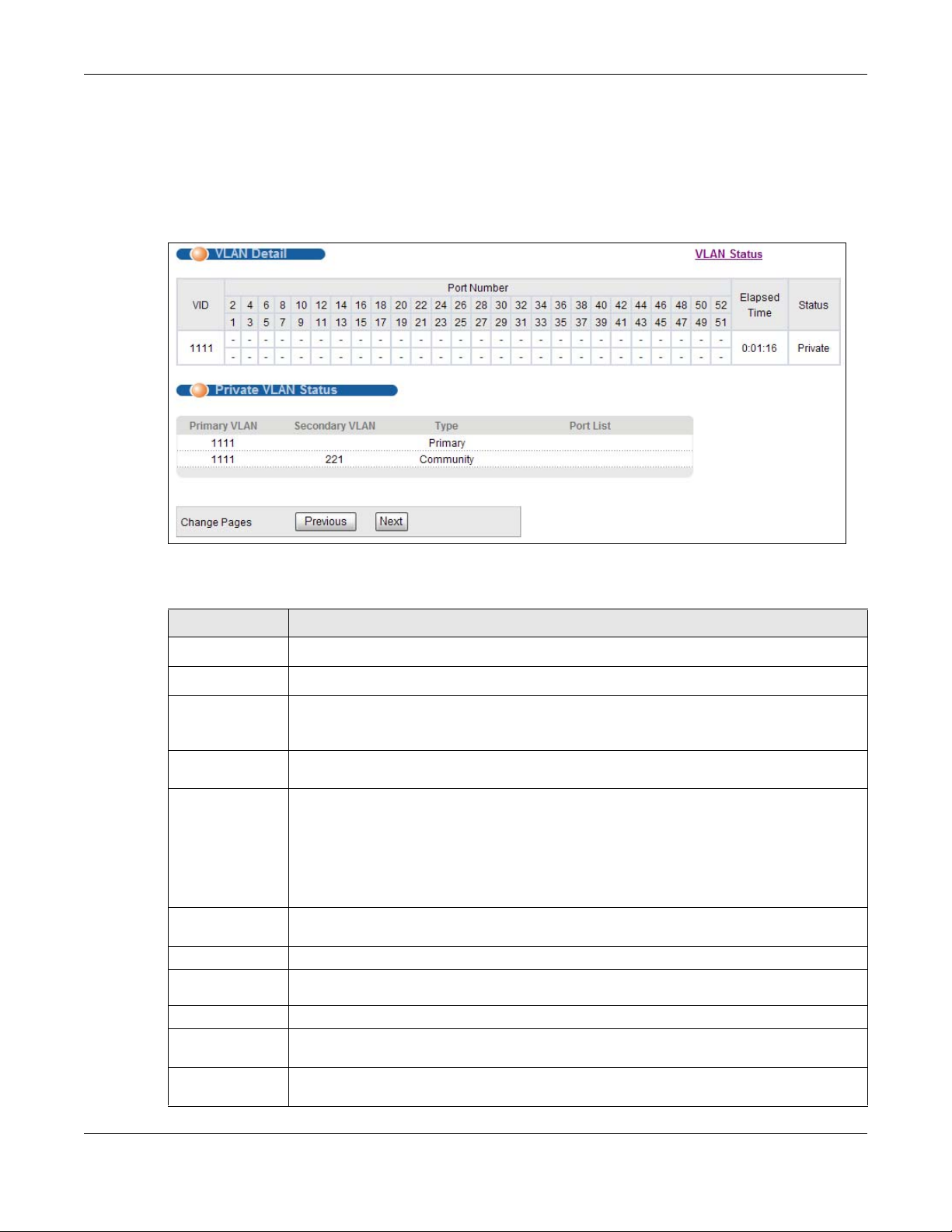

7.5.2 VLAN Details ...........................................................................................................................85
7.5.3 Configure a Static VLAN or Private VLAN ...........................................................................86
7.5.4 Configure VLAN Port Settings .............................................................................................88

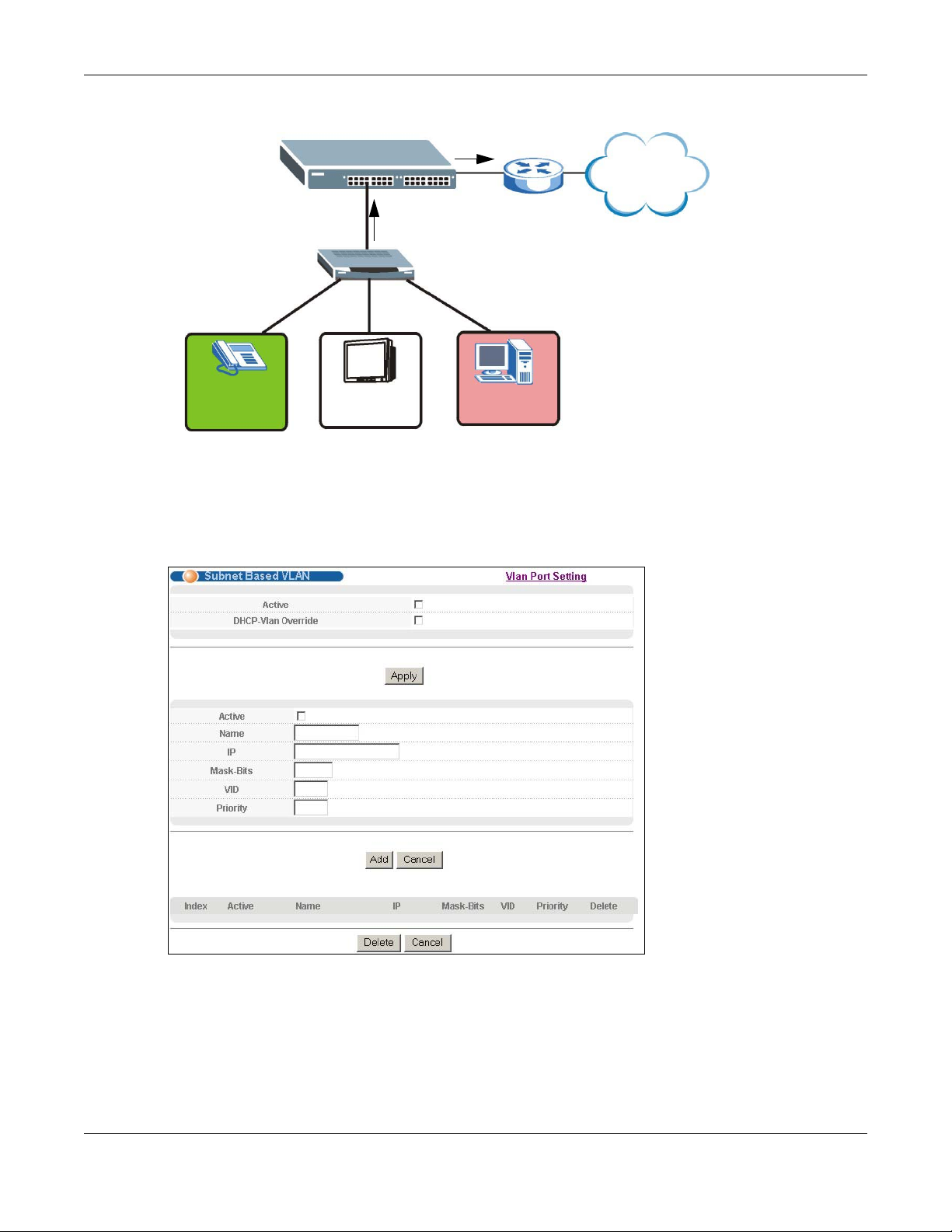

7.5.5 Subnet Based VLANs .............................................................................................................89

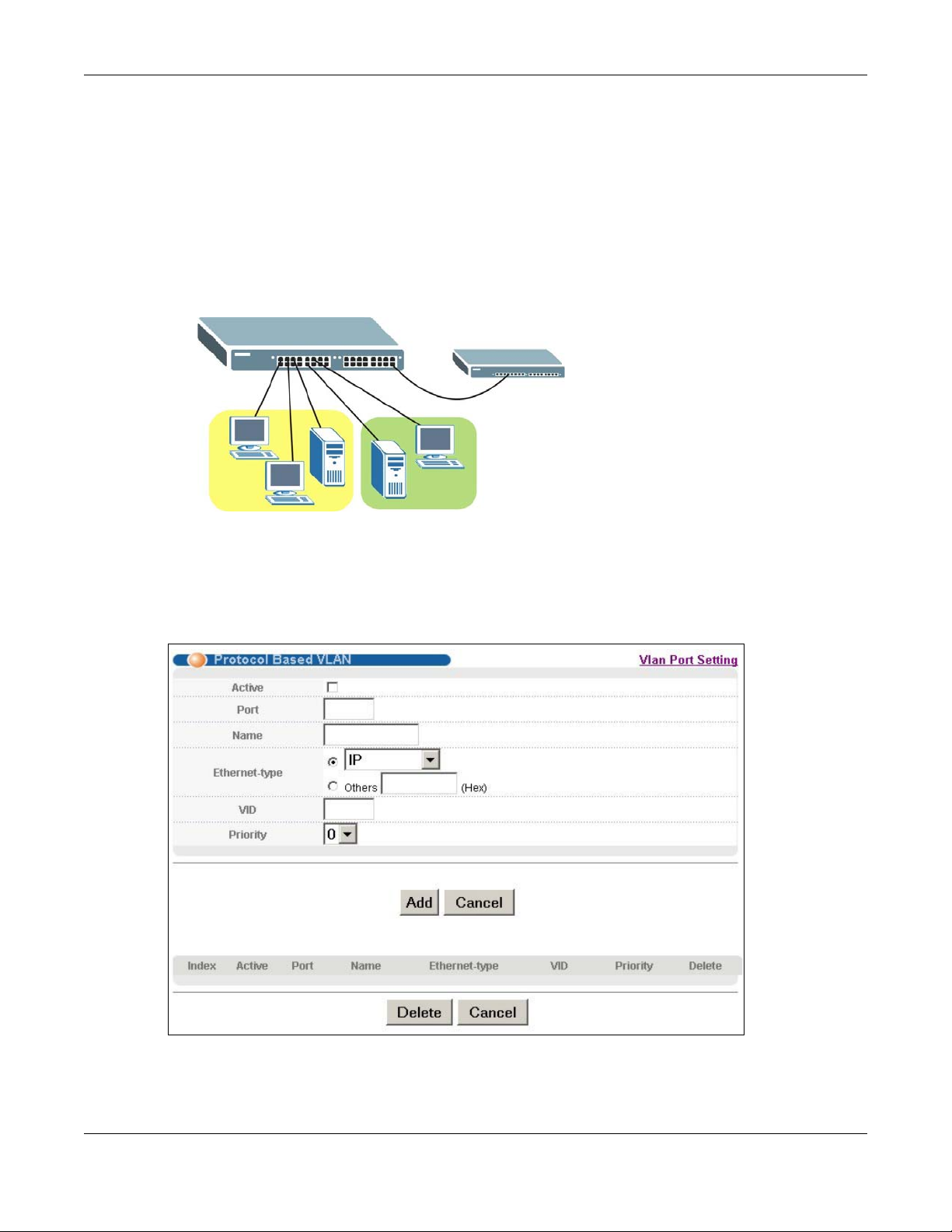

7.5.6 Protocol Based VLANs ...........................................................................................................91

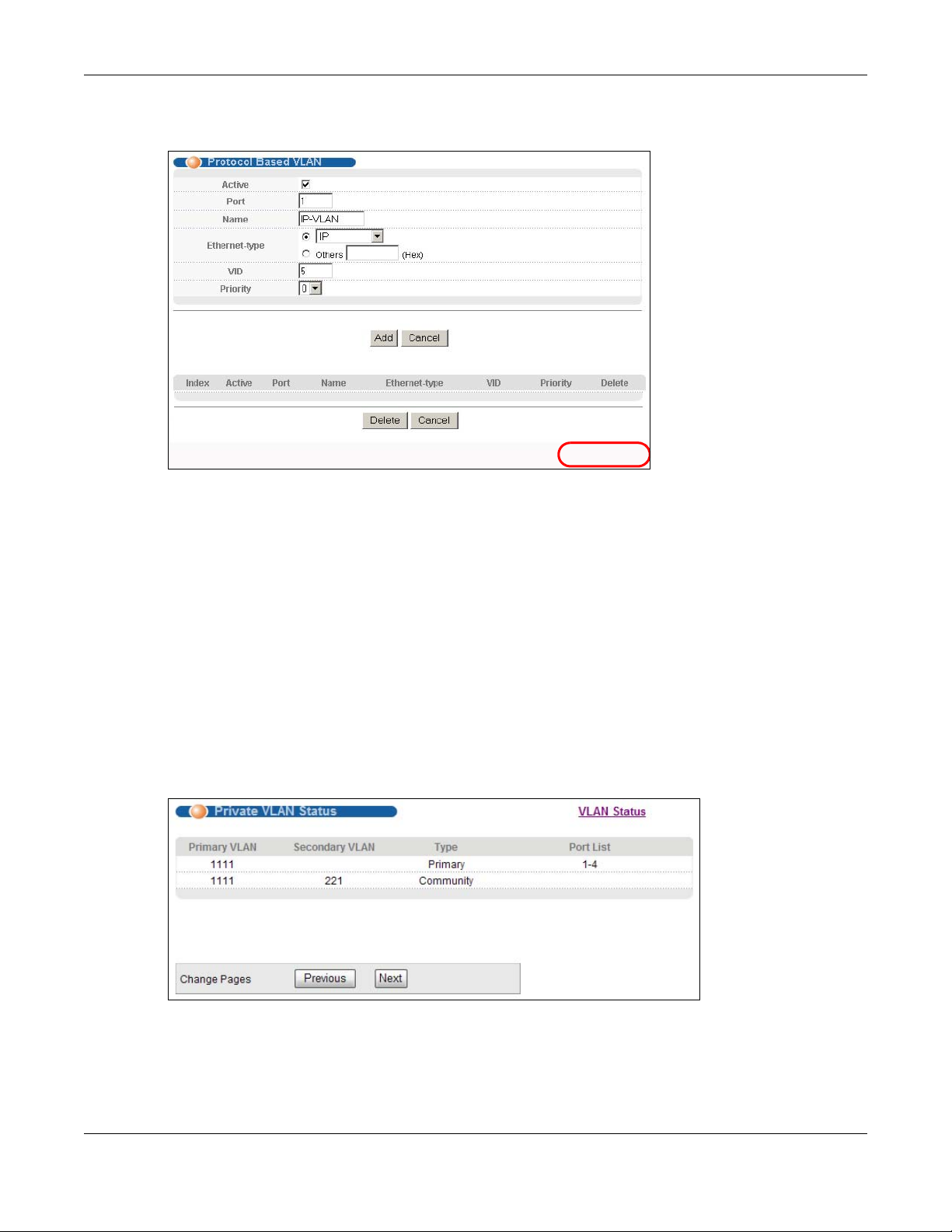

7.5.7 View Private VLAN Status ...................................................................................................94
7.6 Port-based VLAN Setup ................................................................................................................95
7.6.1 Configure a Port-based VLAN ................................................................................................95
Chapter 8
Static MAC Forward Setup.................................................................................................................99
8.1 Overview ...........................................................................................................................................99
8.2 Configuring Static MAC Forwarding .............................................................................................99
Chapter 9
Static Multicast Forward Setup .......................................................................................................101
9.1 Static Multicast Forwarding Overview .............................................................................................101
9.2 Configuring Static Multicast Forwarding ..........................................................................................102
Chapter 10
Filtering..............................................................................................................................................104
10.1 Configure a Filtering Rule ...........................................................................................................104
Chapter 11
Spanning Tree Protocol....................................................................................................................106
GS3700/XGS3700 Series User’s Guide
7
Table of Contents
11.1 STP/RSTP Overview ...................................................................................................................106
11.1.1 STP Terminology .................................................................................................................106
11.1.2 How STP Works ..................................................................................................................107
11.1.3 STP Port States ..................................................................................................................107
11.1.4 Multiple RSTP ....................................................................................................................107
11.1.5 Multiple STP .........................................................................................................................108
11.2 Spanning Tree Protocol Status Screen .......................................................................................... 110
11.3 Spanning Tree Configuration ........................................................................................................ 111
11.4 Configure Rapid Spanning Tree Protocol ...................................................................................112
11.5 Rapid Spanning Tree Protocol Status ......................................................................................... 113
11.6 Configure Multiple Rapid Spanning Tree Protocol ...................................................................... 114
11.7 Multiple Rapid Spanning Tree Protocol Status ........................................................................116
11.8 Configure Multiple Spanning Tree Protocol ................................................................................117
11.8.1 Multiple Spanning Tree Protocol Port Configuration ...........................................................120
11.9 Multiple Spanning Tree Protocol Status ...................................................................................122
Chapter 12
Bandwidth Control............................................................................................................................124
12.1 Bandwidth Control Overview .......................................................................................................124
12.1.1 CIR and PIR ........................................................................................................................124
12.2 Bandwidth Control Setup ..............................................................................................................124
Chapter 13
Broadcast Storm Control.................................................................................................................126
13.1 Broadcast Storm Control Setup ....................................................................................................126
Chapter 14
Mirroring............................................................................................................................................128
14.1 Port Mirroring ...............................................................................................................................128
14.1.1 Local Port Mirroring .............................................................................................................131
14.1.2 Remote Port Mirroring .........................................................................................................132
14.1.3 Source .................................................................................................................................132
14.1.4 Destination ...........................................................................................................................134
14.1.5 Connected Port ....................................................................................................................135
Chapter 15
Link Aggregation..............................................................................................................................137
15.1 Link Aggregation Overview ..........................................................................................................137
15.2 Dynamic Link Aggregation ...........................................................................................................137
15.2.1 Link Aggregation ID ............................................................................................................138
15.3 Link Aggregation Status ...............................................................................................................138
15.4 Link Aggregation Setting ..............................................................................................................139
15.5 Link Aggregation Control Protocol .............................................................................................141
GS3700/XGS3700 Series User’s Guide
8
Table of Contents
15.6 Static Trunking Example ...............................................................................................................143
Chapter 16
Port Authentication ..........................................................................................................................145
16.1 Port Authentication Overview .......................................................................................................145
16.1.1 IEEE 802.1x Authentication .................................................................................................145
16.1.2 MAC Authentication .............................................................................................................146
16.2 Port Authentication Configuration .................................................................................................147
16.2.1 Activate IEEE 802.1x Security .........................................................................................147
16.2.2 Guest VLAN ........................................................................................................................149
16.2.3 Activate MAC Authentication ..............................................................................................151
Chapter 17
Port Security .....................................................................................................................................153
17.1 About Port Security .......................................................................................................................153
17.2 Port Security Setup .......................................................................................................................153
17.3 VLAN MAC Address Limit ............................................................................................................154
Chapter 18
Classifier............................................................................................................................................156
18.1 About the Classifier and QoS ........................................................................................................156
18.2 Configuring the Classifier .............................................................................................................156
18.3 Viewing and Editing Classifier Configuration ................................................................................159
18.4 Classifier Example ........................................................................................................................160
Chapter 19
Policy Rule .......................................................................................................................................162
19.1 Policy Rules Overview .................................................................................................................162
19.1.1 DiffServ ................................................................................................................................162
19.1.2 DSCP and Per-Hop Behavior ..............................................................................................162
19.2 Configuring Policy Rules ...............................................................................................................162
19.3 Viewing and Editing Policy Configuration ......................................................................................165
19.4 Policy Example ..............................................................................................................................165
Chapter 20
Queuing Method ...............................................................................................................................167
20.1 Queuing Method Overview ...........................................................................................................167
20.1.1 Strictly Priority ......................................................................................................................167
20.1.2 Weighted Fair Queuing ........................................................................................................167
20.1.3 Weighted Round Robin Scheduling (WRR) .........................................................................168
20.2 Configuring Queuing .....................................................................................................................168
Chapter 21
VLAN Stacking..................................................................................................................................170
GS3700/XGS3700 Series User’s Guide
9
Table of Contents
21.1 VLAN Stacking Overview .............................................................................................................170
21.1.1 VLAN Stacking Example ......................................................................................................170
21.2 VLAN Stacking Port Roles ............................................................................................................171
21.3 VLAN Tag Format ..........................................................................................................................171
21.3.1 Frame Format ......................................................................................................................172
21.4 Configuring VLAN Stacking ...........................................................................................................172
21.4.1 Port-based Q-in-Q ...............................................................................................................174
21.4.2 Selective Q-in-Q .................................................................................................................174
Chapter 22
Multicast ............................................................................................................................................177
22.1 Multicast Overview .......................................................................................................................177
22.1.1 IP Multicast Addresses ........................................................................................................177
22.1.2 IGMP Filtering ......................................................................................................................177
22.1.3 IGMP Snooping ..................................................................................................................178
22.1.4 IGMP Snooping and VLANs ................................................................................................178
22.1.5 MLD Snooping-Proxy ..........................................................................................................178
22.1.6 MLD Messages ....................................................................................................................179
22.2 Multicast Setup ..............................................................................................................................179
22.3 IPv4 Multicast Status ....................................................................................................................180
22.3.1 IGMP Snooping ..................................................................................................................180
22.3.2 IGMP Snooping VLAN ........................................................................................................183
22.3.3 IGMP Filtering Profile .........................................................................................................184
22.4 IPv6 Multicast Status ....................................................................................................................186
22.4.1 MLD Snooping-proxy ..........................................................................................................186
22.4.2 MLD Snooping-proxy VLAN ...............................................................................................187
22.4.3 MLD Snooping-proxy VLAN Port Role Setting ...................................................................188
22.4.4 MLD Snooping-proxy Filtering ............................................................................................190
22.4.5 MLD Snooping-proxy Filtering Profile .................................................................................191
22.5 MVR Overview .............................................................................................................................192
22.5.1 Types of MVR Ports .............................................................................................................193
22.5.2 MVR Modes .........................................................................................................................193
22.5.3 How MVR Works .................................................................................................................193
22.6 General MVR Configuration ..........................................................................................................194
22.6.1 MVR Group Configuration ..................................................................................................196
22.6.2 MVR Configuration Example ...............................................................................................198
Chapter 23
AAA....................................................................................................................................................200
23.1 Authentication, Authorization and Accounting (AAA) ....................................................................200
23.1.1 Local User Accounts ............................................................................................................200
23.1.2 RADIUS and TACACS+ ......................................................................................................201
23.2 AAA Screens .................................................................................................................................201
GS3700/XGS3700 Series User’s Guide
10
Table of Contents
23.2.1 RADIUS Server Setup .......................................................................................................201
23.2.2 TACACS+ Server Setup ..................................................................................................203
23.2.3 AAA Setup ...........................................................................................................................205
23.2.4 Vendor Specific Attribute .....................................................................................................208
23.2.5 Tunnel Protocol Attribute .....................................................................................................209
23.3 Supported RADIUS Attributes .......................................................................................................209
23.3.1 Attributes Used for Authentication .......................................................................................210
23.3.2 Attributes Used for Accounting ............................................................................................210
Chapter 24
IP Source Guard................................................................................................................................213
24.1 IP Source Guard Overview ...........................................................................................................213
24.1.1 DHCP Snooping Overview ..................................................................................................213
24.1.2 ARP Inspection Overview ....................................................................................................215
24.2 IP Source Guard ...........................................................................................................................217
24.3 IP Source Guard Static Binding .....................................................................................................217
24.4 DHCP Snooping ............................................................................................................................219
24.5 DHCP Snooping Configure ...........................................................................................................222
24.5.1 DHCP Snooping Port Configure ..........................................................................................224
24.5.2 DHCP Snooping VLAN Configure .......................................................................................225
24.5.3 DHCP Snooping VLAN Port Configure ................................................................................226
24.6 ARP Inspection Status ..................................................................................................................227
24.6.1 ARP Inspection VLAN Status ..............................................................................................228
24.6.2 ARP Inspection Log Status ..................................................................................................229
24.7 ARP Inspection Configure .............................................................................................................231
24.7.1 ARP Inspection Port Configure ............................................................................................232
24.7.2 ARP Inspection VLAN Configure .........................................................................................233
Chapter 25
Loop Guard .......................................................................................................................................235
25.1 Loop Guard Overview ..................................................................................................................235
25.2 Loop Guard Setup .........................................................................................................................237
Chapter 26
VLAN Mapping ..................................................................................................................................238
26.1 VLAN Mapping Overview .............................................................................................................238
26.1.1 VLAN Mapping Example .....................................................................................................238
26.2 Enabling VLAN Mapping ...............................................................................................................238
26.3 Configuring VLAN Mapping ...........................................................................................................239
Chapter 27
Layer 2 Protocol Tunneling..............................................................................................................241
27.1 Layer 2 Protocol Tunneling Overview ..........................................................................................241
GS3700/XGS3700 Series User’s Guide
11
Table of Contents
27.1.1 Layer-2 Protocol Tunneling Mode ........................................................................................242
27.2 Configuring Layer 2 Protocol Tunneling ........................................................................................242
Chapter 28
sFlow..................................................................................................................................................245
28.1 sFlow Overview .............................................................................................................................245
28.2 sFlow Port Configuration ...............................................................................................................245
28.2.1 sFlow Collector Configuration ..............................................................................................247
Chapter 29
PPPoE................................................................................................................................................249
29.1 PPPoE Intermediate Agent Overview ..........................................................................................249
29.1.1 PPPoE Intermediate Agent Tag Format ..............................................................................249
29.1.2 Sub-Option Format ..............................................................................................................249
29.1.3 Port State .............................................................................................................................250
29.2 The PPPoE Screen .......................................................................................................................251
29.3 PPPoE Intermediate Agent ..........................................................................................................251
29.3.1 PPPoE IA Per-Port .............................................................................................................253
29.3.2 PPPoE IA Per-Port Per-VLAN ............................................................................................254
29.3.3 PPPoE IA for VLAN ............................................................................................................256
Chapter 30
Error Disable.....................................................................................................................................257
30.1 CPU Protection Overview .............................................................................................................257
30.2 Error-Disable Recovery Overview .................................................................................................257
30.3 The Error Disable Screen ..............................................................................................................257
30.4 Error-Disable Status .....................................................................................................................258
30.5 CPU Protection Configuration ......................................................................................................259
30.6 Error-Disable Detect Configuration ..............................................................................................260
30.7 Error-Disable Recovery Configuration .........................................................................................261
Chapter 31
MAC Pinning .....................................................................................................................................263
31.1 MAC Pinning Overview ................................................................................................................263
31.2 MAC Pinning Configuration ...........................................................................................................263
Chapter 32
Private VLAN.....................................................................................................................................265
32.1 Private VLAN Overview ................................................................................................................265
32.1.1 Configuration .......................................................................................................................267
Chapter 33
Green Ethernet..................................................................................................................................269
GS3700/XGS3700 Series User’s Guide
12
Table of Contents
33.1 Green Ethernet Overview .............................................................................................................269
33.2 Configuring Green Ethernet ..........................................................................................................269
Chapter 34
Link Layer Discovery Protocol (LLDP)...........................................................................................271
34.1 LLDP Overview .............................................................................................................................271
34.2 LLDP-MED Overview ....................................................................................................................272
34.3 LLDP Screens ...............................................................................................................................273
34.4 LLDP Local Status ........................................................................................................................274
34.4.1 LLDP Local Port Status Detail ............................................................................................276
34.5 LLDP Remote Status ....................................................................................................................280
34.5.1 LLDP Remote Port Status Detail ........................................................................................281
34.6 LLDP Configuration ......................................................................................................................287
34.6.1 LLDP Configuration Basic TLV Setting ...............................................................................289
34.6.2 LLDP Configuration Basic Org-specific TLV Setting ...........................................................290
34.7 LLDP-MED Configuration .............................................................................................................291
34.8 LLDP-MED Network Policy .........................................................................................................292
34.9 LLDP-MED Location ...................................................................................................................294
Chapter 35
Static Route.......................................................................................................................................297
35.1 Static Routing Overview ..............................................................................................................297
35.2 Static Routing ................................................................................................................................297
35.3 Configuring IPv4 Static Routing ..................................................................................................298
35.4 Configuring IPv6 Static Routing ..................................................................................................299
Chapter 36
Policy Routing...................................................................................................................................301
36.1 Policy Route Overview .................................................................................................................301
36.1.1 Benefits ................................................................................................................................301
36.2 Configuring Policy Routing Profile .................................................................................................301
36.2.1 Policy Routing Rule Configuration ......................................................................................302
Chapter 37
Differentiated Services.....................................................................................................................305
37.1 DiffServ Overview ........................................................................................................................305
37.1.1 DSCP and Per-Hop Behavior ..............................................................................................305
37.1.2 DiffServ Network Example ..................................................................................................305
37.2 Two Rate Three Color Marker Traffic Policing ..............................................................................306
37.2.1 TRTCM - Color-blind Mode ..................................................................................................307
37.2.2 TRTCM - Color-aware Mode ...............................................................................................307
37.3 Activating DiffServ ........................................................................................................................307
37.3.1 Configuring 2-Rate 3 Color Marker Settings .......................................................................308
GS3700/XGS3700 Series User’s Guide
13
Table of Contents
37.3.2 DSCP Profile ......................................................................................................................310
37.4 DSCP-to-IEEE 802.1p Priority Settings ................................................................................... 311
37.4.1 Configuring DSCP Settings ................................................................................................. 311
Chapter 38
DHCP..................................................................................................................................................313
38.1 DHCP Overview ...........................................................................................................................313
38.1.1 DHCP Modes ......................................................................................................................313
38.1.2 DHCP Configuration Options ...............................................................................................313
38.2 DHCP Configuration ......................................................................................................................313
38.3 DHCPv4 Status ............................................................................................................................314
38.3.1 DHCPv4 Server Status Detail .............................................................................................314
38.4 DHCPv4 Relay .............................................................................................................................315
38.4.1 DHCPv4 Relay Agent Information .......................................................................................316
38.4.2 DHCPv4 Option 82 Profile ...................................................................................................316
38.4.3 Configuring DHCPv4 Global Relay ......................................................................................318
38.4.4 DHCPv4 Global Relay Port Configure ................................................................................319
38.4.5 Global DHCP Relay Configuration Example .......................................................................320
38.5 Configuring DHCP VLAN Settings .............................................................................................321
38.5.1 DHCPv4 VLAN Port Configure ...........................................................................................322
38.5.2 Example: DHCP Relay for Two VLANs ...............................................................................324
38.6 DHCPv6 Relay ..............................................................................................................................325
Chapter 39
VRRP..................................................................................................................................................327
39.1 VRRP Overview ...........................................................................................................................327
39.2 VRRP Status .................................................................................................................................328
39.3 VRRP Configuration .....................................................................................................................328
39.3.1 IP Interface Setup ...............................................................................................................328
39.3.2 VRRP Parameters ..............................................................................................................330
39.3.3 Configuring VRRP Parameters ............................................................................................330
39.3.4 Viewing VRRP Summary .....................................................................................................332
39.4 VRRP Configuration Examples ....................................................................................................332
39.4.1 One Subnet Network Example ...........................................................................................332
39.4.2 Two Subnets Example .........................................................................................................334
Chapter 40
Load Sharing.....................................................................................................................................336
40.1 Load Sharing Overview ................................................................................................................336
40.2 Configuring Load Sharing .............................................................................................................336
Chapter 41
ARP Setup .........................................................................................................................................338
GS3700/XGS3700 Series User’s Guide
14
Table of Contents
41.1 ARP Overview ..............................................................................................................................338
41.1.1 How ARP Works ..................................................................................................................338
41.1.2 ARP Learning Mode ............................................................................................................338
41.2 ARP Setup ....................................................................................................................................340
41.2.1 ARP Learning .....................................................................................................................340
41.2.2 Static ARP ...........................................................................................................................342
Chapter 42
Maintenance...................................................................................................................................... 344
42.1 The Maintenance Screen ..............................................................................................................344
42.2 Load Factory Default ....................................................................................................................345
42.3 Save Configuration ........................................................................................................................345
42.4 Reboot System ..............................................................................................................................346
42.5 Firmware Upgrade ........................................................................................................................346
42.6 Restore a Configuration File .........................................................................................................347
42.7 Backup a Configuration File ..........................................................................................................347
42.8 Tech-Support ................................................................................................................................348
42.9 FTP Command Line ......................................................................................................................349
42.9.1 Filename Conventions ........................................................................................................349
42.9.2 FTP Command Line Procedure ..........................................................................................350
42.9.3 GUI-based FTP Clients ........................................................................................................351
42.9.4 FTP Restrictions .................................................................................................................351
Chapter 43
Access Control .................................................................................................................................352
43.1 Access Control Overview ..........................................................................................................352
43.2 The Access Control Main Screen ..................................................................................................352
43.3 About SNMP ...............................................................................................................................352
43.3.1 SNMP v3 and Security ........................................................................................................353
43.3.2 Supported MIBs .................................................................................................................354
43.3.3 SNMP Traps ........................................................................................................................354
43.3.4 Configuring SNMP ............................................................................................................357
43.3.5 Configuring SNMP Trap Group .........................................................................................359
43.3.6 Enabling/Disabling Sending of SNMP Traps on a Port ........................................................360
43.3.7 Configuring SNMP User ...................................................................................................361
43.4 Setting Up Login Accounts ..........................................................................................................362
43.5 SSH Overview ...............................................................................................................................364
43.6 How SSH works ............................................................................................................................364
43.7 SSH Implementation on the Switch ...............................................................................................365
43.7.1 Requirements for Using SSH ...............................................................................................366
43.8 Introduction to HTTPS ...................................................................................................................366
43.9 HTTPS Example ...........................................................................................................................367
43.9.1 Internet Explorer Warning Messages ..................................................................................367
GS3700/XGS3700 Series User’s Guide
15
Table of Contents
43.9.2 Mozilla Firefox Warning Messages ......................................................................................368
43.9.3 The Main Screen .................................................................................................................370
43.10 Service Access Control ............................................................................................................370
43.11 Remote Management .............................................................................................................371
Chapter 44
Diagnostic .........................................................................................................................................373
44.1 Diagnostic ....................................................................................................................................373
Chapter 45
Syslog................................................................................................................................................375
45.1 Syslog Overview ...........................................................................................................................375
45.2 Syslog Setup ................................................................................................................................375
45.3 Syslog Server Setup ....................................................................................................................376
Chapter 46
Cluster Management ........................................................................................................................378
46.1 Clustering Management Status Overview ....................................................................................378
46.2 Cluster Management Status .........................................................................................................379
46.2.1 Cluster Member Switch Management ................................................................................380
46.3 Clustering Management Configuration ........................................................................................382
Chapter 47
MAC Table .........................................................................................................................................384
47.1 MAC Table Overview ....................................................................................................................384
47.2 Viewing the MAC Table .................................................................................................................385
Chapter 48
IP Table ..............................................................................................................................................387
48.1 IP Table Overview ........................................................................................................................387
48.2 Viewing the IP Table ......................................................................................................................388
Chapter 49
ARP Table..........................................................................................................................................389
49.1 ARP Table Overview ....................................................................................................................389
49.1.1 How ARP Works ..................................................................................................................389
49.2 The ARP Table Screen .................................................................................................................389
Chapter 50
Routing Table....................................................................................................................................391
50.1 Overview .......................................................................................................................................391
50.2 Viewing the Routing Table Status .................................................................................................391
GS3700/XGS3700 Series User’s Guide
16
Table of Contents
Chapter 51
Path MTU Table................................................................................................................. ................392
51.1 Path MTU Overview .....................................................................................................................392
51.2 Viewing the Path MTU Table .........................................................................................................392
Chapter 52
Configure Clone................................................................................................................................393
52.1 Configure Clone ...........................................................................................................................393
Chapter 53
Neighbor Table..................................................................................................................................395
53.1 IPv6 Neighbor Table Overview .....................................................................................................395
53.2 Viewing the IPv6 Neighbor Table ..................................................................................................395
Chapter 54
Troubleshooting................................................................................................................................397
54.1 Power, Hardware Connections, and LEDs ....................................................................................397
54.2 Switch Access and Login ..............................................................................................................398
54.3 Switch Configuration .....................................................................................................................400
Appendix A Common Services........................................................................................................401
Appendix B IPv6 ..............................................................................................................................404
Appendix C Customer Support........................................................................................................413
Appendix D Legal Information .........................................................................................................419
Index ..................................................................................................................................................422
GS3700/XGS3700 Series User’s Guide
17
PART I
User’s Guide
18
This chapter introduces the main features and applications of the Switch.
1.1 Introduction
Your Switch is a layer 2+, Gigabit Ethernet (GbE) switch with two power slots for hot-swappable
RPS300 or RPS600-HP power modules. The Switch provides four SFP or SFP+ slots for uplink. By
integrating router functions, the Switch performs wire-speed layer -3 routing in addition to layer-2
switching.
This User’s Guide covers the following models: GS3700-24, GS3700-24HP, GS3700-48, GS370048HP, XGS3700-24, XGS3700-24HP, XGS3700-48, and XGS3700-48HP.
Table 1 Switch Comparison Table
PORT/SWITCH DETAILS
24 10/100/1000Base-T
Ethernet ports
48 10/100/1000Base-T
Ethernet ports
4 1GbE SFP slots
4 10GbE SFP+ slots
Supports IEEE 802.3af and
IEEE 802.3at PoE standards
Supports IEEE 802.3az EEE
Energy Efficient Ethernet
(EEE)
GS3700-24GS3700-
CHAPTER 1
Getting to Know Your Switch
24HP
GS3700-48GS3700-
48HP
XGS3700
-24
XGS3700
-24HP
XGS3700
-48
XGS3700
-48HP
With its built-in web configurator, including the ZyXEL One Network (ZON) Neighbor Management
feature (Section 5.3 on page 46), viewing, managing and configuring the Switch and its
neighboring devices is easy. In addition, the Switch can also be managed via Telnet, any terminal
emulator program on the console port, or third-party SNMP management.

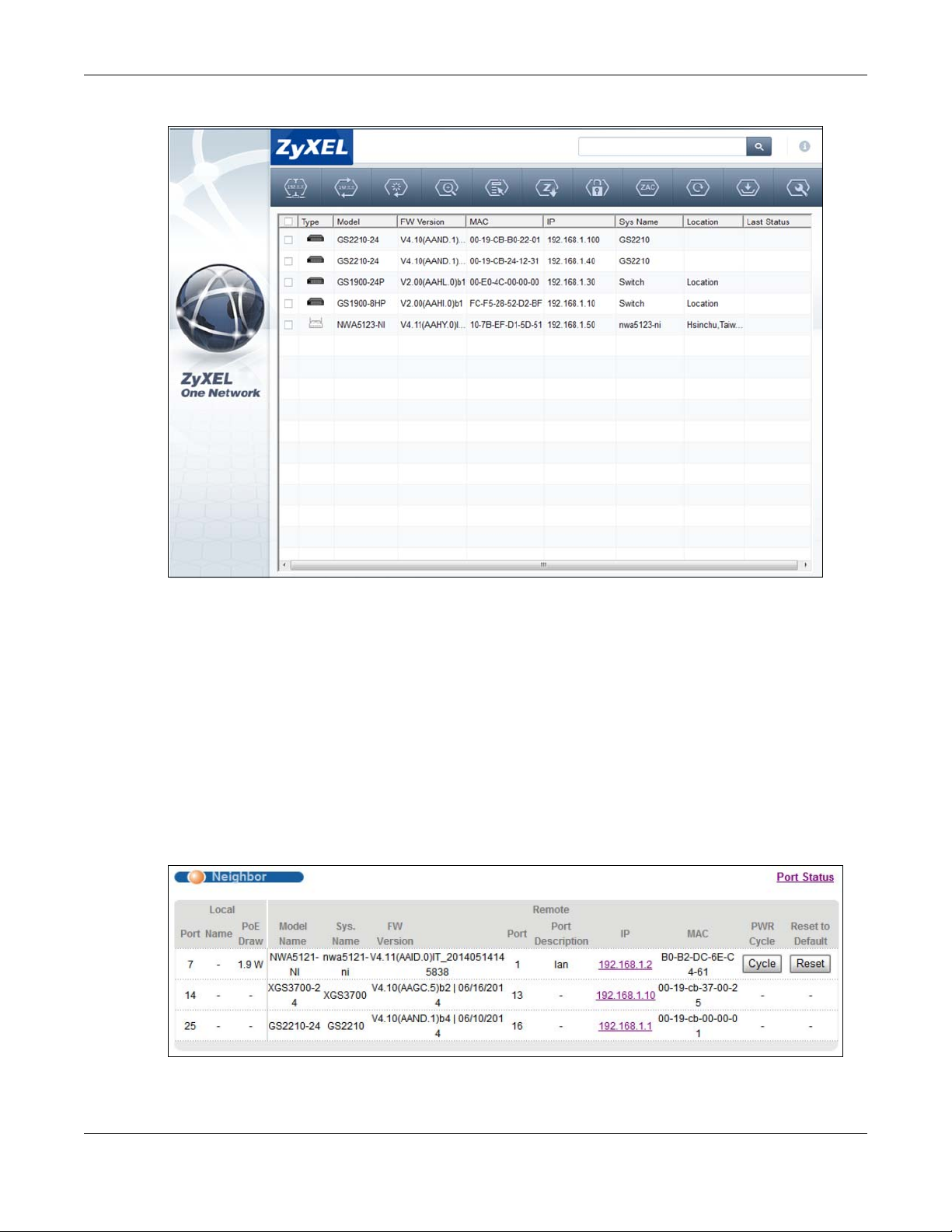

In addition, ZyXEL offers a proprietary software progr am called Z yXEL One Network (ZON) Utility, it
is a utility tool that assists you to set up and maintain network devices in a more simple and
efficient way. You can download the ZON Utility at www.zyxel.com and install it on a PC. For more
information on ZON Utility see Section 5.2 on page 45.
See the datasheet for a full list of software features available on the Switch.
GS3700/XGS3700 Series User’s Guide
19
1.1.1 Bridging Example
Backbone
RD
Sales
In this example the Switch connects different company departments (RD and Sales) to the
corporate backbone. It can alleviate bandwidth contention and eliminate server and network
bottlenecks. All users that need high bandwidth can connect to high-speed department servers via
the Switch. You can provide a super-fast uplink connection by using the optional 10 Gigabit uplink
module on the Switch.
Figure 1 Bridging Application
Chapter 1 Getting to Know Your Switch
1.1.2 High Performance Switching Example
The Switch is ideal for connecting two geographically dispersed networks that need high bandwidth.
In the following example, a company uses the optional 10 Gigabit uplink modules to connect the
headquarters to a branch office network. Within the headquarters network, a company can use
trunking to group several physical ports into one logical higher-capacity link. Trunking can be used
if for example, it is cheaper to use multiple lower-speed links than to under-utilize a high-speed,
but more costly, single-port link.
GS3700/XGS3700 Series User’s Guide
20
Chapter 1 Getting to Know Your Switch
HQ
Branch
10 Gbps
Trunk
Internet
Figure 2 High Performance Switching
1.1.3 Gigabit Ethernet to the Desktop
The Switch is an ideal solution for small networks which demand high bandwidth for a group of
heavy traffic users. You can connect computers and servers directly to the Switch’s port or connect
other switches to the Switch. Use the optional 10 Gigabit uplink module to provide high speed
access to a data server and the Internet. The uplink module supports a fiber-optic connection which
alleviates the distance limitations of copper cabling.
In this example, all computers can share high-speed applications on the server and access the
Internet. To expand the network, simply add more networking devices such as switches, routers,
computers, print servers and so on.
Figure 3 Gigabit to the Desktop
1.1.4 IEEE 802.1Q VLAN Application Example
A VLAN (Virtual Local Area Network) allows a physical network to be partitioned into multiple logical
networks. Stations on a logical network belong to one or more groups. With VLAN, a station cannot
directly talk to or hear from stations that are not in the same group(s) unless such traffic first goes
through a router.
GS3700/XGS3700 Series User’s Guide
21
Chapter 1 Getting to Know Your Switch
For more information on VLANs, refer to Chapter 7 on page 81.
1.1.4.1 Tag-based VLAN Example
Ports in the same VLAN group share the same frame broadcast domain, thus increasing network
performance by reducing broadcast traffic. VLAN groups can be modified at any time by adding,
moving or changing ports without any re-cabling.
Shared resources such as a server can be used by all ports in the same VLAN as the server. In the
following figure only ports that need access to the server need to be part of VLAN 1. Ports can
belong to other VLAN groups too.
Figure 4 Shared Server Using VLAN Example
1.1.5 IPv6 Support
IPv6 (Internet Protocol version 6), is designed to enhance IP address size and features. The
increase in IPv6 address size to 128 bits (from the 32-bit IPv4 address) allows up to 3.4 x 10
addresses. At the time of writing, the Switch supports the following features.
• Static address assignment and stateless auto-configuration
• Neighbor Discovery Protocol (a protocol used to discover other IPv6 devices in a network)
• Remote Management using ping SNMP, telnet, HTTP and FTP services
• ICMPv6 to report errors encountered in packet processing and perform diagnostic functions, such
as "ping”
• IPv4/IPv6 dual stack; the Switch can run IPv4 and IPv6 at the same time
• DHCPv6 client and relay
• Multicast Listener Discovery (MLD) snooping and proxy
For more information on IPv6, refer to Appendix B on page 404 and the CLI Reference Guide.
1.2 Ways to Manage the Switch
Use any of the following methods to manage the Switch.
38
IP
GS3700/XGS3700 Series User’s Guide
22
Chapter 1 Getting to Know Your Switch
• Web Configurator. This is recommended for everyday management of the Switch using a
(supported) web browser. See Chapter 4 on page 35.
• Command Line Interface. Line commands offer an alternative to the Web Configurator and may
be necessary to configure advanced features. See the CLI Reference Guide.
• FTP. Use File Transfer Protocol for firmware upgrades and configuration backup/restore. See
Section 42.9 on page 349.
• SNMP. The device can be monitored and/or managed by an SNMP manager. See Section 43.3 on
page 352.
1.3 Good Habits for Managing the Switch
Do the following things regularly to make the Switch more secure and to manage the Switch more
effectively.
• Change the password. Use a password that’s not easy to guess and that consists of different
types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an earlier
working configuration may be useful if the device becomes unstable or even crashes. If you
forget your password, you will have to reset the Switch to its factory default settings. If you
backed up an earlier configuration file, you would not have to totally re-configure the Sw itch. Y ou
could simply restore your last configuration.
GS3700/XGS3700 Series User’s Guide
23
Hardware Installation and Connection
This chapter shows you how to install and connect the Switch.
2.1 Freestanding Installation
1 Make sure the Switch is clean and dry.
2 Set the Switch on a smooth, level surface strong enough to support the weight of the Switch and
the connected cables. Make sure there is a power outlet nearby.
3 Make sure there is enough clearance around the Switch to allow air circulation and the attachment
of cables and the power cord.
4 Remove the adhesive backing from the rubber feet.
CHAPTER 2
5 Attach the rubber feet to each corner on the bottom of the Switch. These rubber feet help protect
the Switch from shock or vibration and ensure space between devices when stacking.
Figure 5 Attaching Rubber Feet
Note: Do NOT block the ventilation holes. Leave space between devices when stacking.
Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance at the front and
3.4 inches (8 cm) at the back of the Switch. This is especially important for
enclosed rack installations.
GS3700/XGS3700 Series User’s Guide
24
Chapter 2 Hardware Installation and Connection
2.2 Mounting the Switch on a Rack
This section lists the rack mounting requirements and precautions and describes the installation
steps of how to mount the Switch in a 19-inch rack with the included rack mounting kit.
Note: ZyXEL provides extensible rear mounting brackets (RM400) to install the Swi tch in
a 21-inch, 23-inch or 24-inch rack. See the RM400 Hardware Installation
Guide.
2.3 Installation Requirements
• Two front mounting brackets (short), two sliding rails and two rear mounting brackets.
• Eight M4 metric screws with large heads and a #2 Philips screwdriver for attaching the brackets
to the Switch.
• Four M4 metric screws with small heads and a #2 Philips screwdriver for attaching the sliding
rails to the Switch.
• Eight M6 metric rack screws and a screwdriver for attaching the Switch (with attached brackets)
to the rack. Rack depth can be from 90 to 120 cm.
Note: Failure to use the proper screws may damage the unit.
2.3.1 Precautions
• Make sure the rack will safely support the combined weight of all the equipment it contains. The
maximum weight a bracket can hold is 27 Kg.
• Make sure the position of the Switch does not make the rack unstable or top-heavy. Take all
necessary precautions to anchor the rack securely before installing the unit.
2.4 Attaching the Brackets to the Switch
Use the M4 screws (smaller than the rack screws) to attach the brackets to the Switch.
1 Position the smaller front mounting bracket on one si de of the Switch, lining up the four screw holes
on the bracket with the screw holes on the side of the Switch.
2 Use a #2 Philips screwdriver to install the M4 screws with large heads through the mounting
bracket holes into the Switch.
3 Repeat steps 1 and 2 to install the second front mounting bracket on the other side of the Switch.
4 Position a sliding rail on one side at the rear of the Switch, lining up the two screw holes on the
sliding rail with the screw holes on the side of the Switch.
5 Use a screwdriver to install the M4 screws with small heads through the sliding rail holes into the
Switch.
6 Repeat steps 1 and 2 to install the second sliding rail on the other side of the Switch.
GS3700/XGS3700 Series User’s Guide
25
Chapter 2 Hardware Installation and Connection
Front Bracket
Sliding Rail
Rear Bracket
7 Slide the rear bracket along the rail and set the bracke t in place depending on the depth of the r ack.
The rear brackets can be used with a 19-inch rack.
You may now mount the Switch on a rack. Proceed to the next section.
2.5 Mounting the Switch on a Rack
Use the M6 rack screws (larger than the M4 screws) to mount the S witch with brackets on the rack.
1 Position a front mounting bracket (that is already attached to the Switch) on one side of the rack,
lining up the two screw holes on the bracket with the screw holes at the front of the rack.
2 Use a screwdriver to install the rack screws through the mounting bracket holes into the rack.
3 Repeat steps 1 and 2 to attach the other front mounting bracket on the other side of the rack.
4 Position a rear mounting bracket (that is already attached to the Switch) on one side of the rack,
lining up the two screw holes on the bracket with the screw holes at the rear of the rack.
5 Use a screwdriver to install the rack screws through the mounting bracket holes into the rack.
6 Repeat steps 4 and 5 to attach the other rear mounting bracket on the other side of the rack.
GS3700/XGS3700 Series User’s Guide
26
Chapter 2 Hardware Installation and Connection
Rear
Front
2.6 Power Module Installation
There is one power module installed in the first power slot of the Switch by default. See the Power
Module Hardware Installation Guide for how to install a second power module or remove the
power module.
GS3700/XGS3700 Series User’s Guide
27
This chapter describes the front panel and rear panel of the Switch and shows you how to make the
hardware connections.
3.1 Front Panel Connections
The figure below shows the front panel of the Switch.
Figure 6 Front Panel: GS3700 Series
CHAPTER 3
Hardware Overview
GS3700/XGS3700 Series User’s Guide
28
Chapter 3 Hardware Overview
Figure 7 Front Panel: XGS3700 Series
The following table describes the ports.
Table 2 Panel Connections
CONNECTOR DESCRIPTION
24 or 48 10/
100/1000Base-T
RJ-45 Ethernet
Ports
4 SFP or SFP+
Slots
RJ-45 out-ofband
Management
Port
Console Port Only connect this port to your computer (using an RS-232 cable) if you want to configure
3.1.1 Ethernet Ports
The Switch has 1000Base- T auto-negotiating, auto-crossover Ethernet ports. In 10/100/1000 Mbps
Gigabit Ethernet, the speed can be 10Mbps, 100 Mbps or 1000 Mbps. The duplex mode can be both
half or full duplex at 100 Mbps and full duplex only at 1000 Mbps.
An auto-negotiating port can detect and adjust to the optimum Ethernet speed (10/100/1000
Mbps) and duplex mode (full duplex or half duplex) of the connected device.
Connect these ports to a computer, a hub, an Ethernet switch or router.
Use Small Form-Factor Pluggable (SFP) or SFP+ transceivers in these ports for fiber-optic
or copper connections to a computer, a hub, an Ethernet switch or router. You can also
insert an SFP+ Direct Attach Copper (DAC) in the SFP+ slot.
Connect to a computer using an RJ- 45 Ethernet cable for local configuration of the Switch.
the Switch using the command line interface (CLI) via the console port.
An auto-crossover (auto-MDI/MDI-X) port automatically works with a str aight -through or crossov er
Ethernet cable.
3.1.1.1 Default Ethernet Settings
The factory default negotiation settings for the Ethernet ports on the Switch are:
GS3700/XGS3700 Series User’s Guide
29
• Speed: Auto
•Duplex: Auto
• Flow control: Off
• Dual Personality Interface: Fiber-optic module first
3.1.2 SFP/SFP+ Slots
These are four slots for Small Form-Factor Pluggabl e (SFP) or SFP+ modules, such as an SFP/SFP+
transceiver. The SFP+ (SFP Plus) is an enhanced version of the SFP and supports data rates of 10
Gbps. A transceiver is a single unit that houses a transmitter and a receiver. Use a transceiver to
connect a fiber-optic cable to the Switch. The Switch does not come with transceivers. You must
use transceivers that comply with the Small Form-Factor Pluggable (SFP) Transceiver MultiSource
Agreement (MSA). See the SFF committee’s INF-8074i specification Rev 1.0 for details.
You can change transceivers while the Switch is operating. You can use different transceivers to
connect to Ethernet switches with different types of fiber-optic connectors.
• Type: SFP or SFP+ connection interface
• Connection speed: 1 or 10 Gigabit per second (Gbps)
Chapter 3 Hardware Overview
To avoid possible eye injury, do not look into an operating fiber-optic
module’s connectors.
3.1.2.1 Transceiver Installation
Use the following steps to install a transceiver.
1 Insert the transceiver into the slot with the exposed section of PCB board facing down.
Figure 8 Transceiver Installation Example
2 Press the transceiver firmly until it clicks into place.
3 The Switch automatically detects the installed transceiver. Check the LEDs to verify that it is
functioning properly.
GS3700/XGS3700 Series User’s Guide
30
Figure 9 Installed Transceiver
3.1.2.2 Transceiver Removal
Use the following steps to remove a transceiver.
1 Open the transceiver’s latch (latch styles vary).
Figure 10 Opening the Transceiver’s Latch Example
Chapter 3 Hardware Overview
2 Pull the transceiver out of the slot.
Figure 11 Transceiver Removal Example
3.1.3 Management Port
The 100Base-T Ethernet MGMT (management) port is used for local management. Connect directly
to this port using an Ethernet cable. You can configure the Switch via Telnet or the web
configurator.
The default IP address of the management port is 192.168.0.1 with a subnet mask of
255.255.255.0.
3.1.4 Console Port
For local management, you can use a computer with terminal emulation software configured to the
following parameters:
• VT100 terminal emulation
• 9600 bps
GS3700/XGS3700 Series User’s Guide
31
• No parity, 8 data bits, 1 stop bit
C
A
B
• No flow control
Connect the male 9-pin end of the RS-232 console cable to the console port of the Switch. Connect
the female end to a serial port (COM1, COM2 or other COM port) of your computer.
3.2 Rear Panel
The following figures show the rear panels of the Switch. The rear panels contain:
• A slot for a fan module (A)
• Two slots for power modules with power receptacles (B and C)
Figure 12 Rear Panel
Chapter 3 Hardware Overview
3.2.1 Removing and Installing the Fan Module
See the Fan Module Hardware Installation Guide to see how to install the fan module in the
Switch.
3.2.2 Power Connection
Make sure you are using the correct power source and that no objects obstruct the airflow of the
fans.
The Switch uses two power supply modules, one of which is redundant, so if one power module fails
the system can operate on the remaining module.
Connecting the Power
Use the following procedures to connect the Switch to a power source after you have installed it in
a rack.
Note: Use the included power cord for the AC power connection.
1 Connect the female end of the power cord to the AC power socket.
2 Connect the other end of the cord to a power outlet.
Disconnecting the Power
The power input connectors can be disconnected from the power source individually.
GS3700/XGS3700 Series User’s Guide
32
1 Disconnect the power cord from the power outlet.
2 Disconnect the power cord from the AC power socket.
3.3 LEDs
The following table describes the LEDs.
Table 3 LEDs
LED COLOR STATUS DESCRIPTION
PWR1
(Power 1)
PWR2
(Power 2)
SYS
(System)
ALM
(Alarm)
MAST
(Master)
Chapter 3 Hardware Overview
Green On The system is receiving power from the power module in the first
power slot.
Off The system is not receiving power from the power module in the first
power slot.
Amber On The power module in the first power slot fails to supply power or its
fan is not functioning at a proper speed.
Green On The system is receiving power from the power module in the second
power slot.
Off The system is not receiving power from the power module in the
second power slot.
Amber On The power module in the second power slot fails to supply power or its
fan is not functioning at a proper speed.
Green Blinking The system is rebooting and performing self-diagnostic tests.
On The system is on and functioning properly.
Off The power is off or the system is not ready or malfunctioning.
Red On There is a hardware failure, such as high device temperature, wrong
voltage and abnormal fan speed.
Off The system is functioning normally.
Green On The Switch is acting as a standalone switch or the master in stacking.
The stacking feature is not available at the time of writing.
Amber On There is an error occurred during master switch election in stacking or
there is other stack related error.
The stacking feature is not available at the time of writing.
Off The Switch is acting as a slave member in stacking.
10/100/1000Base-T Ports
1-24 or 1-
48
LNK/ACT
(Left)
PoE 10/100/1000Base-T Ports
Green Blinking The port is receiving or transmitting data at 10 or 1000 Mbps.
On The port has a successful 10 or 1000 Mbps connection.
Amber Blinking The port is receiving or transmitting data 100 Mbps.
On The port has a successful 100 Mbps connection.
Off This link is disconnected or the port is disabled.
The stacking feature is not available at the time of writing.
GS3700/XGS3700 Series User’s Guide
33
Chapter 3 Hardware Overview
Table 3 LEDs (continued)
LED COLOR STATUS DESCRIPTION
1-24 or 148
LNK/ACT
(Left)
1-24 or 148
POE (Right)
1G SFP Slots
25-28 or
49-52
LNK/ACT
1G/10G SFP+ Slots
25-28 or
49-52
LNK/ACT
STACK ID The LED is showing the Stack ID number of the Switch.
Green Blinking The port is receiving or transmitting data at 10 or 1000 Mbps.
On The port has a successful 10 or 1000 Mbps connection.
Amber Blinking The port is receiving or transmitting data 100 Mbps.
On The port has a successful 100 Mbps connection.
Off This link is disconnected or the port is disabled.
Green On Power is supplied to the PoE port.
Off Power is not supplied to the PoE port.
Green
(Right)
Green
(Right)
Blue
(Left)
Blinking The port is receiving or transmitting data at 1 Gbps.
On The port has a successful 1 Gbps connection.
Off This link is disconnected.
Blinking The port is receiving or transmitting data at 1 Gbps.
On The port has a successful 1 Gbps connection.
Blinking The port is receiving or transmitting data 10 Gbps.
On The port has a successful 10 Gbps connection.
Off This link is disconnected.
MGMT
(Manageme
nt)
The stacking feature is not available at the time of writing.
Green Blinking The system is transmitting or receiving to/from an Ethernet device at
10 Mbps through the MGMT port.
On The MGMT port is connected at 10 Mbps.
Off The MGMT port is not connected at 10 Mbps, to an Ethernet device, or
the port is disabled.
Amber Blinking The system is transmitting or receiving to/from an Ethernet device at
100 Mbps through the MGMT port.
On The MGMT port is connected at 100 Mbps.
Off The MGMT port is not connected at 100 Mbps, to an Ethernet device,
or the port is disabled.
GS3700/XGS3700 Series User’s Guide
34
This section introduces the configuration and functions of the web configurator.
4.1 Introduction
The web configurator is an HTML-based management interface that allows easy Switch setup and
management via Internet browser. Use Internet Explorer 6.0 and later or Firefox 2.0 and later
versions. The recommended screen resolution is 1024 by 768 pixels.
In order to use the web configurator you need to allow:
• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in
Windows XP SP (Service Pack) 2.
• JavaScript (enabled by default).
• Java permissions (enabled by default).
CHAPTER 4
The Web Configurator
4.2 System Login
1 Start your web browser.
2 T ype “http://” and the IP address of the Switch (for example, the default management IP address is
192.168.1.1 through an in-band (non-MGMT) port and 192.168.0.1 through the MGMT port) in the
Location or Address field. Press [ENTER].
3 The login screen appears. The default username is admin and associated default password is
1234. The date and time display as shown if you have not configured a time server nor manually
entered a time and date in the General Setup screen.
GS3700/XGS3700 Series User’s Guide
35
Chapter 4 The Web Configurator
Figure 13 Web Configurator: Login
4 Click OK to view the first web configurator screen.
4.3 The Web Configurator Layout
The Status screen is the first screen that displays when you access the web configur ator. This guide
uses the GS3700-48HP screens as an example. The screens may vary slightly for different models.
The following figure shows the navigating components of a web configurator screen.
GS3700/XGS3700 Series User’s Guide
36
Chapter 4 The Web Configurator
A
BDC
E
F
Figure 14 The Web Configurator Layout
A - Click the menu items to open submenu links, and then click on a submenu link to open the
screen in the main window.
B, C, D, E - These are quick links which allow you to perform certain tasks no matter which screen
you are currently working in.
B - Click this link to save your configuration into the Switch’s nonvolatile memory. Nonvolatile
memory is saved in the configuration file from which the Switch booted from and it stays the same
even if the Switch’s power is turned off. See Section 42.3 on page 345 for information on saving
your settings to a specific configuration file.
C - Click this link to go to the status page of the Switch.
D - Click this link to log out of the web configurator.
E - Click this link to display web help pages. The help pages provide descriptions for all of the
configuration screens.
F - Click this link to go to the ZON Neighbor Management screen where you can see and manage
neighbor devices learned by the Switch.
GS3700/XGS3700 Series User’s Guide
37
Chapter 4 The Web Configurator
In the navigation panel, click a main link to reveal a list of submenu links.
Table 4 Navigation Panel Sub-links Overview
BASIC SETTING
ADVANCED
APPLICATION
IP APPLICATION MANAGEMENT
The following table describes the links in the navigation panel.
Table 5 Navigation Panel Links
LINK DESCRIPTION
Basic Settings
System Info This link takes you to a screen that displays general system and hardware monitoring
General Setup This link takes you to a screen where you can configure general identification information
Switch Setup This link takes you to a screen where you can set up global Switch parameters such as
IP Setup This link takes you to a screen where you can configure the IP address, subnet mask
Port Setup This link takes you to screens where you can configure speed, flow control and priority
PoE Setup This link takes you to a screen where you can configure the Switch to supply po wer over
Interface Setup This link takes you to a screen where you can create IPv6 interfaces on the Switch.
information.
and time settings for the Switch.
VLAN type, MAC address learning, GARP and priority queues.
(necessary for Switch management) and DNS (domain name server) and set up to 64 IP
routing domains.
settings for individual Switch ports.
Ethernet.
GS3700/XGS3700 Series User’s Guide
38
Chapter 4 The Web Configurator
Table 5 Navigation Panel Links (continued)
LINK DESCRIPTION
IPv6 This link takes you to a screen where you can enable an IPv6 interface and configure the
IPv6 settings on the Switch.
Advanced Application
VLAN This link takes you to screens where you can configure port-based or 802.1Q VLAN
(depending on what you configured in the Switch Setup menu). You can also configure a
protocol based VLAN or a subnet based VLAN in these screens.
Static MAC
Forwarding
Static Multicast
Forwarding
Filtering This link takes you to a screen to set up filtering rules.
Spanning Tree
Protocol
Bandwidth Control This link takes you to screens where you can cap the maximum bandwidth allowed on a
Broadcast Storm
Control
Mirroring This link takes you to screens where you can copy traffic from one port or ports to
Link Aggregation This link takes you to screen where you can logically aggregate physical links to form one
Port
Authentication
Port Security This link takes you to a screen where you can activate MAC address learning and set the
Classifier This link takes you to a screen where you can configure the Switch to group packets
Policy Rule This link takes you to a screen where you can configure the Switch to perform special
Queuing Method This link takes you to a screen where you can configure queuing with associated queue
VLAN Stacking This link takes you to screens where you can activate and conf igure VLAN stacking.
Multicast This link takes you to screen where you can configure various multicast features, IGMP
AAA This link takes you to a screen where you can configure authentication, authorization and
IP Source Guard This link takes you to screens where you can configure filtering of unauthorized DHCP and
Loop Guard This link takes you to a screen where y ou can con figure protect ion agains t netwo rk loops
VLAN Mapping This link takes you to screens where you can configure VLAN mapping settings on the
Layer 2 Protocol
Tunneling
sFlow This link takes you to screens where you can configure sFlow settings on the Switch.
This link takes you to screens where you can configure static MAC addresses for a port.
These static MAC addresses do not age out.
This link takes you to a screen where you can configure static multicast MAC addresses
for port(s). These static multicast MAC addresses do not age out.
This link takes you to screens wher e you can configure the RSTP/MRSTP/MSTP to prevent
network loops.
port.
This link takes you to a screen to set up broadcast filters.
another port in order that you can examine the traffic from the first port without
interference.
logical, higher-bandwidth link.
This link takes you to a screen where you can configure IEEE 802.1x port authentication
as well as MAC authentication for clients communicating via the Switch.
maximum number of MAC addresses to learn on a port.
based on the specified criteria.
treatment on the grouped packets.
weights for each port.
snooping and create multicast VLANs.
accounting services via external servers. The external servers can be either RADIUS
(Remote Authentication Dial-In User Service) or TACACS+ (Terminal Access Controller
Access-Control System Plus).
ARP packets in your network.
that occur on the edge of your network.
Switch.
This link takes you to a screen wh ere you can confi gure L2PT (Laye r 2 Protocol Tunneling)
settings on the Switch.
GS3700/XGS3700 Series User’s Guide
39
Chapter 4 The Web Configurator
Table 5 Navigation Panel Links (continued)
LINK DESCRIPTION
PPPoE This link takes you to screens where you can configure how the Switch gives a PPPoE
termination server additional subscriber information that the server can use to identify
and authenticate a PPPoE client.
Errdisable This link takes you to a screen where you can configure CPU protection and error disable
MAC Pinning This link takes you to a screen where you can set specific ports to have priority over other
Private VLAN This link takes you to a screen where you can block traffic between ports in a VLAN on the
Green Ethernet This link takes you to a screen where you can configure the Switch to reduce port power
LLDP This link takes you to a screen where you can configure LLDP settings.
IP Application
Static Routing This link takes you to a screen where you can configure static routes. A static route
Policy Routing This link takes you to screens where you can configu re policy routing rules.
DiffServ This link takes you to screens where you can enable DiffServ, configure marking rules and
DHCP This link takes you to screens where you can configure the DHCP settings.
VRRP This link takes you to screens where you can configure redundant virtual router for your
Load Sharing This link takes you to a screen where you can enable Equal-Cost MultiPath (ECMP) routing
ARP Setup This link takes you to a screen where you can configure ARP learning mode on a per-port
Management
Maintenance This link takes you to screens where you can perform firmware and configuration file
Access Control This link takes you to screens where you can change the system login password and
Diagnostic T his link takes you to screens where you can view system logs and can test port(s).
Syslog This link takes you to screens where you can setup system logs and a system log server.
Cluster
Management
MAC Table This link takes you to a screen where you can view the MAC address and VLAN ID of a
IP Table This link takes you to a screen where you can view the IP addresses and VLAN ID of a
ARP Table This link takes you to a screen where you can view the MAC address – IP address
Routing Table This link takes you to a screen where you can view the routing table.
Path MTU Table This link takes you to a screen where you can view the IPv6 path MTU table.
Configure Clone This link takes you to a screen where you can copy attributes of one port to (an)other
Neighbor Table This link takes you to a screen where you can view the Switch’s IPv6 neighbor table.
recovery.
ports in MAC address learning.
Switch.
consumption.
defines how the Switch should forward traffic by configuring the TCP/IP parameters
manually.
set DSCP-to-IEEE802.1p mappings.
network.
and set the criteria the Switch uses to determine the routing path for a packet.
basis and create static ARP entries which do not age out.
maintenance as well as reboot the system.
configure SNMP and remote management.
This link takes yo u to a s creen w here y ou can configure cluste ring mana gement a nd view
its status.
device attach to a port. You can also view what kind of MAC address it is.
device attached to a port.You can also view what kind of device it is.
resolution table.
port(s).
GS3700/XGS3700 Series User’s Guide
40
Chapter 4 The Web Configurator
4.3.1 Change Your Password
After you log in for the first time, it is recommended you change the default administrator
password. Click Management > Access Control > Logins to display the next screen.
Figure 15 Change Administrator Login Password
4.4 Saving Your Configuration
When you are done modifying the settings in a screen, click Apply to save your changes back to
the run-time memory. Settings in the run-time memory are lost when the S w it ch’s power is turned
off.
Click the Save link in the upper right hand corner of the web configurator to save your
configuration to nonvolatile memory. Nonvolatile memory refers to the Switch’s storage that
remains even if the Switch’s power is turned off.
Note: Use the Save link when you are done with a configuration session.
4.5 Switch Lockout
You could block yourself (and all others) from using in-band-management (managing through the
data ports) if you do one of the following:
1 Delete the management VLAN (default is VLAN 1).
2 Delete all port-based VLANs with the CPU port as a member. The “CPU port” is the management
port of the Switch.
GS3700/XGS3700 Series User’s Guide
41
Chapter 4 The Web Configurator
3 Filter all traffic to the CPU port.
4 Disable all ports.
5 Misconfigure the text configuration file.
6 Forget the password and/or IP address.
7 Prevent all services from accessing the Switch.
8 Change a service port number but forget it.
Note: Be careful not to lock yourself and others out of the Switch. If you do lock yourself
out, try using out-of-band management (via the management port) to configure
the Switch.
4.6 Resetting the Switch
If you lock yourself (and others) from the Switch or forget the administrator password, you will
need to reload the factory-default configuration file or reset the S w itch back to the factory defaults.
4.6.1 Reload the Configuration File
Uploading the factory-default configuration file replaces the current configuration file with the
factory-default configuration file. This means that you will lose all previous configurations and the
speed of the console port will be reset to the default of 9600bps with 8 data bit, no parity , one stop
bit and flow control set to none. The password will also be reset to “1234” and the IP address to
192.168.1.1.
To upload the configuration file, do the following:
1 Connect to the console port using a computer with terminal emulation software. See Section 3.2 on
page 32 for details.
2 Disconnect and reconnect the Switch’s power to begin a session. When you reconnect the Switch’s
power, you will see the initial screen.
3 When you see the message “Press any key to enter Debug Mode within 3 seconds ...” press
any key to enter debug mode.
4 Type atlc after the “Enter Debug Mode” message.
5 Wait for the “ Starting XMODEM upload” message before activating XMODEM upload on your
terminal.
6 After a configuration file upload, type atgo to restart the Switch.
GS3700/XGS3700 Series User’s Guide
42
Chapter 4 The Web Configurator
Figure 16 Resetting the Switch: Via the Console Port
Bootbase Version: V1.00 | 12/11/2012 13:49:40
RAM: Size = 524288 Kbytes
DRAM POST: Testing: 524288K
OK
DRAM Test SUCCESS !
ZyNOS Version: V4.10(AAGF.5)b1 | 6/5/2014 20:10:8
Press any key to enter debug mode within 3 seconds.
.....................................
Enter Debug Mode
ras> atlc
Starting XMODEM upload (CRC mode)....
CCCCCCCCCCCCCCCC
Total 393216 bytes received.
Erasing..
................................................................
OK
ras> atgo
The Switch is now reinitialized with a default configuration file including the default password of
“1234”.
4.7 Logging Out of the Web Configurator
Click Logout in a screen to exit the web configurator. You have to log in with your password again
after you log out. This is recommended after you finish a management session for security reasons.
Figure 17 Web Configurator: Logout Screen
4.8 Help
The web configurator’s online help has descriptions of individual screens and some supplementary
information.
Click the Help link from a web configurator screen to view an online help description of that screen.
GS3700/XGS3700 Series User’s Guide
43
PART II
Technical Reference
44
CHAPTER 5
ZON Utility, ZON Neighbor Management and
Port Status
This chapter describes the screens for ZON Utility , ZON Neighbor Management, P ort Status and P ort
Details.
5.1 Overview
The home screen of the web configurator displays a port statistical summary with links to each port
showing statistical details.
5.2 ZyXEL One Network (ZON) Utility Screen
ZON Utility is a program designed to help you deploy and manage a network more efficiently. It
detects devices automatically and allows you to do basic settings on devices in the network without
having to be near it.
The ZON Utility issues requests via ZyXEL Discovery Protocol (ZDP) and in response to the query,
the device responds back with basic information including IP address, firmware version, location,
system and model name in the same broadcast domain. The information is then displayed in the
ZON Utility screen and you can perform tasks like basic configuration of the devices and batch
firmware upgrade in it. You can download the ZON Utility at www.zyxel.com and install it on a PC.
The following figure shows the ZON Utility screen.
GS3700/XGS3700 Series User’s Guide
45
Chapter 5 ZON Utility, ZON Neighbor Management and Port Status
Figure 18 ZON Utility Screen
5.3 ZON Neighbor Management Screen
The ZON Neighbor Management screen allows you to view and manage the Switch’s neighboring
devices more conveniently. It uses Layer Link Discovery Protocol (LLDP) to discover all neighbor
devices connected to the Switch including non-ZyXEL devices. You can perform tasks on the
neighboring devices like login, reboot (turn the power off and then back on again), and reset to
factory default settings in the Neighbor Management screen. For more information on LLDP, see
Section 34.2 on page 272.
Click Status > Neighbor to see the following screen
Figure 19 Status > Neighbor
GS3700/XGS3700 Series User’s Guide
46
Chapter 5 ZON Utility, ZON Neighbor Management and Port Status
The following table describes the fields in the above screen.
Table 6 Status > Neighbor
LABEL DESCRIPTION
Local
Port This shows the port number of the local device in the network.
Name This shows the name of the local device in the network.
PoE Draw This shows the consumption that the local device in the network draws from the
Remote
Model Name This shows the model name of the neighbor device in the remote network. This field
Sys. Name This shows the system name of the neighbor device in the remote network.
FW Version This shows the firmware version of the neighbor device in the remote network. This
Port This show the port number of the neighbor device in the remote network.
Port Description This shows the port description of the neighbor device in the remote network.
IP This shows the IP address of the neighbor device in the remote network. The IP
MAC This shows the MAC address of the neighbor device in the remote network. This field
PWR Cycle Click the Cycle button to turn OFF the power of the neighbor device in the remote
Switch. This allows you to plan and use within the power budget of the Switch.
will show “-” for non-ZyXEL devices.
field will show “-” for non-ZyXEL devices.
address is a hyper link that you can click and login the remote device. This field will
show “-” for non-ZyXEL devices.
will show “-” for non-ZyXEL devices.
network and turn it back ON again. A count down button (from 5 to 0) starts.
Note: The Switch must support power sourcing (PSE) or the network device is a
powered device (PD).
Note: If multiple neighbor devices use the same port, the Cycle button is displayed only
on the first device, others will show “-” instead.
Reset to Default Click the Reset button to reset the neighbor device in the remote network to its
factory default settings. A warning message “Are you sure you want to load
factory default?” appears prompting you to confirm the action. After confirming the
action a count down button (from 5 to 0) starts.
Note: The Switch must support power sourcing (PSE) or the network device is a
powered device (PD).
Note: If multiple neighbor devices use the same port, the Reset button is not available
and will show “-” instead.
Note: You can only reset ZyXEL products.
5.4 Port Status Summary
To view the port statistics, click Status in all web configurator screens to display the Status screen
as shown next.
GS3700/XGS3700 Series User’s Guide
47
Chapter 5 ZON Utility, ZON Neighbor Management and Port Status
Figure 20 Status
The following table describes the labels in this screen.
Table 7 Status
LABEL DESCRIPTION
Port This identifies the Ethernet port. Click a port number to display the Port Details screen
(refer to Figure 21 on page 49).
Name This is the name you assigned to this port in the Basic Setting > Port Setup screen.
Link This field displays the speed (such as 100M for 100 Mbps, 1000M for 1000 Mbps, or 10G
State If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the port. (See
PD (F or P oE models only) This field displ ays whet her or not a powered device (PD) is allowed to
LACP This fields displays whether LACP (Link Aggregation Control Protocol) has been enabled on
TxPkts This field shows the number of transmitted frames on this port.
RxPkts This field shows the number of received frames on this port.
Errors This field shows the number of received errors on this port.
Tx KB/s This fi eld shows the transmission speed of data sent on this port in kilobytes per second.
Rx KB/s This field shows the transmission speed of data received on this port in kilobytes per second.
Up Time This field shows the total amount of time in hours, minutes and seconds the port has been
Clear Counter Type a port number, select Port and then click Clear Counter to erase the recorded
for 10 Gbps) and the duplex (F for full duplex). This field displays Down if the port is not
connected to any device.
Section 11.1.3 on page 107 for more information).
If STP is disabled, this field displays FORWARDING if the link is up, otherwise, it displays
STOP.
receive power from the Switch on this port.
the port.
up.
statistical information for that port, or select Any to clear statistics for all ports.
GS3700/XGS3700 Series User’s Guide
48
Chapter 5 ZON Utility, ZON Neighbor Management and Port Status
5.4.1 Status: Port Deta ils
Click a number in the Port column in the Status screen to display individual port statistics. Use this
screen to check status and detailed performance data about an individual port on the Switch.
Figure 21 Status: Port Details
The following table describes the labels in this screen.
Table 8 Status > Port Details
LABEL DESCRIPTION
Port Info
Port NO. This field displays the port number you are viewing.
Name This field displays the name of the port.
Link This field displays the speed (such as 100M for 100Mbps, 1000M for 1000 Mbps, or 10G
State If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the port (see
LACP This field shows if LACP is enabled on this port or not.
TxPkts This field shows the number of transmitted frames on this port
for 10 Gbps) and the duplex (F for full duplex).
Section 11.1.3 on page 107 for more information).
If STP is disabled, this field displays FORWARDING if the link is up, otherwise, it displays
STOP.
GS3700/XGS3700 Series User’s Guide
49
Chapter 5 ZON Utility, ZON Neighbor Management and Port Status
Table 8 Status > Port Details (continued)
LABEL DESCRIPTION
RxPkts This field shows the number of received frames on this port
Errors This field shows the number of received errors on this port.
Tx KBs/s This field shows the transmission speed of data sent on this port in kilobytes per second.
Rx KBs/s This field shows the transmission speed of data received on this port in kilobytes per
second.
Up Time This field shows the total amount of time the connection has been up.
Tx Packet
The following fields display detailed information about packets transmitted.
Unicast This field shows the number of good unicast packets transmitted.
Multicast This field shows the number of good multicast packets transmitted.
Broadcast This field shows the number of good broadcast packets transmitted.
Pause This field shows the number of 802.3x Pause packets transmitted.
Tagged This field shows the number of packets with VLAN tags transmitted.
Rx Packet
The following fields display detailed information about packets received.
Unicast This field shows the number of good unicast packets received.
Multicast This field shows the number of good multicast packets received.
Broadcast This field shows the number of good broadcast packets received.
Pause This field shows the number of 802.3x Pause packets received.
Control This field shows the number of control packet s received (including those with CRC error) but
it does not include the 802.3x Pause packets.
TX Collision
The following fields display info rmation on collisions while transmitting .
Single This is a count of successfully transmitted packets for which transmission is inhibited by
exactly one collision.
Multiple This is a count of successfully transmitted packets for which transmission was inhibited by
Excessive This is a count of packets for which transmission failed due to excessive collisions. Excessive
Late This is the number of times a late collision is detected, that is, after 512 bits of the packets
Error Packet The following fields display detailed information about packets received that were in error.
RX CRC This field shows the number of packets received with CRC (Cyclic Redundant Check)
Length This field shows the number of packets received with a length that was out of range.
Runt This field shows the number of packets received that were too short (shorter than 64
Distribution
64 This field shows the number of packets ( including bad pack ets) received that were 64 oc tets
65-127 This field shows the number of packets (including bad packets) received that were between
128-255 This field shows the number of packets ( incl uding bad packets) received that were between
more than one collision.
collision is defined as the number of maximum collisions before the retransmission count is
reset.
have already been transmitted.
error(s).
octets), including the ones with CRC errors.
in length.
65 and 127 octets in length.
128 and 255 octets in length.
GS3700/XGS3700 Series User’s Guide
50
Chapter 5 ZON Utility, ZON Neighbor Management and Port Status
Table 8 Status > Port Details (continued)
LABEL DESCRIPTION
256-511 This field shows the number of packets ( incl uding bad packets) received that were between
256 and 511 octets in length.
512-1023 This field shows the number of packets (including bad packets) received that were betw een
512 and 1023 octets in length.
1024-1518 This field shows the number of packets (including bad packets) received that wer e between
Giant This field shows the number of packets (including bad packets) received that were between
1024 and 1518 octets in length.
1519 octets and the maximum frame size.
The maximum frame size varies depending on your switch model.
GS3700/XGS3700 Series User’s Guide
51
This chapter describes how to configure the Basic Setting screens.
6.1 System Information
In the navigation panel, click Basic Setting > System Info to display the screen as shown. You
can check the firmware version number and monitor the Switch temperature, fan speeds and
voltage in this screen.
Figure 22 Basic Setting > System Info
CHAPTER 6
Basic Setting
GS3700/XGS3700 Series User’s Guide
52
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 9 Basic Setting > System Info
LABEL DESCRIPTION
System Name This field displays the descriptive name of the Switch for identification purposes.
Product Model This field displays the model number of the Switch.
ZyNOS F/W
Version
Ethernet
Address
CPU Utilization CPU utilization quantifies how busy the system is. Current (%) displays the current
Memory
Utilization
Hardware Monitor
Temperature
Unit
Temperature BOARD, PHY, CPU and MAC refer to the location of the temperature sensors on the Switch
Current This shows the current temperature at this sensor.
MAX This field displays the maximum temperature measured at this sensor.
MIN This field displays the minimum temperature measured at this sensor.
Threshold This field displays the upper temperature limit at this sensor.
Status This field displays Normal for temperatures below the threshold and Error for those above.
Fan Speed
(RPM)
Current This field displays this fan's current speed in Revolutions Per Minute (RPM).
MAX This field displays this fan's maximum speed measured in RPM.
MIN This field displays this fan's minimum speed measured in RPM. “<41" is displayed for
Threshold This field displays the minimum speed at which a normal fan should work.
Status Normal indicates that this fan is functioning above the minimum speed. Error indicates
Voltage (V) The power supply for each voltage has a sensor that is capable of detecting and reporting if
Current This is the current voltage reading.
MAX This field displays the maximum voltage measured at this point.
MIN This field displays the minimum voltage measured at this point.
Threshold This field displays the percentage tol er a nce o f the voltage with which the Switch stil l work s.
Status Normal indicates that the voltage is within an acceptable operating range at this point;
This field displays the version number of the Switch 's current firmware including the date
created.
This field refers to the Ethernet MAC (Media Access Control) address of the Switch.
percentage of CPU utilization.
Memory Utilization shows how much DRAM memory is available and in use. It also displays
the current percentage of memory utilization.
The Switch has temperature sensors that are capable of detecting and reporting if the
temperature rises above the threshold. You may choose the temperature unit (Centigrade
or Fahrenheit) in this field.
printed circuit board.
A properly functioning fan is an essential component (along with a sufficiently ventilated,
cool operating environment) in order for the device to stay within the temperature
threshold. Each fan has a sensor that is capable of detecting and reporting if the fan speed
falls below the threshold shown.
speeds too small to measure (under 2000 RPM).
that this fan is functioning below the minimum speed.
the voltage falls out of the tolerance range.
otherwise Error is displayed.
GS3700/XGS3700 Series User’s Guide
53
6.2 General Setup
Use this screen to configure general settings such as the system name and time. Click Basic
Setting > General Setup in the navigation panel to display the screen as shown.
Figure 23 Basic Setting > General Setup
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 10 Basic Setting > General Setup
LABEL DESCRIPTION
System Name Type a descriptive name for identification purposes. This name consists of up to 64
Location Type the geographic location of your Switch. You can use up to 32 printable ASCII
Contact Person's
Name
Use Time Server
when Bootup
Time Server IP
Address
printable ASCII characters; spaces are allowed.
characters; spaces are allowed.
Type the name of the person in charge of this Switch. You can use up to 32 printable
ASCII characters; spaces are allowed.
T ype the time service protocol that your timeserver uses. Not all time servers support all
protocols, so you may have to use trial and error to find a protocol that works. The main
differences between them are the time format.
When you select the Daytime (RF C 867) format, the Switch displays the day, month,
year and time with no time zone adjustment. When you use this format, it is
recommended that you use a Daytime timeserver within your geographical time zone.
Time (RFC-868) format displays a 4-byte integer giving the total number of seconds
since 1970/1/1 at 0:0:0.
NTP (RFC-1305) is similar to Time (RFC-868).
None is the default value. Enter the time manually. Each time you turn on the Switch,
the time and date will be reset to 1970-1-1 0:0.
T ype the IP address of your timeserver. The Switch searches for the timeserver for up to
60 seconds. If you select a timeserver that is unreachable, then this screen will appear
locked for 60 seconds. Please wait.
GS3700/XGS3700 Series User’s Guide
54
Chapter 6 Basic Setting
Table 10 Basic Setting > General Setup (continued)
LABEL DESCRIPTION
Current Time This field displays the time you open this menu (or refresh the menu).
New Time
(hh:min:ss)
Current Date This field displays the date you open this menu.
New Date (yyyy-
mm-dd)
Time Zone Select the time difference between UT C ( Univ ersal T ime Coordinated, formerly known as
Daylight Saving
Time
Start Date Configure the day and time when Daylight Saving Time starts if you selected Daylight
End Date Configure the day and time when Daylight Saving Time ends if you selected Daylight
Enter the new time in hour, minute and second format. The new time then appears in the
Current Time field after you click Apply.
Enter the new date in year, month and day format. The new date then appears in the
Current Date field after you click Apply.
GMT, Greenwich Mean Time) and your time zone from the drop-down list box.
Daylight saving is a period from late spring to early fall when many countries set their
clocks ahead of normal local time by one hour to give more daytime light in the evening.
Select this option if you use Daylight Saving Time.
Saving Time. The time is displayed in the 24 hour format. Here are a couple of
examples:
Daylight Saving Time starts in most parts of the United States on the second Sunday of
March. Each time zone in the United States starts using Daylight Saving Time at 2 A.M.
local time. So in the United States you would sel ect Second, Sunday, March and 2:00.
Daylight Saving Time starts in the European Union on the last Sunday of March. All of the
time zones in the European Union start using Da ylight Sa ving Time at the same mome nt
(1 A.M. GMT or UTC). So in the European Union you would select Last, Sunday, March
and the last field depends on your time zone. In Germany for instance, you would select
2:00 because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
Saving Time. The time field uses the 24 hour format. Here are a couple of examples:
Daylight Saving Time ends in the United States on the last Sunday of October. Each time
zone in the United States stops using Daylight Saving Time at 2 A.M. local time. So in the
United States you would select First, Sunday, November and 2:00.
Daylight Saving Time ends in the European Union on the last Sunday of October. All of
the time zones in the European Union stop using Daylight Saving Time at the same
moment (1 A.M. GMT or UTC). So in the European Union y ou would select Last, Sunday,
October and the last field depends on your time zone. In Germany for instance, you
would select 2:00 because Germany's time zone is one hour ahead of GMT or UTC
(GMT+1).
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
6.3 Introduction to VLANs
A VLAN (Virtual Local Area Network) allows a physical network to be partitioned into multiple logical
networks. Devices on a logical network belong to one group. A device can belong to more than one
group. With VLAN, a device cannot directly talk to or hear from devices that are not in the same
group(s); the traffic must first go through a router.
In MTU (Multi-Tenant Unit) applications, VLAN is vital in providing isolation and security among the
subscribers. When properly configured, VLAN prevents one subscriber from accessing the network
GS3700/XGS3700 Series User’s Guide
55
resources of another on the same LAN, thus a user will not see the printers and hard disks of
another user on the same network.
VLAN also increases network performance by limiting broadcasts to a smaller and more
manageable logical broadcast domain. In traditional switched environments, all broadcast packets
go to each and every individual port. With VLAN, all broadcasts are confined to a specific broadcast
domain.
Note: VLAN is unidirection al; it only governs outgoing traffic.
See Chapter 7 on page 81 for information on port-based and 802.1Q tagged VLANs.
6.4 Switch Setup
Click Basic Setting > Switch Setup in the navigation panel to display the screen as shown. The
VLAN setup screens change depending on whether you choose 802.1Q or Port Based in the VLAN
Type field in this screen. Refer to the chapter on VLAN.
Figure 24 Basic Setting > Switch Setup
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Tab le 11 Basic Setting > Switch Setup
LABEL DESCRIPTION
VLAN Type Choose 802.1Q or Port Based. The VLAN Setup screen changes depending on whether
you choose 802.1Q VLAN type or Port Based VLAN type in this screen. See Chapter 7 on
page 81 for more information.
Bridge Control
Protocol
Transparency
Select Active to allow the Switch to handle bridging control protocols (STP, for example).
You also need to define how to treat a BPDU in the Port Setup screen.
GS3700/XGS3700 Series User’s Guide
56
Chapter 6 Basic Setting
Tab le 11 Basic Setting > Switch Setup (continued)
LABEL DESCRIPTION
MAC Address
Learning
Aging Time Enter a time from 10 to 1000000 seconds. This is how long all dynamically learned MAC
ARP Aging Time Enter a time from 10 to 1000000 seconds. This is how long dynamically learned ARP
GARP Timer: Switches join VLANs by making a declaration. A declaration is made by issuing a Join message
using GARP. Declarations are withdrawn by issuing a Leave message. A Leave All message terminates all
registrations. GARP timers set declaration timeout values. See Chapter 7 on page 81 for more background
information.
Join Timer Join Timer sets the duration of the Join Period timer for GVRP in milliseconds. Each port
Leave Timer Leave Time sets the duration of the Leave Peri od timer for GVRP in milliseconds. Each
Leave All Timer Leave All Timer sets the duration of the Leave All Period timer for GVRP in milliseconds.
Priority Queue Assignment
IEEE 802.1p defines up to eight separate traffic types by inserting a tag into a MAC-layer frame that contains
bits to define class of service. Frames without an explicit priority tag are given the default priority of the
ingress port. Use the following fields to configure the priority level-to-physical queue mapping.
The Switch has eight physical queues that you can map to the 8 priority levels. On the Switch, traffic assigned
to higher index queues gets through faster while traffic in lower index queues is dropped if the network is
congested.
Priority Level (The following descriptions are based on the traffic types defined in the IEEE 802.1d standard
(which incorporates the 802.1p).
Level 7 Typically used for network control traffic such as router configuration messages.
Level 6 Typically used for voice traffic that is especially sensitive to jitter (jitter is the variations in
Level 5 Typically used for video that consumes high bandwidth and is sensitive to jitter.
Level 4 Typically used for controlled load, latency-sensitive traffic such as SNA (S yste ms Ne twork
Level 3 Typically used for “excellent effort” or better than best effort and would include important
Level 2 This is for “spare bandwidth”.
Level 1 This is typically used for non-critical “background” traffic such as bulk transfers that are
Level 0 Typically used for best-effort traffic.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click
MAC address learning reduces outgoing traffic broadcasts. For MAC address learning to
occur on a port, the port must be active.
addresses remain in the MAC address table before they age out (and must be relearned).
entries remain in the ARP table before they age out (and must be relearned). The setting
here applies to ARP entries which are newly added in the ARP table after you click Apply.
has a Join Period timer. The allowed Join Time range is between 100 and 65535
milliseconds; the default is 200 milliseconds. See Chapter 7 on page 81 for more
background information.
port has a single Leave Period timer. Leave Time must be two times larger than Join
Timer; the default is 600 milliseconds.
Each port has a single Leave All Period timer. Leave All Timer must be larger than Leave
Timer.
delay).
Architecture) transactions.
business traffic that can tolerate some delay.
allowed but that should not affect other applications and users.
these changes if it is turned off or loses power, so use the Save link on th e top navigation
panel to save your changes to the non-volatile memory when you are done configuring.
Cancel to begin configuring this screen afresh.
GS3700/XGS3700 Series User’s Guide
57
6.5 IP Setup
Use the IP Setup screen to configure the default gateway device, the default domain name server
and add IP domains.
6.5.1 IP Interfaces
The Switch needs an IP address for it to be managed over the network. The factory default IP
address is 192.168.1.1. The subnet mask specifies the network number portion of an IP address.
The factory default subnet mask is 255.255.255.0.
On the Switch, an IP address is not bound to any physical ports. Since each IP address on the
Switch must be in a separate subnet, the configured IP address is also known as IP interface (or
routing domain). In addition, this allows routing between subnets based on the IP address without
additional routers.
You can configure multiple routing domains on the same VLAN as long as the IP address ranges for
the domains do not overlap. To change the IP address of the Switch in a routing domain, simply add
a new routing domain entry with a different IP address in the same subnet.
Chapter 6 Basic Setting
You can configure up to 128 IP domains which are used to access and manage the S witch from the
ports belonging to the pre-defined VLAN(s).
Note: You must configure a VLAN first.
Figure 25 Basic Setting > IP Setup
GS3700/XGS3700 Series User’s Guide
58
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 12 Basic Setting > IP Setup
LABEL DESCRIPTION
Default Gateway Type the IP address of the default outgoing gateway in dotted decimal notation, for
Domain Name
Server
Default
Management
Management IP Address
Use these fields to set the settings for the out-of-band management port.
IP Address Enter the out-of-band management IP address of your Switch in dotted decimal notation.
IP Subnet
Mask
Default
Gateway
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses thes e
Cancel Click Cancel to reset the fields to your previous configuration.
IP Interface
Use these fields to create or edit IP routing domains on the Switch.
IP Address Enter the IP address of your Switch in dotted decimal notation, for example, 192.168.1.1.
IP Subnet
Mask
VID Enter the VLAN identification number to which an IP routing domain belongs.
Add Click this to create a new entry.
Cancel Click Cancel to reset the fields to your previous configuration.
Index This field displays the index number of an entry.
IP Address This field displays IP address of the Switch in the IP domain.
IP Subnet Mask This field displays the subnet mask of the Switch in the IP domain.
VID This field displays the VLAN identification number of the IP domain on the Switch.
Delete Click Delete to remove the selected entry from the summary table.
example 192.168.1.254.
DNS (Domain Name System) is for mapping a domain name to its corresponding IP address
and vice versa. Enter a domain name server IP address in order to be able to use a domain
name instead of an IP address.
Specify which traffic flow (In-Band or Out-of-band) the Switch is to send packets
originating from itself (such as SNMP traps) or packets with unknown source.
Select Out-of-band to have the Switch send the packets to the management port labelled
MGMT. This means that device(s) connected to the other port(s) do not receive these
packets.
Select In-Band to have the Switch send the packets to all ports except the management
port (labelled MGMT) to which connected device(s) do not receive these packets.
For example, 192.168.0.1.
Enter the IP subnet mask of your Switch in dotted decimal notation, for example,
255.255.255.0.
Enter the IP address of the default outgoing gateway in dotted decimal notation, for
example, 192.168.0.254
changes if it is turned off or loses power, so use the Save link on the top navigation panel
to save your changes to the non-volatile memory when you are done configuring.
This is the IP address of the Switch in an IP routing domain.
Enter the IP subnet mask of an IP routing domain in dotted decimal notation, for example,
255.255.255.0.
This saves your changes to the Switch’s run-time memory. The Switch loses these changes
if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatile memory when you are done configuring.
Note: Deleting all IP subnets locks you out of the Switch.
Cancel Click Cancel to clear the Delete check boxes.
GS3700/XGS3700 Series User’s Guide
59
6.6 Port Setup
Use this screen to configure Switch port settings. Click Basic Setting > Port Setup in the
navigation panel to display the configuration screen.
Figure 26 Basic Setting > Port Setup (GS3700 Series)
Chapter 6 Basic Setting
Figure 27 Basic Setting > Port Setup (XGS3700 Series)
GS3700/XGS3700 Series User’s Guide
60
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 13 Basic Setting > Port Setup
LABEL DESCRIPTION
Port This is the port index number.
* Settings in this row apply to all ports.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Active Select this check box to enable a port. The factory default for all ports is enabled. A port
must be enabled for data transmission to occur.
Name Type a descriptive name that identifies this port. You can enter up to 64 alpha-numerical
characters.
Note: Due to space limitations, the port name may be truncated in some web configurator
screens.
T ype This field displays 10/100/1000M for a 1000Base- T connection, 1000M for a 1000Base-X
Speed/Duplex Select the speed an d the duplex mode of the Ethernet connection on this port. The choices
Flow Control A concentra ti on of traffic on a port decreases port bandwidth and overflows buffer memory
802.1p Priority This priority value is added to incoming frames without a (802.1p) priority queue tag. See
connection, and 10G for a 10 Gigabit connection (available only on the Switch that has a 10
Gigabit interface).
are Auto, 10M/Half Duplex, 10M/Full Duplex, 100M/Half Duplex and 100M/Full
Duplex for a 100Base-T connection. 1000M/Full Duplex is supported by both 1000BaseT and 1000Base-X connections. 10G/Full Duplex is supported by the 10 Gigabit Ethernet
connections on the Switch that has a 10 Gigabit interface.
Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port
automatically to obtain the connection speed and duplex mode that both ends support.
When auto-negotiation is turned on, a port on the Switch negotiates with the peer
automatically to determine the connection speed and duplex mode. If the peer port does
not support auto-negotiation or turns off this feature, the Switch determines the connection
speed by detecting the signal on the cable and using half duplex mode. When the Switch’s
auto-negotiation is turned off, a port uses the pre-configured speed and duplex mode when
making a connection, thus requiring you to make sure that the settings of the peer port are
the same in order to connect.
causing packet discards and frame losses. Flow Control is use d to regulate tr ansmission of
signals to match the bandwidth of the receiving port.
The Switch uses IEEE 802.3x flow control in full duplex mode and backpressure flow control
in half duplex mode.
IEEE 802.3x flow control is used in full duplex mode to send a pause signal to the sending
port, causing it to temporarily stop sending si gnals when the receiving port memory buffers
fill.
Back Pressure flow control is typically used in half duplex mode to send a "collision" signal
to the sending port (mimicking a state of packet collision) causing the sending port to
temporarily stop sending signals and resend later. Select Flow Control to enable it.
Priority Queue Assignment in Table 11 on page 56 for more information.
GS3700/XGS3700 Series User’s Guide
61
Chapter 6 Basic Setting
PSE
PD
PD
Table 13 Basic Setting > Port Setup (continued)
LABEL DESCRIPTION
BPDU Control Configure the way to treat BPDUs received on this port. You must activate bridging control
protocol transparency in the Switch Setup screen first.
Select Peer to process any BPDU (Bridge Protocol Data Units) received on this port.
Select Tunnel to forward BPDUs received on this port.
Select Discard to drop any BPDU received on this port.
Select Network to process a BPDU with no VLAN tag and forward a tagged BPDU.
Media Type On the Switch that has a 10 Gigabit interface, such as the SFP+ slot, you can insert either
an SFP+ transceiver or an SFP+ Direct Attach Copper (DAC). An SFP+ Direct Attach Copper
(DAC) is an SFP+ housing tha t has no optical module but uses a fixed-length passive copper
cable assembly, which reduces cost and power significantly.
Select the media type (sfp_plus or dac10g) of the SFP+ module that is attached to the 10
Gigabit interface.
Apply Click Apply to save your changes to the Switch’s run-time memory . The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
6.7 PoE
Note: The PoE function and the following screens are available for models ending in “HP”
The Switch supports both the IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at High Power
over Ethernet (PoE) standards. The Switch is Power Sourcing Equipment (PSE) because it provides
a source of power via its Ethernet ports, and each device that receives power through an Ethernet
port is a Powered Device (PD).
In the figure below, the IP camera and IP phone get their power directly from the Switch. Aside
from minimizing the need for cables and wires, PoE removes the hassle of trying to find a nearby
electric outlet to power up devices.
Figure 28 Powered Device Examples
only.
You can also set priorities so that the Switch is able to reserve and allocate power to certain PDs.
GS3700/XGS3700 Series User’s Guide
62
Chapter 6 Basic Setting
Note: The PoE devices that supply or receive power and their connected Ethernet cables
must all be completely indoors.
To view the current amount of power that PDs are receiving from the Switch, click Basic Setting >
PoE Setup.
Figure 29 Basic Setting > PoE Status
The following table describes the labels in this screen.
Table 14 Basic Setting > PoE Status
LABEL DESCRIPTION
PoE Status
PoE Mode This field displays the power management mode used by the Switch, whether it is in
T otal Power This field displays the total powe r the Switch can pro vide to the connected P oE-enabled
Consuming Power
(W)
Allocated Power (W) This field displays the total amount of power the Switch has reserved for PoE after
Remaining Po wer
(W)
Classification or Consumption mode.
devices on the PoE ports.
This field displays the total amount of power the Switch is currently supplying to the
connected PoE-enabled devices.
negotiating with the connected PoE device(s).
Consuming Power (W) can be less than or equal but not more than the Allocated
Power (W).
This field displays the amount of power the Switch can still provide for PoE.
Note: The Switch must have at least 16 W of remaining power in order to supply power
to a PoE device, even if the PoE device needs less than 16 W.
Port This is the port index number.
GS3700/XGS3700 Series User’s Guide
63
Chapter 6 Basic Setting
Table 14 Basic Setting > PoE Status
LABEL DESCRIPTION
State This field shows which ports can receive power from the Switch. You can set this in the
Basic Setting > PoE Setup screen.
• Disable - The PD connected to this port cannot get power.
• Enable - The PD connected to this port can receive power.
Class This shows the power classification of the PD.
This is a number from 0 to 4, where each value represents a range of power (W) and
current (mA) that the PD requires to function. The ranges are as follows.
• Class 0 - Default, 0.44 to 12.94
• Class 1 - Optional, 0.44 to 3.84
• Class 2 - Optional, 3.84 to 6.49
• Class 3 - Optional, 6.49 to 12.95
• Class 4 - Reserved (PSEs classify as Class 0) in a switch that supports IEEE 802.3af
only. Optional, 12.95 to 25.50 in a switch that supports IEEE 802.3at.
PD Priority When the total power requested by the PDs exceeds the total PoE power budget on the
Consuming Power
(mW)
Max Power (mW) This field displays the maximum amount of power the PD could use from the Switch on
Max Current (mA) This field displays the maximum amount of current drawn by the PD from the Switch
Switch, you can set the PD priority to allow th e Switch to provide power to ports with
higher priority first.
• Critical has the highest priority.
• High has the Switch assign power to the port after all critical priority ports are
served.
• Low has the Switch assign power to the port after all critical and high priority ports
are served.
This field displays the current amount of power consumed by the PD from the Switch
on this port.
this port.
on this port.
6.7.1 PoE Setup
Use this screen to set the priority levels for the Switch in distributing power to PDs.
Click the PoE Setup link in the Basic Setting > PoE Status screen. The following screen opens.
GS3700/XGS3700 Series User’s Guide
64
Chapter 6 Basic Setting
Figure 30 Basic Setting > PoE Status > PoE Setup
The following table describes the labels in this screen.
Table 15 Basic Setting > PoE Status > PoE Setup
LABEL DESCRIPTION
PoE Mode Select the power management m ode you want the Switch to use.
• Classification - Select this if you want the Swit ch to reserv e the Max P ower (mW)
to each PD according to the power classification of the PD. If the total power supply
available is not enough to supply all connected PDs, then PDs with lower priority do
not get power to function.
• Consumption - Select this if you want the Switch to manage the tota l power
supply so that each connected PD gets a resource. However, th e power allocated by
the Switch may be less than the Max Power (mW) of the PD. PDs with higher
priority also get more power than those with lower priority levels.
Port This is the port index number.
PD Select this to provide power to a PD connected to the port.
If left unchecked, the PD connected to the port cannot receive power from the Switch.
PD Priority This field is not available for the SFP or SFP+ ports.
When the total power requested by the PDs exceeds the total PoE power budget on the
Switch, you can set the PD priority to allow th e Switch to provide power to ports with
higher priority.
Select Critical to give the PD connected to this port the highest priority.
Select High to set the Switch to assign the remaining power to the port after all critical
priority ports are served.
Select Low to set the Switch to assign the remaining power to the port after all critical
and high priority ports are served.
GS3700/XGS3700 Series User’s Guide
65
Chapter 6 Basic Setting
Table 15 Basic Setting > PoE Status > PoE Setup
LABEL DESCRIPTION
Max Power (mW) Set the maximum amount of power (from 1000 to 33000) the PD could use from the
Switch on this port. Otherwise, leave the field blank to allow the connected PD to use
power up to the Switch’s total power budget.
Apply Click Apply to save your changes to the Switch’s run-time memory. Th e Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
Note: If the priority settings for two or more PoE ports are the same and the power
budget is not enough, the ports will shut down randomly. We strongly recommend
you set the priority for each PoE port to make sure the high priority ports get
power.
Note: In classification mode, up to five ports can be active. (The Switch reserves 36W per
port and the total power budget is 180W). Select consumption mode if you want
more ports to be active.
6.8 Interface Setup
An IPv6 address is configured on a per-interface basis. The interface can be a physical interface (for
example, an Ethernet port) or a virtual interface (for example, a VLAN). The Switch supports the
VLAN interface type for IPv6 at the time of writing.
Use this screen to set IPv6 interfaces on which you can configure an IPv6 address to access and
manage the Switch. Click Basic Setting > Interface Setup in the navigation panel to display the
configuration screen.
Figure 31 Basic Setting > Interface Setup
GS3700/XGS3700 Series User’s Guide
66
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 16 Basic Setting > Interface Setup
LABEL DESCRIPTION
Interface Type Select the type of IPv6 interface for which you want to configure. The Switch supports the
Interface ID Specify a unique identification number (from 1 to 4094) for the interface.
VLAN interface type for IPv6 at the time of writing.
Note: To have IPv6 function properly, you should configure a static VLAN with the same ID
number in the Advanced Setup > VLAN screens.
Add Click this to create a new ent ry.
This saves your changes to the Sw it ch ’s run-time memory. The Switch loses these changes
if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
Index This field displays the index number of an entry.
Interface Type This field displays the type of interface.
Interface ID This field displays the identification number of the interface.
Interface This field displays the interface’s descriptive name which is generated automatically by the
Switch. The name is from a combination of the interface type and ID number.
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
6.9 IPv6
Use this screen to view the IPv6 interface status and configure Switch’s management IPv6
addresses. See Appendix B on page 404 for more information about IPv6.
Click Basic Setting > IPv6 in the navigation panel to display the IPv6 status screen as shown
next.
Figure 32 Basic Setting > IPv6 Status
The following table describes the labels in this screen.
Table 17 Basic Setting > IPv6 Status
LABEL DESCRIPTION
Index This field displays the index number of an IPv6 interface. Click on an index number to view
Interface This is the name of the IPv6 interface you created.
Active This field displays whether the IPv6 interface is activated or not.
more interface details.
GS3700/XGS3700 Series User’s Guide
67
6.9.1 IPv6 Interface Status
Use this screen to view a specific IPv6 interface status and detailed information. Click an interface
index number in the Basic Setting > IPv6 screen. The following screen opens.
Figure 33 Basic Setting > IPv6 Interface Status
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 18 Basic Setting > IPv6 Interface Status
LABEL DESCRIPTION
IPv6 Active This field displays whether the IPv6 interface is activated or not.
MTU Size This field displays the Maximum Transmission Unit (MTU) size for IPv6 packets on this
interface.
ICMPv6 Rate
Limit Bucket
Size
This field displays the maximum number of ICMPv6 error messages which are allowed to
transmit in a given time interval. If the bucket is full, subsequent error messages are
suppressed.
GS3700/XGS3700 Series User’s Guide
68
Chapter 6 Basic Setting
Table 18 Basic Setting > IPv6 Interface Status (continued)
LABEL DESCRIPTION
ICMPv6 Rate
Limit Error
Interval
Stateless
Address
Autoconfig
Link Local
Address
Global Unicast
Address(es)
Joined Group
Address(es)
ND DAD Active This field displays whether Neighbor Discovery (ND) Duplicate Address Detection (DAD) is
Number of DAD
Attempts
NS-Interval
(millisecond)
ND Reachable
Time
(millisecond)
DHCPv6 Client
Active
Identity
Association
IA Type The IA type is the type of address in the IA. Each IA holds one type of address. IA_NA
IAID Each IA consists of a unique IAID and associated IP information.
T1 This field displays the DHCPv6 T1 timer. After T1, the Switch sends the DHCPv6 server a
This field displays the time period (in milliseconds) during which ICMPv6 error messages of
up to the bucket size can be transmitted. 0 means no limit.
This field displays whether the Switch’s interface can automatically generate a link-local
address via stateless autoconfiguration.
This field displays the Switch’ s li nk -local IP address and prefix gener ated by the interface. It
also shows whether the IP address is preferred, which means it is a valid address and can
be used as a sender or receiver address.
This field displays the Switch’s global unicast address to identify this interface.
This field displays the IPv6 multicast addresses of groups the Switch’s interface joins.
enabled on the interface.
This field displays the number of consecutive neighbor solicitations the Switch sends for this
interface.
This field displays the time interval (in milliseconds) at which neighbor solicitations are re-
sent for this interface.
This field displays how long (in milliseconds) a neighbor is considered reachable for this
interface.
This field displays whether the Switch acts as a DHCPv6 client to get an IPv6 address from
a DHCPv6 server.
An Identity Association (IA) is a collection of addresses assigned to a DHCP clie nt, through
which the server and client can manage a set of related IP addresses. Each IA must be
associated with exactly one interface.
means an identity association for non-temporary addresses and IA_TA is an identity
association for temporary addresses.
Renew message.
An IA_NA option contains the T1 and T2 fields, but an IA_TA option does not. The DHCPv6
server uses T1 and T2 to control the time at which the client contacts with the server to
extend the lifetimes on any addresses in the IA_NA before the lifetimes expire.
T2 This field displays the DHCPv6 T2 timer. If the time T2 is reached and the server does not
respond, the Switch sends a Rebind message to any available server.
State This field displays the state of the TA. It shows
• Active when the Switch obtains addresses from a DHCpv6 server and the TA is created.
• Renew when the TA’s address lifetime expires and the Switch sends out a Renew
message.
• Rebind when the Switch doesn’t receive a response from the original DHCPv6 server
and sends out a Rebind message to another DHCPv6 server.
SID This field displays the DHCPv6 server’s unique ID.
Address This field displays the Switch’s global address which is assigned by the DHCPv6 server.
Preferred
Lifetime
Valid
Lifetime
This field displays how long (in seconds) that the global address remains preferred.
This field displays how long (in seconds) that the global address is valid.
GS3700/XGS3700 Series User’s Guide
69
Table 18 Basic Setting > IPv6 Interface Status (continued)
LABEL DESCRIPTION
DNS This field displays the DNS server address assigned by the DHCPv6 server.
Domain List This field displays the address record when the Switch queries the DNS server to resol ve
domain names.
Restart DHCPv6
Client
Click Click Here to send a new DHCP request to the DHCPv6 server and update the IPv6
address and DNS information for this interface.
6.9.2 IPv6 Configuration
Use this screen to configure IPv6 settings on the Switch. Click the IPv6 Configuration link in the
Basic Setting > IPv6 screen. The following screen opens.
Figure 34 Basic Setting > IPv6 > IPv6 Configuration
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 19 Basic Setting > IPv6 > IPv6 Configuration
LABEL DESCRIPTION
IPv6 Global Setup Click the link to go to a screen where you can configure the global IPv6 settings on the
Switch.
IPv6 Interface Setup Click the link to go to a screen where you can enable an IPv6 interface on the Switch.
IPv6 Addressing
IPv6 Link-Local
Address Setup
IPv6 Global
Address Setup
IPv6 Neighbor
Discovery
IPv6 Neighbor
Discovery Setup
IPv6 Router
Discovery Setup
IPv6 Prefix Setup Click the link to go to a screen where you can configure the Switch’s IPv6 prefix list.
Click the link to go to a screen where you can configure the IPv6 link-local address for
an interface.
Click the link to go to a screen where you can configure the IPv6 global address for an
interface.
Click the link to go to a screen where you can configure the IPv6 neighbor discovery
settings.
Click the link to go to a screen where you can configure the IPv6 router discovery
settings.
GS3700/XGS3700 Series User’s Guide
70
Table 19 Basic Setting > IPv6 > IPv6 Configuration (continued)
LABEL DESCRIPTION
IPv6 Neighbor Setup Click the link to go to a screen where you can create a static IPv6 neighbor entry in the
DHCPv6 Client Setup Click the link to go to a screen where you can configure the Switch DHCP settings.
6.9.3 IPv6 Global Setup
Use this screen to configure the global IPv6 settings. Click the link next to IPv6 Global Setup in
the IPv6 Configuration screen to display the screen as shown next.
Figure 35 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Global Setup
Chapter 6 Basic Setting
Switch’s IPv6 neighbor table.
The following table describes the labels in this screen.
Table 20 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Global Setup
LABEL DESCRIPTION
IPv6 Hop Limit Specify the maximum number of hops (from 1 to 255) in router advertisements. This
ICMPv6 Rate Limit
Bucket Size
ICMPv6 Rate Limit
Error Interval
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
is the maximum number of hops on which an IPv6 packet is allowed to t ransmit before
it is discarded by an IPv6 router, which is similar to the TTL field in IPv4.
Specify the maximum number of ICMPv6 error messages (from 1 to 200) which are
allowed to transmit in a given time interval. If the bucket is full, subsequent error
messages are suppressed.
Specify the time period (from 0 to 2147483647 milliseconds) during which ICMPv6
error messages of up to the bucket size can be transmitted. 0 means no limit.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
6.9.4 IPv6 Interface Setup
Use this screen to turn on or off an IPv6 interface and enable stateless autoconfiguration on it. Click
the link next to IPv6 Interface Setup in the IPv6 Configuration screen to display the screen as
shown next.
GS3700/XGS3700 Series User’s Guide
71
Chapter 6 Basic Setting
Figure 36 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Interface Setup
The following table describes the labels in this screen.
Table 21 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Interface Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
Active Select this option to enable the interface.
Address Autoconfig Select this option to allow the interface to automatically generate a link-local address
via stateless autoconfiguration.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
Active This field displays whether the IPv6 interface is activated or not.
Address Autoconfig This field displays whether stateless autoconfiguration is enabled on the interface.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
6.9.5 IPv6 Link-Local Address Setup
A link-local address uniquely identifies a device on the local network (the LAN). It is similar to a
“private IP address” in IPv4. You can have the same link-local address on multiple interfaces on a
device. A link-local unicast address has a predefined prefix of fe80::/10.
Use this screen to configure the interface’s link-local address and default gateway. Click the link
next to IPv6 Link-Local Address Setup in the IPv6 Configuration screen to display the screen
as shown next.
GS3700/XGS3700 Series User’s Guide
72
Chapter 6 Basic Setting
Figure 37 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Link-Local Address Setup
The following table describes the labels in this screen.
Table 22 Basic Setting > IPv6 > IPv6 Co nfiguration > IPv6 Link-Local Address Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
Link-Local Address Manually configure a static IPv6 link-local address for the interface.
Default Gateway Set the default gateway IPv6 address for the interface. When an interface cannot find
a routing information for a frame’s destination, it forwards the packet to the default
gateway.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
IPv6 Link-Local
Address
IPv6 Default
Gateway
This is the static IPv6 link-local address for the interface.
This is the default gateway IPv6 address for the interface.
6.9.6 IPv6 Global Address Setup
Use this screen to configure the interface’s IPv6 global address. Click the link next to IPv6 Global
Address Setup in the IPv6 Configuration screen to display the screen as shown next.
GS3700/XGS3700 Series User’s Guide
73
Chapter 6 Basic Setting
Figure 38 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Global Address Setup
The following table describes the labels in this screen.
Table 23 Basic Setting > IPv6 > IPv6 Conf iguration > IPv6 Global Address Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
IPv6 Global Address Manually configure a static IPv6 global address for the interface.
Prefix Length Specify an IPv6 prefix length that specifies how many most signific ant bi ts (s tart from
the left) in the address compose the networ k address.
EUI-64 Select this option to have the interface ID be generated automatically using the EUI-
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
IPv6 Global Address/
Prefix Length
EUI-64 This shows whether the interface ID of the global address is generated using the EUI-
Delete Check the en try(ies) that you want to remove in the Delete column and then click
Cancel Click Cancel to clear the Delete check boxes.
64 format.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
This field displays the IPv6 global address and prefix length for the interface.
64 format.
Delete to remove the selected entry(ies) from the summary table.
6.9.7 IPv6 Neighbor Discovery Setup
Use this screen to configure neighbor discovery settings for each interface. Click the link next to
IPv6 Neighbor Discovery Setup in the IPv6 Configuration screen to display the screen as
shown next.
GS3700/XGS3700 Series User’s Guide
74
Chapter 6 Basic Setting
Figure 39 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Neighbor Discovery Setup
The following table describes the labels in this screen.
Table 24 Basic Setting > IPv6 > IPv6 Conf iguration > IPv6 Neighbor Discovery Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
DAD Attempts The Switch uses Duplicate Address Detection (DAD) with neighbor solicitation and
advertisement messages to check whether an IPv6 address is already in use before
assigning it to an interface, such as the link-local address it creates through stateles s
address autoconfiguration.
Specify the number of consecutive neighbor solicitations (from 0 to 600) the Switch
sends for this interface. Enter 0 to turn off DAD.
NS Interval Specify the time interval (from 1000 to 3600000 milliseconds) at which neighbor
solicitations are re-sent for this interface.
Reachable Time Specify how long (from 1000 to 3600000 milliseconds) a neighbor is considered
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
DAD Attempts This field displays the number of consecutive neighbor solicitations the Switch sends
NS Interval This field displays the time interval (in milliseconds) at which neighbor solicitations are
Reachable Time This field displays how long (in milliseconds) a neighbor is considered reachable for
reachable for this interface.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
for this interface.
re-sent for this interface.
this interface.
6.9.8 IPv6 Router Discovery Setup
Use this screen to configure router discovery settings for each interface. Click the link next to IPv6
Router Discovery Setup in the IPv6 Configuration screen to display the screen as shown next.
GS3700/XGS3700 Series User’s Guide
75
Chapter 6 Basic Setting
Figure 40 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Router Discovery Setup
The following table describes the labels in this screen.
Table 25 Basic Setting > IPv6 > IPv6 Co nfiguration > IPv6 Router Discovery Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
Flags Select the Managed Config Flag option to have the Switch set th e “managed address
configuration” flag (the M flag) to 1 in IPv6 router advertisements, which means IPv6
hosts use DHCPv6 to obtain IPv6 stateful addresses. Deselect the option to set the flag
to 0 and the host will not use DHCPv6 to obtain IPv6 stateful addresses.
Select the Other Config Flag option to have the Switch set the “Other stateful
configuration” flag (the O flag) to 1 in IPv6 router advertisements, which means IPv6
hosts use DHCPv6 to obtain additional configuration settings, such as DNS
information. Deselect the option to set the flag to 0 and the host will not use DHCPv6
to obtain additional configuration settings.
Minimum Interval Specify the minimum time interval (from 3 to 1350 seconds) at which the Switch
sends router advertisements for this interface.
Note: The minimum time interval cannot be greater than three-quarters of the maximum
time interval.
Maximum Interval Specify the maximum time interval (from 4 to 1800 seconds) at which the Switch
sends router advertisements for this interface.
Lifetime Specify how long (from 0 to 9000 seconds) the router in router advertisements can be
Suppress Select this option to set the Switch to not send router advertisemen ts and responses
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
used as a default router for this interface.
to router solicitations on this interface.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
GS3700/XGS3700 Series User’s Guide
76
Table 25 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Router Discovery Setup (continued)
LABEL DESCRIPTION
Flags This field displays whether IPv6 hosts use DHCPv6 to obtain IPv6 stateful addresses
Minimum Interval This field displays the minimum time interval at which the Switch sends router
Maximum Interval This field displays the maximum time interval at which the Switch sends router
Lifetime This field displays how long the router in router advertisements can be used as a
Suppress This field displays whether the Switch sends router advertisements and responses to
6.9.9 IPv6 Prefix Setup
Use this screen to configure the Switch’s IPv6 prefix list for each interface. Click the link next to
IPv6 Prefix Setup in the IPv6 Configuration screen to display the screen as shown next.
Figure 41 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Prefix Setup
Chapter 6 Basic Setting
(M) and/or additional configuration settings (O).
advertisements for this interface.
advertisements for this interface.
default router for this interface.
router solicitations on this interface (No) or not (Yes).
The following table describes the labels in this screen.
Table 26 Basic Setting > IPv6 > IPv6 Conf iguration > IPv6 Prefix Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
Prefix Set the IPv6 prefix that the Switch includes in router advertisements for this interface.
Prefix Length Set the prefix length that the Switch includes in router advertisements for this
interface.
Valid Lifetime Specify how long (from 0 to 4294967295 seconds) the prefix is valid for on-link
determination.
GS3700/XGS3700 Series User’s Guide
77
Chapter 6 Basic Setting
Table 26 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Prefix Setup (continued)
LABEL DESCRIPTION
Preferred Lifetime Specify how long (from 0 to 4294967295 seconds) that addresses generated from the
prefix via stateless address autoconfiguration remain preferred.
The preferred lifetime cannot exceed the valid lifetime.
Flags Select No-Autoconfig Flag to not allow IPv6 hosts to use this prefix for stateless
address autoconfiguration.
Select No-Onlink Flag to not allow the specified prefix to be used for on-link
determination.
Select No-Advertise Flag to set the Switch to not include the specified IPv6 prefix,
prefix length in router advertisements for this interface.
Add Click this to create a new entry or to update an existing one.
This saves your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation
panel to save your changes to the nonvolatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
Prefix/Prefix Length This field displays the IPv6 prefix and prefix length that the Switch includes in router
advertisements for this interface.
Valid Lifetime This field displays the IPv6 prefix valid lifetime.
Preferred Lifetime This field displays the preferred lifetime of an IPv6 address generated from the prefix.
Delete Check the en try(ies) that you want to remove in the Delete column and then click
Cancel Click Cancel to clear the Delete check boxes.
Delete to remove the selected entry(ies) from the summary table.
6.9.10 IPv6 Neighbor Setup
Use this screen to create a static IPv6 neighbor entry in the Switch’s IPv6 neighbor table to store
the neighbor information permanently. Click the link next to IPv6 Neighbor Setup in the IPv6
Configuration screen to display the screen as shown next.
Figure 42 Basic Setting > IPv6 > IPv6 Configuration > IPv6 Neighbor Setup
GS3700/XGS3700 Series User’s Guide
78
Chapter 6 Basic Setting
The following table describes the labels in this screen.
Table 27 Basic Setting > IPv6 > IPv6 Conf iguration > IPv6 Neighbor Setup
LABEL DESCRIPTION
Interface Type Select the type of IPv6 interface for which you want to configure. The Switch supports
Interface ID Specify a unique identification number (from 1 to 4094) for the interface.
the VLAN interface type for IPv6 at the time of writing.
Note: A static IPv6 neighbor entry displays in the Management > Neighbor Table
screen only when the interface ID is also created in the Basic Setup > Interface
Setup screen.
Note: To have IPv6 function properly, you should configure a static VLAN with the same
ID number in the Advanced Setup > VLAN screens.
Neighbor Address Specify the IPv6 address of the neighboring device which can be reached through the
MAC Specify the MAC address of the neighboring device which can be reached through the
Add Click this to create a new entry or to update an existing one.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
Neighbor Address This field displays the IPv6 address of the neighboring device which can be reached
MAC This field displays the MAC address of the neighboring device which can be reached
Delete Check the en try(ies) that you want to remove in the Delete column and then click
Cancel Click Cancel to clear the Delete check boxes.
interface.
interface.
This saves your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation
panel to save your changes to the nonvolatile memory when you are done configuring.
through the interface
through the interface.
Delete to remove the selected entry(ies) from the summary table.
6.9.11 DHCPv6 Client Setup
Use this screen to configure the Switch’s DHCP settings when it is acting as a DHCPv6 client. Click
the link next to IPv6 Neighbor Setup in the IPv6 Configuration screen to display the screen as
shown next.
GS3700/XGS3700 Series User’s Guide
79
Chapter 6 Basic Setting
Figure 43 Basic Setting > IPv6 > IPv6 Configuration > DHCPv6 Client Setup
The following table describes the labels in this screen.
Table 28 Basic Setting > IPv6 > IPv6 Configuration > DHCPv6 Client Setup
LABEL DESCRIPTION
Interface Select the IPv6 interface you want to configure.
IA Type Select IA-NA to set the Switch to get a non-temporary IP address from the DHCPv6
server for this interface.
Optionally, you can also select Rapid-Commit to have the Switch send its DHCPv6
Solicit message with a Rapid Commit option to obtain information from the DHCPv6
server by a rapid two-message exchange. The Switch discards any Reply messages
that do not include a Rapid Commit option. The DHCPv6 server should also support the
Rapid Commit option to have it work well.
Options Select DNS to have the Switch obtain DNS server IPv6 addresses and/or select
Domain-List to have the Switch obtain a list of domain names from the DHCP server.
Information Refresh
Minimum
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index This is the interface index number. Click on an index number to change the settings.
Interface This is the name of the IPv6 interface you created.
IA-NA This field displays whether the Switch obtains a non-temporary IP address from the
Rapid-Commit This field displays whether the Switch obtains information from the DHCPv6 server by
DNS This field displays whether the Switch obtains DNS server IPv6 addresses from the
Domain-List This field displays whether the Switch obtains a list of domain names from the DHCP
Information Refresh
Minimum
Specify the time interval (from 600 to 4294967295 seconds) at which the Switch
exchanges other configuration information with a DHCPv6 server again.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the nonvolatile memory when you are done
configuring.
DHCPv6 server.
a rapid two-message exchange.
DHCPv6 server.
server.
This field displays the time interval (in seconds) at which the Switch exchanges other
configuration information with a DHCPv6 server again.
GS3700/XGS3700 Series User’s Guide
80
CHAPTER 7
The type of screen you see here depends on the VLAN Type you selected in the Switch Setup
screen. This chapter shows you how to configure 802.1Q tagged and port-based VLANs.
7.1 Introduction to IEEE 802.1Q Tagged VLANs
A tagged VLAN uses an explicit tag (VLAN ID) in the MAC header to identify the VLAN membership
of a frame across bridges - they are not confined to the switch on which they were created. The
VLANs can be created statically by hand or dynamically through GVRP. The VLAN ID associates a
frame with a specific VLAN and provides the information that switches need to process the frame
across the network. A tagged frame is four bytes longer than an untagged frame and contains two
bytes for the TPID (Tag Protocol Identifier, residing within the type/length field of the Ethernet
frame) and two bytes for the TCI (Tag Control Information, starting after the source address field of
the Ethernet frame).
VLAN
The CFI (Canonical Format Indicator) is a single-bit flag, always set to zero for Ethernet switches. If
a frame received at an Ethernet port has a CFI set to 1, then that frame should not be forwarded as
it is to an untagged port. The remaining twelve bits define the VLAN ID, giving a possible maximum
number of 4,096 VLANs. Note that user priority and VLAN ID are independent of each other. A
frame with VID (VLAN Identifier) of null (0) is called a priority frame, meaning that only the priority
level is significant and the default VID of the ingress port is given as the VID of the frame. Of the
4096 possible VIDs, a VID of 0 is used to identify priority frames and the value 4095 (FFF) is
reserved, so the maximum possible number of VLAN configurations is 4,094.
TPID
2 Bytes
User Priority
3 Bits
CFI
1 Bit
VLAN ID
12 bits
7.1.1 Forwarding Tagged and Untagged Frames
Each port on the Switch is capable of passing tagged or untagged frames. To forward a frame from
an 802.1Q VLAN-aware switch to an 802.1Q VLAN-unaware switch, the Switch first decides where
to forward the frame and then strips off the VLAN tag. To forward a frame from an 802.1Q VLANunaware switch to an 802.1Q VLAN-aware switch, the Switch first decides where to forward the
frame, and then inserts a VLAN tag reflecting the ingress port's default VID. The default PVID is
VLAN 1 for all ports, but this can be changed.
A broadcast frame (or a multicast frame for a multicast group that is known by the system) is
duplicated only on ports that are members of the VID (except the ingress port itself), thus confining
the broadcast to a specific domain.
GS3700/XGS3700 Series User’s Guide
81
Chapter 7 VLAN
7.2 Automatic VLAN Registration
GARP and GVRP are the protocols used to automatically register VLAN membership across switches.
7.2.1 GARP
GARP (Generic Attribute Registration Protocol) allows network switches to register and de-register
attribute values with other GARP participants within a bridged LAN. GARP is a protocol that provides
a generic mechanism for protocols that serve a more specific application, for example, GVRP.
7.2.1.1 GARP Timers
Switches join VLANs by making a declaration. A declaration is made by issuing a Join message
using GARP. Declarations are withdrawn by issuing a Leave message. A Leave All message
terminates all registrations. GARP timers set declaration timeout values.
7.2.2 GVRP
GVRP (GARP VLAN Registration Protocol) is a registration protocol that defines a way for switches to
register necessary VLAN members on ports across the network. Enable this function to permit VLAN
groups beyond the local Switch.
Please refer to the following table for common IEEE 802.1Q VLAN terminology.
Table 29 IEEE 802.1Q VLAN Terminology
VLAN PARAMETER TERM DESCRIPTION
VLAN Type Permanent VLAN This is a static VLAN created manually.
Dynamic VLAN This is a VLAN configured by a GVRP registration/
deregistration process.
VLAN Administrative
Control
VLAN Tag Control Tagged Ports belonging to the specified VLAN tag all outgoing frames
VLAN Port Port VID This is the VLAN ID assigned to untagged frames that this
Registration Fixed Fixed registration ports are permanent VLAN members.
Registration
Forbidden
Normal Registration Ports dynamically join a VLAN using GVRP.
Untagged Ports belonging to the specified VLAN don't tag all outgoing
Acceptable Frame
Type
Ingress filtering If set, the Switch di scards incoming frames for VLANs that do
Ports with registration forbidden are forbidden to join the
specified VLAN.
transmitted.
frames transmitted.
port received.
You may choose to accept both tagged and untagged
incoming frames, just tagged incoming frames or just
untagged incoming frames on a port.
not have this port as a member.
GS3700/XGS3700 Series User’s Guide
82
7.3 Port VLAN Trunking
Enable VLAN Trunking on a port to allow frames belonging to unknown VLAN groups to pass
through that port. This is useful if you want to set up VLAN groups on end devices without having to
configure the same VLAN groups on intermediary devices.
The following figure describes VLAN Trunking. Suppose you want to create VLAN groups 1 and 2
(V1 and V2) on devices A and B. Without VLAN Trunking, you must configure VLAN groups 1 and
2 on all intermediary switches C, D and E; otherwise they will drop frames with unknown VLAN
group tags. However, with VLAN Trunking enabled on a port(s) in each intermediary switch you
only need to create VLAN groups in the end devices (A and B). C, D and E automatically allow
frames with VLAN group tags 1 and 2 (VLAN groups that are unknown to those switches) to pass
through their VLAN trunking port(s).
Figure 44 Port VLAN Trunking
Chapter 7 VLAN
7.4 Select the VLAN Type
Select a VLAN type in the Basic Setting > Switch Setup screen.
Figure 45 Switch Setup: Select VLAN Type
7.5 802.1Q Static VLAN
Make sure 802.1Q is selected in the Basic Setting > Switch Setup screen.
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depending on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing fr ames (that were previously untagged) from a port with the specified
VID.
GS3700/XGS3700 Series User’s Guide
83
7.5.1 VLAN Status
See Section 7.1 on page 81 for more information on 802.1Q VLAN. Click Advanced Application >
VLAN from the navigation panel to display the VLAN Status screen as shown next.
Figure 46 Advanced Application > VLAN: VLAN Status
Chapter 7 VLAN
The following table describes the labels in this screen.
Table 30 Advanced Application > VLAN: VLAN Status
LABEL DESCRIPTION
VLAN Search by
VID
The Number of
VLAN
The Number of
Search Results
Index This is the VLAN index number. Click on an index number to view more VLAN details.
VID This is the VLAN identification number that was configured in the Static VLAN screen.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN
Status This field shows how this VLAN was added to the Switch.
Change Pages Click Previous or Next to show the previous/next screen if all status information cannot
Enter an existing VLAN ID number(s) (separated by a comma) and click Search to display
only the specified VLAN(s) in the list below.
Leave this field blank and click Search to display all VLANs configured on the Switch.
This is the number of VLANs configured on the Switch.
This is the number of VLANs that match the searching criteria and display in the list below.
This field displays only when you use the Search button to look for certain VLANs.
was set up.
• Dynamic - using GVRP
• Static - manually added as a normal VLAN
• Private - manually added as a private VLAN (primary, isolated or community)
• RMirror - manually added as a remote port mirroring VLAN
• MVR - added via Multicast VLAN Registration (MVR)
be seen in one screen.
GS3700/XGS3700 Series User’s Guide
84
7.5.2 VLAN Details
Use this screen to view detailed port settings and status of the VLAN group. See Section 7.1 on
page 81 for more information on 802.1Q VLAN. Click on an index number in the VLAN Status
screen to display VLAN details.
Figure 47 Advanced Application > VLAN > VLAN Detail
Chapter 7 VLAN
The following table describes the labels in this screen.
Table 31 Advanced Application > VLAN > VLAN Detail
LABEL DESCRIPTION
VLAN Status Click this to go to the VLAN Status screen.
VID This is the VLAN identification number that was configured in the Static VLAN screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is marked as
T, an untagged port is marked as U and ports not participating in a VLAN are marked as “–
“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static VLAN
was set up.
Status This field shows how this VLAN was added to the Switch.
• Dynamic - using GVRP,
• Static - manually added as a normal VLAN
• Private - manually added as a private VLAN (primary, isolated or community)
• RMirror - manually added as a remote port mirroring VLAN
• MVR - added via Multicast VLAN Registration (MVR)
Private VLAN
Status
Primary VLAN This field shows the primary VLAN ID in the selected VLAN.
Secondary
VLAN
Type This field shows the type of private VLAN: Primary, Community or Isolated.
Port List This shows the ports mapped to the private VLAN using the Advanced Application >
Change Pages Click Previous or Next to show the previous/next screen if all status information cannot
These fields show private VLAN information for the selected VLAN. See Section 32.1 on
page 265 for more information on private VLANs.
This field shows the secondary VLAN ID in the selected VLAN.
Private VLAN or Advanced Application > VLAN > Static VLAN screen.
be seen in one screen.
GS3700/XGS3700 Series User’s Guide
85
Chapter 7 VLAN
7.5.3 Configure a Static VLAN or Private VLAN
Use this screen to create 802.1Q VLAN IDs and set VLAN members for Normal (static) or Private
(Primary, Isolated or Community) VLANs. You must create VLAN IDs for Private (Primary,
Isolated or Community) VLANs before configuring Advanced Application > Private VLAN. See
Section 7.1 on page 81 for more information on 802.1Q VLAN.
To configure a static or private VLAN, click Static VLAN in the VLAN Status screen to display the
screen as shown next.
Figure 48 Advanced Application > VLAN > Static VLAN
GS3700/XGS3700 Series User’s Guide
86
Chapter 7 VLAN
The following table describes the related labels in this screen.
Table 32 Advanced Application > VLAN > Static VLAN
LABEL DESCRIPTION
ACTIVE Select this check box to activate the VLAN settings.
Name Enter a descriptive name for the VLAN group for identification purposes. This name
VLAN Group ID Enter the VLAN ID for this static entry; the valid range is between 1 and 4094.
VLAN Type Select Normal (static) or Private. For Private VLANs, select Primary, Isolated or
Association VLAN
List
Port The port number identifies the port you are configuring.
* Settings in this row apply to all ports.
consists of up to 64 printable characters; spaces are allowed.
Community.
Primary private VLANs can associate with sev eral (secondary) Community private VLANs
and up to one (secondary) Isolated private VLAN.
You only configure VLAN Association List for Primary private VLANs. Use a dash to
associate consecutive VLANs and a comma (no spaces) to associate non-consecutive
VLANs. For example, 51-53 includes 51, 52 and 53, but 51,53 does not include 52.
Secondary private VLANs can only be associated with one primary private VLAN.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Control Select Normal for the port to dynamically join this VLAN group using GVRP. This is the
Tagging Select TX Tagging if you want the port to tag all outgoing frames transmitted with this
Add Click this to create a new entry or to update an existing one.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
VID This field displays the ID number of the VLAN group. Click the number to edit the VLAN
Active This field indicates whether the VLAN settings are enabled (Yes) or disabled (No).
Name This field displays the descriptive name for this VLAN group.
VLAN Type This field displays the Normal or Private (Primary, Isolated or Community) type VLAN
Association VLAN
List
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
default selection.
Select Fixed for the port to be a permanent member of this VLAN group.
Select Forbidden if you want to prohibit the port from joining this VLAN group.
VLAN Group ID.
This saves your changes to the Switch’ s run-time memory. The Switch loses these changes
if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatil e me mory when you are done configuring.
settings.
configured in the top part of this screen.
This field displays which secondary private VLANs are associated with a primary private
VLAN configured in the top part of this screen.
GS3700/XGS3700 Series User’s Guide
87
Chapter 7 VLAN
7.5.4 Configure VLAN Port Settings
Use the VLAN Port Setting screen to configure the static VLAN (IEEE 802.1Q) settings on a port.
See Section 7.1 on page 81 for more information on 802.1Q VLAN. Click the VLAN Port Setting
link in the VLAN Status screen.
Figure 49 Advanced Application > VLAN > VLAN Port Setting
The following table describes the labels in this screen.
Table 33 Advanced Application > VLAN > VLAN Port Setting
LABEL DESCRIPTION
GVRP GVRP (GARP VLAN Registration Protocol) is a registration proto col that defines a w ay for
Port This field displays the port number.
* Settings in this row apply to all ports.
switches to register necessary VLAN members on ports across the network.
Select this check box to permit VLAN groups beyond the local Switch.
Use this row only if you want to make some settings the same for all ports. Use this row
first to set the common settings and then make adjustments on a port-by-port basis.
Note: Changes in this row are copied to all the ports as soon as you make them.
Ingress Check If this check box is selected for a port, the Switch discards incoming frames for VLANs
that do not include this port in its member set.
Clear this check box to disable ingress filtering.
PVID A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a
GVRP Select this check box to allow GVRP on this port.
port so that the frames are forwarded to the VLAN group that the tag defines.
Enter a number between 1 and 4094 as the port VLAN ID.
GS3700/XGS3700 Series User’s Guide
88
Chapter 7 VLAN
Table 33 Advanced Application > VLAN > VLAN Port Setting (continued)
LABEL DESCRIPTION
Acceptable Frame
Type
VLAN Trunking Enable VLAN Trunking on ports connected to other switches or routers (but not ports
Isolation Select this to allows this port to communicate only with the CPU management port and
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
Cancel Click Cancel to begin configuring this screen afresh.
Specify the type of frames allowed on a port. Choices are All, Tag Only and Untag
Only.
Select All from the drop-down list box to accept all untagged or tagged frames on this
port. This is the default setting.
Select Tag Only to accept only tagged frames on this port. All untagged frames will be
dropped.
Select Untag Only to accept only untagged frames on this port. All tagged frames will
be dropped.
directly connected to end users) to allow frames belonging to unknown VLAN groups to
pass through the Switch.
the ports on which the isolation feature is not enabled.
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
7.5.5 Subnet Based VLANs
Subnet based VLANs allow you to group traffic into logical VLANs based on the source IP subnet you
specify. When a frame is received on a port, the Switch checks if a tag is added already and the IP
subnet it came from. The untagged packets from the same IP subnet are then placed in the same
subnet based VLAN. One advantage of using subnet based VLANs is that priority can be assigned to
traffic from the same IP subnet.
Note: Subnet based VLAN applies to un-tagged packets and is applicable only when you
use IEEE 802.1Q tagged VLAN.
For example, an ISP (Internet Service Provider) may divide different types of services it provides to
customers into different IP subnets. Traffic for voice services is designated for IP subnet
172.16.1.0/24, video for 192.168.1.0/24 and data for 10.1.1.0/24. The Switch can then be
configured to group incoming traffic based on the source IP subnet of incoming frames.
You can then configure a subnet based VLAN with priority 6 and VID of 100 for traffic received from
IP subnet 172.16.1.0/24 (voice services). You can also have a subnet based VLAN with priority 5
and VID of 200 for traffic received from IP subnet 192.168.1.0/24 (video services). Lastly, you can
configure VLAN with priority 3 and VID of 300 for traffic received from IP subnet 10.1.1.0/24 (data
services). All untagged incoming frames will be classified based on their source IP subnet and
prioritized accordingly. That is, video services receive the highest priority and data the lowest.
GS3700/XGS3700 Series User’s Guide
89
Chapter 7 VLAN
10.1.1.0/24
192.168.1.0/24
172.16.1.0/24
Internet
VID = 100
VID = 200
VID = 300
Untagged
Frames
Tagged Frames
Figure 50 Subnet Based VLAN Application Example
7.5.5.1 Configuring Subnet Based VLAN
Click Subnet Based VLAN in the VLAN Port Setting screen to display the configur ation screen as
shown.
Figure 51 Advanced Application > VLAN > VLAN Port Setting > Subnet Based VLAN
GS3700/XGS3700 Series User’s Guide
90
Chapter 7 VLAN
The following table describes the labels in this screen.
Table 34 Advanced Application > VLAN > VLAN Port Setting > Subnet Based VLAN Setup
LABEL DESCRIPTION
Active Select this check box to activate this subnet based VLANs on the Switch.
DHCP-Vlan
Override
Apply Click Apply to save yo ur c hange s to the Switch’s run - ti me memory. The Switch loses these
Active Select this check box to activate the IP subnet VLAN you are creating or editing.
Name Enter up to 32 alphanumeric characters to identify this subnet based VLAN.
IP Enter the IP address of the subnet for which you want to configure this subnet based VLAN.
Mask-Bits Enter the bit number of the subnet mask. To find the bit number, convert the subnet mask
VID Enter the ID of a VLAN with which the untagged frames from the IP subnet specified in this
Priority Select the priority level that the Switch assigns to frames belonging to this VLAN.
Add Click this to create a new entry or to update an existing one.
When DHCP snooping is enabled DHCP clients can renew their IP address through the DHCP
VLAN or via another DHCP server on the subnet based VLAN.
Select this checkbox to force the DHCP clients in th is IP subne t to obtai n the ir IP addresses
through the DHCP VLAN.
changes if it is turned off or loses power , so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
to binary format and add all the 1’s together. Take “255.255.255.0” for example. 255
converts to eight 1s in binary. There are three 255s, so add three eights together and you
get the bit number (24).
subnet based VLAN are tagged. This must be an existing VLAN which you defined in the
Advanced Application > VLAN > Static VLAN screen.
This saves your changes to the Switch’s run-time memory. The Switch loses these changes
if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Index This is the index number identifying this subnet based VLAN. Click on any of these numbers
to edit an existing subnet based VLAN.
Active This field shows whether the subnet based VLAN is active or not.
Name This field shows the name the subnet based VLAN.
IP This field shows the IP address of the subnet for this subnet based VLAN.
Mask-Bits This field shows the subnet mask in bit number format for this subnet based VLAN.
VID This field shows the VLAN ID of the frames which belong to this subnet based VLAN.
Priority This field shows the priority which is assigned to frames belonging to this subnet based
Delete Click this to delete the subnet based VLANs which you marked for deletion.
Cancel Click Cancel to begin configuring this screen afresh.
VLAN.
7.5.6 Protocol Based VLANs
Protocol based VLANs allow you to group traffic into logical VLANs based on the protocol you
specify. When an upstream frame is received on a port (configured for a protocol based VLAN), the
Switch checks if a tag is added already and its protocol. The untagged packets of the same protocol
are then placed in the same protocol based VLAN. One advantage of using protocol based VLANs is
that priority can be assigned to traffic of the same protocol.
GS3700/XGS3700 Series User’s Guide
91
Chapter 7 VLAN
Note: Protocol based VLAN applies to un-tagged packets and is applicable only when you
use IEEE 802.1Q tagged VLAN.
For example, ports 1, 2, 3 and 4 belong to static VLAN 100, and ports 4, 5, 6, 7 belong to static
VLAN 120. You can configure a protocol based VLAN A with priority 2 for ARP traffic received on port
1, 2 and 3. You can also have a protocol based VLAN B with prio rity 3 for Apple Talk traffic received
on port 6 and 7. All upstream ARP traffic from port 1, 2 and 3 will be grouped together, and all
upstream Apple Talk traffic from port 6 and 7 will be in another group and have higher priority than
ARP traffic when they go through the uplink port to a backbone switch C.
Figure 52 Protocol Based VLAN Application Example
7.5.6.1 Configuring Protocol Based VLAN
Click Protocol Based VLAN in the VLAN Port Setting screen to display the configuration screen
as shown.
Figure 53 Advanced Application > VLAN > VLAN Port Setting > Protocol Based VLAN
GS3700/XGS3700 Series User’s Guide
92
Chapter 7 VLAN
The following table describes the labels in this screen.
Table 35 Advanced Application > VLAN > VLAN Port Setting > Protocol Based VLAN Setup
LABEL DESCRIPTION
Active Select this check box to activate this protocol based VLAN.
Port Type a port number to be included in this protocol based VLAN.
This port must belong to a static VLAN in order to participate in a protocol based VLAN. See
Chapter 7 on page 81 for more details on setting up VLANs.
Name Enter up to 32 alphanumeric characters to identify this prot ocol based VLAN.
Ethernet-type Use the drop down list box to select a predefined protocol to be included in this protocol
based VLAN or select Others and type the protocol number in hexadecimal notation. For
example, the IP protocol in hexadecimal notation is 0800, and Novell IPX protocol is 8137.
Note: Protocols in the hexadecimal number range of 0x0000 to 0x05ff are not allowed to be
used for protocol based VLANs.
VID Enter the ID of a VLAN to which the port belongs. This must be an existing VLAN which you
defined in the Advanced Application > VLAN > Static VLAN screen.
Priority Select the priority level that the Switch will assign to frames belonging to this VLAN.
Add Click this to create a new entry or to update an existing one.
This saves your changes to the Switch’s run-time memory. The Switch loses these changes
if it is turned off or loses power, so use the Save link on the top navigation panel to save
your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Index This is the index number identifying this protocol based VLAN. Click on any of these
Active This field shows whether the protocol based VLAN is active or not.
Port This field shows which port belongs to this protocol based VLAN.
Name This field shows the name the protocol based VLAN.
Ethernet-type This field shows which Ethernet protocol is part of this protocol based VLAN.
VID This field shows the VLAN ID of the port.
Priority This field shows the priority which is assigned to frames belonging to this protocol based
Delete Click this to delete the protoco l based VLANs which you marked for deletion.
Cancel Click Cancel to begin configuring this screen afresh.
numbers to edit an existing protocol based VLAN.
VLAN.
7.5.6.2 Create an IP-based VLAN Example
This example shows you how to create an IP VLAN which includes ports 1, 4 and 8. Follow these
steps using the screen below:
1 Activate this protocol based VLAN.
2 Type the port number you want to include in this protocol based VLAN. Type 1.
3 Give this protocol-based VLAN a descriptive name. Type IP-VLAN.
4 Select the protocol. Leave the default value IP.
5 T ype the VLAN ID of an existing VLAN. In our example we already created a static VLAN with an ID
of 5. Type 5.
GS3700/XGS3700 Series User’s Guide
93
Chapter 7 VLAN
EXAMPLE
6 Leave the priority set to 0 and click Add.
Figure 54 Protocol Based VLAN Configuration Example
To add more ports to this protocol based VLAN.
1 Click the index number of the protocol based VLAN entry. Click 1
2 Change the value in the Port field to the next port you want to add.
3 Click Add.
7.5.7 View Private VLAN Status
Use this screen to view all private VLANs created on the Switch. See also Advanced Application >
Private VLAN.
Click Private VLAN Status in the VLAN Status screen to display the screen as shown next.
Figure 55 Advanced Application > VLAN > Private VLAN Status
GS3700/XGS3700 Series User’s Guide
94
Chapter 7 VLAN
The following table describes the labels in this screen.
Table 36 Advanced Application > VLAN > Private VLAN Status
LABEL DESCRIPTION
Private VLAN
Status
Primary
VLAN
Secondary
VLAN
Type This field shows the type of private VLAN: Primary, Community or Isolated.
Port List This shows the ports mapped to the private VLAN using the Advanced Application >
Change Pages Use the Previous and Next buttons to display different pages.
These fields show information for the all private VLANs. See also Advanced Application >
Private VLAN.
This field shows the primary VLAN ID in a private VLAN.
This field shows the secondary VLAN ID in a private VLAN.
Private VLAN or Advanced Application > VLAN > Static VLAN screen.
7.6 Port-based VLAN Setup
Port-based VLANs are VLANs where the packet forwarding decision is based on the destination MAC
address and its associated port.
Port-based VLANs require allowed outgoing ports to be defined for each port. Therefore, if you wish
to allow two subscriber ports to talk to each other, for example, between conference rooms in a
hotel, you must define the egress (an egress port is an outgoing port, that is, a port through which
a data packet leaves) for both ports.
Port-based VLANs are specific only to the Switch on which they were created.
Note: When you activate port-based VLAN, the Switch uses a default VLAN ID of 1. You
cannot change it.
Note: In screens (such as IP Setup and Filtering) that require a VID, you must enter 1
as the VID.
The port-based VLAN setup screen is shown next. The CPU management port forms a VLAN with all
Ethernet ports.
7.6.1 Configure a Port-based VLAN
Select Port Based as the VLAN Type in the Switch Setup screen and then click VLAN from the
navigation panel to display the following screen. Select either All Connected or Port Isolated
from the drop-down list depending on your VLAN and VLAN security requirements. If VLAN
members need to communicate directly with each other, then select All Connected. Select Port
Isolated if you want to restrict users from communicating directly. Click Apply to save your
settings.
The following screen shows users on a port-based, all-connected VLAN configuration.
GS3700/XGS3700 Series User’s Guide
95
Chapter 7 VLAN
Figure 56 Advanced Application > VLAN > Port Based VLAN Setup (All Connected)
The following screen shows users on a port-based, port-isolated VLAN configuration.
GS3700/XGS3700 Series User’s Guide
96
Chapter 7 VLAN
Figure 57 Advanced Application > VLAN: Port Based VLAN Setup (Port Isolation)
GS3700/XGS3700 Series User’s Guide
97
Chapter 7 VLAN
The following table describes the labels in this screen.
Table 37 Advanced Application > VLAN: Port Based VLAN Setup
LABEL DESCRIPTION
Setting Wizard Choose All connected or Port isolation.
All connected means all ports can communicate with each other, that is, there are no
virtual LANs. All incoming and outgoing ports are selected. This option is the most flexible
but also the least secure.
Port isolation means that each port can only communicate with the CPU management port
and cannot communicate with each other . All incoming ports are selected while only the CPU
outgoing port is selected. This option is the most limiting but also the most secure.
After you make your selection, click Apply (top right of screen) to display the screens as
mentioned above. You can still customize these settings by adding/deleting incoming or
outgoing ports, but you must also click Apply at the bottom of the screen.
Incoming These are the ingress ports; an ingress port is an incoming port, that is, a port through
Outgoing These are the egress ports. An egress port is an outgoing port, that is, a port through which
Apply Click Apply to save yo ur c hange s to the Switch’s run - ti me memory. The Switch loses these
Cancel Click Cancel to begin configuring this screen afresh.
which a data packet enters. If you wish to allow two subscriber ports to talk to each other,
you must define the ingress port for both ports. The numbers in the top row denote the
incoming port for the corresponding port listed on the left (its outgoing port). CPU refers to
the Switch management port. By default it forms a VLAN with all Ethernet ports. If it does
not form a VLAN with a particular port then the Switch cannot be managed from that port.
a data packet leaves. If you wish to allow two subscriber ports to talk to each other, you
must define the egress port for both ports. CPU refers to the Switch management port. By
default it forms a VLAN with all Ethernet ports. If it does not form a VLAN with a particular
port then the Switch cannot be managed from that port.
changes if it is turned off or loses power , so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
GS3700/XGS3700 Series User’s Guide
98
CHAPTER 8
Static MAC Forward Setup
Use these screens to configure static MAC address forwarding.
8.1 Overview
This chapter discusses how to configure forwarding rules based on MAC addresses of devices on
your netw ork.
8.2 Configuring Static MAC Forwarding
A static MAC address is an address that has been manually entered in the MAC address table. Static
MAC addresses do not age out. When you set up static MAC address rules, you are setting static
MAC addresses for a port. This may reduce the need for broadcasting.
Static MAC address forwarding together with port security allows only computers in the MAC
address table on a port to access the Switch. See Chapter 17 on page 153 for more information on
port security.
Click Advanced Application > Static MAC Forwarding in the navigation panel to display the
configuration screen as shown.
Figure 58 Advanced Application > Static MAC Forwarding
GS3700/XGS3700 Series User’s Guide
99
Chapter 8 Static MAC Forward Setup
The following table describes the labels in this screen.
Table 38 Advanced Application > Static MAC Forwarding
LABEL DESCRIPTION
Active Select this check box to activate your rule. You may temporarily deactivate a rule without
Name Enter a descriptive name for identification purposes for this static MAC address forwarding
MAC Address Enter the MAC address in valid MAC address format, that is, six hexadecimal character
deleting it by clearing this check box.
rule.
pairs.
Note: Static MAC addresses do not age out.
VID Enter the VLAN identification number.
Port En ter the port where the MAC address entered in the previous field will be automatically
forwarded.
Add Click this to create a new entry or to update an existing one.
This saves your rule to the Switch’s run-time memory. The Switch loses this rule if it is
turned off or loses power, so use the Save link on the top navigation panel to save your
changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index Click an index number to modify a static MAC address rule for a port.
Active This field displays whether this static MAC address forwarding rule is active (Yes) or not
(No). You may temporarily deactivate a rule without deleting it.
Name This field displays the descriptive name for identification purposes for this static MAC
MAC Address This field displays the MAC address that will be forwarded and the VLAN identification
VID This field displays the ID number of the VLAN group.
Port This field displays the port where the MAC address shown in the next field will be
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
address-forwarding rule.
number to which the MAC address belongs.
forwarded.
GS3700/XGS3700 Series User’s Guide
100
