Zibro PH 227, P 227 user manual

P 227 - PH 227

2

5

3

4

>

1

TR

GEBRAUCHSANWEISUNG

INSTRUCCIONES DE USO

MANUEL D'UTILISATION

OPERATING MANUAL

ISTRUZIONI D’USO

GEBRUIKSAANWIJZING

KULLANIM KILAVUZU

4

22

38

54

70

88

104

2 ALLGEMEINE SICHERHEIT

Aus Sicherheitsgründen bitten wir Sie, die Bedienungsanleitung vor Inbetriebnahme sorgfältig zu lesen!
Personen, die mit der Bedienungsanleitung nicht vertraut sind, dürfen das Gerät nicht bedienen.

A. Kein beschädigtes Kabel verwenden.
B. Kabel nicht zusammendrücken oder knicken.
C. Unbedingt waagerecht aufstellen.
D. Nicht vor geöffneten Fenstern aufstellen.
E. Nicht mit Chemikalien in Kontakt bringen.
F. Nicht bei Wärmequellen aufstellen.

6 SIKKERHED GENERELT

Læs denne brugsanvisning grundigt igennem af hensyn til sikkerheden! Personer, som ikke er fortrolige med brugsanvisningens
indhold, må ikke anvende dette klimaanlæg. Vi anbefaler, at De gemmer denne brugsanvisning et sikkert sted med henblik på
senere brug.

A. Brug ikke beskadigede kabler.
B. Kabel må ikke sættes i klemme eller knækkes.
C. Anbringes på et plant gulv.
D. Må ikke anbringes ved et åbent vindue.
E. Må ikke komme i kontakt med kemikalier.
F. Må ikke anbringes ved en varmekilde.

5 MEDIDAS DE SEGURIDAD

¡Consulte atentamente el modo de empleo y preste atención a las medidas de seguridad! Aquellos que no estén
familiarizados con estas medidas de seguridad, no deben utilizar este acondicionador de aire. Aconsejamos
guardar en sitio seguro este manual para poder consultar en caso necesario.

A. No utilizar un cable deteriorado.
B. No averiar o doblar el cable.
C. Colocar en superficie llana
D. No colocar delante de ventana abierta.
E. No poner en contacto con productos químicos.
F. No poner en contacto con fuente de calor.

G. Nicht in Wasser eintauchen.
H. Kein Flüssigkeiten verschütten.
I. Keine Gegenstände in das Gerät stecken.
J. Kein Verlängerungskabel verwenden.
K. Außer Reichweite von Kindern halten.
L. Nicht selbst reparieren.

G. Må ikke sænkes ned i vand.
H. Pas på med at spilde.
I. Der må ikke stikkes noget ind i apparatet.
J. Der må ikke bruges kabeltrommel.
K. Bruges uden for børns rækkevidde.
L. De må ikke selv reparere apparatet.

G. No sumergir en líquidos.
H. No verter líquidos.
I. No introducir objetos en el aparato.
J. No utilizar cable de extensión.
K. Poner fuera del alcance de los niños.
L. No hacer reparaciones.

A

B

C

3 SÉCURITÉ GÉNÉRALE

Par mesure de sécurité, consulter attentivement ce manuel d’instructions! Les personnes qui ne sont pas famili­arisées avec ce manuel d’instructions, ne doivent pas utiliser ce climatiseur. Nous vous conseillons de ranger ce
manuel d’instructions à un endroit sûr pour pouvoir le consulter ultérieurement.

A. Ne pas utiliser de câble endommagé.
B. Ne pas serrer ou plier le câble.
C. Placer sur une surface plane.
D. Ne pas placer devant une fenêtre ouverte.
E. Ne pas mettre en contact avec des produits chimi-

ques.

F. Ne pas placer auprès d’une source de chaleur.

FIN

4 GENERAL SAFETY

YLEINEN TURVALLISUUS

Lue tämä käyttöopas turvallisuussyistä huolellisesti ennen käyttöä. Henkilöt, jotka eivät ole perehtyneet käyttö­oppaaseen, eivät saa käyttää ilmastointilaitetta. Suosittelemme käyttöoppaan säilyttämistä turvallisessa paikas­sa myöhempää käyttöä varten.

A. Älä käytä vahingoittunutta johtoa.
B. Älä kiristä tai taivuta johtoa.
C. Älä aseta laitetta epätasaiselle pinnalle.
D. Älä aseta laitetta auki olevan ikkunan eteen.
E. Älä päästä laitetta kosketuksiin kemikaalien kanssa.
F. Älä aseta laitetta lämmönlähteen lähelle.

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this
manual must not use this air conditioner. We strongly recommend keeping this manual in a safe place for futu­re reference.

G. Ne pas immerger.
H. Ne pas renverser.
I. Ne rien introduire dans l’appareil.
J. Ne pas utiliser de câble de rallonge.
K. A tenir hors de portée des enfants.
L. Ne pas réparer soi-même.

G. Älä upota laitetta veteen.
H. Älä läikytä nesteitä laitteen päälle.
I. Älä aseta mitään laitteen sisälle.
J. Älä käytä jatkojohtoa.
K. Pidä laite poissa lasten ulottuvilta.
L. Älä korjaa laitetta.

D

E

A. Do not use a damaged cable.
B. Do not clamp or bend the cable.
C. Do not place unevenly.
D. Do not place in front of an open window.
E. Do not bring in contact with chemicals.
F. Do not place near a heat source.

2

G. Do not immerse in water.
H. Do not spill.
I. Do not insert anything.
J. Do not use an extension cord.
K. Keep out of the reach of children.
L. Do not repair.

F

> SICUREZZA

G

Per motivi di sicurezza, si raccomanda di leggere attentamente il manuale prima di utilizzare l’apparecchio. Le
persone che non conoscono il funzionamento del climatizzatore non devono usarlo. Si raccomanda di riporre il
manuale in un luogo sicuro per future referenze.

A. Non usare il cavo, se danneggiato.
B. Non bloccare o piegare il cavo.
C. Collocare l’apparecchio su una superficie piana.
D. Non collocare l’apparecchio davanti alla finestra

aperta.
E. Non porlo a contatto con prodotti chimici.
F. Non posizionarlo vicino ad una fonte di calore.

G. Non immergerlo nell’acqua.
H. Non versare liquidi sull’apparecchio.
I. Non inserire alcun oggetto nell’apparecchio.
J. Non usare prolunghe.
K. Tenere l’apparecchio lontano dalla portata dei

bambini.

L. Non cercare di riparare l’apparecchio.

u GENERELL SIKKERHET

Av sikkerhetshensyn ber vi deg lese denne håndboken nøye før drift. Personer som ikke har gjort seg kjent med
denne håndboken, må ikke bruke klimaanlegget. Vi anbefaler på det sterkeste at du tar vare på denne hånd­boken, slik at du kan slå opp i den ved senere anledninger.

A. Bruk ikke en skadet ledning.
B. Klem eller bøy ikke ledningen.
C. Plasser ikke apparatet på et ujevnt underlag.
D. Plasser ikke apparatet foran et åpent vindu.
E. La ikke kjemikalier komme i berøring med apparatet.
F. Plasser ikke apparatet i nærheten av varmekilder.

H

1 VEILIGHEID ALGEMEEN

Bestudeer voor de veiligheid deze gebruiksaanwijzing zorgvuldig! Personen, die met de gebruiksaanwijzing niet
vertrouwd zijn, mogen deze airconditioner niet gebruiken. Wij raden u aan deze gebruiksaanwijzing op een vei­lige plaats te bewaren voor latere raadpleging.

A. Gebruik geen beschadigde kabel.
B. Kabel niet afklemmen of knikken.
C. Plaats op een vlakke ondergrond.
D. Niet voor een open raam plaatsen.
E. Niet met chemicaliën in contact brengen.
F. Niet bij een warmtebron plaatsen.

G. Legg aldri apparatet i vann.
H. Søl ikke væske på apparatet.
I. Før ikke noe inn i apparatet.
J. Bruk ikke skjøteledning.
K. Oppbevar apparatet utilgjengelig for barn.
L. Reparer ikke apparatet.

G. Niet onderdompelen.
H. Niets morsen.
I. Niets in het apparaat steken.
J. Geen verlengkabel gebruiken.
K. Buiten bereik van kinderen houden.
L. Niet zelf repareren.

: OGÓLNE ZASADY BEZPIECZENTWA

I

Dla własnego bezpieczeństwa przeczytaj dokładnie treść instrukcji obsługi klimatyzatora! Osobom, które nie zapoz­nały się z instrukcją obsługi niniejszego urządzenia, zabrania się z niego korzystać. Radzimy przechowywać instrukc­ję obsługi w bezpiecznym miejscu, aby w razie potrzeby móc skorzystać z niej w przyszłości.

A. Nie używać uszkodzonego przewodu zasilającego.
B. Nie uciskać ani nie zginać przewodu.
C. Urządzenie umieścić na płaskim podłożu.
D. Nie umieszczać urządzenia przed otwartym oknem.
E. Nie stosować żadnych środków chemicznych.
F. Nie umieszczać w bezpośrednim sąsiedztwie źródeł

ciepła.

G. Nie zanurzać w wodzie.
H. Nie rozlewać cieczy.
I. Nie wtykać obcych przedmiotów do aparatu.
J. Nie używać przedłużacza.
K. Trzymać z daleka od dzieci.
L. Nie próbować naprawiać klimatyzatora samodzielnie.

= ALLMÄN SÄKERHET

Av säkerhetsskäl, läs noga igenom denna bruksanvisning innan du använder enheten. Personer som inte har satt

J

sig in i denna bruksanvisning får inte använda denna luftkonditioneringsapparat. Vi rekommenderar starkt att
denna bruksanvisning förvaras på ett säkert ställe för framtida referens.

A. Använd inte en trasig sladd.
B. Sladden får inte klämmas eller böjas.
C. Får ej placeras på ojämnt underlag.
D. Får ej placeras framför ett öppet fönster.
E. Får ej komma i kontakt med kemikalier.
F. Får ej placeras nära en värmekälla.

G. Får ej sänkas ner i vatten.
H. Spill inte vätska på enheten.
I. För inte in något i enheten.
J. Använd inte en förlängningssladd.
K. Förvaras utom räckhåll för barn.
L. Reparera inte enheten.

y SPLOŠNI VARNOSTNI NASVETI

Zaradi varnosti pred uporabo naprave preberite ta varnostna navodila. Osebe, ki niso seznanjene s temi navo­dili naj te naprave ne uporabljajo. Priporočamo, da navodila shranite.

A.

Ne uporabljajte pokodovanega električnega vodnika.

B.

K

TR

L

Kabla ne prepogibajte in pazite, da ga ne priščipnete.
C. Naprava naj stjoi v vodoravnem položaju.
D. Ne postavljajte je pred odprto okno.
E. Ne izpostavljajte je kemikalijam.
F. Ne postavljajte v bližino izvora toplote.

GENEL GÜVENL‹K

Güvenlik aç›dan çal›flt›rmaya bafllamadan önce lütfen kullanma talimat›n› dikkatlice okuyunuz!
Kullanma talimat›n› bilmeyen kiflilerin aleti kullanmas› yasakt›r.

A. Hasar görmüfl kablo kullanmay›n›z.
B. Kabloyu ezmeyiniz ve katlamay›n›z.
C. Mutlaka yatay kurunuz.
D. Aç›k pencerelerin önüne kurmay›n›z.
E. Kimyasal maddelerle temas ettirmeyiniz.
F Is› kaynaklar›n bulundu¤u yerlere kurmay›n›z.

G. Ne potapljajte naprave v vodo
H. Na napravo ne zlivajte vode.
I. V napravo ne vstavljajte predmetov.
J. Ne uporabljajte električnega podaljška.
K. Napravo hranite izven dosega otrok.
L. Naprave ne popravljate sami.

G. Suya bat›rmay›n›z.
H. Üzerine s›v› dökmeyiniz.
I. Aletin içine cisim sokmay›n›z.
J. Uzat›c› kablo kullanmay›n›z.
K. Çocuklar›n eriflemeyece¤i yerelerde muhafaza ediniz.
L. Kendiniz tamir etmeyiniz.

3

IMPORTANT
COMPONENTS

1

A

Remote control

B

Control panel

C

Air outlet

4

Air inlet

E

Filter holder

6

Air filters
(activated carbon +
Bacterio-static 3M
HAF filter)

7

Air duct (2x)

8

Water drain

9

Drainage point
(PH227)

J

Handles

K

Hose connector (4x)

L

Electricity cable

M

Hose adapter (2x)

N

Wheels

O

Air inlet for air to be
cooled/filtered

P

Air exhaust for air to
be cooled/filtered

Q

Foam component

R

Water hose (PH227)

S

Hose connector

T

Hose adapter

1

P

2

TM

6

5

O

K

L

J

C

D

7

M

ST

(Optional)

1. FIRST READ THE INSTRUCTIONS.

2. IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

Q

9

8

N

L

R

4

54

Dear Sir, Madam,

Congratulations on the purchase of your Zibro air conditioner. This air conditioner has five

functions in addition to cooling the air, namely heating (for PH 227 only), air

dehumidification, circulation and filtration as well as purification of air by it’s unique

sterionizer bi-polar ionisation. The mobile air conditioner is extremely easy to operate and

move. You have acquired a high quality product that will provide you with many years of

pleasure, on condition that you use it responsibly. Reading these instructions for use before

operating your air conditioner will optimise its life span. We wish you coolness and comfort

with your Zibro air conditioner.

Yours sincerely,

PVG International B.V.

Customer service department

4

55

A SAFETY REGULATIONS

IMPORTANT

• The installation must be completely in accordance with local

G

Before connecting the device, check that:

• The connection voltage corresponds to that on the type plate.

• The socket and power supply are suitable for the device.

• The plug on the cable fits the socket.

• The device is on a stable and flat surface.

regulations, ordinances and standards.

• The device is suitable exclusively for use in dry places, indoors.

• Check the mains voltage. This device is suitable exclusively for
earthed sockets – connection voltage 230 Volt/ 50 Hz.

• The device MUST always have an earthed connection. You may
absolutely not connect the device if the power supply is not earthed.

• The plug must always be easily accessible when the device is
connected.

• Read these instructions carefully and follow the directions.

Have the electrical installation checked by a recognised expert if you are not sure
that everything is in order.

• The airconditioner is a safe device, manufactured in accordance with CE
safety standards. Nevertheless, as with every electrical device, exercise
caution when using it.

• Never cover the air inlets and outlets.

• Empty the water reservoir through the water drain 8 before moving it.
Never allow the device to come into contact with chemicals.

•

• Do not insert objects into the openings of the device.

• Never allow the device to come into contact with water. Do not spray the
device with water or submerge it as this may cause a short circuit.

• Always take the plug out of the socket before cleaning or replacing the
device or a part of the device.

• NEVER connect the device with the aid of an extension cable. If a suitable,
earthed socket is not available, have one fitted by a recognised electrician.

• Always consider the safety of children in the vicinity of this device, as with
every electrical device.

• Always have any repairs – beyond regular maintenance – carried out by a
recognised service engineer. Failure to do so may lead to invalidation of the
guarantee.

• Always take the plug out of the socket when the device is not in use.

• A damaged electricity cable may only be replaced by the supplier or an
authorised person/service point.

4

56

7654321

ATTENTION!

• Never use the device with a damaged cable or plug. Never allow the

G

cable to be pinched off or come into contact with sharp edges.

• Never seal the room in which the device is to be used completely
airtight (also not when using two air hoses). This will prevent the
occurrence of underpressure in this room. Negative pressure can
disrupt the safe operation of geysers, extractor fans, ovens, etc.

• Failure to follow the instructions may lead to invalidation of the
guarantee on the device.

• Always lift the device with two people.

B INSTALLATION

WARNING

Before using the air conditioner it should be left in an upright position

G

This unit is portable and can easily be moved from one room to another. In doing
so keep this in mind:

for at least 2 hours.

Ensure that the unit is positioned upright and on a level surface.

Place the loose filters in the filter holder.

• Take the filter holder 5 out of the air conditioner

TM

• Place the active carbon filter (black) and Bacterio-static 3M
the filter holder 5.
Place the filter holder back in the air conditioner.

•

Do not operate the unit inside the bathroom, shower, or in any other very
humid environment.

Please keep a distance of 50 cm between the unit and the wall or other
objects to ensure proper air circulation.

Insert both ends of the air exhaust hose 7 in the round connectors K. Fasten
the connectors by turning them clockwise onto the hose.

Insert round connector K in the backside of the unit 3. Fasten the other
connector K to the window air outlet M.

HAF filter in

Attach the hose connector K to air outlet 3 at the back of the unit. Lead the
hose adapter M outside and close the gap with the foam components
supplied. These may have to be cut to size.

4

57

P227 and PH227 are fitted with the EVS (Effective Ventilation System) as standard.

8

The second hose 7 must be attached in order to utilise this option. Attach the
hose connectors K and the hose adapter as described above.

ATTENTION!

The device can be used with 1 or with 2 hoses. If the device is used with

G

If use of the second hose is not possible or desired, then connecting a single hose
to the air outlet D at the back of the airconditioner will suffice for the cooling
mode.

2 hoses, it may fall into a different Energy Efficiency Class. Refer to the
technical specifications in this manual. However, using a second hose as
described can have a positive effect on the energy balance in the room
where the device is placed. Using the unit with the 2 hoses will ensure
that the unit cools in the most effective and quickest way.

Keep windows and outside doors closed as much as possible in order to
prevent the inflow of exterior air
(specifically during the use of a single hose) in order to allow the
airconditioner to function correctly must always be as cool as possible.
Leading this air through a passage or adjacent room increases the comfort
level.

. The air that is intended to enter the room

TIP!

When the device is in use in the cooling mode with two air hoses, it is

G

G

SINGLE DUCT USE P227 AND PH227.

When P227 and/or PH227 are used as single duct the “single duct back cover
plate” (see item A in picture) must be taken of

A

1

B

2

3

and 3.

The only duct now to be used is the exhaust hose. The exhaust hose must be
mounted to opening B (see picture).

prudent to lead the hoses to the outside (e.g. through a window) on the
shadow side of the building. This will cool the air that is sucked in as much
as possible. In the heating mode, the air hoses can be led out of the
building on the sunny side. The expelled air is then as warm as possible.

IMPORTANT

The flexible air exhaust hose(s) can be stretched to a length of
approximately 1200 mm. The length of these hose(s) was calculated on
the basis of the capacity of the device. The use of other hoses or
extensions may cause faults in the device. The air must be able to flow
unhindered. If this is not possible this may lead to overheating or water
condensation in the air exhaust hose 7.
This is why you must ensure that there are no kinks or sharp cor
the air hose(s). To obtain an optimum result, the air hoses must be kept
shorter than 1 metre while the airconditioner is in use.

f by unscrewing the 3 screws 1, 2

ners in

4

58

C OPERATION / REMOTE CONTROL

ATTENTION!

• Avoid the remote control from getting wet. Remove it from the unit

G

when condensation can occur.

On/off

Fan speed

Function

selector switch

Down

Ventilator speed indicator

Function indicator

Signal indicator
Clock

LCD display

Timer/Clock

Low noise

Sterionizer

Up

SterionizerTMfunction indicator
Timer setting indicator

Timer on/off

TM

Emergency on/off switch

Symbols:

Automatic
Cooling
Dehumidifying
Circulating air
Heating (only on PH 227)
High ventilator speed

verage ventilator speed

A
Low ventilator speed

Low noise indicator

Celsius / Fahrenheit control light
Temperature setting indicator

SterionizerTMfunction indicator

Multi colour light indicator

LED lamps on/off switch

G

ATTENTION!

Without the remote control, the air-conditioner can be operated by
using the button on the front of the device. In this event however,
only the automatic function can be used.

4

59

PLACING BATTERIES IN THE REMOTE CONTROL

321

Remove the battery cover by pressing the lips in and then pulling the cover
toward you. Place the new batteries as indicated (pay attention to the plus- (+)
and minus poles (-). Now replace the battery cover

.

NOTE!

Use 2 AAA (1.5 Volt) batteries. Do not use rechargeable batteries.

G

Replace batteries with new batteries of the same type when the display
becomes fuzzy or the signal deteriorates.

Push the plug into the socket.

By pressing both G and H set buttons at the same time, the display will
toggle between Celsius and Fahrenheit.

The following functions can be selected with the mode button
remote control.

Automatic regulation of ventilator speed
Cooling;
Dehumidifying;
Circulating;
Heating (PH227).

AUTOMATIC

In the automatic mode , the device will cool, dehumidify or heat depending on
the ambient temperature. When the temperature in the room changes, the mode
changes automatically in order to maintain the desired temperatur
as possible. The ventilator speed also adjusts automatically. The colour of the

1

transparent
depending on the mode.

STERIONIZER

Press Sterionizer
Positive and

/2- ring around the button on the front of the device B will change

TM

FUNCTION

TM

function to start the function and press again to stop it.

negative ions are generated in every operating mode.

e as accurately

on the

LOW NOISE BUTTON

During unit operation. Press low noise button , unit operates at low noise.
Press the button again to cancel the low noise setting and return to the previous

.

Cooling mode (blue)

setting. In low noise mode the unit will provide less cooling or heating capacity

COOLING

1

When the cooling mode is activated, the transparent
on the front of the device B emits a BLUE light.

The following settings are possible in the cooling mode:

• The ventilator speed can be adjusted by pressing the

/2- ring around the button

-button

4

60

Dehumidifying mode (yellow)

Automatic regulation of ventilator speed
High
Average
Low

• The temperature can be set between 16°C and 32°C (PH227: 16°C - 27°C) by

pressing the G and H buttons. The display on the remote control shows the
set temperature.

Whether the desired temperature can actually be reached depends on
the ambient conditions. The room temperature remaining above the set

G

DEHUMIDIFICATION

When the dehumidification mode is activated, the transparent
button on the front of the device B turns YELLOW.
The dehumidification function can be used in dif

1) All models:

Only connect the air exhaust hose 7 to the air outlet 3 and lead it outside, as
when using the device in the cooling function with a single hose. Place the hose in
such a way that the hot air is expelled outside. The device will then dehumidify
the air in the room and remove excess moisture through the air hose.

temperature is normal.

ferent ways.

1

/2- ring around the

PH227

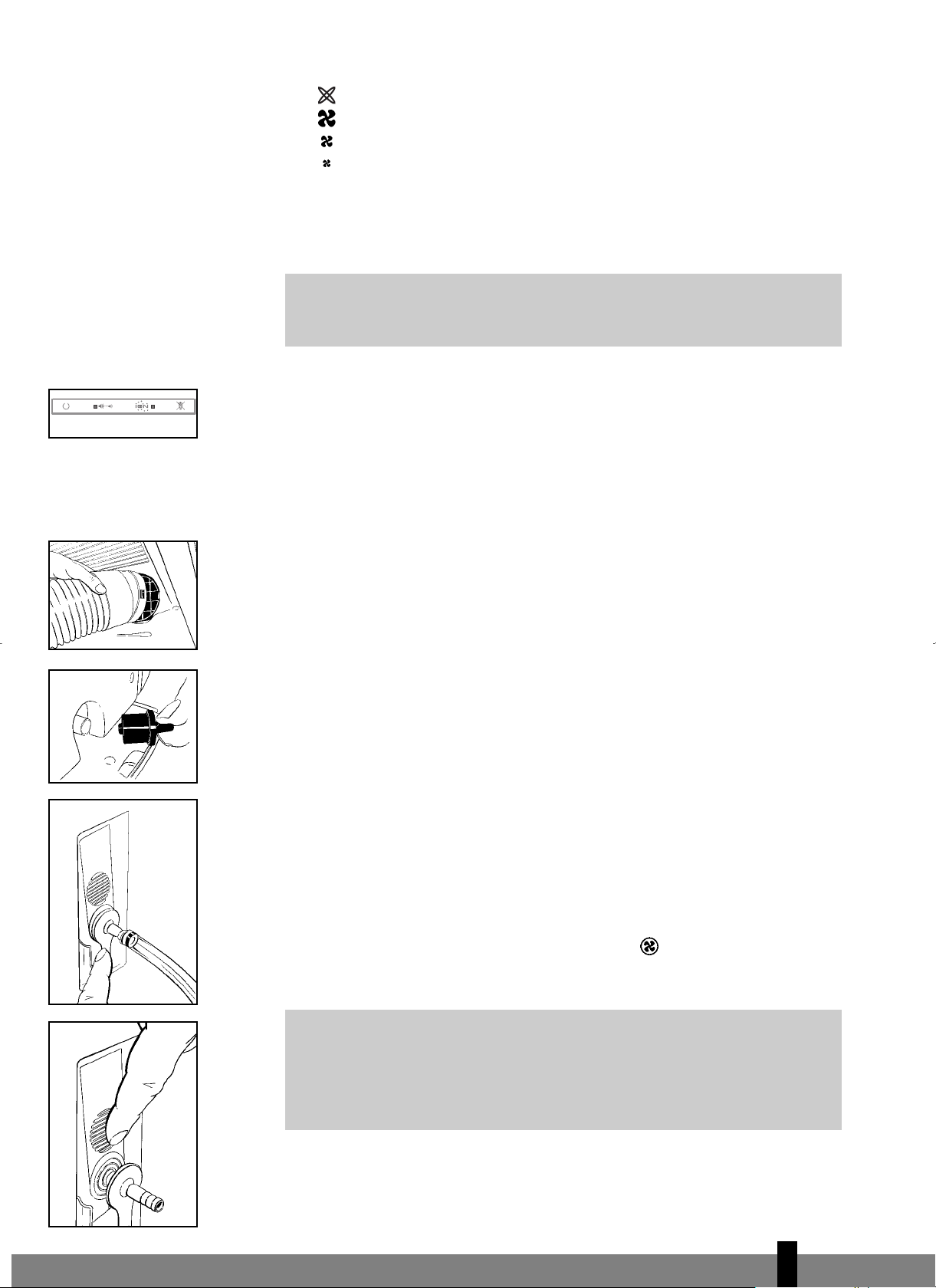

2) All models:

Do not connect the air supply nor the air exhaust hose. Remove the rubber plug
from the water drain 8 and ensure that the water can run out safely (e.g.
through a drain hole in the floor). Y
drain (see chapter F).

3) PH227:

Connect the supplied water hose R to the plug that fits into the water drain.
Lead the other end to a drain or sink and insert the plug into the water drain 8.
Do not connect both the air supply 7 and the air exhaust hose. The condensed
water will be removed through the hose. The maximum rise may be 1.5 m from
the floor on which the device is standing. Exceeding this distance may damage the
machine or cause leaks.

During the dehumidification, the ventilator speed
room temperature is below 25°C. Below 25°C the fan speed is fixed to “low”.

ATTENTION!

In the automatic mode, the condensed moisture is always removed

G

through the air exhaust hose. Removing the rubber plug from the water
drain will allow the water to drain out at this point. The water drain 8
can not be used.

ou can also connect a water hose to the water

can not be adjusted when

When the device is not being used in the (manual) dehumidification mode, the
plug must be removed from the water drain 8.

4

61

4

Fan mode (green)

27°C

16°C

Heating mode (red)

CIRCULATING

1

When the air circulation mode is switched on, the transparent
button on the front of the device B emits GREEN light. In this mode, the air is
circulated and filtered but not cooled, dehumidified or heated. In this mode, only
the ventilator speed can be adjusted by pressing the

Automatic regulation of ventilator speed
High
Medium
Low

HEATING MODE (PH227)

When the heating mode is activated, the transparent
the front of the device B emits a RED light.
The heating mode of this device works on the heat pump principle. This makes it
more ef
activated when the ambient temperature is below 27°C. Depending on the
outside temperature, the device will stop heating regularly in order to thaw ice
that has accumulated. The lower the outside temperature, the more frequently
this will occur. In this mode, the desired temperature can be set between 16 and
27°C.
When the device is in heating mode, both air hoses must be connected and led
outside.

ficient than a normal electric heater. The heating mode can only be

-button:

1

/2ring around the button on

/2ring around the

Cooling

Dehumidify

Heat

4

62

NOTE!

• To prevent damage to the device, changing from the cooling or

G

dehumidification mode to the heating mode (or the reverse) takes
two to three minutes (PH227).

TM

• When Sterionizer
are generated in every operating mode.

ADJUSTING THE TIMER

You can use the timer function to set in advance when the airconditioner is to
switch on or of

Switching off

The timer OFF function can be set when the airconditioner is switched on:

• Press button

Set the number of hours desired (1-12) with the aid of G and H

•

• Press to save

Switching on

Default temperature setting is 24°C.
The timer ON function can be set when the airconditioner is switched of
(stand-by):

• Select the desired mode and temperature

• Press button

• Set the number of hours desired (1-12) with the aid of G and H

• Press to

f.

save

function is switched on, positive and negative ions

f

You can delete the set timer function by pressing the button on the

21321

5

remote control.
When the set time is at “00”, the timer is switched off. When the Timer
function has been set the blue light in the button on the front of the device
will switch on.

ADJUSTING THE CLOCK

• Press T

and H -button. When the desired time has been set, press the Timer/Clock
button for 3 seconds again in order to save the setting. In every holding
second LCD clock display changes setting by 1 minute interval.

• Press G or H and holding more than 1 second, the LCD clock display changes

setting by 30 minutes interval.

G
G

imer/Clock button for 3 seconds. Change the time by pressing the G

TIP!

The light of the display fades when the remote control has not been
used for some time. This is reactivated when you touch any button.

ATTENTION

Avoid the remote control from getting wet. Remove it from the unit
when condensation can occur.

LAMPS ON/OFF SWITCH

Switch to on/off lights on control panel on front of unit. When lights are switched
to Off, the alarm function of the lights is still maintained.

D AIR FILTER

This airconditioner is fitted with a 3-layer filter to purify the circulating air. The
airconditioners are supplied with a separately packed Bacterio-static 3M
filter and activated carbon filter. These filters must be placed in accordance with
the instructions before the airconditioner is used.

Wire mesh filter to remove coarse dust particles.

TM

Bacterio-static 3M
animal dander and dust.

Activated carbon filter to remove odours.

The mesh filter is part of the filter holder. The filter holder can be opened. The
activated carbon filter and the Bacterio-static 3M

HAF filter to remove particles from the air such as pollen,

TM

HAF filter can be removed.

TM

HAF

The mesh filter must be cleaned regularly with a vacuum cleaner in order to
prevent blockage of the air flow.

We recommend replacing this electrostatically charged Bacterio-static 3M
HAF filter every three months.

TM

4

63

new filter recommended change of filter

54321

3

If it has become dusty, the activated carbon filter can be cleaned with a
vacuum cleaner, but it must be replaced simultaneously with the Bacterio-

TM

static 3M

Excessive dust, building work, pets, the presence of smoke and frequent use of
the device affect the lifespan of the Bacterio-static 3M
given after approximately 650 hours of operation in order to prevent you from
forgetting to replace the filter: The Low Sound light on the front of the device is
blinking. Take the following action:

Switch the unit off, but leave the mains cable in the socket.

Replace the old filters with new, original filters that are available from your
dealer;

• Remove the filter holder E from the airconditioner
Open the filter holder E, take the filter clamp of

•
remove the old filters. Place the new activated carbon filter (black) and
3M

• Fit the filter clamp back onto the holder.

• Put the filter holder E back into the airconditioner

HAF filter.

TM

HAF filter (white) in the filter holder E.

TM

HAF filter. A signal is

f the filter holder and

.

Press the LED lamps on/off switch on the front of the device
(approximately 4 seconds), until it beeps.

The indicator light is switched off.

The old filters are not chemical waste and may be thrown away in the normal
rubbish container (not biological waste).

NOTES!

• Never use the airconditioner without the mesh filter!

G

• Using the device without the activated carbon filter and/or 3M
filter will not damage the device. In this case, particles that may be
detrimental to health are not removed.

• Filter packages are available at your dealer.

• Only use suitable Zibro filters. This will prevent any damage to your
airconditioner. Using other than the original filters is entirely at the
risk of the consumer. This may have a negative effect on the
operation of the device and may result in damage. The device may
also leak water subsequent to the formation of ice.

TM

HAF

4

64

E EMPTYING THE WATER RESERVOIR

54321

54321

In extreme circumstances it may be necessary to empty the internal water

1

reservoir. When the water reservoir is full, the transparent
button on the front of the device B flashes RED. To empty the water reservoir,
take the following action:

Do not move the device. This may cause water leakage.

/2- ring around the

First switch the device of

Place a pan or container on the floor under the water drain 8.

Remove the rubber plug from the water drain 8 and let the water drain out

1 litre).

(±

Insert the rubber plug back into the water drain 8, push the plug into the
socket and switch the device on. The warning signal should now be of

NOTE!

Under normal conditions, the condensed water in the airconditioner is

G

removed via the air outlet hose.

f and remove the plug from the socket.

F CONNECTION TO A PERMANENT DRAIN

First switch the device off and pull the plug out of the socket.

f.

Place a pan or container on the ground under the water drain 8 in order to
catch any remnant water

Remove the rubber plug from the water drain 8.

Slide a water drain hose over the water drain 8.

Lead the other end of the water drain hose to suitable place (drain/sink).
Ensure that the drain hose is not twisted or kinked.

ATTENTION!

G

The hose must be descending along its entire length.

.

4

65

G MAINTENANCE

4

321

ATTENTION!

First switch the device off and pull the plug out of the socket before you

G

Use a soft, damp cloth for the regular cleaning of the exterior of the device. Never
use aggressive cleaning agents, solvents, benzene or abrasives. Refer to chapter D
“Air Filter” for filter maintenance.

clean the device or filter or when you replace the filters.

NOTE!

Never use the device without the mesh filter.

G

H STORAGE

Empty the water reservoir (see chapter E).

Clean the mesh filter (see also chapter D).

TM

• Remove the activated carbon filter and the Bacterio-static 3M
at the end of the season and only insert the new filters at the start of the
new season. The old filters are not chemical waste and may be thrown
away in the waste container (not biological waste).

• New filters are available at your dealer.

Switch the device to air circulation mode for several hours. This will
completely dry out the interior.

Protect against dust and store in a dry place that is not accessible to children.

HAF filter

4

66

I PROBLEMS AND SOLUTIONS

The device does not work
and the transparent 1/2 ­ring around the button on
the front of the device
flashes RED.

The internal water
reservoir is full.

Empty the internal water
reservoir (see chapter E).

The device does not work
and the left hand side of
the transparent 1/2 - ring
around the button on the
front of the device flashes
BLUE.

The room temperature
sensor is defective.

Consult your dealer.

The device does not work
and the right hand side of
the transparent 1/2 - ring
around the button on the
front flashes BLUE.

The temperature sensor of
the heat exchanger is
disrupted or has short
circuited.

Consult your dealer.

The device does not work. No power supply.

Insert the plug into a
socket that is live.

Standing in direct sunlight.

Move the device into the
shade.

Windows or doors are open
or there are a large
number of people or heat
sources in the room.

Close windows and/or
doors or place an extra
airconditioner.

The filter is dirty.

Clean the filter or replace it
(see chapter D).

Air inlet or exhaust is
blocked.

Remove the blockage.

The device makes a great
deal of noise.

The device is standing on
an uneven surface.

Place the device on an even
surface (less vibration).

The compressor does not
work.

The overheating safety
feature has been activated.

Wait 30 minutes until the
temperature has dropped
and then switch it on
again. Clean the filter (if
necessary).

The remote control does
not respond.

The distance is too big. The
batteries are empty.

Replace the batteries/Step
closer to unit.

The device works
insufficiently.

Problem Cause Solution

Never attempt to disassemble or repair the device. Inexpert repairs invalidate the
guarantee and can endanger the users of the device.

4

67

J GUARANTEE CONDITIONS

We provide a 24-month warranty on the airconditioner from the date of
purchase.
All material and production faults will be repaired free of charge within this
period. The following rules apply:

1. We expressly reject all other claims for damage compensation, including
consequent damage.

2. Repairs or replacements carried out during the guarantee period do not
result in an extension of the guarantee.

3. The guarantee is invalidated when changes are made, non original parts are
fitted or repairs are conducted by third parties.

4. Parts that are subject to normal wear, such as the filter, fall outside the
guarantee.

5. The guarantee is only valid if you submit the original, dated and unaltered
purchase invoice.

6. The guarantee does not apply to damage caused by actions that deviate from
the instructions or negligence.

7. The shipping costs of the airconditioner or parts and the related risk are
always borne by the purchaser.

8. Damage, caused by not using suitable Zibro filters falls outside the
guarantee.

To prevent unnecessary costs, we recommend that you always first read the
instructions carefully. If this does not provide a solution, take the airconditioner to
your dealer for repairs.

4

68

K TECHNICAL SPECIFICATIONS

P 227 PH 227

Cooling capacity* W 2700 2700

A A

2.62 2.62

W 2700

C

2.61

kW 1.03 1.03

A 5 5

230 / 50 / 1 230 / 50 / 1

m3/h

300 300

L/24h 26 26

m

3

65- 90 65 - 90

rotary rotary

type/gr R-410A / 650 R-410A / 650

°C 16 - 32 16 - 27

3 3

dB (A) 40-51 40-51

mm 436 x 745 x 390 436 x 745 x 390

kg 30

31

IP 20 IP 20

Sterionizer

TM

+ & - Ions / sec

1,0 * 10

9

1,0 * 10

9

250V, T3.15A 250V, T3.15A

Remote control

Bacterio-static 3MTMHAF filter + screen filter

Active carbon filter

Unit protection

Fuse rating

EE Class

EER*

Compressor type

Fan speed positions

Use indicatively, subject to change.

Model

Heating capacity*

Heating performance

COP*

Power consumption

Current nom.

Mains V/Hz/Ph

Air delivery max.

Dehumidification max. **

For rooms up to

Refrigerant

Thermostatic range

Noise level

Dimensions (w x h x d)

Weight

Yes Yes

Yes Yes

Yes Yes

EVS*** Yes Yes

* Conform EN 14511-2007, based on single duct use
** Moisture removal at 27°C, 60% RH
*** See chapter B

Environmental information: This equipment contains fluorinated greenhouse
gases covered by the Kyoto Protocol. It should only be serviced or dismantled by
professional trained personnel.

This equipment contains R410A refrigerant in the amount as stated in the table
above. Do not vent R410A into atmosphere: R410A, is a fluorinated greenhouse
gas with a Global W

arming Potential (GWP) = 1975.

Waste electrical products should not be disposed with household waste. Please
recycle where facilities exist. Check with your local authority or retailer for
recycling advice.

4

69

DISTRIBUTED IN EUROPE BY PVG INTERNATIONAL B.V.

i ÖSTERREICH

PVG Austria V

ertriebsgmbH
Salaberg 49
3350 HAAG
tel: [phone]
fax: [phone]
email: [e-mail]

e BELGIË

PVG Belgium NV/SA
Industrielaan 55
2900 SCHOTEN
tel:

[phone]
fax: [phone]
email: [e-mail]

q SCHWEIZ

PVG Schweiz AG
Salinenstrasse 63
4133 PRATTELN
tel:

[phone]
fax: [phone]
email: [e-mail]

2 DEUTSCHLAND

PVG Deutschland GmbH
Siemensstrasse 31
47533 KLEVE
tel:

0800 - 9427646
fax: [phone]
email: [e-mail]

4 UNITED KINGDOM

Scott Brothers Ltd.
The Old Barn, Holly House Estate
Cranage, Middlewich, CW10 9L

T UK
tel.: [phone]
fax: [phone]
email: [e-mail]

> ITALIA

PVG Italy SRL
Via Niccolò Copernico 5
50051 CASTELFIORENTINO (FI)
tel:

[phone]
fax: [phone]
email: [e-mail]

u NORGE

Appliance Norge AS
Vogellunden 31
1394 NESBRU
tel:

[phone]
fax: [phone]
email: [e-mail]

1 NEDERLAND

PVG International B.V.
P.O. Box 96
5340 AB OSS
tel: [phone]
fax: [phone]
email: [e-mail]

6 DANMARK

Appliance A/S
Gefionsvej 7
DK-3400 HILLERØD
tel: [phone]
fax: [phone]
email: [e-mail]

5 ESPAÑA

PVG España S.A.
Pol. Ind. San José de Valderas II
Comunidad ”La Alameda”
C/ Aurora Boreal, 19
28918 LEGANÉS (Madrid)
tel: [phone]
fax: [phone]
email: [e-mail]

3 FRANCE

PVG France SARL
4, Rue Jean Sibélius

. 185

B.P
76410 SOTTEVILLE SOUS LE VAL
tel: [phone]
fax: [phone]
email: [e-mail]

FFIINN

SUOMI

Appliance Finland Oy
Piispantilankuja 6C
02240 ESPOO
tel: [phone]
fax: [phone]
email: [e-mail]

9 PORTUGAL

Gardena, Lda
Recta da Granja do Marquês
ALGUEIRÃO
2725-596 MEM MARTINS
tel: + 35 21 92 28 530
fax:

+ 35 21 92 28 536
email: [e-mail]

: POLSKA

PVG Polska Sp. z. o. o.

ścielna 110

ul. Ko
26-800 Białobrzegi
tel:

[phone]
fax: [phone]
email: [e-mail]

= SVERIGE

Appliance Sweden AB
Sjögatan 6
25225 HELSINGBORG
tel: [phone]
fax:

[phone]
email: [e-mail]

y SLOVENIJA

Monteko d.o.o.
Neubergerjeva 4
1000 Ljubljana
tel: [phone]
fax: [phone]
email: [e-mail]

TTRR

TURKEY

PVG Is›tma Klima So¤utma Ltd.fiti.

Tepekule is merkezi
Anadolu Cad. No: 40 K:3 D:306
35010 BA

YRAKLI/IZMIR
tel: + 90 232 461 51 01
fax: + 90 232 461 51 85
email: [e-mail]

PVG Traffic avg©080519 man_Px2xx_1
