MC3200 INTEGRATOR
GUIDE
MN000887A03-A Dec 2018
Copyrights
The products described in this document may include copyrighted computer programs. Laws in the United States and
other countries preserve for certain exclusive rights for copyrighted computer programs. Accordingly, any
copyrighted computer programs contained in the products described in this document may not be copied or
reproduced in any manner without the express written permission.
©
2018 ZIH Corp and/or its affiliates. All rights reserved.
No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into any language
or computer language, in any form or by any means, without the prior written permission.
Furthermore, the purchase of our products shall not be deemed to grant either directly or by implication, estoppel or
otherwise, any license under the copyrights, patents or patent applications, except for the normal non-exclusive,
royalty-free license to use that arises by operation of law in the sale of a product.
Disclaimer
Please note that certain features, facilities, and capabilities described in this document may not be applicable to or
licensed for use on a particular system, or may be dependent upon the characteristics of a particular mobile subscriber
unit or configuration of certain parameters. Please refer to your contact for further information.
3 | Copyrights
Trademarks
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The Symbol logo is a registered trademark
of Symbol Technologies, Inc., a Zebra Technologies company.
Revision History
Changes to the original guide are listed below:
Change Date Description
A01 Rev. A 6/2014 Initial release.
A02 Rev. A 3/2018 Update approved cleanser active ingredients.
5 | Revision History
A03 Rev. A 12
/2018
Add boot to accessory list.
Contents
Copyrights........................................................................................................................................ 3
Revision History...............................................................................................................................5
About This Guide...........................................................................................................................13
MC32N0 Series Documentation Set................................................................................................................... 13
Configurations.....................................................................................................................................................13
Chapter Descriptions........................................................................................................................................... 15
Notational Conventions.......................................................................................................................................16
Icon Conventions.................................................................................................................................................16
Related Documents..............................................................................................................................................16
Service Information.............................................................................................................................................17
Chapter 1: Getting Started....................................................................................19
Setup....................................................................................................................................................................19
Installing a microSD Card.......................................................................................................................19
Installing the MC32N0-G Battery...........................................................................................................20
Installing the MC32N0–R/S Battery....................................................................................................... 22
Charging the Battery............................................................................................................................... 23
Resetting the Android Device............................................................................................................................. 24
Performing a Soft Reset.......................................................................................................................... 24
Performing a Hard Reset......................................................................................................................... 24
Performing an Enterprise Reset...............................................................................................................25
Performing a Factory Reset.....................................................................................................................26
Resetting the WinCE Device...............................................................................................................................27
Performing a Warm Boot........................................................................................................................ 27
Performing a Cold Boot.......................................................................................................................... 27
Contents | 7
Chapter 2: Accessories...........................................................................................29
MC32N0 Accessories..........................................................................................................................................29
Battery Adapter................................................................................................................................................... 32
Installing the Battery Adapter................................................................................................................. 32
Removing the Battery Adapter................................................................................................................33
Single Slot Serial/USB Cradle............................................................................................................................ 34
Setup........................................................................................................................................................35
Charging the MC32N0 Battery............................................................................................................... 35
Charging an MC32N0 Spare Battery...................................................................................................... 36
Battery Charging in Single Slot Serial/USB Cradle................................................................................37
Four Slot Charge Only Cradle.............................................................................................................................38
Setup........................................................................................................................................................38
Charging the MC32N0 Battery............................................................................................................... 39
Battery Charging in the Four Slot Charge Only Cradle.......................................................................... 39
Four Slot Ethernet Cradle....................................................................................................................................39
LED Indicators........................................................................................................................................ 40
CRD3X01-4001ER Setup....................................................................................................................... 40
Daisychaining Ethernet Cradles.................................................................................................. 41
Ethernet Settings on Android Devices........................................................................................ 41
Ethernet Settings on WinCE Devices..........................................................................................43
Charging the MC32N0 Battery............................................................................................................... 44
Battery Charging in the Four Slot Ethernet Cradle................................................................................. 44
Four Slot Spare Battery Charger......................................................................................................................... 44
8 | Contents
Setup........................................................................................................................................................45
Charging Spare Batteries.........................................................................................................................45
Battery Charging..................................................................................................................................... 46
Universal Battery Charger Adapter.....................................................................................................................47
Setup........................................................................................................................................................47
Charging a Spare Battery in the UBC Adapter....................................................................................... 47
UBC Adapter Battery Charging.............................................................................................................. 48
Wall Mount Bracket............................................................................................................................................ 49
Mounting a Four Slot Cradle...................................................................................................................49
MC32N0–G Handstrap Replacement..................................................................................................................50
MC32N0–S/R Handstrap Replacement...............................................................................................................52
Chapter 3: USB Communication..........................................................................55
Connecting to a Host Computer via USB........................................................................................................... 55
Connecting to the MC32N0 as a Media Device......................................................................................55
Connecting to the MC32N0 as an Installer............................................................................................. 55
Disconnect from the Host Computer...................................................................................................................56
Chapter 4: DataWedge Configuration................................................................. 57
Basic Scanning.................................................................................................................................................... 57
Using the Imager..................................................................................................................................... 57
Using the Laser Scanner..........................................................................................................................58
Profiles.................................................................................................................................................................58
Plug-ins................................................................................................................................................................59
Profiles Screen.....................................................................................................................................................60
Disabling DataWedge..............................................................................................................................61
Creating a New Profile........................................................................................................................................62
Profile Configuration...........................................................................................................................................62
Bar Code Input........................................................................................................................................ 63
MSR Input............................................................................................................................................... 69
Keystroke Output.................................................................................................................................... 70
Intent Output............................................................................................................................................70
Intent Overview...........................................................................................................................71
IP Output................................................................................................................................................. 72
Using IP Output with IPWedge...................................................................................................73
Using IP Output without IPWedge..............................................................................................74
Generating Advanced Data Formatting Rules.....................................................................................................75
Configuring ADF Plug-in........................................................................................................................75
Creating a Rule............................................................................................................................76
Defining a Rule........................................................................................................................... 76
Defining Criteria..........................................................................................................................77
Defining an Action...................................................................................................................... 78
Deleting a Rule............................................................................................................................78
Order Rules List.......................................................................................................................... 78
ADF Example..............................................................................................................................79
DataWedge Settings............................................................................................................................................ 82
Importing a Configuration File................................................................................................................82
Exporting a Configuration File................................................................................................................83
Importing a Profile File........................................................................................................................... 83
Exporting a Profile.................................................................................................................................. 83
Restoring DataWedge..............................................................................................................................84
Configuration and Profile File Management.......................................................................................................84
Programming Notes.............................................................................................................................................85
Overriding Trigger Key in an Application.............................................................................................. 85
Contents | 9
Capture Data and Taking a Photo in the Same Application....................................................................85
Disable DataWedge on MC32N0 and Mass Deploy...............................................................................85
Soft Scan Feature.....................................................................................................................................85
Chapter 5: Administrator Utilities....................................................................... 87
Required Software...............................................................................................................................................87
On-device Application Installation..................................................................................................................... 87
Multi-user/AppLock Configuration.................................................................................................................... 87
Enterprise Administrator Application................................................................................................................. 88
Creating Users......................................................................................................................................... 88
Adding Packages..................................................................................................................................... 89
Creating Groups...................................................................................................................................... 90
Creating Remote Authentication.............................................................................................................90
Save Data.................................................................................................................................................91
Exporting File..........................................................................................................................................91
Importing User List................................................................................................................................. 91
Importing Group List...............................................................................................................................92
Importing Package List........................................................................................................................... 92
Editing a User..........................................................................................................................................92
Deleting a User........................................................................................................................................92
Editing a Group....................................................................................................................................... 92
Deleting a Group..................................................................................................................................... 92
Editing a Package.................................................................................................................................... 93
Deleting a Package.................................................................................................................................. 93
MultiUser Administrator..................................................................................................................................... 93
Importing a Password..............................................................................................................................93
Disabling the Multi-user Feature.............................................................................................................94
Enabling Remote Authentication............................................................................................................ 94
Disabling Remote Authentication........................................................................................................... 95
Enabling Data Separation........................................................................................................................95
Disabling Data Separation.......................................................................................................................95
Delete User Data..................................................................................................................................... 96
Capturing a Log File................................................................................................................................96
AppLock Administrator...................................................................................................................................... 96
Enabling Application Lock..................................................................................................................... 96
Disabling Application Lock.................................................................................................................... 97
Manual File Configuration.................................................................................................................................. 97
Groups File..............................................................................................................................................98
White List File.........................................................................................................................................99
Determining Applications Installed on the Device............................................................................... 100
Package List File................................................................................................................................... 100
Secure Storage...................................................................................................................................................100
Installing a Key..................................................................................................................................... 100
Viewing Key List.................................................................................................................................. 101
Deleting a Key.......................................................................................................................................101
Volumes.................................................................................................................................................102
Creating Volume Using EFS File..............................................................................................102
Creating a Volume Manually.................................................................................................... 102
Mounting a Volume...................................................................................................................103
Listing Volumes........................................................................................................................ 103
Unmounting a Volume.............................................................................................................. 103
Deleting a Volume.....................................................................................................................103
Encrypting an SD Card..............................................................................................................103
Creating an EFS File............................................................................................................................. 103
Off-line Extraction Tool........................................................................................................................104
10 | Contents
Usage.........................................................................................................................................104
Creating an Image..................................................................................................................... 104
Mounting an Image................................................................................................................... 105
Unmounting an Image...............................................................................................................105
Chapter 6: Settings for Android Devices........................................................... 107
Location Settings...............................................................................................................................................107
Screen Unlock Settings..................................................................................................................................... 107
Single User Mode..................................................................................................................................108
Set Screen Unlock Using PIN................................................................................................... 108
Set Screen Unlock Using Password.......................................................................................... 109
Multiple User Mode.............................................................................................................................. 109
Passwords.......................................................................................................................................................... 109
Button Remapping.............................................................................................................................................109
Remapping a Button..............................................................................................................................110
Exporting a Configuration File..............................................................................................................111
Importing a Configuration File..............................................................................................................111
Creating a Remap File...........................................................................................................................112
Enable Key Wakeup..............................................................................................................................113
Accounts............................................................................................................................................................114
Language Usage................................................................................................................................................ 114
Changing the Language Setting............................................................................................................ 114
Adding Words to the Dictionary........................................................................................................... 114
Keyboard Settings............................................................................................................................................. 114
About Device.....................................................................................................................................................114
Chapter 7: Application Deployment for Android Devices............................... 117
Security..............................................................................................................................................................117
Secure Certificates.................................................................................................................................117
Installing a Secure Certificate............................................................................................................... 117
Configuring Credential Storage Settings...............................................................................................117
Development Tools........................................................................................................................................... 118
ADB USB Setup................................................................................................................................................118
Application Installation..................................................................................................................................... 119
Installing Applications Using the USB Connection..............................................................................119
Installing Applications Using the Android Debug Bridge.................................................................... 119
Installing Applications Using a microSD Card.....................................................................................120
Uninstalling an Application...................................................................................................................121
Updating the MC32N0 System......................................................................................................................... 121
Storage...............................................................................................................................................................122
Random Access Memory...................................................................................................................... 122
External Storage.................................................................................................................................... 123
Internal Storage..................................................................................................................................... 124
Enterprise Folder................................................................................................................................... 124
Application Management.................................................................................................................................. 124
Viewing Application Details.................................................................................................................125
Stopping an Application........................................................................................................................126
Changing Application Location............................................................................................................ 126
Managing Downloads............................................................................................................................127
Chapter 8: Synchronization................................................................................ 129
Installing the Sync Software..............................................................................................................................129
Mobile Computer Setup.................................................................................................................................... 129
Contents | 11
Setting Up a Connection Using ActiveSync..................................................................................................... 130
Setting Up a Connection Using WMDC........................................................................................................... 131
Setting up a Partnership.....................................................................................................................................132
Chapter 9: Settings for WinCE Devices.............................................................135
Interactive Sensor Technology Configuration.................................................................................................. 135
Display Tab........................................................................................................................................... 135
Power Management Tab........................................................................................................................135
Events Tab.............................................................................................................................................137
Sensors Tab........................................................................................................................................... 137
IST Info................................................................................................................................................. 139
Wakeup Conditions........................................................................................................................................... 139
Battery Usage Threshold Setting.......................................................................................................................140
Bluetooth Configuration Setting....................................................................................................................... 142
Sample Applications and StartUpCtl Configuration.........................................................................................142
Chapter 10: Application Deployment for Windows CE...................................145
Windows CE Flash Storage...............................................................................................................................146
Deployment....................................................................................................................................................... 148
Copying Files from a Host Computer................................................................................................... 149
ActiveSync................................................................................................................................ 149
Mass Storage............................................................................................................................. 150
Updating Images....................................................................................................................................151
OS Update Loader.....................................................................................................................151
Bootloader................................................................................................................................. 151
Creating a Splash Screen...................................................................................................................................157
Loading a Splash Screen................................................................................................................................... 157
Chapter 11: Maintenance and Troubleshooting............................................... 159
Maintaining the MC32N0................................................................................................................................. 159
Battery Safety Guidelines..................................................................................................................................159
Cleaning Instructions.........................................................................................................................................160
Cleaning the MC32N0...........................................................................................................................161
Housing..................................................................................................................................... 161
Display.......................................................................................................................................161
Camera Window........................................................................................................................161
Connector Cleaning...................................................................................................................161
Cleaning Cradle Connectors..................................................................................................................162
Troubleshooting.................................................................................................................................................162
Troubleshooting the MC32N0...............................................................................................................162
Single Slot Serial/USB Cradle Troubleshooting...................................................................................164
Four Slot Charge Only Cradle CRD3000–4000CR Troubleshooting...................................................165
Four Slot Ethernet Cradle CRD3X01–4001ER.....................................................................................166
Four Slot Battery Charger SAC7X00-4000R Troubleshooting............................................................ 166
Cables.................................................................................................................................................... 167
Chapter 12: Technical Specifications................................................................. 169
MC32N0 Technical Specifications................................................................................................................... 169
SE965 Decode Zone..............................................................................................................................172
SE4750-SR Decode Zone......................................................................................................................173
MC32N0 Connector Pin-Out.................................................................................................................174
MC32N0 Accessory Specifications...................................................................................................................175
12 | Contents
Single Slot Serial/USB Cradle CRD3000-1001R Technical Specifications.........................................175
Four Slot Charge Only Cradle CHS3000-4001CR Technical Specifications.......................................176
Four Slot Ethernet Cradle CRD30X01-4001ER Technical Specifications...........................................176
Four Slot Battery Charger SAC7X00-4000CR Technical Specifications.............................................177
Chapter 13: Keypad Remap Strings.................................................................. 179
Keypad Remap Strings......................................................................................................................................179
About This Guide
This guide provides information about using the MC32N0 Series of mobile computers and accessories.
Note: Screens and windows pictured in this guide are samples and can differ from actual screens.
MC32N0 Series Documentation Set
The documentation set for the MC32N0 Series provides information for specific user needs, and includes:
• MC32N0 Quick Start Guide - describes how to get the device up and running.
• MC32N0 Regulatory Guide - provides required regulatory information.
• MC32N0 User Guide - describes how to use the device.
• MC32N0 Integrator Guide - describes how to set up the device and accessories.
13 | About This Guide
Configurations
This guide covers the following configurations:
Configuration Radios Display Memory
MC32N0–G Standard
MC32N0–G Premium
MC32N0–R Standard
WLAN:
802.11a/b/g/n
WPAN: Bluetooth v2.1 with
EDR
WLAN:
802.11a/b/g/n
WPAN: Bluetooth v2.1 with
EDR
WLAN:
802.11a/b/g/n
WPAN: Bluetooth v2.1 with
EDR
3.0” color 512 MB RAM /
3.0” color 1 GB RAM / 4
3.0” color 512 MB RAM /
2 GB Flash
GB Flash
2 GB Flash
Data Capture
Options
Imager or laser
scanner
Imager or laser
scanner, Interactive Sensor
Technology
(IST)
Laser scanner Windows CE
Operating
System
Windows CE
7.0
Android-based,
Android OpenSource Project
4.1.1 or Windows CE 7.0
7.0
MC32N0–R Premium
WLAN:
802.11a/b/g/n
WPAN: Bluetooth v2.1 with
EDR
3.0” color 1 GB RAM / 4
GB Flash
Laser scanner,
IST
Android-based,
Android OpenSource Project
4.1.1 or Windows CE 7.0
Table continued…
14 | About This Guide
Configuration Radios Display Memory
MC32N0–S Standard
MC32N0–S Premium
WLAN:
802.11a/b/g/n
WPAN: Bluetooth v2.1 with
EDR
WLAN:
802.11a/b/g/n
WPAN: Bluetooth v2.1 with
EDR
3.0” color 512 MB RAM /
2 GB Flash
3.0” color 1 GB RAM / 4
GB Flash
Software Versions for Android
To determine the current software versions touch > About device.
• Serial number – Displays the serial number.
• Model number – Displays the model number.
• Android version – Displays the operating system version.
• Kernel version – Displays the kernel version number.
• Build number – Displays the software build number.
Data Capture
Options
Imager or laser
scanner
Imager or laser
scanner, IST
Operating
System
Windows CE
7.0
Android-based,
Android OpenSource Project
4.1.1 or Windows CE 7.0
Software Versions for WinCE
This guide covers various software configurations and references are made to operating system or software versions
for:
• OEM version
• BTExplorer version
• Fusion version.
OEM Version

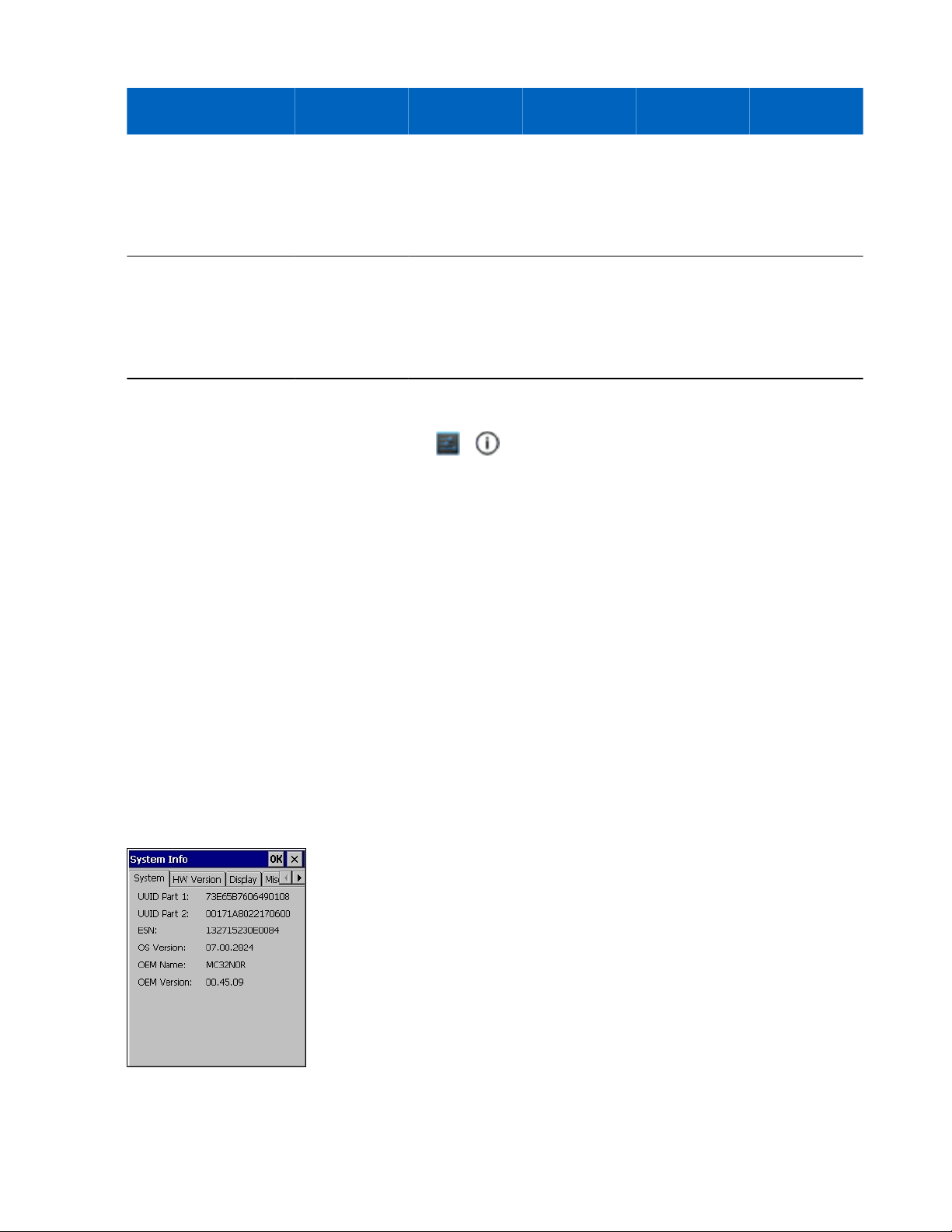

To determine the OEM software version tap Start > Settings > Control Panel > System Info icon > System tab.
Figure 1: System Info – OEM Version
About This Guide | 15
BTExplorer Software
Note: StoneStreet Bluetooth stack has to be enabled to see version number.

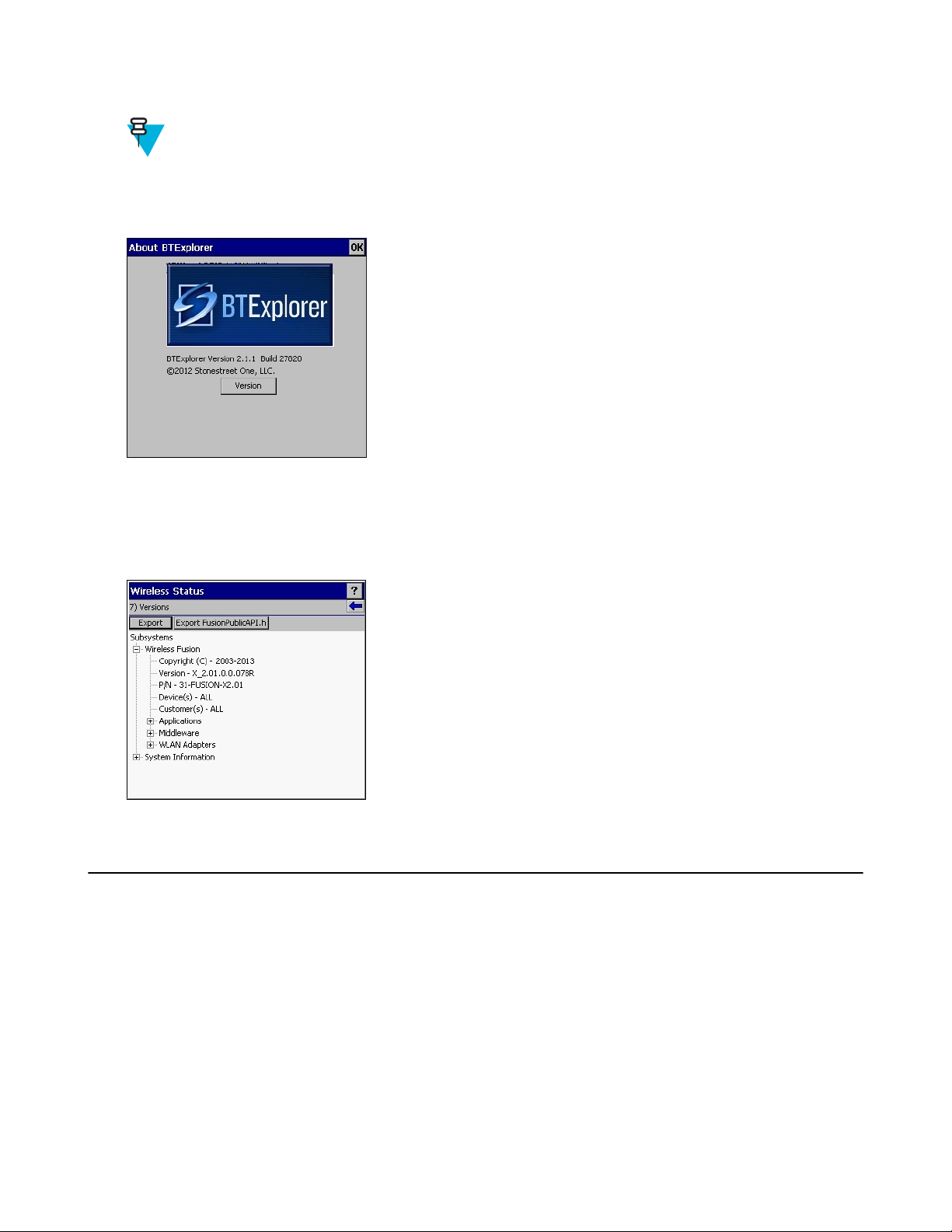

To determine the BTExplorer software version tap BTExplorer icon > Show BTExplorer > File > About.
Figure 2: BTExplorer Version
Fusion Software
To determine the Fusion software version tap Wireless Strength icon > Wireless Status > Versions.
Figure 3: Fusion Version
Chapter Descriptions
Topics covered in this guide are as follows:
• Getting Started
• Accessories on page 29 describes the available accessories and how to use them with the MC32N0.
• USB Communication on page 55 describes how to connect the MC32N0 to a host computer using USB.
• DataWedge Configuration on page 57 describes how to use and configure the DataWedge application.
• Administrator Utilities on page 87 provides information for using the suite of administrative tools for
configuring the MC32N0.
• Settings for Android Devices on page 107 provides the settings for configuring the MC32N0 with Android.
• Application Deployment for Android Devices on page 117 provides information for developing and managing
applications with Android.
on page 19 provides information on getting the MC32N0 up and running for the first time.
16 | About This Guide
• Synchronization on page 129 provides instructions on installing ActiveSync, setting up a partnership and
synchronizing information between the MC32N0 and a host computer.
• Settings for WinCE Devices
• Application Deployment for Windows CE on page 145 provides information for developing and managing
applications with WinCE.
• Maintenance and Troubleshooting on page 159 includes instructions on cleaning and storing the MC32N0, and
provides troubleshooting solutions for potential problems during MC32N0 operation.
• Technical Specifications on page 169 provides the technical specifications for the MC32N0.
on page 135 provides the settings for configuring the MC32N0 with WinCE.
Notational Conventions
The following conventions are used in this document:
• Italics are used to highlight the following:
Chapters and sections in this and related documents
-
- Icons on a screen.
• Bold text is used to highlight the following:
- Dialog box, window, and screen names
- Drop-down list and list box names
- Check box and radio button names
- Button names on a screen.
• Bullets (•) indicate:
- Action items
- Lists of alternatives
- Lists of required steps that are not necessarily sequential
• Sequential lists (for example, lists that describe step-by-step procedures) appear as numbered lists.
Icon Conventions
The documentation set is designed to give the reader more visual clues. The following graphic icons are used
throughout the documentation set. These icons and their associated meanings are described below.
Warning: The word WARNING with the associated safety icon implies information that, if disregarded,
could result in death or serious injury, or serious product damage.
Caution: The word CAUTION with the associated safety icon implies information that, if disregarded,
may result in minor or moderate injury, or serious product damage.
Note: NOTE contains information more important than the surrounding text, such as exceptions or
preconditions. They also refer the reader elsewhere for additional information, remind the reader how to
complete an action (when it is not part of the current procedure, for instance), or tell the reader where
something is located on the screen. There is no warning level associated with a note.
Related Documents
• MC32N0 Quick Start Guide, p/n MN000215Axx
• MC32N0 Regulatory Guide, p/n MN000216Axx
• MC32N0 User Guide, p/n MN000886Axx
About This Guide | 17
For the latest version of this guide and all guides, go to: http://www.zebra.com/support.
Service Information
If you have a problem with your equipment, contact Zebra Support Center for your region. Contact information is
available at: http://www.zebra.com/support.
When contacting the Zebra Support Center, please have the following information available:
Serial number of the unit (found on manufacturing label)
•
• Model number or product name (found on manufacturing label)
• Software type and version number
Figure 4: Manufacturing Label Location
Zebra responds to calls by email or telephone within the time limits set forth in support agreements.
If your problem cannot be solved by the Zebra Support Center, you may need to return your equipment for servicing
and will be given specific directions. Zebra is not responsible for any damages incurred during shipment if the
approved shipping container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your product from a Zebra business partner, contact that business partner for support.
Chapter
1
Getting Started
This chapter provides information for getting the device up and running for the first time.
Setup
To start using the MC32N0 for the first time:
Install a microSD card (optional)
•
• Install the battery
• Charge the MC32N0
• Power on the MC32N0.
19 | Getting Started
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to
the documentation provided with the card for more information, and follow the manufacturer’s recommendations for
use.
Caution: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card.
Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the
operator is properly grounded.
Note: On Android devices, after installing the microSD card, the device will automatically reset. This
ensures proper reading of the file content on the microSD card.
Procedure:
1 Remove the microSD card cover.
Figure 5: Remove microSD Card Cover
2 Slide the microSD card holder down to unlock.
20 | Getting Started
Figure 6: Unlock microSD Card Holder
3 Lift the microSD card holder.
Figure 7: Lift microSD Card Holder
4 Place the microSD card into the contact area.
Figure 8: Install microSD Card
5 Close the microSD card holder and slide the microSD card holder up to lock.
Figure 9: Lock microSD Card Holder
6 Replace the microSD card cover and ensure that it is installed properly.
Installing the MC32N0-G Battery
To install the battery:
Procedure:
1 Align the battery into the battery compartment.
Figure 10: Inserting the Battery
Getting Started | 21
2 Rotate the bottom of the bottom into the battery compartment.
3 Press battery down firmly. Ensure that both battery release buttons on the sides of the MC32N0 return to the home
position.
Figure 11: Press Battery Down
4 Press the Power button to turn on the device.
5 On WinCE device with Rev B software, after boot up the calibration screen appears. Using the stylus, touch the
targets as they appear on the screen.
22 | Getting Started
Installing the MC32N0–R/S Battery
Procedure:
1 Loosen the handstrap.
2 Align the top of the battery into the battery compartment.
Figure 12: Inserting the Battery
3 Rotate the bottom of the bottom into the battery compartment.
4 Press battery down firmly. Ensure that both battery release buttons on the sides of the MC32N0 return to the home
position.
Figure 13: Press Battery Down
5 Tighten the handstrap.
6 Press the Power button to turn on the device.
Getting Started | 23
7 On WinCE device with Rev B software, after boot up the calibration screen appears. Using the stylus, touch the
targets as they appear on the screen.
Charging the Battery
Caution: Ensure that you follow the
page 159.
Use the mobile computer cradles, cables and spare battery chargers to charge the mobile computer main battery.
The main battery can be charged before insertion into the mobile computer or after it is installed.
batteries for the MC32N0, the Standard Battery (1X) and the Extended Life Battery (2X). The standard capacity
battery ships from the factory in all MC32N0-R configurations. The Extended Life Battery ships from the factory in
all MC32N0-S and MC32N0-G configurations. To install an Extended Life Battery in the MC32N0-R configurations,
purchase an Extended Life Battery. Use one of the spare battery chargers to charge the main battery (out of the mobile
computer) or one of the cradles to charge the main battery while it is installed in the mobile computer.
Before using the mobile computer for the first time, fully charge the main battery until the amber Charge LED
Indicator remains lit (see Table 1: LED Charge Indicators on page 23 for charge status indications). The Standard
Battery fully charges in less than five hours and the Extended Life Battery fully charges in less than eight hours.
The MC32N0 retains data in memory for at least five minutes when the mobile computer’s main battery is removed
or fully discharged.
When the main battery reaches a very low battery state, the battery retains data in memory for at least 36 hours.
Batteries must be charged within the 0° to +40° C (32° to 104° F) ambient temperature range.
The following accessories can be used to charge batteries:
• Cradles (and a power supply):
- Single Slot Serial/USB Cradle with Battery Adapter
- Four Slot Cradles.
• Cables (and a power supply):
guidelines for battery safety described in Battery Safety Guidelines on
There are two main
- USB Client Charge Cable
- Serial (RS232) Charge Cable.
• Spare Battery Chargers (and a power supply):
- Four Slot Spare Battery Charger
- Universal Battery Charger (UBC) Adapter with Battery Adapter.
To charge the mobile computer using the cradles:
1. Insert the mobile computer into a cradle. See Accessories on page 29 for accessory setup.
2. The mobile computer starts to charge automatically. The amber Charge LED Indicator indicates the charge status.
See the table below for charging indications.
To charge the mobile computer using the cables:
1. Connect the MC32N0 Communication/Charge Cable to the appropriate power source and connect to the mobile
computer. See Accessories on page 29 for accessory setup.
2. The mobile computer starts to charge automatically. The amber Charge LED Indicator indicates the charge status.
Table 1: LED Charge Indicators
Status Indications
Off
MC32N0 is not charging.
Table continued…
24 | Getting Started
Status Indications
MC32N0 is not inserted correctly in the cradle.
MC32N0 is not connected to a power source.
Charger or cradle is not powered.
Slow Blinking Amber MC32N0 is charging.
Solid Amber Charging complete. Note: When the battery is initially inserted in the mobile
computer, the amber LED flashes once if the battery power is low.
Fast Blinking Amber Charging error, e.g.:
Temperature is too low or too high.
•
• Charging has gone on too long without completion (typically eight hours).
Charging Temperature
Charge batteries in ambient temperatures from 0 °C to 40 °C (32 °F to 104 °F) or up to 45 °C (113 °F) as reported by
the battery. To view the battery temperature on Android devices, touch the Battery Info icon on the Home screen or
touch > About device > Battery Information.
Note that charging is intelligently controlled by the MC32N0. To accomplish this, for small periods of time, the
MC32N0 or accessory alternately enables and disables battery charging to keep the battery at acceptable
temperatures. The MC32N0 or accessory indicates when charging is disabled due to abnormal temperatures via its
LED.
Charging Spare Batteries
See Accessories on page
29 for information on using accessories to charge spare batteries.
Resetting the Android Device
There are two reset functions, soft reset and hard reset.
Performing a Soft Reset
Perform a soft reset if applications stop responding.
Procedure:
1 Press and hold the Power button until the menu appears.
2 Touch Reset.
3 The device reboots.
Performing a Hard Reset
Note: All un-saved data is lost after performing a Hard Reset.
Perform a Hard Reset if the device stops responding. To perform a Hard Reset:
Procedure:
1 Simultaneously press the Power button, 1 and 9 keys.
Getting Started | 25
2 The device reboots.
Performing an Enterprise Reset
An Enterprise Reset erases all data in the /cache and /data partitions and clears all device settings, except those
in the /enterprise partition.
Before performing an Enterprise Reset, copy all applications and the key remap configuration file that you want to
persist after the reset into the /enterprise/usr/persist folder.
Procedure:
1 Download the Enterprise Reset file from the Zebra web site, http://www.zebra.com/support.
2 Copy the M32N0JXXRExxxxxxx.zip file to the root directory of the microSD card. See USB Communication
on page 55.
3 Press and hold the Power button until the menu appears.
4 Touch Reset.
5 On the MC32N0–G device, press and hold the Trigger button or on the MC32N0–R/S devices, press and hold the
Right Scan button..
6 When the Recovery Mode screen appears, release the button.

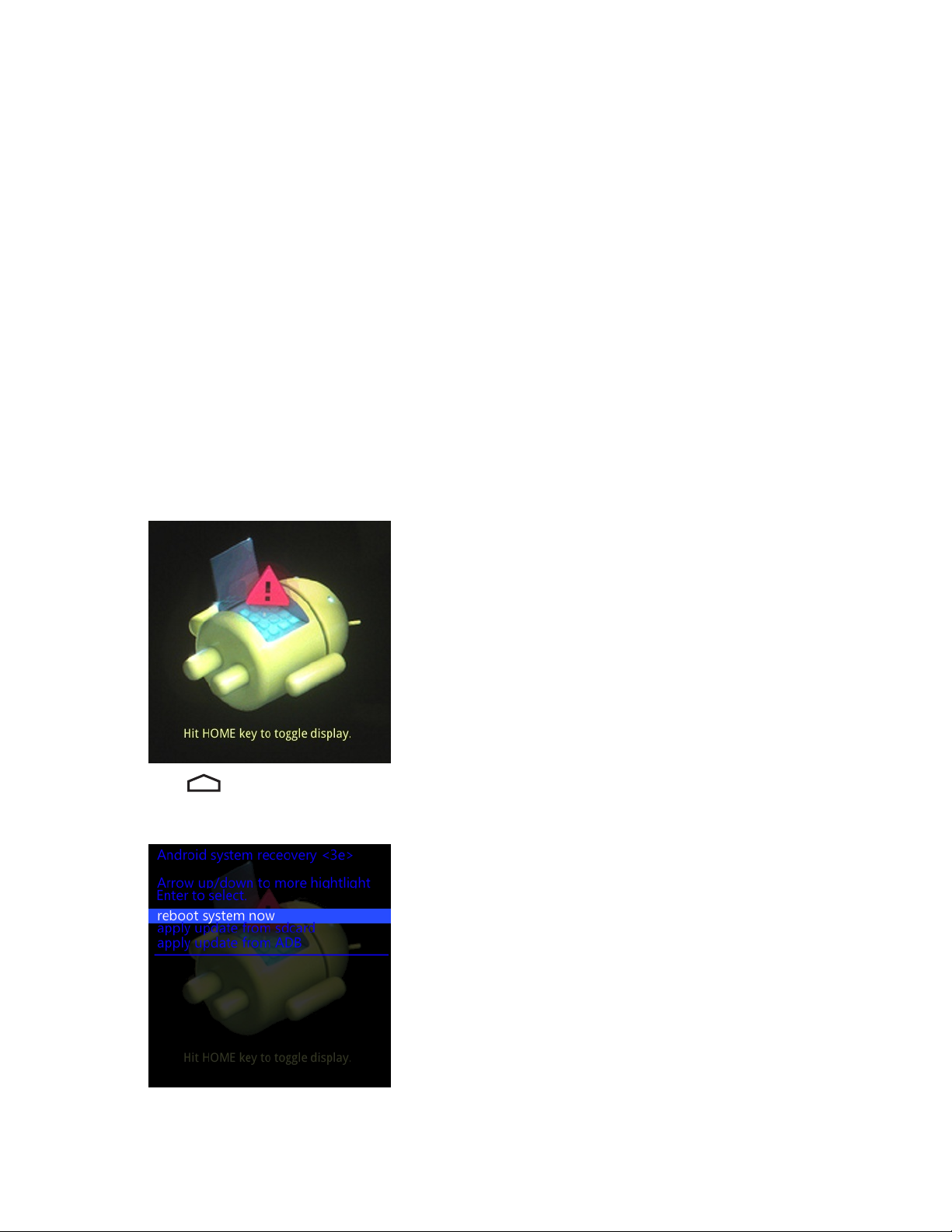

Figure 14: Recovery Mode Screen
7
Press . The System Recovery screen appears.
Figure 15: System Recovery Screen
8 Use the navigation keys to navigate to the apply update from sdcard option.
9 Press Enter.
26 | Getting Started
10 Use the navigation keys to navigate to the M32N0JXXRExxxxx.zip file.
11 Press Enter. The Enterprise Reset occurs and then the device resets.
Performing a Factory Reset
A Factory Reset erases all data in the /cache, /data and /enterprise partitions in internal storage and clears all device
settings. A Factory Reset returns the device to the last installed operating system image. To revert to a previous
operating system version, re-install that operating system image. See Updating the MC32N0 System
more information.
Procedure:
1 Download the Factory Reset file from the Zebra web site, http://www.zebra.com/support.
2 Copy the M32N0JXXRFxxxxxxx.zip file to the root directory of the microSD card. See USB Communication
on page 55.
3 Press and hold the Power button until the menu appears.
4 Touch Reset.
5 On the MC32N0–G device, press and hold the Trigger button or on the MC32N0–R/S devices, press and hold the
Right Scan button..
6 When the Recovery Mode screen appears release the button.
on page 121 for
Figure 16: Recovery Mode Screen
7
Press .
Figure 17: System Recovery Screen
8 Use the navigation keys to navigate to the apply update from sdcard option.
9 Press Enter.
Getting Started | 27
10 Use the navigation keys to navigate to the M32N0JXXRFxxxxxxx.zip file.
11 Press the Enter. The Factory Reset occurs and then the device resets.
Resetting the WinCE Device
If the MC32N0 stops responding to input, reset it. There are two reset functions, warm boot and cold boot. A warm
boot restarts the MC32N0 by closing all running programs. All data that is not saved is lost.
A cold boot also restarts the MC32N0, but erases all stored records and entries from RAM. In addition it returns
formats, preferences and other settings to the factory default settings.
Perform a warm boot first. If the MC32N0 still does not respond, perform a cold boot.
Performing a Warm Boot
Procedure:
1 Press the Power button for five seconds.
Caution: Files that remain open during a warm boot may not be retained.
2 As soon as the MC32N0 starts to boot release the Power button.
Figure 18: Splash Screen (Warm Boot)
Performing a Cold Boot
A cold boot restarts the mobile computer and erases all user stored records and entries from RAM. Never perform a
cold boot unless a warm boot does not solve the problem.
Note:
Cold boot resets the mobile computer, to the default settings. All added applications and all stored data are
removed. Do not cold boot without administrator approval.
28 | Getting Started
Note:
The Real-time clock (RTC) default time is set to 1/1/2013 12:00 AM and is retained after a cold boot. After
boot up, the MC32N0 saves the system time in persistent storage (Application folder) every 60 minutes.
If the RTC time resets to the default value due to power lost, the MC32N0 restores the time from the file in
persistence storage (Application folder). The RTC file is deleted during OSUpdate procedure.
Procedure:
1 Simultaneously press and then release the 1, 9 and Power keys. Do not hold down any other keys or buttons. As
the mobile computer initializes, the splash window appears.
Figure 19: Splash Screen (Cold Boot)
2 Calibrate the touch screen.
Chapter
2
Accessories
This chapter provides information for using the accessories for the device.
MC32N0 Accessories
The table below lists the accessories available for the MC32N0.
Table 2: MC32N0 Accessories
29 | Accessories
Accessory Part Number Description
Cradles
Single Slot Serial /USB Cradle CRD3000-1001RR Charges the MC32N0 main battery and a spare bat-
tery, and synchronizes the MC32N0 with a host
computer through either a serial or USB connection.
Four Slot Ethernet Cradle CRD3X01-4001ER Charges up to four MC32N0s and provides Ethernet
communications.
Four Slot Charge Only Cradle CHS3000-4001CR Charges up to four MC32N0s.
Chargers
Four Slot Spare Battery Charger SAC7X00-4000CR Charges up to four MC32N0 spare batteries.
Battery Adapter
Universal Battery Charger (UBC)
Base
MC3XXX Universal Battery
Charger (UBC) Adapter
ADP-MC32–CUP0-01 Allows for charging of MC32N0 batteries in the
Four Slot Spare Battery Charger, Single Slot USB
cradle and UBC Adapter (Single-pack).
ADP-MC32–CUP0-04 (4–pack).
UBC2000-I500DES Charges up to four MC32N0 spare batteries. Re-
quires UBC Adapter and Battery Adapter.
21-32665-45AR Charges a single MC32N0 battery. Requires Battery
Adapter. Use in conjunction with the UBC Base to
charge multiple batteries.
Power Supply for Single Slot Serial/USB Cradle
Power Supply for Four Slot Cradles PWRS-14000-241R Provides power to the Four Slot Charge Only and
Power Supply for Four Slot battery
Charger
PWRS-14000–148R Provides power to the Single Slot Serial/USB cradle.
Ethernet cradles.
PWRS-14000–242R Provides power to the Four Slot Spare Battery
Charger.
Table continued…
30 | Accessories
Accessory Part Number Description
Power Supply for Charging Cables PWRS-14000-249R Provides power to the Charge Only cable, RS232
Charge cable and USB Client Charge cable.
US AC Line Cord 23844-00-00R Provides power to 3–wire power supplies
PWRS-14000–148R and PWRS-14000–241R.
International AC Line Cord
US AC Line Cord 50-16000-182R Provides power to the 2-wire power supply
International AC Line Cord
50–16000–271R
50–16000–218R
50–16000–219R
50–16000–220R
50–16000–221R
50–16000–256R
50–16000–257R
50–16000–669R
50–16000–671R
50–16000–672R
50–16000–678R
50–16000–727R
50–16000–255R
50–16000–664R
Provides power to 3–wire power supplies
PWRS-14000–148R and PWRS-14000–241R.
PWRS-14000–249R.
Provides power to the 2-wire power supply
PWRS-14000–249R.
50–16000–666R
50–16000–670R
DC Line Cord 50–16002–029R Provides power from power supply to the Four Slot
Charge Only cradle and Four Slot Ethernet cradle.
Cables
Charge Only Cable 25-70103-03R Provides power to the MC32N0. Requires power
supply PWRS-14000–249R.
USB Client Charge Cable 25-67868-03R Provides USB client communication capabilities and
charges the MC32N0.
RS232 Charge Cable 25-67866-03R Provides RS232 communication capabilities and
charges the MC32N0.
Vehicle Charge Cable VCA3000–01R Changes the MC32N0 using a vehicle’s cigarette
lighter.
Zebra Printer Cable 25-91513-01R Provides printer specific communication capabili-
ties.
Single Slot Cradle RS232 Cable 25-63852-01R Provides serial host communication through the Sin-
gle Slot Serial/USB cradle.
Table continued…
