MC3000
Integrator Guide
MC3000 Mobile Computer
Integrator Guide
72E-68900-06
Revision A
April 2015
ii MC3000 Integrator Guide
© 2015 ZIH Corp.
No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means,
without permission in writing from Zebra. This includes electronic or mechanical means, such as photocopying,
recording, or information storage and retrieval systems. The material in this manual is subject to change
without notice.
The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on
a licensed basis. Zebra grants to the user a non-transferable and non-exclusive license to use each software
or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be
assigned, sublicensed, or otherwise transferred by the user without prior written consent of Zebra. No right to
copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall
not modify, merge, or incorporate any form or portion of a licensed program with other program material, create
a derivative work from a licensed program, or use a licensed program in a network without written permission
from Zebra. The user agrees to maintain Zebra’s copyright notice on the licensed programs delivered
hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not
to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any
portion thereof.
Zebra reserves the right to make changes to any software or product to improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any Zebra, intellectual
property rights. An implied license only exists for equipment, circuits, and subsystems contained in Zebra
products.
Revision History
Changes to the original manual are listed below:
Change Date Description
-01 Rev A Dec. 2004 Initial Release
-01 Rev B June 2005 Added Four Slot Ethernet cradle.
-02 Rev A November 2005 Chapter 7, removed WZC, replaced with wireless application description.
-02 Rev B June 2006 Add Direct Part Marking information, MC3090S 128 MB RAM/64 MB Flash
iii
Appendix A, added Accessory Specifications.
Global changes:
Changed Windows CE.NET 4.2 to Windows CE.NET 5.0
Removed WZC references, replaced with wireless application references.
Added 802.11a.
Page 2-9 and 2-10 added Four Slot Ethernet cradle.
configuration and update SMDK information.
-03 Rev A March 2007 Add 20-key mechanical keypad and Fusion 2.5 information.
-04 Rev A August 2007 Motorola re-branding. Operating system update: OEM Version 05.26.0000.
-05 Rev A October 2008 Add Windows Mobile 6.1 configurations.
-06 Rev A April 2015 Zebra re-branding.
iv MC3000 Integrator Guide
Table of Contents
Revision History.................................................................................................................................... iii
About This Guide
Introduction ........................................................................................................................................... xi
Documentation Set ......................................................................................................................... xi
Configurations....................................................................................................................................... xii
Software Versions........................................................................................................................... xii
Chapter Descriptions ............................................................................................................................ xv
Notational Conventions......................................................................................................................... xv
Related Documents and Software ........................................................................................................ xvi
Service Information............................................................................................................................... xvi
Chapter 1: Getting Started
Introduction .......................................................................................................................................... 1-1
Unpacking the Mobile Computer ......................................................................................................... 1-1
Accessories ......................................................................................................................................... 1-2

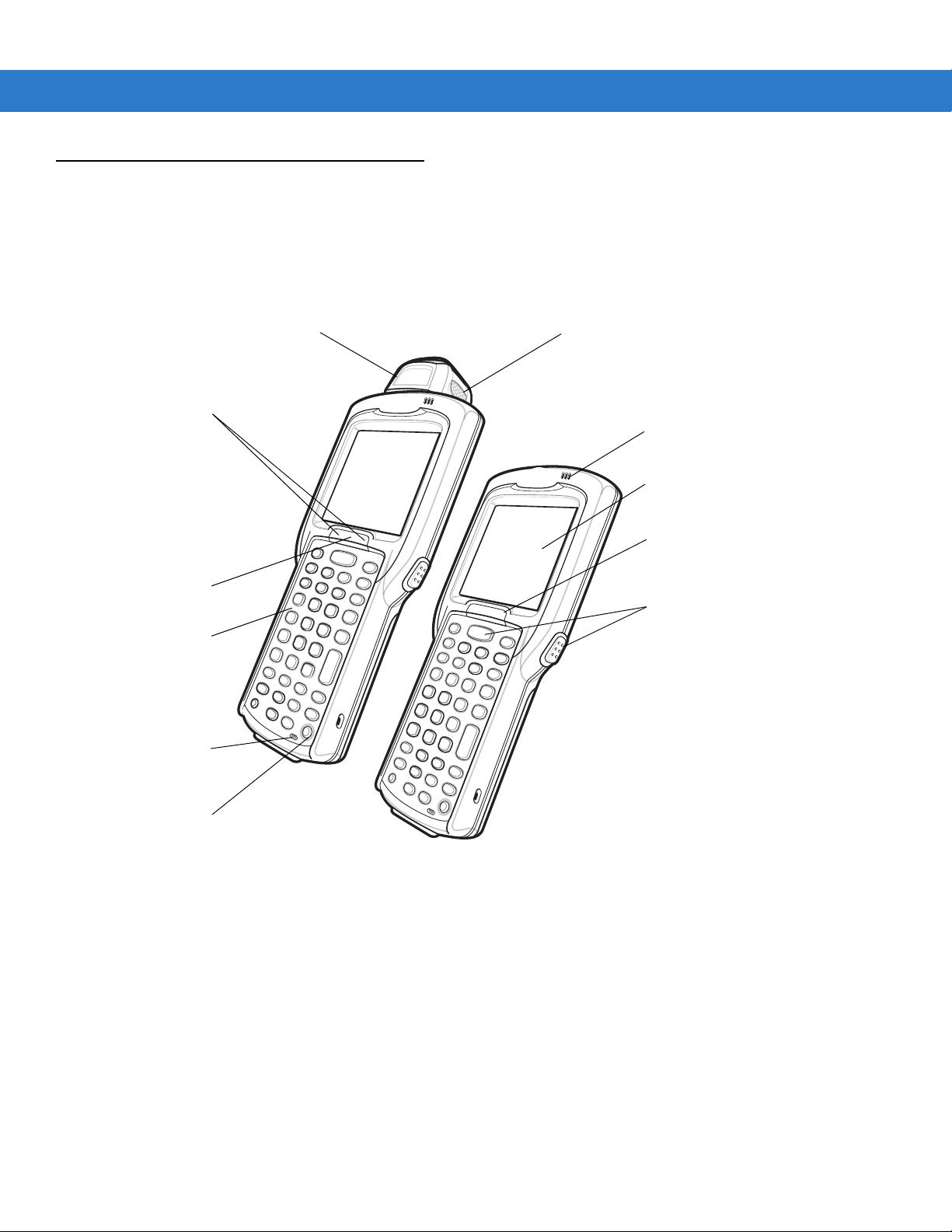

Parts .................................................................................................................................................... 1-3
Mobile Computer Startup ..................................................................................................................... 1-6
Install Main Battery ........................................................................................................................ 1-6
Battery Charging .................................................................................................................................. 1-8
Spare Battery Charging ....................................................................................................................... 1-9
Stylus ................................................................................................................................................... 1-9
Starting the Mobile Computer .............................................................................................................. 1-10
Calibration Screen ......................................................................................................................... 1-10
Resetting the Mobile Computer ........................................................................................................... 1-11
Windows CE Devices ..................................................................................................................... 1-11
Windows Mobile 6.1 Devices ......................................................................................................... 1-12
Waking the Mobile Computer .............................................................................................................. 1-13
Main Battery Removal ......................................................................................................................... 1-13
Strap/Door Assembly Removal and Replacement .............................................................................. 1-15
Strap/Door Assembly Removal and Replacement (MC3090G) ........................................................... 1-16
File System Directory Structure ........................................................................................................... 1-17
Flash Storage ...................................................................................................................................... 1-17
vi MC3000 Integrator Guide
Launching Applications ........................................................................................................................ 1-18
Chapter 2: Accessories
Introduction .......................................................................................................................................... 2-1
Cradles ........................................................................................................................................... 2-1
Spare Battery Chargers ................................................................................................................. 2-1
Cables ............................................................................................................................................ 2-1
SD Card ......................................................................................................................................... 2-1
Single Slot Serial/USB Cradle ............................................................................................................. 2-2
Setup .............................................................................................................................................. 2-3
Battery Charging ............................................................................................................................ 2-3
LED Charge Indications ................................................................................................................. 2-4
Communication Setup .................................................................................................................... 2-5
Four Slot Charge Only Cradle ............................................................................................................. 2-6
Setup .............................................................................................................................................. 2-6
Battery Charging ............................................................................................................................ 2-6
Power LED ..................................................................................................................................... 2-7
LED Charge Indications ................................................................................................................. 2-7
Four Slot Ethernet Cradle .................................................................................................................... 2-8
Setup .............................................................................................................................................. 2-8
Ethernet Cradle Drivers (Windows CE 5.0) ................................................................................... 2-8
Ethernet Cradle Drivers (Windows Mobile 6.1) .............................................................................. 2-9
Charging and Communication ....................................................................................................... 2-10
LED Charge Indications ................................................................................................................. 2-11
Speed LED ..................................................................................................................................... 2-11
Link LED ........................................................................................................................................ 2-11
Daisychaining Ethernet Cradles ..................................................................................................... 2-11
Wall Mount Bracket .............................................................................................................................. 2-13
Four Slot Spare Battery Charger ......................................................................................................... 2-16
Setup .............................................................................................................................................. 2-16
Spare Battery Charging ................................................................................................................. 2-16
LED Charge Indications ................................................................................................................. 2-17
Cables .................................................................................................................................................. 2-18
Setup .............................................................................................................................................. 2-19
Battery Charging ............................................................................................................................ 2-19
LED Charge Indications ................................................................................................................. 2-19
Communication Setup .................................................................................................................... 2-19
Universal Battery Charger (UBC) Adapter ........................................................................................... 2-20
Setup .............................................................................................................................................. 2-20
Spare Battery Charging ................................................................................................................. 2-20
UBC Adapter LED Charge Indications ........................................................................................... 2-21
Secure Device Card (Windows CE 5.0 Only) ...................................................................................... 2-23
Copy Files onto the SD Card ......................................................................................................... 2-24
Delete a File From The SD Card ................................................................................................... 2-25
Format an SD Card ........................................................................................................................ 2-25
Serial/USB Communication ................................................................................................................. 2-30
Installing Serial/USB Communication Software ................................................................................... 2-30
Communication Setup ......................................................................................................................... 2-30
Serial Communication Setup ......................................................................................................... 2-30
Table of Contents vii
Setting Up a Connection on the Mobile Computer (Windows Mobile 6.1) ..................................... 2-30
USB Connection Setup .................................................................................................................. 2-34
Cradle/Cable Setup ........................................................................................................................ 2-36
USB Host Communication Setup ......................................................................................................... 2-37
Chapter 3: ActiveSync
Introduction .......................................................................................................................................... 3-1
Installing ActiveSync ............................................................................................................................ 3-1
Mobile Computer Setup ....................................................................................................................... 3-2
Setting Up an ActiveSync Connection on the Host Computer ............................................................. 3-3
Setting up a Partnership with a Windows CE 5.0 Device .............................................................. 3-4
Synchronization with a Windows Mobile 6.1 Device ...................................................................... 3-6
Chapter 4: Application Deployment for
Windows CE 5.0
Software Installation on Development PC ........................................................................................... 4-1
Required System Configurations ......................................................................................................... 4-1
Device Configuration Package ............................................................................................................ 4-2
Components ................................................................................................................................... 4-2
Platform SDK ....................................................................................................................................... 4-3
EMDK for C .......................................................................................................................................... 4-3
Components ................................................................................................................................... 4-4
Installing Other Development Software ............................................................................................... 4-5
Software Updates ................................................................................................................................ 4-5
Deployment .......................................................................................................................................... 4-5
ActiveSync ..................................................................................................................................... 4-5
IPL .................................................................................................................................................. 4-7
Provisioning ................................................................................................................................... 4-7
SD Card (Windows CE 5.0 Only) ................................................................................................... 4-8
Creating and Loading Hex Images ...................................................................................................... 4-8
Starting Terminal Configuration Manager ...................................................................................... 4-8
Defining Script Properties .............................................................................................................. 4-10
Creating the Script for the Hex Image ............................................................................................ 4-12
Building the Image ......................................................................................................................... 4-13
Sending the Hex Image ................................................................................................................. 4-13
TCM Error Messages ..................................................................................................................... 4-18
IPL Error Detection ........................................................................................................................ 4-19
Creating a Splash Screen .............................................................................................................. 4-21
Flash Storage ................................................................................................................................. 4-22
IPL .................................................................................................................................................. 4-24
Chapter 5: Application Deployment for Windows Mobile 6.1
Introduction .......................................................................................................................................... 5-1
Application Design Considerations ...................................................................................................... 5-1
Security ................................................................................................................................................ 5-1
Application Security ....................................................................................................................... 5-1
Digital Signatures ........................................................................................................................... 5-1
viii MC3000 Integrator Guide
Device Management Security ........................................................................................................ 5-3
Remote API Security ...................................................................................................................... 5-3
Packaging ............................................................................................................................................ 5-4
Deployment .......................................................................................................................................... 5-4
Installation Using ActiveSync ......................................................................................................... 5-4
Installation Using AirBEAM ............................................................................................................ 5-4
MSP 3.X ......................................................................................................................................... 5-4
Image Update ................................................................................................................................ 5-5
Creating a Splash Screen .............................................................................................................. 5-5
XML Provisioning ................................................................................................................................. 5-6
Creating an XML Provisioning File ................................................................................................. 5-6
XML Provisioning vs. RegMerge and Copy File ............................................................................ 5-7
Storage ................................................................................................................................................ 5-8
Random Access Memory ............................................................................................................... 5-8
Persistent Storage ......................................................................................................................... 5-9
Application Folder .......................................................................................................................... 5-9
Device Configuration Manager ............................................................................................................ 5-9
File Types ...................................................................................................................................... 5-9
User Interface ................................................................................................................................ 5-9
File Deployment ............................................................................................................................. 5-11
Enterprise Mobility Developer Kits ....................................................................................................... 5-12
Chapter 6: Wireless Applications
Introduction .......................................................................................................................................... 6-1
Signal Strength Icon ............................................................................................................................ 6-2
Turning Off the Radio .......................................................................................................................... 6-3
On Device with Windows CE 5.0 (OEM Version 01.15 or lower) ................................................... 6-3
On Device with Windows CE 5.0 (OEM Version 01.16 or higher) ................................................. 6-3
On Device with Windows Mobile 6.1 .............................................................................................. 6-4
Find WLANs Application ...................................................................................................................... 6-5
Profile Editor Wizard ............................................................................................................................ 6-6
Profile ID ........................................................................................................................................ 6-6
Operating Mode ............................................................................................................................. 6-7
Ad-Hoc ........................................................................................................................................... 6-9
Authentication ................................................................................................................................ 6-9
Tunneled Authentication ................................................................................................................ 6-10
User Certificate Selection .............................................................................................................. 6-12
Server Certificate Selection ........................................................................................................... 6-13
Credential Cache Options .............................................................................................................. 6-14
Password ....................................................................................................................................... 6-17
Advanced Identity .......................................................................................................................... 6-17
Encryption ...................................................................................................................................... 6-18
Key Entry Page .............................................................................................................................. 6-20
IP Mode .......................................................................................................................................... 6-21
IP Address Entry ............................................................................................................................ 6-21
Transmit Power .............................................................................................................................. 6-23
Battery Usage ................................................................................................................................ 6-24
Manage Profiles Application .......................................................................................................... 6-25
Wireless Status Application ................................................................................................................. 6-27
Table of Contents ix
Signal Strength Window ................................................................................................................. 6-28
Current Profile Window .................................................................................................................. 6-30
IPv4 Status Window ....................................................................................................................... 6-31
Wireless Log Window .................................................................................................................... 6-32
Versions Window ........................................................................................................................... 6-33
Wireless Diagnostics Application ......................................................................................................... 6-34
ICMP Ping Window ........................................................................................................................ 6-34
Trace Route Window ..................................................................................................................... 6-35
Known APs Window ....................................................................................................................... 6-36
Options ................................................................................................................................................ 6-37
Operating Mode Filtering ............................................................................................................... 6-37
Regulatory Options ........................................................................................................................ 6-37
Band Selection ............................................................................................................................... 6-38
System Options .............................................................................................................................. 6-38
Change Password Dialog Box ....................................................................................................... 6-39
Export ............................................................................................................................................. 6-40
Cold Boot Persistence ......................................................................................................................... 6-41
Login, Log Off Application .................................................................................................................... 6-42
User Already Logged In ................................................................................................................. 6-42
No User Logged In ......................................................................................................................... 6-42
Chapter 7: Staging and Provisioning
Introduction .......................................................................................................................................... 7-1
Staging ................................................................................................................................................. 7-1
RD Client Version 1.9.0 ................................................................................................................. 7-1
RD Client Version 3.28 and above ................................................................................................. 7-4
Bar Code Scanning ........................................................................................................................ 7-4
On-Demand Staging ...................................................................................................................... 7-6
RD Client Main Menu ..................................................................................................................... 7-9
Provisioning ......................................................................................................................................... 7-13
MSP Agent ..................................................................................................................................... 7-13
AirBEAM Smart Client .................................................................................................................... 7-20
Chapter 8: Maintenance & Troubleshooting
Introduction .......................................................................................................................................... 8-1
Maintaining the Mobile Computer ........................................................................................................ 8-1
Battery Safety Guidelines .................................................................................................................... 8-1
Troubleshooting ................................................................................................................................... 8-2
Mobile Computer ............................................................................................................................ 8-2
Single Slot Serial/USB Cradle ........................................................................................................ 8-4
Four Slot Charge Only Cradle ........................................................................................................ 8-5
Four Slot Ethernet Cradle .............................................................................................................. 8-6
Four Slot Spare Battery Charger ................................................................................................... 8-6
UBC Adapter .................................................................................................................................. 8-7
Cables ............................................................................................................................................ 8-8
x MC3000 Integrator Guide
Appendix A: Technical Specifications
Mobile Computer and Accessory Technical Specifications ................................................................. A-1
Mobile Computer Pin-Outs .................................................................................................................. A-4
Laser Decode Ranges ................................................................................................................... A-6
Imager Decode Ranges ................................................................................................................. A-8
Appendix B: Internet Explorer Kiosk Mode
Introduction .......................................................................................................................................... B-1
Glossary
Index
About This Guide
Introduction
This guide provides information about setting up and configuring MC3000 mobile computers and accessories.
NOTE Screens and windows pictured in this guide are samples and may differ from actual screens.
Documentation Set
The documentation set for the MC3000 is divided into guides that provide information for specific user needs.
•
Microsoft Application Guide for Mobile and WinCE 5.0 User Guide - describes how to use Microsoft
developed applications.
•
Microsoft Application Guide for Windows Mobile 6 User Guide - describes how to use Microsoft developed
applications.
•
Application Guide for Zebra Devices - describes how to use Zebra developed applications.
•
MC3000 User Guide - describes how to use the MC3000 mobile computer.
•
MC3000 Integrator Guide - describes how to set up the MC3000 mobile computer and the accessories.
•
EMDK Help File - provides API information for writing applications.
xii MC3000 Integrator Guide
Configurations
This guide covers the following configurations:
Configuration Radios Display Memory
MC3000R None Color or
MC3090G WLAN: 802.11a/b/g
WPAN: Bluetooth
MC3090S WLAN: 802.11a/b/g
WPAN: Bluetooth
MC3090R WLAN: 802.11a/b/g
WPAN: Bluetooth
monochrome
Color or
monochrome
Color 64 MB RAM/
Color or
monochrome
Software Versions
32 MB RAM/
64 MB Flash or
64 MB RAM/
64 MB Flash
32 MB RAM/
64 MB Flash or
64 MB RAM/
64 MB Flash
64 MB Flash or
128 MB RAM/
64 MB Flash or
128 MB
RAM/64 MB
Flash + 1GB
Flash storage
32 MB RAM/
64 MB Flash or
128 MB
RAM/64 MB
Flash + 1GB
Flash storage
Data
Capture
1D laser
scanner in
rotating
turret
1D laser
scanner or
2D imager
1D laser
scanner, 2D
imager or
DPM Imager
1D laser
scanner in
rotating
turret
Operating
System
Windows
CE 5.0 Core or
Professional
Windows
CE 5.0 Core or
Professional
Windows
CE 5.0
Professional or
Windows
Mobile 6.1
Classic
Windows
CE 5.0 Core or
Professional or
Windows
Mobile 6.1
Classic
Keypads
28, 38 or 48
key
28, 38 or 48
key
28, 38, 48 key
or 20 key
Mechanical
28, 38, 48 key
or 20 key
Mechanical
This guide covers various software configurations and references are made to operating system or software
versions for:
•
Adaptation Kit Update (AKU) version
•
OEM version
•
BTExplorer version
•
Fusion version.
AKU Version for Windows Mobile 6.1 Devices

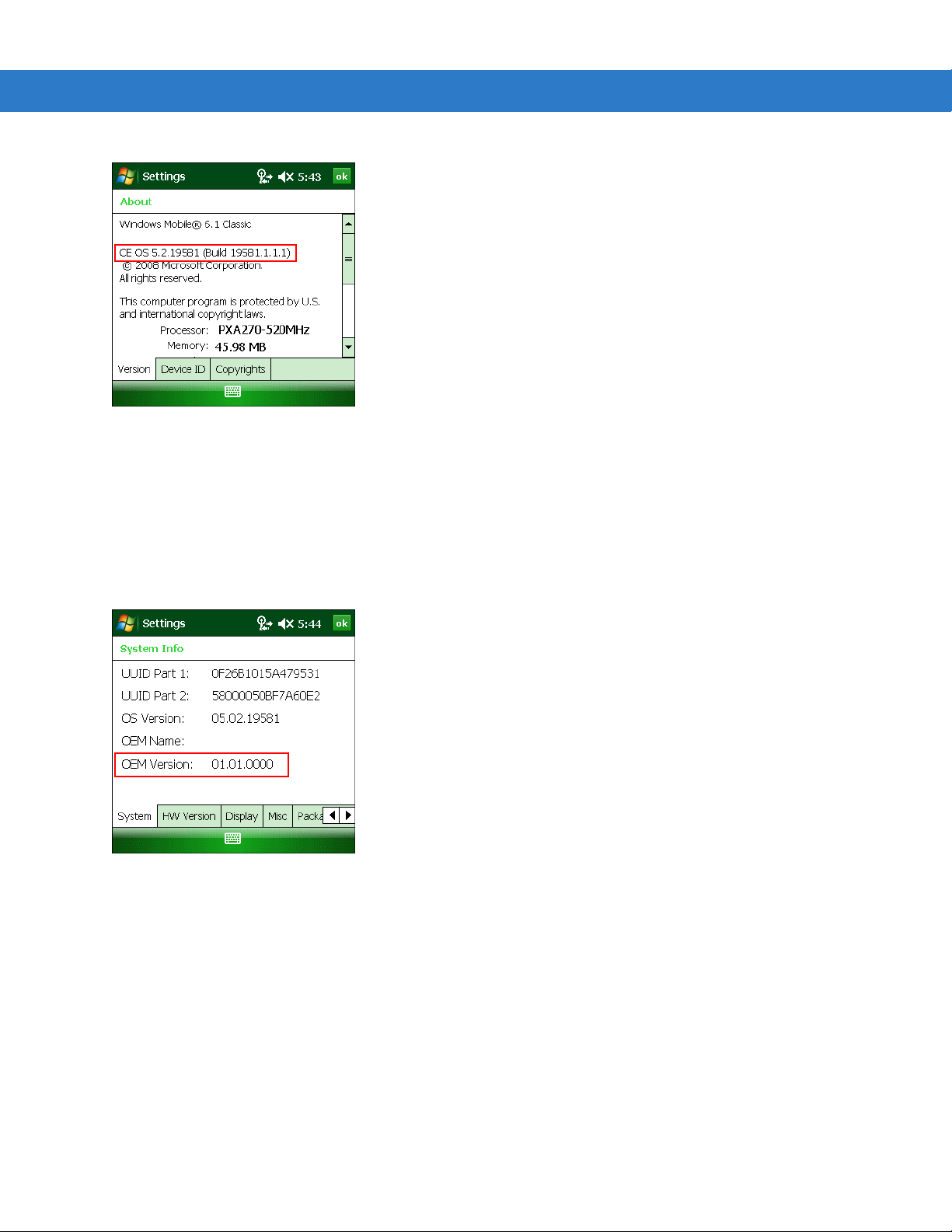

To determine the Adaptation Kit Update (AKU) version on a Windows Mobile 6.1 device:
Ta p
Start > Settings > System tab > About icon > Version tab.
About This Guide xiii
Hamptons
The second line lists the operating system version and the build number. The last part of the build number
represents the AKU number. For example, Build 119581.1.1.1 indicates that the device is running AKU version
1.1.1.
OEM Version on Windows Mobile 6.1 Devices
To determine the OEM software version on a Windows Mobile 6.1 device:
Start > Settings > System tab > System Information icon > System tab.
Ta p
OEM Software on Windows CE 5.0 Devices
To determine the OEM software version on a Windows CE 5.0 device:
Start > Settings > Control Panel > System Information icon > System tab.
Ta p
ZEBRA
xiv MC3000 Integrator Guide
MC3000C50B
BTExplorer Software
To determine the BTExplorer software version on a Windows Mobile 6.1 or Windows CE 5.0 device:
BTExplorer icon > Show BTExplorer> File > About.
Ta p
Fusion Software
To determine the Fusion software version on a Windows Mobile 6.1 or Windows CE 5.0 device:
Ta p
Wireless Strength icon > Wireless Status > Versions.
Chapter Descriptions
Topics covered in this guide are as follows:
•
Chapter 1, Getting Started, describes the mobile computer’s physical characteristics, how to install and
charge the batteries, remove and replace the Strap/Door Assembly and how to start the mobile computer for
the first time.
•
Chapter 2, Accessories, describes the accessories available including cradles, cables and spare battery
chargers. Accessory set up and use is also provided.
•
Chapter 3, ActiveSync, provides instructions on installing ActiveSync, setting up a partnership and
synchronizing information between the mobile computer and a host computer.
•
Chapter 4, Application Deployment for Windows CE 5.0, provides instructions for provisioning and deploying
applications on the MC3000 with WinCE 5.0.
•
Chapter 5, Application Deployment for Windows Mobile 6.1, provides instructions for provisioning and
deploying applications on the MC3000 with Windows Mobile 6.1.
•
Chapter 6, Wireless Applications, describes how to configure the wireless connection and how the wireless
LANs allow the mobile computers to communicate wirelessly with a host device.
About This Guide xv
•
Chapter 7, Staging and Provisioning, explains how to facilitate software downloads to a mobile device.
•
Chapter 8, Maintenance & Troubleshooting, includes instructions on cleaning and storing the mobile
computer, and provides troubleshooting solutions for potential problems during mobile computer operation.
•
Appendix A, Technical Specifications, includes a table listing the technical specifications for the mobile
computer.
•
Appendix B, Internet Explorer Kiosk Mode, provides instructions for configuring Internet Explorer’s Kiosk
mode.
Notational Conventions
The following conventions are used in this document:
•
The term “mobile computer” refers to the Zebra MC3000.
•
Italics are used to highlight the following:
• Chapters and sections in this and related documents
• Dialog box, window and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen.
•
Bold text is used to highlight the following:
• Key names on a keypad
• Button names on a screen.
xvi MC3000 Integrator Guide
•
Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential.
•
Sequential lists (e.g., those that describe step-by-step procedures) appear as numbered lists.
Related Documents and Software
The following documents provide more information about the MC3000 mobile computers.
•
MC3000 Series Quick Start Guide p/n 72-68902-xx
•
MC3090G Quick Start Guide, p/n 72-71347-xx
•
MC3000 Licensing, Patent and Regulatory Information, p/n 72-68903-xx
•
MC3000 Regulatory Guide for Windows Mobile 6, p/n 72- 72-114046-xx
•
MC3000 User Guide, p/n 72E-68899-xx
•
Application Guide for Zebra Devices, p/n 72-68901-xx
•
Microsoft® Applications for Mobile and WinCE 5.0 User Guide, p/n 72E-78456-xx
•
Microsoft® Applications for Mobile 6 User Guide, p/n 72E-108299-xx
•
Enterprise Mobility Developer Kit (EMDK) Help File, p/n 72E-38880-03
•
Windows CE Platform SDK for MC3000c50, available at: http://www.zebra.com/support
•
Enterprise Mobility Developer Kit for C (SMDK for C), available at: http://www.zebra.com/support
•
Device Configuration Package for MC3000 (DCP for MC3000), available at: http://www.zebra.com/support
•
ActiveSync software, available at: http://www.microsoft.com.
For the latest version of this guide and all guides, go to: http://www.zebra.com/support
Service Information
If you have a problem with your equipment, contact Zebra support for your region. Contact information is available
at: http://www.zebra.com/support
When contacting support, please have the following information available:
•
Serial number of the unit
.
•
Model number or product name
•
Software type and version number
Zebra responds to calls by email, telephone or fax within the time limits set forth in support agreements.
If your problem cannot be solved by Zebra Support, you may need to return your equipment for servicing and will
be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved
shipping container is not used. Shipping the units improperly can possibly void the warranty.
If you purchased your business product from a Zebra business partner, contact that business partner for support.
Chapter 1 Getting Started
Introduction
This chapter describes the mobile computer’s physical characteristics, how to install and charge the batteries, how
to remove and replace the Strap/Door Assembly and how to start the mobile computer for the first time.
Unpacking the Mobile Computer
Carefully remove all protective material from around the mobile computer and save the shipping container for later
storage and shipping. Verify that the equipment listed below is included:
•
MC3000 mobile computer
•
Strap/Door Assembly, attached to the mobile computer
•
Stylus
•
Regulatory Guide
•
Quick Start Guide (poster).
Depending on the configuration ordered, the mobile computer shipping container or additional shipping container
may include:
•
Standard Battery (lithium-polymer)
•
Extended Life Battery (lithium-ion)
•
Cable(s)
•
Power Supply
•
Cradles.
Inspect the equipment for damage. If any equipment is missing or damaged, contact Zebra Support immediately.
See page xvi for contact information.
1 - 2 MC3000 Integrator Guide
Accessories
Table 1-1 lists the MC3000 accessories.
Table 1-1 MC3000 Accessories
Accessory Description
Single Slot Serial/USB Cradle Charges the mobile computer main battery and a spare battery, and
Four Slot Charge Only Cradle Charges up to four mobile computers.
Four Slot Ethernet Cradle Charges up to four mobile computers and provides Ethernet
Four Slot Spare Battery Charger Charges up to four mobile computer spare batteries.
Power Supply Country specific and accessory specific, power supply.
USB Client Charge Cable Provides USB client communication capabilities and charges the mobile
synchronizes the mobile computer with a host computer through either a
serial or USB connection.
communications.
computer.
Serial (RS232) Charge Cable Provides RS232 communication capabilities and charges the mobile
computer.
O’Neil Printer Cable Provides printer specific communication capabilities (provided by O’Neil).
Zebra Printer Cable Provides printer specific communication capabilities (provided by Zebra).
Monarch Printer Cable Provides printer specific communication capabilities (provided by
Monarch).
Single Slot Cradle RS232 Cable Provides serial host communication capabilities and charges the mobile
computer.
Single Slot Cradle USB Cable Provides USB communication capabilities and charges the mobile
computer.
MC3000 Universal Battery Charger
Adapter (UBC)
Stylus Performs pen and mouse functions.
Plastic Holster Provides a clip on holder for the mobile computer.
Fabric Holster Provides a soft, clip on holder and a shoulder strap for the mobile
Symbol Mobility Developer Kit for C A development tool used to create native C and C++ applications for all
Adapts the UBC for use with MC3000 batteries.
computer.
Zebra mobile computers running the Microsoft Windows CE operating
system. Available at: http://www.zebra.com/support.
Device Configuration Package (DCP)
for MC3000
A development tool used to create and download hex images that
represent flash partitions to the mobile computer. Available at:
http://www.zebra.com/support.
Parts
Keypad
Indicator
LED Bar
Screen
Scan LED Indicator
(red/green)
Power
Scan Buttons
MC3000R
MC3000S
Rotating Scan
Turret
Beeper or
Receiver
(optional)
Microphone
(optional)
Scan LED
Indicators
(red/green)
Charge LED
Indicator
(amber)
Getting Started 1 - 3
There are three versions of the MC3000 mobile computers, the MC3000 1D/2D Imager (MC3000S or MC3090S),
the MC3000 Laser with Rotating Scan Turret (MC3000R or MC3090R) and the MC3090 Gun (MC3090G). For
more information on the Rotating Scan Turret, see Figure 1-3 on page 1-4.
Figure 1-1
MC3000 Imager (MC3000S) and MC3000 Laser (MC3000R) Mobile Computers (front view)
1 - 4 MC3000 Integrator Guide
Strap/Door
Assembly
Scan Window
Stylus
MC3000S
MC3000R
Latches
Strap/Door
Assembly
Screws
Stylus
Holder
Headset Jack
(optional)
Headset Jack
(optional)
Scan Window
Position Stop
Position Stop
Position Stop
Figure 1-2
Rotating Scan Turret
MC3000 Imager (MC3000S) and MC3000 Laser (MC3000R) Mobile Computers (back view)
The MC3000R mobile computer features a Rotating Scan Turret with three position stops. This feature offers
greater scanning flexibility.
Figure 1-3
Rotating Scan Turret
Getting Started 1 - 5
Keypad
Indicator LED Bar
Display
Power
Scan Button
Beeper
Trigger
Scan LED
Indicators
(red/green)
Charge LED
Indicator
(amber)
Scan LED
Indicator
(red/green)
Figure 1-4
MC3090G Mobile Computer
1 - 6 MC3000 Integrator Guide
Mobile Computer Startup
To start using the mobile computer:
•
Install the main battery.
•
Charge the main battery and the backup battery.
•
Start the mobile computer.
Install Main Battery
If the main battery is charged, the mobile computer can be used immediately. If the main battery is not charged,
see Battery Charging on page 1-8. To remove the main battery, see Main Battery Removal on page 1-13.
To install the main battery:
1. Rotate the latches to the open position.
CAUTION Do not lift up on the Latches when removing the Strap/Door Assembly. Lift up on the Hand Strap only.
2. Pull on the strap to lift the Strap/Door Assembly off, bottom first.
CAUTION On the MC3090G battery, do not remove the battery pull tab. The pull tab is for enabling easy battery
removal from the device.
3. Insert the battery into the slot, bottom first and press the battery gently into the slot. The battery clip locks the
battery into place.
4. With the latches in the open position, replace the Strap/Door Assembly, top first and press to close.
5. Rotate the latches (to the lock position) to lock the Strap/Door Assembly in place.
Getting Started 1 - 7
Battery Clip
Strap/Door
Assembly
Battery
Battery Slot
Hand Strap
Latches
5
2
0.5 in.
(12.7 mm)
3
Strap/Door
Assembly
Battery
Hand Strap
Latches
Strap/Door
Assembly
Figure 1-5
1
Main Battery Installation
Figure 1-6
Main Battery Installation (MC3090G)
1 - 8 MC3000 Integrator Guide
Battery Charging
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 8-1.
Use the mobile computer cradles, cables and spare battery chargers to charge the mobile computer main battery.
The main battery can be charged before insertion into the mobile computer or after it is installed. There are two
main batteries for the MC3000, the Standard Battery and the Extended Life Battery. Either battery can be used, but
the Extended Life Battery requires a different Strap/Door Assembly. Use one of the spare battery chargers to
charge the main battery (out of the mobile computer) or one of the cradles to charge the main battery while it is
installed in the mobile computer.
Before using the mobile computer for the first time, fully charge the main battery until the amber Charge LED
Indicator remains lit (see Table 1-2 on page 1-9 for charge status indications). The Standard Battery fully charges in
less than four hours and the Extended Life Battery fully charges in less than six hours.
The mobile computer is equipped with a memory backup battery which automatically charges from the main
battery whether or not the mobile computer is operating or is in suspend mode. The memory backup battery retains
data in memory for at least 30 minutes when the mobile computer’s main battery is removed or fully discharged.
When the mobile computer is used for the first time or after the memory backup battery has fully discharged, the
memory backup battery requires approximately 15 hours to fully charge. Do not remove the main battery from the
mobile computer for 15 hours to ensure that the memory backup battery fully charges. If the main battery is
removed from the mobile computer or the main battery is fully discharged, the memory backup battery completely
discharges in several hours.
When the main battery reaches a very low battery state, the combination of main battery and backup battery
retains data in memory for at least 72 hours.
NOTE Do not remove the main battery within the first 15 hours of use. If the main battery is removed before the
backup battery is fully charged, data may be lost.
Batteries must be charged within the 32° to 104° F (0° to +40° C) ambient temperature range.
The following accessories can be used to charge the batteries:
•
Cradles (and a power supply):
• Single Slot Serial/USB Cradle
• Four Slot Cradles.
•
Cables (and a power supply):
• USB Client Charge Cable
• Serial (RS232) Charge Cable.
•
Spare Battery Chargers (and a power supply):
• Single Slot Serial/USB Cradle
• Four Slot Spare Battery Charger
• Universal Battery Charger (UBC) Adapter.
To charge the mobile computer using the cradles:
1. Insert the mobile computer into a cradle. See Chapter 2, Accessories for accessory information.
Getting Started 1 - 9
2. The mobile computer starts to charge automatically. The amber Charge LED Indicator indicates the charge
status. See Table 1-2 on page 1-9 for charging indications.
To charge the mobile computer using the cables:
1. Connect the MC3000 Communication/Charge Cable to the appropriate power source and connect to the
mobile computer. See Chapter 2, Accessories for accessory setup.
2. The mobile computer starts to charge automatically. The amber Charge LED Indicator indicates the charge
status. See Table 1-2 on page 1-9 for charging indications.
Table 1-2 Mobile Computer LED Charge Indicators
LED Indication
Off Mobile computer not placed correctly in the cradle; cable not connected correctly;
charger is not powered.
Fast Blinking Amber Error in charging; check placement of the mobile computer.
Slow Blinking Amber Mobile computer is charging.
Solid Amber Charging complete.
Note: When the battery is initially inserted in the mobile computer, the amber LED
flashes once if the battery power is low or the battery is not fully inserted.
Spare Battery Charging
There are three accessories that can be used to charge a spare battery:
•
Single Slot Serial/USB Cradle
•
Four Slot Spare Battery Charger
•
UBC Adapter.
To charge a spare battery:
1. Connect the charging accessory to the appropriate power source. See Chapter 2, Accessories for setup
instructions.
2. Insert the spare battery into the spare battery charging slot and gently press down on the battery to ensure
proper contact.
The battery starts to charge automatically. The charge LED Indicator lights to indicates the charge status. See
Chapter 2, Accessories for charging indications. The Standard Battery usually fully charges in less than four hours
and the Extended Life Battery usually fully charges in less than six hours.
Stylus
Use the stylus to select items and enter information on the screen. The stylus functions as a pen and a mouse. Tap
the touch screen once with the stylus to select options and open menu items.
To remove the stylus, slide the stylus out of the stylus holder. To store the stylus, push the stylus back into the
stylus holder.
1 - 10 MC3000 Integrator Guide
OR
Calibration Screen Confirm Calibration
Resave Screen

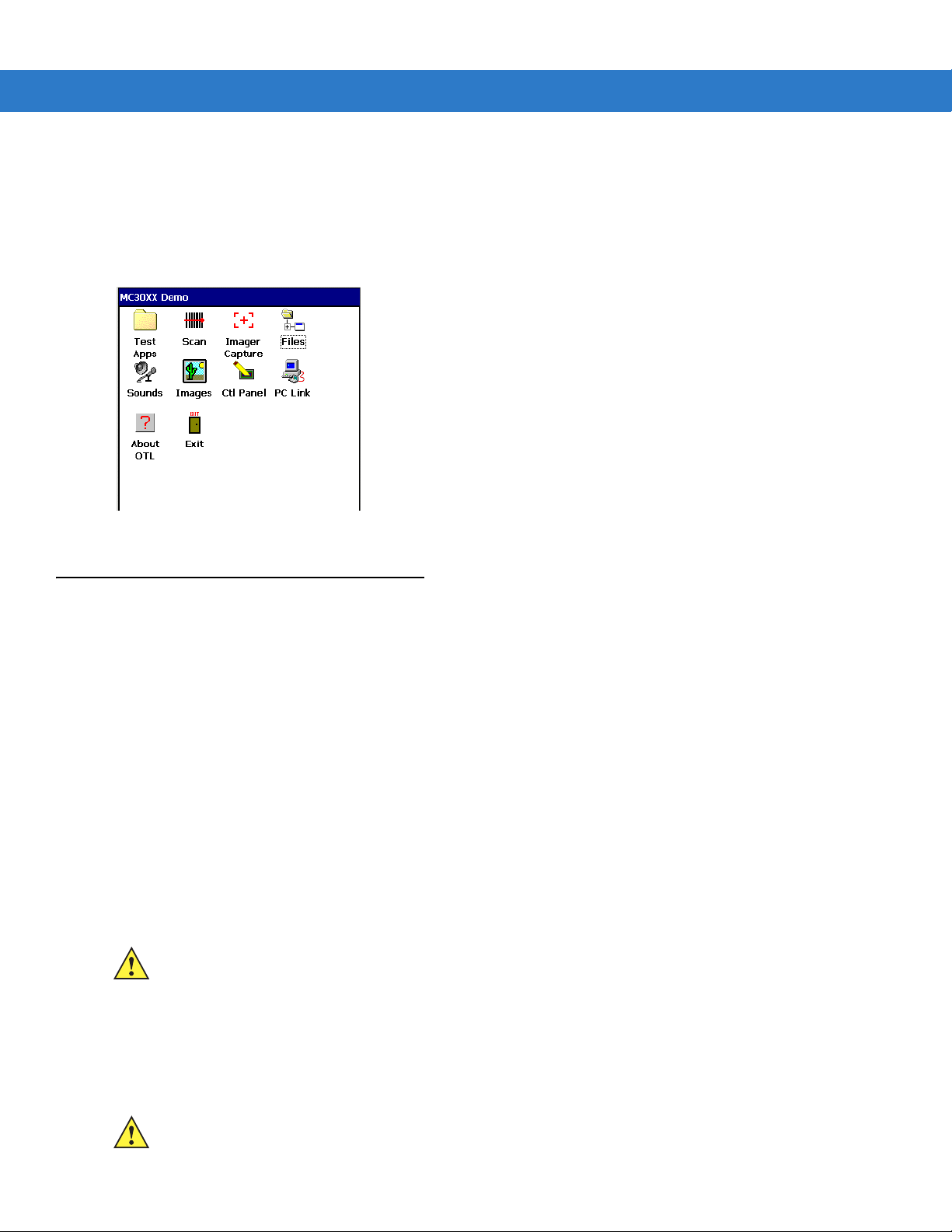

Starting the Mobile Computer
When the mobile computer is powered on for the first time, it initializes. The Zebra Splash screen appears for a
short period of time, followed by the
Calibration screen.
Figure 1-7
After the calibration procedure is performed the factory default settings launch the
specific shells may provide application specific windows instead of the
Zebra Splash Screen
Demo window. Application
Demo window. These screens also appear
when a cold boot is performed.
If the mobile computer does not power on, see Resetting the Mobile Computer on page 1-11.
Calibration Screen
Use the Calibration screen to align the touch screen:
1. Remove the stylus from the stylus holder.
2. Carefully press and briefly hold the tip of stylus on the center of the Calibration screen target. Repeat the
procedure as the target moves and stops at different locations on the screen. This enters the new calibration
settings.
Figure 1-8
3. Once all of the new calibration settings are input, the Confirm Calibration Resave screen appears. Tap the
Calibration Screen
screen within 30 seconds to save the new calibration settings or allow the 30 second timer to expire and the
new calibration settings are not saved.
Getting Started 1 - 11
Demo Window
The Demo window is the factory default menu. On initial power up (or on a warm or cold boot) the Demo window
appears. These sample/demo applications are intended to be used by application developers as application
development examples. These applications were not developed to support end users. Refer to the Zebra
Application Guide for information about the
Demo window applications.
Figure 1-9
Demo Window
Resetting the Mobile Computer
Windows CE Devices
If the mobile computer stops responding to input, reset it. There are two reset functions, warm boot and cold boot.
A warm boot restarts the mobile computer by closing all running programs. All data that is not saved is lost.
A cold boot also restarts the mobile computer, but erases all stored records and entries from RAM. In addition it
returns formats, preferences and other settings to the factory default settings.
Perform a warm boot first. If the mobile computer still does not respond, perform a cold boot.
Performing a Warm Boot
To perform a warm boot on 28, 38 and 48-key keypad configurations:
1. Press and simultaneously hold 7, 9 and Power. Do not hold down any other keys or buttons.
2. As the mobile computer initializes MC3000 demo window appears.
CAUTION Files that remain open during a warm boot may not be retained.
To perform a warm boot on 20-key keypad configurations:
1. Press and simultaneously hold the 7 and 9 keys and the press the MENU and Fn keys. Do not hold down any
other keys or buttons.
2. As the mobile computer initializes MC3000 demo window appears.
CAUTION Files that remain open during a warm boot may not be retained.
1 - 12 MC3000 Integrator Guide
Performing a Cold Boot
A cold boot restarts the mobile computer and erases all user stored records and entries from RAM. Never perform
a cold boot unless a warm boot does not solve the problem.
CAUTION Cold boot resets the mobile computer, to the default settings. All added applications and all stored data are
removed. Do not cold boot without support desk approval.
To perform a cold boot 28, 38 and 48-key keypad configurations:
1. Simultaneously press and then release the 1, 9 and Power keys. Do not hold down any other keys or buttons.
As the mobile computer initializes, the Zebra splash window, Figure 1-7 on page 1-9, appears for about a
minute.
2. Calibrate the touch screen. See Calibration Screen on page 1-10 to calibrate the mobile computer screen.
To perform a cold boot on 20-key keypad configurations:
1. Simultaneously press and then release the 1 and 9, MENU and Fn keys. Do not hold down any other keys or
buttons. As the mobile computer initializes, the Zebra splash window, Figure 1-7 on page 1-9, appears for
about a minute.
2. Calibrate the touch screen. See Calibration Screen on page 1-10 to calibrate the mobile computer screen.
Windows Mobile 6.1 Devices
There are two reset functions, warm boot and cold boot.
•
A warm boot restarts the mobile computer and closes all running programs.
•
A cold boot also restarts the mobile computer and closes all running programs but also resets the
Real-Time-Clock (RTC).
Data saved in flash memory or a memory card is not lost. Perform a warm boot first. This restarts the mobile
computer and saves all stored records and entries. If the mobile computer still does not respond, perform a cold
boot.
Performing a Warm Boot
To perform a warm boot on 28, 38 and 48-key keypad configurations:
1. Press and simultaneously hold 7, 9 and Power. Do not hold down any other keys or buttons.
2. As the mobile computer initializes Today screen appears.
Performing a Cold Boot
A cold boot restarts the mobile computer. The operating system and all applications are restarted. File storage is
preserved. The Real-Time-Clock (RTC) resets. Only perform a cold boot if a warm boot does not solve the
problem.
1. To perform a cold boot 28, 38 and 48-key keypad configurations, simultaneously press and then release the 1,
9 and Power keys. Do not hold down any other keys or buttons.
2. As the mobile computer initializes, the splash window, Figure 1-7 on page 1-9, appears for about a minute.
Loading...
