M60 Rugged 6”
IMAGE AREA
Android Handheld
Accessory Guide
One Mobile Platform.
Many Accessories.
Countless Applications.
7.5” h x 7.4”w
Apply Overlay 1 after adding picture
© 2019 ZTC AND/OR ITS AFFILIATES. ALL RIGHTS RESERVED
ACCESSORY GUIDE
INSTRUCTIONS
The M60 rugged handheld computer has a full
IMAGE AREA
line of purpose-built accessories to support a
wide variety of applications and workflows.
Use this guide to identify which accessories apply
to your needs and assemble a lineup that will
work perfectly for your unique workflow
requirements.
ZEBRA TECHNOLOGIES
7.5” h x 7.4”w
TABLET OF CONTENTS
• Docking Solutions ------------------------------------ 04
• Power ---------------------------------------------------- 06
• Input Devices ------------------------------------------ 09
• Carrying Options ------------------------------------- 12
• Other ---------------------------------------------------- 15
ZEBRA TECHNOLOGIES
M60 Rugged Handheld Computer Accessories
Docking Solutions
ZEBRA TECHNOLOGIES
4
M60 Docking Solutions
Vehicle Charge Cradle
The M60 Vehicle Charge Cradle offers a secure and
ergonomic mounting solution for the handheld device
while users are in transit. This accessory also allows for
fast device charging. Simply connect the cradle to the
cigarette lighter or USB port in the vehicle or forklift to
access a power source while the device is docked.
Key Features:
• Holds M60 Handheld securely in place
• Connection to cigarette lighter USB power
• Easily mounted in vehicles or forklifts
• Standard 90-day warranty
Part Numbers:
300145 (vehicle dock with USB cord)
ZEBRA TECHNOLOGIES
• 3rd party mounting components and mounting balls
sold separately
5
M60 Rugged Handheld Computer Accessories
Power
ZEBRA TECHNOLOGIES
6
M60 Power
Desktop Charger
The M60 Desktop Charger provides a convenient way to rapidly
recharge your handheld device after a long day in the field or on
the shop floor. Just drop the M60 into the desktop charger in your
office or at home and the battery will be back at 80% in
approximately two hours. Head back out the door with a fully
charged battery in less than five hours, even if it was completely
drained when you plugged it in.
Key Features:
• Convenient option for rapid charging the M60
• Just drop the M60 into the charger
• Charges the M60 to 80% in 2 hrs
Part Number:
450147
ZEBRA TECHNOLOGIES
• Total charge time up to 5 hrs
• LED lights indicate charge status
• 90-day warranty
7
M60 Power
M60 Replacement Battery
The M60 Replacement battery is a great investment for
organizations that want to keep the handheld device operating at
top performance levels. Over time, batteries wear down. They
are a consumable item. This replacement battery will restore
your devices to peak runtime. Battery Warranty Options may be
available. Please contact sales for more info.
Part Numbers:
450145
ZEBRA TECHNOLOGIES
8
M60 Rugged Handheld Computer Accessories
Input Devices
ZEBRA TECHNOLOGIES
9
M60 Input Devices
Barcode Scanner Module
Note: Must be ordered at
the time of tablet purchase
(factory installed)
With the single-button scan capabilities of the M60 Barcode
Scanner Module, workers will be able to exceed internal
productivity standards very quickly. Simply point and click to
scan any barcode affixed to your inventory, then watch as this
handy little handheld computer automatically populates the
applicable data fields in the enterprise application of your
choosing. No special software or app is required to take
advantage of these advanced asset tracking technologies.
This is a factory-installed option. It is not sold separately.
Key Features:
• Integrated Option to support Materials Workflows
• Easy to insert barcode scanner data into an
application
• Dedicated scan button on side of unit
• Can be used with or without handstrap
Part Numbers:
200904 (M60 with Barcode Scanner Module)
ZEBRA TECHNOLOGIES
• Optional barcode module is factory-integrated into
the back of the M60
• 1-year warranty
10
M60 Input Devices
Specifications:
Barcode Scanner Module
Note: Must be ordered at
the time of tablet purchase
(factory installed)
BARCODE SCANNER:
• Sensor
CMOS sensor with 640 x 480 pixel resolution
• Illumination & Aiming
White LED illumination; Red LED dot aimer
• Typical frame rate
30 frames per second
• Motion Tolerance
Up to 100 cm/s (4 in/s) for 13 mil UPC at optimal focus
• Field of View
Horizontal: 37.8°, Vertical: 28.8°
• Scan Angles
Tilt: 360°, Pitch: ± 45°, Skew: ± 45°
• Symbol Contrast
35% minimum print contrast ratio
• Symbologies
Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13,
EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A,
UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EANUCC Emulation
Part Numbers:
200904 (M60 with Barcode Scanner Module)
ZEBRA TECHNOLOGIES
2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) Code
Postal: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea
Post, Netherlands Post, Planet Code, Postnet
11
M60 Rugged Handheld Computer Accessories
Carrying Options
ZEBRA TECHNOLOGIES
12
M60 Carrying Options

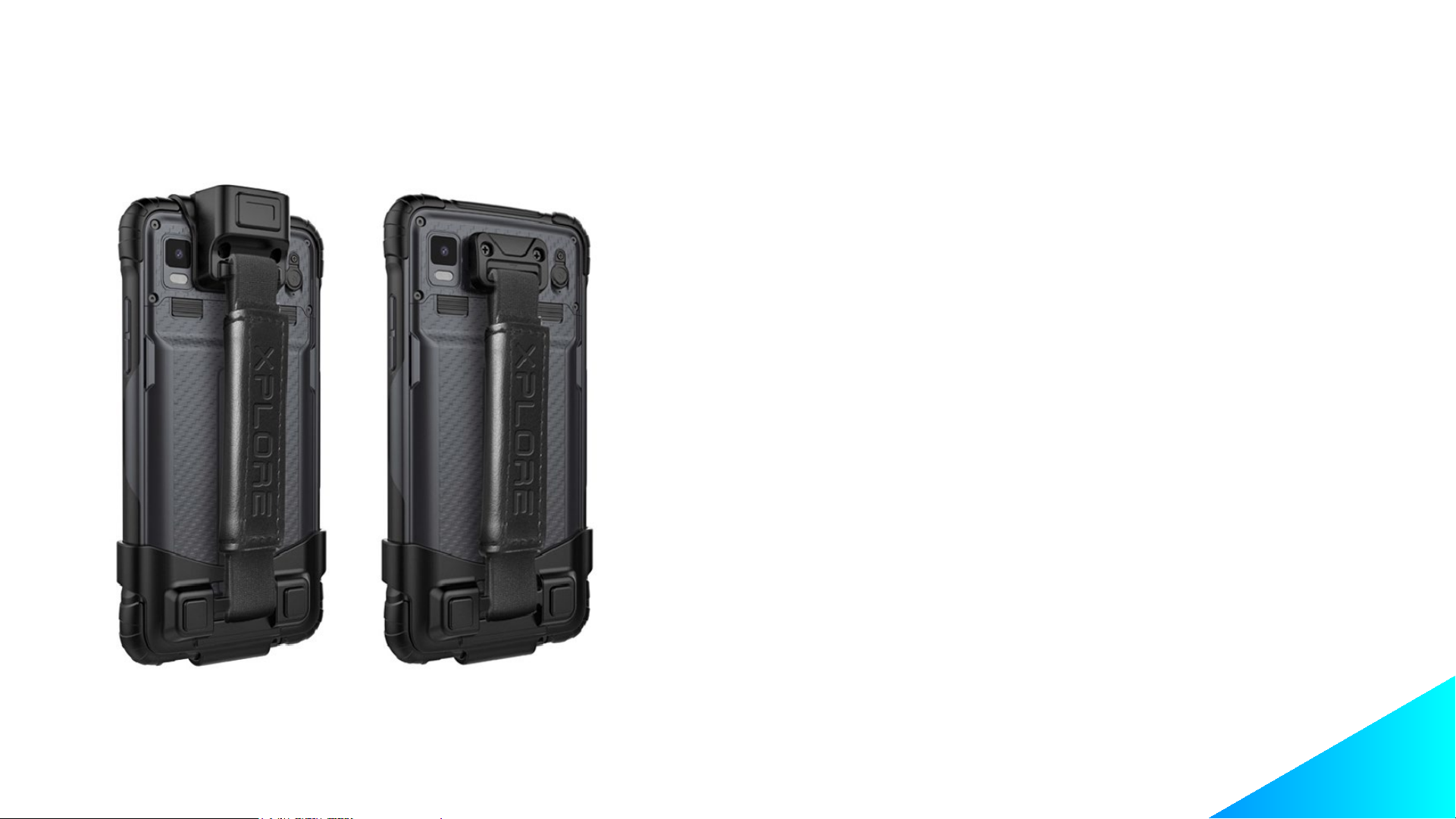

M60 Handstrap
Although the pocket-sized M60 is known for its easy-to-grip design, the
optional Handstrap improves worker comfort during long periods of use.
Just attach this lightweight nylon and leather strap to the back of the
handheld to ensure the device stays securely in hand while users are
on the move. It can be used with or without the M60’s optional built-in
barcode scanner.
Key Features:
• Enhances worker comfort for long shifts
• Lightweight elastic nylon and leather strap
• Can be used with or without optional barcode scanner
Part Number:
410049 (Handstrap)
ZEBRA TECHNOLOGIES
• 90-day warranty
13
M60 Carrying Options
M60 Belt Pouch
This lightweight Belt Pouch enables users to keep their M60 handheld
within reach at all times. Just slide the handheld into this nylon fabric
accessory to secure your pocket-sized Android device while on the
move from one job to the next.
Key Features:
• Hands-free carry option attaches easily to belt
• Comfortable black nylon fabric
• 90-day warranty
Part Number:
410051 (Belt Holster Pouch)
ZEBRA TECHNOLOGIES
14
M60 Rugged Handheld Computer Accessories
Other
ZEBRA TECHNOLOGIES
15
M60 Other Accessories

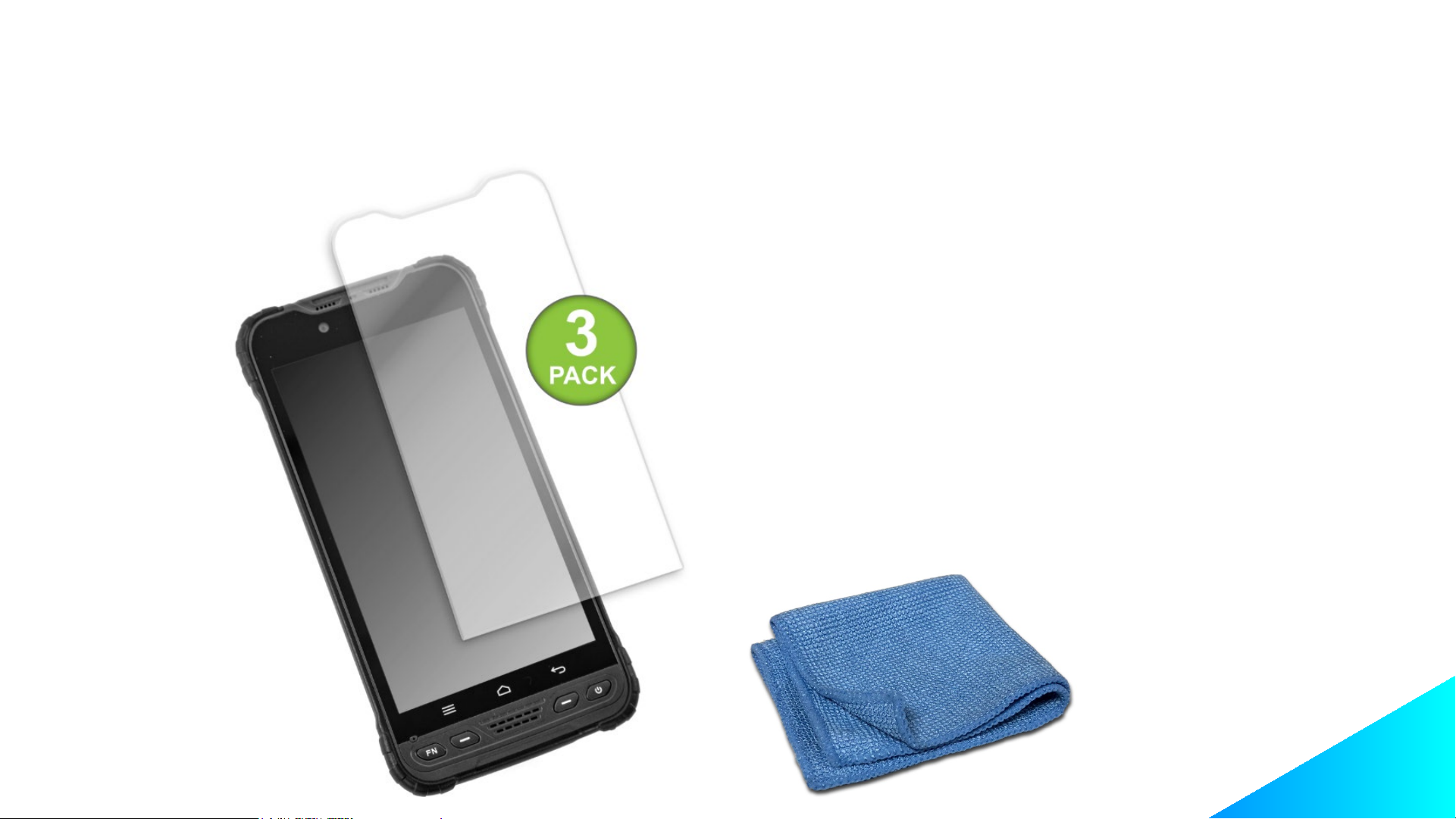

Screen Protector (3 Pack)
The M60 Screen Protector is an optically clear, thin
protective film with a coating designed to reduce
reflections. It ensures a clear, sharp display view, even in
brightly-lit conditions. The Screen Protector supports
touch screen and pen display interactions while providing
a tough barrier against everyday scratches. Also includes
a LCD Polishing Cloth to keep your display clean and
smudge free.
Key Features:
• Thin film protects screen from scratches and cracks
• Supports touch and pen interactions
• Includes screen cleaning cloth
Part Numbers:
400021 (screen protector 3 pack)
ZEBRA TECHNOLOGIES
16
M60 Other Accessories

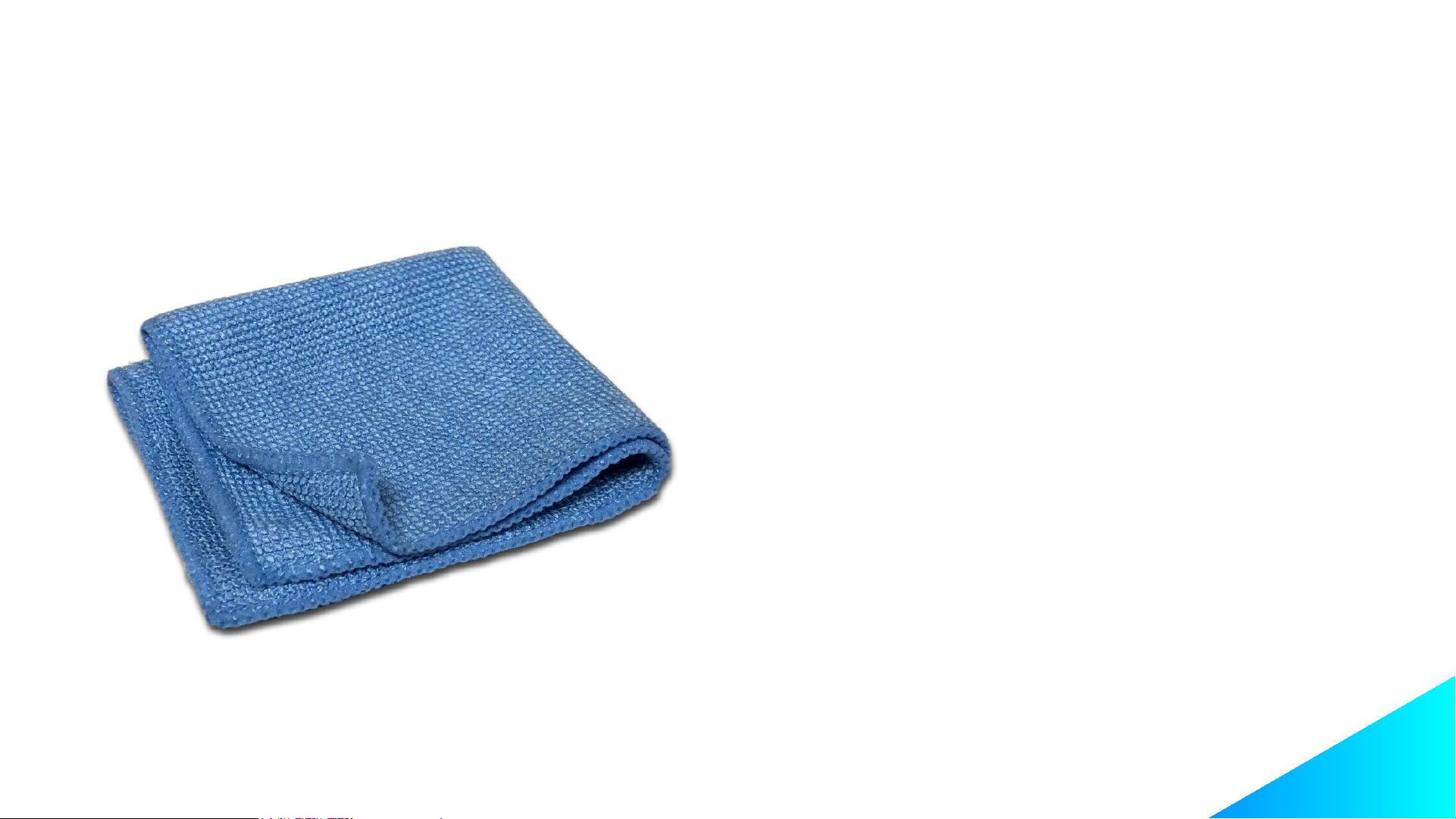

Screen Cleaning Cloth
Keep your display clean and smudge free with an
approved wiping cloth. These cloths are especially
designed to remove dirt and skin oils without damaging
the display surface.
Part Numbers:
400000 (Screen Cleaning Cloth)
ZEBRA TECHNOLOGIES
17
Contact
Zebra Technologies Corporation
3 Overlook Point
Lincolnshire, IL 60069
www.zebra.com
www.xploretech.com
ZEBRA and the stylized Zebra head are trademarks of ZIH Corp, registered in many
jurisdictions worldwide. All other trademarks are the property of their respective owners.
© 2019 ZTC AND/OR ITS AFFILIATES. ALL RIGHTS RESERVED
18
