Introduction
The FLB3508/3578 cordless scanner cradle acts as a stand, host communication
interface and charger for the LS3578 cordless scanner. It attaches to a mounting
bracket using three isolators. The bracket is then mounted on the forklift surface.
The FLB3578 cradle receives data from the scanner via a Bluetooth radio, and sends
that data to the host through an attached cable. The cradle also charges the scanner’s
internal battery pack when the scanner is inserted. A portable power supply on the
forklift supplies power to the cradle.
This document provides basic instructions on setting up and using the cradle.
CAUTION
cradles. LS3578 cordless scanners are incompatible with FLB3408/3478
cradles.
Equipment Supplied
The cradle package includes:
• Cradle
• Mounting bracket with isolators
• Three 8-32 x 1.5" Philips head screws (for attaching cradle to mounting bracket).
Accessories
The following equipment may be needed:
• Four 1/4-20 screws, minimum length 1.0" (for fastening bracket to mounting
surface).
Save the shipping container for storing or shipping. Inspect all equipment for damage. If
anything is damaged or missing, call an authorized Zebra business Support Center
immediately.
Related Documentation
LS3578 Product Reference Guide, p/n 72-93911-xx.
LS3578 Quick Start Guide, p/n 72-93587-xx.
This documentation is available at: http://www.zebra.com/support.
LS3478 cordless scanners are incompatible with FLB3508/3578
4 FLB3508/3578 Cradle
Mounting
Screw Hole
(2)
Charging/
Communication
Contacts
Latch
Pairing
Bar Code
Mounting
Screw Hole
Power Cable
Groove
Mounting
Screw Hole
Cable
Hook
Power Port
Host Port
Host Cable
Groove
Mounting
Screw Hole
Converter
Knob
Latch
Back
Front
LED
Cradle Parts

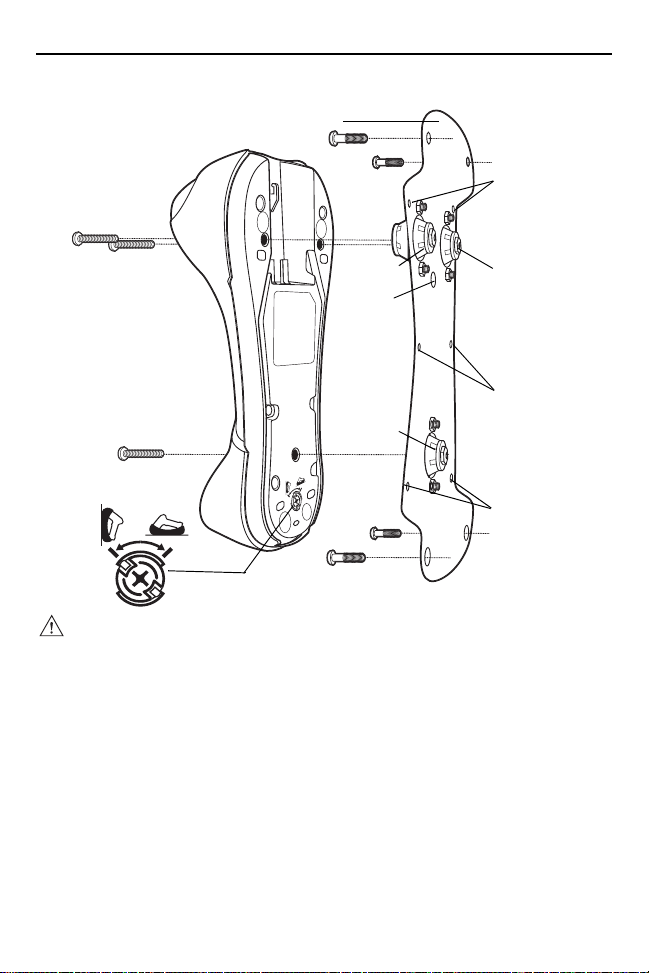

The Mounting Bracket
The mounting bracket is used to install the cradle on a forklift. Mount the bracket so that
the cradle is within the user’s reach envelope. The recommended reach envelope has a
radius of 15" measured from the front of the user’s shoulder to the scanner grip.
Three isolators ensure secure attachment with minimized vibration. The bracket has
holes that provide access the host and power ports, and enable securing the cables
Quick Reference Guide 5
Mounting Bracket
Cable
Access
Hole
Cable Tie
Holes
Isolator
Cable Tie
Holes
Cable Tie
Holes
Isolator
Isolator
Converter Knob
with cable ties.
CAUTION
Ensure the Converter Knob is in the position shown above. If not, rotate the
knob counterclockwise to activate latches.
