Who Should Use This Document

This guide is intended for use by any person who needs to setup software for use with the
KR203 printer.

1

Introduction

How This Document Is Organized

The manual is set up as follows:

Introduction
Windows Driver Installation, documentation, preferences, and properties.

Troubleshooting

Appendix A

Appendix B Programming Samples
Appendix C Setting up forms.

This manual will be updated from time to time as printer functions and features may be
added or amended. You will always find the latest edition on our web site (http://

www.zebra.com). If you require information for functions not found in this manual edition,

please contact Technical Support for your region or the Zebra partner the printer was
purchased from.

Contact information, document conventions.

Status Light description, User Interface, Error Handling,
and fixes to common printing problems.

Windows Compatible Status - equivalent Windows to driver
error codes.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Introduction

2

Contacts

Contacts

Technical Support via the Internet is available 24 hours per day, 365 days per year.

Web Site: www.zebra.com

E-mail Back Technical Library:

• E-mail address: [e-mail]

• Subject line: Emaillist

Self Service Knowledge Base: www.zebra.com/knowledgebase
Online Case Registration: www.zebra.com/techrequest

Which Department

Do You Need?

Regional Headquarters

Technica l Sup port

For questions on the operation
of Zebra equipment and
software, please call your
distributor. For additional
assistance, contact us.

Please have your model and
serial numbers available.

Repair Service Department

For back-to-base service and
repair.

Techni cal Training
Department

For Zebra product training
courses.

Inquiry Department

For product literature and
distributor and dealer
information.

Customer Service
Department (US)
Internal Sales Department
(UK)

For printers, parts, media, and
ribbon, please call your
distributor or contact us.

Key:

T: Telephone
F: Facsimile
E: E-mail

The Americas

Zebra Technologies Inter national,
LLC
475 Half Day Road, Suite 500
Lincolnshire, IL 60069 USA

T: [phone]
Toll-free [phone]
F: [phone]

T: +1 877 ASK ZEBRA (275 9327)
F: [phone]

Hardware: [e-mail]
Software: [e-mail]

Kiosk Printers:

T: [phone]

[e-mail]

T: +1 877 ASK ZEBRA (275 9327)
F: [phone]

E: [e-mail]
To request a repair in the U.S.,

go to www.zebra.com/repair
T: [phone]

T: [phone]
F: [phone]

E: [e-mail]

T: +1 877 ASK ZEBRA (275 9327)
E: [e-mail]

T: +1 877 ASK ZEBRA (275 9327)
E: [e-mail]

.

Europe, Africa,

Middle East, India

Zebra Technologies Europe Limited
Dukes Meadow
Millboard Road
Bourne End
Buckinghamshire, SL8 5XF
United Kingdom

T: [phone]
F: [phone]

T: [phone]
F: [phone]

E: [e-mail]

T: [phone]
F: [phone]

New requests: [e-mail]
Status updates:

[e-mail]

T: [phone]
F: [phone]

E: [e-mail]

T: [phone]
F: [phone]

E: [e-mail]

T: [phone]
F: [phone]

E: [e-mail]

Asia Pacific

Zebra Technologies Asia Pacific
Pte. Ltd.
120 Robinson Road
#06-01 Parakou Building
Singapore 068913

T: + 65 6858 0722
F: [phone]

T: [phone]
F: [phone]

E: China: [e-mail]

All other areas:

[e-mail]

T: [phone]
F: [phone]

E: China: [e-mail]

All other areas:

[e-mail]

T: + 65 6858 0722
F: [phone]

E: China: [e-mail]

All other areas:

[e-mail]

E: China:

[e-mail]

All other areas:

AP [e-mail]
m

T: [phone]
F: [phone]

E: China: [e-mail]

All other areas:

[e-mail]

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Document Conventions

The following conventions are used throughout this document to convey certain
information:

Alternate Color – Cross-references contain links to othe r sections in this guide. If you are
viewing this guide online, click the blue text to jump to its location.

Important • Advises you of information that is essential to complete a task.
Note • Indicates information that emphasizes or supplements important points of the main

text.

Introduction

Document Conventions

3

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Introduction

4

Document Conventions

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Description

The Windows driver is the only method of communicating with the printer. The driver’s
functions also include: the rendering engine, user interface, and a language monitor for
reporting printer functions. The driver interface includes tools for updating the printer
firmware, checking and printing configuration status, and setting up for different types of
media.

2

Windows Driver

The driver currently runs on Windows XP, Windows Vista, Windows 7, Windows Server
2003, and Windows Server 2008.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

6

Installation

Installation

Driver Installation

Important • To update the driver to a newer version it is recommended that any previous

version be removed prior to updating. Refer to "Uninstall"on page 11.
Note • Make sure you download the latest driver from the Zebra website (see

"Contacts" on page 2). The driver will be downloaded as a ZIP file - you will need an

extraction utility to access the driver installer file.

1. Double-click on the Zebra Kiosk Printer Driver icon to launch the installer.

The Welcome Window is displayed.

2. Click Next.

A window containing important information is displayed. This information covers
continued installation instructions.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Windows Driver

3. Click Next.

4. Depending on your Windows configuration and us er leve l, a warnin g ma y be

displayed informing you that the software has not passed Windows Logo testing.

Installation

7

5. Click Continue Anyway.

The installation will proceed by installing the necessary files onto your computer.
The default directory ocation for the installed files is

C:\Zebra\Kiosk\WindowsDriver\KR203.

Once the installation has completed, the Completed Window will be displayed.

Make sure the printer has power and connect the USB cable to the printer and to the
computer.

6. Click Finish.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

8

Installation

Printer Installation

Apply power to the printer and connect the USB cable to the printer and to the host
computer.

The Windows Found New Hardware Wizard will be displayed.

1. Select “No, not this time” and click Next.

A dialog box will appear asking how to install the printer. Select “Install software
automatically (Recommended)”.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Windows Driver

2. Click Next.

Depending on your Windows configuration and us er leve l, a warnin g ma y be
displayed informing you that the software has not passed Windows Logo testing.

3. Click Continue Anyway.

Installation

9

A dialog box will appear asking you to insert the disk containing the Zebra Driver. Click
OK.

4. A dialog box will appear prompting you for the location of the Zebra Driver. Click

Browse and navigate to C:\Zebra\Kiosk\WindowsDriver\KR203..

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

10

Installation

5. Click OK..

6. Click Finish.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Uninstall

Windows Driver

1. Disconnect the USB cable from the host computer.

2. Double-click on the Zebra Kiosk Printer Driver icon to launch the installer.

The Welcome Window is displayed.

3. Select “Uninstall”.

Installation

11

4. Click Next.

The Utility will remove the files from the computer.

5. Click Finish.

6. Restart the computer.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

12

Installation

Repair

If the driver is not functioning properly , rather than uninst alling and rein stalling the driver it
can be repaired.

1. Disconnect the USB cable from the host computer.

2. Double-click on the Zebra Kiosk Printer Driver icon to launch the installer.

The Welcome Window is displayed.

3. Select “Repair Application”.

4. Click Next.

The Utility will reinstall the necessary files onto the computer.

5. Click Finish.

6. Restart the computer.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Disconnecting the Printer

The printer may become disconnected from the host computer due to po wer loss or due to
repair procedures. If the host computer is running Windows XP, Windows Vista, Windows
7, Windows Server 2003, or Windows Server 2008, the host computer will automatically
recognize the printer upon reconnecting.

Proceed with the repair procedures or po wer on proced ures, or wait ten seconds and the n
reconnect the printer to the host computer.

Windows Driver

Installation

When the printer is disconnected, the printer icon will show
“Offline” then “Offline-Offline”. The printer icon will also be
“grayed out” as it cannot be found by the host computer.

The printer icon will show “Offline” then “Not Available”.

13

Press and release feed button on the printer to feed a blank receipt.

The printer icon will show “Output Bin Full - Not Available”
then “Output Bin Full”.

Remove the receipt from the presenter.

The printer icon will show “Ready”.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

14

Properties

Properties

General

The Zebra Kiosk Printer Windows driver is based on the Microsoft Unidriver arch itecture
for raster based printers. Zebra provides two OEM libraries (UI and Rendering) to enable
specific printer functionality within the driver. In addition to the standard Microsoft driver,
Zebra provides a bi-directional interface through a Language Monitor DLL.

All of the OEM features will be described below.
To access the printer properties, in the control panel select Printers and Faxes; right click

on the printer icon and select properties. In Windows 7, log in as an Administrator and
open the Print Management window; right click on the printer and select properties.

The General Tab enables access to the printers basic settings.

Printer Name – Assigning the printer a custom name makes it easier to identify it if

there is an error.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Windows Driver

Properties

Location – Entering a location let’s you know where the printer is should an error need

to be corrected.
Comment – Any additional information about the printer that may be helpful.
Printing Preferences – Simple information about the page layout and paper quality.

15

Advanced settings such as output, graphic options, and document options.

Print Test Page – Sends a page to the printer to see if everything is working properly.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

16

Properties

Sharing

The sharing tab enables you to share the printer with other computers.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Ports

Windows Driver

Properties

The Ports tab enables you to assign the printer to a specific port on the computer .
Additionally, by having the “Enable bidirectional support” box checked, the printer can
send messages to the computer. “Enable printer pooling” is useful when multiple
printers are connected to the same PC and shared resources are necessary to print many
documents, or as a backup.

17

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

18

Properties

Advanced

The Advanced Tab enables you to control when receipts are printed.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Color Management

Windows Driver

Properties

19

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

20

Properties

Device Settings

The Device Settings Tab is where the main features of the printer are configured.

Form To Tray Assignment – Selects the media width and page length. The driver

supports page length from 92mm to 60 0mm with th e defaul t set to 400 mm. The d river

supports page widths of 58, 60, 80, and 82.5mm. The d river incorporates a side

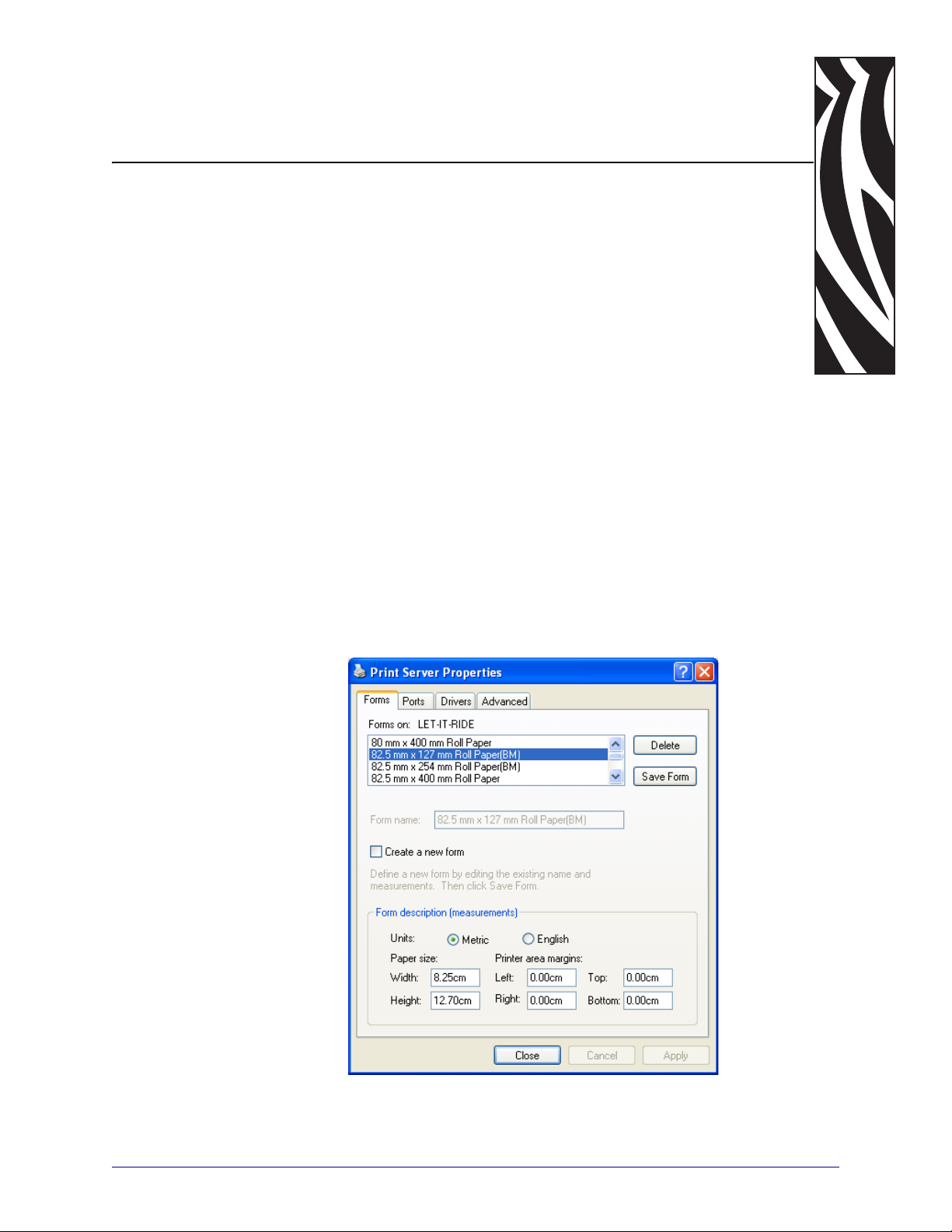

margin of 2mm. For suggestions on making custom forms, refer to "Setup Printer

Forms in Windows XP and Vista" on page C-1, and "Setup Printer Forms in Windows

7" on page C-3.

Printer Settings – Darkness sets the level of the black on the page. The range of the

darkness setting is from 0 to 30 with the default setting at 20.

Max Print Speed is how fast the page will print. The range of the max print speed

setting is from 75mm to 152mm/sec with the default setting at 152 mm/s.
Document Settings – Media Tracking sets continuous, variable length, or mark

sensing with the default set to variable length.

When media tracking is set to continuous, the driver sends the full page size to the

printer (Page Mode). The page length will always be the same as the selected paper

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Windows Driver

Properties

size (e.g. if 58mm x 200mm Roll Paper is selected, the print will be 200mm long in

Page Mode).

When media tracking is set to variable, the driver will shorten the print to only contain

the imaged document. The driver will end the print after the last printed element (text,

barcode, or graphic) then send a feed, cut, and eject command. Th e p age length ma y

vary from page to page but will always be a minimum of 92mm.

When mark sensing is set, the driver will send the page size to the printer, the printer

will restrict the print to the area between the black marks. If the printed area is larger

than the space between the black marks, it will print additional pages (receipts).

The margin values in the receipt application must be corrected after setting the driver

values. If the margin in the application is set to 9mm and the driver is set to 2mm, the

application setting will be enforced unless the driver is changed accordingly.

Compression sets whether the data is sent to the printer compressed or

uncompressed. If the data is sent uncompre ssed, this may r esult in longer pr int times.

However, depending on the complexity of the image, compressed data may not

significantly reduce print time.

21

Presenter Settings – Cutter Mode determines how the receipt is cut; Partial Cut Wid th

sets the width of paper that remains attached in the center of the receipt after a

cut.The range is 0 and 1mm to 60mm. If the range is set to 0 then the receipt will be

cut completely. Partial cut is activated only when “cut per document” is selected - in

other words, when a multi-page document is sent to the printer, each p age will receive

a partial cut and a full cut at the end of the document. Note: Partial cut will only work

with Document mode and will be set to 0 otherwise.

Presenter Loop Length determines how much paper is held in the presenter loop.

Eject Length determines how much paper is exposed for the customer. The range is

from 1mm to 600mm with the default set to 50mm. If the eject length is set larger than

the length of the receipt, the printer will retain a portion of the receipt in the presenter

unless the “Clear Presenter” option is set to “Yes”.

Presenter Length Addition is an additional length to compensate for the thickness of

the kiosk wall. The range is from 0 to 255mm with the default set to 0.

Presenter Timeout determines how long the presenter will hold the receipt before

ejecting it. The range for the timeout is from 0 to 300 seconds with the default set at 0.

Clear Presenter determines if a receipt is retained, or if it is ejected after the the

presenter. Clear Presenter should not be used with Page Hold and will be set to No if

Page Hold is selected.

Page Hold determines if individual pages of a multi-page print are held. The driver

shall monitor the presenter to determine if it has cleared befo re sending the next page .

Page Hold should only be used with Cut per page and will be set to No otherwise.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

22

Properties

Tools

The Tools Tab enables access to diagnostic functions and controls.

Clear Kiosk Presenter – Ejects any media in the presenter.
Send PRN File – Sends a saved PRN file to the printer.
Update Firmware – Calls the firmware downloader utility and updates the printer

firmware.
Set Black Mark Mode – Sets the printer to use black mark media.
Set Continuous Mode – Set the printer to print continuous pages.
Feed One Receipt – Feeds a single blank receipt.
Print Config Label – Prints a page with the printer configuration information. The

“Enable bidirectional support” box must be checked (see "Ports"on page 17).

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Windows Driver

Properties

Printer Controls – Provides additional control for the spooled print job.

Delete Print Job on Error: When checked, the driver will delete all print jobs when an

error occurs; this includes the current and all following print jobs. When not selected,

only the current print job will be deleted; all following print jobs will be retained.

Send Printer Parameter: When checked and on ly send some contro l commands when

unchecked.

Set vertical home position to zero: When checked, the top margin is set to. It will add

the margin to the end of the page when in Continuous mode and discar d the margin at

the end if in V ariable mode. In Continuous mode, it will also subtract from the printable

area.

23

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

24

Properties

Update Firmware

Check the firmware version installed on the printer by printing a configuration label, the
firmware version will be shown. Go to the Zebra Website at www.zebra.com to check the
latest version.

Follow the procedures on the website and download the firmware package to the
computer to which the printer is connected to and that runs the driver.

From the Tools tab, click on “Update Firmware”. A dialog box will appear.
Select the printer to be updated. Then, click “Select Firmware” and navigate to the

firmware package downloaded from the Zebra Website.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Click “Download Firmware”. Confirm the installation by clicking Yes.

Windows Driver

Properties

25

The status light on the printer will flash intermittently between green and red indicating that
a firmware update is in progress. The printer will reset and the Found New Hardware
Wizard will begin configuring the printer with the new firmware. Click “Finish” to continue.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

26

Properties

Printer Information

The Printer Information Tab gives detailed information about the service of the printer. The
“Enable bidirectional support” box must be checked (see "Ports" on page 17).

Cut Odometer – Displays the number of cuts made.
Length Odometer – Displays how much media has been fed through the printer.
Serial Number – Displays the serial number of the connected printer.
Windows Error – Show the windows error code.
Printer Status – Displays the state of the printer. See Table A-1 on page A-1 for errors

descriptions.
Refresh – Changes the information shown in the Printer Information tab to the most

current condition.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

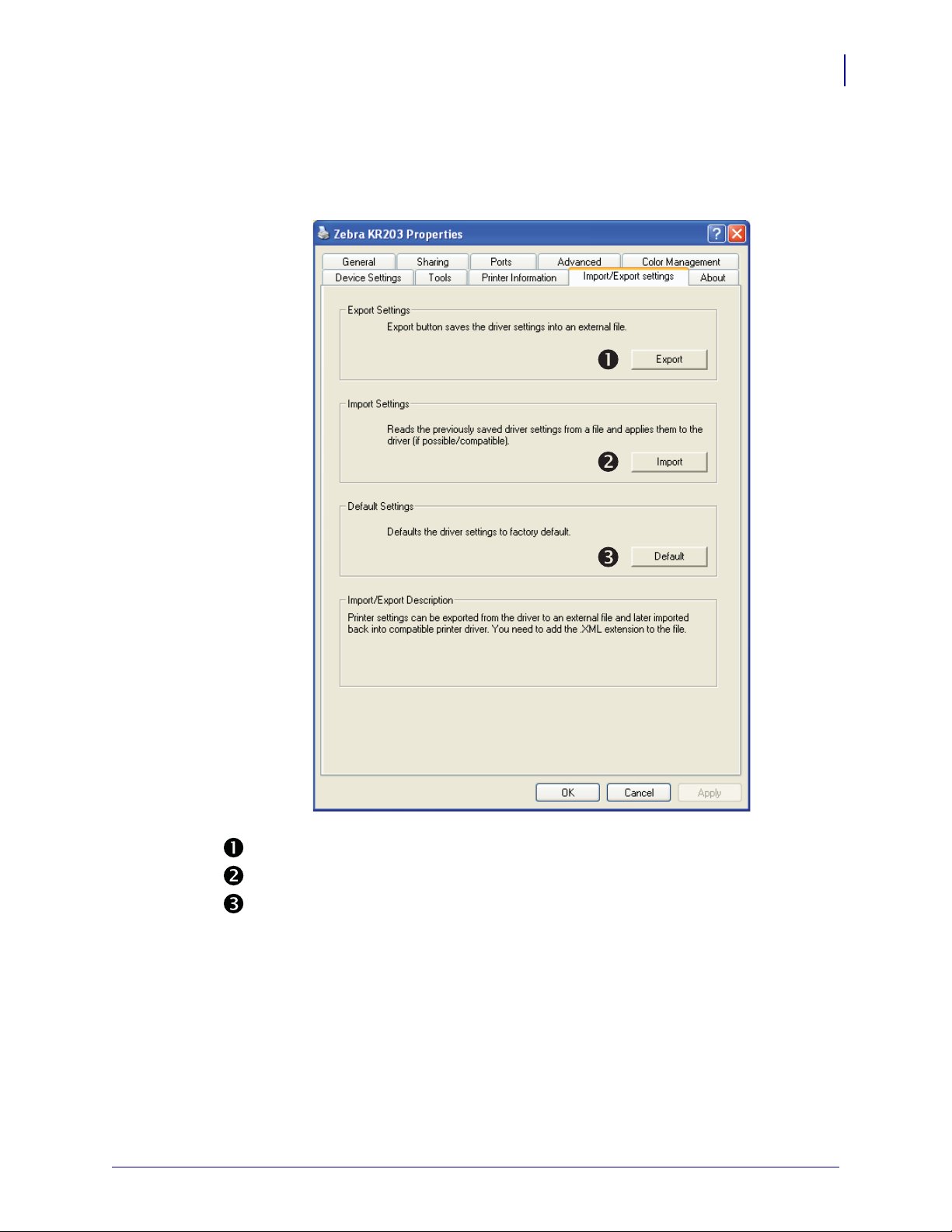

Import/Export Settings

The Import/Export Tab enables you to save the current printer configuration for use with
other printers.

Windows Driver

Properties

27

Export – Saves the current printer configuration to a file.
Import – Imports a saved printer configuration file.
Default – Resets all settings to the default parameters.

When Importing or defaulting the properties you should cancel out of th e UI to se t t he

newly loaded parameters since an OK will apply the currently set parameters in the

Device Settings. Alternatively you can tab through the settings in Device Settings and

it will change to the newly loaded properties.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

28

Properties

About

The About Tab shows the current driver version.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Setting Black Mark Mode

The printer is optimized to detect black marks printed with IR sensitive ink and ignore pre­print in IR blind ink.

For 80 and 82.5mm media, the black marks will be centered 30mm to the right of the
paper center when viewing the imaged side of the receipt and print dir ection is downward;
for 58 and 60mm media, the black marks will be centered 22mm to the left of the paper
when viewing the imaged side of the receipt and the print direction is downward.

The printer will support media with black mark thickness in printing direction of 2.5 –

9.0mm, and a width of 5.0 – 10.0mm when the black mark is centered on the sensor.
Refer to the Hardware Integrator Guide (P1028247) for black mark media requirements.

1. Choose the correct media guide for the desired media width. Refer to the Hardware

Integrator Guide (P1028247) for media guide installation instructions.

2. Perform a media guide calibration. Refer to "Application User Interface" on page 63.

Windows Driver

Setting Black Mark Mode

29

3. Load the desired media.

4. In the Tools tab of the Windows driver, click “Set Black Mark Mode”. A dialog box will

appear asking to confirm your selection, click “Yes”.

5. The printer will feed media, detect the black marks, and eject the media. Press the

Feed button on the printer several times to confirm the printer is cutting directly in the

center of the black marks.

6. In the device settings tab of the Windows driver, set the media tracking to “Mark

Sensing”. If you revert back to Continuous mode, set the media tracking back to

Continuous or Variable.

For information on black mark media requirement s, refer to the Hardware Integrator Guid e
(P1028247).

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

Windows Driver

30

Setting Black Mark Mode

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Troubleshooting

Status Light Descriptions

Application LED St ates

3

Immediately after power is applied to the printer, a brief self test is performed and the
status light will report the following conditions:

Table 3-1 • Application LED States

Solid Green 0 - OK This code is reported when no other

codes are active. It indicates the
printer is functioning normally.

One Red Flash 1 - Paper Jam in

Presenter

Two Red Flashes 2 - Cutter Jam This code indicates that the printer

This code indicates that media is stuck
in the presenter . This error is set when
the printer attempts to eject the media
but cannot complete the operation.
This error is cleared by removing the
media from the presenter sensor.

could not find the cutter blade or could
not properly manage its position. The
error is set when the printer attempts
to cut but fails after three retries. This
error is cleared by cycling the power
off and on.

Rev. A KR403

Troubleshooting

32

Status Light Descriptions

Table 3-1 • Application LED States

Three Red Flashes 3 - Out of Paper This code indicates that the selected

EOP sensor has detected no media
present. This value is signaled wither
when the mark engine has detected a
mark larger than "TOF marker length”
plus 5mm, or when the A/D reading of
the EOP sensor drops below the “End
of paper threshold”. This error is
cleared after successful media load
(either via calibration of via regular
media load).

Four Red Flashes 4 - Print Head Lifted This code indicates that the print head

has been lifted. This error is cleared
by returning the print head to its
locked position.

Five Red Flashes 5 - Paper Fe ed Error This code indicates that the paper

failed to reach the presenter sensor
within the expected amount of time.
The error is signaled if the media does
not reach the presenter sensor after
feeding the length from the cuter to the
sensor plus 15mm. This error is
cleared by opening and closing the
print head, or by cycling power off and
on.

Y ellow Flashing 6 - Head Temperature

Error

Rapid Amber
Flashing

Firmware missing or
corrupt

This code indicates that the print head
has exceeded the maximum permitted
temperature. This status code is set
when the print head temperature
exceeds 65° C (149° F). When this
condition occurs, the printer feeds
100mm (4 inches) of blank media,
cuts, and presents. This error is
cleared automatically when the print
head temperature falls below 55° C
(131° F).

This code indicates that the bootware
has detected an incorrect or missing
checksum in the firmware. This error is
cleared when the firmware is reloaded
or updated. Refer to the Software
Integrator Guide for firmware upload
procedure.

Rev. A KR403

Application User Interface

With the printer power on, press and hold the feed button. Continue holding the feed
button until the status indicator flash sequence occurs. The next flash sequence occurs
after completion of the previous flash sequence. The flash sequences perform the
following functions:

Table 3-2 • Application User Interface

Troubleshooting

Print Quality Problems

33

Status Flash

Sequence

One Flash, then Solid
Green

Two Flash, then So lid
Green

Three Flash, then
Solid Green

Four Flash, then Solid
Green

Five Flash, then Solid
Green

If the feed button remains pressed after the fi ve flash sequence, the status light goes off.

Printer status is also reported during normal operation when an error occurs, or a status
request can be sent to the printer via the Windows driver. for error codes reported by the
Windows driver .

Appears for one second. This will print an internal self-test
page.

Appears for one second. Performs system calibration – must
be started with paper out of presenter and from under
printhead, and with no error signaled.

Appears for one second. Performs a simulated USB cable
connect and reconnect causing a USB plug-and-play event to
occur.

Appears for one second. Sets all printer settings to the default
with the exception of media guide calibration, then it will
perform the media guide calibration.

Appears for one second. Prints a 50% gray pattern, ejects it
and then prints a diagonal line pattern and ejects it.

Action

Print Quality Problems

No print on the label.

• The media may not be direct thermal media, or the thermal media coating is not facing
upward.

• Is the media loaded correctly? Is the thermal media coating facing upward?

• The printhead may be dirty or damaged.

• The printhead is dirty. Clean the printhead. Refer to the Service Manual
(P1028249) for instructions.

• The printhead is damaged. Replace the printhead. Refer to the Service Manual
(P1028249) for instructions.

• The printhead wiring may be damaged or not connected properly.

• Check the wiring connections at the printhead and the main logic board.

• Check for damage to the wiring. Replace the wiring if damaged.

Rev. A KR403

Troubleshooting

34

Print Quality Problems

The printed image does not look right.

• The printhead is dirty. Clean the printhead. Refer to the Service Manual (P1028249)
for instructions.

• The printhead has worn out. The printhead is a consumable item and will wear out
due to friction between the media and printhead. Using unapproved media may
shorten life or damage your printhead. Replace the printhead. Refer to the Service
Manual (P1028249) for instructions.

• Adjust the print darkness and/or print speed. See "Device Settings" on p age 20.

• The Windows printer driver or application software may change these settings
and may require a change to optimize print quality.

• The media being used is incompatible with the printer. Be sure to use the
recommended media for your application, and always use Zebra-approved media.

• The platen (driver) roller maybe losing traction due to:

• Foreign objects attached to its surface.

• The rubbery smooth surface has become polished and slippery.

• The platen may need cleaning or replacement. Refer to the Service Manual
(P1028249) for instructions.

There are long tracks of missing print (blank vertical lines) on

several labels.

• The printhead may be dirty or damaged.

• The printhead is dirty. Clean the printhead. Refer to the Service Manual
(P1028249) for instructions.

• The printhead is damaged. Replace the printhead. Refer to the Service Manual
(P1028249) for instructions.

• The printhead has worn out. The printhead is a consumable item and will wear out
due to friction between the media and printhead. Using unapproved media may
shorten life or damage your printhead. Replace the printhead. Refer to the Service
Manual (P1028249) for instructions.

The printing does not start at the top of the receipt or misprinting of

one to three receipts.

• The printer needs to be calibrated (refer to the two-flash sequence of "Application

User Interface" on page 33).

• Reload the media. Refer to the Hardware Integrator Guide (P1016701) for
instructions.

Rev. A KR403

Media Sensing Problems

The KR403 printer default media mode is Continuous. The printer will remain in this mode
until it is changed by the Windows Driver.

The KR403 printer has automatic media calibration capability for black mark media. Once
the printer is printing or feeding media, the printer continually checks and adjusts the
media sensing to accommodate for minor changes in media p arameters from page to
page on a roll, and from roll to roll of media. The printer will automatically initiate a media
length calibration if the expected media length or the page to page gap distance has
exceeded the acceptable variation range when starting a print job or feeding media.

If the printer does not detect blacklines (or notches with black mark sensing) after feeding
the media the default maximum label length distance of 24 inches (610mm), then the
printer will report a media error.

Optionally, the printer can be set to do a short media calibration after loading media or
when closing the printhead with power on. The printer will then feed up to three labels
while calibrating.

Troubleshooting

Media Sensing Problems

35

The printer will not load the media.

• The media has changed, or a different media guide has been installed.

• Make sure the appropriate media guide is installed for the media being used.
Refer to the Hardware Integrator Guide (P1016701) for instructions.

• Perform the two-flash procedure to recalibrate the printer and then perform the
four-flash procedure to reset the printer default settings. Refe r to "Application LED

States" on page 31. Reload the media (refer to the Hardware Integrator Guide

(P1028247) for media loading procedures).

• Load the media manually . Refer to the Ha rdware Integra tor Guide (P1016 701) for
instructions.

• The platen (driver) roller maybe losing traction due to:

• Foreign objects attached to its surface.

• The rubbery smooth surface has become polished and slippery.

• The platen may need cleaning or replacement. Refer to the Service Manual
(P1028249) for instructions.

• The media sensor may be dirty or damaged. Refer to th e Service Manual (P10 28249)
for instructions.

• The printhead assembly is not closed.

• Check the status light on either side of the printer. If the st atus light is showing four
red flashes then the printhead is not closed. Push down on the printhead
assembly until it locks into place.

Rev. A KR403

Troubleshooting

36

Other Problems

The printer will not eject the media.

• There is a jam under the printhead. Refer to the Service Manual (P1028249) for
instructions.

• The large media roll may be over torquing the feed motor. Install the large media roll
adapter. Refer to the Hardware Integrator Guide (P1016701) for instructions.

• The presenter rollers are dirty or damaged.

• The presenter rollers are dirty. Refer to the Service Manual (P1028249) for
instructions.

• The presenter rollers are damaged. Refer to the Service Manual (P1028249) for
instructions.

• There is a jam under the presenter. Refer to the Service Manual (P1028249) for
instructions.

• The presenter sensor may be dirty or damaged.

• The presenter sensor is dirty. Refer to the Service Manual (P1028249) for
instructions.

• The presenter sensor is damaged. Refer to the Service Manual (P1028249) for
instructions.

• The presenter has not cleared the previous receipt.

• Check the status light on either side of the printer . If the st atus light is showing one
red flash then the printer is reporting media in the presenter. Remove any media
that may be in the presenter.

• The presenter motor may need to be replaced. Refer to the Service Manual
(P1028249) for instructions.

• The presenter drive gears may be damaged or worn. Refer to the Service Manual
(P1028249) for instructions.

Other Problems

The receipts are not cutting properly.

• The cutter blade may be worn. Replace the cutter blades. Refer to the Service Manual
(P1028249) for instructions.

• The cutter tensioner may be worn or damaged. Replace the cover plate assembly.
Refer to the Service Manual (P1028249) for instructions.

• Check the Cutter Mode setting, and the Partial Cut Width setting in the Windows
driver.See"Device Settings" on page 20.

Rev. A KR403

• The cutter motor may need to be replaced. Refer to the Service Manual (P1028249)
for instructions.

• The cutter drive gear, drive pin, or cutter actuator may be damaged or worn. Refer to
the Service Manual (P1028249) for instructions.

• Check for the latest firmware and driver version.

There are no lights on the printer.

• Make sure there is power applied to the printer.

• The control panel may be dirty or damaged. Refer to the Service Manual (P1028249)
for instructions.

• The main logic board may be damaged. Refer to the Service Manual (P1028249) for
instructions.

• Check for the latest firmware and driver version.

Troubleshooting

Other Problems

37

A receipt format was sent to, but not recognized by, the printer.

• If the status LED is on or flashing, refer to "Application LED States" on page 31.

• Make sure the USB cable is correctly installed. Refer to the Hardware Integrator
Guide (P1016701) for instructions.

• A communications problem has occurred. Perform a USB detect (refer to the three­flash sequence of "Application User Interface" on page 33).

The receipts are not cutting at the black mark.

• Make sure you are using the appropriate media guide for the desired media width.
Refer to the Hardware Integrator Guide (P1016701) for media guide installation
instructions.

• Perform a media guide calibration. Refer to the two-flash sequence of "Application

User Interface" on page 33.

• Make sure you are using the appropriate media. Refer to the Hardware Integrator
Guide (P1016701) for black mark media requirements.

• Use the Windows driver to set the printer to black mark mode. See "T ools" on

page 22.

• Reload the media. Refer to the Hardware Integrator Guide (P1016701) for
instructions.

Rev. A KR403

Troubleshooting

38

Resetting the Factory Default Values

Resetting the Factory Default Values

Sometimes, resetting the printer to the factory defaults may solve some problems. Refer
to the four-flash sequence of "Application User Interface" on page 33.

Contact Technical Support

Technical Support via the Internet is available 24 hours per day, 365 days per year.

www.zebra.com

For questions on the operation of Zebra equipment and software, please call your
distributor. For additional assistance, contact us.

Please have your model and serial numbers available.

Rev. A KR403

Windows Compatible Status

These statuses will also be stored in the printer ERROR key in the registry and can be
extracted with GetPrinterData.

Statuses Defined in winspool.h

Table A-1 • Windows Status Compares to Zebra Status

Appendix A

PRINTER_STATUS_PAPER_JAM
PRINTER_STATUS_USER_INTERVENTION
PRINTER_STATUS_PAPER_OUT
PRINTER_STATUS_DOOR_OPEN
PRINTER_STATUS_PAPER_PROBLEM
PRINTER_STATUS_NOT_AVAILABLE
PRINTER_STATUS_ERROR

PRINTER_STATUS_NOT_AVAILABLE

PRINTER_STATUS_NOT_AVAILABLE

PRINTER_STATUS_NOT_AVAILABLE

PRINTER_STATUS_NOT_AVAILABLE

PRINTER_STATUS_NOT_AVAILABLE

Paper jam (ESC ENQ 1 = NAK 1)
Cutter not home (ESC ENQ 1 = NAK 2)
Out of paper (ESC ENQ 1 = NAK 3)
Print head lifted (ESC ENQ 1 = NAK 4)
Paper feed problem (ESC ENQ 1 = NAK 5)
Tem p erature error (ESC ENQ 1 = NAK 6)
Presenter jam (ESC ENQ 1 = NAK 7), check

ExtendedError
Retract jam (ESC ENQ 1 = NAK 8), check

ExtendedError
Black mark not found (ESC ENQ 1 = NAK 10),

check ExtendedError
Black mark calibration error (ESC ENQ 1 = NAK 11),

check ExtendedError
Index error (ESC ENQ 1 = NAK 12), check

ExtendedError
Checksum error (ESC ENQ 1 = NAK 13),

check ExtendedError

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

A-2

Appendix A

Windows Compatible Status

Table A-1 • Windows Status Compares to Zebra Status

PRINTER_STATUS_NOT_AVAILABLE

Wrong firmware (ESC ENQ 1 = NAK 14),
check ExtendedError

PRINTER_STATUS_NOT_AVAILABLE

Retract occurred (ESC ENQ 1 = NAK 16), check
ExtendedError

PRINTER_STATUS_NOT_AVAILABLE
PRINTER_STATUS_TONER_LOW
PRINTER_STATUS_OUTPUT_BIN_FULL

Paused (ESC ENQ 1 = NAK 17), check ExtendedError
Paper near end (ESC ENQ 6)
Paper in presenter (ESC ENQ 6)

Table A-2 • Status definition in Winspool.h

#define PRINTER_STATUS_ERROR 0x00000002
#define PRINTER_STATUS_PAPER_JAM 0x00000008
#define PRINTER_STATUS_PAPER_OUT 0x00000010
#define PRINTER_STATUS_PAPER_PROBLEM 0x00000040
#define PRINTER_STATUS_OFFLINE 0x00000080
#define PRINTER_STATUS_OUTPUT_BIN_FULL 0x00000800
#define PRINTER_STATUS_NOT_AVAILABLE 0x00001000
#define PRINTER_STATUS_TONER_LOW 0x00020000
#define

0x00100000

PRINTER_STATUS_USER_INTERVENTION
#define PRINTER_STATUS_DOOR_OPEN 0x00400000

Note • In order to indicate the Paper-near-end status, the driver utilizez the unused
Microsoft status code PRINTER_STATUS_TONER_LOW.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Windows Incompatible Status

If a printer status doesn’t have a corresponding Windows status the Error key will have
PRINTER_STATUS_NOT_AVAILABLE set and you need to evaluate the ExtendedError
key.

Statuses that have a representation within the Windows status may also have an ESC
ENQ 1 NAK value (see Table A-1) and will be stored in the printer ExtendedError key in
the registry and can be extracted with GetPrinterData using the ExtendedError key.

For the meanings of these NAK responses see the appropriate Technical Manual for your
printer, und er the ESC ENQ 1 section.

Note • Any other Windows status may be used in the future, so mask away undefined bi t s
in your application!

Table A-3 • GetPrinterDat a Key Valu es

Printer DsMonitor Key Explanation Type

Appendix A

Windows Compatible Status

A-3

Error Printer Error or Status in Windows 16-bit format REG_DWORD
ErrorEvent Error event name for error event trigger REG_SZ
ExtendedError Extended status according to Appendix B REG_DWORD
Sta tu sEvent Status event name for status event trigger REG_SZ
DeleteJob Flag to delete print jobs on error REG_DWORD

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

A-4

Appendix A

Windows Compatible Status

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Programming Example

Background

In order to incorporate the way status monitoring works for the KR203 printer setup, it is
important to understand what happens in a kiosk when you print, and when status
monitoring should take place.

Status monitoring can be handled in two ways:

Appendix B

• Monitoring in the printing application.

• Monitoring in a separate application.

When monitoring takes place in the printing application, normally the printer is observed
before sending a print job to see if the printer is “OK” and then se nd th e print jo b. Af ter the
print job is signaled as being printed, the status is checked again to see if the printer has
any errors or if the paper has been taken, etc.

Monitoring in a separate applica tion usually doesn’t allow direct interaction with the p rinted
job so the printer is polled as often as possible to get most accurate information on what
the printer is doing. This is usually very time consuming and care must be taken for
synchronizing with a current print job.

Since the latter example is most commonly used for status monitoring, an event
notification has been incoprorated into the language monitor to allow a monitoring
application to do other tasks and have a separate thread listening for the printer status or
error event change. When this occurs the th re ad is simply getting the st atus and repo rting
this back to the main program or doing any other kind of reporting.

To accommodate this notification for all error and status changes, two mechanisms have
been incorporated into the language montor.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

B-2

Appendix B

Programming Example

• Monitoring while printing
Status monitoring has been implemented in the internal printing structure of the

language montor. When a document is opened, printed, and closed, the language
monotr will check the printer status before and after printing and will also react to write
errors if any occur. It will then set the printer status and raise the error event.

• Monitoring while idle
An internal status thread has been implemented which reads printer status and

provides changed status information in the same manner. It will set the status and
raise an error or status event. Therefore, it is not necessary for any other monitoring
loop to be implemented, simply wait for an event in the application’s idle loop.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Implementation in Calling Application

1. Open the Printer.

The first step of the implementation is to open the printer required to monitor and get
the Error event and Status even name.

bRet = OpenPrinter(m_csPrinter.GetBuffer(1),
&hPrinter, &pd);

…
if ((dRet = GetPrinterData(hPrinter, "ErrorEventName",

&dType, (LPBYTE)cTmp, 100, &dNeeded))!=ERROR_SUCCESS)
…
if ((dRet = GetPrinterData(hPrinter, "StatusEventName",

&dType, (LPBYTE)cTmp, 100, &dNeeded))!=ERROR_SUCCESS)
…

2. Open the Event Handles.

Open the two event handles and fill these handles into a structure that will pass on to
the new thread.

Appendix B

Implementation in Calling Application

B-3

typedef struct _CStatusThreadInfo
{
HWNDmyHwnd;
DWORDdSleepTime;
HANDLEhPrinter;
HANDLEhError;
HANDLEhStatus;
BOOLm_hStatusEventKillThread;
} CStatusThreadInfo;
…
if ((cTi.hError = OpenEvent(SYNCHRONIZE, TRUE,

m_csErrorEvent))==NULL)
…
if ((cTi.hStatus = OpenEvent(SYNCHRONIZE, TRUE,

m_csStatusEvent))==NULL)
Step: Start Monitoring
When all this is done you can start your monitoring

thread.
m_StatusThread = AfxBeginThread( StatusThreadProc,

&cTi, THREAD_PRIORITY_NORMAL,0,0,NULL);

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

B-4

Appendix B

Implementation in Monitor Thread

Implementation in Monitor Thread

1. Fill Event Arrays

In the monitoring thread, create and fill an array of handles with the error and status
event handle.

myHandle[0] = pInfo->hError;
myHandle[1] = pInfo->hStatus;

2. Start the Waiting Loop

Start the waiting loop.

UINT StatusThreadProc( LPVOID pParam)
{
CStatusThreadInfo* pInfo = (CStatusThreadInfo*)pParam;
longdwResult=0;
longdwRet=0;
TCHARstr[50]={0};
HANDLEmyHandle[2]={NULL};
DWORDdType=0;
DWORDdNeeded=0;
DWORDdwPgCnt=0;
DWORDdwCutCnt=0;

if (pInfo == NULL)
{
OutputDebugString(L"### entering Status Poll thread

Failed!\n");
return 1; // if pObject is not valid
}

myHandle[0] = pInfo->hError;
myHandle[1] = pInfo->hStatus;
HWND hWnd = GetDlgItem((HWND)pInfo->myHwnd,

IDC_STATUS);
//HWND hWnd = pInfo->myHwnd;

OutputDebugString(L"### entering Status Poll
thread...\n");

SendMessage(hWnd, WM_SETTEXT, 0, (LPARAM)(L"###
entering Status Poll thread..."));

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Appendix B

Implementation in Monitor Thread

while(pInfo->m_hStatusEventKillThread)
{
if ((dwRet = WaitForMultipleObjects(2, myHandle, FALSE,

pInfo->dSleepTime))!=WAIT_FAILED)
{

if (dwRet==WAIT_OBJECT_0 || dwRet==WAIT_OBJECT_0+1)
{

if ((dwRet = GetPrinterData(pInfo->hPrinter,
L"Error", &dType, (LPBYTE)&dwResult, sizeof(dwResult),
&dNeeded))!=ERROR_SUCCESS)

{

swprintf_s( str, 50, L"### [Status Thread error

%d] read [%08X]\n", dwRet, dwResult);

} else

swprintf_s( str, 50, L"### [Status Thread] read

[%08X]\n", dwResult);

OutputDebugString(str);

swprintf_s( str, 50, L"### [Status Thread] read
[0x%08X]", dwResult);

SendMessage(hWnd, WM_SETTEXT, 0, (LPARAM)(str));

if (dwResult & 0x00000000)

B-5

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_OK"));

if (dwResult & PRINTER_STATUS_ERROR)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_ERROR"));

if (dwResult & PRINTER_STATUS_PENDING_DELETION)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_PENDING_DELETION"));

if (dwResult & PRINTER_STATUS_PAPER_JAM)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_PAPER_JAM"));

if (dwResult & PRINTER_STATUS_PAPER_OUT)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_PAPER_OUT"));

if (dwResult & PRINTER_STATUS_PAPER_PROBLEM)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_PAPER_PROBLEM"));

if (dwResult & PRINTER_STATUS_OFFLINE)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_OFFLINE"));

if (dwResult & PRINTER_STATUS_IO_ACTIVE)

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

B-6

Appendix B

Implementation in Monitor Thread

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_IO_ACTIVE"));

if (dwResult & PRINTER_STATUS_BUSY)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_BUSY"));

if (dwResult & PRINTER_STATUS_PRINTING)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_PRINTING"));

if (dwResult & PRINTER_STATUS_OUTPUT_BIN_FULL)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_OUTPUT_BIN_FULL"));

if (dwResult & PRINTER_STATUS_PROCESSING)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_PROCESSING"));

if (dwResult & PRINTER_STATUS_USER_INTERVENTION)
{

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_USER_INTERVENTION"));

}

if (dwResult & PRINTER_STATUS_DOOR_OPEN)

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_DOOR_OPEN"));

if (dwResult & PRINTER_STATUS_NOT_AVAILABLE)

{

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"PRINTER_STATUS_NOT_AVAILABLE"));

if ((dwRet = GetPrinterData(pInfo->hPrinter,
L"ExternalError", &dType, (LPBYTE)&dwResult,
sizeof(dwResult), &dNeeded))!=ERROR_SUCCESS)

{

swprintf_s( str, 50, L"### [Status Thread

error %d read [%08X]\n", dwRet, dwResult);

} else

swprintf_s( str, 50, L"### [External Error]

read [%08X]\n", dwResult);

OutputDebugString(str);

swprintf_s( str, 50, L"### [External Error]
read [%08X]", dwResult);

SendMessage(hWnd, WM_SETTEXT, 0,
(LPARAM)(str));

}
}
else

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Appendix B

Implementation in Monitor Thread

SendMessage(hWnd, WM_SETTEXT, 0,

(LPARAM)(L"Timeout, no status happened"));
}
else
{

dwRet = GetLastError();
swprintf_s( str, 50, L"### Wait function failed!

[%d]\n", dwRet);

OutputDebugString(str);

}
}
SendMessage(hWnd, WM_SETTEXT, 0, (LPARAM)(L"Leaving

Status Thread"));
AfxEndThread( 1 );
return 1;
}

B-7

When an event occurs, the status with GetPrinterData using the “Error” key will need to be
obtained, and the result decoded ac cording to the sampl e or an equiva lent manner. In any
case a message can be sent, or any form of status reporting can be done.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

B-8

Appendix B

WMI Script to get Basic Status

WMI Script to get Basic Status

' VBScript source code
ttpname=""
strComputer = "."
Set objWMIService = GetObject("winmgmts:" _
& "{impersonationLevel=impersonate}!\\" &

strComputer & "\root\cimv2")
Set wbemObjectSet = objWMIService.ExecQuery("SELECT *

FROM Win32_Printer")
For Each wbemObject In wbemObjectSet
if wbemObject.Default = TRUE then
ttpname = wbemObject.Caption
Wscript.Echo "Printer " & ttpname
Select Case wbemObject.PrinterStatus
Case 1
strPrinterStatus = "Other"
strExtendedPrinterStatus =

wbemObject.ExtendedPrinterStatus
Case 2
strPrinterStatus = "Unknown"
Case 3
strPrinterStatus = "Idle"
Case 4
strPrinterStatus = "Printing"
Case 5
strPrinterStatus = "Warmup"
Case 6
strPrinterStatus = "Stopped printing"
Case 7
strPrinterStatus = "Offline"
End Select
Wscript.Echo "Printer Status: " & strPrinterStatus
Select Case wbemObject.DetectedErrorState
Case 0
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Unknown"
case 1
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Other"
case 2

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

WMI Script to get Basic Status

Wscript.Echo "DetectedErrorState: " &
wbemObject.DetectedErrorState & " No Error"

case 3
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Low Paper"
case 4
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " No Paper"
case 5
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Low Toner"
case 6
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " No Toner"
case 7
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Door Open"

Appendix B

B-9

case 8
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Jammed"
case 9
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Offline "
case 10
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Service Requested"
case 11
Wscript.Echo "DetectedErrorState: " &

wbemObject.DetectedErrorState & " Output Bin Full"
End Select
Select Case wbemObject.ExtendedDetectedErrorState
Case 0
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Unknown"
case 1
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Other"
case 2
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " No Error"
case 3
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Low Paper"

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

B-10

Appendix B

WMI Script to get Basic Status

case 4
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " No Paper"
case 5
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Low Toner"
case 6
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " No Toner"
case 7
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Door Open"
case 8
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Jammed"
case 9
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Service
Requested"

case 10
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Output Bin
Full"

case 11
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Paper
Problem"

case 12
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Cannot Print
Page"

case 13
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " User
Intervantion Required"

case 14
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Out of
Memory"

case 15
Wscript.Echo "ExtendedDetectedErrorState: " &

wbemObject.ExtendedDetectedErrorState & " Server
Unknown"

End Select
end if

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Next
Wscript.Echo "Printer " & ttpname

Appendix B

WMI Script to get Basic Status

B-11

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

B-12

Appendix B

WMI Script to get Basic Status

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Appendix C

Setup Printer Forms in Windows XP and Vista

Windows XP and Vista allows you to control global settings for print servers by using th e
Print Server Properties dialog box. You can access this dialog box by doing the following:

1. Double-click on the printer's icon in the Control Panel or select Settings in the Start

menu and then choose the Printers option.

2. In the Printers window, select Server Properties from the File menu.

3. Use the Forms tab of the Print Server Properties dialog box to view printer forms.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

C-2

Appendix C

Setup Printer Forms in Windows XP and Vista

Viewing and Creating Printer Forms

Forms are used by the print server to define the standard sizes for paper, envelopes, and
transparencies. To view the current settings for a printer form, follow these steps:

1. Open the Print Server Properties dialog box and then click on the Forms ta b as shown

above.

2. Use the Forms On list box to select the form you want to view.

The form settings are shown in the Measurements area. You can't change or delete
the default system forms.

To create a new form, follow these steps:

1. Access the Forms tab of the Print Server Properties dialog box.

2. Use the Forms On list box to select the existing form on which you want to base the

new form.

3. Select the Create A New Form check box.

4. Enter a new name for the Form in the Form Description For field.

5. Use the fields in the Measurements area to set the paper size and margins.

6. Choose the Save Form button to save the form.

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Setup Printer Forms in Windows 7

You can use Print Management to manage printer forms.
To open Print Management, click Start, point to Administrative Tools, and then click

Print Management.
You must have Administrative permissions to perform this task.

To manage forms:

1. Open Print Management.

Appendix C

Setup Printer Forms in Windows 7

C-3

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

C-4

Appendix C

Setup Printer Forms in Windows 7

2. In the left pane, click Print Servers, click the applicable print server, right-click Forms,

and then click Manage Forms.

3. In the Printer Server Properties dialog box, do the following:

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010

Appendix C

Setup Printer Forms in Windows 7

4. To create a new form, select an existing form, select the Create a new form check box,

change the printer measurement units, paper size, and printer area margins as
needed, click Save Form, and then click OK.

C-5

5. To delete a form, select the form, click Delete, and then click OK.

8/6/2010 KR203 Software Integrator Guide P1028248-001 Rev. A

C-6

Appendix C

Setup Printer Forms in Windows 7

P1028248-001 Rev. A KR203 Software Integrator Guide 8/6/2010
