Xplore Technologies® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein.

Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104C Xplore Technologies Corp.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company.

All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies.

Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws.

PN: 95-01050 Edition: First, June 2006

DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797

Declares that product: Model Series: iX104C

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment.

For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.”

Warranty Information

The iX104C International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions.

, iX104C3 Tablet PC, and iX104C3 Dual Mode are trademarks of

complies with Part 15 of the FCC Rules

Tablet PC, and iX104C3 Dual Mode are backed by a standard 36-month

4 iX104C3 User’s Handbook

ix104.book Page 5 Tuesday, August 29, 2006 10:30 AM

Important safety information

Before you use the iX104C3 Tablet PC or iX104C3 Dual Mode (referred to as the tablet), read these safety instructions and the operation instructions in this handbook.

Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both.

Follow any special regulations governing the use of the tablet and, if radio-enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger.

Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet.

Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed.

Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal.

Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions.

Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues.

Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle.

WARNING

Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet.

WARNING

Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards.

iX104C3 User’s Handbook 5

ix104.book Page 6 Tuesday, August 29, 2006 10:30 AM

Operate the tablet only from the type of power source indicated on the marking label. (See page 44 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electric shock.

Unplug the tablet and refer the tablet and dock for service to qualified service personnel if any of the following conditions occur:

■ The power supply cord or plug is damaged.

■ The tablet or dock does not operate normally when you follow the instructions in this

book.

■ The tablet or dock exhibits a distinct change in performance.

Adjust only controls for which there are instructions in this book. An improper adjustment of other controls can result in damage and may require extensive work by a qualified technician to restore the tablet or dock to normal operation.

CAUTION

Avoid prolonged physical contact with the exposed metal surfaces on the front and back of the tablet. While the tablet may not feel hot to the touch, if you maintain physical contact with the tablet for a long time (for example, if you rest the tablet on your lap for a long time), your skin may suffer low-heat injury. In addition, be careful when you remove a PC card that has been used for a long time, because the card may be hot.

6 iX104C3 User’s Handbook

ix104.book Page 7 Tuesday, August 29, 2006 10:30 AM

Contents

Welcome 11

Who this handbook is for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

About your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Contacting Xplore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1 Getting Started 17

Getting to know your tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Back view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Bottom view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Right side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Left side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Quick-start guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Application, Windows, and hot keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2 Using the iX104C

Turning on the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Turning off the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using the Reset switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Suspending and resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Suspending operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Resuming operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

iX104C3 User’s Handbook 7

ix104.book Page 8 Tuesday, August 29, 2006 10:30 AM

Contents

Using the pen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Selecting Auto-Sense, Active, or Touch mode . . . . . . . . . . . . . . . . . . . . . . . 33

Using the digitizer to perform mouse functions. . . . . . . . . . . . . . . . . . . . . . . 34

Changing the pen double-click speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Positioning the pen and pen tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Changing the screen orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Adjusting the screen brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Enabling automatic backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Docking the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Connecting devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Connecting to a local area network or telephone line . . . . . . . . . . . . . . . . . . 41

Connecting USB-compatible devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Connecting an external microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Adjusting microphone volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

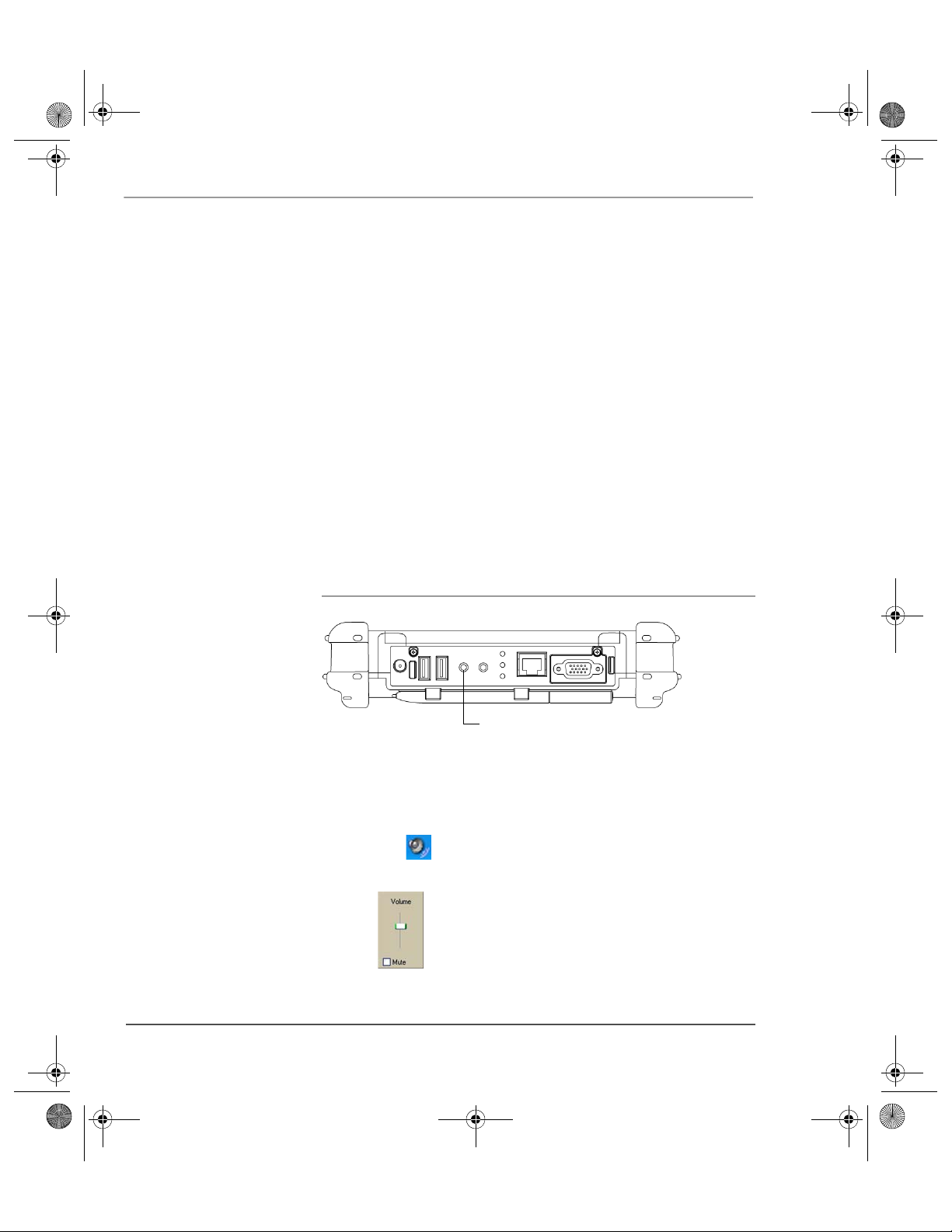

Connecting a headphone or speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Adjusting headphone or speaker volume . . . . . . . . . . . . . . . . . . . . . . . . 42

Connecting a monitor or projection panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Activating the monitor or projection panel. . . . . . . . . . . . . . . . . . . . . . . 43

Connecting an XPL snap-on expansion module . . . . . . . . . . . . . . . . . . . . . . 43

Using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Charging the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

If you do not have an external battery charger . . . . . . . . . . . . . . . . . . . . 44

If you have an external battery charger . . . . . . . . . . . . . . . . . . . . . . . . . 45

Removing and installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Discarding a battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Using power options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

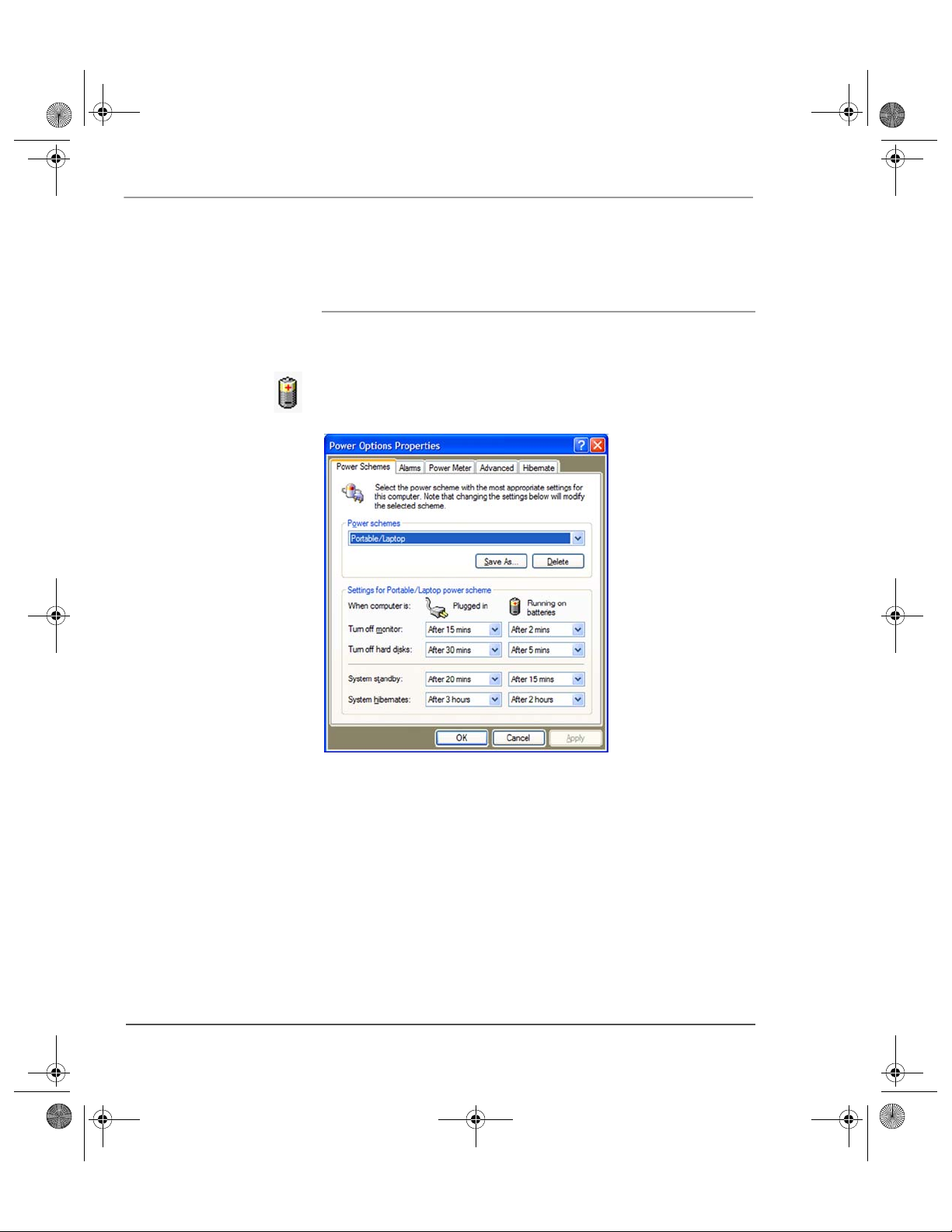

Changing the computer’s power schemes . . . . . . . . . . . . . . . . . . . . . . . 48

Changing battery alarm settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8 iX104C3 User’s Handbook

ix104.book Page 9 Tuesday, August 29, 2006 10:30 AM

Tips for conserving battery power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Accessing the hard disk drive compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Re-installing the hard disk drive compartment cover . . . . . . . . . . . . . . . . . . 53

Accessing the PCMCIA compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Re-installing the PCMCIA compartment cover. . . . . . . . . . . . . . . . . . . . . . . 55

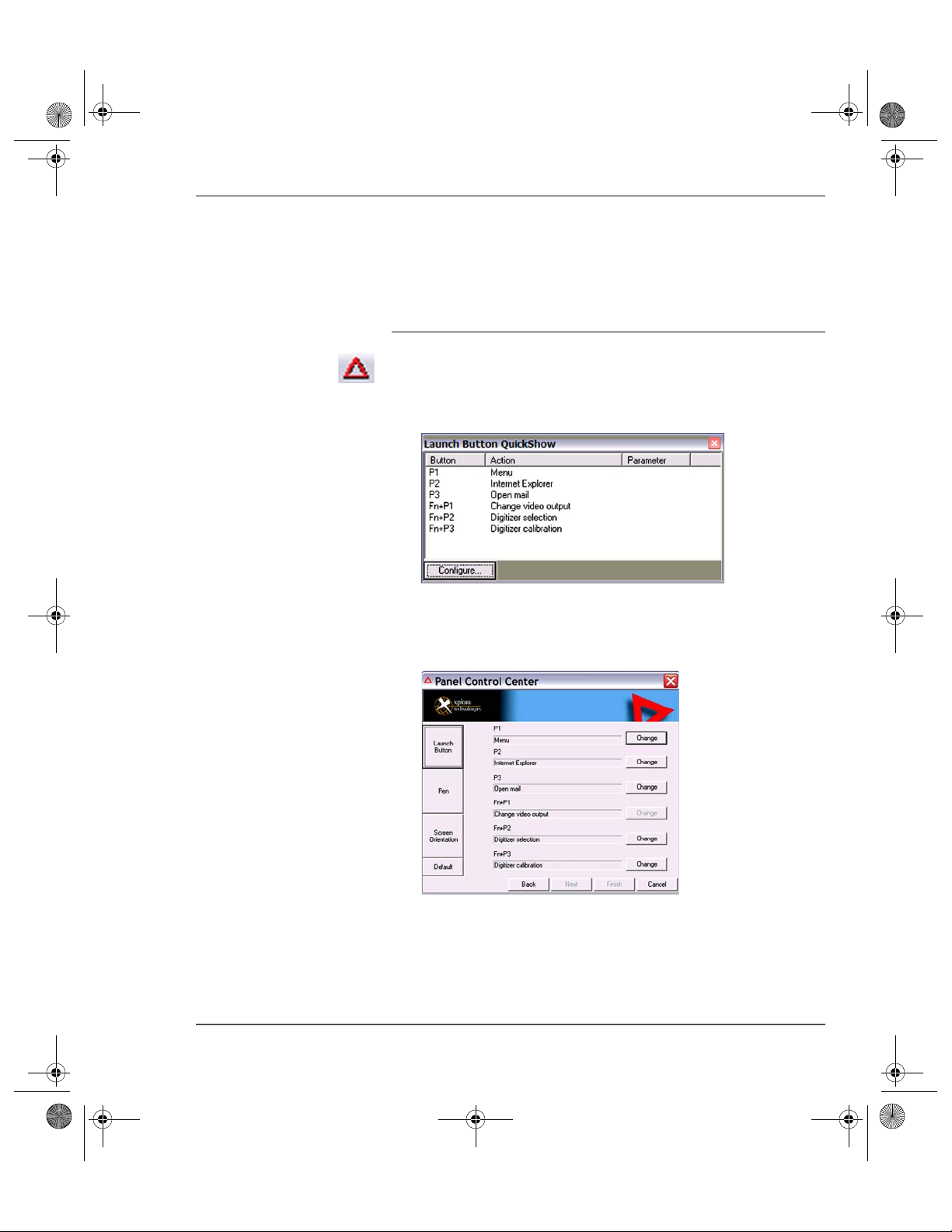

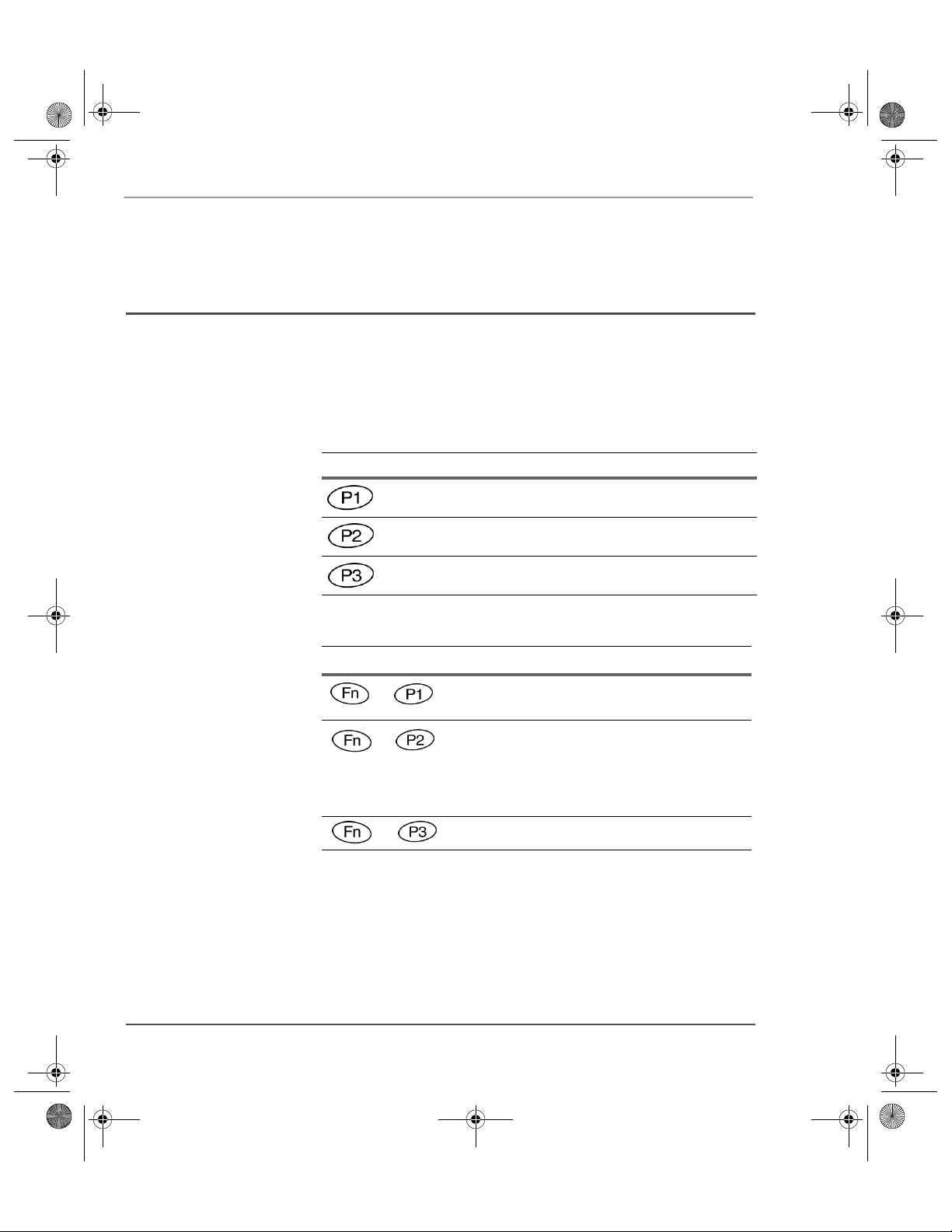

Programming hot keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Programming hot keys to start applications, open documents,

or go to a Web site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Programming hot keys to perform pre-defined functions . . . . . . . . . . . . . . . 61

Programming hot keys to perform other key functions . . . . . . . . . . . . . . . . . 63

Contents

Checking battery power status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Selecting power settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Enabling Hibernation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3 Maintaining the iX104C

Caring for the tablet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Checking power cords and connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Protecting the computer from damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Preventing the computer from overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Storing the computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Caring for the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Protecting the display screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

When to replace the pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Calibrating the digitizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Calibrating the digitizer: iX104C3 Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . 71

Calibrating the digitizer: iX104C3 Dual Mode . . . . . . . . . . . . . . . . . . . . . . . 72

Calibrating the digitizer: Active mode . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Calibrating the digitizer: Touch mode . . . . . . . . . . . . . . . . . . . . . . . . . . 74

iX104C3 User’s Handbook 9

ix104.book Page 10 Tuesday, August 29, 2006 10:30 AM

Contents

A Troubleshooting 75

B Using BIOS and AOS Functions 77

Disabling the Auto Power feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Enabling automatic LCD backlight control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

C Glossary 79

D Hardware Specifications 83

E Agency Notices 89

F Configuring Dual Mode Tablet Digitizer Input Methods 93

Using the BIOS Setup Utility to set input method defaults . . . . . . . . . . . . . . . . . 93

Starting the BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Selecting the digitizer input method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Setting digitizer input method security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Using the Panel Control Center to configure controls for

temporary changes to the input method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Summary: Dual Mode digitizer input method settings . . . . . . . . . . . . . . . . . . . . . 98

Sample implementations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Sample 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Sample 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Index 105

10 iX104C3 User’s Handbook

ix104.book Page 11 Tuesday, August 29, 2006 10:30 AM

Welcome

™

Welcome to the Xplore Technologies® iX104C

tablet PC, the rugged tablet designed, tested, and manufactured to meet the environmental and physical real-world challenges faced by today’s mobile workers.

iX104C

not only works the way you do, but can also take the

iX104C

design is based on

The abuses of everyday wear and tear. The years of experience in rugged mobile applications.

Who this handbook is for

This handbook assumes that you have basic experience using computers and Microsoft

Windows®.

Advanced technology, innovative design, and a rugged case are just a few highlights of your

iX104C

system. Equally important is Xplore’s commitment to ensuring that you are treated with the same respect and honesty you offer to your customers and peers every day.

This handbook provides instructions for using Xplore Technologies

iX104C

tablet computers.

iX104C3 User’s Handbook 11

ix104.book Page 12 Tuesday, August 29, 2006 10:30 AM

Welcome

About your computer

The iX104C3 is a high-performance tablet PC that runs on the Microsoft

Windows XP® Professional Tablet PC Edition operating

system.

The method you use to control the tablet depends on the tablet model, as follows:

Tablet Model Digitizer/Touchscreen Control Method

iX104C

Tablet PC Digitizer Special, enhanced pen

(included with the tablet)

Dual Mode Combined digitizer

iX104C

and touchscreen

• Special, enhanced pen (included with the tablet)

• Your finger

• Any suitable pointing device

Note: In this handbook, all information applies to all models unless otherwise noted.

All iX104C3 tablets have been engineered and tested to meet Military Standards for Environmental Extremes (MIL STD 810F). Your tablet includes the following features that make it exceptionally rugged and durable:

■ Durable, long-lasting, dense magnesium enclosure

■ Interior and exterior multi-layer magnesium frames and cavities

■ ISODAMP

shock absorbing materials in patented bumpering

system and gasket protection mechanisms

■ Shock-isolated hard disk

12 iX104C3 User’s Handbook

ix104.book Page 13 Tuesday, August 29, 2006 10:30 AM

Package contents

Welcome

■ Integrated, protected wireless LAN and WAN antennas for dual

mode operation

■ Locked in place memory, cables, and connectors

■ Proprietary thermal management system

Check to make sure your package includes the following items:

■ Quick Start Guide

■ Battery pack

■ Power cord

■ AC adapter

■ Pen

■ Pen tether

■ iX104C

■ Warranty information kit

■ This handbook

pen tablet

Optional accessories

Your package also includes any optional accessories you ordered.

Docking options

■ xStand Desktop Docking Station

■ xDock Vehicle Docking Station

Carrying cases

■ Ballistic nylon hands-free carry case

■ Leather portfolio case

iX104C3 User’s Handbook 13

ix104.book Page 14 Tuesday, August 29, 2006 10:30 AM

Welcome

Storage options

■ External USB floppy disk drive

■ External USB CD-ROM drive

Memory

■ 512 MB and 1 GB PC3200 SODIMM DDR RAM

■ 80 GB 2.5-inch rugged hard disk

Power options

■ AC adapter with U.S. cord

■ Main battery pack (41 watt hours)

■ Extended life battery pack (55 watt hours)

■ Auto adapter (cigarette lighter adapter)

Additional accessories

■ USB non-rugged mini keyboard (83-key)

■ USB rugged, backlit mini keyboard (83-key)

■ Screen protectors (2-pack)

■ Active stylus

■ Pen tether

■ Slipcover case with hand straps

14 iX104C3 User’s Handbook

ix104.book Page 15 Tuesday, August 29, 2006 10:30 AM

Contacting Xplore

Welcome

If you purchased your tablet from an authorized Xplore dealer, contact the dealer for service and support.

If you purchased your tablet directly from Xplore, use any of the following methods to contact Xplore for service and support:

Toll free 1-866-296-8541, extension 222

Fax 1-512-336-7791

E-mail customersupport@xploretech.com

Web site http://www.xploretech.com

Before you contact Xplore, have the following information ready so that the customer support representative can quickly provide a solution:

The serial number is on the back of the tablet. See page 18.

Product name: iX104C

Product serial number

Purchase date

Conditions under which the problem occurred

Any error messages that were displayed

Type of device connected, if any

iX104C3 User’s Handbook 15

ix104.book Page 16 Tuesday, August 29, 2006 10:30 AM

16 iX104C3 User’s Handbook

ix104.book Page 17 Tuesday, August 29, 2006 10:30 AM

1 Getting Started

Getting to know your tablet

This chapter gives you an overview of your tablet and includes a quick-start guide to tablet keys.

For more information about each component, see Chapter 2.

built-in

microphone

Reset switch

Status light

speaker

This section shows the locations of some of your tablet’s important components.

Front view

ambient light sensor

brightness/HDD (hard disk drive) indicator

speaker

fingerprint scanner

iX104C3 User’s Handbook 17

ix104.book Page 18 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Getting to know your tablet

Built-in microphone – Enables you to input mono audio. Includes noise cancellation.

Reset switch – Enables you to turn off the computer when using the Power On/Off key is not effective. (See page 28.)

Speakers – Enable you to listen to stereo audio files. Sealed to provide protection from the environment.

For information about controlling brightness, see page 39.

convection

air flow

antenna

cover

covers

Ambient light sensor – Automatically controls the amount of backlight sent to the screen. Provides optimum brightness for the lighting conditions in which you are working.

Back view

compliance and serial number label

removable battery pack

battery release latch

battery lock button

pen

pen holder

Convection air flow cover – Magnesium cover over the thermal transfer bay that manages heat movement out of the computer.

18 iX104C3 User’s Handbook

ix104.book Page 19 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Getting to know your tablet

Antenna covers – For optional wireless LAN and WAN models, protect and secure the radio antennas (accessible by authorized service personnel only).

Pen – The main device you use to enter data and control applications (instead of a mouse or a keyboard). Also called the stylus. See “Using the pen” on page 32.

Pen holder – Provides a place to secure the pen when you are not using it.

Battery release latch – Provides access to the battery.

Battery lock button – Secures the battery inside the tablet.

Removable battery pack – Battery that runs the computer when

battery power is required.

Power On/Off/ Suspend/

Resume button

air flow vents

Compliance and serial number label – Includes regulatory compliance numbers and the computer’s unique serial number.

Top view

Kensington lock slot

Bluetooth antenna/56K modem (optional)

Power On/Off/Suspend/Resume key – Press the key to turn the computer on or off, or to suspend or resume operation.

Air flow vents – Helps prevent the computer from overheating by forcing heat away from the computer. (Do not block the vents.)

iX104C3 User’s Handbook 19

ix104.book Page 20 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Getting to know your tablet

Bluetooth antenna – Optional Bluetooth antenna or 56K modem.

Kensington

MicroSaver

Bottom view

™

lock slot – Connector for the optional Kensington

™

-compatible security cable.

connector

The optional Office and Vehicle Docks include additional USB ports. See “Optional accessories” on page 13.

power

USB ports

microphone connector

headphone

connector

LAN connector

external monitor connector

The connectors on the bottom of the computer are located behind the outer doors.

Power connector – For the optional AC adapter or auto adapter. (See “Optional accessories” on page 13.)

USB 2.0 ports – For Universal Serial Bus devices (compliant with USB Standard Revision 2.0).

Headphone connector – For stereo headphones or speakers.

Microphone connector – For an external microphone.

LAN connector – For connecting a standard RJ-45 connector to the

tablet’s internal local area network (LAN) card

External monitor connector – For an external monitor or projection panel.

20 iX104C3 User’s Handbook

ix104.book Page 21 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Getting to know your tablet

Right side view

XPL expansion port

bumpers

Bumpers – Fabricated from rugged material. Raised to help protect the computer from damage.

Contact your reseller for information about the XPL expansion module and the Kensington security cable.

receptacles

See “Optional accessories” on page 13.

XPL expansion port – A USB port (compliant with USB Standard Revision 2.0) that enables you to connect an XPL snap-on expansion module for devices such as cameras, radios, and fingerprint scanners.

Left side view

docking connector for the optional Xplore Tablet Dock

guide pin

Docking connector – Enables you to connect the optional xStand Desktop Docking Station or xDock Vehicle Docking Station.

Guide pin receptacles – Help assure secure connection of the optional xStand or xDock.

iX104C3 User’s Handbook 21

ix104.book Page 22 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Getting to know your tablet

LED indicators

The LED indicator lights show the status of system functions such as power and battery levels.

Status LED

Brightness/HDD LED

The following table defines the various LED states.

Table 1 Status LED indicator

Mode/State LED State Meaning

On state green, continuous The computer is on, ready for use, and functioning

normally. The battery is fully charged.

Charging green, blinking The AC adapter is plugged in and the battery is

charging.

Off state off (no light) The computer is off.

Suspend mode yellow, continuous The computer is on and is in Suspend or

Hibernation mode.

Thermal control yellow, blinking The computer is on and is in Warm-up mode, with

the LCD and backlight off. After the system has warmed to a safe level, the LCD and backlight turn on.

22 iX104C3 User’s Handbook

ix104.book Page 23 Tuesday, August 29, 2006 10:30 AM

Table 1 Status LED indicator (continued)

Mode/State LED State Meaning

On red, blinking The computer is powered on, running under battery

Chapter 1. Getting Started

Getting to know your tablet

power, and the charge level in the battery is at a minimum warning level. Plug the computer into an AC/DC power source or install a charged battery.

On red, continuous • The computer is on, running under battery power,

and the charge level in the battery has reached a critical level. Plug the computer into an AC/DC power source or install a charged battery.

• The computer has encountered a fault and is preventing normal operation. (Contact your help desk.)

Table 2 Brightness/HDD Activity LED indicator

Mode/State LED State Meaning

On green, not continuous Manual backlight control is enabled. The backlight

is under your manual control and the hard drive is active. Note: This is the computer’s default state.

On green, continuous Automatic backlight control is active.

iX104C3 User’s Handbook 23

ix104.book Page 24 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Quick-start guide

This section is a quick guide to using the main features of your tablet. (See Chapter 2 for detailed information.)

Application, Windows, and hot keys

Ctrl-Alt-Delete

(Secure Attention

Sequence) key

Screen Rotation

key

Function

key

Hot key 3

Fingerprint scanner

Hot key 1

Hot key 2

24 iX104C3 User’s Handbook

ix104.book Page 25 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Quick-start guide

Table 3 Main keys

Press this key... To perform this function

• Log on after resuming operation from power

management, powering on, or locking.

• After logging on, launch Windows Task

Manager.

Rotate screen orientation between portrait (vertical) and landscape (horizontal).

Use in combination with another key to perform various functions. (See page 26.)

Fingerprint scanner.

Open Help, or perform a different function that you program this key to perform.

Open Internet Explorer, or perform a different function that you program this key to perform.

Open your email application, or perform a different function that you program this key to perform.

iX104C3 User’s Handbook 25

ix104.book Page 26 Tuesday, August 29, 2006 10:30 AM

Chapter 1. Getting Started

Quick-start guide

Table 4 Function mode keys

Press these keys... To perform this function

Default function: Send video display to a monitor or

projection panel connected to the computer (and back to the computer again). You can program this key combination to perform a different function.

Default function:

Default function: Open the pen calibration program. You

iX104C

“Programming hot keys to start applications, open documents, or go to a Web site” on page 57).

iX104C

mode, or Touch mode. This determines the input devices you can use. In Auto-Sense mode, you can use the pen, your finger, or another similar device interchangeably. In Active mode, you can use only the pen. In Touch mode, you can use your finger or another similar pointing device. You can program this key combination to perform a different function. (See “Programming hot keys to start applications, open documents, or go to a Web site” on page 57.)

can program this key combination to perform a different function.

Tabl et PC: Open a pre-defined program (see

Dual Mode: Select Auto-Sense mode, Active

26 iX104C3 User’s Handbook

ix104.book Page 27 Tuesday, August 29, 2006 10:30 AM

2 Using the iX104C

This chapter contains detailed instructions for using your tablet.

Turning on the computer

1. Make sure the computer is off.

When the computer is off, the Status LED is off.

2. Make sure the battery is charged or that the computer is plugged

in to an external power source.

3. Press the Power On/Off/Suspend/Resume button.

Power On/Off/

Suspend/Resume

button

iX104C3 User’s Handbook 27

ix104.book Page 28 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Turning off the computer

When the computer is in Suspend mode, the Status LED is continuously yellow.

Use the Reset switch only if you cannot turn off the computer by any other means, because you may lose unsaved data.

1. If the computer is in Suspend mode, press the Power On/Off/

Suspend/Resume

button to resume operation. (See page 30 for

information about Suspend mode.)

Power On/Off/

Suspend/Resume

button

2. Make sure the battery is charged or that the computer is plugged

in to an external power source.

3. Save your work and close all programs.

4. From the Windows Start menu, click Turn Off Computer.

5. The Turn off computer dialog box opens.

6. Click Tu rn Of f.

Using the Reset switch

If the computer does not seem to be accepting input and you cannot turn it off by using the method described in “Turning off the computer,” press the instrument to press the switch).

Reset switch

Reset switch. (Use the stylus or a similar

28 iX104C3 User’s Handbook

ix104.book Page 29 Tuesday, August 29, 2006 10:30 AM

Suspending and resuming operation

Chapter 2. Using the iX104C3

Suspending and resuming operation

To conserve battery power when you do not want to turn off the computer or when you need to install a charged battery pack, put the computer into Suspend mode. (You can suspend operation without closing any programs or Windows.)

When you suspend operation:

■ Programs that are running stop (but do not close).

■ Active data is saved.

■ The system enters one of the following low-power modes:

• Suspend-to-RAM mode – The Status LED light is continuously yellow. Active data is saved in RAM and most other components are turned off.

Although the computer uses very little power when in

Suspend-to-RAM mode, eventually the battery’s power does run out. If you will not be using the computer for an extended period of time, turn the computer off instead of using Suspend-to-RAM mode.

• Hibernation mode – Active data is saved on the hard disk and power usage is reduced to the same level as when the computer is turned off. In Hibernation mode, there is no danger of losing data if battery power is lost.

Note: For more information, see “Using power options” on page 48.

If you have set your computer to turn power off (in the Power Options utility in Windows Control Panel), you cannot suspend operation. To change power settings, see “Using power options” on page 48.

If the Suspend action of the Power On/Off/Suspend/Resume button has been disabled to prevent accidental interruption, pressing the button does not suspend the computer. You must use a software application to suspend the computer. For more information, contact your help desk or your iX104C

dealer.

iX104C3 User’s Handbook 29

ix104.book Page 30 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Suspending and resuming operation

If your computer is connected to a network, the network may automatically log you off after a period of inactivity while system operation is suspended. Contact your help desk or system administrator to learn your log-off time limit.

Suspending operation

Use one of the following methods to suspend operation:

Method 1

Press and hold the Power On/Off/Suspend/Resume button for 4 seconds.

Power On/Off/

Suspend/Resume

button

Method 2

From the Windows Start menu, press Turn Off Computer.

2. The Turn off computer dialog box opens.

3. Press Stand By.

When operation is suspended, the Status LED displays a continuous yellow light.

Status LED

30 iX104C3 User’s Handbook

ix104.book Page 31 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Suspending and resuming operation

Resuming operation

To resume operation when the computer is in Suspend mode, press the

Power On/Off/Suspend/Resume button.

Note: Press the button only once.

Power On/Off/

Suspend/Resume

button

After a minute or two, the computer resumes normal operation. When the Status LED displays a continuous green light, you can begin using the computer.

Note: Resuming operation from Hibernation mode takes a little longer than from Suspend-to-RAM mode.

iX104C3 User’s Handbook 31

ix104.book Page 32 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the pen

You can use the pen to select items and to navigate through programs.

If your computer is an iX104C3 Tablet PC:

Use the special multi-function pen provided with the computer.

For more information about Dual Mode tablet input methods, see Appendix F, "Configuring Dual Mode Tablet Digitizer Input Methods.”

If your computer is an iX104C3 Dual Mode:

You can use any of the following input methods:

Auto-Sense mode: Use either the multi-function pen or your finger interchangeably. The computer distinguishes between the two input modes and automatically adjusts accordingly.

This is the tablet’s default state.

Active mode: Use only the special multi-function pen

provided with the computer.

Touch mode: Use your finger or another similar pointing device.

For more information, see “Selecting Auto-Sense, Active, or Touch mode” on page 33.

WARNING

Do not use items such as a ball point pen or a screwdriver that can damage the tablet. Damage caused by using an item not provided with the tablet is not covered by the tablet warranty.

Note: Before you use the tablet the first time, or if the action you are trying to perform does not occur when you use the pen or your finger to touch the screen, calibrate the digitizer as described in “Calibrating the digitizer” on page 71.

32 iX104C3 User’s Handbook

ix104.book Page 33 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the pen

Selecting Auto-Sense, Active, or Touch mode

If your computer is the iX104C3 Dual Mode model, use the Fn-P2 key combination to select Auto-Sense mode (the default mode), Active-only mode, or Touch-only mode.

In Auto-Sense mode, you can use the multi-function pen provided with the tablet, your finger, or any other similar pointing device interchangeably, on the fly.

In Active mode, you can use only the special multi-function pen provided with the tablet.

In To uc h mode, you can use your finger or another similar pointing device.

Note: The input methods available to you depend on the way your tablet has been configured. See Appendix F, "Configuring Dual Mode Tablet Digitizer Input Methods.”

iX104C3 User’s Handbook 33

ix104.book Page 34 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the pen

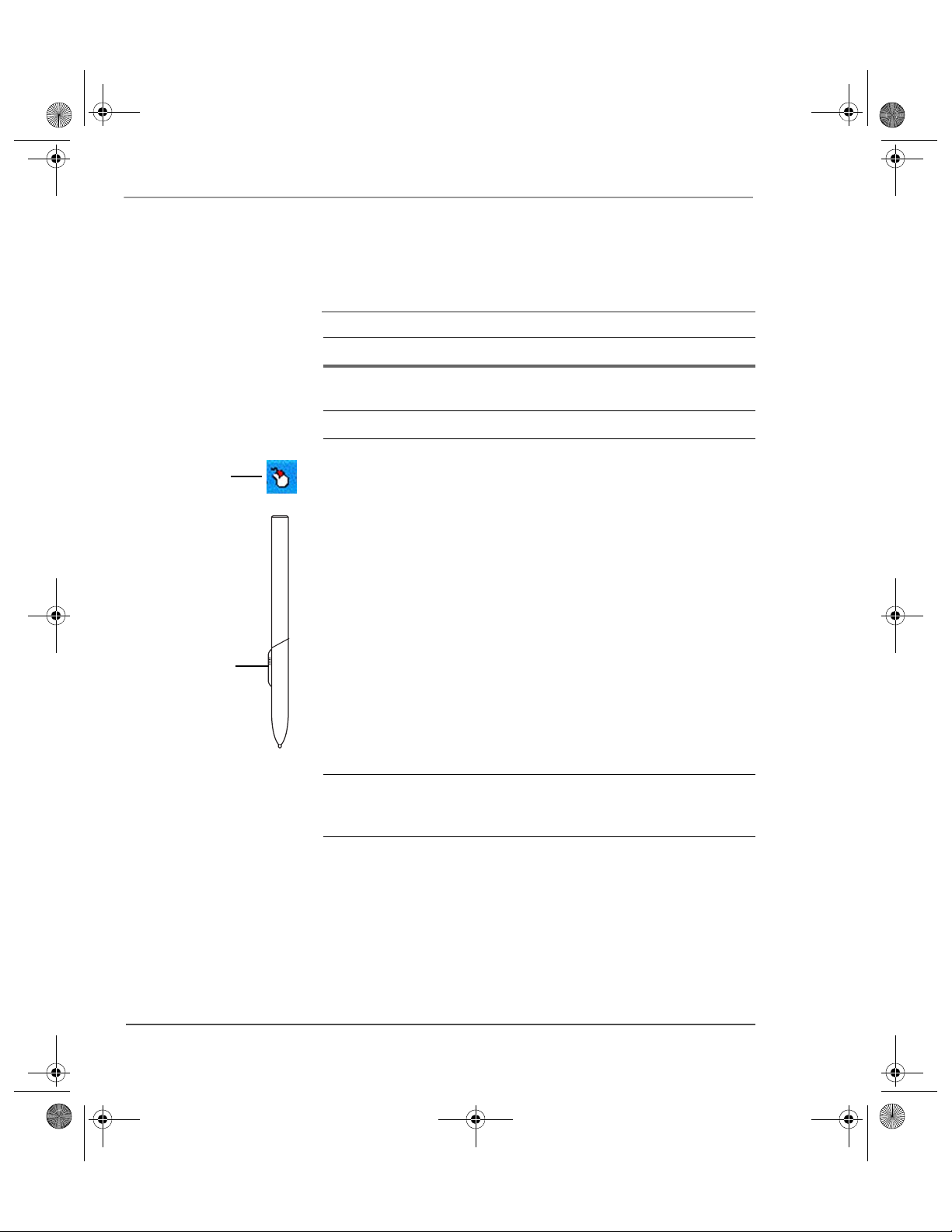

Using the digitizer to perform mouse functions

To perform this function... Do this

right-click

icon

right-click

button

Select an object (left button click).

Perform a double-click. Quickly tap the pen tip twice on the object.

Perform a right-click. If your computer is an iX104C

Move or drag an object. Place the pen tip on the object; then

Tap the pen tip once on the object.

Tabl et PC:

Hold the pen directly on the object for 1 second. The right-click icon appears.

Press the right-click button on the pen while you click the object.

If your computer is an iX104C Dual Mode:

Touch mode:

In the Windows taskbar, press the right-click icon; then click the object.

Active mode:

Hold the pen directly on the object for 1 second. The right-click icon appears.

Press the right-click button on the pen while you click the object.

continue to hold the pen tip against the screen as you move the pen.

34 iX104C3 User’s Handbook

ix104.book Page 35 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the pen

Changing the pen double-click speed

The pen double-click speed is in sync with the mouse double-click speed. To change the speed:

1. Click the Windows Start button.

2. Click the Settings option.

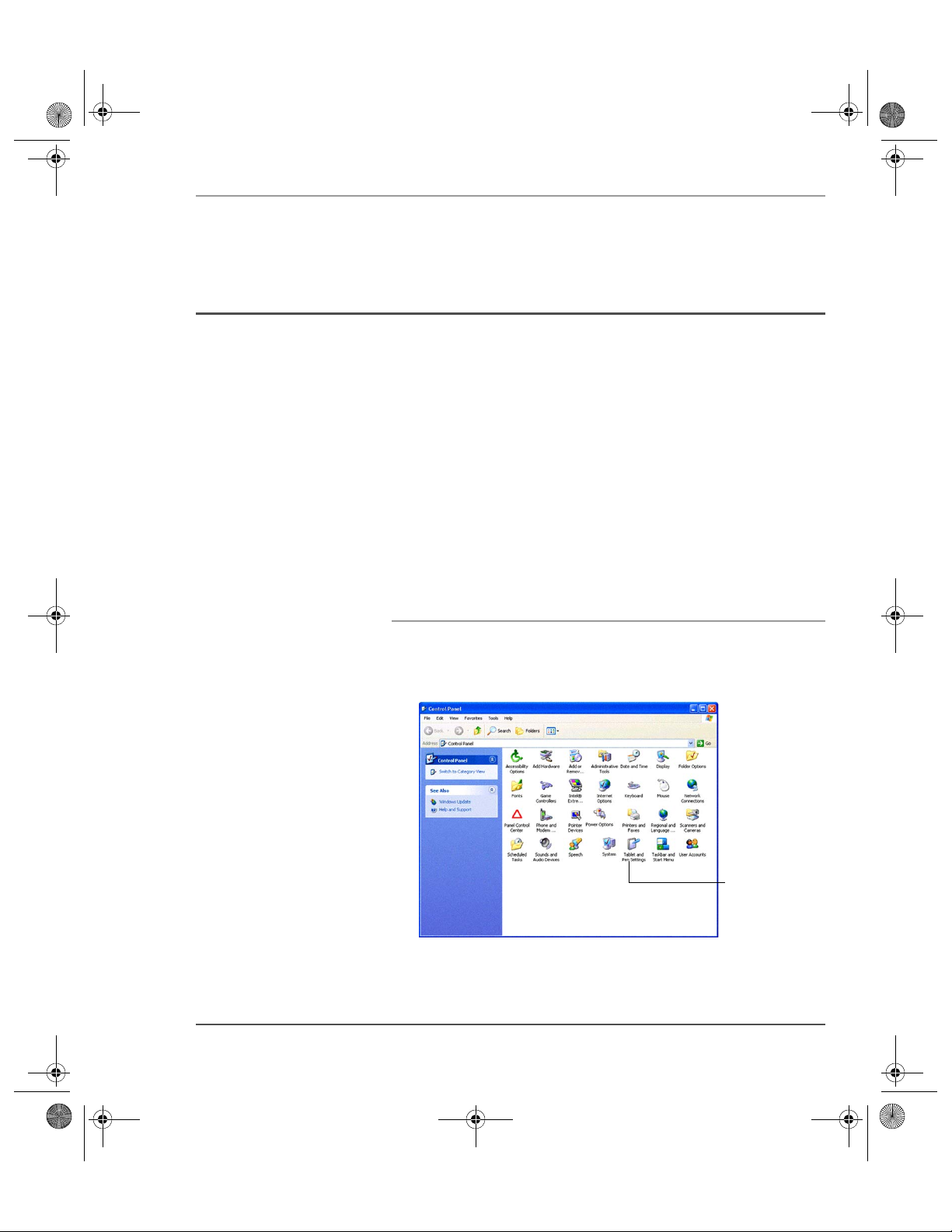

3. Click the Control Panel option.

4. In the Control Panel window:

If your computer is an iX104C3 Tablet PC:

Click the Tablet and Pen Settings icon.

If your computer is an iX104C3 Dual Mode:

In Active mode: Click the Tablet and Pen Settings icon.

In Tou c h mode: Click the

Pointer Devices icon.

5. Click the Windows tab.

6. Follow the instructions that appear in the Windows tab.

iX104C3 User’s Handbook 35

ix104.book Page 36 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the pen

Positioning the pen and pen tether

The pen tether helps prevent the loss of your pen. The following illustrations show how to position the pen and pen tether.

Tether anchored at the top

Note: When the optional Bluetooth antenna or 56K modem module is installed, anchor the tether on the side instead of on the top (see page 37).

pen tether

pen

36 iX104C3 User’s Handbook

ix104.book Page 37 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the pen

Tether anchored on the side

pen tether

pen

iX104C3 User’s Handbook 37

ix104.book Page 38 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Changing the screen orientation

To rotate the screen orientation from portrait (vertical) to landscape (horizontal) mode or from landscape to portrait mode, press the screen rotation key.

portrait mode

landscape mode

38 iX104C3 User’s Handbook

ix104.book Page 39 Tuesday, August 29, 2006 10:30 AM

Adjusting the screen brightness

Chapter 2. Using the iX104C3

Adjusting the screen brightness

To adjust the screen brightness, click the brightness control icon on the Windows taskbar; then use the slider bar to make the adjustment.

brightness control icon

Enabling automatic backlight control

When the ambient light sensor is enabled, the computer automatically controls the amount of backlight sent to the screen to provide optimum brightness for the lighting conditions in which you are working.

When the ambient light sensor is enabled, the continuously green. When the ambient light sensor is disabled and the backlight is under manual control, the

Brightness/HDD LED indicates

hard disk drive activity.

Brightness LED glows

Brightness/HDD LED

To enable automatic backlight control, see page 78.

iX104C3 User’s Handbook 39

ix104.book Page 40 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Docking the tablet

If you have the optional xStand office dock or xDock vehicle dock, connect it to the tablet at the docking port. (See the iX104 Docking Stations Handbook.)

docking port

guide pin receptacles

Connecting devices

Refer to the following subsections for information about connecting external devices to your computer.

Note: If the device you want to use does not appear to be working with your computer, the device may need to be enabled in the computer’s configuration program. Contact your local help desk or Xplore reseller.

40 iX104C3 User’s Handbook

ix104.book Page 41 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Connecting devices

Connecting to a local area network or telephone line

Connect a local area network (LAN) cable’s RJ-45 connector to the internal LAN interface card. (See your network system administrator for more information.)

LAN connector

Devices must be in compliance with USB Standard Revision 2.0.

Connecting USB-compatible devices

Connect any USB-compatible devices to the computer’s USB ports.

USB ports

Connecting an external microphone

microphone connector

iX104C3 User’s Handbook 41

ix104.book Page 42 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Connecting devices

Adjusting microphone volume

If necessary, adjust the volume of the microphone as follows:

1. Press the Windows Start key.

2. Open the Windows Control Panel.

3. In the Control Panel window, double-click the Sounds and Audio

Properties

4. In the Sounds and Audio Properties window, click the Audio tab.

5. In the Sound recording area, click the Vo lum e button.

6. Adjust the volume.

7. Click OK.

icon.

Connecting a headphone or speakers

headphone/speakers connector

Adjusting headphone or speaker volume

1. Click the audio icon in the Status area of the Windows

taskbar.

The volume control area opens.

42 iX104C3 User’s Handbook

ix104.book Page 43 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Connecting devices

2. If the Mute check box is checked, uncheck it.

3. Move the slider bar up or down to increase or decrease the

volume.

Connecting a monitor or projection panel

Monitor/projection panel connector

Activating the monitor or projection panel

To change the video output to the monitor or projection panel:

Press the Fn-P1 key combination.

To change the video output back to the computer:

Press the Fn-P1 key combination again.

Connecting an XPL snap-on expansion module

XPL expansion port

iX104C3 User’s Handbook 43

ix104.book Page 44 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

You can recharge, remove, and replace the battery pack.

Charging the battery pack

If you do not have an external battery charger

Follow these steps to charge the battery while it is installed in the computer:

1. Connect a power source, such as an AC adapter or cigarette

lighter adapter, to the power connector on the computer.

power connector

If the battery charge is below 90%, the battery begins charging and the Status LED flashes green. (If the battery charge is higher than 90%, the battery will not charge, preventing battery overcharge.)

2. Check the level of charge. (See “Checking battery power status”

on page 49.)

The charging process continues until the battery charge reaches 100%.

44 iX104C3 User’s Handbook

ix104.book Page 45 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

Table 5 shows the approximate time required to charge the battery level to 100%.

Table 5 Approximate battery charge time

Battery pack capacity Charge time

41 watt hours (5700 mAh) 2.5 hours

55 watt hours (7600 mAh) 3.5 hours

If you have an external battery charger

Remove the battery pack (see page 45).

2. Use the external battery charger to charge the battery.

3. Install the battery (see page 47).

Removing and installing the battery

You can remove the battery and use an (optional) external charger to charge it.

Removing the battery

1. To swap with a charged battery:

Use one of the methods described in “Suspending operation”

on page 30 to suspend operation.

If a charged battery is not available:

Save your work and close all running programs; then shut

down the computer or put the computer in Hibernation mode (see “Suspending operation” on page 30).

Note: To avoid losing unsaved data, wait until the computer

has completed switching to Suspended mode before removing the battery.

iX104C3 User’s Handbook 45

ix104.book Page 46 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

2. Use the stylus or a pen to depress the battery lock button.

3. On the computer, slide the battery release latch toward the lock

button.

The battery unlocks and slightly rises from the computer.

removable battery

battery release latch

battery lock button

4. Pull the battery away from the computer and remove it.

Note: After removing the battery, you must replace the battery or connect the computer to an external power supply within

3 to 5 minutes or the computer completely loses power.

46 iX104C3 User’s Handbook

ix104.book Page 47 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

Installing the battery

1. Orient the battery with the slides in the empty battery tray.

2. Slide the battery into the tray and press it firmly until it is seated.

3. Slide the battery release latch to its original position.

The lock button pops back into the locked position, securing the battery in place.

Discarding a battery

Dispose of a spent battery in accordance with your local government regulations. Under Federal, state, or local law, it may be illegal to put batteries in the trash. Contact your system administrator or your municipal solid waste disposal department or provider for information.

iX104C3 User’s Handbook 47

ix104.book Page 48 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

Using power options

This section explains how to use the Power Options Properties window to manage the computer’s power use.

On the Windows taskbar, click the battery icon.

The Power Options Properties window opens.

Changing the computer’s power schemes

In the Power Options Properties window, select the

Power Schemes

tab; then select options from the drop-down lists.

48 iX104C3 User’s Handbook

ix104.book Page 49 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

Changing battery alarm settings

In the Power Options Properties window (page 48), select the tab; then use the slider bars to change the alarm settings.

Alarms

Checking battery power status

In the Power Options Properties window (page 48), select the

Meter

tab. The window shows the amount of power left in the battery.

Power

iX104C3 User’s Handbook 49

ix104.book Page 50 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

Selecting power settings

In the Power Options Properties window (page 48), select the

Advanced tab; then select the power settings options you want to use.

Enabling Hibernation mode

In the Power Options Properties window (page 48), select the

Hibernate tab; then check the Enable Hibernation check box.

50 iX104C3 User’s Handbook

ix104.book Page 51 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Using the battery

Tips for conserving battery power

The following tips help you extend the life of your battery by conserving battery power:

■ Use an external power source such as the AC or auto adapter

whenever available.

■ Suspend operation if you know that you will not be using the

system for a while. (See “Suspending operation” on page 30.)

■ Turn off the computer if you will not be using it for an extended

period of time.

■ Adjust power options to automatically conserve power. (See

“Using power options” on page 48.)

iX104C3 User’s Handbook 51

ix104.book Page 52 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Accessing the hard disk drive compartment

When you install a new hard disk drive, follow the instructions in this section to access the hard disk drive compartment.

WAR NING Failure to follow this procedure can result in

damage to the case and the cover, which is not covered under the Xplore Technologies warranty.

Turn off the computer.

2. Remove all power from the unit, including batteries and other

power sources such as power supplies, cigarette lighter adapters, and mobile power sources.

3. Use an M1 Philips screwdriver to remove the 10 screws from the

compartment cover. (Do not use a power screwdriver.)

5 screws

52 iX104C3 User’s Handbook

ix104.book Page 53 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Accessing the hard disk drive compartment

Re-installing the hard disk drive compartment cover

1. Make sure the sealing gasket is properly placed.

2. Reposition the cover on the compartment.

3. Use the M1 Philips screwdriver and a torque wrench to replace

the 10 screws.

Notes: Use a maximum torque of 3 kg-cm (2.6 lb-in) for each

screw.

Do not use power tools.

iX104C3 User’s Handbook 53

ix104.book Page 54 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Accessing the PCMCIA compartment

When you install a PCMCIA card, follow the instructions in this section to access the PCMCIA compartment.

WAR NING Failure to follow this procedure can result in

Turn off the computer.

2. Remove all power from the unit, including batteries and other

power sources such as power supplies, cigarette lighter adapters, and mobile power sources.

damage to the case and the cover, which is not covered under the Xplore Technologies warranty.

3. Remove the battery. (See “Removing and installing the battery”

on page 45.)

4. Use an M1 Philips screwdriver to remove the 6 screws from the

compartment cover. (Do not use a power screwdriver.)

6 screws

54 iX104C3 User’s Handbook

ix104.book Page 55 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Accessing the PCMCIA compartment

Re-installing the PCMCIA compartment cover

1. Make sure the sealing gasket is properly placed.

2. Reposition the cover on the compartment.

3. Use the M1 Philips screwdriver and a torque wrench to replace

the 6 screws.

Notes: Use a maximum torque of 3 kg-cm (2.6 lb-in) for each

screw.

Do not use power tools.

iX104C3 User’s Handbook 55

ix104.book Page 56 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

Xplore pre-programs the P1, P2, and P3 hot keys and Function mode hot key combinations to perform certain functions by default. However, you can program them to perform different functions, as described in this section.

Table 6 Programmable hot keys

Key Default function

Starts Help.

Starts Internet Explorer.

Starts your email application.

Table 7 Programmable Function mode hot key combinations

Key combination Default function

Sends video display to a monitor or projection panel.

iX104C

Starts the pen calibration program.

Tablet PC: Opens a pre-defined

program.

iX104C

Dual Mode: Selects the input device

(see page 33).

56 iX104C3 User’s Handbook

ix104.book Page 57 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

Programming hot keys to start applications, open documents, or go to a Web site

1. In the Status area of the Windows taskbar, click the iX104C3

Configuration

The Launch Button QuickShow dialog box opens.

icon.

2. Click the Configure button.

The Panel Control Center window opens.

iX104C3 User’s Handbook 57

ix104.book Page 58 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

3. Click the Change button next to the key or key combination you

want to program.

The following options appear:

4. Click Launch an Application, Document or Web site.

The following options appear:

58 iX104C3 User’s Handbook

ix104.book Page 59 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

5. To start an application:

Click Launch an Application.

b. In the File text box, type the name of the application you

want the hot key or Function mode hot key combination to start.

Type the name of executable file that starts the application. For

example:

word.exe, notepad.exe, excel.exe.

c. Click Change.

To open a document:

Click Open a Document.

b. In the File text box, type the name of the document you want

the hot key or Function mode hot key combination to open. (For example:

wiringdiagram.jpg)

c. Click Change.

spreadsheet.xls, airports.doc,

iX104C3 User’s Handbook 59

ix104.book Page 60 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

To open a multimedia file:

b. In the File text box, type the name of the multimedia file you

c. Click Change.

To open a Web page:

b. In the File text box, type the URL of the Web page you want

c. Click Change.

6. Program more hot keys, or click Finish to close the Panel Control

Center window.

Click Open a Multimedia file.

want the hot key or Function mode hot key combination to open. (For example:

911training.dir, demo.ppt)

Click Open a Web page.

the hot key or Function mode hot key combination to open. (For example:

http://www.xploretech.com)

60 iX104C3 User’s Handbook

ix104.book Page 61 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

Programming hot keys to perform pre-defined functions

1. In the Status area of the Windows taskbar, click the iX104C3

Configuration

The Launch Button QuickShow dialog box opens.

icon.

2. Click the Configure button.

The Panel Control Center window opens.

3. Next to the key or key combination you want to program, click

the

Change button.

iX104C3 User’s Handbook 61

ix104.book Page 62 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

The following options appear:

4. Click Start a pre-defined function.

5. In the Function selection drop-down list, select an option.

6. Program more hot keys, or click Finish to close the Panel Control

Center window.

62 iX104C3 User’s Handbook

ix104.book Page 63 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

Programming hot keys to perform other key functions

1. In the Status area of the Windows taskbar, click the iX104C2

Configuration

The Launch Button QuickShow dialog box opens.

icon.

2. Click the Configure button.

The Panel Control Center window opens.

3. Next to the key or key combination you want to program, click

the

Change button.

iX104C3 User’s Handbook 63

ix104.book Page 64 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

The following options appear:

4. Click Press a key or key combination.

The following options appear:

64 iX104C3 User’s Handbook

ix104.book Page 65 Tuesday, August 29, 2006 10:30 AM

Chapter 2. Using the iX104C3

Programming hot keys

5. If you want the hot key or hot key combination to perform the

function of a single key:

If the Ctrl, Alt, or Shift boxes are checked, uncheck them.

b. Click the key you want the hot key or hot key combination to

perform. (For example:

If you want the hot key or hot key combination to perform the function of a key combination:

Check the Ctrl, Alt, or Shift box.

b. From the drop-down list, select the additional key, or click

F6, G, or Caps Lock)

the key on the keyboard.

Examples

To cause the hot key to perform the print screen function (

Alt-Print Scrn): Check the Alt check box; then select PrtScr

from the drop-down list.

To cause the hot key to perform the paste Check the

6. Program more hot keys, or click Finish to close the Panel Control

Ctrl check box; then click the V key.

function (Ctrl-V):

Center window.

iX104C3 User’s Handbook 65

ix104.book Page 66 Tuesday, August 29, 2006 10:30 AM

66 iX104C 3 User’s Handbook

ix104.book Page 67 Tuesday, August 29, 2006 10:30 AM

3 Maintaining the iX104C

This chapter provides instructions for maintaining your tablet.

Caring for the tablet

This section provides information about how to keep your tablet in top working condition.

Checking power cords and connectors

Check AC and DC power cords and power connectors periodically for damage. Replace the power cord immediately if you find any damage.

Protecting the computer from damage

■ Your computer is designed to sustain a multiple-axis drop to a

non-yielding surface. Do not intentionally drop the computer, because the cumulative effects of multiple drops may damage the computer.

■ Do not place heavy objects on the computer.

■ Do not disassemble the computer.

■ Keep the computer at least 5 inches (13 centimeters) away from

any electrical appliance that generates a strong magnetic field, such as a motor, magnet, TV, refrigerator, or large audio speakers.

iX104C3 User’s Handbook 67

ix104.book Page 68 Tuesday, August 29, 2006 10:30 AM

Chapter 3. Maintaining the iX104C3

Caring for the tablet

Preventing the computer from overheating

The computer monitors its internal temperature. As the internal temperature approaches the tolerable limits of heat-sensitive components, system functions are automatically limited or turned off to prevent damage.

To prevent the computer from overheating, do not obstruct the computer’s air vents.

air vent

area

air vents

68 iX104C3 User’s Handbook

ix104.book Page 69 Tuesday, August 29, 2006 10:30 AM

Chapter 3. Maintaining the iX104C3

Caring for the tablet

Storing the computer

You can store the computer in the Off state for about 30 days with a fully charged battery installed. After this period, recharge the battery or replace it with a charged battery.

If you intend to store the computer for more than 30 days, remove the battery pack and keep it in a cool place.

Caring for the display screen

To clean the display screen, dampen a soft cotton cloth with water and gently wipe the screen surface.

Note: Do not use isopropyl alcohol to clean the screen.

Alcohol may damage the surface of the screen.

Protecting the display screen

The screen protector is a durable, replaceable writing surface that protects the display screen from abrasion.

To obtain additional screen protectors, check with your reseller, or go to the Xplore Web site at www.xploretech.com for ordering information. Additional information about installation is included with the screen protectors.

iX104C3 User’s Handbook 69

ix104.book Page 70 Tuesday, August 29, 2006 10:30 AM

Chapter 3. Maintaining the iX104C3

When to replace the pen

Removing the screen protector

Slide your fingernail under the edge of the screen protector and pull the protector away from the screen.

edge

Installing a new screen protector

Follow the instructions included with your screen protector replacement kit.

Note: If a screen protector is already installed on the display screen, remove it before installing the new screen protector.

When to replace the pen

With use, the pen tip may become worn and can scratch the screen. If your pen exhibits one of the following problems, replace the pen:

■ The pen does not move freely across the screen.

■ The pen does not perform as expected.

70 iX104C3 User’s Handbook

ix104.book Page 71 Tuesday, August 29, 2006 10:30 AM

Calibrating the digitizer

Chapter 3. Maintaining the iX104C3

Calibrating the digitizer

Calibrating the digitizer adjusts the cursor position on the screen relative to the position of the pen tip or finger. Calibrate the digitizer to adjust the distance error between where the pen or finger is actually touching the screen and where the computer is registering the pen or finger touch.

You may need to calibrate the digitizer in the following situations:

■ You are using the computer for the first time.

■ The previous user of the computer writes with the opposite hand

or at a different pen angle.

■ The computer has not been used for some time.

■ The computer has been serviced.

Calibrating the digitizer: iX104C3 Table t P C

1. From the Start menu, select Control Panel.

The Control Panel opens.

Tablet and Pen Settings icon

iX104C3 User’s Handbook 71

ix104.book Page 72 Tuesday, August 29, 2006 10:30 AM

Chapter 3. Maintaining the iX104C3

Calibrating the digitizer

2. Click the Tablet and Pen Settings icon.

The Tablet and Pen Settings window opens.

3. In the Calibration area drop-down list, select the mode for which

you want to calibrate the pen:

Calibrate.

Landscape or Por trait; then click

The Calibration program starts.

4. Follow the instructions that appear on the screen.

5. When you finish, click OK.

Calibrating the digitizer: iX104C3 Dual Mode

In Active mode, you can use only the stylus included with the computer as the pointing device.

In Touch mode, you can use the stylus, a similar pointing device, or your finger.

See “Selecting Auto-Sense, Active, or Touch mode” on page 33.

72 iX104C3 User’s Handbook

Follow the instructions in the sections below to calibrate the digitizer for each mode.

ix104.book Page 73 Tuesday, August 29, 2006 10:30 AM

Chapter 3. Maintaining the iX104C3

Calibrating the digitizer

Calibrating the digitizer: Active mode

1. From the Start menu, select Control Panel.

The Control Panel opens.

Tablet and Pen Settings icon

2. Click the Tablet and Pen Settings icon.

The Tablet and Pen Settings window opens.

iX104C3 User’s Handbook 73

ix104.book Page 74 Tuesday, August 29, 2006 10:30 AM

Chapter 3. Maintaining the iX104C3

Calibrating the digitizer

3. In the Calibration area drop-down list, select the mode for which

you want to calibrate the pen:

Calibrate.

The Calibration program starts.

4. Follow the instructions that appear on the screen.

5. When you finish, click OK.

Calibrating the digitizer: Touch mode

1. From the Start menu, select All Programs > Touch Utility.

The Touch Utility window opens.

Landscape or Por trait; then click

2. Click the appropriate Calibration button.

Note: Xplore Technologies recommends 5 Pt or 9 Pt calibration, for

greater accuracy.

The Calibration program starts.

3. Follow the instructions that appear on the screen.

4. When you finish, click OK.

74 iX104C3 User’s Handbook

ix104.book Page 75 Tuesday, August 29, 2006 10:30 AM

A Troubleshooting

Table 8 Troubleshooting

Problem Possible cause and solution

Computer will not start. • The battery may be defective or discharged to a critically low level.

Table 8 contains solutions to some problems. If you cannot solve the problem by taking the actions described, contact your local help desk or your reseller for further assistance.

Connect an external power supply (such as the AC adapter) or install a charged battery. See “Using the battery” on page 44.

• Internal components may be above or below the acceptable operating range (below -20° C or above 60° C). After the temperature returns to safe operating range the computer will start.

The computer will not resume operation after being suspended.

The Status LED is red, continuous. • The computer is on, running under battery power, and the charge

The Status LED is red, blinking. The computer is powered on, running under battery power, and the

• The battery may be defective or discharged to a critically low level. When the battery reaches a critically low level, the computer is forced into Suspend- to-RAM mode to avoid a total system power failure. Connect an external power supply (such as the AC adapter) or install a charged battery. See “Using the pen” on page 32 and “Using the battery” on page 44.

• The computer may be at the critical thermal limit. To avoid damage to heat-sensitive components, the computer enters Suspend-toRAM mode when the computer operates above 60° C. Operation automatically resumes when the computer cools to below 60° C. Move the computer to a cooler location.

level in the battery has reached a critical level. Plug the computer into an AC/DC power source or install a charged battery.

• The system has encountered a fault and is preventing normal operation. Contact your local help desk.

charge level in the battery is at a minimum warning level. Plug the computer into an AC/DC power source or install a charged battery.

iX104C3 User’s Handbook 75

ix104.book Page 76 Tuesday, August 29, 2006 10:30 AM

Appendix A. Troubleshooting

Table 8 Troubleshooting (continued)

Problem Possible cause and solution

Display screen is blank or difficult to read.

Cursor is not tracking the pen. Calibrate the pen. See “Calibrating the digitizer” on page 71.

Computer is not responding to the pen. Connect an external USB keyboard to the computer. If the computer

Headphone or speaker volume is too low.

• Confirm that the computer is on (the Power icon is displayed continuously in the Status area).

• The brightness may be set too low, causing the screen to appear too dark. To change system brightness, press the Fn and Start keys to open the Xplore menu and adjust the brightness. (See page 26.)

• An external monitor may be selected. Press the Fn and P1 keys to select the computer display screen. (See page 26.)

• The video time-out may have expired. Tap the display screen to reactivate the display. Note: This is a normal, power-saving feature.

• If the Status light is blinking red, the computer is in Suspend-to-RAM mode because the temperature is below -20° C or above 60° C. When the temperature returns to a safe operating range, the display screen automatically comes back on. If possible, move the computer to a warmer or cooler location.

• If the Status light is continually yellow, the computer is in Suspend or Hibernate mode. Press the Power On/Off key to resume.

does not respond to the external keyboard, the application or operating system may have been corrupted. Press the Reset key. (See page 28.) If the system responds to a keyboard but not to the pen, contact your local help desk or reseller for further assistance.

• The volume may be in Mute mode or set too low. Follow the instructions in “Adjusting headphone or speaker volume” on page 42.

• Make sure the volume control in your audio software is set to an audible level.

An external device is not working with the computer.

The device may need to be enabled in the computer’s configuration program (BIOS Setup). Contact your local help desk or reseller.

76 iX104C3 User’s Handbook

ix104.book Page 77 Tuesday, August 29, 2006 10:30 AM

B Using BIOS and AOS Functions

Note: Each button has its own blue-light LED. No matter which button you press, every blue-light LED is on for about 3 seconds, then off. When in Shifted mode, all blue-light LEDs flicker.

This appendix explains how to use the application and navigation buttons with the Basic Input-Output System (BIOS) program and the Advanced Operating System (AOS) Options menu.

Note: These functions are typically for use only by your system administrator or by authorized service technicians.

Table 9 Using BIOS and AOS functions

In Shifted Mode

Button BIOS Key Function BIOS Key Function

F1 F1 continues message. Up Arrow Navigate up through Multi Boot

options and BIOS menus.

F2 Start the BIOS program: When the

computer is booting, press the P2 button and follow the instructions that appear on the screen.

F8 Prompt Windows to select Safe

mode.

F11 (Lock Fn)

F12 Enter Multi Boot mode. F4 Change a BIOS setup value.

• Press for less than one second for F11 function.

• Press longer to enable Shifted mode.

Down Arrow Navigate down through Multi

Boot options and BIOS menus.

Right Arrow Navigate to the right.

Release Function

Press once to exit Shifted mode.

Ctrl+Alt+Del Reboot. Enter Enter.

iX104C3 User’s Handbook 77

ix104.book Page 78 Tuesday, August 29, 2006 10:30 AM

Appendix B. Using BIOS and AOS Functions

Disabling the Auto Power feature

When Auto Power is enabled, the tablet automatically turns on if you dock it and the following conditions exist:

■ The tablet is off or in Hibernation or Standby mode.

■ The dock or the tablet is connected to an external power source

(including power applied when a vehicle’s ignition is started).

Note: When the tablet is in the docking station, it will shut down or go into Hibernation or Standby mode the same as it does when not in the docking station.

If you dock the tablet and the tablet is off and no power is present, the tablet turns on as soon as power is applied.

To disable the Auto Power feature:

1. When the computer is booting, press the P2 button to access the

BIOS Setup Utility.

2. Select the Advanced tab.

3. Disable the Dock with Auto Power On option.

Enabling automatic LCD backlight control

When the LCD backlight control is in manual mode, the ambient light sensor is disabled and the computer does not automatically control the screen brightness.

Follow these steps to enable automatic LCD backlight control:

1. When the computer is booting, press the P2 button to start the

BIOS Setup Utility.

2. Select the Main tab.

3. In the LCD Backlight Control drop-down list, select Automatic.

4. Click OK.

78 iX104C3 User’s Handbook

ix104.book Page 79 Tuesday, August 29, 2006 10:30 AM

C Glossary

Adapter. A device that provides an interface between two dissimilar electronic devices. For example, the AC adapter modifies the power from a wall outlet for use by the computer.

Advanced Power Management (APM). A facility consisting of one or more layers of software that support power management. The APM software interface enables applications, operating systems, device drivers, and the APM BIOS to work together to reduce power consumption.

Alternating Current (AC). Electric current that reverses its direction of flow at regular intervals.

Analog signal. A signal with characteristics such as amplitude and frequency that vary in proportion to (are an analog of) the value to be transmitted. Voice communications are analog signals.

Application. A program that performs specific tasks on your computer, such as word processing or creating spreadsheets.

BIOS. Programs that contain such basic hardware operations as an interaction with diskette drives, hard disk drives, and the memory.

Board. A circuit board. An internal card containing electronic components called chips, which perform a specific function or increase the capabilities of the system.

Boot. To load a program or operating system into system memory.

Bits Per Second (BPS). In serial transmission, the instantaneous bit

speed with which a device or channel transmits a character.

Card. Synonym for board; see board.

Compact Disk-Read Only Memory (CD-ROM). Stores data on

metal-plated plastic discs.

iX104C3 User’s Handbook 79

ix104.book Page 80 Tuesday, August 29, 2006 10:30 AM

Appendix C. Glossary

Compatibility. 1.The ability of one computer to accept and process data in the same method as another computer without modifying the data or the media upon which it is being transferred. 2.The ability of one device to connect or communicate with another system or component.

Configuration. The specific combination of hardware components of the computer, and their operating status. The configuration of your computer includes pre-defined memory, type and speed of microprocessor, type of and size of hard disk drive, etc.

Default. The preset parameter value automatically selected by the computer when you or a program do not provide instructions.

Device driver. A program that controls communication between a specific peripheral device and the computer.

Disk drive. The physical device that enables the computer to read from, and write to, a disk.

Display. An image-producing device used to view computer output.

Double-click. To press and release the pen/stylus twice within a time

frame you define, without moving the pointer off the choice.

Driver. Software that allows an application program to communicate with a particular piece of equipment, such as a printer or the pen/ stylus.

Hard disk drive (HDD). A sealed mass storage device used for storage and fast retrieval of programs and data. The factory installs this disk and only a trained engineer can remove it for servicing.

Hardware. The physical electronic and mechanical components of a computer system. typically, the computer itself, CPU, memory, etc.

Hertz. A unit of wave frequency that equals one cycle per second.

Interface. 1. Hardware and/or software components used specifically

to connect one computer or device to another. 2. To physically connect one system or device to another to exchange information. 3.

80 iX104C3 User’s Handbook

ix104.book Page 81 Tuesday, August 29, 2006 10:30 AM

Appendix C. Glossary

The point of contact between user, the computer, and the program (for example, the pen/stylus or a menu).

Kilobyte (KB). A unit of 1024 bytes measuring storage space, typically in memory or on storage media such as a diskette or hard disk drive.

Local area network (LAN). Assembly of separate computers into an integrated network that connects the various computers together and to common devices such as printers and fax machines.

Light Emitting Diode (LED). A semiconductor device that emits light when a current is applied.

Liquid Crystal Display (LCD). liquid crystal sealed between two sheets of glass coated with transparent conducting material. Applying a voltage between the glass sheets darkens the liquid crystal to provide contrast to lighted portions of the display.

iX104C

Megabyte (MB). A unit of data storage equal to 1024 kilobytes.

Megahertz (MHz). a unit of wave frequency that equals 1 million

cycles per second.

Modem. A device that connects your computer to a telephone line, allowing it to communicate with another computer at another location.

PC Card. A plug-in accessory card that conforms to the PCMCIA standard.

Pen. See stylus.

Peripheral device. An input/output device that is external to the

central processor and/or main memory such as a printer or scanner.

Pixel. Picture elements (tiny dots) that compose a screen image.

Port. The electrical connection through which the computer sends

and receives data to and from devices or other computers.

Program. A set of instructions a computer can execute to tell the system what to do and how to do it.

User’s Handbook 81

ix104.book Page 82 Tuesday, August 29, 2006 10:30 AM

Appendix C. Glossary

Random Access Memory (RAM). A hardware component of your computer that temporarily stores active program code and data.

Reset. The act of reloading the operating system.

Resolution. The number of pixels displayed on the screen. A higher

resolution provides greater clarity and allows more information to be displayed on the screen at once.

Restart. Resetting a computer without turning it off (also called warm boot or soft reset).

Resume. The act of returning the computer to an active, operational state.

Read Only Memory (ROM). The portion of your computer’s memory that contains permanent instructions, and which cannot be modified.

Status Indicator (LED). a light above the LCD screen which indicates the current status of a particular device or hardware component.

Stylus. A writing instrument. For pen computers, the stylus is used to interface with the LCD and digitizer.

Subscriber Identity Module (SIM). A smart card inside a GSM (Global System for Mobile communications) cellular device that encrypts voice and data transmissions and stores data about the specific user so that the user can be identified and athenticated by the network supplying the phone service. A SIM can be moved from one device to another and/or different SIMS can be inserted into any GSM radio.

Suspend mode. A power conservation mode in which electrical current is removed from most components of the computer.

Universal Serial Bus. A serial interface that enables communication between devices and the computer.

82 iX104C3 User’s Handbook

ix104.book Page 83 Tuesday, August 29, 2006 10:30 AM

D Hardware Specifications

Physical

Dimensions 11.20” x 8.25” x 1.6” (WxHxD)

283.9mm x 209.3mm x 40.8mm

Weight 4.95 lbs. (2.50 kgs)*

Processing

CPU

Chip set Intel 855GME-400 MHz

Processor speed 1.2 GHz*

* Varies according to your computer’s configuration.

Memory/storage

Main RAM • 256MB DDR RAM (on-board/PC3200)

L1 Cache (CPU) 32KB on-die

L2 Cache 2MB on-die

BIOS ROM 8Mbit (FWH)

Hard Disk Drive 2.5” HDD shock mounted

BIOS ROM 8Mbit (FWH)

* Varies according to your computer’s configuration.

Pentium® M 753 processor – Ultra Low

Intel Voltage (5 W)*

• 144-pin SODIMM modules

512MB and 1GB modules available

Minimum 40GB IDE HDD* Ultra DMA 100, 5400 RPM

80GB 2.5” shock mounted HDD available

iX104C3 User’s Handbook 83

ix104.book Page 84 Tuesday, August 29, 2006 10:30 AM

Appendix D. Hardware Specifications

Display

Display • Color LCD

VRAM Intel 855GME chipset with 64 MB shared memory

• Active Digital Sensor and Pen (iX104C

Ta b l et PC )

and

Resistive Touch Panel (iX104C

Dual Mode)

• 32-bit True color

• 10.4” TFT XGA (1024x768), 16M colors

• Brightness: 16 levels

• Viewing Angle:

• Horizontal: 30 degrees (min.)

• Vertical: 10 degrees (min.)

• Contrast Ratio: Typ. 250:1, Min 100:1

using Unified Memory Architecture (UMA) delivers low-power, high-performance 3D/2D graphics, video, and display capabilities. Dynamic Video Memory Technology (DVMT) dynamically responds to application requirements and efficiently allocates the proper amount of memory (64 MB maximum) for optimal graphics and system performance.

84 iX104C3 User’s Handbook

ix104.book Page 85 Tuesday, August 29, 2006 10:30 AM

Appendix D. Hardware Specifications

Interface

Wireless Radio Bays • One user-accessible Type 1 or Type II PC

Card slot (PCMCIA Cardbus version 3.0)

• One Internal mini-PCI slot

• One internal OEM radio bay

Integrated Interfaces • DC-in

• USB (2) 2.0

• Microphone Jack

• Headset Jack

•LAN (RJ-45)

• 15-pin D-SUB connector for external VGA monitor

KeyPad / User Controls • Application buttons with primary and

secondary functions

• Power On/Off/Suspend/Resume button

• Emergency Shutoff/Reset button

iX104C

Audio • AC 97 Codec

• On-board microphone with noise cancellation

• On-board integrated stereo speakers (1W each)

Status Indicators Power, Charge/DC-in, Warning

User’s Handbook 85

ix104.book Page 86 Tuesday, August 29, 2006 10:30 AM

Appendix D. Hardware Specifications

Power

Main Battery • 6 cell

Optional Spare Battery • 8 cell

• Removable Lithium Ion

• 7.4V @ 5700mAh (41Whr)

• Warm-swappable

• Recharge Time: 2.5 hours (90%)

• Life: Up to 4 hours. (Battery life is dependent on operating system, power management, and applications in use.)

• Suspend Life: Min. 4 days

• Removable Lithium Ion

• 7.4V @ 7600mAh (55Wh)

• Warm-swappable

• Recharge Time: 3.5 hours

• Suspend Life: Min. 5 days

• Off State: Approximately 30 days

Bridge Battery • 6-cell Li Ion, 45mAh

• Life: (with Suspend-to-RAM on bridge battery only): 3 to 5 minutes from full charge

AC Adapter Auto-sensing 100-240V, supplying 19 VDC, with

a current of 3.75 A

Environmental

Temperature • Operating:

Humidity 0% to 95% non-condensing

-4

to 140o F (-20o to 60o C)

• Storage:

to 167o F (-40o to 75o C)

-40

86 iX104C3 User’s Handbook

ix104.book Page 87 Tuesday, August 29, 2006 10:30 AM

Appendix D. Hardware Specifications

Environmental (continued)

Shock/Drop Four-foot drop to concrete, all surfaces, edges

and corners

Vibration 0.04g^2/Hz, 20 Hz - 1000 Hz

-6dB/octive 1000 Hz - 2000 Hz

Enclosure Class Blowing rain:

4”/hr, 40 mph wind and MIL-STD-810F Method 506.4 Procedure 1

Drip: 7 gal/ft2/hr MIL-STD-810F Method 506.4 Procedure III

Sand and dust: Particle size < 149 µm, 10 + density 1.5 m/s to 8.9 m/s wind speed MIL-STD-810F Method 510.4 Procedure 1

7 g/m3 particle

iX104C

Salt Fog: 5% saline for 48 hr (12 hr wet, 12 hr dry, 2 cycles) MIL-STD-810F Method 509.4

Contamination by fluids: Detergents, brake fluid, aromatic hydrocarbons MIL-STD-810F Method 504

Solar radiation: 1120 W/m2 (355 Btu/ft2/hr) UVB @ 50° C, 7x24 hr cycles MIL-STD-810F Method 505.4

User’s Handbook 87

ix104.book Page 88 Tuesday, August 29, 2006 10:30 AM

Appendix D. Hardware Specifications

Agency approvals

Emissions • EN55022 (CISPR22) Class B

Immunity • EN55024

Safety

• FCC 15, Class B

•DOC Class B

•CE MARK

• FCC 15, Class B

•DOC Class B

• UL and CUL Listed, UL 1950, 3

• TuV T-Mark, EN60950

• CSA and UL Listed, UL 1604

Edition

Operating system

Operating Systems Microsoft Windows XP Professional Tablet PC

2005 Edition

88 iX104C3 User’s Handbook

ix104.book Page 89 Tuesday, August 29, 2006 10:30 AM

E Agency Notices

FCC notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Modifications not expressly approved by Xplore Technologies could void this user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

RF exposure

Tests for SAR are conducted using standard operating positions specified by the FCC with the tablet PC transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the tablet PC while operating can be well below the maximum value. This is because the tablet PC is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

iX104C3 User’s Handbook 89

ix104.book Page 90 Tuesday, August 29, 2006 10:30 AM

Appendix E. Agency Notices

Before a tablet PC model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., worn on the body) as required by the FCC for each model. (Body-worn measurements may differ among tablet PC models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various tablet PCs and at various positions, they all meet the government requirement for safe exposure.

This device was evaluated and shown to comply with FCC SAR guidelines. Avoid covering or holding antennas when transmitting. Antenna locations are shown in the following figure.

antenna locations

Health and Safety Information

Exposure to Radio Frequency (RF) Signals

Your wireless tablet PC is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies:

■ American National Standards Institute (ANSI) IEEE. C95.1-1992

■ National Council on Radiation Protection and Measurement (NCRP).

Report 86. 1986

90 iX104C3 User’s Handbook

ix104.book Page 91 Tuesday, August 29, 2006 10:30 AM

Appendix E. Agency Notices

■ International Commission on Non-Ionizing Radiation Protection

(ICNIRP) 1996

■ Ministry of Health (Canada), Safety Code 6. The standards include a

substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless mobile tablet PCs employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg .

Note: In the U.S. and Canada, the SAR limit for mobile tablet PCs used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.

DOC (Industry Canada Notices)

Notice to Users of Radio and Television

This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment Regulations

CET appareil numérique de la class B respecte toutes les exigence du Réglement sur le matérial brouilleur du Canada.

iX104C

Notice to Users of the Canadian Telephone Network

Notice: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

Before connecting this equipment to a telephone line the user should ensure that it is permissible to connect this equipment to the local telecommunication facilities. The user should be aware that compliance with the certification standards does not prevent service degradation in some situations.

Repairs to telecommunication equipment should be made by a Canadian authorized maintenance facility. Any repairs or alterations not expressly approved by Xplore or any equipment failures may give the telecommunication company cause to request the user to disconnect the equipment from the telephone line.

User’s Handbook 91

ix104.book Page 92 Tuesday, August 29, 2006 10:30 AM

Appendix E. Agency Notices

Notice: The Ringer Equivalence Number (REN) for this terminal equipment is

0.0. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

UL Notice

This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 19 VDC, with a current of 3.75 A. AC Adapter output polarity:

For authorized repair technicians only

WARNING

For continued protection against risk of fire, replace only with the same type and rating fuse.

WARNING

Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only with the same equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instruction.

System disposal

In the event of system disposal, observe the following information regarding proper procedures in the State of Vermont.

The liquid crystal display (LCD) lamps used in this system contain mercury. In the event of system disposal, be sure to follow local guidelines.

92 iX104C3 User’s Handbook

ix104.book Page 93 Tuesday, August 29, 2006 10:30 AM

F Configuring Dual Mode Tablet Digitizer Input

Methods

This appendix explains how to use the BIOS Setup Utility and the Panel Control Center to configure the digitizer input settings.

■ Use the BIOS Setup Utility to set the default input method.

■ Use the Panel Control Center to set controls for temporary

changes to input methods for single sessions.

The section “Summary: Dual Mode digitizer input method settings” on page 98 provides an overview of settings to make in the BIOS Setup Utility and the Panel Control Center to achieve various input method configurations.

The section “Sample implementations” on page 103 explains how to set up two sample configurations.

iX104C

Using the BIOS Setup Utility to set input method defaults

Starting the BIOS Setup Utility

When the computer is starting up, press the P2 key.

The BIOS Setup Utility window opens.

Dual Mode tablet

iX104C3 User’s Handbook 93

ix104.book Page 94 Tuesday, August 29, 2006 10:30 AM

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

Using the BIOS Setup Utility to set input method defaults

Selecting the digitizer input method

1. Select the Startup Configuration tab.

Digitizer Selection field

2. In the Digitizer Selection field, select the value from the

drop-down list as follows:

Value Description

Auto Enables automatic sensing (Auto Sense) of inputs

Touch Only Enables touch input only. Active digitizer, pen

Digitizer Only Enables inputs from the active pen only. Touch

from touch and from the active pen. Note: This is the default setting.

inputs, and Auto Sense are all disabled.

input and Auto Sense are disabled.

94 iX104C3 User’s Handbook

ix104.book Page 95 Tuesday, August 29, 2006 10:30 AM

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

Using the BIOS Setup Utility to set input method defaults

Setting digitizer input method security

Follow these steps to specify whether the tablet user can change the digitizer input method settings:

1. In the BIOS Setup Utility, select the Password tab.

2. In the Password Setting field, select a value from the drop-down

list as follows:

Value Description Notes

No passwords set Anyone can change the

Supervisor password set only

User password set The user cannot change

digitizer input settings.

A supervisor password must be entered in order to change the input settings.

the input settings.

3. Click OK.

4. Reboot the computer.

This setting is not controlled by Windows User groups.

The supervisor password must be entered before the BIOS Setup Utility will open.

Only the supervisor can change the input settings.

iX104C

User’s Handbook 95

ix104.book Page 96 Tuesday, August 29, 2006 10:30 AM

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

Using the Panel Control Center to configure controls for temporary changes to the input method

The Panel Control Center enables you to set controls for temporary, session-based changes to the Dual Mode tablet input method.

Notes:

Administrator rights are not required to make temporary settings.

When the tablet is restarted, the temporary settings are lost and the default values set in the BIOS Setup Utility are restored.

In the Windows taskbar, click the Panel Control Center icon.

Panel Control Center icon

2. Click the Configure button.

3. Click the Change button next to the P key for the function you

want to change.

96 iX104C3 User’s Handbook

ix104.book Page 97 Tuesday, August 29, 2006 10:30 AM

Using the Panel Control Center to configure controls for temporary changes to the input method

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

4. From the drop-down list, select Digitizer Selection or Touch Panel

Toggle

iX104C

Value Description

Digitizer Selection If the digitizer input method is set to Auto in the

BIOS Setup Utility, toggles from Auto to Digitizer Only to Touch Only.

Touch Panel Toggle If the digitizer input method is set to Auto or Touch

Only in the BIOS Setup Utility, temporarily disables touch only.

User’s Handbook 97

ix104.book Page 98 Tuesday, August 29, 2006 10:30 AM

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

Summary: Dual Mode digitizer input method settings

The following tables show the relationships of the BIOS Setup Utility and Panel Control Center settings.

Table 10 Settings: Digitizer Only

BIOS Setup Utility Digitizer Selection value

Digitizer Only Digitizer Selection “Digitizer Only” Because Digitizer Only is selected,

Panel Control Center Pre-defined Function value

On-screen description when key is pressed Notes

no other input is possible. Digitizer is functional.

98 iX104C3 User’s Handbook

ix104.book Page 99 Tuesday, August 29, 2006 10:30 AM

Table 11 Settings: Digitizer Only with Touch Screen disabled

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

Summary: Dual Mode digitizer input method settings

BIOS Setup Utility Digitizer Selection value

Digitizer Only Touch Screen Toggle “Digitizer Only” Touch screen is disabled.

Panel Control Center Pre-defined Function value

On-screen description when key is pressed Notes

iX104C

User’s Handbook 99

ix104.book Page 100 Tuesday, August 29, 2006 10:30 AM

Appendix F. Configuring Dual Mode Tablet Digitizer Input Methods

Summary: Dual Mode digitizer input method settings

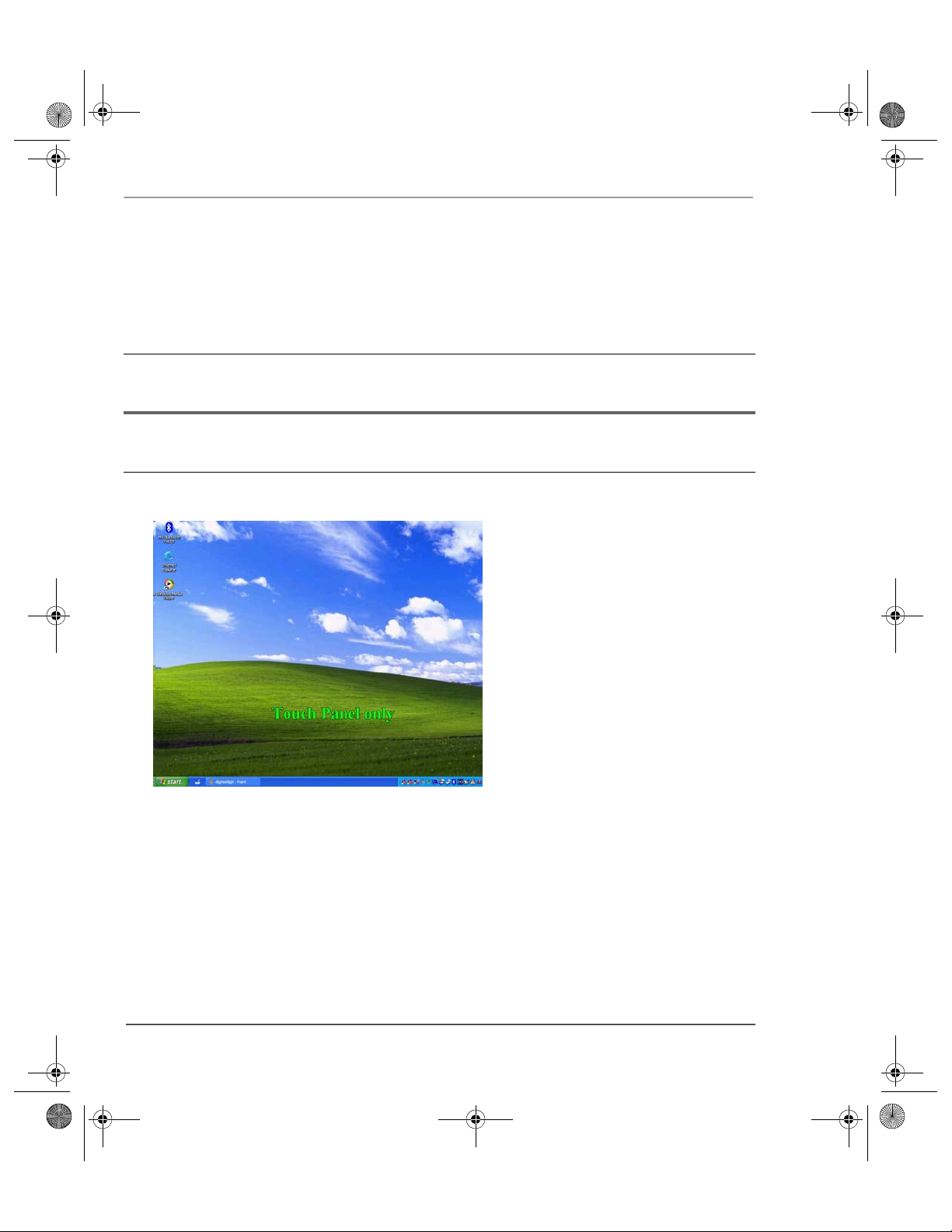

Table 12 Settings: Touch Panel only

BIOS Setup Utility Digitizer Selection value

Touch Only Digitizer Selection “Touch Panel only” Because Touch Only is selected, not

Panel Control Center Pre-defined Function value

On-screen description when key is pressed Notes

other input is possible. Touch is functional.

100 iX104C3 User’s Handbook
