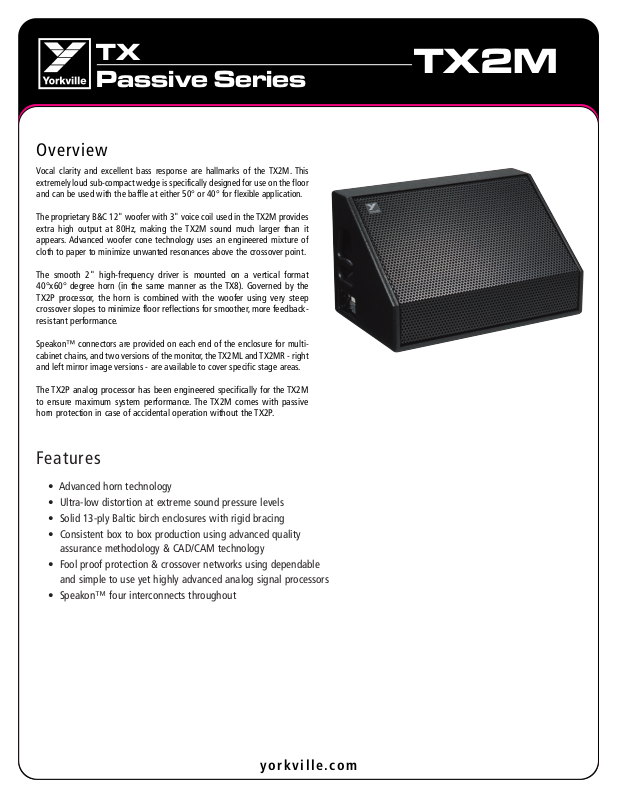

Yorkville TX2M Parts list

TX
Passive Series

Overview

Vocal clarity and excellent bass response are hallmarks of the TX2M. This
extremely loud sub-compact wedge is specifically designed for use on the floor
and can be used with the baffle at either 50° or 40° for flexible application.

The proprietary B&C 12" woofer with 3" voice coil used in the TX2M provides
extra high output at 80Hz, making the TX2M sound much larger than it
appears. Advanced woofer cone technology uses an engineered mixture of
cloth to paper to minimize unwanted resonances above the crossover point.

The smooth 2" high-frequency driver is mounted on a vertical format
40°x60° degree horn (in the same manner as the TX8). Governed by the
TX2P processor, the horn is combined with the woofer using very steep
crossover slopes to minimize floor reflections for smoother, more feedback­resistant performance.

Speakon™ connectors are provided on each end of the enclosure for multi­cabinet chains, and two versions of the monitor, the TX2ML and TX2MR - right
and left mirror image versions - are available to cover specific stage areas.

TX2M

The TX2P analog processor has been engineered specifically for the TX2M
to ensure maximum system performance. The TX2M comes with passive
horn protection in case of accidental operation without the TX2P.

Features

anced horn technology

• Adv

• Ultra-low distortion at extreme sound pressure levels

• Solid 13-ply Baltic birch enclosures with rigid bracing

• Consistent box to box production using advanced quality
assurance methodology & CAD/CAM technology

ool proof protection & crossover networks using dependable

• F
and simple to use yet highly advanced analog signal processors

• Speak

on™ four interconnects throughout

yorkville.com

TX
Passive Series

Specifications

System Type 2-Way, Angled Floor Monitor

Active or Passive Passive

Biamp Operation Only Yes

Sensitivity (dB @1Watt/1m) HF:110, LF:99

Max SPL (dB) 125

Frequency Response (Hz +/- 3dB) 60 - 19k

HF Driver(s) 2 inch ceramic with titanium diaphragm

HF Program Power (Watts) 120

HF Impedance (Ohms) 8

HF Horn Custom waveguide

HF Dispersion (°H x °V) 40 x 60

LF Driver(s) 1 x 12 inch cast frame

LF Program Power(Watts) 350

LF Impedance (Ohms) 8

Total Power (Watts) 470

Inputs - Speakon 4-pin 2

Feet Yes

Bar Handles 2 (end mounted)

Enclosure Materials

Grille 16 gauge perforated metal

Covering / Finish Black Ultrathane Paint

Processor (optional) TX2P (TX3P if used full range with subwoofer)

Dimensions (D

Dimensions (DWH xbackW, cm) 39.6 x 64 x 37.8

Weight (lbs/kg) 58.6 / 26.6

WH xbackW

, inches) 15.6 x 25.2 x 14.9

TX2M

18mm / .71 inch - 13-ply baltic birch plywood

Specifications subject to change without notice
