NX
Powered Series

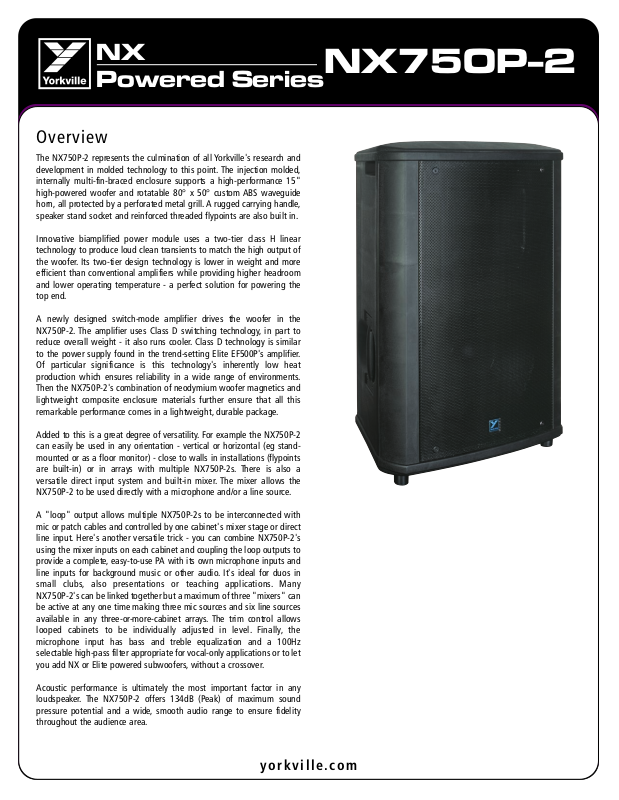

Overview
The NX750P-2 represents the culmination of all Yorkville's research and
development in molded technology to this point. The injection molded,
internally multi-fin-braced enclosure supports a high-performance 15"
high-powered woofer and rotatable 80° x 50° custom ABS waveguide
horn, all protected by a perforated metal grill. A rugged carrying handle,
speaker stand socket and reinforced threaded flypoints are also built in.
Innovative biamplified power module uses a two-tier class H linear
technology to produce loud clean transients to match the high output of
the woofer. Its two-tier design technology is lower in weight and more
efficient than conventional amplifiers while providing higher headroom
and lower operating temperature - a perfect solution for powering the
top end.
A newly designed switch-mode amplifier drives the woofer in the
NX750P-2. The amplifier uses Class D switching technology, in part to
reduce overall weight - it also runs cooler. Class D technology is similar
to the power supply found in the trend-setting Elite EF500P's amplifier.
Of particular significance is this technology's inherently low heat
production which ensures reliability in a wide range of environments.
Then the NX750P-2's combination of neodymium woofer magnetics and
lightweight composite enclosure materials further ensure that all this
remarkable performance comes in a lightweight, durable package.
NX750P-2
Added to this is a great degree of versatility. For example the NX750P-2
can easily be used in any orientation - vertical or horizontal (eg standmounted or as a floor monitor) - close to walls in installations (flypoints
are built-in) or in arrays with multiple NX750P-2s. There is also a
versatile direct input system and built-in mixer. The mixer allows the
NX750P-2 to be used directly with a microphone and/or a line source.
A "loop" output allows multiple NX750P-2s to be interconnected with
mic or patch cables and controlled by one cabinet's mixer stage or direct
line input. Here's another versatile trick - you can combine NX750P-2's
using the mixer inputs on each cabinet and coupling the loop outputs to
easy-to-use P
provide a complete
line inputs for background music or other audio. It's ideal for duos in
small clubs, also presentations or teaching applications. Many
NX750P-2's can be link
be active at any one time making three mic sources and six line sources
available in any three-or-more-cabinet arrays. The trim control allows
looped cabinets to be individually adjusted in level. Finally, the
microphone input has bass and treble equalization and a 100Hz
selectable high-pass filter appropriate for vocal-only applications or to let
you add NX or Elite powered subwoofers, without a crossover.
Acoustic performance is ultimately the most important factor in any
loudspeak
pressure potential and a wide
throughout the audience area.
er
,
ed together but a maximum of three "mixers" can
. The NX750P-2 offers 134dB (Peak) of maximum sound
A with its own microphone inputs and
smooth audio range to ensure fidelity
,
yorkville.com
NX
Powered Series
Features
• Integrated 1600 Watt Amplifier (Peak - 750 Watts Program)
• Max SPL 133dB Peak (127dB Continuous)
• Ultra-light injection molded Polypropylene construction
• Dual purpose full range and wedge monitor format enclosure
• Ultra-clear reproduction throughout bandwidth
• Lightweight, high efficiency, high tech Bi-amped power module
• Proven TX style processing and component protection
• +6dB/-infinity input trim control
(for individual cabinet level adjustment)
• XLR and TRS inputs / outputs for easy connection and looping
• Multi-input source mixer for direct inputs
• Direct microphone input with level control
• Two-way overall EQ controls
• High quality 1.5" High Frequency driver
• Rotatable 80° x 50° horn
• Next generation woofer / driver / horn technology
• Integrated flying hardware (1/4-20 threaded holes)
• Tough, full length metal grille
• Recessed Mixer panel
• Made in Canada
NX750P-2
yorkville.com
NX750P Rear Panel
