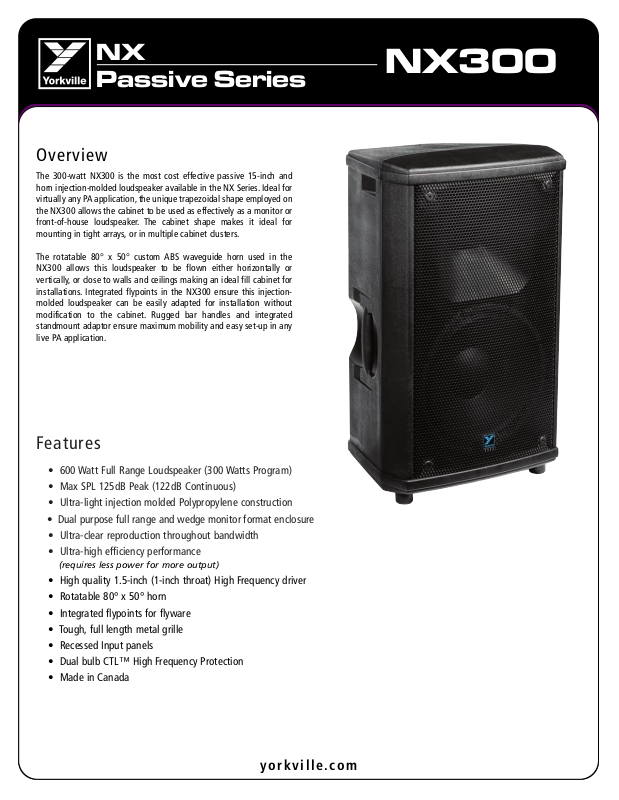

NX
Passive Series
Overview
The 300-watt NX300 is the most cost effective passive 15-inch and
horn injection-molded loudspeaker available in the NX Series. Ideal for
virtually any PA application, the unique trapezoidal shape employed on
the NX300 allows the cabinet to be used as effectively as a monitor or
front-of-house loudspeaker. The cabinet shape makes it ideal for
mounting in tight arrays, or in multiple cabinet clusters.
The rotatable 80° x 50° custom ABS waveguide horn used in the
NX300 allows this loudspeak
vertically, or close to walls and ceilings making an ideal fill cabinet for
installations. Integrated flypoints in the NX300 ensure this injectionmolded loudspeaker can be easily adapted for installation without
modification to the cabinet. Rugged bar handles and integrated
standmount adaptor ensure maximum mobility and easy set-up in any
live PA application.
er to be flown either horizontally or
NX300
Features
• 600 Watt Full Range Loudspeaker (300 Watts Program)
• Max SPL 125dB Peak (122dB Continuous)
• Ultra-light injection molded Polypropylene construction
• Dual purpose full range and wedge monitor format enclosure
• Ultra-clear reproduction throughout bandwidth
• Ultra-high efficiency performance
(requires less power for more output)
• High quality 1.5-inch (1-inch throat) High Frequency driver
• Rotatable 80° x 50° horn
• Integrated flypoints for flyware
full length metal grille
ough,
T
•
• Recessed Input panels
• Dual bulb CTL™ High Frequency Protection
• Made in Canada
yorkville.com
NX
Passive Series
Specifications
System Type 2-Way
Active or Passive Passive
Program Power (Watts) 300 Watts (600 Watts Peak)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 97
Max SPL (dB) 125dB Peak (122dB Continuous)
Frequency Response (Hz +/- 3dB) 60 - 18k
Crossover Frequency (Hz) 1500
Driver Configuration 15 inch / 1.5 inch
HF Driver(s) 1 inch Throat, Neo Magnet,
HF Program Power (Watts) 25
HF Impedance (Ohms) 8
HF Dispersion (°H x °V) 80 x 50 Rotatable
HF Protection Dual Bulb CTL™
LF Driver(s) 15 inch Ceramic Magnet, 2 inch voicecoil
LF Impedance (Ohms) 8
Inputs - 1/4" J
Inputs - Speakon 4-pin 2
Feet Yes
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardw
Bar Handles 1 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials
Grille Perforated Metal
Other Details Side recesses for ease of lifting
Dimensions (DWH xbackW, inches) 15 x 22 x 32 x 9.5
Dimensions (D
Weight (lbs/kg) 49.8 / 22.6
acks
are
WH xbackW
, cm) 38 x 56 x 84 x 24
NX300
1.5 inch Aluminum Diaphragm
2
NX Flyware / Eyebolts
Injection molded P
olypropylene
Specifications subject to change without notice
