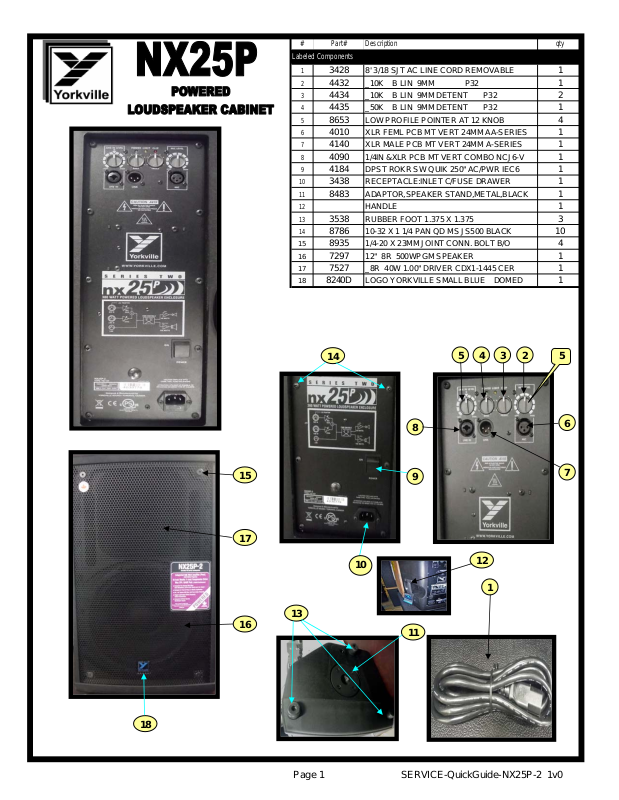

# Part# Description qty
Labeled Components
1 3428 8' 3/18 SJT AC LINE CORD REMOVABLE 1
2 4432 _10K B LIN 9MM P32 1
3 4434 _10K B LIN 9MM DETENT P32 2
4 4435 _50K B LIN 9MM DETENT P32 1
5 8653 LOW PROFILE POINTER AT 12 KNOB 4
6 4010 XLR FEML PCB MT VERT 24MM AA-SERIES 1
7 4140 XLR MALE PCB MT VERT 24MM A-SERIES 1
8 4090 1/4IN &XLR PCB MT VERT COMBO NCJ6-V 1
9 4184 DPST ROKR SW QUIK 250" AC/PWR IEC6 1
10 3438 RECEPTACLE:INLET C/FUSE DRAWER 1
11 8483 ADAPTOR,SPEAKER STAND,METAL,BLACK 1
12 HANDLE 1
13 3538 RUBBER FOOT 1.375 X 1.375 3
14 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 10
15 8935 1/4-20 X 23MM JOINT CONN. BOLT B/O 4
16 7297 12" 8R 500WPGM SPEAKER 1
17 7527 _8R 40W 1.00" DRIVER CDX1-1445 CER 1
18 8240D LOGO YORKVILLE SMALL BLUE DOMED 1
15
17
16
13
14
10
11
25 4 3
8
9
5
6
7
12
1
18
Page 1 SERVICE-QuickGuide-NX25P-2 1v0
