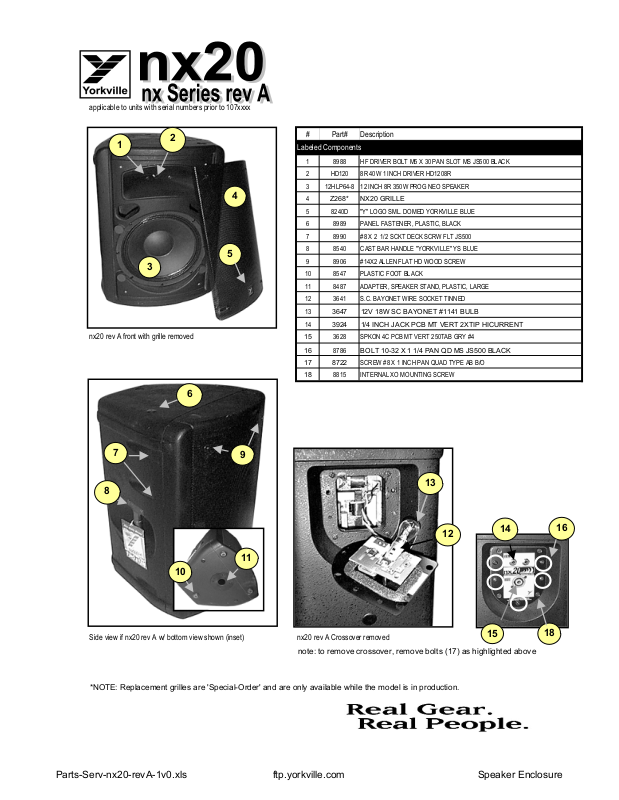

Yorkville NX20 User's Manual
applicable to units with serial numbers prior to 107xxxx
1 2
4
5
3
nx20 rev A front with grille removed
6
7 |
9 |
8
11
10
Side view if nx20 rev A w/ bottom view shown (inset)
# |
Part# |
Description |
Labeled Components |
||
|
|
|
1 |
8988 |
HF DRIVER BOLT M5 X 30 PAN SLOT MS JS500 BLACK |
2 |
HD120 |
8R 40W 1 INCH DRIVER HD1208R |
3 |
12HLP64-8 |
12 INCH 8R 350W PROG NEO SPEAKER |
4 |
Z268* |
NX20 GRILLE |
5 |
8240D |
"Y" LOGO SML. DOMED YORKVILLE BLUE |
6 |
8989 |
PANEL FASTENER, PLASTIC, BLACK |
7 |
8990 |
#8 X 2 1/2 SCKT DECK SCRW FLT JS500 |
8 |
8540 |
CAST BAR HANDLE "YORKVILLE" YS BLUE |
9 |
8906 |
#14X2 ALLEN FLAT HD WOOD SCREW |
10 |
8547 |
PLASTIC FOOT BLACK |
11 |
8487 |
ADAPTER, SPEAKER STAND, PLASTIC, LARGE |
12 |
3641 |
S.C. BAYONET WIRE SOCKET TINNED |
13 |
3647 |
12V 18W SC BAYONET #1141 BULB |
14 |
3924 |
1/4 INCH JACK PCB MT VERT 2XTIP HICURRENT |
15 |
3628 |
SPKON 4C PCB MT VERT 250TAB GRY #4 |
16 |
8786 |
BOLT 10-32 X 1 1/4 PAN QD MS JS500 BLACK |
17 |
8722 |
SCREW #8 X 1 INCH PAN QUAD TYPE AB B/O |
18 |
8815 |
INTERNAL XO MOUNTING SCREW |
13
12 |
14 |
16 |
|
|
nx20 rev A Crossover removed |
|
15 |
18 |
note: to remove crossover, remove bolts (17) as highlighted above |
|
||
*NOTE: Replacement grilles are 'Special-Order' and are only available while the model is in production.
Parts-Serv-nx20-revA-1v0.xls |
ftp.yorkville.com |
Speaker Enclosure |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
applicable to units from serial numbers 107xxxx |
|
|
|
||||
|
|
|
|
|
|
|
|
2 |
|
|
# |
Part# |
Description |
||
|
|
Labeled Components |
|||||
1 |
|
|
|
|
|
|
|
1 |
8987 |
HF DRIVER MT BOLT M5 X 25 PAN PHIL MS ZINC |
|||||
|
|
|
|
||||
|
|
|
|
2 |
HD120 |
8R 40W 1 INCH DRIVER HD1208R |
|
|
|
|
|
3 |
12HLP64-8 |
12 INCH 8R 350W PROG NEO SPEAKER |
|
4 |
|
|
4 |
Z268* |
NX20 GRILLE |
||
|
|
5 |
8240D |
"Y" LOGO SML. DOMED YORKVILLE BLUE |
|||
|
|
|
|
6 |
8726 |
FLYWARE BOLT 3/8-16X11/2 GRD5 FLAT SCKT HD PLAIN |
|
|
|
|
|
7 |
8990 |
#8 X 2 1/2 SCKT DECK SCRW FLT JS500 |
|
|
|
|
|
8 |
8540 |
CAST BAR HANDLE "YORKVILLE" YS BLUE |
|
5 |
|
|
9 |
8906 |
#14X2 ALLEN FLAT HD WOOD SCREW |
||
|
|
10 |
8545 |
RECESSED RUBBER BUMPER WITH WASHER |
|||
3 |
|
|
|||||
|
|
11 |
8487 |
ADAPTER, SPEAKER STAND, PLASTIC, LARGE |
|||
|
|
|
|
||||
|
|
|
|
12 |
3641 |
S.C. BAYONET WIRE SOCKET TINNED |
|
|
|
|
|
13 |
3647 |
12V 18W SC BAYONET #1141 BULB |
|
|
|
|
|
14 |
3924 |
1/4 INCH JACK PCB MT VERT 2XTIP HICURRENT |
|
|
|
|
|
15 |
3628 |
SPKON 4C PCB MT VERT 250TAB GRY #4 |
|
nx20 rev B front with grille removed |
|
|
|
||||
6 |
|
|
|
|
|
|
|
7 |
9 |
|
|
8 |
|
12 |
14 |
|
|
|
|
|
|
|
15 |
|
11 |
|
|
|
10 |
13 |
6 |
Side view if nx20 rev B w/ bottom view shown (inset) |
nx20 rev B Crossover removed |
|
|
*NOTE: Replacement grilles are 'Special-Order' and are only available while the model is in production.
Parts-Serv-nx20-revB-1v0.xls |
ftp.yorkville.com |
Speaker Enclosure |
